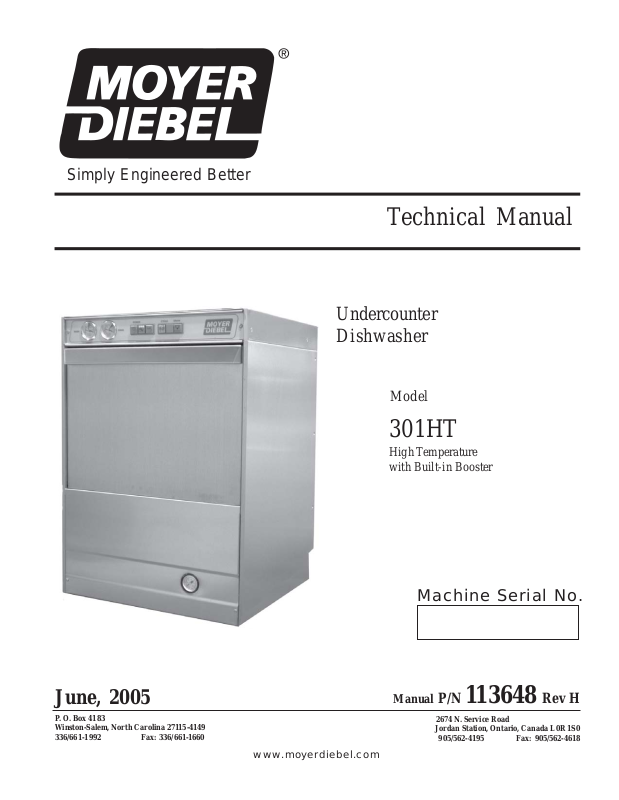

Page 1
Simply Engineered Better
Technical Manual
Undercounter
Dishwasher
Model
301HT
High Temperature
with Built-in Booster
June, 2005
P . O. Box 4183
Winston-Salem, North Carolina 27115-4149
336/661-1992 Fax: 336/661-1660
Machine Serial No.
Manual P/N 113648 Rev H
2674 N. Service Road
Jordan Station, Ontario, Canada L0R 1S0
905/562-4195 Fax: 905/562-4618
www.moyerdiebel.com
Page 2
Complete the information below for quick reference.
Model Number Serial Number
Voltage and Phase
Moyer Diebel Parts Supplier Phone
Moyer Diebel Service Agency Phone
Moyer Diebel Service:
Moyer Diebel (USA) Moyer Diebel Limited (Canada)
Phone: 1 (336) 661-1556 Phone: 1 (905) 562-4195
1 (800) 858-4477 1 (800) 263-5798
Fax: 1 (336) 661-1660 Fax: 1 (905) 562-4618
Note: When calling to order parts, be sure to have the model number, serial number,
voltage and phase of your machine.
AFTER S/N 45420
Machine Data Plate with
model & serial number
located on the lower left
side of the machine.
S/N 45368-45419
Machine Data Plate with
model & serial number
located on the lower right
side of the machine.
COPYRIGHT © 2005 by Moyer Diebel (USA). All Rights Reserved.
Page 3
REVISION RECORD
Revision Record
Revision Revised Serial Number Comments
Date Pages Effectivity
7/3/03 All —— First issue of manual and
replacement parts lists
10/2/03 2, 30-31 Inserted pressure reducing valve
information (107550).
10/14/03 22-23 Inserted rinse aid dispenser parts
breakdown information.
10/14/03 33 Revised part number for solenoid
valve.
2/11/04 16 Revised part number for door
support.
8/4/04 14-15 Added new hardware for panels.
8/4/04 16-17 Added new hardware for control
cabinet decal.
1/18/05 14 Added door gasket H36353.
1/18/05 1 6 -1 7 Added part numbers for hardware.
1/18/05 21 Replaced P/N 436348 with 113604
and H36157 with 0510821.
1/18/05 23 Added P/N’s for rinse aid and
detergent labels.
1/18/05 31 Replaced P/N H33402 with 109985.
1/18/05 3 6 -3 7 54257-54304 Added new control panel.
6/6/05 16- 1 7 60605 Added new drawing and part numbers
to door rod plate.
i
Page 4
REVISION RECORD
Revision Record (Cont.’)
ii
Page 5
LIMITED WARRANTY
Limited Warr anty
Moyer Diebel, P.O. Box 4183, Winston-Salem, North Carolina 27115, and P. O. Box 301, 2674 North Service
Road, Jordan Station, Ontario, Canada L0R 1S0 warrants machines, and parts, as set out below.
Warranty of Machines: Moyer Diebel warrants all new machines of its manufacture bearing the name
“Moyer Diebel” and installed within the United States and Canada to be free from defects in material and workmanship for a period of one (1) year after the date of installation or fifteen (15) months after the date of shipment by
Moyer Diebel, whichever occurs first. [See below for special provisions relating to Model Series DF and SW.] The
warranty registration card must be returned to Moyer Diebel within ten (10) days after installation. If warranty card
is not returned to Moyer Diebel within such period, the warranty will expire after one year from the date of shipment.
Moyer Diebel will not assume any responsibility for extra costs for installation in any area where there are
jurisdictional problems with local trades or unions.
If a defect in workmanship or material is found to exist within the warranty period, Moyer Diebel, at its election, will either repair or replace the defective machine or accept return of the machine for full credit; provided,
however, as to Model Series DF and SW, Moyer Diebel’s obligation with respect to labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs first. In the event that
Moyer Diebel elects to repair, the labor and work to be performed in connection with the warranty shall be done
during regular working hours by a Moyer Diebel authorized service technician. Defective parts become the property
of Moyer Diebel. Use of replacement parts not authorized by Moyer Diebel will relieve Moyer Diebel of all further
liability in connection with its warranty. In no event will Moyer Diebel’s warranty obligation exceed Moyer
Diebel’s charge for the machine. The following are not covered by Moyer Diebel’s warranty:
a. Lighting of gas pilots or burners.
b. Cleaning of gas lines.
c. Replacement of fuses or resetting of overload breakers.
d. Adjustment of thermostats.
e. Adjustment of clutches.
f. Opening or closing of utility supply valves or switching of electrical supply current.
g. Adjustments to chemical dispensing equipment.
h. Cleaning of valves, strainers, screens, nozzles, or spray pipes.
i. Performance of regular maintenance and cleaning as outlined in operator’s guide.
j. Damages resulting from water conditions, accidents, alterations, improper use, abuse,
tampering, improper installation, or failure to follow maintenance and operation procedures.
Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or
interior finish as a result of the above, (2) Use with utility service other than that designated on the rating
plate, (3) Improper connection to utility service, (4) Inadequate or excessive water pressure, (5) Corrosion
from chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical components due
to connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such
leaks caused by the installer, including those at machine table connections or by connection of chemical dis-
pensing equipment installed by others, (8) Failure to comply with local building codes, (9) Damage caused by
labor dispute.
Warranty of Parts: Moyer Diebel warrants all new machine parts produced or authorized by Moyer Diebel to be
free from defects in material and workmanship for a period of 90 days from date of invoice. If any defect in material and workmanship is found to exist within the warranty period Moyer Diebel will replace the defective part without charge.
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. MOYER DIEBEL’S WARANTY
IS ONLY TO THE EXTENT REFLECTED ABOVE. CHAMPION MAKES NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF
MERCHANTABILITY, OR FITNESS OF PURPOSE. MOYER DIEBEL SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE REMEDIES SET OUT ABOVE ARE
THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN MOYER DIEBEL
DISHWASHING MACHINES AND MOYER DIEBEL PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS OR CONSEQUENTIAL DAMAGES.
Moyer Diebel does not authorize any other person, including persons who deal in Moyer Diebel Dishwashing
Machines to change this warranty or create any other obligation in connection with Moyer Diebel Dishwashing
Machines.
iii
Page 6
FIV
FOREWORD
1. Read the instructions in this manual carefully. It contains important information on
installation, operation, and safety.
2. Store this manual carefully for future reference.
3. After removing packing material, check for loose parts in dishracks.
4. Before switching the equipment on, make sure that the model data plate conforms
to the electrical and water requirements supplied to this particular machine.
5. Installation should be carried out by qualified personnel according to the manufacturers instructions. The installation of your machine must meet all applicable
health and safety codes.
6. This equipment should be used for its intended purpose. Any other application
should be considered improper and therefore dangerous.
7. Only trained personnel should operate this equipment.
8. Operators must strictly follow all hygienic requirements in the handling of clean
dishware or cutlery.
9. Do not leave the machine in an environment at temperatures
lower than 0°C/32°F.
10. This machine should not be washed with a direct water stream.
11. Only qualified personnel should access the control panel after disconnecting
main power supply. Tag the disconnect indicating work is being performed
on that circuit.
12. Noise level of the machine is less than 67dB.
The manufacturer declines any responsibility for any printing errors contained in this
booklet.
The manufacturer also reserves the right to make any modifications to its products that do
not affect the basic characteristics thereof.
iv
Page 7
TAB LE OF C ONT E NT S
TABLE OF CONTENTS PAGE
R evision R ecord........................................................................................................... i
L imited Warranty ......................................................................................................... iii
Forward........................................................................................................................ iv
INSTALLATION ............................................................................ 1
OPERATION ................................................................................. 5
MAINTENANCE ........................................................................... 7
REPLACEMENT PARTS ............................................................... 13
ELECTRICAL SCHEMATICS ........................................................ 41
LIST OF FIGURES
Figure 1 – Control Panel Detail ............................................................................... 5
Figure 2 – Power Switch Position............................................................................ 7
Figure 3 – Drain Switch Position ............................................................................. 7
Figure 4 – Hood and Tank ........................................................................................ 14
Figure 5 – Door Assembly ....................................................................................... 16
Figure 6 – Wash and R inse A rms ............................................................................. 18
Figure 7 – Tank Components ................................................................................... 20
Figure 8 – R inse Aid Dispenser ............................................................................... 22
Figure 9 – Wash and Rinse Spray Arms .................................................................. 24
Figure 10 – Wash and R inse Piping ........................................................................... 26
Figure 11 – Pump/Motor Assembly ........................................................................... 28
Figure 12 – B ooster A ssembly .................................................................................. 30
Figure 13 – Fill Piping A ssembly .............................................................................. 32
Figure 14 – C ontrol Panel (Prior to Serial Number 54256 and After 54305)............ 34
Figure 15 – C ontrol Panel (Serial Number R ange 54257 to 54304) ......................... 36
Figure 16 – C ontrol C abinet
......................................................................................
38
v
Page 8
Part 1: INSTALLATION AND MAINTENANCE
This Page
Intentionally
Left
Blank
vi
Page 9
INSTALLATION
GENERAL
This manual covers the Moyer Diebel 301 undercounter high temperature dishwashing machine
with built-in booster. Liquid detergent and rinse aid dispensing pumps are standard. Even though
chemical dispensing settings are preset at the factory for average water conditions, to ensure
maximum performance and best results, have your chemical supplier perform a water titration
test and adjust dispensing pumps for your specific water conditions.
INST ALLATION AND MAINTENANCE
The following instructions are addressed to qualified personnel. Repairs should be performed by authorized personnel using parts supplied by the manufacturer.
NOTE:
Installation must allow for the ability to remove machine for servicing.
UNPACKING
WARNING:
Care should be taken when lifting the machine to prevent damage.
The machine is normally shipped on a skid enclosed by straps. When transporting the machine,
use a lift truck or fork lift, positioning the box properly on the forks.
1. Immediately after unpacking your machine, inspect for any shipping damages. If damage is
found, save the packing material and contact the carrier immediately.
2. Remove the dishwasher from the skid. Adjust the feet if required, then move the machine to
its permanent location.
3. Level the machine (if required) by placing a level on the top if the machine and adjusting the
feet. Level the machine front-to-back and side-to-side.
4. Remove any foreign material from inside of the machine.
CAUTION:
!
After locating your machine, it must meet with all local health codes. Consult your local
health department representative to ensure compliance.
1
Page 10
INSTALLATION
INSTALLATION (CONT.)
ELECTRICAL CONNECTIONS
NOTE:
Leave enough electrical cable behind the machine so that the dishwasher can be pulled
forward a minimum of two feet to be serviced.
WARNING:
Electrical and grounding connections must comply with the National Electrical Code and/or
Local Electrical Codes.
WARNING:
When working on the dishwasher, disconnect the electric service and tag it to indicate work
is being done on that circuit.
1. The electrician should compare the electrical specifications on the machine electrical data
plate (located in the control panel) to the electrical power supply before connecting the
machine to the incoming service at a fused disconnect switch.
NOTE:
The 208-240V/60Hz/1PH electrical supply service for this machine must be a 2-wire plus
ground service. For optional 208-240V/60Hz/3PH the electrical supply service must be a 3wire plus ground service.
2. On the 208V-240V models, a knockout is provided at the rear of the junction box for
electrical service connections. A fused disconnect switch or circuit breaker (supplied by
user) is required to protect each power supply circuit.
PLUMBING CONNECTIONS
CAUTION:
!
Plumbing connections must comply with local health and plumbing codes.
Water Connections
1. Connect the hot water supply to the fill hose provided with a 3/4" NPT fitting.
2. Install a manual shut-off valve in the water supply line to accommodate servicing the
machine. The shut-off valve should be the same size or larger than the supply line.
3. Install a 3/4" pressure reducing valve (PRV) (supplied with machine) in the water supply
line, and set at 22PSI/151kPa.
2
Page 11
INSTALLATION
INSTALLATION (CONT.)
PLUMBING CONNECTIONS (CONT.)
Drain Connections
1. Drain hose must be supported by bracket provided (shipped inside of machine).
2. The drain hose bracket must be mounted a minimum of 2 feet above the finished drain,
either on the rear of the machine or on the wall.
3. The maximum height of the drain from the floor must not exceed 3 feet.
4. Connect the 3/4"I.D. flexible reinforced drain hose to a 1-1/2" wye (Y) drain fitting. Use a
3/4" hose adapter (supplied by others). Do not connect drain hose to a 90° drain fitting.
DETERGENT
The machine is equipped with an automatic detergent dispensing pump system.
1. Use a qualified detergent/chemical supplier for your detergent and rinse aid needs.
2. Your machine is supplied with a detergent dispensing pump that is internally wired and ready
for use. Use a commercial grade liquid detergent and insert the red pickup tube into the
detergent container. The pickup tube has a strainer on the end to prevent the crystallized
chemical from clogging the supply lines.
CAUTION:
!
Always wash the hands under running water if they come into contact with the detergent and
comply with the specific instructions pertaining to the specific type of detergent.
NOTE:
A nonchlorinated detergent is recommended for your dishwasher.
To prime the peristaltic pump:
1. Insert pump inlet hose into the detergent container.
2. Close machine door and switch machine on.
3. Allow wash tank to fill and run machine cycles until chemical enters machine.
RINSE AID
1. Use a qualified/chemical supplier for your rinse aid needs.
2. Insert the transparent tube into the container containing the rinsing agent.
3. Prime the rinse aid pump while machine is in cycle by pressing and depressing power button
until the transparent tube has completely filled.
3. Start the machine as described the "OPERATION SUMMARY" on page 5. The dispenser
will pump about 3cc of liquid from the container.
3
Page 12
INSTALLATION
INSTALLATION (CONT.)
COMPLETING THE INSTALLATION
1. Recheck for and remove any foreign materials from inside the machine.
2. Center the scrap screens over the sump opening
3. After Plumbing and electrical connections are completed, check machine for water leaks by
closing the door, then depressing the ON switch. This allows the tank to begin filling and to
reach temperature.
4. Open the door and check the water level. The water level should be a two inches above the
scrap screen.
5. Close the door (the machine has a door safety switch and will not start until the door is
closed.
4
Page 13
OPERATION
OPERATION
OPERATION SUMMARY
The following is a summary of your model 301HT dishwasher operating cycle:
1. The door must be closed to begin the cycle.
2. Pressing the POWER button begins to fill the wash
tank.
3. When the correct water level has been reached the
booster heater comes on.
4. Press and holding the START button starts the cycle.
5. The pump runs during the wash cycle for approximately
120 seconds. The wash cycle duration is extended if the booster water temperature does
not reach 180°F/82°C
6. After a 5 second pause, the fill valve opens and the rinse cycle starts.
7. The machine rinses for 15 seconds. The cycle light turns off after 7 seconds indicating that
the cycle is complete. DO NOT open the door until the cycle lamp turns off.
Figure 1-Control Panel
8. Open the door and remove the rack of clean ware.
OPERATION PROCEDURES
The operation of your dishwasher will be more efficient when these procedures are followed:
1. Check that the spray arms, overflow tube and scrap screens are in place.
2. Close the door. Press the POWER switch. The tank will begin to fill with water.
This procedure is only needed when the tank is empty.
3. When the tank is full, check the wash tank temperature gauge. Minimum wash temperature
is 66°C/150°F.
4. Scrap and preflush all items to be washed, load items into rack. Wash only one layer of
silverware in a rack at a time.
NOTE:
DO NOT OVERLOAD the rack.
5. Open the door and insert the rack into the machine.
6. Close the door . Press the START switch and hold for 1 second, then release. This will start
the wash cycle. The cycle lamp will light and will remain on until the entire wash/rinse cycle
has completed.
NOTE:
The machine may be stopped at any time during the cycle by opening the door. Closing the
door resumes from the point where it was interrupted in the cycle.
5
Page 14
OPERATION
OPERATIONS (CONT.)
MAINTENANCE
7. Check the rinse temperature during the final rinse. The final rinse must be 82°C/180°F
minimum.
8. When the green cycle light turns off, the cycle is complete.
9. Open the door and remove the rack.
10. Repeat steps 4-9 for additional cycles. Machine operation is automatic.
11. Clean the scrap screens after every meal period. During heavy usage, the scrap screens
should be cleaned more frequently.
CAUTION:
Poor machine performance and/or damage to the machine can occur if the scrap screens
!
become clogged with soil or waste particles.
12. At the end of the day, any water in the tank should be drained pressing the POWER button to
turn machine off and remove the overflow tube. Then press the DRAIN switch to activate the
drain pump and completely drain the machine.
CAUTION:
!
DO NOT LEAVE WATER IN THE TANK OVERNIGHT. Water left in the tank overnight will
allow chemicals to deteriorate the tank.
6
Page 15
MAINTENANCE
MAINTENANCE
The efficiency and life of your machine in increased be regularly scheduled preventive maintenance. A well maintained machine gives better results and service. An investment of a few
minutes of daily maintenance will be worthwhile.
The best maintenance you can provide is to keep your machine clean. Should poor results occur:
first drain, next clean the machine as described below in the Daily-Every 8 Hours procedure,
then refill.
Intervals shown in the following schedules represent an average length of time between necessary
maintenance. Maintenance intervals should be shortened whenever your machine is faced with
abnormal working conditions, hard water, or multiple shift operations.
CLEANING SCHEDULE
•Meal Periods
1. Press power switch OFF (See Fig.2).
2. Remove the overflow the press and hold
the DRAIN switch to drain the machine.
(See Fig. 3)
3. Wipe the interior to remove any debris.
4. Clean the screens after every meal period
and more frequently during heavy usage.
Do not allow screens to become clogged
with debris.
5. Inspect wash and rinse arms. Clean if
necessary.
6. Replace overflow tube.
7. Close door.
8. Press the POWER button to refill machine. (See Fig. 2).
Figure 2- Power Switch Position
Figure 3- Drain Switch Position
•Daily-Every 8 Hours
1. Remove the overflow tube and press the POWER switch to OFF (see Fig. 2) to drain the
tank.
2. Press and hold the DRAIN switch (see Fig. 3) to activate the drain pump and drain all the
water from the machine.
3. Open the door and remove both the upper and lower spray arms by unscrewing the knurled
fastener holding each arm.
4. Remove the scrap screen carefully to keep the debris from falling into the sump.
5. Clean the inside of the tank with clean water.
6. At a remote sink, back flush the screens until clean. Do not strike against solid objects.
7. Clean the wash and arms to remove any debris from the spray openings. Do not strike the
arms against solid objects.
8. Reinstall the scrap screens, overflow tube and the spray arms.
9. Leave the door open overnight to allow drying.
10. Report any unusual conditions to your supervisor.
7
Page 16
MAINTENANCE
MAINTENANCE (CONT.)
CLEANING SCHEDULE (CONT.)
•As Required
1. Check temperature gauge readings. Replace as necessary.
2. Check chemical supplies and refill as necessary.
•Weekly
1. Inspect all water lines for leaks and tighten any joints of required.
2. Clean all detergent residue from exterior of machine.
3. Check drain for leaks.
4. Clean any accumulated scale from the heating element.
5. Remove and closely inspect each spray arm for any blockage.
6. Check for any damage to scrap screen. Ineffective screening can cause wash system failures.
7. Clean the detergent, and rinse aid supply tubes. Complete the following procedure:
a. Remove the detergent and rinse aid pick up tubes from the containers. Place the tubes into
a container of hot water.
b. Remove the pick up tubes from the hot water and reinsert them into the correct chemical
containers (red-detergent, clear-rinse aid). Repeat the original priming procedures to
ensure that the chemicals have filled the tubes for the next operating period.
c. Run a complete cycle to flush chemicals from the tank.
8
Page 17
MAINTENANCE
MAINTENANCE (CONT.)
CLEANING SCHEDULE (CONT.)
DELIMING
Your dishwasher should be delimed regularly as required. This will depend on the mineral
content of your water.
Inspect the machine interior for lime deposits. If deliming is required, a deliming agent should be
used for best results.
Carefully follow the following procedure to preform deliming:
WARNING:
Deliming solution or other acids must not come in contact with household bleach (sodium
hypochlorite) or any chemicals containing chlorine, iodine, bromine or fluorine. Mixing will
cause hazardous gases to form. Skin contact with deliming solutions can cause severe
irritation and possible chemical burns. Consult your chemical supplier for specific safety
precautions.
1. Add the delime chemical to the wash tank (per the chemical supplier specifications).
2. Close the door.
3. Press the POWER switch to fill the machine, then press the START switch to run through a
complete cycle.
4. When cycle is complete press the POWER switch to the OFF position, open the door and
remove the overflow tube to drain the tank, then press and hold the DRAIN switch to
drain the machine.
5. Replace overflow tube. Close door.
6. Repeat steps 3 - 5 to ensure all delime chemicals are purged from machine.
7. Deliming is now complete.
9
Page 18
TROUBLESHOOTING
TROUBLESHOOTING
Before determining any specific cause of a breakdown or abnormal operation of your dishwasher,
check that:
1. All switches are turned on.
2. Wash and rinse arms are clean and clear of any debris.
3. Overflow tube is properly positioned.
4. Scrap screen is properly positioned and clean.
5. Thermostats are at the correct settings.
6. Detergent and rinse additive dispensers are adequately filled.
7. All plumbing valves to machine are open.
If a problem still exists, use the following table for troubleshooting.
CONDITION CAUSE SOLUTION
Machine will not start Main switch disconnected ............... Turn on switch.
Door not closed ................................ Make sure doors are fully closed.
Door safety switch faulty ................ Contact your service agency
Start switch faulty ............................ Contact your service agency
Low or no water Main water supply is turned off ...... Turn on house water supply
Drain/overflow tube is not
in place and seated........................... Place and seat drain/overflow tube
Machine doors not fully closed ....... Close doors securely
Faulty fill valve ............................... Contact your service agency
Continuous water filling Fill valve will not close................... Contact your service agency
Drain/overflow tube not in place .... Install drain/overflow tube in tank
Air trap lost pressure ....................... Drain machine, reinsert overflow tube
.......................................................... and refill machine.
Motor not running Defective motor ............................... Contact your service agency
Wash tank water temperature Incoming water temperature
is low when in use at machine too low .......................... Raise temperature to 140°F
Defective thermometer .................... Check or replace
Defective thermostat ....................... Check for proper setting or replace
Defective heater element ................. Check or replace
10
Page 19
TROUBLESHOOTING
TROUBLESHOOTING (CONT.)
CONDITION CAUSE SOLUTION
Insufficient pumped spray Clogged pump intake screen ........... Clean
pressure Clogged spray pipe .......................... Clean
Scrap screen full .............................. Must be kept clean and in place
Low water level in tank................... Check drain and overflow tube
Defective pump seal ........................ Contact service agent
Insufficient final rinse or no Clogged rinse nozzle and/or arm .... Clean with paper clip/delime
final rinse Clogged strainer............................... Clean or replace
Low final rinse temperature Low incoming water ........................ Check the booster be sure the thermostat is set
temperature ...................................... to maintain 180°F/82°C temperature.
Check fill valve operation.
Defective thermometer .................... Check for proper setting or replace
Poor washing results Detergent dispenser not
operating properly ........................... Contact detergent supplier
Insufficient detergents ..................... Contact detergent supplier
Food Soil concentration too
high in wash tank............................. Drain tank, clean and refill every 2 hours of
operation or after each meal period.
Wash water temperature
too low ............................................. See condition “Wash Tank
Water Temperature” above
Wash arm clogged ........................... Clean
Wash arm not rotating ..................... Clean arm. Check bearing, replace if
.......................................................... necessary.
Improperly scrapped dishes ............ Check scrapping procedures
Ware improperly
placed in rack................................... Use proper racks. Do not overload racks
Improperly cleaned
equipme nt ........................................ Unclog wash sprays and rinse nozzles
to maintain proper pressure and flow
conditions. Overflows must be open.
Keep wash water as clean as possible.
Heating element has soil/lime
buildup ............................................. Clean and/or delime.
Detergent pick up tube in
incorrect container ........................... Place
RED pick up tube in detergentcontainer.
11
Page 20
This Page
Intentionally
Left
Blank
12
Page 21
REPLACEMENT P AR TS
REPLACEMENT
PARTS
13
Page 22
REPLACEMENT P AR TS
11
1
10
11
12
12
13
A
7
7
12
7
2
3
14
3
11
9
8
12
4
11
5
7
6
Figure 4- Hood and Tank
Page 23
REPLACEMENT P AR TS
HOOD AND TANK
Fig. 4 Part
Item No. No. Part Description Qty
1 H36145 Panel, Control Cabinet .................................................................. 1
2 H36147 Panel, Side RH .............................................................................. 1
3 H35551 Tracks, Rack.................................................................................. 2
4 H36151 Panel, Front ................................................................................... 1
5 H33576 Bottom Panel ................................................................................. 1
6 H25209 Foot, Adjustable ............................................................................ 4
7 H25697 Self-Tapping Screw 9 x 13............................................................ 12
8 H36146 Panel, Side LH .............................................................................. 1
9 H25693 Self-Tapping Screw Bevel 2 x 13.................................................. 4
10 H36148 Panel, Back.................................................................................... 1
11 H36728 Screw TS M5 x 20 ........................................................................ 6
12 H450821 Spring Clip Fastener 5MA ............................................................. 8
13 H36353 Door, Gasket Top........................................................................... 1
A HARDWARE FOR TRACKS (Quantities per track)
H25744 Washer........................................................................................... 2
H25774 Nut ................................................................................................. 2
15
Page 24
REPLACEMENT P AR TS
1
2
A
16
3
A
16
4
5
14
15
A
4
5
A
8
7
8
6
10
9
12
16
11
12
Figure 5- Door Assembly
Page 25
REPLACEMENT P AR TS
DOOR ASSEMBLY
Fig. 5 Part
Item No. No. Part Description Qty
1 H25791 Nut Plain ....................................................................................... 2
2 106486 Washer .......................................................................................... 2
3 107623 Nut Door Support .......................................................................... 2
4 H160909 Door Rod Plate.............................................................................. 2
5 H160837 Gasket ........................................................................................... 2
6 H34144 Door Rod ....................................................................................... 2
7 H15568 Door Dowels ................................................................................. 2
8 H30438 Door Spring ................................................................................... 2
9 H33336 Door Catch .................................................................................... 1
10 H25693 Self-Tapping Screw Bevel 2 x 13.................................................. 2
11 H36149 Door Assembly Complete ............................................................. 1
12 H33277 Self-tapping Screw TSP 2.9 x 9.5 ................................................. 2
13 H32969 Door Magnet ................................................................................. 1
14 H35171 Washer .......................................................................................... 2
15 H260223 Screw Inox TB 5 x 12 ................................................................... 2
16 H37104 Door Rod Plate Support ................................................................ 2
A HARDWARE FOR DOOR PLATE (Quantities per door plate)
H33387 Screw ............................................................................................ 2
H30194 Hex, Nut ........................................................................................ 2
17
Page 26
REPLACEMENT P AR TS
1
2
3
4
1
5
6
6
8
9
7
8
6
7
6
5
1
4
9
18
2
3
1
Figure 6- Wash and Rinse Arms
Page 27
REPLACEMENT P AR TS
WASH AND RINSE ARMS
Fig. 6 Part
Item No. No. Part Description Qty
1 112551 Bearing, Wash Arm....................................................................... 4
2 112549 Hub, Wash Arm............................................................................. 2
3 112793 Wash Arm...................................................................................... 2
4 112550 Locknut, Wash Arm ...................................................................... 2
5 H34998 Nut Spacer..................................................................................... 2
6 H190663 Bushing, Rinse Arm...................................................................... 4
7 H36257 Rinse Nozzle ................................................................................. 6
8 H36275 Pin, Revolving Rinse Arm ............................................................ 2
9 H36211 Rinse Arm 301 .............................................................................. 2
19
Page 28
REPLACEMENT P AR TS
1
2
3
13
9
4
8
4
7
4
4
11
10
5
6
20
12
16
15
14
Figure 7- Tank Components
Page 29
REPLACEMENT P AR TS
TANK COMPONENTS
Fig. 7 Part
Item No. No. Part Description Qty
1 H35162 Heater 2000W 230V ..................................................................... 1
2 113604 Thermostat Handle........................................................................ 1
3 H36351 Support Plate, for Thermostat Handle........................................... 4
4 H34982 Screw M5 X 12 Half Round Head................................................ A/R
5 H441402 Pressure Gauge ............................................................................. 1
6 H460344 Plate Adhesive, Thermometer ....................................................... 1
7 H36154 Bracket, Pressure Gauge .............................................................. 1
8 H34358 Detergent, Peristallic Pump........................................................... 1
--- 0510821 Hose, Noprene Pump 1/4 ID x 5/16.............................................. A/R
--- H180726 Strainer .......................................................................................... 1
9 H36271 Bracket, Detergent Pump ............................................................. 1
10 H36343 Bracket, Rinse Aid Pump .............................................................. 1
11 H15229 Lock Nut Aid................................................................................. 1
12 H35388 Rinse Aid Dispenser ...................................................................... 1
--- H00166 Tube (Transparent)........................................................................ A/R
--- H180726 Strainer .......................................................................................... 1
13 H25092 Knob, Thermostat .......................................................................... 2
14 H25417 Adjustable Thermostat 30°C-90°C/86°F-194°F (Wash) ............... 1
15 H36397 Thermostat 30°C-95°C/86°F-203°F(Rinse) .................................. 1
16 H33745 Hi Limit Thermostat ...................................................................... 1
21
Page 30
REPLACEMENT P AR TS
12
11
13
10
14
9
15
6
8
7
5
4
3
2
1
21
22
20
19
18
17
16
22
Figure 8- Rinse Aid Dispenser
Page 31
REPLACEMENT P AR TS
RINSE AID DISPENSER
Fig. 8 Part
Item No. No. Part Description Qty
1 H15229 Locknut, Rinse Aid Dispenser ...................................................... 1
2 H25757 Spacer Slotted ............................................................................... 1
3 H36343 Support, Rinse Aid Dispenser....................................................... 1
4 H200117 Rubber Hose .................................................................................. A/R
5 H33424 Hose Clamp................................................................................... 1
6 H35392 90° Fitting Vlave, Rinse Aid......................................................... 1
7 H25211 Valve, Non Return Rinse Aid ....................................................... 2
8 H32831 Gasket............................................................................................ 2
9 H28252 Dispenser Suction Fitting.............................................................. 1
10 H31643 Hose Clip ...................................................................................... 1
11 H00166 Hose, Transparent.......................................................................... A/R
12 H00182 Hose, Blue ..................................................................................... A/R
13 H25803 Hose Clip 13-20 ABA ................................................................... 1
14 H32280 Screw, Rinse Aid Dispenser Pump Housing................................. 8
15 H25047 Rinse Aid Dispener Back Housing ............................................... 1
16 H31596 Rinse Aid Dispenser Back Housing Gasket.................................. 1
17 H31991 Rinse Aid Pump Seal .................................................................... 1
18 H25818 Rinse Aid Dispenser Pump Spring ............................................... 1
19 H32243 Gasket............................................................................................ 1
20 H25046 Rinse Aid Dispenser Pump Housing ............................................ 1
21 H25251 Oring ............................................................................................. 2
22 H18394 Adjusting Screw, Rinse Aid Dispensing Pump ............................ 1
___ H35388 Rinse Aid Dispenser (Includes items 1-9, 14-22)
___ H29521 Rinse Label
___ H29522 Detergent Label
23
Page 32
REPLACEMENT P AR TS
1
2
19
18
14
17
16
14
13
3
8
9
10
20
15
11
12
14
6
7
4
5
24
Figure 9- Drain Assembly
Page 33
REPLACEMENT P AR TS
DRAIN ASSMEBL Y
Fig. 9 Part
Item No. No. Part Description Qty
1 H32796 Cover, Round Filter........................................................................ 1
2 H32795 Bottom, Round Filter ..................................................................... 1
3 H36160 Overflow Tube, Drain Pump ......................................................... 1
4 H35895 Scrap Screen ................................................................................. 1
5 H25684 Self-Tapping Screw 9 x 9.............................................................. 1
6 H35896 Sump Cover ................................................................................... 1
7 H32719 Rubber Sump ................................................................................. 1
8 H25006 Nut, Drain Suction ......................................................................... 1
9 H34790 Drain Elbow Series........................................................................ 1
10 H26637 Flat Gasket Drain .......................................................................... 1
11 H31423 Flat Gasket Suction........................................................................ 1
12 H32715 90° Suction Elbow ......................................................................... 1
13 H30421 Drain Fitting Long ......................................................................... 1
14 H25807 Clamp, Hose .................................................................................. 4
15 H32894 Suction Hose ................................................................................. 1
16 H32801 Suction Sleeve, Drain Pump .......................................................... 1
17 H36032 Drain Pipe ..................................................................................... 1
18 H35544 Drain Pump ................................................................................... 1
19 H35359 Bracket, Drain Pump..................................................................... 1
20 H28226 O-ring, Gasket ............................................................................... 1
25
Page 34
REPLACEMENT P AR TS
1
4
6
5
2
3
7
BOTTOM OF TANK
8
5
4
A
9
10
11
12
13
14
A
26
Figure 10- Wash and Rinse Piping
Page 35
REPLACEMENT P AR TS
WASH AND RINSE PIPING
Fig. 10 Part
Item No. No. Part Description Qty
1 H25807 Jubilee Clip ................................................................................... 1
2 110215 Screw SS ....................................................................................... 1
3 H35509 Hub, Upper Arm ........................................................................... 1
4 H25803 Clamp, Hose .................................................................................. 2
5 H00182 Hose, Blue Rinse........................................................................... A/R
6 H35550 Wash Delivery Sleeve.................................................................... 1
7 H36279 Lower Column .............................................................................. 1
8 109466 O-ring ............................................................................................ 1
9 H36280 Lower Holder Revolving Arm ...................................................... 1
10 H25808 Clamp, Hose .................................................................................. 1
11 H34828 Clamp, Hose .................................................................................. 1
12 H25809 Clamp, Hose .................................................................................. 1
13 H32894 Suction Hose ................................................................................. 1
14 H29043 Capacitor 16 UF/450V .................................................................. 1
A HARDWARE FOR MOUNTING PUMP
H25751 Split Spacer ...................................................................................8
H25745 Lock Washer.................................................................................. 8
H25730 Hex Screw M8 x 25 ...................................................................... 4
27
Page 36
REPLACEMENT P AR TS
5
4
3
2
1
28
Figure 11- Pump Assembly
Page 37
REPLACEMENT P AR TS
PUMP ASSEMBLY
Fig. 11 Part
Item No. No. Part Description Qty
1 H36354 Pump Body ................................................................................... 1
2 H26224 Gasket Pump Body ....................................................................... 1
3 H26204 Impeller ......................................................................................... 1
4 H36355 Shaft Seal ...................................................................................... 1
5 H36356 Flange Wash Pump........................................................................ 1
- H36129 Wash Pump Assy Complete.......................................................... 1
29
Page 38
REPLACEMENT P AR TS
1
6
2
5
7
3
5
6
8
4
30
Figure 12- Booster Assembly
Page 39
REPLACEMENT P AR TS
BOOSTER ASSMEBLY
Fig. 12 Part
Item No. No. Part Description Qty
1 H36250 Heater 4000W 230/380V (40° Rise)............................................. 1
H33400 Heater 6000W 230/380V (70° Rise) ............................................. 1
2 H161123 Element Cap .................................................................................. 1
3 109985 Oring.............................................................................................. 1
4 H35816 Rinse Aid Inlet Fitting .................................................................... 1
5 H25803 Clamp, Hose .................................................................................. 2
6 H00182 Hose, Blue ..................................................................................... A/R
7 H36150 Booster Tank (Tank Only)............................................................. 1
8 H34192 Gasket ........................................................................................... 1
31
Page 40
REPLACEMENT P AR TS
5
1
2
4
3
6
7
9
8
4
NOT SUPPLIED
10
2
3
4
3
6
11
3
28
25
26
18
14
13
15
27
3
4
12
17
18
16
19
19
3
4
32
24
Figure 13- Fill Piping Assembly
23
22
20
4
21
Page 41
REPLACEMENT P AR TS
FILL PIPING ASSEMBLY
Fig. 13 Part
Item No. No. Part Description Qty
1 H36156 Vacuum Breaker Mounting Box.................................................... 1
2 H36361 Hose Barb ..................................................................................... 2
3 H25803 Clamp, Hose .................................................................................. A/R
4 H00182 Hose, Blue ..................................................................................... A/R
5 100500 Vacuum Breaker 1/2"NPT ............................................................ 1
-- 900836 Repair*Kit 1/2" Vacuum Breaker ................................................. A/R
6 H36170 Hose Barb ..................................................................................... 3
7 H36173 Cross Tee ...................................................................................... 1
8 H36289 Right for Brass Insert.................................................................... 1
9 H36288 Brass Insert ................................................................................... 1
10 H36290 Raccord, Brass Insert ................................................................... 1
11 H160121 Hose Black .................................................................................... A/R
12 H25239 Gasket ........................................................................................... 1
13 H34733 Clamp ............................................................................................ 1
14 H25011 Cover for Air Trap......................................................................... 1
15 H25778 Nut, Injector .................................................................................. 1
16 H18472 Detergent Injector ......................................................................... 1
17 H25263 Flat Gasket .................................................................................... 1
18 H25010 Air Trap ......................................................................................... 1
19 H26629 Solenoid V alve 3/4"........................................................................ 1
20 H36172 Fitting ............................................................................................. 1
21 H36349 Brass Reduction ............................................................................ 1
22 H280607 Valve.............................................................................................. 1
23 H160117 Poly Tube....................................................................................... A/R
24 H36032 Drain Hose .................................................................................... 1
25 H33344 Cable Clip ...................................................................................... 1
26 H34996 Inlet Tube....................................................................................... 1
27 H200415 O-ring, Gasket ............................................................................... 1
28 107550 Valve Press Reducing 3/4" ............................................................ 1
33
Page 42
REPLACEMENT P AR TS
8
1
13
14
13
14
2
3
4
5
3
5
12
10
6
9
11
6
7
34
Figure 14- Control Panel
Prior to S/N 54256 & After S/N 54305
Page 43
REPLACEMENT P AR TS
CONTROL PANEL
(PRIOR TO 54256 & AFTER S/N 54305)
Fig. 14 Part
Item No. No. Part Description Qty
1 H36131 Data Plate ...................................................................................... 1
2 H35336 Cap, Drain Pushbutton .................................................................. 1
3 H32928 Lamp Neon Green ......................................................................... 2
4 H35339 Cap Blank...................................................................................... 1
5 H32892 Neon Light Bulb Green ................................................................. 2
6 H32891 Light Bulb Holder ......................................................................... 2
7 H35329 Lamp Cover Green, Cycle ............................................................ 1
8 H35332 Holder, 3 Position Gray ................................................................ 1
9 H35328 Lamp Cover Green, Line .............................................................. 1
10 H35330 Key, Green Start ............................................................................ 1
11 H35661 On/Off Green Key ......................................................................... 1
12 H32872 Switch Single Pole ........................................................................ 1
13 H450916 Thermometer ................................................................................. 2
14 H460344 Plate Adhesive, Thermometer ....................................................... 2
35
Page 44
REPLACEMENT P AR TS
9
11
4
7
1
4
6
DRAIN
CYCLE
T
R
A
T
S
ER
W
PO
RINSE
3
3
2
5
3
H
S
A
W
6
3
3
10
2
8
12
13
12
13
36
Figure 15- Control Panel
S/N Range 54256 to S/N 54304
Page 45
REPLACEMENT P AR TS
CONTROL PANEL
(S/N RANGE 54257 TO 54304)
Fig. 15 Part
Item No. No. Part Description Qty
1 H36648 Data Plate ..................................................................................... 1
2 H36799 Key, Black Drain ........................................................................... 2
3 H36795 Holder, D.25 Black........................................................................ 5
4 H36801 Push-buton, Double Pole Shunt ..................................................... 2
5 H36798 Lamp Cover Clear D.25, Cycle .................................................... 1
6 H32891 Light Bulb Holder .......................................................................... 2
7 H28870 Light Bulb -Lux FM6, 3 230V ....................................................... 1
8 H36797 Lamp Cover Green d.25, Line....................................................... 1
9 H32892 Neon Light Bulb Green ................................................................. 1
10 H36796 On/Of f Gre en D 2 5 Key ............................................................... 1
11 H36800 Switch Single Pole ......................................................................... 1
12 H450916 Thermometer................................................................................. 2
13 H450916 Plate Adhesive, Thermometer ....................................................... 2
37
Page 46
REPLACEMENT P AR TS
1
2
12
3
5
4
9
10
7
8
11
6
13
38
Figure 15- Control Cabinet
Page 47
REPLACEMENT P AR TS
CONTROL CABINET
Fig. 15 Part
Item No. No. Part Description Qty
1 H160121 Hose, Black Rubber ...................................................................... 1
2 H31643 Clamp, Hose.................................................................................. 1
3 H31171 Pressure Switch ............................................................................. 1
4 H34312 Relay TA2SFA 16A 230V ............................................................ 1
5 H36142 Timer 230V 60Hz ......................................................................... 1
6 H31982 Booster Heater Contactor 220V 50Hz .......................................... 1
7 H29175 Terminal Block.............................................................................. 4
8 H36357 Switch, Continous Wash ............................................................... 1
9 H260248 Screw M5 x12 ............................................................................... 2
10 H29281 Terminal Block Earth (Ground) .................................................... 1
11 H36278 Threaded Bar, Electrical Connection ............................................ 1
12 H34046 Drawer Stop Rope (Not Shown) ................................................... 1
13 H33188 Magnetic Switch (Not Shown)...................................................... 1
39
Page 48
This Page
Intentionally
Left
Blank
40
Page 49
PART 4:
REPLACEMENT P AR TSPart 4: ELECTRICAL SCHEMATICS
ELECTRICAL
SCHEMATICS
41
Page 50
ELECTRICAL SCHEMATICS
DRIP PAUSE
DM2
DM3
DM4
120 SEC WASH
RINSE
DM1
0
SELF FEEDING
150 SEC
* TIMER MOTOR OFF = DELAY FOR BOOSTER HEATING
*
TIMER SEQUENCE DIAGRAM
BH
BTS
DSS
HLTS
PS
PSW
2
1
3
15
HLTS
WTS
TH
13
11
4
12
7
7
18
16
PL
3
4
1CR
CL
6
M1
M3
M2
M4
8
8
6
6
10 10
1CR
PB
DRP
5
RV
STMD
9
9
9
20
6
5
21
21
1
1
1
1
4
11
42
41
40
DOOR CONTACT
BOOSTER THERMOSTAT
BOOSTER HEATER ELEMENT
CAPACITOR
TANK HEATER ELEMENT
M1/4
BOOSTER CONTACTOR
START MANUAL DRAIN
CD
BC1
STMD
DISCHARGE PUMP
AUXILLIARY RELAY
CYCLE START BUTTON
TIMER CONTACTS
1CR
DRP
PB
HOT WATER SOLENOID VALVE
TIMER MOTOR
WASH PUMP MOTOR
TR
MTR
RV
TH
BOOSTER SAFETY THERMOSTAT
BTS
BH
HLTS
DSS
CYCLE LIGHT
POWER ON LIGHT
SYMBOL
ON/OFF BUTTON
PRESSURE SWITCH
CL
PL
PSW
PS
DESCRIPTION
DP
WTS
TANK THERMOSTAT
HTLS
TANK HIGH LIMIT THERMOSTAT
DP
DETERGENT PUMP
1
CD
11
5
8
11
15
3
21
5
6
6
6
6
9
21
16
7
5
1111
1
1
1
1
1
1
1
1
1
2
3
BY
DATE
DESCRIPTIONREV.
B
REV.
SCALE
DR.BY
DATE SHEET
REV.
DESCRIPTION
DATE
BY
SINGLEPHASE
SCHEMATIC,301-HT
0510637
0
SCALE
JMCALLISTER
3JUN03
SH1
OF
1
L1 L2
HC1
6/9KW
1CR
HC1
TR
MTR
CUSTOMER TO SUPPLY RATED VOLTAGE/PHASE/Hz,
AS SPECIFIED PER ORDER,TO DISCONNECT SWITCH.
ALL POWER SUPPLIED TO EACH CONNECTION POINT
MUST COMPLY WITH ALL LOCAL ELECTRIC CODES.
208/230V/1 ~ 60HZ
GND
5 SEC
5 SEC
5 SEC
2 SEC
15 SEC
3 SEC
10 SEC
42
Page 51
150 SEC
DRIP PAUSE
5 SEC
SELF FEEDING
TIMER SEQUENCE DIAGRAM
120 SEC WASH
10 SEC
15 SEC
RINSE
5 SEC5 SEC
REPLACEMENT P AR TSELECTRICAL SCHEMATICS
0
REV.
*
0510727
THREEPHASE
DESCRIPTION
BOOSTER CONTACTOR
AUXILLIARY RELAY
CYCLE LIGHT
BOOSTER HEATER ELEMENT
CAPACITOR
DETERGENT PUMP
BOOSTER THERMOSTAT
DISCHARGE PUMP
TANK HIGH LIMIT THERMOSTAT
DOOR CONTACT
POWER ON LIGHT
CYCLE START BUTTON
TIMER CONTACTS
WASH PUMP MOTOR
BOOSTER SAFETY THERMOSTAT
ON/OFF BUTTON
PRESSURE SWITCH
HOT WATER SOLENOID VALVE
TANK HEATER ELEMENT
START MANUAL DRAIN
TIMER MOTOR
TANK THERMOSTAT
SCHEMATIC,301-HT
B
1CR
BH
0
2 SEC
3 SEC
DM2
DM1
DM3
* TIMER MOTOR OFF = DELAY FOR BOOSTER HEATING
DM4
SYMBOL
BTS
DRP
DP
CL
CD
BC1
DSS
HTLS
HLTS
M1/4
MTR
PL
PSW
PS
STMD
TR
RV
TH
PB
WTS
BY
1
1
1
1
DATE
1
1
DP
9
21
1CR
1
RV
9
4
CD
DRP
20
21
9
STMD
6
9
11
M4
M3
6
5
6
1
10 10
M2
5
1
MTR
5
5
666
1
TR
CL
6
5
PB
8
8
M1
8
6
1CR
7
4
1
1
PL
HC1
3
16
11
16
HLTS
18
11
BTS
7
7
PS
1
1CR
15
15
DSS
3
4
3
1
TH
13
REV. DESCRIPTION
BY
13
WTS
12
HLTS
11
DATE
DESCRIPTIONREV.
21
L3
L1 L2
230V/3 ~ 60HZ
GND
PSW
21
3
2
1
1
OF
SCALE
SH1
1
2
42
BH
41
40
HC1
DELTA CONNECTION
FOR 3 PHASE
6/9KW BOOSTER HEAT
SCALEDR.BY
22SEP03
JMCALLISTER
DATE SHEET
CUSTOMER TO SUPPLY RATED VOLTAGE/PHASE/Hz,
AS SPECIFIED PER ORDER,TO DISCONNECT SWITCH.
ALL POWER SUPPLIED TO EACH CONNECTION POINT
MUST COMPLY WITH ALL LOCAL ELECTRIC CODES.
43
Page 52
REPLACEMENT P AR TS
45
Loading...
