Moxa Technologies UC-7112, UC-7110, UC-7112-LX Plus Hardware User Manual

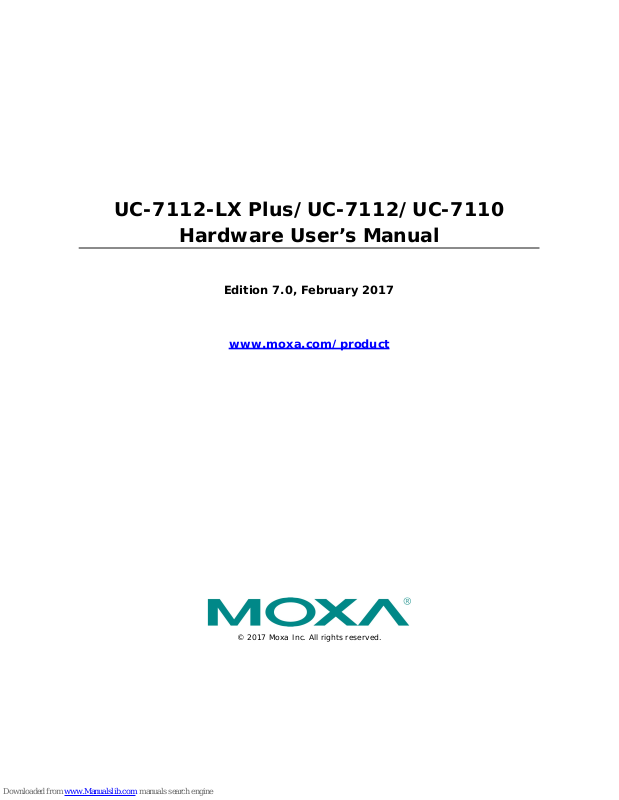

UC-7112-LX Plus/UC-7112/UC-7110

Hardware User’s Manual

Edition 7.0, February 2017

www.moxa.com/product

© 2017 Moxa Inc. All rights reserved.

UC-7112-LX Plus/UC-7112/UC-7110

Hardware User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Copyright Notice

© 2017 Moxa Inc. All rights reserved.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.

Moxa provides this document as is, without warranty of any kind, eit her expres sed or i mplie d, inclu ding, but n ot limited
to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the
products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for
its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas

Toll

-free: 1-888-669-2872

Tel:

[phone]

Fax:

[phone]

Moxa China (Shanghai office)

Toll

-free: 800-820-5036

Tel:

[phone]

Fax:

[phone]

Moxa Europe

Tel:

[phone]

Fax:

[phone]

Moxa Asia

-Pacific

Tel:

[phone]

Fax:

[phone]

Moxa India

Tel:

[phone]

Fax:

[phone]

Table of Contents

1. Introduction ...................................................................................................................................... 1-1

Overview ........................................................................................................................................... 1-2

Package Checklist ............................................................................................................................... 1-2

Product Features ................................................................................................................................ 1-3

Product Specifications ......................................................................................................................... 1-3

Hardware Specifications ............................................................................................................... 1-3

Hardware Block Diagram ..................................................................................................................... 1-5

2. Hardware Introduction ..................................................................................................................... 2-1

Appearance ........................................................................................................................................ 2-2

Dimensions ........................................................................................................................................ 2-2

Panel Views ....................................................................................................................................... 2-3

LED Indicators .................................................................................................................................... 2-3

Internal SD Socket.............................................................................................................................. 2-4

Additional Functions ............................................................................................................................ 2-4

Reset Button ............................................................................................................................... 2-4

Real Time Clock .......................................................................................................................... 2-4

3. Hardware Connection Description ..................................................................................................... 3-1

Wiring Requirements ........................................................................................................................... 3-2

Connecting the Power .................................................................................................................. 3-2

Grounding the UC-71xx Embedded Computers ................................................................................ 3-2

Connecting Data Transmission Cables ................................................................................................... 3-3

Connecting to the Network ........................................................................................................... 3-3

Connecting to a Serial Device ....................................................................................................... 3-3

Serial Console Port ...................................................................................................................... 3-4

Installing a Secure Digital (SD) Memory Card ......................................................................................... 3-4

1

1. Introduction

The Moxa UC-7110/7112 series of embedded computers are RISC-based, box-type computers that fea tu re
dual 10/100 Mbps Ethernet ports, two RS-232/422/485 seria l ports, and an ARM9 processor. The computers
come with Linux pre-installed. In addition, the UC -7112 Plus and UC-7112 have an internal SD socket for
storage expansion to offer high performance communication with unlimited storage in a super-compact,
palm-size box. The UC-7110/7112 series of embedded comp uters are the right solution for embedded
applications that call for a small computer, but that can store large amounts of memory and provide good
computing performance.

The following topics are covered in this chapter:



Overview



Package Checklist



Product Features



Product Specifications

 Hardware Specifications



Hardware Block Diagram

UC-7112-LX Plus/UC-7112/UC-7110 Hardware Introduction

1-2

Overview

The UC-7110/7112 series of RISC-based communication platforms are ideal for embedded applications. All
three computers in the series (UC-7110, UC-7112, and UC-7112 Plus) come with 2 RS-232/422/485 serial
ports and dual 10/100 Mbps Ethernet LAN ports to provide users with a versatile communication platform.

The UC-7110/7112 series computers use the Moxa ART ARM9 192 MHz RISC CPU. Unlike the x86 CPU, which
uses a CISC design, the ARM9’s RISC design architecture and modern semiconductor technology provide these
computers with a powerful computing engine and communication functions, but without generating too much
heat. The built-in NOR Flash ROM (8 MB for UC-7110/7112, 16 MB for UC-7112 Plus) and SDRAM (16 MB for
UC-7110/7112, 32 MB for UC-7112 Plus) give you plenty of storage capacity, and the SD socket provides
greater flexibility for running various applications. The dua l LAN ports built into the ARM9 allow the UC-71xx
computers to be used as communication platforms for basic data acquisition and protocol conversion
applications, and the two RS-232/422/485 serial ports allow you to connect a variety of serial devices.

The UC-7110 and UC-7112 come with the µClinux operating system pre-installed, and the UC-7112 Plus comes
with the Linux operating system with MMU support pre-installed. Software written for desktop PCs is easily
ported to the UC-71xx computers with a GNU cross complier, so that you will not need to spend time modifying
existing software code. The operating system, device drivers, and your own software can all be stored in the
computers’ Flash memory.

Package Checklist

The UC-7110/7112 series currently includes four models:

Standard Operating Temperature Models (-10 to 60°C)
UC-7110-LX

Ready-to-run embedded RISC computing platform with 2 Serial Ports, dual eEthernet, μClinux OS.

UC-7112-LX

Ready-to-run embedded RISC computing platform with 2 Serial Ports, dual eEthernet, SD slot, μClinux OS.

UC-7112-LX Plus

Ready-to-run embedded RISC computing platform with 2 Serial Ports, dual eEthernet, SD slot, Linux OS.

Wide Operating Temperature Mode l (-40 to 75°C)
UC-7110-T-LX

Ready-to-run embedded RISC computing platform with 2 Serial Ports, dual eEthernet, μClinux OS, Wide
Temperature.

Each model is shipped with the following items:

• 1 UC-7110 or UC-7112 or UC-7112 Plus

• Quick installation guide (printed)

• Document & software CD

• Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm

• CBL-4PINDB9F-100: 4-pin header to DB9 female console port cable, 100 cm

• Universal Power Adaptor

• Warranty card

Optional Accessories

• 35 mm DIN-Rail Mounting Kit (DK-35A)
NOTE: Please notify your sales representative if any of the above items are missing or damaged.
