Moxa Technologies UC-7101 Hardware User Manual

UC-7101

Hardware User’s Manual

Second Edition, June 2008

www.moxa.com/product

© 2008 Moxa Inc., all rights reserved.

Reproduction without permission is prohibited.

UC-7101 Hardware User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Copyright Notice

Copyright © 2008 Moxa Inc.

All rights reserved.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the
part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are made periodically to the
information in this manual to correct such errors, and these changes are incorporated into

new editions of the

publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:
Toll-free: 1-888-669-2872
Tel: [phone]
Fax: [phone]

Moxa China (Shanghai office)

:
Toll-free: 800-820-5036
Tel: [phone]
Fax: [phone]

Moxa Europe

:
Tel: [phone]
Fax: [phone]

Moxa Asia-Pacific

:
Tel: [phone]
Fax: [phone]

Table of Contents

Chapter 1 Introduction..................................................................................................1-1

Overview.................................................................................................................................. 1-2

Package Checklist .................................................................................................................... 1-2

Product Features ...................................................................................................................... 1-3

Product Specifications ............................................................................................................. 1-3

Hardware Specifications............................................................................................... 1-3

Software Specifications—UC-7101 (μClinux)............................................................. 1-4

Hardware Block Diagrams....................................................................................................... 1-5

Chapter 2 Hardware Introduction.................................................................................2-1

Appearance .............................................................................................................................. 2-2

Dimensions .............................................................................................................................. 2-3

Panel Views.............................................................................................................................. 2-4

LED Indicators......................................................................................................................... 2-5

Internal SD Socket ................................................................................................................... 2-5

Additional Functions................................................................................................................ 2-5

Reset Button ................................................................................................................. 2-5

Real Time Clock........................................................................................................... 2-6

Chapter 3 Hardware Connection Description .............................................................3-1

Wiring Requirements............................................................................................................... 3-2

Connecting the Power................................................................................................... 3-2

Grounding the UC-7101 Embedded Computer ............................................................ 3-2

Connecting Data Transmission Cables .................................................................................... 3-3

Connecting to the Network........................................................................................... 3-3

Connecting to a Serial Device ...................................................................................... 3-4

Serial Console Port ....................................................................................................... 3-4

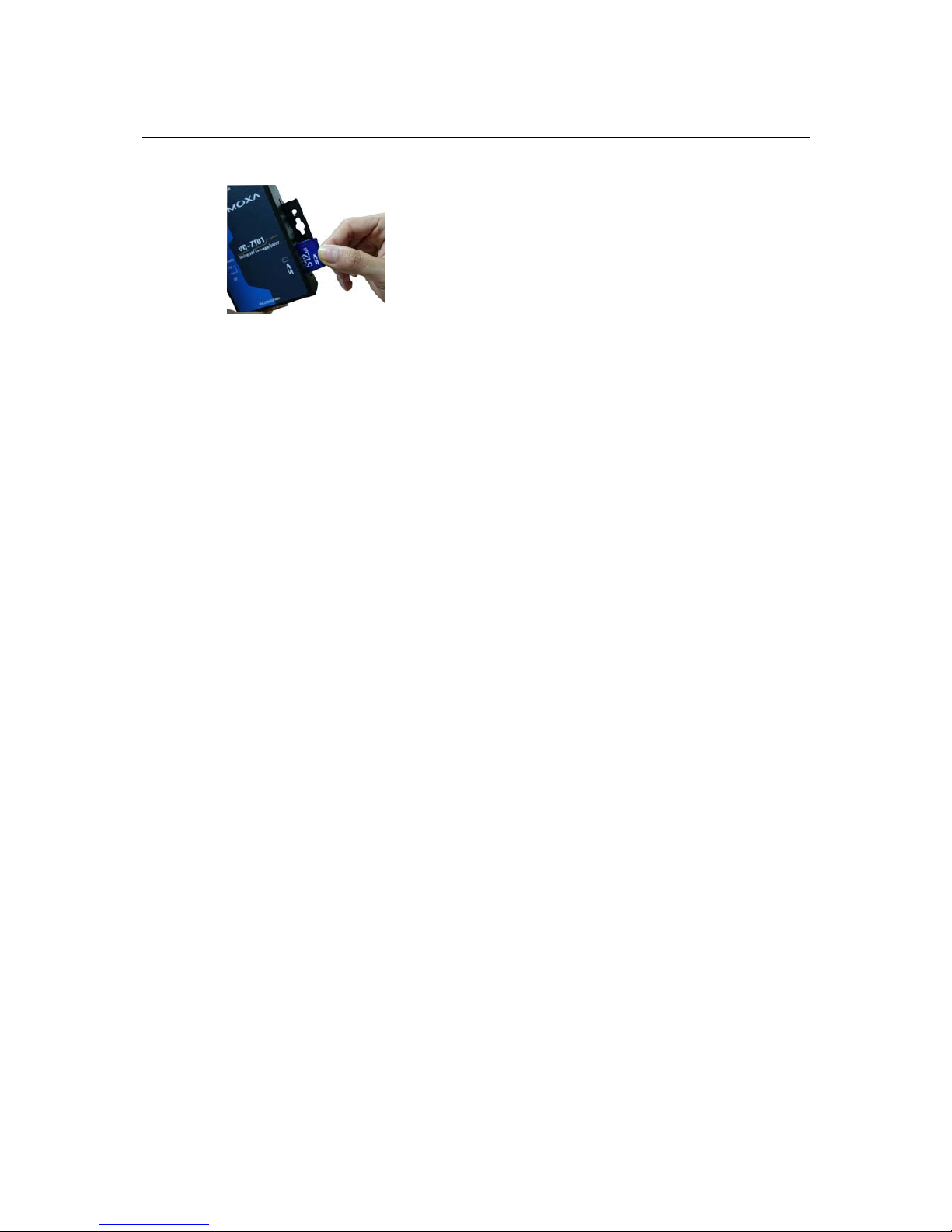

Installing a Secure Digital (SD) Memory Card........................................................................ 3-4

1

1

Chapter 1 Introduction

The Moxa UC-7101 series of embedded computers are mini, RISC-based, box-type computers that
feature 10/100 Mbps Ethernet ports, RS-232/422/485 serial ports, and an ARM9 processor. The
computers come with Linux pre-installed. In addition, the UC-7101 has an internal SD socket for
storage expansion to offer high performance communication with unlimited storage in a
super-compact, palm-size box. The UC-7101 series of embedded computers are the right solution
for embedded applications that call for a small computer, but that can store large amounts of
memory and provide good computing performance.

In this chapter, we cover the following topics:

 Overview
 Package Checklist
 Product Features
 Product Specifications

¾ Hardware Specifications
¾ Software Specifications—UC-7101 (μClinux)

 Hardware Block Diagrams

UC-7101 Hardware User’s Manual Introduction

Overview

The UC-7101 series of mini, RISC-based communication platforms are ideal for embedded
applications. All computers in the series come with RS-232/422/485 serial ports and 10/100 Mbps
Ethernet LAN ports to provide users with a versatile communication platform.

The UC-7101 series computers use the Moxa ART ARM9 192 MHz RISC CPU. Unlike the x86
CPU, which uses a CISC design, the ARM9’s RISC design architecture and modern
semiconductor technology provide these computers with a powerful computing engine and
communication functions, but without generating too much heat. The built-in NOR Flash ROM (8
MB for UC-7101) and SDRAM (16 MB for UC-7101) give you plenty of storage capacity, and the
SD socket provides greater flexibility for running various applications. The LAN ports built into
the ARM9 allow the UC-7101 computers to be used as communication platform for basic data
acquisition and protocol conversion applications, and the RS-232/422/485 serial ports allow you to
connect a variety of serial devices.

The UC-7101 comes with the µClinux operating system pre-installed. Software written for desktop
PCs is easily ported to the UC-7101 computers with a GNU cross complier, so that you will not
need to spend time modifying existing software code. The operating system, device drivers, and
your own software can all be stored in the computers’ Flash memory.

Package Checklist

The UC-7101 series currently includes two models:

Standard Operati ng Temperature Models (-10 to 60°C)
UC-7101-LX

Mini RISC-based Ready-to-Run Embedded Computer with 1 Serial Port, 1 Ethernet Port,
μClinux OS.

Wide Operating Temperature Models (-40 to 75°C)
UC-7101-T-LX

Mini RISC-based Ready-to-Run Embedded Computer with 1 Serial Port, 1 Ethernet Port,
μClinux OS, Wide Temperature.

Each model is shipped with the following items:

y 1 UC-7101
y Quick Installation Guide
y Document & Software CD
y 100 cm RJ45-to-RJ45 Ethernet cross-over cable
y 100 cm console port cable (CBL-4PINDB9F-100)
y Universal Power Adaptor
y Product Warranty Statement

Optional Accessories

y 35 mm DIN-Rail Mounting Kit (DK-35A)
NOTE: Please notify your sales representative if any of the above items are missing or damaged.

1-2

UC-7101 Hardware User’s Manual Introduction

Product Features

The UC-7101 series computers have the following features:

y Moxa ART ARM9 32-bit 192 MHz processor
y 16 MB RAM (about 12 MB of user programmable space)
y 8 MB Flash ROM (about 4 MB of user programmable space)
y One 10/100 Mbps Ethernet port for network redundancy
y One software-selectable RS-232/422/485 ports
y Select Any Baudrate from 50 bps to 921.6 Kbps
y SD socket for storage expansion
y Built-in RTC, Buzzer, WDT
y Built-in μClinux Kernel 2.6 platform
y -40 to 75

o

C wide temperature models available

y DIN-Rail or wall mountable
y Robust fanless design

Product Specifications

Hardware Specifications

System

CPU Moxa ART ARM9 32-bit RISC CPU, 192 MHz

DRAM UC-7101: 16 MB

Flash UC-7101: 8 MB
Storage Expansion UC-7101: SD slot ¯ 1
Console port RS-232 ¯ 1 (TxD, RxD, GND), 4-pin header output, “19200, n, 8, 1”
Button Reset button ¯ 1, supports “Reset to Factory Default”

Other RTC, buzzer, Watchdog Timer

OS UC-7101: Built-in μClinux, based on Linux Kernel 2.6

Network Communication

LAN UC-7101: 10/100 Mbps RJ45 ¯ 1, auto-sensing

Protection 1.5 KV built-in magnetic isolation protection

Serial Communication

Serial Port UC-7101: Software-selectable RS-232/422/485 DB9 male ¯ 1

Protection 15 KV built-in ESD protection for all signals

Data bits 5, 6, 7, 8

Stop bit(s) 1, 1.5, 2

Parity None, Even, Odd, Space, Mark

Flow Control RTS/CTS, XON/XOFF, RS-485 ADDC™

Speed 50 bps to 921.6 Kbps; ANY BAUDRATE supported

LEDs

System Ready ¯ 1

LAN 10 M/Link¯ 1, 100 M/Link ¯ 1 (located on RJ45 connector)

Serial TxD ¯ 1, RxD ¯ 1 (UC-7101)

1-3
