Moxa Technologies TN-5308 User Manual

Moxa ToughNet Switch
TN-5308 Series
Layer 2 M12 unmanaged Ethernet switches
Hardware Installation Guide
First Edition, May 2009
© 2009 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
P/N: 1802053080010
Overview
The ToughNet TN-5308 series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75°C are also available. The TN-5308 series Ethernet switches are compliant with EN50155/50121-3-2/50121-4 (railway applications), NEMA TS2 (traffic control systems), and e-Mark (vehicles) requirements, making the switches suitable for a variety of industrial applications.
Package Checklist
Your TN-5308 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance.
y Moxa ToughNet Switch y Panel Mounting Kit y Hardware Installation Guide y Moxa Product Warranty Statement
Features
High Performance Network Switching Technology
y 8 10/100BaseT(X) ports y Store and Forward switching process type y IEEE 802.3/802.3u/802.3x y 10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing
Industrial-Specific Applications
y Support 12/24/36/48 VDC (7 to 60 VDC) power input for “-LV” models y Support 72/96/110 VDC (50.4 to 154 VDC) power input for “-MV”
models
y Active circuit protection
Rugged Design
y M12 / M23 circular connectors for vibration-resistant robust connections y Operating temperature range of 0 to 60°C, or extended operating
temperature range of -40 to 75°C for “-T” models
y IP40, rugged metal housing y Panel mounting or DIN-rail mounting installation capability
1

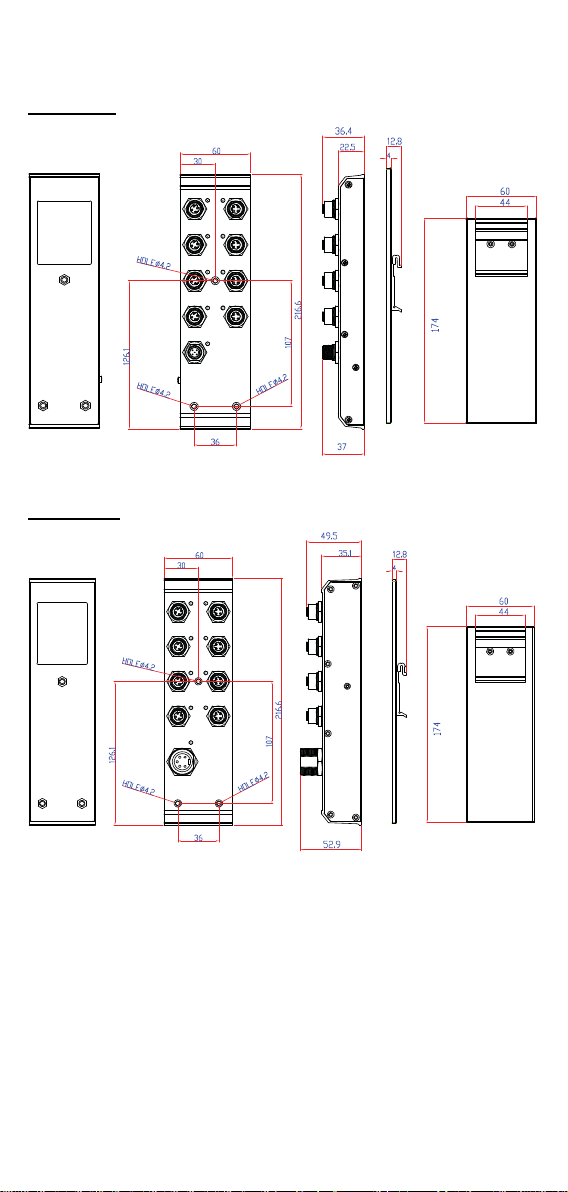

TN-5308-LV Panel Layouts
Front Panel View Rear Panel View
1
2 3
11
4
5 6
7 8
4
9
10
44 4
1. TP port’s 10/100 Mbps LED
2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding)
3. Port label
4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right)
5. Power input LED
6. Power input port (male 5-pin shielded M12 connector with A coding)
7. Grounding screw
8. Power input port pin assignment
9. Model name

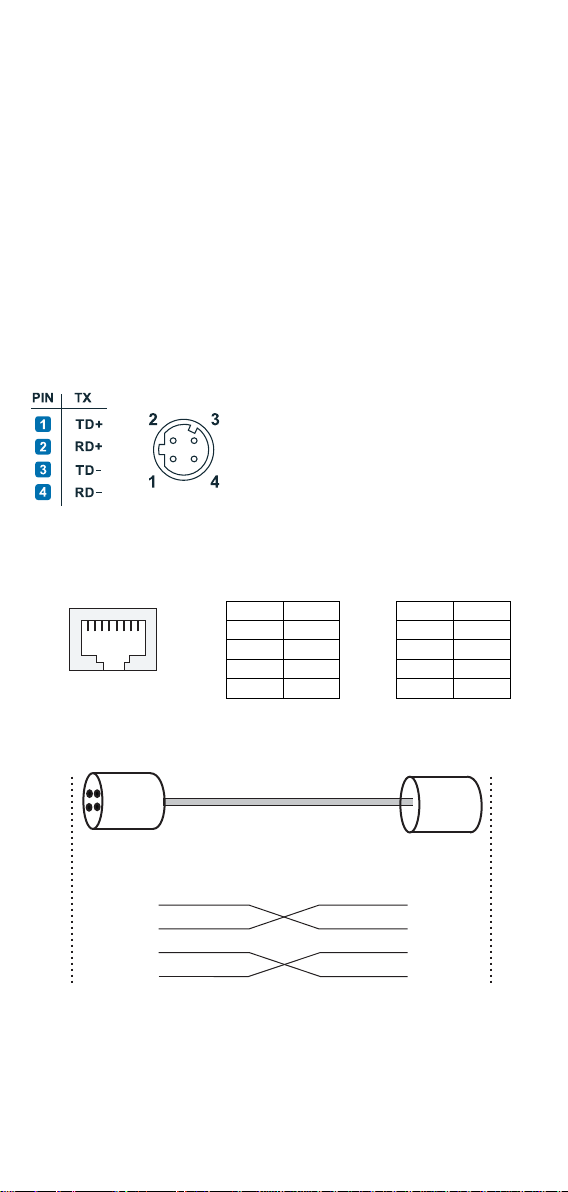

10. TP port pin assignment
11. Model label
4
7
2
TN-5308-MV Panel Layouts
Front Panel View Rear Panel View
1
2 3
11
4
5 6
7 8
4
9
10
44 4
1. TP port’s 10/100 Mbps LED
2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding)
3. Port label
4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right)
5. Power input LED
6. Power input port (male 5-pin shielded M23 connector with A coding)
7. Grounding screw
8. Power input port pin assignment
9. Model name
10. TP port pin assignment
11. Model label
3
4
7
