Moxa TCC-120/120I
Hardware Installation Guide
Eleventh Edition, January 2015
www.moxa.com/product
© 2015 Moxa Inc. All rights reserved.
P/N: 1802001200303
www.ipc2u.ru
www.moxa.pro
Moxa TCC-120/120I
Hardware Installation Guide
The software described in this manual is furnished under a license
agreement and may be used only in accordance with the terms of that
agreement.
Copyright Notice
© 2015 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their
respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does
not represent a commitment on the part of Moxa.
Moxa provides this document as is, without warranty of any kind, either
expressed or implied, including, but not limited to, its particular purpose.
Moxa reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at
any time.
Information provided in this manual is intended to be accurate and reliable.
However, Moxa assumes no responsibility for its use, or for any
infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors.
Changes are periodically made to the information herein to correct such
errors, and these changes are incorporated into new editions of the
publication.
www.ipc2u.ru
www.moxa.pro
Technical Support Contact Information
www.moxa.com/support
Moxa Americas
Toll
-free: 1-888-669-2872
Tel:
+1-714-528-6777
Fax: +1-714-528-6778
Moxa China (Shanghai office)
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Europe
Tel:
+49-89-3700399-0
Fax: +49-89-3700399-99
Moxa Asia
-Pacific
Tel:
+886-2-8919-1230
Fax: +886-2-8919-1231
Moxa India
Tel:
+91-80-4172-9088
Fax: +91-80-4132-1045
www.ipc2u.ru
www.moxa.pro
Table of Contents
1. Introduction ............................................................. 1
Overview .................................................................... 2
Introduction .............................................................. 2
Built-in RS-485 ADDCTM Intelligence ............................ 3
Isolation ................................................................... 3
Reverse Power Protection ........................................... 3
DIP Switch Selectable Terminator ................................ 3
Auto Baudrate Detection ............................................ 3
Product Features .......................................................... 4
Package Checklist ........................................................ 4
Product Specifications................................................... 5
Product Views .............................................................. 6
LED Indicators ............................................................. 7
2. Installation ............................................................... 8
STEP 1: Set the DIP Switches ........................................ 9

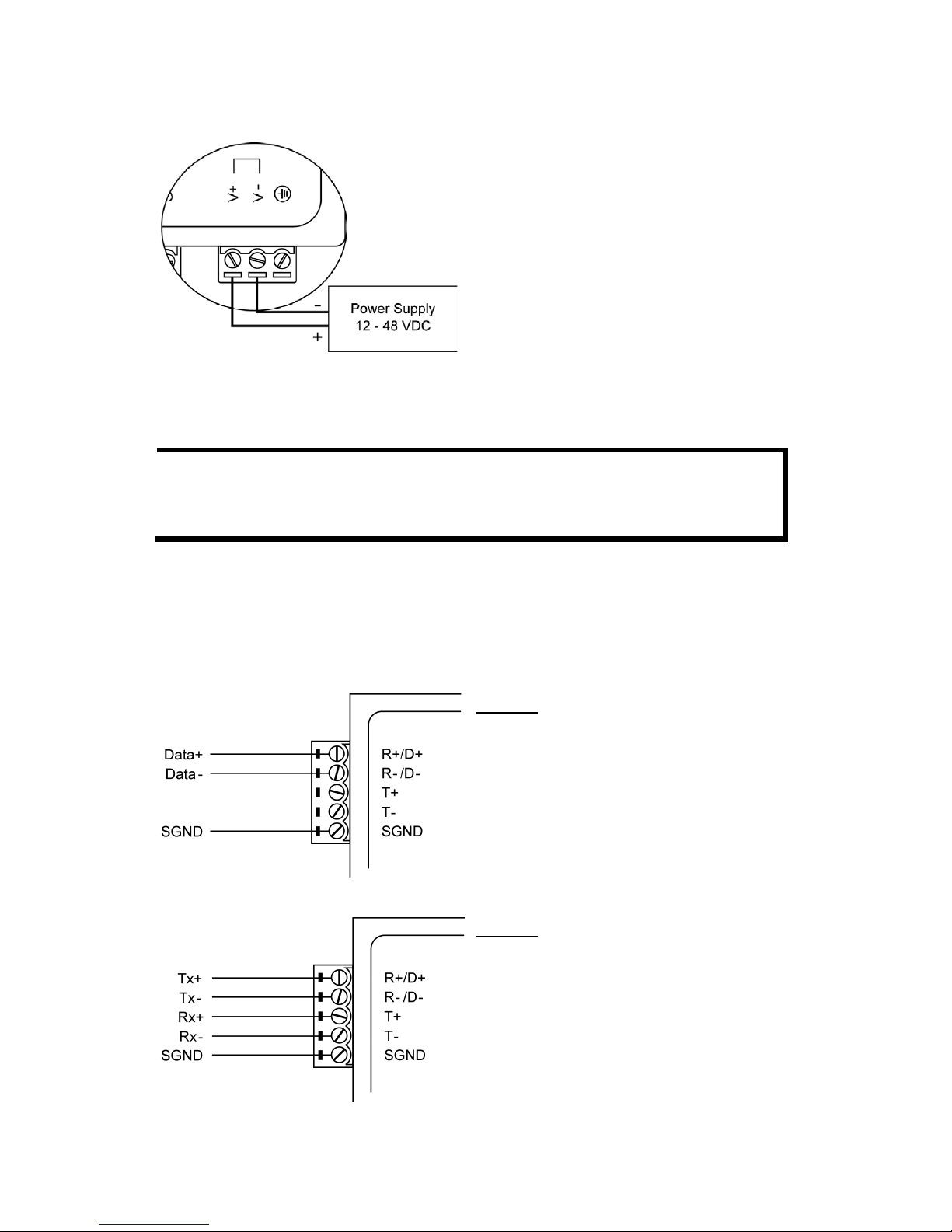

STEP 2: Attach the Power Supply ................................. 12
STEP 3: Wire the Terminal Block .................................. 12
STEP 4: Test the Connection ....................................... 13

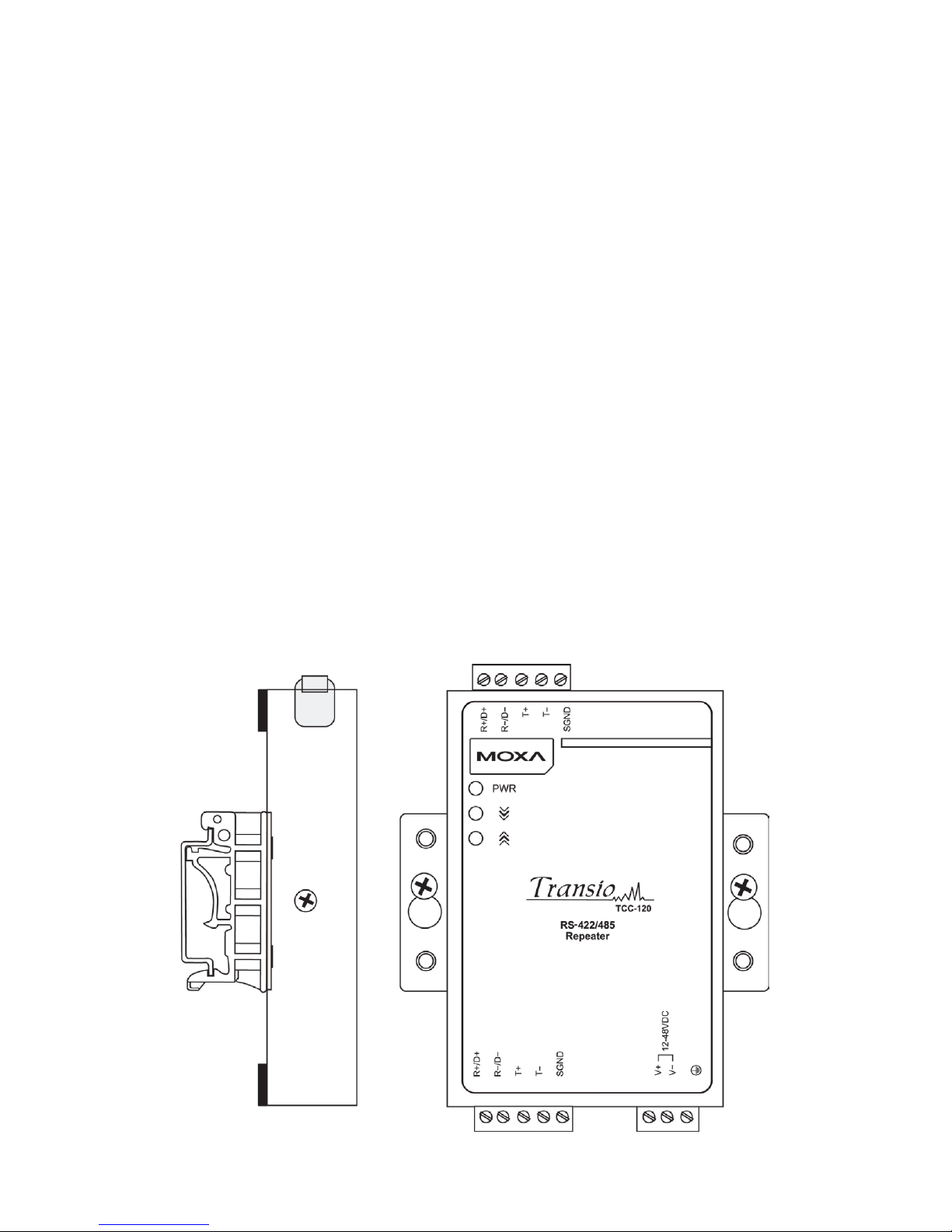

STEP 5: Placement ..................................................... 13
www.ipc2u.ru
www.moxa.pro
1
1. Introduction
The TCC-120 and TCC-120I are RS-422/485 isolated repeaters, and the
TCC-120I comes with 2 kV isolation protection.
The following topics are covered in this chapter:
Overview
Introduction
Built-in RS-485 ADDC
TM
Intelligence
Isolation
Reverse Power Protection
DIP Switch Selectable Terminator
Auto Baudrate Detection
Product Features
Package Checklist
Product Specifications
Product Views
LED Indicators
www.ipc2u.ru
www.moxa.pro
2
Overview
Introduction
Many important devices used in today’s industrial environments use the
RS-422 or RS-485 interface for data transmission. In some cases however,
it is necessary to extend the transmission distance between RS-422/485
devices. This is where the TCC-120/120I RS-422/485 repeaters come in.
Simply wire the power terminal block, wire the two signal terminal blocks,
set the DIP switches, and you’re ready to go.
The RS-422/485 standards use a differential signal for transmitting data
signals. In addition to distance and multi-drop issues for industrial
applications, housing, wiring, power supply, and over-surge protection are
also serious concerns.
The TCC-120I provides isolation protection for users who need an industrial
grade repeater to extend RS-422/485 transmission distance and increase
networking capability. The superior industrial application design of this
product, which includes wall mounting, terminal block wiring, external
terminal block power, and optical isolation for system protection, makes the
TCC-120/120I suitable for use in critical industrial environments.
www.ipc2u.ru
www.moxa.pro
3
Built-in RS-485 ADDCTM Intelligence
ADDC™ (Automatic Data Direction Control), a Moxa leading technology,
uses a clever hardware solution to take care of the RS-485 data flow control
problem. ADDC™ is a hardware data flow solution that automatically senses
and controls data direction, making the handshaking signal method
unnecessary.
Isolation
Moxa’s electrical isolation technology uses two photo couplers to create a
gap in each electrical signal. One photo coupler transforms the electrical
signal into a light signal, which is transmitted across a small gap, and then
the other photo coupler transforms the light signal back into an electrical
signal. In this way, the two electrical circuits are completely isolated from
each other, limiting the damage that could otherwise be caused by ground
loops in the electrical signal.
Reverse Power Protection
The Reverse Power Protection feature provides extra protection against
accidentally connecting the power cables to the wrong terminal. The
converter is designed to automatically detect which power wire is positive
and which is negative, and then adjust the power supply accordingly.
DIP Switch Selectable Terminator
For many products of this type, the termination resistor is set by a jumper
located inside the product’s casing, so that the user must open the casing to
disable or change the resistor’s strength. Moxa offers a better solution. The
TCC-120/120I’s terminator is set with a DIP switch located on the outside of
the converter’s casing.
Auto Baudrate Detection
The TCC-120/120I incorporates a method for automatically detecting the
serial signal’s baudrate by hardware. This is an extremely convenient
feature for the user. Even if a device’s baudrate changes, the signal will still
be transmitted through the RS-422/485 repeater without any problems.
www.ipc2u.ru
www.moxa.pro
4
Product Features
• Boost the serial signal to extend transmission distance up to an
additional 1.2 km
• Wall or DIN-rail mountable
• Terminal block for easy wiring
• Power input from terminal block
• DIP switch setting for built-in terminator (120 ohms)
• PWR, Tx, Rx LEDs
• Operating temperature from -20 to 60°C
• 2 kV isolation (for the TCC-120I)
Package Checklist
Before installing the TCC-120/120I, verify that the package contains the
following items:
Standard Accessories:
• TCC-120 or TCC-120I
• DIN-rail mounting kit
• User’s guide
• Warranty card
Please notify your sales representative if any of the above items are missing
or damaged.
www.ipc2u.ru
www.moxa.pro
5
Product Specifications
Communication
Signals for 2-wire
(RS-485 2-wire)
Data+, Data-, SGND
Signals for 4-wire
(RS-422 or 4-wire RS-485)
Tx+, Tx-, Rx+, Rx-, SGND
RS-485 Data Direction Control
ADDC™
Baudrate
50 bps to 921.6 Kbps
Isolation 2 kV for both Power and Signal
(TCC-120I)
Environmental
Operating Temperature
-20 to 60°C
Storage Temperature
-20 to 85°C
Humidity
5 to 95 %RH
Power
Input Power Voltage
External 12-48 VDC Power, Terminal
Block
Reverse Power Protection
Protects against V+/V- reversal
Over Current Protection
Protects against 2 signals shorted
together
Power Consumption
TCC-120:
65mA @ 12V
37mA @ 24V
26mA @ 48V
TCC-120I:
180mA @ 12V
90mA @ 24V
52mA @ 48V
Mechanical
Dimensions (W × D × H)
67 x 100 x 22 mm (casing only)
90 x 100 x 22 mm (including ears)
Housing
Aluminum
Plug-In Screw Terminal Block
#22 to #16 AWG
Color
Black
Weight
148±5 g
Regulatory Approvals
CE, FCC (Class A), UL-60950-1
www.ipc2u.ru
www.moxa.pro
6
Product Views
www.ipc2u.ru
www.moxa.pro
7

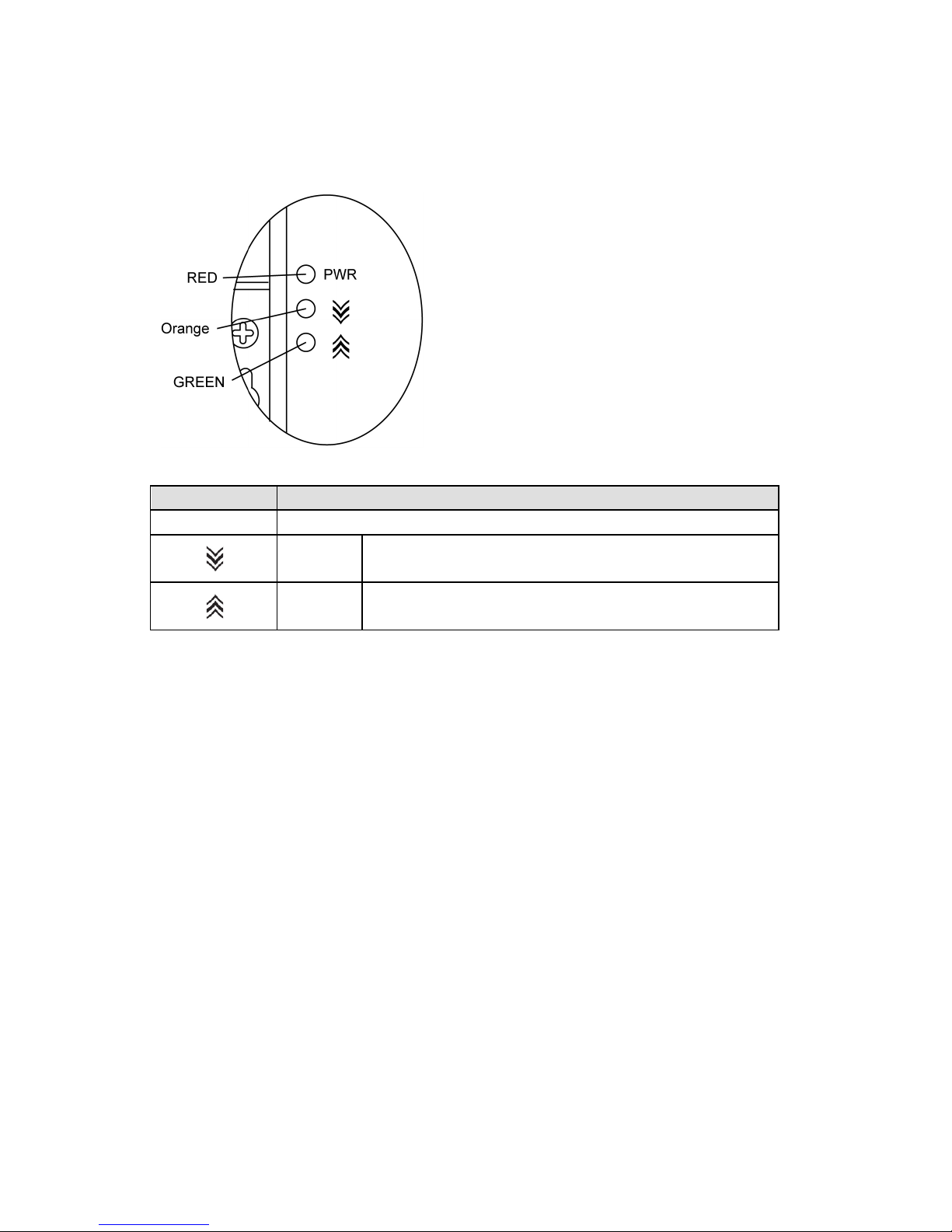

LED Indicators
The TCC-120/120I’s top panel contains three LED indicators, as described in
the table below:
LED Name
LED Function
PWR
Red indicates the power is on.
Orange
Data is entering through the top-end port and
exiting through the bottom-end port.
Green
Data is entering through the bottom-end port
and exiting through the top-end port.
www.ipc2u.ru
www.moxa.pro
2
2. Installation
This chapter includes information about how to install the TCC-120/120I.
Five steps are required to install the TCC-120/120I:
• STEP 1: Set the terminator DIP Switches
• STEP 2: Attach the Power Supply
• STEP 3: Wire the RS-422/485 Terminal Blocks
• STEP 4: Test the Connection
• STEP 5: Placement
The details of each of these five steps are described next.
The following topics are covered in this chapter:
STEP 1: Set the DIP Switches
STEP 2: Attach the Power Supply
STEP 3: Wire the Terminal Block
STEP 4: Test the Connection
STEP 5: Placement
www.ipc2u.ru
www.moxa.pro
9
STEP 1: Set the DIP Switches
The DIP switches on the TCC-120/120I are used to set the signal
transmission mode and to enable or disable the termination resistor. You
can configure for either 2-wire (RS-485) or 4-wire (RS-422/485)
transmission modes. Also note that your program and serial port should be
set to match the repeater’s settings.
NOTE
The TCC-120/120I has two sets of DIP switches—one set on the
top end and the other set on the bottom end. To ensure proper
data transmission, make sure that the two sets of DIP switches are
configured properly.
SW1—Switch 1 selects RS-422 or RS-485 mode. The default is “Off” for
RS-485 mode.
SW2—Switch 2 selects 2-wire or 4-wire RS-485 mode. The default is “Off”
for 2-wire RS-485. Note that if Switch 1 is set to RS-422 mode, then Switch
2 is inactive.
SW3—Switch 3 enables the terminator to 120 ohms. When enabled, the
120-ohm resistor prevents signal reflection during RS-485 transmission.
The default is “Off” to disable the terminator. If your particular application
does not require the termination resistor, simply disable it by setting Switch
3 to the off position.
www.ipc2u.ru
www.moxa.pro
10

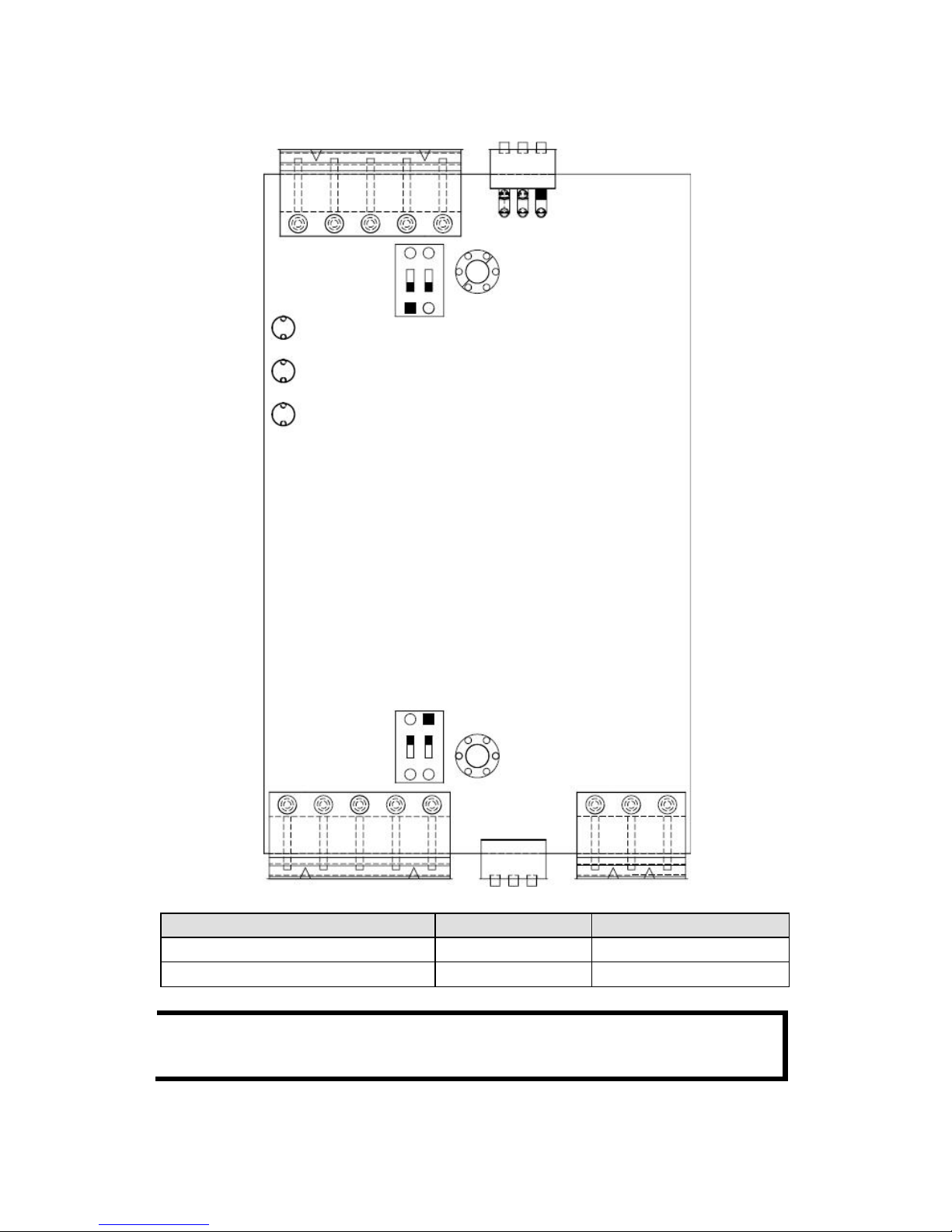

Dip Switch Settings
RS-422 Terminator active
SW1
SW2
SW3
ON ON ON
RS-422
SW1
SW2
SW3
ON ON OFF
4-wire RS-
485 Terminator
active
SW1
SW2
SW3
OFF ON ON
4-wire RS-485
SW1
SW2
SW3
OFF ON OFF
2-wire RS-485
Terminator
active
SW1
SW2
SW3
OFF OFF ON
2-wire RS-485
SW1
SW2
SW3
OFF OFF OFF
NOTE
These switch settings apply for product revision 1.3 and later; for
the switch settings of previous product revisions, refer to the label
on the rear panel for the correct information.
www.ipc2u.ru
www.moxa.pro
11
The newly implemented DIP-2 (S3 and S4) switches are used to configure
the pull high/low resistors for different applications.
Pull High/Low Resistor
DIP-2 SW1
DIP-2 SW2
150k
OFF
OFF
1k (default)
ON
ON
NOTE
We recommend setting the pull high/low resistor to 1k (ON/ON)
when termination is enabled.
S4
S3
www.ipc2u.ru
www.moxa.pro
12
STEP 2: Attach the Power Supply
The TCC-120/120I is powered by an
external 12
-48 VDC power supply.
To connect to the power supply, run
two wires from the V+ and V
-
terminals, on
the TCC-120’s
3
-connector terminal block, to the
DC power supply, as shown in the
figure
on the left.
Once the power supply is connected
to its power source, the PWR LED
located on
the TCC-120’s top panel
should be illuminated in red.
NOTE
The TCC
-120/120I provide reverse power protection. The
products will automatically detect which power wire is negative,
and which is positive.
STEP 3: Wire the Terminal Block
There are two wiring options available for connecting to the TCC-120/120I’s
RS-422/485 terminal block.
2-wire
When using the 2
-wire (for
RS
-485) wiring option, you will
need to connect three wires from
each of
the TCC-120/120I’s
RS-422/485 terminal blocks to the
opposite connections. Connect
from R+/D+ to Data+, from R
-/D
-
to Data
-, and from SGND to SGND.
4-wire
When using the 4
-wire (for RS-
422
or 4
-wire RS-485) wiring option,
you will need to connect five wires
from each of the TCC
-120/120I’s
RS-422/485 terminal blocks to the
opposite connections. Connect
from R+/D+ to Tx+, from R
-/D-
toTx
-, from T+ to Rx+, from T-
to
Rx-, and from SGND to SGND.
www.ipc2u.ru
www.moxa.pro
13
STEP 4: Test the Connection
After setting the DIP switches, connecting the power, and wiring the
terminal block, we suggest using a Console Terminal program, such as
HyperTerminal or Moxa Terminal Emulator, to test the connection. If you
have an RS-422/485 serial board (such as Moxa Industio CP-132) installed
on your PC, you can connect your PC’s COM port to one of the
TCC-120/120I’s RS-422/485 terminal blocks, and connect the
TCC-120/120I’s other RS-422/485 terminal block to one of the RS-422/485
serial board’s ports. Next, start HyperTerminal or Moxa Terminal Emulator,
and then open a connection to the COM port, and to the port associated with
the TCC-120/120I’s RS-422/485 port. Simply type a few characters on your
PC’s keyboard. The characters you type should show up in the
HyperTerminal window that is currently inactive, indicating that the typed
characters were transmitted between the TCC-120/120I’s two RS-422/485
ports.
STEP 5: Placement
In addition to placing the TCC-120/120I on a desktop or other horizontal
surface, you may also make use of the DIN-rail or wall mount options, as
illustrated here.
DIN-Rail
Wall Mount
www.ipc2u.ru
www.moxa.pro
14
www.ipc2u.ru
www.moxa.pro
Loading...
