Moxa Technologies MGate 5114 Quick Installation Manual
P/N: 1802051140010
*1802051140010*
MGate 5114
Quick Installation Guide
Edition 1.0, November 2018
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll
-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa China (Shanghai office):
Toll
-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
2018 Moxa Inc. All rights reserved.
- 2 -
Overview
The MGate 5114 is an industrial Ethernet gateway for Modbus
RTU/ASCII/TCP and IEC 60870-5-101/104 network communications.
Package Checklist
Before installing the MGate 5114, verify that the package contains the
following items:
• 1 MGate 5114 gateway
• 1 serial cable: DBL-RJ45F9-150
• Quick installation guide (printed)
• Warranty card
Please notify your sales representative if any of the above items is
missing or damaged.
Optional Accessories (can be purchased separately)
• CBL-F9M9-150: DB9-female-to-DB9-male serial cable, 150 cm
• CBL-F9M9-20: DB9-female-to-DB9-male serial cable, 20 cm
• CBL-RJ45F9-150: RJ45-to-DB9-female serial cable, 150 cm
• CBL-RJ45SF9-150: RJ45-to-DB9-female serial shielded cable, 150
cm
• Mini DB9F-to-TB DB9: Female-to-terminal-block connector
• DK-25-01: 1 DIN-rail kit with 2 screws
• WK-36-02: Wall-mounting kit, 2 plates with 6 screws
• CBL-PJTB-10: Non-locking barrel plug to bare-wire cable

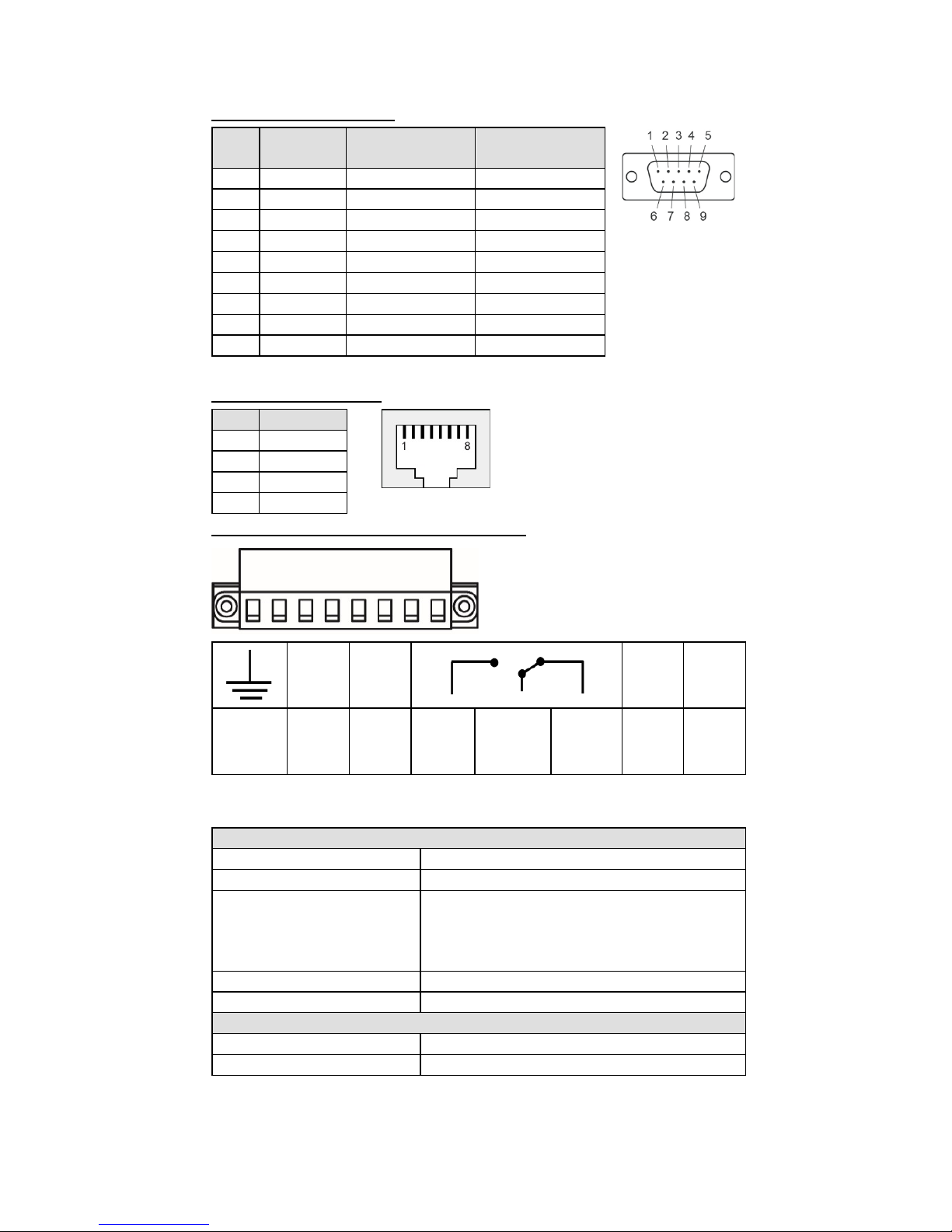

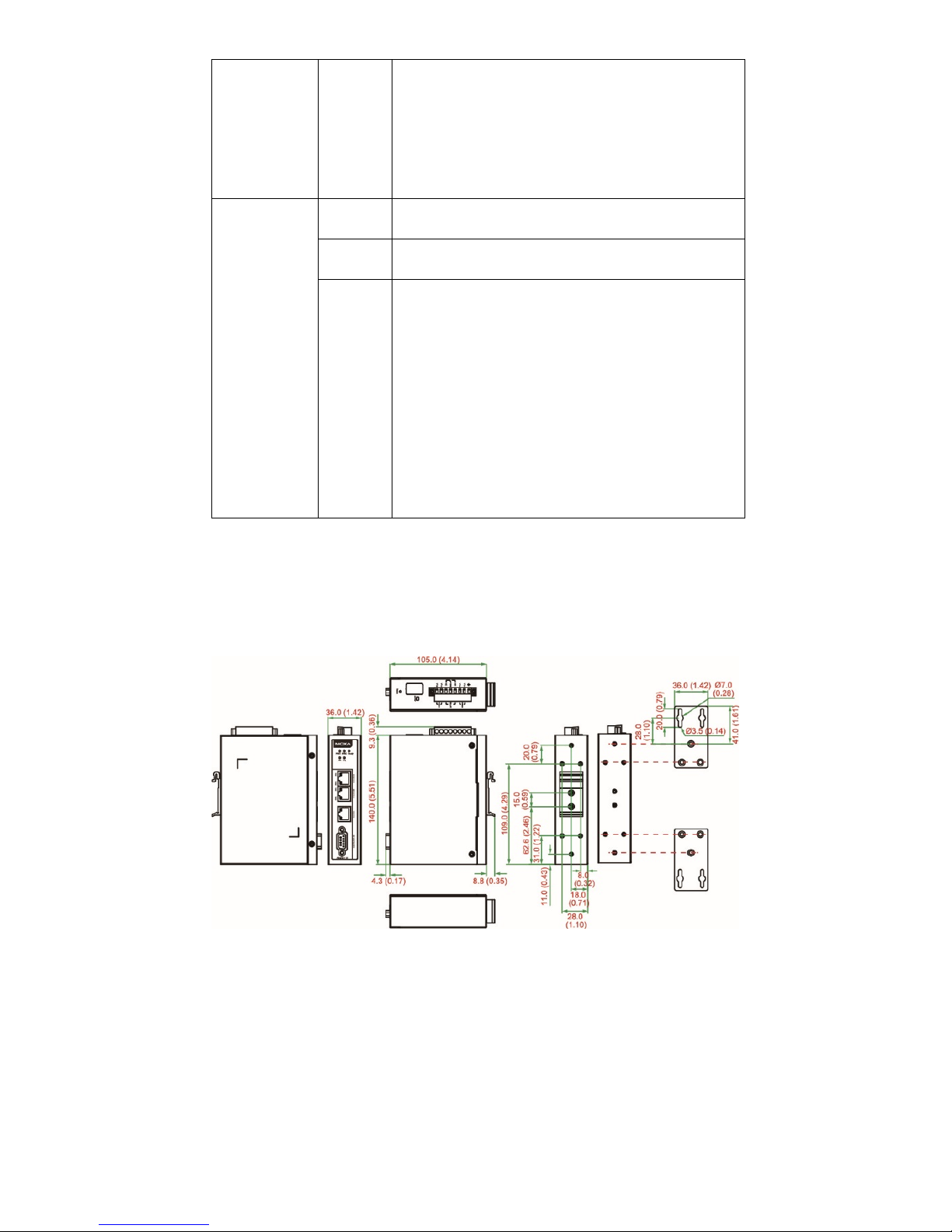

Hardware Introduction
LED Indicators
Agent Mode:
LED
Color
Description
Ready
Off
Power is off or a fault condition exists
Green
Steady: Power is on, and the MGate is
functioning normally
Red Steady: Power is on, and the MGate is booting
up
Blinking slowly: Indicates an IP conflict, or the
DHCP or BOOTP server is not responding
properly
Flashing quickly: the microSD card failed
MB*
Off
No serial communication with Modbus device
Green Normal Modbus serial communication in
progress
Red
An error in serial communication occurred
When the MGate 5114 acts as a Modbus
RTU/ASCII master:
1. The slave device returned an error
(exception)
2. Received a framing error (parity error,
checksum error)
3. Timeout (the master sends but no
response)
