Moxa Technologies ioLogik E1214, ioLogik E1212, ioLogik E1240, ioLogik E1241, ioLogik E1242 User Manual

ioLogik E1200 Series User’s Manual

Edition 12.0, October 2016

www.moxa.com/product

© 2016 Moxa Inc. All rights reserved.

ioLogik E1200 Series User’s Manual

Moxa Americas

Toll
Tel:
Fax:

Moxa China (Shanghai office)

Toll
Tel:
Fax:

Moxa Europe

Tel:
Fax:

Mo

Tel:
Fax:

Moxa India

Tel:
Fax:

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Copyright Notice

© 2016 Moxa Inc. All rights reserved.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.

Moxa provides this document as is, without warranty of any kind, e ither expre s sed or i mpl ied, incl uding, bu t not limit ed
to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the
products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for
its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

-free: 1-888-669-2872
[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

-free: 800-820-5036
[phone]

[phone]

xa Asia-Pacific

[phone]

[phone]

Table of Contents

1. Introduction ...................................................................................................................................... 1-1

Product Features ................................................................................................................................ 1-2

Inside the Box .................................................................................................................................... 1-2

Product Model Information ................................................................................................................... 1-3

Product Specifications ......................................................................................................................... 1-4

Common Specifications ................................................................................................................ 1-4

ioLogik E1210 ............................................................................................................................. 1-5

ioLogik E1211 ............................................................................................................................. 1-5

ioLogik E1212 ............................................................................................................................. 1-6

ioLogik E1213 ............................................................................................................................. 1-7

ioLogik E1214 ............................................................................................................................. 1-8

ioLogik E1240 ............................................................................................................................. 1-9

ioLogik E1241 ............................................................................................................................. 1-9

ioLogik E1242 ........................................................................................................................... 1-10

ioLogik E1260 ........................................................................................................................... 1-11

ioLogik E1262 ........................................................................................................................... 1-12

Physical Dimensions .......................................................................................................................... 1-13

Hardware Reference .......................................................................................................................... 1-14

Panel Guide .............................................................................................................................. 1-14

Ethernet Port ............................................................................................................................ 1-14

LED Indicators .......................................................................................................................... 1-14

I/O Circuit Diagram ........................................................................................................................... 1-15

DI Circuit ................................................................................................................................. 1-15

Sinking DO Circuit ..................................................................................................................... 1-15

Sourcing DO Circuit ................................................................................................................... 1-16

DIO Circuit ............................................................................................................................... 1-17

Relay Circuit ............................................................................................................................. 1-18

AI Circuit .................................................................................................................................. 1-18

RTD Circuit ............................................................................................................................... 1-18

TC Circuit ................................................................................................................................. 1-19

2. Initial Setup ...................................................................................................................................... 2-1

Hardware Installation .......................................................................................................................... 2-2

Connecting the Power .................................................................................................................. 2-2

Grounding the ioLogik E1200 ........................................................................................................ 2-2

DIN Rail, Wall Mounting ............................................................................................................... 2-2

Connecting to the Network ........................................................................................................... 2-3

Jumper Settings (DIO and AI) ....................................................................................................... 2-3

I/O Wiring Diagrams .................................................................................................................... 2-5

ioSearch™ Installation ......................................................................................................................... 2-7

Load Factory Default Settings ............................................................................................................... 2-7

3. Using the Web Console ...................................................................................................................... 3-1

Introduction to the Web Console ........................................................................................................... 3-2

Overview ........................................................................................................................................... 3-3

Network Settings for the Web Console ................................................................................................... 3-4

General Settings ......................................................................................................................... 3-4

Ethernet Configuration ................................................................................................................. 3-4

User-Defined Modbus Addressing .......................................................................................................... 3-5

Default Modbus Address ............................................................................................................... 3-5

AOPC Server Settings .......................................................................................................................... 3-6

Tag Generation ........................................................................................................................... 3-6

I/O Settings ....................................................................................................................................... 3-8

DI Channels ................................................................................................................................ 3-8

DO Channels ............................................................................................................................. 3-10

AI Channels .............................................................................................................................. 3-11

AI Input Range ......................................................................................................................... 3-12

AO Channels ............................................................................................................................. 3-14

RTD Channels ........................................................................................................................... 3-15

TC Channels ............................................................................................................................. 3-17

Peer-to-Peer Networking ................................................................................................................... 3-18

Peer-to-Peer Settings (1-50) ...................................................................................................... 3-18

Sample Peer-to-Peer Configuration .............................................................................................. 3-19

DO Safe Mode Settings .............................................................................................................. 3-20

AO Safe Mode Settings ............................................................................................................... 3-20

SNMP .............................................................................................................................................. 3-20

SNMP Trap ............................................................................................................................... 3-20

Using SNMP .............................................................................................................................. 3-21

Accessibility IP List .................................................................................................................... 3-25

RESTful API Setting .......................................................................................................................... 3-26

EtherNet/IP Setting ........................................................................................................................... 3-26

System Management ......................................................................................................................... 3-27

Network Connection .................................................................................................................. 3-27

Firmware Update ....................................................................................................................... 3-27

Import System Configuration Settings ......................................................................................... 3-27

Export System Settings .............................................................................................................. 3-28

Change Password ............................................................................................................................. 3-28

Load Factory Defaults ........................................................................................................................ 3-28

Save/Restart .................................................................................................................................... 3-29

4. Using ioSearch™ ................................................................................................................................ 4-1

Introduction to ioSearch™ ................................................................................................................... 4-2

ioSearch™ Main Screen ....................................................................................................................... 4-2

Main Screen Overview.................................................................................................................. 4-2

ioSearch™ Setup ................................................................................................................................ 4-3

System ...................................................................................................................................... 4-3

Sort ........................................................................................................................................... 4-4

Quick Links ................................................................................................................................. 4-4

Main Function ..................................................................................................................................... 4-4

Locate ....................................................................................................................................... 4-5

Firmware Upgrade ....................................................................................................................... 4-5

Unlock ....................................................................................................................................... 4-5

Import ....................................................................................................................................... 4-6

Export ....................................................................................................................................... 4-6

Change IP Address ...................................................................................................................... 4-7

Batch TCP/IP Configuration on Multiple Devices ............................................................................... 4-7

Change Server Name ................................................................................................................... 4-8

Activate EtherNet/IP .................................................................................................................... 4-8

Restart System ........................................................................................................................... 4-9

Reset to Default ........................................................................................................................ 4-10

Mass Deployment (Import) ......................................................................................................... 4-10

Mass Deployment (Export) ......................................................................................................... 4-10

5. Activation Process for the EtherNet/IP Function .............................................................................. 5-1

6. How to Connect the ioLogik E1200 to an Allen-Br a d ley PLC .............................................................. 6-1

EDS Installation of the ioLogik E1200 Series in Rockwell Software RSLogix 5000 ........................................ 6-2

Establishing communication between the ioLogik E1200 device and the Allen-Bradley PLC ........................... 6-6

A. Modbus/TCP Default Address Mappings ............................................................................................ A-1

ioLogik E1210 Modbus Address and Register Map ................................................................................... A-2

ioLogik E1211 Modbus Address and Register Map ................................................................................... A-3

ioLogik E1212 Modbus Address and Register Map ................................................................................... A-5

ioLogik E1213 Modbus Address and Register Map ................................................................................... A-7

ioLogik E1214 Modbus Address and Register Map ................................................................................... A-9

ioLogik E1240 Modbus Address and Register Map ................................................................................. A-11

ioLogik E1241 Modbus Address and Register Map ................................................................................. A-12

ioLogik E1242 Modbus Address and Register Map ................................................................................. A-14

ioLogik E1260 Modbus Address and Register Map ................................................................................. A-16

ioLogik E1262 Modbus Address and Register Map ................................................................................. A-18

B. EtherNet/IP Default Address Mappings ............................................................................................ B-1

ioLogik E1200 EtherNet/IP Map ............................................................................................................ B-1

C. RESTful API Default Address Mapp ings ............................................................................................. C-1

ioLogik E1200 RESTf u l API Map ............................................................................................................ C-1

D. Network Port Numbers ...................................................................................................................... D-1

E. Factory Default Settings .................................................................................................................... E-1

F. Pinouts .............................................................................................................................................. F-1

G. FCC Interference Statement .............................................................................................................. G-1

H. European Community (CE) ................................................................................................................ H-1

1















1. Introduction

The ioLogik E1200 industrial Ethernet remote I/O has two embedded Ethernet switch ports that allow
information to flow to another local Ethernet device or connect to the next ioLogik in a daisy-chain. Applications
such as factory automation, security and survei llance systems, and tunnel monitoring, can make use of
daisy-chained Ethernet for building multidrop I/O networks over standard Ethernet cables and familiar fieldbus
protocols. The daisy-chain function on the ioLogik E1200 Ethernet remote I/O not only increases the
connections between machines and p a nels, but it also lowers the cost of buying separate Ethernet sw itches,
and at the same time reduces labor fees and cabling by a large percentage. For example, if a production facility
contains 700 stations (20 points per station), the wiring cost reduction can reach 15% of the total
implementation cost.

The following topics are covered in this chapter:

Product Features

Inside the Box

Product Model Information

Product Specifications

 Common Specifications
 ioLogik E1210
 ioLogik E1211
 ioLogik E1212
 ioLogik E1213
 ioLogik E1214
 ioLogik E1240
 ioLogik E1241
 ioLogik E1242
 ioLogik E1260
 ioLogik E1262

Physical Dimensions

Hardware Reference

 Panel Guide
 Ethernet Port
 LED Indicators

I/O Circuit Diagram

 DI Circuit
 Sinking DO Circuit
 Sourcing DO Circuit
 DIO Circuit
 Relay Circuit
 AI Circuit
 RTD Circuit
 TC Circuit

ioLogik E1200 Series Introduction

1-2

NOTE

Notify your sales representative if any of the above items are missing or damaged.

Product Features

• Active communication with patented MX-AOPC UA Server

• 2-port Ethernet switch for daisy-chain topologies

• Easy mass deployment and configuration with ioSearch™utility

• User-friendly configuration via web browser

• Save time and wiring costs with peer-to-peer communication

• User-defined Modbus/TCP addressing

• Simplify I/O management with MXIO library on either Windows or Linux platform

• Wide operating tempera tu re: -40 to 75°C (-40 to 167°F)

• Supports SNMPv1/v2c

• UL/cUL Class I Division 2, ATEX Zone 2 certification

Inside the Box

The ioLogik E1200 is shipped with the following items:

• ioLogik E1200 remote Ethernet I/O server

• Quick installation guide (printed)

ioLogik E1200 Series Introduction

1-3

Product Model Information

Model Description

ioLogik E1210 Remote Ethernet I/O with 2-port Ethernet switch and 16 DIs
ioLogik E1211 Remote Ethernet I/O with 2-port Ethernet switch and 16 DOs
ioLogik E1212 Remote Ethernet I/O with 2-port Ethernet switch, 8 DIs , and 8 DIOs
ioLogik E1213 Remote Ethernet I/O with 2-port Ethernet switch, 8 DIs , 4 DOs, and 4 DIOs (source

type)
ioLogik E1214 Remote Ethernet I/O with 2-port Ethernet switch, 6 DIs, and 6 relays
ioLogik E1240 Remote Ethernet I/O with 2-port Ethernet switch and 8 AIs
ioLogik E1241 Remote Ethernet I/O with 2-port Ethernet switch and 4 AOs
ioLogik E1242 Remote Ethernet I/O with 2-port Ethernet switch and 4 AIs, 4DIs, and 4DIOs
ioLogik E1260 Remote Ethernet I/O with 2-port Ethernet switch and 6 RTDs
ioLogik E1262 Remote Ethernet I/O with 2-port Ethernet switch and 8 TCs
ioLogik E1210-T Ethernet remote I/O with 2-port Ethernet switch and 16 DIs, -40 to 75°C operating

temperature
ioLogik E1211-T Ethernet remote I/O with 2-port Ethernet switch and 16 DOs, -40 to 75°C operating

temperature
ioLogik E1212-T Ethernet remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs, -40 to 75°C

operating temperature
ioLogik E1213-T Remote Ethernet I/O with 2 Port Ethernet switch, 8 DIs, 4 DOs, and 4 DIOs (source

type), -40 to 75°C operating temperature
ioLogik E1214-T Ethernet remote I/O with 2-port Ethernet switch, 6 DIs, an d 6 Relays, -40 to 75°C

operating temperature
ioLogik E1240-T Ethernet remote I/O with 2-port Ethernet switch and 8 A Is, -40 to 75°C operating

temperature
ioLogik E1241-T Ethernet remote I/O with 2-port Ethernet switch and 4 AOs , -40 to 75°C operating

temperature
ioLogik E1242-T Ethernet remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs, -40 to 75°C

operating temperature
ioLogik E1260-T Ethernet remote I/O with 2-port Ethernet switch and 6 RTDs, -40 to 75°C operating

temperature
ioLogik E1262-T Ethernet remote I/O with 2-port Ethernet switch and 8 T Cs, -40 to 75°C operating

temperature

ioLogik E1200 Series Introduction

1-4

LAN

Ethernet:

Protection:

Protocols:

Physical Characteristics

Wiring:

Dimensions:

Weight:

Mounting:

Environmental Limits

Operating Temperature:

Standard Models:
Wide Temp. Models:

Storage Temperature:

Ambient Relative Humid it y:

Shock:

Vibration:

Altitude:

Note:

Standards and Certifications

Safety:

EMC:

EMI:

EMS:

IEC 61000
IEC 61000
IEC 61000
IEC 61000
IEC 61000
IEC 61000

Hazardous Location:

Green Product:

Note: Please check Moxa’s website for the most up

Warranty

Warranty Period:

Details:

Note: Because of the limited lifetime of power relays, products that

year

warranty.

Product Specifications

Common Specifications

2 switched 10/100 Mbps RJ45 ports

1.5 kV magnetic isolation

Modbus/TCP (Slave), EtherNet/IP, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP

I/O cable max. 14 AWG

27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Under 200 g (0.44 lb)

DIN rail or wall

-10 to 60°C (14 to 140°F)

-40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)

IEC 60068-2-27

IEC 60068-2-6

Up to 2000 m

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

UL 508

EN 55022, EN 55024

CISPR 22, FCC Part 15B Class A

-4-2 ESD: Contact: 4 kV; Air: 8 kV

-4-3 RS: 80 MHz to 1 GHz: 3 V/m

-4-4 EFT: Power: 2 kV; Signal: 1 k V

-4-5 Surge: Power: 2 kV; Signal: 1 kV

-4-6 CS: 10 V

-4-8
Class 1 Division 2, ATEX Zone 2

RoHS, CRoHS, WEEE

-to-date certification status.

5 years (excluding the ioLogik E1214)

See www.moxa.com/warranty

use this component are covered by a 2-

ioLogik E1200 Series Introduction

1-5

Inputs and Outputs

Digital Inputs:

Isolation:

Digital Input

Sensor Type:

I/O Mode:

Dry

• On: short to GND

• Off: open

Wet Contact (DI to COM):

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Common Type:

Counter Frequency:

Digital Filtering Time Interval:

Power Requirements

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

Inputs and Outputs

Digital Outputs:

Isolation:

Digital Output

Type:

I/O Mode:

Pulse Output Frequency:

Over

Over

Over

Current Rating:

Power Requirements

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

ioLogik E1210

16 channels

3k VDC or 2k Vrms

Wet Contact (NPN or PNP), Dry Contact

DI or Event Counter

Contact:

8 points per COM

250 Hz

Software configurable

12 to 36 VDC
110 mA @ 24 VDC

671,345 hrs

Telcordia SR332

ioLogik E1211

3k VDC or 2k Vrms

Sink

DO or Pulse Output

-Voltage Protection: 45 VDC

-Current Protection: 2.6 A (4 channels @ 650 mA)

-Temperature Shutdown: 175°C (typical), 150°C (min.)

12 to 36 VDC
200 mA @ 24 VDC

923,027 hrs

Telcordia SR332

16 channels

500 Hz

200 mA per channel

ioLogik E1200 Series Introduction

1-6

Inputs and Outputs

Digital Inputs:

Configurable DIOs (by jumper):

Isolation:

Digital Input

Sensor Type:

I/O Mode:

Dry Contact:

• On: short to GND

• Off: open

Wet Contact (DI to COM):

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Common Type:

Counter Frequency:

Digital Filtering Time Interval:

Digital Output

Type:

I/O Mode:

Pulse Output Frequency:

Over

Over

Over

Current Rating:

Power Requirements

Input Voltage:

Input Current:

MTBF

Time:

Standard:

ioLogik E1212

8 channels

8 channels

3k VDC or 2k Vrms

Wet Contact (NPN or PNP), Dry Contact

DI or Event Counter

8 points per COM

250 Hz

Software Configurable

Sink

DO or Pulse Output

-Voltage Protection: 45 VDC

-Current Protection: 2.6 A (4 channels @ 650 mA)

-Temperature Shutdown: 175°C (typical), 150°C (min.)

200 mA per channel

12 to 36 VDC
155 mA @ 24 VDC

(mean time between failures)

561,930 hrs

Telcordia SR332

500 Hz

ioLogik E1200 Series Introduction

1-7

Inputs and Outputs

Digital Inputs:

Digital Outputs:

Configurable DIOs (by jumper):

Isolation:

Digital Input

Sensor Type:

I/O Mode:

Dry Contact:

• On: short to GND

• Off: open

Wet Contact (DI to COM):

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Common Type:

Counter Frequency:

Digital Filtering

Digital Output

Type:

I/O Mode:

Pulse Output Frequency:

Over

Over

Over

Current Rating:

Power Requirements

Output Voltage Rating:

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

ioLogik E1213

8 channels

4 channels

4 channels

3k VDC or 2k Vrms

Wet Contact (NPN or PNP), Dry Contact

DI or Event Counter

12 points per COM

250 Hz

Time Interval: Software configurable

Source

DO or Pulse Output

-Voltage Protection: 41 VDC

-current Protection: 1.5 A per channel @ 25°C

-Temperature Shutdown: 175°C (typical), 150°C (min.)

500 mA per channel

12 to 36 VDC
130 mA @ 24 VDC

715,256 hrs

Telcordia SR332

500 Hz

15 to 30 VDC (12 or 9 VDC configurable by jumper on the 4 DO channels)

ioLogik E1200 Series Introduction

1-8

Inputs and Outputs

Digital Inputs:

Relays:

Isolation:

Digital Input

Sensor Type:

I/O Mode:

Dry Contact:

• On: short to GND

• Off: open

Wet Contact (DI to COM):

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Common Type:

Counter Frequency:

Digital Filtering

Relay

Note: Ambient humidity must be non-condensing and remain between 5 and 95%. The relays of the ioLogik
E1214 may malfunction when operating in high cond ensation environments below 0°C.

Type:

Contact Current Rating:

Resistive Load: 5 A @ 30 VDC, 250 VAC, 110 VAC

Breakdown Voltage:

Relay On/Off Time:

Initial Insulation Resistance:

Mechanical Endurance:

Electrical Endurance:

Contact Resistance:

Pulse Output:

Power Requirements

Input Voltage:

Input Current:

MTBF

Time:

Standard:

ioLogik E1214

6 channels

6 channels

3k VDC or 2k Vrms

Wet Contact (NPN or PNP), Dry Contact

DI or Event Counter

6 points per COM

250 Hz

Time Interval: Software configurable

Form A (N.O.) power relay

500 VAC

1500 ms (max.)

100,000 operations @ 5 A resistive load

100 milli-ohms (max.)

0.3 Hz at rated load

12 to 36 VDC
188 mA @ 24 VDC

(mean time between failures)

808,744 hrs

Telcordia SR332

1000 mega-ohms (min.) @ 500 VDC

5,000,000 operations

ioLogik E1200 Series Introduction

1-9

Inputs and Outputs

Analog Inputs:

Isolation:

Analog Input

Type:

Resolution:

I/O Mode:

Input Range:

Accuracy:

±0.1% FSR @ 25°C
±0.3% FSR @
±0.5% FSR @

Sampling Rate:

• All channels: 12 samples/sec

• Per

• Only one channel enabled: 12 samples/sec

Input Impedance:

Built

Power Requirements

Input Voltage:

Input Current:

MTBF

Time:

Standard:

Inputs and Outputs

Analog Outputs:

Isolation:

Analog Output

Resolution:

Output Range:

Drive Voltage:

Accuracy:

±0.1% FSR @ 25°C
±0.3% FSR @

Load Resistor:

Note: 24 V of external power required w h en loading exceeds 1000 ohms.

Power Requirements

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

ioLogik E1240

8 channels

3k VDC or 2k Vrms

Differential input

16 bits

Voltage / Current (jumper sel ectable)

0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)

-10 and 60°C

-40 and 75°C

channel: 1.5 samples/sec

10 mega-ohms (min.)

-in Resistor for Current Input: 120 ohms

12 to 36 VDC
121 mA @ 24 VDC

(mean time between failures)

474,053 hrs

Telcordia SR332

ioLogik E1241

3k VDC or 2k Vrms

12 bits

0 to 10 VDC, 4 to 20 mA

10 mA (max.)

-40 and 75°C
Internal register, 400 ohms

4 channels

12 to 36 VDC
194 mA @ 24 VDC

888,656 hrs

Telcordia SR332

ioLogik E1200 Series Introduction

1-10

Inputs and Outputs

Digital Inputs:

Configurable DIOs (by jumper):

Analog Inputs:

Isolation:

Digital Input

Sensor Type:

I/O Mode:

Dry Contact:

• On: short to GND

• Off: open

Wet Contact (DI to COM):

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Common Type:

Counter Frequency:

Digital Filtering Time Interval:

Digital Output

Type:

I/O Mode:

Pulse Output Frequency:

Over

Over

Over

Current Rating:

Analog Input

Type:

Resolution:

I/O Mode:

Input Range:

Accuracy:

±0.1% FSR @ 25°C
±0.3% FSR @
±0.5% FSR @

Sampling Rate:

• All channels: 12 samples/sec

• Per channel: 3 samples/sec

• Only one channel enabled: 12

Input Impedance:

Built

Power Requirements

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

ioLogik E1242

4 channels

4 channels

4 channels

3k VDC or 2k Vrms

Wet Contact (NPN or PNP), Dry Contact

DI or Event Counter

4 points per COM

250 Hz

Software Configurable

Sink

DO or Pulse Output

500 Hz

-Voltage Protection: 45 VDC

-Current Protection: 2.6 A (4 channels @ 650 mA)

-Temperature Shutdown: 175°C (typical), 150°C (min.)

200 mA per channel

Differential input

16 bits

Voltage / Current (jumper sel ectable)

0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)

-10 and 60°C

-40 and 75°C

samples/sec

10 mega-ohms (min.)

-in Resistor for Current Input: 120 ohms

12 to 36 VDC
139 mA @ 24 VDC

502,210 hrs

Telcordia SR332

ioLogik E1200 Series Introduction

1-11

Inputs and Outputs

RTDs:

Isolation:

RTD

Sensor Type:

• PT50, PT100, PT200, PT500 (

• PT1000 (

• Resistance of 310, 620, 1250, and 2200 ohms

Input

Sampling Rate:

• All channels: 12 samples/sec

• Per channel: 2 samples/sec

• Only one channel enabled: 12 samples/sec

Resolution:

Accuracy:

±0.1% FSR @ 25°C
±0.3% FSR @

Input Impedance:

Power Requirements

Input Voltage:

Input Current:

MTBF

Time:

Standard:

ioLogik E1260

6 channels

3k VDC or 2k Vrms

-200 to 850°C)

-200 to 350°C)

Connection: 2- or 3-wire

0.1°C or 0.1 ohm

-40 and 75°C

625 kilo-ohms

12 to 36 VDC
110 mA @ 24 VDC

(mean time between failures)

660,260 hrs.

Telcordia SR332

ioLogik E1200 Series Introduction

1-12

Inputs and Outputs

Thermocouples:

Isolation:

Thermocouple

Sensor Type:

E (

Millivolt Type:

• Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV

• Fault and over

Sampling Rate:

• All channels: 12 samples/sec

• Per channel: 1.5 samples/sec

• Only one channel enabled: 12 samples

Resolution:

Accuracy:

±0.1% FSR @ 25°C
±0.3% FSR @

Input Impedance:

Power Requirements

Input Voltage:

Input Current:

MTBF (mean time between failures)

Time:

Standard:

ioLogik E1262

8 channels

3k VDC or 2k Vrms

J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C),

-200 to 900°C), R (-50 to 1600°C), S (-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C)

-voltage protection:

-35 to +35 VDC (power off)

-25 to +30 VDC (power on)

/sec

16 bits

-40 and 75°C

10 mega-ohms

12 to 36 VDC
118 mA @ 24 VDC

631,418 hrs.

Telcordia SR332

ioLogik E1200 Series Introduction

1-13

Physical Dimensions

ioLogik E1200 Series Introduction

1-14

NOTE

The RESET button restarts the server and resets all settings to factory defaults. Use a pointed object such as
a straightened paper clip to hold down the RESET button for 5 seconds. The factory de faults will be loaded once
the READY LED turns green again. You may then release the RESET button.

Hardware Reference

Panel Guide

Ethernet Port

LED Indicators

LED State Description

Power Amber System power is ON

Ready Green System is ready

Port 1 Green Ethernet connection enabled

Port 2 Green Ethernet connection enabled

EXT Green EXT field powe r input is connected

Pin 1 2 3 4

Signal TXD+ TXD- RXD+ ---

Pin 5 6 7 8

Signal --- RXD- --- ---

OFF System power is OFF

Flashing Flashes every 1 second when the “Locate” function is triggered
Flashing Flashes every 0.5 second when the firmware is being upgraded
Flashing ON/OFF cycle period of 0.5 second represents “Safe Mode”
OFF System is not ready

Flashing Transmitting or receiving data

Flashing Transmitting or receiving data

Off EXT field power input is disconnected

ioLogik E1200 Series Introduction

1-15

I/O Circuit Diagram

DI Circuit

Sinking DO Circuit

ioLogik E1200 Series Introduction

1-16

Sourcing DO Circuit

ioLogik E1200 Series Introduction

1-17

DIO Circuit

ioLogik E1200 Series Introduction

1-18

Relay Circuit

AI Circuit

RTD Circuit

ioLogik E1200 Series Introduction

1-19

TC Circuit

2







2. Initial Setup

This chapter describes how to install the ioLogik E1200.
The following topics are covered in this chapter:

Hardware Installation

 Connecting the Power
 Grounding the ioLogik E1200
 DIN Rail, Wall Mounting
 Connecting to the Network
 Jumper Settings (DIO and AI)
 I/O Wiring Diagrams

ioSearch™ Installation
Load Factory Default Settings

ioLogik E1200 Series Initial Setup

2-2

ATTENTION

Determine the maximum possible current for each power wire and common wire. Observe all electrical codes
dictating the maximum curr
wiring may overheat, causing serious damage to your equipment. For safety reasons, we recommend an
average cable size of 22 AWG. However, depending on the current load, you may want to adjust your cable size
(the maximum wire size for power connectors is 2 mm).

Hardware Installation

Connecting the Power

Connect the 12 to 36 VDC power line to the ioLogik E1200’s terminal block on the top panel. If power is properly
supplied, the Power LED will glow a solid amber color.

ent allowable for each wire size. I f the current exceeds the maximum rating, the

Grounding the ioLogik E1200

The ioLogik E1200 is equipped with a grounding point on the terminal block located on the top panel.

Connect the ground pin ( ) if earth ground is available.

DIN Rail, Wall Mounting

There are two sliders on the back of the unit for DIN rail and wall mounting.
Mounting on a DIN rail:
Pull out the bottom slider; latch the unit onto the DIN rail, and push the slider back in.

Mounting on the wall:
Pull out both the top and bottom sliders and align the screws accordingly.

ioLogik E1200 Series Initial Setup

2-3

Connecting to the Network

The ioLogik E1200 has two built-in RJ45 Ethernet ports for connecting a standard direct or crossover Ethernet
cable to either the host PC or another ioLogik E1200 device. For initial setup of the ioLogik E1200, it is
recommended that the ioLogik E1200 be configured using a direct connection to a host computer rather than
remotely over the network.

Configure the host PC’s IP address to 192.168.127.xxx (where xxx ranges from 001 to 253). When using
Windows, you will need to configure from the Control Panel.

ioLogik E1200 Default IP Address Default Netmask Default Gateway

192.168.127.254 255.255.255.0 None

Use the web console or ioSearch™ configuration utility to connect to the ioLogik E1200. On ce the ioLogik E1200
has been detected, modify the settings as needed for your network environment, and then restart the server.
Refer to Chapters 3 and 4 for further details.

Jumper Settings (DIO and AI)

The ioLogik E1212, E1240, and E1242 models require configuration for the jumpers located inside the cover.
Remove the screw on the back panel and o pen the cover to configure the jumpers.

ioLogik E1200 Series Initial Setup

2-4

NOTE

The ioLogik E1213 has 4 pure DO channels and 4 hybrid DIO channels. For the 4 pure DO channels, you can use
the jumpers to select the power configuration output
channels, you cannot use the jumpers to select the power configuration output. Instead, you can only use the
jumpers to set the DIO channels to either DI mode or DO mode.

DIO Mode Configuration Settings

DIO mode configuration settings are shown below:

The default setting is DO Mode.

AI Mode Configuration Settings

Analog mode configuration settings are shown below:

The default setting is Voltage Mode.

EXT Power Configuration Settings (ioLogik E1213 Only)

The ioLogik E1213 digital outputs have three possible external (EXT) power configurations. Only one field
power configuration can be selected at a time (JP10 / 12V JP5 / 9V JP11), and the jumper must be inserted
vertically, not horizontally. EXT power configuration settings are shown below:

The default setting is Field Power JP1 0.

(i.e., field power, 12 V , 9 V). But for the 4 hybrid DIO

ioLogik E1200 Series Initial Setup

2-5

ATTENTION

Remove the screw on the back panel and o pen the cover to configure the jumpers.

I/O Wiring Diagrams

A Dry Contact is a contact that does not provide voltage.
A Wet Contact is a contact that will pr ovide voltage when closed.

ioLogik E1200 Series Initial Setup

2-6

NOTE

It is recommended to use a contact protection circuit for relay output. A varistor can serve as a contact
protection circuit, where the parallel circuit conn ec ts to the Load.

NOTE

A “load” in a circuit schematic is a component or portion of the circuit that consumes electric power. For the
diagrams shown in this document, “load” refers to the

Load

devices or systems connected to the remote I/O unit.

ioLogik E1200 Series Initial Setup

2-7

ioSearch™ Installation

ioSearch™ is a search utility that helps the user locate ioLogik E1200 d evices on the local network. You may
download the latest version of ioSearch™ from Moxa’s website.

1. Installing the ioSearch™: Download the ioSearch™ utility from Moxa’s website, double click the
installation file, and then follow the ins tallation wizard’s instructions to comp lete the installation.

2. Open ioSearch: After installation is finished, run ioSearch™ from Start  Program Files  MOXA  IO
Server  Utility  ioSearch.

3. Search the network for the server: On the menu bar, select System  Auto Scan Active Ethernet
I/O Server. A dialog window will pop up. Click Start Search to begin searching for the ioLogik E1200.

If multiple ioLogik E1200 units are installed on the same network, remember that each unit has the same
default IP address. You will need to assign a different IP address to each unit to avoid IP conflicts.

Load Factory Default Settings

There are three ways to restore the ioLogik E1200 to factory default settings.

1. Hold dow n the RESET button for 5 seconds

2. Right-click on the specific ioLogik d evice in the ioSearch™ utility and select Reset to Default

3. Select Load Factory Default from the web console

3





























3. Using the Web Console

The ioLogik E1200’s main configuration and management utility is the built-in web console, which can be used
to configure a wide range of options.

The following topics are covered in this chapter:

Introduction to the Web Console
Overview
Network Settings for the Web Console

 General Settings
 Ethernet Configuration

User-Defined Modbus Addressing

 Default Modbus Address

AOPC Server Settings

 Tag Generation

I/O Settings

 DI Channels
 DO Channels
 AI Channels
 AI Input Range
 AO Channels
 RTD Channels
 TC Channels

Peer-to-Peer Networking

 Peer-to-Peer Settings (1-50)
 Sample Peer-to-Peer Configuration
 DO Safe Mode Settings
 AO Safe Mode Settings

SNMP

 SNMP Trap
 Using SNMP
 Accessibility IP List

RESTful API Setting
EtherNet/IP Setting
System Management

 Network Connection
 Firmware Update
 Import System Configuration Settings
 Export System Settings

Change Password

Load Factory Defaults
Save/Restart

ioLogik E1200 Series Using the Web Console

3-2

NOTE

The web console is best viewed with In ternet Explorer 9 or higher

supported

when using

Introduction to the Web Console

The ioLogik E1200 web console is a browser-based configuration utility. When the ioLogik E1200 is connected
to your network, you may enter the server’s IP address in your web browser to access the web console.

The left panel is the navigation panel and contains an expandable menu tree for navigating among the various
settings and categories. When you click on a menu item in the navigation panel, the main window will display
the corresponding options for that item. Configuration changes can then be made in the main window. For
example, if you click on Network Settings in the navigation panel, the main window will show a page of basic
settings that you can configure.

You must click on the Submit button after making configuration changes. The Submit button will be located
at the bottom of every page that has configurable settings. If you navigate to another page without clicking the

Submit button, your changes will not be retained.
Submitted changes will not take effect until they are saved and the ioLogik E1200 is restarted! You

may save and restart the server in one step by clicking on the Save/Restart button after you submit a change.
If you need to make several changes before restarting, you may save your changes without restarting by
selecting Save/Restart in the navigation panel. If you restart the ioLogik E1200 without saving your
configuration, the ioLogik E1200 will d is card all submitted c h anges.

other browsers.

; some functionality may not be

ioLogik E1200 Series Using the Web Console

3-3

Overview

The Overview page contains basic information about the ioLogik E1200, including the model name, serial
number, firmware version, MAC address, and current IP address. Most import antly, you can see the current I/O
status by pressing the F5 key on the computer keyboard to refresh the page.

ioLogik E1200 Series Using the Web Console

3-4

Network Settings for the Web Console

General Settings

On the General Settings page, you can assign a server name and location to assist you in differentiating
between different ioLogik E1200 units. You may also configure the Modbus/TCP timeout interval or enable the

Communication Watchdog function.

Enable Server Socket Idle Connection Timeout Interval automatically disconnects the Modbus/TCP

connection from the server after a specified time period to free up the port for the next connection.
Enable Communication Watchdog activates Safe Mode when a specified period of time has passed and

there is a loss of Modbus/TCP network connectivity. Safe Mode is specially designed for products with output
channels to output a suitable value (see Chapter 3: AO Safe Mode Set t ing) or status (see Chapter 3: DO
Safe Mode Setting) when the ioLogik E1200 cannot be controlled by a remote PC (such as in the event of a
network failure). By default, the watchdog is disabled. Users can configure how each output channel responds
on the I/O Settings page.

To enable the Communication Watchdog function, select the Enable Communication Watchdog checkbox,
set the timeout value, and then restart the server. When the watchdog is enabled, the ioLogik E1200 will enter

Safe Mode after there is a disruption in communication that exceeds the sp ecified time limit.
Enable I/O Locate enables remote toggling of the Ready LED from off to flashing to enable remote control

of LEDs for easier location of devices when troubleshooting.

Ethernet Configuration

On the Ethernet Configuration page, you can set up a static or dynamic IP address for the ioLogik E1200, and
configure the subnet mask and gateway address.

ioLogik E1200 Series Using the Web Console

3-5

ATTENTION

Disable the user

Server

to control or monitor the ioLogik E1200’s I/O status.

User-Defined Modbus Addressing

The input and output addresses can be configured on this page. Select the Enable Modbus/TCP Slave
Protocol checkbox, and then configure the start address of each Modb us function . If you do not want to use
the Modbus function, deselect the Enable Modb u s/TCP Slave Protocol checkbox.

Default Modbus Address

You can view the default Modbus address for all I/O devices on the Default Modbus Address settings page.
However, only the starting addr ess will be displayed for each item with multiple reference addresses. For
example, if the reference addresses fo r DI Value start from 10001 and the seco nd DI channel’s reference
address is 10002, only the first DI channel’s Modbus address of 10001 will be displayed. See the diagra m
below.

-defined Modbus addressing function if using the MXIO (.NET ) librar y o r MX-AOPC UA

ioLogik E1200 Series Using the Web Console

3-6

NOTE

The
MX

o ensure that the ioLogik is connected and alive. If the heartbeat interval is set and

the network between the ioLogik E1200 and

will detect the
stopped heartbeat and the
connectivity.

AOPC Server Settings

Moxa’s MX-AOPC Server™ is a software package operated as an OPC driver of an HMI or SCADA system. It
seamlessly connects Moxa’s ioLogik products to a wide variety of SCADA systems, including the most popular:
Wonderware, Citect, and iFix. MX-AOPC UA Server™ conforms to the OPC UA standard to connect with other
standards-compliant devices and host OPC ma chines.

Hardware Requirements

CPU Intel Pentium 4 or above
RAM 512 MB (1024 MB recommended)
Communication Interface Ethernet or serial

Software Requirements

Operating System Microsoft Windows 7/8/10, Microsoft Windows Server 2003/2008/2012
Editor (optional) Microsoft Office 2003 (Access or Excel) or later
Database (optional) Oracle database, Microsoft SQL Server

OPC UA Server Specifications

OPC Unified Architecture 1.01
OPC Data Access 1.0a, 2.0, 2.05a, 3.0
Device Protocols Moxa AOPC, Modbus/TCP (master), Modbus/RTU (master)

OPC UA Logger Specifications

OPC Unified Architecture 1.01

MX-AOPC UA Server can be downloaded from Moxa’s website support page at www.moxa.com/support/.
After downloading the MX-AOPC UA Server file, unzip the file and run Install.exe. The installation program will

guide you through the installation process and install the MX-AOPC UA Server Utility.
For more details on MX-AOPC UA Server installation and use, please check the user’s manual, which can be

downloaded from Moxa’s website.

Tag Generation

Use the web console to create AOPC tags for the ioLogik E1200 by opening your browser and navigating to the
AOPC Server Settings page.

Follow these steps to create the tags and send them from the ioLogik E12 00 to MX-AOPC UA Server:

1. On the AOPC & I/O Settings page, select the Enable Active OPC checkbox and specify the IP addr ess
where the MX-AOPC UA Server is installed.

2. Select the I/O channels that need to be created in MX-AOPC UA Server.

3. Conf ig ure the Heartbeat Interval, if necessary.

Heartbeat Interval can be used to determine the connection status between the ioLogik E1200 and

-AOPC UA Server, and t
MX-AOPC UA Server is down, MX-AOPC UA Server

Quality column in the MX-AOPC UA will display BAD to indicate the loss of

ioLogik E1200 Series Using the Web Console

3-7

4. Click the Submit button and then the Save/Restart button on the next page.

5. On the Create AOPC Tag page, click on the Create Tags button to “ push” tag configurations to the
MX-AOPC UA Server utility.

6. Launch t he MX-AOPC UA Server utility and the tags will be automatically created. Remember to sa ve the
configuration of the MX-AOPC UA Server when exiting the program.

ioLogik E1200 Series Using the Web Console

3-8

NOTE

Confirm that the Counter

I/O Settings

DI Channels

The status of each DI (digital input) channel appears on the DI Channel Settings page.

You can also configure each channel’s digital input mode and parameters by clicking on the channel. DI
channels can operate in DI mode or Event Counter mode.

Activate Event Counter mode by selecting the Counter Sta rt field and configure the Counter Trigger by
selecting Lo to Hi, Hi to Lo, or Both from the dropdown menu. When the Counter Start field is not selected,
you can still activate the counter by using Modbus commands.

Filter is not set to 0; otherwise, the counter will never be activated.

Power On Settings: You may configure DI channels in Event Counter mode whether or not counting begins
when powering up.

Safe Status Settings: For DI channels in Event Counter mode, you can configure whether or not counting
starts or continues when Safe Status has been activated. When the network connection is lost, as specified in
the Host Connection Watchdog, the ioLogik E1200 will start or stop the counter according to the channel’s Safe
Status settings.

ioLogik E1200 Series Using the Web Console

3-9

NOTE

The Host Connection Watchdog is disabled by default and must be enabled for Safe Status settings to take
effect.

Save Status On Power Failure: The ioLogik E1200 will automatically save the counter value when there is a
power failure if this function selected.

Reset Counter: Select this function to reset the counter.

The DI channel’s Alias Name and logic definition can also be configured on this page. You can apply the alias
name to all channels by selecting the Apply to all DI channels checkbox.

DI Channel Specification :

ioLogik E1200 Series Using the Web Console

3-10

NOTE

Safe Status is controlled by the Co

s, which is disabled by default.

If the

Watchdog is disabled, the ioLogik E1200 will never enter Safe Mode and your Safe Status

settings

DO Channels

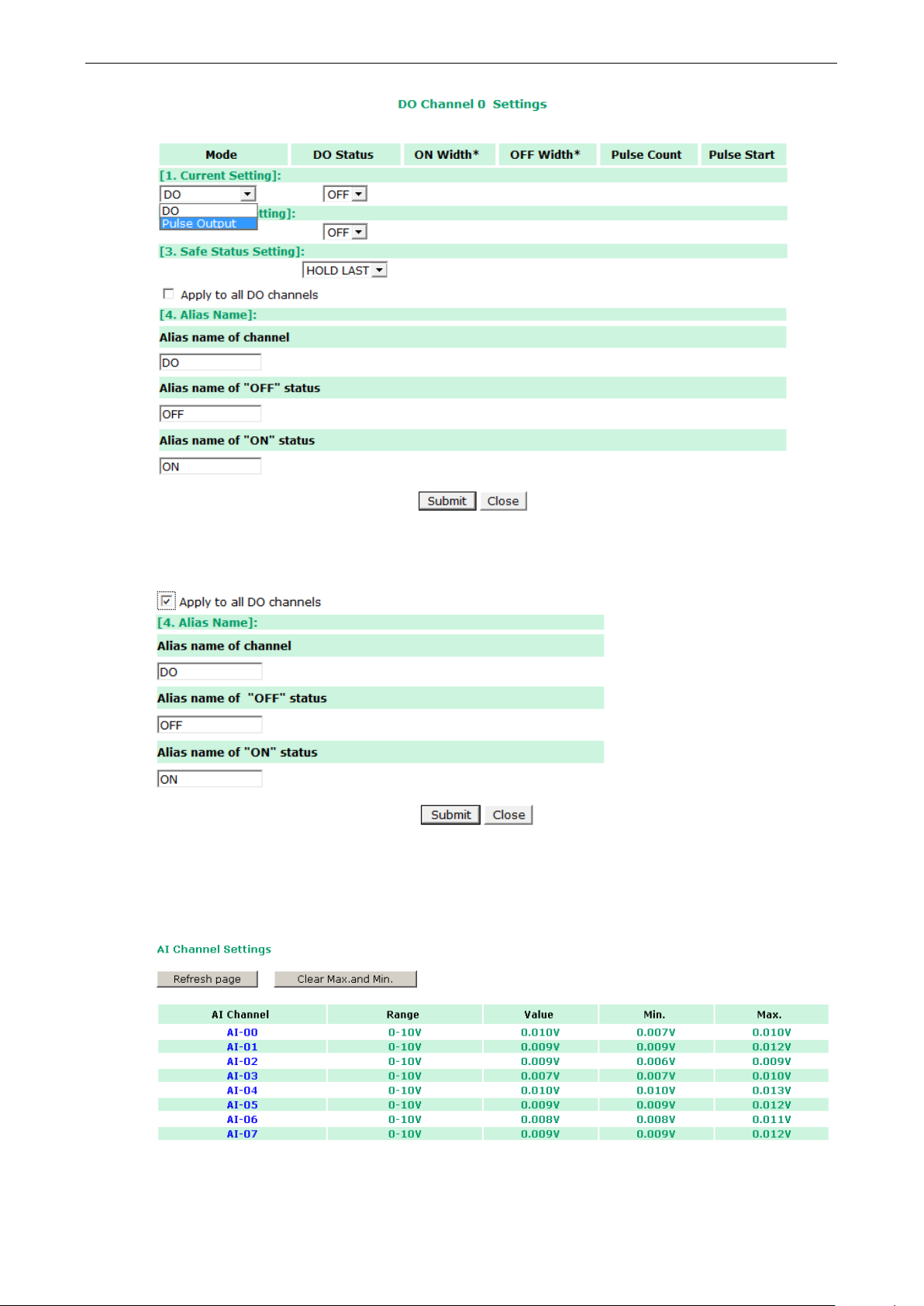

On the I/O Setting: DO (Digital Output) Channels page; you can configure each DO channel by clicking on
the channel.

DO channels can operate in DO mode when the statu s is either ON or OFF.

If you select Pulse Output mode, you can specify the ON Width and OFF Width to generate a square wave.

Pulse Width unit = 1 ms, range = 1–65535
When configuring individual channels, if the Power On Setting is selected, the Pulse Output will start as soon

as the ioLogik E1200 is powered on. If the Safe Status Setting is selected, the Pulse Output will start only
when the E1200 has entered Safe Status mode. In contrast, when neither of these settings is selected and the
Pulse Start field is selected, the ioLogik E1200 will automatically stop the Pulse Output wh e n the ioLogik
E1200 is either powered on or in Safe Status mode.

Communication

will have no effect.

mmunication Watchdog under General Setting

ioLogik E1200 Series Using the Web Console

3-11

The DO channel’s Alias Name and logic definition can also be configured on this page. You can apply the alias
name to all channels by clicking on the Apply to all DO channels box.

AI Channels

The current status of each AI (analog input) channel can be viewed on the AI Channel Settings page.

ioLogik E1200 Series Using the Web Console

3-12

NOTE

Only

Click on a specific AI channel to enable or disable it by selecting the Enable AI Channel field. There are two
modes available for the AI channels:

1. Voltage Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)

2. Current Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)

Auto Scaling and Slope-intercept f un ctions of the AI value can be defined on this page.

AI Input Range

Set the AI input ranges for each mod e, as follows:

1. Voltage Mode (V) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There is only one default analog Voltage input range: [0-10V]

2. Current Mode (mA) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There are three modes in the analog Current input ra n ge: [4-20 mA], [0-20 mA], [4-20 mA (Burn Out)]

input ranges [0-10 V] and [4-20 mA] support peer-to-peer networking.

ioLogik E1200 Series Using the Web Console

3-13

ATTENTION

When configuring the jumpers to select voltage or current measurement for the AI channels, open the cover by
first removing the screw on the back panel. For details on jumper settings, see the

a

AI Input: Current Mode

Burn Out mode indicates when the Current AI has burned out. For example, the 4–20 mA Burn Out mode is

defined in the following diagram:

Users can define Burn Out (BO) values (default = 2 mA) for selected ranges. When input values are in the
Burn Out range, raw data will register as 0000h to indicate that the analog input has burned out. The definition
of raw data is as follows:

Burnout Value (BO) 0.0 < BO < 4.0 User defined (default 2 mA)
Burnout State 0 ≤ AI < BO mA S/W output 0000h
Under Range BO ≤ AI < 4 mA S/W output raw data
Normal Range 4 ≤AI ≤ 20.00 mA S/W output raw data until FFFEh
Over Range XX > 20.00 mA S/W output FFFFh

nd AI) section in Chapter 2.

Jumper Settings (DIO

ioLogik E1200 Series Using the Web Console

3-14

NOTE

The scaled

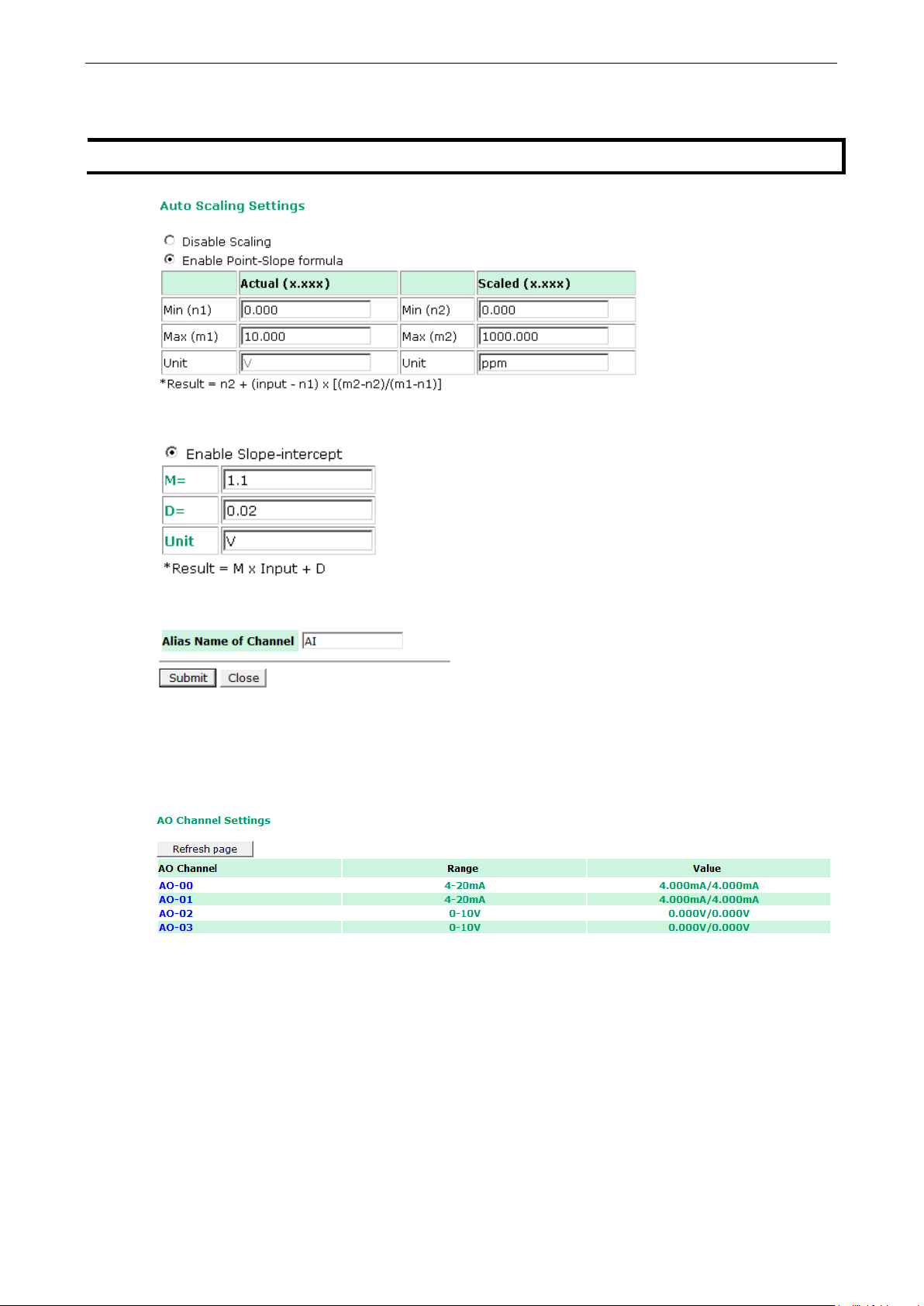

Selecting Enable Point-Slope formula on the Auto Scalin g Settings page will linear ly convert the actual
current or voltage value into other user-defined units, such as percentage or ppm (parts per million).

The slope-intercept function is used to compensate when the m ea surement requires a slight adjus tment.

The AI channel’s Alias Name can also be configured on this page.

value’s Modbus address differs from the original value.

AO Channels

The current status of each AO (analog output) channel ca n be v iewed on the AO Channel Settings page:

Click on a specific channel to access the AO channel settings, and then select the Enable AO Channel box. The
Auto Scaling function of the AO value can be defined on the same page.

There are two modes for the AO channels, Voltage Mode (V) and Current Mode (mA).

ioLogik E1200 Series Using the Web Console

3-15

NOTE

The scaled value’s

Enabling the Point-Slope Formula function on the Auto Scaling Settings page will linearly convert the
actual current or voltage value into other user-defined units, such as percentage or ppm (parts per million).

The AO channel’s Alias Name can also be configured on this page.

RTD Channels

Modbus address differs from the original value.

The current status of each RTD (Resistance Temperature Detector) channel can be viewed on the RTD
Channel page.

Click on a specific channel to access the RTD channel settings.
Select the Enable RTD Channel checkbox and then sel ect the sensor type from the dropdown menu that

meets the physical attach ment to the ioLogik E120 0.

ioLogik E1200 Series Using the Web Console

3-16

The ioLogik E1200 allows you to calib rate the temperature sensors. In each channel configuration section,
follow the instructions and click the Calibrate button to start the RTD sensor calibration. Each calibration
requires around 30 seconds per chan n el.

The ioLogik E1200 allows you to manually adjust the current temperature reading. In each channel
configuration section, select the c h a nnel, apply the offset value, and click the Submit button.

ioLogik E1200 Series Using the Web Console

3-17

TC Channels

The current status of each TC (Thermocouple) channel can be viewed on the TC Channel page.

Click on a specific channel to enable or disable the TC channel. Select the Enable TC Channel checkbox and
then select the sensor type that meets the physical attachment to the ioLogik E1200.

The ioLogik E1200 allows you to calib rate the temperature sensors. In each channel configuration section,
follow the instructions and click the Calibrate button to start the TC sensor calibration. Each calibration
requires about 30 seconds per channel.

The ioLogik E1200 allows you to manually adjust the current temperature reading. In each channel
configuration section, select the c h a nnel, apply the offset value, and click the Submit button.

ioLogik E1200 Series Using the Web Console

3-18

NOTE

If you select a DI or AI channel in the Local Channel field, the Remote Channel field will be disabled. You need
to configure the

Peer-to-Peer Networking

In some remote automation implementations, the control room and field sensors may be spread far apart from
each other, often with only a single remote I/O module to collect data from all the sensors. Peer-to-peer
communication has little or no limitation as it replaces cable by int eg rating multiple I/O signals over a single
network cable to transmit input-to-output controls without the aid of PLCs or controllers. Featuring
peer-to-peer communications and support for channel-to-channel mapping, the ioLogik E1200 allows
simultaneous multiple target transmissions. In addition, the ioLogik E1200 supports up to 16 channels for
transmission over Ethernet (based on an emitter and receiver I/O pair).

Peer-to-Peer Settings (1-50)

The ioLogik E1200 supports up to 50 peer-to-peer mapping rules. You can configure the channel settings 10 at
a time. To enable the rules, either select the Enable All box to enable all 10 channels, or select the Enable box
individually for each rule. The Local Channel dropdown menu allows you to specify the channel of the ioLogik
E1200 to configure. Type the IP address and port number of a remote ioLogik E1200 in the Remote IP and
Remote Ports fields, respectively. The Remote Channel field is for you to selec t input channels of the remote
ioLogik E1200 when you select output channels in the Local Channel field. Set the Interval Time and On
change percentage on the local ioLogik E1200 that will trigger the transmission of a mapping signal to the
remote ioLogik E1200. The default local listen port number is 9020; this value can be set from 1 to 65535.

DO or AO channel on the remote ioLogik E1200.

ioLogik E1200 Series Using the Web Console

3-19

NOTE

Refer to the table below for maximum number of rules supported at different signal frequencies.



Sample Peer-to-Peer Configuration

The following is an example of configuring DO (Server IP: 192.168.127.253 ) to DI (Client IP: 192.168.127.252)
peer-to-peer functionality with two ioLogik E1200 devices.

Server Settings:

Client Settings:

1 Hz 2 Hz 4 Hz 10 Hz 20 Hz
1 rule
10 rules
20 rules
30 rules
40 rules
50 rules

    
  
  
 



ioLogik E1200 Series Using the Web Console

3-20

DO Safe Mode Settings

When a peer-to-peer rule on a local DO channel is not valid, the local DO channel will enter Safe Mode. You can
select Hold Last, ON, or OFF from the Safe Mode Status dropdown menu for each DO channel.

AO Safe Mode Settings

When a peer-to-peer rule of the local AO channel is not valid, the local AO channel will enter Safe Mode. You can
either set the AO channel’s Safe Mode V alue from 0–4095, or enable Hold Last Status during Safe Mode by
selecting the checkbox as shown in the following figure:

SNMP

The ioLogik E1200 series remote I/O supports SNMPv1 and SNMPv2c for monitoring network I/O devices with
SNMP network management software, which is useful for building automation and telecommunications
applications.

SNMP Trap

The ioLogik E1200 series r emote I/O provides standard SNMP traps and private SNMP traps for I/O devices.

Standard Trap

The ioLogik E1200 series remote I/O provides the following standard SNMP traps:

Trigger Type Description

coldStart Sends SNMP trap when the agent reinitializes.

warmStart Sends SNMP trap when the /etc/snmpd.con f file is rer ead and the agent

*Restart the measurement epochs because configuration data or MIB variables
may have changed.

reinitializes.
*Do NOT restart the measurement epochs because configuration data or MIB
variable values have not changed. The configuration information in the
/etc/snmpd.conf file is for agent configurations that do not affect SNMP manager
databases.

ioLogik E1200 Series Using the Web Console

3-21

NOTE

You will

Private Trap

The ioLogik E1200 series remote I/O provides the following private trap triggers:

Trigger Type Description

DI-change status Sends SNMP trap when DI status changes.
DO-change status Sends SNMP trap when DI status changes.
Relay-change status Sends SNMP trap when Relay status changes.
AI-burn-out Sends SNMP trap when AI reaches preset burn-out value.
AI-trigger Sends SNMP trap when AI reaches preset value.
AO-trigger Sends SNMP trap when AO reaches preset value.
RTD-trigger Sends SNMP trap when RTD reaches preset value.
TC-trigger Sends SNMP trap when TC reaches preset value.

need to load the correct MIB file to use Moxa’s private SNMP traps.

Using SNMP

Moxa has provided the ioLogik E1200 MIB file for easier analysis of SNMP data.

SNMP Agent

You can enable SNMP under SNMP Settings  SNMP Agent. SNMP is used to monitor the network and I/O
devices with SNMP network management software. Use these fields to enable SNMP and set the read and write
community names, contact, and location for SNMPv1 and SNMPv2c.

SNMP Trap Settings

On the SNMP Trap Settings page, you can enable SNMP and configure SN MP traps.

SNMP Trap Server

The SNMP Trap function sends an SNMP trap to up to two IP destinations. If both IP addresses are configured,
it will send to both addresses simultaneously when an SNMP trap is trigger ed.

ioLogik E1200 Series Using the Web Console

3-22

NOTE

SNMP is not supported while using t h e p eer

NOTE

SNMP Trap does not

NOTE

SNMP Trap does not

SNMP Trap

Enable Channel SNMP Trap by clicking on the SNMP Trap box, and then select the channel you would like to
enable.

-to-peer function.

Specific ID

The Specific ID (trap number) can be any number between 1 and 20. (You may need to consult with your
network administrator to determine how the trap numbers are used and defined on the network.)

Digital Input / Counter Trap Settings

For a digital input, the trap is triggered by the On Change function. When there is a change in the DI channel,
the SNMP will send a trap to the SNMP Server.

support the counter trap function.

Digital Output / Pulse Output Trap Settings

For digital output, the trap is triggered by the On Change function. When there is a change in the DO channel,
the SNMP will send a trap to the SNMP Server.

support the Pulse Output trap function.

ioLogik E1200 Series Using the Web Console

3-23

Analog Input Trap Settings

For Analog Input, the trap is triggered when an analog input meets the preset conditions for Trigger, Value, and
Hysteresis. Refer to the AI Channel settings in Chapter 3 to set the mode.

Example:

For illustration purposes, consider the following example where we set the AI-00 channel’s trigger value to be
greater than 5 with a Hysteresis of 1 and also smaller than 5 w ith a H ysteresis of 1.

When Trigger = Greater, Value = 5, and Hysteresis = 1, the SNMP trap will only be triggered if the analog signal
fluctuates from 4 to 5, as depicted in Scenario 1 below. However, if we change the settings to Value = 5 and
Hysteresis = 2, the SNMP trap will only be triggered if the analog signal fluctuates from 3 to 5.

When Trigger = Smaller, Value = 5, and Hysteresis = 1, the SNMP trap will only be triggered if the analog signal
fluctuates from 6 to 5, as depicted in Scenario 1 below. However, if we change the set tings to Value = 5 and
Hysteresis = 2, the SNMP trap will only be triggered if the analog signal fluctuates from 7 to 5.

ioLogik E1200 Series Using the Web Console

3-24

RTD Input Trap Settings

For RTD Input, the trap is triggered when the RTD input m eets the preset conditions for Trigger, Value, and
Hysteresis. Refer to RTD Channel settings to set the Mode and Range.

Example:

When Trigger = Greater, Value = 400 and Hysteresis = 200, the SNMP trap will only be triggered if the RTD
signal fluctuates from 200 to 400, as depicted in Scenario 1 below. However, if we change the settings to Value
= 400 and Hysteresis = 400, the SNMP trap will only be triggered if the RTD signal fluctuates from 0 to 400.

When Trigger = Smaller, Value = 400, and Hysteresis = 200, the SNMP trap will only be triggered if the RTD
signal fluctuates from 600 to 400, as depicted in Scenario 1 below. However, if we change the settings to Value
= 400 and Hysteresis = 400, the SNMP trap will only be triggered if the RTD signal fluctuates from 800 to 400.

TC Input Trap Settings

For TC Input, the trap is triggered when the TC input meets the preset conditions for Trigger, Value, and
Hysteresis. Refer to the TC Channel settings to set the Mode and the Range.

Example:

When Trigger = Greater, Value = 400, and Hysteresis = 200, the SNMP trap will only be triggered if the TC
signal fluctuates from 200 to 400, like in scenario 1. If we change t o Value = 400 and Hysteresis = 400, the
SNMP trap will only be triggered if the TC si gnal fluctuates from 0 to 400.

ioLogik E1200 Series Using the Web Console

3-25

When Trigger = Smaller, Value = 400, and Hysteresis = 200, the SNMP trap will only be triggered if the TC
signal fluctuates from 600 to 400, like in scenario 1. If we change t o Value = 400 and Hysteresis = 400, the
SNMP trap will only be triggered if the TC signal fluctuates from 800 to 400.

Accessibility IP List

You can control network access to the ioLogik E1200 from the Accessibil ity IP Li st page by enabling access
only from specific IP addresses. When the Enable the accessibility IP list checkbox is enabled, a host’s IP
address must be provided and enabled in the list in order to gain access to the ioLogik E1200.

Enable access for a range of IP addresses by specifying the IP address and netmask, as follows:

To allow access for a specific IP address

Enter the IP address in the IP Address field and 255.255.255.255 in the Netmask field.

ioLogik E1200 Series Using the Web Console

3-26

NOTE

The

To allow access for hosts on a specific subnet

Enter 0 as the last digit in both the IP Address field and Netmask field (e.g., 192.168.1.0 and

255.255.255.0).

To allow unrestricted access

Deselect the Enable the accessible IP list option.

Refer to the following table for additional configuration examples.

Allowed Hosts IP Address/Netmask

Any host Disable

192.168.1.120 192.168.1.120 / 255.255.255.255

192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0

192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0

192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128

192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128

RESTful API Setting

The ioLogik E1200 supports RESTful API. To enable this API, select the Enable Restful AP checkbox.

EtherNet/IP Setting

The ioLogik E1200 supports the EtherNet/IP protocol. To enable the protocol, select the Enable EthernetIP
Protocol checkbox.

EtherNet/IP function needs to be activated before it can be used. See Chapter 5 for details.

ioLogik E1200 Series Using the Web Console

3-27

System Management

Network Connection

TCP connections from other hosts appear on the Network Connection page. This information can assist you with
managing your devices.

Firmware Update

Load new or updated firmware onto the ioLogik from the Firmware Update page.

Import System Configuration Settings

Import a configuration into the ioLogik server from the Import System Confi g page. This function can be used
to duplicate settings between ioLogik servers. You will be prompted for the location of the configuration file (i.e.,
“ik1212.txt”).

ioLogik E1200 Series Using the Web Console

3-28

ATTENTION

If you forget the password, the ONLY way to configure t he ioLogik E 1200 is by us ing the Reset butt on to load
the factory default settings.
Before you set a password for the first time, it is a good idea to export the configuration file when you have
finished setting up your ioLogik E1200. Your configuration can then be easily imported back into the ioLogik
E1200 if you need to reset the ioLogik E1200 due to a forgotten password or for other reasons.

Export System Settings

On the Export System Settings page, you can export a cop y of the ioL ogik’s configura tion file for bac kup or
import into another ioLogik server.

Change Password

For all changes to the ioLogik E1200’s password protection settings, you will first need to enter the old
password. Leave this blank if you are setting up password protection for the first time. To set up a new
password or change the existing password, enter your desired password under both New password and
Confirm password. To remove password protection, leave the New password and Confirm password
fields blank.

Load Factory Defaults

This function will reset all of the ioLogik E1200’s settings to the factory default values. All previous settings,
including the console password, will be lost.

ioLogik E1200 Series Using the Web Console

3-29

Save/Restart

If you change the configuration, do not forget to reboot the system.

4









4. Using ioSearch™

This chapter describes ioSearch™, which is used to search for and locat e ioLogik E1200 units.
The following topics are covered in this chapter:

Introduction to ioSearch™
ioSearch™ Main Screen

 Main Screen Overview

ioSearch™ Setup

 System
 Sort
 Quick Links

Main Function

 Locate
 Firmware Upgrade
 Unlock
 Import
 Export
 Change IP Address
 Batch TCP/IP Configuration on Multiple Devices
 Change Server Name
 Activate EtherNet/IP
 Restart System
 Reset to Default
 Mass Deployment (Import)
 Mass Deployment (Export)

ioLogik E1200 Series Using ioSearch™

4-2

1

2

4

5

3

Introduction to ioSearch™

Moxa’s ioSearch™ utility is software tool that searches for ioLogik E1200 units on a physical network. The
following functions are supported by the ioSearch™ utility:

• Search for and locate ioLogik E1200 units

• Configure IP addresses

• Upgrade firmware for multiple ioLogik E1200 units (same model)

• Export configuration files from multiple ioLogik E1200 units

• Import configuration files from multiple ioLogik E1200 units (same model)

• Reset to default for multiple ioLogik E1200 units

• Activate the EtherNet/IP function for multiple ioLogik E1200 units (you will need to register the device
before activating it)

ioSearch™ Main Screen

Main Screen Overview

The main screen displays the resu lts of a broadcast search for ioLogik E1200 units.

ioSearch™ Main Screen

1. Title

2. Menu bar

3. Quick link

4. Navigation panel

5. Main window

ioLogik E1200 Series Using ioSearch™

4-3

ioSearch™ Setup

System

Several operations are possible from the System menu.
Auto Scan Active Ethernet I/O Servers will search for ioLogik servers on the network. When connecting for

the first time or recovering from a network disconnection, you can use this command to find I/O servers that
are on the network.

Network Interface allows you to select a network to use, if the PC has multiple network adapters installed.

ioLogik E1200 Series Using ioSearch™

4-4

Sort

The Sort menu allows the serv er list in the navigation panel to be sorted by ioLogik connection and server
(model).

Quick Links

Quick links are provided to search for I/O servers on the network and sort the server list.

1 Automatically search the local netw ork
2 Sort by ioLogik E1200’s IP address (connection)
3 Sort by ioLogik E1200 model
4 Locate an ioLogik E1200
5 Upgrade Firmware
6 Import settings
7 Export settings
8 Unlock an ioLogik E1200 which is password protected
9 Change IP Address of an ioLogik E1200

Main Function

Right click on a particular ioLogik E1200 to view the ioSearch™ function menu.

ioLogik E1200 Series Using ioSearch™

4-5

ATTENTION

Do not interrupt the firmware update process! An interruption in the process may result in your device
becoming unrecoverable.

Locate

The locate function helps users find a dedicated ioLogik on the network . When this function is triggered, the
ready LED on the selected unit will start to blink indicating its location.

Firmware Upgrade

The ioLogik E1200 supports a remote firmware upgrade function. Enter the path to the firmware file or click on
the icon to browse for the file. The wiza rd will lead you through the process until the server is restarted.

Batch Upgrades on Multiple Devices of the Same Model

Batch firmware upgrades are possible on multiple devices of the same ioLogik model. To upgrade multiple
models, press the “Shift” key, select “ioLogik”, and r i ght click to process multiple firmware upgrades.

Unlock

If an ioLogik E1200 is password protected, unlock the ioLogik E1200 by entering the password before using any
of the functions.

ioLogik E1200 Series Using ioSearch™

4-6

Import

Select this command to reload a configuration that was exported to a text file.
Importing one configuration file to multiple ioLogik E1200 units (same model) is allowed. To do this, press the

“Shift” key, select “ioLogik”, and then right click.

Export

The export function is used to export the current con figuration file of an i oLogik E1200. The export file format
will be ik12xx.txt where “xx” represents the mod el type of the ioLogik E1200.

Exporting multiple files for different models of ioLogik E1200 is allowed. The file format is ik12xx_MAC
Address.txt, where the xx represents the model types of the ioLogik E1200.

e.g., ik1214_00-90-E8-66-32-19.txt
To export multiple configuration files, select the ioLogik and right click to process this function.

ioLogik E1200 Series Using ioSearch™

4-7

Change IP Address

The Change IP Address function allows you to directly modify the IP address for one or multiple ioLogi k E1200
series devices, and is especially useful for first time installation .

First, select the ioLogik E1200 device(s) you wish to modify. Then, right-click on the device(s) and select
Change IP Address from the dropdown menu to open the Change IP Address window. After changing the IP
address, click Set to complete setup, and search the network again to reveal the modified IP addresses.

Batch TCP/IP Configuration on Multiple Devices

Users can batch modify IP addresses, subnet masks, and gateways for devices of the same model from a single
window while submitting the changes at one time. First, select sever a l devices of the same model, click the
right mouse button, and then click Change IP Address in the pop-up m enu to launch a new window.

The following screenshot shows the window used to modify IP addresses, subnet masks, and gateways. Users
can modify each item and click Set to confirm the modification, or click the Advance button to automatically
assign IP addresses incrementally.

ioLogik E1200 Series Using ioSearch™

4-8

NOTE

The EtherNet/IP function needs to b e activated before it can be used. See Chapter 5 for details.

After clicking the Advance button, a window will pop up to allow users to use ioSearch™ to set the IP address
by MAC address. ioSearch™ will automatically set sequential IP addresses on the selected devices, with the
subnet mask and gateway set to the same value.

Change Server Name

To change the server name, click on the Change S erver Name option, type the name in the Server Name
box, and then click Advance.

Activate EtherNet/IP

Right click on the device and select Activate EtherNet/IP. The progress of the activation process will be
shown onscreen, and ioSearch will infor m you when the activation has finished.

ioLogik E1200 Series Using ioSearch™

4-9

Restart System

Select this command to restart the selected ioLogik E1200.
Restarting multiple ioLogik E1200 units is allowed. Select the ioLogik E1200 and right click to process this

function.

ioLogik E1200 Series Using ioSearch™

4-10

Reset to Default

Select this function to reset all settings, including console password, to factory default values.
Resetting multiple ioLogik E1200 unit s to the default configuration is allowed. S elect the ioLogik E1 200 and

right click to process this func tio n.

Mass Deployment (Import)

Users can import E1200 series modu le information via ioSearch™. Sele ct this command to reload a
configuration from an exported .CSV file.

Mass Deployment (Export)

Users can export E1200 series module information via ioSearch™. The export file format will be

E1200_Series_List.

ioLogik E1200 Series Using ioSearch™

4-11

5

After installing ioSearch V1.15, the user should assign a folder to place the license file in.
Click

to find the window displayed below. Next, click the settings icon

(shown at

5. Activation Process for the EtherNet/IP

Function

The ioLogik E1200 series supports the EtherNet/IP protocol once the device has been registered and activated.
In this note, we will explain how to activate the EtherNet/IP function i n the ioLogik E1200 series. The
EtherNet/IP function can only be activated after the following firmware and utility versions are up-to-date.

• ioLogik E1210 V2.5 (std. version)

• ioLogik E1211 V2.4 (std. version)

• ioLogik E1212 V2.5 (std. version)

• ioLogik E1213 V2.6 (std. version)

• ioLogik E1214 V2.5 (std. version)

• ioLogik E1240 V2.4 (std. version)

• ioLogik E1241 V2.5 (std. version)

• ioLogik E1242 V2.5 (std. version)

• ioLogik E1260 V2.5 (std. version)

• ioLogik E1262 V2.5 (std. version)

• ioSearch V1.15 (std. version)

Take the following steps to activate the EtherNet/IP function:

Step 1: Assign the license file folder

System  Options

the right) to assign the license folder. Click OK to complete the settings.

Settings Icon

ioLogik E1200 Series Activation Process for the EtherNet/IP Function

5-2

Step 2: Get the device’s serial number

Before you start the registration process, locate the serial number on the ioLogik E1200 device. The device’s
serial number can be found on the device label, as shown in the picture below.

Step 3: Log in to Moxa’s license server

Moxa’s licensing server can be accessed at the following link: http://license.moxa.com
Password to log in to the system. Click the Apply for an account b utto n to register an account before you
login for the first time .

. Input the ID and

ioLogik E1200 Series Activation Process for the EtherNet/IP Function

5-3

Step 4: Register the device on the Moxa Licensing Server

Click the ioLogik E1200 EtherNet/IP link to go t o the registration page. The Moxa Licensin g Server provides
two ways to complete the registration process. To register a single product, simply input the serial number. To
register multiple products, you will need to input serial numbers in a special format. The template for multiple
device activation can be downloaded below.

ioLogik E1200 Series Activation Process for the EtherNet/IP Function

5-4

Step 5: Download the license file and put it in the designated folder

After inputting the serial number, click the Submit button. The system will provide a link that you can click to
download the license file. Save the downloaded file in the folder that was assigned in step 1, and unzip the file.

Step 6: Use ioSearch to scan the devices on the network

Connect the ioLogik E1200 devices to the computer and use ioSearch to search for the correct device. Device
information will be displayed in the window.

ioLogik E1200 Series Activation Process for the EtherNet/IP Function

5-5

Step 7: Activate the EtherNet/IP function in the ioLogik E1200 series

Right click on the device and select Activate EtherNet/IP. The progress of the activation process can be viewed
and ioSearch will inform you when the activation has f inished.

6

6. How to Connect the ioLogik E1200 to an

Allen-Bradley PLC

In this chapter, we provide a step-by-step example of how to connect the ioLogik E1200 series device with an
Allen-Bradley PLC by the EtherNet/IP protocol. In this example, th e Allen-Bradley PLC is the EtherNet/IP
Scanner and the ioLogik E1200 is the adapter. The system architecture is displayed below. There are two
sections in this chapter. The first section exp la ins how to install the ioLogik E 1200 series’ EDS files in the
RSLogix 5000, and the second section explains how to connect the ioLogik E1200 with the Allen-Bradley PLC.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-2

EDS Installation of the ioLogik E1200 Series in Rockwell Software RSLogix 5000

1. Start the RSLogix 5000 and open the EDS Hardware Installation Tool in Tools  EDS Hardware
Installation Tool.

2. The wizard will start and the following window will pop out, click Next and then select Register an EDS
file(s), followed by Next.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-3

3. There are two ways to register the EDS files. The first is to register a single file, and the second is to register
the EDS files by a folder.
A. If you want to register one EDS file, select Register a single file and then click Browse.

B. If you want to register several EDS fil es, put all the EDS files in one folder, select Register a directory

of EDS files and then click Browse.

4. Select EDS files and click Open, then it will go back to the wizard. Please click Next to fin is h the EDS file
selection.
A. Single EDS file

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-4

B. Select EDS file folder

5. The E DS Wizard will evaluate the EDS file you selected and display the result, then click Next. In the
following window, you can change the device image. If you do not intend to change the image, please click
Next.
A. Single EDS file

B. EDS files folder

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-5

6. Complete the final step of the EDS Wizard by clicking Next and then Finish.
A. Single EDS file

B. EDS files folder

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-6

Establishing communication between the ioLogik E1200 device and the Allen-Bradley PLC

1. Open the RSLogix 5000 and then open a new project by pressing File  New.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-7

2. Select your PLC model under Type and key in the project name in the window. The
CompactLogix5324ER-QBFC1B will be used as an example.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-8

3. After the project creation, you can see the project information in the left window. Right click Ethernet and
then select New Module and the ioLogik E1200 module can be added into the project.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-9

4. In the Select Module Type window, choose the ioLogik E1200 model you want to add. You can use a key
word and select the module type to speed up the search. The ioLogik E1212 is used here as an example.

5. In the N ew Module window, key in the module name and module IP. The default modu le definition is
Exclusive Owner. If you want to change it, click change and then choose another type.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-10

6. RSLogix 5000 will recognize and create the ioLogik E1212 tags automatically. You can check the tag
structure in the window.

7. To download the tag structure to the Allen-Bradley PLC, please go to Communications  Who Active to
select the active PLC.

8. Select the PLC in Who Active and then click the Go Online, followed by Download. The RSLogix 5000 will
display a pop-up message to inform you the download is complete.

ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC

6-11

9. Change the ioLogik_E1212.O.Data[0].4 status from 0 to 1 in RSLogix 5000 and the DO-04 status will
change from OFF to ON. The ioLogik E1200 will now be successfully connected to the Allen-Bradley PLC.

A





















A. Modbus/ TCP Default Address Mappings

The following topics are covered in this appendix:

ioLogik E1210 Modbus Address and Register Map
ioLogik E1211 Modbus Address and Register Map
ioLogik E1212 Modbus Address and Register Map
ioLogik E1213 Modbus Address and Register Map
ioLogik E1214 Modbus Address and Register Map
ioLogik E1240 Modbus Address and Register Map
ioLogik E1241 Modbus Address and Register Map
ioLogik E1242 Modbus Address and Register Map
ioLogik E1260 Modbus Address and Register Map
ioLogik E1262 Modbus Address and Register Map

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-2

NOTE

The Modbus/TCP ID of the ioLogik E1200 is set to “1” by default.

byte: 192, 2nd
byte: 168, 3rd
byte: 127, 4th

ioLogik E1210 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

DI_counterOverflowFl
ag
DI_counterOverflowFl
agClear
DI_counterReset 1: reset to

DI_counterStatus 0: STOP, 1:

DI_counterValue high/low word 0016 04:INPUT

DI_status 0: OFF, 1: ON 0000 02:INPUT

DI-all_statusFromDI­00

0: Normal, 1:
Overflow
1: clear
overflow flag

initial value

START

0: OFF, 1: ON 0048 04:INPUT

1000 02:INPUT

0288 01:COIL

0272 01:COIL

0256 01:COIL

Function
Code

STATUS

STATUS

STATUS

STATUS

REGISTER

STATUS

REGISTER

Start
Register
(decimal)

11001 16 R/W bit

00289 16 R/W bit

00273 16 R/W bit

00257 16 R/W bit

30017 32 R 2 words

10001 16 R bit

30049 1 R word

Length Access Type

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1.2.3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.
254 -> 1st

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

305041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

byte: 254

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-3

byte: 144, 3rd
byte: 232, 4th

Parameter Name Description Start

Address
(decimal)

lanMac e.g.

00:90:E8:3E:
18:CC -> 1st
byte: 0, 2nd

byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

5024 04:INPUT

5000 04:INPUT

Function
Code

REGISTER

REGISTER

Start
Register
(decimal)

35025 3 R word

35001 10 R word

Length Access Type

ioLogik E1211 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

DO_p2pSafeModeFla
gClear
DO_p2pSafeModeFlag 0: OFF, 1: ON 4112 02:INPUT

DO_p2pStatus 0: OFF, 1: ON 4096 02:INPUT

DO_pulseCount 0036 03:HOLDIN

DO_pulseOffWidth unit: 1 ms 0068 03:HOLDIN

DO_pulseOnWidth unit: 1 ms 0052 03:HOLDIN

DO_pulseStatus 0: STOP, 1:

DO_status 0: OFF, 1: ON 0000 01:COIL

DO-all_statusFromDO

-00

1: clear safe
mode flag

START

0: OFF, 1: ON 0032 03:HOLDIN

4128 01:COIL

0016 01:COIL

Function
Code

STATUS

STATUS

STATUS

G
REGISTER

G
REGISTER

G
REGISTER

STATUS

STATUS

G
REGISTER

Start
Register
(decimal)

04129 16 R/W bit

14113 16 R bit

14097 16 R bit

40037 16 R/W word

40069 16 R/W word

40053 16 R/W word

00017 16 R/W bit

00001 16 R/W bit

40033 1 R/W word

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-4

byte: 192, 2nd

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1.2.3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.
254 -> 1st

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

byte: 168, 3rd
byte: 127, 4th
byte: 254

lanMac e.g.

00:90:E8:3E:
18:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

watchdogAlarmFlag 1: clear

watchdog
alarm

5024 04:INPUT

REGISTER

5000 04:INPUT

REGISTER

4144 01:COIL

STATUS

35025 3 R word

35001 10 R word

04145 1 R/W bit

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-5

ioLogik E1212 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

DI_counterOverflowFl
ag
DI_counterOverflowFl
agClear
DI_counterReset 1: reset to

DI_counterStatus 0: STOP, 1:

DI_counterValue high/low word 0016 04:INPUT

DI_status 0: OFF, 1: ON 0000 02:INPUT

DI-all_statusFromDI­00
DO_p2pSafeModeFla
gClear
DO_p2pSafeModeFlag 0: OFF, 1: ON 4112 02:INPUT

DO_p2pStatus 0: OFF, 1: ON 4096 02:INPUT

DO_pulseCount 0036 03:HOLDIN

DO_pulseOffWidth unit: 1 ms 0068 03:HOLDIN

DO_pulseOnWidth unit: 1 ms 0052 03:HOLDIN

DO_pulseStatus 0: STOP, 1:

DO_status 0: OFF, 1: ON 0000 01:COIL

DO-all_statusFromDO

-00

0: Normal, 1:
Overflow
1: clear
overflow flag

initial value

START

0: OFF, 1: ON 0048 04:INPUT

1: clear safe
mode flag

START

0: OFF, 1: ON 0032 03:HOLDIN

1000 02:INPUT

0288 01:COIL

0272 01:COIL

0256 01:COIL

4128 01:COIL

0016 01:COIL

Function
Code

STATUS

STATUS

STATUS

STATUS

REGISTER

STATUS

REGISTER

STATUS

STATUS

STATUS

G
REGISTER

G
REGISTER

G
REGISTER

STATUS

STATUS

G
REGISTER

Start
Register
(decimal)

11001 16 R/W bit

00289 16 R/W bit

00273 16 R/W bit

00257 16 R/W bit

30017 32 R 2 words

10001 16 R bit

30049 1 R word

04129 8 R/W bit

14113 8 R bit

14097 8 R bit

40037 8 R/W word

40069 8 R/W word

40053 8 R/W word

00017 8 R/W bit

00001 8 R/W bit

40033 1 R/W word

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-6

byte: 192, 2nd

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1.2.3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.
254 -> 1st

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

byte: 168, 3rd
byte: 127, 4th
byte: 254

lanMac e.g.

00:90:E8:3E:
18:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

watchdogAlarmFlag 1: clear

watchdog
alarm

5024 04:INPUT

REGISTER

5000 04:INPUT

REGISTER

4144 01:COIL

STATUS

35025 3 R word

35001 10 R word

04145 1 R/W bit

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-7

ioLogik E1213 Modbus Address and Register Map

I/O

Parameter Name Description Start

DI_counterOverflowFl
ag
DI_counterOverflowFl
agClear
DI_counterReset 1: reset to

DI_counterStatus 0: STOP, 1:

DI_counterValue high/low word 0016 04:INPUT

DI_status 0: OFF, 1: ON 0000 02:INPUT

DI-all_statusFromDI­00
DO_p2pSafeModeFla
gClear
DO_p2pSafeModeFlag 0: OFF, 1: ON 4112 02:INPUT

DO_p2pStatus 0: OFF, 1: ON 4096 02:INPUT

DO_pulseCount 0036 03:HOLDI

DO_pulseOffWidth unit: 1 ms 0068 03:HOLDI

DO_pulseOnWidth unit: 1 ms 0052 03:HOLDI

DO_pulseStatus 0: STOP, 1:

DO_status 0: OFF, 1: ON 0000 01:COIL

DO-all_statusFromDO

-00

0: Normal, 1:
Overflow
1: clear
overflow flag

initial value

START

0: OFF, 1: ON 0048 04:INPUT

1: clear safe
mode flag

START

0: OFF, 1: ON 0032 03:HOLDI

Address
(decimal)

1000 02:INPUT

0288 01:COIL

0272 01:COIL

0256 01:COIL

4128 01:COIL

0016 01:COIL

Function
Code

STATUS

STATUS

STATUS

STATUS

REGISTER

STATUS

REGISTER

STATUS

STATUS

STATUS

NG
REGISTER

NG
REGISTER

NG
REGISTER

STATUS

STATUS

NG
REGISTER

Start
Register
(decimal)

11001 12 R/W bit

00289 12 R/W bit

00273 12 R/W bit

00257 12 R/W bit

30017 24 R 2 words

10001 12 R bit

30049 1 R word

04129 8 R/W bit

14113 8 R bit

14097 8 R bit

40037 8 R/W word

40069 8 R/W word

40053 8 R/W word

00017 8 R/W bit

00001 8 R/W bit

40033 1 R/W word

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-8

byte: 192, 2nd

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1.2.3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.
254 -> 1st

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

byte: 168, 3rd
byte: 127, 4th
byte: 254

lanMac e.g.

00:90:E8:3E:
18:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

watchdogAlarmFlag 1: clear

watchdog
alarm

5024 04:INPUT

REGISTER

5000 04:INPUT

REGISTER

4144 01:COIL

STATUS

35025 3 R word

35001 10 R word

04145 1 R/W bit

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-9

ioLogik E1214 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

DI_counterOverflowFl
ag
DI_counterOverflowFl
agClear
DI_counterReset 1: reset to

DI_counterStatus 0: STOP, 1:

DI_counterValue high/low word 0016 04:INPUT

DI_status 0: OFF, 1: ON 0000 02:INPUT

DI-all_statusFromDI­00
RLY_currentCount high/low word 0096 04:INPUT

RLY_currentCountRes
et
RLY_p2pSafeModeFla
gCelar
RLY_p2pSafeModeFlag 0: OFF, 1: ON 4112 02:INPUT

RLY_p2pStatus 0: OFF, 1: O N 4096 02:INPUT

RLY_pulseCount high/low word 0036 03:HOLDI

RLY_pulseOffWidth unit: 1.5 sec 0068 03:HOLDI

RLY_pulseOnWidth unit: 1.5 sec 0052 03:HOLDI

RLY_pulseStatus 0: STOP, 1:

RLY_status 0: OFF, 1: ON 0000 01:COIL

RLY_TotalCount high/low word 0064 04:INPUT

RLY-all_statusFromRL
Y-00

0: Normal, 1:
Overflow
1: clear
overflow flag

initial value

START

0: OFF, 1: ON 0048 04:INPUT

1: reset
current count
1: clear safe
mode flag

START

0: OFF, 1: ON 0032 03:HOLDI

1000 02:INPUT

0288 01:COIL

0272 01:COIL

0256 01:COIL

0048 01:COIL

4128 01:COIL

0016 01:COIL

Function
Code

STATUS

STATUS

STATUS

STATUS

REGISTER

STATUS

REGISTER

REGISTER

STATUS

STATUS

STATUS

STATUS

NG
REGISTER

NG
REGISTER

NG
REGISTER

STATUS

STATUS

REGISTER

NG
REGISTER

Start
Register
(decimal)

11001 6 R/W bit

00289 6 R/W bit

00273 6 R/W bit

00257 6 R/W bit

30017 12 R 2 words

10001 6 R bit

30049 1 R word

30097 12 R 2 words

00048 6 R/W bit

04129 6 R/W bit

14113 6 R bit

14097 6 R bit

40037 12 R/W 2 words

40069 6 R/W word

40053 6 R/W word

00017 6 R/W bit

00001 6 R/W bit

30065 12 R 2 words

40033 1 R/W word

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-10

192, 2nd byte:

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1.2.3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.2
54 -> 1st byte:

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

168, 3rd byte:
127, 4th byte:
254

lanMac e.g.

00:90:E8:3E:1
8:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

watchdogAlarmFlag 1: clear

watchdog
alarm

5024 04:INPUT

REGISTER

5000 04:INPUT

REGISTER

4144 01:COIL

STATUS

35025 3 R word

35001 10 R word

04145 1 R/W bit

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-11

ioLogik E1240 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

AI_burnoutValue high/low word 0040 03:HOLDI

AI_mode 0: 0-10 V

1: 4-20mA
2: 0-20mA
4: 4-20mA
burnout

AI_rawValue 0000 04:INPUT

AI_rawValueMax 0032 04:INPUT

AI_rawValueMin 0024 04:INPUT

AI_resetMaxValue 1: reset max.

value

AI_resetMinValue 1: reset min.

value

AI_scaledValue high/low word 0008 04:INPUT

AI_scaledValueMax high/low word 0125 04:INPUT

AI_scaledValueMin high/low word 0109 04:INPUT

AI_status 0: normal,

1: burnout,
2: over range,
3: under range

0024 03:HOLDI

4153 01:COIL

4145 01:COIL

0060 04:INPUT

Function
Code

NG
REGISTER

NG
REGISTER

REGISTER

REGISTER

REGISTER

STATUS

STATUS

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

40041 16 R/W 2 words

40025 8 R/W word

30001 8 R word

30033 8 R word

30025 8 R word

04154 8 R/W bit

04146 8 R/W bit

30009 16 R 2 words

30126 16 R 2 words

30110 16 R 2 words

30061 8 R word

Length Access Type

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime unit: sec(s) 5020 04:INPUT

firmwareVersion e.g. V1 .2 .3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build16051718

--> 16051718

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-12

Parameter Name Description Start

Address
(decimal)

lanIp e.g.

192.168.127.2
54 -> 1st byte:
192, 2nd byte:
168, 3rd byte:
127, 4th byte:
254

lanMac e.g.

00:90:E8:3E:1
8:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

5027 04:INPUT

5024 04:INPUT

5000 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35028 2 R word

35025 3 R word

35001 10 R word

Length Access Type

ioLogik E1241 Modbus Address and Register Map

I/O

Parameter Name Description Start

AO_p2pSafeModeFla
gClear
AO_p2pSafeModeFlag 0: OFF, 1: ON 4112 02:INPUT

AO_p2pStatus 0: OFF, 1: ON 4096 02:INPUT

AO_rawValue 1024 03:HOLDI

AO_scaledValue high/low word 0000 04:INPUT

1: clear safe
mode flag

Address
(decimal)

4128 01:COIL

Function
Code

STATUS

STATUS

STATUS

NG
REGISTER

REGISTER

Start
Register
(decimal)

04129 4 R/W bit

14113 4 R bit

14097 4 R bit

41025 4 R/W word

30001 8 R 2 words

Length Access Type

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-13

byte: 192, 2nd

System

Parameter Name Description Start

Address
(decimal)

deviceName Each byte

represents
ASCII code of
each character

deviceUpTime uni t: sec( s) 5020 04:INPUT

firmwareVersion e.g. V1 .2 .3 ->

1st byte: 1,
2nd byte: 2,
3rd byte: 3

firmwareBuildDate e.g.

Build1605171
8 -->
16051718

lanIp e.g.

192.168.127.2
54 -> 1st

5040 04:INPUT

5029 04:INPUT

5031 04:INPUT

5027 04:INPUT

Function
Code

REGISTER

REGISTER

REGISTER

REGISTER

REGISTER

Start
Register
(decimal)

35041 30 R word

35021 2 R word

35030 2 R word

35032 2 R word

35028 2 R word

Length Access Type

byte: 168, 3rd
byte: 127, 4th
byte: 254

lanMac e.g.

00:90:E8:3E:
18:CC -> 1st
byte: 0, 2nd
byte: 144, 3rd
byte: 232, 4th
byte: 62, 5th
byte: 24, 6th
byte: 204

modelName Each byte

represents
ASCII code of
each character

watchdogAlarmFlag 1: clear

watchdog
alarm

5024 04:INPUT

REGISTER

5000 04:INPUT

REGISTER

4144 01:COIL

STATUS

35025 3 R word

35001 10 R word

04145 1 R/W bit

ioLogik E1200 Series Modbus/TCP Default Address Mappings

A-14

ioLogik E1242 Modbus Address and Register Map

I/O

Parameter Name Description Start

Address
(decimal)

AI_burnoutValue high/low word 0560 03:HOLDI

AI_mode 0: 0-10 V

1: 4-20mA
2: 0-20mA
4: 4-20mA
burnout

AI_rawValue 0512 04:INPUT

AI_rawValueMax 0532 04:INPUT

AI_rawValueMin 0528 04:INPUT

AI_resetMaxValue 1: reset max.

value

AI_resetMinValue 1: reset min.

value

AI_scaledValue high/low word 0520 04:INPUT

AI_scaledValueMax high/low word 0546 04:INPUT

AI_scaledValueMin high/low word 0536 04:INPUT

AI_status 0: normal,

1: burnout,
2: over range,

3: under range
DI_counterOverflowFl
ag
DI_counterOverflowFl
agClear
DI_counterReset 1: reset to

DI_counterStatus 0: STOP, 1:

DI_counterValue high/low word 0016 04:INPUT

DI_status 0: OFF, 1: ON 0000 02:INPUT

DI-all_statusFromDI­00
DO_p2pSafeModeFla
gClear

0: Normal, 1:

Overflow

1: clear

overflow flag

initial value

START

0: OFF, 1: ON 0048 04:INPUT

1: clear safe

mode flag

0544 03:HOLDI

4153 01:COIL

4145 01:COIL

0576 04:INPUT

1000 02:INPUT

0288 01:COIL

0272 01:COIL

0256 01:COIL

4128 01:COIL

Function
Code

NG
REGISTER

NG
REGISTER

REGISTER

REGISTER

REGISTER

STATUS

STATUS

REGISTER

REGISTER

REGISTER

REGISTER

STATUS

STATUS

STATUS

STATUS

REGISTER

STATUS

REGISTER

STATUS

Start
Register
(decimal)

40561 8 R/W 2 words

40545 4 R/W word

30513 4 R word

30533 4 R word

30529 4 R word

04154 4 R/W bit

04146 4 R/W bit

30521 8 R 2 words

30547 8 R 2 words

30537 8 R 2 words

30577 4 R word

11001 8 R/W bit

00289 8 R/W bit

00273 8 R/W bit

00257 8 R/W bit

30017 16 R 2 words

10001 8 R bit

30049 1 R word

04129 4 R/W bit

Length Access Type
