Moxa Technologies IMC-21GA Hardware Installation Manual

 2014 Moxa Inc. All rights reserved.

P/N: 1802000210031

IMC-21GA

Hardware Installation Guide

Moxa Industrial Media Converter

Second Edition, October 2014

- 2 -

Overview

The IMC-21GA series includes industrial 10/100/1000BaseT(X) to
100/1000BaseFX media converters that provide a cost-effective solution,
and are specially designed for reliable and stable operation in industrial
environments.

Package Checklist

Moxa’s IMC-21GA is shipped with the following items. If any of these
items are missing or damaged, please contact your customer service
representative for assistance.

• IMC-21GA media converter

• Hardware installation guide (this guide)

• Warranty card

Features

• The fiber port’s connection speed is DIP switch selectable

• Supports Link Fault Pass-Through (LFP)

• DIN rail mountable

• Multi mode (0.5 km) and single mode (10 km) models with SC fiber

connectors are available

• Operating temperature range from -40 to 75°C (T models)

• 10K Jumbo Frame

• Redundant power inputs

• Supports Energy Efficient Ethernet (IEEE 802.3 az)

- 3 -

Panel Layout

1. Shielding Ground

2. Terminal block for power
input

3. Dip switch

4. Power LED

5. Gigabit Copper (G1) / Fiber
(G2) Port LED

6. SFP module slot

7. 10/100/1000BaseT(X) Port

8. SX/LX Fiber Port, SC
connector

9. DIN rail kit

- 4 -

Mounting Dimensions

DIN Rail Mounting

The aluminum DIN rail attachment
plate should be fixed to the back
panel of the

IMC-21GA when you

take it out of the box. If you need to
reattach the DIN

rail attachment

plate to the

IMC-21GA, make sure

the stiff metal spring is situated
towards the top.

Wiring Requirements

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or
wiring your IMC

-21GA.

Calculate the maximum possible current in each power wire and
common wire. Observe all electrical codes

dictating the

maximum current allowable for each wire size.

If the current goes above the maximum rating, the wiring could
overheat, causing serious damage to your equipment.

• Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.

- 5 -

• Do not run signal or communications wiring and power wiring in the
same wire conduit. To avoid interference, wires with different signal
characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of thumb is
that wiring that shares similar electrical characteristics can be
bundled together.

• Keep input wiring and output wiring separated.

• We strongly advise that you label wiring to all devices in the system.

Grounding the IMC-21GA

Grounding and wire routing help limit the effects
of noise due to electromagnetic interference
(EMI). Run the ground connection from the
ground screw to the grounding surface prior to
connecting devices

.

ATTENTION

This pro

duct is intended to be mounted to a well-grounded

mounting surface such as a metal panel.

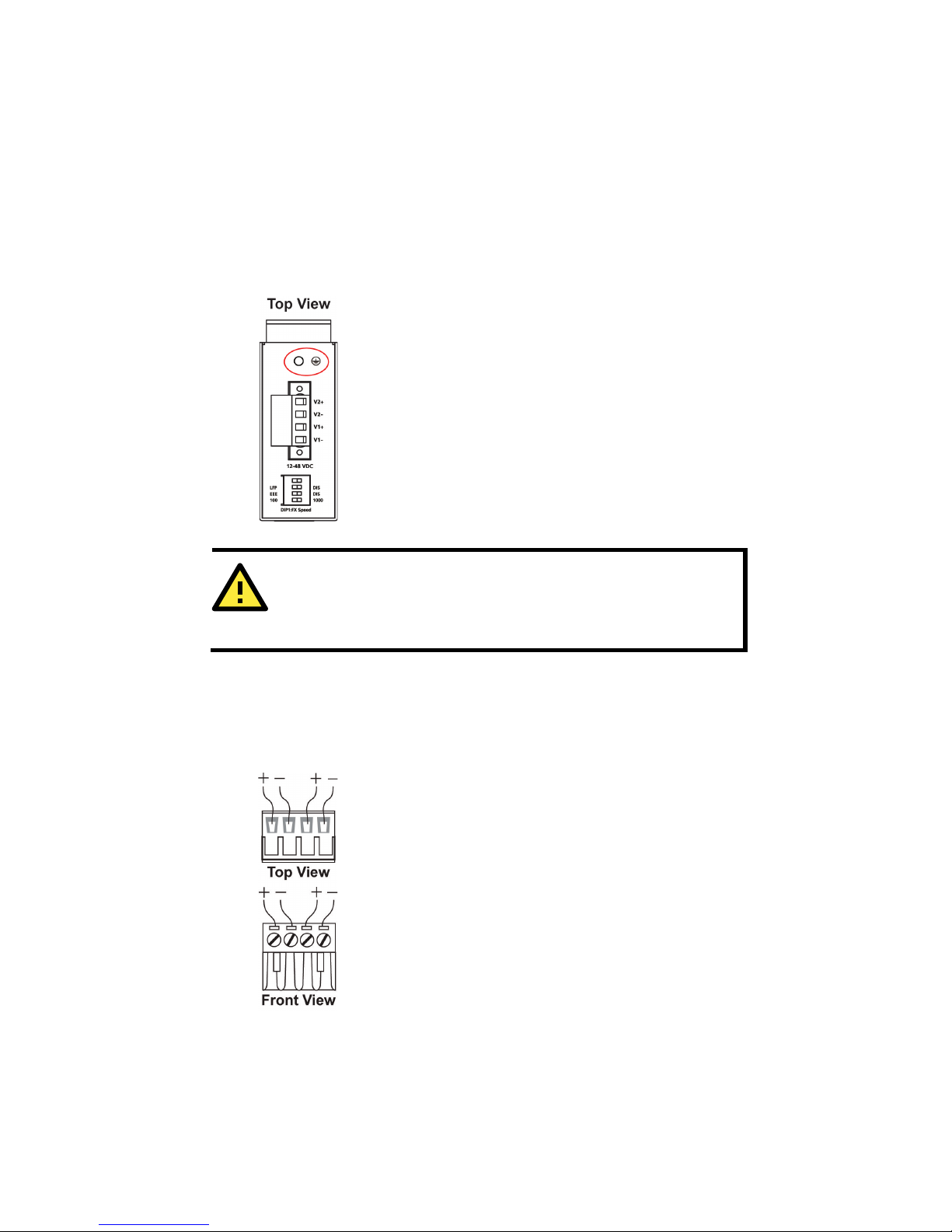

Wiring the Power Inputs

The 4-contact terminal block connector on the IMC-21GA’s top panel is
used for the IMC-21GA’s two DC inputs. Top and front views of one of the
terminal block connectors are shown here.

STEP 1:

Insert the negative/positive DC wires

into the V

-/V+ terminals.

STEP 2: To keep the DC wires from pulling loose,
use a small flat-blade screwdriver to tighten the
wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block receptor
located on IMC

-21GA’s top panel.

Redundant Power Inputs

Both power inputs can be connected simultaneously to live DC power
sources. If one power source fails, the other live source acts as a backup,
and automatically supplies all of the IMC-21GA’s power needs.

- 6 -

Communication Connections

RJ45 Ethernet Port Connection

The IMC-21GA has one 10/100/1000BaseT(X) Ethernet port located on
the front panel for connecting to Ethernet-enabled devices.

When connected to a 10/100 Mbps Ethernet port, the pinouts and cable
wiring diagrams for both MDI (NIC-type) and MDI-X (HUB/switch-type)
ports for both straight-through and cross-over Ethernet cables are:

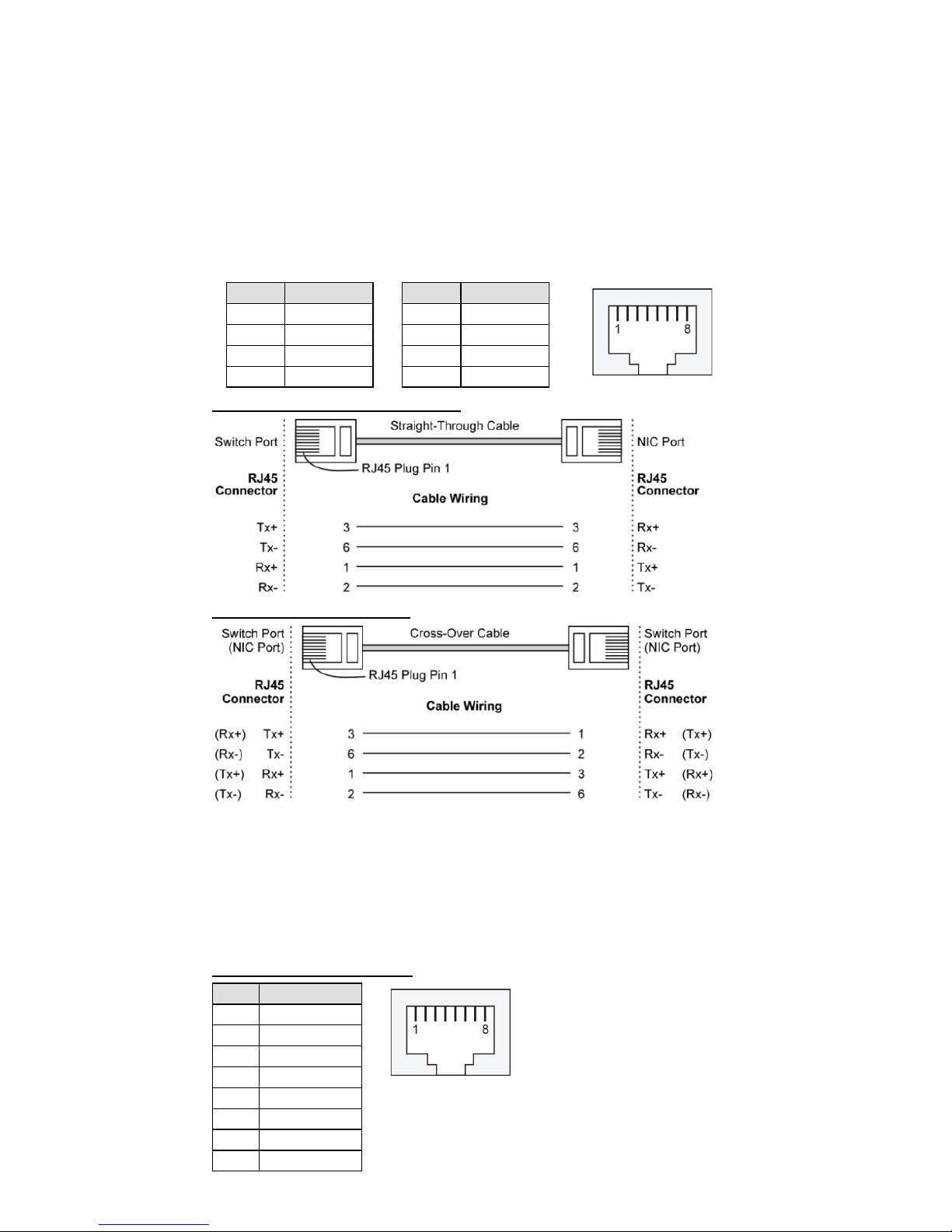

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Pin

Signal

1

Tx+

2

Tx-

3

Rx+

6

Rx-

Pin

Signal

1

Rx+

2

Rx-

3

Tx+

6

Tx-

Straight-Through Cable Wiring

Cross-Over Cable Wiring

1000BaseT(X) Ethernet Port Connection

1000BaseT(X) data is transmitted on differential TRD+/- signal pairs over
copper wires. When connected to a 1000 Mbps Ethernet port, the pinouts
and cable wiring diagrams for both MDI (NIC-type) and MDI-X
(HUB/switch-type) ports for both straight-through and cross-over
Ethernet cables are:

MDI/MDI-X Port Pinouts

Pin

Signal

1

TRD (0) +

2

TRD (0) -

3

TRD (1) +

4

TRD (2) +

5

TRD (2) -

6

TRD (1) -

7

TRD (3) +

8

TRD (3) -

- 7 -

1000BaseSFP Fiber Port Connection

The Gigabit Ethernet ports on the IMC-21GA are 1000BaseSFP Fiber ports,
which require using Gigabit mini-GBIC fiber transceivers to work
properly.

The concept behind the LC port and cable is straightforward. Suppose you
are connecting devices I and II; contrary to electrical signals, optical
signals do not require a circuit in order to transmit data. Consequently,
one of the optical lines is used to transmit data from device I to device II,
and the other optical line is used transmit data from device II to device I,
for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)
port of device II, and the Rx (receive) port of device I to the Tx (transmit)
port of device II. If you make your own cable, we suggest labeling the two
sides of the same line with the same letter (A-to-A and B-to-B, as shown
below, or A1-to-A2 and B1-to-B2).

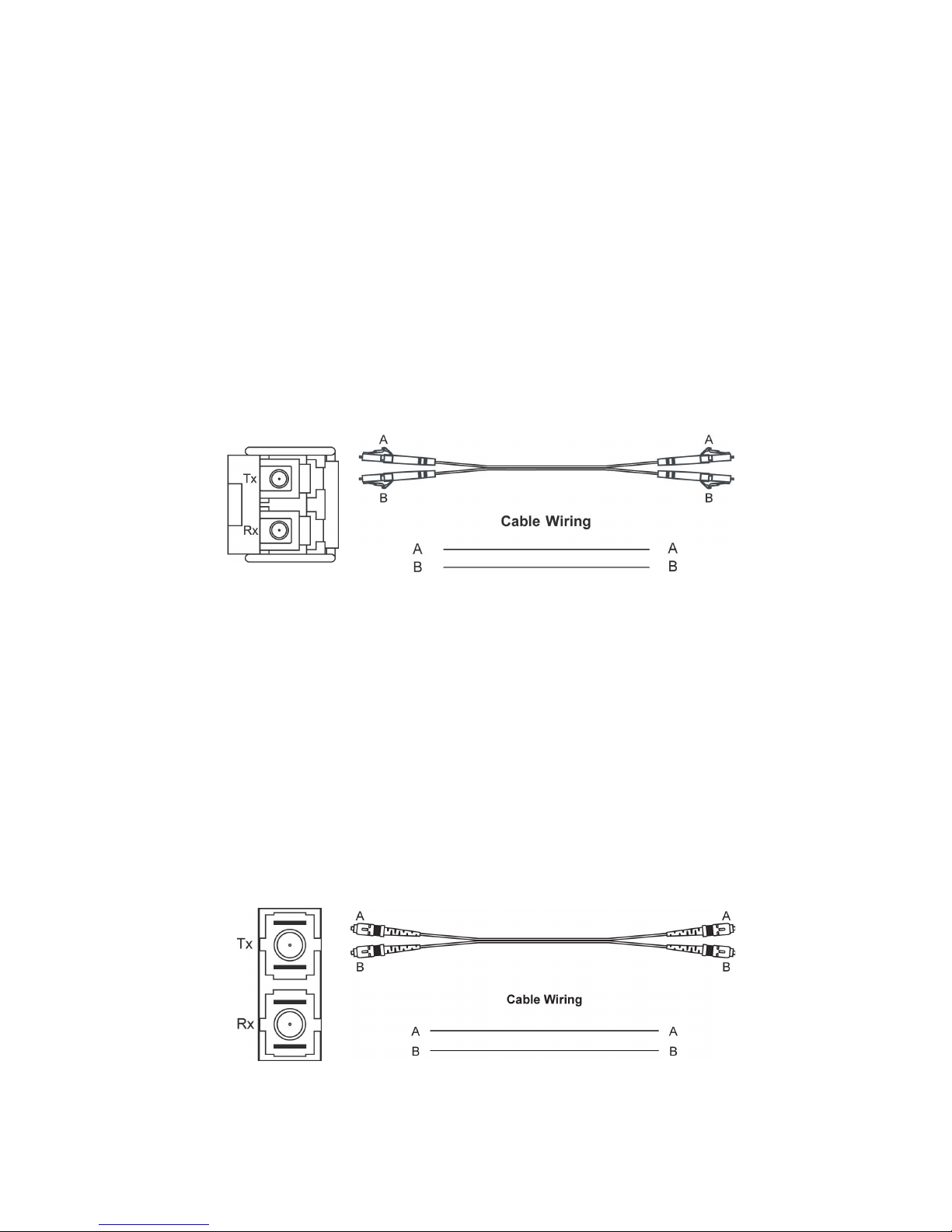

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring

1000BaseSX/LX Fiber Port (IMC-21GA-SX-SC,
IMC-21GA-LX-SC)

The concept behind the SC port and cable is straightforward. Suppose you
are connecting devices I and II. Contrary to electrical signals, optical
signals do not require a circuit in order to transmit data. Consequently,
one of the optical lines is used to transmit data from device I to device II,
and the other optical line is used transmit data from device II to device I,
for full-duplex transmission.

All you need to remember is to connect the Tx (transmit) port of device I
to the Rx (receive) port of device II, and the Rx (receive) port of device I
to the Tx (transmit) port of device II. If you make your own cables, we
suggest labeling the two sides of the same line with the same letter
(A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2).

SC-Port Pinouts

SC-Port to SC-Port Cable Wiring

- 8 -

ATTENTION

The IMC

-21GA is only compatible with transceiver modules from

Moxa's SFP

-1G series and SFP-1FE series. If you are using the

SFP

-1FESLC-T, SFP-1FELLC-T, or SFP-1FEMLC-T, use version

V1.3 or above to ensure that the IMC

-21GA's media converter

functionality works properly.

ATTENTI

ON

This is a Class 1 Laser/LED product. To avoid causing serious
damage to your eyes, do not stare directly into the laser beam.

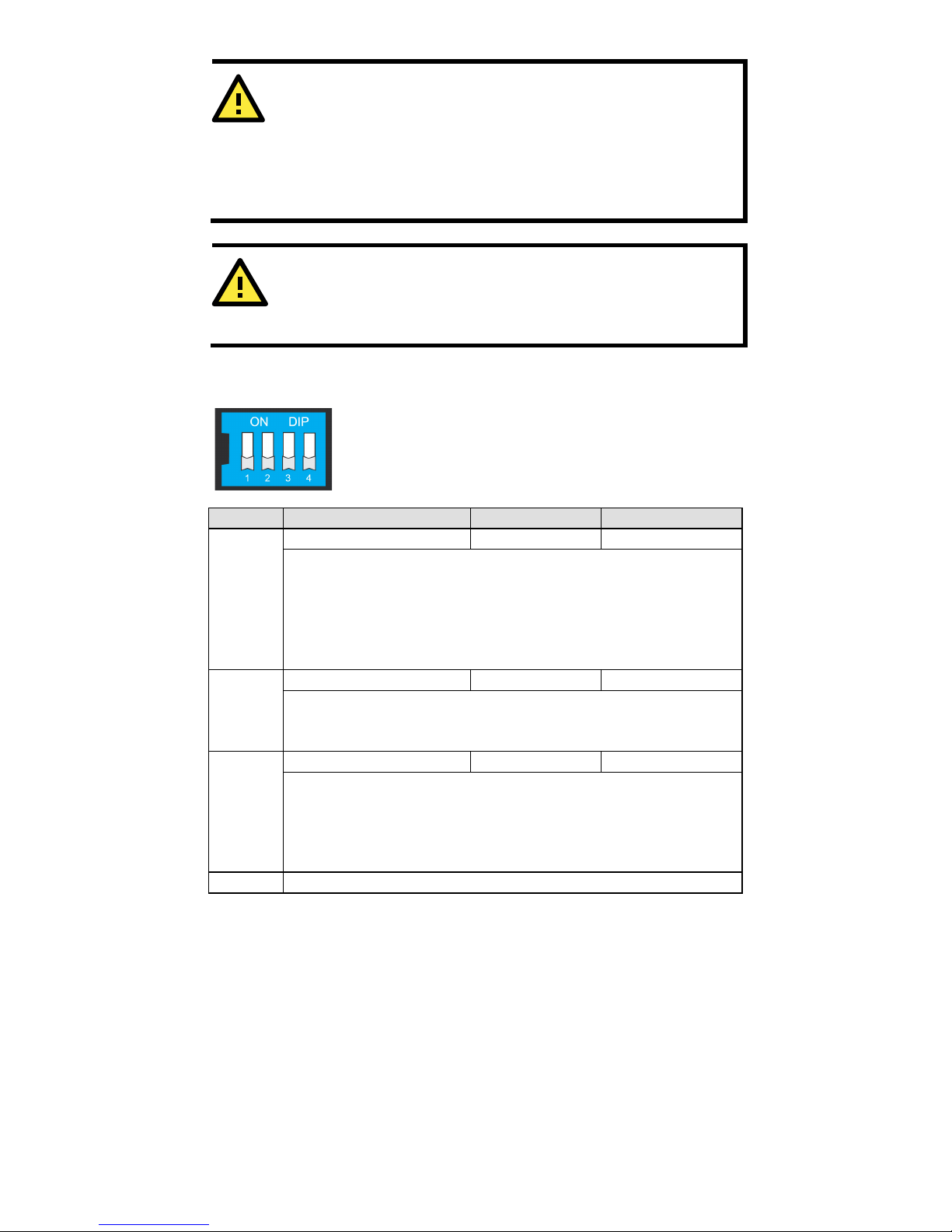

DIP Switch Settings

Dip No.

Function

ON

OFF

1

Fiber Speed

100M

1000M*

“ON”: Forces 100 Mbps on fiber port

Note: When setting the mode for the IMC-21GA, use Moxa
SFP-1FE Series SFP modules

“OFF”: Forces 1000 Mbps on fiber port

Note: When setting the mode for the IMC-21GA, use Moxa

SFP-1G Series SFP modules

2

Energy Efficient Ethernet

Enable

Disable*

“ON”: Enable “Energy Efficient Ethernet” to

allow for less power

consumption during periods of low data activity

“OFF”: Disable “Energy Efficient Ethernet”

3

Link Fault Pass Through

Enable

Disable*

“ON”: Enables “Link Fault Pass Through”, the link status on the

TX port will inform the FX port of the same device and vice
versa.
“OFF”: Disables “Link Fault Pass Through”, the link status on

the TX port will not inform the FX port.

4

Reserved

*Default setting

After changing the DIP switch setting, you will need to power off and then
power on the IMC-21GA.

- 9 -

LED Indicators

The front panel of the Moxa IMC-21GA contains several LED indicators.
The function of each LED is described in the table below.

LED

Color

State

Description

PWR1 Amber

On

Power is being supplied to power input (V1+, V1-)

Off

Power is not being supplied to power input

(V1+, V1-)

PWR2 Amber

On

Power is being supplied to power input (V2+, V2-)

Off

Power is not being supplied to power input
(V2+, V2-)

G1

GREEN

On

TP port’s 1000 Mbps link is active

Blinking

Data is being transmitted at 1000 Mbps

Off

TP port’s 1000 Mbps link is inactive

Amber

On

TP port’s 10/100 Mbps link is active

Blinking

Data is being transmitted at 10/100 Mbps

Off

TP port’s 10/100 Mbps link is inactive

G2

GREEN

On

Fiber port’s 1000 Mbps link is active

Blinking

Data is being transmitted at 1000 Mbps

Off

Fiber port’s 1000 Mbps link is inactive

Amber

On

Fiber port’s 100 Mbps link is active

Blinking

Data is being transmitted at 100 Mbps

Off

Fiber port’s 100 Mbps link is inactive

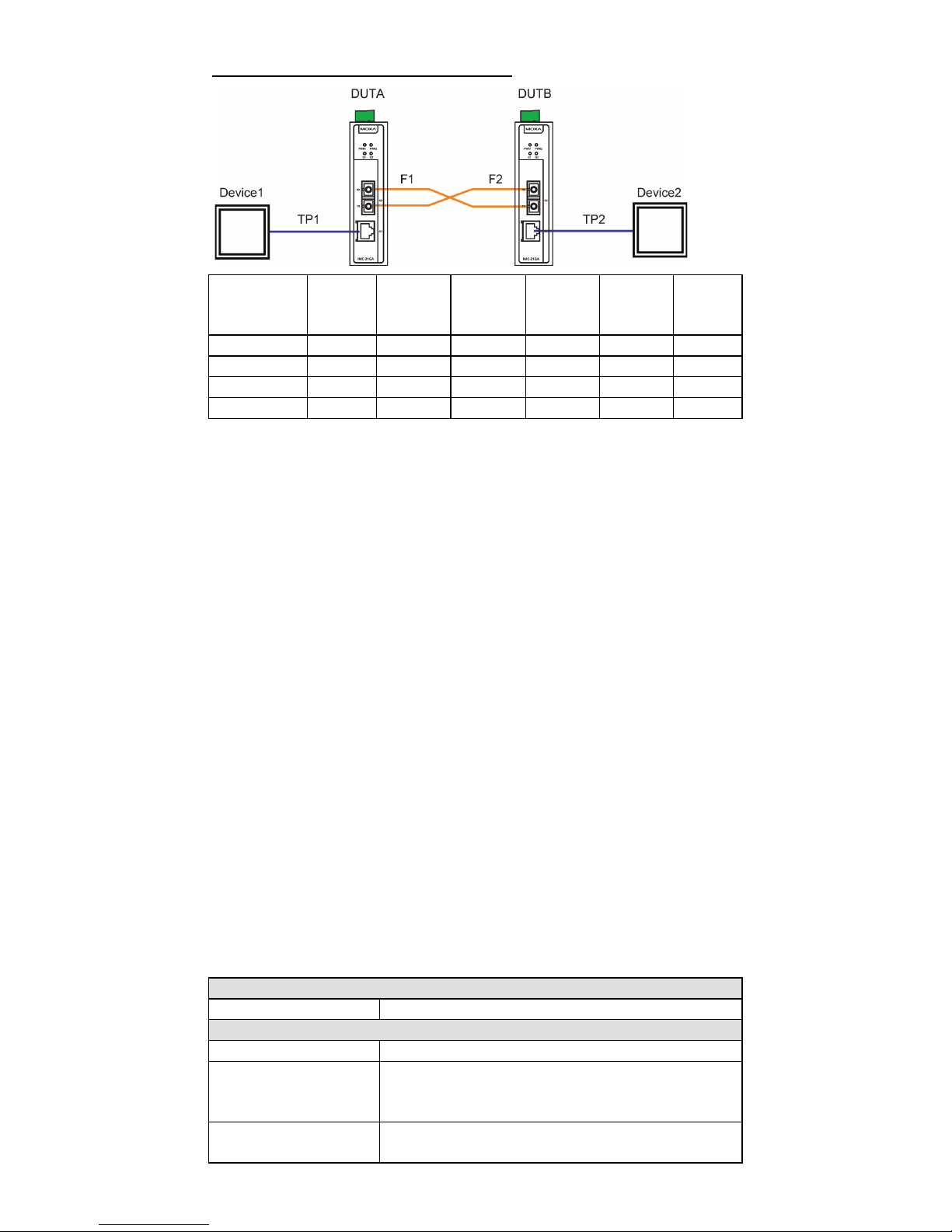

LFP: DIP switch is set to “LFP” mode

Device1

TP LED

DUTA TP

LNK

(G1)

LED

DUTA FO

(G2) LED

DUTB FO

(G2) LED

DUTB TP

LNK

(G1)

LED

Device 2

TP LED

TP1 Faulted

OFF

OFF

OFF

OFF

OFF

OFF

F1 Faulted

OFF

OFF

OFF

OFF

OFF

OFF

F2 Faulted

OFF

OFF

OFF

OFF

OFF

OFF

TP2 Faulted

OFF

OFF

OFF

OFF

OFF

OFF

- 10 -

LFP: DIP switch is set to “DIS” mode

Device1

TP LED

DUTA TP

LNK

(G1)

LED

DUTA FO
(G2) LED

DUTB FO

(G2) LED

DUTB TP

LNK

(G1)

LED

Device 2

TP LED

TP1 Faulted

OFF

OFF

ON

ON

ON

ON

F1 Faulted

ON

ON

OFF

OFF

ON

ON

F2 Faulted

ON

ON

OFF

OFF

ON

ON

TP2 Faulted

ON

ON

ON

ON

OFF

OFF

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect the Moxa
IMC-21GA’s 10/100/1000BaseT(X) ports to any kind of Ethernet device,
regardless of the type of Ethernet cable used for the connection. This
means that you can use either a straight-through cable or cross-over
cable to connect the IMC to Ethernet devices.

Auto-Negotiation and Speed Sensing

All of the IMC-21GA’s RJ45 Ethernet ports independently support
auto-negotiation for transmission speeds of 10 Mbps, 100 Mbps , and
1000 Mbps, with operation according to the IEEE 802.3u standard.

This means that some nodes could be operating at 10 Mbps, while at the
same time, other nodes are operating at 100 Mbps or 1000 Mbps.
Auto-negotiation takes place when an RJ45 cable connection is made, and
then each time a LINK is enabled. The IMC-21GA advertises its capability
for using 10 Mbps, 100 Mbps, or 1000 Mbps transmission speeds, with the
device at the other end of the cable expected to advertise similarly.

Depending on what type of device is connected, this will result in
agreement to operate at a speed of 10 Mbps, 100 Mbps, or 1000 Mbps.

If the IMC-21GA’s RJ45 Ethernet port is connected to a non-negotiating
device, it will default to 10 Mbps speed and half-duplex mode, as required
by the IEEE 802.3u standard.

Specifications

Technology

Standards

IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az

Interface

RJ45 Port

10/100/1000BaseT(X), RJ45 connector

Fiber Port

IMC-21GA-SX/LX-SC: 100/1000Base-SX/LX, SC

connector

IMC-21GA: 100/1000BaseSFP slot

LED Indicators

Power (PWR1, PWR2), G1 (TP Port), G2 (Fiber
Port)

- 11 -

DIP Switch

The following are DIP switch selectable:

Fiber port’s connection speed (FX Speed),
Energy Efficient Ethernet (EEE),

Link Fault Pass Through (LFP)

Fiber Optics

Multi mode
(IMC-21GA-SX-SC)

Single mode
(IMC-21GA-LX-SC)

Distance, km

0.5

10

Wavelength, nm

850

1310

Min. Tx Output, dBm

-10

-9

Max. Tx Output, dBm

-3

-3

Sensitivity, dBm

-20

-21

Power Requirements

Input Voltage

12 to 48 VDC (10 to 60 VDC)

Input Current

284.7 mA @ 12 VDC; 156.0 mA @ 24 VDC

Connection

Removable 4-contact screw-on terminal block

Overload Current
Protection

1.5 A

Reverse Polarity

Protection

Present

Physical Characteristics

Housing

IP30 protect, metal case

Dimensions

30 × 115 × 70 mm (1.19 x 4.53 x 2.76 in)

Weight

170 g

Installation

DIN rail mounting

Environmental Limits

Operating
Temperature

Standard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative

Humidity

5 to 95% (non-condensing)

Regulatory Approvals

Safety

UL 60950-1

EMI

FCC Part 15, CISPR (EN 55022) class A

EMS EN 61000-4-2 (ESD) Level 3

EN 61000-4-3 (RS) Level 3
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 3

Shock

IEC 60068-2-27

Free Fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

5 years

Federal Communications Commission Statement

FCC—This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

- 12 -

FCC WARNING

This equipment has been teste

d and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. Th

is equipment generates, uses, and

can radiate radio frequency energy, and if not installed and used
in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is like

ly to cause harmful

interference

, in which case the user will be required to correct the

interference at his or her own expense.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:
Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):
Toll

-free: 800-820-5036

Tel:

[phone]

Fax:

[phone]

Moxa Europe

:

Tel:

[phone]

Fax:

[phone]

Moxa Asia

-Pacific:

Tel:

[phone]

Fax:

[phone]
