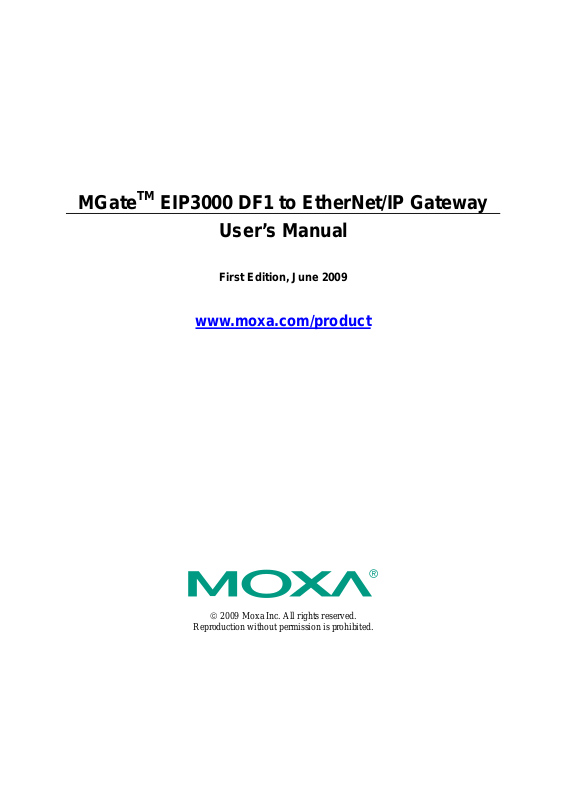

Moxa Technologies DF1 User Manual

MGate
TM
EIP3000 DF1 to EtherNet/IP Gateway
User’s Manual
First Edition, June 2009
www.moxa.com/product
© 2009 Moxa Inc. All rights reserved.
Reproduction without permi ssi on is pr ohibited.
MGate EIP3000 DF1 to EtherNet/IP Gateway
User’s Manual
The software described in this manual is fur ni shed u nder a l icense a greem ent an d m ay be use d onl y in ac corda nce
with the terms of that agreement.
Copyright Notice
Copyright © 2009 Moxa Inc.
All rights reserved.
Reproduction without permi ssi on is pr ohibited.
Trademarks
MOXA is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa.
Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular pu rpose. M oxa rese rves t he right t o m ake im prove ments an d/or c hanges t o this manual , or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas: T oll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778
Moxa Europe T el: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99
:
Moxa China (Shanghai office) T oll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-10-6872-3958
Moxa Asia-Pacific Tel: +886-2-8919-1230 Fax: +886-2-8919-1231
:
:
Table of Contents
Chapter 1 Introduction ...............................................................................................1-1
Overview.............................................................................................................................. 1-2
Package Checklist................................................................................................................. 1-2
Product Features................................................................................................................... 1-3
Chapter 2 Getting Started ..........................................................................................2-1
Connecting Power ................................................................................................................2-2
Connecting Serial Devices.................................................................................................... 2-2
Connecting to a Host or the Network ................................................................................... 2-2
Installing the Software.......................................................................................................... 2-3
Mounting the Unit ................................................................................................................ 2-3
Chapter 3 Hardware: EIP3170, EIP3170I ...................................................................3-1
Panel Layout......................................................................................................................... 3-2
LED Indicators ..................................................................................................................... 3-2
Dimensions........................................................................................................................... 3-3
Jumpers................................................................................................................................. 3-4
Pin Assignments................................................................................................................... 3-5
DB9 (Male)................................................................................................................... 3-5
Terminal Block (RS-422)............................................................................................. 3-5
Power Input, Relay Output........................................................................................... 3-6
DIN-Rail, W all Mounting..................................................................................................... 3-6
Specifications ....................................................................................................................... 3-7
Chapter 4 Hardware: EIP3270, EIP3270I ...................................................................4-1
Panel Layout......................................................................................................................... 4-2
LED Indicators ..................................................................................................................... 4-2
Dimensions........................................................................................................................... 4-3
Jumpers................................................................................................................................. 4-4
Pin Assignments................................................................................................................... 4-5
DB9 (Male)................................................................................................................... 4-5
Power Input, Relay Output........................................................................................... 4-5
DIN-Rail, W all Mounting..................................................................................................... 4-6
Specifications ....................................................................................................................... 4-7
Chapter 5 Configuring the EtherNet/IP Gateway .....................................................5-1
Installing the Software.......................................................................................................... 5-2
Starting MGate Manager...................................................................................................... 5-6
Change Language Setting............................................................................................. 5-6
Connecting to the Unit.......................................................................................................... 5-7
Broadcast Search .......................................................................................................... 5-7
Specify by IP Address .................................................................................................. 5-8
Modifying the Configuration ................................................................................................ 5-9
Configure IP Address and Other Network Settings.................................................... 5-10
Configure Serial Communication Parameters ............................................................ 5-12
Set up Routing and ProCOM function........................................................................ 5-13
Set up Protocol............................................................................................................5-15
Set Up Miscellaneous................................................................................................. 5-16
Verifying Location of Unit ................................................................................................. 5-17
Monitoring EtherNet/IP Activity........................................................................................ 5-17
Open Traffic Monitor Window................................................................................... 5-18
Filter Traffic Information ...........................................................................................5-19
Save Log to File.......................................................................................................... 5-20
Upgrading Firmware .......................................................................................................... 5-20
Chapter 6 Pin Assignments .......................................................................................6-1
DB9 (Male)........................................................................................................................... 6-2
Terminal Block (RS-422)..................................................................................................... 6-3
Power Input, Relay Output................................................................................................... 6-3
1
1

Chapter 1 Introduction

Welcome to the MGate EIP3000 line of DF1 to EtherNet/IP gateways. All models feature easy protocol conversion from DF1 to EtherNet/IP, and RS-232/422 ports for DF1 communication. One-port and two-port models are available.
This chapter is an introduction to the MGate EIP3000 and includes the following sections:
Overview Package Checklist Product Features
MGate EIP3000 Series User’s Manual Introduction

Overview

The MGate EIP3000 is a line of protocol gateways that provides users with
y protocol conversion between DF1 and EtherNet/IP y virtual serial port for multiple DF1 and EtherNet/IP device communications y Windows utilities for easy setup and traffic monitoring.
Protocol conversion between DF1 and EtherNet/IP
MGate™ EIP3000 series products can be used to connect DF1 devices and EtherNet/IP devices to provide Allen Bradley PLCs with remote maintenance capability. By supporting PCCC objects on CIP, the MGate™ EIP3000 can communicate seamlessly with Rockwell Ethernet devices. The EIP3000 protocol gateways come with either 1 or 2 serial ports to allow users to select a suitable gateway depending on the size of the network.
ProCOM function for multiple DF1 and EtherNet/IP device communications
Each MGate™ EIP3000 gateway supports a virtual serial port. A remote PC uses a Moxa-provided ProCOM function to connect to the EIP3000’s virtual serial port. RSLinx and SCADA systems can use the virtual COM port to communicate with an EIP3000 gateway . The virtual serial port function gives RSLinx or some SCADA systems the capability to connect to multiple DF1 and EtherNet/IP devices through a protocol gateway.
Windows utilities for easy setup and traffic monitoring
A W indows utility is provided to make configuration and operation of the MGate EIP3000 as easy as possible. The utility automatically connects to all available MGate EIP3000 units on the LAN for you. Traffic monitoring funct ions hel p y ou t rou blesh oot th e communication problems between D F1 and EtherNet/IP p rotocols by trackin g items such as connec tion status and add ress translation er rors.

Package Checklist

All models in the MGate EIP3000 line are shipped with the following items:
Standard Accessories
y 1 MGate EIP3000 DF1 to EtherNet/IP gateway. y Document & software CD. y Quick Installation Guide. y Product warranty statement.
Optional Accessories
y DR-4524 : 45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC input. y DR-75-24: 75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC input. y DR-120-24: 120W/5A DIN-rail 24 VDC power supply with 88 to 132 VAC/176 to 264 VAC
input by switch.
NOTE: Notify your sales representative if any of the above items is missing or damaged.
1-2
MGate EIP3000 Series User’s Manual Introduction

Product Features

y PCCC objects for Rockwell Automation networks supported. y 8 simultaneous EtherNet/IP clients with up to 16 simultaneous requests per client. y Serial redirector function provided. y ProCOM function provides virtual serial port for multiple DF1 and EtherNet/IP device
communication.
y Embedded EtherNet/IP and DF1 protocol analyzer. y Redundant dual DC power inputs. y Built-in Ethernet cascading for easy wiring. y Configuration over Ethernet with easy-to-use Windows utility. y Software-selectable RS-232/422 communication.
1-3
2
2

Chapter 2 Getting Started

This chapter provides basic instructions for installing the MGate EIP3000. The following topics are covered:
Connecting Power Connecting Serial Devices Connecting to a Host or the Network Installing the Software Mounting the Unit
MGate EIP3000 Series User’s Manual Getting Started

Connecting Power

The unit can be powered using the AC adaptor or by connecting a power s ource to the term inal block, depending on the model. The following instructions are for the AC adaptor:
1. Plug the connector of the power adapter into the DC-IN jack on the back of the unit.
2. Plug the power adapter into an electrical outlet.
3. Follow these instructions to connect a power source to the terminal block:
4. Loosen or remove the screws on the terminal block.
5. Connect the 12–48 VDC power line to the terminal block.
6. Tighten the connections using the screws on the terminal block. Note that the unit does not have an on/off switch. It automatically turns on when it receives power .
The PWR LED on the top panel will glow to indicate that the unit is receiving power. For power terminal block pin assignments, please refer to the hardware reference chapter for your
model.

Connecting Serial Devices

The unit’s serial port(s) are located on the back panel. There are two options for connecting serial devices, depending on the serial interface:
y You may use a DB9-to-DB9 cable to connect a serial device to the unit. Plug one end of the
cable into the port on the unit’s back panel and plug the other end of the cable into the device’s serial port.
y You may m ake your own custom ized serial cable to connect a serial device to the unit. For the pin
assignments of the unit’s serial port, please refer to Chapter 6. This information can then be used to construct your own serial cable.
For serial port pin assignments, please refer to the hardware reference chapter for your model.

Connecting to a Host or the Network

A 10/100BaseT Ethernet port is located on the unit’s front pan e l. This port is used for the unit’s connection to a host or Ethernet network, as follows:
y For normal operation, use a standard straight-through Ethernet cable to connect the unit to your
EtherNet/IP network.
y For initial configuration or for tro ubleshooting purposes, you may connect the unit directly to a
PC. In this case, use a crossover Ethernet cable to connect the unit to your PC’s Ethernet connector.
The unit’s Link LED will light up to indicate a live Ethernet connection. One Ethernet port can be used to connect to the network, and the other port can be used to connect to
another Ethernet device.
2-2
MGate EIP3000 Series User’s Manual Getting Started

Installing the Software

The Windows management utility is installed from the Document and Software CD. Follow the onscreen instructions after inserting the CD.

Mounting the Unit

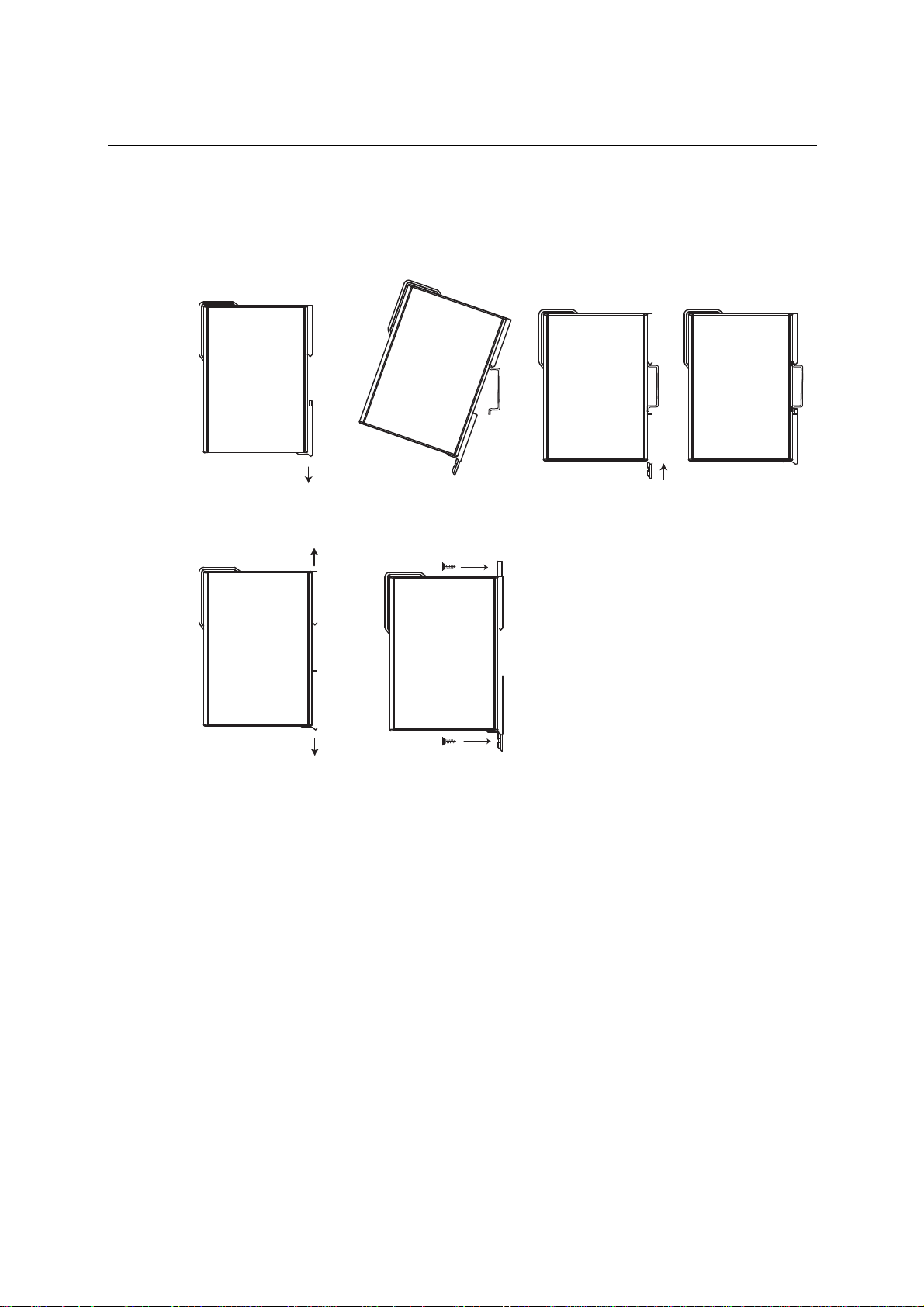

The unit can be mounted on the wall or mounted on a DIN-Rail.
2-3
3
3

Chapter 3 Hardware: EIP3170, EIP3170I

This chapter provides hardware information for the MGate EIP3170 and EIP3170I. The following topics are covered:
Panel Layout LED Indicators Dimensions Jumpers Pin Assignments
¾ DB9 (Male) ¾ Terminal Block (RS-422)
¾ Power Input, Relay Output DIN-Rail, Wall Mounting Specifications
MGate EIP3000 Series User’s Manual Hardware: EIP3170, EIP3170I

Panel Layout

LED Indicators

Name Color Function
PWR1 Red Power is being supplied to the power input. PWR2 Red Power is being supplied to the power input.
Steady on: Power is on and unit is booting up.
RDY
Ethernet
P1
Red
Green
Off Power is off, or power error condition exists.
Orange 10 Mbps Ethernet connection.
Green 100 Mbps Ethernet connection.
Off Ethernet cable is disconnected, or has a short.
Orange Serial port is receiving data.
Green Serial port is transmitting data.
Off
Blinking: Indicates an IP conflict, or DHCP or BOOTP server is not responding properly.
Steady on: Power is on and unit is functioning normally. Blinking: Unit is responding to software Locate function.
No data is being transmitted or received through the serial port.
3-2
MGate EIP3000 Series User’s Manual Hardware: EIP3170, EIP3170I

Dimensions

29 mm (1.14 in)
14.5 mm (0.57 in)
69.5 mm (2.74 in)
118.5 mm (4.67 in)
20 mm
(0.79 in)
89.2 mm (3.51 in)
14.5 mm (0.57 in)
124.5 mm (4.9 in)
11.5 mm (0.45 in)
20.6 mm (0.81 in)
25.9 mm (1.02 in)
29.91 mm (1.18 in)
35 mm
(1.38 in)
3-3
MGate EIP3000 Series User’s Manual Hardware: EIP3170, EIP3170I

Jumpers

SW 1

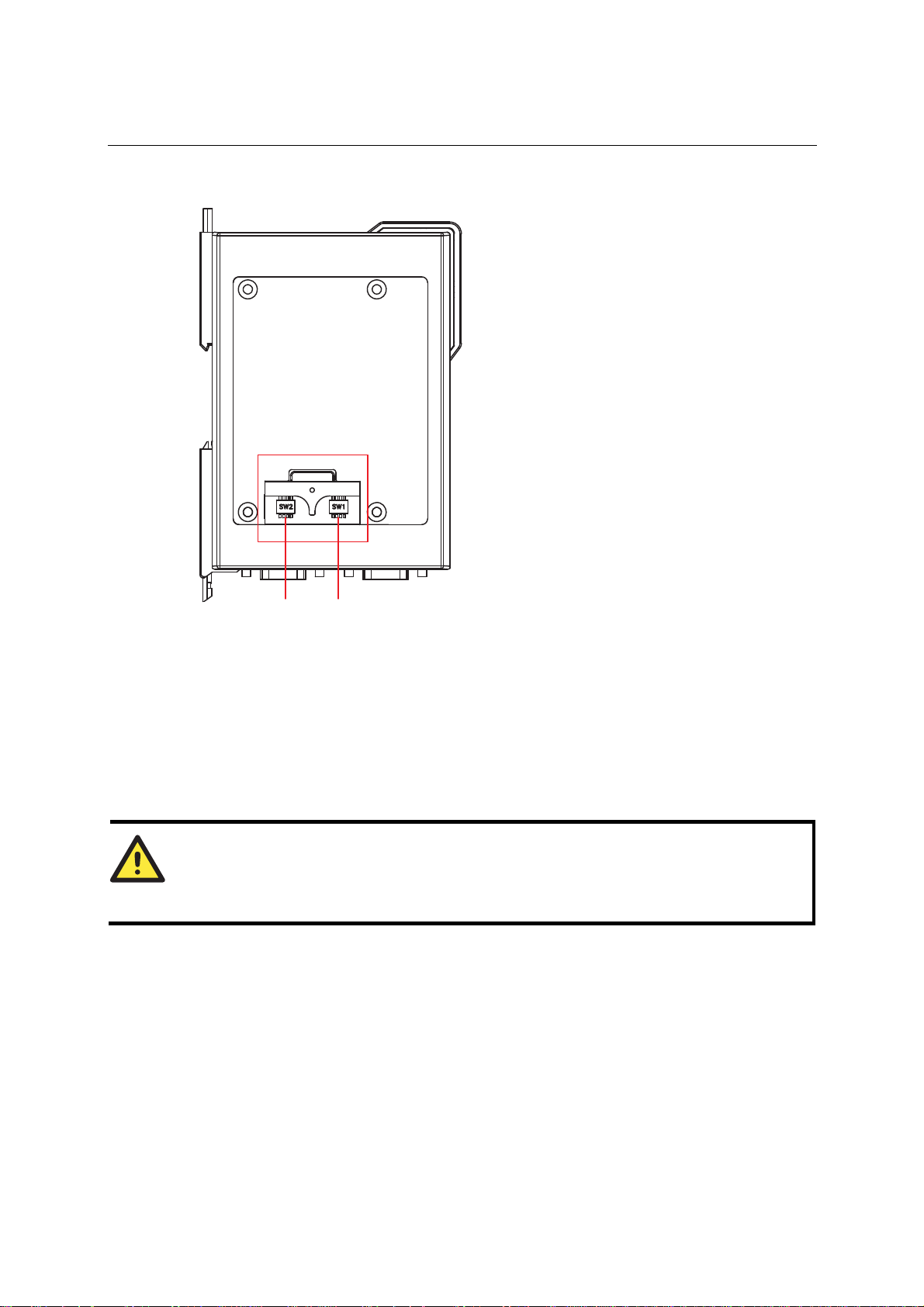

The DIP switches are located beneath the DIP switch panel on the side of the unit. T o add a 120 termination r esistor, set switch 3 to ON; set switch 3 to OFF (the default setting) to
disable the termination resistor. To set the pull high/low resistors to 150 K, set switches 1 and 2 to OFF. This is the default
setting. To set the pull high/low resistors to 1 K, set switches 1 and 2 to ON. Switch 4 on the port’s assigned DIP switch is reserved.
ATTENTION
Do not use the 1 K pull high/low setting on the MGate EIP3000 when using the RS-232 interface. Doing so will degrade the RS-232 signals and reduce the effective communication distance.
3-4
MGate EIP3000 Series User’s Manual Hardware: EIP3170, EIP3170I

Pin Assignments

DB9 (Male)

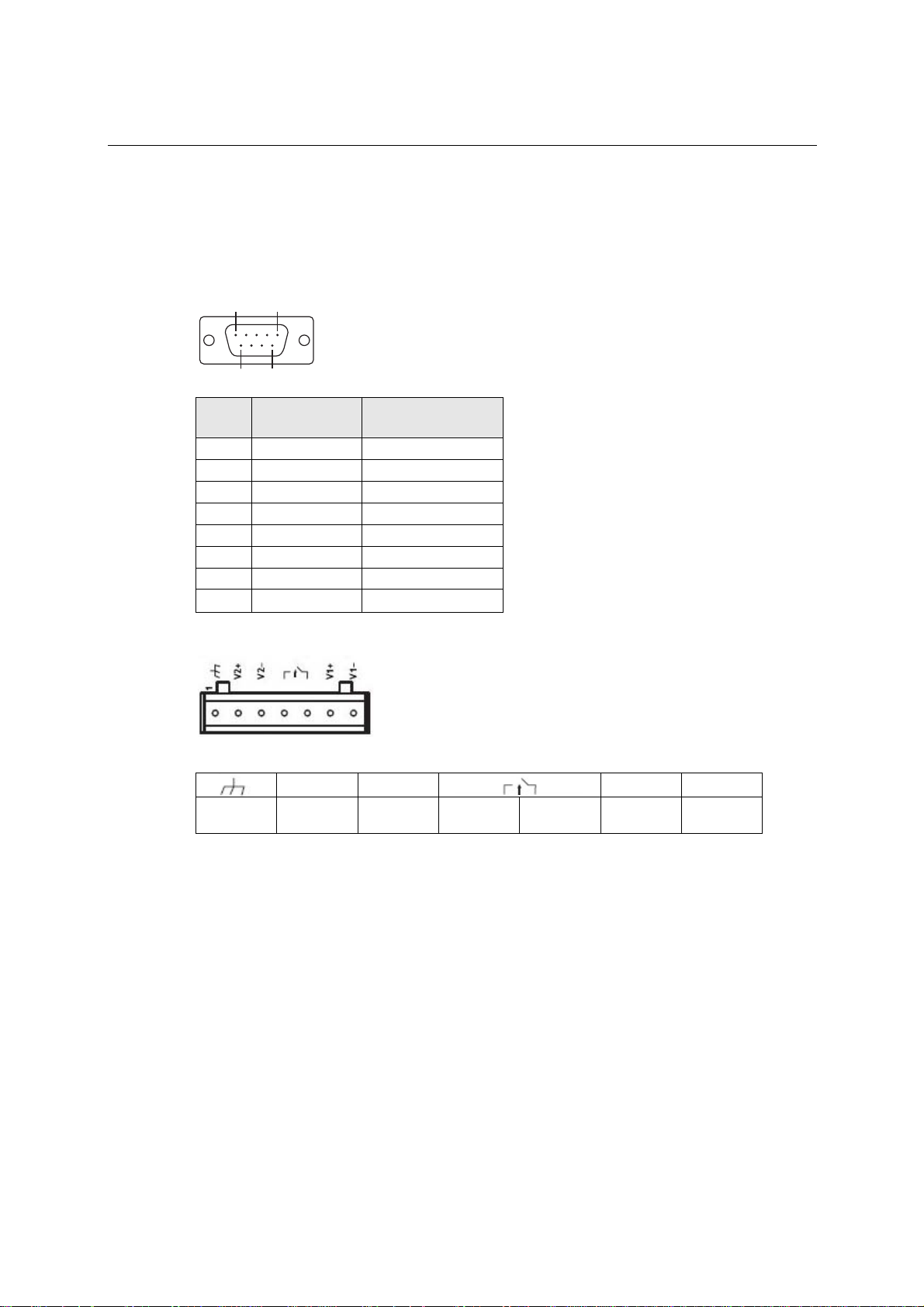

The MGate EIP3170 and EIP3170I use a DB9 (male) serial port for RS-232 connections to DF1 devices.
15
69
Pin RS-232
1 DCD 2 RxD 3 TxD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS

Terminal Block (RS-422)

The MGate EIP3170 and EIP3170I use a terminal block connector for RS-422 connections to DF1 devices.
Pin
1 TxD+ 2 TxD­3 RxD+ 4 RxD­5 GND
RS-422
RS-485 (4W)
3-5
