PCI Express Board User’s Manual
Multiport Serial Board for PCI Express Bus
Fourth Edition, December 2008
www.moxa.com/product
© 2008 Moxa Inc. All rights reserved.
Reproduction without permi ssion is pr ohibited.
PCI Express Board User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in
accordance with the terms of that agreement.
Copyright Notice
Copyright © 2008 Moxa Inc.
All rights reserved.
Reproduction without permi ssion is pr ohibited.
Trademarks
MOXA is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the
part of Moxa.
Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll-free: 1-888-669-2872
Tel: +1-714-528-6777
Fax: +1-714-528-6778
Moxa China (Shanghai office)
:
Toll-free: 800-820-5036
Tel: +86-21-5258-9955
Fax: +86-10-6872-3958
Moxa Europe
:
Tel: +49-89-3 70 03 99-0
Fax: +49-89-3 70 03 99-99
Moxa Asia-Pacific
:
Tel: +886-2-8919-1230
Fax: +886-2-8919-1231
Table of Contents
Chapter 1 Introduction..............................................................................................1-1
Overview............................................................................................................................ 1-2
Applications .......................................................................................................................1-3
Features.............................................................................................................................. 1-3
Package Checklist .............................................................................................................. 1-3
Installation Flowchart......................................................................................................... 1-4
Chapter 2 Hardware Installation..............................................................................2-1
CP-118EL Dimensions....................................................................................................... 2-2
DIP Switch Settings (CP-118EL only)............................................................................... 2-2
CP-168EL Dimensions (Unit= mm)................................................................................... 2-3
CP-104EL Dimensions (Unit= mm)................................................................................... 2-3
CP-102E Dimensions (Unit: mm)...................................................................................... 2-4
CP-102EL Dimensions (Unit: mm).................................................................................... 2-4
CP-132EL Dimensions (Unit: mm).................................................................................... 2-5
CP-132EL-I Dimensions (Unit: mm)................................................................................. 2-5
CP-114EL Dimensions (Unit: mm).................................................................................... 2-6
CP-114EL-I Dimensions (Unit: mm)................................................................................. 2-6
Plugging the Board into an Expansion Slot........................................................................ 2-7
Chapter 3 Software Installation ...............................................................................3-1
Windows Drivers................................................................................................................ 3-2
Windows 2008/Vista (32-bit/64-bit)....................................................................... 3-3
Windows 2003/XP (32-bit/64-bit) ........................................................................ 3-15
Windows 2000...................................................................................................... 3-29
Non-Windows Drivers......................................................................................................3-44
DOS ...................................................................................................................... 3-44
Linux (32-bit/64-bit)............................................................................................. 3-47
SCO....................................................................................................................... 3-49
Windows CE 5.0...............................................................................................................3-51
Installing the driver............................................................................................... 3-51
Chapter 4 Serial Programming Tools......................................................................4-1
Moxa PComm .................................................................................................................... 4-2
Installing PComm ................................................................................................... 4-2
PComm Programming Library................................................................................4-2
Utilities............................................................................................................................... 4-2
Diagnostics (for Moxa boards only) ....................................................................... 4-2
Monitor (for Moxa boards under Windows 2000/XP/2003)................................... 4-3
Terminal Emulator.................................................................................................. 4-4
RS-485 Programming......................................................................................................... 4-4
ADDC™................................................................................................................. 4-4
Chapter 5 Pin Assignments .....................................................................................5-1
CP-118EL........................................................................................................................... 5-2
Board Side Pin Assignments—Female SCSI VHDCI68........................................ 5-3
Device Side Pin Assignments................................................................................. 5-4
CP-168EL........................................................................................................................... 5-6
Board Side Pin Assignments—Female SCSI VHDCI68........................................ 5-6
Device Side Pin Assignments................................................................................. 5-7
CP-104EL........................................................................................................................... 5-9
Board Side Pin Assignments—Female DB44......................................................... 5-9
Device Side Pin Assignments............................................................................... 5-10
CP-102E............................................................................................................................5-11
Board Side Pin Assignments—Male DB9............................................................ 5-11
CP-102EL..........................................................................................................................5-11
Board Side Pin Assignments—Female DB25....................................................... 5-11
Device Side Pin Assignments............................................................................... 5-12
CP-132EL/CP-132EL-I.................................................................................................... 5-12
Board Side Pin Assignments—Female DB25....................................................... 5-12
Device Side Pin Assignments............................................................................... 5-13
CP-114EL/CP-114EL-I.................................................................................................... 5-13
Board Side Pin Assignments—Female DB44....................................................... 5-13
Device Side Pin Assignments............................................................................... 5-15
Chapter 6 Troubleshooting......................................................................................6-1
General Troubleshooting.................................................................................................... 6-1
Appendix A Technical Reference...............................................................................A-1
Product Specifications....................................................................................................... A-1
CP-118EL Specifications....................................................................................... A-1
CP-168EL Specifications....................................................................................... A-2
CP-104EL Specifications....................................................................................... A-2
CP-102E Specifications ......................................................................................... A-3
CP-102EL Specifications....................................................................................... A-4
CP-132EL Series Specifications............................................................................ A-5
CP-114EL Series Specifications............................................................................ A-6
1
1
Chapter 1 Introduction
Moxa’s PCI Express serial boards meet the new slot standard for expansion boards, and work with
any PCI Express slots. The boards have multiple RS-232/422/485 serial ports for connecting data
acquisition equipment and other serial devices to a PC.
This chapter covers the following topics:
Overview
Applications
Features
Package Checklist
Installation Flowchart
PCI Express Board User’s Manual Introduction
1-2
Overview
Moxa’s new PCI Express Multiport Serial Boards, named CP-118EL, CP-168EL, and CP-104EL,
are designed for POS and ATM applications and for use by industrial automation system
manufacturers and system integrators. The boards are compatible with all popular operating
systems, and each of them supports data rates of up to 921.6 Kbps, and provides full modem
control signals, ensuring compatibility with a wide range of serial peripherals. In addition,
CP-118EL, CP-168EL, and CP-104EL work with PCI Express ×1, allowing the boards to be
installed in any available PCI Express slot (including ×1, ×2, ×4, ×8, ×16, ×32).
PCI Express Solution
The boards comply with PCI Express Spec. 1.1. The serial transmission mode (RS-232, RS-422,
2-wire RS-485, or 4-wire RS-485) for each port is set with onboard switches (CP-118EL has DIP
Switches, CP-168EL and CP-104EL are RS-232 only), but the ports’ transmission parameters are
configured after the boards are installed. The PCI BIOS automatically assigns the IRQ and I/O
addresses. For this reason, you must plug the boards into the computer before installing the drivers.
For more PCI Express information, refer to the “Technical Reference” appendix.
ESD Protection
The PCI Express boards come with built-in 15 KV ESD protection to prevent damage to the
boards from lightning or high potential voltage. The surge protection feature makes the PCI
Express boards suitable for industrial, factory-type applications, and for use with applications that
are subject to severe weather conditions.
ADDC™ (Automatic Data Direction Control) for RS-485
To make 2-wire RS-485 half-duplex connections easier to manage, ADDC™ (Automatic Data
Direction Control) intelligence is built into the CP-118EL board, eliminating the need for software
interference. Windows applications can be set up to manage RS-485 ports without writing
additional code to control the half-duplex protocol.
Operating System Support
The PCI Express boards are compatible with all major industrial platforms, including Windows
2000/XP/2003, DOS, and Linux. Moxa device drivers are provided for smoother installation,
configuration, and performance. In this manual, we provide installation details for Windows
2003/XP, Windows 2000, DOS, Linux, and SCO.
Visit Moxa’s website at www.moxa.com
to download the latest drivers and user’s manuals for all
of Moxa’s products.
Moxa Serial Comm Tool
For application development, Moxa provides an easy-to-use serial communication library called
PComm that runs under Windows NT/95/9 8/20 0 0/ XP/2003. Use this library to develop your own
applications with Visual Basic, Visual C++, Borland Delphi, etc. Utilities, such as Data Scope,
Monitor, Terminal Emulator, and Diagnostics are included to make it easier to debug, monitor
communication status, provide terminal emulation, and transfer files.
PCI Express Board User’s Manual Introduction
1-3
Applications
The PCI Express boards are suitable for many different applications, including:
• Internet/Intranet Connections
• Remote Access
• Multi-user Applications
• Industrial Automation
• Office Automation
• Telecommunications
• PC-based Vending Machines and Kiosks
• POS (Point-of-Sale) Systems
Features
The PCI Express boards have the following outstanding features:
• PCI Express ×1 compliant
• Low profile board for compact-sized PCs
• Data flow LED display onboard
• Moxa UART with 128-byte FIFO dri ver
• 50 bps to 921.6 Kbps transmission speed
• Supports both 4-wire and 2-wire RS-485 (CP-118EL,CP-132EL Series,CP-114EL Series)
• 2-wire RS-485 data control with ADDC™ (CP-118EL,CP-132EL Series,CP-114EL Series)
• Embedded 15 KV ESD surge protection
• Drivers for all major industrial platforms—Windows 2000, Windows XP/2003/Vista/2008
(32-bit/64-bit), DOS, Linux (32-bit/64-bit), SCO, FreeBSD 4.x/5.x
Package Checklist
The following items are included in the PCI Express board package:
• PCI Express serial board
• Document and Software CD-ROM
• Quick Installation Guide
• Low profile bracket
NOTE: Notify your sales representative if any of the above items are missing or damaged.
PCI Express Board User’s Manual Introduction
1-4
Installation Flowchart
The following flowchart provides a brief summary of the procedure you should follow to install
the PCI Express boards and also provides references to chapters with more detailed information:
Use the onboard DIP Switches to select the
data transmission mode for each port.
(CP-118EL only)
Chapter 2, Hardware Installation
Install the boards in PCI Express expansion
slots.
Chapter 2, Hardware Installation Hardware Installation
Install the drivers and configure the boards
and ports.
Chapter 3, Software Installation
Connect the serial devices to the PCI
Express board s serial ports.
Chapter 5, Pin Assingments
Restart the system, and check the driver
initialization status.
Chapter 3, Software Installation
Develop and run your serial
communication applications
Chapter 4, Serial Programming Tools
2
2
Chapter 2 Hard war e Installation
This chapter describes the PCI Express Series hardware installation procedure. Since the BIOS
automatically assigns the PCI Express board’s IRQ number and I/O addresses, you must plug in
the board before installing the driver.
This chapter covers the following topics:
CP-118EL Dimensions
DIP Switch Settings (CP-118EL only)
CP-168EL Dimensions (Unit= mm)
CP-104EL Dimensions (Unit= mm)
CP-102E Dimensions (Unit: mm)
CP-102EL Dimensions (Unit: mm)
CP-132EL Dimensions (Unit: mm)
CP-132EL-I Dimensions (Unit: mm)
CP-114EL Dimensions (Unit: mm)
CP-114EL-I Dimensions (Unit: mm)
Plugging the Board into an Expansion Slot
PCI Express Board User’s Manual Hardware Installation
2-2
CP-118EL Dimensions
132 mm (5.20 in)
mm56.15
)ni30.2(
46.9 mm (1.85 in)
mm14.46
)ni45.2(
mm19.95
)ni63.2(
mm121
)ni67.4(
NOTE: Use JP1/2/3/4/5/6/7/8 to activate the Termination Resistors for ports 1/2/3/4/5/6/7/8.
Open Termination Resistor is NOT active
Short Termination Resistor is ACTIVE
DIP Switch Settings (CP-118EL only)
CP-118EL has three onboard DIP Switch arrays, each with 8 switches, shown in the table below
and on the listed board (see the above block diagram) as S1, S2, and S3. The switches are used to
select one of four serial interfaces—RS-232, RS-422, 4-wire RS-485, 2-wire RS-485—for each of
the eight ports. Note that S3 selects between RS-232 and RS-422/485, S2 selects between RS- 422
and RS-485, and S1 selects between 2-wire and 4-wire RS-485.
Mode S1 S2 S3
RS-232 --- --- ON
RS-422 --- ON OFF
4-Wire RS-485 ON OFF OFF
2-Wire RS-485 OFF OFF OFF
PCI Express Board User’s Manual Hardware Installation
2-3
CP-168EL Dimensions (Unit= mm)
102 mm (4.02 in)
mm12.76
)ni56.2(
mm54.45
)ni41.2(
mm17.26
)ni74.2(
46.9 mm
(1.85 in)
mm121
)ni67.4(
CP-104EL Dimensions (Unit= mm)
100 mm (3.94 in)
mm15.45
)ni51.2(
mm17.26
)ni74.2(
mm121
)ni67.4(
46.9 mm
(1.85 in)
mm72.76
)ni56.2(
PCI Express Board User’s Manual Hardware Installation
2-4
CP-102E Dimensions (Unit: mm)
CP-102E
MOXA
113.36
100
59.05
120.5
20.79
85.04
72.28
101.33
CP-102EL Dimensions (Unit: mm)
CP-102EL
MOXA
59.1
113.4
100
101.97
120.52
101.33
38.62
54.45
67.21
12.76
PCI Express Board User’s Manual Hardware Installation
2-5
CP-132EL Dimensions (Unit: mm)
CP-132EL
MOXA
120.52
101.33
12.76
54.45 38.62
67.21
59.1
113.4
100
101.97
CP-132EL-I Dimensions (Unit: mm)
CP-132EL-I
MOXA
101.33
67.21
38.62
12.76 54.45
120.52
59.1
115.4
103.97
102
PCI Express Board User’s Manual Hardware Installation
2-6
CP-114EL Dimensions (Unit: mm)
CP-114EL
MOXA
103
104.93
59.06
116.36
101.34
120.52
38.63
67.21
54.45
12.76
CP-114EL-I Dimensions (Unit: mm)
CP-132EL-I
MOXA
101.33
67.21
38.62
12.76 54.45
120.52
59.1
115.4
103.97
102
PCI Express Board User’s Manual Hardware Installation
2-7
Plugging the Board into an Expansion Slot
Since the BIOS automatically assigns the PCI Express board’s IRQ number and I/O addresses, you
must plug the board into one of the computer’s expansion slots before installing the driver.
Step 1: Power off the PC.
WARNING
To avoid damaging your system and board, make sure you turn off your computer before
installing the board.
Step 2: Remove the PC’s cover.
Step 3: Remove the slot cover bracket if there is one.
Step 4: Use the onboard DIP Switches to set the transmission mode for each port (see the previous
section for details); (CP-118EL only)
Step 5: Plug the PCI Express board firmly into a free PCI Express slot.
Step 6: Fasten the holding screw to fix the control board in place.
Step 7: Replace the PC’s cover.
Step 8: Power on the PC. The BIOS will automatically set the IRQ and I/O address.
NOTE
Each Moxa PCI Express board uses one unique IRQ and I/O address, both of which are assigned
automatically by the PCI BIOS.
Step 9: Proceed with the software installation discussed in the next chapter, “Software
Installation.”
3
3
Chapter 3 Software Installation
This chapter gives installation, configuration, and update/removal procedures for the driver for
Windows 2000, Windows 2003/XP/Vista/2008 (32-bit/64-bit), DOS, Linux (32-bit/64-bit), and
SCO, and WinCE 5.0. Before proceeding with the software installation, complete the hardware
installation discussed in the previous chapter, “Hardware Installation.”
Refer to the next chapter, “Serial Programming Tools,” for information about developing your
own serial programming applications. Note that you can install up to 4 PCI Express boards in one
system, provided sufficient I/O address and IRQ number resources are available.
You can download the Windows 2000/XP/2003/Vista/2008, DOS, Linux, and SCO, and WinCE
5.0 drivers from the Moxa website.
This chapter covers the following topics:
Windows Drivers
¾ Windows 2008/Vista (32-bit/64-bit)
¾ Windows 2003/XP (32-bit/64-bit)
¾ Windows 2000
Non-Windows Drivers
¾ DOS
¾ Linux (32-bit/64-bit)
¾ SCO
Windows CE 5.0
¾ Installing the driver
PCI Express Board User’s Manual Software Installation
3-2
Windows Drivers
Moxa provides drivers that allow you to use the following serial board products under Windows
2008/Vista/2003/XP/2000, Windows 98/95, and Windows NT. Windows 95/98/NT do not support
PCI Express drivers.
The overall procedure for
installing the Windows drivers
for the PCI Express boards is
summarized in the flowchart on
the right.
Plug the PCI Express board into an
empty PCI Express slot. See the
Hardware Installation chapter.
Driver already installed?
Install the driver from the
Documentation and Software CD. See
the Installing the Driver for the First
Time subsection for detailed
instructions.
Configure the boards ports. See the
Configuring the Ports subsection for
detailed instructions.
The PCI Express board and ports are
ready to use.
Turn on your PC. Windows will
automatically detect the board.
Yes
N
o
WARNING
If you are installing a PCI Express board on an ASUS A8N Series (AMD CPU) motherboard a n d
the installation process hangs the first time, then restart the PC to reinstall it.
NOTE
The following steps use CP-114EL as an example.
PCI Express Board User’s Manual Software Installation
3-3
Windows 2008/Vista (32-bit/64-bit)
In this section, we describe the installation procedure for Windows Vista. The installation
procedure for Windows 2008 is similar.
Windows 2008 and Windows Vista support up to 256 serial ports from COM1 to COM256. In
order to make the best use of Windows 2008/Vista’s multi-process/multi-thread advanced features,
32-bit and 64-bit Windows 2008/Vista device drivers were developed for Moxa multi port boa r ds.
The drivers conform to the Win32 COMM API standard.
Installing the Driver
The following procedure describes how to install the CP-114EL driver for the first time with
Windows Vista. First, make sure that you have already plugged the board or boards into the
system’s PCI Express slot(s).
NOTE
If you have already installed a CP-114EL or other Moxa PCI Express board in your co mputer,
and you are installing additional boards, Windows 2008/Vista will automatically detect and
install the new board(s) the next time you boot up the computer. In this case, proceed directly to
the next section, “Configuring the Ports,” to configure the ports’ serial transmission parameters.
1. After plugging the board into an expansion slot and powering on your PC, Windows Vista will
automatically detect the new board, and the Found New Hardware window will open.
PCI Express Board User’s Manual Software Installation
3-4
2. The Found New Hardware – PCI Serial Port window will open automatically. This window
will offer to connect to the Windows update site to search for a driver. Select Don’t search
online.
3. Select I don’t have the disc. Show me other options, and then click Browse my computer
for device software (advanced) to continue.
PCI Express Board User’s Manual Software Installation
3-5
4. Select Search for driver software in this location, select Include subfolders, and then click
Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-114EL
Series\Software\Windows 2008_Vista\x86 folder on the CD. If the system is a 64-bit (x64)
platform, navigate to the \CP-114EL Series\Software\Windows 2008_Vista\x64 folder on
the CD, and then click Next to continue.
The following figure shows the path for x86.
PCI Express Board User’s Manual Software Installation
3-6
The following figure shows the path for x64.
5. Wait while the installation wizard searches for the correct drivers. The next window that opens
cautions you that although this software has not passed Windows Logo testing, the driver has
been tested and shown that it can support the Windows OS. Click Install this driver software
anyway to proceed.
PCI Express Board User’s Manual Software Installation
3-7
6. Wait while the driver software is installed. The next window shows the model name of the
board, and indicates that Windows has completed the driver installation. Click Close to
proceed with the rest of the installation procedure.
7. The Found New Hardware window will open to help you install the driver for MOXA Port 0.
Select Don’t search online.
PCI Express Board User’s Manual Software Installation
3-8
8. Select Browse my computer for driver software (advanced).
9. Select Search for driver software in this location, select Include subfolders, and then click
Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-114EL
Series\Software\Windows 2008_Vista\x86 folder on the CD. If the system is a 64-bit (x64)
platform, navigate to the \CP-114EL Series\Software\Windows 2008_Vista\x64 folder on
the CD, and then click Next to continue.
The following figure shows the path for x86.
PCI Express Board User’s Manual Software Installation
3-9
The following figure shows the path for x64.
10. Wait while the installation wizard searches. The next window that opens cautio ns you that
although this software has not passed Windows Logo testing, the driver has been tested and
shown that it can support the Windows OS. Click Install this driver software anyway to
proceed.
PCI Express Board User’s Manual Software Installation
3-10
11. After all files have been copied to the system, the software for this device has been
successfully installed window will open to indicate that it has finished installing Port 0. Port
installation procedure is complete when Port 0 has been set up.
12. The “Your devices are ready to use” will reappear to inform you that the hardware was
installed successfully.
PCI Express Board User’s Manual Software Installation
3-11
Configuring the Ports
After the driver has been installed, use Device Manager to configure the CP-114EL serial ports.
1. Click Start → Settings → Control Panel → System, select the Hardware tab, and then
click Device Manager.
2. Expand the Multi-port serial adapters tab, right click MOXA CP-114EL Series (PCI
Express Bus), and then click Properties to open the board’s configuration panel.
PCI Express Board User’s Manual Software Installation
3-12
3. Click the port you would like to configure to highlight it, and then click Port Setting.
4. Select a COM number for the port from the Port Number pull-down list.
5. Select the Auto Enumerating COM Number option to map subsequent ports automatically.
The port numbers will be assigned in sequence. For example, if COM 3 is assigned to Port 1,
then COM 4 (if not already occupied) will be assigned to Port 2, etc.
6. Select an Rx FIFO Trigger from the Rx FIFO Level pull-down list. Rx FIFO trigger levels of
High, Middle, and Low are available, with the default set to High (120 bytes). Select Set the
change to all ports option to apply this Rx FIFO Trigger to all ports.
7. Select a Tx FIFO Level from the Tx FIFO Level pull-down list. Tx FIFO Levels of High,
Middle, and Low are available, with the default set to High (128 bytes). Select Set the
change to all ports option to apply the just defined Tx FIFO Size to all ports.
Tx FIFO Rx FIFO
High 128 120
Middle 64 60
Low 1 1
Unit: Bytes
PCI Express Board User’s Manual Software Installation
3-13
8. If you use the CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, select Interface (RS-232,
RS-422, 2-wire RS-485, 4-wire RS-485) and Termination Resistor (120Ω, Enable or Disable)
to configure. Take CP-114EL for example. If you would like to configure as RS-422 and no
Termination Resistor, please see figures below. However, if you use the CP-118EL, ple a se
refer to Chapter 2 to configure Interface by DIP switch and Termination Resistor by jumper.
9. Click OK to save the port settings, and then click OK in the Property window to finish the
port settings procedure.
Using Event Log
To use the Event Log to check the installation of your MOXA boards, click Start → Settings
→ Control Panel → Administrative Tools → Event Viewer to enter the Event Viewer utility.
Look under the System category to find the latest information relevant to Moxa’s drivers.
PCI Express Board User’s Manual Software Installation
3-14
Removing the Driver
1. To uninstall the driver, click Start → Settings → Control Panel → System, select the
Hardware tab, and then click Device Manager. Use the mouse to place the cursor over the
CP-114EL Series board under Multi-port serial adapters, and then click the right mouse
button. Select the Uninstall option.
2. Select Delete the driver software for this device and click OK to proceed with uninstalling
the board.
PCI Express Board User’s Manual Software Installation
3-15
3. The Device Manager window refreshes automatically, showing that the driver and ports for
the CP-114EL Series board have been removed.
Windows 2003/XP (32-bit/64-bit)
In this section, we describe the installation procedure for Wi nd ow s XP. The installation procedure
for Windows 2003 is similar.
Windows 2003/XP support up to 256 serial ports, from COM1 to COM256. In order to make the
best use of Windows 2003/XP’s multi-process/multi-thread advanced features, 32-bit and 64-bit
Windows 2003/XP device drivers were devel oped for Moxa multiport boards. The drivers
conform to the Win32 COMM API standard.
Installing the Driver
The following procedure shows how to install the CP-118EL driver for the first time under
Windows XP. First, make sure that you have already plugged the board or boards into the system’s
PCI Express slot(s).
NOTE
If you have already installed a CP-118EL or other Moxa PCI Express board in your co mputer,
and you are installing additional boards, Windows 2003/XP will automatically detect and install
the new board(s) the next time you boot up the computer. In this case, proceed directly to the next
section, “Configuring the Ports,” to configure the ports’ serial transmission parameters.
PCI Express Board User’s Manual Software Installation
3-16
1. After plugging the board into an expansion slot and powering on your PC, Windows XP will
automatically detect the new board, and the Found New Hardware balloon will open in the
bottom right corner of the Windows desktop.
2. The Welcome to the Found New Hardware Wizard window will open automatically. This
window will offer to connect to the Windows update site to search for a driver. Select No, not
at this time and click Next to continue.
PCI Express Board User’s Manual Software Installation
3-17
3. Select Install from a list or specific location (Advanced), and then click Next to continue
4. Select Search for the best driver in these locations, select Include this location in the
search, and then click Browse. If the system is a 32-bit (x86) platform, navigate to the
\CP-118EL\Software\Windows XP_2003\x86 folder on the CD. If the system is a 64-bit
(x64) platform, navigate to the \CP-118EL\Software\Windows XP_2003\x64 folder on the
CD, and then click Next to continue.
The following figure shows the path for x86.
PCI Express Board User’s Manual Software Installation
3-18
The following figure shows the path for x64.
5. Wait while the installation wizard searches for the correct drivers. The next window that
opens cautions you that although this software has not passed Windows Logo testing, the
driver has been tested and shown that it can support the Windows OS. Click Continue
Anyway to proceed.
PCI Express Board User’s Manual Software Installation
3-19
6. Wait while the driver software is installed.
7. The next window shows the model name of the board, and indicates that Windows has
completed the driver installation. Click Finish to proceed with the rest of the installation
procedure.
PCI Express Board User’s Manual Software Installation
3-20
8. The Found New Hardware Wizard window will open to help you install the driver for Moxa
Port 0. This window will offer to connect to the Windows update site to search for a driver.
Select No, not at this time and then click Next to continue.
9. Select Install from a list or specific location (Advanced), and then click Next to proceed.
PCI Express Board User’s Manual Software Installation
3-21
10. Select Search for the best driver in these locations, select Include this location in the
search, and then click Browse. If necessary, use the Browse button to navigate to the
\CP-118EL\Software\Windows XP_2003\x86 folder (32 bit platform) or
\CP-118EL\Software\Windows XP_2003\x64 folder (64 bit platform), and then click Next
to proceed.
The following figure shows the path for x86.
The following figure shows the path for x64.
PCI Express Board User’s Manual Software Installation
3-22
11. Wait while the installation wizard search es. The next window that opens cautions you that
although this software has not passed Windows Logo testing, the driver has been tested and
shown that it can support the Windows OS. Click Continue Anyway to proceed.
12. Wait while the wizard installs the software.
PCI Express Board User’s Manual Software Installation
3-23
13. After all files have been copied to the system, the Completing the Found New Hardware
Wizard window will open to indicate that it has finished installing Port 0. Click Finish to
proceed with the rest of the installation.
14. Repeat Step 7 through Step 11 for each of the remaining seven ports. The last port to be
installed will be Moxa Port 7, as shown in the following figure.
PCI Express Board User’s Manual Software Installation
3-24
15. The Found New Hardware balloon will reappear to inform you that the hardware was
installed successfully.
Configuring the Ports
After the driver has been installed, use Device Manager to configure the CP-118EL serial ports.
1. Click Start Æ Settings Æ Control Panel Æ System, select the Hardware tab, and then
click Device Manager.
PCI Express Board User’s Manual Software Installation
3-25
2. Expand the Multi-port serial adapters tab, right click Moxa CP-118EL Series (PCI
Express Bus), and then click Properties to open the board’s configuration panel.
3. Click the port you would like to configure to highlight it, and then click Port Setting.
PCI Express Board User’s Manual Software Installation
3-26
4. Select a COM number for the port from the Port Number pull-down list.
5. Select the Auto Enumerating COM Number option to map subsequent ports automatically.
The port numbers will be assigned in sequence. For example, if COM 3 is assigned to Port 1,
then COM 4 (if not already occupied) will be assigned to Port 2, etc.
6. Select an Rx FIFO Trigger from the Rx FIFO Level pull-down list. Rx FIFO trigger levels of
High, Middle, and Low are available, with the default set to High (120 bytes). Select Set the
change to all ports option to apply this Rx FIFO Trigger to all ports.
7. Select a Tx FIFO Level from the Tx FIFO Level pull-down list. Tx FIFO Levels of High,
Middle, and Low are available, with the default set to High (128 bytes). Select Set the
change to all ports option to apply the just defined Tx FIFO Size to all ports.
Tx FIFO Rx FIFO
High 128 120
Middle 64 60
Low 1 1
Unit: Bytes
8. If you use the CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, select Interface (RS-232,
RS-422, 2-wire RS-485, 4-wire RS-485) and Termination Resistor (120Ω, Enable or Disable)
to configure. Take the CP-114EL for example. If you would like to configu re as RS-422 and
no Termination Resistor, please see figures below. However, if you use the CP-118EL, please
refer to Chapter 2 to configure interface by DIP switch and Termination Resistor by jumper.
PCI Express Board User’s Manual Software Installation
3-27
9. Click OK to save the port settings, and then click OK in the Property window to finish the
port settings procedure.
Using Moxa PComm Utility
The PComm Diagnostic program is a useful tool for checking the status of Moxa’s multiport
boards. The program can be used to test internal and external IRQ, TxD/RxD, UART, CTS/RTS,
DTR/DSR, etc. Use this program to ensure that your Moxa boards and ports are working properly.
To start the program, click Start Æ Programs Æ PComm Lite 2000 Æ PComm Diagnostic.
NOTE
You can download the PComm Lite software for free from Moxa’s website at
www.moxa.com/support/free_downloads.htm
.
PCI Express Board User’s Manual Software Installation
3-28
Using Event Log
To use the Event Log to check the installation of your Moxa boards, click Start Æ Settings Æ
Control Panel Æ Administrative Tools Æ Event Viewer to enter the Event Viewer utility. Look
under the System category to find the latest information relevant to Moxa’s drivers.
Removing the Driver
1. To uninstall the driver, click Start Æ Settings Æ Control Panel Æ System, select the
Hardware tab, and then click Device Manager. Use the mouse to place the cursor over the
CP-118EL Series board under Multi-port serial adapters, and then click the right mouse
button. Select the Uninstall... option.
2. Click OK to proceed with uninstalling the board.
PCI Express Board User’s Manual Software Installation
3-29
3. The Device Manager window refreshes automatically, showing that the driver and ports for
the CP-118EL Series board have been removed.
Windows 2000
In this section, we describe the installation procedure for Wi nd ow s 20 0 0.
Windows 2000 supports up to 256 serial ports, from COM1 to COM256. In order to utilize fully
Windows 2000’s multi-process and multi-thread advanced features, pure 32-bit Windows 2000
device drivers were developed for Moxa mul ti port boards. The drivers conform to the Win32
COMM API standard.
Installing the Driver for the First Time
The following procedure shows how to install the CP-118EL driver for the first time under
Windows 2000. First, make sure you have already plugged the board or boards into the system’s
PCI Express slot(s).
NOTE
If you have already installed a CP-118EL or other Moxa PCI Express board in your co mputer,
and you are installing additional boards, Windows 2000 will automatically detect and install the
new board(s) the next time you boot up the computer. In this case, proceed directly to the next
section, “Configuring the Ports,” to configure the ports’ serial transmission parameters.
PCI Express Board User’s Manual Software Installation
3-30
1. After plugging the board into an expansion slot and powering on your PC, Windows 2000 will
automatically detect the new board, and the Found New Hardware window will be displayed
for a moment or two.
2. When the Welcome to the Found New Hardware Wizard window opens, click Next to
continue.
PCI Express Board User’s Manual Software Installation
3-31
3. Select Search for a suitable driver for my device (recommended), and then click Next to
continue.
4. Select Specify a location and then click Next to continue.
PCI Express Board User’s Manual Software Installation
3-32
5. Navigate to the \CP-118EL\Software\Windows 2K folder on the software CD, and then click
OK to continue.
6. Click Next to copy the driver files to your system.
PCI Express Board User’s Manual Software Installation
3-33
7. The next window that opens cautions you that although this software has not passed Windows
Logo testing, the driver has been tested and shown that it can support the Windows OS. Click
Yes to proceed.
8. Wait while the files are copied to your hard drive.
PCI Express Board User’s Manual Software Installation
3-34
9. The next window shows the model number of the board, and indicates that Windows has
completed the driver installation. Click Finish to continue with the rest of the installation
procedure.
10. The Found New Hardware Wizard window will open to help you install the driver for Moxa
Port 0. Click Next to continue.
PCI Express Board User’s Manual Software Installation
3-35
11. Select Search for a suitable driver for my device (recommended), and then click Next to
continue.
12. Select Specify a location and then click Next to continue.
PCI Express Board User’s Manual Software Installation
3-36
13. Navigate to the \CP-118EL\Software\Windows 2K folder on the software CD, and then click
OK to continue.
14. Wait while the installation wizard searches.
PCI Express Board User’s Manual Software Installation
3-37
15. The next window that opens cautions you that although this software has not passed Windows
Logo testing, the driver has been tested and shown that it can support the Windows OS. Click
Yes to proceed.
16. Wait while the files are copied to your hard drive.
PCI Express Board User’s Manual Software Installation
3-38
17. After all files have been copied to the system, the Completing the Found New Hardware
Wizard window will open to indicate that it has finished installing Port 0. Click Finish to
proceed with the rest of the installation.
Configuring the Ports
After the driver has been installed, use Device Manager to configure the CP-118EL serial ports.
1. Click Start Æ Settings Æ Control Panel Æ System, select the Hardware tab, and then
click Device Manager.
PCI Express Board User’s Manual Software Installation
3-39
2. Expand the Multi-port serial adapters tab, right click Moxa CP-118EL Series (PCI
Express Bus), and then click Properties to open the board’s configuration panel.
3. Basic information about the board is displayed on the General page. Click the Ports
Configuration tab to configure the board’s serial ports.
PCI Express Board User’s Manual Software Installation
3-40
4. Click the port you would like to configure to highlight it, and then click Port Setting.
5. Select a COM number for the port from the Port Number pull-down list.
6. Select the Auto Enumerating COM Number option to map subsequent ports automatically.
The port numbers will be assigned in sequence. For example, if COM 3 is assigned to Port 1,
then COM 4 (if not already occupied) will be assigned to Port 2, etc.
7. Select an Rx FIFO Trigger from the Rx FIFO Level pull-down list. Rx FIFO trigger levels
of High, Middle, and Low are available, with the default set to High (120 bytes). Select Set
the change to all ports option to app ly this Rx FIFO Trigger to all ports.
8. Select a Tx FIFO Level from the Tx FIFO Level pull-down list. Tx FIFO Levels of High,
Middle, and Low are available, with the default set to High (128 bytes). Select Set the
change to all ports option to apply the just defined Tx FIFO Size to all ports.
PCI Express Board User’s Manual Software Installation
3-41
Tx FIFO Rx FIFO
High 128 120
Middle 64 60
Low 1 1
Unit: Bytes
9. If you use the CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, select Interface (RS-232,
RS-422, 2-wire RS-485, 4-wire RS-485) and Termination Resistor (120Ω, Enable or Disable)
to configure. Take the CP-114EL for example. If you would like to configu re as RS-422 and
no Termination Resistor, please see figures below. However, if you use the CP-118EL, please
refer to Chapter 2 to configure interface by DIP switch and Termination Resistor by jumper.
10. Click OK to save the port settings, and then click OK in the Property window to finish the
port settings procedure.
PCI Express Board User’s Manual Software Installation
3-42
Using Moxa PComm Utility
The PComm Diagnostic program is a useful tool for checking the status of Moxa’s multiport
boards. The program can be used to test internal and external IRQ, TxD/RxD, UART, CTS/RTS,
DTR/DSR, etc. Use this program to ensure that your Moxa boards and ports are working properly.
To start the program, click Start Æ Programs Æ PComm Lite 2000 Æ PComm Diagnostic.
NOTE
You can download the PComm Lite software for free from Moxa’s website at
www.moxa.com/support/free_downloads.htm
.
Using Event Log
To use the Event Log to check the installation of your Moxa boards, click Start Æ Settings Æ
Control Panel Æ Administrative Tools Æ Event Viewer to enter the Event Viewer utility. Look
under the System category to find the latest information relevant to Moxa’s drivers.
PCI Express Board User’s Manual Software Installation
3-43
Removing the Driver
1. To uninstall the driver, click Start Æ Settings Æ Control Panel Æ System, select the
Hardware tab, and then click Device Manager. Use the mouse to place the cursor over the
CP-118EL Series board under Multi-port serial adapters, and then click the right mouse
button. Select the Uninstall... option.
2. Click OK to proceed with uninstalling the board.
PCI Express Board User’s Manual Software Installation
3-44
3. The Device Manager window refreshes automatically, showing that the driver and ports for
the CP-118EL Series board have been removed.
Non-Windows Drivers
Drivers are provided for DOS, Linux, and SCO.
DOS
Moxa DOS API-232 is a software package that assists users in developing new programs, or
debugging existing programs for serial communications. This section explains how to install the
package, how to set up the driver, and how to load or unload the driver.
Moxa provides drivers that allow you to use the following serial board products under DOS:
• PCI Express Boards: CP-118EL, CP-168EL, CP-104EL.
• Universal PCI Boards: CP-118U, CP-168U, CP-104UL, CP-104JU, CP-102U, CP-102UL,
CP-134U, CP-134U-I, CP-132UL, CP-132UL-I V2(CP-132U-I V1)
• PCI Boards: C168H/PCI, C104H/PCI, C104HS/PCI, CP-114, CP-114I, CP-114S, CP-114IS,
CP-132, CP-132I, CP-132S, CP-132IS
• ISA Boards: C168H, C168HS, C168P, C104H, C104HS, C104P, CI-104J, CI-104JS, CI-134,
CI-134I, CI-134IS, CI-132, CI-132I, CI-132IS
• cPCI Boards: CT-114I
WARNING
If you are using a Serial ATA HDD under DOS, the installation process will also hang. In this
case, change your HDD to IDE drive.
NOTE
The following procedure shows how to install the CP-168EL driver under DOS.
PCI Express Board User’s Manual Software Installation
3-45
Installing the Driver

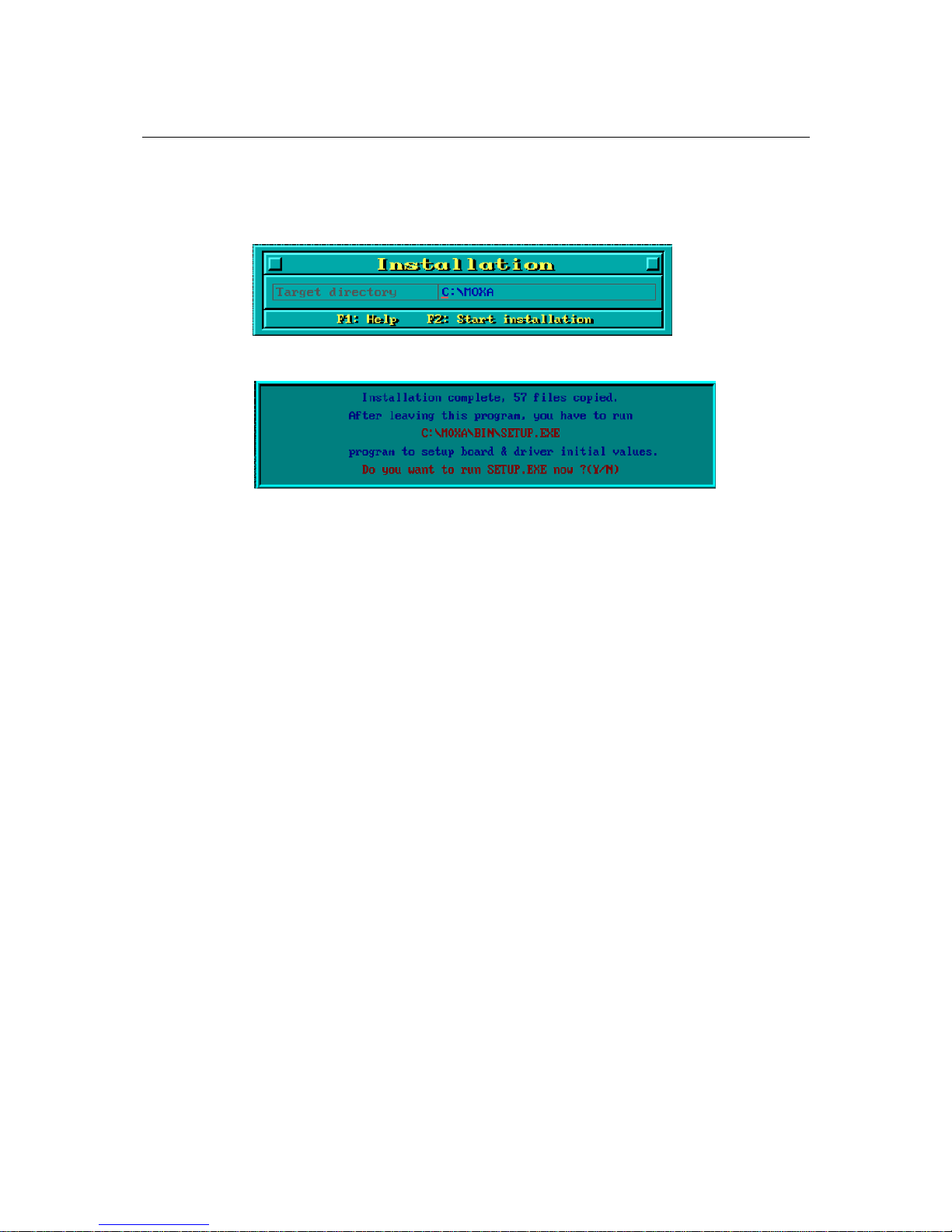

1. Run the installation program, DOSINST.EXE from the \Software\DOS folder on the
Documentation and Software CD. Specify the target API-232 directory (e.g. C:\Moxa) to
which
the driver will be copied. Press F2 to start the installation.
2. After the installation is complete, a window will open to ask if you want to run SETUP.EXE.
Press Y to run the program.
Setting up the Driver
This section covers some of the setup program’s most frequently used functions. For complete
details, press F1 to open the on-line help file.
1. Run BIN\SETUP.EXE.
2. Press Enter to select the model name of the Moxa board you are installing.
PCI Express Board User’s Manual Software Installation
3-46
3. A window will open displaying basic configuration information for all boards of this type
currently installed in the system. Press PgDn to configure the port settings.
4. You may enter or modify the settings of each port at this stage. The values displayed first are
the port’s initial values that were set up when the driver was installed.
5. Press F10 to save the changes and exit the SETUP program.
Legends
In this section, we explain the meaning of some of the fields and functions.
Port number
This is the ID of the port. Application software uses port number (ID) when referring to a port.
You can set the port numbers to any number between 0 and 255 (inclusive). However, you must
ensure that you assign each port a unique port number. If you are developing your own application
software, then you may want to select port numbers that take into consideration the structure of the
program.
TxD buffer size
The TxD buffer is the transmission (output) buffer allocated by the system for each port.
RxD buffer size
The RxD buffer is the receiving (input) buffer allocated by the system for each port.
F5 Group Edit
This convenient function allows you to edit the configuration of several ports at one time as a
group.
PCI Express Board User’s Manual Software Installation
3-47
Loading the Driver
After completing the setup procedure, run BIN\DP-DRV.EXE from the DOS prompt to load the
driver. The driver will automatically detect the boards that have already been installed. If one or
more boards are detected, you will see a message similar to the following:
Smartio/Industio Family DOS driver Version 1.7
Setup driver ...
CP-168EL series (Bus= x ,Dev=y) : OK!
Device driver setup O.K.
This indicates that the CP-168EL Series driver has been installed properly. At this point, you may
execute applications that support API-232 functions, or start developing applications using the
API-232 library.
Unloading the Driver
To unload (release) the driver from memory, type DP-DRV/Q at the DOS prompt and then press
Enter.
Linux (32-bit/64-bit)
Moxa provides drivers that allow you to use the following serial board products under Linux.
• PCI Express Boards:
CP-118EL,CP-168EL,CP-104EL,CP-102E,CP-102EL,CP-132EL,CP-132EL-I,CP-114EL,CP-1
14EL-I
NOTE
The following procedure shows how to install the CP-114EL driver under Linux.
PCI Express Board User’s Manual Software Installation
3-48
Execute the following commands from the Linux prompt:
1.
#mount /dev/cdrom /mnt/cdrom
#cd /
#mkdir moxa
#cd moxa
#cp /mnt/cdrom/<driver directory>/driv_linux_smart_vx.x_build_yymmddhh.tgz.
#tar –xzvf driv_linux_smart_vx.x_build_yymmddhh.tgz.
2. #cd mxser
#make clean; make install
3. #cd /moxa/mxser/driver
#./msmknod
4. #modprobe mxupcie
5. For CP-132EL, CP-132EL-I, CP-114EL, CP-114EL-I, use the Moxa Port Configuration Tool
to set Interface and Termination Resistor for the MUE series. The MUE series includes
CP-102E, CP-102EL, CP-132EL, CP-132EL-I, CP-114EL and CP-114EL-I.
Usage: muestty <operation> device
Device: The MUE series device node
Operation: -h Help
-g Get interface and terminator type
-i intf Set interface type with options below
-t value Set termination resistor with options below
intf RS232 RS-232 mode
RS422 RS-422 mode
RS4852W RS-485 2-wire mode
RS4854W RS-485 4-wire mode
value NONTERM Non termination resistor
120TERM 120ohm termination resistor
For example:
To set the MUE interface
# muestty –i RS422 /dev/ttyMUE2
To set the MUE termination resistor
# muestty –t 120TERM /dev/ttyMUE2
6. Use the Moxa diagnostics utility to verify the driver status:
#cd /moxa/mxser/utility/diag
#./msdiag
7. Use the Moxa terminal utility to test the tty ports:
#cd /moxa/mxser/utility/term
#./msterm
PCI Express Board User’s Manual Software Installation
3-49
SCO
• SCO OpenServer 5
• SCO OpenServer 6
• SCO UnixWare 7
Follow the steps given in this section to install the SCO OpenServer 5/6 & SCO UnixWare 7
driver. The installation procedures for SCO UnixWare 7 and SCO OpenServer 5/6 are similar.
1. Copy the driver file .tar to your host.
2. #tar xvf <driver tar file>
#/tmp/moxa/mxinstall
3. The window shown below will open next. Press RETURN to continue.
=============================================================
Copyright© 2008 Moxa Inc.
All Rights Reserved.
Moxa Smartio/Industio Family Device Driver Installation (Ver. 1.11)
=============================================================
For SCO UnixWare 7
Tar files, please wait.....O.K.
Press RETURN to continue
4. <Note: If your environment is SCO OpenServer 5/6, you could skip step 4 & 5>
When you see the screen below, select “Esc” to exit and reboot your computer.
MOXA Smartio/Industio Family Installation Utility (Ver 1.11)
Smartio/Industio Family Basic Configuration
Board No. Board Type I/O Address Interrupt Bus/Dev No.
1 None ------------ ------------ -----------2 None ------------ ------------ -----------3 None ------------ ------------ -----------4 None ------------ ------------ ------------
PgDn: getty Setting
Enter: Confirm Input Value
Esc: Exit
Tab: Change Item
PCI Express Board User’s Manual Software Installation
3-50
5. After rebooting computer, key in “moxaadm”, you will see MAIN MENU, select Basic
Configuration.
MAIN MENU
Basic Configuration
Advanced Configuration
Interface Configuration
Port Monitoring
Terminal Emulation
Driver Removal
Exit
6. You will see the following screen. Press Enter to select the MOXA Multiport Serial Board
you installed by port and by model. For example, if you installed the CP-104EL, select 4 ports
and then CP-104EL.
MOXA Smartio/Industio Family Installation Utility (Ver 1.11)
Smartio/Industio Family Basic Configuration
Board No. Board Type I/O Address Interrupt Bus/Dev No.
1 None ------------ ------------ -----------2 None ------------ ------------ -----------3 None ------------ ------------ -----------4 None ------------ ------------ ------------
PgDn: getty Setting
Enter: Confirm Input Value
Esc: Exit
Tab: Change Item
7. The board’s basic information, such as I/O address, Bus No., and Device No., will be shown.
The SCO system will assign the resources automatically to the PCI Express board you
selected.
8. Next, press “Esc” to exit and reboot your computer.
9. <Note: The step 9 & 10 are only for CP-132EL Series and CP-114EL Series>
After rebooting, key in “moxaadm”. When you see MAIN MENU, select Interface
Configuration to set your Resister and Interface. For example, if you want to set one of the
CP-114EL ports as RS-422 and 120Ω, you have to select RS-422 and 120Ω.
10. Save your Interface Configuration and then reboot computer again.
11. Note that whenever you change a MAIN MENU item, you have to reboot your computer.
PCI Express Board User’s Manual Software Installation
3-51
Windows CE 5.0
In this section, we explain how to install Moxa PCI Express boards under WinCE 5.0. These
instructions are intended for users who are familiar with the Windows CE Platform Builder 5.0
Toolkit, and would like to install one or more Moxa Tech products. Here, we only give the
step-by-step installation instructions for the development environment. You will need to download
the image file to the target host yourself.
The WinCE 5.0 driver for the Moxa PCI Express Multiport Serial Module supports the following
products:
y PCI Express: CP-118EL, CP-168EL and CP-104EL
The CP-104EL board is used to illustrate the installation procedure.
Installing the driver
The following procedure explains how to install the CP-104EL multiport serial module driver
under WinCE.
1. Obtain a copy of Moxa Tech WinCE 5.0 driver package and extract it to your computer.
Double click the Install package to copy the Mxser folder to
%WINCEROOT%\PLATFORM\ automatically, and import the supported Moxa Tech
products into the Folder.
2. Start WinCE Platform Builder, select File, and open New Platform.
PCI Express Board User’s Manual Software Installation
3-52
3. Enter a Name for Workspace and press Next.
4. When you see Board Support Packages, Design Template, Applications & Media,
Networking & Communications, OBEX Server, select what you need to build your own
environment. The Completing the New Platform Wizard window will open to indicate that
it has finished creating a new platform. Click Finish to complete the setup.
PCI Express Board User’s Manual Software Installation
3-53
PCI Express Board User’s Manual Software Installation
3-54
5. Open Manage Catalog Items (File Æ Manage Catalog Items). In the Catalog (View Æ
Catalog), browse to \Third Party\Device Drivers\ Moxa Smartio/Industio-PCI,
PC/104-Plus. Right-click on the driver Prefix COM or Prefix MXU you would like to
include and choose Add to OS Design.
Note: You can only select either Prefix COM or Prefix MXU, but not both.
Prefix COM supports up to 10 ports, from COM0 to COM9. Prefix MXU supports more than
10 ports, so it is better for you to select Prefix MXU if you are not sure how many ports the
device has. Otherwise, you will only be allowed to use one multiport serial board on the target
host.
PCI Express Board User’s Manual Software Installation
3-55
6. After adding Moxa Tech drivers into your OS Design, a new project is automatically added to
your workspace. The project name is mxserce5. The project can be accessed from File View
(View Æ File View). The mxserce5 project contains a number of files used to configure the
drivers included in your OS Design.
Note: If you would like to use “Terminal Emulator” tool, please modify mxserce5.reg and
keyboard like below (This is only just for “one” “COM” port). You have to notice number of
ports, COM, MXU and enter the correct information.
[HKEY_LOCAL_MACHINE\ExtModems\HayesCompat1]
“Port”=”COM2:”
“DeviceType”=dword:1
“FriendlyName”=”Hayes Compatible on COM2:”
PCI Express Board User’s Manual Software Installation
3-56
7. Finally, open Build OS, select Build and Sysgen, and be sure to click Copy Files to Release
Directory After Build and Make Run-Time Image After Build.
8. Finally, copy your image file to the target Host.
Note: If you have created a Windows CE Platform Builder in the development environment,
you can skip steps 2, 3, and 4.
4
4
Chapter 4 Serial Programming Tools
Moxa provides an easy to use yet powerful serial programming library, and communication
troubleshooting utilities under Windows 2000/XP/2003, Windows 95/98, and Windows NT. The
following sections provide details about the installation, the library, and the utilities for various
platforms.
This chapter covers the following topics:
Moxa PComm
¾ Installing PComm
¾ PComm Programming Library
Utilities
¾ Diagnostics (for Moxa boards only)
¾ Monitor (for Moxa boards under Windows 2000/XP/2003)
¾ Terminal Emulator
RS-485 Programming
¾ ADDC™
PCI Express Board User’s Manual Serial Programming Tools
4-2
Moxa PComm
PComm, a professional serial communication tool for PCs, is a software package that runs under
Windows NT95/98/2000/XP/2003. PComm provides:
• A powerful serial communication library that simplifies serial programming tasks for most
popular programming languages. The serial communication library is useful for developing
applications for data communications, remote access, data acquisition, and industrial control
under Windows NT95/98/2000/XP/2003, and is a simpler programming solution compared to
the more complex Windows Win32 COMM API.
• Useful utilities such as diagnostics, monitor, and terminal emulator.
• Illustrative sample programs.
• Comprehensive on-line documentation.
Installing PComm
To install PComm, run \Setup.exe from the Documentation and Software CD. Note that the
PComm diagnostics and monitor utilities are for Moxa boards only. To use these utilities, you
must have a Moxa board and the appropriate Windows (NT/95/98/2000/XP/2003) device driver
installed in your system. See the “Software Installation” chapter for instructions on how to install
the drivers.
After installing PComm, click Start, select Program Files, and then the PComm Lite group to
select from the list of utilities and documents.
PComm Programming Library
The serial communication library helps you develop serial communications programs for any
COM port that complies with the Microsoft Win32 API. This library facilitates the implementation
of multi-process, multi-thread serial communication programs, and greatly reduces the time
required to develop applications.
For a complete description of the library functions and sample programs for Visual C++, Visual
Basic, and Delphi, check the help file and the sample programs in the PComm directory.
Utilities
In this section, we provide brief descriptions of each utility. For more information about these
utilities, read the on-line help from the Documentation and Software CD.
Diagnostics (for Moxa boards only)
This convenient diagnostics program, which only works with Moxa boards and ports, provides
internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, DTR/DCD, etc.
The diagnostics program allows the user to check both the hardware and software functions.
To run the diagnostics program, click Start Æ Program Æ PComm Lite Æ Diagnostic. A
typical test report for a Moxa board is as follows:
PCI Express Board User’s Manual Serial Programming Tools
4-3
Monitor (for Moxa boards under Windows 2000/XP/2003)
This useful port status monitoring program allows you to monitor data transmission of selected
Moxa COM ports. The program monitors data transmission/receiving throughput, and
communication line status, with data updated and displayed on the screen at regular time intervals.
Click a specific port to see a graph of the current communication parameters and status of that
port.
To run the Monitor program, click Start ÆProgram Æ PComm Lite Æ Monitor.
PCI Express Board User’s Manual Serial Programming Tools
4-4
Terminal Emulator
Use Terminal Emulator to connect to your PC’s serial ports to check if data is being transmitted
correctly. Terminal Emulator features multi-windows, and supports VT100 and ANSI terminal
types. You can transfer data interactively, send patterns periodically, and transfer files using
ASCII, XMODEM, YMODEM, ZMODEM, and KERMIT protocols.
To run Terminal Emulator, click Start Æ Program Æ PComm Lite Æ Terminal Emulator.
RS-485 Programming
If you are using your CP-118EL Series board for RS-485 applications, in addition to reading this
section, you should also refer to the “Connection Cables and Cable Wiring” chapter for more
details about using RS-485.
The CP-118EL Series supports 2-wire half-duplex RS-485 and 4-wire full duplex RS-485
communication. Ports configured for 2-wire RS-485 use the Data+ and Data- pins for both
transmitting and receiving data. Moxa’s own ADDC™ (Automatic Data Direction Control)
technology is used to switch between transmission and reception.
ADDC™
ADDC™ is the best method for switching between transmission and reception when using 2-wire
RS-485.
When using ADDC™, additional code is not required to switch between data transmission and
reception, since the board’s built-in intelligent hardware mechanism automatically manages the
switching mechanism. RS-485 programming using ADDC™ mode is just as simple and
straightforward as RS-232 or RS-422 programming.
5
5
Chapter 5 Pin Assignments
This chapter covers the following topics:
CP-118EL
¾ Board Side Pin Assignments—Female SCSI VHDCI68
¾ Device Side Pin Assignments
CP-168EL
¾ Board Side Pin Assignments—Female SCSI VHDCI68
¾ Device Side Pin Assignments
CP-104EL
¾ Board Side Pin Assignments—Female DB44
¾ Device Side Pin Assignments
CP-102E
¾ Board Side Pin Assignments—Male DB9
CP-102EL
¾ Board Side Pin Assignments—Female DB25
¾ Device Side Pin Assignments
CP-132EL/CP-132EL-I
¾ Board Side Pin Assignments—Female DB25
¾ Device Side Pin Assignments
CP-114EL/CP-114EL-I
¾ Board Side Pin Assignments—Female DB44
¾ Device Side Pin Assignments
PCI Express Board User’s Manual Pin Assignments
5-2
To select a PCIe board accessories please refer to the following table:
PCIe Board Model Connector Type Interface
OPT8D+/OPT8-M9+ Male DB9
OPT8B+/OPT8C+ Male DB25
CP-118EL
OPT8A+/OPT8S+ Female DB25
RS-232
RS-422/4-wire RS-485
2-wire RS-485
OPT8D+/OPT8-M9+ Male DB9
OPT8B+/OPT8C+ Male DB25
OPT8A+/OPT8S+ Female DB25
RS-232
OPT8F+/OPT8Z+ Female DB25 RS-422
CP-168EL
OPT8K+/OPT8I+ Female DB25 RS-422/RS-485
CBL-M44M9x4-50 Male DB9
CP-104EL
CBL-M44M25x4-50 Male DB25
RS-232
CP-102EL CBL-M25M9x2-50 Male DB9 RS-232
CP-132EL/
CP-132EL-I
CBL-M25M9x2-50 Male DB9
RS-422/4-wire
RS-485/2-wire RS-485
CBL-M44M9x4-50 Male DB9
CP-114EL/
CP-114EL-I
CBL-M44M25x4-50 Male DB25
RS-232
RS-422/4-wire RS-485
2-wire RS-485
CP-118EL
The CP-118EL board has a female SCSI VHDCI68 connector on the board, with various
connection options available for connecting from the board to your serial devices. In this chapter,
we provide pin assignments for the board side connector, as well as pin assignments for device
side connectors for the different connection options.
The CP-118EL board supports RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485. Note that the
RS-422 standard uses a balanced voltage digital interface to allow 9600 bps communication over
cables of up to 4000 feet in length. You can connect ten receivers to one driver for broadcasting
systems. The RS-485 standard is an enhanced version of the RS-422 balanced line standard. It
allows multiple drivers and receivers to work on a multidrop network. A maximum of 32 drivers
and 32 receivers can be set up on a multidrop network. The CP-118EL board supports both 2-wire
half-duplex and 4-wire full-duplex RS-485 communications. In 2-wire RS-485, Data+/- pins are
used for both data transmitting and receiving.
PCI Express Board User’s Manual Pin Assignments
5-3
Board Side Pin Assignments—Female SCSI VHDCI68
1 34
35 68
RS-232
Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
1
RxD6
13
DCD4
25
TxD2
37
RI7
49
RI5
61
TxD1
2
CTS6
14
RTS4
26
GND
38
RTS7
50
CTS5
62
DSR1
3
RI6
15
RI4
27
TxD0
39
DCD7
51
RxD5
63
DTR1
4
RTS6
16
CTS4
28
DSR0
40
DTR7
52
RxD3
64
DCD1
5
DCD6
17
RxD4
29
DTR0
41
DSR7
53
CTS3
65
RTS1
6
DTR6
18
RxD2
30
DCD0
42
TxD7
54
RI3
66
RI1
7
DSR6
19
CTS2
31
RTS0
43
GND
55
RTS3
67
CTS1
8
TxD6
20
RI2
32
RI0
44
TxD5
56
DCD3
68
RxD1
9
GND
21
RTS2
33
CTS0
45
DSR5
57
DTR3
10
TxD4
22
DCD2
34
RxD0
46
DTR5
58
DSR3
11
DSR4
23
DTR2
35
RxD7
47
DCD5
59
TxD3
12
DTR4
24
DSR2
36
CTS7
48
RTS5
60
GND
RS-422 and 4-wire RS-485
Pin Signal Pin Signal Pin Signal Pin Signal
1
TxD6+(B)
18
TxD2+(B)
35
TxD7+(B)
52
TxD3+(B)
5
TxD6-(A)
22
TxD2-(A)
39
TxD7-(A)
56
TxD3-(A)
6
RxD6-(A)
23
RxD2-(A)
40
RxD7-(A)
57
RxD3-(A)
8
RxD6+(B)
25
RxD2+(B)
42
RxD7+(B)
59
RxD3+(B)
9
GND
26
GND
43
GND
60
GND
10
RxD4+(B)
27
RxD0+(B)
44
RxD5+(B)
61
RxD1+(B)
12
RxD4-(A)
29
RxD0-(A)
46
RxD5-(A)
63
RxD1-(A)
13
TxD4-(A)
30
TxD0-(A)
47
TxD5-(A)
64
TxD1-(A)
17
TxD4+(B)
34
TxD0+(B)
51
TxD5+(B)
68
TxD1+(B)
PCI Express Board User’s Manual Pin Assignments
5-4
2-wire RS-485
Pin Signal Pin Signal Pin Signal Pin Signal
6
D6-(A)
23
D2-(A)
40
D7-(A)
57
D3-(A)
8
D6+(B)
25
D2+(B)
42
D7+(B)
59
D3+(B)
9
GND
26
GND
43
GND
60
GND
10
D4+(B)
27
D0+(B)
44
D5+(B)
61
D1+(B)
12
D4-(A)
29
D0-(A)
46
D5-(A)
63
D1-(A)
Device Side Pin Assignments
Male DB9 (OPT8D+/OPT8-M9+)
15
69
Pin RS-232
RS-422 /
4-wire RS-485
2-wire RS-485
1
DCD TxD-(A) ---
2
RxD TxD+(B) ---
3
TxD RxD+(B) Data+(B)
4
DTR RxD-(A) Data-(A)
5
GND GND GND
6
DSR --- ---
7
RTS --- ---
8
CTS --- ---
9
---
--- ---
PCI Express Board User’s Manual Pin Assignments
5-5
Male DB25 (OPT8B+/C+)
1
14
13
25
Pin RS-232
RS-422 /
4-wire RS-485
2-wire RS-485
2
TxD RxD+(B) Data+(B)
3
RxD TxD+(B) ---
4
RTS --- ---
5
CTS --- ---
6
DSR --- ---
7
GND GND GND
8
DCD TxD-(A) ---
20
DTR RxD-(A) Data-(A)
Female DB25 (OPT8A+/S+)
13 1
25 14
Pin RS-232
RS-422 /
4-wire RS-485
2-wire RS-485
2
RxD TxD+(B) ---
3
TxD RxD+(B) Data+(B)
4
CTS --- ---
5
RTS --- ---
6
DTR RxD-(A) Data-(A)
7
GND GND GND
8
DCD TxD-(A) ---
20
DSR --- ---
PCI Express Board User’s Manual Pin Assignments
5-6
CP-168EL
The CP-168EL board has a female SCSI VHDCI68 connector on the board, with various
connection options available for connecting from the board to your serial devices. In this chapter,
we give pin assignments for the board side connector, as well as pin assignments for device side
connectors for the different connection options. The CP-168EL board supports RS-232 interface
on board.
Board Side Pin Assignments—Female SCSI VHDCI68
1 34
35 68
RS-232
Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
1
RxD6
13
DCD4
25
TxD2
37
RI7
49
RI5
61
TxD1
2
CTS6
14
RTS4
26
GND
38
RTS7
50
CTS5
62
DSR1
3
RI6
15
RI4
27
TxD0
39
DCD7
51
RxD5
63
DTR1
4
RTS6
16
CTS4
28
DSR0
40
DTR7
52
RxD3
64
DCD1
5
DCD6
17
RxD4
29
DTR0
41
DSR7
53
CTS3
65
RTS1
6
DTR6
18
RxD2
30
DCD0
42
TxD7
54
RI3
66
RI1
7
DSR6
19
CTS2
31
RTS0
43
GND
55
RTS3
67
CTS1
8
TxD6
20
RI2
32
RI0
44
TxD5
56
DCD3
68
RxD1
9
GND
21
RTS2
33
CTS0
45
DSR5
57
DTR3
10
TxD4
22
DCD2
34
RxD0
46
DTR5
58
DSR3
11
DSR4
23
DTR2
35
RxD7
47
DCD5
59
TxD3
12
DTR4
24
DSR2
36
CTS7
48
RTS5
60
GND
PCI Express Board User’s Manual Pin Assignments
5-7
Device Side Pin Assignments
Male DB9 (OPT8D+/OPT8-M9+)
15
69
Pin RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
Male DB25 (OPT8B+/C+)
1
14
13
25
Pin RS-232
2
TxD
3
RxD
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
20
DTR
PCI Express Board User’s Manual Pin Assignments
5-8
Female DB25 (OPT8A+/S+)
13 1
25 14
Pin RS-232
2
RxD
3
TxD
4
CTS
5
RTS
6
DTR
7
GND
8
DCD
20
DSR
Female DB25 (OPT8F+/Z+)
Pin RS-422
2
RxD+(B)
3
TxD+(B)
7
GND
14
RxD-(A)
16
TxD-(A)
Female DB25 (OPT8K+/I+)
Pin
RS-422 /
4-wire RS-485
2-wire RS-485
2
RxD+(B) Data+(B)
3
TxD+(B) ---
7
GND GND
14
RxD-(A) Data-(A)
16
TxD-(A) ---
PCI Express Board User’s Manual Pin Assignments
5-9
CP-104EL
Board Side Pin Assignments—Female DB44
RS-232
Port 3 Port 4
1
3
5
7
911
1315
Port 1 Port 2
31333537394142
16
30
44
Port 1 Port 2 Port 3 Port 4
13
TxD
9
TxD
5
TxD
1
TxD
14
RxD
10
RxD
6
RxD
2
RxD
15
RTS
11
RTS
7
RTS
3
RTS
28
CTS
24
CTS
20
CTS
16
CTS
29
DSR
25
DSR
21
DSR
17
DSR
30
GND
26
GND
22
GND
18
GND
42
DCD
39
DCD
35
DCD
31
DCD
44
DTR
41
DTR
37
DTR
33
DTR
PCI Express Board User’s Manual Pin Assignments
5-10
Device Side Pin Assignments
Male DB9 (CBL-M44M9x4-50)
15
69
Pin RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
Male DB25 (CBL-M44M25x4-50)
1
14
13
25
Pin RS-232
2
TxD
3
RxD
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
20
DTR
PCI Express Board User’s Manual Pin Assignments
5-11
CP-102E
Board Side Pin Assignments—Male DB9
CP-102E has two Male DB9 connectors on board.
Male DB9
15
69
Pin RS-232 Signals
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
CP-102EL
Board Side Pin Assignments—Female DB25
RS-232
13 1
25 14
Pin RS-232 Pin RS-232
1
13
2
DCD1
14
3
GND
15
DTR1
4
CTS1
16
DSR1
5
RxD1
17
RTS1
6
18
TxD1
7
19
8
20
9
DTR0
21
DCD0
10
DSR0
22
GND
11
RTS0
23
CTS0
12
TxD0
24
RxD0
PCI Express Board User’s Manual Pin Assignments
5-12
Device Side Pin Assignments
Male DB9 (CBL-M25M9x2-50)
15
69
Pin RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
CP-132EL/CP-132EL-I
Board Side Pin Assignments—Female DB25
13 1
25 14
RS-422 & 4-wire RS-485 2-wire RS-485
Pin Signal Pin Signal
1 --- 14 --2 TxD1-(A) 15 RxD1-(A)
3 GND1 16 --4 --- 17 --5 TxD1+(B) 18 RxD1+(B)
6 --- 19 --7 --- 20 --8 --- 21 TxD0-(A)
9 RxD0-(A) 22 GND0
10 --- 23 --11 --- 24 TxD0+(B)
12 RxD0+(B) 25 --13 ---
Pin Signal Pin Signal
1 --- 14 --2 --- 15 Data1-(A)
3 GND1 16 --4 --- 17 --5 --- 18 Data1+(B)
6 --- 19 --7 --- 20 --8 --- 21 ---
9 Data0-(A) 22 GND0
10 --- 23 --11 --- 24 --12 Data0+(B) 25 --13 ---
PCI Express Board User’s Manual Pin Assignments
5-13
Device Side Pin Assignments
Male DB9 (CBL-M25M9x2-50)
15
69
Pin
RS-422 /
4-wire RS-485
2-wire RS-485
1
TxD-(A) ---
2
TxD+(B) ---
3
RxD+(B) Data+(B)
4
RxD-(A) Data-(A)
5
GND GND
6
--- ---
7
--- ---
8
--- ---
9
--- ---
CP-114EL/CP-114EL-I
Board Side Pin Assignments—Female DB44
115
44 31
1630
RS-232
Pin Signal Pin Signal Pin Signal Pin Signal
1
TxD1
13
TxD0
25
DTR1
37
GND
2
RxD2
14
RxD0
26
DSR1
38
---
3
RTS3
15
RTS0
27
---
39
DCD1
4
---
16
CTS3
28
CTS0
40
---
5
TxD2
17
DTR3
29
DTR0
41
GND
6
RxD2
18
DSR3
30
DSR0
42
DCD0
7
RTS2
19
---
31
DCD3
43
---
8
---
20
CTS2
32
---
44
GND
9
TxD1
21
DTR2
33
GND
10
RxD1
22
DSR2
34
---
11
RTS1
23
---
35
DCD2
12
---
24
CTS1
36
---
PCI Express Board User’s Manual Pin Assignments
5-14
RS-422 & 4-wire RS-485
Pin Signal Pin Signal Pin Signal Pin Signal
1
RxD3(+)
13
RxD0(+)
25
RxD1(-)
37
GND
2
TxD3(+)
14
TxD0(+)
26
---
38
---
3
---
15
---
27
---
39
TxD1(-)
4
---
16
---
28
---
40
---
5
RxD2(+)
17
RxD3(-)
29
RxD0(-)
41
GND
6
TxD2(+)
18
---
30
---
42
TxD0(-)
7
---
19
---
31
TxD3(-)
43
---
8
---
20
---
32
---
44
GND
9
RxD1(+)
21
RxD2(-)
33
GND
10
TxD1(+)
22
---
34
---
11
---
23
---
35
TxD2(-)
12
---
24
---
36
---
2-wire RS-485
Pin Signal Pin Signal Pin Signal
1
Data3+(B)
16
---
31
---
2
---
17
Data3-(A)
32
---
3
---
18
---
33
GND3
4
---
19
---
34
---
5
Data2+(B)
20
---
35
---
6
---
21
Data2-(A)
36
---
7
---
22
---
37
GND2
8
---
23
---
38
---
9
Data1+(B)
24
---
39
---
10
---
25
Data1-(A)
40
---
11
---
26
---
41
GND1
12
---
27
---
42
---
13
Data0+(B)
28
---
43
---
14
---
29
Data0-(A)
44
GND0
15
---
30
---
PCI Express Board User’s Manual Pin Assignments
5-15
Device Side Pin Assignments
Male DB9 (CBL-M44M9x4-50)
15
69
Pin RS-232
RS-422 &
4-wire RS-485 2-wire RS-485
1
DCD TxD-(A) ---
2
RxD TxD+(B) ---
3
TxD RxD+(B) Data+(B)
4
DTR RxD-(A) Data-(A)
5
GND GND GND
6
DSR --- ---
7
RTS --- ---
8
CTS --- ---
Male DB25 (CBL-M44M25x4-50)
1
14
13
25
Pin RS-232
RS-422 &
4-wire RS-485
2-wire RS-485
2
TxD RxD+(B) Data+(B)
3
RxD TxD+(B) ---
4
RTS --- ---
5
CTS --- ---
6
DSR --- ---
7
GND GND GND
8
DCD TxD-(A) ---
20
DTR RxD-(A) Data-(A)
6
6
Chapter 6 Troubleshooting
Common PCI Express Series problems and possible solutions are as follows. If you still have
problems after reading this chapter, contact your dealer or Moxa for help, or use the Problem
Report Form at the end of this manual to report problems to your dealer.
General Troubleshooting
1. The Moxa PCI Express board cannot be detected by the Moxa driver while installing the
driver.
Hardware causes and solutions:
a. The board is not installed in the computer. Please install it.
b. The board is not properly plugged into the system. If this is the case, re-plug the board
into a PCI Express slot. It is also possible that a slot has malfunctioned. In this case, try
other slots until you find one that works.
c. The motherboard does not have an available IRQ for the PCI Express board. In this case,
enter the BIOS and make sure there is an available IRQ under PCI/PnP settings.
2. The Moxa PCI Express board and driver are activated but cannot transfer
(transmit/receive) data.
Hardware Causes and Solutions:
a. Make sure the cable wiring is connected correctly. Refer to the “Pin Assignments” chapter
for correct cable connections.
b. The cable or the board could be defective. Try other ports, cables, or boards to verify this,
or use the PComm Diagnostic utility to test the Moxa board and port conditions. If the
Diagnostic program reports an error, replace the faulty components.
Software Causes and Solutions:
a. PCI Express Series boards will check the line status (CTS) before transmitting data if the
RTS/CTS flow control feature is set to Enable in the configuration or application program.
Refer to the “Connection Cables and Cable Wiring” chapter for proper wiring diagrams,
and check the line status of the suspected port using the diagnostics LED indicators on the
mini tester.
b. The board control application may not be written correctly according to the corresponding
API of the operating system. To check this problem, run another application that you
know is correct, or use the utilities provided by Moxa (such as PComm Terminal emulator
or HyperTerminal under Windows platform).
A
A
Appendix A Technical Reference
Product Specifications
CP-118EL Specifications
Hardware
Connectors SCSI VHDCI68
Comm. Controller MU860 (16C550C compatible)
Interface
Bus Interface
PCI Express × 1
Number of Ports 8
Max No. of Boards 4 (only one IRQ required)
Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
4-wire RS-485 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
2-wire RS-485 Data+(B), Data-(A), GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Power and Environment
Power Requirement 860 mA (3.3V)
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Regulatory Approvals
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B
Warranty
5 years
PCI Express Board User’s Manual Technical Reference
A-2
CP-168EL Specifications
Hardware
Connectors SCSI VHDCI68
Comm. Controller MU860 (16C550C compatible)
Interface
Bus Interface
PCI Express × 1
Number of Ports 8
Max No. of Boards 4 (only one IRQ required)
Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Power and Environment
Power Requirement 630 mA (3.3V)
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Regulatory Approvals
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B
Warranty
5 years
CP-104EL Specifications
Hardware
Connectors Female DB44
Comm. Controller MU860 (16C550C compatible)
Interface
Bus Interface
PCI Express × 1
Number of Ports 4
Max No. of Boards 4 (only one IRQ required)
Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
Baudrate 50 bps to 921.6 Kbps
PCI Express Board User’s Manual Technical Reference
A-3
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Power and Environment
Power Requirement 430 mA (3.3V)
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Regulatory Approvals
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B
Warranty
5 years
CP-102E Specifications
Hardware
Connectors Male DB9 x 2
Comm. Controller 16C550C compatible
Interface
Bus Interface
PCI Express × 1
Number of Ports 2
Max No. of Boards 4
Signal
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Environment
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
PCI Express Board User’s Manual Technical Reference
A-4
ESD Protection
Embedded 15 KV ESD Protection
Regulatory Approvals
EN55022, EN55024, EN61000-3-2, EN61000-3-3, EN61000-6-2,
IEC-61000-4-2, IEC 61000-4-3, IEC 61000-4-4, I EC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class
B
Warranty
5 years
CP-102EL Specifications
Hardware
Connectors Female DB25
Comm. Controller 16C550C compatible
Interface
Bus Interface
PCI Express × 1
Number of Ports 2
Max No. of Boards 4
Signal
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Environment
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Regulatory Approvals
EN55022, EN55024, EN61000-3-2, EN61000-3-3, EN61000-6-2,
IEC-61000-4-2, IEC 61000-4-3, IEC 61000-4-4, I EC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class
B
Warranty
5 years
PCI Express Board User’s Manual Technical Reference
A-5
CP-132EL Series Specifications
Hardware
Connectors Female DB25
Comm. Controller 16C550C compatible
Interface
Bus Interface
PCI Express × 1
Number of Ports 2
Max No. of Boards 4
Signal
RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 4-Wire TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 2-Wire Data+(B), Data-(A), GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control XON/XOFF
Environment
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Optical Isolation 2 KV (only for CP-132EL-I)
Regulatory Approvals
EN55022, EN55024, EN61000-3-2, EN61000-3-3, EN61000-6-2,
IEC-61000-4-2, IEC 61000-4-3, IEC 61000-4-4, I EC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class
B
Warranty
5 years
PCI Express Board User’s Manual Technical Reference
A-6
CP-114EL Series Specifications
Hardware
Connectors Female DB44
Comm. Controller 16C550C compatible
Interface
Bus Interface
PCI Express × 1
Number of Ports 4
Max No. of Boards 4
Signal
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 4-Wire TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 2-Wire Data+(B), Data-(A), GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Environment
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection
Embedded 15 KV ESD Protection
Optical Isolation 2 KV (only for CP-114EL-I)
Regulatory Approvals
EN55022, EN55024, EN61000-3-2, EN61000-3-3,
EN61000-6-2, IEC-61000-4-2, IEC 61000-4-3, IEC
61000-4-4, IEC 61000-4-5, IEC 61000-4-6 , IEC 61000-4-8,
IEC 61000-4-11, FCC Part 15 Class B
Warranty
5 years
Loading...
