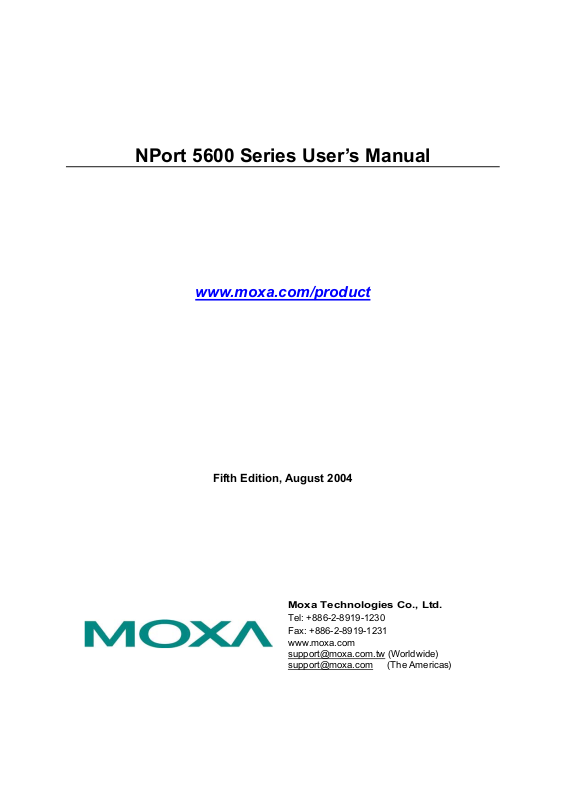

NPort 5600 Series User’s Manual

www.moxa.com/product

Fifth Edition, August 2004

Moxa Technologies Co., Ltd.

Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 www.moxa.com

support@moxa.com.tw support@moxa.com

(Worldwide)

(The Americas)

NPort 5600 Series User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of The Moxa Group.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa Technologies assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Table of Contents

Chapter 1 Introduction..............................................................................................1-1

Overview................................................................................................................ 1-2

Package Checklist ................................................................................................. 1-2

Product Features ................................................................................................... 1-2

Product Specifications ........................................................................................... 1-3

Chapter 2 Getting Started.........................................................................................2-1

Panel Layout.......................................................................................................... 2-2

Connecting the Hardware...................................................................................... 2-3

Wiring Requirements................................................................................... 2-3

Connecting NPort 5610/30-16/8’s Power.................................................... 2-3

Connecting NPort 5610-16/8-48V’s Power ................................................. 2-4

Grounding NPort 5610-16/8-48V................................................................. 2-4

Connecting to the Network .......................................................................... 2-4

Connecting to a Serial Device ..................................................................... 2-5

LED Indicators ............................................................................................. 2-5

Real Time Clock .......................................................................................... 2-5

Chapter 3 Initial IP Address Configuration.............................................................3-1

Initializing NPort’s IP Address................................................................................ 3-2

Factory Default IP Address.................................................................................... 3-2

LCM Display .......................................................................................................... 3-2

NPort Administration Suite..................................................................................... 3-5

ARP........................................................................................................................ 3-5

Telnet Console....................................................................................................... 3-6

Chapter 4 Choosing the Proper Operation Mode...................................................4-1

Overview................................................................................................................ 4-2

TCP Server Mode .................................................................................................. 4-2

TCP Client Mode ................................................................................................... 4-3

UDP Mode ............................................................................................................. 4-3

Real COM Mode .................................................................................................... 4-3

Chapter 5 Web Console Configuration ...................................................................5-1

Opening Your Browser........................................................................................... 5-2

Basic Settings ........................................................................................................ 5-4

Network Settings.................................................................................................... 5-6

Serial Settings........................................................................................................ 5-9

Operating Settings ................................................................................................5-11

Real COM Mode........................................................................................ 5-12

TCP Server Mode...................................................................................... 5-14

TCP Client Mode ....................................................................................... 5-17

UDP Mode ................................................................................................. 5-20

Accessible IP Settings ......................................................................................... 5-22

Auto Warning Settings ......................................................................................... 5-23

Auto warning: E-mail and SNMP Trap ...................................................... 5-23

Event Type ................................................................................................ 5-24

Change Password ............................................................................................... 5-26

Load Factory Defaults.......................................................................................... 5-26

Chapter 6 Configuring Windows Administrator.....................................................6-1

Overview................................................................................................................ 6-2

Installing Windows Administrator........................................................................... 6-2

Configuration ......................................................................................................... 6-4

Broadcast Search........................................................................................ 6-5

Unlock Password Protection ....................................................................... 6-6

Configuring NPort 5600............................................................................... 6-7

Upgrading Firmware.................................................................................... 6-8

Export/Import ............................................................................................... 6-9

Monitor................................................................................................................... 6-9

Port Monitor ......................................................................................................... 6-12

COM Mapping...................................................................................................... 6-13

On-line COM Mapping............................................................................... 6-13

Off-line COM Mapping............................................................................... 6-16

IP Location........................................................................................................... 6-17

Chapter 7 IP Serial LIB..............................................................................................7-1

Overview................................................................................................................ 7-2

IP Serial LIB Function Groups ............................................................................... 7-3

Example Program .................................................................................................. 7-3

Appendix A Pinouts and Cable Wiring ...................................................................... A-1

Port Pinout Diagrams............................................................................................. A-2

Ethernet Port Pinouts ..................................................................................A-2

Serial Port Pinouts....................................................................................... A-2

Cable Wiring Diagrams.......................................................................................... A-3

Ethernet Cables...........................................................................................A-3

Serial Cables ...............................................................................................A-4

Pin Assignments for DB9 and DB25 Connectors........................................A-5

Appendix B Well Known Port Numbers .................................................................... B-1

Appendix C SNMP Agent with MIB II & RS-232 Like Group .................................... C-1

Appendix D Auto IP Report Protocol......................................................................... D-1

Appendix E Service Information ................................................................................ E-1

MOXA Internet Services ........................................................................................E-2

Problem Report Form ............................................................................................E-3

Product Return Procedure..................................................................................... E-4

Revision History.....................................................................................................E-5

Chapter 1 Introduction

Welcome to the MOXA NPort 5600 Series of advanced serial device servers that make it easy to network-enable your serial devices. The NPort 5600 Series has six models: NPort 5610-16, NPort 5610-8 (16/8 ports for RS-232, with AC power), NPort 5610-16-48V, NPort 5610-8-48V (16/8 ports for RS-232, with DC power), NPort 5630-16, and NPort 5630-8 (16/8 ports for RS-422/485, with AC power). In this manual, we often refer to the six products collectively as “5600” or “5600 Series.”

The following topics are covered in this chapter:

 Overview

 Package Checklist

 Product Features

 Product Specifications

NPort 5600 Series User’s Manual Introduction

Overview

NPort 5600 Series serial device servers are designed to make your industrial serial devices Internet ready instantly. The compact size of NPort 5600 device servers makes them the ideal choice for connecting your RS-232 (NPort 5610-16/8) or RS-422/485 (NPort 5630-16/8) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices anywhere over a local LAN or the Internet.

NPort 5600 serial device servers ensure the compatibility of network software that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP Mode. And thanks to NPort’s Real COM/TTY drivers, software that works with COM/TTY ports can be set up to work over a TCP/IP network in no time. This excellent feature preserves your software investment and lets you enjoy the benefits of networking your serial devices instantly.

NPort 5600 serial device servers support automatic IP configuration protocols (DHCP, BOOTP) and manual configuration via NPort’s handy web browser console. Both methods ensure quick and effective installation. And with NPort 5600’s Windows Utility, installation is very straightforward, since all system parameters can be stored and then copied to other device servers simultaneously.

Package Checklist

MOXA NPort 5600 Series products are shipped with the following items:

Standard Accessories

y 1 16- or 8-port serial device server y NPort Documentation & Software CD y NPort 5600 Quick Installation Guide y Power cord

Optional Accessories

y CBL-RJ45M9-150 RJ45 8-pin to DB9 Male cable, 150 cm y CBL-RJ45F9-150 RJ45 8-pin to DB9 Female cable, 150 cm y CBL-RJ45M25-150 RJ45 8-pin to DB25 Male cable, 150 cm y CBL-RJ45F25-150 RJ45 8-pin to DB25 Female cable, 150 cm

NOTE: Notify your sales representative if any of the above items is missing or damaged.

Product Features

NPort 5600 Series products have the following features:

y Make your serial devices Internet ready y Easy-to-use LCM (Liquid Crystal Module) interface for setting up the IP address y Versatile socket operation modes, including TCP Server, TCP Client, and UDP y Easy-to-use Windows Utility for mass installation y Supports 10/100 Mbps Ethernet—auto-detectable y Supports 16/8-port RS-232 or RS-422/485 interface y Built-in 15 KV ESD protection for all serial signals y Supports SNMP MIB-II for network management

1-2

NPort 5600 Series User’s Manual Introduction

Product Specifications

LAN Ethernet 10/100 Mbps, RJ45 Protection Built-in 1.5 KV magnetic isolation

NPort 5610 Serial Interface Interface RS-232 No. of Ports 16/8 Port Type RJ45 8-pin Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Serial Line Protection 15 KV ESD for all signals

NPort 5630 Serial Interface

Interface RS-422/485 No. of Ports 16/8 Port Type RS45 8-pin Signals RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485 (2-wire): Data+, Data-, GND RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-, GND Serial Line Protection 15 KV ESD for all signals RS-485 Data Direction ADDC™ (Automatic Data Direction Control)

Power Line Protection 4 KV Burst (EFT), EN61000-4-4 2 KV Surge, EN61000-4-5

Advanced Built-in Features HMI LCM display with four push buttons Buzzer Real-Time Clock Watch Dog Timer

Serial Communication Parameters Parity None, Even, Odd, Space, Mark Data Bits 5, 6, 7, 8 Stop Bit 1, 1.5, 2 Flow Control RTS/CTS, XON/XOFF Transmission Speed 50 bps to 230.4 Kbps

1-3

NPort 5600 Series User’s Manual Introduction

Software Features Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS,

Utilities NPort Administrator for Windows 95/98/ME/NT/2000/XP Real COM/TTY Drivers Windows 95/98/ME/NT/2000/XP Real COM driver, Linux

Configuration Web Browser, Telnet Console, or Windows Utility

Power Requirements

Power Input 100 to 240 VAC, 47 to 63 Hz, or 48 VDC Power Consumption NPort 5610-16/8: 200 mA for 100V, 145 mA for 240V NPort 5610-16/8-48V: 250 mA (at 48V max.) NPort 5630-16/8: 212 mA for 100V, 130 mA for 240V

Mechanical

Material SECC sheet metal (1 mm) Dimensions (W × H × D) 190 × 44.5 × 478 mm (including ears) 190 × 44.5 × 440 mm (without ears)

Environment

Operating Temperature 0 to 55°C (32 to 131°F), 5 to 95%RH Storage Temperature -20 to 85°C (-4 to 185°F), 5 to 95%RH

Regulatory Approvals

EMC FCC Class A, CE Class A Safety UL, CUL, TÜV WARRANTY 5 years

SNMP, HTTP, SMTP, SNTP

real TTY driver

1-4

Chapter 2 Getting Started

This chapter includes information about installing NPort 5600 Series. The following topics are covered:

 Panel Layout

 Connecting the Hardware

¾ Wiring Requirements

¾ Connecting NPort 5610/30-16/8’s Power

¾ Connecting NPort 5610-16/8-48V’s Power

¾ Grounding NPort 5610-16/8-48V

¾ Connecting to the Network ¾ Connecting to a Serial Device ¾ LED Indicators

NPort 5600 Series User’s Manual Getting Started

Panel Layout

Front panel of NPort 5610-16-48V

Font panel of NPort 5630-16

Rear panel of NPort 5610-16 (AC Power)

Rear panel of NPort 5610-16 -48V (DC Power)

Reset Button—Press the Reset button continuously for 5 sec to load factory defaults

pointed object, such as a straightened paper clip or toothpick, to press the reset button. This will cause the Ready LED to blink on and off. The factory defaults will be loaded once the Ready LED stops blinking (after about 5 seconds). At this point, you should release the reset button.

: Use a

2-2

NPort 5600 Series User’s Manual Getting Started

Connecting the Hardware

This section describes how to connect NPort 5600 Series to serial devices for first time testing purposes. We cover Wiring Requirements, Connecting NPort 5610/30-16/8’s Power,

Connecting NPort 5610-16/8-48V’s Power, Grounding NPort 561-16/8-48V, Connecting to the Network, Connecting to a Serial Device, and LED Indicators.

Wiring Requirements

Safety First!

Be sure to disconnect the power cord before installing and/or wiring your NPort 5600.

Wiring Caution!

Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment.

Temperature Caution!

Please take care when handling NPort 5600. When plugged in, NPort 5600’s internal components generate heat, and consequently the casing may feel hot to the touch.

You should also pay attention to the following points:

z Use separate paths to route wiring for power and devices. If power wiring and device wiring

paths must cross, make sure the wires are perpendicular at the intersection point.

NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.

z You can use the type of signal transmitted through a wire to determine which wires should be

kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together.

z Keep input wiring and output wiring separate.

z Where necessary, it is strongly advised that you label wiring to all devices in the system.

Connecting NPort 5610/30-16/8’s Power

Connect NPort 5610/30-16/8’s 100-240 VAC power line with its AC connector. If the power is properly supplied, the “Ready” LED will show a solid red color until the system is ready, at which time the “Ready” LED will change to a green color.

2-3

NPort 5600 Series User’s Manual Getting Started

Connecting NPort 5610-16/8-48V’s Power

To connect NPort 5610-16/8-48V’s power cord with its terminal block, follow the steps given below:

1. Loosen the screws on the V

ON OFF

2. Connect the power cord’s 48 VDC wire to the terminal block’s V power cord’s DC Power Ground wire to the terminal block’s V- terminal, and then

V+ V-

tighten the terminal block screws. (Note: NPort 5610-16/8-48V can still operate even if the DC 48V and DC Power Ground are reversed.)

If the power is properly supplied, the “Ready” LED will show a solid red color until the system is ready, at which time the “Ready” LED will change to a green color.

You should use 8 kg-cm of screw torque and 22-14 AWG of suitable electric wire to connect NPort

NOTE

5610-16/8-48V’s power cord to its terminal block.

Grounding NPort 5610-16/8-48V

Grounding and wire routing helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices.

ON OFF

V+ V-

The Shielded Ground (sometimes called Protected Ground) contact is the second contact from the right of the 5-pin power terminal block connector located on the rear panel of NPort 5610-16-48V/5610-8-48V. Connect the SG wire to the Earth ground.

and V- terminals of NPort 5610-16/8-48V’s terminal block.

terminal, and the

This product is intended to be mounted to a well-grounded mounting surface such as a metal panel.

Connecting to the Network

Connect one end of the Ethernet cable to NPort 5600’s 10/100M Ethernet port and the other end of the cable to the Ethernet network. There are 2 LED indicators located on the bottom left and right corners of the Ethernet connector. If the cable is properly connected, NPort 5600 will indicate a valid connection to the Ethernet in the following ways:

The bottom right corner LED indicator maintains a solid green color when the cable is properly connected to a 100 Mbps Ethernet network.

2-4

NPort 5600 Series User’s Manual Getting Started

The bottom left corner LED indicator maintains a solid orange color when the cable is properly connected to a 10 Mbps Ethernet network.

Connecting to a Serial Device

Connect the serial data cable between NPort 5600 and the serial device.

LED Indicators

The front panels of NPort 5600 have several LED indicators, as described in the following table.

LED Name LED Color LED Function

off Power is off, or power error condition exists.

Steady on: Power is on and NPort is booting up.

Ready

1-16

Real Time Clock

NPort 5600’s real time clock is powered by a lithium battery. We strongly recommend that you do not replace the lithium battery without the presence of Moxa’s technical support engineers. If you need a battery change, contact Moxa for assistance.

There is risk of explosion if the battery is replaced by an incorrect type. You need to dispose used batteries according to the instructions.

red

green

orange Serial port is receiving data.

green Serial port is transmitting data.

off

Blinking:

Steady on: Power is on and NPort is functioning normally.

Blinking:

No data is being transmitted or received through the serial port.

Indicates an IP conflict, or DHCP or BOOTP server did not respond properly.

The NPort has been located by NPort Administrator’s Location function.

2-5

Chapter 3 Initial IP Address Configuration

When setting up your NPort 5600 for the first time, the first thing you should do is configure the IP address. This chapter introduces several methods to configure NPort’s IP address. Select the method that is the most convenient for you. For more details about network settings, see the Network Settings section from Chapter 5, Web Console Configuration.

This chapter includes the following sections:

 Initializing NPort’s IP Address

 Factory Default IP Address

 LCM Display Å recommended configuration method

 NPort Administration Suite Å recommended configuration method

 ARP

 Telnet Console

NPort 5600 Series User’s Manual Initial IP Address Configuration

Initializing NPort’s IP Address

1. Determine whether your NPort needs to use a Static IP or Dynamic IP (either DHCP or BOOTP application).

2. If NPort is used in a Static IP environment, you can use NPort Administration Suite, ARP, Web Console, or Telnet Console to configure the new IP address.

3. If NPort is used in a Dynamic IP environment, you can use NPort Administration suite, Web Console, or Telnet Console to configure NPort to get an IP address dynamically with DHCP, DHCP/BOOTP, or BOOTP.

Consult your network administrator on how to reserve a fixed IP address (for your NPort) in the MAC-IP mapping table when using a DHCP Server or BOOTP Server. In most applications, you should assign a fixed IP address to your NPort.

Factory Default IP Address

NPort products are configured with the following default private IP address:

Default IP address: 192.168.127.254

(IP addresses of the form 192.168.xxx.xxx are referred to as private IP addresses, since it is not possible to directly access a device configured with a private IP address from a public network. For example, you would not be able to ping such a device from an outside Internet connection. NPort applications that require sending data over a public network, such as the Internet, require setting up the server with a valid public IP address, which can be leased from a local ISP.)

LCM Display

We recommend using the LCM display and four push buttons to configure the IP address for the first time.

Basic Operation

If the NPort is working properly, the LCM panel will display a green color. The red Ready LED will also light up, indicating that the NPort is receiving power. After the red Ready LED turns green, you will see a display similar to:

N P 5 6 1 0 - 1 6 _ 3 8 1 9 2 . 1 6 8 . 1 2 7 . 2 5 4

This is where

• NP5610-16 is the NPort’s name

• 38 is the NPort’s serial number

• 192.168.127.254 is the NPort’s IP address

3-2

NPort 5600 Series User’s Manual Initial IP Address Configuration

There are four push buttons on NPort’s nameplate. Going from left to right, the buttons are:

Button Name

MENU menu activates the main menu, or returns to an upper level

SEL

up cursor

down cursor

select

Action

scrolls up through a list of items shown on the LCM panel’s second line scrolls down through a list of items shown on the LCM panel’s second

line selects the option listed on the LCM panel’s second line

The buttons are manipulated in a manner similar to the way a modern cellular phone operates. As you move through the various functions and setting options, note that the top line shows the current menu or submenu name, and the bottom line shows the submenu name or menu item that is activated by pressing the SEL button.

Detailed Menu Options

The best way to explain all of NPort’s LCM functions is to refer to the table shown on the next page. There are three main levels—1, 2, and 3—with each level represented by a separate column.

The first thing to remember is that the MENU button is used to move back and forth between the LCM panel’s default screen, and main menu screen:

N P 5 6 1 0 - 1 6 _ 3 8 1 9 2 . 1 6 8 . 1 2 7 . 2 5 4

M a i n M e n U S e r v e r s e t t i n g ↓

In addition, you only need to remember to:

• Use the SEL button to move up one level (i.e., left to right on the tree graph)

• Use the MENU button to move down one level (i.e., right to left on the tree graph)

• Use the cursor keys, U and V, to scroll between the various options within a level (i.e.,

up and down on the tree graph).

3-3

NPort 5600 Series User’s Manual Initial IP Address Configuration

As you use the buttons to operate the LCM display, you will notice that with very few exceptions, moving up one level causes the bottom line of the display to move to the top line of the display. You will also notice that the bottom three options in level 2, and all of the options in level 3 have either a C or D attached. The meaning is as follows:

• C = configurable (i.e., you are allowed to change the setting of this option)

• D = display only (i.e., the setting for this option is displayed, but it cannot be changed)

This does NOT necessarily mean that the number doesn’t change; only that you can’t change it.

Level 1 Level 2 Level 3 Main Menu Server

setting

Network

setting

Serial set Select port

Op Mode set

Console Web console

Ping C Save/Restart C

Serial number Server name Firmware ver Model name Ethernet status MAC address IP config IP address Netmask Gateway DNS server 1 DNS server 2

Baud rate Data bit Stop bit Parity Flow control Tx/Rx fifo Interface Tx/Rx bytes Line status Select port Select mode [mode] Real COM

Alive timeout Max connection Delimiter 1 Delimiter 2 Force Tx

Telnet console

TCP server

Alive timeout Inact. time Max connection Delimiter 1 Delimiter 2 Force Tx Local TCP port Command port

TCP client

Alive timeout Inact. time Delimiter 1 Delimiter 2 Force Tx Dest IP-1 TCP port-1 Dest IP-2 TCP port-2 Dest IP-3 TCP port-3 Dest IP-4 TCP port-4 TCP connect

UDP svr/cli

Delimiter 1 Delimiter 2 Force Tx Dest IP start-1 Dest IP end-1 Dest port-1 Dest IP start-2 Dest IP end-2 Dest port-2 Dest IP start-3 Dest IP end-3 Dest port-3 Dest IP start-4 Dest IP end-4 Dest port-4 Local port

D C D D D D C C C C C C C C C C C C C C D D C C

C C C C C C C C C C C C C C C C C C

3-4

NPort 5600 Series User’s Manual Initial IP Address Configuration

The part of the LCM operation that still requires some explanation is how to edit the configurable options. In fact, you will only encounter two types of configurable options.

The first type involves entering numbers, such as IP addresses, Netmasks, etc. In this case, you change the number one digit at a time. The up cursor (U) is used to decrease the highlighted digit, the down cursor (V) is used to increase the highlighted digit, and the sel button is used to move to the next digit. When the last digit has been changed, pressing sel simply enters the number into NPort 5600 Series’ memory.

The second type of configurable option is when there are only a small number of options from which to choose (although only one option will be visible at a time). Consider the Parity attribute under Serial set as an example. Follow the tree graph to arrive at the following Parity screen. The first option, None, is displayed, with a down arrow all the way to the right. This is an indication that there are other options from which to choose.

P a r i t Y

N O n e

Press the down cursor button once to see Odd as the second option.

P a r i t Y

O d d

Press the down cursor button again to see Even as the third option.

P A R I T Y

E v e n

Press the down cursor button again to see Space as the fourth option.

P A R I T Y

S p a c e

Press the down cursor button yet again to see the last option, Mark.

P A R I T Y

M a r k

To choose the desired option, press the SEL button when the option is showing on the screen.

↓

↑ ↓

↑

NPort Administration Suite

NPort Administration Suite consists of some useful utility programs that are used to configure and manage your NPorts.

See Chapter 6 for details on how to install NPort Administration Suite, and how to use this suite of useful utilities to set up IP addresses and configure your NPort.

ARP

You can make use of the ARP (Address Resolution Protocol) command to set up an IP address for your NPort. The ARP command tells your computer to associate the NPort’s MAC address with the intended IP address. You must then use Telnet to access the NPort, at which point the Device Server’s IP address will be reconfigured.

3-5

NPort 5600 Series User’s Manual Initial IP Address Configuration

In order to use this setup method, both your computer and NPort must be connected to the same LAN. Or, you may use a cross-over Ethernet cable to connect the NPort directly to your computer’s Ethernet

card. Your NPort must be configured with the factory default IP address—192.168.127.254—before

executing the ARP command, as described below.

Take the following steps to use ARP to configure the IP address:

1. Obtain a valid IP address for your NPort from your network administrator.

2. Obtain the NPort’s MAC address from the label on its bottom panel.

3. Execute the ‘arp -s’ command from your computer’s MS-DOS prompt by typing:

arp –s 192.168.200.100 00-90-E8-xx-xx-xx

This is where 192.168.200.100 is the new IP address and 00-90-E8-xx-xx-xx is the MAC address for your NPort. You will need to change both numbers, as described above in points 1 and 2.

4. Next, execute a special Telnet command by typing:

telnet 192.168.200.100 6000 After issuing this command, a Connect failed message will appear, as shown here. After the NPort reboots, its IP address should be updated to the new address, and you can reconnect using either Telnet, Web, or Administrator to check that the update was successful.

Telnet Console

Depending on how your computer and network are configured, you may find it convenient to use network access to set up your NPort’s IP address. This can be done using the Telnet program.

Figures in this section will use 5610-8 as an example.

1. From the Windows desktop, click on Start and then select Run.

2. Type telnet 192.168.127.254 (use the

correct IP address if different from the default) in the Open text input box, and then click OK.

3-6

NPort 5600 Series User’s Manual Initial IP Address Configuration

3. When the Telnet window opens, if you are prompted to

input the Console password, input the password and then press Enter. Note that this page will only appear if the NPort is password protected.

4. Type 2 to select Network settings, and then press

Enter.

5. Type 1 to select IP address and then press Enter.

6. Use the Backspace key to erase the current IP

address, type in the new IP address, and then press Enter.

3-7

NPort 5600 Series User’s Manual Initial IP Address Configuration

7. Press any key to continue…

8. Type m or M and then press Enter to return to the

main menu.

9. Type s or S and then press Enter to Save/Restart

the system.

10. Type y or Y and then press Enter to save the new

IP address and restart NPort.

3-8

Chapter 4 Choosing the Proper Operation Mode

In this section, we describe the various NPort operation modes. The options include an operation mode that uses a driver installed on the host computer, and operation modes that rely on TCP/IP socket programming concepts. After choosing the proper operating mode in this chapter, refer to Chapter 5 for detailed configuration parameter definitions.

 Overview

 TCP Server Mode

 TCP Client Mode

 UDP Mode

 Real COM Mode

NPort 5600 Series User’s Manual Choosing the Proper Operation Mode

Overview

NPort Device Servers network-enable traditional RS-232/422/485 devices, in which a Device Server is a tiny computer equipped with a CPU, real-time OS, and TCP/IP protocols that can bi-directionally translate data between the serial and Ethernet formats. Your computer can access, manage, and configure remote facilities and equipment over the Internet from anywhere in the world.

Traditional SCADA and data collection systems rely on serial ports (RS-232/422/485) to collect data from various kinds of instruments. Since NPort Serial Device Servers network-enable instruments equipped with an RS-232/422/485 communication port, your SCADA and data collection system will be able to access all instruments connected to a standard TCP/IP network, regardless of whether the devices are used locally or at a remote site.

NPort is an external IP-based network device that allows you to expand the number of serial ports for a host computer on demand. As long as your host computer supports the TCP/IP protocol, you won’t be limited by the host computer’s bus limitation (such as ISA or PCI), or lack of drivers for various operating systems.

In addition to providing socket access, NPort also comes with a Real COM/TTY driver that transmits all serial signals intact. This means that your existing COM/TTY-based software can be preserved, without needing to invest in additional software.

In addition to providing socket access, as long as your host computer supports the TCP/IP protocol, you won’t be limited by the host computer’s bus limitation (such as ISA or PCI), or lack of drivers for various operating systems.

Three different Socket Modes are available: TCP Server, TCP Client, and UDP Server/Client. The main difference between the TCP and UDP protocols is that TCP guarantees delivery of data by requiring the recipient to send an acknowledgement to the sender. UDP does not require this type of verification, making it possible to offer speedier delivery. UDP also allows multicasting of data to groups of IP addresses.

TCP Server Mode

In TCP Server mode, NPort provides a unique IP:Port address on a TCP/IP network. NPort waits passively to be contacted by the host computer, allowing the host computer to establish a connection with and get data from the serial device. This operation mode also supports up to 4 simultaneous connections, so that multiple hosts can collect data from the same serial device—at the same time.

As illustrated in the figure, data transmission proceeds as follows:

1. The host requests a connection from the NPort configured for TCP Server Mode.

2. Once the connection is established, data can be transmitted in both directions—from the host to the NPort, and from the NPort to the host.

4-2

NPort 5600 Series User’s Manual Choosing the Proper Operation Mode

TCP Client Mode

In TCP Client mode, NPort can actively establish a TCP connection to a pre-defined host computer when serial data arrives.

After the data has been transferred, NPort can automatically disconnect from the host computer by using the TCP alive check time or Inactivity time settings. Refer to Chapter 5 for more details

As illustrated in the figure, data transmission proceeds as follows:

1. The NPort configured for TCP Client Mode requests to connect to the host.

2. Once the connection is established, data can be transmitted in both directions—from the host to the NPort, and from the NPort to the host.

UDP Mode

Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can unicast or multicast data from the serial device to one or multiple host computers, and the serial device can also receive data from multiple host computers, making this mode ideal for message display applications.

Real COM Mode

NPort comes equipped with COM drivers that work with Windows 95/98/ME/NT/2000/XP systems, and also TTY drivers for Linux systems. The driver establishes a transparent connection between host and serial device by mapping the IP:Port of the NPort’s serial port to a local COM/TTY port on the host computer. This operation mode also supports up to 4 simultaneous connections, so that multiple hosts can collect data from the same serial device at the same time.

4-3

NPort 5600 Series User’s Manual Choosing the Proper Operation Mode

The driver used for Real COM Mode comes with the NPort Windows Administrator which will install automatically on your computer when you install NPort Administration Suite.

The important point is that Real COM Mode allows users to continue using RS-232/422/485 serial communications software that was written for pure serial communications applications. The driver intercepts data sent to the host’s COM port, packs it into a TCP/IP packet, and then redirects it through the host’s Ethernet card. At the other end of the connection, the NPort accepts the Ethernet frame, unpacks the TCP/IP packet, and then transparently sends it to the appropriate serial device attached to one of the NPort’s serial ports.

Real COM Mode allows several hosts to have access control of the same NPort. The Moxa driver that comes with your NPort controls host access to attached serial devices by checking the host’s IP address.

Refer to Accessible IP Settings in Chapter 5 for more details.

4-4

Chapter 5 Web Console Configuration

The Web Console is the most user-friendly method available to configure NPort 5600 Series. This chapter will introduce the Web Console function groups and function definitions. The figures in this chapter were borrowed from the manual for NPort 5200, which uses the same Web Console user interface as NPort 5600.

 Opening Your Browser

 Basic Settings

 Network Settings

 Serial Settings

 Operating Settings

¾ Real COM Mode

¾ TCP Server Mode

¾ TCP Client Mode

¾ UDP Mode

 Accessible IP Settings

 Auto Warning Settings

¾ Auto warning: E-mail and SNMP Trap

¾ Event Type

 Change Password

 Load Factory Default

NPort 5600 Series User’s Manual Web Console Configuration

Opening Your Browser

1. Open your browser with the cookie function enabled. (To enable your browser for cookies,

right click on your desktop Internet Explorer icon, select Properties, click on the Security tab, and then select the three Enable options as shown in the figure below.)

2. Type 192.168.127.254 in the Address

input box (use the correct IP address if different from the default), and then press Enter.

3. Input the password if prompted. The password

will be transmitted with MD5 encryption over the Ethernet. Note that you will not be prompted to enter the password if the NPort is not currently password protected.

5-2

NPort 5600 Series User’s Manual Web Console Configuration

4. The NPort 5600 homepage will open. On this page, you can see a brief description of the Web

Console’s nine function groups.

If you can’t remember the password, the ONLY way to start configuring NPort is to load factory defaults by using the Reset button located next to the LCM Display.

Remember to use Windows Administrator to export the configuration file when you have finished the configuration. After using the Reset button to load factory defaults, your configuration can be easily reloaded into NPort by using the Windows Administrator Import function. Refer to Chapter 6 for more details about using the Export and Import functions.

If your NPort application requires using password protection, you must enable the cookie function in your browser. If the cookie function is disabled, you will not be allowed to enter the Web Console Screen.

5-3

NPort 5600 Series User’s Manual Web Console Configuration

Basic Settings

Server name

Setting Factory Default Necessity

1 to 39 characters NP[model name]-[Port No.]_ [Serial No.] Optional

This option is useful for specifying the location or application of different NPorts.

Time

NPort 5600 has a built-in Real-Time Clock for time calibration functions. Functions such as Auto warning “Email” or “SNMP Trap” can add real-time information to the message.

First time users should select the time zone first. The Console will display the “real time” according to the time zone compared to GMT. If you would like to modify the real time clock, select “Local Time.” NPort’s firmware will modify the GMT time according to the Time Zone.

Time zone

Setting Factory Default Necessity

User selectable time zone GMT (Greenwich Mean Time) Optional

Local time

Setting Factory Default Necessity

User adjustable time.

(1900/1/1-2037/12/31)

GMT (Greenwich Mean Time) Optional

5-4

NPort 5600 Series User’s Manual Web Console Configuration

Click on the Modify button to open the Modify time settings window to input

the correct local time.

Time server

Setting Factory Default Necessity

IP or Domain address (E.g., 192.168.1.1 or time.stdtime.gov.tw)

NPort 5600 uses SNTP (RFC-2030) for auto time calibration.

Input the correct “Time server” IP address or domain address. Once NPort is configured with the correct Time Server address, NPort will request time information from the “Time server” every 10 minutes.

None Optional

Console

The “Disable” option for Web Console and Telnet Console is included for security reasons. In some cases, you may want to Disable one or both of these Console utilities as an extra precaution to prevent unauthorized users from accessing your NPort. The factory default for both Web Console and Telnet Console is Enable.

Setting Factory Default Necessity

Enable or Disable Enable Required

If you disable both the “Web Console” and “Telnet Console,” you can still use the LCM Display to configure NPort locally, or Windows Administrator to configure NPort either locally or remotely over the network.

5-5

NPort 5600 Series User’s Manual Web Console Configuration

Network Settings

You must assign a valid IP address to NPort 5600 before it will work in your network environment. Your network system administrator should provide you with an IP address and related settings for your network. The IP address must be unique within the network (otherwise, NPort 5600 will not have a valid connection to the network). First time users can refer to Chapter 3, Initial IP Address Configuration, for more information.

You can choose from four possible IP Configuration modes—Static, DHCP, DHCP/BOOTP, and

BOOTP—located under the web console screen’s IP configuration drop-down box.

Method Function Definition

Static User defined IP address, Netmask, Gateway. DHCP

DHCP/BOOTP

BOOTP BOOTP Server assigned IP address

IP Address

Setting Factory Default Necessity

E.g., 192.168.1.1 (IP addresses of the form x.x.x.0 and

x.x.x.255 are invalid.)

An IP address is a number assigned to a network device (such as a computer) as a permanent address on the network. Computers use the IP address to identify and talk to each other over the

DHCP Server assigned IP address, Netmask, Gateway, DNS, and Time Server

DHCP Server assigned IP address, Netmask, Gateway, DNS, and Time Server, or BOOTP Server assigned IP address (if the DHCP Server does not respond)

192.168.127.254 Required

5-6

NPort 5600 Series User’s Manual Web Console Configuration

network. Choose a proper IP address which is unique and valid in your network environment.

Netmask

Setting Factory Default Necessity

E.g., 255.255.255.0 255.255.255.0 Required

A subnet mask represents all the network hosts at one geographic location, in one building, or on the same local area network. When a packet is sent out over the network, the NPort will use the subnet mask to check if the desired TCP/IP host specified in the packet is on the local network segment. If the address is on the same network segment as the NPort, a connection is established directly from the NPort. Otherwise, the connection is established through the given default gateway.

Gateway

Setting Factory Default Necessity

E.g., 192.168.1.1 None Optional

A gateway is a network gateway that acts as an entrance to another network. Usually, the computers that control traffic within the network or at the local Internet service provider are gateway nodes. NPort needs to know the IP address of the default gateway computer in order to communicate with the hosts outside the local network environment. For correct gateway IP address information, consult the network administrator.

IP Configuration

Setting Factory Default Necessity

Static DHCP DHCP/BOOTP BOOTP

Static Required

In Dynamic IP environments, the firmware will retry 3 times every 30 seconds until network settings are assigned by the DHCP or BOOTP server. The Timeout for each try increases from 1 second, to 3 seconds, to 5 seconds.

If the DHCP/BOOTP Server is unavailable, the firmware will use the default IP address (192.168.127.254), Netmask, and Gateway for IP settings.

DNS server 1 / DNS server 2

Setting Factory Default Necessity

E.g., 192.168.1.1 (IP addresses of the form x.x.x.0 and

x.x.x.255 are invalid.)

When the user wants to visit a particular website, the computer asks a Domain Name System (DNS) server for the website’s correct IP address, and the computer uses the response to connect to the web server. DNS is the way that Internet domain names are identified and translated into IP addresses. A domain name is an alphanumeric name, such as moxa.com, that it is usually easier to remember. A DNS server is a host that translates this kind of text-based domain name into the numeric IP address used to establish a TCP/IP connection.

In order to use NPort’s DNS feature, you need to configure the DNS server. Doing so allows NPort to use a host’s domain name to access the host. NPort provides DNS server 1 and DNS

None Optional

5-7

NPort 5600 Series User’s Manual Web Console Configuration

server 2 configuration items to configure the IP address of the DNS server. DNS server 2 is included for use when DNS server 1 is unavailable.

NPort plays the role of DNS client, in the sense that the NPort will actively query the DNS server for the IP address associated with a particular domain name. Functions that support domain name in NPort are Time sever, Destination IP Address in TCP Client mode, Mail Server, SNMP trap server, and Auto report to IP.

SNMP Settings

Community name

Setting Factory Default Necessity

1 to 39 characters (E.g., Support, 886-89191230 #300)

A community name is a plain-text password mechanism that is used to weakly authenticate queries to agents of managed network devices.

Contact

Setting Factory Default Necessity

1 to 39 characters (E.g., Support, 886-89191230 #300)

The SNMP contact information usually includes an emergency contact name and telephone or pager number.

public Optional

None Optional

Location

Setting Factory Default Necessity

1 to 39 characters (E.g., Floor 1, office 2)

Specify the location string for SNMP agents such as NPort. This string is usually set to the street address where the NPort is physically located.

None Optional

IP Address Report

When NPort 5600 series products are used in a dynamic IP environment, users must spend more time with IP management tasks. For example, if NPort works as a server (TCP or UDP), then the host, which acts as a client, must know the IP address of the server. If the DHCP server assigns a new IP address to NPort, the host must have some way of determining NPort’s new IP address. NPort 5000 series products help out by periodically reporting their IP address to the IP location server, in case the dynamic IP has changed. The parameters shown below are used to configure the Auto IP report function. There are two ways to develop an “Auto IP report Server” to receive NPort’s Auto IP report.

1. Use NPort Administrator’s IP Address Report function.

2. “Auto IP report protocol,” which can automatically receive the Auto IP report on a regular basis, is also available to help you develop your own software. Refer to Appendix E for the “Auto IP report protocol”.

5-8

NPort 5600 Series User’s Manual Web Console Configuration

Auto report to IP

Setting Factory Default Necessity

E.g., 192.168.1.1 (IP addresses of the form x.x.x.0 and

x.x.x.255 are invalid.)

Reports generated by the Auto report function will be sent automatically to this IP address.

Auto report to TCP port

Setting Factory Default Necessity

E.g., 4001 None Optional

Auto report period

Setting Factory Default Necessity

Time interval (in seconds) 10 Optional

None Optional

Serial Settings

Click on Serial Settings, located under Main Menu, to display serial port settings for ports 1 and

NOTE: Since this figure was borrowed from the manual of NPort 5200, which has only 2 RS-232 ports, there are only 2 ports shown in this figure. Once you have completed the hardware installation of NPort 5600, there should be either 16 or 8 ports shown in the figure, depending on the model you installed. The steps for changing the settings of the other ports are the same as those for Port 1 and Port 2.

To modify serial settings for a particular port, click on either Port 1 or Port 2 under Serial Settings, located under Main Menu on the left side of the browser window

5-9

NPort 5600 Series User’s Manual Web Console Configuration

Port alias

Setting Factory Default Necessity

1 to 15 characters (E.g., PLC-No.1)

“Port Alias” is specially designed to allow easy identification of the serial devices which are connected to NPort’s serial port.

None Optional

Serial Parameters

Check the serial communication parameters in your Serial Device’s user’s manual. You should set up NPort’s serial parameters with the same communication parameters used by your serial devices.

Baud rate

Setting Factory Default Necessity

50 bps to115.2 Kbps 115.2 Kbps Required

Data bits

Setting Factory Default Necessity

5, 6, 7, 8 8 Required

When the user sets Data bits to 5 bits, the stop bits setting will automatically change to 1.5 bits.

Stop bits

Setting Factory Default Necessity

1, 2 1 Required

Stop bits will be set to 1.5 when Data bits is set to 5 bits.

Parity

Setting Factory Default Necessity

None, Even, Odd, Space, Mark None Required

5-10

NPort 5600 Series User’s Manual Web Console Configuration

Flow control

Setting Factory Default Necessity

None, RTS/CTS, DTR/DSR, Xon/Xoff RTS/CTS Required

FIFO

Setting Factory Default Necessity

Enable, Disable Enable Required

NPort’s serial ports provide a 16-byte FIFO both in the Tx and Rx directions. Disable the FIFO setting when your serial device does not have a FIFO to prevent data loss during communication.

Interface

Setting Factory Default Necessity

NPort 5610-16/8: RS-232 only RS-232 only Required NPort 5630-16/8: RS-422/485 only 4-wire 485 Required

Operating Settings

Press Operating Settings located under Main Menu, to display the operating settings for all of NPort’s serial ports.

5-11

NPort 5600 Series User’s Manual Web Console Configuration

Real COM Mode

TCP alive check time

Setting Factory Default Necessity

0 to 99 min 7 min Optional

0 min: TCP connection is not closed due to an idle TCP connection.

1 to 99 min: NPort automatically closes TCP connection if there is no TCP activity for the given time. After the connection is closed, NPort starts listening for another Real COM driver connection from another host.

Max connection

Setting Factory Default Necessity

1, 2, 3, 4 1 Required

Max connection is usually used when the user needs to receive data from different hosts simultaneously. The factory default is 1. In this case, only one specific host can access this port of the NPort, and the Real COM driver on that host will have full control over the port.

Max. connection 1: Allows only 1 host’s Real COM driver to open the specific NPort serial port.

Max connection 2 to 4: Allows 2 to 4 hosts’ Real COM drivers to open the specific NPort serial port at the same time. When multiple hosts’ Real COM drivers open the serial port at the same time, the COM driver only provides a pure data tunnel without control ability. That is, this serial port parameter will use firmware’s settings, not depend on your application program (AP).

Application software that is based on the COM driver will receive a driver response of “success” when the software uses any of the Win32 API functions. The firmware will only send the data back to the driver on the host.

Data will be sent first-in-first-out when data comes into the NPort from the Ethernet interface.

5-12

NPort 5600 Series User’s Manual Web Console Configuration

Delimiter 1

Setting Factory Default Necessity

00 to FF None Optional

Delimiter 2

Setting Factory Default Necessity

00 to FF None Optional

Once the NPort receives both delimiters through its serial port, it immediately packs all data currently in its buffer and sends it to the NPort’s Ethernet port.

Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of the serial data received is greater than 1 KB, the NPort will automatically pack the data and send it to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter

1. If Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work

properly.

Force transmit

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0: Disable the force transmit timeout.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame.

This parameter defines the time interval during which NPort fetches the serial data from its internal buffer. If data is incoming through the serial port, NPort stores the data in the internal buffer. NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the Force transmit time interval reaches the time specified under Force transmit timeout.

The optimal Force transmit timeout depends on your application, but it must be at least larger than one character interval within the specified baud rate. For example, assume that the serial port is set to 1200 bps, 8 data bits, 1 stop bit, and none for parity. In this case, the total number of bits needed to send a character is 10 bits, and the time required to transfer one character is

( 10 (bits) / 1200 (bits/s) ) * 1000 (ms/s) = 8.3 ms.

Therefore, you should set Force transmit timeout to be larger than 8.3 ms, so in this case, it must be greater than or equal to 10 ms.

If the user wants to send the series of characters in the same packet, the serial device attached to NPort should send that series of characters during a time interval less than the Force Transmit timeout for NPort, and the total length of data must be less than or equal to NPort’s internal buffer size. The serial communication buffer size for NPort is 1 KB per port.

5-13

NPort 5600 Series User’s Manual Web Console Configuration

TCP Server Mode

TCP alive check time

Setting Factory Default Necessity

0 to 99 min 7 min Optional

0 min: TCP connection is not closed due to an idle TCP connection.

1 to 99 min: NPort automatically closes the TCP connection if there is no TCP activity for the given time. After the connection is closed, NPort starts listening for another host’s TCP connection.

Inactivity time

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0 ms: TCP connection is not closed due to an idle serial line.

0-65535 ms: NPort automatically closes the TCP connection if there is no serial data activity for the given time. After the connection is closed, NPort starts listening for another host’s TCP connection.

This parameter defines the maintenances status as Closed or Listen on the TCP connection. The connection is closed if there is no incoming or outgoing data through the serial port during the specific Inactivity time.

5-14

NPort 5600 Series User’s Manual Web Console Configuration

If the Inactivity time is set to 0, the current TCP connection is kept active until a connection close request is received. Although Inactivity time is disabled, the NPort will check the connection status between the NPort and remote host by sending “keep alive” packets periodically. If the remote host does not respond to the packet, NPort assumes that the connection was closed down unintentionally. NPort will then force the existing TCP connection to close.

The Inactivity time should at least be set larger than that of Force transmit timeout. To prevent the unintended loss of data due to the session being disconnected, it is highly recommended that this value is set large enough so that the intended data transfer is completed.

Max connection

Setting Factory Default Necessity

1, 2, 3, 4 1 Required

Max connection is usually used when the user needs to receive data from different hosts simultaneously. The factory default only allows 1 connection at a time.

Max. connection 1:

NPort only allows 1 host to open the TCP connection to the specific serial port.

Max connection 2 to 4:

Allows 2 to 4 host’s TCP connection request to open this NPort serial port, at the same time. When multiple hosts establish a TCP connection to the specific serial port at the same time, NPort will duplicate the serial data and transmit to all of the hosts. Ethernet data is sent on a first-in-first-out basis to the serial port when data comes into NPort from the Ethernet interface.

Delimiter 1

Setting Factory Default Necessity

00 to FF None Optional

Delimiter 2

Setting Factory Default Necessity

00 to FF None Optional

Once the NPort receives both delimiters through its serial port, it immediately packs all data currently in its buffer and sends it to the NPort’s Ethernet port.

1. If Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work

properly.

Force transmit

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0: Disable the force transmit timeout.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame.

5-15

NPort 5600 Series User’s Manual Web Console Configuration

( 10 (bits) / 1200 (bits/s) ) * 1000 (ms/s) = 8.3 ms.

Therefore, you should set Force transmit timeout to be larger than 8.3 ms, so in this case, it must be greater than or equal to 10 ms.

Local TCP port

Setting Factory Default Necessity

1 to 65535 4001 Required

The “Local TCP port” is the TCP port that NPort uses to listen to connections, and that other devices must use to contact NPort. To avoid conflicts with well known TCP ports, the default is set to 4001.

Command port

Setting Factory Default Necessity

1 to 65535 966 Optional

The “Command port” is a listen TCP port for IP-Serial Lib commands from the host. In order to prevent a TCP port conflict with other applications, the user can set the Command port to another port if needed. IP-Serial Lib will automatically check the Command Port on NPort so that the user does not need to configure the program.

5-16

NPort 5600 Series User’s Manual Web Console Configuration

TCP Client Mode

TCP alive check time

Setting Factory Default Necessity

0 to 99 min 7 min Optional

0 min: TCP connection is not closed due to an idle TCP connection.

1 to 99 min: NPort automatically closes the TCP connection if there is no TCP activity for the given time.

Inactivity time

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0 ms: TCP connection is not closed due to an idle serial line.

0-65535 ms: NPort automatically closes TCP connection, if there is no serial data activity for the given time.

If the value of inactivity time is set to 0, the current TCP connection is maintained unless there’s no connection close request. Although the inactivity time is disabled, the NPort will check the connection status between the NPort and remote host by sending “keep alive” packets periodically. If the remote host does not respond to the packets, it treats the connection as being down unintentionally. NPort will then force the existing TCP connection to close.

5-17

NPort 5600 Series User’s Manual Web Console Configuration

Inactivity time is ONLY active when “TCP connection on” is set to “Any Character.”

Delimiter 1

Setting Factory Default Necessity

00 to FF None Optional

Delimiter 2

Setting Factory Default Necessity

00 to FF None Optional

Once the NPort receives both delimiters through its serial port, it immediately packs all data currently in its buffer and sends it to the NPort’s Ethernet port.

1. If Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work

properly.

Force transmit

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0: Disable the force transmit timeout.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame.

( 10 (bits) / 1200 (bits/s) ) * 1000 (ms/s) = 8.3 ms.

Therefore, you should set Force transmit timeout to be larger than 8.3 ms, so in this case, it must be greater than or equal to 10 ms.

If the user wants to send the series of characters in the same packet, the serial device attached to

5-18

NPort 5600 Series User’s Manual Web Console Configuration

NPort should send that series of characters during a time interval less than the Force Transmit timeout for NPort, and the total length of data must be less than or equal to NPort’s internal buffer size. The serial communication buffer size for NPort is 1 KB per port.

Destination IP address 1

Setting Factory Default Necessity

IP address or Domain Address (E.g., 192.168.1.1)

Allows NPort to connect actively to the remote host whose address is set by this parameter.

Destination IP address 2/3/4

Setting Factory Default Necessity

IP address or Domain Address (E.g., 192.168.1.1)

Allows NPort to connect actively to the remote host whose address is set by this parameter.

Up to 4 connections can be established between NPort and hosts. The connection speed or throughput may be low if one of the four connections is slow, since the 1 slow connection will slow down the other 3 connections.

None Required

None Optional

The “Destination IP address” parameter can use both IP address and Domain Name. For some applications, the user may need to send the data actively to the remote destination domain name.

TCP connect on

Setting Factory Default Necessity

Startup, Any Character

Startup: Attempts to establish a TCP connection as soon as the NPort is powered on.

Any Character: Attempts to establish a TCP connection as soon as the NPort starts receiving serial data.

None Optional

5-19

NPort 5600 Series User’s Manual Web Console Configuration

UDP Mode

Delimiter 1

Setting Factory Default Necessity

00 to FF None Optional

Delimiter 2

Setting Factory Default Necessity

00 to FF None Optional

Once the NPort receives both delimiters through its serial port, it immediately packs all data currently in its buffer and sends it to the NPort’s Ethernet port.

1. If Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work

properly.

Force transmit

Setting Factory Default Necessity

0 to 65535 ms 0 ms Optional

0: Disable the force transmit timeout.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame.

5-20

NPort 5600 Series User’s Manual Web Console Configuration

to 1200 bps, 8 data bits, 1 stop bit, and none for parity. In this case, the total number of bits needed to send a character is 10 bits, and the time required to transfer one character is

( 10 (bits) / 1200 (bits/s) ) * 1000 (ms/s) = 8.3 ms.

Therefore, you should set Force transmit timeout to be larger than 8.3 ms, so in this case, it must be greater than or equal to 10 ms.

Destination IP address 1

Setting Factory Default Necessity

IP address range E.g., Begin: 192.168.1.1

End: 192.168.1.10

Destination IP address 2/3/4

Setting Factory Default Necessity

IP address range E.g., Begin: 192.168.1.11

End: 192.168.1.20

Begin: Empty End: Empty Port: 4001

Required

Optional

Local listen port

Setting Factory Default Necessity

1 to 65535 4001 Required

The UDP port that NPort listens to, and that other devices must use to contact NPort. To avoid conflicts with well known UDP ports, the default is set to 4001.

5-21

NPort 5600 Series User’s Manual Web Console Configuration

Accessible IP Settings

NPort has an IP address based filtering method to control access to itself.

Accessible IP Settings allows you to add or block remote host IP addresses to prevent unauthorized access. Access to NPort is controlled by IP address. That is, if a host’s IP address is in the accessible IP table, then the host will be allowed to access the NPort. You can allow one of the following cases by setting the parameter.

z Only one host with a specific IP address can access the NPort

Enter “IP address/255.255.255.255” (e.g., “192.168.1.1/255.255.255.255”).

z Hosts on a specific subnet can access the NPort

Enter “IP address/255.255.255.0” (e.g., “192.168.1.0/255.255.255.0”).

z Any host can access the NPort

Disable this function. Refer to the following table for more details about the configuration example.

Allowable Hosts Input format

Any host Disable

192.168.1.120 192.168.1.120 / 255.255.255.255

192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0

192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0

192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128

192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128

5-22

NPort 5600 Series User’s Manual Web Console Configuration

Auto Warning Settings

Auto warning: E-mail and SNMP Trap

Mail Server

Mail server

Setting Factory Default Necessity

IP or Domain Name None Optional

User name

Setting Factory Default Necessity

1 to 15 characters None Optional

Password

Setting Factory Default Necessity

1 to 15 characters None Optional

From E-mail address

Setting Factory Default Necessity

1 to 63 characters None Optional

E-mail address 1/2/3/4

Setting Factory Default Necessity

1 to 63 characters None Optional

5-23

NPort 5600 Series User’s Manual Web Console Configuration

Consult your Network Administrator or ISP for the proper mail server settings. The Auto warning function may not work properly if it is not configured correctly. NPort SMTP AUTH supports LOGIN, PLAIN, CRAM-MD5 (RFC 2554).

SNMP Trap Server

SNMP trap server IP or domain name

Setting Factory Default Necessity

IP or Domain Name None Optional

Event Type

Cold start

This refers to starting the system from power off (contrast this with warm start). When performing a cold start, NPort will automatically issue an Auto warning message by e-mail, or send an SNMP trap after booting up.

Warm start

This refers to restarting the computer without turning the power off. When performing a warm start, NPort will automatically send an e-mail, or send an SNMP trap after rebooting.

Authentication failure

The user inputs a wrong password from the Console or Administrator. When authentication failure occurs, NPort will immediately send an e-mail or send an SNMP trap.

IP address changed

The user has changed NPort’s IP address. When the IP address changes, NPort will send an e-mail with the new IP address before NPort reboots. If the NPort is unable to send an e-mail message to the mail server within 15 seconds, NPort will reboot anyway, and abort the e-mail auto warning.

Password changed

The user has changed NPort’s password. When the password changes, NPort will send an e-mail

5-24

NPort 5600 Series User’s Manual Web Console Configuration

with the password change notice before NPort reboots. If the NPort is unable to send an e-mail message to the mail server within 15 seconds, NPort will reboot anyway, and abort the e-mail auto warning.

DCD changed

The DCD (Data Carrier Detect) signal has changed, also indicating that the modem connection status has changed. For example, a DCD change to high also means “Connected” between local modem and remote modem. If the DCD signal changes to low, it also means that the connection line is down.

When the DCD changes, NPort 5610 will immediately send an e-mail or send an SNMP trap.

DSR changed

The DSR (Data Set Ready) signal has changed, also indicating that the data communication equipment’s power is off. For example, a DSR change to high also means that the DCE is powered ON. If the DSR signal changes to low, it also means that the DCE is powered off.

When the DSR changes, NPort 5610 will immediately send an e-mail or send an SNMP trap.

Mail

Setting Factory Default Necessity

Enable, Disable Disable Optional

This feature helps the administrator manage how the NPort sends e-mail to pre-defined e-mail boxes when the enabled events—such as Cold start, Warm start, Authentication failure, etc.—occur. To configure this feature, click on the Event Type Mail checkbox.

Trap

Setting Factory Default Necessity

Enable, Disable Disable Optional

This feature helps the administrator manage how the NPort sends SNMP Trap to a pre-defined SNMP Trap server when the enabled events—such as Cold start, Warm start, Authentication failure, etc.—occur. To configure this feature, click on the Event Type Trap checkbox.

DCD changed and DSR changed events are only supported by RS-232 ports (NPort 5610). Since NPort 5630 does not support the RS-232 interface, the DCD changed and DSR changed options will not appear in the Event Type screen for NPort 5630.

5-25

NPort 5600 Series User’s Manual Web Console Configuration

Change Password

Input the “Old password” and “New password” to change the password. Leave the password boxes blank to erase the password. In this case, the NPort will not have password protection.

If you forget the password, the ONLY way to configure NPort is by using the Reset button on NPort’s casing to “Load Factory Default.” Remember to export the configuration file using Windows Administrator when you finish the configuration. By using the Import function of Windows Administrator, your configuration can be re-loaded into NPort after using “Load Factory Default.” Refer to Chapter 6 for more details about the Export and Import function.

Load Factory Defaults

This function will reset all of NPort’s settings to their factory default values. Be aware that previous settings will be lost.

5-26

Chapter 6 Configuring Windows Administrator

Windows Administrator and Web Console are two powerful tools that can be used to configure the settings of your NPorts. Choose the method that is most convenient for you. Note that this chapter uses NPort 5230 as an example to introduce the installation and configuration of NPort Administration Suite. The functions and definitions are the same as for NPort 5600.

The following topics are covered in this chapter:

 Overview

 Installing Windows Administrator

 Configuration

¾ Broadcast Search

¾ Unlock Password Protection

¾ Configuring NPort 5600

¾ Upgrading Firmware

¾ Export/Import

 Monitor

 Port Monitor

 COM Mapping

¾ On-line COM Mapping

¾ Off-line COM Mapping

 IP Location

NPort 5600 Series User’s Manual Configuring Windows Administrator

Overview

We understand the importance of software as the foundation of your application, and with this in mind, we designed NPort Administrator to let you easily install and configure your NPort 5600 Series product over the network. NPort Administrator provides five function groups that ease the installation process, allows off-line COM mapping, and provides monitoring and IP location server functions.

NPort Administrator is an integrated software suite that bundles NPort Administrator and the IP Serial Library, and provides everything you need to remotely manage, monitor, and modify your NPort—hassle free.

NPort Administrator ONLY supports NPort 5000 Series products. For NPort DE-311 or DE-211, use NPort Management Suite, which can be downloaded from www.moxa.com

Installing Windows Administrator

1. Once the Setup program starts running, click on Yes to proceed.

2. Click on Next when the Welcome window opens to proceed with the installation.

3. Click on Next to install program files in the default directory, or select an alternative location.

6-2

NPort 5600 Series User’s Manual Configuring Windows Administrator

4. Click on Next to install the program using the default program name, or select a different name.

5. Click on Install to proceed with the installation.

6. The Installing window reports the progress of the installation.

7. Click on Next to proceed with the installation.

6-3

NPort 5600 Series User’s Manual Configuring Windows Administrator

8. Click on Finish to complete the installation of NPort Administration Suite.

Configuration

The Administrator-Configuration window is divided into four parts.

z The top part is the function list and online help area.

z The left part lists the five Administrator function groups.

z The right part shows the list of NPorts, each of which can be selected to process user

requirements.

z The bottom part is the Log area, which shows useful messages that record the user’s

processing history.

6-4

NPort 5600 Series User’s Manual Configuring Windows Administrator

Broadcast Search

The Broadcast Search function is used to locate all NPorts that are connected to the same LAN as your computer.

Since the Broadcast Search function searches by MAC address and not IP address, all NPorts connected to the LAN will be located, regardless of whether or not they are part of the same subnet as the host.

The Broadcast Search window will open and display the Model, IP Address, MAC Address, and Progress (of the search for that particular device).

When the search is complete, the Broadcast Search window closes, and the NPorts that were located are displayed in the right pane of the Administrator window. For the example shown here, NPort Administrator found 7 NPort Serial Device Servers on the LAN. As you can see, 2 of the 7 NPorts have password protection, which is indicated by Lock under Status.

To configure one of the listed NPorts, place the cursor over the row displaying that NPort’s information, and then right click.

Before modifying an NPort’s configuration, use Broadcast Search or Specify by IP Address to locate NPorts connected to the LAN.

6-5

NPort 5600 Series User’s Manual Configuring Windows Administrator

Unlock Password Protection

If the NPort is password protected, then you will not be able to use the double click method to open the configuration page.

Instead, select an NPort with “Lock” status, right click the locked NPort, and then select the Unlock button.

After inputting the correct password, the Administrator will display a message box as shown here.

The previous “Lock” status will switch to “Unlock” status. Administrator will keep this NPort in the Unlock status throughout this Administrator session.

The meanings of the six states are as follows (note that the term Fixed is borrowed from the standard fixed IP address networking terminology):

Lock

The NPort is password protected, “Broadcast Search” was used to locate it, and the password has not yet been entered from within the current Administrator session.

Unlock

The NPort is password protected, “Broadcast Search” was used to locate it, and the password has been entered from within the current Administrator session. Henceforth during this Administrator

6-6

NPort 5600 Series User’s Manual Configuring Windows Administrator

session, activating various utilities for this NPort will not require re-entering the server password.

Blank

The NPort is not password protected, and “Broadcast Search” was used to locate it.

Fixed The NPort is not password protected, and “Search by IP address” was used to locate it.

Lock Fixed The NPort is password protected, “Specify by IP address” was used to locate it, and the password has not yet been entered from within the current Administrator session.

Unlock Fixed The NPort is password protected, “Specify by IP address” was used to locate it, and the password has been entered from within the current Administrator session. Henceforth during this Administrator session, activating various utilities for this NPort will not require re-entering the server password.

Configuring NPort 5600

Input the password to Unlock the NPort. Right click on a specific NPort and select configure to start the configuration.

The progress bar shows that Administrator is retrieving configuration information from the specific NPort.

Refer to Chapter 5 for each parameter’s function definition. To modify the configuration, you must first click in the modify box to activate the parameter setting box.

6-7

NPort 5600 Series User’s Manual Configuring Windows Administrator

You can simultaneously modify the configurations of multiple NPorts that are of the same model.

To select multiple NPorts, hold down the Ctrl key when selecting additional NPorts, or hold down the Shift key to select a group of NPorts.

Upgrading Firmware

Input the password to Unlock the NPort, and then right click on a specific NPort and select the Upgrade Firmware function to start upgrading the firmware.

Select the correct ROM file to be downloaded to the NPort. Visit Moxa’s website at www.moxa.com for the latest firmware release.

Wait patiently while the Upgrade Firmware action is being processed.

You can simultaneously upgrade the firmware of multiple NPorts that are of the same model.

To select multiple NPorts, hold down the Ctrl key when selecting an additional NPort, or hold down the Shift key to select a block of NPorts.

6-8

NPort 5600 Series User’s Manual Configuring Windows Administrator

Export/Import

Input the password to Unlock the NPort, and then right click on a specific NPort and select the Export function to start Exporting the configuration file.

The Export Configuration function is a handy tool that can be used to produce a text file containing the current configuration of a particular NPort.

The Import Configuration function is used to import an NPort configuration from a file into one or more of the same model NPort.

To import a configuration, first select the target servers (use the left mouse button to select servers; simply hold down the Ctrl key when selecting the second, third, etc., NPort).

Monitor

You can simultaneously import the same configuration file into multiple NPorts that are of the same model.

To select multiple NPorts, hold down the Ctrl key when selecting an additional NPort, or hold down the Shift key to select a block of NPorts.

There are two methods available to start the Monitor function.

1. First use Broadcast Search under the Configuration Function group, and then click on Monitor Æ Add Target Æ Select target from the list.

2. First click on Monitor, and then Add Target Æ Rescan.

Select Broadcast under the Configuration menu bar item.

6-9

NPort 5600 Series User’s Manual Configuring Windows Administrator

Click on Monitor.

Select Add Target.

When you select add target, you will see an NPort list that looks the same as when using Configuration Æ Broadcast Search.

Check the NPort you would like to Monitor, and then click OK.

The NPort list will now appear on the Monitor screen.

Right click the panel and select Settings.

Select or de-select Monitor Items. Use the single arrowhead buttons to move highlighted items from one box to the other. Use the double arrowhead buttons to move all items in one box to the other.

6-10

NPort 5600 Series User’s Manual Configuring Windows Administrator

Select a Refresh Rate (the default is 3 seconds).

Select Display warning message for new event or Play warning music for new event. In the second case, you must enter the path to the WAV file that you want to be played. “New event” means that one of the 5600s in the monitor is “Alive” or “Not Alive,” or has lost connection with the Monitor program.

Press Go to start Monitor.

For this example, the 5 NPorts shown in the list will be monitored.

When one of the NPorts loses connection with the Monitor program, a warning alert will display automatically. The warning music will be played at the same time.

6-11

NPort 5600 Series User’s Manual Configuring Windows Administrator

In the Monitor screen, you can see the “Not Alive” NPort is marked with red color.

Click the Alive column. The Monitor program will sort the NPort list and put all “Not Alive” NPorts at the top of the list.

If the NPort gets reconnected, a warning will be displayed to remind the user the NPort is now “Alive.”

The NPort that was reconnected, and is now “Alive,” will be shown in black color.

Port Monitor

The process described here is the same as in the previous “Monitor” section. The only difference is that you can select more items under Port Monitor than under Monitor.

6-12

NPort 5600 Series User’s Manual Configuring Windows Administrator

Select or de-select Monitor Items. Use the single arrowhead buttons to move highlighted items from one box to the other. Use the double arrowhead buttons to move all items from one box to the other.

COM Mapping

Windows Administration Suite comes with Windows 95/98/ME/NT/2000/XP Real COM drivers. After you install Windows Administration Suite, there are two ways to set up the NPort’s serial port as your host’s remote COM port.

The first way is with On-line COM Mapping. On-line COM Mapping will check to make sure the NPort is connected correctly to the network and then install the driver on the host computer.

The second way is with Off-line COM Installation, without connecting the NPort to the network first. Off-line COM Mapping can decrease the system integrator’s effort by solving different field problems. Via off-line installation, the user can process the host software installation and then install the NPort to different fields.

Use the following procedure to map COM ports:

1. On-line COM Mapping:

Connect NPort to the network Æ Set NPort to the proper IP address Æ Map COMs to your host Æ Apply Change.

2. Off-line COM Mapping:

Map COMs to your host Æ Apply Change Æ Connect NPort to the network Æ Configure NPort’s IP address.

On-line COM Mapping

Broadcast Search for NPorts on the network.

Select the COM Mapping function group.

6-13

NPort 5600 Series User’s Manual Configuring Windows Administrator

Add the target to which you would like to map COM ports.

The NPort list that appears is the list generated by the previous Broadcast Search. Select the NPort to which you would like to map COM ports.

Select COM Setting to modify COM No., default setting, etc.

Select the COM No. COM ports that are “In use” or “Assigned” will also be indicated in this drop-down list. If you select multiple serial ports or multiple NPorts, remember to check the “Auto Enumerating” function to use the COM No. you select as the first COM No.

Hi-performance mode is the default for Tx mode. If the driver completes sending data out to the NPort, the driver will respond “Tx Empty” to the program.

Under classical mode, the driver will not notify the user’s program that Tx is completed until all Tx data has been sent out from the NPort; this mode will cause lower throughput. If you want to ensure that all data is sent out before further processing, classical mode is recommended.

Enable/Disable Tx/Rx FIFO. If disabled, NPort will send one byte each time the Tx FIFO becomes empty; and an Rx interrupt will be generated for each incoming byte. This will result in a faster response and lower throughput. If you want to use XON/XOFF flow control, we recommend setting FIFO to Disable.

6-14

NPort 5600 Series User’s Manual Configuring Windows Administrator

Fast Flush (only flush local buffer)

1. We have added one optional “Fast Flush” function in our new NPort Real COM driver. NPort Administrator Suite for 2G NPort adds it after version 1.2.

2. For some applications, the user’s program will use the Win32 “PurgeComm()” function before it reads or writes data. With our design, after the program uses this PurgeComm() function, the NPort driver will keep querying NPort’s firmware several times to make sure there is really no data queued in the NPort firmware buffer, rather than just flushing the local buffer. This kind of design is used because of some special considerations. However, it might take more time (about several hundred milliseconds) than a native COM1, because it needs to work via Ethernet. That’s why the native COM ports on the motherboard can work fast with this function call, but NPort requires much more time. In order to accommodate other applications that require a faster response time, the new NPort driver implements a new “Fast Flush” option. Note that by default, this function is disabled.

3. To begin with, make sure there are some “PurgeComm()” functions being used in your application program. In this kind of situation, you might find that your NPort exhibits a much poorer operation performance than when using the native COM1 port. Once you have enabled the “Fast Flush” function, you can check to see if there has been an improvement in performance.

4. By default, the optional “Fast Flush” function is disabled. If you would like to enable this function, from the “NPort Administrator,” double click on the COM ports that are mapped to the NPort, and then select the “Fast Flush” checkbox. You should fnd that when “Fast Flush” is enabled, the NPort driver will work faster with “PurgeComm().”

The Serial Parameter settings shown here are the default settings when the NPort is powered on. However, the program can redefine the serial parameters to different values after the program opens the port via Win 32 API.

After setting the COM Mapping, remember to select Apply Change to save the information in the host system registry. The host computer will not have the ability to use the COM port until after Apply Change is selected.

6-15

NPort 5600 Series User’s Manual Configuring Windows Administrator

Select Discard Change to tell Administrator NOT to save the COM Mapping information to the host.

To save the configuration to a text file, select Export COM Mapping. You will then be able to import this configuration file to another host and use the same COM Mapping settings in the other host.

Off-line COM Mapping

Add a target by inputting the IP address and selecting the Model Name without physically connecting the NPort to the network.

6-16

NPort 5600 Series User’s Manual Configuring Windows Administrator

Apply change.

IP Location

When NPort 5600 series products are used in a dynamic IP environment, users must spend more time with IP management tasks. NPort 5600 series products help out by periodically reporting their IP address to the IP location server, in case the dynamic IP has changed.

z Receive NPort’s IP location report

z Centralize NPort’s IP management in a dynamic IP environment.

Configure NPort with Dynamic IP settings. For example, DHCP, BOOTP and DHCP/BOOTP. Assign the remote Auto IP report server’s IP address and UDP port.

Select the IP Location Report, and click the right mouse button to select Settings.

Then configure the Local Listen Port to be the same as the NPort’s “Auto report to UDP port” setting.

6-17

NPort 5600 Series User’s Manual Configuring Windows Administrator

Click GO to start receiving the Auto IP address report from the NPort.

6-18

The following topics are covered in this chapter:

 Overview

 IP Serial LIB Function Groups

 Example Program

Chapter 7 IP Serial LIB

NPort 5600 Series User’s Manual IP Serial LIB

Overview

What is IP Serial Library?

IP Serial Library is a Windows library with frequently used serial command sets and subroutines. IP Serial Library is designed to reduce the complexity and poor efficiency of serial communication over TCP/IP. For example, Telnet can only transfer data, but it can't monitor or configure the serial line's parameters.

Why Use IP Serial Library?

For programmers who are familiar with serial communication, IP Serial Library provides well-designed function calls that have the same style as Moxa's PComm Library.

IP Serial Library is amazingly simple and easy to understand. By including it in your VB, C, or Delphi programming environment, you can program your own TCP/IP application with the ability to control serial communication parameters.

NPort Serial Device Servers use 2 TCP ports for communication between the NPort and host computer's Real COM driver. NPort uses a data port and command port to provide pure data transfer without decode and encode. Compared to using only one TCP port to control serial communication (such as RFC 2217), IP Serial Library uses a command port to communicate with NPort in the user's program. IP Serial Library not only runs with excellent efficiency but also runs without any decode or encode problems.

How to install IP Serial Library

IP Serial Lib comes with the NPort Administration Suite. Refer to the IPSerial directory for more details about the function definitions.

7-2

NPort 5600 Series User’s Manual IP Serial LIB

IP Serial LIB Function Groups

Server Control Port Control Input/Output Data Port Status

nsio_init nsio_end nsio_resetserver nsio_checkalive

Example Program

char nportip=”192.168.1.10”; char buffer[255]; int port = 1; int portid; nsio_init(); portid = nsio_open(nportip, port); nsio_ioctl(portid, B9600, (BIT_8 | STOP_1 | P_NONE) ); sleep(1000); nsio_read(port, buffer, 200); nsio_close(portid); nsio_end();

nsio_open nsio_close nsio_ioctl nsio_flowctrl nsio_DTR nsio_RTS nsio_lctrl nsio_baud nsio_resetport

nsio_read nsio_SetReadTimeouts nsio_write nsio_SetWriteTimeouts

/*data buffer, 255 chars */ /*1st port */ /* port handle */ /*initial IP Serial Library */ /*1st port, nport IP=192.168.1.10 */ /*set 9600, N81 */ /* wait for 1000 ms for data */ /* read 200 bytes from port 1 */ /* close this serial port */ /* close IP Serial Library */

Inquiry

nsio_lstatus nsio_data_status

Miscellaneous

nsio_break nsio_break_on nsio_break_off nsio_breakcount

7-3

Appendix A Pinouts and Cable Wiring

In this appendix, we cover the following topics.

 Port Pinout Diagrams

¾ Ethernet Port Pinouts

¾ Serial Port Pinouts

¾ Async Port 4-wire RS-422 Pinouts (RJ45)

¾ Async Port 2-wire RS-485 Pinouts (RJ45)

 Cable Wiring Diagrams

¾ Ethernet Cables

¾ Serial Cables

¾ Pin Assignments for DB9 and DB25 Connectors

NPort 5600 Series User’s Manual Pinouts and Cable Wiring

Port Pinout Diagrams

Ethernet Port Pinouts

Serial Port Pinouts

RS-232 Pinouts

4-wire RS-422 Pinouts

A-2

NPort 5600 Series User’s Manual Pinouts and Cable Wiring

2-wire RS-485 Pinouts

Cable Wiring Diagrams

Ethernet Cables

A-3

NPort 5600 Series User’s Manual Pinouts and Cable Wiring

Serial Cables

RJ45 (8 pins) to DB9 Female for NPort 5610

RJ45 (8 pins) to DB9 Male for NPort 5610

RJ45 (8 pins) to DB25 Female for NPort 5610

A-4

NPort 5600 Series User’s Manual Pinouts and Cable Wiring

RJ45 (8 pins) to DB25 Male for NPort 5610

Pin Assignments for DB9 and DB25 Connectors

Pin Assignments for DB9 Male and Female Connectors

DB9 Male Connector DB9 Female Connector

Pin Assignments for DB25 Male and Female Connectors

DB25 Male Connector DB25 Female Connector

A-5

Appendix B Well Known Port Numbers

In this appendix, which is included for your reference, we provide a list of Well Known port numbers that may cause network problems if you set NPort 5600 to one of these ports. Refer to RFC 1700 for Well Known port numbers, or refer to the following introduction from the IANA.

The port numbers are divided into three ranges: the Well Known Ports, the Registered Ports, and the Dynamic and/or Private Ports.

The Well Known Ports range from 0 through 1023.

The Registered Ports range from 1024 through 49151.

The Dynamic and/or Private Ports range from 49152 through 65535.

The Well Known Ports are assigned by the IANA, and on most systems, can only be used by system processes or by programs executed by privileged users. The following table shows famous port numbers among the well-known port numbers. For more details, please visit the IANA website at http://www.iana.org/assignments/port-numbers.

TCP Socket Application Service

0 reserved

1 TCP Port Service Multiplexor

2 Management Utility

7 Echo

9 Discard

11 Active Users (systat)

13 Daytime

15 Netstat

20 FTP data port

21 FTP CONTROL port

23 Telnet

25 SMTP (Simple Mail Transfer Protocol)

37 Time (Time Server)

42 Host name server (names server)

NPort 5600 Series User’s Manual Well Known Port Numbers

43 Whois (nickname)

49 (Login Host Protocol) (Login)

53 Domain Name Server (domain)

79 Finger protocol (Finger)

TCP Socket Application Service

80 World Wibe Web HTTP

119 Netword news Transfer Protocol (NNTP)

123 Network Time Protocol

213 IPX

160 – 223 Reserved for future use

UDP Socket Application Service

0 reserved

2 Management Utility

7 Echo

9 Discard

11 Active Users (systat)

13 Daytime

35 Any private printer server

39 Resource Location Protocol

42 Host name server (names server)

43 Whois (nickname)

49 (Login Host Protocol) (Login)

53 Domain Name Server (domain)

69 Trivial Transfer Protocol (TETP)

70 Gopler Protocol

79 Finger Protocol

80 World Wide Web HTTP

107 Remote Telnet Service

111 Sun Remote Procedure Call (Sunrpc)

119 Network news Tcanster Protocol (NNTP)

123 Network Time protocol (nnp)

161 SNMP (Simple Network Mail Protocol)

162 SNMP Traps

213 IPX (Used for IP Tunneling)

B-2

Appendix C SNMP Agent with MIB II & RS-232 Like

Group

NPort 5600 has built-in SNMP (Simple Network Management Protocol) agent software. It supports SNMP Trap, RFC1317 RS-232 like group and RFC1213 MIB-II. The following table lists the standard MIB-II group, as well as the variable implementation for NPort 5600.

RFC1213 MIB-II supported SNMP variables:

System MIB Interfaces MIB IP MIB ICMP MIB

SysDescr itNumber ipForwarding IcmpInMsgs

SysObjectID ifIndex ipDefaultTTL IcmpInErrors

SysUpTime ifDescr ipInreceives IcmpInDestUnreachs

SysContact ifType ipInHdrErrors IcmpInTimeExcds

SysName ifMtu ipInAddrErrors IcmpInParmProbs

SysLocation ifSpeed ipForwDatagrams IcmpInSrcQuenchs

SysServices ifPhysAddress ipInUnknownProtos IcmpInRedirects

ifAdminStatus ipInDiscards IcmpInEchos

ifOperStatus ipInDelivers IcmpInEchoReps

ifLastChange ipOutRequests IcmpInTimestamps

ifInOctets ipOutDiscards IcmpTimestampReps

ifInUcastPkts ipOutNoRoutes IcmpInAddrMasks

ifInNUcastPkts ipReasmTimeout IcmpOutMsgs

ifInDiscards ipReasmReqds IcmpOutErrors

ifInErrors ipReasmOKs IcmpOutDestUnreachs

NPort 5600 Series User’s Manual SNMP Agent with MIB II & RS-232 Like Group

System MIB Interfaces MIB IP MIB ICMP MIB

SysServices ifInUnknownProtos ipReasmFails IcmpOutTimeExcds

ifOutOctets ipFragOKs IcmpOutParmProbs

ifOutUcastPkts ipFragFails IcmpOutSrcQuenchs

ifOutNUcastPkts ipFragCreates IcmpOutRedirects

ifOutDiscards ipAdEntAddr IcmpOutEchos

ifOutErrors ipAdEntIfIndex IcmpOutEchoReps

ifOutQLen ipAdEntNetMask IcmpOutTimestamps

ifSpecific ipAdEntBcastAddr IcmpOutTimestampReps

ipAdEntReasmMaxSize IcmpOutAddrMasks

IpNetToMediaIfIndex IcmpOutAddrMaskReps

IpNetToMediaPhysAddress

IpNetToMediaNetAddress

IpNetToMediaType

IpRoutingDiscards

C-2

NPort 5600 Series User’s Manual SNMP Agent with MIB II & RS-232 Like Group

UDP MIB TCP MIB SNMP MIB

UdpInDatagrams tcpRtoAlgorithm snmpInPkts

UdpNoPorts tcpRtoMin snmpOutPkts

UdpInErrors tcpRtoMax snmpInBadVersions

UdpOutDatagrams tcpMaxConn snmpInBadCommunityNames

UdpLocalAddress tcpActiveOpens snmpInASNParseErrs

UdpLocalPort tcpPassiveOpens snmpInTooBigs

tcpAttempFails snmpInNoSuchNames

Address Translation MIB

AtIfIndex tcpCurrEstab snmpInReadOnlys

AtPhysAddress tcpInSegs snmpInGenErrs

AtNetAddress tcpOutSegs snmpInTotalReqVars

Address Translation MIB TCP MIB SNMP MIB

AtNetAddress tcpRetransSegs snmpInTotalSetVars

tcpConnState snmpInGetRequests

tcpEstabResets snmpInBadValues

tcpConnLocalAddress snmpInGetNexts

tcpConnLocalPort snmpInSetRequests

tcpConnRemAddress snmpInGetResponses

tcpConnRemPort snmpInTraps

tcpInErrs snmpOutTooBigs

tcpOutRsts snmpOutNoSuchNames

snmpOutBadValues

snmpOutGenErrs

snmpOutGetRequests

snmpOutGetNexts

snmpOutSetRequests

snmpOutGetResponses

snmpOutTraps

snmpEnableAuthenTraps

C-3

Appendix D Auto IP Report Protocol

NPort Series provides several ways to configure Ethernet IP addresses. One of them is DHCP Client. When you set up the NPort to use DHCP Client to configure Ethernet IP addresses, it will automatically send a DHCP request over the Ethernet to find the DHCP Server. And then the DHCP Server will send an available IP address to the NPort. The NPort will use this IP address for a period of time after receiving it. But the NPort will send a DHCP request again to the DHCP Server. Once the DHCP Server realizes that this IP address is to be released to other DHCP Client, the NPort then will receive a different IP address. For this reason, users sometimes find that the NPort will use different IP addresses, not a fixed IP address.

In order to know what IP address the NPort is using, you need to set up parameters in Network Settings via Web browser. The figure below is NPort Web console configuration window. Enter the IP address and the Port number of the PC that you want to send this information to.

NPort 5600 Series User’s Manual Auto IP Report Protocol

And then you can develop your own programs to receive this information from the NPort. Here is NPort’s Auto IP Report Protocol. We provide an example for you to easily develop your own programs. You can find this example on Moxa’s website.

http://web2.moxa.com.tw/services/download/download.asp

Auto IP Report Format

“MOXA”, 4 bytes Info[0] Info[1] … Info[n]

Info [n]

Field ID Length Data

Length 1 1 Variable, Length is “Length Field”

ID List

ID Value Description Length Note

1 Server Name Variable ASCII char 2 Hardware ID 2 Little-endian 3 MAC Address 6

6 bytes MAC address. If the MAC address is "00-90-E8-01-02-03", the MAC[0] is 0, MAC[1] is 0x90(hex), MAC[2] is 0xE8(hex), and so on.

4 Serial Number 4, DWORD Little-endian 5 IP Address 4, DWORD Little-endian

6 Netmask 4, DWORD Little-endian 7 Default Gateway 4, DWORD Little-endian

8 Firmware Version 4, DWORD Little-endian

Ver1.3.4= 0x0103040

9 AP ID 4, DWORD Little-endian

AP ID & Hardware ID Mapping Table

AP ID Hardware ID Product 0x80005000 0x0504 NPort 5410

0x80005000 0x0534 NPort 5430 0x80005000 0x1534 NPort 5430I 0x80000312 0x0312 NPort 5230 0x80000312 0x0322 NPort 5210 0x80000312 0x0332 NPort 5232 0x80000312 0x1332 NPort 5232I 0x80005610 0x5618 NPort 5610-8 0x80005610 0x5613 NPort 5610-16 0x80005610 0x5638 NPort 5630-8 0x80005610 0x5633 NPort 5630-16

D-2

Appendix E Service Information

This appendix shows you how to contact Moxa for information about this and other products, and how to report problems.

In this appendix, we cover the following topics.

 MOXA Internet Services

 Problem Report Form

 Product Return Procedure

NPort 5600 Series User’s Manual Service Information

MOXA Internet Services

Customer satisfaction is our number one concern, and to ensure that customers receive the full benefit of our products, Moxa Internet Services has been set up to provide technical support, driver updates, product information, and user’s manual updates.

The following services are provided

E-mail for technical support................................support@moxa.com.tw

World Wide Web (WWW) Site for product information:

.............................http://www.moxa.com

E-2

NPort 5600 Series User’s Manual Service Information

Problem Report Form

MOXA NPort 5600 Series

Customer name:

Company:

Tel: Fax:

Email: Date:

1. Moxa Product:  NPort 5610-16-48V (DC Power)  NPort 5610-8-48V (DC Power)  NPort 5610-16 (AC Power)  NPort 5610-8 (AC Power)  NPort 5630-16-48V (DC Power)  NPort 5630-8-48V (DC Power)  NPort 5630-16 (AC Power)  NPort 5630-8 (AC Power)

2. Serial Number: _________________

Problem Description: Please describe the symptoms of the problem as clearly as possible, including any error

messages you see. A clearly written description of the problem will allow us to reproduce the symptoms, and expedite the repair of your product.

E-3

NPort 5600 Series User’s Manual Service Information

Product Return Procedure

For product repair, exchange, or refund, the customer must:

 Provide evidence of original purchase.

 Obtain a Product Return Agreement (PRA) from the sales representative or dealer.

 Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter

product repair time.

 Carefully pack the product in an anti-static package, and send it, pre-paid, to the dealer. The

PRA should be visible on the outside of the package, and include a description of the problem, along with the return address and telephone number of a technical contact.

E-4

NPort 5600 Series User’s Manual Service Information

Revision History

Document Edition Revision Date Revision Details

2nd

3rd

4th May 13, 2004 1. Updated the edition of this

November 27, 2003

January 7, 2004 1. Update the edition of this manual

1. Update the edition of this manual on the title page.

2. Include product information for NPort 5630 into related chapters of this User’s Manual.

on the title page.

2. p. 2-5

Add Real Time Clock section and the warning message regarding dealing with the lithium battery.

manual on the title page.

2. Changed the new Moxa logo on the title page.

3. p. 6-16

Added descriptions on newly-added function “Fast Flush”.

5th August 30, 2004 1. Updated DC terminal block

E-5

4. p. 4-3

Added more descriptions on Real COM Mode.

5. p. 5-11

Added more descriptions under Max connection 2 to 4.

6. p. 6-18

Changed “TCP” to “UDP”.

7. Added Appendix E.

figures.

Moxa Technologies 5600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Package Checklist

Product Features

Product Specifications

Panel Layout

Connecting the Hardware

Wiring Requirements

Grounding NPort 5610-16/8-48V

Connecting to the Network

Connecting to a Serial Device

LED Indicators

Real Time Clock

Factory Default IP Address

LCM Display

NPort Administration Suite

Telnet Console

Overview

TCP Server Mode

TCP Client Mode

UDP Mode

Real COM Mode

Opening Your Browser

Basic Settings

Network Settings

Serial Settings

Operating Settings

Real COM Mode

TCP Server Mode

TCP Client Mode

UDP Mode

Accessible IP Settings

Auto Warning Settings

Auto warning: E-mail and SNMP Trap

Event Type

Change Password

Load Factory Defaults

Overview

Installing Windows Administrator

Configuration

Broadcast Search

Unlock Password Protection

Configuring NPort 5600

Upgrading Firmware

Export/Import

Monitor

Port Monitor

COM Mapping

On-line COM Mapping

Off-line COM Mapping

IP Location

Overview

IP Serial LIB Function Groups

Example Program

Port Pinout Diagrams

Ethernet Port Pinouts

Serial Port Pinouts

Cable Wiring Diagrams

Ethernet Cables

Serial Cables

Pin Assignments for DB9 and DB25 Connectors

MOXA Internet Services

Problem Report Form

Product Return Procedure

Revision History
