Moxa V2416A User Manual

Download

V2416A Linux User’s Manual

Edition 1.0, September 2015

www.moxa.com/product

V2416A Linux User’s Manual

Moxa Amer

Toll

Tel:

Fax:

Moxa China (Shanghai office)

Toll

Tel:

Fax:

Moxa Europe

Tel:

Fax:

Moxa Asia

Tel:

Fax:

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

icas

-free: 1-888-669-2872

+1-714-528-6777

+1-714-528-6778

+49-89-3 70 03 99-0

+49-89-3 70 03 99-99

-free: 800-820-5036

+86-21-5258-9955

+86-21-5258-5505

+886-2-8919-1230

-Pacific

+886-2-8919-1231

Table of Contents

1. Introduction ...................................................................................................................................... 1-1

Overview ........................................................................................................................................... 1-2

Software Specifications........................................................................................................................ 1-2

Software Components ......................................................................................................................... 1-3

2. Software Configuration ..................................................................................................................... 2-1

Account Management .......................................................................................................................... 2-2

Starting from a DVI Console ................................................................................................................. 2-2

Setting up a Desktop Environment ........................................................................................................ 2-3

Connecting from an SSH Console .......................................................................................................... 2-4

Windows Users ........................................................................................................................... 2-4

Linux Users ................................................................................................................................ 2-5

Adjusting the System Time .................................................................................................................. 2-5

Setting the Time Manually ............................................................................................................ 2-5

NTP Client .................................................................................................................................. 2-6

Updating the Time Automatically ................................................................................................... 2-6

Enabling and Disabling Daemons .......................................................................................................... 2-7

Cron—Daemon for Executing Scheduled Commands ................................................................................ 2-8

Inserting a USB Storage Device into the Computer ................................................................................. 2-8

Audio Playback and Recording .............................................................................................................. 2-9

Checking the Linux Version ................................................................................................................ 2-11

APT—Installing and Removing Packages .............................................................................................. 2-11

Wake on LAN ................................................................................................................................... 2-13

3. Managing Communications ............................................................................................................... 3-1

Detecting Network Interfaces ............................................................................................................... 3-2

Changing the Network Settings ............................................................................................................ 3-2

Changing the “interfaces” Configuration File ................................................................................... 3-2

Adjusting IP Addresses with “ifconfig” ............................................................................................ 3-3

Serial Port Operation Mode .................................................................................................................. 3-4

DNS Client ......................................................................................................................................... 3-4

/etc/hostname ............................................................................................................................ 3-4

/etc/resolv.conf ........................................................................................................................... 3-4

/etc/nsswitch.conf ....................................................................................................................... 3-5

Configuring Ethernet Bonding ............................................................................................................... 3-5

Apache Web Server ............................................................................................................................. 3-7

Default Homepage ....................................................................................................................... 3-7

IPTABLES .......................................................................................................................................... 3-7

IPTABLES Hierarchy ..................................................................................................................... 3-8

IP TABLE S Modules ....................................................................................................................... 3-9

Observe and Erase Chain Rules ..................................................................................................... 3-9

Define Policy for Chain Rules ....................................................................................................... 3-10

Append or Delete Rules .............................................................................................................. 3-10

NAT (Network Address Translation) ..................................................................................................... 3-11

NAT Example ............................................................................................................................ 3-12

Enabling NAT at Bootup .............................................................................................................. 3-12

PPP (Point to Point Protocol) ............................................................................................................... 3-13

Connecting to a PPP Server over a Simple Dial-up Connection ......................................................... 3-13

Connecting to a PPP Server over a Hard-wired Link ........................................................................ 3-14

Checking the Connection ............................................................................................................ 3-14

Setting up a Machine for Incoming PPP Connections ...................................................................... 3-15

PPPoE .............................................................................................................................................. 3-16

NFS (Network File System) Client ....................................................................................................... 3-18

SNMP .............................................................................................................................................. 3-19

OpenVPN ......................................................................................................................................... 3-21

Ethernet Bridging for Private Networks on Different Subnets ........................................................... 3-21

Ethernet Bridging for Private Networks on the Same Subnet ........................................................... 3-24

Routed IP ................................................................................................................................. 3-25

4. Programming Guide .......................................................................................................................... 4-1

Device API ......................................................................................................................................... 4-2

Getting the Product Serial Number ........................................................................................................ 4-2

RTC (Real Time Clock) ......................................................................................................................... 4-3

Digital I/O.......................................................................................................................................... 4-3

Special Note ............................................................................................................................... 4-5

Examples ................................................................................................................................... 4-5

WDT (Watch Dog Timer) ...................................................................................................................... 4-5

Introduction................................................................................................................................ 4-5

Watchdog Usage ......................................................................................................................... 4-5

How the WDT Works .................................................................................................................... 4-6

Watchdog Device IOCTL Commands............................................................................................... 4-7

Examples ................................................................................................................................... 4-8

5. Managing the Disk ............................................................................................................................. 5-1

Hot-Swapping Function........................................................................................................................ 5-2

Installing the hotswap driver and daemon ...................................................................................... 5-2

File Overview .............................................................................................................................. 5-2

Configuring the Hot-Swapping Daemon .......................................................................................... 5-2

Handling an Event with the Hot-Swapping Daemon .......................................................................... 5-2

Logging the Hot-Swapping Daemon Message .................................................................................. 5-3

Software RAID—mdadm ...................................................................................................................... 5-4

Create Software RAID Volume ....................................................................................................... 5-4

Check Software RAID Status ......................................................................................................... 5-6

Replacing a Failed Disk ................................................................................................................. 5-6

Removing RAID ........................................................................................................................... 5-7

6. System Recovery ............................................................................................................................... 6-1

Recovery Environment ........................................................................................................................ 6-2

Recovery Procedure ............................................................................................................................ 6-2

Saving the System to the USB Drive ................................................................................................... 6-11

A. Software Components ....................................................................................................................... A-1



1. Introduction

Thank you for purchasing the Moxa V2416A series of x86 ready-to-run embedded computers. This manual

introduces the software configuration and management of the V2416A, which runs the Linux operating system.

For hardware installation, connector interfaces, setup, and upgrading the BIOS, please refer to the “V2416A

Hardware User’s Manual.”

Linux is an open, scalable operating system that allows you to build a wide range of innovative, small footprint

devices. Software written for desktop PCs can be easily ported to the embedded computer with a GNU cross

compiler and a minimum of source code modifications. A typical Linux-based device is designed for a specific

use, and is often not connected to other computers, or a number of such devices connect to a centralized,

front-end host. Examples include enterprise tools such as industrial controllers, communications hubs,

point-of-sale terminals, and display devices, which include HMIs, advertisement appliances, and interactive

panels.

The following topics are covered in this chapter:

Overview

Software Specifications

Software Components

V2416A Linux Introduction

1-2

ATTENTION

Refer to

Debian GNU/Linux and

ATTENTION

The a

Linux

operating system may include components

Hardware

Micro Kernel

Device Driver

Protocol

API AP

Linux Kernel

Overview

V2416A series EN 50155-certified embedded computers are based on the Intel® Celeron® 1047UE Processor

or Intel® Core™ i7-3517UE Processor. The V2416A computers feature four serial ports, dual 10/100 Mbps or

10/100/1000 LAN ports, three USB 2.0 hosts, and come with two DVI-I outputs. with EN 50155 certification,

the computers are robust enough for railway and industrial applications.

The V2416A’s four serial ports make it ideal for connecting a wide range of serial devices, and the dual 10/100

Mbps or 10/100/1000 Ethernet ports offer a reliable solution for network redundancy, which taken together

promise continuous data communication and management operations. For added convenience, the V2416A

computers have 6 DIs and 2 Dos. In addition, the USB ports provide V2416A computers with data buffering

and storage expansion, which provide the necessary reliability for industrial applications.

Pre-installed with Linux, the V2416A series provides programmers with a friendly environment for developing

sophisticated, bug-free application software at a lower cost.

All V2416A models support a wide operating temperature range of -40 to 70°C for use in harsh industrial

environments.

Software Specifications

The Linux operating system pre-installed on the V2416A embedded computers (CTO models) is the Debian

Wheezy 7.8 distribution. The Debian project involves a worldwide group of volunteers who endeavor to

produce an operating system distribution composed entirely of free software. The Debian GNU/Linux follows

the standard Linux architecture, making it easy to use programs that meet the POSIX standard. Program

porting can be done with the GNU Tool Chain provided by Moxa. In addition to Standard POSIX APIs, device

drivers for Moxa UART and other special peripherals are also included. An example software architecture is

shown below:

Stack

User Applications

Application Interface (POSIX, Socket, Secure Socket)

TCP, IP, UDP, CMP, ARP, HTTP, SNMP, SMTP

PCMCIA, CF, WLAN, USB, UART, RTC, VGA

Memory Control, Schedule, Process

RS-232/422/485, Ethernet, CFast, SATA, USB

Daemon (Apache, Telnet, FTPD)

File

System

http://www.debian.org/ and http://www.gnu.org/ for information and documentation related to

bove software architecture is only an example. Different models or different build revisions of the

the free software concept.

not shown in the above graphic.

V2416A Linux Introduction

1-3

Software Components

The V2416A Linux models are pre-installed with the Debian Wheezy7.8 Linux distribution. For the software

components, see “Appendix A.”



2. Software Configuration

In this chapter, we explain how to operate a V2416A-LX computer directly from your desktop. There are two

ways to connect to the V2416A-LX computer: through a DVI monitor, or via an SSH console from a Windows

or Linux machine. This chapter describes basic Linux operating system configurations. Advanced network

management and configuration instructions will be described in the next chapter, “Managing

Communications.”

The following topics are covered in this chapter:

Account Management

Starting from a DVI Console

Setting up a Desktop Environment

Connecting from an SSH Console

 Windows Users

 Linux Users

Adjusting the System Time

 Setting the Time Manually

 NTP Client

 Updating the Time Automatically

Enabling and Disabling Daemons

Cron—Daemon for Executing Scheduled Commands

Inserting a USB Storage Device into the Computer

Audio Playback and Recording

Checking the Linux Version

APT—Installing and Removing Packages

Wake on LAN

V2416A Linux Software Configuration

2-2

moxa@Moxa:~#

Account Management

Connect the V2416A to a display, turn on the computer, and then enter the following information to log in the

computer.

Password: moxa

For security reasons, the root account is already disabled. We strongly suggest changing the password during

the first login. After successfully logging in, you can set up a new password.

moxa@192.168.27.42's password:

You are required to change your password immediately (root enforced)

Linux Moxa 3.16.0-0.bpo.4-amd64 #1 SMP Debian 3.16.7-ckt4-3~bpo70+1 (2015-02-12) x86_64

#### #### ###### ####### ###### ##

### #### ### ### #### #### ###

### ### ### ### ### ## ###

### #### ## ## ### # ####

#### # ## ### ### ### ## ## ##

## ## # ## ### ## #### # ##

## ### ## ## ## ## #### # ###

## ## # ## ## ## ### #######

## ## # ## ### ### ##### # ##

## ### ## ### ### ## ### # ###

## ### ## ## ## ## ### ## ##

## ### ## ## ## # ### # ##

###### # ###### ######## ####### ########### ######

For further information check:

http://www.moxa.com/

Starting from a DVI Console

When you finish changing the password, remember to type sudo each time you want to run commands with

privilege as the root. For example, typing sudo ifconfig eth0 192.168.100.100 will allow you to configure

the IP address of the LAN 1 port.

Connect the display monitor to the V2416A-LX DVI connector, and then power it up by connecting it to the

power adaptor. It takes approximately 30 to 60 seconds for the system to boot up. Once the system is ready,

a login screen will appear on your monitor.

To log in, type the login name and password as requested. The default values are both moxa.

Password: moxa

V2416A Linux Software Configuration

2-3

Moxa login: moxa

moxa@MOXA:~# sudo apt-get install gnome-core

moxa@MOXA:~# sudo apt-get install kde-standard

moxa@MOXA:~# apt-get install xfce4 xfce4-goodies thunar-archive-plugin

moxa@MOXA:~# sudo apt-get install lxde-core

Password:

Linux Moxa 3.16.0-0.bpo.4-amd64 #1 SMP Debian 3.16.7-ckt4-3~bpo70+1 (2015-02-12)

x86_64

#### #### ###### ####### ###### ##

### #### ### ### #### #### ###

### ### ### ### ### ## ###

### #### ## ## ### # ####

#### # ## ### ### ### ## ## ##

## ## # ## ### ## #### # ##

## ### ## ## ## ## #### # ###

## ## # ## ## ## ### #######

## ## # ## ### ### ##### # ##

## ### ## ### ### ## ### # ###

## ### ## ## ## ## ### ## ##

## ### ## ## ## # ### # ##

###### # ###### ######## ####### ########### ######

For further information check:

http://www.moxa.com/

Setting up a Desktop Environment

This section introduces the desktop environment for the V2416A series. By default, the V2416A Linux

operating system models do not install a desktop environment. Debian supports all kinds of fully-featured

graphical environments, such as Gnome, KDE, and lighter environments like Xfce and LXDE. You can choose

to install one of these desktop systems on the V2416A. To do this, use the following commands:

To install Gnome:

To install KDE:

To install Xfce:

To install the minimum LXDE:

V2416A Linux Software Configuration

2-4

LAN 1

192.168.3.127

255.255.255.0

Connecting from an SSH Console

The V2416A computers support the SSH console to offer users better network security compared to Telnet.

The default IP addresses and netmasks of the network interfaces are as follows:

Default IP Address Netmask

LAN 2 192.168.4.127 255.255.255.0

Before using the ssh client, you should change the IP address of your development workstation so that the

network ports are on the same subnet as the IP address for the LAN port that you will connect to. For example,

if you connect to LAN1, you could set your PC’s IP address to 192.168.3.126, and the netmask to

255.255.255.0. If you connect to LAN2, you could set your PC’s IP address to 192.168.4.126, and the netmask

to 255.255.255.0.

Use a cross-over Ethernet cable to connect your development workstation directly to the target computer, or

use a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a Telnet client

on your development workstation to connect to the target computer. After a connection has been established,

type the login name and password as requested to log on to the computer. The default values are both moxa.

Password: moxa

Windows Users

Click on the link http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html to download PuTTY

(free software) to set up an SSH console for the V2416A in a Windows environment. The following screen

shows an example of the configuration that is required.

V2416A Linux Software Configuration

2-5

[root@bee_notebook root]# ssh 192.168.3.127

Are you sure you want to continue connection (yes/no)? yes_

root@Moxa:~# date

root@Moxa:~#

Linux Users

From a Linux machine, use the ssh command to access the V2416A-LX’s console utility via SSH.

# ssh 192.168.3.127

Select yes to open the connection.

The authenticity of host ‘192.168.3.127 (192.168.3.127)’ can’t be established.

RSA key fingerprint is 8b:ee:ff:84:41:25:fc:cd:2a:f2:92:8f:cb:1f:6b:2f.

Adjusting the System Time

The V2416A-LX has two time settings. One is the system time, and the other is provided by an RTC (Real Time

Clock) built into the V2416A-LX’s hardware.

Setting the Time Manually

Use the date command to query the current system time or to set a new system time. Use hwclock to query

the current RTC time or to set a new RTC time.

Use the following command to set the system time.

# date MMDDhhmmYYYY

MM: Month

DD: Date

hhmm: Hour and Minute

YYYY: Year

Use the following command to write the current system time to the RTC.

# hwclock –w

Wed Dec 16 03:34:46 CST 2009

root@Moxa:~# hwclock

Wed 16 Dec 2009 03:35:16 AM CST -0.017600 seconds

root@Moxa:~# date 121616352009

Wed Dec 16 16:35:00 CST 2009

root@Moxa:~# hwclock –w

root@Moxa:~# date ; hwclock

Wed Dec 16 16:36:12 CST 2009

Wed 16 Dec 2009 04:36:13 PM CST -0.016751 seconds

V2416A Linux Software Configuration

2-6

root@Moxa:~# date ; hwclock

root@Moxa:~#

ATTENTION

Before using the NTP client utility, check your IP address and network settings (gateway and DNS)

sure an Internet connection is available.

#!/bin/sh

# Change 100 to a larger number to update RTC less often.

NTP Client

The V2416A-LX has a built-in NTP (Network Time Protocol) client that is used to initialize a time request to a

remote NTP server. Use ntpdate to update the system time.

#ntpdate time.stdtime.gov.tw

#hwclock –w

Visit http://www.ntp.org for more information about NTP and NTP server addresses.

Wed Dec 16 16:36:12 CST 2009

Wed 16 Dec 2009 04:36:13 PM CST -0.016751 seconds

root@Moxa:~#

root@Moxa:~# ntpdate time.stdtime.gov.tw

16 Dec 03:49:48 ntpdate[2510]: step time server 220.130.158.52 offset 155905087.9

84256 sec

root@Moxa:~#

root@Moxa:~# hwclock -w

root@Moxa:~# date ; hwclock

Wed Dec 16 03:51:07 CST 2009

Wed 16 Dec 2009 03:51:07 AM CST -0.016771 seconds

Updating the Time Automatically

This section describes how to use a shell script to update the time automatically.

Example shell script for updating the system time periodically

ntpdate time.stdtime.gov.tw

# You can use the time server’s ip address or domain

# name directly. If you use domain name, you must

# enable the domain client on the system by updating

# /etc/resolv.conf file.

hwclock –w

sleep 100

# Updates every 100 seconds. The min. time is 100 seconds.

to make

Save the shell script using any file name. For example, fixtime.

How to run the shell script automatically when the kernel boots up

Copy the example shell script fixtime to the directory /etc/init.d, and then use chmod 755 fixtime

to change the shell script mode.

# chmod 755 fixtime

Next, use vi editor to edit the file /etc/inittab.

# vi /etc/inittab

V2416A Linux Software Configuration

2-7

moxa@Moxa:~$ sudo insserv –d apache2

moxa@Moxa:~$ sudo insserv -r apache2

moxa@Moxa:~$ sudo /etc/init.d/apache2 start

moxa@Moxa:~$ sudo /etc/init.d/apache2 stop

root@Moxa:~# cd /etc/

root@Moxa:/etc/# vi rc.local

# !/bin/sh

home/daemon &~

Add the following line to the bottom of the file:

ntp : 2345 : respawn : /etc/init.d/fixtime

After you finish writing or modifying the code, remember to execute umount / to change the root directory

back to Read-only mode.

# umount /

Use the command #init q to re-initialize the kernel.

# init q

Enabling and Disabling Daemons

Only the following daemons are enabled in the V2416A-LX by default:

sftpd SFTP Server / Client daemon

sshd Secure Shell Server daemon

You may manage what services to run in the background by the command insserv. Below example shows how

to add the apache daemon in current runlevel.

Apache will not activate in the current boot session, but will be running in the background from the next boot

session. To disable the apache daemon, use the following command:

Linux daemons can be started or stopped in the current boot session by using of the scripts in /etc/init.d. To

start the apache daemon, use:

To stop the apache daemon, use:

1. To run a private daemon, you can edit the file rc.local, as shown below (type cd /etc/ to change

directories):

2. Type vi rc.local to edit the configuration file with vi editor.

3. Next, add the application daemon that you want to run. The following example shows how to add a daemon

that is placed in the /home/ directory. The daemon will run in the background during system boot.

# Add you want to run daemon

V2416A Linux Software Configuration

2-8

#minute hour date month week user command

* 8 * * * root /path/to/your/program

sysfs on /sys type sysfs (rw,nosuid,nodev,noexec,relatime)

/dev/sdb1 on /media/usb1 type vfat

Cron—Daemon for Executing Scheduled Commands

The Cron daemon will search /etc/crontab for crontab files. Cron wakes up every minute and checks each

command to see if it should be run at that time. When executing commands, output is mailed to the owner of

the crontab (or to the user named in the MAILTO environment variable in the crontab, if such a user exists).

Modify the file /etc/crontab to set up your scheduled applications. Crontab files have the following format:

mm h dom mon dow user command

minute hour date month week user command

0-59 0-23 1-31 1-12 0-6 (0 is Sunday)

For example, issue the following command if you want to launch a program at 8:00 every day:

The following example demonstrates how to use Cron to update the system time and RTC time every day at

8:00.

1. Write a shell script named fixtime.sh and save it to

#!/bin/sh

ntpdate time.stdtime.gov.tw

hwclock –w

exit 0

2. Change the mode of fixtime.sh

# chmod 755 fixtime.sh

3. Modify the /etc/crontab file to run fixtime.sh at 8:00 every day.

Add the following line to the end of crontab:

* 8 * * * root /home/fixtime.sh

Inserting a USB Storage Device into the Computer

Since mounting USB storage devices manually can be difficult, a Debian package named usbmount is used to

mount the USB drivers automatically. usbmount relies on udev to mount USB storage devices automatically

at certain mount points. The USB storage devices will be mounted on /media/usb0, /media/usb1, etc.

proc on /proc type proc (rw,nosuid,nodev,noexec,relatime)

udev on /dev type devtmpfs (rw,relatime,size=10240k,nr_inodes=494659,mode=755)

devpts on /dev/pts type devpts

(rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=000)

tmpfs on /run type tmpfs (rw,nosuid,noexec,relatime,size=397292k,mode=755)

/dev/disk/by-label/V2400A_MOXA on / type ext4

(rw,noatime,errors=remount-ro,data=ordered)

tmpfs on /run/lock type tmpfs (rw,nosuid,nodev,noexec,relatime,size=5120k)

tmpfs on /run/shm type tmpfs (rw,nosuid,nodev,noexec,relatime,size=794560k)

rpc_pipefs on /var/lib/nfs/rpc_pipefs type rpc_pipefs (rw,relatime)

(rw,noexec,nodev,sync,noatime,gid=25,dmask=0007,fmask=0117)

/home/.

V2416A Linux Software Configuration

2-9

(rw,noexec,nodev,sync,noatime,gid=25,dmask=0007,fmask=0117)

root@MOXA:~#

root@MOXA:~# apt-get remove usbmount

root@MOXA:~# apt-get install gnome-volume-manager

ATTENTION

Remember to type the

# sync before you disconnect the USB storage device. If you do not issue the

command, you may lose data.

ATTENTION

Remember to exit the /media/usb0 or /media/usb1 directory when you disconnect the USB storage device. If

you stay in /media/usb0 or /media/usb1, the automatic un

umount /media/usb0 to un

root@Moxa:~# alsamixer

Note that usbmount is a light-weight solution for text mode, and does not fully support the gnome desktop

environment. For better supportability, install gnome-volume-manager instead of usbmount:

command

-mount process will fail. If that happens, type #

-mount the USB device manually.

Audio Playback and Recording

The V2416A has a built-in audio system that provides the Line-in, line-out interface in M12 format for audio

playback or recording. Use the following commands to play back audio on the V2416A.

Control the volumn of the Master with alsamixer

Press <TAB> to select the Master as the playback source and press <UP> and <DOWN> to adjust the

volume.

Play a wave file

V2416A Linux Software Configuration

2-10

root@Moxa:~# aplay –t wav /PATH/TO/test.wav

root@Moxa:~# alsamixer

moxa@MOXA:~# arecord -t wav -f cd -c 2 /dev/shm/aaa.wav

The V2416A has a Line-in interface for recording audio. Use the following commands to record audio on the

V2416A.

Control the volume of Capture with alsamixer

Press <F6> to Select the device - “HDA Intel PCH”

Press <TAB> to select the Line and Capture as capture and press <UP> and <DOWN> to adjust the volume.

Record the audio in wave format

V2416A Linux Software Configuration

2-11

root@Moxa:~# uname -a

root@Moxa:~#

root@Moxa:~# vi /etc/apt/sources.list

deb-src http://ftp.debian.org/debian wheezy-backports main contrib non-free

root@Moxa:~# sudo vi /etc/apt/sources.list

deb http://debian.moxa.com/debian wheezy main

root@Moxa:~# apt-key list

sub 2048R/F7F3CD9E 2014-05-28 [expires: 2024-05-25]

Checking the Linux Version

The program uname, which stands for “Unix Name” and is part of the Unix operating system, prints the name,

version, and other details about the operating system running on the computer. Use the -a option to generate

a response similar to the one shown below:

Linux Moxa 3.16.0-0.bpo.4-amd64 #1 SMP Debian 3.16.7-ckt4-3~bpo70+1 (2015-02-12)

x86_64 GNU/Linux

APT—Installing and Removing Packages

APT is the Debian tool used to install and remove packages. Before installing a package, you need to configure

the apt source file, /etc/apt/sources.list, which is not a read only partition.

1. Use vi editor to configure /etc/apt/sources.list.

deb http://debian.moxa.com/debian wheezy main

deb http://ftp.us.debian.org/debian/ wheezy main contrib non-free

deb-src http://ftp.us.debian.org/debian/ wheezy main contrib non-free

deb http://ftp.us.debian.org/debian/ wheezy-updates main contrib non-free

deb-src http://ftp.us.debian.org/debian/ wheezy-updates main contrib non-free

deb http://security.debian.org/ wheezy/updates main contrib non-free

deb-src http://security.debian.org/ wheezy/updates main contrib non-free

deb http://ftp.debian.org/debian wheezy-backports main contrib non-free

2. Add Moxa’s apt repository

For adding or updating the drivers, libraries, and utilities provided by Moxa.

“deb http://debian.moxa.com/debian wheezy main” is added to the source list by default. If you delete it,

You should add “deb http://debian.moxa.com/debian wheezy main” to the source list.

Moxa has encrypted the packages with a GPG key that allows you to check if the package was verified by us.

The GPG key should be added before starting the installation. You can find the GPG key on the CD or on Moxa’s

website. Upload the key to the Moxa embedded computer and then add it.

Check your GPG key list to verify that “MOXA SYS” is in the list.

/etc/apt/trusted.gpg

--------------------

pub 2048R/62B24532 2014-05-28 [expires: 2024-05-25]

uid MOXA SYS <sys.support@moxa.com>

V2416A Linux Software Configuration

2-12

root@Moxa:~# apt-key add NEW-MOXA-SYS-DEBIAN-KEY

root@Moxa:~# apt-get update

Reading package lists... Done

moxa@MOXA:~# sudo apt-get update

moxa@MOXA:~#

moxa@MOXA:~# sudo apt-get install ipsec-tools

moxa@MOXA:~#

moxa@MOXA:~# sudo apt-get remove ipsec-tools

moxa@MOXA:~#

moxa@MOXA:~# sudo apt-get remove ipsec-tools --purge

moxa@MOXA:~#

ATTENTION

The APT cache space /

moxa@MOXA:~# df -h

moxa@MOXA:~#

ATTENTION

Use

If “MOXA SYS” is not in your list, can add it into the GPG key list.

Next, update the package list to display the most up-to-date package list.

Ign http://debian.moxa.com wheezy Release.gpg

Ign http://debian.moxa.com/debian/ wheezy/main Translation-en

Ign http://debian.moxa.com/debian/ wheezy/main Translation-en_HK

Get:1 http://debian.moxa.com wheezy Release [1,633 B]

Ign http://debian.moxa.com wheezy/main i386 Packages

Get:2 http://debian.moxa.com wheezy/main i386 Packages [1,585 B]

Fetched 3,218 B in 0s (47.2 kB/s)

After updating the package list, use apt-get to install or upgrade the packages from Moxa’s apt repository.

1. Update the source list after you configure it.

2. Once you indicate which package you want to install (ipsec-tools, for example), type:

3. Use one of the following commands to remove a package:

a. For a simple package removal:

b. For a complete package removal:

var/cache/apt to a USB mass storage device or mount it to an NFS space to generate more free space. U

–h to check how much free space is available in tmpfs.

var/cache/apt is located in tmpfs. If you need to install a huge package, link

Filesystem Size Used Avail Use% Mounted on

rootfs 7.3G 923M 6.2G 13% /

udev 10M 0 10M 0% /dev

tmpfs 388M 184K 388M 1% /run

/dev/disk/by-label/V2400A_MOXA 7.3G 923M 6.2G 13% /

tmpfs 5.0M 0 5.0M 0% /run/lock

tmpfs 776M 0 776M 0% /run/shm

the command # apt-get clean to free up the cache space.

V2416A Linux Software Configuration

2-13

moxa@MOXA:~# apt-get clean

moxa@MOXA:~#

root@Moxa:/# ethtool eth0

Moxa:/#

etherwake -b 00:90:e8:00:d7:07

Wake on LAN

The V2416A-LX supports wake on LAN, a feature used to wake up a device for suspend (S3) and shutdown

(S5).

To check the WOL support on Ethernet port x, type ethtool ethx, where “x” is the port number.

Settings for eth0:

Supported ports: [ TP ]

Supported link modes: 10baseT/Half 10baseT/Full

100baseT/Half 100baseT/Full

1000baseT/Full

Supports auto-negotiation: Yes

Advertised link modes: 10baseT/Half 10baseT/Full

100baseT/Half 100baseT/Full

1000baseT/Full

Advertised auto-negotiation: Yes

Speed: 100Mb/s

Duplex: Full

Port: Twisted Pair

PHYAD: 0

Transceiver: internal

Auto-negotiation: on

Supports Wake-on: pumbg

Wake-on: ug

Current message level: 0x00000033 (51)

Link detected: yes

As you can see, the default WOL support is g (wake on Magic packet).

The following example illustrates how to wake up on suspend (S3):

1. Moxa’s embedded computer

Get its MAC by issuing “ifconfig ethx” (x is the port number)

Suspend to RAM with command “pm-suspend --quirk-s3-bios”

Remote computer

Issue the command etherwake -b mac_of_this_device to wake it up. For example:

The following example illustrates how to wake up on shutdown (S5):

1. Moxa’s embedded computer

Shut down your computer with “shutdown -h now”

2. Remote computer

Issue the command etherwake -b mac_of_this_device to wake it up. For example:



3. Managing Communications

The V2416A-LX ready-to-run embedded computer is a network-centric platform designed to serve as a

front-end for data acquisition and industrial control applications. This chapter describes how to configure the

various communication functions supported by the Linux operating system.

The following topics are covered in this chapter:

Detecting Network Interfaces

Changing the Network Settings

 Changing the “interfaces” Configuration File

 Adjusting IP Addresses with “ifconfig”

Serial Port Operation Mode

DNS Client

 /etc/hostname

 /etc/resolv.conf

 /etc/nsswitch.conf

Configuring Ethernet Bonding

Apache Web Server

 Default Homepage

IPTABLES

 IPTABLES Hierarchy

 IPTABLES Modules

 Observe and Erase Chain Rules

 Define Policy for Chain Rules

 Append or Delete Rules

NAT (Network Address Translation)

 NAT Example

 Enabling NAT at Bootup

PPP (Point to Point Protocol)

 Connecting to a PPP Server over a Simple Dial-up Connection

 Connecting to a PPP Server over a Hard-wired Link

 Checking the Connection

 Setting up a Machine for Incoming PPP Connections

PPPoE

NFS (Network File System) Client

SNMP

OpenVPN

 Ethernet Bridging for Private Networks on Different Subnets

 Ethernet Bridging for Private Networks on the Same Subnet

 Routed IP

V2416A Linux Managing Communications

3-2

# PCI device 0x10ec:/sys/devices/pci0000:00/0000:00:1c.1/0000:02:00.0 (r8169)

KERNEL==“eth*”, NAME=“eth1”

ATTENTION

When

/etc/udev/rules.d/70

abnormally

and

reboot the system.

root@MOXA:~# cd /etc/network

root@MOXA:/etc/network# vi interfaces

Detecting Network Interfaces

Debian Linux systems use udevd to detect new network interfaces, including Ethernet interfaces and wireless

interfaces. One of the rules is /lib/udev/rules.d/75-persistent-net-generator.rules for creating a

persistent network interface naming order. The content in /etc/udev/rules.d/70-persistent-net.rules is

similar to the following:

SUBSYSTEM==“net”, ACTION==“add”, DRIVERS==“?*”,

ATTR{address}==“00:90:e8:00:00:20”, ATTR{dev_id}==“0x0”, ATTR{type}==“1”,

KERNEL==“eth*”, NAME=“eth0”

# PCI device 0x10ec:/sys/devices/pci0000:00/0000:00:1c.0/0000:01:00.0 (r8169)

SUBSYSTEM==“net”, ACTION==“add”, DRIVERS==“?*”,

ATTR{address}==“00:90:e8:00:00:21”, ATTR{dev_id}==“0x0”, ATTR{type}==“1”,

The above example indicates that the system has detected two Ethernet interfaces.

replacing or connecting a network interface, the system may keep the old record in

-persistent-net.rules, which could cause network interfaces to be detected

. To avoid this problem, delete the content of the file /etc/udev/rules.d/70-persistent-net.rules

Changing the Network Settings

The V2416A-LX computer has two 10/100 or 10/100/1000 Ethernet ports named LAN1 and LAN2. The default

IP addresses and netmasks of these network interfaces are:

Default IP Address Netmask

LAN1 192.168.3.127 255.255.255.0

LAN2 192.168.4.127 255.255.255.0

These network settings can be modified by changing the interfaces configuration file, or they can be adjusted

temporarily with the ifconfig command.

Changing the “interfaces” Configuration File

1. Type cd /etc/network to change directories.

2. Type vi interfaces to edit the network configuration file with vi editor. You can configure the V2416A-LX’s

Ethernet ports for static or dynamic (DHCP) IP addresses.

V2416A Linux Managing Communications

3-3

# The loopback network interface

broadcast 192.168.4.255

# The primary network interface

iface eth0 inet dhcp

root@MOXA:~# /etc/init.d/networking restart

root@MOXA:~# ifconfig eth0 192.168.1.1

root@MOXA:~#

Static IP Address

As shown in the following example, the default static IP addresses can be modified.

auto lo

iface lo inet loopback

# The primary network interface

auto eth0

iface eth0 inet static

address 192.168.3.127

netmask 255.255.255.0

broadcast 192.168.3.255

auto eth1

iface eth1 inet static

address 192.168.4.127

netmask 255.255.255.0

Dynamic IP Address using DHCP

To configure one or both LAN ports to request an IP address dynamically, replace static with dhcp and then

delete the rest of the lines.

auto eth0

After modifying the boot settings of the LAN interface, issue the following command to activate the LAN

settings immediately.

# /etc/init.d/networking restart

Adjusting IP Addresses with “ifconfig”

IP settings can be adjusted during run-time, but the new settings will not be saved to the flash ROM without

modifying the file /etc/network/interfaces. For example, type the command # ifconfig eth0

192.168.1.1 to change the IP address of LAN1 to 192.168.1.1.

V2416A Linux Managing Communications

3-4

-h

Help

-g

Get information

-i intf

Set interface type

intf

RS232

RS422

RS4852W

RS4854W

RS-232 mode

RS-485 4 wire mode

root@Moxa:~# muestty -i RS422 /dev/ttyMUE0

root@Moxa:~#

moxa@MOXA:~# sudo vi /etc/hostname

Moxa

root@Moxa:~# /etc/init.d/hostname.sh start

root@Moxa:~# hostname

Serial Port Operation Mode

The V2416A-LX computer has 4 serial ports named COM1, COM2, COM3, and COM4. The ports support RS-232,

RS-422, 2-wire RS-485, and 4-wire RS-485 operation modes with baudrate settings up to 921600 bps.

By default, the serial interface is set to RS-232. You can use the muestty command to change the serial port

operation mode, as indicated below:

muestty <operation> devicedevice-node: /dev/ttyMUEn; n = 0,1,2,...

<operation> [see following table]:

For example, use the following commands to set /dev/ttyMUE0 to RS-422:

muestty: Set interface of /dev/ttyMUE0 ok.

root@Moxa:~# muestty -g /dev/ttyMUE0

muestty: /dev/ttyMUE0 is set to RS-422 mode.

DNS Client

The V2416A-LX supports DNS client (but not DNS server). To set up DNS client, you need to edit three

configuration files: /etc/hostname, /etc/resolv.conf, and /etc/nsswitch.conf.

/etc/hostname

1. Edit /etc/hostname:

-422 mode

-485 2 wire mode

2. Re-configure the hostname.

3. Check the new hostname.

/etc/resolv.conf

This is the most important file that you need to edit when using DNS. For example, before using # ntpdate

time.stdtime.gov.tw to update the system time, you will need to add the DNS server address to the file. Ask

your network administrator which DNS server address you should use. The DNS server’s IP address is specified

with the nameserver command. For example, add the following line to /etc/resolv.conf (assuming the DNS

server’s IP address is 168.95.1.1):

V2416A Linux Managing Communications

3-5

root@MOXA:/etc# cat resolv.conf

MOXA:/etc#

# /etc/nsswitch.conf

netgroup: nis

#! /bin/bash

# Should-Start:

nameserver 168.95.1.1

# resolv.conf This file is the resolver configuration file

# See resolver(5).

#nameserver 192.168.1.16

nameserver 168.95.1.1

nameserver 140.115.1.31

nameserver 140.115.236.10

/etc/nsswitch.conf

This file defines the sequence of files, /etc/hosts or /etc/resolv.conf, to be read to resolve the IP address.

The hosts line in /etc/nsswitch.conf means use /etc/host first and DNS service to resolve the address.

# Example configuration of GNU Name Service Switch functionality.

# If you have the `glibc-doc-reference’ and `info’ packages installed, try:

# `info libc “Name Service Switch”‘ for information about this file.

passwd: compat

group: compat

shadow: compat

hosts: files dns

networks: files

protocols: db files

services: db files

ethers: db files

rpc: db files

Configuring Ethernet Bonding

The Linux bonding driver provides a method for aggregating multiple network interfaces into a single logical

“bonded” interface. To use the bonding feature, load the bonding driver. Then use ifenslave to add the Ethernet

interface into the bond0 interface. The following script bonds eth1 and eth2 together; you can place the script

in /etc/init.d/bonding.

#### BEGIN INIT INFO

# Provides: bonding

# Short-Description: Start the bonding service, bond eth1 and eth2.

# Required-Start: $all

# Required-Stop: $all

V2416A Linux Managing Communications

3-6

# Should-Stop:

exit 0

# Default-Start: 2 3 4 5

# Default-Stop: 0 1 6

### END INIT INFO

NAME=bonding

PATH=/bin:/usr/bin:/sbin:/usr/sbin

case "$1" in

start)

# to set ethX interfaces as slave the bond0 must have an ip

if [ "$2" == "" ]; then

exit 1

echo "Starting bonding service: $NAME."

modprobe bonding mode=1 miimon=100 # load bonding module

ifdown eth0 # putting down eth0

ifdown eth1 # putting down eth1

ifconfig bond0 hw ether 00:90:E8:00:00:60 # change mac address

ifconfig bond0 $2 netmask 255.255.255.0 up # set ip address

ifenslave bond0 eth0 # set eth0 in slave for bond0

ifenslave bond0 eth1 # set eth1 in slave for bond0

;;

stop)

echo "Stopping bonding service: $NAME"

ifenslave -d bond0 eth0 # release eth0 from bond0

ifenslave -d bond0 eth1 # release eth1 from bond0

ifconfig bond0 down # putting down bond0

modprobe -r bonding # unload bonding module

ifup eth0

ifup eth1

;;

restart)

$0 stop

$0 start $2

;;

echo "Usage: /etc/init.d/$NAME {start|stop|restart} [ip address]"

exit 1

;;

esac

V2416A Linux Managing Communications

3-7

moxa@MOXA:~# sudo insserv -v -d bonding

moxa@MOXA:~# sudo insserv -r bonding

ATTENTION

Visit the Apache website at

server

You can use insserv to add this to run level.

To remove it from run level, use the following command:

Apache Web Server

Default Homepage

The Apache web server’s main configuration file is /etc/apache2/sites-enabled/000-default, with the

default homepage located at /var/www/index.html.

Save your own homepage to the following directory:

/var/www

Before you modify the homepage, use a browser (such as Microsoft Internet Explore or Mozilla Firefox) from

your PC to test if the Apache web server is working. Type the LAN1 IP address in the browser’s address box to

open the homepage. For example, if the default IP address 192.168.3.127 is still active, type:

http://192.168.3.127/

IPTABLES

IPTABLES is an administrative tool for setting up, maintaining, and inspecting the Linux kernel’s IP packet filter

rule tables. Several different tables are defined, with each table containing built-in chains and user-defined

chains.

Each chain is a list of rules that apply to a certain type of packet. Each rule specifies what to do with a matching

packet. A rule (such as a jump to a user-defined chain in the same table) is called a target.

The V2416A-LX supports three types of IPTABLES: Filter tables, NAT tables, and Mangle tables.

Filter Table—includes three chains:

• INPUT chain

• OUTPUT chain

• FORWARD chain

NAT Table—includes three chains:

• PREROUTING chain—transfers the destination IP address (DNAT).

• POSTROUTING chain—works after the routing process and before the Ethernet device process to transfer

the source IP address (SNAT).

• OUTPUT chain—produces local packets.

http://httpd.apache.org/docs/ for more information about setting up Apache

Sub-tables

• Source NAT (SNAT)—changes the first source IP address of the packet.

• Destination NAT (DNAT)—changes the first destination IP address of the packet.

V2416A Linux Managing Communications

3-8

• MASQUERADE—a special form for SNAT. If one host can connect to the Internet, then the other

computers that connect to this host can connect to the Internet when the computer does not have an actual

IP address.

• REDIRECT—a special form of DNAT that re-sends packets to a local host independent of the destination IP

address.

Mangle Table—includes two chains

• PREROUTING chain—pre-processes packets before the routing process.

• OUTPUT chain—processes packets after the routing process.

Mangle tables can have one of three extensions—TTL, MARK, TOS.

IPTABLES Hierarchy

The following figure shows the IPTABLES hierarchy.

V2416A Linux Managing Communications

3-9

ATTENTION

IPTABLES plays the role of packet filtering or NAT. Be careful when setting up the IPTABLES rules. If the rules

are not co

http://www.linuxguruz.com/iptables/

http://www.netfilter.org/documentation/HOWTO//packet

IPTABLES Modules

The V2416A-LX supports the following sub-modules. Use the module that matches your application.

arptable_filter.ko arp_tables.ko arpt_mangle.ko ip_conntrack_amanda.ko

ip_conntrack_ftp.ko ip_conntrack_h323.ko ip_conntrack_irc.ko ip_conntrack.ko

ip_conntrack_netbios_ns.ko ip_conntrack_netlink.ko ip_conntrack_pptp.ko ip_conntrack_proto_sctp.ko

ip_conntrack_sip.ko ip_conntrack_tftp.ko ip_nat_amanda.ko ip_nat_ftp.ko

ip_nat_h323.ko ip_nat_irc.ko ip_nat.ko ip_nat_pptp.ko

ip_nat_sip.ko ip_nat_snmp_basic.ko ip_nat_tftp.ko ip_queue.ko

iptable_filter.ko iptable_mangle.ko iptable_nat.ko iptable_raw.ko

ip_tables.ko ipt_addrtype.ko ipt_ah.ko ipt_CLUSTERIP.ko

ipt_dscp.ko ipt_DSCP.ko ipt_ecn.ko ipt_ECN.ko

ipt_hashlimit.ko ipt_iprange.ko ipt_LOG.ko ipt_MASQUERADE.ko

ipt_NETMAP.ko ipt_owner.ko ipt_recent.ko ipt_REDIRECT.ko

ipt_REJECT.ko ipt_SAME.ko ipt_TCPMSS.ko ipt_tos.ko

ipt_TOS.ko ipt_ttl.ko ipt_TTL.ko ipt_ULOG.ko

The basic syntax to enable and load an IPTABLES module is as follows:

# lsmod

# modprobe ip_tables

# modprobe iptable_filter

# modprobe iptable_mangle

# modprobe iptable_nat

Use lsmod to check if the ip_tables module has already been loaded in the V2416A-LX. Use modprobe to

insert and enable the module.

Use iptables, iptables-restore, and iptables-save to maintain the database.

onsole to set up the IPTABLES. Click on the following links for more information about IPTABLES.

Since the IPTABLES command is very complex, to illustrate the IPTABLES syntax we have divided our

discussion of the various rules into three categories: Observe and erase chain rules, Define policy rules,

and Append or delete rules.

rrect, remote hosts that connect via a LAN or PPP may be denied. We recommend using the VGA

Observe and Erase Chain Rules

Usage:

# iptables [-t tables] [-L] [-n]

-t tables: Table to manipulate (default: ‘filter’); example: nat or filter.

-L [chain]: List List all rules in selected chains. If no chain is selected, all chains are listed.

-n: Numeric output of addresses and ports.

-filtering-HOWTO.html

# iptables [-t tables] [-FXZ]

-F: Flush the selected chain (all the chains in the table if none is listed).

-X: Delete the specified user-defined chain.

-Z: Set the packet and byte counters in all chains to zero.

V2416A Linux Managing Communications

3-10

Example:

# iptables -L -n

In this example, since we do not use the -t parameter, the system uses the default “filter” table. Three chains

are included: INPUT, OUTPUT, and FORWARD. INPUT chains are accepted automatically, and all connections

are accepted without being filtered.

# iptables –F

# iptables –X

# iptables –Z

Define Policy for Chain Rules

Usage:

# iptables [-t tables] [-P] [INPUT, OUTPUT, FORWARD, PREROUTING, OUTPUT, POSTROUTING]

[ACCEPT, DROP]

-P: Set the policy for the chain to the given target.

INPUT: For packets coming into the V2416A-LX.

OUTPUT: For locally-generated packets.

FORWARD: For packets routed out through the V2416A-LX.

PREROUTING: To alter packets as soon as they come in.

POSTROUTING: To alter packets as they are about to be sent out.

Example:

#iptables –P INPUT DROP

#iptables –P OUTPUT ACCEPT

#iptables –P FORWARD ACCEPT

#iptables –t nat –P PREROUTING ACCEPT

#iptables –t nat –P OUTPUT ACCEPT

#iptables -t nat –P POSTROUTING ACCEPT

In this example, the policy accepts outgoing packets and denies incoming packets.

Append or Delete Rules

Usage:

# iptables [-t table] [-AI] [INPUT, OUTPUT, FORWARD] [-io interface] [-p tcp, udp, icmp, all] [-s

IP/network] [--sport ports] [-d IP/network] [--dport ports] –j [ACCEPT. DROP]

-A: Append one or more rules to the end of the selected chain.

-I: Insert one or more rules in the selected chain as the given rule number.

-i: Name of an interface via which a packet is going to be received.

-o: Name of an interface via which a packet is going to be sent.

-p: The protocol of the rule or of the packet to check.

-s: Source address (network name, host name, network IP address, or plain IP address).

--sport: Source port number.

-d: Destination address.

--dport: Destination port number.

-j: Jump target. Specifies the target of the rules; i.e., how to handle matched packets.

V2416A Linux Managing Communications

3-11

ATTENTION

In Example 8, remember to issue the command

ATTENTION

Click on the following link for more information

http://www.netfilter.org/documentation/HOWTO//packet

For example, ACCEPT the packet, DROP the packet, or LOG the packet.

Examples:

Example 1: Accept all packets from the lo interface.

# iptables –A INPUT –i lo –j ACCEPT

Example 2: Accept TCP packets from 192.168.0.1.

# iptables –A INPUT –i eth0 –p tcp –s 192.168.0.1 –j ACCEPT

Example 3: Accept TCP packets from Class C network 192.168.1.0/24.

# iptables –A INPUT –i eth0 –p tcp –s 192.168.1.0/24 –j ACCEPT

Example 4: Drop TCP packets from 192.168.1.25.

# iptables –A INPUT –i eth0 –p tcp –s 192.168.1.25 –j DROP

Example 5: Drop TCP packets addressed for port 21.

# iptables –A INPUT –i eth0 –p tcp --dport 21 –j DROP

Example 6: Accept TCP packets from 192.168.0.24 to V2416A-LX’s port 137, 138, 139

# iptables –A INPUT –i eth0 –p tcp –s 192.168.0.24 --dport 137:139 –j ACCEPT

Example 7: Log TCP packets that visit V2416A-LX’s port 25.

# iptables –A INPUT –i eth0 –p tcp --dport 25 –j LOG

Example 8: Drop all packets from MAC address 01:02:03:04:05:06.

# iptables –A INPUT –i eth0 –p all –m mac --mac-source 01:02:03:04:05:06 –j DROP

# modprobe ipt_mac first to load the module ipt_mac.

NAT (Network Address Translation)

The NAT (Network Address Translation) protocol translates IP addresses used on one network into IP

addresses used on a connecting network. One network is designated the inside network and the other is the

outside network. Typically, the V2416A-LX connects several devices on a network and maps local inside

network addresses to one or more global outside IP addresses, and un-maps the global IP addresses on

incoming packets back into local IP addresses.

about NAT:

-filtering-HOWTO.html

V2416A Linux Managing Communications

3-12

#!/bin/bash

/sbin/iptables -X -t nat

NAT Example

The IP address of all packets leaving LAN1 are changed to 192.168.3.127 (you will need to load the module

ipt_MASQUERADE):

Enabling NAT at Bootup

In most real world situations, you will want to use a simple shell script to enable NAT when the V2416A-LX

boots up. The following script is an example.

# If you put this shell script in the /home/nat.sh

# Remember to chmod 744 /home/nat.sh

# Edit the rc.local file to make this shell startup automatically.

# vi /etc/rc.local

# Add a line in the end of rc.local /home/nat.sh

EXIF= “eth0” #This is an external interface for setting up a valid IP address.

EXNET= “192.168.4.0/24” #This is an internal network address.

# Step 1. Insert modules.

# Here 2> /dev/null means the standard error messages will be dump to null device.

modprobe ip_tables 2> /dev/null

modprobe ip_nat_ftp 2> /dev/null

modprobe ip_nat_irc 2> /dev/null

modprobe ip_conntrack 2> /dev/null

modprobe ip_conntrack_ftp 2> /dev/null

modprobe ip_conntrack_irc 2> /dev/null

# Step 2. Define variables, enable routing and erase default rules.

PATH=/bin:/sbin:/usr/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin

export PATH

echo “1” > /proc/sys/net/ipv4/ip_forward

/sbin/iptables -F

/sbin/iptables -X

/sbin/iptables -Z

/sbin/iptables -F -t nat

V2416A Linux Managing Communications

3-13

/sbin/iptables -Z -t nat

A POSTROUTING –o eth0 –j MASQUERADE

ATTENTION

Click on the following links for more information about PPP

http://tldp.org/HOWTO/PPP

http://axion.physics.ubc.ca/ppp

connect

This option gives the command to contact the PPP server. The

d to

dial a remote computer. The entire command is enclosed in single quotes because

pppd expects a one

are

given below:

-v verbose mode; log what we do to syslog

“

Double quotes

ote that you must include

a space after the second quotation mark)

ATDT5551212

Dial the modem, and then ...

CONNECT

Wait for an answer.

/sbin/iptables -P INPUT ACCEPT

/sbin/iptables -P OUTPUT ACCEPT

/sbin/iptables -P FORWARD ACCEPT

/sbin/iptables -t nat -P PREROUTING ACCEPT

/sbin/iptables -t nat -P POSTROUTING ACCEPT

/sbin/iptables -t nat -P OUTPUT ACCEPT

# Step 3. Enable IP masquerade.

#ehco 1 > /proc/sys/net/ipv4/ip_forward#modprobe ipt_MASQUERADE#iptables –t nat –

PPP (Point to Point Protocol)

PPP (Point to Point Protocol) is used to run IP (Internet Protocol) and other network protocols over a serial link.

PPP can be used for direct serial connections (using a null-modem cable) over a Telnet link, and links

established using a modem over a telephone line.

Modem/PPP access is almost identical to connecting directly to a network through the V2416A-LX Ethernet port.

Since PPP is a peer-to-peer system, the V2416A-LX can also use PPP to link two networks (or a local network

to the Internet) to create a Wide Area Network (WAN).

-HOWTO/index.html

-linux.html

Connecting to a PPP Server over a Simple Dial-up Connection

The following command is used to connect to a PPP server by modem. Use this command for old ppp servers

that prompt for a login name (replace “username” with the correct name) and password (replace “password”

with the correct password). Note that “debug crtscts” and “defaultroute 192.1.1.17” are optional.

#pppd connect ‘chat -v ““ ATDT5551212 CONNECT ““‘ ogin: username word: password’

/dev/ttyMUE0 115200 debug crtscts modem defaultroute 192.1.1.17

If the PPP server does not prompt for the username and password, the command should be entered as follows

(replace “username” with the correct username and replace “password” with the correct password):

#pppd connect ‘chat -v ““ ATDT5551212 CONNECT ““‘ user username password password

/dev/ttyMUE0 115200 crtscts modem

The pppd options are described below:

‘chat etc...’

-word argument for the connect option. The options for chat

chat program is use

“

—don’t wait for a prompt, but instead do ... (n

V2416A Linux Managing Communications

3-14

“

Send a return (null text followed by the usual return)

ogin:

Note:

/dev/

Specify the callout serial port.

115200

The baud rate.

debug

Log status in syslog.

crtscts

Use hardware flow control between

115200

this is a must).

modem

Indicates that this is a modem device; pppd will hang up the phone before and after

making the call.

defaultroute

Once the PPP link is established, make it the default route; if you have a PPP link to the

Internet, this is probably what you want.

192.1.1.17

This is a degenerate case of a general option of the form x.x.x.x:y.y.y.y. Here x.x.x.x

is the local IP address and y.y.y.y is the IP address of the

connection. If this option is not specified, or if just one side is specified, then x.x.x.x

defaults to the IP address associated with the local machine

lo Link encap Local Loopback

TX packets 42 errors 0 dropped 0 overrun 0

“

username word: password

Refer to the chat man page, chat.8, for more information about the chat utility.

etc/hosts), and y.y.y.y is determined by the remote machine.

the computer and modem (at baudrate of

remote end of the PPP

’s hostname (located in

Connecting to a PPP Server over a Hard-wired Link

If a username and password are not required, use the following command (note that noipdefault is optional):

#pppd connect ‘chat –v” “ “ “ ‘ noipdefault /dev/ttyMUE0 19200 crtscts

If a username and password is required, use the following command (note that noipdefault is optional, and

the username and password are both “root”):

#pppd connect ‘chat –v” “ “ “ ‘ user root password root noipdefault /dev/ttyMUE0 19200

crtscts

Checking the Connection

Once you have set up a PPP connection, there are some steps you can take to test the connection. First, type:

#/sbin/ifconfig

Depending on your distribution, the command might be located elsewhere. After executing the command, you

should be able to see all of the network interfaces that are UP.

ppp0 should be one of the network interfaces. You should recognize the first IP address as the IP address of

the computer, and P-t-P address is the IP address of the server. The output should be similar to the following:

inet addr 127.0.0.1 Bcast 127.255.255.255 Mask 255.0.0.0

UP LOOPBACK RUNNING MTU 2000 Metric 1

RX packets 0 errors 0 dropped 0 overrun 0

ppp0 Link encap Point-to-Point Protocol

inet addr 192.76.32.3 P-t-P 129.67.1.165 Mask 255.255.255.0

UP POINTOPOINT RUNNING MTU 1500 Metric 1

RX packets 33 errors 0 dropped 0 overrun 0

V2416A Linux Managing Communications

3-15

root@MOXA:~# ping 129.67.1.165

MOXA:~#

Kernel routing table

ppp0

Now, type:

#ping z.z.z.z

where z.z.z.z is the address of your name server. The output should be similar to the following:

PING 129.67.1.165 (129.67.1.165): 56 data bytes

64 bytes from 129.67.1.165: icmp_seq=0 ttl=225 time=268 ms

64 bytes from 129.67.1.165: icmp_seq=1 ttl=225 time=247 ms

64 bytes from 129.67.1.165: icmp_seq=2 ttl=225 time=266 ms

--- 129.67.1.165 ping statistics ---

3 packets transmitted, 3 packets received, 0% packet loss

round-trip min/avg/max = 247/260/268 ms

Try typing:

#netstat -nr

You should see three routes similar to the following:

Destination Gateway Genmask Flags Metric Ref Use

iface

129.67.1.165 0.0.0.0 255.255.255.255 UH 0 0 6

ppp0

127.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 lo

0.0.0.0 129.67.1.165 0.0.0.0 UG 0 0 6298

If your output looks similar but does not have the “destination 0.0.0.0” line (which refers to the default route

used for connections), you may have run pppd without the defaultroute option. At this point, you can try

using Telnet, ftp, or finger, bearing in mind that you will have to use numeric IP addresses unless you have

configured /etc/resolv.conf correctly.

Setting up a Machine for Incoming PPP Connections

Method 1: pppd dial-in with pppd commands

This first example applies to using a modem, and requiring authorization with a username and password.

#pppd /dev/ttyMUE0 115200 crtscts modem 192.168.16.1:192.168.16.2 login auth

You should also add the following line to the file /etc/ppp/pap-secrets:

* * ““ *

The first star (*) lets everyone login. The second star (*) lets every host connect. The pair of double quotation

marks (““) indicates that the file /etc/passwd can be used to check the password. The last star (*) is to let

any IP connect.

The following example does not check the username and password:

# pppd/dev/ttyMUE0 115200 crtscts modem 192.168.16.1:192.168.16.2

V2416A Linux Managing Communications

3-16

# You usually need this if there is no PAP authentication

-detach

SAY ‘Auto Answer ON\n’

‘‘ ATS0=1

# pppd call dialin

ATTENTION

If you

respawn command.

root@MOXA:~# mount –o remount,rw /dev/hda1 /

Method 2: pppd dial-in with pppd script

Configure a dial-in script /etc/ppp/peer/dialin

noauth

#auth

#login

# The chat script (be sure to edit that file, too!)

init “/usr/sbin/chat -v -f /etc/ppp/ppp-ttyM0.chat”

# Set up routing to go through this PPP link

defaultroute

# Default modem (you better replace this with /dev/ttySx!)

/dev/ttyM0

# Speed

115200

# Keep modem up even if connection fails

persist

crtscts

modem

192.168.16.1:192.168.16.2

debug

Configure the chat script /etc/ppp/ppp-ttyM0.chat

Start the pppd dial-in service.

would like to have auto dial-in service, you can launch the dial-in service in /etc/inittab with the

root@MOXA:~# echo “p0:2345:respawn:pppd call dialin” >> /etc/inittab

root@MOXA:~# umount /

PPPoE

Use the following procedure to configure PPPoE:

1. Connect the V2416A-LX’s LAN port to an ADSL modem with a cross-over cable, HUB, or switch.

2. Log in to the V2416A-LX as the root user.

3. Edit the file /etc/ppp/chap-secrets and add the following:

“username@hinet.net” * “password” *

V2416A Linux Managing Communications

3-17

# Secrets for authentication using CHAP

username@hinet.net” * “password” *

# ATTENTION: The definitions here can allow users to login without a

# OUTBOUND connections

# received. Note: it is not advisable to use this option with the persist

# Load the pppoe plugin

# client server secret IP addresses

# PPPOE example, if you want to use it, you need to unmark it and modify it

“

username@hinet.net is the username obtained from the ISP to log in to the ISP account. password is

the corresponding password for the account.

4. Edit the file /etc/ppp/pap-secrets and add the following:

“username@hinet.net” * “password” *

# password if you don’t use the login option of pppd! The mgetty Debian

# package already provides this option; make sure you don’t change that.

# INBOUND connections

# Every regular user can use PPP and has to use passwords from /etc/passwd

* hostname ““ *

“username@hinet.net” * “password” *

# UserIDs that cannot use PPP at all. Check your /etc/passwd and add any

# other accounts that should not be able to use pppd!

guest hostname “*” -

master hostname “*” -

root hostname “*” -

support hostname “*” -

stats hostname “*” -

username@hinet.net is the username obtained from the ISP to log in to the ISP account. password is

the corresponding password for the account.

5. Edit the file /etc/ppp/options and add the following line:

plugin rp-pppoe

# option without the demand option. If the active-filter option is given,

# data packets which are rejected by the specified activity filter also

# count as the link being idle.

#idle <n>

# Specifies how many seconds to wait before re-initiating the link after

# it terminates. This option only has any effect if the persist or demand

# option is used. The holdoff period is not applied if the link was

# terminated because it was idle.

#holdoff <n>

# Wait for up n milliseconds after the connect script finishes for a valid

# PPP packet from the peer. At the end of this time, or when a valid PPP

# packet is received from the peer, pppd will commence negotiation by

# sending its first LCP packet. The default value is 1000 (1 second).

# This wait period only applies if the connect or pty option is used.

#connect-delay <n>

V2416A Linux Managing Communications

3-18

plugin rp-pppoe.so

# ---<End of File>---

name username@hinet.net

/etc/ppp/options.eth0” 5 lines, 67 characters

root@Moxa:/etc# cat resolv.conf

root@Moxa:/etc#

ppp0 Link encap Point-to-Point Protocol

TX packets 42 errors 0 dropped 0 overrun 0

6. If you use LAN1 to connect to the ADSL modem, add the file /etc/ppp/options.eth0, if you use LAN2 to

connect to the ADSL modem, add /etc/ppp/options.eth1, etc.

mtu 1492

mru 1492

defaultroute

noipdefault

“

Type your username (the one you set in the /etc/ppp/pap-secrets and /etc/ppp/chap-secrets files)

after the name option. You may add other options as needed.

7. Set up DNS.

If you are using DNS servers supplied by your ISP, edit the file /etc/resolv.conf by adding the following

lines of code:

nameserver ip_addr_of_first_dns_server

nameserver ip_addr_of_second_dns_server

For example:

nameserver 168.95.1.1

nameserver 139.175.10.20

# resolv.conf This file is the resolver configuration file

# See resolver(5).

nameserver 168.95.1.1

nameserver 139.175.10.20

Use the following command to create a pppoe connection:

#pppd eth0

8. The ADSL modem is connected to the LAN1 port, which is named eth0. If the ADSL modem is connected

to LAN2, use eth1, etc.

9. Type #ifconfig ppp0 to check if the connection is OK. If the connection is OK, you should see the IP

address of ppp0. Use #ping to test the IP address.

inet addr 192.76.32.3 P-t-P 129.67.1.165 Mask 255.255.255.0

UP POINTOPOINT RUNNING MTU 1500 Metric 1

RX packets 33 errors 0 dropped 0 overrun 0

10. If you want to disconnect the connection, use the kill command to kill the pppd process.

NFS (Network File System) Client

The Network File System (NFS) is used to mount a disk partition on a remote machine (as if it were on a local

hard drive), allowing fast, seamless sharing of files across a network. NFS allows users to develop applications

for the V2416A-LX without worrying about the amount of disk space that will be available. The V2416A-LX only

supports NFS client protocol.

V2416A Linux Managing Communications

3-19

ATTENTION

Click on the following links for more information about NFS.

http://ww

http://www.faqs.org/rfcs/rfc1317.html

root@Moxa:~# vi /etc/snmp/snmpd.conf

……

root@Moxa:~# /etc/init.d/snmpd restart

root@Moxa:~# snmpwalk -v 1 -c public 192.168.3.127

iso.3.6.1.2.1.1.1.0 = STRING: "Linux Moxa 3.16.0-0.bpo.4-amd64 #1 SMP Debian

The following procedures illustrate how to mount a remote NFS Server.

1. Scan the NFS Server’s shared directory:

2. Establish a mount point on the NFS Client site:

3. Mount the remote directory to a local directory:

SNMP

The V2416A-LX comes with the SNMP (Simple Network Management Protocol) agent software pre-installed. It

supports RFC 1213 MIB-II.

By default, snmpd listens for connections from the local system. To prevent listening, remove the configuration

text agentAddress udp:127.0.0.1:161 from the system file: /etc/snmp/snmpd.conf.

w.ietf.org/rfc/rfc1213.txt

#showmount –e HOST

showmount: Shows the mount information of an NFS Server

-e: Shows the NFS Server’s export list.

HOST: IP address or DNS address

#mkdir –p /home/nfs/public

# mount -t nfs -o nolock 192.168.3.100:/home/public /home/nfs/public

(This is where 192.168.3.100 is the example IP address of the NFS server.)

Example:

###############################################################################

# EXAMPLE.conf:

# An example configuration file for configuring the Net-SNMP agent ('snmpd')

# See the 'snmpd.conf(5)' man page for details

# Some entries are deliberately commented out, and will need to be explicitly activated

###############################################################################

# AGENT BEHAVIOUR

# Listen for connections from the local system only

# agentAddress udp:127.0.0.1:161

# Listen for connections on all interfaces (both IPv4 *and* Ipv6)

agentAddress udp:161,udp6:[::1]:161

After editing the config file, restart the snmpd daemon.

The following example shows an SNMP agent responding to a query from the SNMP browser on the host site:

V2416A Linux Managing Communications

3-20

3.16.7-ckt4-3~bpo70+1 (2015-02-12) x86_64"

: "Fl.4, No.135, Lane 235, Baoquao Rd., Xindian Dist.,

: "The management information definitions for the

End of MIB

ATTENTION

Click on the following links for more information about RFC1317 RS

http://www.faqs.org/rfcs/rfc1317.html

http://www.ietf.org/rfc/rfc1213.txt

iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.8691.12.2400

iso.3.6.1.2.1.1.3.0 = Timeticks: (400) 0:00:04.00

iso.3.6.1.2.1.1.4.0 = STRING: "Moxa Inc., Embedded Computing Business.

<www.moxa.com>"

iso.3.6.1.2.1.1.5.0 = STRING: "Moxa"

iso.3.6.1.2.1.1.6.0 = STRING

New Taipei City, Taiwan, R.O.C.\""

iso.3.6.1.2.1.1.7.0 = INTEGER: 72

iso.3.6.1.2.1.1.8.0 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.2.1 = OID: iso.3.6.1.6.3.10.3.1.1

iso.3.6.1.2.1.1.9.1.2.2 = OID: iso.3.6.1.6.3.11.3.1.1

iso.3.6.1.2.1.1.9.1.2.3 = OID: iso.3.6.1.6.3.15.2.1.1

iso.3.6.1.2.1.1.9.1.2.4 = OID: iso.3.6.1.6.3.1

iso.3.6.1.2.1.1.9.1.2.5 = OID: iso.3.6.1.2.1.49

iso.3.6.1.2.1.1.9.1.2.6 = OID: iso.3.6.1.2.1.4

iso.3.6.1.2.1.1.9.1.2.7 = OID: iso.3.6.1.2.1.50

iso.3.6.1.2.1.1.9.1.2.8 = OID: iso.3.6.1.6.3.16.2.2.1

iso.3.6.1.2.1.1.9.1.3.1 = STRING: "The SNMP Management Architecture MIB."

iso.3.6.1.2.1.1.9.1.3.2 = STRING: "The MIB for Message Processing and Dispatching."

iso.3.6.1.2.1.1.9.1.3.3 = STRING

SNMP User-based Security Model."

iso.3.6.1.2.1.1.9.1.3.4 = STRING: "The MIB module for SNMPv2 entities"

iso.3.6.1.2.1.1.9.1.3.5 = STRING: "The MIB module for managing TCP implementations"

iso.3.6.1.2.1.1.9.1.3.6 = STRING: "The MIB module for managing IP and ICMP

implementations"

iso.3.6.1.2.1.1.9.1.3.7 = STRING: "The MIB module for managing UDP implementations"

iso.3.6.1.2.1.1.9.1.3.8 = STRING: "View-based Access Control Model for SNMP."

iso.3.6.1.2.1.1.9.1.4.1 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.2 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.3 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.4 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.5 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.6 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.7 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.1.9.1.4.8 = Timeticks: (1) 0:00:00.01

iso.3.6.1.2.1.25.1.1.0 = Timeticks: (737940) 2:02:59.40

iso.3.6.1.2.1.25.1.2.0 = Hex-STRING: 07 DF 08 05 0F 14 01 00 2B 08 00

iso.3.6.1.2.1.25.1.3.0 = INTEGER: 1536

iso.3.6.1.2.1.25.1.4.0 = STRING: "BOOT_IMAGE=/boot/vmlinuz-3.16.0-0.bpo.4-amd64

root=LABEL=V2400A_MOXA ro quiet

iso.3.6.1.2.1.25.1.5.0 = Gauge32: 2

iso.3.6.1.2.1.25.1.6.0 = Gauge32: 93

iso.3.6.1.2.1.25.1.7.0 = INTEGER: 0

-232 like groups and RFC 1213 MIB-II:

V2416A Linux Managing Communications

3-21

ATTENTION

We suggest

creat

# point to the peer

tun-mtu-extra 64

OpenVPN

OpenVPN provides two types of tunnels for users to implement VPNS: Routed IP Tunnels and Bridged

Ethernet Tunnels.

An Ethernet bridge is used to connect different Ethernet networks together. The Ethernets are bundled into one

bigger, “logical” Ethernet. Each Ethernet corresponds to one physical interface (or port) that is connected to

the bridge.

On each OpenVPN machine, you should carry out configurations in the /etc/openvpn directory, where script

files and key files reside. Once established, all operations will be performed in that directory.

Ethernet Bridging for Private Networks on Different Subnets

1. Set up four machines, as shown in the following diagram.

2. Generate a preset shared key by typing the following command:

3. Copy the file that is generated to the OpenVPN machine:

4. On machine OpenVPN A, modify the remote address in configuration file /etc/openvpn/tap0-br.conf.

Host A represents the machine that belongs to OpenVPN A, and Host B represents the machine that belongs

to OpenVPN B. The two remote subnets are configured for a different range of IP addresses. When this

configuration is moved to a public network, the external interfaces of the OpenVPN machines should be

configured for static IPs, or connected to another device (such as a firewall or DSL box) first.

# openvpn --genkey --secret secrouter.key

# scp /etc/openvpn/secrouter.key 192.168.8.174:/etc/openvpn

preshared key is located at /etc/openvpn/secrouter.key. You can use it for testing purposes.

ing a new key for non-testing purposes.

remote 192.168.8.174

dev tap0

port 1194

secret /etc/openvpn/secrouter.key

cipher DES-EDE3-CBC

auth MD5

tun-mtu 1500

V2416A Linux Managing Communications

3-22

ping 40

#comp-lzo

#--------------------------Start---------------------------

#----------------------------end---------------------------

#!/bin/bash

...

# point to the peer

#comp-lzo

#----------------------------------Start-----------------------------

#---------------------------------- end -----------------------------

up /etc/openvpn/tap0-br.sh

5. Next, modify the routing table in /etc/openvpn/tap0-br.sh script.

#!/bin/sh

# value after “-net” is the subnet behind the remote peer

route add -net 192.168.4.0 netmask 255.255.255.0 dev br0

And then configure the bridge interface in /etc/openvpn/bridge.

# Create global variables

# Define Bridge Interface

br=“br0”

# Define list of TAP interfaces to be bridged,

# for example tap=“tap0 tap1 tap2”.

tap=“tap0”

# Define physical ethernet interface to be bridged

# with TAP interface(s) above.

eth=“eth1”

eth_ip=“192.168.8.173”

eth_netmask=“255.255.255.0”

eth_broadcast=“192.168.8.255”

#gw=“192.168.8.174”

6. Next modify the routing table in /etc/openvpn/tap0-br.sh script file.

Start the bridge script file to configure the bridge interface:

# /etc/openvpn/bridge restart

On machine OpenVPN B, modify the remote address in configuration file

/etc/openvpn/tap0-br.conf.

remote 192.168.8.173

dev tap0

secret /etc/openvpn/secrouter.key

cipher DES-EDE3-CBC

auth MD5

tun-mtu 1500

tun-mtu-extra 64

ping 40

up /etc/openvpn/tap0-br.sh

#!/bin/sh

# value after “-net” is the subnet behind the remote peer

route add -net 192.168.2.0 netmask 255.255.255.0 dev br0

V2416A Linux Managing Communications

3-23

#!/bin/bash

...

ATTENTION

Select cipher and authentication algorithms by specifying cipher and auth. To see which algorithms are

available, type:

# openvpn

# openvpn --show-auths

ATTENTION

You can create link symbols to start

# ln

To stop the service, you should create these links:

# ln

# ln -sf /etc/init.d/openvpn /etc/rc6.d/K80openvpn

Destination Gateway Genmsk Flags Metric Ref Use Iface

192.168.8.0 0.0.0.0 255.255.255.0 U 0 0 0 br0

And then configure the bridge interface in /etc/openvpn/bridge.

# Create global variables

# Define Bridge Interface

br=“br0”

# Define list of TAP interfaces to be bridged,

# for example tap=“tap0 tap1 tap2”.

tap=“tap0”

# Define physical ethernet interface to be bridged

# with TAP interface(s) above.

eth=“eth1”

eth_ip=“192.168.8.174”

eth_netmask=“255.255.255.0”

eth_broadcast=“192.168.8.255”

#gw=“192.168.8.173”

Start the bridge script file to configure the bridge interface.

# /etc/openvpn/bridge restart

--show-ciphers

7. Start both OpenVPN peers on machine OpenVPN A and OpenVPN B.

# openvpn --config /etc/openvpn/tap0-br.conf&

If you see the line Peer Connection Initiated with 192.168.8.173:5000on each machine, the

connection between OpenVPN machines has been established successfully on UDP port 5000.

-sf /etc/init.d/openvpn /etc/rc2.d/S16openvpn

the OpenVPN service at boot time:

-sf /etc/init.d/openvpn /etc/rc0.d/K80openvpn

8. On each OpenVPN machine, check the routing table by typing the command

# route

192.168.5.0 0.0.0.0 255.255.255.0 U 0 0 0 eth2

192.168.4.0 0.0.0.0 255.255.255.0 U 0 0 0 br0

192.168.3.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0

192.168.30.0 0.0.0.0 255.255.255.0 U 0 0 0 eth3

Interface eth1 and device tap0 both connect to the bridging interface, and the virtual device tun sits on

top of tap0. This ensures that all traffic coming to this bridge from internal networks connected to interface

eth1 write to the TAP/TUN device that the OpenVPN program monitors. Once the OpenVPN program

detects traffic on the virtual device, it sends the traffic to its peer.

V2416A Linux Managing Communications

3-24

# point to the peer

#comp-lzo

9. To create an indirect connection to Host B from Host A, you need to add the following routing item:

# route add –net 192.168.4.0 netmask 255.255.255.0 dev eth0

To create an indirect connection to Host A from Host B, you need to add the following routing item:

# route add –net 192.168.2.0 netmask 255.255.255.0 dev eth0

Now ping Host B from Host A by typing:

# ping 192.168.4.174

A successful ping indicates that you have created a VPN system that only allows authorized users from one

internal network to access users at the remote site. For this system, all data is transmitted by UDP packets

on port 5000 between OpenVPN peers.

10. To shut down OpenVPN programs, type the command:

# killall -TERM openvpn

Ethernet Bridging for Private Networks on the Same Subnet

1. Set up four machines, as shown in the following diagram.

2. The configuration procedure is almost the same as for the previous example. The only difference is that you

will need to comment out the parameter up in /etc/openvpn/tap0-br.conf of OpenVPN A and

/etc/openvpn/tap0-br.conf of OpenVPN B.

remote 192.168.8.174

dev tap0

secret /etc/openvpn/secrouter.key

cipher DES-EDE3-CBC

auth MD5

tun-mtu 1500

tun-mtu-extra 64

ping 40

#up /etc/openvpn/tap0-br.sh

V2416A Linux Managing Communications

3-25

# point to the peer

-----

#---------------------------Start----------------------------

#----------------------------end-----------------------------

# point to the peer

up /etc/openvpn/tun.sh

Routed IP

1. Set up four machines, as shown in the following diagram.

2. On machine OpenVPN A, modify the remote address in configuration file /etc/openvpn/tun.conf.

3. Next, modify the routing table in script file /etc/openvpn/tun.sh.

4. On machine OpenVPN B, modify the remote address in configuration file /etc/openvpn/tun.conf.

remote 192.168.8.174

dev tun

secret /etc/openvpn/secrouter.key

cipher DES-EDE3-CBC

auth MD5

tun-mtu 1500

tun-mtu-extra 64

ping 40

ifconfig 192.168.2.173 192.168.4.174

up /etc/openvpn/tun.sh

#!/bin/sh

# value after “-net” is the subnet behind the remote peer

route add -net 192.168.2.0 netmask 255.255.255.0 gw $5

remote 192.168.8.173

dev tun

secret /etc/openvpn/secrouter.key

cipher DES-EDE3-CBC

auth MD5

tun-mtu 1500

tun-mtu-extra 64

ping 40

ifconfig 192.168.4.174 192.168.2.173

V2416A Linux Managing Communications

3-26

#--------------------------Start----------------------------

#---------------------------end-----------------------------

Destination Gateway Genmsk Flags Metric Ref Use Iface

192.168.8.0 * 255.255.255.0 U 0 0 0 eth0

And then modify the routing table in script file /etc/openvpn/tun.sh.

#!/bin/sh

# value after “-net” is the subnet behind the remote peer

route add -net 192.168.2.0 netmask 255.255.255.0 gw $5

The first argument of parameter ifconfig is the local internal interface and the second argument is the

internal interface at the remote peer.

$5 is the argument that the OpenVPN program passes to the script file. Its value is the second argument

of ifconfig in the configuration file.

5. Check the routing table after you run the OpenVPN programs, by typing the command # route.

192.168.4.174 * 255.255.255.255 UH 0 0 0 tun0

192.168.4.0 192.168.4.174 255.255.255.0 UG 0 0 0 tun0

192.168.2.0 * 255.255.255.0 U 0 0 0 eth1



4. Programming Guide

The following topics are covered in this chapter:

Device API

Getting the Product Serial Number

RTC (Real Time Clock)

Digital I/O

 Special Note

 Examples

WDT (Watch Dog Timer)

 Introduction

 Watchdog Usage

 How the WDT Works

 Watchdog Device IOCTL Commands

 Examples

V2416A Linux Programming Guide

4-2

int ioctl(int d, int request,…);

<request> argument in or out

moxa@Moxa:~$ sudo dmidecode -s "baseboard-manufacturer"

MOXA

bios-vendor

processor-frequency

Device API

The V2416A-LX supports control devices with the ioctl system API. The interface is shown below:

Input:

<d> open device node return file handle

Refer to desktop Linux’s man page for detailed documentation:

#man ioctl

Getting the Product Serial Number

Use dmidecode to ready the product information. The command is:

Refer to the following keywords to get other product information.

bios-version

bios-release-date

system-manufacturer

system-product-name

system-version

system-serial-number

system-uuid

baseboard-manufacturer

baseboard-product-name

baseboard-version

baseboard-serial-number

baseboard-asset-tag

chassis-manufacturer

chassis-type

chassis-version

chassis-serial-number

chassis-asset-tag

processor-family

processor-manufacturer

processor-version

V2416A Linux Programming Guide

4-3

int ioctl(fd, RTC_RD_TIME, struct rtc_time *time);

int ioctl(fd, RTC_SET_TIME, struct rtc_time *time);

Description: set RTC time. Argument 3 will be passed to RTC.

#define DIO_ERROR_PORT -1 // no such port

4 // The value of duration is not 0 or not in the range,

5 // The value of duration must be a multiple of 20

#define DIO_OK 0

#define DIO_HIGH 1

#define DIO_LOW 0

RTC (Real Time Clock)

The device node is located at /dev/rtc. The V2416A-LX supports standard Linux simple RTC control. You must

include <linux/rtc.h>.

1. Function: RTC_RD_TIME

Description: read time information from the RTC. It will return the value on argument

2. Function: RTC_SET_TIME

Digital I/O

Digital Output channels can be set to high or low. The channels are controlled by the function call

set_dout_state( ). Use the digital input channels to detect the state change of the digital input signal. The DI

channels can also be used to detect whether or not the state of a digital signal changes during a fixed period

of time. This can be done with the function call set_din_event( ).

Return error code definitions:

#define DIO_ERROR_MODE -2 // no such mode or state

#define DIO_ERROR_CONTROL -3 // open or ioctl fail

#define DIO_ERROR_DURATION -

40 <= duration <= 3600000 milliseconds (1 hour)

#define DIO_ERROR_DURATION_20MS -

DIN and DOUT definitions:

Moxa functions for DI/DO

Function int set_dout_state(int doport, int state)

Description Set the DOUT port to high or low state.

Input <doport> The DOUT port you want to set. Port starts from 0 to 1

<state> Set high or low state; DIO_HIGH (1) for high, DIO_LOW (0) for low.

Output None

Return refer to the error code

Function int get_din_state(int diport, int *state)

Description Get the DIN port state

Input <diport> The DIN port to get the state of. Port numbering is from 0 to 5

<state> Save the current state

Output <state> DIO_HIGH (1) for high, DIO_LOW (0) for low

Return Refer to the error code

V2416A Linux Programming Guide

4-4

Output

None

(DIN_EVENT_HIGH_TO_LOW or DIN_EVENT_LOW_TO_HIGH), and the value of “duration.”

The value of duration should be 0 or 40 <= duration <= 3600000 milliseconds.

Function int get_dout_state(int doport, int *state)

Description Get the DOUT port state

Input <doport> The DOUT port to get the state of.

<state> Save the current state.

Output <state> DIO_HIGH (1) for high, DIO_LOW (0) for low

Return Refer to the error code

Function int set_din_event(int diport, void (*func)(int diport), int mode, long int duration)

Description Set the DIN event when the state is changed from high to low or from low to high

Input <diport> The port that will be used to detect the DIN event.

Port numbering is from 0 to 5. This value depends on your device.

<(*func) (int diport)>

Not NULL: Returns the call back function. When the event occurs, the call back function will

be invoked.

NULL: Clear this event

<mode>

DIN_EVENT_HIGH_TO_LOW (1): From high to low

DIN_EVENT_LOW_TO_HIGH (0): From low to high

DIN_EVENT_CLEAR (-1): Clear this event

0: Detect the din event DIN_EVENT_HIGH_TO_LOW or DIN_EVENT_LOW_TO_HIGH

without duration

Not 0: Detect the din event DIN_EVENT_HIGH_TO_LOW or

DIN_EVENT_LOW_TO_HIGH with duration.

Note:

The value of “duration” must be a multiple of 20 milliseconds.

The range of “duration” is 0, or 40 <= duration <= 3600000 milliseconds.

The error of the measurement is 24 ms. For example, if the DIN duration is 200 ms, this

event will be generated when the DIN pin stays in the same state for a time between 176 ms

and 200 ms.

Return Refer to the error code

Function int get_din_event(int diport, int *mode, long int *duration)

Description To retrieve the DIN event configuration, including mode

Input <diport> Which DIN port you want to retrieve

<mode> Save the set event.

<duration> The duration the DIN port is kept in high or low state. - return to the current

duration value of diport

Output <mode>

DIN_EVENT_HIGH_TO_LOW (1): From high to low

DIN_EVENT_LOW_TO_HIGH(0): From low to high

DIN_EVENT_CLEAR(-1): Clear this event

Return Refer to the error code

V2416A Linux Programming Guide

4-5

moxa@Moxa:~$ vi /etc/modprobe.d/watchdog.conf

moxa@Moxa:~$

moxa@Moxa:~$ vi /etc/modprobe.d/watchdog.conf

moxa@Moxa:~$

moxa@Moxa:~$ vi /etc/modprobe.d/watchdog.conf

moxa@Moxa:~$

Special Note

1. You need to build the moxalib in advance for DI/DO. The moxalib is included in the folder

\example\V2400A_LX_V1.0_example on the CD.

2. Make sure to link the library libmoxalib for DI/DO programming, and include the header file

moxadevice.h. Only one program at a time can use the DI/DO library.

3. Due to hardware limitations, you need to modify MIN_DURATION as 60 for V2416A-LX computers.

Examples

Example files tdio.c and Makefile are located in the folder \example\V2400A_LX_V1.0_example\dio on

the CD.

WDT (Watch Dog Timer)

Introduction

The WDT works like a watchdog function, and can be enabled or disabled. When the WDT function is enabled

and the application does not acknowledge it, the system will reboot.

Watchdog Usage

Users can set the ack time from a minimum of 1 sec to a maximum of 1 day.The default timer is 60 seconds

and NO WAY OUT is enabled by default; there is no way of disabling the watchdog once it has been started, so

if the watchdog daemon crashes, the system will reboot after the timeout has passed. If the NO WAY OUT is

disabled, the user can stop the timer.

Example of setting the default timer

Edit the /etc/modprobe.d/watchdog.conf file to set the default timer. The following commands set the default

timer to 60 seconds:

options moxa_v2100_wdt timer_margin=60

Enable or disable NO WAY OUT

Edit the /etc/modprobe.d/watchdog.conf file to enable or disable NO WAY OUT.

Enable NO WAY OUT:

options moxa_v2100_wdt nowayout=1

Disable NO WAY OUT:

options moxa_v2100_wdt nowayout=0

V2416A Linux Programming Guide

4-6

:~$ echo V > /dev/watchdog

root@Moxa:~$

moxa@Moxa:~$ sudo insserv -v -d watchdog

moxa@Moxa:~$

moxa@Moxa:~$ ls -l /etc/rc?.d/*watchdog*

moxa@Moxa:~$

…

Magic close

If NO WAY OUT is disabled, you can stop the timer using magic close. Use the following commands to do this:

root@Moxa

How the WDT Works

The Debian project supports a watchdog daemon. The watchdog daemon checks if your system is still working.

If programs are no longer executing, it will perform a hard reset of the system. The standard watchdog driver

and package have been installed in the V2416A. If you need to run the watchdog once the system boots up,

you can use insserv to enable the watchdog function.

[sudo] password for moxa:

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc0.d/K01watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc1.d/K01watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc2.d/S23watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc3.d/S23watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc4.d/S23watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc5.d/S23watchdog

insserv: enable service ../init.d/watchdog -> /etc/init.d/../rc6.d/K01watchdog

insserv: creating .depend.boot

insserv: creating .depend.start

insserv: creating .depend.stop

Check the run level:

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc0.d/K01watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc1.d/K01watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc2.d/S23watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc3.d/S23watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc4.d/S23watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc5.d/S23watchdog -> ../init.d/watchdog

lrwxrwxrwx 1 root root 18 Nov 8 15:48 /etc/rc6.d/K01watchdog -> ../init.d/watchdog

The watchdog configuration file is located in /etc/watchdog.conf. Currently, we configure the watchdog

daemon to acknowledge the watchdog device in 30 seconds. The realtime is to lock itself into memory, so it is

never swapped out to prevent the delay of watchdog acknowledge. You can configure this file to enable the

watchdog as needed by your application.

watchdog-device = /dev/watchdog

…

interval = 30

realtime = yes

priority = -10

V2416A Linux Programming Guide

4-7

moxa@Moxa:~# sudo insserv -r watchdog

moxa@Moxa:~# ls -l /etc/rc?.d/*watchdog*

moxa@Moxa:~#

Output

None

Use the following command to remove it from run-level:

Check the run level removement.

ls: cannot access /etc/rc?.d/*watchdog*: No such file or directory

Watchdog Device IOCTL Commands

IOCTL WDIOC_GETSUPPORT

Description Returns the support of the card itself

Input None

Output (struct watchdog_info *) arg

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_GETSTATUS

Description Returns the status of the card

Input None

Output (int *)arg

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_GETBOOTSTATUS

Description Returns the status of the card that was reported at bootup.

Input None

Output (int *)arg)

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_SETOPTIONS

Description Lets you set the options of the card. You can either enable or disable the card.

Input None

Output (int *)arg)

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_KEEPALIVE

Description Pings the card to tell it not to reset your computer.

Input None

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_SETTIMEOUT

Description Sets the watchdog timeout

Input arg: 1 to 255 seconds

Output None

Return On success, returns 0. Otherwise, returns a value < 0.

IOCTL WDIOC_GETTIMEOUT

Description Gets the current watchdog timeout.

Input None

Output arg: 1 to 255 seconds

Return On success, returns 0. Otherwise, returns a value < 0.

V2416A Linux Programming Guide

4-8

#include <stdio.h>

}

Examples

The example file watchdog-simple.c acks the watchdog every 10 seconds.

#include <stdlib.h>

#include <unistd.h>

#include <fcntl.h>

int main(void)

{

int fd = open("/dev/watchdog", O_WRONLY);

int ret = 0;

if (fd == -1) {

perror("watchdog");

exit(EXIT_FAILURE);

}

while (1) {

ret = write(fd, "\0", 1);

if (ret != 1) {

ret = -1;

break;

}

sleep(10);

}

close(fd);

return ret;



5. Managing the Disk

The V2416A embedded computer is a RAID management platform designed to serve as a front-end for data

acquisition and industrial control applications. In this chapter, we describe how to configure the volume

supported by the Linux operating system.

The following topics are covered in this chapter:

Hot-Swapping Function

 Installing the hotswap driver and daemon

 File Overview

 Configuring the Hot-Swapping Daemon

 Handling an Event with the Hot-Swapping Daemon

 Logging the Hot-Swapping Daemon Message

Software RAID—mdadm

 Create Software RAID Volume

 Check Software RAID Status

 Replacing a Failed Disk

 Removing RAID

V2416A Linux Managing the Disk

5-2

root@Moxa:/# dpkg -i v2400a-hotswap_1.0.0_amd64.deb

…

mxhtspd -v &

Hot-Swapping Function

The V2416A-LX computers come with two removable, hot-swappable slots for inserting additional storage

media such as hard disks or SSD drives. It also supports hot swapping for convenient, fast, and easy storage

expansion, and provides user-defined programmable LEDs and the related API for storage management.

Storage plug/unplug functionality, automatic storage removal, and storage status display are all supported.

Installing the hotswap driver and daemon

Use the following command to install the hotswap driver and daemon:

When you restart your computer, and the hotswap driver and daemon will execute automatically.

File Overview

The main files are listed below:

• mxhtspd: a daemon for monitoring hot-swap events

• mxhtspd-setled: a command to set up LED signals

• /etc/mxhtspd/scripts: scripts executed when an event occurs; the following files are included:

action-btn-pressed

action-disk-plugged

action-disk-unplugged

• libmxhtsp.so: library

Configuring the Hot-Swapping Daemon

An mxhtspd daemon is provided for the V2416A hot-swapping function. It is launched with the

/etc/init.d/mxhtspd.sh script at startup and will detect the disk status in the background.

You can configure mxhtspd with the following options:

• -l facility_num: log daemon’s message by rsyslogd with LOCAL[facility_num]

• -v: run in verbose mode

• -h: print usage

The following example shows how to use the –v option to modify /etc/init.d/mxhtspd.sh:

start)

echo "Starting mxhtspd daemon..."

sleep 1

Handling an Event with the Hot-Swapping Daemon

mxhtspd will be triggered when the following events occur:

1. A disk is plugged in

When an ext2/ext3/ext4/FAT32 disk n with m partitions is been plugged in, the system will automatically

mount its partitions on /media/disknpm, where m ranges from 1 to m. For example, if disk 1 has two

partitions, they would be mounted on /media/disk1p1 and /media/disk1p2.

The action-disk-plugged script will be triggered with the disk number as argument. By default it will scan

the disk on the SATA bus. You can add some operations here when necessary.

V2416A Linux Managing the Disk

5-3

root@Moxa:/# mount

/dev/sdc1 on /media/disk2p1 type ext4 (rw,relatime,data=ordered)

ATTENTION

Make sure a disk is u

the LED will blink

3 times at 1 second intervals

# The default runlevel.

id:2:initdefault:

root@Moxa:/# insserv -d rsyslog

#Add parameter if necessary

mxhtspd -l 0&

#Uncomment below lines for mxhtspd with local 0

local0.* -/var/log/mxhtspd.log

Execute the mount command to check the disk mounting situation. The following example shows the status

of 2 disks with 2 partitions separately.

sysfs on /sys type sysfs (rw,nosuid,nodev,noexec,relatime)

proc on /proc type proc (rw,nosuid,nodev,noexec,relatime)

udev on /dev type devtmpfs (rw,relatime,size=10240k,nr_inodes=236357,mode=755)

devpts on /dev/pts type devpts

(rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=000)

tmpfs on /run type tmpfs (rw,nosuid,noexec,relatime,size=190648k,mode=755)

/dev/disk/by-label/V2400A_MOXA on / type ext4

(rw,noatime,errors=remount-ro,data=ordered)

tmpfs on /run/lock type tmpfs (rw,nosuid,nodev,noexec,relatime,size=5120k)

tmpfs on /run/shm type tmpfs (rw,nosuid,nodev,noexec,relatime,size=381280k)

rpc_pipefs on /var/lib/nfs/rpc_pipefs type rpc_pipefs (rw,relatime)

/dev/sdb1 on /media/disk1p1 type ext4 (rw,relatime,data=ordered)

2. A button is pressed

When button n is pressed, the action-btn-pressed script will be executed with argument n. It will

unmount all partitions on disk n and the LED will blink 3 times at 1 second intervals. Finally, the LED will

turn off to indicate that the disk has been successfully unmounted, and that users can remove that hard

disk from the storage tray. If the disk is busy, it will show a warning message and the LED will remain green

after blinking 3 times at 1 second intervals

3. A disk is unplugged

Logging the Hot-Swapping Daemon Message

1. Check your run level in the /etc/inittab file; the default is 2:

2. Enable rsyslogd at startup:

3. Edit /etc/init.d/mxhtspd.sh to add -l 0 options to enable the mxhtspd logging function with local 0.

When disk n is unplugged, the action-disk-unplugged script will be triggered with argument n. It will

check if all partitions on disk n have been unmounted before they were unplugged and warn the user if they

weren’t. The correct procedure is to first press the button to unmount the partitions and then unplug the

disk. The only purpose of this script is to warn of misuse or incorrect operation.

nmounted before unplugging it. After pressing the button for the disk,

, and then will turn off to indicate that the disk has been successfully unmounte

Take the following steps to log the mxhtspd message with the rsyslogd daemon:

4. Edit the configuration file /etc/rsysload.conf and add the following setting.

mxhtspd will use the local0 facility to log a message. The destination file is /var/log/mxhtspd.log. The

minus ‘-‘ sign indicates to omit syncing the file after every logging.

V2416A Linux Managing the Disk

5-4

ATTENTION

When you run the

daemon to log messages at startup, take care to prevent excessive disk usage.

root@Moxa:~# apt-get install mdadm

root@Moxa:~# cat /proc/mdstat

root@Moxa:~#

root@Moxa:~# umount /media/disk1p1

root@Moxa:~# /etc/init.d/mxhtspd.sh stop

5. Restart your computer to activate the settings.

rsyslogd

Software RAID—mdadm

mdadm is a Linux utility used to manage software RAID devices. The name is derived from the “md” (multiple

device) device nodes it “administers or manages” (it replaces the utility mdctl). The original name was “Mirror

Disk” but was changed as the functionality increased. The RAID volume is built in Linux, not in the BIOS.

Create Software RAID Volume

The V2416A comes with 2 SATA disk slots; it can manage linear, RAID0, and RAID1 volumes on these two

SATA disks.

1. Type the following command to install the mdadm utility.

Press enter to continue.

2. Use the /proc/mdstat command to check the RAID device information.

Personalities :

Unused devices: <none>

3. Use the command mxhtspd to unmont the disks if they are mounted, stop the mxhtspd service, and

remove the run level.

root@Moxa:~# umount /media/disk2p1

V2416A Linux Managing the Disk

5-5

moxa@Moxa:~# insserv -r mxhtspd.sh

root@Moxa:~# fdisk /dev/sdb1

root@Moxa:~# fdisk /dev/sdc1

root@Moxa:~# umount /media/disk1p1

root@Moxa:~# umount /media/disk2p1

-C: create

ID level, options are: linear, raid0, 0, stripe, raid1, 1, mirror, raid4,

4, raid5, 5, raid6, 6, raid10, 10, multipath, mp, faulty. Obviously some of these

-n: the number of disks

root@Moxa:~# mdadm -Cv -llinear -n2 /dev/md0 /dev/sd{b,c}1

root@Moxa:~# mdadm -Cv –l0 -n2 /dev/md0 /dev/sd{b,c}1

root@Moxa:~# mdadm -Cv –l1 -n2 /dev/md0 /dev/sd{b,c}1

root@Moxa:~# cat /proc/mdstat

Unused devices: <none>

root@Moxa:~# mkfs.ext4 /dev/md0

root@Moxa:~# mount /dev/md0 /mnt/raid

root@Moxa:~# mdadm --detail --scan >> /etc/mdadm/mdadm.conf

DEVICE /dev/sdb1 /dev/sdc1

HOMEHOST <system>

Because the mxhtspd hotswap daemon only supports general disk hotswap management, the RAID

management features is not included. We suggest disabling it with RAID management features. You can

use this command to remove the mxhtspd service from run-level:

4. Use the following commands to create partitions on the disk. This action will auto mount the disk.

5. Because of the auto mount feature, you will need to unmount the disks again.

6. Create the RAID volume.

The mdadm options shown below are used for the RAID volume creation. You can choose to create a linear

mode, striping mode, or mirror mode RAID volume.

-v: verbose

-l: RA

are synonymous.

7. You may create different types of software RAID:

A. Create a linear mode software RAID.

B. Create a striping mode software RAID 0.

C. Create a mirror mode software RAID 1.

Next, use /proc/mdstat to check the RAID device information.

Personalities: [raid0]

md0: active raid0 sdb1[1] sdc1[0]

195369504 blocks super 1.2 OK rounding

8. Format the RAID.

9. Mount the RAID device manually.

10. Start the RAID volume automatically at the next boot up.

If you need to start the array automatically, edit /etc/mdadm/mdadm.conf.

Edit /etc/mdadm/mdadm.conf.

CREATE owner=root group=disk mode=0660 auto=yes

V2416A Linux Managing the Disk

5-6

MAILADDR your_email@xxx.com

ARRAY /dev/md0 metadata=1.2 name=Moxa:0 UUID=45ae9dbe:f30741ec:b22eff98:2dadb12d

/dev/md0 /mnt/raid ext4 defaults 0 2

root@Moxa:~# umount /

root@Moxa:~# cat /proc/mdstat

Personalities : [linear]

md0 : active linear sdb1[1] sdc1[0]

23436724 blocks super 1.2 0k rounding

unused devices: <none>

root@Moxa:~# cat /proc/mdstat

unused devices: <none>

md1 : active raid1 sdb1[1] sdc1[0](F)

17920384 blocks [2/1] [_U]

root@Moxa:~# mdadm --manage /dev/md0 --fail /dev/sdb1

root@Moxa:~# sync

root@Moxa:~# mdadm -r /dev/md0 /dev/sdb1

mdadm: hot removed /dev/sdb1 from /dev/md0

root@Moxa:~# mdadm -a /dev/md0 /dev/sdb1

Add the following line to /etc/fstab to mount the RAID volume.

Unmount the root file system and reboot. The array should be started and mounted at /mnt/raid.

Check Software RAID Status

Use reading /proc/mdstat to check the software RAID status. If the array is running, the status will be as

indicated below.

If the array is not running, the status will be.

Personalities : [linear]

Replacing a Failed Disk

If the array is running in mirror mode and one of the disks fails, you should remove the failed disk and replace

it with a new one. In this case, sdb1[0](F) means the sdb disk has failed.

You can use the following commands to simulate the failure of one disk.

mdadm: set /dev/sdb1 faulty in /dev/md0

Use the following command to remove a failed disk from RAID.

Use the following command to replace the first drive with a new disk and add it into the array.

V2416A Linux Managing the Disk

5-7

root@Moxa:~# cat /proc/mdstat

unused devices: <none>

root@Moxa:~# umount /mnt/raid

root@Moxa:~# mdadm –-stop /dev/md0

root@Moxa:~# insserv -r mdadm

If you check mdstat, you will find that the array is in the process of auto recovering.

Personalities : [raid1]

md0 : active raid1 sdb1[0] sdc1[1]

7806522 blocks super 1.2 [2/1] [_U]

[==>..................] recovery = 10.6% (831488/7806522) finish=0.9min

speed=118784K/sec

Removing RAID

Unmont the disks if they are already mounted.

Use the following command to remove a failed disk from RAID.

Use the following command to remove mdadm service from run-level.



6. System Recovery

The V2416A are installed with the Embedded Linux operating system, which is located in the Flash DOM

(CompactFlash card) shipped with the V2416A-LX computer. In this chapter, we describe how to recover the

Linux operating system if the operating system files and/or the disk file system have been damaged, which

occurs only rarely.

The following topics are covered in this chapter:

Recovery Environment

Recovery Procedure

Saving the System to the USB Drive

V2416A Linux System Recovery

6-2

Recovery Environment

The recovery environment includes the V2416A embedded computer and a bootable USB disk with the

recovery programs and system image file.

Hardware

The hardware used includes a PC, a V2416A computer and a USB disk with the recovery programs. (Note: The

USB disk should be at least 2 GB.).

V2416A-LX

Bootable USB DISK

(recovery programs and

system image file

included)

USB Port

Recovery Procedure

Step 1: Prepare your USB drive

1. Execute tuxboot-windows-23.exe from the utility_tools/CloneZilla folder on the Software CD, select

Pre Download, and then click “…”

V2416A Linux System Recovery

6-3

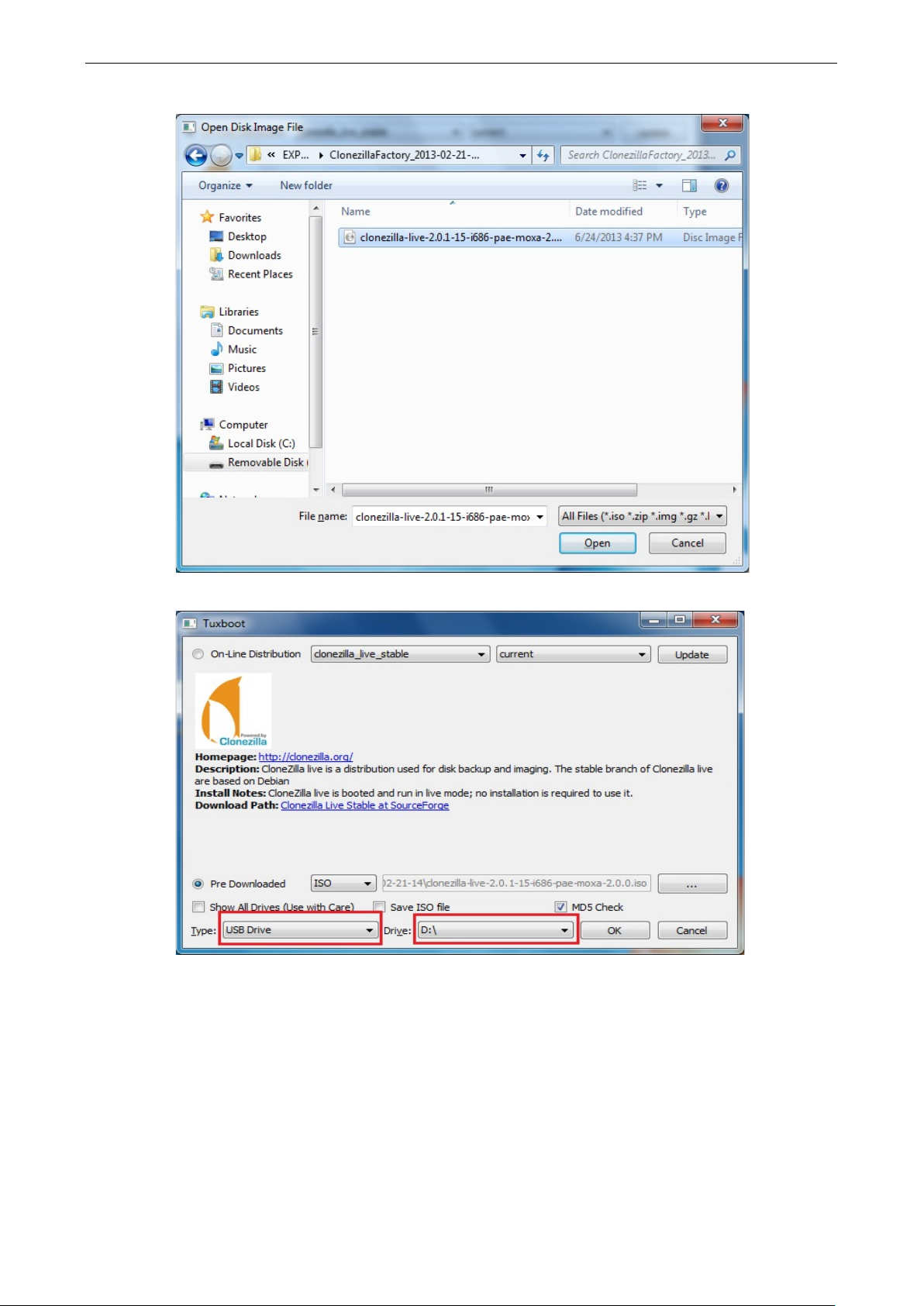

2. Select the ISO file in the directory <Software DVD> \Recovery\V2416A-LX_Recovery\CloneZilla\

3. Select USB Drive type, select a Drive, and then click OK to continue.

V2416A Linux System Recovery

6-4

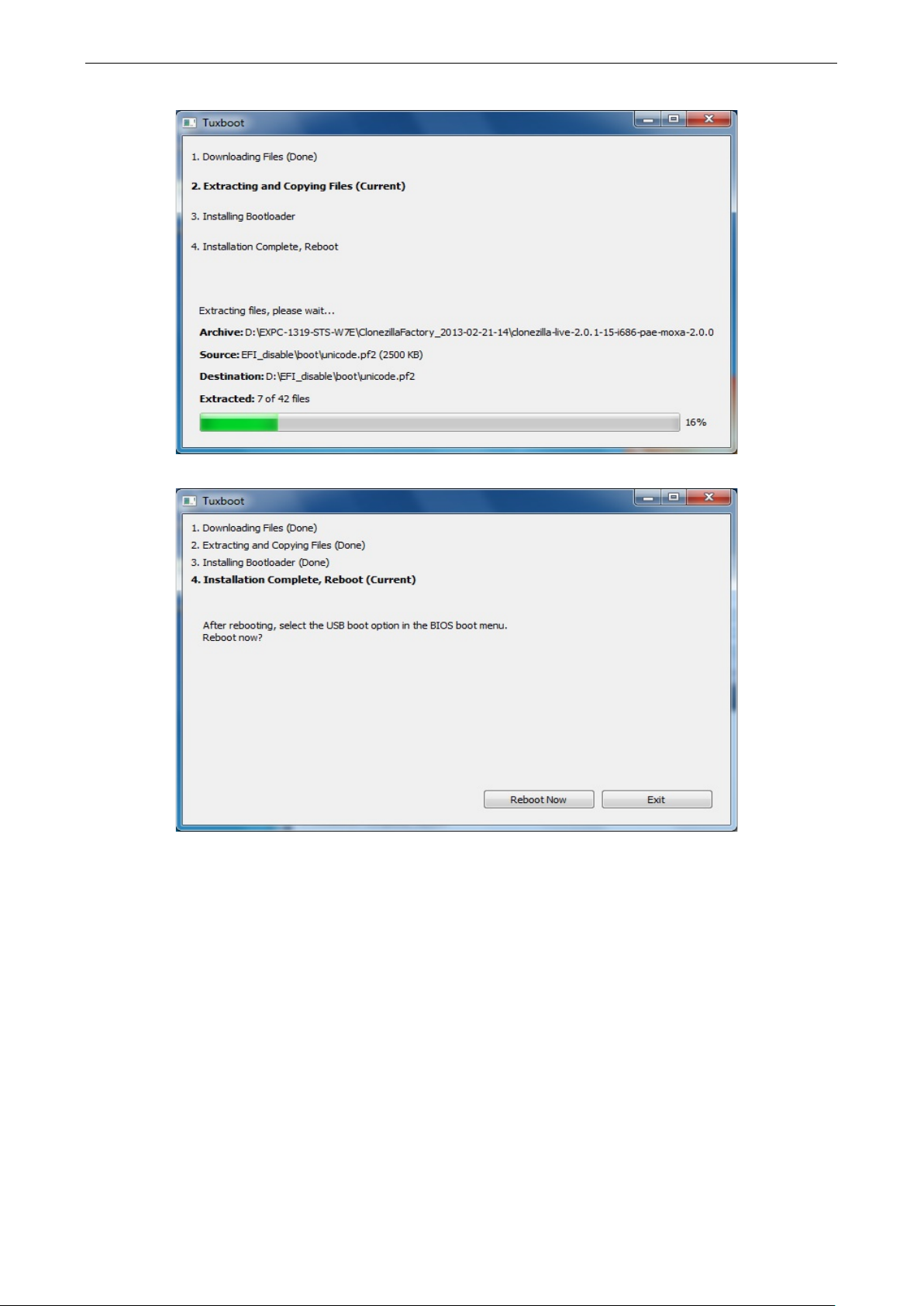

4. The boot files will be copied to your USB drive.

5. When finished, click Exit to stop the program.

6. Manually copy the os_image directory from the <Software DVD>

\Recovery\V2416A-LX_Recovery\CloneZilla\ folder on the Software DVD to \home\partimag\ on the

USB drive.

V2416A Linux System Recovery

6-5

Step 2: Change the BIOS Settings

You will need to change the BIOS settings to boot from the USB disk.

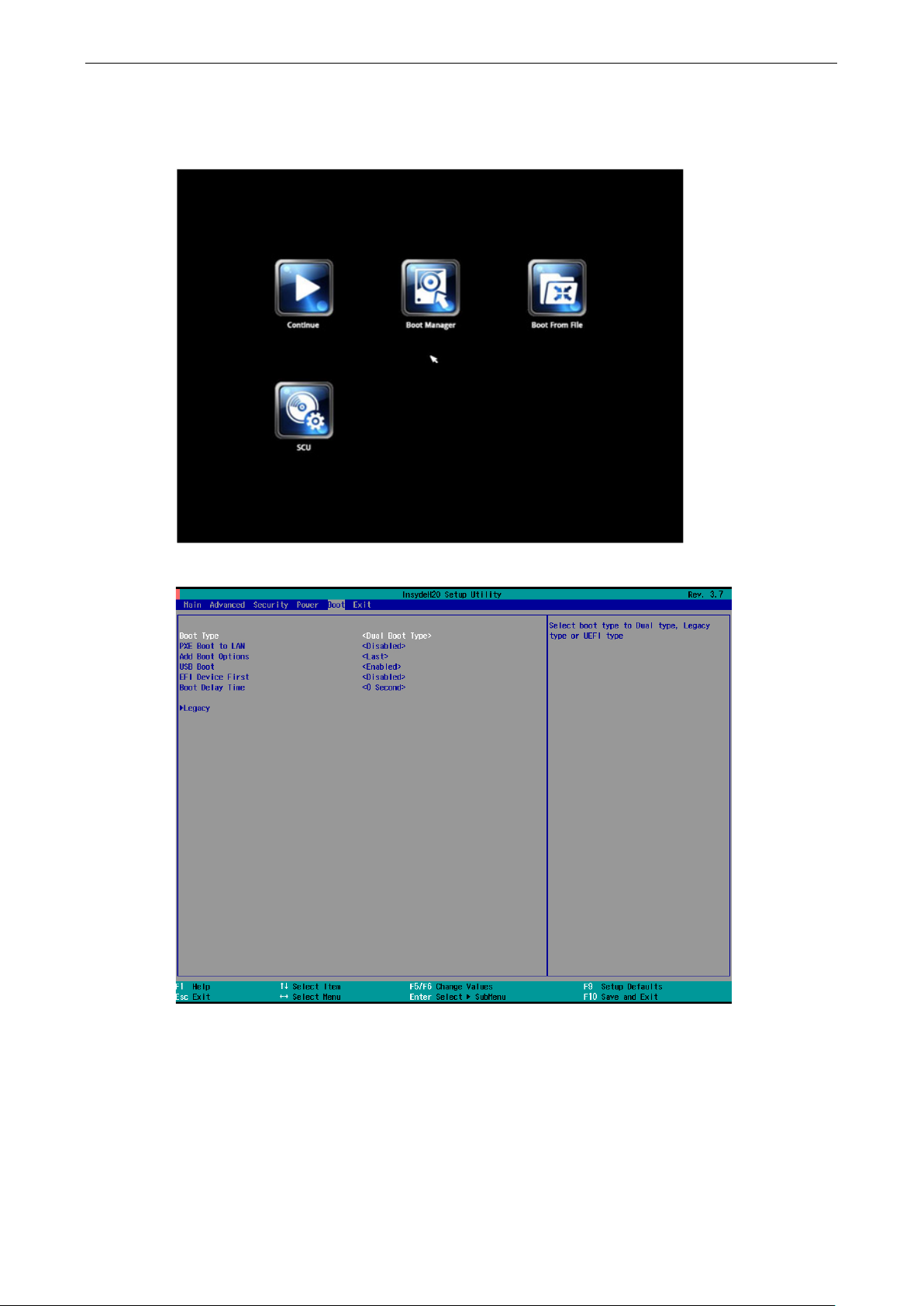

1. Turn on the computer and press F2. Select SCU in the following screen.

2. Select Boot and then select Legacy. Press Enter to continue.

V2416A Linux System Recovery

6-6

3. Select Boot Type Order.

4. Select USB disk and then press “+” to move it to the first boot device position.

Warning: An incorrect boot priority will lead to recovery failure.

5. Press F10 and then press Enter to save and exit the BIOS setup.

V2416A Linux System Recovery

6-7

Step 3: Restore the system from the USB drive

Connect the USB disk to any of the V2416A’s USB ports and then reboot the computer. The system will boot

from the USB disk and the Pre-installation Environment and the recovery utility will appear.

1. Select clonezilla live restore disk.

2. Wait for the USB drive boot process to finish.

V2416A Linux System Recovery

6-8

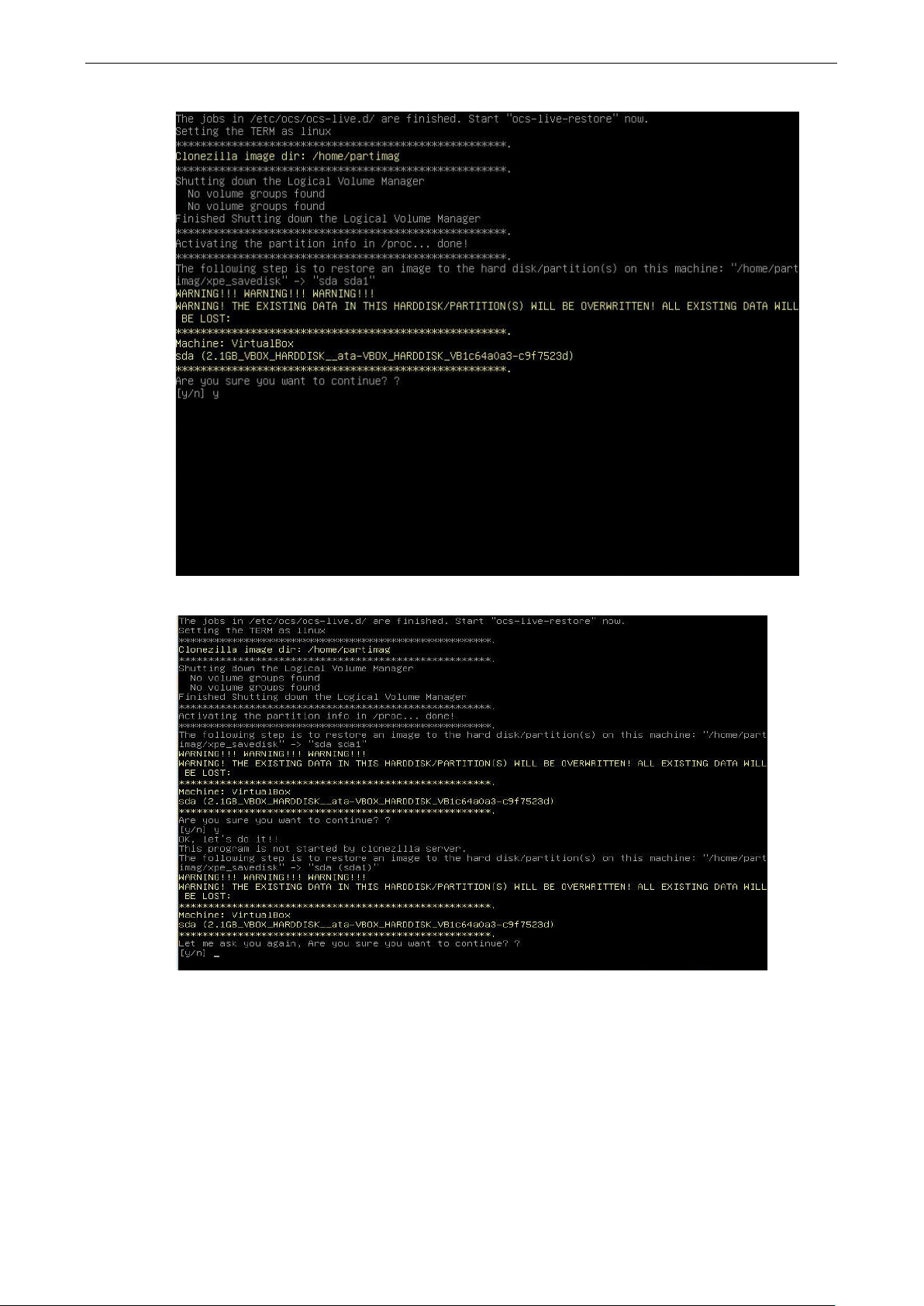

3. Enter y to continue the restore process.

4. Enter y to confirm again.

V2416A Linux System Recovery

6-9

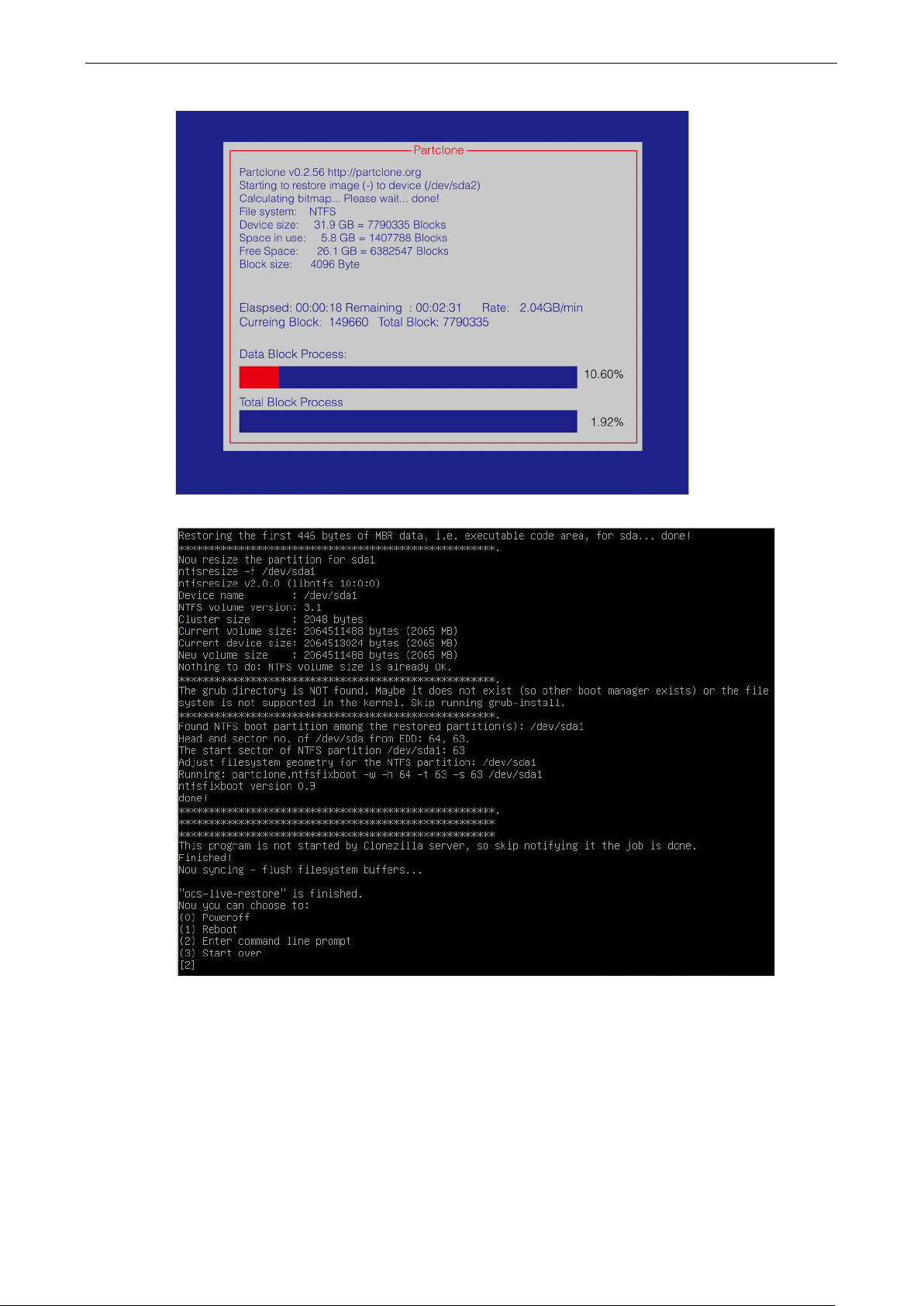

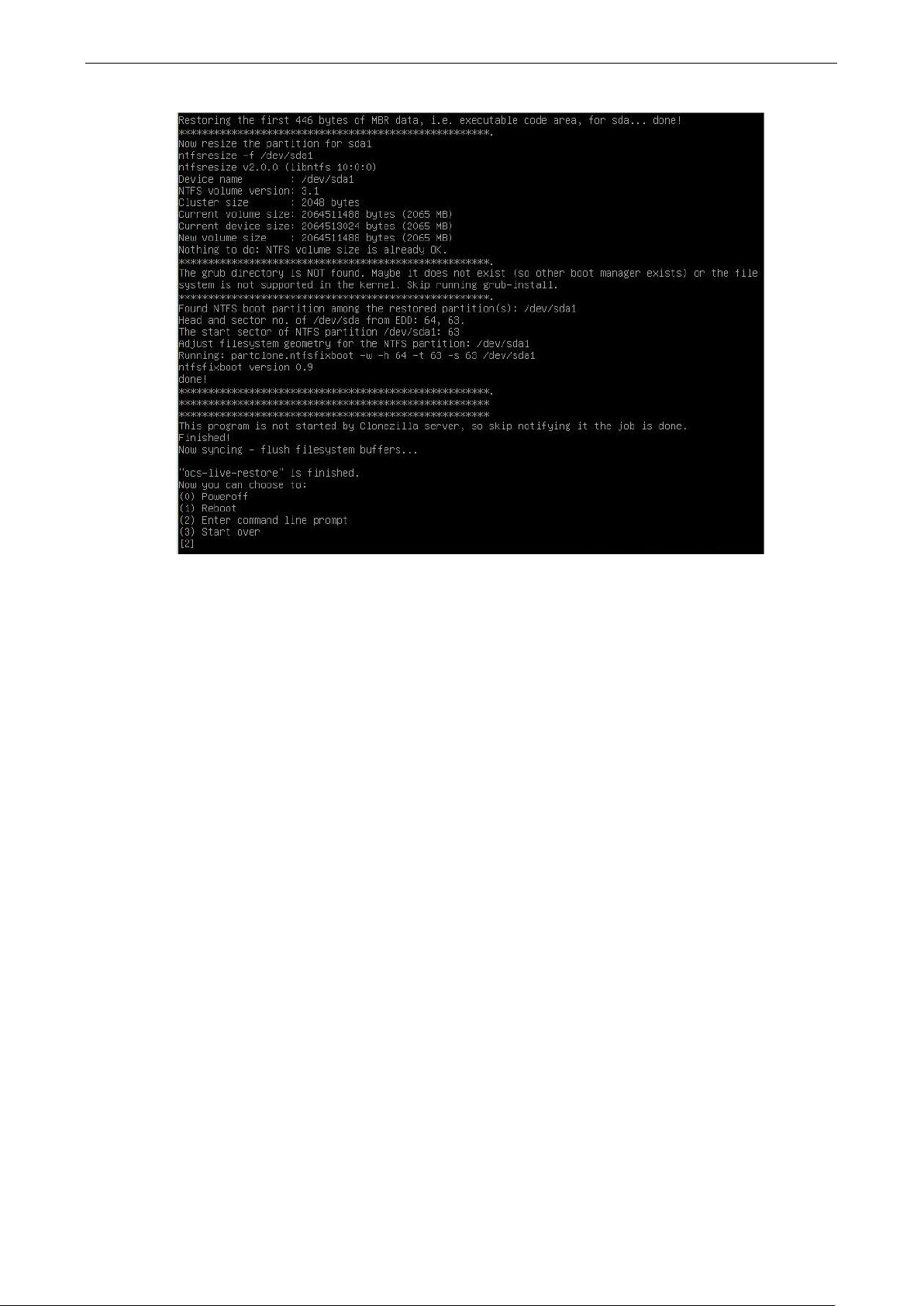

5. Wait for the process to finish.

6. Select (0) Poweroff to power off the computer.

7. Remove the USB drive after the computer has been powered off.

V2416A Linux System Recovery

6-10

Step 4: Change the BIOS Settings to Boot from the Original Disk

Now you will need to change the boot priority so that it can boot from the original disk. As the system reboots,

press F2 to enter the BIOS setup menu.

1. Select Hard Disk Drive and then press + to move to the first boot device position, and then press Enter.

Make sure the hard disk has first boot priority.

2. Press F10 and then press Enter to save and exit BIOS settings.

Step 5: Reboot the Computer

You need to wait about 10 to 15 minutes for the system to restart since the system configuration files will be

initiated while booting up for the first time. Do not turn off the computer or shut down the computer

while the system is restarting; otherwise, the IIS service will be terminated. When the operating system has

successfully launched, you will need to restart your computer so that the new settings can be activated.

V2416A Linux System Recovery

6-11

Saving the System to the USB Drive

You may also save the current system to the USB drive for system recovery in case the system crashes. Before

saving the system to the USB drive, we suggest removing all files under \home\partimag\ on the USB drive.

In addition, change the BIOS settings to make the USB drive the first boot priority.

When the system has been launched, take the following steps.

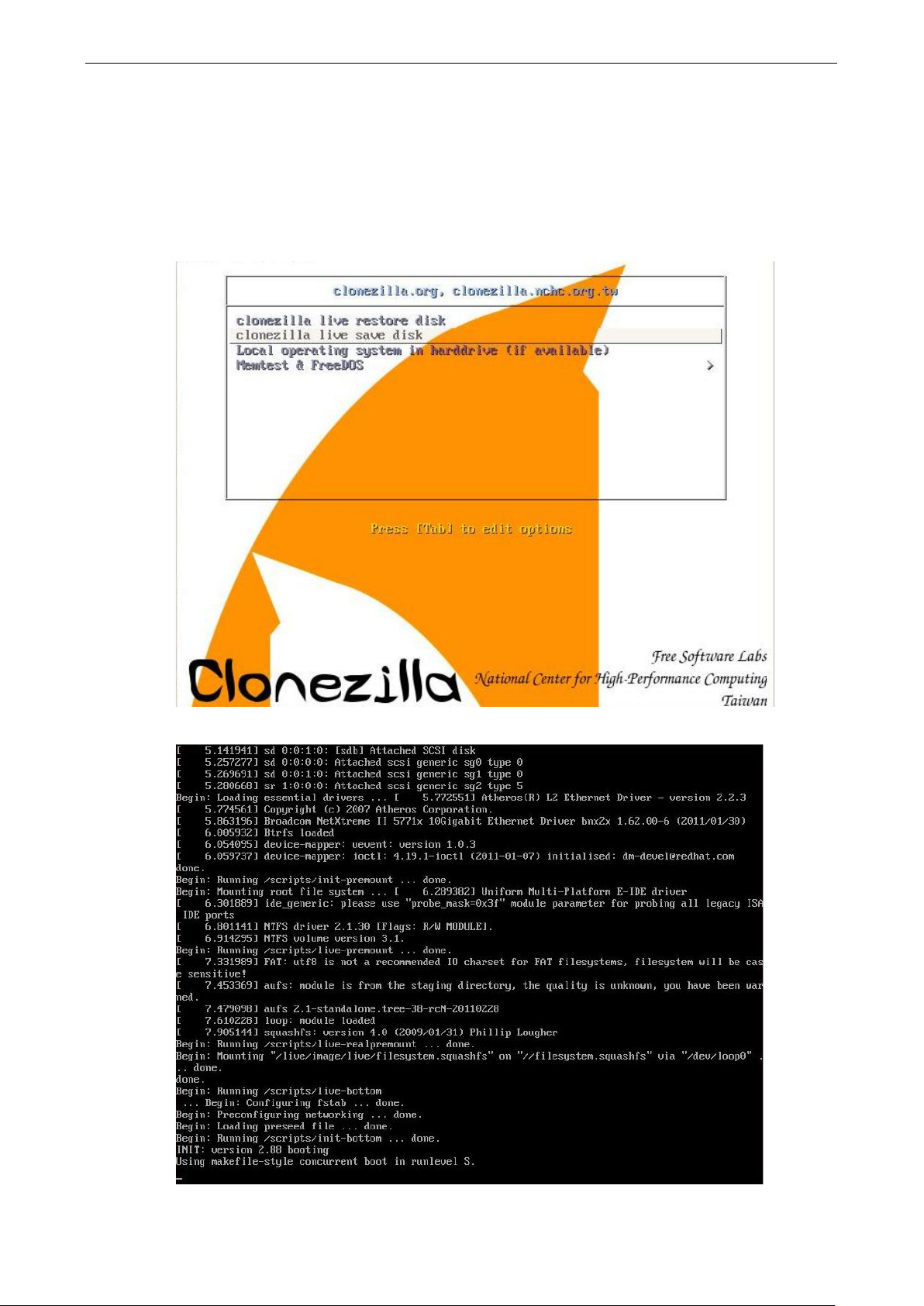

1. Select clonezilla live save disk.

2. Wait for the USB drive boot process to finish.

V2416A Linux System Recovery

6-12

3. Enter y to continue.

4. Wait for the process to finish.

V2416A Linux System Recovery

6-13

5. Select (0) Poweroff so that the computer will power off when the process is finished.

apache2-mpm-prefork

2.2.22-13+deb7u4

Apache HTTP Server - traditional non-threaded model

package managment related utility programs

Debian base system master password and group files

The GNU bc arbitrary precision calculator language

bsdmainutils

9.0.3

collection of more utilities from FreeBSD

utilities

A. Software Components

acpi 1.6-1 displays information on ACPI devices

acpi-support-base 0.140-5+deb7u3 scripts for handling base ACPI events such as the power

button

acpid 1:2.0.16-1+deb7u1 Advanced Configuration and Power Interface event

daemon

adduser 3.113+nmu3 add and remove users and groups

alsa-base 1.0.25+3~deb7u1 ALSA driver configuration files

alsa-utils 1.0.25-4 Utilities for configuring and using ALSA

apache2 2.2.22-13+deb7u4 Apache HTTP Server metapackage

apache2-utils 2.2.22-13+deb7u4 utility programs for webservers

apache2.2-bin 2.2.22-13+deb7u4 Apache HTTP Server common binary files

apache2.2-common 2.2.22-13+deb7u4 Apache HTTP Server common files

apt 0.9.7.9+deb7u7 commandline package manager

apt-listchanges 2.85.11 package change history notification tool

apt-utils 0.9.7.9+deb7u7

aptitude 0.6.8.2-1 terminal-based package manager

aptitude-common 0.6.8.2-1 architecture indepedent files for the aptitude package

manager

at 3.1.13-2+deb7u1 Delayed job execution and batch processing

base-files 7.1wheezy8 Debian base system miscellaneous files

base-passwd 3.5.26

bash 4.2+dfsg-0.1+deb7u3 GNU Bourne Again SHell

bash-completion 1:2.0-1 programmable completion for the bash shell

bc 1.06.95-2+b1

bind9-host 1:9.8.4.dfsg.P1-6+nmu2

+deb7u3

binutils 2.22-8+deb7u2 GNU assembler, linker and binary utilities

bridge-utils 1.5-6 Utilities for configuring the Linux Ethernet bridge

Version of 'host' bundled with BIND 9.X

bsdutils 1:2.20.1-5.3 Basic utilities from 4.4BSD-Lite

build-essential 11.5 Informational list of build-essential packages

busybox 1:1.20.0-7 Tiny utilities for small and embedded systems

bzip2 1.0.6-4 high-quality block-sorting file compressor -

ca-certificates 20130119+deb7u1 Common CA certificates

console-setup 1.88 console font and keymap setup program

console-setup-linux 1.88 Linux specific part of console-setup

coreutils 8.13-3.5 GNU core utilities

cpio 2.11+dfsg-0.1+deb7u1 GNU cpio -- a program to manage archives of files

cpp 4:4.7.2-1 GNU C preprocessor (cpp)

cpp-4.7 4.7.2-5 GNU C preprocessor

cron 3.0pl1-124 process scheduling daemon

dash 0.5.7-3 POSIX-compliant shell

V2416A Linux Software Components

A-2

polish calculator

discover

2.1.2-5.2

hardware identification system

Data lists for Discover hardware detection system

+deb7u3

Binary firmware for various drivers in the Linux kernel

gcc

4:4.7.2-1

GNU C compiler

GCC, the GNU Compiler Collection (base package)

gettext-base

0.18.1.1-9

GNU Internationalization utilities for the base system

GRand Unified Bootloader, version 2 (PC/BIOS version)

GRand Unified Bootloader, version 2 (PC/BIOS binaries)

GRand Unified Bootloader (common files for version 2)

scripts for initializing and shutting down the system

db5.1-util 5.1.29-5 Berkeley v5.1 Database Utilities

dbus 1.6.8-1+deb7u6 simple interprocess messaging system (daemon and

utilities)

dc 1.06.95-2+b1 The GNU dc arbitrary precision reverse-

debconf 1.5.49 Debian configuration management system

debconf-i18n 1.5.49 full internationalization support for debconf

debian-archive-keyring 2014.3~deb7u1 GnuPG archive keys of the Debian archive

debian-faq 5.0.1 Debian FAQ

debianutils 4.3.2 Miscellaneous utilities specific to Debian

diffutils 1:3.2-6 File comparison utilities

discover-data 2.2010.10.18

dmidecode 2.11-9 SMBIOS/DMI table decoder

dmsetup 2:1.02.74-8 Linux Kernel Device Mapper userspace library

dnsutils 1:9.8.4.dfsg.P1-6+nmu2

dpkg 1.16.15 Debian package management system

dpkg-dev 1.16.15 Debian package development tools

e2fslibs:amd64 1.42.5-1.1 ext2/ext3/ext4 file system libraries

e2fsprogs 1.42.5-1.1 ext2/ext3/ext4 file system utilities

ethtool 1:3.4.2-1 display or change Ethernet device settings

fakeroot 1.18.4-2 tool for simulating superuser privileges

file 5.11-2+deb7u6 Determines file type using "magic" numbers

findutils 4.4.2-4 utilities for finding files--find, xargs

firmware-linux-free 3.2

firmware-ralink 0.36+wheezy.1 Binary firmware for Ralink wireless cards

firmware-realtek 0.43~bpo70+1 Binary firmware for Realtek wired and wireless network

g++ 4:4.7.2-1 GNU C++ compiler

g++-4.7 4.7.2-5 GNU C++ compiler

Clients provided with BIND

adapters

gcc-4.7 4.7.2-5 GNU C compiler

gcc-4.7-base:amd64 4.7.2-5

geoip-database 20130213-1 IP lookup command line tools that use the GeoIP library

(country database)

gnupg 1.4.12-7+deb7u6 GNU privacy guard - a free PGP replacement

gpgv 1.4.12-7+deb7u6 GNU privacy guard - signature verification tool

grep 2.12-2 GNU grep, egrep and fgrep

groff-base 1.21-9 GNU troff text-formatting system (base system

components)

grub-common 1.99-27+deb7u2 GRand Unified Bootloader (common files)

grub-pc 1.99-27+deb7u2

grub-pc-bin 1.99-27+deb7u2

grub2-common 1.99-27+deb7u2

gzip 1.5-1.1 GNU compression utilities

hdparm 9.39-1+b1 tune hard disk parameters for high performance

host 1:9.8.4.dfsg.P1-6+nmu2

+deb7u3

hostname 3.11 utility to set/show the host name or domain name

ifupdown 0.7.8 high level tools to configure network interfaces

initramfs-tools 0.115~bpo70+1 generic modular initramfs generator

initscripts 2.88dsf-41+deb7u1

Transitional package

V2416A Linux Software Components

A-3

Manage installed documentation in info format

administration tools for packet filtering and NAT

dhcp* packages

krb5-locales

1.10.1+dfsg-5+deb7u2

Internationalization support for MIT Kerberos

way merge of textual data

libapr1

1.4.6-3+deb7u1

Apache Portable Runtime Library

SQLite3 Driver

LDAP Driver

Embedded GNU C Library: Development binaries

support for getting/setting POSIX.1e capabilities

insserv 1.14.0-5 boot sequence organizer using LSB init.d script

dependency information

install-info 4.13a.dfsg.1-10

iproute 20120521-3+b3 networking and traffic control tools

iptables 1.4.14-3.1

iputils-ping 3:20101006-1+b1 Tools to test the reachability of network hosts

irqbalance 1.0.6-2~bpo70+1 Daemon to balance interrupts for SMP systems

isc-dhcp-client 4.2.2.dfsg.1-5+deb70u6 ISC DHCP client

isc-dhcp-common 4.2.2.dfsg.1-5+deb70u6 common files used by all the isc-

iso-codes 3.41-1 ISO language, territory, currency, script codes and their

translations

kbd 1.15.3-9 Linux console font and keytable utilities

keyboard-configuration 1.88 system-wide keyboard preferences

klibc-utils 2.0.1-3.1 small utilities built with klibc for early boot

kmod 9-3 tools for managing Linux kernel modules

laptop-detect 0.13.7 attempt to detect a laptop

less 444-4 pager program similar to more

libacl1:amd64 2.2.51-8 Access control list shared library

libalgorithm-diff-perl 1.19.02-2 module to find differences between files

libalgorithm-diff-xs-perl 0.04-2+b1 module to find differences between files (XS

accelerated)

libalgorithm-merge-perl 0.08-2 Perl module for three-

libapache2-mod-php5 5.4.38-0+deb7u1 server-side, HTML-embedded scripting language

(Apache 2 module)

libaprutil1 1.4.1-3 Apache Portable Runtime Utility Library

libaprutil1-dbd-sqlite3 1.4.1-3 Apache Portable Runtime Utility Library -

libaprutil1-ldap 1.4.1-3 Apache Portable Runtime Utility Library -

libapt-inst1.5:amd64 0.9.7.9+deb7u7 deb package format runtime library

libapt-pkg4.12:amd64 0.9.7.9+deb7u7 package managment runtime library

libasound2:amd64 1.0.25-4 shared library for ALSA applications

libasprintf0c2:amd64 0.18.1.1-9 GNU library to use fprintf and friends in C++

libattr1:amd64 1:2.4.46-8 Extended attribute shared library

libbind9-80 1:9.8.4.dfsg.P1-6+nmu2

+deb7u3

libblkid1:amd64 2.20.1-5.3 block device id library

libboost-iostreams1.49.0 1.49.0-3.2 Boost.Iostreams Library

libbsd0:amd64 0.4.2-1 utility functions from BSD systems - shared librar

libbz2-1.0:amd64 1.0.6-4 high-quality block-sorting file compressor library -

libc-bin 2.13-38+deb7u8 Embedded GNU C Library: Binaries

libc-dev-bin 2.13-38+deb7u8

libc6:amd64 2.13-38+deb7u8 Embedded GNU C Library: Shared libraries

libc6-dev:amd64 2.13-38+deb7u8 Embedded GNU C Library: Development Libraries and

libcap-ng0 0.6.6-2 An alternate POSIX capabilities library

libcap2:amd64 1:2.22-1.2

libclass-isa-perl 0.36-3 report the search path for a class's ISA tree

libcomerr2:amd64 1.42.5-1.1 common error description library

libcwidget3 0.5.16-3.4 high-level terminal interface library for C++ (runtime

libdb5.1:amd64 5.1.29-5 Berkeley v5.1 Database Libraries [runtime]

BIND9 Shared Library used by BIND

runtime

Header Files

files)

V2416A Linux Software Components

A-4

le interprocess messaging system (library)

Linux Kernel Device Mapper userspace library

+deb7u3

libevent-2.0-5:amd64

2.0.19-stable-3

Asynchronous event notification library

GNU dbm database routines (runtime version)

Support library

support binaries for and cli utilities based on liblockfile

libdbus-1-3:amd64 1.6.8-1+deb7u6 simp

libdevmapper1.02.1:amd

libdiscover2 2.1.2-5.2 hardware identification library

libdns88 1:9.8.4.dfsg.P1-6+nmu2

libdpkg-perl 1.16.15 Dpkg perl modules

libedit2:amd64 2.11-20080614-5 BSD editline and history libraries

libept1.4.12 1.0.9 High-level library for managing Debian package

libexpat1:amd64 2.1.0-1+deb7u1 XML parsing C library - runtime library

libffi5:amd64 3.0.10-3 Foreign Function Interface library runtime

libfile-fcntllock-perl 0.14-2 Perl module for file locking with fcntl(2)

libfreetype6:amd64 2.4.9-1.1 FreeType 2 font engine, shared library files

libfuse2:amd64 2.9.0-2+deb7u1 Filesystem in Userspace (library)

libgc1c2 1:7.1-9.1 conservative garbage collector for C and C++

libgcc1:amd64 1:4.7.2-5 GCC support library

libgcrypt11:amd64 1.5.0-5+deb7u2 LGPL Crypto library - runtime library

libgdbm3:amd64 1.8.3-11

libgeoip1 1.4.8+dfsg-3 non-DNS IP-to-country resolver library

libglib2.0-0:amd64 2.33.12+really2.32.4-5 GLib library of C routines

libglib2.0-data 2.33.12+really2.32.4-5 Common files for GLib library

libgmp10:amd64 2:5.0.5+dfsg-2 Multiprecision arithmetic library

libgnutls26:amd64 2.12.20-8+deb7u2 GNU TLS library - runtime library

libgomp1:amd64 4.7.2-5 GCC OpenMP (GOMP) support library

libgpg-error0:amd64 1.10-3.1 library for common error values and messages in GnuPG

libgpgme11 1.2.0-1.4+deb7u1 GPGME - GnuPG Made Easy

libgpm2:amd64 1.20.4-6 General Purpose Mouse - shared library

libgssapi-krb5-2:amd64 1.10.1+dfsg-5+deb7u2 MIT Kerberos runtime libraries - krb5 GSS-API

libgssglue1:amd64 0.4-2 mechanism-switch gssapi library

libidn11:amd64 1.25-2 GNU Libidn library, implementation of IETF IDN

libisc84 1:9.8.4.dfsg.P1-6+nmu2

libisccc80 1:9.8.4.dfsg.P1-6+nmu2

libisccfg82 1:9.8.4.dfsg.P1-6+nmu2

libitm1:amd64 4.7.2-5 GNU Transactional Memory Library

libiw30:amd64 30~pre9-8 Wireless tools - library

libk5crypto3:amd64 1.10.1+dfsg-5+deb7u2 MIT Kerberos runtime libraries - Crypto Library

libkeyutils1:amd64 1.5.5-3+deb7u1 Linux Key Management Utilities (library)

libklibc 2.0.1-3.1 minimal libc subset for use with initramfs

libkmod2:amd64 9-3 libkmod shared library

libkrb5-3:amd64 1.10.1+dfsg-5+deb7u2 MIT Kerberos runtime libraries

libkrb5support0:amd64 1.10.1+dfsg-5+deb7u2 MIT Kerberos runtime libraries -

libldap-2.4-2:amd64 2.4.31-1+nmu2 OpenLDAP libraries

liblocale-gettext-perl 1.05-7+b1 module using libc functions for internationalization in

liblockfile-bin 1.09-5

2:1.02.74-8

DNS Shared Library used by BIND

information

components

Mechanism

specifications

ISC Shared Library used by BIND

+deb7u3

Command Channel Library used by BIND

+deb7u3

Config File Handling Library used by BIND

+deb7u3

Perl

V2416A Linux Software Components

A-5

File type determination library using "magic" numbers

point library

point computation

libncurses5-dev

5.9-10

developer's libraries for ncurses

generic netlink

ddleware to access a smart card using PC/SC (library)

library that simplifies the interaction with PKCS#11

library for accessing process information from /proc

libpth20

2.0.7-16

The GNU Portable Threads

time libraries

libreadline6:amd64

6.2+dfsg-0.1

GNU readline and history libraries, run-time libraries

authentication abstraction library

pluggable authentication modules

Common files for SELinux policy management libraries

library to read temperature/voltage/fan sensors

liblockfile1:amd64 1.09-5 NFS-safe locking library

liblwres80 1:9.8.4.dfsg.P1-6+nmu2

+deb7u3

liblzma5:amd64 5.1.1alpha+20120614-2 XZ-format compression library

liblzo2-2:amd64 2.06-1+deb7u1 data compression library

libmagic1:amd64 5.11-2+deb7u6

libmount1 2.20.1-5.3 block device id library

libmpc2:amd64 0.9-4 multiple precision complex floating-

libmpfr4:amd64 3.1.0-5 multiple precision floating-

libncurses5:amd64 5.9-10 shared libraries for terminal handling

libncursesw5:amd64 5.9-10 shared libraries for terminal handling (wide character

libnet-telnet-perl 3.03-3 Script telnetable connections

libnewt0.52 0.52.14-11.1 Not Erik's Windowing Toolkit - text mode windowing with

libnfnetlink0 1.0.0-1.1 Netfilter netlink library

libnfsidmap2:amd64 0.25-4 NFS idmapping library

libnl-3-200:amd64 3.2.7-4 library for dealing with netlink sockets

libnl-genl-3-200:amd64 3.2.7-4 library for dealing with netlink sockets -

libnuma1 2.0.8~rc4-1 Libraries for controlling NUMA policy

libonig2 5.9.1-1 Oniguruma regular expressions library

libp11-kit0:amd64 0.12-3 Library for loading and coordinating access to PKCS#11

libpam-modules:amd64 1.1.3-7.1 Pluggable Authentication Modules for PAM

libpam-modules-bin 1.1.3-7.1 Pluggable Authentication Modules for PAM - helper

libpam-runtime 1.1.3-7.1 Runtime support for the PAM library

libpam0g:amd64 1.1.3-7.1 Pluggable Authentication Modules library

libpci3:amd64 1:3.1.9-6 Linux PCI Utilities (shared library)

libpcre3:amd64 1:8.30-5 Perl 5 Compatible Regular Expression Library - runtime

libpcsclite1:amd64 1.8.4-1+deb7u1 Mi

libperl-dev 5.14.2-21+deb7u2 Perl library: development files

libperl5.14 5.14.2-21+deb7u2 shared Perl library

libpipeline1:amd64 1.2.1-1 pipeline manipulation library

libpkcs11-helper1:amd64 1.09-1

Lightweight Resolver Library used by BIND

support)

slang

modules - runtime

binaries

files

libpopt0:amd64 1.16-7 lib for parsing cmdline parameters

libprocps0:amd64 1:3.3.3-3

libqdbm14 1.8.78-2 QDBM Database Libraries without GDBM

libquadmath0:amd64 4.7.2-5 GCC Quad-Precision Math Library

libreadline5:amd64 5.2+dfsg-2~deb7u1 GNU readline and history libraries, run-

libsamplerate0:amd64 0.1.8-5 Audio sample rate conversion library

libsasl2-2:amd64 2.1.25.dfsg1-6+deb7u1 Cyrus SASL -

libsasl2-modules:amd64 2.1.25.dfsg1-6+deb7u1 Cyrus SASL -

libselinux1:amd64 2.1.9-5 SELinux runtime shared libraries

libsemanage-common 2.1.6-6

libsemanage1:amd64 2.1.6-6 SELinux policy management library

libsensors4:amd64 1:3.3.2-2+deb7u1

wrapper[runtime]

V2416A Linux Software Components

A-6

SELinux library for manipulating binary security policies

runtime version

documentation

SNMP (Simple Network Management Protocol) library

velopment files)

level terminfo library

andling

libtokyocabinet9:amd64

1.4.47-2

Tokyo Cabinet Database Libraries [runtime]

Linux support headers for userspace development

data [support]

Programs for locking and unlocking files and mailboxes

libsepol1:amd64 2.1.4-3

libsigc++-2.0-0c2a:amd

libslang2:amd64 2.2.4-15 S-Lang programming library -

libsnmp-base 5.4.3~dfsg-2.8+deb7u1 SNMP (Simple Network Management Protocol) MIBs and

libsnmp15 5.4.3~dfsg-2.8+deb7u1

libsqlite3-0:amd64 3.7.13-1+deb7u1 SQLite 3 shared library

libsqlite3-dev 3.7.13-1+deb7u1 SQLite 3 development files

libss2:amd64 1.42.5-1.1 command-line interface parsing library

libssl1.0.0:amd64 1.0.1e-2+deb7u13 SSL shared libraries

libstdc++6:amd64 4.7.2-5 GNU Standard C++ Library v3

libstdc++6-4.7-dev 4.7.2-5 GNU Standard C++ Library v3 (de

libswitch-perl 2.16-2 switch statement for Perl

libsystemd-login0:amd64 44-11+deb7u4 systemd login utility library

libtasn1-3:amd64 2.13-2+deb7u1 Manage ASN.1 structures (runtime)

libtext-charwidth-perl 0.04-7+b1 get display widths of characters on the terminal

libtext-iconv-perl 1.7-5 converts between character sets in Perl

libtext-wrapi18n-perl 0.06-7 internationalized substitute of Text::Wrap

libtimedate-perl 1.2000-1 collection of modules to manipulate date/time

libtinfo-dev:amd64 5.9-10 developer's library for the low-

libtinfo5:amd64 5.9-10 shared low-level terminfo library for terminal h

libtirpc1:amd64 0.2.2-5 transport-independent RPC library

2.2.10-0.2 type-safe Signal Framework for C++ - runtime

information

libudev0:amd64 175-7.2 libudev shared library

libusb-0.1-4:amd64 2:0.1.12-20+nmu1 userspace USB programming library

libusb-1.0-0:amd64 2:1.0.11-1 userspace USB programming library

libustr-1.0-1:amd64 1.0.4-3 Micro string library: shared library

libuuid-perl 0.02-5 Perl extension for using UUID interfaces as defined in

e2fsprogs

libuuid1:amd64 2.20.1-5.3 Universally Unique ID library

libwrap0:amd64 7.6.q-24 Wietse Venema's TCP wrappers library

libx11-6:amd64 2:1.5.0-1+deb7u1 X11 client-side library

libx11-data 2:1.5.0-1+deb7u1 X11 client-side library

libx86-1:amd64 1.1+ds1-10 x86 real-mode library

libxapian22 1.2.12-2 Search engine library

libxau6:amd64 1:1.0.7-1 X11 authorisation library

libxcb1:amd64 1.8.1-2+deb7u1 X C Binding

libxdmcp6:amd64 1:1.1.1-1 X11 Display Manager Control Protocol library

libxext6:amd64 2:1.3.1-2+deb7u1 X11 miscellaneous extension library

libxml2:amd64 2.8.0+dfsg1-7+wheezy2 GNOME XML library

libxmuu1:amd64 2:1.1.1-1 X11 miscellaneous micro-utility library

linux-base 3.5 Linux image base package

linux-image-3.16.0-0.bp

o.4-amd64

linux-image-amd64 3.16+63~bpo70+1 Linux for 64-bit PCs (meta-package)

linux-libc-dev:amd64 3.2.65-1+deb7u2

locales 2.13-38+deb7u6 Embedded GNU C Library: National Language (locale)

3.16.7-ckt4-3~bpo70+1 Linux 3.16 for 64-bit PCs

lockfile-progs 0.1.17

V2416A Linux Software Components

A-7

Linux Standard Base 4.1 init script functionality

Manual pages about using GNU/Linux for development

quickly find files on the filesystem based on their name

mount

2.20.1-5.3

Tools for mounting and manipulating filesystems

Transitional package to ensure multiarch compatibility

list of default blacklisted OpenSSH RSA and DSA keys

change and administer password and group data

Larry Wall's Practical Extraction and Report Language

Common files for packages built from the php5 source

Common utils and configs for power management

logrotate 3.8.1-4 Log rotation utility

lsb-base 4.1+Debian8+deb7u1

lsb-release 4.1+Debian8+deb7u1 Linux Standard Base version reporting utility

lsof 4.86+dfsg-1 Utility to list open files

m4 1.4.16-3 a macro processing language

make 3.81-8.2 An utility for Directing compilation.

man-db 2.6.2-1 on-line manual pager

manpages 3.44-1 Manual pages about using a GNU/Linux system

manpages-dev 3.44-1

mawk 1.3.3-17 a pattern scanning and text processing language

mime-support 3.52-1+deb7u1 MIME files 'mime.types' & 'mailcap', and support

programs

mlocate 0.23.1-1

module-init-tools 9-3 transitional dummy package (module-init-tools to

kmod)

multiarch-support 2.13-38+deb7u6

mutt 1.5.21-6.2+deb7u3 text-based mailreader supporting MIME, GPG, PGP and

threading

ncurses-base 5.9-10 basic terminal type definitions

ncurses-bin 5.9-10 terminal-related programs and man pages

ncurses-term 5.9-10 additional terminal type definitions

net-tools 1.60-24.2 The NET-3 networking toolkit

netbase 5.0 Basic TCP/IP networking system

netcat-traditional 1.10-40 TCP/IP swiss army knife

nfs-common 1:1.2.6-4 NFS support files common to client and server

ntpdate 1:4.2.6.p5+dfsg-2+deb7

openssh-blacklist 0.4.1+nmu1

openssh-blacklist-extra 0.4.1+nmu1 list of non-default blacklisted OpenSSH RSA and DSA

openssh-client 1:6.0p1-4+deb7u2 secure shell (SSH) client, for secure access to remote

openssh-server 1:6.0p1-4+deb7u2 secure shell (SSH) server, for secure access from

openssl 1.0.1e-2+deb7u14 Secure Socket Layer (SSL) binary and related

openvpn 2.2.1-8+deb7u3 virtual private network daemon

os-prober 1.58 utility to detect other OSes on a set of drives

passwd 1:4.1.5.1-1

patch 2.6.1-3 Apply a diff file to an original

pciutils 1:3.1.9-6 Linux PCI Utilities

perl 5.14.2-21+deb7u2

perl-base 5.14.2-21+deb7u2 minimal Perl system

perl-modules 5.14.2-21+deb7u2 Core Perl modules

php5 5.4.38-0+deb7u1 server-side, HTML-embedded scripting language

php5-cli 5.4.38-0+deb7u1 command-line interpreter for the php5 scripting

php5-common 5.4.38-0+deb7u1

pm-utils 1.4.1-9 utilities and scripts for power management

pmount 0.9.23-2 mount removable devices as normal user

powermgmt-base 1.31

client for setting system time from NTP servers

keys

machines

remote machines

cryptographic tools

(metapackage)

language

V2416A Linux Software Components

A-8

Python interface to Debian's Bug Tracking System

minimal subset of the Python language (default version)

automated rebuilding support for Python modules

Minimal subset of the Python language (version 2.6)

Minimal subset of the Python language (version 2.7)

GNU readline and history libraries, common files

converts RPC program numbers into universal addresses

rsyslog

5.8.11-3+deb7u2

reliable system and kernel logging daemon

SGML infrastructure and SGML catalog file support

FreeDesktop.org shared MIME database and spec

SNMP (Simple Network Management Protocol) agents

eges to specific users

Official tasks used for installation of Debian systems

GNU time program for measuring CPU resource usage

procps 1:3.3.3-3 /proc file system utilities

psmisc 22.19-1+deb7u1 utilities that use the proc file system

python 2.7.3-4+deb7u1 interactive high-level object-oriented language (default

version)

python-apt 0.8.8.2 Python interface to libapt-pkg

python-apt-common 0.8.8.2 Python interface to libapt-pkg (locales)

python-chardet 2.0.1-2 universal character encoding detector

python-debian 0.1.21 Python modules to work with Debian-related data

formats

python-debianbts 1.11

python-fpconst 0.7.2-5 Utilities for handling IEEE 754 floating point special

values

python-minimal 2.7.3-4+deb7u1

python-reportbug 6.4.4+deb7u1 Python modules for interacting with bug tracking

systems

python-soappy 0.12.0-4 SOAP Support for Python

python-support 1.0.15

python2.6 2.6.8-1.1 Interactive high-level object-oriented language (version

2.6)

python2.6-minimal 2.6.8-1.1

python2.7 2.7.3-6+deb7u2 Interactive high-level object-oriented language (version

2.7)

python2.7-minimal 2.7.3-6+deb7u2

readline-common 6.2+dfsg-0.1

rpcbind 0.2.0-8

sed 4.2.1-10 The GNU sed stream editor

sensible-utils 0.0.7 Utilities for sensible alternative selection

sgml-base 1.26+nmu4

shared-mime-info 1.3-1~bpo70+1

snmpd 5.4.3~dfsg-2.8+deb7u1

sqlite3 3.7.13-1+deb7u1 Command line interface for SQLite 3

ssh 1:6.0p1-4+deb7u2 secure shell client and server (metapackage)

ssl-cert 1.0.32 simple debconf wrapper for OpenSSL

sudo 1.8.5p2-1+nmu1 Provide limited super user privil

sysstat 10.0.5-1 system performance tools for Linux

sysv-rc 2.88dsf-41+deb7u1 System-V-like runlevel change mechanism

sysvinit 2.88dsf-41+deb7u1 System-V-like init utilities

sysvinit-utils 2.88dsf-41+deb7u1 System-V-like utilities

tar 1.26+dfsg-0.1 GNU version of the tar archiving utility

tasksel 3.14.1 Tool for selecting tasks for installation on Debian

systems

tasksel-data 3.14.1

tcpd 7.6.q-24 Wietse Venema's TCP wrapper utilities

time 1.7-24

traceroute 1:2.0.18-3 Traces the route taken by packets over an IPv4/IPv6

network

tzdata 2014j-0wheezy1 time zone and daylight-saving time data

ucf 3.0025+nmu3 Update Configuration File: preserve user changes to

config files.

udev 175-7.2 /dev/ and hotplug management daemon

usbmount 0.0.22 automatically mount and unmount USB mass storage

devices

V2416A Linux Software Components

A-9

mode video BIOS code to alter hardware state

compact version

American English dictionary words for /usr/share/dict

friendly dialog boxes from shell scripts

Tools for manipulating Linux Wireless Extensions

X Keyboard Extension (XKB) configuration data

usbutils 1:005-3 Linux USB utilities

util-linux 2.20.1-5.3 Miscellaneous system utilities

v2400a-cpu 1.0.0 cpu

v2400a-dio 1.0.0 dio driver for V2400A

v2400a-muestty 1.0.0 muestty is a utility for mxser

v2400a-mxupcie 1.0.0 mxupcie driver for V2400A

v2400a-superio 1.0.0 superio driver for V2400A

v2400a-watchdog 1.0.0 watchdog driver for V2400A

v2400a-ifenslave 1.0.0 ifenslave for V2400A

vbetool 1.1-2 run real-

vim 2:7.3.547-7 Vi IMproved - enhanced vi editor

vim-common 2:7.3.547-7 Vi IMproved - Common files

vim-runtime 2:7.3.547-7 Vi IMproved - Runtime files

vim-tiny 2:7.3.547-7 Vi IMproved - enhanced vi editor -

w3m 0.5.3-8 WWW browsable pager with excellent tables/frames

support

wamerican 7.1-1

watchdog 5.12-1 system health checker and software/hardware

watchdog handler

wget 1.13.4-3+deb7u2 retrieves files from the web

whiptail 0.52.14-11.1 Displays user-

whois 5.1.1~deb7u1 intelligent WHOIS client

wireless-tools 30~pre9-8

wpasupplicant 1.0-3+deb7u1 client support for WPA and WPA2 (IEEE 802.11i)

xauth 1:1.0.7-1 X authentication utility

xkb-data 2.5.1-3

xml-core 0.13+nmu2 XML infrastructure and XML catalog file support
