Arm-based Computer Linux
User’s Manual for Debian 9
Version 4.1, September 2019
www.moxa.com/product
© 2019 Moxa Inc. All rights reserved.
Arm-based Computer Linux
Moxa Americas
Toll
Tel:
Fax:
Moxa China (Shanghai office)
Toll
Tel:
Fax:
Moxa Europe
Tel:
Fax:
Moxa Asia
Tel:
Fax:
Moxa India
Tel:
Fax:
User’s Manual for Debian 9
The software described in this manual is furnished under a license agreement and may be used only in accordance
with the terms of that agreement.
Copyright Notice
© 2019 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.
Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not
limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to
the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility
for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
-free: 1-888-669-2872
+1-714-528-6777
+1-714-528-6778
+49-89-3 70 03 99-0
+49-89-3 70 03 99-99
+91-80-4172-9088
+91-80-4132-1045
-free: 800-820-5036
+86-21-5258-9955
+86-21-5258-5505
+886-2-8919-1230
-Pacific
+886-2-8919-1231
Table of Contents
1. Introduction ...................................................................................................................................... 1-1
2. Getting Started.................................................................................................................................. 2-1
Connecting to the Arm-based Computer ................................................................................................ 2-2
Connecting through the Serial Console ........................................................................................... 2-2
Connecting Through the SSH Console ............................................................................................ 2-4
User Account Management ................................................................................................................... 2-6
Switching to the Root Account ...................................................................................................... 2-6
Creating and Deleting User Accounts ............................................................................................. 2-6
Disabling the Default User Account ................................................................................................ 2-6
Network Settings ................................................................................................................................ 2-7
Configuring Ethernet Interfaces ..................................................................................................... 2-7
System Administration ........................................................................................................................ 2-8
Querying the Firmware Version ..................................................................................................... 2-8
Adjusting the Time ...................................................................................................................... 2-8
Setting the Time Zone ................................................................................................................. 2-9
Determining Available Drive Space ...................................................................................................... 2-10
Shutting Down the Device .................................................................................................................. 2-10
3. Advanced Configuration of Peripherals ............................................................................................. 3-1
Serial Ports ........................................................................................................................................ 3-2
Changing the Terminal Settings .................................................................................................... 3-2
USB Port ............................................................................................................................................ 3-3
USB Automount .......................................................................................................................... 3-3
CAN Bus Interface .............................................................................................................................. 3-3
Configuring the Socket CAN Interface ............................................................................................ 3-3
CAN Bus Programming Guide ........................................................................................................ 3-4
Real COM Mode Configuration .............................................................................................................. 3-6
Mapping TTY Ports ....................................................................................................................... 3-6
Mapping tty Ports (automatic) ....................................................................................................... 3-7
Mapping tty Ports Manually ........................................................................................................... 3-7
Removing Mapped TTY Ports ......................................................................................................... 3-7
4. Configuring of Wireless Connectivity................................................................................................. 4-1
Configuring the Cellular Connection ...................................................................................................... 4-2
Using Cell_mgmt ......................................................................................................................... 4-2
Dial-Up Step-by-Step ................................................................................................................... 4-4
Dial-Up ...................................................................................................................................... 4-4
Cellular Module ........................................................................................................................... 4-6
Configuring the NB-IoT/Cat. M1 Connection (UC-2114 and UC-2116 only) .......................................... 4-9
GPS ......................................................................................................................................... 4-10
Configuring the Wi-Fi Connection ........................................................................................................ 4-11
Configuring WPA2 Settings ......................................................................................................... 4-11
5. Security ............................................................................................................................................. 5-1
Sudo Mechanism ................................................................................................................................ 5-2
Cybersecurity—Moxa Security Utility ..................................................................................................... 5-3
Installing the Moxa Security Utility ................................................................................................ 5-3
Uninstalling the Moxa Security Utility ............................................................................................. 5-3
Utilizing the Moxa Security Utility .................................................................................................. 5-3
6. Firmware Update and System Recovery ............................................................................................ 6-1
Firmware Update and Set-to-Default Functions ....................................................................................... 6-2
Set-to-Default ............................................................................................................................. 6-2
Firmware Update Using a TFTP Server............................................................................................ 6-2
7. Programmer’s Guide ......................................................................................................................... 7-1
Linux Toolchain .................................................................................................................................. 7-2
Introduction................................................................................................................................ 7-2
Native Compilation ...................................................................................................................... 7-2
Cross Compilation ....................................................................................................................... 7-3
Example program—hello .............................................................................................................. 7-4
Example Makefile ........................................................................................................................ 7-5
Standard APIs .................................................................................................................................... 7-6
Cryptodev .................................................................................................................................. 7-6
WDT (Watch Dog Timer) .............................................................................................................. 7-6
RTC (Real-time Clock) .................................................................................................................. 7-8
Modbus ...................................................................................................................................... 7-9
Moxa Platform Libraries ..................................................................................................................... 7-10
Error Numbers .......................................................................................................................... 7-10
Platform Information ................................................................................................................. 7-11
Buzzer ..................................................................................................................................... 7-12
Digital I/O ................................................................................................................................ 7-13
UART ....................................................................................................................................... 7-15
LED ......................................................................................................................................... 7-18
Push Button .............................................................................................................................. 7-19
1
1. Introduction
This user manual is applicable to Moxa’s Arm-based computers listed below and covers the complete set of
instructions applicable to all the supported models. Detailed instructions on configuring advanced settings
are covered in Chapter 3 & Chapter 4 of the manual. Before referring to sections in chapters 3 & 4, make
sure that the hardware specification of your computer model supports the functions/settings covered in
these sections.
Moxa’s Arm-based Computing Platforms:
• UC-2100 Series
• UC-2100-W Series
• UC-3100 Series
• UC-5100 Series
• UC-8100 Series (firmware V3.0.0 and higher)
• UC-8100-ME-T Series (Model with Moxa Industrial Linux preinstalled)
• UC-8100A-ME-T Series
• UC-8200 Series
Moxa Industrial Linux
Moxa Industrial Linux (MIL) is the optimized Linux distribution for Industrial applications and users, which is
released and maintained by Moxa.
The MIL is based on Debian and integrated with several feature sets designed for strengthening and
accelerating user’s application development as well as ensuring the reliability of system deployment.
Furthermore, the major versions of MIL comply with Moxa’s Superior long term support (SLTS) policy. Moxa
will maintain each version of the MIL for 10 years from its launch date. The extended support (ES) may also
be purchased by request for additional maintenance. This makes MIL an optimal choice as a Linux operating
system for industrial applications.
2
2. Getting Started
In this chapter, we describe how to configure the basic settings Moxa’s Arm-based computers.
The following topics are covered in this chapter:
Connecting to the Arm-based Computer
Connecting through the Serial Console
Connecting Through the SSH Console
User Account Management
Switching to the Root Account
Creating and Deleting User Accounts
Disabling the Default User Account
Network Settings
Configuring Ethernet Interfaces
System Administration
Querying the Firmware Version
Adjusting the Time
Setting the Time Zone
Determining Available Drive Space
Shutting Down the Device
Arm-based Computer Linux UM Getting Started
2-2
ATTENTION
For security reasons, we recommend that you disabl
accounts.
Flow Control
None
NOTE
These steps apply to the Linux
. Do NOT apply these
steps to the
user@PC1:~# yum -y install minicom
user@PC2:~# apt-get install minicom
user@PC1:~# minicom –s
Connecting to the Arm-based Computer
You will need another computer to connect to the Arm-based computer and log on to the command line
interface. There are two ways to connect: through serial console cable or through Ethernet cable. Refer to
the Hardware Manual to see how to set up the physical connections.
The default login username and password are:
Username: moxa
Password: moxa
The username and password are the same for all serial console and SSH remote log in actions. Root account
login is disabled until you manually create a password for the account. The user moxa is in the sudo group
so you can operate system level commands with this user using the
see the Sudo Mechanism section in chapter 5.
sudo command. For additional details,
e the default user account and create your own user
Connecting through the Serial Console
This method is particularly useful when using the computer for the first time. The signal is transmitted over
a direct serial connection so you do not need to know either of its two IP addresses in order to connect to
the Arm-based computer. To connect through the serial console, configure your PC’s terminal software using
the following settings.
Serial Console Port Settings
Baudrate 115200 bps
Parity None
Data bits 8
Stop bits 1
Terminal VT100
Below we show how to use the terminal software to connect to the Arm-based computer in a Linux
environment and in a Windows environment.
Linux Users
Arm-based computer itself.
Take the following steps to connect to the Arm-based computer from your Linux PC.
1. Install minicom from the package repository of your operating system.
For Centos and Fedora:
For Ubuntu and Debian:
2. Use the minicom –s command to enter the configuration menu and set up the serial port settings.
PC you are using to connect to the Arm-based computer
Arm-based Computer Linux UM Getting Started
2-3
user@PC1:~# minicom
NOTE
These steps apply to the Windows PC you are using to connect to the
these steps to the
3. Select Serial port setup.
4. Select A to change the serial device. Note that you need to know which device node is connected to the
Arm-based computer.
5. Select E to configure the port settings according to the Serial Console Port Settings table provided.
6. Select Save setup as dfl (from the main configuration menu) to use default values.
7. Select Exit from minicom (from the configuration menu) to leave the configuration menu.
8. Execute minicom after completing the above configurations.
Windows Users
Take the following steps to connect to the Arm-based computer from your Windows PC.
1. Download PuTTY http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html
connection with the Arm-based computer in a Windows environment. The figure below shows a simple
example of the configuration that is required.
Arm-based computer. Do NOT apply
Arm-based computer itself.
to set up a serial
Arm-based Computer Linux UM Getting Started
2-4
NOTE
Thes
. Do NOT apply these
steps to the
address of your notebook/PC's Ethernet interface in the
192.168.4.0/24 for LAN2.
user@PC1:~ ssh moxa@192.168.3.127
The authenticity of host ‘192.168.3.127’ can’t be established.
Are you sure you want to continue connection (yes/no)? yes_
2. Once the connection is established, the following window will open.
3. Select the Serial connection type and choose settings that are similar to the Minicom settings.
Connecting Through the SSH Console
The Arm-based computer supports SSH connections over an Ethernet network. Use the following default IP
addresses to connect to the Arm-based computer.
Port Default IP
LAN 1 192.168.3.127
LAN 2 192.168.4.127
Linux Users
e steps apply to the Linux PC you are using to connect to the Arm-based computer
Arm-based computer itself. Before you run the ssh command, be sure to configure the IP
range of 192.168.3.0/24 for LAN1 and
Use the ssh command from a Linux computer to access the Arm-based computer’s LAN1 port.
Type yes to complete the connection.
RSA key fingerprint is 8b:ee:ff:84:41:25:fc:cd:2a:f2:92:8f:cb:1f:6b:2f.
Arm-based Computer Linux UM Getting Started
2-5
ATTENTION
Rekey SSH regularly
In order to secure your syst
When prompted for a passphrase, leave the passphrase empty and press enter.
moxa@Moxa:~$ cd /etc/ssh
moxa@Moxa:~$ sudo /etc/init.d/ssh restart
For more information about SSH, refer to the following link.
https://wiki.debian.org/SSH
NOTE
These steps apply
these steps to the
em, we suggest doing a regular SSH-rekey, as shown in the following steps:
moxa@Moxa:~$ sudo rm –rf
ssh_host_ed25519_key2 ssh_host_ecdsa_key ssh_host_rsa_key
ssh_host_ed25519_key.pub ssh_host_ecdsa_key.pub ssh_host_rsa_key.pub
moxa@Moxa:~$ sudo ssh-keygen -t rsa -f /etc/ssh/ssh_host_rsa_key
moxa@Moxa:~$ sudo ssh-keygen -t dsa -f /etc/ssh/ssh_host_dsa_key
moxa@Moxa:~$ sudo ssh-keygen -t ecdsa –f /etc/ssh/ssh_host_ecdsa_key
Windows Users
Take the following steps from your Windows PC.
Click on the link http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html
(free software) to set up an SSH console for the Arm-based computer in a Windows environment. The
following figure shows a simple example of the configuration that is required.
to the Windows PC you are using to connect to the Arm-based computer. Do NOT apply
Arm-based computer itself.
to download PuTTY
Arm-based Computer Linux UM Getting Started
2-6
NOTE
Click the following link for more information on the sudo command.
https://wiki.debian.org/sudo
ATTENTION
You m
account.
You m
Note
moxa@Moxa:~# sudo useradd -m -G sudo -s /bin/bash test1
moxa@Moxa:~# sudo passwd test1
passwd: password updated successfully
moxa@Moxa:# sudo userdel test1
ATTENTION
You should first create a user account before you disable
root@Moxa:# passwd –l moxa
root@Moxa:# passwd –u moxa
User Account Management
Switching to the Root Account
You can switch to root using sudo -i (or sudo su). For security reasons, do not operate the all
commands from the
root account.
ight get the permission denied message when using pipe or redirect behavior with a non-root
ust use ‘sudo su –c’ to run the command instead of using >, <, >>, <<, etc.
: The single quotes around the full command are required.
Creating and Deleting User Accounts
You can use the useradd and userdel commands to create and delete user accounts. Be sure to
reference the main page of these commands to set relevant access privileges for the account. Following
example shows how to create a
home directory at
To change the password for test1, use the passwd option along with the new password. Retype the
password to confirm the change.
/home/test1:
Enter new UNIX password:
Retype new UNIX password:
To delete user test1, use the userdel command.
test1 user in the sudo group whose default login shell is bash and has
Disabling the Default User Account
Use the passwd command to lock the default user account so the user moxa cannot log in.
To unlock the user moxa:
the default account.
Arm-based Computer Linux UM Getting Started
2-7
moxa@Moxa:~$ cd /etc/network/
moxa@Moxa:/etc/network/~$
# interfaces(5) file used by ifup(8) and ifdown(8)
broadcast 192.168.4.255~
Network Settings
Configuring Ethernet Interfaces
After the first login, you can configure the Arm-based computer’s network settings to fit your application
better. Note that it is more convenient to manipulate the network interface settings from the serial console
than from an SSH login because an SSH connection can disconnect when there are network issues and the
connection must be reestablished.
Modifying Network Settings via the Serial Console
In this section, we use the serial console to configure the Arm-based computer’s network settings. Follow
the instructions in the Connecting to the Arm-based Computer section under Getting Started, to access the
Console Utility of the target computer via the serial Console port, and then type
change directories.
Type sudo vi interfaces to edit the network configuration file in the vi editor. You can configure the
Arm-based computer’s Ethernet ports to use either static or dynamic (DHCP) IP addresses.
cd /etc/network to
Setting a Static IP address
To set a static IP address for the Arm-based computer, use the iface command to modify the default
gateway, address, network, netmask, and broadcast parameters of the Ethernet interface.
auto eth0 eth1 lo
iface lo inet loopback
# embedded ethernet LAN1
#iface eth0 inet dhcp
iface eth0 inet static
address 192.168.3.127
network 192.168.3.0
netmask 255.255.255.0
broadcast 192.168.3.255
# embedded ethernet LAN2
iface eth1 inet static
address 192.168.4.127
network 192.168.4.0
netmask 255.255.255.0
Arm-based Computer Linux UM Getting Started
2-8
# embedded ethernet LAN1
iface eth0 inet dhcp
moxa@Moxa:~$ kversion
UC-2112-LX version 1.1
moxa@Moxa:~$ kversion -a
UC-2112-LX version 1.1 Build 18031118
moxa@Moxa:~$ sudo date 071123192014
Mon Jul 11 23:19:00 UTC 2014
moxa@Moxa:~$ sudo hwclock –w
2018-07-31 02:09:00.628145+0000
NOTE
Click the following links for more information on
https://www.debian.org/doc/manuals/system
https://wiki.debian.org/Dat
Setting Dynamic IP Addresses:
To configure one or both LAN ports to request an IP address dynamically use the dhcp option in place of the
static in the iface command as follows:
Default Setting for LAN1 Dynamic Setting using DHCP
iface eth0 inet static
address 192.168.3.127
network: 192.168.3.0
netmask 255.255.255.0
broadcast 192.168.3.255
iface eth0 inet dhcp
System Administration
Querying the Firmware Version
To check the Arm-based computer’s firmware version, type:
Add the –a option to create a full build version:
Adjusting the Time
The Arm-based computer has two time settings. One is the system time, and the other is the RTC (Real
Time Clock) time kept by the Arm-based computer’s hardware. Use the
current system time or set a new system time. Use the
or set a new RTC time.
Use the
MM = Month
DD = Date
hhmm = hour and minute
Use the following command to set the RTC time to system time:
date MMDDhhmmYYYY command to set the system time:
date command to query the
hwclock command to query the current RTC time
moxa@Moxa:~$ sudo hwclock
date and time:
-administrator/ch-sysadmin-time.html
eTime
Arm-based Computer Linux UM Getting Started
2-9
moxa@Moxa:~$ TZ=EST5EDT
moxa@Moxa:~$ export TZ
Setting the Time Zone
There are two ways to configure the Moxa embedded computer’s timezone. One is using the TZ variable.
The other is using the /etc/localtime file.
Using the TZ Variable
The format of the TZ environment variable looks like this:
TZ=<Value>HH[:MM[:SS]][daylight[HH[:MM[:SS]]][,start date[/starttime], enddate[/endtime]]]
Here are some possible settings for the North American Eastern time zone:
1.
TZ=EST5EDT
2. TZ=EST0EDT
3. TZ=EST0
In the first case, the reference time is GMT and the stored time values are correct worldwide. A simple
change of the TZ variable can print the local time correctly in any time zone.
In the second case, the reference time is Eastern Standard Time and the only conversion performed is for
Daylight Saving Time. Therefore, there is no need to adjust the hardware clock for Daylight Saving Time
twice per year.
In the third case, the reference time is always the time reported. You can use this option if the hardware
clock on your machine automatically adjusts for Daylight Saving Time or you would like to manually adjust
the hardware time twice a year.
You must include the TZ setting in the /etc/rc.local file. The timezone setting will be activated when
you restart the computer.
The following table lists other possible values for the TZ environment variable:
Hours From Greenwich Mean Time (GMT) Value Description
0 GMT Greenwich Mean Time
+1 ECT European Central Time
+2 EET European Eastern Time
+2 ART
+3 EAT Saudi Arabia
+3.5 MET Iran
+4 NET
+5 PLT West Asia
+5.5 IST India
+6 BST Central Asia
+7 VST Bangkok
+8 CTT China
+9 JST Japan
+9.5 ACT Central Australia
+10 AET Eastern Australia
+11 SST Central Pacific
+12 NST New Zealand
-11 MIT Samoa
-10 HST Hawaii
-9 AST Alaska
-8 PST Pacific Standard Time
-7 PNT Arizona
Arm-based Computer Linux UM Getting Started
2-10
moxa@Moxa:~$ df -h
tmpfs 50M 0 50M 0% /run/shm
moxa@Moxa:~$ sudo shutdown -h now
Hours From Greenwich Mean Time (GMT) Value Description
-7 MST Mountain Standard Time
-6 CST Central Standard Time
-5 EST Eastern Standard Time
-5 IET Indiana East
-4 PRT Atlantic Standard Time
-3.5 CNT Newfoundland
-3 AGT Eastern South America
-3 BET Eastern South America
-1 CAT Azores
Using the Localtime File
The local timezone is stored in the /etc/localtime and is used by GNU Library for C (glibc) if no value
has been set for the TZ environment variable. This file is either a copy of the
or a symbolic link to it. The Arm-based computer does not provide
should find a suitable time zone information file and write over the original local time file in the Arm-based
computer.
/usr/share/zoneinfo/ files. You
/usr/share/zoneinfo/ file
Determining Available Drive Space
To determine the amount of available drive space, use the df command with the –h tag. The system will
return the amount of drive space broken down by file system. Here is an example:
Filesystem Size Used Avail Use% Mounted on
devtmpfs 803M 238M 524M 32% /
/dev/root 803M 238M 524M 32% /
tmpfs 25M 188K 25M 1% /run
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 10M 0 10M 0% /dev
Shutting Down the Device
To shut down the device, disconnect the power source to the computer. When the computer is powered off,
main components such as the CPU, RAM, and storage devices are powered off, although an internal clock
may retain battery power.
You can use the Linux command
However, main components such as the CPU, RAM, and storage devices will continue to be powered after
you run this command.
shutdown to close all software running on the device and halt the system.
3
3. Advanced Configuration of Peripherals
In this chapter, we include more information on the Arm-based computer’s peripherals, such as the serial
interface, storage, diagnostic LEDs, and the cellular module. The instructions in this chapter cover all
functions supported in Moxa’s Arm-based computers. Before referring to the sections in this chapter, make
sure that they are applicable to and are supported by the hardware specification of your Arm-based
computer.
The following topics are covered in this chapter:
Serial Ports
Changing the Terminal Settings
USB Port
USB Automount
CAN Bus Interface
Configuring the Socket CAN Interface
CAN Bus Programming Guide
Real COM Mode Configuration
Mapping TTY Ports
Mapping tty Ports (automatic)
Mapping tty Ports Manually
Removing Mapped TTY Ports
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-2
root@Moxa:/home/moxa# mx-uart-ctl -p 0
Current uart mode is RS422/RS485-4W interface.
moxa@Moxa:~$ sudo stty -a -F /dev/ttyM0
echoctl echoke
moxa@Moxa:~$ sudo stty 115200 -F /dev/ttyM0
Serial Ports
The serial ports support RS-232, RS-422, and RS-485 2-wire operation modes with flexible baudrate
settings. The default operation mode is set to RS-232; use the
operation mode.
Usage: mx-uart-ctl -p <#port_number> -m <#uart_mode>
Port number: n = 0,1,2,...
uart mode: As in the following table
Interface-no Operation Mode
None Display current setting
0 RS-232
1 RS-485 2-wire
2 RS-422 / RS-485 4-wire
For example, to set Port 0 to RS-485 4-wire mode, use the following command:
Current uart mode is RS232 interface.
root@Moxa:/home/moxa# mx-uart-ctl -p 0 -m 2
Set OK.
mx-uart-ctl command to change the
Changing the Terminal Settings
The stty command is used to manipulate the terminal settings. You can view and modify the serial
terminal settings with this command. Details are given below.
Displaying All Settings
The following text shows how to display all settings.
speed 9600 baud; rows 0; columns 0; line = 0;
intr = ^C; quit = ^\; erase = ^?; kill = ^U; eof = ^D; eol = <undef>;
eol2 = <undef>; swtch = <undef>; start = ^Q; stop = ^S; susp = ^Z; rprnt = ^R;
werase = ^W; lnext = ^V; flush = ^O; min = 1; time = 0;
-parenb -parodd cs8 hupcl -cstopb cread clocal -crtscts
-ignbrk -brkint -ignpar -parmrk -inpck -istrip -inlcr -igncr icrnl ixon -ixoff
-iuclc -ixany -imaxbel -iutf8
opost -olcuc -ocrnl onlcr -onocr -onlret -ofill -ofdel nl0 cr0 tab0 bs0 vt0 ff0
isig icanon iexten echo echoe echok -echonl -noflsh -xcase -tostop -echoprt
Configuring Serial Settings
The following example changes the baudrate to 115200.
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-3
moxa@Moxa:~$ sudo stty -a -F /dev/ttyM0
echoctl echoke
NOTE
Detailed information on the stty
http://www.gnu.org/software/coreutils/ma
moxa@Moxa:~$ mount | grep media
ATTENTION
Remember to type the
of data
E
auto
manually.
# ip link
can0: <NOARP,UP,LOWER_UP,ECHO> mtu 16 qdisc pfifo_fast state UNKNOWN mode DEFAULT
group default qlen 10 link/can
After running this command, the baudrate will be changed to 115200.
speed 115200 baud; rows 0; columns 0; line = 0;
intr = ^C; quit = ^\; erase = ^?; kill = ^U; eof = ^D; eol = <undef>;
eol2 = <undef>; swtch = <undef>; start = ^Q; stop = ^S; susp = ^Z; rprnt = ^R;
werase = ^W; lnext = ^V; flush = ^O; min = 1; time = 0;
-parenb -parodd cs8 hupcl -cstopb cread clocal -crtscts
-ignbrk -brkint -ignpar -parmrk -inpck -istrip -inlcr -igncr icrnl ixon -ixoff
-iuclc -ixany -imaxbel -iutf8
opost -olcuc -ocrnl onlcr -onocr -onlret -ofill -ofdel nl0 cr0 tab0 bs0 vt0 ff0
isig icanon iexten echo echoe echok -echonl -noflsh -xcase -tostop -echoprt
USB Port
The Arm-based computers are provided with a USB port for storage expansion.
USB Automount
The Arm-based computers support hot plug function for connecting USB mass storage devices. However, by
default, the
command to view details about all partitions.
xit from the /media/* directory when you disconnect the storage device. If you stay in /media/usb*, the
unmount process will fail. If that happens, type #umount /media/usb* to unmount the device
automount utility (udev) only supports auto-mounting of one partition. Use the mount
.
utility is available at the following link:
nual/coreutils.html
sync command before you disconnect the USB mass storage device to prevent loss
CAN Bus Interface
The CAN ports on Moxa’s Arm-based computers support CAN 2.0A/B standard.
Configuring the Socket CAN Interface
The CAN ports are initialized by default. If any additional configuration is needed, use the ip link command
to check the CAN device.
To check the CAN device status, use the ip link command.
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-4
# ip link set can0 down
qlen 10 link/can
# ip link set can0 up type can bitrate 12500
#include <stdio.h>
}
CAN Bus Programming Guide
CAN Write
To configure the CAN device, use # ip link set can0 down to turn off the device first
# ip link
can0: <NOARP,ECHO> mtu 16 qdisc pfifo_fast state DOWN mode DEFAULT group default
Here’s an example with bitrate 12500:
The following code is an example of the SocketCAN API, which sends packets using the raw interface.
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <net/if.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <sys/ioctl.h>
#include <linux/can.h>
#include <linux/can/raw.h>
int main(void)
{
int s;
int nbytes;
struct sockaddr_can addr;
struct can_frame frame;
struct ifreq ifr;
char *ifname = "can1";
if((s = socket(PF_CAN, SOCK_RAW, CAN_RAW)) < 0) {
perror("Error while opening socket");
return -1;
}
strcpy(ifr.ifr_name, ifname);
ioctl(s, SIOCGIFINDEX, &ifr);
addr.can_family = AF_CAN;
addr.can_ifindex = ifr.ifr_ifindex;
printf("%s at index %d\n", ifname, ifr.ifr_ifindex);
if(bind(s, (struct sockaddr *)&addr, sizeof(addr)) < 0) {
perror("Error in socket bind");
return -2;
}
frame.can_id = 0x123;
frame.can_dlc = 2;
frame.data[0] = 0x11;
frame.data[1] = 0x22;
nbytes = write(s, &frame, sizeof(struct can_frame));
printf("Wrote %d bytes\n", nbytes);
return 0;
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-5
#include <stdio.h>
}
CAN Read
The following sample code illustrates how to read the data.
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <net/if.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <sys/ioctl.h>
#include <linux/can.h>
#include <linux/can/raw.h>
Int main(void)
{
int i;
int s;
int nbytes;
struct sockaddr_can addr;
struct can_frame frame;
struct ifreq ifr;
char *ifname = "can0";
if((s = socket(PF_CAN, SOCK_RAW, CAN_RAW)) < 0) {
perror("Error while opening socket");
return -1;
}
strcpy(ifr.ifr_name, ifname);
ioctl(s, SIOCGIFINDEX, &ifr);
addr.can_family = AF_CAN;
addr.can_ifindex = ifr.ifr_ifindex;
printf("%s at index %d\n", ifname, ifr.ifr_ifindex);
if(bind(s, (struct sockaddr *)&addr, sizeof(addr)) < 0) {
perror("Error in socket bind");
return -2;
}
nbytes = read(s, &frame, sizeof(struct can_frame));
if (nbytes < 0) {
perror("Error in can raw socket read");
return 1;
}
if (nbytes < sizeof(struct can_frame)) {
fprintf(stderr, "read: incomplete CAN frame\n");
return 1;
}
printf(" %5s %03x [%d] ", ifname, frame.can_id, frame.can_dlc);
for (i = 0; i < frame.can_dlc; i++)
printf(" %02x", frame.data[i]);
printf("\n");
return 0;
After you use the SocketCAN API, the SocketCAN information is written to the paths:
/proc/sys/net/ipv4/conf/can* and /proc/sys/net/ipv4/neigh/can*
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-6
IMPORTANT!
The
Real COM Mode Configuration
UC-8100, UC-8100-ME-T, and UC-8100A-ME-T Series do not support Real COM mode.
You can use Moxa’s NPort Series serial device drivers to extend the number of serial interfaces (ports) on
your Arm-based Moxa computer. The NPort comes equipped with COM drivers that work with Windows
systems and TTY drivers for Linux systems. The driver establishes a transparent connection between the
host and serial device by mapping the IP Port of the NPort’s serial port to a local COM/TTY port on the host
computer.
Real COM Mode also supports up to 4 simultaneous connections, so that multiple hosts can collect data from
the same serial device at the same time.
One of the major conveniences of using Real COM Mode is that Real COM Mode allows users to continue
using RS-232/422/485 serial communications software that was written for pure serial communications
applications. The driver intercepts data sent to the host’s COM port, packs it into a TCP/IP packet, and then
redirects it through the host’s Ethernet card. At the other end of the connection, the NPort accepts the
Ethernet frame, unpacks the TCP/IP packet, and then sends it transparently to the appropriate serial device
attached to one of the NPort’s serial ports.
The Real COM driver is installed on the Arm-based computer by default. You will be able to view the driver
related files in the /usr/lib/npreal2/driver folder.
> mxaddsvr (Add Server, mapping tty port) > mxdelsvr (Delete Server,
unmapping tty port)
> mxloadsvr (Reload Server) > mxmknod (Create device node/tty port)
> mxrmnod (Remove device node/tty port)
> mxuninst (Remove tty port and driver files)
At this point, you will be ready to map the NPort serial port to the system tty port. For a list of supported
NPort devices and their revision history, click https://www.moxa.com/en/support/search?psid=50278
Mapping TTY Ports
Make sure that you set the operation mode of the desired NPort serial port to Real COM mode. After logging
in as a super user, enter the directory /usr/lib/npreal2/driver and then execute mxaddsvr to map the target
NPort serial port to the host tty ports. The syntax of mxaddsvr command is as follows:
mxaddsvr [NPort IP Address] [Total Ports] ([Data port] [Cmd port])
The mxaddsvr command performs the following actions:
1. Modifies the npreal2d.cf.
2. Creates tty ports in the /dev directory with major & minor number configured in npreal2d.cf.
3. Restarts the driver.
.
Arm-based Computer Linux UM Advanced Configuration of Peripherals
3-7
# cd /usr/lib/npreal2/driver
# ./mxaddsvr 192.168.3.4 16
# cd /usr/lib/npreal2/driver
# ./mxaddsvr 192.168.3.4 16 4001 966
# cd /usr/lib/npreal2/driver
# ./mxdelsvr 192.168.3.4
Mapping tty Ports (automatic)
To map tty ports automatically, execute the mxaddsvr command with just the IP address and the number of
ports, as shown in the following example:
In this example, 16 tty ports will be added, all with IP 192.168.3.4 consisting of data ports from 950 to 965
and command ports from 966 to 981.
Mapping tty Ports Manually
To map tty ports manually, execute the mxaddsvr command and specify the data and command ports as
shown in the following example:
In this example, 16 tty ports will be added, all with IP 192.168.3.4, with data ports from 4001 to 4016 and
command ports from 966 to 981.
Removing Mapped TTY Ports
After logging in as root, enter the directory /usr/lib/npreal2/driver and then execute the mxdelsvr command
to delete a server. The syntax of mxdelsvr is:
mxdelsvr [IP Address]
Example:
The following actions are performed when the mxdelsvr command is executed:
1. Modify npreal2d.cf.
2. Remove the relevant tty ports from the /dev directory.
3. Restart the driver.
If the IP address is not provided in the command line, the program will list the installed servers and total
ports on the screen. You will need to choose a server from the list for deletion.
4
4. Configuring of Wireless Connectivity
The instructions in this chapter cover all wireless functions supported in Moxa’s Arm-based computers.
Before referring to the sections in this chapter, make sure that they are applicable to and are supported by
the hardware specification of your Arm-based computer platform.
The following topics are covered in this chapter:
Configuring the Cellular Connection
Using Cell_mgmt
Dial-Up Step-by-Step
Dial-Up
Cellular Module
Configuring the NB-IoT/Cat. M1 Connection (UC-2114 and UC-2116 only)
GPS
Configuring the Wi-Fi Connection
Configuring WPA2 Settings
4-2
NAME
power_off
Arm-based Computer Linux UM Configuring Wireless Connectivity
Configuring the Cellular Connection
Using Cell_mgmt
The cell_mgmt utility is used to manage the cellular module in the computer. You must use sudo or run with
root permission for the cell_mgmt command.
Manual Page
cell_mgmt
USAGE
cell_mgmt [-i <module id>] [options]
OPTIONS
-i <module id>
Module identifier, start from 0 and default to 0.
-s <slot id>
Slot identifier, start from 1 and default value depends
on module interface.
example: module 0 may in slot 2
modules
Shows module numbers supported.
slot
Shows module slot id
interface [interface id]
Switching and checking module interface(s)
start [OPTIONS]
Start network.
OPTIONS:
APN - Access point name
PIN - PIN code
Phone - Phone number (especially for AT based modules)
Auth - Authentication type(CHAP|PAP|BOTH), default=NONE.
Username
Password
example:
cell_mgmt start
cell_mgmt start APN=internet
cell_mgmt start APN=internet PIN=0000
cell_mgmt start APN=internet PIN=0000 Phone=*99#
cell_mgmt start APN=internet PIN=0000 Phone=*99# \
Auth=BOTH Username=moxa Password=moxamoxa
stop
network.
restart
Restart network.
power_on
Power ON.
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-3
Power OFF.
operator
power_cycle
Power cycle the module slot.
switch_sim <1|2>
Switch SIM slot.
gps_on
GPS ON.
gps_off
GPS OFF.
attach_status
Query network registration status.
status
Query network connection status.
signal
Get signal strength.
at <'AT_COMMAND'>
Input AT Command.
Must use SINGLE QUOTATION to enclose AT Command.
sim_status
Query sim card status.
unlock_pin <PIN>
Unlock PIN code and save to configuration file.
pin_retries
Get PIN code retry remain times.
pin_protection <enable|disable> <current PIN>
Set PIN protection in the UIM.
set_flight_mode <0|1>
Set module into flight mode (1) or online mode (0).
get_profiles
Get profile list.
format:
<id>,<APN>,<PDP Type>
example:
1,internet,IPV4V6
set_profile <id> [APN [PDP Type]]
Update PDP profile.
set_apn <APN>
Set APN to configuration file.
check_carrier
Check current carrier.
switch_carrier <Verizon|ATT|Sprint|Generic>
Switching between US carrier frequency bands.
m_info
Module/SIM information.
module_info
Module information.
module_ids
Get device IDs (ex: IMEI and/or ESN).
iccid
Get SIM card ID
imsi
Get IMSI (International Mobile Subscriber Identity).
location_info
Get cell location information.
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-4
Telecommunication operator.
Cellular management version.
moxa@Moxa:/home/moxa$ sudo cell_mgmt sim_status
+CPIN: READY
moxa@Moxa:/home/moxa$ sudo cell_mgmt set_apn internet
old APN=test, new APN=internet
moxa@Moxa:/home/moxa$ sudo cell_mgmt attach_status
PS: attached
moxa@Moxa:/home/moxa$ sudo cell_mgmt start APN=internet
Network started successfully
vzwauto
Verizon Private Network auto dialup.
version
Dial-Up Step-by-Step
Before dialing, the APN (Access Point Name) should be set correctly and the module should attach with the
base station.
1. Unlock the PIN code if SIM locked by a PIN code
Use cell_mgmt sim_status to check SIM card status and use cell_mgmt unlock_pin <PIN> to unlock SIM
card if “SIM-PIN”
2. Set the APN with cell_mgmt set_apn <APN>, this command will update the APN in profile ID 1
3. Check if the service attached with correct APN
CS: attached
PS (packet-switched) should be attached for network connection
4. Dial up with
PIN code: Disabled or verified
Starting network with '_qmicli --wds-start-network=apn=internet,ip-type=4 --
client-no-release-cid --device-open-net=net-802-3|net-no-qos-header'...
Saving state... (CID: 8)
Saving state... (PDH: 1205935456)
The cell_mgmt dial-up function will automatically set the DNS and default gateway of the computer.
Dial-Up
cell_mgmt start
To start a network connection, use the default cellular module of the computer (using cell_mgmt interface
to verify which module is selected by default if the computer supports multiple modules).
If you run the cell_mgmt start command with the APN, Username, Password, and PIN, all the
configurations will be written into the configuration file
utils.conf.
cell_mgmt start APN=<APN>
/etc/moxa-cellular-utils/moxa-cellular-
This information is then used when you run the command without specifying the options.
Usage: cell_mgmt start APN=[APN] Username=[user] Password=[pass] PIN=[pin_code]
cell_mgmt stop
Stops/disables the network connection on the cellular module of the computer
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-5
moxa@Moxa:/home/moxa$ sudo cell_mgmt stop
Clearing state...
moxa@Moxa:/home/moxa$ sudo cell_mgmt restart
Network started successfully
moxa@Moxa:/home/moxa$ sudo cell_mgmt status
Status: connected
moxa@Moxa:/home/moxa$ sudo cell_mgmt signal
umts -77 dbm
moxa@Moxa:/home/moxa$ sudo cell_mgmt operator
Chunghwa
Killed old client process
Stopping network with '_qmicli --wds-stop-network=1205933264 --client-cid=8'...
Network stopped successfully
cell_mgmt restart
Restarts the network connection on the cellular module of the computer.
Killed old client process
Stopping network with '_qmicli --wds-stop-network=1205935456 --client-cid=8'...
Network stopped successfully
Clearing state...
PIN code: Disabled or verified
Starting network with '_qmicli --wds-start-network=apn=internet,ip-type=4 --
client-no-release-cid --device-open-net=net-802-3|net-no-qos-header'...
Saving state... (CID: 8)
Saving state... (PDH: 1205933264)
cell_mgmt status
Provides information on the status of the network connection.
cell_mgmt signal
Provides the cellular signal strength.
The signal strength is measured using Reference Signal Received Power (RSRP). The following table lists the
signal strength for RSRP ranges.
RSRP Signal Strength
<-115 dBm No signal
-105 to -115 dBm Poor
-95 to -105 dBm Fair
-85 to -95 dBm Good
>-85 dBm Excellent
cell_mgmt operator
Provides information on the cellular service provider.
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-6
moxa@Moxa:/home/moxa$ sudo cell_mgmt module_info
Modem_port: NotSupport
moxa@Moxa:/home/moxa$ sudo cell_mgmt interface
[0] wwan0 <Current>
moxa@Moxa:/home/moxa$ sudo cell_mgmt power_cycle
[232747.099156] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB1
Cellular Module
cell_mgmt module_info
Provides information of the cellular module (AT port, GPS port, QMI port, and module name, etc.).
SLOT: 1
Module: MC7354
WWAN_node: wwan0
AT_port: /dev/ttyUSB2
GPS_port: /dev/ttyUSB1
QMI_port: /dev/cdc-wdm0
cell_mgmt interface [id]
Used to view the supported modules and default module on the computer with their IDs. Change the default
module by specified the ID.
cell_mgmt power_cycle
Power cycle the cellular module in the computer. Some kernel message for module reloaded may be popped
out.
Network already stopped
Clearing state...
[232733.202208] usb 1-1: USB disconnect, device number 2
[232733.217132] qcserial ttyUSB0: Qualcomm USB modem converter now disconnected
from ttyUSB0
[232733.225616] qcserial 1-1:1.0: device disconnected
[232733.256738] qcserial ttyUSB1: Qualcomm USB modem converter now disconnected
from ttyUSB1
[232733.265214] qcserial 1-1:1.2: device disconnected
[232733.281566] qcserial ttyUSB2: Qualcomm USB modem converter now disconnected
from ttyUSB2
[232733.290006] qcserial 1-1:1.3: device disconnected
[232733.313572] qmi_wwan 1-1:1.8 wwan0: unregister 'qmi_wwan' usb-musb-
hdrc.0.auto-1, WWAN/QMI device
[232746.879873] usb 1-1: new high-speed USB device number 3 using musb-hdrc
[232747.020358] usb 1-1: config 1 has an invalid interface number: 8 but max is 3
[232747.027639] usb 1-1: config 1 has no interface number 1
[232747.036212] usb 1-1: New USB device found, idVendor=1199, idProduct=68c0
[232747.043185] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[232747.050473] usb 1-1: Product: MC7354
[232747.054151] usb 1-1: Manufacturer: Sierra Wireless, Incorporated
[232747.068022] qcserial 1-1:1.0: Qualcomm USB modem converter detected
[232747.079525] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB0
[232747.089754] qcserial 1-1:1.2: Qualcomm USB modem converter detected
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-7
[232747.109317] qcserial 1-1:1.3: Qualcomm USB modem converter detected
hdrc.0.auto-1, WWAN/QMI device, 0a:ba:e1:d6:ed:4a
moxa@Moxa:/home/moxa$ sudo cell_mgmt check_carrier
--------------------------------
Sprint
M1 only
2, 4, 12, and 25
Yes
[232747.118581] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB2
[232747.130890] qmi_wwan 1-1:1.8: cdc-wdm0: USB WDM device
[232747.137174] qmi_wwan 1-1:1.8 wwan0: register 'qmi_wwan' at usb-musb-
cell_mgmt check_carrier
This command helps to check if current carrier matched with the service (SIM card) provider.
----------Carrier Info----------
preferred firmware=05.05.58.01
preferred carrier name=ATT
preferred carrier config=ATT_005.026_000
firmware=05.05.58.01
carrier name=ATT
carrier config=ATT_005.026_000
cell_mgmt switch_carrier
Some module provides multiple carrier support. Use this command to switch between carriers. It may take
some time (depends on module's mechanism) to switch between carriers.
For the UC-2114 and UC-2116 computers, refer to the following table for a list of the cellular carriers
supported.
MNO Profile
(UC-2114 & UC-2116)
Default M1/NB1 2, 3, 4, 5, 8, 12, 13, 18,
AT&T M1 only 2, 4, 5, and 12 No
China Telecom M1/NB1 3, 5, and 8 Yes
Deutsche Telekom M1/NB1 3, 8, and 20 Yes
Standard Europe M1/NB1 3, 8, and 20 Yes
Telstra M1 only 3, 5, 8, and 28 No
T-Mobile USA NB1 only 2, 4, 5, and 12 Yes
TELUS M1 only 2, 4, 5, and 12 No
Verizon M1 only 13 No
Vodafone NB1/M1 3, 8, and 20 Yes
System Selection
(Primary/Secondary)
LTE Bands Supported UBANDMASK Support
No
19, 20, and 25 (M1 only)
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-8
moxa@Moxa:/home/moxa$ sudo cell_mgmt switch_carrier
hdrc.0.auto-1, WWAN/QMI device
----------switch_carrier------------
Usage:
switch_carrier <Verizon|ATT|Sprint|Generic>
moxa@Moxa:/home/moxa$ sudo cell_mgmt switch_carrier Verizon
----------switch_carrier------------
cmd=AT!GOBIIMPREF="05.05.58.01","VZW","VZW_005.029_001"
OK
OK
wait for power cycle...
Network already stopped
Clearing state...
[236362.468977] usb 1-1: USB disconnect, device number 3
[236362.482562] qcserial ttyUSB0: Qualcomm USB modem converter now disconnected
from ttyUSB0
[236362.491019] qcserial 1-1:1.0: device disconnected
[236362.521065] qcserial ttyUSB1: Qualcomm USB modem converter now disconnected
from ttyUSB1
[236362.529430] qcserial 1-1:1.2: device disconnected
[236362.544653] qcserial ttyUSB2: Qualcomm USB modem converter now disconnected
from ttyUSB2
[236362.553133] qcserial 1-1:1.3: device disconnected
[236362.558283] qmi_wwan 1-1:1.8 wwan0: unregister 'qmi_wwan' usb-musb-
hdrc.0.auto-1, WWAN/QMI device
[236376.209868] usb 1-1: new high-speed USB device number 4 using musb-hdrc
[236376.350358] usb 1-1: config 1 has an invalid interface number: 8 but max is 3
[236376.357639] usb 1-1: config 1 has no interface number 1
[236376.364991] usb 1-1: New USB device found, idVendor=1199, idProduct=68c0
[236376.371925] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[236376.379217] usb 1-1: Product: MC7354
[236376.382924] usb 1-1: Manufacturer: Sierra Wireless, Incorporated
[236376.400588] qcserial 1-1:1.0: Qualcomm USB modem converter detected
[236376.412010] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB0
[236376.422273] qcserial 1-1:1.2: Qualcomm USB modem converter detected
[236376.429958] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB1
[236376.441031] qcserial 1-1:1.3: Qualcomm USB modem converter detected
[236376.448337] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB2
[236376.461514] qmi_wwan 1-1:1.8: cdc-wdm0: USB WDM device
[236376.467762] qmi_wwan 1-1:1.8 wwan0: register 'qmi_wwan' at usb-musb-
hdrc.0.auto-1, WWAN/QMI device, 0a:ba:e1:d6:ed:4a
[236411.387228] usb 1-1: USB disconnect, device number 4
[236411.393963] qcserial ttyUSB0: Qualcomm USB modem converter now disconnected
from ttyUSB0
[236411.402361] qcserial 1-1:1.0: device disconnected
[236411.422719] qcserial ttyUSB1: Qualcomm USB modem converter now disconnected
[236411.431186] qcserial 1-1:1.2: device disconnected
[236411.446102] qcserial ttyUSB2: Qualcomm USB modem converter now disconnected
from ttyUSB2
[236411.454583] qcserial 1-1:1.3: device disconnected
[236411.459687] qmi_wwan 1-1:1.8 wwan0: unregister 'qmi_wwan' usb-musb-
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-9
[236423.109879] usb 1-1: new high-speed USB device number 5 using musb-hdrc
--------------------------------
moxa@Moxa:/home/moxa$ sudo cell_mgmt at 'AT+CSQ'
OK
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+COPS=2'
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+COPS=0'
[236423.250364] usb 1-1: config 1 has an invalid interface number: 8 but max is 3
[236423.257649] usb 1-1: config 1 has no interface number 1
[236423.266064] usb 1-1: New USB device found, idVendor=1199, idProduct=68c0
[236423.273024] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[236423.280331] usb 1-1: Product: MC7354
[236423.284011] usb 1-1: Manufacturer: Sierra Wireless, Incorporated
[236423.298320] qcserial 1-1:1.0: Qualcomm USB modem converter detected
[236423.310356] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB0
[236423.318614] qcserial 1-1:1.2: Qualcomm USB modem converter detected
[236423.328841] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB1
[236423.338942] qcserial 1-1:1.3: Qualcomm USB modem converter detected
[236423.348418] usb 1-1: Qualcomm USB modem converter now attached to ttyUSB2
[236423.360733] qmi_wwan 1-1:1.8: cdc-wdm0: USB WDM device
[236423.366960] qmi_wwan 1-1:1.8 wwan0: register 'qmi_wwan' at usb-musb-
hdrc.0.auto-1, WWAN/QMI device, 0a:ba:e1:d6:ed:4a
moxa@Moxa:/home/moxa$ sudo cell_mgmt check_carrier
----------Carrier Info----------
preferred firmware=05.05.58.01
preferred carrier name=VZW
preferred carrier config=VZW_005.029_001
firmware=05.05.58.01
carrier name=VZW
carrier config=VZW_005.029_001
cell_mgmt at AT_COMMAND
Used to input an AT command. For example, use the AT command, AT+CSQ as follows:
+CSQ: 18,99
Configuring the NB-IoT/Cat. M1 Connection (UC-2114 and
UC-2116 only)
You can change the RAT (radio access technology) type of the NB-IoT module in UC-2114 and UC-2116
using the following AT commands:
Switching to the Cat. M1 Mode
moxa@Moxa:/home/moxa$ cell_mgmt set_profile '1' 'internet.iot' 'IP'
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+URAT=7'
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-10
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+COPS=2'
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+COPS=0'
NOTE
•
•
cell_mgmt at AT+URAT?
8: NB-IOT
root@Moxa:/home/moxa# cat /dev/ttyS1
root@Moxa:/home/moxa# cell_mgmt gps_on
root@Moxa:/home/moxa# cell_mgmt module_info
Modem_port: NotSupport
Switching to the NB-IoT Mode
moxa@Moxa:/home/moxa$ cell_mgmt set_profile '1' 'internet.iot' 'IP'
moxa@Moxa:/home/moxa$ cell_mgmt at 'AT+URAT=8'
• The APN name 'internet.iot' is set by the carrier. For information on the APN settings, contact your
mobile network operator.
A PPP dial-up connection that uses Cat. M1 and CAT. NB1 may sometimes take a couple of minutes to
establish a connection if the signal is weak.
Power saving mode (PSM) is not supported in the UC-2114 and UC-2116 computers.
You can also use AT command to read the mode:
root@Moxa:/home/moxa# cell_mgmt at AT+URAT?
+URAT: 7,8
OK
7: CAT-M1
GPS
You can view the GPS port information and location information for the UC-2116 and UC-8112-ME-T-US-LTE
models.
UC-2116 Model
You can view the GPS location information for the UC-2116 model using the following command:
UC-8112-ME-T-US-LTE Model
To view the GPS information for the UC-8112-ME-T-US-LTE model, do the following:
1. Power on the GPS module using the command:
2. Check the GPS port using the cell_mgmt command.
In the following example, the GPS port is at
SLOT: 1
Module: MC7354
WWAN_node: wwan1
AT_port: /dev/ttyUSB2
GPS_port: /dev/ttyUSB1
QMI_port: /dev/cdc-wdm1
/dev/ttyUSB1.
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-11
AT_port (reserved): NotSupport
root@Moxa:/home/moxa# cat /dev/ttyUSB1
ESS
Open
None
No
No
No
moxa@Moxa:~$ sudo wifi_mgmt help
Connect to the last time AP that was used.
3. Type the following command to get the GPS location information from the GPS port.
Configuring the Wi-Fi Connection
You can configure the Wi-Fi connection for your Arm-based computer using a configuration file or the
wifi_mgmt utility provided by Moxa. For advanced settings, you can use the wpa_supplicant command.
Configuring WPA2 Settings
Moxa’s Arm-based computers support WPA2 security using the /sbin/wpa_supplicant program. Refer to
the following table for configuration options. The Key required before joining network column specifies
whether an encryption and/or authentication key must be configured before associating with a network.
Infrastructure
mode
ESS Open WEP Optional Optional Yes
ESS Shared None Yes No Yes
ESS Shared WEP Optional Optional Yes
ESS WPA WEP No Yes No
ESS WPA TKIP No Yes No
ESS WPA2 AES No Yes No
ESS WPA-PSK WEP Yes Yes No
ESS WPA-PSK TKIP Yes Yes No
ESS WPA2-PSK AES Yes Yes No
Authentication
mode
Encryption
status
Using wifi_mgmt
Manual Page
The wifi_mgmt utility manages the behavior of the Wi-Fi module.
Manual Key
required?
IEEE 802.1X
enabled?
Key required
before joining
network?
[sudo] password for moxa:
Usage:
/usr/sbin/wifi_mgmt [-i <interface id>] [-s <slot id>] [OPTIONS]
OPTIONS
start Type=[type] SSID=[ssid] Password=[password]
Insert an AP information to the managed AP list and then connect to the AP.
[type] open/wep/wpa/wpa2
[ssid] access point's SSID
[password] access point's password
example:
wifi_mgmt start Type=wpa SSID=moxa_ap Password=moxa
wifi_mgmt start Type=open SSID=moxa_ap
start [num]
Connect to AP by the managed AP list number.
start
4-12
scan -d
Wifi management version.
root@Moxa:~# wifi_mgmt start Type=wpa SSID=moxa_ap Password=moxa
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt list
1 MOXA_AP2 any [DISABLED]
Arm-based Computer Linux UM Configuring Wireless Connectivity
Scan all the access points information and show the detail message.
scan
Scan all the access points information.
signal
Show the AP's signal.
list
Show the managed AP list.
insert Type=[type] SSID=[ssid] Password=[password]
Insert a new AP information to the managed AP list.
[type] open/wep/wpa/wpa2
[ssid] access point's SSID
[password] access point's password
example:
wifi_mgmt insert Type=wpa SSID=moxa_ap Password=moxa
select [num]
Select an AP num to connect which is in the managed AP list.
stop
Stop network.
status
Query network connection status.
interface [num]
Switch to another wlan[num] interface.
[num] interface number
example:
wifi_mgmt interface 0
interface
Get the current setting interface.
reconnect
Reconnect to the access point.
restart
Stop wpa_supplicant then start it again.
version
Connecting to an AP
There are three ways to connect to an AP. The DNS and default gateway will be configured automatically. If
you want to use the wireless interface’s gateway, be sure to clean up your computer’s default gateway first.
wifi_mgmt start Type=[type] SSID=[ssid] Password=[password]
Insert the AP information in the managed AP list and then connect to an AP.
wpa_state=COMPLETED
*** Get DHCP IP address from AP ***
wifi_mgmt start [num]
Connect to the AP using the managed AP list number. If you have inserted AP information before, some AP
information will still be in the managed AP list. Check the managed AP list with the wifi_mgmt list command.
network id / ssid / bssid / flags
0 MOXA_AP1 any [LAST USED]
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-13
2 MOXA_AP3 any [DISABLED]
root@Moxa:~# wifi_mgmt start 1
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt list
2 MOXA_AP3 any [DISABLED]
root@Moxa:~# wifi_mgmt start
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt stop
Stopped.
root@Moxa:~# wifi_mgmt restart
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt insert Type=wpa2 SSID=MOXA_AP3 Password=moxa
2 MOXA_AP3 any [DISABLED]
root@Moxa:~# wifi_mgmt list
root@Moxa:~# wifi_mgmt select 2
Choose an AP number to start.
wpa_state=COMPLETED
*** Get DHCP IP address from AP ***
wifi_mgmt start
Connect to the previous AP that was used.
network id / ssid / bssid / flags
0 MOXA_AP1 any [LAST USED]
1 MOXA_AP2 any [DISABLED]
Use the wifi_mgmt command to connect to the AP “MOXA_AP1” that was used the previous time.
wpa_state=COMPLETED
*** Get DHCP IP address from AP ***
Stop or Restart a Network Connection
wifi_mgmt stop
wifi_mgmt restart
wpa_supplicant is closed!!
wpa_state=COMPLETED
*** Get DHCP IP address from AP ***
Inserting an AP or Choosing Another AP to Connect To
If you want to use another AP to connect, use the wifi_mgmt select command to switch to another AP.
root@Moxa:~# wifi_mgmt list
network id / ssid / bssid / flags
0 MOXA_AP1 any [CURRENT]
1 MOXA_AP2 any [DISABLED]
If you want to use another AP to connect, use the wifi_mgmt select command to switch to another AP.
network id / ssid / bssid / flags
0 MOXA_AP1 any [DISABLED]
1 MOXA_AP2 any [CURRENT]
2 MOXA_AP3 any [DISABLED]
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-14
wpa_state=COMPLETED
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt scan
fc:f5:28:cb:5d:93 2462 -97 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
root@Moxa:~# wifi_mgmt scan -d
Mode:Master
*** Get DHCP IP address from AP ***
Other Functions
wifi_mgmt scan
Scan all of the access point information.
bssid / frequency / signal level / flags / ssid
b0:b2:dc:dd:c9:e4 2462 -57 [WPA-PSK-TKIP][ESS] WES_AP
fc:f5:28:cb:8c:23 2412 -57 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
fe:f0:28:cb:8c:23 2412 -59 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fc:f5:28:cb:39:08 2437 -79 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
fe:f0:28:cb:39:08 2437 -81 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fc:f5:28:cb:5d:a8 2462 -83 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
2c:54:cf:fd:5a:cf 2437 -83 [WPA-PSK-TKIP][ESS] 5566fans
fe:f0:28:cb:5d:a8 2462 -87 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fe:f0:28:cb:5d:78 2462 -89 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fe:f0:28:cb:39:11 2437 -89 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fc:f5:28:cb:39:11 2437 -91 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
fe:f0:28:cb:39:0b 2412 -91 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
02:1a:11:f1:dc:a1 2462 -91 [WPA2-PSK-CCMP][ESS] M9 Davidoff
fc:f5:28:cb:5d:78 2462 -93 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
fe:f0:28:cb:5d:b7 2462 -93 [WPA2-EAP-CCMP-preauth][ESS] MHQ-Mobile
fc:f5:28:cb:39:0b 2412 -93 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
fc:f5:28:cb:5d:b7 2462 -95 [WPA2-EAP-CCMP-preauth][ESS] MHQ-NB
wifi_mgmt scan -d
Scan all of the access point information and show a detailed message.
wlan0 Scan completed :
Cell 01 - Address: FC:F5:28:CB:8C:23
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=51/70 Signal level=-59 dBm
Encryption key:on
ESSID:"MHQ-NB"
9 Mb/s; 12 Mb/s; 18 Mb/s
Mode:Master
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : 802.1x
Preauthentication Supported
Cell 02 - Address: FE:F0:28:CB:5D:A8
Channel:11
Frequency:2.462 GHz (Channel 11)
Quality=25/70 Signal level=-85 dBm
Encryption key:on
ESSID:"MHQ-Mobile"
9 Mb/s; 12 Mb/s; 18 Mb/s
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-15
Group Cipher : CCMP
More.. .. ..
root@Moxa:~# wifi_mgmt signal
level=-59 dBm
root@Moxa:~# wifi_mgmt list
1 MOXA_AP2 any [DISABLED]
root@Moxa:~# wifi_mgmt status
address=00:0e:8e:4c:13:5e
root@Moxa:~# wifi_mgmt interface
Now is setting the interface as wlan1.
root@Moxa:~# wifi_mgmt reconnect
*** Get DHCP IP from AP! ***
root@Moxa:~# wifi_mgmt version
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : 802.1x
Preauthentication Supported
wifi_mgmt signal
Show the AP’s signal.
wifi_mgmt delete
network id / ssid / bssid / flags
0 MOXA_AP1 any [CURRENT]
1 MOXA_AP1 any [DISABLED]
2 MOXA_AP3 any [DISABLED]
root@Moxa:~# wifi_mgmt delete 2
***** WARNING *****
Are you sure that you want to delete network id 2 (y/n)y
network id / ssid / bssid / flags
0 MOXA_AP1 any
wifi_mgmt status
bssid=b0:b2:dc:dd:c9:e4
ssid=MOXA_AP1
id=0
mode=station
pairwise_cipher=TKIP
group_cipher=TKIP
key_mgmt=WPA-PSK
wpa_state=COMPLETED
ip_address=192.168.1.36
wifi_mgmt interface [num]
If there is more than one Wi-Fi interface, you can change the interface.
There is(are) 2 interface(s):
wlan0 [Current]
wlan1
root@Moxa:~# wifi_mgmt interface 1
wifi_mgmt reconnect
wpa_state=SCANNING
wpa_state=SCANNING
wpa_state=COMPLETED
*** Get DHCP IP address from AP ***
wifi_mgmt version
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-16
wifi_mgmt version 1.0 Build 15050223
ctrl_interface=/var/run/wpa_supplicant
#######################
root@Moxa:~# wpa_supplicant -i <interface> -c <configuration file> -B
root@Moxa:~# wpa_supplicant -i wlan0 -c
/etc/wpa_supplicant/wpa_supplicant.conf –B
Configuring the Wireless LAN Using the Configuration File
You can edit the /etc/wpa_supplicant/wpa_supplicant.conf file to configure a Wi-Fi connection. The
following is an example of the configuration file for an OPEN/WEP/WPA/WPA2 access point.
ctrl_interface_group=wheel
update_config=1
### Open system ###
#network={
# ssid="Open"
# key_mgmt=NONE
#}
###################
##### WEP #####
#network={
# ssid="WEP-ssid"
# bssid=XX:XX:XX:XX:XX:XX
# key_mgmt=NONE
# wep_key0=KEY
#}
###############
##### WPA/WPA2 PSK #####
#network={
# ssid="WPA-ssid"
# proto=WPA WPA2 RSN
# key_mgmt=WPA-PSK
# pairwise=TKIP CCMP
# group=TKIP CCMP
# psk="KEY"
#}
The basic command to connect for WPA-supplicant is:
The -B option should be included because it forces the supplicant to run in the background.
1. Connect with the following command after editing wpa_supplicant.conf:
Arm-based Computer Linux UM Configuring Wireless Connectivity
4-17
wlan0 IEEE 802.11abgn ESSID:"MOXA_AP"
Tx excessive retries:0 Invalid misc:0 Missed beacon:0
WARNING
Moxa strongly advises against using the WEP and WPA encryption standards
officially deprecated by the Wi
and security, use WPA2 with the AES encryption algorithm
2. Use the
You can use the
be similar to the following:
#sudo apt-get install wireless-tools command to install the Wi-Fi utility.
iwconfig command to check the connection status. The response you receive should
Mode:Managed Frequency:2.462 GHz Access Point: 00:1F:1F:8C:0F:64
Bit Rate=36 Mb/s Tx-Power=27 dBm
Retry min limit:7 RTS thr:off Fragment thr:off
Encryption key:1234-5678-90 Security mode:open
Power Management:off
Link Quality=37/70 Signal level=-73 dBm
Rx invalid nwid:0 Rx invalid crypt:0 Rx invalid frag:0
-Fi Alliance, and are considered insecure. To guarantee good Wi-Fi encryption
.
. Both are now
5
5. Security
Moxa’s Arm-based computers offer better security by introducing Moxa’s innovative secure boot feature,
and the integration of a Trusted Platform Module gives the user more solid protection for the platform.
The following topics are covered in this chapter:
Sudo Mechanism
Cybersecurity—Moxa Security Utility
Installing the Moxa Security Utility
Uninstalling the Moxa Security Utility
Utilizing the Moxa Security Utility
Arm-based Computer Linux UM Security
5-2
moxa@Moxa:~$ ifconfig
RX bytes:2592 (2.5 KiB) TX bytes:2592 (2.5 KiB)
Sudo Mechanism
In the Arm-based computer, the root account is disabled for better security. Sudo is a program designed to
let system administrators allow permitted users to execute some commands as the root user or another
user. The basic philosophy is to give as few privileges as possible but still allow people to get their work
done. Using sudo is better (safer) than opening a session as root for a number of reasons, including:
• Nobody needs to know the root password (sudo prompts for the current user's password). Extra
privileges can be granted to individual users temporarily, and then taken away without the need for a
password change.
• It is easy to run only the commands that require special privileges via sudo; the rest of the time, you
work as an unprivileged user, which reduces the damage caused by mistakes.
• Some system-level commands are not available to the user
output below:
-bash: ifconfig: command not found
moxa@Moxa:~$ sudo ifconfig
eth0 Link encap:Ethernet HWaddr 00:90:e8:00:00:07
inet addr:192.168.3.127 Bcast:192.168.3.255 Mask:255.255.255.0
UP BROADCAST ALLMULTI MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
eth1 Link encap:Ethernet HWaddr 00:90:e8:00:00:08
inet addr:192.168.4.127 Bcast:192.168.4.255 Mask:255.255.255.0
UP BROADCAST ALLMULTI MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:32 errors:0 dropped:0 overruns:0 frame:0
TX packets:32 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
moxa directly, as shown in the sample
Arm-based Computer Linux UM Security
5-3
Important:
You should have root (user) privileges to be able
Important:
You should have root (user) privileges to be a
-s, --switch [STAGE]
-c, --check
-v, --version
-h, --help
-l, --level
Cybersecurity—Moxa Security Utility
Moxa Security Utility enhances the cybersecurity protection on Moxa’s software platforms. You can use the
Moxa Security Utility to conveniently build up the protection mechanism on our Linux platform to meet your
cybersecurity requirements. This security utility is developed in accordance with Moxa’s product
development guide for cybersecurity, which ensures compliance with IEC62443-4-2 standard and the recent
ICS-CERT alerts to provide an adjustable security protection level for your systems and applications.
This section explains the procedure to set up the Moxa Security Utility on Moxa’s platform and build up the
security protection level. The utilization of the Moxa Security utility is discussed in detail in this user’s guide,
which is divided into the following sections:
Installing the Moxa Security Utility
Use the apt-get command to install the utility on your Armv7 platform as follows:
Uninstalling the Moxa Security Utility
Use the apt-get command to uninstall the utility as follows:
# apt-get purge moxa-security-utils
Utilizing the Moxa Security Utility
Parameters
The Moxa Security Utility provides the following parameters. The options in the Set and Get commands will
vary based on the different security levels.
Options Description
to install the Moxa Security Utility.
# apt-get install moxa-security-utils
ble to install the Moxa Security Utility.
Setup the platform environment by security level. [STAGE]:
• level0—Default security settings.
• level1—IEC-62443 security level1 settings
• level2—IEC-62443 security level2 settings.
• level2_plus—IEC-62443 security level2 and some enhanced security
settings.
Check all of the security related status.
Show the Moxa Security Utility version.
Show the Moxa Security Utility usage.
Show the current security level.
Arm-based Computer Linux UM Security
5-4
set-guard-intv [TIME]
set-wl-restrict
set-isolated-run
set-integrity-db
Commands Description
Set checking interval time.
The Moxa Security Utility daemon will scan the system at the time interval
specified.
[TIME] - (10 to 99999) minutes.
Set wireless access restriction policies.
[OPTION]
[COMMAND]
[OPTION]:
0—Does not allow user control the device via wireless interface
1—Only allow the specified user to control the device via wireless interface
2—Allow all users to control the device via wireless interface.
Run a program in isolated environment.
[COMMAND]: A command that you want to execute in isolated environment.
If [COMMAND] is empty, it will enter into an isolated bash environment.
Setup the integrity database by using integrity tool.
Show Current Security Level
You can use the command options 0, 1, 2 to 2 plus to check the current security level.
# mx-security –l
Check Current Security Related Status
You are use the -c command option to check the related configuration status of the current security level:
# mx-security -c
Arm-based Computer Linux UM Security
5-5
NOTE
Display the Usage of this Utility
You can use the -h command option to view the parameters.
# mx-security -h
The command will display different sets of options depends on current system’s security level.
View the Version of this Utility
You can use the –v or -version command option to check the software version of the Moxa Security
Utility.
# mx-security –v
# mx-security --version
Protect the System at Different Security Levels
You can use the mx-security command options to automatically switch and build up the selected level of
security protection from level 0, 1, 2 to level 2+ for your system in compliance with the IEC 62443-4-2
standards.
# mx-security -s [stage]
# mx-security -switch [stage]
[stage]
level0 - Default security settings.
level1 - IEC-62443 security level1 settings.
level2 - IEC-62443 security level2 settings.
level2_plus - IEC-62443 security level2 and some enhanced security settings.
Arm-based Computer Linux UM Security
5-6

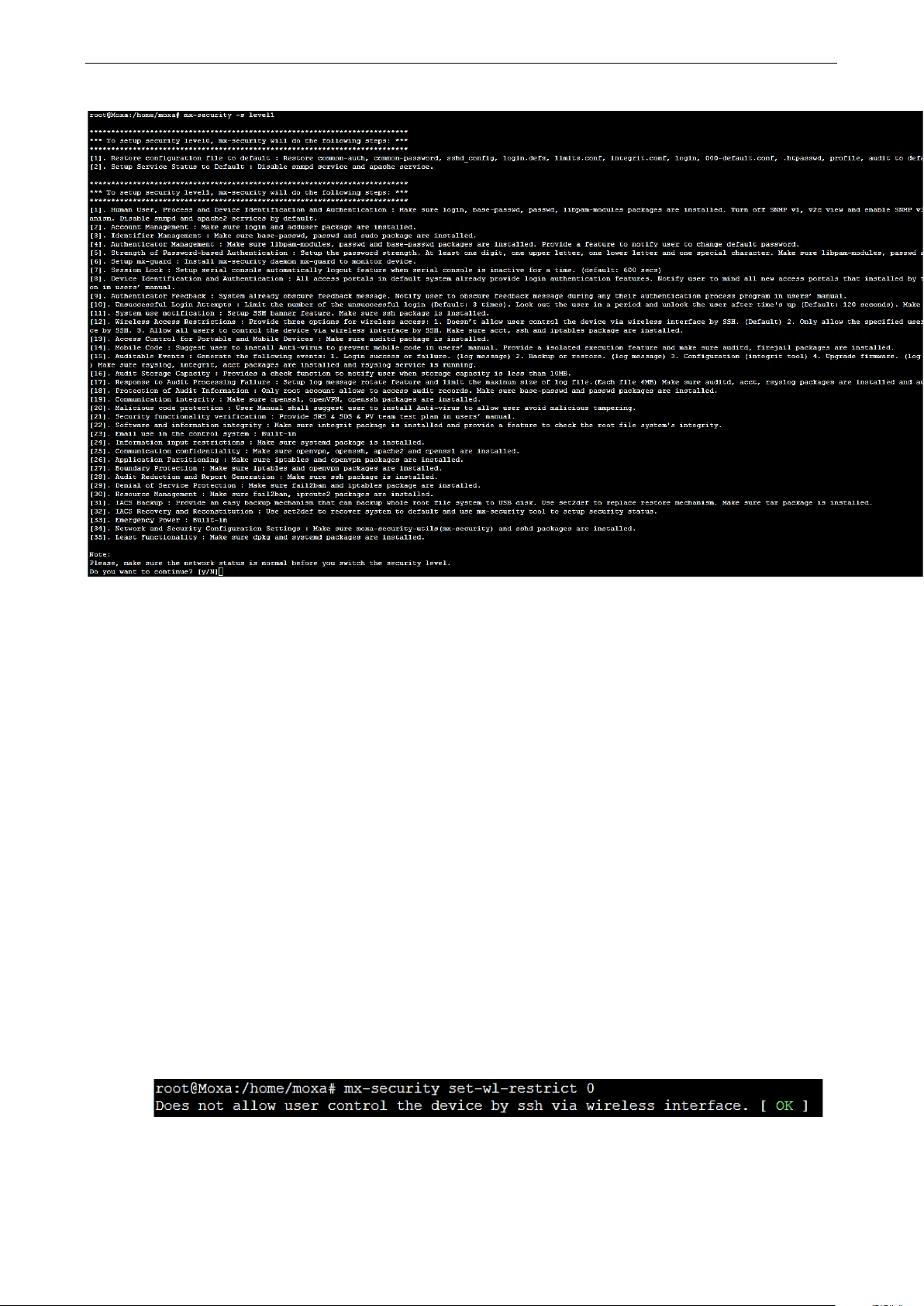

Example for setting up IEC-62443 security level1
Configure Checking Interval Time
You can set the checking interval for the guard daemon from 10 to 99999 minutes. The default setting is
1440 min.
# mx-security set-guard-intv [TIME]
[TIME]
You can view the checking interval of the guard daemon as follows:
(10 to 99999) minutes.
# mx-security get-guard-intv [TIME]
Configure Wireless Interface Restriction
You can choose the wireless interface restriction rule from three different policies as follows:
# mx-security set-wl-restrict [OPTION]
[Option]:
0 - Does not allow user control the device via wireless interface (Default).
1 - Only allow the specified user to control the device via wireless interface.
2 - Allow all users to control the device via wireless interface.
For instance, you could set to option 0 if you like to block all users to control the device via wireless
interface.
Arm-based Computer Linux UM Security
5-7
NOTE
If you
based on
# vim /etc/mx
NOTE
You could type exit to leave the isolated bash.
would like to configure user lists for wireless access, edit the configuration file and specify the users
IP addresses.
-security/mx-security.conf.d/wireless_allow.conf.
You can check the current wireless interface restriction policy as follows:
# mx-security get-wl-restrict
Configure Execution in an Isolated Environment
You can execute a command in an isolated environment using the utility.
# mx-security set-isolated-run [COMMAND]
[COMMAND]: A command that you want to execute in isolated environment.
If [COMMAND] is empty, it will enter into an isolated bash environment.
For instance, if we like to execute the “ls -l” command in the isolated environment, the utility will create a
new pid to perform the task and shut it down after execution.
You can switch to an isolated bash environment.
# mx-security set-isolated-run
Arm-based Computer Linux UM Security
5-8
NOTE
If you like to configure the target directory of the integrity database, please edit the configure file at the link
below:
# vim /etc/integrit/integrit.conf
Configure Integrity Database
You can enable the integrity checking mechanism through the utility to monitor the data integrity of the
selected database.
You will first need to use the
reflects the current state of the system.
# mx-security set-integrity-db
After creating an integrity database, you can use the
the current state of the system to a database containing a snapshot of the system, when it was in a known
state.
set-integrity-database command option to create a new database that
get-integrity-info command option to compare
# mx-security get-integrity-info
Arm-based Computer Linux UM Security
5-9
Configure SSH session timeout
You can set the auto-logout time of SSH session connection through the utility. Default is 600 seconds
# mx-security set-ssh-timeout [TIME]
# mx-security get-ssh-timeout [TIME]
Get Log Messages
You can directly get a specific log message or get the login success or failure message using the get-
login-log
mx-security get-login-log [FILTER]
command and its various command options.
[FILTER] is the keyword that you want to search for in the log message.
For instance, if you like to search the log message of the “sudo” command
Arm-based Computer Linux UM Security
5-10
You can also get Debian package related messages, such as install, remove packages using the get-
package-log
command.
mx-security get-package-log [FILTER]
[FILTER] is the keyword that you want to search in the log message.
For instance, if you like to search the log of “systemd” related package
You can get network interface related message, such as link up, link down using get-network-log command
option.
mx-security get-network-log
6
6. Firmware Update and System Recovery
The following topics are covered in this chapter:
Firmware Update and Set-to-Default Functions
Set-to-Default
Firmware Update Using a TFTP Server
Arm-based Computer Linux UM General Debian Package
6-2
ATTENTION
Reset
Please back up your files before resetting
based
moxa@Moxa:~$ sudo mx-set-def
IMPORTANT!
The UC
functions. Use the following
command to reset the system to the default settings.
moxa@Moxa:~$ sudo setdef
ATTENTION
U
firmware file is less than 2 GB.
If
Firmware Update and Set-to-default Functions
Set-to-default
Press and hold the reset button between 7 to 9 seconds to reset the computer to the factory default
settings. When the reset button is held down, the LED will blink once every second. The LED will become
steady when you hold the button continuously for 7 to 9 seconds. Release the button within this period to
load the factory default settings. For additional details on the LEDs, refer to the quick installation guide or
the user’s manual for your Arm-based computer.
-to-default will erase all the data stored on the boot storage
the system to factory defaults. All the data stored in the Arm-
computer’s boot storage will be destroyed after resetting to factory defaults.
You can also use the
-8100 Series does not support Moxa’s Firmware Update and Set-to-default
mx-set-def command to restore the computer to factory defaults:
Firmware Update Using a TFTP Server
Preparing the TFTP Server
1. Set up a TFTP server.
2. Make sure the image (*.img) file is in your TFTP server directory.
se this method to upgrade the firmware on your computer if the size of the
the file size is more than 2 GB, use the SD card to upgrade the firmware.
Arm-based Computer Linux UM General Debian Package
6-3
----------------------------------------------------------------------------
Command>>
Command>> 1
Firmware File Name (firmware.img): FWR_UC-2112-LX_V1.1_Build_18031118.img
Updating the Firmware
1. To update the firmware, log in to the product through the serial console. Instructions on how to connect
to the serial console can be found in the Hardware user’s manual for your Arm-based computer.
2. After powering on the computer, press <DEL> or <Backspace>to enter the bootloader configuration
settings.
If you cannot enter the bootloader menu by pressing <DEL>, replace the PuTTy tool by the
Tera Term terminal console tool. (Detailed information is available at:
https://ttssh2.osdn.jp/index.html.en
Model: UC-2112-LX
Boot Loader Version 1.0.0S09 CPU TYPE: 1GHz
Build date: Apr 9 2018 - 12:21:58 - 14:44:07 Serial Number: TAFBB1064329
LAN1 MAC: 00:90:E8:55:46:33 LAN2 MAC: 00:90:E8:55:46:34
----------------------------------------------------------------------------
(0) TPM2 Setting
(1) Update Firmware from TFTP
(2) Go To OS --------------------------------------------------------------------
-------
)
Some computers support the four functions, as follows:
3. Enter 1 to update the firmware by TFTP server. If you want to set up the TFTP IP address, enter 1 to set
up the target machine’s IP address and the TFTP server IP address and then choose an img file.
Current IP Address
Local IP Address : ipaddr=192.168.31.134
Server IP Address : serverip=192.168.31.132
Do you set your ip address?
0 - No, 1 - Yes (0-1,enter for abort): 1
Local IP Address : 192.168.31.134
Server IP Address : 192.168.31.132
Saving Environment to SPI Flash...
SF: Detected MX25L6405D with page size 64 KiB, total 8 MiB
Erasing SPI flash...Writing to SPI flash...done
Arm-based Computer Linux UM General Debian Package
6-4
----------------------------------------------------------------------------
Command>> 2
4. After updating the firmware, enter 2 to open the OS command line.
Model: UC-2112-LX
Boot Loader Version 1.0.0S09 CPU TYPE: 1GHz
Build date: Apr 9 2018 - 12:21:58 Serial Number: TAFBB1064329
LAN1 MAC: 00:90:E8:55:46:33 LAN2 MAC: 00:90:E8:55:46:34
----------------------------------------------------------------------------
(0) TPM2 Setting
(1) Update Firmware from TFTP
(2) Go To OS --------------------------------------------------------------------
-------
7
7. Programmer’s Guide
The following topics are covered in this chapter:
Linux Toolchain
Introduction
Native Compilation
Cross Compilation
Example program—hello
Example Makefile
Standard APIs
Cryptodev
WDT (Watch Dog Timer)
RTC (Real-time Clock)
Modbus
Moxa Platform Libraries
Error Numbers
Platform Information
Buzzer
Digital I/O
UART
LED
Push Button
Arm-based Computer Linux UM Programmer’s Guide
7-2
moxa@Moxa:~$ sudo apt-get update
moxa@Moxa:~$ sudo apt-get install gcc build-essential flex bison automake
NOTE
The c
Linux Toolchain
Introduction
Linux Tool-Chain contains the necessary libraries and compilers for developing your programs. Moxa’s Arm-
based computers support both native and cross-compiling of code. Native compiling is more straightforward
since all the coding and compiling can be done directly on the device, but Arm architecture is less powerful,
the compiling speed is slower. On the other hand, cross compiling can be done on any Linux machine using
a toolchain, and the compiling speed is much faster.
The following compiler tools are provided:
ar Manage archives (static libraries)
as Assembler
c++, g++ C++ compiler
cpp C preprocessor
gcc C compiler
gdb Debugger
ld Linker
nm Lists symbols from object files
objcopy Copies and translates object files
objdump Displays information about object files
ranlib Generates indexes to archives (static libraries)
readelf Displays information about ELF files
size Lists object
file section sizes
strings Prints strings of printable characters from files (usually object files)
strip Removes symbols and sections from object files (usually debugging information)
Native Compilation
Follow these steps to update the package menu:
1. Make sure network connection is available.
2. Use
3. Install the native compiler and necessary packages.
apt-get update to update the Debian package list.
ommand line prompt "moxa@Moxa:~$" denotes that you are using a Moxa computer.
Arm-based Computer Linux UM Programmer’s Guide
7-3
user@Linux:~$ sudo chmod +x \
./arm-linux-gnueabihf_6.3_Build_amd64_18011210.sh
user@Linux:~$ export \
MANPATH=" /usr/local/arm-linux-gnueabihf-6.3/usr/share/man:$MANPATH"
user@Linux:~$ arm-linux-gnueabihf-gcc -v
NOTE
The c
-
gnueabihf tool
Cross Compilation
To ensure that an application will be able to run correctly when installed on Moxa computers, you must
compile the application and link it to the same libraries that will be present on Moxa computers. This is
particularly true when the Arm-based Cortex processor architecture differs from the CISC x86 processor
architecture of the host system, but it is also true if the processor architecture is the same.
The host toolchain that comes with the Moxa computers contains a suite of cross compilers and other tools,
as well as the libraries and headers that are necessary to compile applications for the Moxa computers. The
host environment must be running Linux to install the Moxa GNU Tool Chain. We have confirmed that the
following Linux distributions can be used to install the tool chain:
Linux Distro Version
Debian 9
The Tool Chain will need about 300 MB of hard disk space on your PC. To install the toolchain, download the
toolchain file from Moxa’s website. After you
toolchain.
untar the package, run the following script to install the
arm-linux-gnueabihf_6.3_Build_amd64_18011210.sh
user@Linux:~$ sudo \
Once the host environment has been installed, add the directories:
"/usr/local/arm-linux-gnueabihf-4.7-20130415/bin" to your path and the directory "/usr/local/arm-linux-
gnueabihf-4.7-20130415/man" to your manual path.
You can do this temporarily for the current login session by issuing the following commands:
PATH="/usr/local/arm-linux-gnueabihf-6.3/usr/bin/:$PATH"
user@Linux:~$ export \
Alternatively, you can add these commands to "$HOME/.bash_profile" to cause it to take effect for all login
sessions initiated by this user.
You can check the toolchain version using the following command:
You can now start compiling programs using this tool chain.
ommand line prompt "user@Linux:~$" indicates that you are using a computer that has the arm-linux
chain installed.
Arm-based Computer Linux UM Programmer’s Guide
7-4
#include <stdio.h>
}
moxa@Moxa:~$ gcc -o hello hello.c
moxa@Moxa:~$ strip -s hello
moxa@Moxa:~$ make
moxa@Moxa:~$ ./hello
Hello World
user@Linux:~$ arm-linux-gnueabihf-gcc -o hello \
user@Linux:~$ arm-linux-gnueabihf-strip -s hello
user@Linux:~$ make CC=arm-linux-gnueabihf-gcc \
STRIP=arm-linux-gnueabihf-strip
Example program—hello
In this section, we use the standard "hello" example program to illustrate how to develop a program for
Moxa computers. All example codes can be downloaded from Moxa’s website. The "hello" example code is
available in the "hello" folder.
"hello/hello.c":
int main(int argc, char *argv[])
{
printf("Hello World\n");
return 0;
Native Compilation hello.c
1. Compile the hello.c code.
Cross Compiling hello.c
or
use the Makefile as follows:
2. Run the program.
1. Compile the hello.c code.
hello.c
or
use the Makefile as follows:
Arm-based Computer Linux UM Programmer’s Guide
7-5
user@Linux:~$ scp hello moxa@192.168.3.127:~
moxa@Moxa:~$ ./hello
Hello World
CC:=gcc
rm -f hello
CC:=arm-linux-gnueabihf-gcc
STRIP:=arm-linux-gnueabihf-strip
2. Copy the program to a Moxa computer:
For example, if the IP address of your device used for cross compiling the code is "192.168.3.100" and
the IP address of the Moxa computer is "192.168.3.127", use the following command:
3. Run the hello.c program on the Moxa computer.
Example Makefile
You can create a Makefile for the “hello" example program using the following code. By default, the Makefile
is set for native compiling.
"hello/Makefile":
STRIP:=strip
all:
$(CC) -o hello hello.c
$(STRIP) -s hello
.PHONY: clean
clean:
To set the hello.c program for cross compilation, modify the toolchain settings as follows:
Arm-based Computer Linux UM Programmer’s Guide
7-6
NOTE
Need to install Linux kernel header.
More information are available at Cryptodev
linux.org/documentation.html
Standard APIs
This section shows how to use some standard APIs on Moxa computers.
Cryptodev
The purpose of cryptographic hardware accelerator is to load off the intensive encryption/decryption and
compression/decompression tasks from CPU.
Cryptodev-linux is a device that allows access to Linux kernel cryptographic drivers; thus allowing the
userspace applications to take advantage of hardware accelerators. Cryptodev-linux uses "/dev/crypto"
interface to let kernel space hardware accelerator drivers become accessible from typical userspace
programs and libraries.
Example code
The example code is contained in "cryptodev" folder.
Cryptodev-linux APIs are defined in <crypto/cryptodev.h>.
WDT (Watch Dog Timer)
The WDT works like a watchdog function. You can enable it or disable it. When the WDT is enabled, but the
application does not acknowledge it, the system will reboot. You can set the ack time from a minimum of 1
sec to a maximum of 1 day. The default timer is 60 seconds and the NO WAY OUT is enabled by default;
there is no way to disable the watchdog once it has been started. For this reason, if the watchdog daemon
crashes, the system will reboot after the timeout has passed.
-linux document: http://cryptodev-
Arm-based Computer Linux UM Programmer’s Guide
7-7
moxa@Moxa:~$ sudo modinfo ds1374_wdt
parm: timer_margin:Watchdog timeout in seconds (default 60s) (int)
options ds1374_wdt nowayout=1 timer_margin=60
int fd = open("/dev/watchdog", O_WRONLY);
}
Config
You need to know which driver you’re using first. Assume that the watchdog driver’s name is "ds1374_wdt",
then you can use the command
filename: /lib/modules/4.4.0-cip-
uc5100+/kernel/drivers/watchdog/ds1374_wdt.ko
license: GPL
description: Maxim/Dallas DS1374 WDT Driver
author: Scott Wood <scottwood@freescale.com>
depends:
intree: Y
vermagic: 4.4.0-cip-uc5100+ mod_unload ARMv7 p2v8
parm: nowayout:Watchdog cannot be stopped once started, default=0 (bool)
The parameter’s name is "nowayout" for NO WAY OUT and "timer_margin" for timeout setting. To change
the setting, you can add a conf file under the directory "/etc/modprobe.d/". For example, add a file
"/etc/modprobe.d/watchdog.conf" with the following content:
modinfo to check the information:
This changes the setting for "ds1374_wdt" driver with nowayout=1 and timeout=60 seconds.
Example code
The example code is contained in "watchdog" folder.
WDT driver APIs are used via "ioctl" through a file descriptor. The methods are defined in
<linux/watchdog.h>.
The watchdog device node locate at "/dev/watchdog".
if (fd < 0) {
perror("open watchdog failed");
exit(EXIT_FAILURE);
API List
IOCTL Function WDIOC_KEEPALIVE
Description Writes to the watchdog device to keep the watchdog alive
Example ioctl(fd, WDIOC_KEEPALIVE, 0);
IOCTL Function WDIOC_GETTIMEOUT
Description Queries the current timeout
Example int timeout;
ioctl(fd, WDIOC_GETTIMEOUT, &timeout);
IOCTL Function WDIOC_SETTIMEOUT
Description Modifies the watchdog timeout
Min: 1 second. Max: 1 day; Default: 60 seconds
Example int timeout = 60;
ioctl(fd, WDIOC_SETTIMEOUT, &timeout);
Arm-based Computer Linux UM Programmer’s Guide
7-8
Description
Asks what the device can do
NOTE
More information are available at Linux kernel document:
https://www.kernel.org/doc/Documentation/watchdog/watchdog
struct rtc_time {
};
IOCTL Function WDIOC_GETSTATUS
Description Asks for the current status
Example int flags;
ioctl(fd, WDIOC_GETSTATUS, &flags);
IOCTL Function WDIOC_SETOPTIONS
Description Control some aspects of the cards operation
• WDIOS_DISABLECARD: Turn off the watchdog timer
• WDIOS_ENABLECARD: Turn on the watchdog timer
• WDIOS_TEMPPANIC: Kernel panic on temperature trip
Example int options = WDIOS_DISABLECARD;
ioctl(fd, WDIOC_SETOPTIONS, &options);
IOCTL Function WDIOC_GETSUPPORT
Example struct watchdog_info ident;
ioctl(fd, WDIOC_GETSUPPORT, &ident);
RTC (Real-time Clock)
Example code
-api.txt
The Real-time Clock is a computer clock that keeps track of the current time. RTC can be used to complete
time critical tasks. Using RTC can benefit from its lower power consumption and higher accuracy.
The example code is contained in "rtc" folder.
RTC APIs are used via "ioctl" through a file descriptor. The methods are defined in <linux/rtc.h>.
The rtc device node locate at "/dev/rtc0".
The APIs that read time from RTC and set RTC time are using a structure "struct rtc_time". It is defined in
<linux/rtc.h>:
int tm_sec;
int tm_min;
int tm_hour;
int tm_mday;
int tm_mon;
int tm_year;
int tm_wday;
int tm_yday;
int tm_isdst;
Note that variable "tm_mon" starts with 0 and variable "tm_year" represents the number of years since
1900.
Arm-based Computer Linux UM Programmer’s Guide
7-9
NOTE
More inf
https://www.kernel.org/doc/Documentation/rtc.txt
$ cd modbus/libmodbus-3.0.6/
$ ./configure && make install
$ cd modbus/libmodbus-3.0.6/tests/
$ ./unit-test-server tcp
$ cd modbus/libmodbus-3.0.6/tests/
$ ./unit-test-client tcp
NOTE
More information are available at libmo
API List
IOCTL Function RTC_RD_TIME
Description Reads time information from the RTC; returns the value of argument 3
Example struct rtc_time rtc_tm;
ioctl(fd, RTC_RD_TIME, &rtc_tm);
IOCTL Function RTC_SET_TIME
Description Sets the RTC time. Argument 3 will be passed to the RTC.
Example struct rtc_time rtc_tm;
ioctl(fd, RTC_SET_TIME, &rtc_tm);
ormation are available at Linux kernel document:
Modbus
The Modbus protocol is a messaging structure used to establish master-slave/client-server communication
between intelligent devices. It is a de facto standard, truly open, and the most widely used network protocol
in industrial manufacturing environments. It has been implemented by hundreds of vendors on thousands of
different devices to transfer discrete/analog I/O and register data between control devices.
Example code
We use "libmodbus" with current stable version v3.0.6 as our modbus package. The package is also
available from the following link: http://libmodbus.org/releases/libmodbus-3.0.6.tar.gz
To run the test program, we first need to build the "libmodbus" library. We can build it simply by running
commands below:
After build completes, the test program can be found at "tests" directory. The test program provides 3
types of protocols (tcp/ tcppi/ rtu) which can be set by passing command line argument.
The test program is client-server modeled. We should run the server program first, and then run the client
program from another terminal.
dbus document: http://libmodbus.org/documentation/
Arm-based Computer Linux UM Programmer’s Guide
7-10
int num_of_interfaces;
}
E_GPIO_UNKVAL
-22
Unknown GPIO value get
Moxa Platform Libraries
Moxa provides several libraries for developing customized applications. In this section, we will show how to
utilize these libraries.
Example codes are available at: https://github.com/Moxa-Linux
Error Numbers
Moxa defines exclusive error numbers for Moxa libraries. It works with other Moxa library codes, and is
useful for checking the result of executing an API.
If you call an API, you can check the return value to take particular action in response.
ret = mx_get_number_of_interfaces(&num_of_interfaces);
if (ret == E_SYSFUNCERR){
// do something...
Usage
• Need package "libmoxa-errno-dev"
• Include header <mx_errno.h>
Error Number List
Name Value Description
E_SUCCESS 0 Exit successfully
E_SYSFUNCERR -1 Error occurs in system functions (e.g. open)
E_INVAL -2 Invalid input
E_LIBNOTINIT -3 Library is not initialized
E_UNSUPCONFVER -4 Config version is not supported for the library
E_CONFERR -5 Error in config file
E_GPIO_NOTEXP -20 The GPIO is not exported
E_GPIO_UNKDIR -21 Unknown GPIO direction get
E_BUZZER_PLAYING -30 The buzzer is already playing
E_UART_NOTOPEN -50 The UART port is not opened
E_UART_GPIOIOCTLINCOMP -51 GPIO and IOCTL are incompatible for UART
E_UART_UNKMODE -52 Unknown UART mode get
E_UART_EXTBAUDUNSUP -53 Extended baudrate is not supported
E_PBTN_NOTOPEN -70 The push button is not opened
Arm-based Computer Linux UM Programmer’s Guide
7-11
moxa@Moxa:~$ sudo apt-get install \
libmoxa-platform-info-dev
Platform Information
Moxa platform info library is used to get information of interfaces on the device, which is useful to know the
device’s capability before developing applications.
Usage
• Need package "libmoxa-platform-info-dev"
("libjson-c-dev" package will be installed automatically when install "libmoxa-platform-info-dev")
• Include header <mx_platform_info.h> and <json-c/json.h>
• Link library "-ljson-c" and "-lmx_platform_info" while compiling
API List
Function Prototype int mx_get_number_of_interfaces(int *num_of_interfaces);
Description Get the number of interfaces supported on the device
Parameters • num_of_interfaces: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int num_of_interfaces; mx_get_number_of_interfaces(&num_of_interfaces);
Function Prototype int mx_get_platform_interface(char ***profiles);
Description Get the interfaces supported on the device
Parameters • profiles: a pointer which points to a place for storing output value
the list of platform interfaces, in "char **" format.
e.g. { "led-control", … }
Return Value • 0 on success
• negative integers as error number
Example char **profiles;
mx_get_platform_interface(&profiles);
Function Prototype int mx_free_platform_interface(char **profiles);
Description Free the memory space of profiles allocated by "mx_free_platform_interface" API
Parameters • profiles: profiles from "mx_free_platform_interface" API
Return Value • 0 on success
• negative integers as error number
Example mx_free_platform_interface(profiles);
Arm-based Computer Linux UM Programmer’s Guide
7-12
NOTE
Moxa buzzer control library should be used carefully, the buzzer must be stopped before the process ends.
Or the buzzer may beep without control.
moxa@Moxa:~$ sudo apt-get install \
libmoxa-buzzer-control-dev
Function Prototype int mx_get_profile(const char *interface, struct json_object **profile);
Description Get the profile of target interface
Parameters • interface: the name of the target interface
"buzzer-control"
"dio-control"
"uart-control"
"led-control"
"push-button"
• profile: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example struct json_object *profile;
mx_get_profile("led-control", &profile);
Buzzer
Moxa buzzer control library can be used to control the buzzer on the device. We provide interfaces for
controlling the buzzer to beep for a certain period or keep beeping.
Usage
API List
• Need package "libmoxa-buzzer-control-dev"
• Include header <mx_buzzer.h>
• Link library "-lmx_buzzer_ctl" while compiling
Function Prototype int mx_buzzer_init(void);
Description Initialize Moxa buzzer control library
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_buzzer_init();
Arm-based Computer Linux UM Programmer’s Guide
7-13
Description
Stop the buzzer
moxa@Moxa:~$ sudo apt-get install \
libmoxa-dio-control-dev
Description
Initialize Moxa DIO control library
Function Prototype int mx_buzzer_play_sound(unsigned long duration);
Description Play the buzzer
Parameters • duration: the duration time in seconds
range: 1-60
0 for keep beeping
Return Value • 0 on success
• negative integers as error number
Example mx_buzzer_play_sound(3);
Function Prototype int mx_buzzer_stop_sound(void);
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_buzzer_stop_sound();
Digital I/O
Usage
API List
Moxa DIO control library can be used to control digital I/O interface. Including getting states from Direct
Input and Output ports, setting state of Direct Output ports.
• Need package "libmoxa-dio-control-dev"
• Include header <mx_dio.h>
• Link library "-lmx_dio_ctl" while compiling
• Need to call "mx_dio_init" before using other APIs
Function Prototype int mx_dio_init(void);
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_dio_init();
Function Prototype int mx_dout_set_state(int doport, int state);
Description Set state for target Direct Output port
Parameters • doport: target DOUT port number
• state:
DIO_STATE_LOW: low
DIO_STATE_HIGH: high
Return Value • 0 on success
• negative integers as error number
Example mx_dout_set_state(0, DIO_STATE_HIGH);
Arm-based Computer Linux UM Programmer’s Guide
7-14
Description
Set an action for an event occurred of target Direct Input port
Function Prototype int mx_dout_get_state(int doport, int *state);
Description Get state from target Direct Output port
Parameters • doport: target DOUT port number
• state: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int state;
mx_dout_get_state(0, &state);
Function Prototype int mx_din_get_state(int diport, int *state);
Description Get state from target Direct Input port
Parameters • diport: target DIN port number
• state: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int state;
mx_din_get_state(0, &state);
Function Prototype int mx_din_set_event(int diport, void (*func)(int diport), int mode,
unsigned long duration);
Parameters • diport: target DIN port number
• func: a function pointer which will be invoked on DIN event detected
• mode: DIN event mode
DIN_EVENT_CLEAR
DIN_EVENT_LOW_TO_HIGH
DIN_EVENT_HIGH_TO_LOW
DIN_EVENT_STATE_CHANGE
• duration: The during time that the event occurred to trigger action
range: 40 - 3600000 (ms)
0 means no duration
Return Value • 0 on success
• negative integers as error number
Example void (*fp)(int );
mx_din_set_event(0, fp, DIN_EVENT_STATE_CHANGE, 100);
Function Prototype int mx_din_get_event(int diport, int *mode, unsigned long *duration);
Description Get event setting of target Direct Input port
Parameters • diport: target DIN port number
• mode: a pointer which points to a place for storing output value
• duration: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int mode;
unsigned long duration;
mx_din_get_event(0, &mode, &duration);
Arm-based Computer Linux UM Programmer’s Guide
7-15
moxa@Moxa:~$ sudo apt-get install \
libmoxa-uart-control-dev
UART
Moxa UART can be used to set the mode of UART ports and transmit data via UART ports.
Usage
• Need package "libmoxa-uart-control-dev"
• Include header <mx_uart.h>
• Link library "-lmx_uart_ctl" while compiling
• Need to call "mx_uart_init" before using other APIs
API List
Function Prototype int mx_uart_init(void);
Description Initialize Moxa UART control library
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_uart_init();
Function Prototype int mx_uart_set_mode(int port, int mode);
Description Set mode of target UART port
Parameters • port: target UART port
• mode:
UART_MODE_RS232
UART_MODE_RS485_2W
UART_MODE_RS422_RS485_4W
Return Value • 0 on success
• negative integers as error number
Example mx_uart_set_mode(0, UART_MODE_RS232);
Function Prototype int mx_uart_get_mode(int port, int *mode);
Description Get mode of target UART port
Parameters • port: target UART port
• mode: a pointer for storing output
Return Value • 0 on success
• negative integers as error number
Example int mode;
mx_uart_get_mode(0, &mode);
Function Prototype int mx_uart_open(int port);
Description Open target UART port
Parameters • port: target UART port
Return Value • 0 on success
• negative integers as error number
Example mx_uart_open(0);
Arm-based Computer Linux UM Programmer’s Guide
7-16
Function Prototype int mx_uart_close(int port);
Description Close target UART port
Parameters • port: target UART port
Return Value • 0 on success
• negative integers as error number
Example mx_uart_close(0);
Function Prototype int mx_uart_read(int port, char *data, size_t count);
Description Read data from target UART port
Parameters • port: target UART port
• data: memory location of data to be stored
• count: read size
Return Value • positive integers means size of data read
• negative integers as error number
Example char data[256];
mx_uart_read(0, data, 256);
Function Prototype int mx_uart_write(int port, char *data, size_t count);
Description Write data from target UART port
Parameters • port: target UART port
• data: memory location of data to be written
• count: write size
Return Value • positive integers means size of data read
• negative integers as error number
Example char data[256];
mx_uart_read(0, data, 256);
Function Prototype int mx_uart_set_baudrate(int port, int baudrate);
Description Set the baudrate of target UART port
Parameters • port: target UART port
• baudrate: The baudrate
Return Value • 0 on success
• negative integers as error number
Example mx_uart_set_baudrate(0, 115200);
Function Prototype int mx_uart_get_baudrate(int port, int *baudrate);
Description Get the baudrate of target UART port
Parameters • port: target UART port
• baudrate: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int baudrate;
mx_uart_get_baudrate(0, &baudrate);
Arm-based Computer Linux UM Programmer’s Guide
7-17
Function Prototype int mx_uart_set_databits(int port, int bits);
Description Set the data bits of target UART port
Parameters • port: target UART port
• bits: The data bits
Return Value • 0 on success
• negative integers as error number
Example mx_uart_set_databits(0, 8);
Function Prototype int mx_uart_get_databits(int port, int *bits);
Description Get the data bits of target UART port
Parameters • port: target UART port
• bits: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int bits;
mx_uart_get_databits(0, &bits);
Function Prototype int mx_uart_set_stopbits(int port, int bits);
Description Set the stop bits of target UART port
Parameters • port: target UART port
• bits: The stop bits
Return Value • 0 on success
• negative integers as error number
Example mx_uart_set_stopbits(0, 1);
Function Prototype int mx_uart_get_stopbits(int port, int *bits);
Description Get the stop bits of target UART port
Parameters • port: target UART port
• bits: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int bits;
mx_uart_get_stopbits(0, &bits);
Function Prototype int mx_uart_set_parity(int port, int parity);
Description Set the parity of target UART port
Parameters • port: target UART port
• parity: The parity
Return Value • 0 on success
• negative integers as error number
Example mx_uart_set_parity(0, 0);
Function Prototype int mx_uart_get_parity(int port, int *parity);
Description Get the parity of target UART port
Parameters • port: target UART port
• parity: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int parity;
mx_uart_get_parity(0, &parity);
Arm-based Computer Linux UM Programmer’s Guide
7-18
moxa@Moxa:~$ sudo apt-get install \
libmoxa-led-control-dev
LED
LED APIs can control the LEDs on the device, which can be ON, OFF, or BLINK. LEDs on a device are
separated to types and groups. There are 2 types of LED: Signal LED and Programmable LED. Each type
may contain several groups, and each group may contain several LEDs.
Usage
• Need package "libmoxa-led-control-dev"
• Include header <mx_led.h>
• Link library "-lmx_led_ctl" while compiling
• Need to call "mx_led_init" before using other APIs
API List
Function Prototype int mx_led_init(void);
Description Initialize Moxa LED control library
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_led_init();
Function Prototype int mx_led_get_num_of_groups(int led_type, int *num_of_groups);
Description Get the number of groups of a LED type
Parameters • led_type:
LED_TYPE_SIGNAL or LED_TYPE_PROGRAMMABLE
• num_of_groups: a pointer which points to a place for storing output value
Return Value • 0 on success
• negative integers as error number
Example int num_of_groups;
mx_led_get_num_of_groups(LED_TYPE_SIGNAL, &num_of_groups);
Function Prototype int mx_led_get_num_of_leds_per_group(int led_type, int
*num_of_leds_per_group);
Description Get the number of LEDs per group of a LED type
Parameters • led_type:
LED_TYPE_SIGNAL or LED_TYPE_PROGRAMMABLE
• num_of_leds_per_group: a pointer which points to a place for storing output
value
Return Value • 0 on success
• negative integers as error number
Example int num_of_leds_per_group;
mx_led_get_num_of_leds_per_group(LED_TYPE_SIGNAL,
&num_of_leds_per_group);
Arm-based Computer Linux UM Programmer’s Guide
7-19
moxa@Moxa:~$ sudo apt-get install \
libmoxa-push-button-dev
NOTE
Remember to terminate the push button daemon that run by the
some system functions which defined in the daemon when testing the button.
The push button daemon
systemctl stop moxa-pbtn
Function Prototype int mx_led_set_brightness(int led_type, int group, int index, int state);
Description Set LED state on, off, blink
Parameters • led_type:
LED_TYPE_SIGNAL or LED_TYPE_PROGRAMMABLE
• group: group number
• index: LED index
• state:
LED_STATE_OFF or LED_STATE_ON or LED_STATE_BLINK
Return Value • 0 on success
• negative integers as error number
Example mx_led_set_brightness(LED_TYPE_PROGRAMMABLE, 1, 1, LED_STATE_ON);
Function Prototype int mx_led_set_all_off(void);
Description Set all LED off
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_led_set_all_off();
Function Prototype int mx_led_set_all_on(void);
Description Set all LED on
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_led_set_all_on();
Push Button
Push button APIs.
Usage
• Need package "libmoxa-push-button-dev"
• Include header <mx_pbtn.h>
• Link library "-lmx_push_btn" while compiling
• Need to call "mx_pbtn_init" before using other APIs
system. Or you might accidentally trigger
here is called moxa-pbtn. You can terminate the process by using the command
.
Arm-based Computer Linux UM Programmer’s Guide
7-20
Description
Open a push button by button type and index
API List
Function Prototype int mx_pbtn_init(void);
Description Initialize Moxa push button library
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_pbtn_init();
Function Prototype int mx_pbtn_open(int type, int index);
Parameters • type:
BUTTON_TYPE_SYSTEM or BUTTON_TYPE_USER
• index: button index
Return Value • negative integers as error number
• 0 or positive integer: button ID for manipulate the button by other APIs
Example int btn_id;
btn_id = mx_pbtn_open(BUTTON_TYPE_USER, 1);
Function Prototype int mx_pbtn_close(int btn_id);
Description Close a push button
Parameters • btn_id: button ID returned by "mx_pbtn_open"
Return Value • 0 on success
• negative integers as error number
Example mx_pbtn_close(0);
Function Prototype int mx_pbtn_start(int btn_id);
Description Start listening on a push button
Parameters • btn_id: button ID returned by "mx_pbtn_open"
Return Value • 0 on success
• negative integers as error number
Example mx_pbtn_start(0);
Function Prototype int mx_pbtn_stop(int btn_id);
Description Stop listening on a push button
Parameters • btn_id: button ID returned by "mx_pbtn_open"
Return Value • 0 on success
• negative integers as error number
Example mx_pbtn_stop(0);
Function Prototype int mx_pbtn_wait(void);
Description Check if there is any button being listened on, if so, hang the process. This API can
be used for daemon.
Parameters N/A
Return Value • 0 on success
• negative integers as error number
Example mx_pbtn_wait();
Arm-based Computer Linux UM Programmer’s Guide
7-21
Function Prototype int mx_pbtn_is_pressed(int btn_id);
Description Get the state of a button
Parameters • btn_id: button ID returned by "mx_pbtn_open"
Return Value • negative integers as error number
• 0 if the button is released
• 1 if the button is pressed
Example mx_pbtn_is_pressed(0);
Function Prototype int mx_pbtn_pressed_event(int btn_id, void (*func)(int));
Description Register action on button pressed
Parameters • btn_id: button ID returned by "mx_pbtn_open"
• func: a function pointer which will be invoked on button pressed
Return Value • 0 on success
• negative integers as error number
Example void (*fp)(int );
mx_pbtn_pressed_event(0, fp);
Function Prototype int mx_pbtn_released_event(int btn_id, void (*func)(int));
Description Register action on button released
Parameters • btn_id: button ID returned by "mx_pbtn_open"
• func: a function pointer which will be invoked on button released
Return Value • 0 on success
• negative integers as error number
Example void (*fp)(int );
mx_pbtn_released_event(0, fp);
Function Prototype int mx_pbtn_hold_event(int btn_id, void (*func)(int), unsigned long
duration);
Description Register action on button hold
Parameters • btn_id: button ID returned by "mx_pbtn_open"
• func: a function pointer which will be invoked on button hold
• duration: the time that button being hold to trigger action (in seconds)
range: 1-3600
0 for keep triggering every second
Return Value • 0 on success
• negative integers as error number
Example void (*fp)(int );
mx_pbtn_hold_event(0, fp, 60);
Loading...
