UC-2100-W Series Hardware User’s Manual

Edition 1.0, December 2018

www.moxa.com/product

UC-2100-W Series Hardware User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

Moxa Americas

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa Europe

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa India

Tel: +91-80-4172-9088 Fax: +91-80-4132-1045

Moxa China (Shanghai office)

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-21-5258-5505

Moxa Asia-Pacific

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

www.moxa.com/support

Table of Contents

1. Introduction ...................................................................................................................................... 1-1

Overview ........................................................................................................................................... 1-2

Model Descriptions .............................................................................................................................. 1-2

Package Checklist ............................................................................................................................... 1-2

Product Features ................................................................................................................................ 1-2

Hardware Block Diagram ..................................................................................................................... 1-3

2. Hardware Intr oduction ...................................................................................................................... 2-1

Appearance ........................................................................................................................................ 2-2

LED Indicators .................................................................................................................................... 2-4

Reset Button ...................................................................................................................................... 2-4

Real Time Clock .................................................................................................................................. 2-5

Placement Options .............................................................................................................................. 2-5

Wall or Cabinet Mounting ............................................................................................................. 2-5

DIN-Rail Mounting (Optional) ........................................................................................................ 2-5

3. Hardware Connection Description ..................................................................................................... 3-1

Wiring Requirements ........................................................................................................................... 3-2

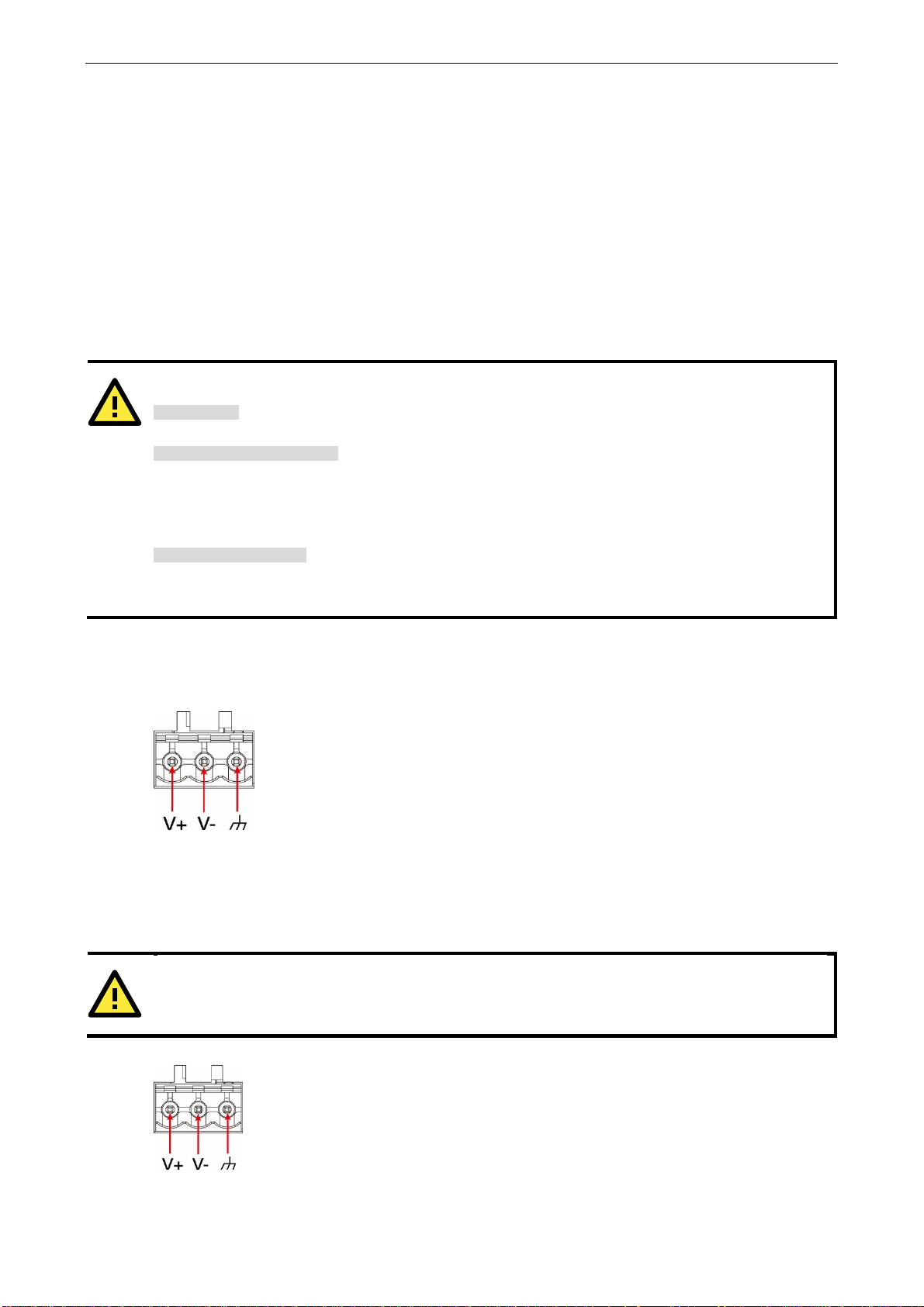

Connecting the Power .................................................................................................................. 3-2

Grounding the Unit ...................................................................................................................... 3-2

Connecting to the Console Port ............................................................................................................. 3-3

Connecting to the Network ................................................................................................................... 3-3

Connecting to a Serial Device ............................................................................................................... 3-4

Inserting the SIM Card ........................................................................................................................ 3-4

Inserting a MicroSD Card (UC-2114/2116 Only)...................................................................................... 3-4

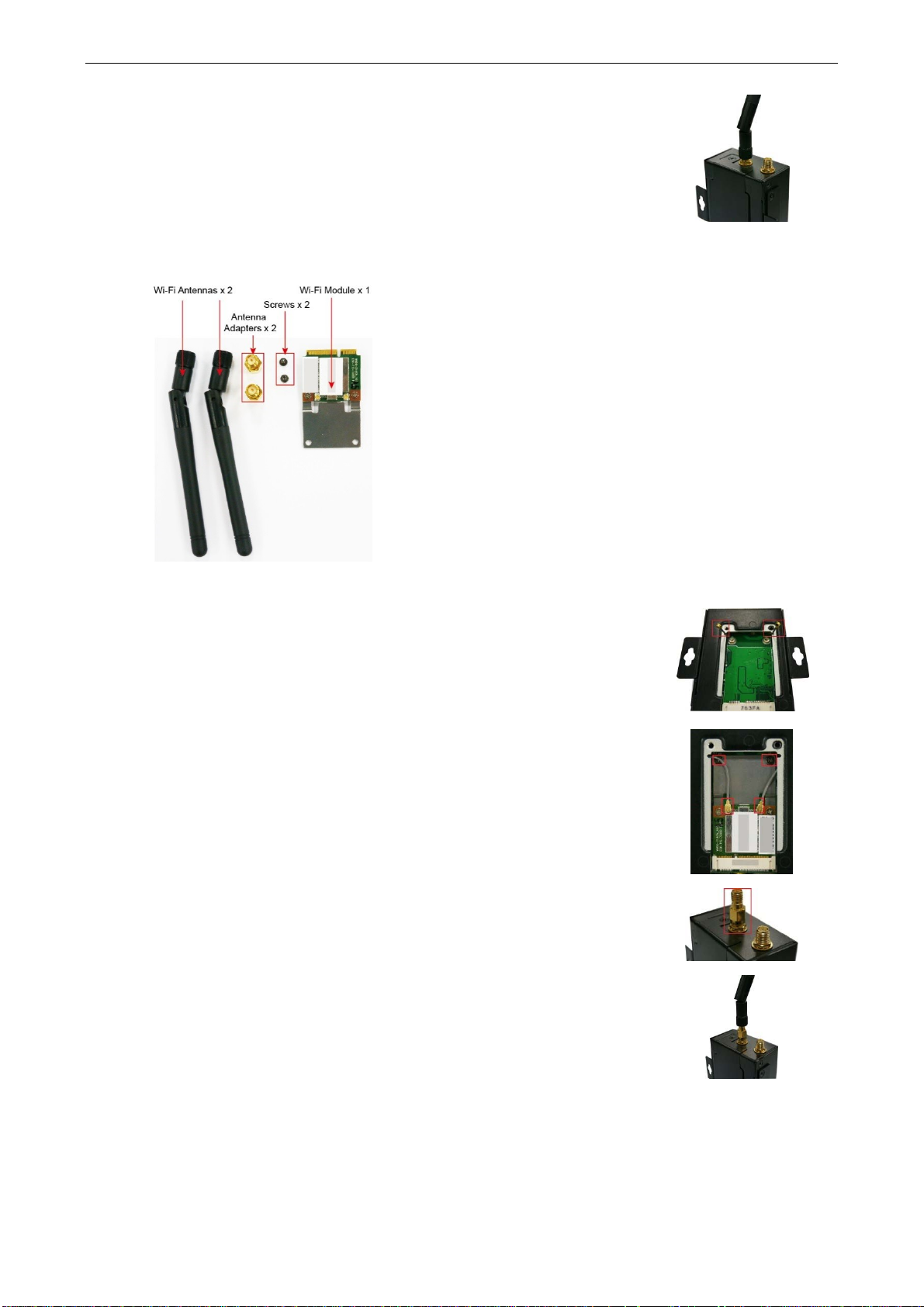

Installing the Cellular/Wi-Fi Module and Antenna (UC-2104 only) .............................................................. 3-5

Adjusting the DIP Switch ..................................................................................................................... 3-7

A. Regulatory Approval Statements....................................................................................................... A-1

Introduction

The UC-2100-W Series platform is designed for embedded data acquisition applications. The platform comes

with one or two RS- 232/422/485 serial ports and dual 10/100 Mbps Ethernet LAN ports, as well as a Mini PCIe

socket to support cellular modules. These versatile communication capabilities let users efficiently adapt the

UC-2100-W Series platform to a variety of complex communications solutions.

The following topics are covered in this chapter:

 Overview  Model Descriptions  Package Checklist  Product Features  Hardware Block Diagram

UC-2100-W Series Hardware

Overview

The UC-2100-W Series computing platform is designed for embedded data acquisition and processing

applications. The platform comes with up to two software-selectable RS-232/422/485 full-signal serial ports

and single or dual Ethernet LAN ports. In addition, the Arm-based computing platform is available in various

models that can fulfill diverse interface requirements, such as dual serial, LAN ports, and wireless connections.

These versatile communication capabilities let users efficiently adapt the palm-sized UC-2100-W computing

platform to a variety of complex communications solutions.

Model Descriptions

Introduction

The UC-2100-W Series includes the following models:

UC-2104-LX: Palm-sized industrial computing platform with 1 Mini PCIe socket for wireless module, 1

Ethernet port, -10 to 70°C operating temperature.

UC-2114-T-LX: Palm-sized industrial computing platform with 2 serial ports, 2 Ethernet ports, 2 CAN ports,

-40 to 75°C operating temperature with CAT.M1/NB-IoT built-in.

UC-2116-T-LX: Palm-sized industrial computing platform with 2 serial ports, 2 Ethernet ports, 2 CAN ports,

-40 to 75°C operating temperature with CAT.M1/NB-IoT and GNSS built-in.

Package Checklist

Before installing a UC-2100-W Series platform, verify that the package contains the following items:

• UC-2100-W Series platform

• Console cable

• Power jack

• Quick Installation Guide (printed)

• Warranty card

NOTE: Notify your sales representative if any of the above items are missing or damaged.

Product Features

• Armv7 Cortex-A8 600/1000 MHz processor

• 1 to 2 auto-sensing 10/100 Mbps Ethernet ports

• Up to 2 software-selectable RS-232/422/485 ports supporting all signals

• Moxa Industrial Linux with 10-year superior long term support

• Supports TPM v2.0 (optional)

Cellular Interface (UC-2114/2116 Only) Standard: LTE (FDD) 3GPP Rel.13 compliant LTE Band Supported: Cat M1/NB1 deployed bands: 2, 3, 4, 5, 8, 12, 13, 20, 28 GPS Interface (UC-2116 Only)

Antennas and Internal Antenna Cables

Model Name

ANT-LTEUS-ASM-01

For a complete set of specifications, refer to the product datasheet available on the Moxa Website.

Package Contents

•

1 x LTE antenna

Description

1dBi @698-960MHz

2dBi @1710-1990MHz, @2300-2400MHz, @25002700MHz

Impedance: 50Ω

1-2

UC-2100-W Series Hardware

Hardware Block Diagram

Introduction

1-3

Hardware Introduction

The UC-2100 Series computing platform are compact and rugged, making them suitable for industrial

applications. The LED indicators allow you to monitor performance and identify trouble spots quickly, and the

multiple ports can be used to connect a variety of devices. The UC-2100-W Series comes with a reliable and

stable hardware platform that lets you devote the bulk of your time to application development. In this chapter,

we provide basic information about its various components.

The following topics are covered in this chapter:

 Appearance  LED Indicators  Reset Button  Real Time Clock  Placement Options



Wall or Cabinet Mounting



DIN-Rail Mounting (Optional)
