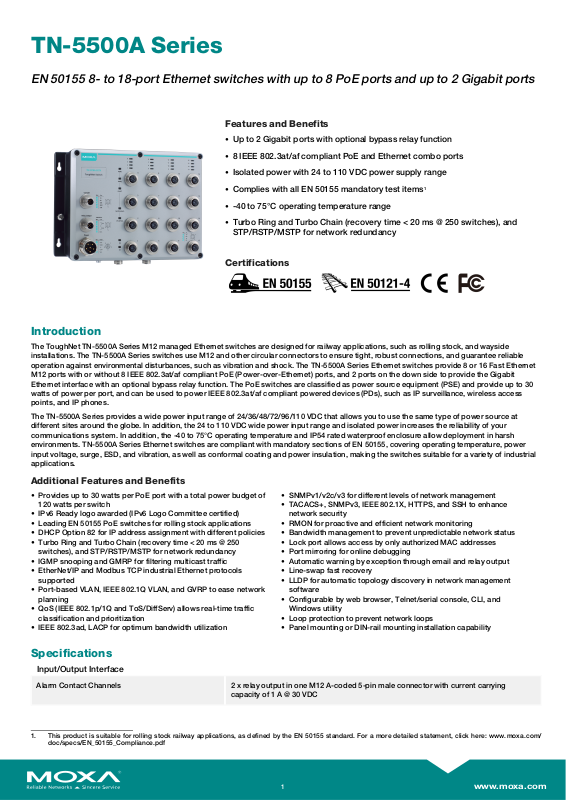

TN-5500A Series

EN 50155 8- to 18-port Ethernet switches with up to 8 PoE ports and up to 2 Gigabit ports

Features and Benefits

• Up to 2 Gigabit ports with optional bypass relay function

• 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports

• Isolated power with 24 to 110 VDC power supply range

• Complies with all EN 50155 mandatory test items

• -40 to 75°C operating temperature range

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and

STP/RSTP/MSTP for network redundancy

Certifications

1

Introduction

The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside
installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable
operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet
M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports, and 2 ports on the down side to provide the Gigabit
Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30
watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access
points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at
different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increases the reliability of your
communications system. In addition, the -40 to 75°C operating temperature and IP54 rated waterproof enclosure allow deployment in harsh
environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power
input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial
applications.

Additional Features and Benefits

• Provides up to 30 watts per PoE port with a total power budget of
120 watts per switch

• IPv6 Ready logo awarded (IPv6 Logo Committee certified)

• Leading EN 50155 PoE switches for rolling stock applications

• DHCP Option 82 for IP address assignment with different policies

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), and STP/RSTP/MSTP for network redundancy

• IGMP snooping and GMRP for filtering multicast traffic

• EtherNet/IP and Modbus TCP industrial Ethernet protocols
supported

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning

• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic
classification and prioritization

• IEEE 802.3ad, LACP for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port allows access by only authorized MAC addresses

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Line-swap fast recovery

• LLDP for automatic topology discovery in network management
software

• Configurable by web browser, Telnet/serial console, CLI, and
Windows utility

• Loop protection to prevent network loops

• Panel mounting or DIN-rail mounting installation capability

Specifications

Input/Output Interface

Alarm Contact Channels 2 x relay output in one M12 A-coded 5-pin male connector with current carrying

1. This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www. moxa.com/
doc/specs/EN_50155_Compliance.pdf

capacity of 1 A @ 30 VDC

1

www.moxa.com

Ethernet Interface

10/100/1000BaseT(X) Ports, Q-ODC Fiber
Connector

TN-5510A-2GLSX Series: 2
TN-5510A-8PoE-2GLSX Series: 2

10/100/1000BaseT(X) Ports (M12 X-coded 8-pin
female connector with bypass relay)

10/100BaseT(X) Ports (M12 D-coded 4-pin female
connector)

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin
female connector)

Standards IEEE 802.1D-2004 for Spanning Tree Protocol

10/100/1000BaseT(X) Ports (M12 X-coded 8-pin
female connector)

TN-5510A-2GTXBP Series: 2
TN-5510A-8PoE-2GTXBP Series: 2
TN-5518A-2GTXBP Series: 2
TN-5518A-8PoE-2GTXBP: 2

TN-5508A/5510A Series non-PoE models: 8
TN-5516A/5518A Series non-PoE models: 16
TN-5516A/5518A Series PoE models: 8

TN-5508A/5510A/5516A/5518A Series PoE models: 8

IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
TN-5508A/5510A/5516A/5518A Series PoE models: IEEE 802.3af/at for PoE/PoE+
output
TN-5510A Series 2GLSX models: IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

TN-5510A-2GTX Series: 2
TN-5510A-8PoE-2GTX Series: 2
TN-5518A-2GTX Series: 2
TN-5518A-8PoE-2GTX Series: 2

Ethernet Software Features

Broadcast Forwarding IP directed broadcast, broadcast forwarding

Configuration Options Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/

Filter 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast

Industrial Protocols EtherNet/IP Adapter, Modbus TCP Server (Slave)

Management Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control,

MIB Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB

Redundancy Protocols Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with

Security Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port

Time Management IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP

SSH, Web Console (HTTP/HTTPS), Windows Utility

HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP,
SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management

Groups 1, 2, 3, 9, RSTP MIB

DRC

Lock, RADIUS, Rate Limit, SSH

Switch Properties

IGMP Groups 256

Max. No. of VLANs 64

VLAN ID Range VID 1 to 4094

2

www.moxa.com

LED Interface

LED Indicators STATE, PWR1, PWR2, FAULT, 10/100/1000M

Serial Interface

Console Port M12 A-coded male connector

Power Parameters

Input Current TN-5508A-WV Series: 24-110 VDC, 0.5A max.

Input Voltage Redundant dual inputs, 24/36/48/72/96/110 VDC

No. of Power Inputs 2

TN-5510A-2GTX Series: 24-110 VDC, 0.5A max.
TN-5510A-2GTXBP Series: 24-110 VDC, 0.5A max.
TN-5510A-2GLSX Series: 24-110 VDC, 0.5A max.
TN-5508A-8PoE Series: 24-110 VDC, 6.8A max.
TN-5510A-8PoE-2GTX Series: 24-110 VDC, 6.8A max.
TN-5510A-8PoE-2GTXBP Series: 24-110 VDC, 6.8A max.
TN-5510A-8PoE-2GLSX Series: 24-110 VDC, 6.8A max.
TN-5516A-WV Series: 24-110 VDC, 0.75A max.
TN-5518A-2GTX Series: 24-110 VDC, 0.75A max.
TN-5518A-2GTXBP Series: 24-110 VDC, 0.75A max.
TN-5516A-8PoE Series: 24-110 VDC, 7.1A max.
TN-5518A-8PoE-2GTX Series: 24-110 VDC, 7.1A max.
TN-5518A-8PoE-2GTXBP Series: 24-110 VDC, 7.1A max.

Operating Voltage 16.8 to 137.5 VDC

Overload Current Protection Supported

Power Connector M23 connector

Reverse Polarity Protection Supported

Total PoE Power Budget TN-5500A Series PoE models: 120 W

Physical Characteristics

Housing Metal

IP Rating IP54

Dimensions TN-5508A Series non-PoE models: 185 x 176.2 x 76 mm (7.28 x 6.9 x 2.99 in)

Weight TN-5508A Series non-PoE models: 1,610 g (3.54 lb)

TN-5508A Series PoE models: 185 x 176.2 x 117.2 mm (7.28 x 6.9 x 4.61 in)
TN-5510A Series non-PoE models: 185 x 178.1 x 76 mm (7.28 x 7.01 x 2.99 in)
TN-5510A Series PoE models: 185 x 178.1 x 117.2 mm (7.28 x 7.01 x 4.61 in)
TN-5510A-2GLSX-ODC Series: 185 x 219.4 x 76 mm (7.28 x 8.63 x 2.99 in)
TN-5510A-8PoE-2GLSX-ODC series: 185 x 219.4 x 117.2 mm (7.28 x 8.63 x 4.61 in)
TN-5516A Series non-PoE models: 250 x 176.2 x 75 mm (9.84 x 6.9 x 2.95 in)
TN-5516A Series PoE models: 250 x 176.2 x 115 mm (9.84 x 6.9 x 4.53 in)
TN-5518A Series non-PoE models: 250 x 178.6 x 75 mm (9.84 x 7.03 x 2.95 in)
TN-5518A Series PoE models: 250 x 178.6 x 115 mm (9.84 x 7.03 x 4.53 in)

TN-5508A Series PoE models: 2,383 g (5.25 lb)
TN-5510A Series non-PoE models: 1,805 g (3.97 lb)
TN-5510A Series PoE models: 2,690 g (5.93 lb)
TN-5516A Series non-PoE models: 2,138 g (4.71 lb)
TN-5516A Series PoE models: 3,286 g (7.24 lb)
TN-5518A Series non-PoE models: 2,250 g (4.96 lb)
TN-5518A Series PoE models: 3,439 g (7.58 lb)

Installation DIN-rail mounting (optional), Wall mounting

Protection TN-5500A Series -CT models: PCB conformal coating

3

www.moxa.com

Environmental Limits

Operating Temperature -40 to 75°C (-40 to 167°F)

Storage Temperature (package included) -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity 5 to 95% (non-condensing)

Altitude 2000 m

Standards and Certifications

EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

Freefall IEC 60068-2-31

Radio Frequency FCC

Railway EN 50121-4, EN 50155

Railway Fire Protection EN 45545-2

Safety EN 62368-1

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Shock IEC 60068-2-27, IEC 61373, EN 50155

Vibration IEC 60068-2-64, IEC 61373, EN 50155

EMC EN 55032/35

Declaration

Green Product RoHS, CRoHS, WEEE

MTBF

Time TN-5508A Series: 939,026 hrs

Standards Telcordia SR332

TN-5510A-2GTX Series: 863,125 hrs
TN-5510A-2GTXBP Series: 770,064 hrs
TN-5510A-2GLSX Series: 821,632 hrs
TN-5508A-8PoE Series: 450,556 hrs
TN-5510A-8PoE-2GTX Series: 432,630 hrs
TN-5510A-8PoE-2GTXBP Series: 408,106 hrs
TN-5510A-8PoE-2GLSX Series: 422,208 hrs
TN-5516A-WV Series: 801,428 hrs
TN-5518A-2GTX Series: 706,039 hrs
TN-5518A-2GTXBP Series: 635,900 hrs
TN-5516A-8PoE Series: 536,931 hrs
TN-5518A-8PoE-2GTX Series: 492,359 hrs
TN-5518A-8PoE-2GTXBP Series: 457,505 hrs

Warranty

Warranty Period 5 years

Details See www.moxa.com/warranty

4

www.moxa.com

Package Contents

Device 1 x TN-5500A Series switch

Installation Kit 1 x wall-mounting kit

Documentation 1 x quick installation guide

1 x warranty card

Dimensions

TN-5508A non-PoE Series

TN-5508A-8PoE Series

TN-5510A non-PoE Series

5

www.moxa.com

TN-5510A-8PoE Series

TN-5510A-2GLSX-ODC Series

TN-5510A-8PoE-2GLSX-ODC Series

6

www.moxa.com

TN-5516A non-PoE Series

TN-5516A-8PoE Series

TN-5518A non-PoE Series

TN-5518A-8PoE Series

7

www.moxa.com

Ordering Information

10/100/

Model Name

TN-5508A-WV-T – – – 8 – –

TN-5508A-WV-CT-T – – – 8 – ✓

TN-5508A-8PoE-WV-T – – – – 8 –

TN-5508A-8PoE-WV­CT-T

TN-5510A-2GTX-WV-T – 2 – 8 – –

TN-5510A-2GTX-WV­CT-T

TN-5510A-2GTXBP-WV­T

TN-5510A-2GTXBP-WV­CT-T

TN-5510A-2GLSX-ODC­WV-T

TN-5510A-2GLSX-ODC­WV-CT-T

1000BaseT(X)

Ports10Q-ODC

Fiber Connector

– – – – 8 ✓

– 2 – 8 – ✓

– – 2 8 – –

– – 2 8 – ✓

2 – – 8 – –

2 – – 8 – ✓

10/100/

1000BaseT(X)

Ports10M12 X-

Coded 8-Pin

Female Connector

10/100/

1000BaseT(X)

Ports10M12 X-

Coded 8-Pin
Female Connector
with Bypass Relay

10/100BaseT(X)

Ports10M12 D-

Coded 4-Pin

Female Connector

PoE Ports1010/

100BaseT(X), M12

D-Coded 4-Pin

Female Connector

Conformal Coating

TN-5510A-8PoE-2GTX­WV-T

TN-5510A-8PoE-2GTX­WV-CT-T

TN-5510A-8PoE­2GTXBP-WV-T

TN-5510A-8PoE­2GTXBP-WV-CT-T

TN-5510A-8PoE­2GLSX-ODC-WV-T

TN-5510A-8PoE­2GLSX-ODC-WV-CT-T

TN-5516A-WV-T – – – 16 – –

TN-5516A-WV-CT-T – – – 16 – ✓

TN-5516A-8PoE-WV-T – – – 8 8 –

TN-5516A-8PoE-WV­CT-T

TN-5518A-2GTX-WV-T – 2 – 16 – –

TN-5518A-2GTX-WV­CT-T

– 2 – – 8 –

– 2 – – 8 ✓

– – 2 – 8 –

– – 2 – 8 ✓

2 – – – 8 –

2 – – – 8 ✓

– – – 8 8 ✓

– 2 – 16 – ✓

TN-5518A-2GTXBP-WV­T

TN-5518A-2GTXBP-WV­CT-T

TN-5518A-8PoE-2GTX­WV-T

TN-5518A-8PoE-2GTX­WV-CT-T

– – 2 16 – –

– – 2 16 – ✓

– 2 – 8 8 –

– 2 – 8 8 ✓

8

www.moxa.com

Model Name

10/100/

1000BaseT(X)

Ports10Q-ODC

Fiber Connector

10/100/

1000BaseT(X)

Ports10M12 X-

Coded 8-Pin

Female Connector

10/100/

1000BaseT(X)

Ports10M12 X-

Coded 8-Pin
Female Connector
with Bypass Relay

10/100BaseT(X)

Ports10M12 D-

Coded 4-Pin

Female Connector

PoE Ports1010/

100BaseT(X), M12

D-Coded 4-Pin

Female Connector

Conformal Coating

TN-5518A-8PoE­2GTXBP-WV-T

TN-5518A-8PoE­2GTXBP-WV-CT-T

– – 2 8 8 –

– – 2 8 8 ✓

Accessories (sold separately)

Storage Kits

ABC-01-M12 Configuration backup and restoration tool with M12 connector for managed Ethernet switches and

Cables

CBL-M12D(MM4P)/RJ45-100 IP67 M12-to-RJ45 cable, IP67-rated, 1 m

CBL-M23(FF6P)/OPEN-BK-100 IP67 M23 to 6-pin power cable, IP67-rated female 6-pin M23 connector, IP67, 1 m

CBL-M12DMM4PM12DMM4P-BK­100-IP67

CBL-M12XMM8P-Y-100-IP67 M12-to-M12 Cat-5 UTP Ethernet cable, 8-pin male X-coded crimp type M12 connector, IP67, 1 m

CBL-M12XMM8P-Y-300-IP67 M12-to-M12 Cat-5 UTP Ethernet cable, 8-pin male X-coded crimp type M12 connector, IP67, 3 m

CBL-M12XMM8PRJ45-Y-200-IP67 M12-to-RJ45 Cat-5 UTP Ethernet cable, 8-pin male X-coded crimp type M12 connector, IP67, 2 m

wireless APs/Bridges/Clients, 0 to 60°C operating temperature

M12-to-M12 Cat-5E STP Ethernet cable, 4-pin D-coded M12 connector, IP67, 1 m

Applicable Models:
TN-5510A-2GTX-WV-T
TN-5510A-2GTX-WV-CT-T
TN-5510A-2GTXBP-WV-T
TN-5510A-2GTXBP-WV-CT-T
TN-5510A-8PoE-2GTX-WV-T
TN-5510A-8PoE-2GTX-WV-CT-T
TN-5510A-8PoE-2GTXBP-WV-T
TN-5510A-8PoE-2GTXBP-WV-CT-T
TN-5518A-2GTX-WV-T
TN-5518A-2GTX-WV-CT-T
TN-5518A-2GTXBP-WV-T
TN-5518A-2GTXBP-WV-CT-T
TN-5518A-8PoE-2GTX-WV-T
TN-5518A-8PoE-2GTX-WV-CT-T
TN-5518A-8PoE-2GTXBP-WV-T
TN-5518A-8PoE-2GTXBP-WV-CT-T

Applicable Models:
TN-5510A-2GTX-WV-T
TN-5510A-2GTX-WV-CT-T
TN-5510A-2GTXBP-WV-T
TN-5510A-2GTXBP-WV-CT-T
TN-5510A-8PoE-2GTX-WV-T
TN-5510A-8PoE-2GTX-WV-CT-T
TN-5510A-8PoE-2GTXBP-WV-T
TN-5510A-8PoE-2GTXBP-WV-CT-T
TN-5518A-2GTX-WV-T
TN-5518A-2GTX-WV-CT-T
TN-5518A-2GTXBP-WV-T
TN-5518A-2GTXBP-WV-CT-T
TN-5518A-8PoE-2GTX-WV-T
TN-5518A-8PoE-2GTX-WV-CT-T
TN-5518A-8PoE-2GTXBP-WV-T
TN-5518A-8PoE-2GTXBP-WV-CT-T

Applicable Models:
TN-5510A-2GTX-WV-T
TN-5510A-2GTX-WV-CT-T
TN-5510A-2GTXBP-WV-T
TN-5510A-2GTXBP-WV-CT-T

9

www.moxa.com

TN-5510A-8PoE-2GTX-WV-T
TN-5510A-8PoE-2GTX-WV-CT-T
TN-5510A-8PoE-2GTXBP-WV-T
TN-5510A-8PoE-2GTXBP-WV-CT-T
TN-5518A-2GTX-WV-T
TN-5518A-2GTX-WV-CT-T
TN-5518A-2GTXBP-WV-T
TN-5518A-2GTXBP-WV-CT-T
TN-5518A-8PoE-2GTX-WV-T
TN-5518A-8PoE-2GTX-WV-CT-T
TN-5518A-8PoE-2GTXBP-WV-T
TN-5518A-8PoE-2GTXBP-WV-CT-T

Connectors

M12A-5P-IP68 A-coded screw-in sensor connector, female, IP68, 4.05 cm

M12D-4PMM-IP67 M12 D-coded connector, QUICKON type, 4-pin male, IP67

M12D-4P-IP68 M12 D-coded screw-in sensor connector, male, IP68

A-PLG-WPM23-01-IP67 M23 cable connector, female 6-pin, crimp type, IP67

M12X-8PMM-IP67-HTG X-coded screw-in Gigabit Ethernet connector, 8-pin male M12 connector, IP67

Applicable Models:
TN-5510A-2GTX-WV-T
TN-5510A-2GTX-WV-CT-T
TN-5510A-2GTXBP-WV-T
TN-5510A-2GTXBP-WV-CT-T
TN-5510A-8PoE-2GTX-WV-T
TN-5510A-8PoE-2GTX-WV-CT-T
TN-5510A-8PoE-2GTXBP-WV-T
TN-5510A-8PoE-2GTXBP-WV-CT-T
TN-5518A-2GTX-WV-T
TN-5518A-2GTX-WV-CT-T
TN-5518A-2GTXBP-WV-T
TN-5518A-2GTXBP-WV-CT-T
TN-5518A-8PoE-2GTX-WV-T
TN-5518A-8PoE-2GTX-WV-CT-T
TN-5518A-8PoE-2GTXBP-WV-T
TN-5518A-8PoE-2GTXBP-WV-CT-T

DIN-Rail Mounting Kits

DK-DC50131-01 DIN-rail mounting kit, 6 screws

M12 Connector Caps

A-CAP-M12F-M Metal cap for M12 female connector

A-CAP-M12M-M Metal cap for M12 male connector

© Moxa Inc. All rights reserved. Updated Jan 05, 2021.

This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of
Moxa Inc. Product specifications subject to change without notice. Visit our website for the most up-to-date product information.

10
