Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 2 of 16

1. Introduction

This document provides guidelines on how to configure and secure the NPort 5000 Series. The

recommended steps in this document should be considered as best practices for security in

most applications. It is highly recommended that you review and test the configurations

thoroughly before implementing them in your production system in order to ensure that your

application is not negatively impacted.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 3 of 16

2. General System InformationBasic Information About the

Device

Model Function Operating System Firmware Version

NPort 5000A Series General purpose Moxa Operating

System

NPort 5110 General purpose Moxa Operating

System

NPort 5130/5150 General purpose Moxa Operating

System

NPort 5200 Series General purpose Moxa Operating

System

NPort 5400 Series General purpose Moxa Operating

System

NPort 5600-DT Series General purpose Moxa Operating

System

NPort 5600-DTL Series Entry level Moxa Operating

System

NPort 5600 Series Rackmount Moxa Operating

System

NPort 5000AI-M12

Series

NPort IA5000 Series Industrial automation Moxa Operating

NPort IA5000A Series Industrial automation Moxa Operating

Railway Moxa Operating

System

Version 1.6

Version 2.10

Version 3.9

Version 2.12

Version 3.14

Version 2.8

Version 1.6

Version 3.10

Version 1.5

Version 1.7

The NPort 5000 Series is a device server specifically designed to allow industrial

devices to be directly accessible from the network. Thus, legacy devices can be

transformed into Ethernet devices, which then can be monitored and controlled from

any network location or even the Internet. Different configurations and features are

available for specific applications, such as protocol conversion, Real COM drivers, and

TCP operation modes, to name a few.

Moxa Operating System (MOS) is an embedded proprietary operating system, which is

only executed in Moxa edge devices. Because the MOS operating system is not freely

available, the chances of malware attacks are significantly reduced.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 4 of 16

2.2. Deployment of the Device

You should deploy the NPort 5000 Series

behind a secure firewall network that has

sufficient security features in place to

ensure that networks are safe from

internal and external threats.

Make sure that the physical protection of

the MGate devices and/or the system

meets the security needs of your

application. Depending on the

environment and the threat situation, the

form of protection can vary significantly.

3. Configuration and Hardening Information

For security reasons, account and password protection is enabled by default, so you must

provide the correct account and password to unlock the device before entering the web

console of the gateway.

The default account and password are admin and moxa (both in lowercase letters),

respectively. Once you are successfully logged in, a pop-up notification will appear to remind

you to change the password in order to ensure a higher level of security.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 5 of 16

3.1. TCP/UDP Ports and Recommended Services

Refer to the table below for all the ports, protocols, and services that are used to

communicate between the NPort 5000 Series and other devices.

Service Name Option

Moxa Command

(DSCI)

DNS_wins Enable Enable UDP 53, 137, 949

SNMP agent Enable/Disable Enable UDP 161 SNMP handling routine

HTTP server Enable/Disable Enable TCP 80 Web console

HTTPS server Enable/Disable Enable TCP 443 Secured web console

Telnet server Enable/Disable Disable TCP 23 Telnet console

DHCP client Enable/Disable Disable UDP 68

SNTP Enable/Disable Disable UDP Random Port

Remote System

Log

Enable/Disable Enable

Enable/Disable Disable UDP Random Port

Default

Setting

Type Port Number Remark & Description

TCP 14900, 4900

UDP 4800

For Moxa utility

communication

Processing DNS and WINS

(Client) data

The DHCP client needs to

acquire the system IP

address from the server

Synchronize time settings

with a time server

This function is not

available for the NPort

5100/5100A/5200/

5200A Series.

Send the event log to a

remote log server

Operation Mode Option

Real COM Mode Enable/Disable Enable TCP

RFC2217 Mode Enable/Disable Disable TCP

TCP Server Mode Enable/Disable Disable TCP

Default

Setting

Type Port Number

950+ (Serial port No. -

966+ (Serial port No. -

User-defined (default:

4000+Serial port No.)

User-defined (default:

4000+Serial port No.)

User-defined (default:

966+Serial port No.)

Remark &

Description

Only available in

certain models

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 6 of 16

Operation Mode Option

UDP Mode Enable/Disable Disable UDP

Pair Connection

Master Mode

Pair Connection

Slave Mode

Ethernet Modem

Mode

Reverse Telnet

Mode

Disabled Mode Enable/Disable Disable N/A N/A

Enable/Disable Disable TCP

Default

Setting

Type Port Number

User-defined (default:

4000+Serial port No.)

User-defined (default:

4000+Serial port No.)

User-defined (default:

4000+Serial port No.)

User-defined (default:

4000+Serial port No.)

User-defined (default:

4000+Serial port No.)

Remark &

Description

Only available in

certain models

Only available in

certain models

For security reasons, you should consider disabling unused services. After initial setup,

use services with stronger security for data communication. Refer to the table below for

the suggested settings.

Service Name

Moxa Command

(DSCI)

DNS_wins Enable UDP 53, 137, 949

SNMP Disable UDP 161

HTTP Server Disable TCP 80

HTTPS Server Enable TCP 443

Telnet Server Disable TCP 23

DHCP Client Disable UDP 67, 68

SNTP Client Disable UDP Random Port

Remote System

Log

Suggested

Setting

Disable

Enable UDP Random Port

Type Port Number Security Remark

TCP 14900, 4900

UDP 4800

Disable this service as it is not commonly

used

A necessary service to get IP; cannot be

disabled

Suggest to manage NPort via HTTPS

console

Disable HTTP to prevent plain text

transmission

Encrypted data channel with trusted

certificate for NPort configuration

Disable this service as it is not commonly

used

Assign an IP address manually for the

device

Suggest to use the SNTP server for

secure time synchronization

Suggest using a system log server to

store all the logs from all the devices in

the network

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 7 of 16

For console services, we recommend the following:

HTTP Disable

HTTPS Enable

Telnet Disable

Moxa Command Disable

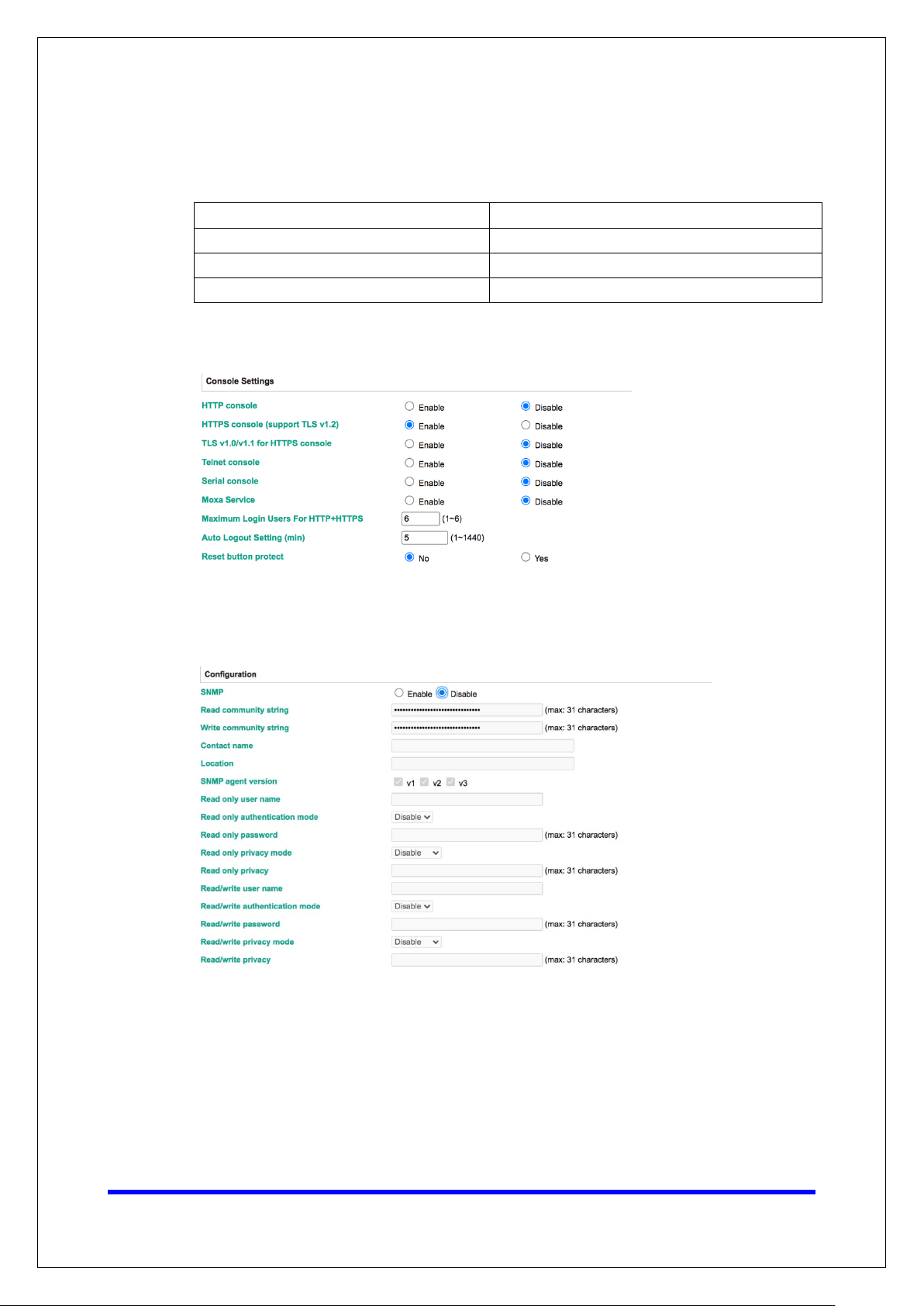

To enable or disable these services, log in to the HTTP/HTTPS console and select Basic

Settings

For the SNMP agent service, log in to the HTTP/HTTPS console and select

Administration

SNMP agent service.

 Console Settings.

 SNMP Agent, select Disable for SNMP, and select Disable for the

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 8 of 16

Note:

For

the

To disable the SNTP service server, log in to the HTTP/HTTPS/SSH/Telnet console and

select Basic Settings, and keep the Time server setting empty. This will disable the

SNTP service. Then, keep the Time server empty as Disable for the SNTP Server.

For the remote system log server, it depends on your network architecture. We

recommend your network administrator to have a Log Server to receive the log

messages from the device. In this case, log in to the HTTP/HTTPS/SSH/Telnet console,

select Remote Log Server, and input the IP address of the Log Server in the SYSLOG

server field. If your network doesn't have one, keep it empty (disable Remote

System Log Server).

For the operation mode services, it depends on how you bring your serial device to the

Ethernet network. For example, if your host PC uses a legacy software to open a COM

port to communicate with the serial device, then the NPort will enable the Real COM

mode for this application. If you don't want the NPort to provide such a service, log in

to the HTTP/HTTPS/SSH/Telnet console, select Serial Port Settings  Port # 

Operation Modes, and then select Disable.

each instruction above, click the Submit button to save your changes, then restart

NPort device so the new settings will take effect.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 9 of 16

3.2. HTTPS and SSL Certificates

HTTPS is an encrypted communication

channel. As TLS v1.1 or lower has severe

vulnerabilities that can easily be hacked,

the NPort 5000 Series uses TLS v1.2 for

HTTPS to ensure data transmissions are

secured. Make sure your browser has TLS

v1.2 enabled.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 10 of 16

3.3. Account Management

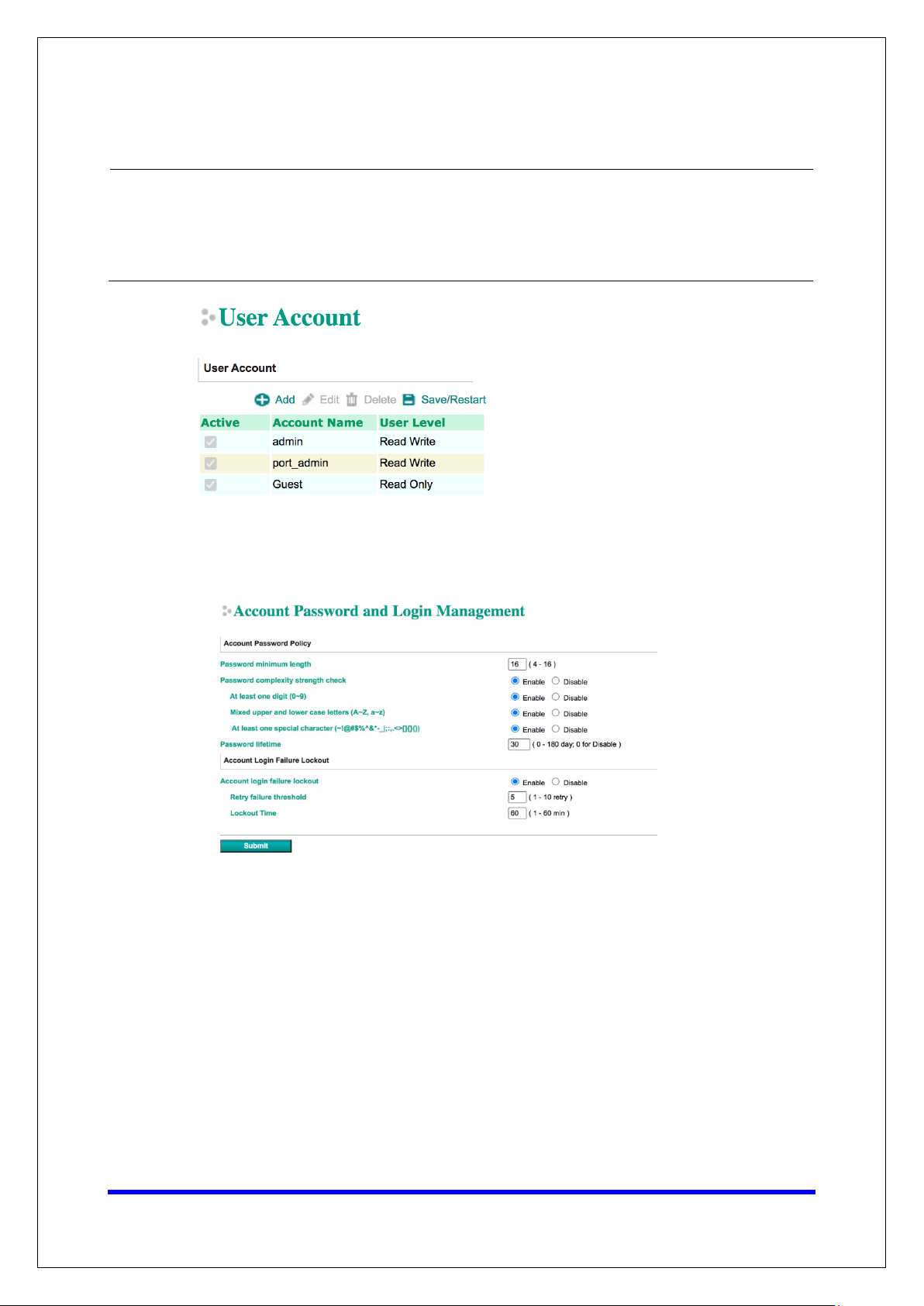

• The NPort 5000 Series provides two different user levels, Read Write (admin) and

Read Only (user). With a Read Write account, you can access and modify all settings

through the web console. With a Read Only account, you can only view settings.

• The default Read Write account is admin, with the default password moxa. To

manage accounts, log in to the web console and select Administration

Management

• To add a new account, click Add in the top toolbar, then enter the Account Name,

Password, Confirm Password, and select a User Level.

 User Account.

 Account

• To modify an existing account, click on the account name and select Edit in the top

toolbar.

• To delete an account, click on the account name and select Delete in the top

toolbar.

• After making any changes, click Save/Restart in the top toolbar.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 11 of 16

Note:

We suggest you

level” account instead of

using the default “admin” account, as it is commonly used by embedded systems. Once

the new

“admin” account should be monitored for security

administrator level account has been created, it is suggested that the original

manage your device with another “administrator

reasons to prevent brute-force attacks.

• To improve security, the login password policy and account login failure lockout can

be configured. To configure them, log in to the HTTP/HTTPS console and select

Administration

 Account Management  Password & Login Policy.

• You should adjust the password policy to require more complex passwords. For

example, set the Minimum length to 16, enable all password complexity strength

checks, and enable the Password lifetime options. Also, to avoid brute-force

attack, it’s suggested that you enable the Account login failure lockout feature.

• For some system security requirements, a warning message may need to be

displayed to all users attempting to log in to the device. To add a login message, log

in to the HTTP/HTTPS console and select Administration

Management

 Notification Message, and enter a Login Message to use.

 Account

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 12 of 16

3.4. Accessible IP List

• The NPort 5000 Series has a feature that can limit access to specific remote host IP

addresses to prevent unauthorized access. If a host’s IP address is in the accessible

IP table, then the host will be allowed to access the NPort 5000 series. To configure

it, log in to the HTTP/HTTPS console and select Accessible IP List.

• You may add a specific address or range of addresses by using a combination of an

IP address and a netmask as follows:

− To allow access to a specific IP address: Enter the IP address in the

corresponding field, then 255.255.255.255 for the netmask.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 13 of 16

Ensure that the IP address of the PC you are using to access the web console is in the

Accessible IP List

− To allow access to a specific IP address: Enter the IP address in the

corresponding field, then 255.255.255.255 for the netmask.

− To allow access to hosts on a specific subnet: For both the IP address and

netmask, use 0 for the last digit (e.g., “192.168.1.0” and “255.255.255.0”).

− To allow access to all IP addresses: Make sure that the Enable checkbox for

the Accessible IP List is not checked.

Additional configuration examples are shown in the following table:

Desired IP Range IP Address Field Netmask Field

Any host Disable Enable

192.168.1.120 192.168.1.120 255.255.255.255

192.168.1.1 to 192.168.1.254 192.168.1.0 255.255.255.0

192.168.1.1 to 192.168.255.254 192.168.0.0 255.255.0.0

192.168.1.1 to 192.168.1.126 192.168.1.0 255.255.255.128

192.168.1.129 to 192.168.1.254 192.168.1.128 255.255.255.128

Warning

3.5. Logging and Auditing

• These are the events that will be recorded by the NPort 5000 Series:

Event Group Summary

System System cold start, system warm start

Network

Configuration

OpMode Connect, Disconnect

• To configure this setting, log in to the HTTP/HTTPS console and select System Log

Settings. Then, enable the Local Log for recording on the NPort 5000 device

and/or Remote Log for keeping records on a server. You should enable system log

settings to record all important system events in order to monitor device status and

check for security issues.

DHCP/BOOTP gets IP/renew, NTP connect failed, IP conflict, Network link

down

imported, Configuration imported or exported, Configuration changed, Clear

event logged

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 14 of 16

• To view events in the system log, log in to the HTTP/HTTPS console and select

Monitor

 System Log.

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 15 of 16

4. Patching/Upgrades

4.1. Patch Management Plan

With regards to patch management, Moxa releases version enhancements annually

with detailed release notes.

4.2. Firmware Upgrades

The process for upgrading firmware is as follows:

• Download the latest firmware for your MGate device from the Moxa website:

NPort Series URL

5100A

5100

5200A

5200

5400

5600

5600-DT

5600-DTL

IA5000A

IA5000

5000AI-M12

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5100a-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5100-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5200a-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5200-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5400-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5600-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5600-dt-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5600-dtl-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/industrial-device-servers/nport-ia5000a-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/industrial-device-servers/nport-ia5000-series#resources

https://www.moxa.com/en/products/industrial-edge-connectivity/serial-

device-servers/general-device-servers/nport-5000ai-m12-series#resources

Moxa Tech Note

The Security Hardening Guide for the NPort 5000

Series

Page 16 of 16

• Log in to the HTTPS console and select System Management  Maintenance 

Firmware Upgrade. Click the Choose File button to select the proper firmware

and click Submit to upgrade the firmware.

• If you want to upgrade the firmware for multiple units, download the Device Search

Utility (DSU) or MXconfig for a GUI interface, or the Moxa CLI Configuration Tool for

a CLI interface.

5. Security Information and Vulnerability Feedback

As the adoption of the Industrial IoT (IIoT) continues to grow rapidly, security has become

one of the top priorities. The Moxa Cyber Security Response Team (CSRT) is taking a proactive

approach to protect our products from security vulnerabilities and help our customers better

manage security risks.

You can find the latest Moxa security information here:

https://www.moxa.com/en/support/product-support/security-advisory

Moxa NPort 5000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

2. General System InformationBasic Information About the

3. Configuration and Hardening Information

3.1. TCP/UDP Ports and Recommended Services

3.2. HTTPS and SSL Certificates

3.3. Account Management

3.4. Accessible IP List

3.5. Logging and Auditing

4. Patching/Upgrades

4.1. Patch Management Plan

4.2. Firmware Upgrades

5. Security Information and Vulnerability Feedback
