NPort 5200 Series

Quick Installation Guide

Edition 8.0, February 2017

-free: 1-888-669-2872
1-714-528-6777

1-714-528-6778

[phone]

[phone]

[phone]

[phone]



-free: 800-820-5036
[phone]

[phone]

[phone]

[phone]

*1802052000313*

Overview

NOTE

“-T” indicates an extended operating temperature model.

The NPort 5200 compact palm-sized device servers are used to cont rol
RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort
5230/5232/5232I/5230-T/5232-T/5232I-T) serial devices over a
TCP/IP-based Ethernet.

Package Checklist

Before installing your NPort 5200, verify that the package contains the
following items:

• 1 NPort 5200 2-port Serial Device Server

• Documentation & Software CD

• Quick Installation Guide (printed)

• Warranty card

Optional Accessories

• DK-35A: DIN-Rail Mounting Kit (35 mm)

• CBL-RJ45M9-150: RJ45 (8-pin) to DB9 (M) cable, 150 cm

• CBL-RJ45F9-150: RJ45 (8-pin) to DB9 (F) cable, 150 cm

• CBL-RJ45M25-150: RJ45 (8-pin) to DB25 (M) cable, 150 cm

• CBL-RJ45F25-150: RJ45 (8-pin) to DB25 (F) cable, 150 cm

• DIN-Rail Power Supply and Adapter

Note: Notify your sales representative if any of the above items are
missing or damaged.

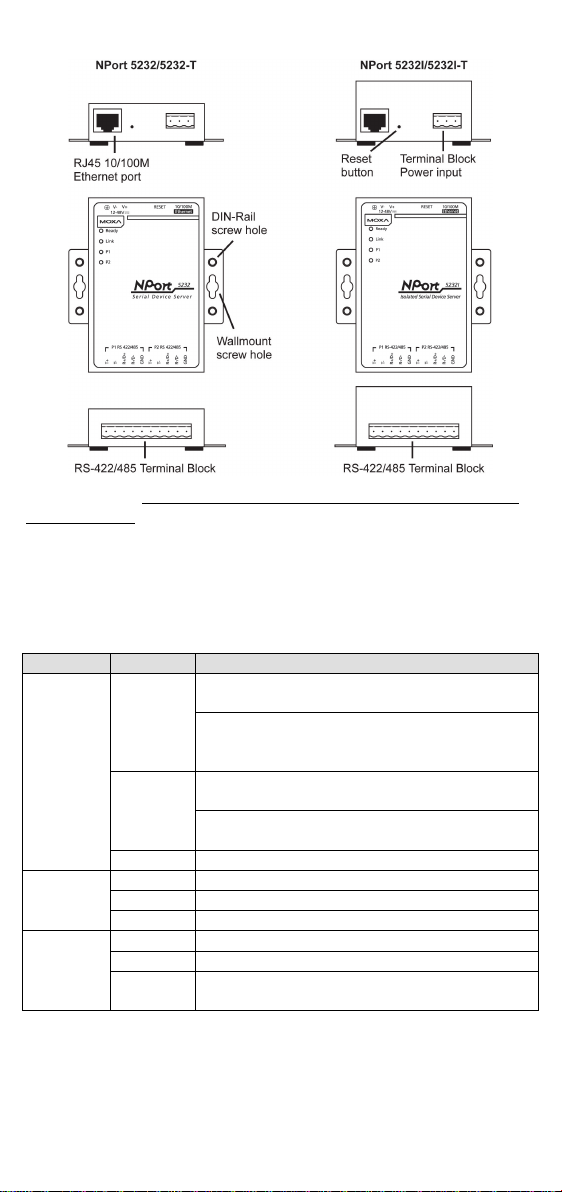

Hardware Introduction

The NPort 5200 device servers are used to control RS-232/422/485
devices. The NPort 5210/5210-T has two 8-pin RJ45 ports, both for the
RS-232 interface. The NPort 5230/5230-T has one 10-pin terminal block,
with 5 pins used for one RS-232 port, and 5 pins used for one RS-422/485
port. The NPort 5232/5232I/5232-T/5232I-T have one 10-pin terminal
block, with 5 pins used for one RS-422/485 port, and 5 pins used for
another RS-422/485 port.

- 2 -

LED Name

LED Color

LED Function

Steady on:

Power is on and the NPort 5200 is
booting up.

Blinking:

Indicates an IP conflict, or DHCP or

properly.

Steady on:

Power is on and the NPort 5200 is
functioning normally.

Blinking:

The device server has been located
by Administrator’s Location function

Off

Power is off, or power error condition exists.

Orange

10 Mbps Ethernet connection.

Green

100 Mbps Ethernet connection.

Off

Ethernet cable is disconnected, or has a short.

Orange

Serial port is receiving data.

Green

Serial port is transmitting data.

No data is being transmitted or received through
the serial port.

Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object, such as a straightened paper clip

or toothpick, to press the reset button. This will cause th e Ready LED to
blink on and off. The factory defaults will be loaded once the R eady LED
stops blinking (after about 5 seconds). At this point, you should release
the reset button.

NPort 5200 LED Indicators (top panel)

Red

Ready

Green

Ethernet

P1, P2

Off

BOOTP server did not respond

- 3 -

Hardware Installation Procedure

In addition to placing the
NPort 5200 on a desktop or
other horizontal surface,
you may also make use of
the DIN
options, as illustrated here.

Wall Mount

DIN-Rail

STEP 1: After removing the NPort 5200 from the box, the first thing you

should do is connect the power adapter. Connect the 12-30 VDC power
line with the NPort 5200’s terminal block, or connect the DIN-rail power
supply with the NPort 5200’s terminal block.

STEP 2: Connect the NPort 5200 to a network. Use a standard
straight-through Ethernet cable to connect to a hub or switch. When
setting up or testing the NPort 5200, you might find it convenient to
connect directly to your computer’s Ethernet port. In thi s case, use a
cross-over Ethernet cable.

STEP 3: Connect the NP ort 5200’s serial port to a serial device.
STEP 4: Placement Options

-rail or wall mount

Software Installation Information

To install NPort Administration Suite, insert the NPort Document &
Software CD into your computer’s CD-ROM drive. Once the NPort
Installation CD window opens, click on the In stallation button, and then

follow the instructions on the screen. To view detailed informat ion about
NPort 5200 Administration Suite, click on the Documents button,
and then select “NPort 5200 Series User’s Guide” to open t he pdf version
of this user’s guide. The PComm Lite program is also included in the
Documentation & Software CD free of charge. Install PComm Lite to
use the Serial Console for configuring the IP address for the first time.

Pin Assignments and Cable Wiring— NPort 5230/5230-T

Terminal Block Wiring

- 4 -

NOTE

The NPort 5232/5232I/5232-T/5232I-T have 2 RS-422/485
ports. The pin assignments are the same as the NPort
5230/5230

-T’s port 2. Refer to the “NPort 5200 Series User’s

Manual” for more details.

8-Pin

Signal

1

DSR

2

RTS

3

GND

4

TxD 5 RxD 6 DCD 7 CTS 8 DTR

Pin Assignments and Cable Wiring— NPort 5210/5210-T

RJ45 (8-pin) Connector Pinouts

Cable Wiring (RS-232)

Four cables are available as optional accessories to connect the NPort
5210/5210-T to RS-232 serial devices. For your convenience, we show
precise cable wiring diagrams for each of the four cables.

RJ45 (8-pin) to DB25 Female (Cable Name: CBL-RJ45F25-150)

RJ45 (8-pin) to DB25 Male (Cable Name: CBL-RJ45M25-150)

- 5 -

RJ45 (8-pin) to DB9 Female (Cable Name: CBL-RJ45F9-150)

Power Requirements

NPort 5210/5210-T: 12 to 48 VDC, 325 mA at 12V (max.)

NPort 5232I/5232I-T: 12 to 48 VDC, 365 mA at 12V (max.)

Operating Temp.

Standard models: 0 to 55°C (32 to 131°F)

Operating humidity: 5 to 95% RH

Dimensions

NPort 5210/5230/5232/5210-T/5230-T/5232-T (including ears):

67 × 100.4 × 35 mm (2.64 × 3.95 × 1.37 in)

RJ45 (8-pin) to DB9 Male (Cable Name: CBL-RJ45M9-150)

Specifications

NPort 5230/5230-T: 12 to 48 VDC, 325 mA at 12V (max.)
NPort 5232/5232-T: 12 to 48 VDC, 280 mA at 12V (max.)

T models: -40 to 75°C (-40 to 167°F)

90 × 100.4 × 22 mm (3.54 × 3.95 × 0.87 in)
NPort 5210/5230/5232/5210-T/5230-T/5232-T (without ears):
67 × 100.4 × 22 mm (2.64 × 3.95 × 0.87 in)
NPort 5232I/5232I-T (including ears):
90 × 100.4 × 35 mm (3.54 × 3.95 ×1.37 in)
NPort 5232I/5232I-T (without ears):

- 6 -

Regulatory Approvals

Safety

UL 60950-1

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-11 DIPs

Marine

DNV (excluding the NPort 5210)

Medical

(NPort 5210 only) EN 60601-1-2 Class B, EN55011

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

- 7 -
