NPort 5100 Series

Quick Installation Guide

Edition 4.0, November 2015

-free: 1-888-669-2872
1-714-528-6777

1-714-528-6778

[phone]

[phone]

[phone]

[phone]



-free: 800-820-5036
[phone]

[phone]

[phone]

[phone]

*1802051000013*

Overview

NOTE

“-T” indicates an extended temperature model.

NPort 5100 series device servers are compact, palm-sized data
communication devices that allow you to control RS-232 (NPort 5110),
RS-422/485 (NPort 5130), and RS-232/422/485 (NPort 5150) serial
devices over a TCP/IP-based Ethernet.

Package Checklist

Before installing the NPort 5100 series device server, verify that the
package contains the following items:

• 1 NPort 5100 series 1-port serial device server

• 100 to 240 VAC power adapter (excluding T models)

• 4 stick-on pads

• Documentation and software CD

• Quick Installation Guide

• Warranty card

Optional Accessories

• DK-35A: DIN-Rail Mounting Kit (35 mm)

Notify your sales representative if any of the above items are missing or
damaged.

- 2 -

Hardware Introduction

NOTE

The NPort 5110, NPort 5130, and NPort 5150 have the same form
factor.

As shown in the following figures, NPort 5100 series dev ice serv ers have
one male DB9 port for transmitting RS-232 (NPort 5110), RS-422/485
(NPort 5130), or RS-232/422/485 (NPort 5150) serial data.

Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object, such as a straightened paper clip

or toothpick, to press the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the R eady LED
stops blinking (after about 5 seconds). At this point, you should release
the reset button.

- 3 -

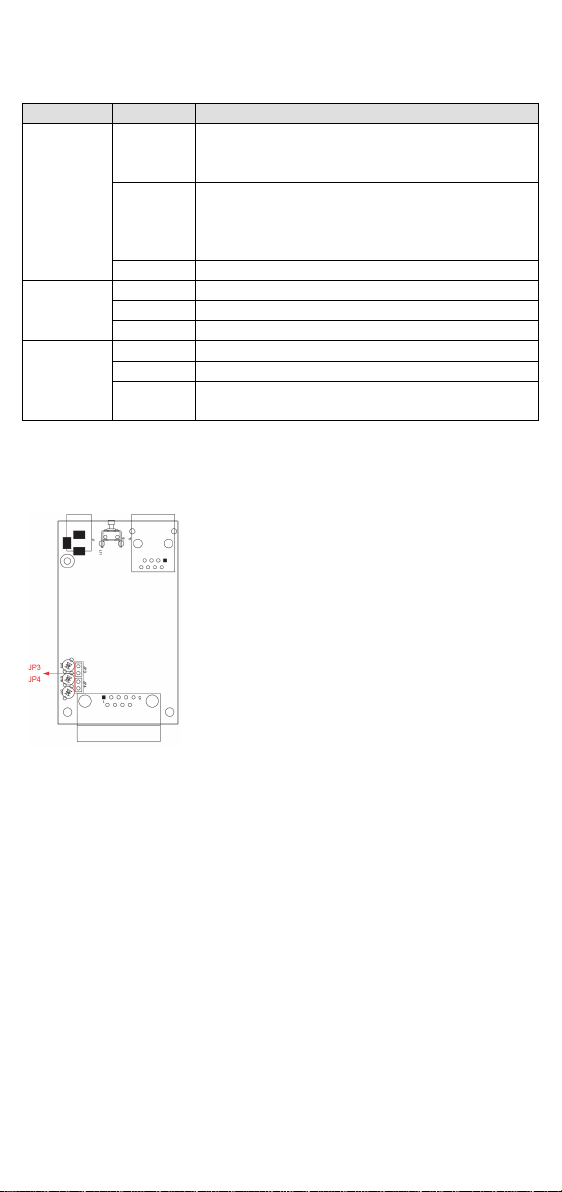

LED Indicators—NPort 5100’s top panel has three LED indicators, which

LED Name

LED Color

LED Function

Steady on: Power is on and NPort is booting up.

BOOTP server is not responding properly.

Steady on: Power is on and NPort is functioning

Administrator’s Location function

Off

Power is off, or power error condition exists.

Orange

10 Mbps Ethernet connection.

Green

100 Mbps Ethernet connection.

Off

Ethernet cable is disconnected, or has a short.

Orange

Serial port is receiving data.

Green

Serial port is transmitting data.

No data is being transmitted or received through
the serial port.

Jumpers are used to set the pull high/low

resistor values. The default is 150 KΩ.

Short the

KΩ. Do not use the KΩ setting with

RS-232 mode, since doing so will degrade
the RS
communication distance.

are described in the following table.

Blinking: Indicates an IP conflict, or DHCP or

Red

Ready

Green

Link

Tx/Rx

normally.
Blinking: The NPort has been located by NPort

Off

Adjustable pull high/low resistor for RS-422/485 (150

KΩ or 1 KΩ)

jumpers to set this value to 1

-232 signals and shorten the

Hardware Installation Information

STEP 1: After remov ing the NPort 5100 series device server from the box ,

connect the NPort 5100 series device server to a network. Use a standard
straight-through Ethernet cable to connect to a hub or switch. When
setting up or testing the NPort 5100 series dev ice server, you m ight find
it convenient to connect directly to your computer’s Ethernet port. In this
case, use a cross-over Ethernet ca ble.

STEP 2: Connect the NPort 5100 series device server’s serial port to a
serial device.

STEP 3: Connect the power adaptor.
STEP 4: Placement options

- 4 -

In addition to placing the
NPort 5100 on a desktop or
other horizontal surface,
you may also make use of
the DIN

-Rail or Wall Mount

options, as illustrated here.

Wall Mount

DIN-Rail

Pin No.

Ethernet

1

Tx+ 2 Tx- 3 Rx+ 6 Rx-

Pin No.

RS-232

1

DCD 2 RxD 3 TxD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 –

Pin No.

RS-422/485-4W

RS-485-2W

1

TXD-(A)

– 2 TXD+(B)

– 3 RXD+(B)

Data+(B)

4

RXD-(A)

Data-(A) 5 GND

GND 6 –

– 7 –

– 8 –

– 9 –

–

Software Installation Information

To install NPort Administration Suite, insert the NPort Document &
Software CD into your computer’s CD-ROM drive. Once the NPort
Installation CD window opens, click on the Installation button, and

then follow the instructions on the screen.
To view detailed information about NPort Administration Suite, click

on the Documents button, and then select “NPort 5100 Series User’s
Guide” to open the pdf version of the user’s guide.

Pin Assignments

Ethernet Port Pinouts

NPort 5110—DB9 male (RS-232) port pinouts

NPort 5130—DB9 male (RS-422/485) port pinouts

- 5 -

NPort 5150—DB9 male (RS-232/422/485) port pinouts

Pin No.

RS-232

RS-422/485-4W

RS-485-2W

1

DCD

TXD-(A)

– 2 RxD

TXD+(B)

– 3 TxD

RXD+(B)

Data+(B)

4

DTR

RXD-(A)

Data-(A)

5

GND

GND

GND

6

DSR – – 7 RTS – – 8 CTS – – 9 – – –

Power Requirements

Power Input

12 to 48 VDC

Power Consumption

NPort 5110: 128.7 mA @ 12V, 72 mA @ 24V

NPort 5150: 200 mA @ 12V, 106 mA @ 24V

Operating Temperature

0 to 55°C (32 to 131°F), for standard models

-40 to 75°C (-40 to 167°F), for -T models

Operating Humidity

5 to 95% RH

(2.96 x 3.15 x 0.87 in)

52 x 80 x 22 mm
(2.05 x 3.15 x 0.89 in)

without ears

Serial Line Protection

15 KV ESD for serial port

Magnetic Isolation

1.5 KV for Ethernet

Power Line Protection

Level 2 Burst (EFT), EN61000-4-4
Level 2 Surge, EN61000-4-5

Regulatory Approvals

FCC Class A, CE Class A, UL, LVD

Specifications

NPort 5130: 200 mA @ 12V, 106 mA @ 24V

Dimensions 75.2 x 80 x 22 mm

including ea rs



- 6 -
