MOXA MOXA EDS-G509-T User guide

EDS-G500E Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

Second Edition, May 2014

 2014 Moxa Inc. All rights reserved.

P/N: 1802005000021

Package Checklist

The EDS-G500E is shipped with the following items. If any of these items
are missing or damaged, please contact your customer service
representative for assistance.

• 1 EDS-G508E or EDS-G512E-4GSFP or EDS-G516E-4GSFP Ethernet
switch

• Hardware installation guide

• Documentation and software CD

• Moxa product warranty statement

• USB cable

• Protective caps for unused ports

Features

• Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports

• Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches),

RSTP/STP, and MSTP for network redundancy

• RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, and SSH to
enhance network security

• EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for
device management and monitoring

- 2 -

Front Panel

Front Panel

1.

2.

3.

4.

5.

6.

7.

8.

Panel Views of EDS-G500E Series

1000BaseT(X) LED indicator
10/100BaseT(X) LED indicator

EDS-G508E

10/100/1000BaseT(X) ports

System status LED:

USB storage port
SFP port LED indicator

100/1000BaseSFP slots
Model Name

EDS-G508E: 1 to 8
EDS-G512E-4GSFP: 1 to 8
EDS-G516E-4GSFP: 1 to 12

• STATE LED indicator

• PWR1 LED indicator

• PWR2 LED indicator

• FAULT LED indicator

• MSTR/HEAD LED indicator

• CPLR/TAIL LED indicator

EDS-G512E-4GSFP: 9 to 12
EDS-G516E-4GSFP: 13 to 16

EDS-G512E-4GSFP

- 3 -

EDS-G516E-4GSFP

Top Panel

Top Panel

1.

2.

3.

4.

5.

6.

Rear Panel

1.

2.

Reset button
USB console port
DIP switches for Turbo Ring,

Ring Master, and Ring Coupler

Grounding screw
4-pin ter minal block for digital

input and power input 2

4-pin ter minal block for relay

output and power input 1

Rear Panel

Screw holes for wall mounting

kit

DIN-rail mounting kit

- 4 -

Mounting Dimensions

Unit = mm (inch)

- 5 -

ATTENTION

type devices that are to be installed

Groups A, B, C, and D or non-hazardous locations only.

DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-G500E series
when you take it out of the box. Mount the EDS-G500E series on
corrosion-free mounting rails that meet the EN 60715 standard.

Installation

STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2—Press the EDS-G500E series towards the DIN rail until it snaps
into place.

Removal

STEP 1—Pull down the latch on the mounting kit with a screwdriver.

STEP 2 & 3—Slightly pull the EDS-G500E series forward and lift up to

remove it from the DIN rail.

1. These devices are open­in an enclosure with tool removable cover or door that
suitable for the environment.

2. This equipment is suitable for use in Class I, D ivision 2,

- 6 -

STEP 1—Remove the

aluminum DIN rail attachment
plate from the rear panel
the EDS
then attach the wall mount
plates
shown
right.

STEP 2—Mounting the EDS-G500E series on the
wall requires 4 screws. Use the

,
with wall mount plates attached, as a guide to
mark the correct locations of the 4 screws. The
heads of the screws should be less than 6.0 mm in
diameter, and the shafts sh
mm in diameter, as shown in the figure on at right.

NOTE

Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.

STEP 3—Once the screws are
fixed
four screw heads through the
wide parts o
keyhole
and then slide

G500E
downwards, as indicated
the figure

the right. Tighten
the four screws for
stability.

WARNING

Do not disconnect equipment unless

Substitution of any components may

SEALING PROPERTIES OF MATERIALS USED IN THE RELAY.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa EDS­G500E series on the wall, as shown in the following illustrations:

-G500E series, and

with M3 screws, as

in the figure at the

Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.

to the wall, insert the

f the

-shaped apertures,
the EDS-

at

of

ould be less than 3.5

in

more

EDS-G500E series

1. EXPLOSION HAZARD ­power has been removed or the area is known to be
non-hazardous.

2. EXPLOSION HAZARD ­impair suitability for Class I, Division 2.

3. EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE

- 7 -

WARNING

Do not disconnect modules or wires unless power has been
switched off or the area is known to be non
devices may only be connected to the supply voltage shown on
the type plate.
S

oltage. Thus, they may only be connected to
the supply voltage connections and to the signal contact with the
S
EN60950/ VDE0805.

ATTENTION

This un it is a built
piece of equipment, the equipment enclosing the unit must
comply with fire enclosure regulation IEC 60950/EN60950 (or
similar regu lation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or
wiring your Moxa EtherDevice Switch.
Calculate the maximum possible current in each power wire and
common wire. Observe all electrical codes d
maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could
overheat, causing serious damage to your equipment.

Wiring Requirements

-hazardous. The

afety Extra-Low V

afety Extra-Low Voltages (SELV) in compliance with IEC950/

The devices are designed for operation with a

-in type. When the unit is installed in another

ictating the

Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
NOTE: Do not run signal or communications wiring and power wiring
through the same wire conduit. To avoid interference, wires with
different signal characteristics should be routed separately

• You can use the type of signal transmitted through a wire to
determine wh ich wires should be kept se parate. The rule of thumb is
that wiring that shares similar electrical characteristics can be
bundled together

• You should separate input wiring from output wiring

• We advise that you label the wiring to all devices in the system.

Grounding the Moxa EDS-G500E Series

Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.

- 8 -

ATTENTION

This product is intended to be mounted to a well
mounting surface such as a metal panel.

FAULT:

The two contacts of the 6

rminal
block connector are used to detect
user-configured events. The two wires
attached to the fault contacts form an
open circuit when a user
event is triggered. If a user-configured
event does not occur, the
remains closed.

STEP 1:

DC wires into the V
respectively.

STEP 2:

pulling loose, use a small flat
screwdriver to tighten the wire-clamp
screws on the front of the terminal
block connector.

STEP 3:

block connector prongs into the
termina l block receptor, which is
located on the EDS-G500E’s top panel.

-grounded

Wiring the Relay Contact

The EDS-G500E series has one set of relay output. This relay contact uses
two contacts of the terminal block on the EDS-G500E’s top panel. Refer to
the next section for detailed instructions on how to connect the wires to
the terminal block connector, and how to attach the terminal block
connector to the terminal block receptor. In this section, we illustrate the
meaning of the two contacts used to connect the relay contact.

-pin te

-configured

fault circuit

Wiring the Redundant Power Inputs

The EDS-G500E series has two sets of power inputs—power input 1 and
power input 2. The top and front views of one of the terminal block
connectors are shown here.

Insert the negative/positive

To keep the DC wires from

Insert the plastic terminal

-/V+ terminals,

Wiring the Digital Inputs

The EDS-G500E series has one set of digital input (DI). The DI consists of
two contacts of the 4-pin terminal block connector on the EDS-G500E's
top panel, which are used for the two DC inputs. The top and front views
of one of the terminal block connectors are shown here.

- 9 -

-blade

STEP 1: Insert the negative
(ground)/positive DI wires into the

┴

STEP 2:

pulling loose, use a small flat
screwdriver to tighten the wire-clamp
screws on the front of the terminal
block connector.

STEP 3:

block connector prongs into
termina l block receptor, which is
located on the EDS-G500E’s top panel.

Pin

Description

1

D– (Data -)

2

VCC (+5V)

3

D+ (Data+)

4

GND (Ground)

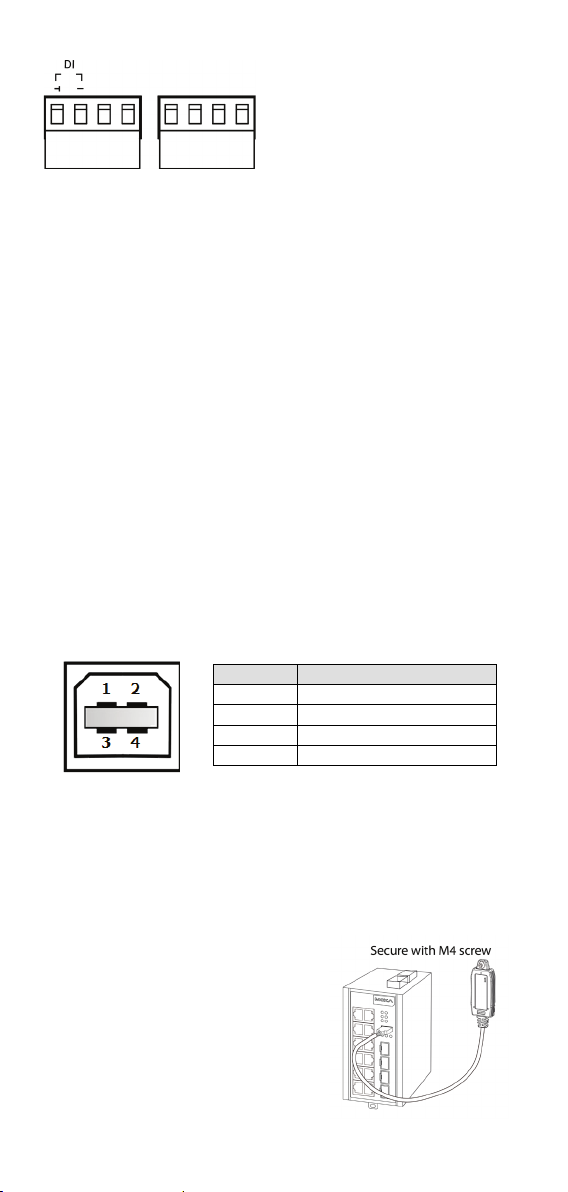

Plug the ABC-02-USB into the USB storage

on the wall with

/I terminals, respectively.

To keep the DI wires from

-blade

Insert the plastic terminal

the

Communication Connections

Each EDS-G500E series switch has 4 types of communication ports:

• 1 USB console port (type B connector)

• 1 USB storage port (type A connector)

• 8 (EDS-G508E/EDS-G512E-4GSFP) or 12 (EDS-G516E-4GSFP)

10/100/1000BaseT(X) Ethernet ports

• 4 100/1000Base SFP slots (EDS-G512E-4GSFP/EDS-G516E-4GSFP)

USB Console Connection

The EDS-G500E series has one USB console port (type B connector),
located on the top panel. Use the USB cable (provided in the product
package) to connect the EDS-G500E's console port to your PC's USB port
and install the USB driver (available in the software CD) on the PC. You
may then use a console terminal program, such as Moxa PComm Terminal
Emulator, to access the EDS-G500E’s console configuration utility.

USB Console Port (Type B Connector) Pinouts

USB Storage Connection

The EDS-G500E series has one USB storage port (type A connector) on
the front panel. Use Moxa ABC-02-USB-T automatic backup configurator
to connect the EDS-G500E's USB storage port for configuration backup,
firmware upgrade or system log file backup.

ABC-02-USB Installation

port of the Moxa EDS-G500E series.
Securing the ABC-02-USB
an M4 screw is suggested.

- 10 -

Pin

Description

1

VCC (+5V)

2

D– (Data -)

3

D+ (Data+)

4

GND (Ground)

Pin

Signal

1

TRD(0)+

2

TRD(0)-

3

TRD(1)+

4

TRD(2)+

5

TRD(2)-

6

TRD(1)-

7

TRD(3)+

8

TRD(3)-

USB Storage Port (Type A Connector) Pinouts

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over
copper wires.

MDI/MDI-X Port Pinouts

100/1000BaseSFP (mini-GBIC) Fiber Port

The Gigabit Ethernet ports on the EDS-G500E series are
100/1000BaseSFP Fiber ports, which require using the 100M or 1G
mini-GBIC fiber transceivers to work properly. Moxa provides completed
transceiver models for different distance requirement.

The concept behind the LC port and cable is quite straightforward.
Suppose that you are connecting devices I and II; contrary to electrical
signals, opt ical signals do not require a circuit in order to transmit data.
Consequently, one of the optical lines is used to transmit data from device
I to device II, and the other optical line is used transmit data from device
II to device I, for full-duplex transmiss ion.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)
port of device II, and the Rx (receive) port of device I to the Tx (transmit)
port of device II. If you make your own cable, we suggest labeling the two
sides of the same line with the same letter (A-to-A and B-to-B, as shown
below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts LC-Port to LC-Port Cable Wiring

- 11 -

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious
damage to your eyes, do not stare directly into the Laser Beam.

NOTE

Do NOT power off the Ethernet switch when loading default
settings.

NOTE

Please refer to the Turbo Ring section in Communication
Redundancy
the setting and usage of Turbo Ring and Turbo Ring V2.

EDS-G500E Series DIP Switches

The default setting for each DIP Switch is OFF. The
following table explains the effect of setting the DIP
Switch to the ON position

Reset Button

There are two functions available on the Reset Button. One is to reset the
Ethernet switch to factory default settings by pressing and holding the
Reset button for 5 seconds. Use a pointed object, such as a straightened
paper clip or toothpick, to depress the Reset button. This will cause the
STATE LED to blink once a second. After depressing the button for 5
continuous seconds, the STATE LED will start to blink rapidly. This
indicates that factory default settings have been loaded and you can
release the reset button.
When the ABC-02-USB is connected to the EDS-G500E Ethernet switch,
the reset button allows quick configuration and backs up log files to the
ABC-02-USB. Press the Reset button on top of the EDS-G500E, the
Ethernet switch will start backing up current system configuration files
and event logs to the ABC-02-USB.

Turbo Ring DIP Switch Settings

EDS-G500E series are plug-and-play managed redundant Ethernet
switches. The proprietary Turbo Ring protocol was developed by Moxa to
provide better network reliability and faster recovery time. Moxa Turbo
Ring’s recovery time is less than 300 ms (Turbo Ring) or 50 ms (Turbo
Ring V2) —compared to a 3- to 5-minute recovery time for commercial
switches—decreasing the possible loss caused by network failures in an
industrial setting.

There are 4 Hardware DIP Switches for Turbo Ring on the top panel of
EDS-G500E series that can help setup the Turbo Ring easily within
seconds. If you do not want to use a hardware DIP switch to setup the
Turbo Ring, you can use a web browser, telnet, or console to disable this
function.

User's Manual for more detail information about

.

- 12 -

“Turbo Ring” DIP Switch Settings

DIP 1

DIP 2

DIP 3

DIP 4

s this

the Ring

settings.

OFF: This EDS

OFF: Do not use

OFF: DIP switch

3 will be

“Turbo Ring V2” DIP Switch Settings

DIP 1

DIP 2

DIP 3

DIP 4

ON: Enables the

enabled.

ON: Enables this

ON: Enables the

ON: Activates

OFF: Enables the

enabled.

OFF: This EDS

OFF: Do not use
this EDS as a ring

OFF: DIP switch

3 will be

NOTE

You must enable the Turbo Ring function first before using the
DIP switch to activate the Master and Coupler functions.

NOTE

If you do not enable any of the EDS-G500E series switches to be
the Ring Master, the Turbo Ring protocol will automatically
choose the EDS
range to be the Ring Master. If you accidentally enable more than
one EDS

E

series

negotiate to determine which one will be

the Ring Master.

LED

Color

Status

Description

diagnosis test

on boot-up and is ready to run.

1. The switch is under reset progress (1

switch (1 time/2s).

Reserved for
future use.

default “Ring
Couplin g
(backup)” port
when DIP switch
3 is already

default “Ring
Coupling
(primary)” port
when DIP switch
3 is already

ON: Enable
EDS as
Master.

will not be the
Ring Master.

EDS as the Ring
Master.

will not be the
Ring Master.

ON: Enables the
default “Ring
Coupling” ports.

this EDS as the
ring coupler.

default “Ring
Coupling” port.

coupler.

ON: Activates
DIP switch 2 and
3 to configure
“Turbo Ring”

1, 2, and
disabled.

DIP switch 1, 2,
and 3 to
configure “Turbo
Ring V2”
settings.

1, 2, and
disabled.

-G500E series with the smallest MAC address

-G500E series to be the Ring Master, these EDS-G500

switches will auto-

LED Indicators

The front panel of the Moxa EDS-G500E series contains several LED
indicators. The function of each LED is described in the following table:

On

STATE Green

Blinkin g

The system passed the self-

time/s).

2. Detect ABC-02-USB connect to the

- 13 -

LED

Color

Status

Description

The system failed self-diagnosis on

(+ Green Coupler lit on: SW FAIL)

1. The signal contact is open.

The port being disabled because of the

5. Invalid Ring port connection.

Power is being supplied to the main
module’s power input PWR1.

Power is not being supplied to the main
module’s power input PWR1.

Power is being supplied to the main
module’s power input PWR2.

Power is not being supplied to the main
module’s power input PWR2.

1. The switch is set as the Master of the

blinking).

Chain, after the

port is down.

1. The switch is not the Master of this

Turbo Chain.

1. The switch’s coupling function is

blinking)

1. Turbo Chain is down.

port is down.

1. This switch has disabled the coupling

Turbo Chain.

Red On

FAULT Red On

boot-up.

• RAM Test Fail / System Info. Read Fail
/ Switch Init ial Fa il / PTP PHY Error.
(+ Green MSTR lit on : HW FAIL)

• FW Checksum Fail / Uncompress Fail.

2. ABC Loading/Saving Fail.

3.
ingress multicast and broadcast
packets exceed the ingress rate limit.

4. Incorrect loop connection in a single
switch.

PWR1 Amber

PWR2 Amber

MSTR/

HEAD

Green

On

Off

On

Off

On

Blinkin g

Off

On

Turbo Ring, or as the Head of the
Turbo Chain.

2. POST H.W. Fail (+Stat on and Fault

1. The switch has become the Ring
Master of the Turbo Ring.

2. The Head of the Turbo
Turbo Ring or the Turbo Chain is
down.

3. The switch is set as Turbo Chain’s
Member and the corresponding chain

Turbo Ring.

2. This switch is set as a Member of the

enabled to form a back-up path.

2. When it’s set as the Tail of the Turbo
Chain.

3. POST S.W. Fail (+Stat on and Fault

CPLR/

TAIL

Green

Blinkin g

Off

2. The switch is set as Turbo Chain’s
Member and the corresponding chain

function.

2. This switch is set as a Member of the

- 14 -

LED

Color

Status

Description

FAULT +

+ CPLR/TAIL

Rotate

Sequentially

+ CPLR/TAIL

On

TP port’s 10 or 100 Mbps link is active.

Mbps.

Off

TP port’s 10/100 Mbps link is inactive.

1000M

On

TP port’s 1000 Mbps link is active.

Blinkin g

Data is being transmitted at 1000 Mbps.

Off

TP port’s 1000 Mbps link is inactive.

On

SFP port’s 100 Mbps link is active.

Blinkin g

Data is being transmitted at 100 Mbps.

Off

SFP port’s 100 Mbps link is inactive.

1000M

On

SFP port’s 1000 Mbps link is active.

Blinkin g

Data is being transmitted at 1000 Mbps.

Off

SFP port’s 1000 Mbps link is inactive.

Technology

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3z for 1000BaseX

Protocols

IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3,
DHCP Server/Client, DHCP Option 66/67/82, BootP,

V2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB,

Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

Interface

(EDS-G516E-4GSFP) 10/100/1000BaseT(X)

Fiber Ports

4-port 100/1000BaseSFP slot
(EDS-G512E-4GSFP/EDS-G516-4GSFP only)

USB Ports

USB console port (type B connector)
USB storage port (type A connector)

Button

Reset button

LED Indicators

PWR1, PWR2, FAULT, STATE, 10/100M, 100/1000M,
MSTR/HEAD, CPLR/TAIL

@ 24 VDC

Digital Input

1 input with the same ground, but electrically

+13 to +30V for state “1”

MSTR/HEAD

STATE +
FAULT +

MSTR/HEAD

10M/
100M

Amber

(TP)

Green

(TP)

100M

Amber

(SFP)

Green

(SFP)

Specifications

Blinkin g

Blinkin g

Blinkin g

IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)

TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS,
Telnet, SSH, Syslog, EtherNet/IP, PROFINET,
Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP

ABC-02-USB is importing/exportin g files.

Switch is being discovered/located by
MXview (2 times/s).

Data is being transmitted at 10 or 100

Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB

RJ45 Ports 8 (EDS-G508E/EDS-G512E-4GSFP) or 12

Alarm Contact 1 relay output with current carrying capacity of 1 A

isolated from the electronics.

- 15 -

-30 to +3V for state “0”
Max. input current: 8 mA

Power

Input Voltage

12/24/48/-48 VDC, redundant dual inputs

Input Current

EDS-G516E: 0.46 A @ 24 VDC

EDS-G508E: 0.33 A @ 24 VDC

Connection

2 removable 4-contact terminal blocks

Protection

Reverse Polarity
Protection

Present

Physical Characteristics

Housing

Metal, IP30 protection

Dimension

79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

Installation

DIN-rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating
Temperature

-10 to 60°C (14 to 140°F) for standard models

-40 to 75°C (-40 to 167°F) for -T models

Storage
Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative
Humidity

5 to 95% (non-condensing)
guaranteed to function properly at higher altitude.

Regulatory Approvals

Safety

UL 508

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS)

5 (Surge)

EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Shock

IEC 60068-2-27

Free Fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Warranty

5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:
Toll
Tel:
Fax:

Moxa China (Shanghai office):
Toll
Tel:
Fax:

Moxa Europe
Tel:
Fax:

Moxa Asia
Tel:
Fax:

EDS-G512E: 0.4 A @ 24 VDC

Overload Current

Altitude Up to 2000m

Present

Note: Please contact Moxa if you require products

Level 3,
EN 61000-4-4 (EFT) Level 4, EN 61000-4­Level 4,

-free: 1-888-669-2872
1-714-528-6777

1-714-528-6778

[phone]

:

[phone]

-free: 800-820-5036
[phone]

[phone]

[phone]

[phone]

- 16 -

-Pacific:
