Moxa MGate 5101, MGate 5102, MGate 5103, MGate 5105, MGate 5109 Security Hardening Guide

...

Released on March 26, 2021

About Moxa

Moxa is a leading provider of edge connectivity, industrial computing, and network infrastructure solutions for enabling connectivity for the Industrial Internet of Things (IIoT). With over 30 years of industry experience, Moxa has connected more than 57 m customers in more than 70 countries. Moxa delivers lasting business value by empowering industries with reliable networks and sincere service. Information about Moxa’s solutions is available at www.moxa.com.

How to Contact Moxa

Tel : +886-2-8919-1230

The Security Hardening Guide for the MGate 5000 Series

Moxa Technical Support Team

support@moxa.com

Contents

1. Introduction .................................................................................... 2

2. General System Information ........................................................... 3

2.1. Basic Information About the Device ............................................................ 3

2.2. Deployment of the Device ......................................................................... 4

3. Configuration and Hardening Information ...................................... 4

3.1. TCP/UDP Ports and Recommended Services ................................................. 5

3.2. HTTPS and SSL Certificates ....................................................................... 8

3.3. Account Management ..............................................................................11

3.4. Accessible IP List .....................................................................................14

3.5. Logging and Auditing ...............................................................................15

3.6. DoS Defense ..........................................................................................17

4. Patching/Upgrades ....................................................................... 18

4.1. Patch Management Plan ...........................................................................18

4.2. Firmware Upgrades .................................................................................18

5. Security Information and Vulnerability Feedback ......................... 19

illion devices worldwide and has a distribution and service network that reaches

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 2 of 19

1. Introduction

This document provides guidelines on how to configure and secure the MGate 5000 Series.

The recommended steps in this document should be considered as best practices for security

in most applications. It is highly recommended that you review and test the configurations

thoroughly before implementing them in your production system in order to ensure that your

application is not negatively impacted.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 3 of 19

2. General System InformationBasic Information About the

Device

Model Function

MGate 5101 Series PROFIBUS-to-Modbus TCP Gateway Linux Version v2.2

MGate 5102 Series PROFIBUS-to-PROFINET Gateway Linux Version v2.3

MGate 5103 Series

MGate 5105 Series

MGate 5109 Series

MGate 5111 Series

MGate 5114 Series

MGate 5118 Series

MGate W5108/W5208

Series

Modbus RTU/ASCII/EtherNet/IP-to-PROFINET

Gateway

Modbus RTU/ASCII/TCP-to-EtherNet/IP

Gateway

Modbus RTU/ASCII/TCP-to-DNP3 serial/TCP

Gateway

Modbus/PROFINET/EtherNet/IP-to-PROFIBUS

Gateway

Modbus RTU/ASCII/TCP/IEC101-to-IEC104

Gateway

CAN-J1939-to-

Modbus/PROFINET/EtherNet/IP Gateway

IEEE 802.11 a/b/g/n wireless Modbus/DNP3

Gateway

Operating

System

Linux Version v2.2

Linux Version v4.3

Linux Version v2.3

Linux Version v1.3

Linux Version v2.2

Linux Version v2.4

Firmware

Version

The MGate 5000 Series is a protocol gateway specifically designed to allow industrial

devices to be directly accessed from a network. Thus, legacy fieldbus devices can be

transformed into different protocols, which can be monitored and controlled from any

network location or even the Internet.

To harden the security of this proprietary operating system, the open source HTTPS

library, openSSL v1.1.1b, is also included and periodically reviewed for cybersecurity

enhancement.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 4 of 19

2.2. Deployment of the Device

You should deploy the MGate 5000 Series

behind a secure firewall network that has

sufficient security features in place to

ensure that networks are safe from

internal and external threats.

Make sure that the physical protection of

the MGate devices and/or the system

meets the security needs of your

application. Depending on the

environment and the threat situation, the

form of protection can vary significantly.

3. Configuration and Hardening Information

For security reasons, account and password protection is enabled by default, so you must

provide the correct account and password to unlock the device before entering the web

console of the gateway.

The default account and password are admin and moxa (both in lowercase letters),

respectively. Once you are successfully logged in, a pop-up notification will remind you to

change the password to ensure a higher level of security.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 5 of 19

3.1. TCP/UDP Ports and Recommended Services

Please refer to the table below for all the ports, protocols, and services that are used to

communicate between the MGate 5000 Series and other devices.

Service Name Option

DSCI

(Moxa Command)

DNS client Enable/Disable Disable UDP 53

SNMP agent Enable/Disable Enable UDP 161 SNMP handling routine

HTTP server Enable/Disable Enable TCP 80 Web console

HTTPS server Enable/Disable Enable TCP 443 Secured web console

Telnet server Enable/Disable Disable TCP 23 Telnet console

DHCP client Enable/Disable Disable UDP 68

Syslog client Enable/Disable Disable UDP 514

Email client Enable/Disable Disable TCP 25

SNMP trap client Enable/Disable Disable UDP 162

NTP client Enable/Disable Disable UDP 123

Modbus TCP

client/server

EtherNet/IP Enable/Disable Enable

PROFINET Enable/Disable Enable UDP 34963

DNP3 Enable/Disable Enable

IEC-104 Enable/Disable Enable TCP 2404

Enable/Disable Enable

Enable/Disable Enable TCP

Default

Setting

Type

TCP 4900

UDP 4800

TCP,

UDP

TCP,

UDP

Port

Number

502,

7502

2222,

44818

20000

Description

For Moxa utility communication

Processing DNS and WINS

(Client) data

The DHCP client needs to acquire

the system IP address from the

server

Sending the system logs to the

remote syslog server

Sending system/config event

notifications

Sending system/config event

notifications

Network time protocol to

synchronize system time from

the server

502 for Modbus communication;

7502 for priority Modbus

communication

2222 for EtherNet/IP implicit

messaging

44818 for EtherNet/IP explicit

messaging

34963 for PROFINET protocol

communication

20000 for DNP3 protocol

communication

2404 for IEC-104 protocol

communication

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 6 of 19

For security reasons, you should consider disabling unused services. After initial setup,

use services with stronger security for data communication. Refer to the table below for

the suggested settings.

Service Name

DSCI

(Moxa Command)

DNS client Disable UDP 53 Disable this service as it is not commonly used

SNMP agent Disable UDP 161

HTTP server Disable TCP 80

HTTPS server Enable TCP 443

Telnet server Disable TCP 23 Disable this service as it is not commonly used

DHCP client Disable UDP 68 Assign an IP address manually for the device

Syslog client Enable UDP 514

Email client Enable TCP 25

SNMP trap client Enable UDP 162 A service for sending important system events

NTP client Disable UDP 123 Disable this service as it is not commonly used

Modbus TCP

client/server

EtherNet/IP Enable TCP,

PROFINET Enable UDP 34963 34963 for PROFINET protocol communication

DNP3 Enable TCP,

IEC-104 Enable TCP 2404 2404 for IEC-104 protocol communication

Suggested

Setting

Disable

Enable TCP 502,

Port

Type

Number

TCP 4900

UDP 4800

7502

2222,

UDP

44818

20000 20000 for DNP3 protocol communication

UDP

Security Remark

Disable this service as it is not commonly used

Managing the MGate via HTTPS console will be

more secure

Disable HTTP to prevent plain text

transmission

Encrypted data channel with trusted certificate

for MGate configuration

A service for sending important system events

for a diagnosis of the MGate’s status

A service for sending important system events

for a diagnosis of the MGate’s status

Make sure you add your Modbus devices’ IP

addresses to the “Accessible IP list”

2222 for EtherNet/IP implicit messaging;

44818 for EtherNet/IP explicit messaging

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 7 of 19

• For console services, we recommend the following:

HTTP Disable

HTTPS Enable

Telnet Disable

Moxa Command Disable

• To enable or disable these services, log in to the HTTP/HTTPS console and select

System Management

 Misc. Settings  Console Settings.

•

To disable the SNMP agent service, log in to the HTTP/HTTPS console and select

System Management

 SNMP Agent, then select Disable for SNMP.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 8 of 19

Note:

For

the MGate

• To disable the NTP service, log in to the HTTP/HTTPS console, select Basic

Settings, and keep the Time server setting empty. This will disable the NTP

service.

each instruction above, click the Submit button to save your changes, then restart

device so the new settings will take effect.

3.2. HTTPS and SSL Certificates

HTTPS is an encrypted communication channel. As TLS v1.1 or lower has severe

vulnerabilities that can easily be hacked, MGate devices use TLS v1.2 for HTTPS to

ensure data transmissions are secured. Make sure your browser has TLS v1.2 enabled.

In order to use HTTPS console without a certificate warning appearing, you need to

import a trusted certificate issued by a third-party certificate authority.

• Log in to the HTTP/HTTPS console and select System Management  Certificate.

You can generate an up-to-date valid certificate by importing a third-party trusted

SSL certificate or generating the “MGate self-signed” certificate.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 9 of 19

Note:

The maximum supported key length

Behavior of the SSL Certificate on an MGate Device

− MGate devices can auto-generate a self-signed SSL certificate. It is

recommended that you import SSL certificates that are either certified by a

trusted third-party Certificate Authority (CA) or by an organization's CA.

− The length of the MGate device’s self-signed private keys is 1,024 bits, which

should be compatible with most applications. Some applications may need a

longer key, such as 2,048 bits, which would require importing a third-party

certificate. Please note that longer keys will mean browsing the web console will

be slower due to the increased complexity of encrypting and decrypting

communicated data.

MGate Self-signed Certificate

If a certificate has expired, you can regenerate the MGate self-signed certificate with

the following steps.

− Step 1. Delete the current SSL certificate issued by the MGate device.

− Step 2. Enable the NTP server and set up the time zone and local time.

− Step 3. After restarting the device, the MGate self-signed certificate will be

regenerated with a new expiration date.

Importing a Third-party Trusted SSL Certificate

Importing the third-party trusted SSL certificate can improve security. To generate

the SSL certificate through a third party, follow these steps:

− Step 1. Create a certification authority (Root CA), such as Microsoft AD

Certificate Service (https://mizitechinfo.wordpress.com/2014/07/19/step-by-

step-installing-certificate-authority-on-windows-server-2012-r2/)

− Step 2. Find a tool to issue a certificate signing request (CSR) file. You can get

one from a third-party CA company such as DigiCert

(https://www.digicert.com/easy-csr/openssl.htm).

− Step 3. Submit the CSR file to a public certification authority to get a signed

certificate.

− Step 4. Import the certificate to the MGate device. Please note that MGate

devices only accept certificates using a “.pem” format.

for MGate devices is 2,048 bits.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 10 of 19

Here are some well-known third-party CA (Certificate Authority) companies for your

reference (https://en.wikipedia.org/wiki/Certificate_authority):

− IdenTrust (https://www.identrust.com/)

− DigiCert (https://www.digicert.com/)

− Comodo Cybersecurity (https://www.comodo.com/)

− GoDaddy (https://www.godaddy.com/)

− Verisign (https://www.verisign.com/)

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 11 of 19

Note:

We suggest you

level” account instead of

the new

“admin” account should be monitored for security

3.3. Account Management

• The MGate 5000 Series provides two different user levels, admin and user, with a

maximum of 16 accounts. With an administrator account, you can access and

modify all settings through the web console. With the user account, you can only

view settings.

The default administrator account is admin, with the default password moxa. To

•

manage accounts, log in to the web console and select System Management

Misc. Settings

account, double-click the name of the account. You can change the password on the

page that opens.

• To add a new account, log in to the HTTP/HTTPS console and select System

Management

then fill in the Account name, User level, New password, and Retype

password to generate a new account.

 Account Management. To change the password of an existing

 Misc. Settings  Account Management. Click the Add button,



ing the default “admin” account, as it is commonly used by embedded systems. Once

administrator level account has been created, it is suggested that the original

manage your device with another “administrator

reasons to prevent brute-force attacks.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 12 of 19

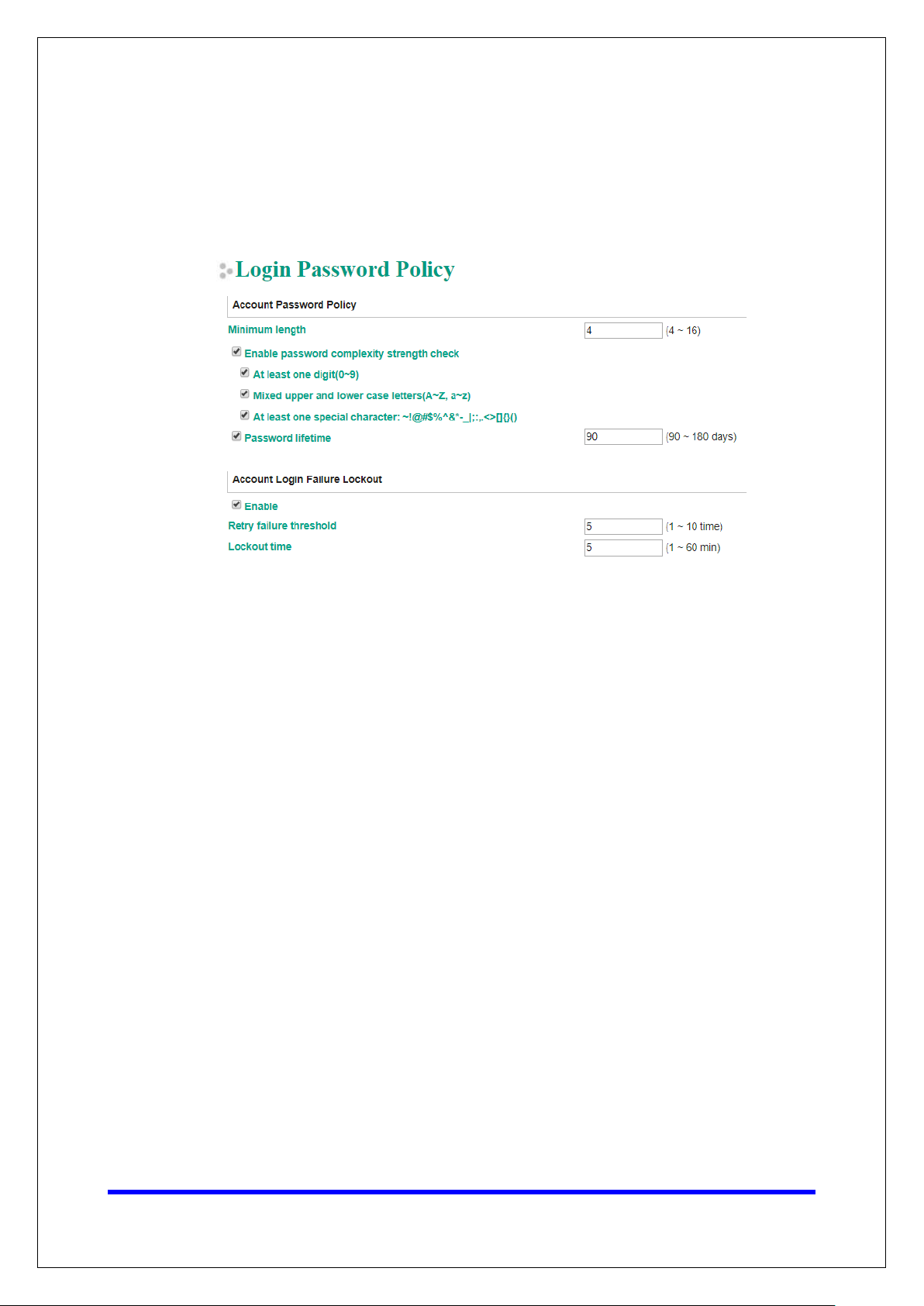

• To improve security, the login password policy and account login failure lockout can

be configured. To configure them, log in to the HTTP/HTTPS console and select

System Management  Misc. Settings  Login Password Policy.

You should adjust the password policy to require more complex passwords. For

example, set the Minimum length to 16, enable all password complexity strength

checks, and enable the Password lifetime options. Also, to avoid brute-force

attack, it’s suggested that you enable the Account login failure lockout feature.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 13 of 19

• For some system security requirements, a warning message may need to be

displayed to all users attempting to log in to the device. To add a login message, log

in to the HTTP/HTTPS console and select System Management  Misc. Settings

 Notification Message, and enter a Login Message to use.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 14 of 19

3.4. Accessible IP List

• The MGate 5000 Series can limit access to specific host IP addresses to prevent

unauthorized access to the gateway. If a host’s IP address is in the accessible IP list,

then the host will be allowed to access the MGate 5000 Series. To configure this, log

in to the HTTP/HTTPS console and select System Management

List. The different restrictions are listed in the table below (the checkbox Apply

additional restrictions can only be activated if Activate the accessible IP list is

activated).

 Accessible IP

Activate the

accessible IP list

v All protocol

v v All protocol

* HTTP, HTTPS, TELNET, SSL, SNMP, SMTP, DNS, NTP, DSU

Apply additional

restrictions

IPs on the list

(Active checked)

communication and

services* are allowed.

communication and

services* are allowed.

IPs NOT on the list

(Active NOT checked)

Protocol communication is

not allowed, but services*

are still allowed.

All services* are not

allowed.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 15 of 19

Ensure

Accessible

• You may add a specific address or range of addresses by using a combination of an

IP address and a netmask as follows:

− To allow access to a specific IP address: Enter the IP address in the

corresponding field, then enter 255.255.255.255 for the netmask.

− To allow access to hosts on a specific subnet: For both the IP address and

netmask, use 0 for the last digit (e.g., “192.168.1.0” and “255.255.255.0”).

− To allow access to all IP addresses: Make sure that Enable the checkbox for

the accessible IP list is not checked.

Additional configuration examples are shown in the following table:

Desired IP Range IP Address Field Netmask Field

Any host Disable Enable

192.168.1.120 192.168.1.120 255.255.255.255

192.168.1.1 to 192.168.1.254 192.168.1.0 255.255.255.0

192.168.1.1 to 192.168.255.254 192.168.0.0 255.255.0.0

192.168.1.1 to 192.168.1.126 192.168.1.0 255.255.255.128

192.168.1.129 to 192.168.1.254 192.168.1.128 255.255.255.128

Warning

that the IP address of the PC you are using to access the web console is in the

IP List.

3.5. Logging and Auditing

• These are the events that will be recorded by the MGate 5000 Series. The SD card

access failure event and protocol events vary for the different MGate 5000 models.

Event Group Summary

System System cold start, system warm start, SD card access failure

Network DHCP/BOOTP gets IP/renew, NTP connect failed, IP conflict, Network link

down

Configuration Login failed, IP changed, Password changed, Firmware upgraded, SSL

Certificate imported, Configuration imported/exported, Configuration

changed, Clear event logged

Protocol Protocol communication logs

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 16 of 19

• To configure this setting, log in to the HTTP/HTTPS console and select System

Management

on the MGate 5000 device and/or Syslog for keeping records on a server. You

should enable system log settings to record all important system events to monitor

device status and check for security issues.

 System Log Settings. Then, enable the Local Log for recording

To view events in the system log, log in to the HTTP/HTTPS console and select

•

System Monitoring

 System Log.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 17 of 19

3.6. DoS Defense

You can enable and configure a number of features to enable DoS Defense in order to

protect against denial-of-service (DoS) attacks.

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 18 of 19

4. Patching/Upgrades

4.1. Patch Management Plan

With regard to patch management, Moxa in general releases version enhancement with

thorough release notes annually.

4.2. Firmware Upgrades

The process for upgrading firmware is as follows:

• Download the latest firmware for your MGate device from the Moxa website:

− Firmware for the MGate 5101 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5101-pbm-mn-series#resources

− Firmware for the MGate 5102 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/profinet-gateways/mgate-5102-pbm-pn-series

− Firmware for the MGate 5103 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5103-series#resources

− Firmware for the MGate 5105 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5105-mb-eip-series#resources

− Firmware for the MGate 5109 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5109-series#resources

− Firmware for the MGate 5111 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5111-series#resources

− Firmware for the MGate 5114 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5114-series#resources

− Firmware for the MGate 5118 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-5118-series#resources

− Firmware for the MGate W5108/W5208 Series:

https://www.moxa.com/en/products/industrial-edge-connectivity/protocol-

gateways/modbus-tcp-gateways/mgate-w5108-w5208-series#resources

Moxa Tech Note

The Security Hardening Guide for the MGate

5000 Series

Page 19 of 19

• Log in to the HTTP/HTTPS console and select System Management 

Maintenance

proper firmware and click Submit to upgrade the firmware.

• If you want to upgrade the firmware for multiple units, then download the utility

Device Search Utility (DSU) or MXconfig for a GUI interface, or the Moxa CLI

Configuration Tool for a CLI interface.

 Firmware Upgrade. Click the Choose File button to select the

5. Security Information and Vulnerability Feedback

As the adoption of the Industrial IoT (IIoT) continues to grow rapidly, security has become

one of our top priorities. The Moxa Cyber Security Response Team (CSRT) takes a proactive

approach to protect our products from security vulnerabilities and help our customers better

manage security risks.

You can find the latest Moxa security information

here:https://www.moxa.com/en/support/product-support/security-advisory

Moxa MGate 5101, MGate 5102, MGate 5103, MGate 5105, MGate 5109 Security Hardening Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

2. General System InformationBasic Information About the

3. Configuration and Hardening Information

3.1. TCP/UDP Ports and Recommended Services

3.2. HTTPS and SSL Certificates

3.3. Account Management

3.4. Accessible IP List

3.5. Logging and Auditing

3.6. DoS Defense

4. Patching/Upgrades

4.1. Patch Management Plan

4.2. Firmware Upgrades

5. Security Information and Vulnerability Feedback
