NPort 5000 Series User’s Manual

NPort 5000/5000A/IA5000/IA5000A Series

First Edition, August 2015

www.moxa.com/product

NPort 5000 Series User’s Manual

Moxa Americas

Toll Tel: Fax:

Moxa China (Shanghai office)

Toll Tel: Fax:

Moxa Europe

Tel: Fax:

Moxa Asia

Tel: Fax:

Moxa India

Tel: Fax:

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa.

Moxa provides this document as is, without warranty of any kind , e it her expres sed or i mplie d, inclu ding, but n ot lim ited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

-free: 1-888-669-2872 +1-714-528-6777

+1-714-528-6778

+49-89-3 70 03 99-0

+49-89-3 70 03 99-99

+91-80-4172-9088

+91-80-4132-1045

-free: 800-820-5036 +86-21-5258-9955

+86-21-5258-5505

-Pacific

+886-2-8919-1230

+886-2-8919-1231

Table of Contents

1. About This Manual ............................................................................................................................. 1-1

2. Getting Started ................................................................................................................................. 2-1

Installing Your NPort Device Server ....................................................................................................... 2-2

Wiring Requirements ................................................................................................................... 2-2

Connecting the Power .................................................................................................................. 2-2

Grounding the NPort Device Server ............................................................................................... 2-2

Connecting to the Network ........................................................................................................... 2-3

Connecting to a Serial Device ....................................................................................................... 2-3

LED Indicators ............................................................................................................................ 2-4

RS-485 Port’s Adjustable Pull High/Low Resistor .............................................................................. 2-6

Configuration by Windo ws Ut il ity .......................................................................................................... 2-7

Installing NPort Administrator ....................................................................................................... 2-7

Searching for Device Servers over a LAN ........................................................................................ 2-7

Adjusting General Settings ........................................................................................................... 2-8

Configuring Device Port Operation Mode ......................................................................................... 2-9

Configuring Serial Communication Parameters .............................................................................. 2-11

Mapping COM Port to Device (only required when operation mode is set to Real COM or RFC2217)...... 2-12

Configuration by Web Console ............................................................................................................ 2-15

Opening Your Browser ............................................................................................................... 2-15

Quick Setup (only for the NPort 5000A & NPort IA5000A Series web console) ................................... 2-18

Export/Import (only for the NPort 5000A & NPort IA5000A Series web console) ................................ 2-20

Basic Settings ........................................................................................................................... 2-21

Network Settings ....................................................................................................................... 2-23

Serial Settings .......................................................................................................................... 2-26

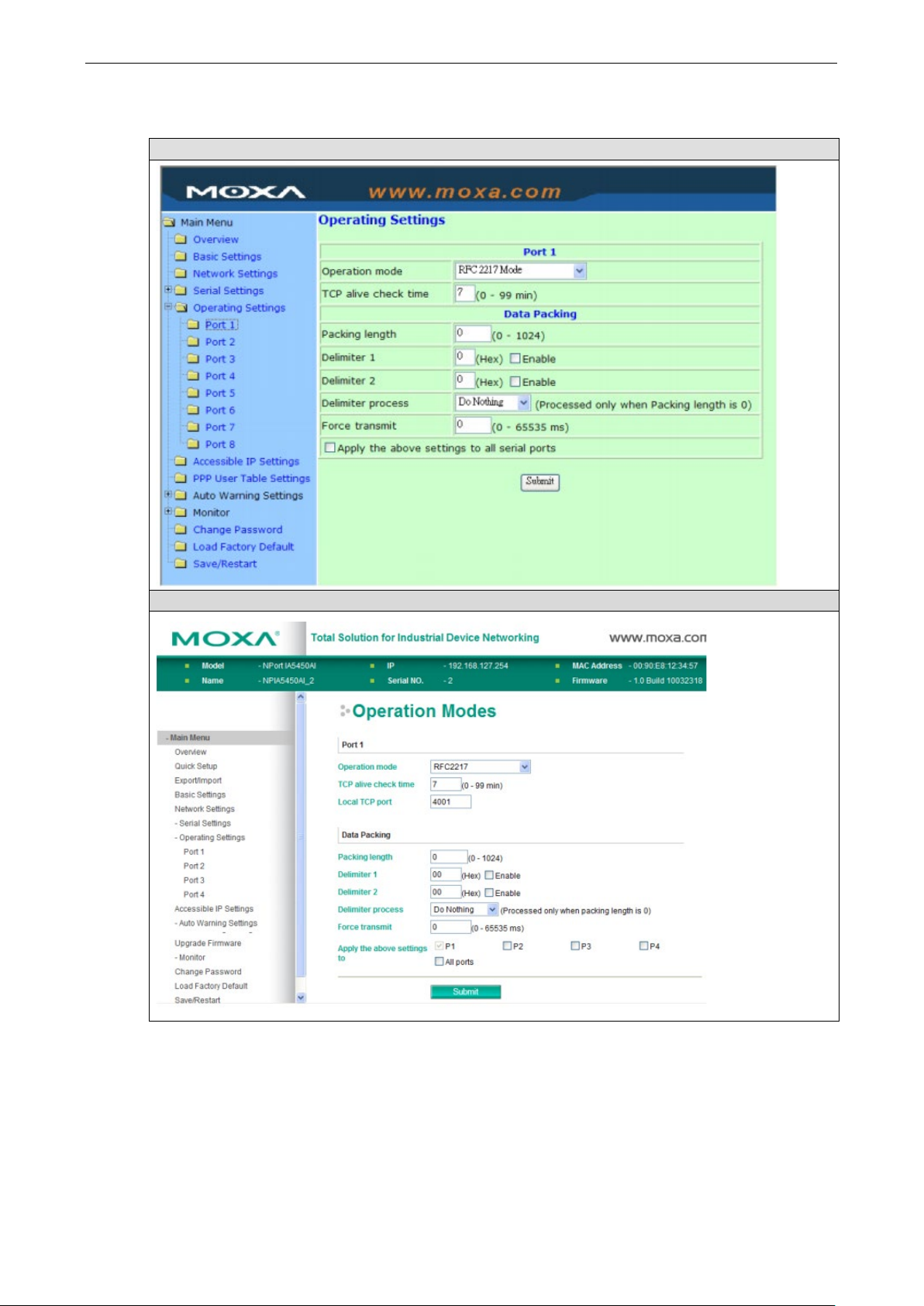

Operating Settings .................................................................................................................... 2-28

Accessible IP Settings ................................................................................................................ 2-31

Auto Warning Settings ............................................................................................................... 2-32

Monitor .................................................................................................................................... 2-37

Change Password ...................................................................................................................... 2-39

Load Factory Default .................................................................................................................. 2-40

Configuration by Telnet Console ......................................................................................................... 2-40

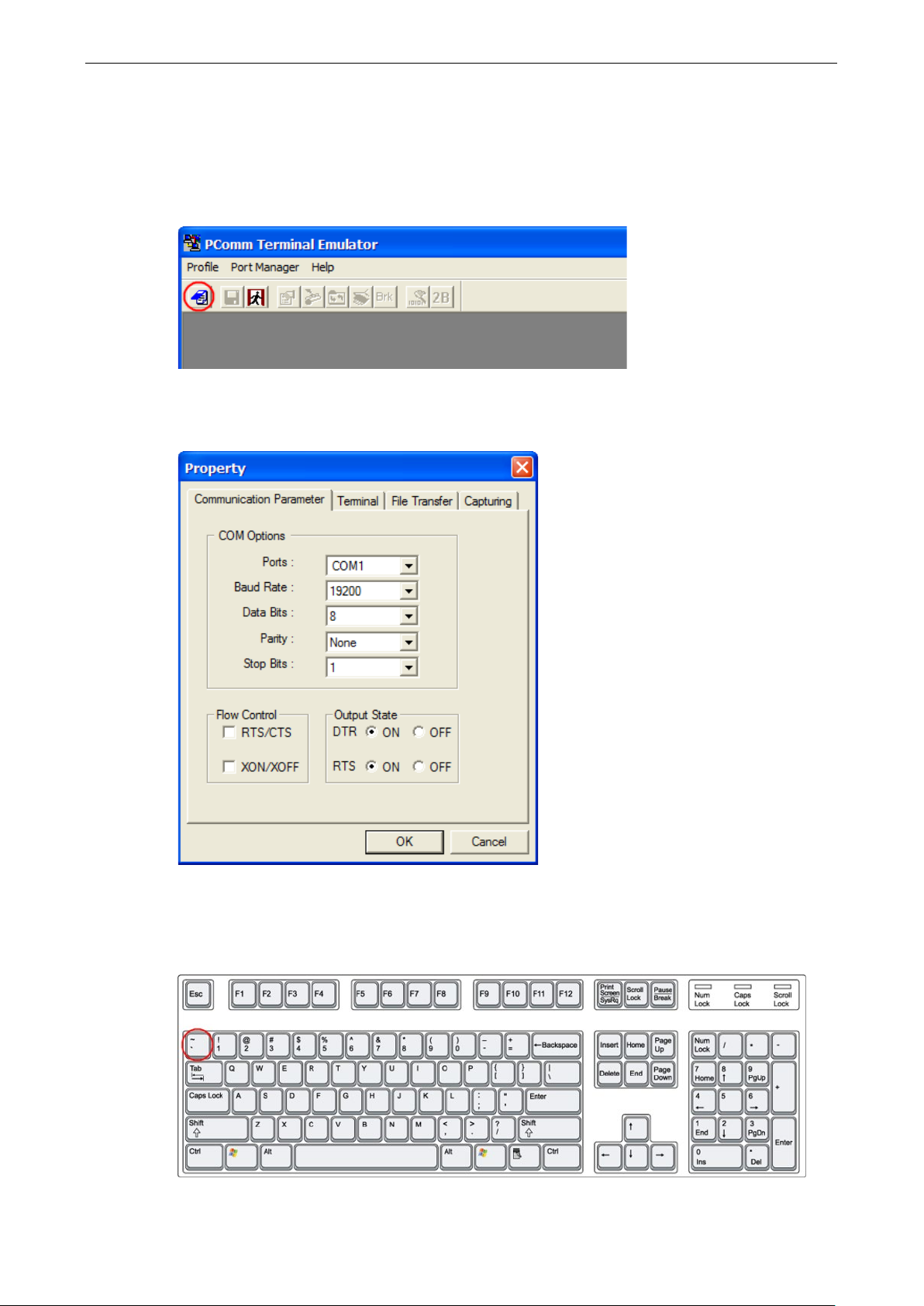

Configuration by Serial Console .......................................................................................................... 2-43

Serial Console (19200, n, 8, 1) ................................................................................................... 2-43

Testing Your NPort ............................................................................................................................ 2-46

3. Choosing the Proper Operation Mod e ................................................................................................ 3-1

Overview ........................................................................................................................................... 3-2

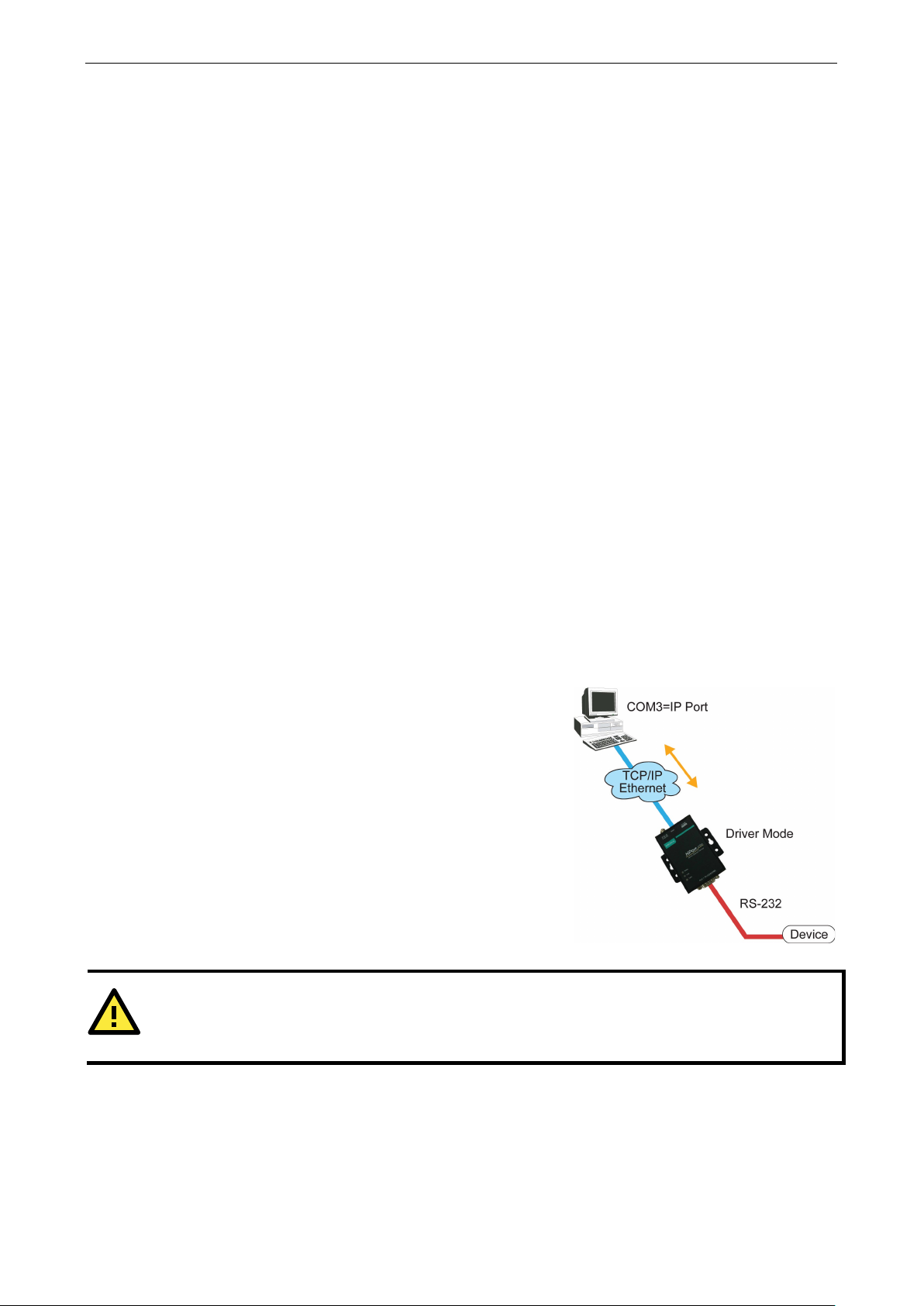

Real COM Mode .................................................................................................................................. 3-2

RFC2217 Mode ................................................................................................................................... 3-3

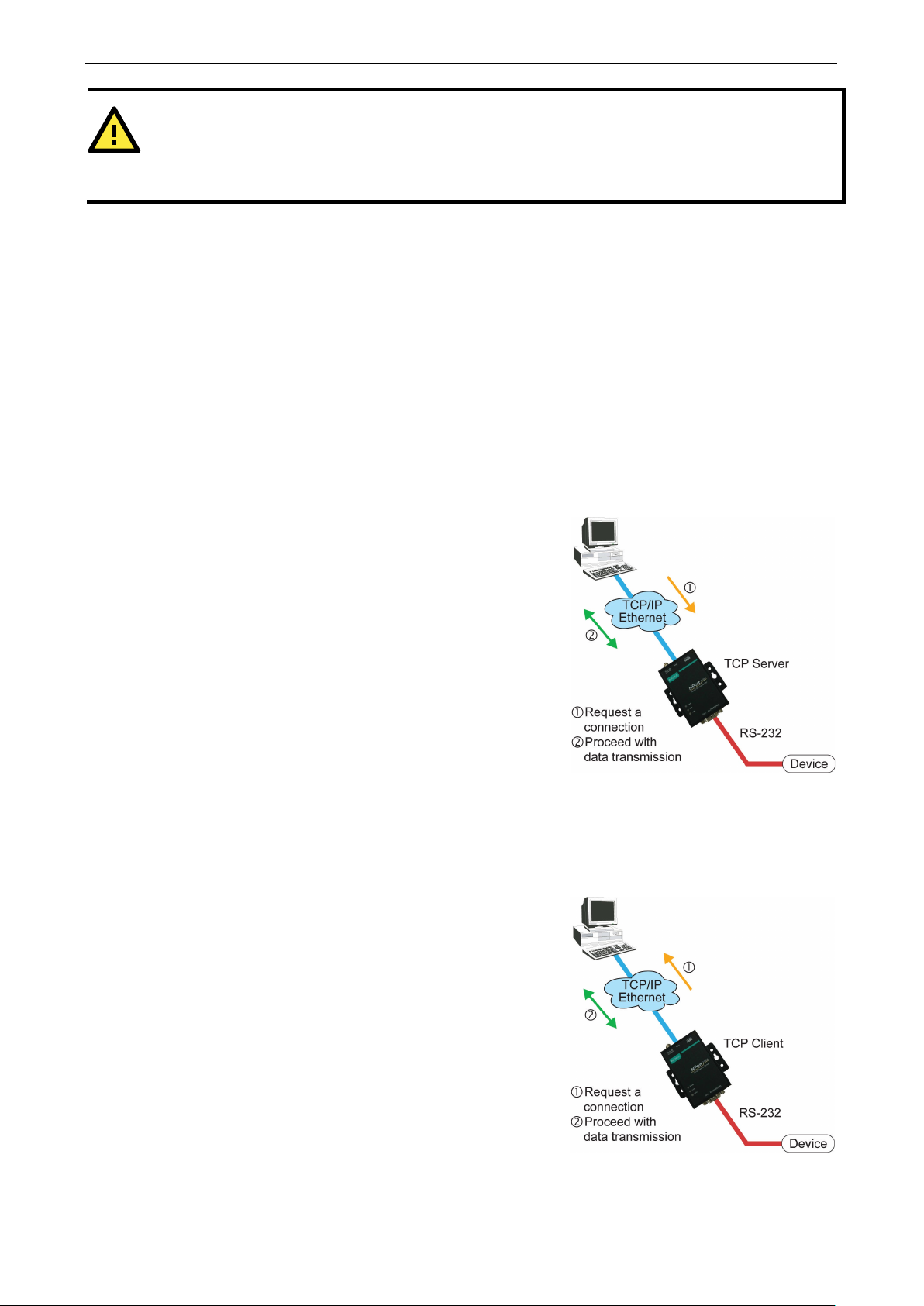

TCP Server Mode ................................................................................................................................ 3-3

TCP Client Mode ................................................................................................................................. 3-3

UDP Mode .......................................................................................................................................... 3-4

Pair Connection Mode .......................................................................................................................... 3-4

Ethernet Modem Mode ......................................................................................................................... 3-4

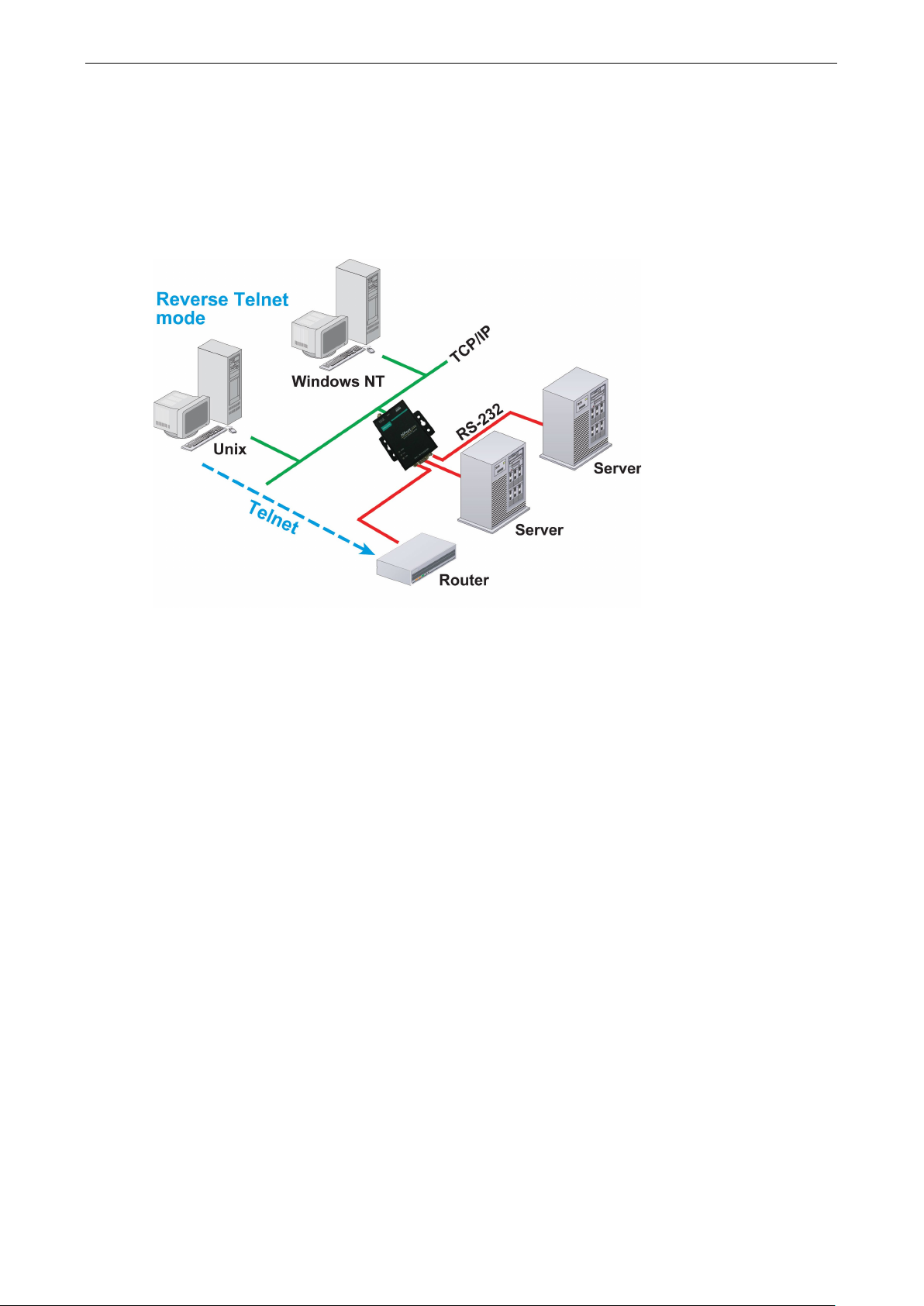

Reverse Telnet Mode ........................................................................................................................... 3-5

Disabled Mode .................................................................................................................................... 3-5

4. Advanced Operation Mode Setting s ................................................................................................... 4-1

Overview ........................................................................................................................................... 4-2

List of Parameters ....................................................................................................................... 4-2

When to Make Adjustments .......................................................................................................... 4-2

Using Pair Connection Modes ................................................................................................................ 4-3

Parameter Summary ........................................................................................................................... 4-3

Connection Management Parame te rs ............................................................................................. 4-3

Data Packing Parameters ............................................................................................................. 4-4

Other Parameters ........................................................................................................................ 4-6

Web Console ...................................................................................................................................... 4-8

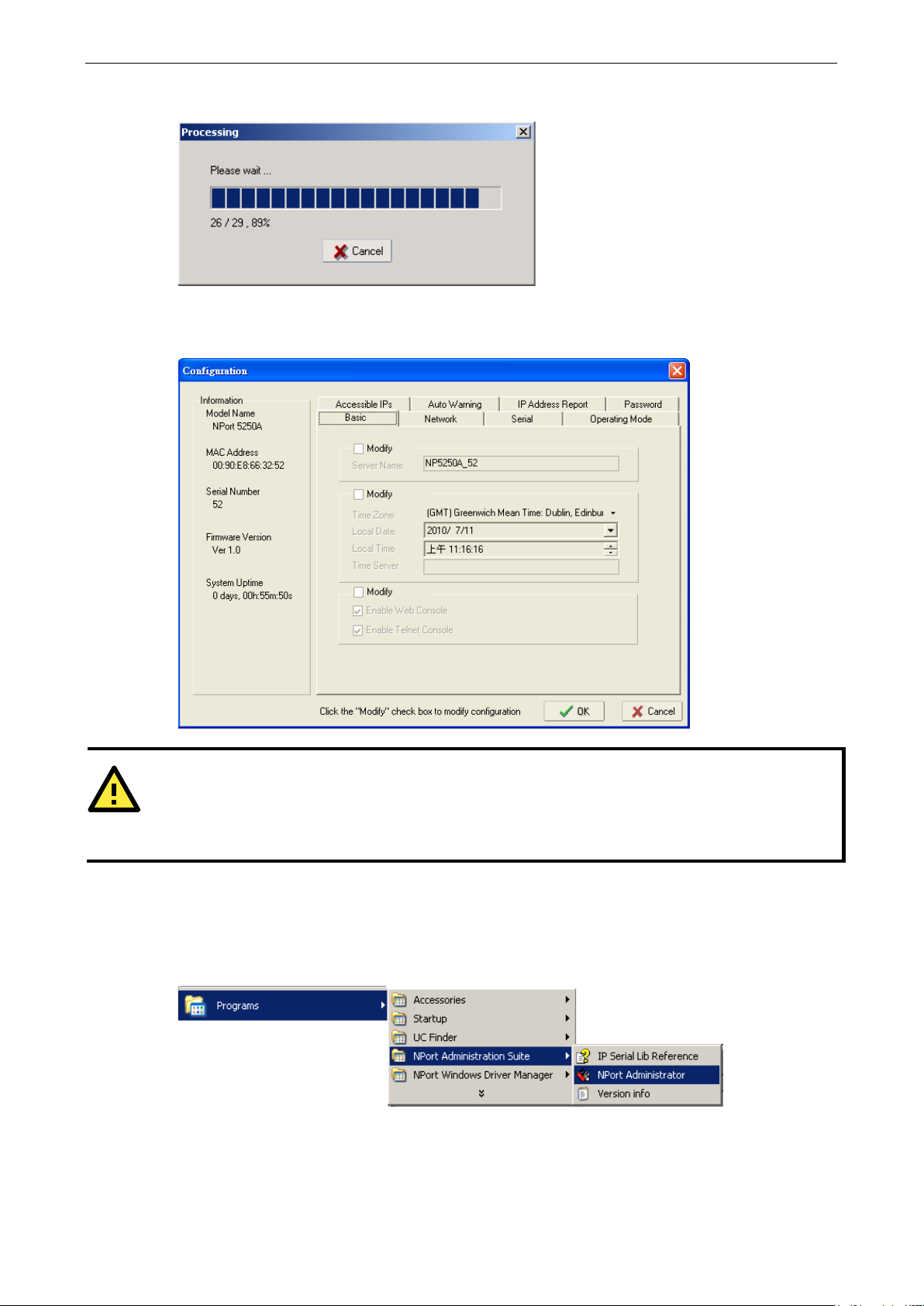

5. Configuring NPort Administrator ....................................................................................................... 5-1

Overview ........................................................................................................................................... 5-2

Installing NPort Administrator .............................................................................................................. 5-2

Configuration ..................................................................................................................................... 5-5

Broadcast Search ........................................................................................................................ 5-6

Unlock Password Protection .......................................................................................................... 5-7

Configuring NPort ........................................................................................................................ 5-8

Upgrading the Firmware ............................................................................................................... 5-9

Export Configuration .................................................................................................................. 5-11

Import Configuration ................................................................................................................. 5-11

Monitor ........................................................................................................................................... 5-12

Port Monitor ..................................................................................................................................... 5-16

COM Mapping ................................................................................................................................... 5-16

On-line COM Mapping ................................................................................................................ 5-17

Off-line COM Mapping ................................................................................................................ 5-22

COM Grouping .................................................................................................................................. 5-23

Creating a COM Group ............................................................................................................... 5-23

Deleting a COM Group ............................................................................................................... 5-25

Adding a Port to a COM Group .................................................................................................... 5-26

Removing a Port from a COM Group ............................................................................................ 5-27

Modify Ports in a COM Group ...................................................................................................... 5-28

IP Address Report ............................................................................................................................. 5-31

6. NPort CE Driver Manager for Windows CE ......................................................................................... 6-1

Overview ........................................................................................................................................... 6-2

Installing NPort CE Driver Manager ....................................................................................................... 6-2

Using NPort CE Driver Manager ............................................................................................................ 6-2

7. IP Serial LIB ...................................................................................................................................... 7-1

Overview ........................................................................................................................................... 7-2

What is IP Serial Library? ............................................................................................................. 7-2

Why Use IP Serial Library? ........................................................................................................... 7-2

How to Install IP Serial Library ...................................................................................................... 7-2

IP Serial LIB Function Groups ............................................................................................................... 7-3

Example Program ............................................................................................................................... 7-3

8. Introduction to LCM Display .............................................................................................................. 8-1

Basic Operation .................................................................................................................................. 8-2

Detailed Menu Options ........................................................................................................................ 8-2

A. Pinouts and Cable Wiring .................................................................................................................. A-1

Port Pinout Diagrams .......................................................................................................................... A-2

Ethernet Port Pinouts ................................................................................................................... A-2

Serial Port Pinouts ....................................................................................................................... A-2

Cable Wiring Diagrams ........................................................................................................................ A-5

Ethernet Cables .......................................................................................................................... A-5

Serial Cables .............................................................................................................................. A-6

B. Adjustable Pull High/low Resistors for the RS-485 Port ................................................................... B-1

C. Well Known Port Numbers ................................................................................................................ C-1

D. SNMP Agents with MIB II & RS-232/422/485 Link Groups ............................................................... D-1

E. Auto IP Report Protocol .................................................................................................................... E-1

F. Compliance Notice ............................................................................................................................. F-1

1. About This Manual

Read this user’s manual to learn how to configure and use your Moxa NPort device serve r. The following products are covered by this manual:

NPort Family Model Series Introduction

NPort 5000 NPort 5110/5130/5150 Series

NPort 5210/5230/5232 Series NPort 5410/5430/5450 Series NPort 5610/5630/5650 Series NPort 5610-8-DT/5650-8-DT Series NPort 5610-8-DTL/5650-8-DTL Series

NPort 5000A NPort 5110A/5130A/5150A Series

NPort 5210A/ 5230A/5250A Series NPort 5150AI-M12/5250AI-M12/5450AI-M12 Series NPort P5150A Series

NPort IA5000/IA5000A

NPort IA5150/IA5250 Series NPort IA5150A/IA5250A/IA5450A Series

NPort 5000 series device servers are designed to make serial devices network-ready in an instant. The different form factors of the servers provide flexible options for users to connect legacy devices to an IP-based Ethernet LAN. The NPort 5000A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort 5000A device servers are ultra-lean, rugged, and user friendly, making simple and reliable serial-to-Ethernet solutions possible. NPort IA device servers are an idea l choice for establishing network access to RS-232/422/485 serial devices, including PLCs, sensors, meters, mo tors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged, DIN-rail mountable housing, and come with redundant power inputs, cascading Ethernet ports, and industrial-grade certifications.

 



 

Only applies to NPorts that have a serial console port . The following NPorts do not have a serial con sole port:



2. Getting Started

In this chapter we explain how to install a Moxa NPort device server for the first time. There are four ways to access the Moxa NPort’s configuration settings: Windows utility, web console, serial console, or Telnet console. The following table lists which NPort products support which configuration options.

NPor t Family

Configuration Options

Windows Utilities

• NPort Administrator

• NPort Search Utility and Windows Driver Manager

Web Console Quick Setup Wizard – Serial Console* Telnet Console

NPort 5130/5232/5400 Series, NPort 5600 RM Series, NPort 5150AI-M12/5250AI-M12/5450AI-M12 Series NPort 5130A/ 5230A Series.

The following topics are covered in this chapter:

Installing Your NPort Device Server

Configuration by Windows U t ility

Configuration by Web Console

Configuration by Telnet Console

Configuration by Serial Console

Testing Your NPort

NPort 5000/IA5000

Series

NPort 5000A/IA5000A

Series

NPort 5000 Series Getting Started

2-2

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or wiring your NPort Device Server.

Wiring Caution!

Calculate the maximum possible current in each power dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment .

Temperature Caution!

Please be cautious when handling the NPort device server. When plugged in, the NPort’s internal components generate heat, and consequently the casing may feel hot to the touch. When installed with other components, make sure that there is at least 2 cm clearance on all sides of the NPort device server in order to allow proper heat dissipation.

WARNING

NPorts with

grounded mounting surface such as

a metal panel.

Installing Your NPort Device Server

This section describes how to connect an NPort device server to your serial devices for the first time. We cover Wiring Requirements, Connecting the Power, Grounding the NPort Device Server, Connecting to the Network, Connecting to a Serial Device, and LED Indicators.

Wiring Requirements

You should observe the following:

• Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point .

NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that sh a res similar electrical characteristics can be bundled together.

• Keep input wiring and output wiring separate.

• Where necessary, it is strong ly advised that you label wiring to all devices in the system.

wire and common wire. Observe all electrical codes

Connecting the Power

Connect the power line with the NPort’s power inp u t. If the power is properly supplied, the “Ready” LED will show a solid red color until the system is ready, at which time the “Read y” LED will change to a green color.

Grounding the NPort Device Server

Note: This section only applies if your NPort’s power input is on a terminal block. Grounding and wire routing help limit the effects of noise caused by electromagnetic interference (EMI ). Run

the ground connection from the ground screw to the grounding surface prior to connecting devices.

a power terminal block are intended to be mounted to a well-

NPort 5000 Series Getting Started

2-3

ATTENTION

NPort IA5000/IA5000A/ chain of NPort IA5000

e careful not to connect the Ethernet ports of the

two In other words, NPort

Type of Power Terminal Block Shielded Ground (SG) Applicable Products

The Shielded Ground (sometime s called Protected Ground) contact is the left most contact of the 7-pin power terminal block connector when viewed from the angle shown here. Connect the SG wire to an appropriate grounded metal surface. The Shielded Ground (sometime s called Protected Ground) contact is the lef t mos t contact of the 8 contact power terminal block connector when viewed from the angle shown here. Connect the SG wire to an appropriate grounded metal surface.

NPort IA5000 Series

NPort IA5000A Series

The Shielded Ground (sometime s called Protected Ground) contact is the l ef t mos t contact of the 3-pin power terminal block connector when viewed from the angle shown here. Connect the SG wire to an appropriate grounded metal surface.

The Shielded Ground (sometime s called Protected Ground) contact is the second contact from the right of the 5-pin power terminal block connector located on the rear panel of NPort 5600 VDC models. Connect the SG wire to the Earth ground.

Connecting to the Network

Connect one end of the Ethernet cable to the NPort’s 10/100M Ethernet port and the other end of the cable to the Ethernet network. The NPort device server will indicate a valid connection to the Ethernet in the following ways:

• The Ethernet LED maintains a solid green color w hen connected to a 100 Mbps Ethernet network.

• The Ethernet LED maintains a solid orange color w hen connected to a 10 Mbps Ethernet network.

• The Ethernet LED will flash when Ethernet packets are being transm itted or received.

NPort 5200/5400 Series NPort 5200A Series

NPort 5600 Series

Connecting to a Serial Device

device servers at the ends of the chain.

Connect a serial data cable between the NPort and the serial device. Serial data cables must be purchased separately. They are not provided with the NPort.

5600-8-DT series NPorts have 2 Ethernet ports that can be used to create an open

/IA5000A/5600-8-DT device servers. B

IA5000/IA5000A/5600-8-DT series NPorts do NOT support closed chains.

NPort 5000 Series Getting Started

2-4

LED Indicators

NPort 5100/5100A/P5150A Series

LED Name LED Color LED Function

Ready Red Steady on: Power is on and the NPort is booting up.

Blinking: Indicates an IP conflict, or the DHCP or BOOTP server did not

respond properly.

Green Steady on: Power is on and the NPort is functioning normally.

Blinking: The device server has been located by NPort Administrator’s

Location function.

Off Power is off, or power error condition exists.

Link Orange The device is connected to a 10 Mbps Ethernet connection.

Green The device is connected to a 100 Mbps Ethernet connection. Off The Ethernet cable is disconnected, or has a short.

Tx/Rx Orange The serial port is receiving data.

Green The serial port is transmitting data. Off Data is NOT being transmitted or received through t he serial port.

NPort 5200/5200A/5400 Series

LED Name LED Color LED Function

Ready Red Steady on: Power is on and the NPort is booting up.

Blinking: Indicates an IP conflict, or the DHCP or BOOTP server did not

Green Steady on: Power is on and the NPort is functioning normally.

Blinking: The device server has been located by NPort Administrator’s

Off Power is off, or power error condition exists. Link (Ethernet)

P1, P2, (P3, P4)

Orange The device is connected to a 10 Mbps Ethernet connection.

Green The device is connected to a 100 Mbps Ethernet connection.

Off The Ethernet cable is disconnected, or has a short.

Orange The serial port is receiving data.

Green The serial port is transmitting data.

Off Data is NOT being transmitted or received through the serial port.

respond properly.

Location function.

NPort 5000 Series Getting Started

2-5

NPort 5600 Series (Rackmount)

LED Name LED Color LED Function

Ready Red Steady on: Power is on and the NPort is booting up.

Blinking: Indicates an IP conflict, or the DHCP or BOOTP server did not

respond properly.

Green Steady on: Power is on and the NPort is functioning normally

Blinking: The device server has been located by NPort Administrator’s

Location function.

Off Power is off, or power error condition exists. Tx/Rx, P1 to P16

Link* Off The fiber port is disconnected.

*The NPort 5650 fiber model is the only model wi th a Link indicator on the rear panel.

Orange The serial port is receiving data.

Green The serial port is transmitting data.

Off Data is NOT being transmitted or received thro ugh the serial port.

Green The fiber port is connected, but data is NOT being transmitted.

Blinking The fiber port is connected, and data is being transmitted.

NPort 5600-8-DT/DTL Series

LED Name LED Color LED Function

PWR Red Power is on.

Off Power is off. Ready Green Steady on: The NPort is operational.

Blinking: The NPort is responding to NPort Administrator’s Location

function, or the NPort is being reset to factory defaults.

Off Power is off, or power error condition exists. Fault Red Indicates an IP conflict, or the DHCP or BOOTP server did not respond properly.

Off No fault condition detected. Link* Green Steady on: Network is connected, no data is being transmitted.

Off Blinking: Network is connected, data is being transmitted. In Use (P1 to P8) Tx/Rx (P1 to P8)

Green Serial port has been opened by server side software.

Off Serial port is not currently opened by host side software.

Green (Tx) Serial device is transmitting data.

Orange(Rx) Serial device is receiving data.

Off No data is flowing to or from the serial port.

NPort 5000 Series Getting Started

2-6

respond

NPort 5000AI-M12 Series

LED Name LED Color LED Function

PWR Green Power is being supplied to the power input. Ready Red Steady on: Power is on and the NPort is booting up.

Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not

properly.

Green Steady on: Power is on and te NPort is functioning normall y

Blinking: The device server has been located by NPort Administrator’s

Location function.

Off Power is off, or power error condition exists. 10M, 100M Orange The device is connected to a 10 Mbps Ethernet connection.

Green The device is conne cted to a 100 Mbps Ethernet connection.

Off The Ethernet cable is disconnected, or has a short. P1, P2, P3, P4 Orange The serial port is receiving data.

Green The serial port is transmitting data.

Off Data is NOT being transmitted or received through the ser i al port.

NPort IA5000/IA5000A Series

LED Name LED Color LED Function

PWR1, PWR2 Red Power is being supplied to power input PWR1, PWR2. Ready Red Steady on: Power is on and the NPort IA is booting up.

Blinking: Indicates an IP conflict, the DHCP or BOOTP server did not

respond properly, or a relay output was triggered. When the above two conditions occur at the same time, check the relay output first. If after resolving the relay output the Ready LED is still blinking, then there is an IP conflict, or the DHCP or BOOTP server did not respond properly.

Green Steady on: Power is on and the NPort IA is functioning normally.

Blinking: The device server has been located by NPort Administrator’s

Location function.

Off Power is off, or power error condition exists. E1, E2 Orange The device is connected to a 10 Mbps Ethernet connection.

Green The device is conne cted to a 100 Mbps Ethernet connection.

Off The Ethernet cable is disconnected, or has a short. P1, P2, (P3, P4)

FX* Orange Steady on: The fiber port is connected, but data is NOT being transmi tted.

*Only applies to NPort IA5000 fiber models.

Orange The serial port is receiving data.

Green The serial port is transmitting data.

Off Data is NOT being transmitted or received thro ugh the serial port.

Blinking: The fiber port is connected, and data is being transmitted.

RS-485 Port’s Adjustable Pull High/Low Resistor

For some applications you may need to use termination resistors to prevent the reflection of serial signals. When u sing termination resistors, it is important to set the pull h igh/low resistors correctly so that the electrical signal is not corrupted. Refer to Appendix B for detailed instructions on how to set the pull high/low resistor values for different models.

NPort 5000 Series Getting Started

2-7

Configuration by Windows Utility

NPort Administration Suite is an integrated software suite that bundles NPort Administrator and the IP Serial Library, providing everything you need to manage, monitor, and modify your NPort from a remote location.

With NPort Administrator, you can easily install and configure your NPort device server over the network. Five different sets of functions are provided to ease the installation process: Configuration, Monitor, Porting Monitor, COM Mapping, and IP Address Report.

In this section we will cover only the “configuration of general settings” using NPort Administrator. For more detailed information on how to use this suite of useful utilities, refer to Chapter 5.

You may also use the web console, serial console, or Telnet to configure the device server. Refer to the section

Configuration by Web Console, Configuration by Serial Console, and Configuration by Telnet Console for additional information on using these consoles.

Installing NPort Administrator

Locate and run the setup program on the NPort Document & Software CD. Look for a file named Npadm_Setup_[Version]_Build_[DateTime].exe (e.g., “Npadm_Setup_Ver1.8_ Build_07041316.exe”). You may also download the latest version of NPort Administrator from Moxa’s website at: http://www.moxa.com/support/download.aspx?d_id=1317

Run NPort Administrator when the installation is complete.

Searching for Device Servers over a LAN

The Broadcast Search function is used to locate all NPort 5400 device servers that are connected to the same LAN as your computer. Since the Broadcast Search function searches by MAC address and not IP address, all NPorts connected to the LAN will be located, regardless of whether or not they are part of the same subnet as the host.

NPort 5000 Series Getting Started

2-8

In NPort Administrator, click Search to search your LAN for NPort device servers. When your unit appears in the search results, you may click Stop to end the search. You may also wait a few more moments for the search to complete.

The Configuration screen will list the NPort device servers that were found on the LAN. If your unit cannot be found, you may have a n etwork problem. Check all cables and verify that your PC and device server are on the same LAN. If you still have problems, try connecting the device server directly to your PC.

Adjusting General Settings

Right-click your unit in the Configuration screen and select Configure in the popup menu. If your device server is password protected, first select Unlock in the popup menu, and then cl ick the Network tab in the configuration window. Select the Modify checkbox for items you would like to modify. The device server must be assigned a unique IP address that is valid for your network. Both fixed and dynamic IP addresses are supported. Consult with your network administrator if you are not sure how to set these parameters.

When you are ready to restart the device server with the new settings, click OK.

NPort 5000 Series Getting Started

2-9

Static IP Addresses

For most applications, you will assign a fixed IP address to the device server. To assign a static (fixed) IP address, the IP Configuration parameter must be set to “Static”, which is the default setting. You may then modify the IP Address and Netmask parameters.

Dynamic IP Addresses

For certain network environments, your device server’s IP address will be assigned by a DHCP or BOOTP server. In this case, instead of assigning the device server’s IP address, you will need to configure the device server to receive its IP address from the appropriate server. Set the IP Configuration parameter to “DHCP”, “BOOTP”, or “DHCP/BOOTP”, depending on your network environment. The IP Address and Netmask parameters will be unavailable for editing since these parameters will be assigned automatically.

If you are not sure whether you need to configure your device server for a dynamic or static IP address, consult the administrator who se t u p the LAN.

Verifying Network Settings

If your device server has been configured correctly, you should be able to ping its IP address from your PC. First make sure that your PC and device server are on the same subnet, and then ping the device server’s address. If no response is received, check your ca bles and network settings.

Configuring Device Port Operation Mode

This section covers configuration of a device port’s operation mode. The operation mode determines how the device port will interact with the network. Which operation mode you select will depend on your specific application. Refer to the chart at the end of this section for guidance on selecting the most appropriate operation mode. For additional information on each operation mode, refer to Chapter 3 and Chapter 4.

Adjusting Operation Mode Settings

The operation mode parameters for each device port can be configured through NPort Administrator. Open your device server’s configuration window using the same method you used to adjust the network parameters. On the Operating Mode screen, select the Modify chec k box and then select the device port that you wish to configure. Click Settings to configure the selected device port.

NPort 5000 Series Getting Started

2-10

Set the operating mode and associated parameters as needed. Refer to Chapter 3 and Chapter 4 for additional information on operating modes and advanced settings. When you are ready to restart the device server with the new settings, click OK.

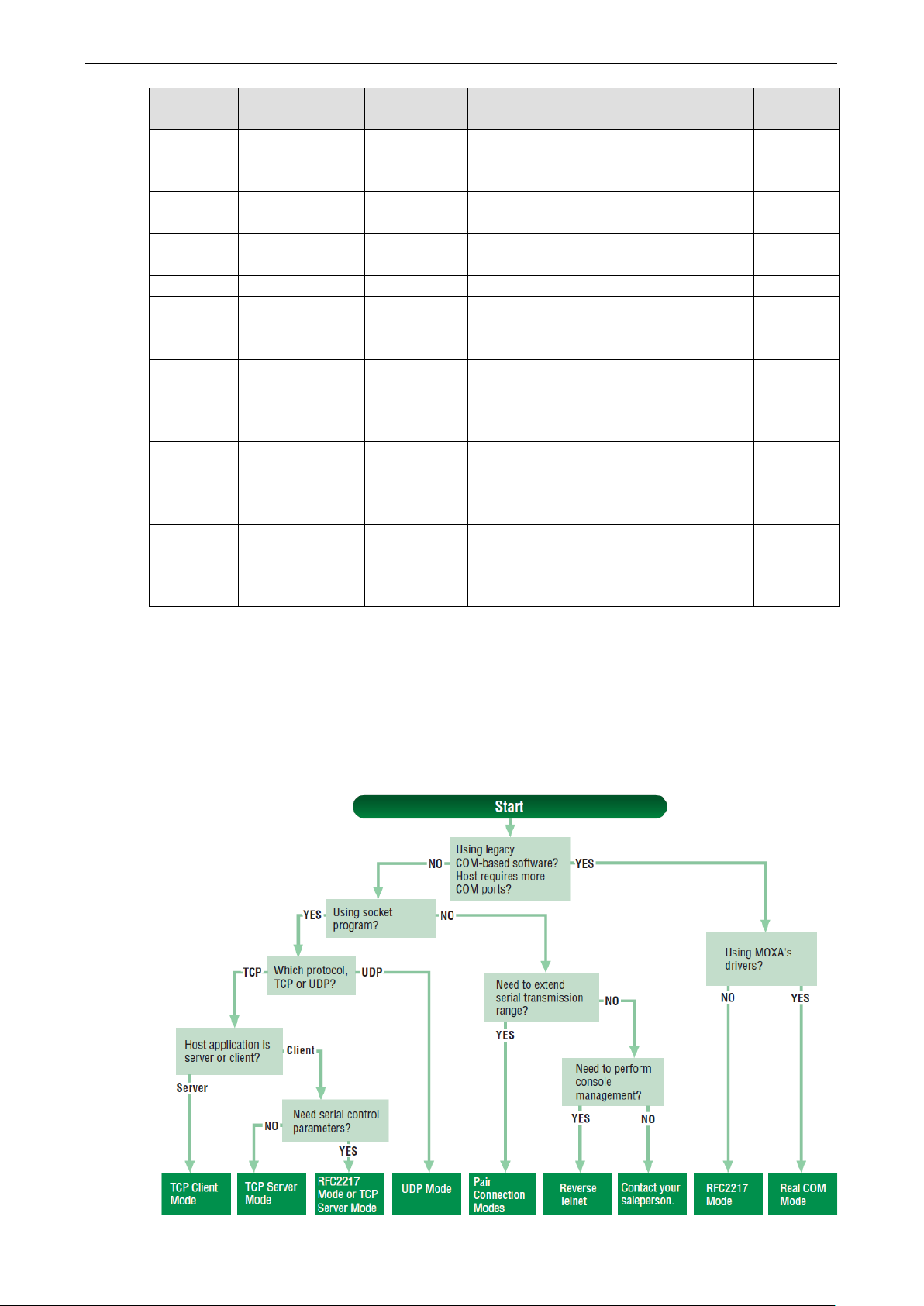

Operation Mode Selection Chart

NPort 5000 Series Getting Started

2-11

transmission to ensure that data is not

Configuring Serial Communication Parameters

This section covers the configuration of each device port’s serial communication parameters: baudrate, stop bit, etc.

Serial Parameter Review

The following parameters need to be set correctly on the device port to ensure proper communication with your device. Refer to your device’s documentation for the appropriate settings.

Parameter Setting Factory Default Description Necessity

Baudrate 110 bps to

230400 bps

Data bits 5, 6, 7, 8 8 The size of each data character. Required Stop bits 1, 1.5, 2 1 The size of the stop character. Required Parity None, Even,

Odd, Space, Mark

Flow control None, RTS/CTS,

DTR/DSR, Xon/Xoff

FIFO Enable, Disable Enable Controls whether the device port’s built-in

Interface* RS-232

RS-422 2-wire RS-485 4-wire RS-485

*Supported interfaces vary by model; refer to your NPort’s datasheet for a list of supported serial interfaces.

115200 bps The data transmission rate to and from the

attached serial device.

None The parity that will be used. Even and Odd

parity provide rudimentary error-checking; Space and Mark parity are rarely used.

RTS/CTS The method used to suspend and resume

data lost. RTS/CTS (hardware) flow control is recommended.

128-byte FIFO buffer is used. When enabled, the FIFO helps reduce data loss regardless of direction.

RS-232 The serial interface that will be used. The

options that are available depend on the specific model of device server.

Required

Adjusting Serial Parameters

NPort 5000 Series Getting Started

2-12

The serial communication parameters for each device port can be configured through NPort Administrator. Open your device server’s configuration window using the same met h od you used to configure network parameters. On the Serial screen, select the Modify check box and then select the device port that you wish to configure. Click Settings to configure the selected device port.

Modify the parameters as needed. When you are ready to restart the device se rver with the new settings, click

OK.

Mapping COM Port to Device (only required when operation mode is set to Real COM or RFC2217)

This section covers how to map the COM ports on a Windows PC to NPort device ports. The mapping will allow Windows software to access serial devices over the network as if they were local COM devices, providing instant device networking without software migration. COM mapping is supported in Real COM and RFC2217 modes only.

The following instructions are for device ports operating in Real COM mode. For device ports operating in RFC2217 mode, follow the instructions for your particular driver. Real COM mode also supports TTY port mapping on Linux and UNIX systems.

Specifying the Target Device Server

In NPort Administrator, click COM Mapping in the Function panel to open the COM Mapping window. Right-click an empty line in the COM Mapping window and select Add Target in the pop-up menu to assign your device server as the mapping target.

NPort 5000 Series Getting Started

2-13

A list of NPort device servers that have been found by NPort Administrator will appear. Select your device server and click Finish.

Assigning COM Port Number to Device Port

The COM Mapping screen shows a list of available device ports on the network. Right-click the target device port and select COM Settings in the pop-up menu.

On the Basic Settings screen, select the COM port number that will be mapped to t h e device port. You can map multiple COM ports at the same time by selecting the Auto Enumerating check box to number the COM ports automatically.

NPort 5000 Series Getting Started

2-14

On the Serial Parameters screen, adjust the settings to ma tch your device. These settings, which are only used for serial printers, must also match the settings on the device port. Click OK when you are satisfied with your changes.

Advanced Settings

(See Chapter 5 for detailed information about NPort Administrator’s Advanced Settings.) Tx Mode: In Hi-Performance mode, the driver immediately issues a “Tx Empty” response to the program after

sending data to the NPort. In Classical mode, the driver sends the “Tx E mp ty” response after confirmation is received from the NPort. Classical mode is recommended if you want to ensure that all data is sent out before further processing.

FIFO: Tells the driver whether or not to use FIFO transmission. Network Timeout: Specifies when an open, close, or serial parameter change operation will time out. Fast Flush: When enabled, the driver flushes only the local buffer on the host for a Win32 PurgeComm()

function call. When disabled, both the local and remote buffers are flushed. If your application uses PurgeComm() and performance seems sluggish, try enab ling Fast Flush.

Always Accept Open Requests: Even if the driver cannot establish a connection with the NPort, the user's software will still be able to open the mapped COM port, the same as with an onboard COM port.

Ignore TX Purge: The application can use Win32 API PurgeComm to clear the output buffer and terminate outstanding overlapped write operations. Selecting Ignore TX Purge if you do not want the output buffer to be purged.

NPort 5000 Series Getting Started

2-15

Apply Change

Right-click COM Mapping in the Function panel and select Apply Change in the popup menu to sa ve the current COM mapping settings. Your application will now be able to access the target serial device using the COM port.

Configuration by Web Console

The Web Console is the most user-friendly way to configure NPort products. In this section, we cover a device server’s general settings.

Opening Your Browser

1. Open your browser with the cookie function enabled. (To enable your browser for cookies, right click on your desktop Internet Explorer icon, select Properties, click on the Security tab, and then select the three Enable options as shown in the figure below.)

NPort 5000 Series Getting Started

2-16

ATTENTION

If you use other web browsers, remember to computer” or “allow per

ssion.

2. Type 192.168.127.254 in the Address input box (use the correct IP address if different from the default), and then press Enter.

3. Input the password if prompted. The password will be transmitted with MD5 encryption over the Ethernet. Note that you will not be prompted to enter the password if th e NPort is not currently password protected.

Web Interface for the NPort 5000, NPort IA5000 Series

Web Interface for the NPort 5000A, NPort IA5000A Series

-session cookies.” NPort device servers use cookies only for “password” transmi

enable the functions to “allow cookies that are stored on your

NPort 5000 Series Getting Started

2-17

The NPort homepage will open. On this page, you can see a brief description of the Web Console’s function groups.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

There are two buttons on this page: Quick setup and Export/Import. You can click Overview at any time to go back to this page.

NPort 5000 Series Getting Started

2-18

ATTENTION

If you can’t remember the password, the ONLY way to start con figuring the NPort is to load factory defaults by using the

Remember to use NPort Administrator

to export the configuration file when you have finished configuration can be

Chapter

Reset button located near the NPort’s Ethernet port.

(for NPort 5000 and NPort IA5000 Series)

the configuration. After using the Reset button to load factory defaults, your

easily reloaded into NPort by using the NPort Administrator Import function. Refer to

5 for details about using the Export and Import functions

Quick Setup (only for the NPort 5000A & NPort IA5000A Series web console)

Quick Setup streamlines configuration of your NPort into three basic and quick steps that cover the most

commonly-used settings. While in Quick Setup, you may click the Back button at any time to return to the previous step, or click the Cancel button to reverse all settings. For more detailed settings, refer to the Basic

Settings, Network Settings, Serial Settings, and Operating Settings sections later in this chapter

Step 1/3

In Step 1/3, you must assign a valid IP address to the NPort before it will work in your network environment. Your network system administrator should provide you with an IP address and relate d settings for your network. In addition, the server name field is a useful way to specify the location or application of different NPort units.

NPort 5000 Series Getting Started

2-19

Step 2/3

In Step 2/3, you must specify which operation mode you will use. If your operation mode is not Real COM, TCP Server, TCP Client, or UDP mode, click Cancel, return to the main menu, and choose Operating Settings

to select the correct settings.

Step 3/3

In Step 3/3, modify the Serial Settings.

NPort 5000 Series Getting Started

2-20

NOTE

If you change the IP address, you will not be able to

Finish Settings

Review your settings on the Finish Settings page to confirm that they are correct, and then click the Save/Restart button to restart the device with th e new settings.

use the Home button to ret ur n to the Home Page.

Export/Import (only for the NPort 5000A & NPort IA5000A Series web console)

Export/Import allows you to back up and recover your settings.

Click Export, to write all configuration data to a default file named as follows: <Servername>.txt. Click the Import button to upload a configuration file to the NPort.

NPort 5000 Series Getting Started

2-21

NOTE

The

Basic Settings

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5150A does not support Time Settings.

NPort 5000 Series Getting Started

2-22

the Modify time settings window to

correct “Time server” IP address or

ATTENTION

If you disable both the

Administrator to configure

NPort device servers either locally or remotely over the

Parameter Setting Factory Default Description Necessity

Server name 1 to 39 characters NP[model

name]_[Serial No.]

Time zone User selectable time

zone

Local time User adjustable time

(1900/1/1-2037/12/3

Time server IP or Domain address

(E.g., 192.168.1.1 or time.stdtime.gov.tw or time.nist.gov )

Web console Enable or Disable Enable The “Disable” option for “Web

Telnet console Enable or Disable Enable Required

Reset button protect

No or Yes No Select the Yes option to allow

GMT (Greenwich Mean Time) GMT (Greenwich Mean Time)

None NPorts use SNTP (RFC-1769) for

This option is useful for specifying the location or application of different NPorts. N/A Required

Click the Modify button to open

input the correct local time.

auto time calibration. Inp ut the

domain name. Once the NPort is configured with the correct Time server address, the NPort will request time information from the “Time server” every 10 minutes.

Console” and “Telnet Console” is included for security reasons. In some cases, you may want to disable one or both of these console utilities as an extra precaution to prevent unauthorized users from accessing your NPort.

limited use of the Reset Button. In this case, the Reset Button can be used for only 60 seconds. I.e., 60 seconds after booting up, the Reset Button will be disabl e d automatically.

Optional

Required

Optional

Required

Web console and Telnet console, you can still use NPort

network. Refer to Chapter 5 for details.

NPort 5000 Series Getting Started

2-23

Network Settings

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

You must assign a valid IP address to the NPort before it will work in your network envi ronment. Your network system administrator should provide you with an IP address and related settings for your network. The IP address must be unique within the network (otherwise, the NPort will not have a valid connection to the network). First time users can refer to Chapter 3, Initial IP Address Configuration, for more information.

You can choose from four possible IP configuration modes—Static, DHCP, DHC P /BO O TP, and BOOTP—located under the web console screen’s IP configuration drop-down box.

NPort 5000 Series Getting Started

2-24

address

Method Function Definition

Static The user must define the IP address, Netmask, and Gateway. DHCP The DHCP Server assigns the IP add ress, Netmask, Gateway, DNS, and Time Server DHCP/BOOTP The DHCP Server assigns the IP address, Netmask, Gateway, DNS, and Time Server, or the

BOOTP Server assigns the IP address (if the DHCP Server does not respond).

BOOTP The BOOTP Server assigns the IP address.

Network Settings

Parameter Setting Fa ctory Default Description Necessity

IP Address E.g., 192.168.1.1

(IP addresses of the form x.x.x.0 and x.x.x.255 are invalid.)

Netmask E.g., 255.255.255.0 255.255.255.0 A subnet mask represents all of the

Gateway E.g., 192.168.1.1 None A gateway is a network gateway

IP Configuration Static

DHCP DHCP/BOOTP BOOTP

192.168.127.254 An IP address is a number assigned to a network device (such as a computer) as a permanent on the network. Computers use the IP address to identify and talk to each other over the network. Choose a proper IP address that i unique and valid in your network environment.

network hosts at one geographic location, in one building, or on the same local area network. When a packet is sent out over the network, the NPort will use the subnet mask to check whether the desired TCP/IP host specified in the packet is on the local network segment. If the address is on the same network segment as the NPort, a connection is established directly from the NPort. Otherwise, the connection is established through the given default gateway.

that acts as an entrance to another network. Usually, the computers that control traffic within the network or at the local Internet service provider are gateway nodes. The NPort needs to know the IP address of the default gateway computer in order to communicate with the hosts outside the local network environment. For correct gateway IP address information, consult with your network administrator.

Static N/A Required

Required

Optional

NPort 5000 Series Getting Started

2-25

included for use when DNS sever 1

ATTENTION

In Dynamic IP environments, the firmware will retry 3 times every 30 seconds until network assigned by the DHCP or BOOTP server. The Timeout for each try increases from 1 second, to 3 seconds, to 5 seconds.

If the DHCP/BOOTP Server is unavailable, the firmware will use the default IP address Netmask, and Gateway for IP settings.

string is

DNS server 1/ DNS server 2

E.g., 192.168.1.1 (IP addresses of the form x.x.x.0 and x.x.x.255 are invalid.)

None

In order to use the NPort’s DNS feature, you need to configure the DNS server. Doing so allows the NPort to use a host’s domain name to access the host. The NPort provides DNS server 1 and DNS server 2 configuration items to configure the IP address of the DNS server. DNS Server 2 is

is unavailable. The NPort plays the role of DNS client, in the sense that the NPort will actively query the DNS server for the IP address associated with a particular domain name.

Optional

settings are

(192.168.127.254),

SNMP Settings

Parameter Setting Factory

Default

Community Name

Contact 1 to 39 characters

Location 1 to 39 characters

1 to 39 characters (E.g., Support, 886-89191230 #300)

(E.g., Support, 886-89191230 #300)

(E.g., Floor 1, office 2)

public A community name is a plain-text

None The SNMP contact information usually

None Specify the location string for SNMP

Description Necessity

Optional password mechanism that is used to weakly authenticate queries to a g ents of managed network devices.

Optional includes an emergency contact name and telephone or pager number.

Optional agents, such as the NPort. This usually set to the street address where the NPort is physically located .

IP Address Report

When NPort products are used in a dynamic IP environment, users must spend more time with IP management tasks. For example, if the NPort works as a server (TCP or UDP), then the host, which acts as a client, must know the IP address of the server. If the DHCP server assigns a new IP address to the NPort, the host must have some way of determining the NPort’s new IP address.

NPort products help out by reporting their IP address periodically t o the IP location server, in case the dynamic IP has changed. The parameters shown below are used to configure the Auto IP report function. There are two ways to develop an “Auto IP report Server” to receive NPort’s Auto IP report.

1. Use D evice Server Administrator’s IP Address Report function.

2. Auto IP report protocol, which can receive the Auto IP report automatically on a regular basis, is also available to help you develop your own software. Refer to Appendix E for details about the Auto IP report

protocol.

NPort 5000 Series Getting Started

2-26

Parameter Setting Factory

Auto report to IP

Auto report to UDP port Auto report period

E.g., 192.168.1.1 or URL (IP addresses of the form x.x.x.0 and x.x.x.255 are invalid.) E.g., 4001 4002 NA Optional

Time interval (in seconds)

Serial Settings

The Serial Settings page is where you set the serial communication parameters for each device port. Settings include baudrate, parity, and flow control. Each device port can be config ured independently.

Web Interface for the NPort 5000 and NPort IA5000 Series

Description Necessity

Default

None Repor ts g enerated by the Auto report

function will be automatically sent to this IP address.

10 NA Optional

Optional

Web Interface for the NPort 5000A and NPort IA5000A Seri es

NPort 5000 Series Getting Started

2-27

ATTENTION

It is critical that the device port’s serial communication settings match the attached device. Refer to the user’s manual for your

To modify serial settings for a particular port, click on the Port Number under Serial Settings, located under

Main Menu on the left side of the brow ser window.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

serial device for the correct serial communication settings.

NPort 5000 Series Getting Started

2-28

Port Alias is specially designed to allow easy 110 bps to 230400

to 5 bits, the stop bits

Parameter Setting Factory

Default

Port Alias 1 to 15 characters

(E.g., PLC-No.1)

Baud rate

bps

Data bits 5, 6, 7, 8 8 When Data bits is set

Stop bits 1, 1.5, 2 1 The size of the stop character. Required Parity None, Even, Odd,

Space, Mark

Flow control None, RTS/CTS,

DTR/DSR, Xon/Xoff

FIFO Enable, Disable Enable Controls whether or not the device port’s

Interface* RS-232

RS-422 2-wire RS-485

4-wire RS-485 *Supported interfaces vary by model. Refer to the datasheet of your NPort device to see which serial interface it supports.

None

115200 bps The rate of data transmission to and from the

None Even and Odd parity provide rudimentary

RTS/CTS The method used to suspend and res ume

RS-232 The serial interface that will be us ed. The

Description Necessity

Optional identification of the serial device s that are connected to the NPort’s serial po rt.

Required attached serial device.

Required setting will automatically change to 1.5 bits.

Required error-checking; Space and Mark parity are rarely used.

Required data transmission to ensure that data is not lost. If you can use it, RTS/CTS (hardware) flow control is recommended.

Required built-in 128-byte FIFO buffer is used. When enabled, the FIFO helps reduce data loss regardless of direction.

Required options that are available depend on the specific model of device server.

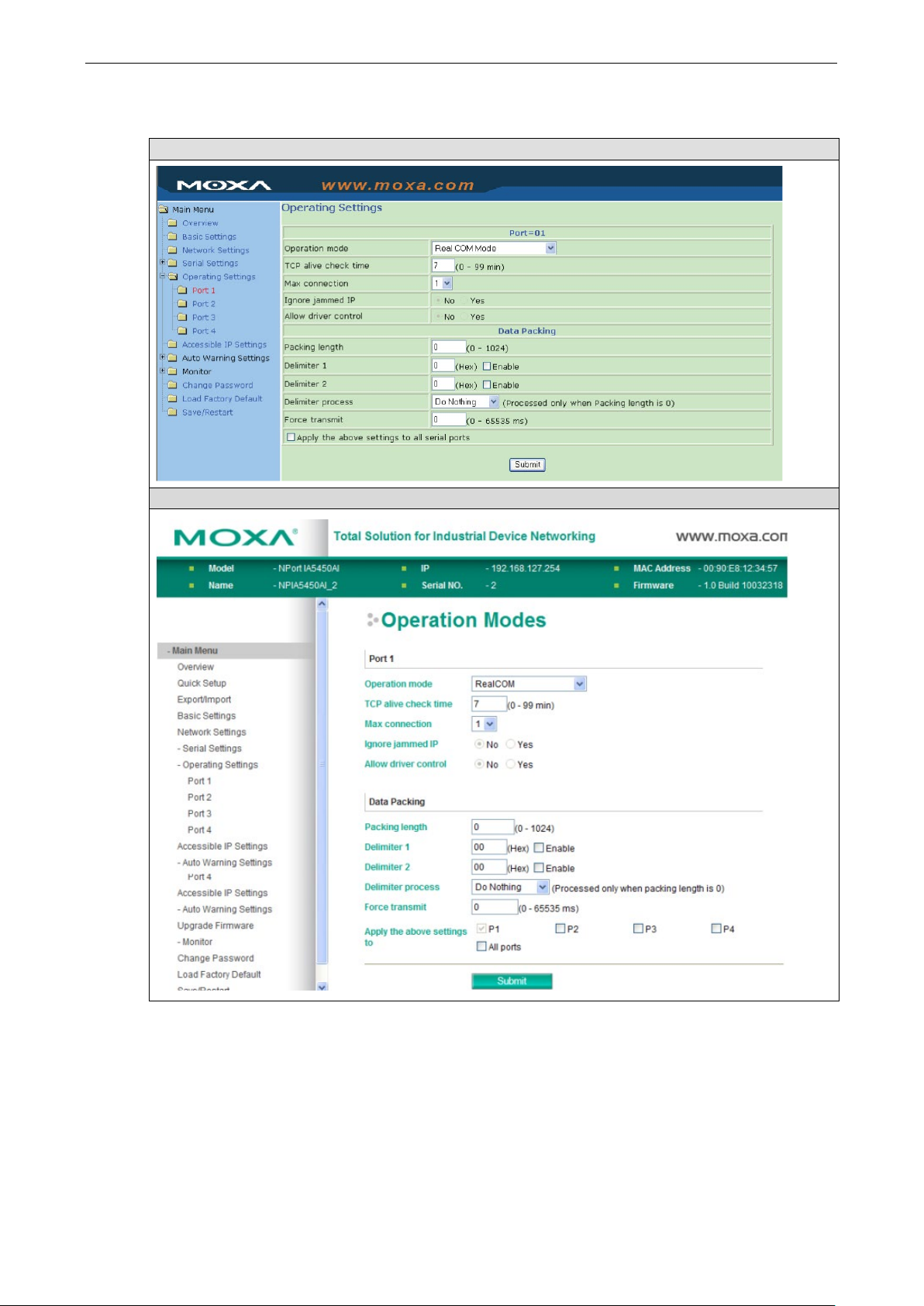

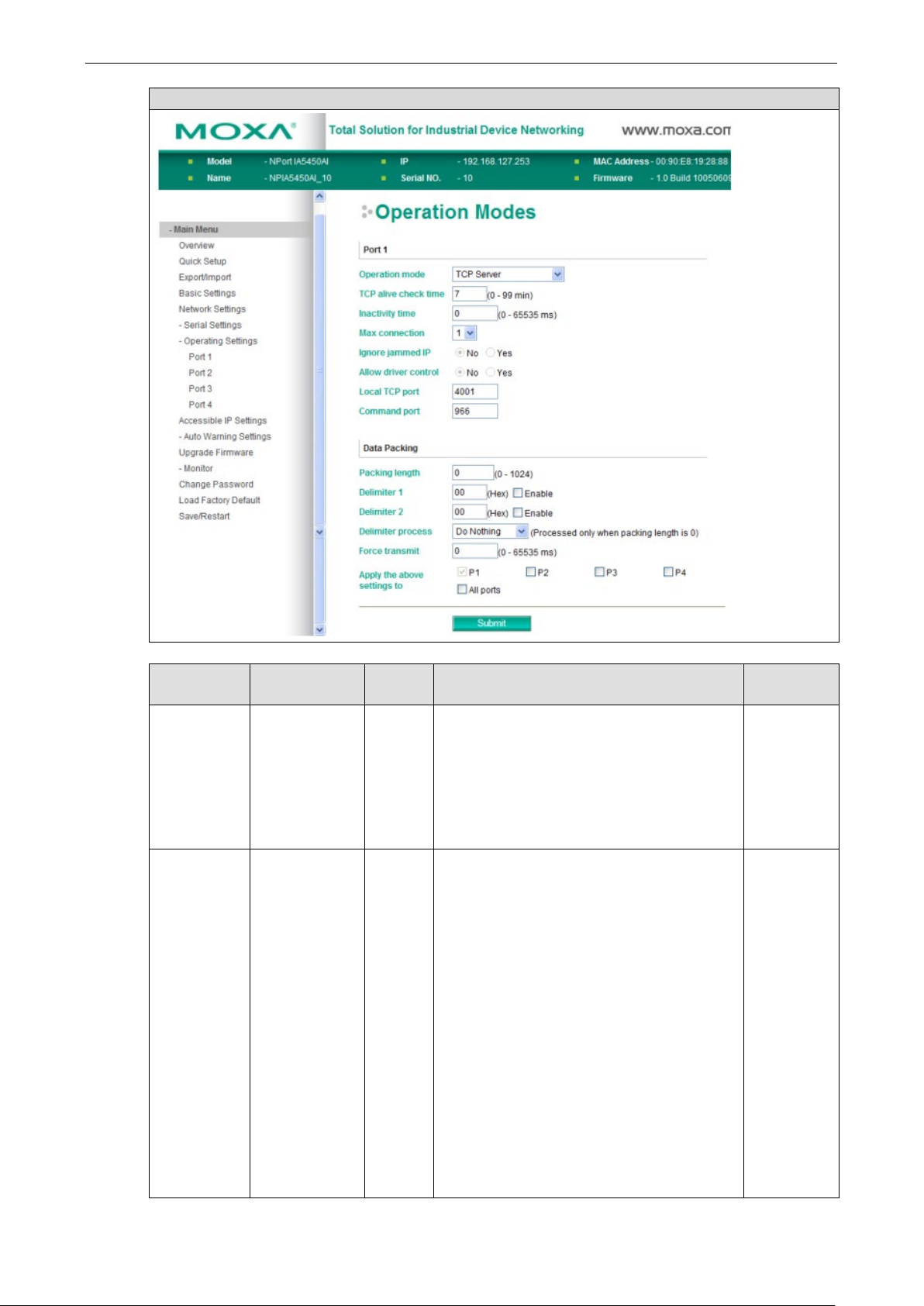

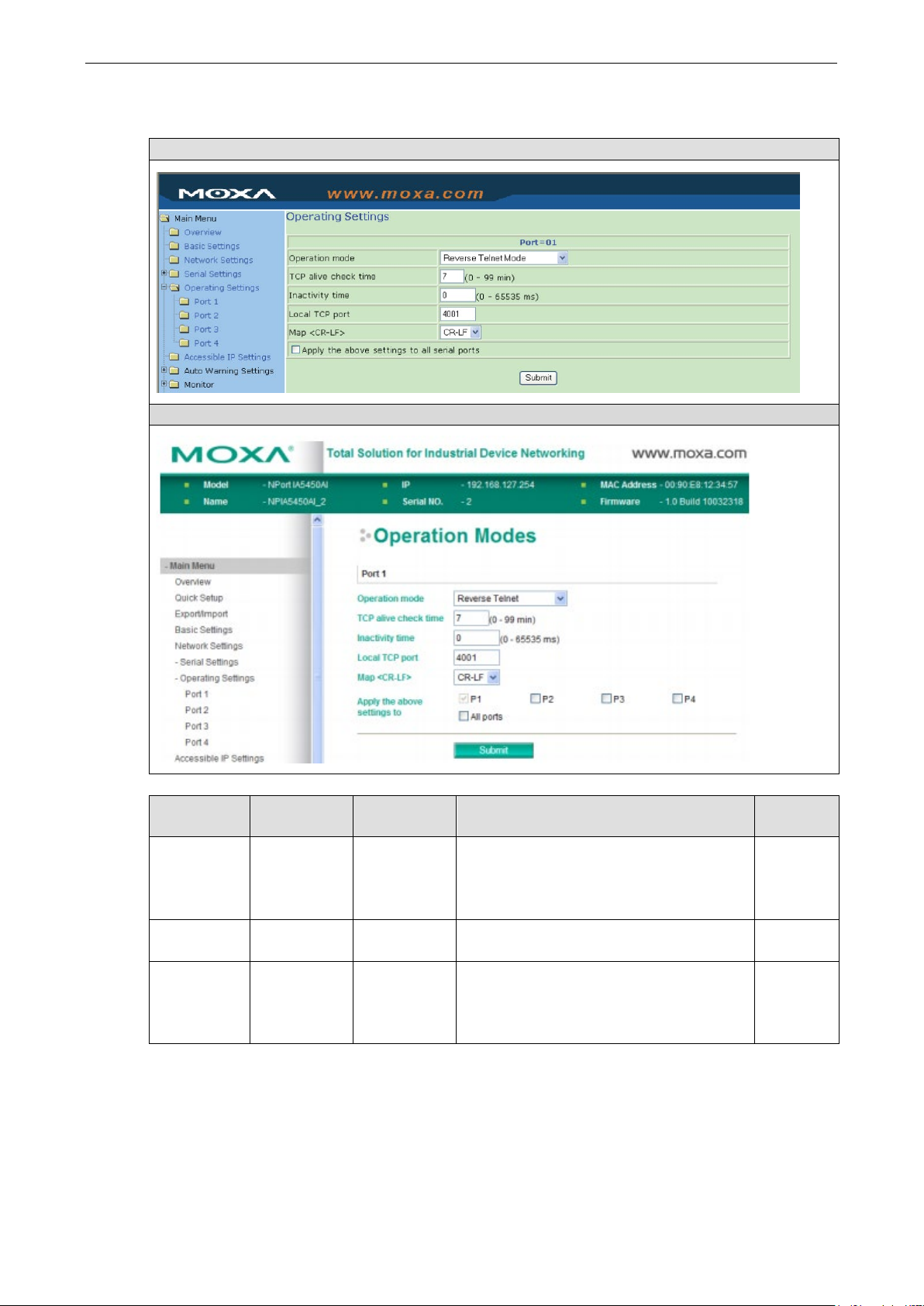

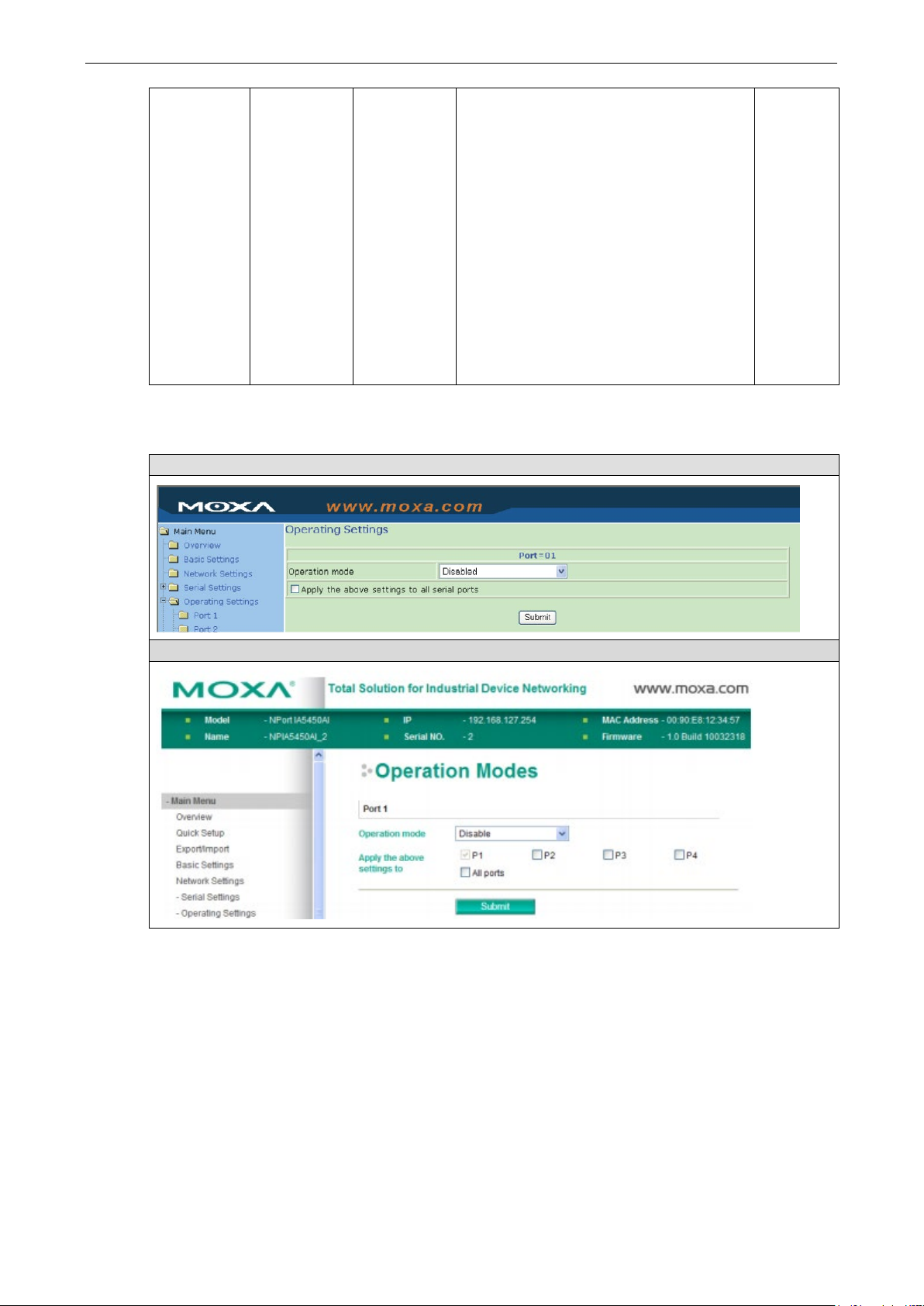

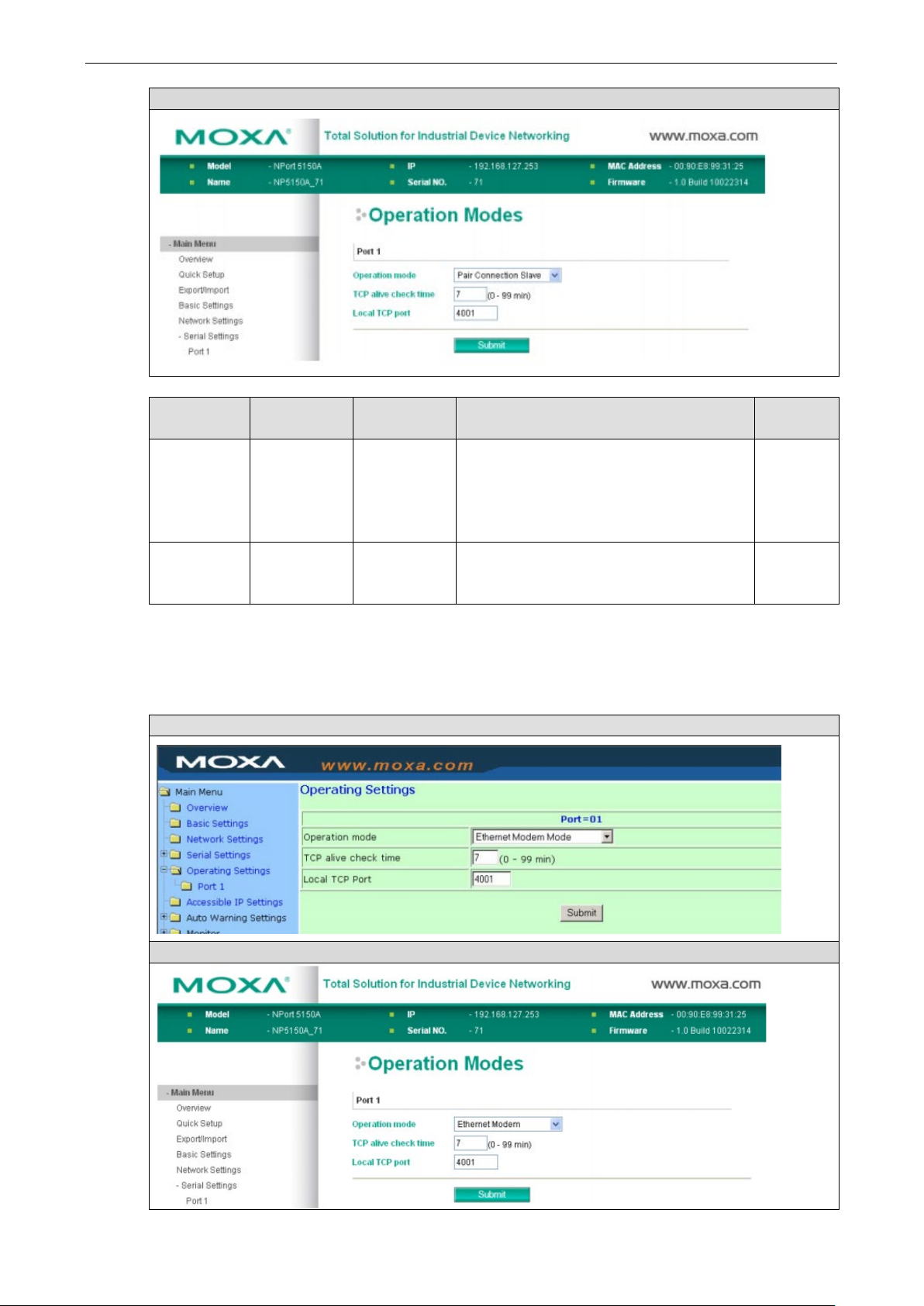

Operating Settings

Operating Settings is where each device port’s operation mode and associated parameters are configured. Use the chart provided below to select the operation mode that is most suitabl e for your application and refer to

Chapters 3 and 4 for a detailed explanation of different operating modes and parameters.

NPort 5000 Series Getting Started

2-29

Click on Operating Settings under Main Menu to display the operating settings for the NPort’s serial ports. To modify operating settings for a particular port, click on the Port Number under Operating Settings, located under Main Menu on the left side of the browser window.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Getting Started

2-30

For each mode, the default settings should work for most applications. Modify these settings only if absolutely necessary for your application. The operation mode and related parameters can be configured through the web console. The same parameters can also be configured using NPort Administrator, the Telnet console, the or serial console. Refer to Chapters 3 and 4 for details.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Getting Started

2-31

Accessible IP Settings

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

Accessible IP Settings allow you to add or block remote host IP addresses to prevent unauthorized access.

Access to the NPort is controlled by IP address. That is, if a host’s IP address is in the accessible IP table, then the host will be allowed to access the NPort. Three setting types are des cribed below:

• Only one host with a specific IP address can access the NPort Enter “[IP address]/255.255.255.255” (e.g., “192.168.1.1/255.255.255.255”).

• Hosts on a specific subnet can access the NPort Enter “[IP address]/255.255.255.0” (e.g., “192.168.1.0/255.255.255.0”).

• Any host can access the NPort Disable this function. Refer to the following table for more details about the configuration.

NPort 5000 Series Getting Started

2-32

Allowable Hosts Input format

Any host Disable

192.168.1.120 192.168.1.120 / 255.255.255.255

192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0

192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0

192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128

192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128

Auto Warning Settings

The NPort device server can automatically warn administrators of certain system, network, and configurat ion events. Depending on the event, different options for automatic notification are available. These options are configured in the Auto Warning Settings.

Auto warning: E-mail and SNMP trap

The Email and SNMP trap parameters are used to configure how e-mail and SNMP traps are sent when an automatic warning is issued by the NPort device server.

Web Interface for the NPort 5000 and NPort IA5000 Series

NPort 5000 Series Getting Started

2-33

mail

IP address or

ATTENTION

Consult your

function may

not work properly if it is not configured correctly. NPort

MD5 (RFC

2554).

Web Interface for the NPort 5000A and NPort IA5000A Series

Mail Server

Parameter Setting Factory

Default

Mail server IP or Domain

Name

User name 1 to 15

characters

Password 1 to 15

characters

From E-mail address

E-mail address 1/2/3/4

1 to 63 characters

None This optional field is for the IP address or

None This optional field is used if your mail server

None This optional field sets the “From” e-mail

None These optional fields set the destination e-

Description Necessity

Optional domain name of your network mail server, if applicable. A mail server is required for the NPort to send e-mail warnings of administrative events.

Optional requires it.

Optional

requires it.

Optional address that will show up in an automat ic warning e-mail.

Optional address for automatic e-mail warnings.

SNMP Trap Server

Parameter Setting Factory

SNMP trap server IP or domain name

Domain Name

network administrator or ISP for the proper mail server settings. The Auto warning

Description Necessity

Default

None N/A Optional

SMTP AUTH supports LOGIN, PLAIN, CRAM-

NPort 5000 Series Getting Started

2-34

Event Type

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

The Event Type parameters are used to con figure which events will genera te an automatic warning from the NPort device server, and how that warning will be issued. For each listed event, certain automatic warning options are available. If Mail is selected, an e-mail will be sent. If Trap is selected, an SNMP trap will be sent. The Relay Output option is available for NPort IA5000/IA5000A series.

Cold start

Refers to starting the system from power off (contrast this with warm start). When performing a cold start, the NPort will automatically issue an Auto warning message by e-mail, or send an SNMP trap after booting up.

Warm start

Refers to restarting the computer without turning the power off. When performing a warm start, the NPort will automatically send an e-mail, or send an SNMP trap after rebooting.

NPort 5000 Series Getting Started

2-35



Authentication failure

An authentication failure event is trig gered when the user inputs an incorrect password from the Console or Administrator. When an authentication failure occurs, the NPort will immediately send an e-mail or SNMP trap.

IP address changed

An IP address changed event is triggered when the user has changed the NPort’s IP address. When the IP address changes, the NPort will send an e-mail with the new IP address before the NPort reboots. If the NPort is unable to send an e-mail message to th e mail server within 15 seconds, the NPort will reboot anyway, and abort the e-mail auto warning.

Password changed

A password changed event is triggered when the user has changed the NPort’s password. When the password changes, the NPort will send an e-mail with the password changed notice before the NPort reboots. If the NPort is unable to send an e-mail message to the mail server within 15 seconds, the NPort will reboot anyway, and abort the e-mail auto warning.

Power failure (this event type is on ly applicable to NPort IA5000/IA5000A series)

NPort IA5000/IA5000A series NPorts have two DC power inputs for redundancy. Different approaches are used to warn engineers automatically, including by email and by relay output. Users can connect to Monitor Relay Output from the web console to check which event caused the warning. The relay output will be canceled after the power recovers, or by selecting “acknowledge event” using the web console or Telnet. When the Relay Output is sending a warning, the Ready LED will f lash r ed until the warning event cease s.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Getting Started

2-36

NOTE

Relay Output

Relay

Output

the warning. The relay output will be canceled

if the

. When

the Relay Output is issuing a warning, the Ready LED

configure

ATTENTION

DCD and DSR signal changes are only applicable for the RS

Ethernet link down

The NPort device server provides system maintainers with real-time alarm messages for Ethernet link down. Even when control engineers are out of the control room for an extended period of time, they can still be informed of the status of devices almost instantaneously when exceptions occur. The NPort device server supports different methods for warning engineers automatically, such as by email, SNMP trap, and relay output*.

DCD changed

A DCD (Data Carrier Dete ct) signal change indicates tha t the modem con nectio n status has chang ed. F or example, a DCD change to high indicates that the local modem and remote modem are co nn ected . A DCD signal change to low indicates that the connection li ne is down. When the DCD changes, the NPort will immediately send an e-mail, send an SNMP trap, or trigger the relay output*.

DSR changed

A DSR (Data Set Ready) signal change indicates that the data communication equipment’ s p ower is off. For example, a DSR change to high indicates that the DCE is powered ON. A DSR signal changes to low indicates that the DCE is powered off. When the DSR changes, the NPort will immediately send an e-mail, send an SNMP trap, or trigger the relay output*.

*Relay output is only supported by the NPort IA5000/IA5000A series.

abnormal state is restored, or if Acknowledge Event is selected from the web or Telnet console

Parameter Setting Factory

Mail Enable, Disable Disable This feature helps the administrator manage

Trap Enable, Disable Disable This feature helps the administrator manage

is only available for the N Port IA5000/ IA5000A series. Users can connect to Monitor 

from the web console to check which event is causing

will flash red until the warning event ceases.

Description Necessity

Default

Optional how the NPort sends e-mail to pre-defined e-mail boxes when the enabled events (Cold start, Warm start, Authentication failure, etc.) occur. To configure this featur e, click the Event Type Mail checkbox.

Optional how the NPort IA5000A sends an SNMP Trap to a pre-defined SNMP Trap server when the enabled events (Cold start, Warm start, Authentication failure, etc.) occur. To this feature, click the Event Type Trap checkbox.

-232 interface.

NPort 5000 Series Getting Started

2-37

Monitor

Monitor Line

Click Line under Monitor to show the operation mode and status of each connection (IPx), for each of the four serial ports.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

Monitor Async

Click Async under Monitor to show the current status of each of the four serial ports.

Web Interface for the NPort 5000 and NPort IA5000 Series

NPort 5000 Series Getting Started

2-38

Web Interface for the NPort 5000A and NPort IA5000A Series

Monitor Async-Settings

Click Async Setting under Monitor to show the run-time settings for each of the four serial ports.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Getting Started

2-39

ATTENTION

If you forget the NPort’s password, the ONLY way to configure the NPort is by using the hardware reset button to

time, it is a good idea to export the NPort’s

complete configuration to

Change Password

You can set a password to restrict access to the NPort’s configuration paramete rs. If a user does not enter t he correct password when accessing the NPort through one of the consoles (e.g., web console), access to the NPort configuration settings will be denied. In order to remove password protection, leave the New password and Retype password parameters blank.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

load the factory defaults. Before you set a password for the first

a file. Your configuration can then be easily restored if necessary.

NPort 5000 Series Getting Started

2-40

Load Factory Default

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

This function will reset all of the NPort’s settings to the factory default values. Be aware that previous settings will be lost.

Configuration by Telnet Console

You can update your NPort’s IP address by using Telnet to connect to your NPort IA5000A over the network. (Figures in this section were generated using the NPort IA5450AI).

1. From the Windows desktop, c lick on Start and then selec t Run.

2. Type telnet 192.168.127.254 (use the correct IP address if different from the default) in the Open text input box, and then click OK.

NPort 5000 Series Getting Started

2-41

3. When the Telnet window opens, if you are prompted to input the Console password, input the password and then press Enter. This page will only appear if the NPort is password protected.

4. Type 2 to select Network settings, and then press Enter.

5. Type 1 to select IP address and then press Enter.

NPort 5000 Series Getting Started

2-42

6. Use the Backspace key to erase the current IP address, type in the new IP address, and then press Enter.

7. Press any key to continue…

8. Type m a nd then press Enter to return to the main menu.

NPort 5000 Series Getting Started

2-43



ATTENTION

The

9. Type s and then press Enter to Save/Restart the system.

10. Type y and then press Enter to save the new IP address and restart the NPort.

Configuration by Serial Console

Serial Console (19200, n, 8, 1)

You may use the RS-232 console port to configure your NPort’s IP address. We suggest using PComm Terminal Emulator, which is available free of charge as part of the PComm Lite progra m suite, to carry out the installation procedure, although other similar utilities may also be used. The following table list models that have a serial console.

NPort Family

Configuration Options Serial Console* * Only applies to NPorts that have a serial console port. The following NPorts do not have a serial console port:

NPort 5130/5232/5400 Series, NPort 5600 RM Series, NPort 5150AI-M12/5250AI-M12/5450AI-M12 Series NPort 5130A/ 5230A Series.

NPort 5000/IA5000 Series

NPort 5000A/IA5000A Series

serial console port is an RS-232 port.

NPort 5000 Series Getting Started

2-44



Before you configure the NPort device server over the serial console, turn off the power and connect the serial cable from the NPort to your computer’s serial port.

1. Conne ct the NPort’s serial port 1 directly to your computer’s male RS-232 serial port. From the Windows desktop click Start

2. When the PComm Terminal Emulator window opens, first click on the Port Manager menu item and select Open, or simply click on the Open icon.

3. The Property window opens automatica lly. From the Communication Parameter page, select the appropriate COM port for the connection, COM1 in this example, and 19200 for Baud Rat e, 8 for Data B its, None for Parity, and 1 for Stop Bits.

Programs  PComm Lite  Terminal Emulator.

4. From the Property window’s Terminal page, select ANSI or VT100 for Terminal Type and then click OK.

5. If you select Dumb Terminal as the terminal type, some of the console functions—especially the Monitor function—may not work properly.

6. Press the “ ` ” key continuously and then power on the NPort.

NPort 5000 Series Getting Started

2-45

7. The NPort will automatically switch from data mode to c onsole mode as it receives a continuous string of “ ` ” characters.

8. Input the password when prompted. Note that this page will only appear if the NPort is password protected.

9. Start configuring the IP address under Network Settings. Refer to step 4 in the Telnet Console section for the rest of the IP settings.

NPort 5000 Series Getting Started

2-46

Testing Your NPort

After completing installation and configuration, you can do a simple test to ensure that your NPort will communicate successfully. Click on the appropriate link below to view a technical note that explains how to test your NPort one of four common operation modes: Real COM, TCP client, TCP server, and UDP.

• Real COM Mode for NPort

• TCP Client Mode for NPort

• TCP Server Mode for NPort

• UDP Mode for NPort



3. Choosing the Proper Operation Mode

In this chapter, we describe the NPort device server’s various operation modes. The options include an operation mode that uses a driver installed on the host computer, and operation modes that rely on TCP /IP socket programming concepts. After choosing the proper operation mode in this chapter, refer to Chapter 4 for detailed configuration parameter definitions.

The following topics are covered in this chapter:

Overview Real COM Mode RFC2217 Mode TCP Server Mode TCP Client Mode UDP Mode Pair Connection Mode Ethernet Modem Mode Reverse Telnet Mode Disabled Mode

NPort 5000 Series Choosing the Proper Operation Mode

3-2

The NPort Windows systems, and also TTY drivers for Linux systems. The driver establishes a transparent connection serial device by mapping the IP:Port of the

serial port to a local COM/TTY port on the host computer. Real COM Mode also supports up to 4 simultaneous hosts can collect data from the

t the same

time.

ATTENTION

The driver used for Real COM Mode is bundled with NPort Administrator. The driver is installed on your computer automatically when you instal l NPort Administrati on Suite.

Overview

NPort serial device servers network-enable traditional RS-232/422 /485 devices. A serial device server is a small computer equipped with a CPU, real-time OS, and TCP/IP protocols that can bi-directiona lly tr an slate data between the serial and Ethernet formats. NPort device servers that are connected to a network that with access to the Internet can be accessed from a computer located anywhere in the world.

Traditional SCADA and data collection systems rely on serial ports (RS-232/422/485) to collect data from various kinds of instruments. Since NPort serial device servers network-enable instruments equipped with an RS-232/422/485 communication p ort, your SCADA and data collection system will be able to access all instruments connected to a standard TCP/IP network, regardless of whether the devices are used locally or at a remote site.

An NPort serial device server is an external IP-based network device that allows you to expand the number of serial ports for a host computer on demand. As long as your host computer supports the TCP/IP protoc ol, you won’t be limited by the host computer’s bus limitation (such as ISA or PCI), or lack of drivers for various operating systems.

In addition to providing socket access, the NPort also comes with a Real COM / TTY driver that transmits all serial signals intact. This means that you c an conti nue usi ng your existing COM/TTY-based software, without needing to invest in additional software.

Three different socket modes are av a ilable: TCP Server, TCP Client, and U DP Server/Client. The main difference between the TCP and UDP protocols is that TCP guarantees delivery of data by requiring the recipient to send an acknowledgement to the sender. UDP does not require this type of verification, making it possible to offer speedier delivery. UDP also allows data to be unicast t o only one IP addre ss, or multic ast to groups of IP addresses.

Real COM Mode

comes equipped with COM drivers that work with

between host and

NPort’s

connections, so that mult iple

same serial device a

One of the major conveniences of using Real COM Mode is that Real COM Mode allows users to continue using RS-232/422/485 serial communications software that was written for pure serial communications applications. The driver intercepts data sent to the host’s COM port, packs it into a TCP/IP packet, and then redirects it through the host’s Ethernet card. At the other end of the connection, the NPo r t accepts the Ethernet frame, unpacks the TCP/IP packet, and then sends it transparently to the appropriate serial device attached to one of the NPort’s serial ports.

NPort 5000 Series Choosing the Proper Operation Mode

3-3

ATTENTION

Real COM Mode allows several hosts to access the same NPort. The driver that comes with your NPort controls host access to attached serial devices by checking the host’s section

In IP:Port combination on a T CP/IP network. In this case, the NPort waits passively to be contacted by the host After the host computer establishes a connection serial device, it can then proceed with data transmission. TCP Server mode also

simultaneous connections, so that multiple hosts can collect device transmission proceeds as follow s:

The host requests a connection from th e NPort configured

NPort,

In TCP Client Mode, the NPort can actively establish a connection with a

serial data arrives. can the

Refer to illustrated in the figure, data transmission proceeds as

NPort,

in Chapter 2 for details.

RFC2217 Mode

RFC2217 Mode is only supported by the NPort 5000A, NPort 5000AI-M12, NPort IA5000A, NPort 5600, and NPort 5600-8-DT/DTL Series.

RFC 2217 mode is similar to Real COM mode in that a driver is used to establish a transparen t co nnection between a host computer and a serial device by mapping the serial port on the NPort to a local COM port on the host computer. RFC2217 defines general COM port control options based on the Telnet protocol. Third party drivers supporting RFC2217 are widely available on the Internet and can be used to implement Virtual COM mapping to your NPort serial port(s).

TCP Server Mode

TCP Server Mode, the NPort is configured wit h a unique

IP address. Refer to the Accessible IP Settings

computer.

with the

supports up to 4

data from the same serial

—at the same time. As illustrated in the figure, d ata

for TCP Server Mode.

Once the co nn ect ion is es tabl ish ed, data ca n be

transmitted in both directions—from the host to the and from the NPort to the host.

TCP Client Mode

pre-determined host computer when

After the data has been transferr ed , the NPort

disconnect automatically from the host computer by using

TCP alive check time or Inactivity time settings.

Chapter 4 for detailed configuration instructions. As

The NPort configured for TCP Client Mode requests a

connection from the host.

Once the co nn ect ion is es tabl ish ed, data ca n be

transmitted in both directions—from the host to the and from the NPort to the host.

TCP

follows:

NPort 5000 Series Choosing the Proper Operation Mode

3-4

Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can unicast or multicast data from the serial device to one or multipl e host computers, and the serial device c computers, making this mode ideal for message display applications.

UDP Mode

an also receive data from one or multiple host

Pair Connection Mode

Pair Connection Mode employs two NPort units in tandem, and can be used to remove the 15-meter distance limitation imposed by the RS-232 interface. One NPort is connected from its RS-232/422/485 port to the COM port of a PC or other type of computer, such as hand-held PDAs that have a serial port, and the serial device is connected to the RS-232/422/485 port of the other NPort. The two NPort units are then connected to each other with a cross-over Ethernet cable, both are connected to the same LAN, or in a more advanced setup, they communicate with each other over a WAN (i.e., through one or more routers). Pair Connection Mode transparently transfers both data and modem control signals (although it cannot transmit the DCD signal) between the two NPorts.

Ethernet Modem Mode

Ethernet Modem Mode is only supported by the NPort IA5000/IA5000A, NPort 5000A, NPort 5000AI-M12, and NPort 5100 series.

Ethernet Modem Mode is designed for use with legacy operating systems, such as MS-DOS, that do not support TCP/IP Ethernet. By connecting one of NPort’s serial ports to the MS-DOS computer’s serial port, it is possible to use legacy software originally designed to transmit data via modem, but now transmit the data over the Ethernet.

NPort 5000 Series Choosing the Proper Operation Mode

3-5

Reverse Telnet Mode

Console management is commonly used by connecting to Console/AUX or COM ports of routers, switches, and UPS units. Rtelnet works the same as TCP Server mode in that only one TCP port is listened to after booting up. The system then waits for a host on the network to initiate a connection. The difference is that the TCP Server mode does not provide the conversion function provided by Telnet. If the connected devices need to use the CR/LF conversion function when controlling, then users must choose Reverse Telnet mode.

Disabled Mode

When the Operation Mode for a particular port is set to Disabled, that port will be disabled.



4. Advanced Operation Mode Settings

Your NPort’s serial ports can be configured to use one of several operation modes, such as Real COM mode or Reverse Telnet mode. In this chapter, we explains the settings for every parameter of every operation mode.

The following topics are covered in this chapter:

Overview

 List of Parameters  When to Make Adjustments

Using Pair Connection Modes Parameter Summary

 Connection Management Parameters  Data Packing Parameters  Other Parameters

Web Console

NPort 5000 Series Advanced Operation Mode Settings

4-2

  

 



  

 

   



   



   



   



 



 



Overview

A device port’s operation mode determ ines how the port interacts with the network. Depending on your application and device, you may have the option of choosing between two or more operating modes. For each mode, the default settings should work for most applications. Modify these settings only if absolutely necessary for your application. The operation mode and related parameters can be configured through NPort Administrator. The same parameters may also be configured using the web co nsole, Telnet console, or serial console.

List of Parameters

Real COM Mode TCP Server Mode TCP Client Mode UDP Mode Reverse Telnet Mode Pair Connection Mode RFC2217 Mode

Connection Management Parameters

Data Packing Parameters

Other Parameters

Allow driver control

Command port

Max connection Ignore jammed IP

Destination IP address 1 through 4

Designated local port 1 through 4

Local li sten port

Connection Control

TCP alive check time

Inactivity time

Packing length Delimiter 1 and 2 Delimiter process Force transmit

Local TCP port

Destination IP address

Map <CR-LF>

When to Make Adjustments

The default settings for each operation mode are designed to work for most applications and usually do not need to be modified. However, adjustments may be required for the following situations:

• You need to control network data pa cking using specific delimiter cha racters. Adjust Delimiters 1 and 2 and Delimiter process.

• Multiple hosts will simultaneously access the attached device. Adjust Max Connection, Ignore Jammed IP, and Allow driver control.

• Data will be broadcast from the serial device to multiple network destinations. Adjust Destination IP 1 through 4.

• You are using Pair Connection mod es to connect two serial devices over Ethernet. Adjust Local TCP port and Destination IP Address

NPort 5000 Series Advanced Operation Mode Settings

4-3

  

Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Pair Connection Mode

RFC2217 Mode

 



Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Pair Connection Mode

RFC2217 Mode

wish to use Inactivit y time with

Using Pair Connection Modes

For some applications, you may want to configure two serial devices to communicate directly with each other over the network. This can be done with a pair of NPort device servers configured for Pair Connection Master/Slave modes. Configure one device port on one of the NP orts to Pair Connection Master mode, and one device port on the other NPort to Pair Connection Slave mode. It doesn’t matter which NPort is the master and which NPort is the slave.

For the device port configured for Pair Connection Slave mode, designate a Local TCP port to be used for communication. For the device port configured for Pair Connection Master mode, enter the slave’s IP address and Local TCP port as the Destination IP.

Once both device ports have been configured, the attached serial devices will communicate over Ethernet as if they were connected by a serial cable. The two NPorts can be connected by an Ethernet cable, or they can be connected to the same network.

Parameter Summary

Connection Management Parameters

Reverse Telnet Mode

Inactivity time

Reverse Telnet Mode

TCP alive check time

Setting Options: 0 to 99 minutes Default: 7 minutes

Description: The time limit for keeping the connection open if a host does not respond to “TCP alive check” packets. If the host does not respond within the specified time, the connection will be closed. A setting of 0 means that the connection will rema in open even if the host never responds.

Setting Options: 0 to 65535 ms Default: 0

Description: Specifies the time limit for keeping the connection open if no data flows to or from the serial device. If there is no activity for the specified time, the connection w ill be closed. A setting of 0 means that the connection will remain open ev en if data is never received.

For many applications, the serial device may be idle for long periods of time, so 0 is an appropriate setting. If you TCP Client mode, you must set Connection Control to Any Character/Inactivity Time (see Connection Control).

When adjusting Inactivity time, make sure that it is greater than the Force transmit time. Otherwise, the TCP connection may be closed before data in the buffer can be transmitted.

NPort 5000 Series Advanced Operation Mode Settings

4-4

  

RFC2217 Mode

  

Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Reverse Telnet Mode

Pair Connection Mode

RFC2217 Mode



UDP Mode

RFC2217 Mode

   



Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Reverse Telnet Mode

Pair Connection Mode

RFC2217 Mode

Max connection

Setting Options: 1 to 4 Default: 1

UDP Mode

Real COM Mode

TCP Client Mode

TCP Server Mode

Pair Connection Mode

Reverse Telnet Mode

Ignore jammed IP

Allow dri ver control

Description: Specifies the maximum number of simultan eous connections that the port will accept. When adjusting Max connec tio n, make sure that Ignore jammed IP and Allow driver control are also configured correctly.

Setting Options: Yes or No Default: No

Description: This field specifies how an unresponsive IP address is handled when there are simultaneous connections to the device port (see Max connection). Yes means that transmission to the other hosts will not be suspended if one IP address becomes unresponsive. No means that all transmission will be suspended if one IP address becomes unresponsive, and will resume when all hosts have responded. Yes is the recommended setting when Max connection is 2 or mo re.

Setting Options: Yes or No Default: No

Description: Specifies whether or not the device port will respond to driver control commands when multiple simultaneous connections are

Real COM Mode

TCP Server Mode

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

enabled (see Max connection).

Data Packing Parameters

Packing length

Setting Options: 0 to 1024 Default: 0

Description: Controls data packing by the amount of data received. Serial data accumulates in the device port’s buffer until it reaches the specified length. When the specified amount of data has accumulated in the buffer, the data is packed for network transmission. A setting of 0 means that data will not be packed until the buf f er is full. 0 is the recommended setting, unless your application has a specific need to limit packet sizes or improve response times.

NPort 5000 Series Advanced Operation Mode Settings

4-5

  



RFC2217 Mode

must be received in sequence for data packing to occur. For example, the

ATTENTION

When the device port buffer is full, the data will be packed for network transmission, regardless of the settings for Delimiter 1, Delimiter 2, and Force transmit.

   



Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Reverse Telnet Mode

Pair Connection Mode

RFC2217 Mode

the

   



Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Pair Connection Mode

RFC2217 Mode

device port’s buffer. If serial data is not received for the specified amount

UDP Mode

Real COM Mode

TCP Server Mode

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

Delimiter 1 and 2

Setting Options: Enable, 0 to FF Default: Disable

Description: Controls data packing using special delimiter character(s). Serial data accumulates in the devi ce p ort’s buffer until the delimiter

character(s) are received, after which the data is packed for network transmission. If only one delimiter character is needed, be sure to enable Delimiter 1 only. If both Delimiter 1 and 2 are enabled, both characters

carriage return character could be used as a delimiter in order to transmit each sentence or paragraph in a separate packet. Data is packed according to the Delimiter process parameter.

Delimiters must be incorporated into the data stream at the software or device level.

Delimiter process

Setting Options: Do Nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter Default: Do Nothing

Description: Controls how data is packed when delimiter c ha racters are received. Note that this field has no ef f ect if delimiters are not enabled (see Delimiters 1 and 2).

”Do nothing” will pack the accumulated data including delimiters. ”Delimiter + 1” will wait for an additional character before packing the

accumulated data. ”Delimiter + 2” will wait for two additional characters before packing

accumulated data. ”Strip Delimiter” will pack the accumulated data but will not include the

delimiter characters in the packet.

Reverse Telnet Mode

Force transmit

Setting Options: 0 to 65535 ms Default: 0 ms

Description: Controls data packing by the amount of time that elapses between bits of data. As serial data is r eceived, it accumulates in the

of time, the data that is currently in the buffer is packed for network transmission. A setting of 0 means that data in the buffer will not be automatically packed when additional data is not received from the device. When using this field, make sure Inactivity time is disabled or set to a larger value. Otherwise, the connection may be closed before the data in the buffer can be transmitted.

NPort 5000 Series Advanced Operation Mode Settings

4-6



 

Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Pair Connection Mode

RFC2217 Mode



UDP Mode

RFC2217 Mode



UDP Mode

RFC2217 Mode



UDP Mode

RFC2217 Mode

Serial data will be transmitted to every address listed, and network data

Other Parameters

Real COM Mode

Command port

TCP Client Mode

TCP Server Mode

Reverse Telnet Mode

Local TCP port

Setting Options: 1 to 65535 Default: 4001 for port 1, 4002 for port 2, etc.

Description: Specifies the TCP port number for communicatin g with the attached device. Socket applications will need to use this port number to refer to the device. For Pair Connection modes, this field specifies the slave’s port number, and the same value must be used for the master’s Destination IP para meter.

Setting Options: 1 to 65535 Default: 966

Description: Specifies the TCP port number for Moxa IP-Serial Library commands. You do not need to reference this port number in your application when using the Moxa IP-Serial Library, since the library automatically obtains the number from the device server. Only change

Pair Connection Mode

this setting if there is a port number conflict with another application or device.

Destination IP address

Setting Options: N/A Default: none

Description: Specifies the IP address for the slave end of a pair connection.

Real COM Mode

TCP Server Mode

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

Destination IP address 1 through 4

Setting Options: N/A Default: none

Description: Specifies the network host(s) that will acces s the device.

will be sent to the device on a first-in-first-out basis.

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

NPort 5000 Series Advanced Operation Mode Settings

4-7



RFC2217 Mode



UDP Mode

RFC2217 Mode



Real COM Mode TCP Server Mode

TCP Client Mode

UDP Mode

Reverse Telnet Mode

Pair Connection Mode

RFC2217 Mode



UDP Mode

RFC2217 Mode

Real COM Mode

TCP Server Mode

Real COM Mode

TCP Server Mode

Designated local port 1 through 4

Setting Options: 1 to 65535 Default: none

UDP Mode

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

Local listen port

TCP Client Mode

Reverse Telnet Mode

Pair Connection Mode

Connection Control

Description: Specifies the TCP port number that will be used for data transmission with the device port.

Setting Options: 1 to 65535 Default: 4001 for port 1, 4002 for port 2, etc.

Description: Specifies the UDP port number for network communication to the serial device. Socket applications will need to use this port number to refer to the device.

Setting Options: Startup/None, Any Character/None, Any Character/Inactivity Time, DSR On/DSR Off, DSR On/None, DCD On/DCD Off, DCD On/None Default: Startup/None

Description: Specifies how connections to the device are established and closed.

For example, “Startup/None” mea n s that as soon as the device server starts up, the TCP connection is opened, and the connection can only be closed manually. “DCD On/DCD Off” means that the TCP conne ction is opened when the DCD signal is on, and closed when the DCD signal is off. If you want to use the Inactivity Time parameter to close the connection when the serial device is inactive, you must set Connection Contro l to “Any Character/Inactivity time”.

Real COM Mode

TCP Server Mode

TCP Client Mode

Map <CR-LF>

Setting Options: CR, LF, or CR-LF Default: CR-LF

Description: Specifies how the ENTER key is mapped from the Ethernet port through the serial port. For certain terminal applications, the Enter key needs to be translated specifically as a CR character rather than CR-LF.

Reverse Telnet Mode

Pair Connection Mode

NPort 5000 Series Advanced Operation Mode Settings

4-8

Web Console

Click Operating Settings to display the operating settings for each of the NPort’s serial ports.

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Advanced Operation Mode Settings

4-9

Real COM Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Advanced Operation Mode Settings

4-10

the

TCP connection if there is no TCP activity for the

factory default only allows 1

Real COM drivers to open the specific NPort serial

same time, the COM driver only provides a pure

driver will receive a driver response of “success”

buffer and sends it to the NPort’s

Parameter Setting Factory

Default

TCP Alive Check Time

Max Connection

0 to 99 min 7 min 0 min: TCP connection is not closed due to an

1, 2, 3, 4 1 Max connection is set to 2, 3, or 4 when the

Description Necessity

Optional idle TCP connection. 1 to 99 min: The NPort automatically closes

given time. After the connection is closed, the NPort starts listening for another Real COM driver connection.

Required user needs to receive data from differ ent hosts simultaneously. The connection at a same. When Max Connection is set to 1, the Real COM driver on the specific host has full control. Max. Connection 1: Allows only 1 host’s Real COM driver to open the specific NPort serial port. Max Connection 2 to 4: Allows 2 to 4 host’s

port, at the same time. When multiple hosts’ Real COM drivers open the serial port at the

Ignore jammed IP

Packing length 0 to 1024 0 0: The Delimiter Process will be followe d,

Delimiter 1 00 to FF None Once the NPort receives both delimiters through

Delimiter 2 00 to FF None Optional

No or Yes No No: When Max connections > 1, and the serial

data tunnel without control ability. That is, this serial port parameter will use the firmware’s settings, not the settings of your application program (AP). Application software that is based on the COM

when the software uses any of the Win32 API functions. The firmware will only send the data back to the driver on the host. Data will be sent first-in-first-out when data comes into the NPort from the Ethernet interface.

Optional device is transmitting da ta, if any one of the connected hosts is not res ponding, it will wait until the data has been transmitted successfully before transmitting the se con d group of data to all hosts. Yes: If you select Yes for “Ignore jammed IP,” the host that is not responding will be ignored, but the data will still be transmitted to the other hosts.

Optional regardless of the length of the data pack et. Greater than 0: If the data length (in bytes) matches the configured value, the data will be forced out.

Optional its serial port, it immediately packs all data currently in its Ethernet port.

NPort 5000 Series Advanced Operation Mode Settings

4-11

ATTENTION

When Max connection is set to 2, 3, or 4, the NPort will

application” (i.e., 2, 3, or 4 hosts

are allowed access to the

connection application, the NPort will use the serial communication parame ters set in the console. All of the hosts connected to that port must use the same serial settings. If one of the hosts opens the COM port

parameters that are different from the NPort’s

console setting, data communication may not work properly.

NOTE

Optimal force transmit timeout differs according to your application, but it must be at least larger than one character interval within data bits, 1 stop bit, and no parity. In this case, the total number of bits needed to send a character is 10 bits, and the time required to transfer one character is

1 Therefore, you should set Force Transmit timeout

milliseconds and must be If

characters with time delay le must be smaller than or equal to the NPort’s internal buffer size. The serial communication buffer size of the NPort is 1 Kbyte per port.

Parameter Setting Factory

Default

Delimiter process

Force Transmit

Do nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter

0 to 65535 ms 0 ms 0: Disable the force tran smit timeout.

Do nothing

Description Necessity

[Delimiter + 1] or [Delimiter + 2]: The data

will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimiter. [Strip Delimiter]: When the Delimiter is received, the Delimiter is deleted (i.e., stripped), and the remaining data is transmitted. [Do nothing]: The data will be transmitted when the Delimiter is received.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame. This parameter defines the time interval during which the NPort fetches the seria l da ta from its internal buffer. If data is incoming through the serial port, the NPort stores the data in the internal buffer. The NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the force transmit time interval reaches the time specified under Force Transmit timeout.

Optional

0 (bits) / 1200 (bits/s) * 1000 (ms/s) = 8.3 ms.

you want to send the series of characters in a packet, the serial device attached to the NPort should send

port at the same time). When using a multi

the specified baudrate. For example, assume that the serial port is set to 1200 bps, 8

greater than 10 ms.

ss than Force Transmit timeout between characters and the total length of data

use a “multi connection

with

greater than 8.3 ms. Force Transmit timeout is specified

NPort 5000 Series Advanced Operation Mode Settings

4-12

RFC2217 Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Advanced Operation Mode Settings

4-13

devices must use to

buffer and sends it to the NPort’s

Parameter Setting Factory

Default

TCP Alive Check Time

Local TCP Port 1 to 65535 4001 The TCP port that the NPort uses to listen to

Packing length 0 to 1024 0 0: The Delimiter Process will be followed,

Delimiter 1 00 to FF None Once the NPort receives both delimiters through

Delimiter 2 00 to FF None Optional

Delimiter process

Force Transmit

0 to 99 min 7 min 0 min: TCP connection is not closed due to an

Do nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter

0 to 65535 ms 0 ms 0: Disable the force transmit timeout.

Do nothing

Description Necessity

Optional idle TCP connection. 1 to 99 min: The NPort automatically closes the TCP connection if there is no TCP activity for the given time. After the connection is closed, the starts listening for another TCP connection.

Required connections, and that other contact the NPort. To avoid conflicts with well known TCP ports, the default is set to 4001.

Optional regardless of the length of the data pack et. Greater than 0: If the data length (in bytes) matches the configured value, the data will be forced out.

Optional its serial port, it immediately packs all data currently in its Ethernet port. [Delimiter + 1] or [Delimiter + 2]: The data will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimiter. [Strip Delimiter]: When th e Delimiter is received, the Delimiter is deleted (i.e., stripped), and the remaining data is transmitted. [Do nothing]: The data will be transmitted when the Delimiter is received.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame. This parameter defines the time interval during which the NPort fetches the seria l da ta f r om its internal buffer. If data is incoming through the serial port, the NPort stores the data in the internal buffer. The NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the force transmit time interval reaches the time specified under Force Transmit timeout.

Optional

NPort 5000 Series Advanced Operation Mode Settings

4-14

NOTE

Optimal force transmit timeout differs according to your applicati character interval within the specified baudrate. For example, assume that the serial port is set to 1200 bps, 8 data bits, 1 stop bit, and no parity. In this case, the total number of bits needed to send a character is 10 bits, and the time required to transfer one character is

10 (bits) / 1200 (bits/s) * 1000 (ms/s) = 8.3 ms. Therefore, you should set Force Transmit timeout to be larger than 8.3 ms. Force Transmit timeout is s pecified

in milliseconds and must b If

characters with time delay le must be smaller than or equal to the NPort’s internal buffer size. The serial communication buffer size of the NPort is 1 Kbyte per port.

e larger than 10 ms.

you want to send the series of characters in a packet, the serial device attached to the NPort should send

ss than Force Transmit timeout between characters and the total length of data

TCP Server Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

on, but it must be at least larger than one

NPort 5000 Series Advanced Operation Mode Settings

4-15

TCP connection if there is no TCP activity for the

idle

remote

Web Interface for the NPort 5000A and NPort IA5000A Series

Parameter Setting Factory

TCP Alive Check Time

Inactivity Time

0 to 99 min 7 min 0 min: TCP connection is not closed due to an

0 to 65535 ms 0 ms 0 ms: TCP connection is not closed due to an

Description Necessity

Default

Optional idle TCP connection. 1 to 99 min: The NPort automatically closes the

given time. After the connection is closed, the NPort starts listening for another Real COM driver connection.

Optional serial line. 0-65535 ms: The NPort automatically closes the TCP connection if there is no serial data activity for the given time. After the connection is closed, the NPort starts listening for another TCP connection. This parameter determines when the TCP connection is in Closed or Listen status. The connection is closed if ther e is no incoming or outgoing data through the serial port during the specific Inactivity time. If the inactivity time is set to 0, the current TC P connection is maintained until there is a connection close request. Although inact ivity time is disabled, the NPort will check the connection status between the NPort and

NPort 5000 Series Advanced Operation Mode Settings

4-16

periodically. If the remote host does not respond

factory default only allows 1

Real COM drivers to open the specific NPort serial

same time, the COM driver only provides a pure

driver will receive a driver response of “success”

If “max connection” is greater than 1, the NPort

host by sending “keep alive” packets

to the packet, it assumes that the conn ec tio n was closed down unin te ntionally. The NPort will then force the existing TCP conne ction to close.

Max Connection

1, 2, 3, 4 1 Max connection is set to 2, 3, or 4 when the

user needs to receive data from differ ent hosts simultaneously. The connection at a same. When Max Connection is set to 1, the Real COM driver on the specific host has full control. Max. Connection 1: Allows only 1 host’s Real COM driver to open the specific NPort serial port. Max Connection 2 to 4: Allows 2 to 4 host’s

port, at the same time. When multiple hosts’ Real COM drivers open the serial port at the

data tunnel without control ability. That is, this serial port parameter will use firmware’s settings, not the settings of your application program (AP). Application software that is based on the COM

Required

Ignore jammed IP

Allow Driver Control

Packing length 0 to 1024 0 0: The Delimiter Process will be followed,

No or Yes No No: When Max connections > 1, and the serial

No or Yes No

Optional will ignore driver control commands from all connected hosts. However, if you set “Allow driver control” to Yes, control commands will be accepted. Note that since the NPort may get configuration changes from multiple hosts, the most recent command received will take precedence.

Optional regardless of the length of the data pack et. Greater than 0: If the data length (in bytes) matches the configured value, the data will be forced out.

NPort 5000 Series Advanced Operation Mode Settings

4-17

buffer and sends it to the NPort’s

well known

ATTENTION

The Inactivity time should at least be set larger than that of Force transmit timeout. To prevent the unintended loss of data due to the session being disconnecte so that the intended data transfer is co mpleted.

ATTENTION

Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of the serial data received is greater than 1 KB, the NPort will automatically pack the data and send it to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter 1. If Delimiter 1 is left blank and Delimiter 2 is

Delimiter 1 00 to FF None Once the NPort receives both delimiters through Delimiter 2 00 to FF None Optional

Delimiter process

Force Transmit

Local TCP port 1 to 65535 4001 The TCP port that the NPort uses to listen to

Command port

Do nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter

0 to 65535 ms 0 ms 0: Disable the force transmit timeout.

1 to 65535 966 The command port is a listen TCP port for

Do nothing

its serial port, it immediately packs all data currently in its Ethernet port. [Delimiter + 1] or [Delimiter + 2]: The data will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimiter. [Strip Delimiter]: When th e Delimiter is received, the Delimiter is deleted (i.e., stripped), and the remaining data is transmitted. [Do nothing]: The data will be transmitted when the Delimiter is received.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into the same data frame. This parameter defines the time interval during which the NPort fetches the serial data fro m its internal buffer. If data is incoming through the serial port, the NPort stores the data in the internal buffer. The NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the force transmit time interval reaches the time specified under Force Transmit timeout.

connections, and that other devices must use to contact NPort. To avoid conflicts with TCP ports, the default is set to 4001.

IP-Serial Lib commands from the host. In o rder to prevent a TCP port conflict with other applications, the user can adjust the command port to another port if needed.

Optional

Required

Optional

enabled, the delimiter function will not work properly.

d, it is highly recommended that this value is set large enough

NPort 5000 Series Advanced Operation Mode Settings

4-18

TCP Client Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

NPort 5000 Series Advanced Operation Mode Settings

4-19

connection if there is no TCP activity for the given

Web Interface for the NPort 5000A and NPort IA5000A Series

Parameter Setting Factory

TCP Alive Check Time

0 to 99 min 7 min 0 min: TCP connection is not closed due to an idle

Description Necessity

Default

Optional TCP connection. 1 to 99 min: The NPort automatically closes TCP

time. After the connection is closed, the NPort starts listening for another Real COM driver connection.

NPort 5000 Series Advanced Operation Mode Settings

4-20

is closed, the NPort starts listening for another

f you select Yes for “Ignore jammed IP,”

responding will be ignored,

NPort will ignore driver control commands from

However, if you set “Allow

may get

matches the configured value, the data will be

through its serial port, it immediately packs all

Inactivity Time

Ignore jammed IP

Allow Driver Control

Packing length 0 to 1024 0 0: The Delimiter Process will be followed,

0 to 65535 ms 0 ms 0 ms: TCP connection is not closed d ue to an

No or Yes No No: When Max connections > 1, and the serial

No or Yes No If “max connection” is greater than 1, the

Optional

idle serial line. 0-65535 ms: The NPort automatically closes the TCP connection if there is no serial data activity for the given time. After the connection

TCP connection. This parameter determines when the TCP connection is in Closed or Listen status. The connection is closed if ther e is no incoming or outgoing data through the serial port during the specific Inactivity time. If the inactivity time is set to 0, the current TCP connection is maintained until there is connection close request. Although inactivity time is disabled, the NPort will check the connection status between the NPor t and remote host by sending “keep alive” p a ckets periodically. If the remote host does not respond to the packet, it assumes that the connection was closed down unintentionally. The NPort will then force the existing TCP connection to close.

Optional

device is transmitting da ta, if any one of the connected hosts is not res ponding, it will wait until the data has been transmitted successfully before transmitting the second group of data to all hosts. Yes: I the host that is not but the data will still be tran smitted to the other hosts.

Optional

all connected hosts. driver control” to Yes, control commands will be accepted. Note that since the NPort configuration changes from multiple hosts, the most recent command received will take precedence.

Optional

regardless of the length of the data pack et. Greater than 0: If the data length (in bytes)

Delimiter 1 00 to FF None Once the NPort receives both delimiters

Delimiter 2 00 to FF None Optional

forced out.

Optional

data currently in its buffer and sends it to t he NPort’s Ethernet port.

NPort 5000 Series Advanced Operation Mode Settings

4-21

If data is incoming through the

Delimiter process

Force Transmit

Destination IP address 1

Destination IP address 2/3/4

Designated Local Port 1/2/3/4

Connection control

Do nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter

0 to 65535 ms 0 ms 0: Disable the force transmit timeo ut.

IP address or Domain Name (E.g.,

192.168.1.1)

TCP Port No. 5011 (Port 1)

Startup/None, Any Character/ None, Any Character/ Inactivity Time, DSR ON/ DSR OFF, DSR ON/None, DCD ON/ DCD OFF, DCD ON/None

Do nothing [Delimiter + 1] or [Delimiter + 2]: The

data will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimi te r. [Strip Delimiter]: When th e Delimiter is received, the Delimiter is deleted (i.e., stripped), and the remainin g data is transmitted. [Do nothing]: The data will be transmitted when the Delimiter is received.

1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into th e same data frame. This parameter defines the time interval during which the NPort fetches the serial data from its internal buffer. serial port, the NPort stores the data in the internal buffer. The NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the force transmit time interval reaches the time specified und er Force Transmit timeout.

None Allows the NPort to connect actively to the

remote host (up to 4 hosts) who se IP address is set by this parameter. The “Destination IP address” parameter can use either IP address or Domain Nam e. Fo r some applications, the user may ne ed to send the data actively to the remo te destination domain name.

N/A Required 5012 (Port 2) 5013 (Port 3) 5014 (Port 4) Startup/None The meaning of each of the above settings is

given in the table below. In general, both the

Connect condition and Disconnect condition

are given.

Optional

Required

NPort 5000 Series Advanced Operation Mode Settings

4-22

ATTENTION

The Inactivity time should at least be set larger than that of Force transmit timeout. To prevent the unintended loss of data so that the intended data transfer is co mpleted. Inactivity time is ONLY active when “TCP connect on” is set to “Any character.”

NOTE

Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of the seri al data received is greater than 1 KB, the NPort will automatically pack the data and send it to the Ethernet. However, to use the delimiter function, you Delimiter 2 is enabled, the delimiter function will not work properly.

ATTENTION

Up to 4 connections can be established between the NPort and hosts. The be low if one of the four connections is slow, since the slow connection will slow down the other 3 connections.

Connect/Disconnect Description

Startup/None (default) A TCP connection will be established on startup, and will remain active indefinitely. Any Character/None A TCP connection will be established when any character is received from the serial

interface, and will re m ain active indefinitely.

Any Character/ Inactivity Time DSR On/DSR Off A TCP connection will be established when a DSR “On” signal is received, and will

DSR On/None A TCP connection will be established when a DSR “On” signal is received, and will

DCD On/DCD Off A TCP connection will be established when a DCD “On” signal is received, and will

DCD On/None A TCP connection will be established when a DCD “On” signal is received, and will

A TCP connection will be established when any character is received from the serial interface, and will be disconnected w hen the Inactivity time out is reached.

disconnected when a DSR “Off” signal is received.

remain active indefinitely.

disconnected when a DCD “Off” signal is received.

remain active indefinitely.

due to the session being disconnected, it is highly recommended that this value is set large enough

must at least enable Delim iter 1. If Delimiter 1 is left blank and

connection speed or throughput may

NPort 5000 Series Advanced Operation Mode Settings

4-23

UDP Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Advanced Operation Mode Settings

4-24

matches the configured value, the data will be

through its serial port, it immediately packs all

s incoming through the

with well known UDP ports, the

NOTE

Parameter Setting Factory

Default

Packing length 0 to 1024 0 0: The Delimiter Process will be followed,

Delimiter 1 00 to FF None Once the NPort receives both delimiters

Delimiter 2 00 to FF None Optional

Delimiter process

Force Transmit

Destination IP address 1 Destination IP address 2/3/4

Local listen port

Do nothing, Delimiter + 1, Delimiter + 2, Strip Delimiter

0 to 65535 ms 0 ms 0: Disable the force transmit timeout.

IP address range E.g., Begin:

192.168.1.1 End:

192.168.1.10 1 to 65535 4001 The UDP port that the NPort listens to, and that

Do nothing [Delimiter + 1] or [Delimiter + 2]: The

Begin: Empty End: Empty Port: 4001

Description Necessity

Optional regardless of the length of the data pack et. Greater than 0: If the data length (in bytes)

forced out.

Optional

data currently in its buffer a nd sends it to the NPort’s Ethernet port.

Optional data will be transmitted when an additional byte (for Delimiter +1), or an additional 2 bytes (for Delimiter +2) of data is received after receiving the Delimi te r. [Strip Delimiter]: When th e Delimiter is received, the Delimiter is deleted (i.e., stripped), and the remainin g data is transmitted. [Do nothing]: The data will be transmitted when the Delimiter is received.

Optional 1 to 65535: Forces the NPort’s TCP/IP protocol software to try to pack serial data received during the specified time into th e same data frame. This parameter defines the time interval during which the NPort fetches the serial data from its internal buffer. If data i serial port, the NPort stores the data in the internal buffer. The NPort transmits data stored in the buffer via TCP/IP, but only if the internal buffer is full or if the force transmit time interval reaches the time specified und er Force Transmit timeout. N/A Required

N/A Optional

Required other devices must use to contact the NPort. To avoid conflicts default is set to 4001.

ft blank and

NPort 5000 Series Advanced Operation Mode Settings

4-25

UDP Multicast (for the NPort 5000A/IA5000A only)

A multicast is a packet sent by one host to multiple hos ts. In multicast mode, each host that belongs to a specific multicast group will receive multicast packets for that group. For a host to be configured as a multicast receiver over the Internet, the mu st inform the routers on its LAN. The Internet Group Ma n agement Protocol (IGMP) is used to communicate group membership information between hosts and routers on a LAN. The NPort 5000A/IA5000A supports IGMP version 2.

Type the IP address (e.g., 239.1.1.1) assigned to the multicast group in the Begin column. The NPort will automatically add the Group, and receive all packets from this group as required by the multicast function.

Pair Connection Mode

Pair Connection Mode employs two NPort device servers in tandem, and can be used to remove the 15-meter distance limitation imposed by the RS-232 interface. One NPort is connected from its RS-232 port to the COM port of a PC or other type of computer, such as a hand-held PDA, and the serial device is connected to the RS-232 port of the other NPort. The two NPort device servers are then connected to each other with a cross-over Ethernet cable, both are connected to the same LAN, or in a more advanced setup, they communicate with each other over a WAN (i.e., through one or more routers). Pair Connection Mode transparently transfers both data and modem control signals (although it cannot transmit the DCD signal) between the two NPort device servers.

Pair Connection Master Mode

When using Pair Connection Mode, you must select Pair Connection Master Mode for the Operation mode of one of the NPort device servers. In ef fect, this NPort will be acting as a TCP client.

Web Interface for the NPort 5000 and NPort IA5000 Series

NPort 5000 Series Advanced Operation Mode Settings

4-26

TCP connection is not closed due to an

network host that has this IP address. Data will

server acting

Web Interface for the NPort 5000A and NPort IA5000A Series

Parameter Setting Factory

Default

TCP Alive Check Time

Destination IP address

0 to 99 min 7 min 0 min:

IP address or Domain Name (E.g.,

192.168.1.1) TCP Port 4001 Required

blank

Description Necessity

Required idle TCP connection. 1 to 99 min: The NPort closes the TCP connection automatically if there is no TCP activity for the given time. The Pair Connection “Master” will contact the

be transmitted through the port No. (4001 by default). Note that you must configure the same TCP port No. for the device as the Pair Connection “Slave.”

Optional

Pair Connection Slave Mode

When using Pair Connection Mode, you must select Pair Connection Slave Mode for the Operation mode of one of the NPort device servers. In effect, this NPort will be acting as a TCP server.

Web Interface for the NPort 5000 and NPort IA5000 Series

NPort 5000 Series Advanced Operation Mode Settings

4-27

TCP connection is not closed due to an

Web Interface for the NPort 5000A and NPort IA5000A Series

Parameter Setting Factory

Default

TCP Alive Check Time

Local TCP port TCP port No.

0 to 99 min 7 min 0 min:

4001 This Port No. must be the same port No. tha t

(e.g.,

4001)

Description Necessity

Required idle TCP connection. 1 to 99 min: The NPort closes the TCP connection automatically if there is no TCP activity for the given time.

Required you set up for the Pair Connection “Master” device server.

Ethernet Modem Mode (for the NPort IA5000/IA5000A, NPort 5000A, NPort 5000AI-M12, NPort 5100 series only)

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

NPort 5000 Series Advanced Operation Mode Settings

4-28

NOTE

The “+++” command cannot be divided. The “+” character can be changed in register S2, and the guard time, which prefixes and suffixes the “+++” in order to protect the raw

Dial-in

The NPort listens for a TCP/IP connection request from the remote Ethernet modem or host. The NPort’s response depends on the ATS0 value, as outlined below.

ATS0=0 (default): The NPort will temporarily accept the TCP connection and then send the RING signal out through the serial port. The serial controller must reply with “ATA” within 2.5 seconds to accept the connection request, after which the NPort enters data mode. If no “ATA” command is received, the NPort will disconnect after sending three “RING” signals.

ATS0≥0:

The NPort will accept the TCP connection immediately and then send the CONNECT <baud> command to the serial port, in which <baud> represents the baudrate of the NPort’s serial port. After that, the NPort immediately enters data mode.

Dial-out

The NPort accepts the AT command ATD <IP>:<TCP port> from the serial port and then requests a TCP connection from the remote Ethernet Modem or PC. This is where <IP> is the IP address of the remote Ethernet modem or PC, and <TCP port> is the TCP port number of the remote Ethernet modem or PC. Once the remote unit accepts this TCP connection, the NPort will send out the CONNECT <baud> signal via the serial port and then enter data mode.

Disconnection Request from the Local Site

When the NPort is in data mode, the user can drive the DTR signal to OFF, or send +++ from the local serial port to the NPort. The NPort will enter command mode and return NO CARRIER via the serial port, and then input ATH to shut down the TCP connec tion after 1 second.

data, can be changed in register S12.

Disconnection Request from the Remote Site

After the TCP connection has been shut down by the remote Ethernet modem or PC, the NPort will send the NO CARRIER signal via the serial port and then return to command mode.

AT Commands

The NPort supports the following common AT commands used with a typical modem:

No. AT command Description Remarks

1 ATA Answer manually 2 ATD <IP>:<Port> Dial up the IP address: Port No. 3 ATE ATE0=Echo OFF

ATE1=Echo ON (default)

4 ATH ATH0=On-hook (default)

ATH1=Off-hook 5 ATI, ATI0, ATI1, ATI2 Modem version reply “OK” only 6 ATL Speaker volume option reply “OK” only 7 ATM Speaker control option reply “OK” only 8 ATO On line command 9 ATP, ATT Set Pulse/Tone Dialing mode reply “OK” only 10 ATQ0, ATQ1 Quiet command (default=ATQ0) 11 ATSr=n Change the contents of S register See “S registers” 12 ATSr? Read the contents of S register See “S registers”

NPort 5000 Series Advanced Operation Mode Settings

4-29

TCP connection is not closed due to an

13 ATV Result code type

ATV0 for digit code

ATV1 for text code

0=OK

1=connect (default)

2=ring

3=No carrier

4=error 14 ATZ Reset (d isconnect, enter command mode and restore

the flash settings) 15 AT&C Serial port DCD control AT&C0=DCD alway s on

AT&C1=DTE detects connection by DCD on/off

(default) 16 AT&D Serial port DTR control AT&D0=recognize DTE always

ready AT&D1, AT&D2=r e ply DTE when DTR On

(default) 17 AT&F Restore manufacturer’s settings 18 AT&G Select guard time reply “OK” only 19 AT&R Serial port RTS option command reply “OK” only 20 AT&S Serial port DSR control reply “OK” only 21 AT&V View settings 22 AT&W Write current settings to flash for next boot up

S Registers

No. S Regist er Description & default value Remarks

1 S0 Ring to auto-answer (default=0) 2 S1 Ring counter (always=0) no action applied 3 S2 Escape code character (default=43 ASCII “+”) 4 S3 Return character (default=13 ASCII) 5 S4 Line feed character (default=10 A S C I I ) 6 S5 Backspace character (default= 8 A S C I I ) 7 S6 Wait time for dial tone (always=2, unit=sec) no action applied 8 S7 Wait time for carrier (default=3, unit=sec) 9 S8 Pause time for dial delay (always=2, unit=sec) no action applied 10 S9 Carrier detect response time (always=6, unit 1/10 sec) no action applied 11 S10 Delay for hang up after carrier

(always=14, unit 1/10 sec) 12 S11 DTMF duration and spacing (always=100 ms) no action applied 13 S12 Escape code guard time

(default=50, unit 1/50 sec)

to control the idle time for “+++”

Parameter Setting Factory

Default

TCP Alive Check Time

Local TCP port 1 to 65535 4001 The TCP port that other devices must use to

0 to 99 min 7 min 0 min:

Description Necessity

idle TCP connection. 1 to 99 min: The NPort closes the TCP connection automatically if there is no TCP activity for the given time.

contact this device. To avoid conflicts with standard TCP ports, the default is set to 4001.

no action applied

Required

NPort 5000 Series Advanced Operation Mode Settings

4-30

disconnection. 0 min.

mapped to a

TCP port. To avoid conflicts with TCP ports, set

4001 for port1, 4002 for port

Reverse Telnet Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

Web Interface for the NPort 5000A and NPort IA5000A Series

Parameter Setting Factory

Default

TCP Alive Check Time

Inactivity time 0 to 65535 ms 0 Idle time setting for auto-

Local TCP port 1 to 65535 4001 Each of the NPort’s serial ports is

0 to 99 min 0 min Specifies the time slice for checking if the TCP

Description Necessity

Optional connection is alive. If no response is received the NPort will disconnect th e o rig in a l connection.

Optional means it will never disconnect.

Optional

port numbers to 2, etc. (like the default values).

NPort 5000 Series Advanced Operation Mode Settings

4-31

jump to the next line, and return to the first

Map <CR-LF> CR, LF, or

CR-LF

CR-LF If data received through the NPort’s Ethernet

port is sent using the “enter” command, the data will be transmitted out the serial port with an added:

1. “carria ge return + line feed” if you selec t

2. “carriage return” if you select the <CR>

3. “line feed” if you select the <LF> option.

Disabled Mode

Web Interface for the NPort 5000 and NPort IA5000 Series

Optional

the <CR-LF> option (i.e., the cursor will

character of the line)

option (i.e., the cursor will return to the first character of the line)

(i.e., the cursor will jump to the next line, but not move horizontally)

Web Interface for the NPort 5000A and NPort IA5000A Series

When Operation mode is set to Disabled, that particular port will be disabled. Select the Apply the above settings to all serial ports checkbox to apply this setting to the other ports.



5. Configuring NPort Administrator

The following topics are covered in this chapter:

Overview Installing NPort Administrator Configuration

 Broadcast Search  Unlock Password Protection  Configuring NPort  Upgrading the Firmware  Export Configuration  Import Configuration

Monitor Port Monitor COM Mapping

 On-line COM Mapping  Off-line COM Mapping

COM Grouping

 Creating a COM Group  Deleting a COM Group  Adding a Port to a COM Group  Removing a Port from a COM Group  Modify Ports in a COM Group

IP Address Report

NPort 5000 Series Configuring NPort Administrator

5-2

Overview

Device Server Administrator lets you install and configure your NPort device server easily over the network. Five function groups are provided to ease the installation process, allow off-line COM mapping, and provide monitoring and IP location server functions.

Device Server Administrator is an integrated software suite that bundles Device Server Administrator and the IP Serial Library. It provides everything you need to manage, monitor, and modify your NPort device server from a remote location.

Installing NPort Administrator

1. Once the Setup program starts running, click Next when the Welcome window opens to proceed with the installation.

2. Click Next to install program files in the default directory, or select an alternative location.

NPort 5000 Series Configuring NPort Administrator

5-3

3. Click Next to install the program using the default program name, or select a different name.

4. Click Install to proceed with the installation.

5. The Installing window reports the progress of the installation.

NPort 5000 Series Configuring NPort Administrator

5-4

6. Click Next to proceed with the installation.

7. Click Finish to complete t h e installation of NPort Administration Suite.

NPort 5000 Series Configuring NPort Administrator

5-5

Configuration

The Administrator-Configuration window is divided into four parts.

• The top section contains the function list and online help area. (Windows NT does not support this .chm file format.)

• The five Administrator function g r oups are listed in the left section.

• A list of NPort serial device server s, each of which can be selected to process user requirements, is displayed in the right section.

• The activity Log, which displays messages that record the user’s processing history, is shown in the bottom section.

NPort 5000 Series Configuring NPort Administrator

5-6

Broadcast Search

The Broadcast Search function is used to locate all NPort units that are connected to the same LAN as your computer. Since the Broadcast Search function searches by MAC address and not IP address, all NPort units connected to the LAN will be located, regardless of whether or not they are part of the same subnet as the host.

1. Position the cursor in the right middle section of the Administrator window and then click the right mouse button.

2. The Broadcast Search window will open and display the Model, IP Address, MAC Address, and Progress of the search for that particular devic e.

3. When the search is complete, the Broadcast Search window will close, and the NPort units that were located will be displayed in the right panel of the Administrator window. If you found more than one server connected to this network, refer to the MAC address sticker on your server(s) to determine which server(s) are the ones you wish to configure. To configure an NPort, place the cursor over the row displaying that NPort’s information, and then double click the left mouse button.

NPort 5000 Series Configuring NPort Administrator

5-7

ATTENTION

Before modifying the NPort’s configuration, u LAN, or use Specify by IP Address to locate a particular NPort.

Unlock Password Protection

If the NPort device server is password protected (indicated by “Lock” for Status), you will receive the following error, and you will not be able to use the right click method to open the configuration page.

In this case, proceed as follows to “Unlock” the device server.

1. Select the NPort with “Lock” status, click the right mouse button, and then select Unlock.

se Broadcast Search to locate all N Port units connected to the

2. After inputting the correct password, the Administrator will display an “Unlock ok” message.

3. The “Lock” status will change to “Unlock ,” a nd the Administrator utility will keep this NPort in the Unlock status throughout this Administrator session.

NPort 5000 Series Configuring NPort Administrator

5-8

The meanings of the six “Status” states are given below (note that the te rm Fixed is borrowed from the standard fixed IP address networking terminology):

Lock

The NPort is password protected, “Broadcast Search” was used to locate it, and the password has not yet been entered from within the current Administrator session.

Unlock

The NPort is password protected, “B roadcast Search” was used to locate it, and the password has been entered from within the current Administrator session. Henceforth during this Administrator session, activating various utilities for this NPort will not require r e-entering the server password.

Blank

The NPort is not password protected, and “Broadcast Search” was used to locate it.

Fixed

The NPort is not password protected, and “Search by IP address” was used to locate it.

Lock Fixed

The NPort is password protected, “Specify by IP address” was used to locate it, and the password has not yet been entered from within the current Administrator session.

Unlock Fixed

The NPort is password protected, “Specify by IP address” was used to locate it, and the password has been entered from within the current Administrator session. Henceforth during this Administrator session, activating various utilities for this NPort will not require re-entering the server password.

Configuring NPort

In this section, we illustrate how to access the NPort’s configuration utility. You should first make sure that you can connect over the network from your computer to the NPort.

1. To start NPo r t Ad mi ni strator, click Start  NPort Administration Suite  NPort Administrator.

2. Unlock the NPort you wish to configure if it is password protected. Right click the NPort and select

Configure to start the configuration.

NPort 5000 Series Configuring NPort Administrator

5-9

ATTENTION

You can simultaneously modify the configurations of multiple NPort units that are of the same model. To select multiple NPort units, hold down the Ctrl key w

hold down the Shift key

to select a group of NPort units.

3. The progress bar shows that Administrator is retrieving configuration information from the specific NPort.

4. Refer to Chapter 2 for each parameter’s function definition. To modify the configuration, you must first click in the modify box to activate the parameter setting box.

Upgrading the Firmware

Follow these steps to upgrade the firmware of an NPort.

1. To start NPo r t Ad mi ni strator, click Start  NPort Administration Suite  NPort Administrator.

hen selecting additional NPort units, or

NPort 5000 Series Configuring NPort Administrator

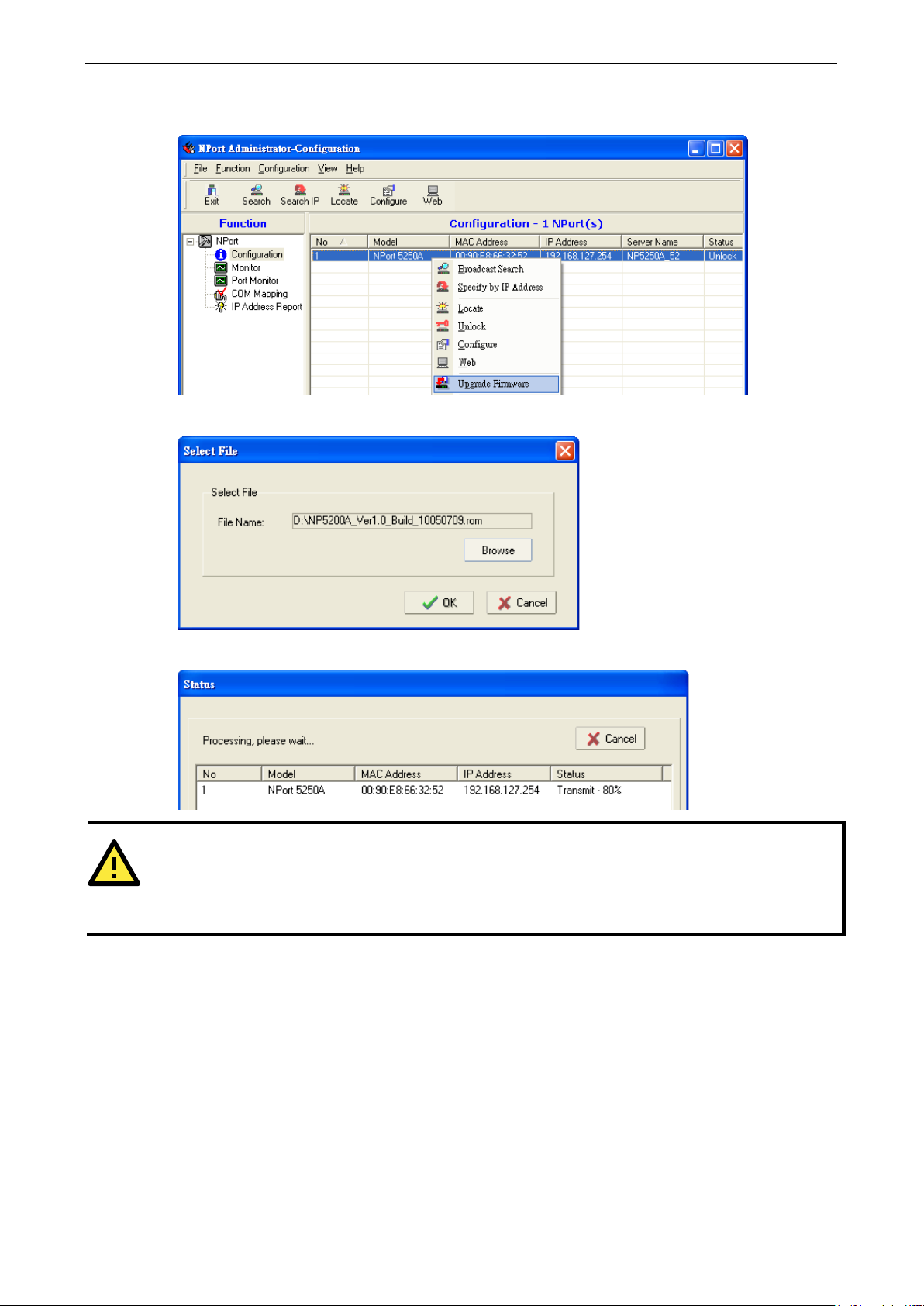

5-10

ATTENTION

You can simultaneously upgrade the firmware of multiple NPort units that are of the same model. multiple NPort units, hold down the Ctrl key when selecting an

hold down the Shift key to

select a block of NPort units.

2. Unlock the NPort you wish to configure if it is password protected. Right click a specific NPort and select the Upgrade Firmware function to start upgrading the firmware.

3. Select the correct ROM file to download.

4. Wa it while the Upgrade Firmware action is proces sed.

additional NPort, or

To select

NPort 5000 Series Configuring NPort Administrator

5-11

ATTENTION

You can simultaneously import the same configuration file into multiple NPort units that are of the same model. To select multiple NPort

hold down the Shift

key to select a block of NPort units.

Export Configuration

To export the configuration of an NPort, right click the NPort, select Export Configuration, and then follow the onscreen instructions. The Export Configuration function is a handy tool that can be used to produce a text file containing the current configuration of a particular NPort.

Import Configuration

The Import Configuration function is used to import an NPort conf iguration from a fil e into one or more of t he same model NPort. To import a configuration, first select the target servers, click the right mouse button, and then select Import Configuration. Follow the onscreen instructions to locate the configuration file and start downloading the file.

units, hold down the Ctrl key when selecting an additional NPort, or

NPort 5000 Series Configuring NPort Administrator

5-12

Monitor

Use following method to start the Monitor function.

Broadcast Search  Monitor  Add Target

1. With Configuration selected under Func tion, use Broadcast Search to locat e a ll NPorts on your LAN.

2. Next, click Monitor  Add Target and select your targets from the list, and then click OK.

Once the Monitor function is running:

1. The NPo rt list will appear on the Monitor screen.

2. Right cl ick the p ane l and sele ct Settings.

NPort 5000 Series Configuring NPort Administrator

5-13

3. Select or de-select Monitor Items. Use the single arrowhead buttons to move highlighted items from one box to the other. Use the double arrowhead buttons to move all items in one box to the other.

4. Select a Refresh Rate (the default is 3 seconds) on the General Settings page.

Moxa IA5000A, 5000A, 5000, IA5000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. About This Manual

2. Getting Started

Installing Your NPort Device Server

Wiring Requirements

Connecting the Power

Grounding the NPort Device Server

Connecting to the Network

Connecting to a Serial Device

LED Indicators

NPort 5100/5100A/P5150A Series

NPort 5200/5200A/5400 Series

NPort 5600 Series (Rackmount)

NPort 5600-8-DT/DTL Series

NPort 5000AI-M12 Series

NPort IA5000/IA5000A Series

RS-485 Port’s Adjustable Pull High/Low Resistor

Configuration by Windows Utility

Installing NPort Administrator

Searching for Device Servers over a LAN

Adjusting General Settings

Static IP Addresses

Dynamic IP Addresses

Verifying Network Settings

Configuring Device Port Operation Mode

Adjusting Operation Mode Settings

Operation Mode Selection Chart

Configuring Serial Communication Parameters

Serial Parameter Review

Adjusting Serial Parameters

Mapping COM Port to Device (only required when operation mode is set to Real COM or RFC2217)

Specifying the Target Device Server

Assigning COM Port Number to Device Port

Advanced Settings

Apply Change

Configuration by Web Console

Opening Your Browser

Quick Setup (only for the NPort 5000A & NPort IA5000A Series web console)

Step 1/3

Step 2/3

Step 3/3

Finish Settings

Export/Import (only for the NPort 5000A & NPort IA5000A Series web console)

Basic Settings

Network Settings

Serial Settings

Operating Settings

Accessible IP Settings

Auto Warning Settings

Auto warning: E-mail and SNMP trap

Event Type

Monitor

Monitor Line

Monitor Async

Monitor Async-Settings

Change Password

Load Factory Default

Configuration by Telnet Console

Configuration by Serial Console

Serial Console (19200, n, 8, 1)

Testing Your NPort

3. Choosing the Proper Operation Mode

Overview

Real COM Mode

RFC2217 Mode

TCP Server Mode

TCP Client Mode

UDP Mode

Pair Connection Mode

Ethernet Modem Mode

Reverse Telnet Mode

Disabled Mode

4. Advanced Operation Mode Settings

Overview

List of Parameters

When to Make Adjustments

Using Pair Connection Modes
