OnCell G3150A-LTE User’s Manual

Edition 1.3, January 2019

www.moxa.com/product

OnCell G3150A-LTE User’s Manual

Moxa Americas

Toll

Tel:

Fax:

Moxa China (Shanghai office)

Toll

Tel:

Fax:

Moxa Europe

Tel:

Fax: +49-89-3 70 03 99-99

Moxa Asia

Tel:

Fax: +886-2-8919-1231

Moxa India

Tel:

Fax:

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

-free: 1-888-669-2872

+1-714-528-6777

+1-714-528-6778

+49-89-3 70 03 99-0

-free: 800-820-5036

+86-21-5258-9955

+86-21-5258-5505

+886-2-8919-1230

-Pacific

+91-80-4172-9088

+91-80-4132-1045

Table of Contents

1. Introduction ...................................................................................................................................... 1-1

Overview ........................................................................................................................................... 1-2

Package Checklist ............................................................................................................................... 1-2

Product Features ................................................................................................................................ 1-2

Product Specifications ......................................................................................................................... 1-3

Functional Design ............................................................................................................................... 1-3

LED Indicators ............................................................................................................................ 1-4

Beeper ....................................................................................................................................... 1-5

Reset Button ............................................................................................................................... 1-5

2. Getting Started.................................................................................................................................. 2-1

First—time Installation and Configuration .............................................................................................. 2-2

Step 1: Install a SIM Card ............................................................................................................ 2-2

Step 2: Turn On the OnCell G3150A-LTE ........................................................................................ 2-2

Step 3: Connect the OnCell G3150A-LTE to a Computer ................................................................... 2-2

Step 4: Configure an IP Address for the Computer........................................................................... 2-2

Step 5: Access the Web Console ................................................................................................... 2-3

Step 6: Establish a Cellular Connection .......................................................................................... 2-4

Step 7: Verify the Cellular Connection ............................................................................................ 2-4

3. Web Console Configuration ............................................................................................................... 3-1

Accessing the Web Console .................................................................................................................. 3-2

Configuration Menu Overview ....................................................................................................... 3-4

Overview ........................................................................................................................................... 3-6

General Setup .................................................................................................................................... 3-7

System Information Settings ........................................................................................................ 3-7

Interface On/Off .......................................................................................................................... 3-8

Network Settings ......................................................................................................................... 3-8

System Time .............................................................................................................................. 3-9

Device Operation Mode .............................................................................................................. 3-10

Cellular Settings ............................................................................................................................... 3-11

Cellular WAN Settings ................................................................................................................ 3-11

GuaranLink ............................................................................................................................... 3-13

Auto IP Report Settings .............................................................................................................. 3-16

GPS Settings ............................................................................................................................ 3-17

OnCell Central Manager Setting ................................................................................................... 3-18

Advanced Settings ............................................................................................................................ 3-18

DHCP Server ............................................................................................................................. 3-19

DDNS ...................................................................................................................................... 3-20

Packet Filters ............................................................................................................................ 3-20

Port Forwarding Function ............................................................................................................ 3-22

SNMP Agent.............................................................................................................................. 3-23

VPN ................................................................................................................................................ 3-25

IPSec ....................................................................................................................................... 3-25

OpenVPN .................................................................................................................................. 3-34

Serial Port Settings ........................................................................................................................... 3-42

Operation Mode......................................................................................................................... 3-43

Logs and Notification ......................................................................................................................... 3-69

System Log .............................................................................................................................. 3-69

Syslog ..................................................................................................................................... 3-70

E-Mail Notifications .................................................................................................................... 3-71

Relay ....................................................................................................................................... 3-73

Trap ........................................................................................................................................ 3-73

SMS......................................................................................................................................... 3-74

Status ............................................................................................................................................. 3-75

Serial ....................................................................................................................................... 3-75

VPN ......................................................................................................................................... 3-77

DNS Status ............................................................................................................................... 3-79

SIM Status ............................................................................................................................... 3-79

GPS Status ............................................................................................................................... 3-80

DHCP Client List (For AP Mode Only) ............................................................................................ 3-80

System Log .............................................................................................................................. 3-81

Relay Status ............................................................................................................................. 3-81

DI, Power, and System Status .................................................................................................... 3-81

Maintenance .................................................................................................................................... 3-84

Console Settings ....................................................................................................................... 3-84

Ping Command .......................................................................................................................... 3-85

Firmware Upgrade ..................................................................................................................... 3-85

Configuration Import & Export .................................................................................................... 3-86

Load Factory Default .................................................................................................................. 3-87

Account Settings ....................................................................................................................... 3-87

Change Password ...................................................................................................................... 3-88

Miscellaneous Settings ............................................................................................................... 3-89

Manual SMS .............................................................................................................................. 3-89

Remote SMS Control .................................................................................................................. 3-90

Saving Configuration ......................................................................................................................... 3-91

Restart ............................................................................................................................................ 3-92

Logout............................................................................................................................................. 3-92

4. Software Installation and Configuration ........................................................................................... 4-1

Overview ........................................................................................................................................... 4-2

Wireless Search Utility ......................................................................................................................... 4-2

Installing the Wireless Search Utility .............................................................................................. 4-2

Configuring the Wireless Search Utility ........................................................................................... 4-5

A. Supporting Information .................................................................................................................... A-1

Firmware Recovery ............................................................................................................................. A-2

DoC (Declaration of Conformity) ........................................................................................................... A-3

Federal Communication Commission Interference Statement ............................................................ A-3

R&TTE Compliance Statement ....................................................................................................... A-4

B. Dynamic Domain Name Server .......................................................................................................... B-1

C. Well-Known Port Numbers ................................................................................................................ C-1



1. Introduction

The OnCell G3150A-LTE industrial cellular gateway is an ideal wireless solution for remote monitoring

applications. The wide-temperature support and power and antenna isolation design makes the OnCell

G3150A-LTE rugged enough for any harsh industrial environment.

The following topics are covered in this chapter:

Overview

Package Checklist

Product Features

Product Specifications

Functional Design

 LED Indicators

 Beeper

 Reset Button

OnCell G3150A-LTE Introduction

1-2

NOTE

The above items

may vary for

customized versions.

Overview

The OnCell G3150A-LTE is a reliable, secure, LTE gateway with state-of-the-art global LTE coverage. This 4G

cellular gateway provides a reliable connection to your Ethernet network for cellular applications.

To enhance industrial reliability, the OnCell G3150A-LTE features isolated power inputs, which together with

high-level EMS and wide-temperature support give the OnCell G3150A-LTE the highest level of device stability

for any rugged environment. In addition to dual-SIM GuaranLink support and dual power inputs, the OnCell

G3150A-LTE supports network redundancy to ensure uninterrupted connectivity.

The OnCell G3150A-LTE also comes with a 3-in-1 serial port for serial communication over LTE cellular

networks to enable data exchange with serial/Ethernet devices.

Package Checklist

Moxa’s OnCell G3150A-LTE is shipped with the following items:

• OnCell G3150A-LTE

• 2 2G/3G/4G antennas, 2 dBi omni-directional with SMA male connectors

• DIN-rail kit

• Quick installation guide (printed)

• Warranty card

If any of these items is missing or damaged, please contact your customer service representative for

assistance.

come with the standard OnCell G3150A-LTE model, but the package contents

Product Features

• Multiple LTE band support:

 EU Model: B1/B3/B7/B8/B20

 US Model: B2/B4/B5/B13/B17/B25

• Universal cellular bands support for GSM/GPRS/HSPA

• Dual cellular operator backup with dual-SIM GuaranLink for reliable cellular connectivity

• VPN secure connection capability with IPsec, GRE, and OpenVPN protocols

• Industrial-grade design:

 Dual power input for power redundancy

 Power isolation for 500-V power source insulation protection

 -30 to 70°C wide operating temperature (wide temperature support only applies to certain SKUs)

 Rugged hardware design well-suited for hazardous locations (ATEX Zone 2/IECEx)

OnCell G3150A-LTE Introduction

1-3

NOTE

The latest specifications for Moxa’s products can be found at

Product Specifications

https://www.moxa.com.

Functional Design

1. GPS antenna connector (female SMA)

2. Terminal block (top-down  PWR1 and PWR2, 1 digital

relay and 2 digital inputs)

3. Grounding screw (M5)

4. 2x2 MIMO antenna ports for LTE (female SMA)

5. RS-232 serial console (RJ45)

6. 10/100 Base T(X) Ethernet port (RJ45)

7. LED display

8. DIN-rail mounting kit

9. Reset button

10. Dual SIM—SIM1

11. Dual SIM—SIM2

OnCell G3150A-LTE Introduction

1-4

0 < SNR ≤ 12

113 < RSSI ≤ -89

Marginal-Ok

refer

LTE is connected

Off

No GPS signal has been located

LED Indicators

The LEDs on the front panel of the OnCell G3150A-LTE provide a quick and easy means of determining the

current operational status and wireless settings.

The following table summarizes how to read the device’s wireless settings from the LED displays. Additional

information is available at Chapter 3, Basic Settings section.

Type Color State Meaning

Signal

(1 LED)

PWR1/

PWR2

Ready Green On Steady on: System startup is complete and the system is in operation.

Fault Red On Steady on: Device is booting up, or IP address conflict.

2G/3G Amber Blinking GSM/GPRS/EDGE is connected.

4G Amber

SIM1 Amber On/Off SIM 1 is active or inactive

SIM2 Amber On/Off SIM 2 is active or inactive

GPS Green On GPS signal has been located

Green Blinking The number of times this LED blinks indicates the cellular signal level

when the OnCell G3150A-LTE is connected to a cellular network with

an IP address.

Blink interval: 200 ms

Silent interval: 2 seconds

Number

Blinks

2 12 < SNR ≤ 21 -89 < RSSI ≤ -73 Ok - Good

3 22 < SNR ≤ 31 -73 < RSSI ≤ -51 Excellent

NOTE: The Cellular RSSI value is based on the OnCell device signal

strength returned by the AT+ CSQ AT command. You can also

to the equivalent signal RSSI Range in dBm.

Green On DC power source active

Off Power is off

Blinking Blinking slowly at 1-second intervals: The OnCell device has been

located by the Wireless Search Utility.

Off Power is off, or device is booting up.

Blinking slowly at 1-second intervals: Cannot get an IP address from

the DHCP server

Off Power is off, or no error condition exists.

Blink interval: 500 ms

On UMTS/HSPA is connected.

Off GSM/GPRS/EDGE/UMTS/HSPA is disconnected.

Off LTE is disconnected.

Blinking SIM 1 is not inserted or PIN code is incorrect

Blinking SIM 2 is not inserted or PIN code is incorrect

Blinking Locating a GPS signal or

less than four satellites located.

Cellular RSSI RSSI Range

(dBm)

TX Rx Amber On The serial port is transmitting data

Off No data is being transmitted or received through the serial port

OnCell G3150A-LTE Introduction

1-5

ATTENTION

•

LTE is NOT a portable mobile device and should be located at least 20 cm away from the

•

trained technician should be enlisted

Beeper

The beeper emits two short beeps when the system is ready.

Reset Button

The RESET button is located on the bottom panel of the OnCell G3150A-LTE. You can reboot the OnCell

G3150A-LTE or reset it to factory default settings by pressing the RESET button with a pointed object such as

an unfolded paper clip.

• System reboot: Hold the RESET button down for under 5 seconds and then release.

• Reset to factory default: Hold the RESET button down for over 5 seconds until the READY LED starts

blinking green. Release the button to reset the OnCell G3150A-LTE.

The OnCell G3150A-

human body.

The OnCell G3150A-LTE is NOT designed for the general public. A well-

to ensure safe deployment of OnCell G3150A-LTE units, and to establish a wireless network.



2. Getting Started

This chapter explains how to install Moxa’s OnCell G3150A-LTE for the first time, and quickly set up your

wireless network and test whether the connection is running well. The Configuration Menu Overview in Chapter

3 provides a convenient means of determining which functions you need to use.

The following topics are covered in this chapter:

First—time Installation and Configuration

 Step 1: Install a SIM Card

 Step 2: Turn On the OnCell G3150A-LTE

 Step 3: Connect the OnCell G3150A-LTE to a Computer

 Step 4: Configure an IP Address for the Computer

 Step 5: Access the Web Console

 Step 6: Establish a Cellular Connection

 Step 7: Verify the Cellular Connection

OnCell G3150A-LTE Getting Started

2-2

The SIM card slots are inside the

housing. To install a SIM card

following:

to the

NOTE

In the OnCell G3150A

to reset

the OnCell G3150A

First—time Installation and Configuration

Before installing the OnCell G3150A-LTE, make sure that all items in the package checklist are in the box. In

addition, you will need access to a notebook computer or PC equipped with an Ethernet port. The OnCell

G3150A-LTE has a default IP address that you must use when connecting to the device for the first time.

Step 1: Install a SIM Card

Insert one or two 2G/3G/4G SIM cards into the SIM slots located on the bottom of the OnCell G3150A-LTE.

OnCell G3150A-LTE’s

in one of the slots, do the

1. Turn off the OnCell G3150A-LTE.

2. Remove the screw on the SIM card slot cover.

3. Install a SIM card into the SIM card slot.

a. For SIM 1, orient the card such that the gold

contacts are facing down and the cut-off edge is

the left.

b. For SIM 2, orient the card such that the gold

contacts are facing up and the cut-off edge is

right.

4. Put back the screw on the SIM card slot cover and

secure the cover by tightening the screw.

Step 2: Turn On the OnCell G3150A-LTE

Turn on the OnCell G3150A-LTE by connecting the power terminal block to a DC power source.

Step 3: Connect the OnCell G3150A-LTE to a Computer

Since the OnCell G3150A-LTE supports MDI/MDI-X autosensing, you can use either a straight-through cable or

crossover cable to connect the OnCell G3150A-LTE to a computer. When a connection is established, the LED

indicator on the OnCell G3150A-LTE's LAN port lights up.

Step 4: Configure an IP Address for the Computer

You must set an IP address for the computer so that it is on the same subnet as the OnCell G3150A-LTE. Since

the OnCell G3150A-LTE’s default IP address is 192.168.127.254 and the subnet mask is 255.255.255.0,

you should set the IP address of the computer to 192.168.127.xxx.

-LTE, you can select Maintenance > Load Factory Default and click Submit

-LTE to the factory default settings, which will reset the IP address to 192.168.127.254

OnCell G3150A-LTE Getting Started

2-3

NOTE

Default user name and password:

For security reasons, we strongly recommend changing the default password

To do so, select

screen instructions to change

the password.

NOTE

After

e effective immediately and the

web page will

Step 5: Access the Web Console

To access the OnCell G3150A-LTE web console:

1. Open a web browser and enter http://192.168.127.254 in the address field.

User Name: admin

Password: moxa

Maintenance > Change Password, and then follow the on-

you click Apply to apply the password change, the new password will b

be refreshed. This is indicated by the text, (Updated) that appears next to the page header

to ensure higher level security

OnCell G3150A-LTE Getting Started

2-4

Step 6: Establish a Cellular Connection

After installing the SIM card, obtain the SIM card PIN and APN (Access Point Name) information from your

service provider and configure the cellular WAN settings.

To configure the cellular WAN settings and establish a cellular connection:

1. Log in to the web console.

2. Go to Cellular Settings > Cellular WAN Settings and enter the SIM card PIN and APN values.

3. Restart the OnCell G3150A-LTE.

The OnCell G3150A-LTE automatically establishes a cellular connection to the service provider after it

restarts.

Step 7: Verify the Cellular Connection

You can use one of the following methods to verify the cellular connection:

1. Check the LED display.

Check the SIM 1, SIM2, 2G, 3G, and 4G LEDs on the front panel.

If an LED on the SIM card slot is blinking, it could mean that no SIM card is installed in the SIM slot or the

SIM card PIN is not configured in the web console.

If the installed SIM card supports 3G or 4G service but only the 2G LED is turned on, this indicates that the

OnCell G3150A-LTE is connected to the cellular network but is not registered for 3G or 4G service. Make

sure that you enter the correct APN information in the web console.

2. Check the Overview page in the web console.

and Cellular Mode fields to identify any connection problems.

For Cellular RSSI (Received Signal Strength Indication), make sure that the value is above 12 in order to

maintain a stable connection.

If the Cellular WAN IP address is not available but the Cellular RSSI is more than 12, make sure that the APN

configuration is correct. The service provider might assign a private WAN IP address, which is not accessible

externally.

3. Test the cellular network access on your computer.

Users with public SIM cards (instead of SIM cards with MDVPN service enabled) can test the connection to

the Internet on your computer (assuming that your computer is connected to an Ethernet port on the

OnCell G3150A-LTE).

An example of the configuration settings on the computer is given below:

• Laptop IP Address: 192.168.127.10 (on the same subnet as the OnCell gateway)

• Laptop Subnet Mask: 255.255.255.0 (on the same subnet as the OnCell gateway)

• Laptop Default Gateway: 192.168.127.254 (the OnCell gateway IP address)

• Laptop Primary DNS Server: 8.8.8.8 (test with Google's public DNS server)

• Laptop Primary DNS Server: 8.8.4.4 (test with Google's public DNS server)

After the configuration process is complete, your computer will be able to access the Internet.

For information on testing the connection with a DHCP server, refer to Chapter 3, Advanced Settings, DHCP

Server.



3. Web Console Configuration

This chapter describes the web console that you can use to configure your OnCell G3150A-LTE and set up a

wireless network. The following topics are covered in this chapter:

Accessing the Web Console

 Configuration Menu Overview

Overview

General Setup

 System Information Settings

 Interface On/Off

 Network Settings

 System Time

 Device Operation Mode

Cellular Settings

 Cellular WAN Settings

 GuaranLink

 Auto IP Report Settings

 GPS Settings

 OnCell Central Manager Setting

Advanced Settings

 DHCP Server

 DDNS

 Packet Filters

 Port Forwarding Function

 SNMP Agent

VPN

 IPSec

 OpenVPN

Serial Port Settings

 Operation Mode

Logs and Notification

 System Log

 Syslog

 E-Mail Notifications

 Relay

 Trap

 SMS

Status

 Serial

 VPN

 DNS Status

 SIM Status

 GPS Status

 DHCP Client List (For AP Mode Only)

 System Log

 Relay Status

 DI, Power, and System Status

Maintenance

 Console Settings

 Ping Command

 Firmware Upgrade

 Configuration Import & Export

 Load Factory Default

 Account Settings

 Change Password

 Miscellaneous Settings

 Manual SMS

 Remote SMS Control

Saving Configuration

Restart

Logout

OnCell G3150A-LTE Web Console Configuration

3-2

NOTE

To use the OnCell G3150A

same LAN as the OnCell G3150A

LTE are

on the same logical subnet.

The default IP address of an OnCell G3150A

NOTE

information

G3150A

LTE version and

the bandwidth that it uses. The figures shown in this document use an OnCell G3150A

name that is displayed for your OnCell G3150A

Accessing the Web Console

Moxa OnCell G3150A-LTE’s web interface provides a convenient way to modify the configuration settings and

access the built-in monitoring and network administration functions. The recommended web browser is

Microsoft

Internet Explorer 7.0 and above with JVM (Java Virtual Machine) installed.

To access the OnCell G3150A-LTE’s web-based console management interface, do the following

1. Open your web browser and type the OnCell G3150A-LTE’s IP address in the address field; then, press

Enter.

2. In the login page, enter the Username and Password (the default username is “admin” and password is

“moxa”) and click Login.

It may take a few seconds for the web page to load on your computer.

-LTE’s management and monitoring functions from a PC host connected to the

-LTE, you must make sure that the PC host and the OnCell G3150A-

-LTE is 192.168.127.254.

The model name of your OnCell G3150A-LTE is shown on the title bar of the web page. You can use this

to identify multiple OnCell G3150A-LTE units. The model name is shown as OnCell

-LTE-XX, where XX is the country code. The country code indicates the OnCell G3150A-

-LTE may be different from the one shown in this manual.

-LTE-US. The model

OnCell G3150A-LTE Web Console Configuration

3-3

If an incorrect username or password is entered, a warning message is displayed. The system will lock the

user account based on the settings configured in Maintenance->Account Settings. The default retry

count is 5 times and the default lockout time is 600 seconds. Once an account is locked, the user will have

to wait out the duration of the lockout period before retrying.

For additional details, see Account Settings under Maintenance.

3. Use the navigation panel on the left to access the configuration pages.

In the following sections we will describe each OnCell G3150A-LTE management function in detail, starting with

an overview of the links in the navigation panel.

OnCell G3150A-LTE Web Console Configuration

3-4

to support serial operation mode such

Configuration Menu Overview

Quick overview of the OnCell G3150A-LTE status

Basic settings on the OnCell G3150A-LTE and to manage

the communication interface

Essential settings for establishing a cellular network

using GuaranLink and OnCell Central Manager

Advanced features that support additional network

management functions to secure wired and wireless

communications.

Note: These advanced functions are optional.

Additional features

as Real COM, Reverse Real COM, RFC2217, and Modbus

OnCell G3150A-LTE Web Console Configuration

3-5

Application-oriented device management functions to set

up events, traps, and responses via relay warning, email,

and SNMP notification.

Note: These functions are all optional.

Current status information for monitoring wired/wireless

network performance, advanced services, and device

management functions

OnCell G3150A-LTE Web Console Configuration

3-6

management

diagnosing network issues

Functions for maintaining the OnCell G3150A-LTE and for

On-demand functions to support web console

Overview

The Overview page provides a summary of the OnCell G3150A-LTE’s current status. The information is

categorized into System Information, Device Information, and Cellular Information.

OnCell G3150A-LTE Web Console Configuration

3-7

application of the OnCell G3150A-LTE unit.

Enter the message (up to 31 characters) to display to the user

authentication

General Setup

The General Setup group includes the most commonly used settings required by administrators to maintain

and control the OnCell G3150A-LTE.

System Information Settings

The System Info items, especially Device name and Device description, are displayed and included on the

Overview page, in SNMP information, and in alarm emails. Setting System Info items makes it easier to

identify the different OnCell G3150A-LTE units connected to your network.

Field Description Default setting

Device name Enter a descriptive name (up to 31 characters).

You can also include information that specifies the role or

Device

location

Device

description

Device contact

information

failure

message

Specify the location (up to 31 characters) of the OnCell

G3150A-LTE

Enter a description (up to 31 characters) for the OnCell

G3150A-LTE

Enter the contact information (up to 31 characters) of the

person responsible for maintaining this OnCell G3150A-LTE

who logs in into this OnCell G3150A-LTE.

Enter the message (up to 31 characters) that is displayed to

the user when the login authentication fails.

OnCell G3150A-LTE_[serial

no]

N/A (Not applicable)

N/A

Blank

Invalid username or password

OnCell G3150A-LTE Web Console Configuration

3-8

LAN

Provides the capability to enable/disable the LAN interface

Enable

ATTENTION

Disabling the cellular WAN interface will disconnect access to remote cellular devices connected through the

cellular WAN.

type of network to which

Primary/Secondary

NS server for a website, you can access the

Interface On/Off

Field Description Default setting

Cellular WAN Provides the capability to enable/disable the cellular WAN

interface.

Network Settings

You can use the Network Settings page to configure TCP/IP settings for the OnCell G3150A-LTE.

Enable

Field Description Default setting

IP address Enter the unique IP address of the OnCell G3150A-LTE 192.168.127.254

Subnet mask Enter the subnet mask to specify the

the OnCell G3150A-LTE is connected.

Enter the IP address of the primary or secondary DNS server.

DNS server

After you specify a D

website by entering its URL instead of the IP address.

255.255.255.0

N/A

OnCell G3150A-LTE Web Console Configuration

3-9

NOTE

The OnCell G3150A

that you update the

Current local time

when the network does no

server on the LAN.

: Set the time zone before you configure the current local time.

ndicates how many hours forward the clock should

Enter the IP address or the domain name of the primary or secondary

System Time

You can synchronize the system time on the OnCell G3150A-LTE based on an NTP (Network Time Protocol)

server or user-specified date and time information. The OnCell G3150A-LTE includes the system time in system

logs.

Field Description Default setting

Current local

time

Time zone Select a time zone from the drop-down list.

Daylight

saving time

Time server

1/2

Time sync

interval

-LTE includes a built-in real time clock (RTC). We strongly recommend

for the OnCell G3150A-LTE after the initial setup or a long-term shutdown, especially

t have an Internet connection for accessing the NTP server or if there is no NTP

The fields indicate the current system time on the OnCell

G3150A-LTE.

Enter the date and time in the format yyyy/mm/dd hh:mm:ss

To make the changes take effect, click Set Time. An “Updated” text

appears to indicate that the change is complete.

Note

The default option is GMT (Greenwich Mean Time).

Note: Changing the time zone automatically changes the Current

local time. We strongly recommend that you set the time zone before

you set the Current local time.

Select Enable to activate daylight saving time (DST) or summer time.

When Daylight saving time is enabled, the following fields appear:

• Starts at: The date that daylight saving time begins.

• Stops at: The date that daylight saving time ends.

• Time offset: I

be advanced.

NTP server.

Specify how many seconds (600 to 9999) the OnCell G3150A-LTE

must wait before requesting updates from the NTP server.

N/A

time.nist.gov

600

OnCell G3150A-LTE Web Console Configuration

3-10

Device Operation Mode

The OnCell G3150A-LTE can be configured as an IP gateway for IP data communication (LAN or serial data). It

can also be configured to send and receive SMS via AT commands using the serial modem mode.

Field Description Default

Operation

mode

Set the OnCell device to one of the following operation modes

IP gateway mode: The OnCell is configured as an IP gateway capable of IP

data communication.

Serial modem mode: The OnCell is configured as a pure serial modem

capable of SMS-via-AT-commands communication.

The AT commands supported in the serial modem mode are:

ATE (Local echo)

• ATE0: No echo

• ATE1: Echo

AT+CSQ (Request signal)

ATI (Query modem identification)

• Manufacturer

• Model Name

• Revision

• IMEI

AT+CREG (Network registration)

AT+COPS (PLMN selection)

AT &F (Set current parameters to manufacturer’s defaults)

AT+CMGD (Delete message)

AT+CMGF (Message format)

• AT+CMGF=0 (PDU Mode)

• AT+CMGF=1 (Text Mode)

AT+CMGL (List Message)

AT+CMGR (Read Message)

AT+CMGS (Send Message)

AT+CSMP (Set text mode parameters)

AT+CSCS (Select message service)

IP gateway

mode

OnCell G3150A-LTE Web Console Configuration

3-11

interval(s)

following configuration parameters.

If this option is selected, the radio power is turned off at all the other

Cellular Settings

This section describes the pages that you can use to configure cellular connection settings on the OnCell

G3150A-LTE:

• Cellular WAN Settings–Configure these settings to establish a cellular connection.

• GuaranLink Settings–Use this page to configure Moxa’s proprietary 4-tier link protection that ensures

reliable network connectivity.

• Auto IP Report Settings–If your service provider assigns a dynamic WAN IP address, you can configure

this screen to set the OnCell G3150A-LTE to automatically send its WAN IP address to a specified host.

• GPS Settings–Configure these settings to enable the built-in GPS sensor to locate your OnCell

G3150A-LTE.

• OnCell Central Manager Settings–For details on OnCell Central Manager settings, refer to the OnCell

Central Manager User’s Manual available at www.moxa.com

Cellular WAN Settings

Configure the fields in the Cellular WAN Settings page to establish a 2G/3G/4G connection with a service

provider.

The OnCell G3150A-LTE provides you with a scheduling function for managing your cellular connection.

Depending on your application, you can use the scheduling function to specify when the radio should be turned

on/off, when to disconnect the data transmission, or go into SMS-only mode and enable data transmission only

during emergencies.

If you install two SIM cards in the OnCell G3150A-LTE, you can select the Dual SIM mode and enable the

GuaranLink feature to enable the OnCell G3150A-LTE to regularly check the connection quality and perform an

automatic switchover in case the cellular connection is down. This setting ensures operation redundancy.

Field Description Default setting

Cellular

connection fully

functional time

Always on—The radio is always on

Scheduled—The OnCell G3150A-LTE is fully functional during the

scheduled periods. At all other times, it will function based on the

Always on

Radio Power Off

times except the time periods specified in the scheduling table

above.

OnCell G3150A-LTE Web Console Configuration

3-12

other times except the time periods specified in the scheduling table

Select this option to establish a cellular connection using the

NOTE

To restore device cellular connection under Radio Power Off mode, access the web UI through LAN console to

change the scheduled time to enable cellular connection.

NOT disable LAN console access permit under this

mode.

To restore device cellular connection

SMS remote control comm

N more

to have the OnCell device automatically negotiate with

Field Description Default setting

Data Session Off If this option is selected, the radio will only receive SMSs at all the

above.

SIM Select a connection mode from the drop-down list.

SIM 1—

SIM card installed in the SIM 1 slot.

SIM 2—

SIM card installed in the SIM 2 slot.

Dual SIM—Select this option if you want the OnCell G3150A-LTE

automatically establish a cellular connection using any one of the

SIM cards. If you select the Dual SIM options, enable the GuaranLink

feature to ensure optimum link quality and operation redundancy.

through the LAN console under the Data Session Off mode, send the

and, start cellular connection. This option is not available in the web UI

SIM 1

Field Description Default setting

SIM 1/2 PIN If configured, enter the PIN (numeric with up to 7 digits) to unlock

the SIM card.

Note: A SIM card becomes locked if you enter an incorrect PI

than three times.

SIM 1/2 band Select Auto

the base station for the optimum cellular band frequency.

Select Manual for the OnCell device to use a specific cellular band

frequency.

Note: The OnCell device does not establish a cellular connection if

your service provider does not support any of the bands you have

selected.

SIM 1 username

SIM 2 username

SIM 1 password

SIM2 password

SIM 1 APN

SIM 2 APN

If configured, enter the username for authentication with your

service provider.

If configured, enter the password for authentication with your

service provider. The length of the password can be up to 31

characters.

Your service provider may use access point network (APN)

information to provide different service levels.

If configured, enter the access point network (APN) information.

N/A

Auto

N/A

OnCell G3150A-LTE Web Console Configuration

3-13

than PAP.

Field Description Default setting

SIM 1

authentication

type/

SIM 2

authentication

type

Select Auto if you want the OnCell device to automatically select

either PAP or CHAP authentication method when setting up a data

session.

Select PAP (Password Authentication Protocol) to send user name

and password to the server and verify that the user name and

password match with the server database.

Select CHAP (Challenge-Handshake Authentication Protocol) if the

identifiers are changed frequently and if authentication can be

requested by the server at any time. CHAP provides more security

Auto

GuaranLink

A number of factors can contribute to connection failures for cellular communications, including loss of cellular

signal, interference, and termination by the operator for unknown reasons. Moxa’s proprietary GuaranLink

feature, which is different from the basic heartbeat function, enables reliable connectivity with 4-tier intelligent

connection checks without sending excessive and costly cellular packets.

GuaranLink Recovery Process for Dual SIM Connections

The GuaranLink feature in OnCell G3150A-LTE automatically tries to re-establish a connection when a

connection failure occurs by performing one of the following actions depending on the number of SIM cards

enabled in the device:

• One SIM card: GuaranLink resets the cellular module without rebooting the device to force negotiation

between the OnCell G3150A-LTE and the base station.

• Dual SIM cards: When the preferred SIM card fails to establish a connection, GuaranLink resets the cellular

module without rebooting the device and establishes a cellular connection using the second SIM card

account.

• If SIM 1 is chosen but SIM card is installed only in SIM 2 slot, no action will be performed. Please ensure that

a SIM card is installed in the SIM card slot that you have selected for operation.

• If one of the SIM cards is absent or not readable, GuaranLink will automatically force a cellular connection

using the other SIM card account. The system log will record this event. If the second SIM card is also

absent or cannot be read, GuaranLink will not try again.

• If the cellular connection cannot be recovered by resetting the cellular module up to 30 times, the OnCell

device will automatically reboot.

GuaranLink Settings

In the navigation panel, click Cellular Settings > GuaranLink Settings to display the configuration screen.

OnCell G3150A-LTE Web Console Configuration

3-14

mode

LTE must wait before terminating the connection to an ISP

Enter the IP address or domain name of a remote host to ping or for

suggest entering

registration process to a base station before the timeout specified in

LTE fails to register to the base station within

ISP Initial Connection Check (Default)

Data Session Retry (Default)

The following table describes the fields:

Field Description Default setting

GuaranLink Select Enable to activate the GuaranLink feature.

For operation redundancy, enable GuaranLink with Dual SIM

so that the OnCell G3150A-LTE regularly checks the connection

quality and performs an automatic switchover in case a cellular

connection is down.

Select Disable to deactivate the GuaranLink feature.

network timeout

Data session retry

count

DNS/Ping remote

host 1/2

ISP initial

connection check

This field is used by the ISP initial connection check.

Enter the time period (10–600 minutes) that the OnCell

G3150A-

and starting the GuaranLink recovery process.

Enter the number of times (1 to 5; default is 3) the OnCell

G3150A-LTE is to request an IP address from the ISP.

If the OnCell G3150A-LTE fails to obtain an IP address after 3 tries

(default value), it starts the GuaranLink recovery process.

This field is used for cellular connection alive and packet-level

connection checks.

a DNS lookup test. To ensure accurate checks, we

the host domain name here.

Select Enable to set the OnCell G3150A-LTE to complete the

the Register to network timeout field.

If the OnCell G3150A-

the timeout period, it starts the GuaranLink recovery process.

Select Disable to allow the OnCell G3150A-LTE to wait until base

station registration is successful.

Disable

N/A

Disable

OnCell G3150A-LTE Web Console Configuration

3-15

Depending on your ISP, cellular connection is terminated if there is

ils after the number of retries specified in

LTE

Transmission Connection Check (Default)

Cellular Connection Alive Check (Default)

Packet-Level Connection Check (Default)

Field Description Default setting

Cellular

connection alive

check

Cellular

connection alive

check interval

Cellular

connection alive

check retry count

no active data transmission for a certain period of time.

Select Enable to set the OnCell G3150A-LTE to keep the cellular

connection alive by performing a DNS lookup or remote host Ping

no data is transmitted within the timeout period.

If the connection check fa

the Cellular connection alive retry count field, the OnCell

G3150A-LTE starts the GuaranLink recovery process.

Enter the time (between 1 to 600 minutes) the OnCell G3150A-

is to wait before performing a connection check.

Enter the number of times the OnCell G3150A-LTE is to try the

connection check in a 15-second time interval.

If the connection check fails, the OnCell G3150A-LTE starts the

GuaranLink recovery process.

Disable

OnCell G3150A-LTE Web Console Configuration

3-16

regardless of any existing

tion check fails after the number of retries specified in

field, the OnCell

interval

LTE

G3150A-LTE is to send the WAN IP address information.

Field Description Default setting

Packet-level

connection check

Packet-level

connection check

action

Packet-level

connection check

Select Enable to check whether the cellular network is accessible

using DNS lookup and remote host ping,

data transmission.

If the connec

the Packet-level connection check retry count

G3150A-LTE starts the GuaranLink recovery process.

Select one of the following options to determine if the connection

check is successful:

• DNS and Ping – Response from both the DNS server and

remote host.

• DNS or Ping – Response from either the DNS server or the

remote host.

Enter the time (between 1 to 600 minutes) the OnCell G3150A-

is to wait before performing a connection check.

Disable

DNS and Ping

Packet-level

connection check

retry count

Transmission

connection check

Transmission

connection alive

check interval

Enter the number the OnCell G3150A-LTE is to try the connection

check before re-establishing the connection.

If a remote system regularly monitors connection to the OnCell

G3150A-LTE, select Enable to set the OnCell G3150A-LTE to receive

polling information from the remote system at regular intervals.

If no polling information is received within the timeout period, the

OnCell G3150A-LTE starts the GuaranLink recovery process.

Enter the time (between 1 to 600 minutes) the OnCell G3150A-

is to wait for polling information from a remote system before

starting the GuaranLink recovery process.

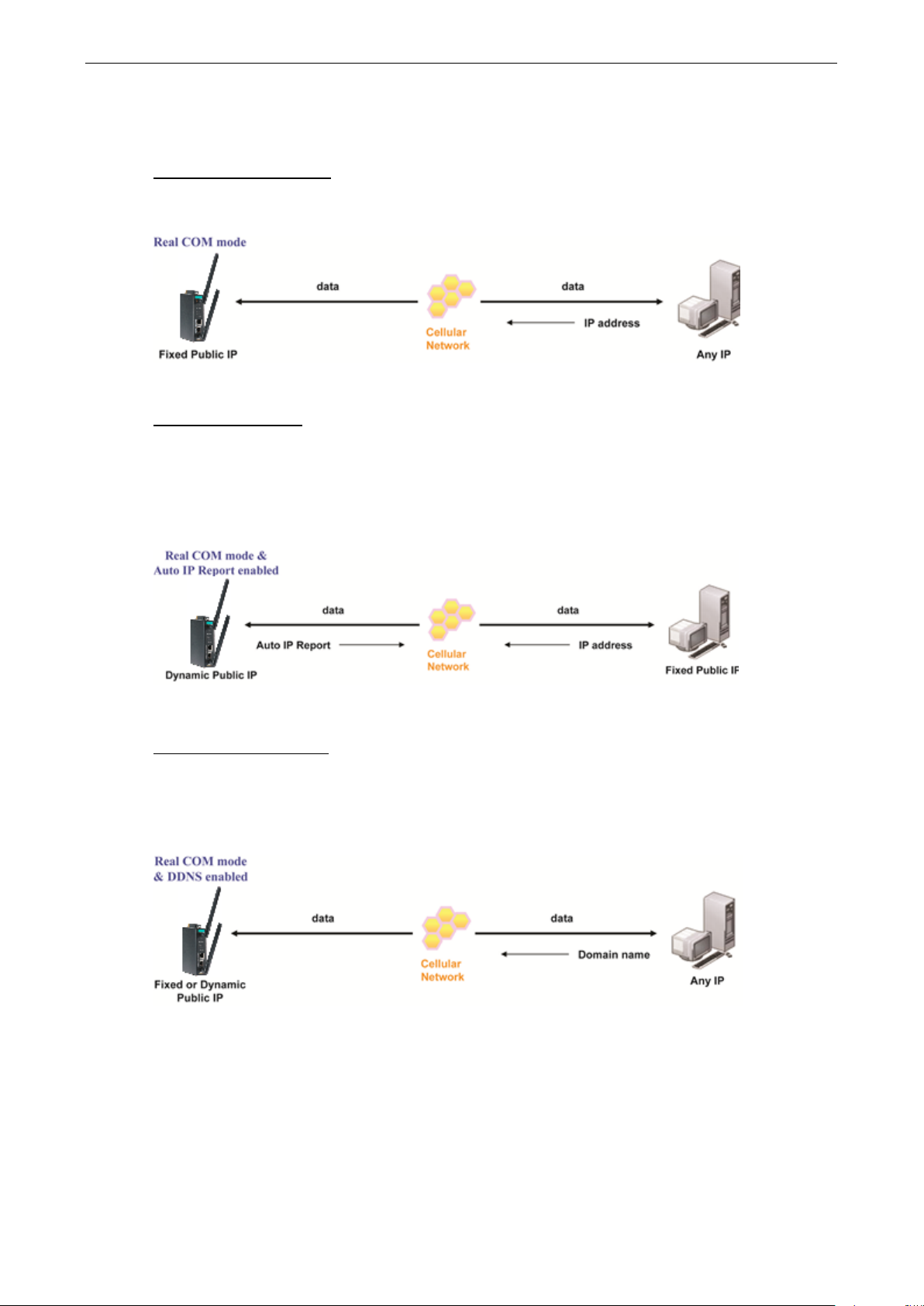

Auto IP Report Settings

In MDVPN (mobile data virtual private network) applications where service providers set up private VPNs for

enterprise customers, a cellular gateway must be assigned IP address that is visible to a remote host in a

central office. In cases where a service provider assigns dynamic IP addresses, you can configure the Auto IP

Report Settings screen to set the OnCell G3150A-LTE to regularly send its WAN IP address to a remote host.

Disable

The following table describes the fields.

Field Description Default setting

Auto IP report to host Enter the IP address of a remote host to which the OnCell

Report to UDP port Enter the listing port number on the remote host. 63100

Report period Enter the number of minutes the OnCell G3150A-LTE is to

wait before sending WAN IP address information.

N/A

OnCell G3150A-LTE Web Console Configuration

3-17

IP Address2

4, DWORD

Little-endian (WAN IP)

ID Value

Length

Note

Auto IP Report Format

The OnCell packet follows the "Type Length Value" format.

Type Length Value

1 byte 1 byte Length bytes

The following table shows the Auto IP report format:

“Moxa”, 4 bytes Info[0] Info[1] ... Info[n]

Info [n]

Field ID Length Data

Length a 1 Variable, Length is “Length Field”

ID List

ID Value Description Length Note

1 Server Name Variable ASCII char

2 Hardware ID 2 Little-endian

3 MAC Address 6 6-byte MAC address. If the MAC address is

“00-90-E8-01-02-03” then MAC[0] is 0, MAC[1] is

0x90(hex), MAC[2] is 0xE8(hex), etc.

4 Serial Number 4, DWORD Little-endian

5 IP Address 4, DWORD Little-endian (LAN IP)

9 AP ID 4, DWORD Little-endian

11 Signal Level 1 Unsigned char

12 RSSI 1 Unsigned char

Example:

05 04 C0,a8,81,71

09 04 30,12,19,89

0a 04 C0,a8,81,71

---- ---- ----

GPS Settings

You can activate the GPS module function under GPS Settings, and then enable GPS serial mode under Real

COM mode or Reverse Real COM mode. OnCell Central Manager provides the current location, including latitude

and altitude information.

OnCell G3150A-LTE Web Console Configuration

3-18

behavior.

The Report ID and

er that the clients can use as an access port.

GPS data report is sent in the latitude and longitude

Setting Description Factory

Default

GPS Enable or disable the GPS function. Disable

GPS Client Enable GPS client mode as TCP or UDP client Disable

Report Protocol Select TCP (client only) or UDP protocol to configure the GPS data report

Report to host Enter an IP or hostname for the GPS data report server’s TCP or UDP port. -

Report to port Enter a port number for server’s TCP or UDP port -

Report period Use this option to specify how often the GPS data is automatically reported. 30 sec

Report Format Select a GPS data report format.

NMEA—GPS data report is sent in the standard NEMA format.

General—GPS data report is sent in the latitude and longitude format.

Report ID Enter the lD that is to be used in the GPS data report header.

MAC ID will be included in the NMEA or General format reports.

TCP

NMEA

Setting Description Factory Default

GPS Server Enables GPS server mode on the server site. Disable

Server Port Enter a port numb

Report period Use this option to specify how often the GPS data is

automatically reported from the server.

Report Format Select a GPS data report format:

NMEA—GPS data report is sent in the standard NEMA format.

General—

format.

Report ID Enter the ID that is to be used in the GPS data report header.

NMEA or General format will add ID and MAC format.

OnCell Central Manager Setting

For OnCell Central Manager settings, refer to the OnCell Central Manager User’s Manual, which can be

downloaded from www.moxa.com

Advanced Settings

Several advanced functions are available to increase the functionality of your OnCell G3150A-LTE and wireless

network system. The DHCP server helps you deploy wireless clients efficiently. Packet filters provide security

mechanisms, such as firewalls, in different network layers. And, SNMP support can make network management

easier.

8919

30 seconds

NMEA

OnCell G3150A-LTE Web Console Configuration

3-19

LTE as a DHCP client.

Enter the IP address of the default gateway that connects to an

Primary/Secondary

Enter the number (between 1 and 999) of IP address to assign

DHCP Server

DHCP (Dynamic Host Configuration Protocol) is a networking protocol that allows administrators to assign

temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time,

instead of assigning permanent IP addresses.

The OnCell G3150A-LTE can act as a DHCP server and assign IP addresses to your DHCP clients by responding

to DHCP requests from the clients. The IP-related parameters you set on this page will also be sent to the client.

You can also assign a static IP address to a specific client by entering its MAC address. The OnCell G3150A-LTE

provides a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for

each entity to activate the setting.

You can check the IP assignment status in the DHCP Client List screen (click Status > DHCP Client List).

The following table provides the field descriptions:

Field Description Default setting

DHCP server Select Enable to set the OnCell G3150A-LTE as a DHCP server.

Select Disable to set the OnCell G3150A-

Default gateway

outside network.

Subnet mask Enter the subnet mask to specify the type of network for the

DHCP clients.

Enter the IP address of the primary or secondary DNS server.

DNS server

Start IP address Enter the starting IP address in the IP address pool. N/A

Maximum number

of users

Client lease time Enter the lease time (between 2 and 14400 minutes) for an

After you specify a DNS server, you can access a web site by

entering its URL instead of the IP address.

to DHCP clients.

assigned IP address. The IP address expired after the lease

time.

Disable

N/A

OnCell G3150A-LTE Web Console Configuration

3-20

Local IP address and the MAC address of the connected devices

Field Description Default setting

Static DHCP

Mapping

(up to 16 devices) that obtain their IP address through DHCP.

N/A

DDNS

If a DHCP server assigns an IP address to the OnCell G3150A-LTE, you can configure dynamic DNS (DDNS)

setting on the OnCell G3150A-LTE to allow remote servers to access the OnCell G3150A-LTE using its domain

name instead of IP address. For more information on DDNS, see Appendix C.

Click Advanced Settings > DDNS to display the configuration screen.

The following table provides the field descriptions:

Field Description Default setting

DDNS function Select Enable to activate the DDNS feature. Disable

Service provider Select an option from the drop-down list. N/A

Host name Enter the host name that you created with the service provider. N/A

Username Enter the username for update authentication. admin

Password Enter the password for update authentication. moxa

Packet Filters

The OnCell G3150A-LTE includes various filters for IP-based packets going through LAN and WLAN interfaces.

You can set these filters as a firewall to help enhance network security.

MAC Filter

The OnCell G3150A-LTE’s MAC filter is a policy-based filter that can allow or filter out IP-based packets with

specified MAC addresses. The OnCell G3150A-LTE provides 32 entities for setting MAC addresses in your

filtering policy. Remember to check the Active check box for each entity to activate the setting.

OnCell G3150A-LTE Web Console Configuration

3-21

ATTENTION

Be careful when

Drop

ATTENTION

Be careful when you enable the filter function:

Drop

Field Description Default setting

MAC filters

function

Policy Select Accept to allow packets that meet the specified criteria.

Select Enable to enable MAC filtering. Disable

Drop

Select Drop to deny packets that meet the specified criteria.

+ “no entity on list is activated” = all packets are allowed

+ “no entity on list is activated” = all packets are denied

you enable the filter function:

IP Protocol Filter

The OnCell G3150A-LTE’s IP protocol filter is a policy-based filter that can allow or filter out IP-based packets

with specified IP protocol and source/destination IP addresses.

The OnCell G3150A-LTE provides 32 entities for setting IP protocol and source/destination IP addresses in your

filtering policy. Four IP protocols are available: All, ICMP, TCP, and UDP. You must specify either the Source

IP or the Destination IP. By combining IP addresses and netmasks, you can specify a single IP address or a

range of IP addresses to accept or drop. For example, “IP address 192.168.1.1 and netmask 255.255.255.255”

refers to the sole IP address 192.168.1.1. “IP address 192.168.1.1 and netmask 255.255.255.0” refers to the

range of IP addresses from 192.168.1.1 to 192.168.1.255. Remember to check the Active check box for each

entity to activate the setting.

Field Description Default setting

IP protocol

filters function

Policy Select Accept to allow packets that meet the specified criteria.

+ “no entity on list is activated” = all packets are allowed.

+ “no entity on list is activated” = all packets are denied.

Select Enable to enable IP protocol filtering. Disable

Drop

Select Drop to deny packets that meet the specified criteria.

TCP/UDP Port Filter

The OnCell G3150A-LTE’s TCP/UDP port filter is a policy-based filter that can allow or filter out TCP/UDP-based

packets with a specified source or destination port.

The OnCell G3150A-LTE provides 32 entities for setting the range of source/destination ports of a specific

protocol. In addition to selecting TCP or UDP protocol, you can set either the source port, destination port, or

both. The end port can be left empty if only a single port is specified. Of course, the end port cannot be larger

than the start port.

OnCell G3150A-LTE Web Console Configuration

3-22

ATTENTION

Be careful when you enable the filter function:

Drop

OnCell device itself is NOT included within this policy.

For

NOTE

You can make LAN computers accessible from the Internet by enabling Virtual Server.

You can also configure port forwarding on the OnCell G3150A-LTE to redirect traffic to a specific port on a LAN

computer.

The Application name is a text string that describes the corresponding entity with up to 31 characters.

Remember to check the Active check box for each entity to activate the setting.

Field Description Default setting

TCP/UDP port

filters function

Policy Select Accept to allow packets that meet the specified criteria.

Select Enable to enable TCP/UDP port filtering. Disable

Drop

Select Drop to deny packets that meet the specified criteria.

+ “no entity on list is activated” = all packets are allowed

+ “no entity on list is activated” = all packets are denied

device interface access and security settings, go to Maintenance -> Console settings.

Port Forwarding Function

You can configure port forwarding settings on the OnCell G3150A-LTE to redirect specific packets from a

remote host on the WAN to a server on the LAN. This feature hides the IP address of a local server and prevents

remote hosts from accessing the local server directly.

The OnCell G3150A-LTE filters out unrecognized packets to protect your LAN network when computers

connected to the OnCell G3150A-LTE are not visible to the WAN.

To access the Port Forwarding settings, select Advanced Setup > Port Forwarding function. The OnCell

G3150A-LTE supports a total of 32 port-forwarding rules.

OnCell G3150A-LTE Web Console Configuration

3-23

the port number specified is not already used by

Enter the port number on a LAN device to which to redirect the

MD5 or

The following table includes the field descriptions:

Field Description Factory Default

Port forwarding Select Enable to activate the port forwarding feature. Disable

Active Select this check box to activate the port forwarding entry. unchecked

Protocol Select an option from the drop-down list. TCP

WAN Port Enter the WAN port number.

Make sure that

other operation modes.

LAN IP Enter the IP address of a LAN device to receive the redirected

traffic.

LAN Port

traffic to.

N/A

SNMP Agent

The OnCell G3150A-LTE supports SNMP V1/V2c/V3. SNMP V1 and SNMP V2c use a community string match for

authentication, which means that SNMP servers access all objects with read-only or read/write permissions

using the community string

authentication level of MD5 or SHA, is the most secure protocol. You can also enable data encryption to

enhance data security.

public/private (default value). SNMP V3, which requires you to select an

The OnCell G3150A-LTE’s MIB is available for download from Moxa’s official website and supports reading the

attributes via SNMP (only the SNMP GET method is supported.)

SNMP security modes and security levels supported by the OnCell G3150A-LTE are shown in the following table.

Select the security mode and level that will be used to communicate between the SNMP agent and manager.

Protocol

Version

SNMP

V1, V2c

SNMP V3 No-Auth No No Use account with admin or user to access objects

Setting on

UI web

page

V1, V2c

Read

Community

V1, V2c

Write/Read

Community

MD5 or SHA Authentication

Authentication

Type

Community string No Use a community string match for

based on MD5 or

SHA

based on MD5 or

SHA

Data

Encryption

authentication

No Provides authentication based on HMAC-MD5, or

HMAC-SHA algorithms. 8-character passwords

are the minimum requirement for

authentication.

Data

encryption

key

Provides authentication based on HMAC-

HMAC-SHA algorithms, and data encryption key.

8-character passwords and a data encryption

key are the minimum requirements for

authentication and encryption.

Method

OnCell G3150A-LTE Web Console Configuration

3-24

to use an administrator account to access objects

The following parameters can be configured on the SNMP Agent page.

Field Description Default Setting

SNMP agent Select Enable to activate SNMP agent. Disable

Remote

management

Read community Enter the community string or password (up to 31 characters

Write community Enter the community string or password (up to 31 characters

SNMP agent

version

Admin

authentication

type

Authentication

username

Admin

encryption

method

Private key Enter the key (up to 63 characters) for data encryption N/A

Private MIB

information

Device object ID

Select Enable to allow remote management via SNMP agent. Disable

public

long) for an SMNP agent to access objects with read-only

permission.

private

long) for an SMNP agent to access objects with read-write

permission.

Select the SNMP protocol version used to manage the OnCell

G3150A-LTE.

Select No Auth

without authentication.

Select MD5 to authenticate using HMAC-MD5 algorithms where

the minimum requirement is to use an 8-character password.

Select SHA to authenticate using HMAC-SHA algorithms where

the minimum requirement is to use an 8-character password.

The username to use for SNMP authentication admin

Select Disable for no data encryption

Select DES to use DES-based data encryption

Select AES to use AES-based data encryption

The object ID (OID) is the enterprise value for the OnCell

G3150A-LTE. This value is not configurable.

V1, V2c

No Auth

Disable

N/A

OnCell G3150A-LTE Web Console Configuration

3-25

VPN

Computers that are part of a virtual private network (VPN) use a second, “virtual” IP address to connect to the

Internet. Instead of running across a single private network, some of the links between nodes that are part of

a VPN use open network connections or virtual circuits on a larger network, such as the Internet. The OnCell

G3150A-LTE can act as a VPN client or VPN server. Once the connection is established, cellular devices can

communicate with other network devices on the same private network.

The following figure shows an example of a network topology:

IPSec

Overview—OnCell G3150A-LTE IPSec Feature

The IPSec feature on the OnCell G3150A-LTE:

• Provides Layer-3 (IP-layer) security in a network with gateway-to-gateway topology as illustrated in the

following figure

• Initiates a VPN connection from the OnCell G3150A-LTE to a VPN Server

• Operates in Tunnel mode with IPSec VPN tunnel with:

 Manual Key/ESP, IKE/PSK encryption

 DES/3DES/AES128 encryption

 MD5/SHA1 authentication

• Provides IPSec NAT traversal and PFS (perfect forwarding secrecy)

• Provides IPSec over GRE protocol

OnCell G3150A-LTE Web Console Configuration

3-26

ture that allows

IPSec Settings

You can enable or disable the IPSec and NAT traversal functions and configure up to five VPN tunnels by

selecting Advanced Settings > VPN > IPSec Settings.

The following table provides the field descriptions.

Field Description Factory Default

IPSec Select Enable to activate the IPSec feature. Disable

NAT Traversal Select Enable to activate the NAT traversal fea

IPSec traffic to traverse through NAT-enabled devices.

Make sure that the remote VPN device supports this feature.

Action Click Edit to configure a VPN tunnel.

Click Delete to remove the selected VPN tunnel.

Disable

Configuring a VPN Tunnel

To configure a VPN tunnel, click Edit in the IPSec Settings screen.

OnCell G3150A-LTE Web Console Configuration

3-27

Select this option to create a VPN tunnel for

nnel between a static local subnet and a dynamic remote

LTE to initiate

(IP/FQDN/User_FQDN) to identify and authenticate

Remote network

Enter the IP of the remote network.

N/A

/User_FQDN) to identify and authenticate

are linked

rt the specified sender WAN port

to internal IP address. For example, this function can be used to

The following table provides the field descriptions:

Field Description Factory Default

IPSec enable Select Enable to activate the VPN tunnel. Disable

Connection name Enter a descriptive name for the VPN tunnel. -

Connection type Select one of the following connection types:

• Site-to-Site –

static local and remote subnets.

• Site-to-Site(any) – Select this option to create a VPN

subnet.

Startup mode Select Start in Initial to set the OnCell G3150A-

a connection with the remote VPN gateway.

Select Wait for Connecting to set the OnCell G3150A-LTE t

wait for a remote VPN gateway to initiate a connection.

Remote VPN

gateway

Local network Enter the IP of the local network. N/A

Local netmask Enter the netmask of the local network. N/A

Local ID Enter an ID

Enter the WAN IP address of the remote VPN gateway. N/A

the local VPN gateway.

Site-to-Site

Start in Initial

N/A

Remote netmask Enter the netmask of the remote network. N/A

Remote ID Enter an ID (IP/FQDN

the remote VPN endpoint.

NAT type Select this check box to activate 1:1 or 1:N network address

translation (NAT)

Local 1:1 NAT—Virtual IP addresses are used for

communication via the VPN tunnel. These addresses

to the real IP addresses for the network that has been

connected. The subnet mask remains unchanged.

Local 1:N NAT—The device has one IP address, which can be

used to access the device externally. For incoming data

packets, the device can conve

enable PLCs from different sites to have the same IP address.

GRE enable Enables generic routing encapsulation (GRE) in IPSec

tunneling.

N/A

None

Disable

OnCell G3150A-LTE Web Console Configuration

3-28

guide.

VPN ISAKMP

connecting to the remote gateway when the VPN tunnel is not

Lifetime. This is the period of time to pass before establishing a

for the Start to Rekey before IKE

Field Description Factory Default

Key Exchange (Phase1)

Operation mode Select main mode or aggressive mode to configure the

standard negotiation parameters for IKE Phase 1 of the VPN

Tunnel.

Authentication mode Select Pre-shared key, RSA Signature, or X.509

authentication mode to for phase 1 key exchange.

The configuration fields vary depending on the authentication

mode you select. For information on configuring each

authentication mode, refer to the respective sections in this

Encryption algorithm Select the DES, 3DES or AES128 algorithm for the

phase 1 encryption mode.

Hash algorithm Select the MD5 or SHA-1 VPN key exchange phase 1 hash

mode.

DH group Select the DH-2(1024) or DH-5(1536) VPN key exchange

phase 1 Diffie-Hellman group. As the Diffie-Hellman Group

number increases, the higher the level of encryption

implemented for PFS.

Negotiation times The number of allowed reconnect times when startup mode is

initiated. If the number is 0, this tunnel will always try

Main

Pre-shared key

3DES

MD5

DH-2

created successfully.

IKE life time Enter the number of minutes for the VPN IKE SA phase 1

new IPSec security association (SA) with the remote endpoint.

Rekey expire time Enter the number of minutes

lifetime expired.

OnCell G3150A-LTE Web Console Configuration

3-29

margin of the Rekey expire time. 100% means the rekey expire

Lifetime. This is the period of time to pass before establishing a

LTE performs one of the following actions when

Field Description Factory Default

Rekey fuzz percent The rekey expire time will change randomly to enhance the

security. Rekey fuzz percent is the maximum random change

time will not change randomly.

Field Description Factory Default

Data Exchange (phase2)

Perfect forward

secrecy

SA life time Enter the number of seconds for the VPN ISAKMP phase 2

Encryption algorithm Select the DES, 3DES, or AES128 algorithm for the VPN

Hash algorithm Select the MD5 or SHA-1 VPN ISAKMP phase 1 authentication

Dead Peer Detection

DPD action When you enable the Dead Peer Detection (DPD) feature, the

DPD delay The period of dead peer detection messages. 30

DPD timeout Timeout to check if the connection is alive or not. 120

Enable or disable the Perfect Forward Secrecy. PFS is an

additional security protocol.

new IPSec security association (SA) with the remote endpoint.

ISAKMP phase 1 encryption mode.

mode.

OnCell G3150A-

connection to a remote IPSec tunnel is down:

• Hold: Keep the VPN tunnel

• Clear: Clear the VPN tunnel

• Restart: Re-establish the VPN tunnel on Start in Initial

mode.

• Restart by Peer: Re-establish the VPN tunnel on Wait for

connecting mode.

100%

Disable

480

3DES

MD5

Disable

Configuring Pre-Shared Key Settings

To configure pre-shared key authentication mode in phase 1 key exchange, in the Tunnel settings screen,

select Pre-shared key from the Authentication mode drop-down list. Then, enter a key in the text field.

Make sure that you configure the same key on the OnCell G3150A-LTE and the remote VPN gateway.

Configuring RSA Signature Settings

To configure RSA signature settings, complete the following steps:

1. In the Tunnel Settings screen, select RSA Signature from the Authentication mode drop-down list.

2. Generate or import a local private key. Perform one of the following actions:

• Click Generate Local Private Key. The OnCell G3150A-LTE creates a private key and displays the key

information in the Local private key field.

• Click Import Local Private Key and select a key file to import. After the OnCell G3150A-LTE

successfully imports the selected key, the system displays the key information in the Local private key

field.

3. Generate or import a remote private key. Perform one of the following actions:

• Click Generate Remote Public Key. The OnCell G3150A-LTE creates a public key and displays the key

information in the Remote public key field.

• Click Import Remote Public Key and select a key file to import. After the OnCell G3150A-LTE

successfully imports the selected key, the system displays the key information in the Remote public

key field.

OnCell G3150A-LTE Web Console Configuration

3-30

Make sure that the port number specified is not already used by OP

The following figure shows the certificate generation and certificate export/import example.

Generate Root CA

Generate Local Certificate

Click PKCS#12 Export to export the local

certificate (local_CA_A.p12)

Click Certificate Export to export the local

certificate file (local_CA_A.pem)

Click VPN > X.509 >Local Certificate Upload

and import the local certificate (local_CA_A.p12

Click VPN > X.509 > Remote Certificate

Upload to import the remote certificate

(local_CA_B.pem).

1. Generate Root CA

2. Generate Local Certificate

3. Click PKCS#12 Export to export the local

certificate (local_CA_B.p12)

4. Click Certificate Export to export the local

certificate file (local_CA_B.pem)

5. Click VPN > X.509 >Local Certificate Upload

and import the local certificate (local_CA_B.p12

6. Click VPN > X.509 > Remote Certificate

Upload to import the remote certificate

(local_CA_A.pem).

Local 1:N NAT

OnCell G3150A-LTE can support up to 32 TCP/UDP connections for 1:N network address translation (NAT).

Field Description Default setting

Activate Select this check box to activate the 1:N NAT Always on

Protocol Select the protocol to use in the NAT policy. TCP

WAN Port Enter the WAN port number to redirect to specific LAN IP.

modes.

LAN IP Enter the IP address of a LAN device to receive the redirected

traffic.

LAN Port Enter the port number on a LAN device to which to redirect traffic. N/A

N/A

OnCell G3150A-LTE Web Console Configuration

3-31

NOTE

Before you configure X.509 settings, make sure that you have imported local and remote certificates in the

Local/Remote Certificate Upload

Local/Remote

1:N Concept

X.509 Certificate

screen (click Advanced Settings > VPN > X.509 Certificate >

Certificate Upload).

In the Tunnel Settings screen, select X.509 from the Authentication mode drop-down list and select a

certificate from the Local certificate and Remote certificate drop-down lists.

Certificate Generation

X.509 is a digital certificate method commonly used for IPSec authentication. You can generate a self-signed

root CA or local certificate on the OnCell G3150A-LTE and import or export the certificate on a remote VPN

gateway.

OnCell G3150A-LTE Web Console Configuration

3-32

name

To display the Certificate Generation screen, click Advanced Settings > VPN > X.509 Certificate >

Certificate Generation.

To generate a root CA certificate, complete the following steps:

1. In the Certificate Generation screen, enter information in the fields under Root Certificate Generation.

Field Description

Certificate days Enter the number of days the certificate is valid for.

Certificate password Enter a password to create a password-protected certificate.

Country name Enter the country.

State or province

name

Locality name Enter the city.

Organization name Enter the name of the organization.

Organization unit

Common name Enter a name (such as a server name or your name).

Email address Enter an email address.

2. Click Generate Root CA.

Enter the state or the province.

Enter the unit or section in the organization.

OnCell G3150A-LTE Web Console Configuration

3-33

Certificate days

Enter the number of days the certificate is valid for.

NOTE

You can generate a local certificate in the Certificate Generation screen.

After you have generated the root CA certificate, generate a local certificate and export the key files. Complete

the following steps:

1. In the Certificate Generation screen, enter information in the fields under Local Certificate Settings.

Field Description

Certificate password Enter a password to create a password-protected certificate.

Organization unit

name

Common name Enter a name (such as a server name or your name).

Email address Enter an email address.

2. Click Generate Local Certificate.

3. Click Certificate Export to export the public key file for the certificate that you can import on to a remote

VPN gateway.

4. Click PKCS#12 Export to export the private key file for local certificates on the OnCell G3150A-LTE.

You can import the local certificate in the Local Certificate Upload screen.

Enter the unit or section in the organization.

Local Certificate Upload

If you configure X.509 authentication mode for VPN tunnel setup, you must import a local certificate on the

OnCell G3150A-LTE.

You can add or delete a local certificate in the Local Certificate Upload screen.

1. Click Advanced Settings > VPN > X.509 Certificate > Local Certificate Upload.

2. In the PKCS#12 upload field, click Choose File to select a local certificate file

3. In the Password field, enter the certificate password.

4. Click Import.

OnCell G3150A-LTE Web Console Configuration

3-34

Remote Certificate Upload

You can add or delete a certificate from the remote VPN gateway in the Remote Certificate Upload screen.

1. Click Advanced Settings > VPN > X.509 Certificate > Remote Certificate Upload.

2. In the Remote certificate upload field, click Browse to select a local certificate.

3. Click Import.

OpenVPN

Overview—OnCell G3150A-LTE OpenVPN Feature

The OnCell G3150A-LTE OpenVPN:

• Provides SSL/TLS (layer-4) security in a network with gateway-to-gateway topology. It can create either a

layer-3 based IP tunnel (TUN), or a layer-2 based Ethernet (TAP) that can carry any type of Ethernet traffic.

• Supports both server and client mode communication through TCP/UDP to transfer encrypt data

• Provides server mode to push the network behind the OnCell G3150A-LTE to the server site so as to make

end-to-end connection possible (Figure 1)

• Acts as an OpenVPN server to force gateway routing and redirect all external connections only through the

VPN server’s gateway. (Figure2)

• Enables the OnCell G3150A-LTE to act as an OpenVPN server to allow duplicate OpenVPN clients access

under the same account name. This also allows OpenVPN clients to communicate with each site. (Figure 3)

OnCell G3150A-LTE Web Console Configuration

3-35

OnCell G3150A-LTE Web Console Configuration

3-36

OpenVPN—Router Mode

Use this OpenVPN mode to connect two sites that are under different subnets (in Layer 3) and encrypt the

TCP/UDP package data transmission. Router mode cannot process broadcast or multicast frames.

OpenVPN—Bridge Mode

Use this OpenVPN mode to have two sites under the same subnet (in Layer 2) and encrypt IP packages during

data transmission.

Server Settings

Server Setting—TUN (Router Mode)

OnCell G3150A-LTE Web Console Configuration

3-37

between server and client hosts. The first network address will

configuration fields vary depending on the authentication mode

ction is disabled, the OnCell

Figure 3:

Client-to-Client Communication above.)

Setting Description Factory Default

OpenVPN Select Enable to activate the VPN tunnel. Disable

Interface Type Select OpenVPN tunnel connection by router mode or bridge

mode

Network IP This is the virtual network used for private communications

be assigned to the server virtual interface. The remaining

network addresses can optionally be assigned to the

connecting clients.

Netmask Enter the subnet netmask of virtual network. 255.255.255.0

Push network IP This is the network that will be accessible from the remote

endpoint. You may leave this blank if you don’t want to add a

route to the local network through this tunnel on the remote

machine. This is generally set to your LAN network.

Push netmask Enter the netmask of the network behind the VPN server. 255.255.255.0

Protocol Select the protocol to be used for VPN. UDP

Port number Enter the port number for TCP / UDP connection 1194

Encryption algorithm Select authentication mode for key exchange. The

you select.

Hash algorithm Select the MD5 or SHA-1 VPN key exchange phase 1 hash

mode.

LZO compression Compress tunnel packets using the LZO algorithm Enable

User authentication Only password authentication is supported in server mode N/A

Keepalive Select Enable to check if the client connection is alive. Disable

Redirect to default

gateway

Client-to-client

communication

Select Enable to force all clients generated traffic to pass

through the tunnel

Select Enable to allow communication between clients

connected to the server. If this fun

will only be able to communicate with the server (see

TUN (Router)

10.8.0.0

192.168.127.0

BlowFish CBC

SHA1

Disable

Allow duplicate user

name

Select Enable to allow multiple concurrent connections from

clients using the same common name.

Note: This setting is not recommended but may be needed in

some scenarios.

Disable

OnCell G3150A-LTE Web Console Configuration

3-38

This is the network that will access to remote VPN server and

local network. The IP address entered here will be the start IP

NOTE

The Bridge mode is the recommended mode for multicast and broadcast requirements.

Server Setting—TAP (Bridge Mode)

Setting Description Factory Default

DHCP Proxy Select Disable to activate the DHCP function. Disable

External Gateway IP Enter the remote site VPN serer gateway IP address. 192.168.127.254

External Gateway

Netmask

IP Pool Start

IP Pool End The IP address entered here will be the end point of the IP

Server Certificate Upload

Enter the remote site VPN server subnet netmask. 255.255.255.0

192.168.127.1

the IP range that can be assigned (clients number) in this

for the local network (client).

192.168.127.253

address for the local network (client).

OnCell G3150A-LTE Web Console Configuration

3-39

Password

Enter the password that you fill in X.509 password column.

Setting Description

Root CA Browse your local drive and choose the certificate generated by X.509 then click

import to import the certificate.

PKCS#12 Upload Browse your local drive and choose the certificate with password which generated

by X.509 then click import to import the certificate.

Server CA The column shows the information of certification password and subject that

imported.

Server User Management

Enables management and export of user configurations.

Setting Description Factory Default

Edit Click Edit to open the User Management Settings window. -

User Active Select Enable to activate User accessibility Disable

User Name Enter User Name. admin

Password Enter the password. moxa

OnCell G3150A-LTE Web Console Configuration

3-40

Client Settings

Setting Description Factory Default

Client enable Select Enable to activate OpenVPN Client Disable

Interface type Select OpenVPN tunnel connection by router mode or bridge

mode

Remote server IP This is the virtual network used for private communications

between this server and client hosts. The first network

address will be assigned to the server virtual interface. The

remaining network addresses can optionally be assigned to

the connecting clients. The remote site must assign a server

IP, public IP, or carrier private network that is accessible to

the clients.

Protocol Select the protocol to be used for VPN. UDP

Port number Enter the remote server port number for TCP / UDP

connection

Encryption

algorithm

Hash algorithm Select the MD5 or SHA-1 VPN key exchange phase 1 hash

LZO compression Compress tunnel packets using the LZO algorithm Enable

Select authentication mode for key exchange. The

configuration fields vary depending on the authentication

mode you select.

mode.

TUN(Router)

10.8.0.0

1194

BlowFish CBC

SHA1

User

authentication

User name Enter the user name for the client that you set on the server. N/A

Password Enter the client password that you set on the server (up to

Select password or certification to protect the authentication

choose either one

15 characters.)

password

N/A

OnCell G3150A-LTE Web Console Configuration

3-41

NOTE

Before using the OpenVPN function, run an NTP check on the device to ensure that it is synchronized with the

local time for proper authentication to take place.

Client Certificate Upload

Setting Description Factory Default

Root CA Browse your local drive or import a certificate code.

PKCS#12 Upload Browse your local drive or import a certificate code.

Password Default password “moxa” moxa

Client CA The column shows the client certification password and

subject imported.

X.509 Certificate

X.509 is a digital certificate method commonly used for OpenVPN authentication. You can generate a

self-signed root CA or local certificate on the OnCell G3150A-LTE and import or export the certificate on a

remote VPN gateway.

To display the Certificate Generation screen, click Advanced Settings > VPN > OpenVPN > X.509

Certificate > Certificate Generation.

OnCell G3150A-LTE Web Console Configuration

3-42

Organization(E.g., company)

Enter the name of the organization.

Certificate validity

Enter the number of days the certificate is valid for.

certificate.

To generate a root CA certificate, complete the following steps:

1. In the Certificate Generation screen, enter information in the fields under Root Certificate Generation.

Setting Description

Certificate validity Enter the number of days the certificate is valid for.

Country name(2 letter code) Enter the country.

State or province name(full name) Enter the state or the province.

Locality (E.g., city) Enter the city.

Organizational unit(E.g., section) Enter the unit or section in the organization.

Name(E.g., server, FQDN or your

name)

Email address Enter an email address.

2. Click Generate Root CA.

After you have generated the root CA certificate, generate a local certificate and export the key files. In the

Certificate Generation screen, enter information in the fields under Local Certificate Settings.

Setting Description

Certificate Generation Generate a certificate for Server or Client

Enter a name (such as a server name or your name).

Certificate Password (4 to 63 characters) Enter a password to create a password-protected

Organizational unit (E.g., Section) Enter the unit or section in the organization.

Email address Enter an email address.

Serial Port Settings

In this section, we describe the various operation modes of the OnCell G3150A-LTE. The OnCell G3150A-LTE

modes are grouped by type of application, such as Device Control. The options include an operation mode that

relies on a driver installed on the host computer, and operation modes that rely on TCP/IP socket programming

concepts.

The OnCell G3150A-LTE can enable cellular network-in a serial device. OnCell G3150A-LTE device is assigned

an IP address by the Internet service provider (ISP). In addition, the OnCell G3150A-LTE can enable cellular

connectivity in Ethernet devices on the local Ethernet. See the OnCell Central Manager user’s manual for

details.

The OnCell G3150A-LTE enables traditional serial (RS-232/422/485) devices for transmitting data over the

cellular network. The IP gateway is a computer equipped with a CPU and TCP/IP protocols that can

bi-directionally translate data between the serial and IP formats. With the OnCell G3150A-LTE, your computer

will be able to access, manage, and configure remote facilities and equipment over the cellular network from

anywhere in the world.

OnCell G3150A-LTE Web Console Configuration

3-43

Traditional SCADA and data collection systems rely on serial ports to collect data from various kinds of

instruments. Since the OnCell G3150A-LTE network-enables instruments equipped with an RS-232, RS-422, or

RS-485 communication port, your SCADA and data collection system will be able to access all instruments

connected to a standard TCP/IP network, regardless of whether the devices are used locally or at a remote site.

The OnCell G3150A-LTE is an external IP-based network device that allows you to expand a serial port for a

host computer on demand. As long as your host computer supports the TCP/IP protocol, you will not be limited

by the host computer’s bus limitation (such as ISA or PCI), nor will you be limited if you do not have drivers for

various operating systems.

In addition to providing socket access, the OnCell G3150A-LTE also comes with a Real COM driver and a

Reverse Real COM driver that transmits all serial signals intact. This enables you to preserve your existing

COM-based software without needing to invest in additional software.

Three different socket modes are available: TCP Server, TCP Client, and UDP. The main difference between the

TCP and UDP protocols is that TCP guarantees delivery of data by requiring the recipient to send an

acknowledgement to the sender. UDP does not require this type of verification, making it possible to offer faster

delivery. UDP also allows you to unicast data to one IP, or multicast the data to a group of IP addresses.

Operation Mode

Serial Port Settings

Port Setting Basics

To configure the operation mode and settings for a port, expand Serial Port Settings in the navigation panel,

and then expand the port that you would like to configure. Individual port settings are grouped into three

categories in the navigation panel: Operation Modes, Communication Parameters, and Data Buffering/Log.

Disabled Mode

When the Application is set to Disable, the relevant port will be disabled.

OnCell G3150A-LTE Web Console Configuration

3-44

NOTE

You can download the Moxa Drivers for operation modes from www.moxa.com.

File Name: NPort/OnCell Windows Driver Manager

Device Control Applications

The OnCell G3150A-LTE offers the following modes for device control applications: Real COM, Reverse Real

COM, and RFC2217 modes.

Real COM Mode

In Real COM mode, the bundled drivers are able to establish a transparent connection between a host and a

serial device by mapping the serial port on the OnCell G3150A-LTE to a local COM port on the host computer.

Real COM mode supports up to 2 simultaneous connections that enable 2 hosts to simultaneously collect data

from the same serial device.

One of the major conveniences of using Real COM mode is that it allows you to use software that was written

for pure serial communication applications. The OnCell COM driver intercepts data sent to the host’s COM port,

packs it into a TCP/IP packet, and then redirects it through the host’s Ethernet card to the Internet. At the other

end of the connection, the OnCell G3150A-LTE accepts the IP frame from the cellular network, unpacks the

TCP/IP packet, and then transparently sends the data through the serial port to the attached serial device.

OnCell G3150A-LTE Web Console Configuration

3-45

host does not respond to the packet within the time specified in

LTE will listen for another TCP connection from

not send any “keep alive” packets.

This field is used if you need to receive data from different hosts

LTE, and the OnCell COM

over the port. When set

parameters will use firmware settings instead of depending on

hen the software uses

Setting Description Factory Default

TCP alive check time This field specifies how long the OnCell G3150A-LTE will wait

for a response to “keep alive” packets before closing the TCP

connection. The OnCell G3150A-LTE checks the connection

status by sending periodic “keep alive” packets. If the remote

this field, the OnCell G3150A-LTE will force the existing TCP

connection to close. For socket and device control modes, the

OnCell G3150A-

another host after closing the connection. If TCP alive check

time is set to 0, the TCP connection will remain open and will

Max connection

simultaneously. When set to 1, only one specific host can

access this port of the OnCell G3150A-

driver on that host will have full control

to 2, the specified number of hosts’ OnCell COM driver may

open this port at the same time. When multiple hosts on the

OnCell COM driver open the port at the same time, the COM

driver only provides a pure data tunnel --no control ability

unless “Allow Driver Control” is enabled. The serial port

your application program (AP).

Application software that is based on the COM driver will

receive a driver response of “success” w

any of the Win32 API functions. The firmware will only send

data back to the driver on the host.

Data will be sent first-in-first-out when data comes into the

OnCell G3150A-LTE from the Cellular or Ethernet interface.

7 min

OnCell G3150A-LTE Web Console Configuration

3-46

ATTENTION

When Max connection is greater than 1, the OnCell G3150A

application (i.e., 2 hosts are allowed access to the port at the same time). When using a multi

connection application, the OnCell G3150A

defined here in the web console, and all hosts connected to the port must use identical serial settings.

If one of the hosts opens the COM port with different serial settings, data wi

properly.

stops responding

transmitted successfully to

responding and continue data transmission to the other hosts.

when the Cellular or Ethernet connection goes down. For some

the serial port. Use “always low” if you want the RTS and DTR

signal to change their state to low when the Cellular or Ethernet

connection gets disconnected. Use “always high” if you do not

setting refers to the maximum amount of

maximum amount is specified and data in the buffer will be sent

as specified by the delimiter settings or when the buffer is full.

data in the buffer and send the data to the Cellular or Ethernet

field, so that both characters act as

ATTENTION

In order to enable a delimiter, packet

should only be enabled in

conjunction with

and never on its own; otherwise there may be data errors. Even when

a delimiter is enabled, the OnCell G3150A

data exceeds 1 KB

Setting Description Factory Default

-LTE will use a multi connection

-LTE will use the serial communication parameters as

ll not be transmitted

Ignore jammed IP This option determines how the port will proceed if multiple

hosts are connected and one or more host(s)

when the port is transmitting data. If you select Disable, the

port will wait until the data has been

all hosts before transmitting the next group of data. If you

select Enable, the port will ignore the host that stopped

Allow driver control This option determines how the port will proceed if driver

control commands are received from multiple hosts that are

connected to the port. If Disable is selected, driver control

commands will be ignored. If Enable is selected, control

commands will be accepted, with the most recent command

received taking precedence.

Connection goes

You can configure what happens to the RTS and DTR signals

down

applications, serial devices need to know the Cellular or

Ethernet link status through RTS or DTR signals sent through

want the cellular or Ethernet connection status to affect the

RTS or DTR signals.

Packing length The Packing length

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

Disable

Always High

When a packet length between 1 and 1024 bytes is specified,

data in the buffer will be sent as soon it reaches the specified

length.

Delimiter 1

When Delimiter 1 is enabled, the serial port will queue the

Delimiter 2

port when a specific character, entered in hex format, is

received. A second delimiter character may be enabled and

specified in the Delimiter 2

the delimiter to control when data should be sent.

length must be set to 0. Delimiter 2

Delimiter 1

-LTE will still pack and send the data when the amount

OnCell G3150A-LTE Web Console Configuration

3-47

The Delimiter process field determines how the data is handled

must be enabled for

this field to have effect. If Delimiters 1 and 2 are both enabled,

Data in the buffer will be transmitted when the

Data in the buffer will be transmitted after 1

Data in the buffer will be transmitted after 2

LTE transmits the data stored in the buffer via TCP/IP

ps, 8 data

bits, 1 stop bit, and no parity. In this case, the total number of

bits needed to send a character is 10 bits, and the time required

transmit time to be greater than 8.3 ms, so in this case, it must

Setting Description Factory Default

Delimiter process

when a delimiter is received. Delimiter 1

both characters must be received for the delimiter process to

take place.

• Do Nothing:

delimiter is received.

• Delimiter + 1:

additional byte is received following the delimiter.

• Delimiter + 2:

additional bytes are received following the delimiter.

• Strip Delimiter: Data in the buffer is first stripped of the

delimiter before being transmitted.

Force transmit This parameter defines how large a gap in serial

communication the OnCell G3150A-LTE will allow before

packing the serial data in its internal buffer for network

transmission.

As data is received through the serial port, it is stored by the

OnCell G3150A-LTE in the internal buffer. The OnCell

G3150A-

when the internal buffer is full or as specified by the

force-transmit time.

When this field is set to 0, the force transmit time is disabled

and transmission is determined solely by the data in the

internal buffer. When the force transmit time is set to a value

from 1 to 65535, the TCP/IP protocol software will pack the

serial data received for transmission after the gap in serial

communication exceeds the specified force transmit time.

The optimal force-transmit time setting depends on your

application. However, it must be set to a value that is more

than one-character interval within the specified baudrate. For

example, assume that the serial port is set to 1200 b

Do Nothing

0 ms

to transfer one character is (10 (bits) / 1200 (bits/s)) ×

1000 (ms/s) = 8.3 ms. Therefore, you should set the force

be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same

packet, the serial device will need to send that series of

characters within the specified force transmit time, and the

total length of data must be less than or equal to the OnCell

G3150A-LTE’s internal buffer size (1 KB per port).

OnCell G3150A-LTE Web Console Configuration

3-48

Types of Real COM Connection

This section illustrates the types of Real COM connections you can use, depending on the service you obtain

from your local cellular service provider.

Fixed Public IP for OnCell

If your cellular service provider offers a fixed public IP address after you connect to the cellular network, you

can access the OnCell G3150A-LTE via a host PC using either a private IP or public IP.

Utilize Auto IP report

If your cellular service provider offers a dynamic public IP address after you connect to the cellular network,

you can access the OnCell G3150A-LTE via a host PC using a fixed public IP. Since the IP address of the OnCell

G3150A-LTE is changed each time it is connected to the cellular network, the host IP can be notified of the

change by an Auto IP Report message sent from the OnCell G3150A-LTE. Please refer to Auto IP Report

Settings to see the format of the Auto IP Report Protocol.

Domain name with DDNS

If your cellular service provider offers a public IP address after you connect to the cellular network, you can also

access the OnCell G3150A-LTE using the domain name. To do this, you will need to register with a DDNS

service provider and then enable the DDNS function in the OnCell G3150A-LTE. Please refer to Appendix B for

more information.

OnCell G3150A-LTE Web Console Configuration

3-49

e time specified in this

LTE will listen for another TCP connection from

ses to listen to connections, and that other devices must

setting refers to the maximum amount of

maximum amount is specified and data in the buffer will be sent

as specified by the delimiter settings or when the buffer is full.

or Ethernet

RFC 2217 Mode

RFC-2217 mode is similar to Real COM mode in that a driver is used to establish a transparent connection

between a host computer and a serial device by mapping the serial port on the OnCell G3150A-LTE to a local

COM port on the host computer. RFC2217 defines general COM port control options based on the Telnet

protocol. Third party drivers supporting RFC-2217 are widely available on the Internet and can be used to

implement virtual COM mapping to your OnCell G3150A-LTE’s serial port.

Setting Description Factory Default

TCP alive check time This field specifies how long the OnCell G3150A-LTE will wait

for a response to “keep alive” packets before closing the TCP

connection. The OnCell G3150A-LTE checks connection status

by sending periodic “keep alive” packets. If the remote host

does not respond to the packet within th

field, the OnCell G3150A-LTE will force the existing TCP

connection to close. For socket and device control modes, the

OnCell G3150A-

another host after closing the connection. If TCP alive check

time is set to 0, the TCP connection will remain open and will

not send any “keep alive” packets.

TCP port This is the TCP port number assignment for the serial port on

the OnCell G3150A-LTE. It is the port number that the serial

port u

use to contact the serial port. To avoid conflicts with

well-known TCP ports, the default is set to 4001.

Packing length The Packing length

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

7 min

4001

When a packet length between 1 and 1024 bytes is specified,

data in the buffer will be sent as soon it reaches the specified

length.

Delimiter 1

Delimiter 2

When Delimiter 1 is enabled, the serial port will queue the

data in the buffer and send the data to the Cellular

port when a specific character, entered in hex format, is

OnCell G3150A-LTE Web Console Configuration

3-50

field, so that both characters act as

ATTENTION

In order to enable a delimiter,

should only be enabled

in conjunction with

. Even when a delimiter is

enabled, the On

LTE will still pack and send the data when the amount of data exceeds

1 KB

The Delimiter process field determines how the data is handled

must be enabled for

ffect. If Delimiters 1 and 2 are both enabled,

Data in the buffer will be transmitted when the

smitted after 1

Data in the buffer will be transmitted after 2

LTE transmits the data stored in the buffer via TCP/IP

example, assume that the serial port is set to 1200 bps, 8 data

bits, 1 stop bit, and no parity. In this case, the total number of

bits needed to send a character is 10 bits, and the time required

transmit time to be greater than 8.3 ms, so in this case, it must

Setting Description Factory Default

received. A second delimiter character may be enabled and

specified in the Delimiter 2

the delimiter to control when data should be sent.

the packet length must be set to 0. Delimiter 2

Delimiter 1 and never on its own to avoid data errors

Cell G3150A-

Delimiter process

when a delimiter is received. Delimiter 1

this field to have e

both characters must be received for the delimiter process to

take place.

• Do Nothing:

delimiter is received.

• Delimiter + 1: Data in the buffer will be tran

additional byte is received following the delimiter.

• Delimiter + 2:

additional bytes are received following the delimiter.

• Strip Delimiter: Data in the buffer is first stripped of the

delimiter before being transmitted.

Force transmit This parameter defines how large a gap in serial

communication the OnCell G3150A-LTE will allow before

packing the serial data in its internal buffer for network

transmission.

As data is received through the serial port, it is stored by the

OnCell G3150A-LTE in the internal buffer. The OnCell

G3150A-

when the internal buffer is full or as specified by the

force-transmit time.

When this field is set to 0, the force transmit time is disabled

and transmission is determined solely by the data in the

internal buffer. When the force transmit time is set to a value

from 1 to 65535, the TCP/IP protocol software will pack the

serial data received for transmission after the gap in serial

communication exceeds the specified force transmit time.

The optimal force-transmit time setting depends on your

application. However, it must be set to a value that is more

than one-character interval within the specified baudrate. For

Do Nothing

0 ms

to transfer one character is (10 (bits) / 1200 (bits/s)) ×

1000 (ms/s) = 8.3 ms. Therefore, you should set the force

be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same

packet, the serial device will need to send that series of

characters within the specified force transmit time, and the

total length of data must be less than or equal to the OnCell

G3150A-LTE’s internal buffer size (1 KB per port).

OnCell G3150A-LTE Web Console Configuration

3-51

NOTE

You can downl

File Name: NPort/OnCell Windows Driver Manager

Reverse Real COM Mode

Reverse Real COM mode uses a mechanism similar to port mapping to enable your remote device that is using

a private IP address to remain accessible to external hosts. When this mode is enabled, the Moxa driver that

comes with the device establishes a transparent connection from the device to the remote host by mapping the

device’s serial port to a local COM port on the remote host. Reverse Real COM mode supports up to 2

simultaneous connections that enable serial devices to send data to 2 hosts simultaneously.

oad the Moxa Drivers for operation modes from www.moxa.com.

OnCell G3150A-LTE Web Console Configuration

3-52

does not respond to the packet within the time specified in this

LTE will listen for another TCP connection from

received taking precedence.

conflict with other applications, the user can set the Command

ATTENTION

Up to 2 connections can be established between OnCell G3150A

Port 60950 might be blocked by a firewall. You should make sure the port is NOT blocked before you

star

ATTENTION

The destination IP address parameter can be the IP address, domain name, or the name defined in

the host table

Setting Description Factory Default

TCP alive check time This field specifies how long the OnCell G3150A-LTE will wait

for a response to “keep alive” packets before closing the TCP

connection. The OnCell G3150A-LTE checks connection status

by sending periodic “keep alive” packets. If the remote host

field, the OnCell G3150A-LTE will force the existing TCP

connection to close. For socket and device control modes, the

OnCell G3150A-

another host after closing the connection. If TCP alive check

time is set to 0, the TCP connection will remain open and will

not send any “keep alive” packets.

Ignore jammed IP This option determines how the port will proceed, if multiple

hosts are connected and one or more of the hosts stop

responding as the port is transmitting data. If you select

Disable, the port will wait until the data has been transmitted

successfully to all hosts before transmitting the next group of

data. If you select Enable, the port will ignore the host that

stopped responding and continue data transmission to the

other hosts.

Allow driver control This option determines how the port will proceed if driver

control commands are received from multiple hosts that are

connected to the port. If Disable is selected, driver control

commands will be ignored. If Enable is selected, control

commands will be accepted, with the most recent command

7 min

Disable

Destination address

1 through 2

Specifying an IP address allows the OnCell G3150A-LTE to

connect actively to the remote host. At least one destination

must be provided.

TCP port This is the TCP port number assignment for the remote

host/server. It is the port number that the OnCell

G3150A-LTE’s serial port uses to establish connections with a

remote host/server. To avoid conflicts with well-known TCP

ports, the default is set to 60950.

Command port The Command port is the COM port for listening to SSDK

commands from the host. In order to prevent a COM port

port to another port if needed.

-LTE hosts.

t using it.

None

60950

60966

Designated local

port 1 through 2

Use these fields to specify the designated local ports.

(Example: 7010 through 7320)

OnCell G3150A-LTE Web Console Configuration

3-53

when the Cellular or Ethernet connection goes down. For some

the serial port. Use “always low” if you want the RTS and DTR

signal to change their state to low when the Cellular or Ethernet

connection gets disconnected. Use “always high” if you do not

maximum amount is specified and data in the buffer will be sent

as specified by the delimiter settings or when the buffer is full.

data in the buffer and send the data to the Cellular or Ethernet

field, so that both characters act as

ATTENTION

In order to enable a delimiter, packet length must be

should only be enabled in

conjunction with

enabled, the OnCell G3150A-LTE will still pack and send the data when the amount of data exceeds

1 KB.

The Delimiter process field determines how the data is handled

must be enabled for

this field to have effect. If Delimiters 1 and 2 are both enabled,

delimiter before being transmitted.

LTE transmits the data stored in the buffer via TCP/IP

Setting Description Factory Default

Connection goes

down

Packet length The Packet length setting refers to the maximum amount of

Delimiter 1

Delimiter 2

You can configure what happens to the RTS and DTR signals

applications, serial devices need to know the Cellular or

Ethernet link status through RTS or DTR signals sent through

want the cellular or Ethernet connection status to affect the

RTS or DTR signals.

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

When a packet length between 1 and 1024 bytes is specified,

data in the buffer will be sent as soon it reaches the specified

length.

When Delimiter 1 is enabled, the serial port will queue the

port when a specific character, entered in hex format, is

received. A second delimiter character may be enabled and

specified in the Delimiter 2

the delimiter to control when data should be sent.

Always high

set to 0. Delimiter 2

Delimiter 1 and never on its own to avoid data errors. Even when a delimiter is

Delimiter process

when a delimiter is received. Delimiter 1

both characters must be received for the delimiter process to

take place.

• Do Nothing: Data in the buffer will be transmitted when the

delimiter is received.

• Delimiter + 1: Data in the buffer will be transmitted after 1

additional byte is received following the delimiter.

• Delimiter + 2: Data in the buffer will be transmitted after 2

additional bytes are received following the delimiter.

• Strip Delimiter: Data in the buffer is first stripped of the

Force transmit This parameter defines how large a gap in serial

communication the OnCell G3150A-LTE will allow before

packing the serial data in its internal buffer for network

transmission.

As data is received through the serial port, it is stored by the

OnCell G3150A-LTE in the internal buffer. The OnCell

G3150A-

when the internal buffer is full or as specified by the

force-transmit time.

When this field is set to 0, the force transmit time is disabled

and transmission is determined solely by the data in the

Do Nothing

0 ms

OnCell G3150A-LTE Web Console Configuration

3-54

example, assume that the serial port is set to 1200 bps, 8 data

no parity. In this case, the total number of

bits needed to send a character is 10 bits, and the time required

than 8.3 ms, so in this case, it must

Setting Description Factory Default

internal buffer. When the force transmit time is set to a value

from 1 to 65535, the TCP/IP protocol software will pack the

serial data received for transmission after the gap in serial

communication exceeds the specified force transmit time.

The optimal force-transmit time setting depends on your

application. However, it must be set to a value that is more

than one-character interval within the specified baudrate. For

bits, 1 stop bit, and

to transfer one character is (10 (bits) / 1200 (bits/s)) ×

1000 (ms/s) = 8.3 ms. Therefore, you should set the force

transmit time to be greater

be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same

packet, the serial device will need to send that series of

characters within the specified force transmit time, and the

total length of data must be less than or equal to the OnCell

G3150A-LTE’s internal buffer size (1 KB per port).

Types of Reverse Real COM Connection

Reverse Real COM to PC’s IP address

Most cellular service providers only provide customers with a dynamic private IP address, which means that the

OnCell G3150A-LTE will only obtain an IP address once it is connected to the cellular network. Reverse Real

COM is a great feature that allows a PC host to access an OnCell G3150A-LTE configured with private IP

address.

Reverse Real COM to PC’s domain name

With Reverse Real COM mode, you can connect to a PC host using the PC’s IP address. You can also connect to

your PC host with the PC’s domain name, if you have one. Please refer to Appendix B for more information.

OnCell G3150A-LTE Web Console Configuration

3-55

Socket Applications

The OnCell G3150A-LTE offers the following modes for socket applications: TCP Server, TCP Client, and UDP.

TCP Server Modes

In TCP Server mode, the serial port on the OnCell G3150A-LTE is assigned a port number. The host computer

initiates contact with the OnCell G3150A-LTE, establishes the connection, and receives data from the serial

device. This operation mode also supports up to 2 simultaneous connections, enabling multiple hosts to collect

data from the same serial device at the same time.

As illustrated in the figure, data transmission proceeds as follows: The host requests a connection from the

OnCell G3150A-LTE, which is configured for TCP Server mode. Once the connection is established, data can be

transmitted in both directions between the host and the OnCell G3150A-LTE.

TCP Server mode includes optional data encryption using SSL

OnCell G3150A-LTE Web Console Configuration

3-56

the TCP connection

will remain open and will not send any “keep alive” packets.

ATTENTION

You should make sure the inactivity time value used here is less than the inactivity time value on the

GSM/GPRS configuration page. The GSM/GPRS c

the inactivity time behavior of the TCP connection

LTE will wait for incoming and

ATTENTION

If used, the Inactivity time setting should be greater than the Force transmit time. To prevent the

unintended loss of data due to the session being disconnected, it is highly recommended that this

value is set

simultaneously. When set to 1, only a single host may open the TCP connection

t to 2, the specified number of hosts may open this

been transmitted successfully to all hosts before transmitting the next group of

taking precedence.

Setting Description Factory

Default

TCP alive

check time

This field specifies how long the OnCell G3150A-LTE will wait for a response t

“keep alive” packets before closing the TCP connection. The OnCell

G3150A-LTE checks connection status by sending periodic “keep alive”

packets. If the remote host does not respond to the packet within the time

specified in this field, the OnCell G3150A-LTE will force the existing TCP

connection to close. For socket and device control modes, the OnCell

G3150A-LTE will listen for another TCP connection from another host after

closing the connection. If TCP alive check time is set to 0,

onnection must be maintained in order to achieve

7 min

Inactivity

time

Max

connection

Ignore

jammed IP

This field specifies how long the OnCell G3150A-

outgoing data through the serial port before closing the TCP connection. The

TCP connection is closed if there is no incoming or outgoing data through the

serial port for the specified Inactivity time. If this field is set to 0, the TCP

connection is kept active until a connection close request is received.

large enough so that the intended data transfer is completed.

This field is used if you need to receive data from different hosts

to the serial port. When se

port at the same time. When multiple hosts establish a TCP connection to the

serial port at the same time, the OnCell G3150A-LTE will duplicate the serial

data and transmit it to all the hosts. Cellular or Ethernet data is sent on a first-

first-out basis to the serial port when data comes into the OnCell G3150A-LTE

from the Cellular or Ethernet interface.

This option determines how the port will proceed if multiple hosts are

connected and one or more of the hosts stop responding as the port is

transmitting data. If you select Disable, the port will wait until the data has

0ms

Disable

data. If you select Enable, the port will ignore the host that stopped

responding and continue data transmission to the other hosts.

Allow driver

control

This option determines how the port will proceed if driver control commands

are received from multiple hosts that are connected to the port. If Disable is

selected, driver control commands will be ignored. If Enable is selected,

control commands will be accepted, with the most recent command received

TCP port This is the TCP port number assignment for the serial port on the OnCell

G3150A-LTE. It is the port number that the serial port uses to listen to

connections, and that other devices must use to contact the serial port. To

avoid conflicts with well-known TCP ports, the default is set to 4001.

Command

port

The Command port is the TCP port for listening to SSDK commands from the

host. In order to prevent a TCP port conflict with other applications, the user

can set the Command port to another port if needed.

Disable

4001

966

OnCell G3150A-LTE Web Console Configuration

3-57

Packet length

t length setting refers to the maximum amount of data that is allowed

packet length between 1 and 1024 bytes is specified, data in the buffer will be

eue the data in the buffer

ATTENTION

In order to enable a delimiter, packet length must be set to 0.

should only be enabled in

conjunction with

ise there may be data errors. Even when

a delimiter is enabled, the OnCell G3150A-LTE will still pack and send the data when the amount of

data exceeds 1 KB

must be enabled for this field to have effect.

• Delimiter + 1: Data in the buffer will be transmitted after 1 additional byte is

• Delimiter + 2: Data in the buffer will be transmitted after 2 additional bytes

• Strip Delimiter: Data in the buffer is first stripped of the delimiter before being

LTE transmits the data

is full or as specified by

When this field is set to 0, the force transmit time is disabled and transmission

is determined solely by the data in the internal buffer. When the force transmit

the serial data received for transmission after the gap in serial communication

transmit time setting depends on your application. However,

specified baudrate. For example, assume that the serial port is set to 1200 bps,

Therefore, you should set the force transmit time to be greater than 8.3 ms, so

Setting Description Factory

Default

Delimiter 1

Delimiter 2

The Packe

to accumulate in the serial port buffer before sending. At the default of 0 for

packet length, no maximum amount is specified and data in the buffer will be

sent as specified by the delimiter settings or when the buffer is full. When a

sent as soon it reaches the specified length.

When Delimiter 1 is enabled, the serial port will qu

and send the data to the Cellular or Ethernet port when a specific character,

entered in hex format, is received. A second delimiter character may be

enabled and specified in the Delimiter 2 field, so that both characters act as

the delimiter to control when data should be sent.

Delimiter 2

Delimiter 1 and never on its own; otherw

Delimiter

process

Force

transmit

The Delimiter process field determines how the data is handled when a

delimiter is received. Delimiter 1

If Delimiters 1 and 2 are both enabled, both characters must be received for the

delimiter process to take place.

• Do Nothing: Data in the buffer will be transmitted when the delimiter is

received.

received following the delimiter.

are received following the delimiter.

transmitted.

This parameter defines how large a gap in serial communication the OnCell

G3150A-LTE will allow before packing the serial data in its internal buffer for

network transmission.

As data is received through the serial port, it is stored by the OnCell

G3150A-LTE in the internal buffer. The OnCell G3150A-

stored in the buffer via TCP/IP when the internal buffer

the force-transmit time.

time is set to a value from 1 to 65535, the TCP/IP protocol software will pack

Do Nothing

0 ms

The optimal force-

it must be set to a value that is more than one-character interval within the

8 data bits, 1 stop bit, and no parity. In this case, the total number of bits

needed to send a character is 10 bits, and the time required to transfer one

exceeds the specified force transmit time.

character is (10 (bits) / 1200 (bits/s)) × 1000 (ms/s) = 8.3 ms.

in this case, it must be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same packet, the serial

device will need to send that series of characters within the specified force

transmit time, and the total length of data must be less than or equal to the

OnCell G3150A-LTE Web Console Configuration

3-58

Setting Description Factory

Default

OnCell G3150A-LTE’s internal buffer size (1 KB per port).

Types of TCP Server Connection

Fixed Public IP for the OnCell

If your cellular service provider offers a fixed public IP address after you connect to the cellular network, you

can access the OnCell G3150A-LTE from a host PC using either a private IP or public IP.

Using Auto IP report

If your cellular service provider offers a dynamic public IP address after you connect to the cellular network,

you can access the OnCell G3150A-LTE from a host PC using a fixed public IP. Since the IP address of the OnCell

G3150A-LTE is changed every time it is connected to the cellular network, the host IP can be aware of the

change by the Auto IP Report message sent from the OnCell G3150A-LTE. Please refer to Auto IP report

settings for the format of the Auto IP Report Protocol.

Domain name with DDNS

If your cellular service provider offers a public IP address after you connect to the cellular network, you can also

use the domain name to access the OnCell G3150A-LTE. You would need to register with a DDNS service

provider and then enable the DDNS function in the OnCell G3150A-LTE. Please refer to Appendix B for more

information.

Connecting TCP client and TCP server within the same cellular service provider

In order to connect properly, the IP addresses of the two OnCell devices must belong to the same subnetwork.

To ensure that this is the case, use the same cellular service provider to connect the devices to the network. In

OnCell G3150A-LTE Web Console Configuration

3-59

addition, you will need to request that the cellular service provider provide you with two private IP addresses

(e.g., 192.168.1.1 and 192.168.1.2).

TCP Client Modes

In TCP Client mode, the OnCell G3150A-LTE can actively establish a TCP connection to a pre-defined host

computer when serial data arrives. After the data has been transferred, the OnCell G3150A-LTE can

automatically disconnect from the host computer by using the Inactivity time settings.

As illustrated in the figure below, data transmission proceeds as follows:

1. The OnCell G3150A-LTE, configured for TCP Client mode, requests a connection to the host.

2. Once the connection is established, data can be transmitted in both directions between the host and the

OnCell G3150A-LTE.

TCP Client mode includes optional data encryption using SSL.

OnCell G3150A-LTE Web Console Configuration

3-60

LTE checks connection status

does not respond to the packet within the time specified in this

connection to close. For socket and device control modes, the

n from

TCP alive check

the TCP connection will remain open and will

ATTENTION

You should make sure the inactivity time value used here is less than the inactivity time value on

the GSM/GPRS configuration page. The GSM/GPRS connection must be maintained in order to

achieve the inactivity time behavior of the TCP connection

for incoming and outgoing data through the serial port before

TCP connection is kept active until a connection close request is

Setting Description Factory Default

TCP alive check time This field specifies how long the OnCell G3150A-LTE will wait

7 min

for a response to “keep alive” packets before closing the TCP

connection. The OnCell G3150A-

by sending periodic “keep alive” packets. If the remote host

field, the OnCell G3150A-LTE will force the existing TCP

OnCell G3150A-LTE will listen for another TCP connectio

another host after closing the connection. If

time is set to 0,

not send any “keep alive” packets.

Inactivity time This field specifies how long the OnCell G3150A-LTE will wait

0ms

closing the TCP connection. The TCP connection is closed if

there is no incoming or outgoing data through the serial port

for the specified Inactivity time. If this field is set to 0, the

received.

OnCell G3150A-LTE Web Console Configuration

3-61

ATTENTION

If used, the Inactivity time setting should be greater than the Force transmit time. To prevent the

unintended loss of data due to the session being disconnected, it is highly recommended that this

value is set large enough so that the intended data transfer is completed

ATTENTION

Inactivity time is ONLY active when Conne

Inactivity time.

, the port will wait until the data has been transmitted

port uses to listen to connections, and that other devices must

conflict with other applications, the user can set the Command

ATTENTION

Up to 4 connections can be established between the OnCell G3150A-LTE and hosts. The connection

speed or throughput may be low if any one of the four connections is slow, since the one slow

connection will slow down the other 3 connections

ATTENTION

The

defined in the host table. For some applications, the user may need to send the data actively to the

remote destination domain name

Designated local port 1

Use these fields to specify designated local ports or leave blank

Setting Description Factory Default

ction Control (see below) is set to Any character/

Ignore jammed IP This option determines how the port will proceed if multiple

hosts are connected and one or more of the hosts stop

responding as the port is transmitting data. If you select

Disable

successfully to all hosts before transmitting the next group of

data. If you select Enable, the port will ignore the host that

stopped responding and continue data transmission to the

other hosts.

Destination address 1

through 4

Specifying an IP address allows the OnCell G3150A-LTE to

connect actively to the remote host. At least one destination

must be provided.

TCP port This is the TCP port number assignment for the serial port on

the OnCell G3150A-LTE. It is the port number that the serial

use to contact the serial port. To avoid conflicts with

well-known TCP ports, the default is set to 4001.

Command port The Command port is the TCP port for listening to SSDK

commands from the host. In order to prevent a TCP port

port to another port if needed.

Disable

None

4001

966

Destination IP address parameter can be the IP address, domain name, or the name

through 4

and designated by system.

Connection control This setting determines the parameters under which a TCP

connection is established or disconnected. The different

options are given in the following table. In general, both the

Connect condition and Disconnect conditions are given.

Startup/

None)

OnCell G3150A-LTE Web Console Configuration

3-62

and will remain active indefinitely.

setting refers to the maximum amount of

sent as specified by the delimiter settings or when the buffer is

uffer will be sent as soon it reaches the

data in the buffer and send the data to the Cellular or Ethernet

as the delimiter to control when data should be sent.

ATTENTION

In order to enable

should only be enabled

in conjunction with

and never on its own; otherwise there may be data errors. Even

when a delimiter is enabled, the OnCell G3150A

amount of data exceeds 1 KB

The Delimiter process field determines how the data is handled

must be enabled for

Setting Description Factory Default

Option Description

Startup/None (default) A TCP connection will be established on startup, and will

remain active

indefinitely.

Any Character/None TCP connection will be established when any character is

received from

the serial interface, and will remain active indefinitely.

Any Character/ Inactivity Time A TCP connection will be established when any character is

received from

the serial interface, and will be disconnected when Inactivity

time is reached.

DSR On/DSR Off A TCP connection will be established when a DSR signal of

OnCell is

“On”, and will remain active indefinitely.

DSR On/None A TCP connection will be established when a DSR “On” signal is

received,

DCD On/DCD Off A TCP connection will be established when a DCD signal of

OnCell is “On”,

and will remain active indefinitely.

DCD On/None A TCP connection will be established when a DCD “On” signal is

received,

and will remain active indefinitely.

Packing length The Packing length

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

maximum amount is specified and data in the buffer will be

full. When a packet length between 1 and 1024 bytes is

specified, data in the b

specified length.

Delimiter 1

When Delimiter 1 is enabled, the serial port will queue the

Delimiter 2

port when a specific character, entered in hex format, is

received. A second delimiter character may be enabled and

specified in the Delimiter 2 field, so that both characters act

a delimiter, packet length must be set to 0. Delimiter 2

Delimiter 1

Delimiter process

when a delimiter is received. Delimiter 1

this field to have effect. If Delimiters 1 and 2 are both enabled,

both characters must be received for the delimiter process to

take place.

-LTE will still pack and send the data when the

Do Nothing

OnCell G3150A-LTE Web Console Configuration

3-63

LTE transmits the data stored in the buffer via TCP/IP

to a value

is set to 1200 bps, 8 data

bits, 1 stop bit, and no parity. In this case, the total number of

set the force transmit time to be greater than 8.3 ms, so in this

Setting Description Factory Default

• Do Nothing: Data in the buffer will be transmitted when the

delimiter is received.

• Delimiter + 1: Data in the buffer will be transmitted after 1

additional byte is received following the delimiter.

• Delimiter + 2: Data in the buffer will be transmitted after 2

additional bytes are received following the delimiter.

• Strip Delimiter: Data in the buffer is first stripped of the

delimiter before being transmitted.

Force transmit This parameter defines how large a gap in serial

communication the OnCell G3150A-LTE will allow before

packing the serial data in its internal buffer for network

transmission.

As data is received through the serial port, it is stored by the

OnCell G3150A-LTE in the internal buffer. The OnCell

G3150A-

when the internal buffer is full or as specified by the

force-transmit time.

When this field is set to 0, the force transmit time is disabled

and transmission is determined solely by the data in the

internal buffer. When the force transmit time is set

from 1 to 65535, the TCP/IP protocol software will pack the

serial data received for transmission after the gap in serial

communication exceeds the specified force transmit time.

The optimal force-transmit time setting depends on your

application. However, it must be set to a value that is more

than one-character interval within the specified baudrate. For

example, assume that the serial port

0 ms

bits needed to send a character is 10 bits, and the time

required to transfer one character is (10 (bits) / 1200

(bits/s)) × 1000 (ms/s) = 8.3 ms. Therefore, you should

case, it must be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same

packet, the serial device will need to send that series of

characters within the specified force transmit time, and the

total length of data must be less than or equal to the OnCell

G3150A-LTE’s internal buffer size (1 KB per port).

Types of TCP Client Connection

TCP Client to PC’s IP address

The OnCell G3150A-LTE will only be able to connect to a host PC if the PC is using a public IP address.

OnCell G3150A-LTE Web Console Configuration

3-64

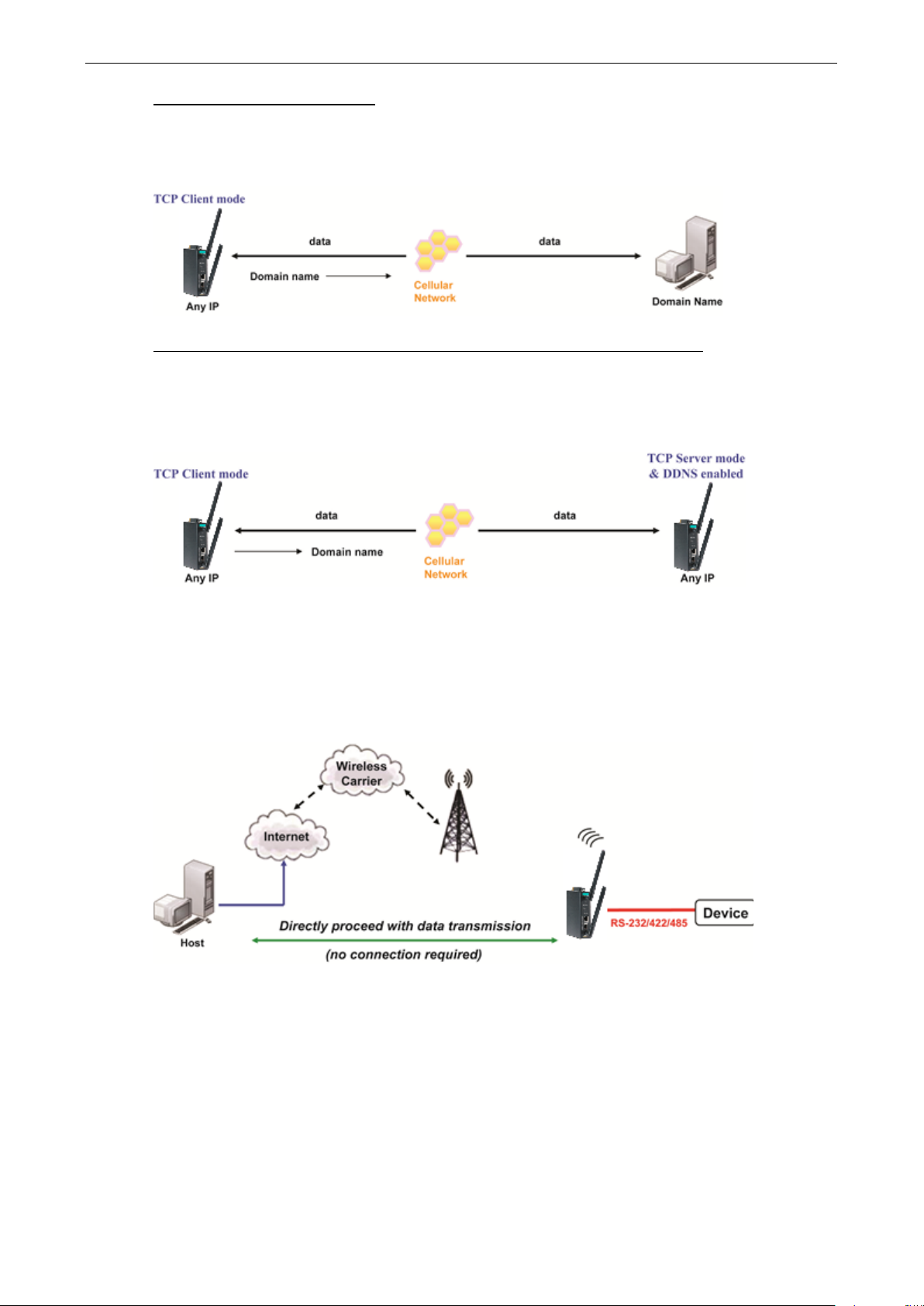

TCP Client to PC’s domain name

To connect to a host PC, the host PC must be configured with public IP address. If it is using a dynamic public

IP, then the OnCell G3150A-LTE can connect to it using the host’s domain name. Please refer to Appendix B for

more information.

Connecting TCP client and TCP server within the same cellular service provider

In order to connect properly, the IP addresses of the two OnCell devices must belong to the same subnetwork.

To ensure that this is the case, use the same cellular service provider to connect the devices to the network. In

addition, you will need to request that the cellular service provider provide you with two private IP addresses

(e.g., 192.168.1.1 and 192.168.1.2).

UDP Mode

Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can unicast to one host

or multicast to multiple hosts and the serial device can receive data from one or multiple host computers. These

traits make UDP mode especially well-suited for message display applications.

OnCell G3150A-LTE Web Console Configuration

3-65

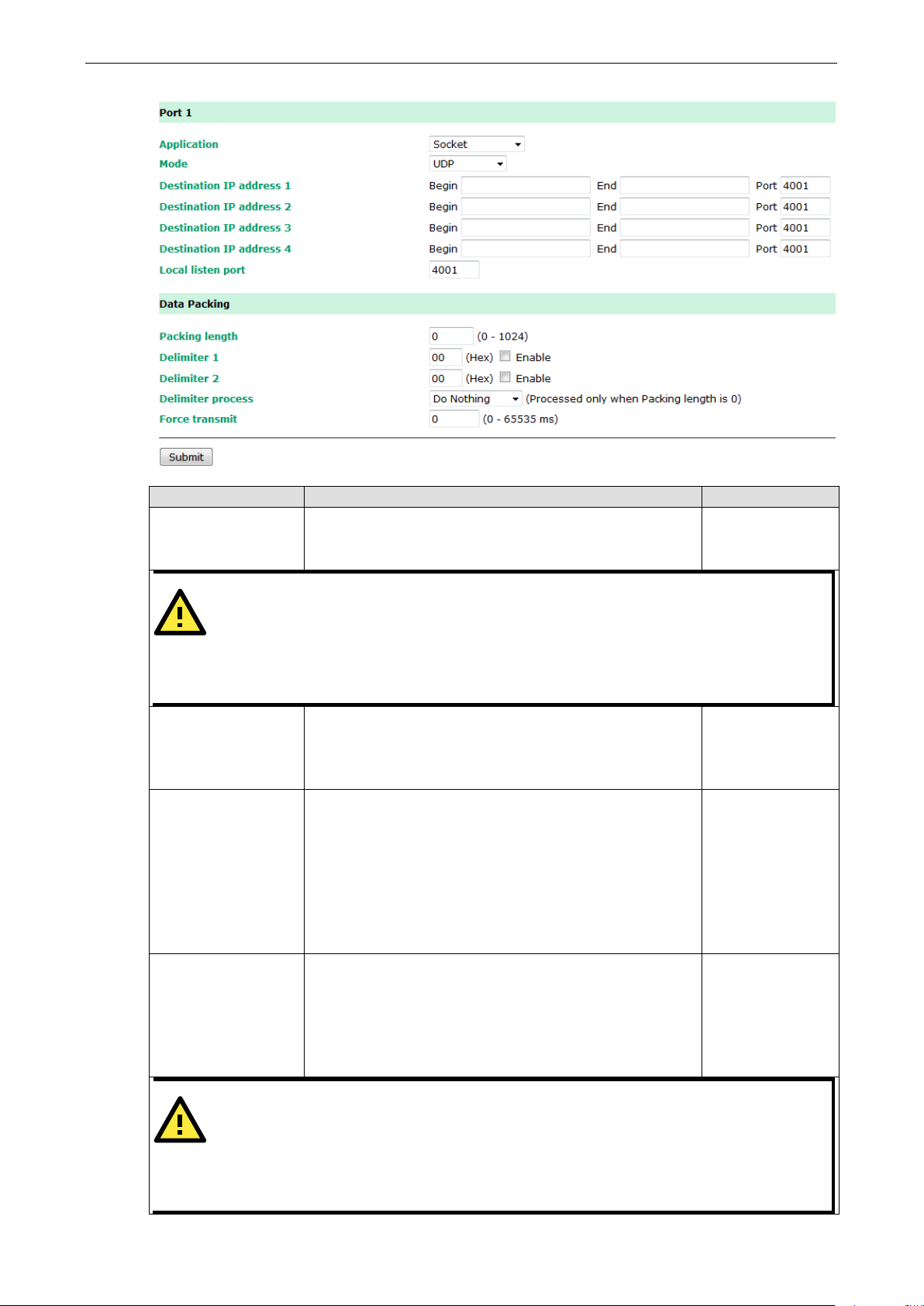

In UDP mode, you may specify up to 4 ranges of IP addresses

At least one destination range

ATTENTION

The maximum selectable IP address range is 64 addresses. However, when using multicast, you may

enter IP addresses of the form xxx.xxx.xxx.255 in the Begin fi

192.168.127.255 to allow the OnCell G3150A

addresses between 192.168.127.1 and 192.168.127.254

LTE listens to and

LTE.

UDP ports, the default is set

to 4001.

setting refers to the maximum amount of

maximum amount is specified and data in the buffer will be sent

as specified by the delimiter settings or when the buffer is full.

data in the buffer and send the data to the Cellular or Ethernet

field, so that both characters act as

ATTENTION

In order to enable a delimiter, packet length must be set to 0.

should only be enabled in

conjunction with

and never on its own; otherwise there may be data errors. Even when

a delimiter is enabled, the OnCell G3150A

will still pack and send the data when the amount of

data exceeds 1 KB

Setting Description Factory Default

Destination address

1 through 4

for the serial port to connect to.

must be provided.

None

-LTE to broadcast UDP packets to all hosts with IP

Local listen port This is the UDP port that the OnCell G3150A-

that other devices must use to contact the OnCell G3150A-

To avoid conflicts with well-known

Packing length The Packing length

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

When a packet length between 1 and 1024 bytes is specified,

data in the buffer will be sent as soon it reaches the specified

length.

Delimiter 1

When Delimiter 1 is enabled, the serial port will queue the

Delimiter 2

port when a specific character, entered in hex format, is

received. A second delimiter character may be enabled and

specified in the Delimiter 2

the delimiter to control when data should be sent.

eld. For example, enter

4001

Delimiter 2

Delimiter 1

-LTE

OnCell G3150A-LTE Web Console Configuration

3-66

The Delimiter process field determines how the data is handled

must be enabled for

ters 1 and 2 are both enabled,

LTE transmits the data stored in the buffer via TCP/IP

e, assume that the serial port is set to 1200 bps, 8 data

bits, 1 stop bit, and no parity. In this case, the total number of

bits needed to send a character is 10 bits, and the time required

transmit time to be greater than 8.3 ms, so in this case, it must

Setting Description Factory Default

Delimiter process

when a delimiter is received. Delimiter 1

this field to have effect. If Delimi

both characters must be received for the delimiter process to

take place.

• Do Nothing: Data in the buffer will be transmitted when the

delimiter is received.

• Delimiter + 1: Data in the buffer will be transmitted after 1

additional byte is received following the delimiter.

• Delimiter + 2: Data in the buffer will be transmitted after 2

additional bytes are received following the delimiter.

• Strip Delimiter: Data in the buffer is first stripped of the

delimiter before being transmitted.

Force transmit This parameter defines how large a gap in serial

communication the OnCell G3150A-LTE will allow before

packing the serial data in its internal buffer for network

transmission.

As data is received through the serial port, it is stored by the

OnCell G3150A-LTE in the internal buffer. The OnCell

G3150A-

when the internal buffer is full or as specified by the

force-transmit time.

When this field is set to 0, the force transmit time is disabled

and transmission is determined solely by the data in the

internal buffer. When the force transmit time is set to a value

from 1 to 65535, the TCP/IP protocol software will pack the

serial data received for transmission after the gap in serial

communication exceeds the specified force transmit time.

The optimal force-transmit time setting depends on your

application. However, it must be set to a value that is more

than one-character interval within the specified baudrate. For

exampl

Do Nothing

0 ms

to transfer one character is (10 (bits) / 1200 (bits/s)) ×

1000 (ms/s) = 8.3 ms. Therefore, you should set the force

be greater than or equal to 10 ms.

If it is necessary to send a series of characters in the same

packet, the serial device will need to send that series of

characters within the specified force transmit time, and the

total length of data must be less than or equal to the OnCell

G3150A-LTE’s internal buffer size (1 KB per port).

OnCell G3150A-LTE Web Console Configuration

3-67

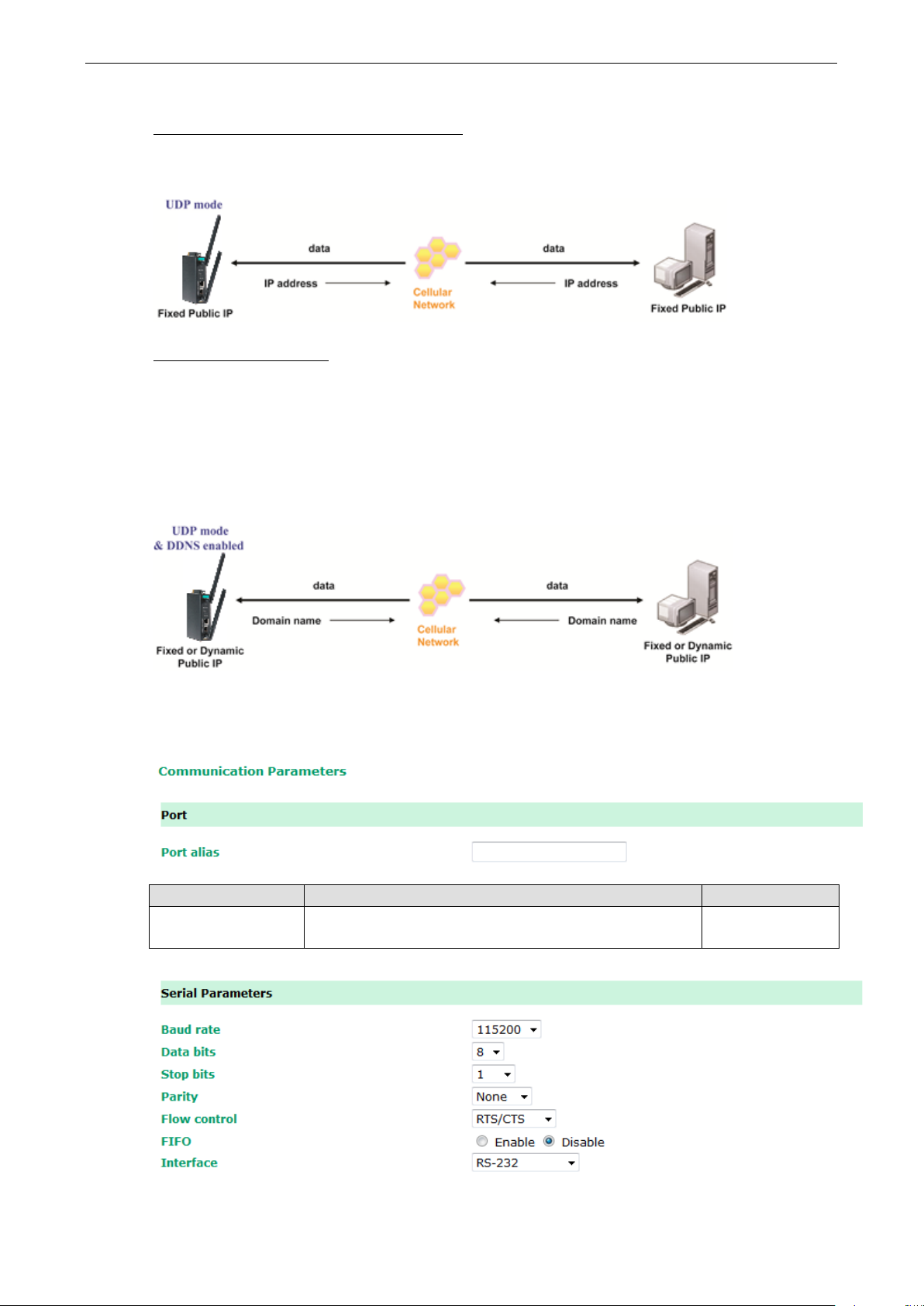

Types of UDP Connection

Fixed Public IPs for both OnCell and Host PC

If your cellular service provider offers a fixed public IP address after you connect to the cellular network, you

can access the OnCell G3150A-LTE from a host PC that has a fixed public IP.

Domain name with DDNS

If your cellular service provider assigns a public IP address after you connect to the cellular network, you can

also access the OnCell G3150A-LTE using the domain name. If your service provider assigns a public IP address

(either fixed or dynamic) to your cellular device and your control center is the side that initiates the connection,

you can enable the DDNS function and UDP mode to allow other devices on the Internet to connect to your

device using its domain name. This will ensure that your device will remain reachable even when its public IP

address is updated. Note that you will need to register your device with a DDNS server. Please refer to

Appendix B for more information.

Communication Parameters

Setting Description Factory Default

Port alias This optional field allows you to assign an alias to a port for

easier identification.

None

OnCell G3150A-LTE Web Console Configuration

3-68

ATTENTION

The serial parameters for the each serial port on the OnCell

should match the parameters used by

the connected serial device. Y

appropriate serial communication parameters.

ATTENTION

parameters used by the connected serial device. You may need to refer to your serial device’s user’s

manual to determine the appropriate serial communication parameters

maximum amount is specified and data in the buffer will be sent

as specified by the delimiter settings or when the buffer is full.

data in the buffer and send the data to the Cellular or Ethernet

field, so that both characters act as

Parity

This field configures the parity parameter.

None

LTE provides FIFO buffers for each serial port,

hat you should

disable the port’s FIFO setting if the attached serial device does

not have a FIFO buffer of its own. This is because a serial device

Setting Description Factory Default

Baudrate This field configures the port’s baudrate. Select one of the

he serial parameters for the each serial port on the OnCell G3150A-LTE should match the

Data bits The Packet length setting refers to the maximum amount of

Stop bits When Delimiter 1 is enabled, the serial port will queue the

ou may need to refer to your serial device’s user’s manual to determine the

standard baudrates from the dropdown box, or select Other

and then type the desired baudrate in the input box.

data that is allowed to accumulate in the serial port buffer

before sending. At the default of 0 for packet length, no

When a packet length between 1 and 1024 bytes is specified,

data in the buffer will be sent as soon it reaches the specified

length.

G3150A-LTE

115200

port when a specific character, entered in hex format, is

received. A second delimiter character may be enabled and

specified in the Delimiter 2

the delimiter to control when data should be sent.

Flow control This field configures the flow control type. RTS/CTS

FIFO This field enables or disables the 128-byte FIFO buffer. The

OnCell G3150A-

for both the Tx and Rx signals. Note, however, t

that does not have its own buffer may not be able to keep up

with data sent from the OnCell’s FIFO buffer.

Interface You may configure the serial interface to RS-232, RS-422,

RS-485 2-wire, or RS-485 4-wire.

Disable

RS-232

OnCell G3150A-LTE Web Console Configuration

3-69

LTE will store data

all serial ports. Note that this data

Data Buffering/Log

The OnCell G3150A-LTE supports port buffering to prevent the loss of serial data when the Cellular or Ethernet

connection is down. Port buffering can be used in Real COM, Reverse Real COM, RFC2217, TCP Server, TCP Client

modes. For other modes, the port buffering settings will have no effect. The maximum buffer up to 256K, the data

over 256K will overwrite previous data buffering.

Setting Description Factory Default

Port buffering You may enable port buffering by setting this field to Enable. Disable

Serial data logging If this field is set to Yes, the OnCell G3150A-

logs on the system RAM for

is not saved when the OnCell G3150A-LTE is powered off.

Disable

Logs and Notification

Since industrial-grade devices are often located at the endpoints of a system, these devices will not always

know what is happening elsewhere on the network. This means that these devices must provide system

maintainers with real-time alarm messages. Even when system administrators are out of the control room for

an extended period, they can still be informed of the status of devices almost instantaneously when exceptions

occur.

In addition to logging these events, the OnCell G3150A-LTE supports different approaches to warn engineers

automatically, such as SNMP trap, e-mail, and relay output. It also supports two digital inputs to integrate

sensors into your system to automate alarms by email and relay output.

System Log

System Log Event Types

Detail information for grouped events is shown in the following table. You can select the Enable logging check

box to enable the selected event types. All default values are enabled (checked). The log for system events can

be seen in Logs and Notifications > System Log.

OnCell G3150A-LTE Web Console Configuration

3-70

LTE is rebooted, such as when its settings are

LAN link on

The LAN port is connected to a device or network.

Configuration file import via Web Console

The configuration file is imported to the OnCell G3150A-LTE.

The following table describes the types of system logs:

System-related events Event is triggered when…

System restart (warm start) The OnCell G3150A-

changed (IP address, subnet mask, etc.).

Network-related events Event is triggered when…

LAN link off The port is disconnected (e.g., the cable is pulled out, or the

opposing device shuts down).

Config-related events Event is triggered when…

Configuration Changed A configuration item has been changed.

Console authentication failure An incorrect password is entered.

Firmware upgraded The OnCell G3150A-LTE’s firmware is updated.

Power events Event is triggered when…

Power 1/2 transition (On -> Off) The OnCell G3150A-LTE is powered down in PWR1/2.

Power 1/2 transition (Off -> On) The OnCell G3150A-LTE is powered via PWR1/2.

DI events Event is triggered when …

DI1/2 transition (On -> Off) Digital Input 1/2 is triggered by on to off transition.

DI1/2 transition (Off -> On) Digital Input 1/2 is triggered by off to on transition.

Syslog

This function provides the event logs for the Syslog server. The function supports up to three configurable

Syslog servers and Syslog server UDP port numbers. When an event occurs, the event will be sent as a Syslog

UDP packet to the specified Syslog servers.

Syslog Event Types

Detail information for the grouped events is shown in the following table. You can the Enable log check box to

enable the selected event types. All default values are enabled (checked).

For information on the event types, refer to the System Log Event Types section.

OnCell G3150A-LTE Web Console Configuration

3-71

Syslog Server Settings

You can configure the parameters for your Syslog server on the Syslog Server Settings screen.

Field Description Factory Default

Syslog server 1/2/3 Enter the IP address of the 1st/ 2nd/ 3rd Syslog Server N/A

Syslog port Enter the UDP port for the syslog server. 514

E-Mail Notifications

Notification Event Types

Select the Active checkbox to enable an event item. By default, all values are deactivated (unchecked).

For information on the event types, refer to the System Log Event Types section.

OnCell G3150A-LTE Web Console Configuration

3-72

ATTENTION

Consult your Network Administrator or ISP for the proper mail server settings. The Auto warning function may

not work properl

PLAIN, and CRAM

Mail server

This field is for your mail server’s domain name or IP address. .

None

mail address or addresses to which the automatic

E-mail Server Settings

The E-mail server settings determine how e-mail warnings are sent for system and serial port events. You may

configure up to 4 e-mail addresses to receive automatic warnings.

Mail server

Setting Description Factory Default

User name

Setting Description Factory Default

User name This field is for your mail server’s user name, if required. Admin

Password

Setting Description Factory Default

Password This field is for your mail server’s password, if required. moxa

From e-mail address

Setting Description Factory Default

From e-mail address This is the e-mail address from which automatic e-mail

To e-mail address 1 to 4

Setting Description Factory Default

To e-mail address

1 to 4

y if it is not configured correctly. The OnCell G3150A-LTE’s SMTP AUTH supports LOGIN,

-MD5 (RFC 2554).

None

warnings will be sent.

This is the e-

e-mail warnings will be sent.

None

OnCell G3150A-LTE Web Console Configuration

3-73

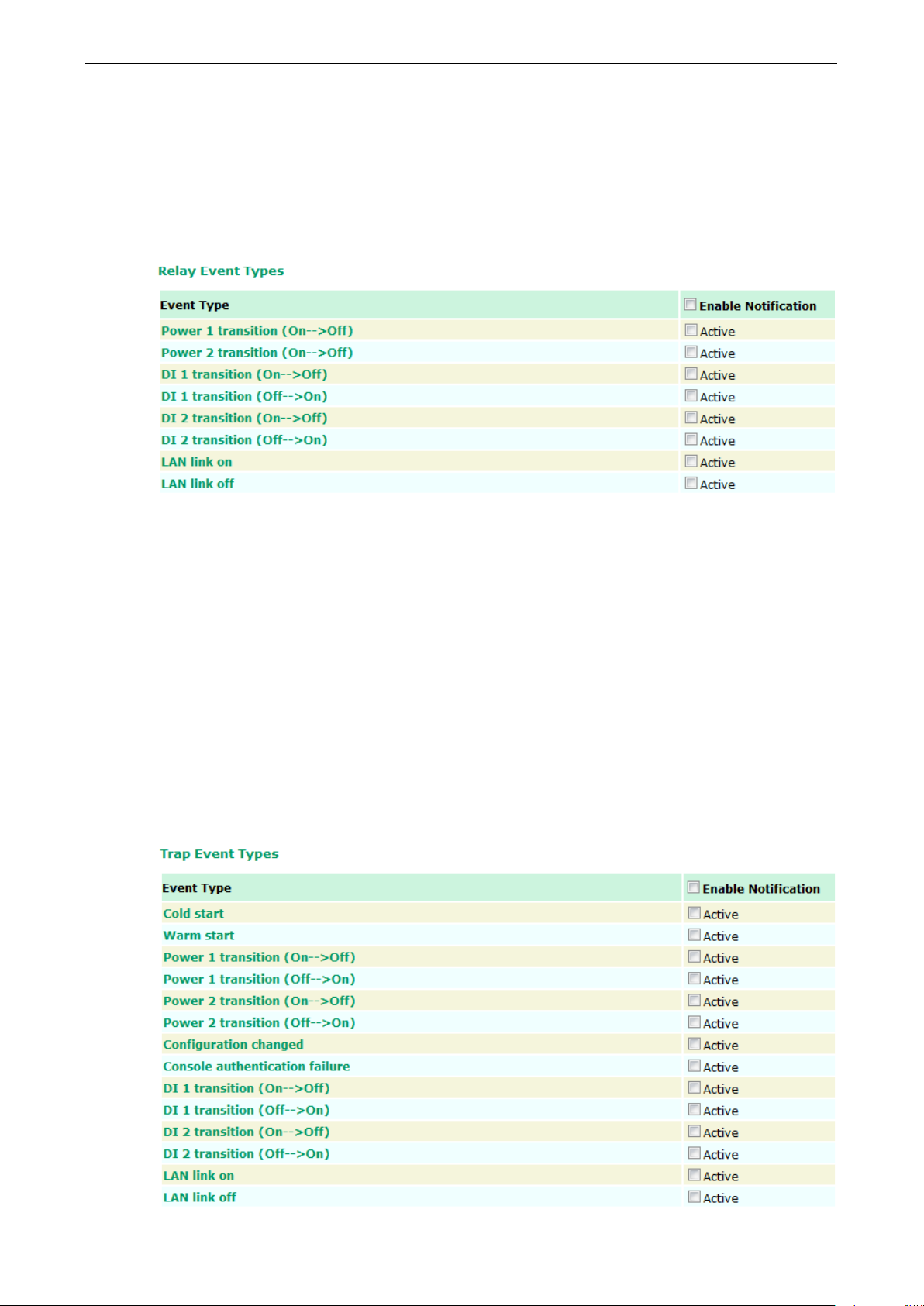

Relay

Relay Event Types

Select Active to enable the event types.

For information on the event types, refer to the System Log Event Types section.

Trap

Traps can be used to signal abnormal conditions (notifications) to a management station. This trap-driven

notification can make your network more efficient.

Because a management station usually takes care of a large number of devices that have a large number of

objects, it will be overloading for the management station to poll or send requests to query every object on

every device. It would be better if the managed device agent could notify the management station by sending

a message known as a trap for the event.

Trap Event Types

Select Active to enable the event types.

For information on the event types, refer to the System Log Event Types section.

OnCell G3150A-LTE Web Console Configuration

3-74

Enter the community string or password (up to 31 characters) for

SNMP Trap Receiver Settings

SNMP traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically

equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers

through the web page.

Field Description Default setting

Trap version Select the SNMP version for SNMP traps. V1

Trap server

IP/name

Trap community

Enter the IP address or domain name of the SNMP trap server.

alert

authentication.

SMS

SMS Event Types

Select Active to enable the event types. For information on the event types, refer to the System Log Event

Types section.

OnCell G3150A-LTE Web Console Configuration

3-75

SMS Alert Settings

You can set the OnCell G3150A-LTE to send SMS notifications to up to four phone numbers and select a

message encoding format in the SMS Alert Settings screen.

Field Description Factory Default

To phone number

1/2/3/4

Enter the phone numbers to which the OnCell G3150A-LTE

sends SMS notifications.

Status

Serial

Serial to Network Connections

Go to Serial to Network Connections under Serial Status to view the operation mode and status of each

connection for each serial port. All monitor functions will refresh automatically every 15 seconds.

The Real COM mode, Reverse Real COM mode and TCP server mode support up to 2 devices connection, TCP

Client mode support up to 4 devices connection.

Serial Port Status

Go to Serial Port Status under Serial Status to view the current status of each serial port. Serial Port

Status Buffering monitors port buffering usage (bytes) of the serial port. Go to Serial Port Settings > Port

1 > Data Buffering/Log to enable Port buffering function.

A green dot indicates active, and a gray dot indicates inactive

OnCell G3150A-LTE Web Console Configuration

3-76

Frame

Errors due to wrong Baudrate, Parity (even/odd), and Stop bit settings.

Serial Port Error Count

Go to Serial Port Error Count under Serial Status to view the error count for each serial port.

Description

Parity Errors in parity setting (parity on / off) between both sites.

Overrun The number of times the operation-mode application overload in order to handle the data

transmission.

Break The transmission breaks originating from serial devices connected behind the OnCell

G3150A-LTE

Serial Port Settings

Go to Serial Port Settings under Serial Status to view a summary of the settings for each serial port.

Serial Data Log

Data logs for the serial port can be viewed in ASCII or HEX format. After selecting the serial port and format,

you may click Select all to select the entire log if you wish to copy and paste the contents into a text file.

R - Receiver / T - Transmission to the serial device.

OnCell G3150A-LTE Web Console Configuration

3-77

[VPN name] policy doesn't allow RSASIG

VPN encrypt algorithm does not allow RSA or X.509.

[VPN name] DPD: Restarting Connection

Renegotiate VPN SA immediately.

[VPN name] connect_fail_log:ip_port

Fail to route VPN connection to [IP address].

VPN

VPN System Log Description

The following table lists the system logs for the VPN feature. [VPN name] indicates the name of the VPN tunnel

you have created on the OnCell G3150A-LTE.

System Log Entry Description

[VPN name] mismatch of PSK Pre-shared key mismatch.

[VPN name] Phase 1 start VPN tunnel phase 1 start.

[VPN name] Phase 1 pass VPN tunnel phase 1 pass.

[VPN name] Phase 2 start VPN tunnel phase 2 start.

[VPN name] Phase 2 pass VPN tunnel phase 2 pass.

[VPN name] received Delete ISAKMP SA Remote VPN tunnel request to delete ISAKMP SA.

[VPN name] no Preshared Key Found No pre-shared key is found.

[VPN name] policy doesn't allow PRESHARED KEY The encryption algorithm does not allow pre-shared key.

[VPN name] DPD timeout - declaring peer dead No response from a peer. PDP timeout.

[VPN name] DPD: Hold connection Clear the remote VPN SA and keep the peer routing table

status.

[VPN name] DPD: Clearing Connection Clear the remote VPN SA and peer routing table status.

[VPN name] encrypt alg is different VPN encryption mismatch.

[VPN name] hash alg is different VPN hash mismatch.

[VPN name] DH group is different VPN Diffie-Hellman group mismatch.

[VPN name] Ignore initial Aggr message Ignore aggressive requests from a remote VPN gateway.

[VPN name] Maybe ID format error Invalid local or remote VPN ID format.

[VPN name] we require peer ID differ from peer

declares ID

[VPN name] no suitable connection for peer No corresponding VPN connection for a remote peer

[VPN name] send payload name Send “VPN INVALID_KEY_INFORMATION,

[VPN name] receive payload name Receive “VPN INVALID_KEY_INFORMATION ,

Remote ID mismatch.

from the VPN responder.

INVALID_CERTIFICATE or….” to a remote VPN gateway.

INVALID_CERTIFICATE or …” from a remote VPN

gateway.

OnCell G3150A-LTE Web Console Configuration

3-78

IPSec Logs

The IPSec triggered events are recorded in IPSec Logs. You can export the log contents to an available viewer

by clicking Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to

refresh the log.

OpenVPN Status and Logs

The OpenVPN triggered events at Server and Clients are recorded in each Status and Logs.

You can export the log contents to an available viewer by clicking Export Log. You can use the Clear Log

button to clear the log contents and the Refresh button to refresh the log.

OnCell G3150A-LTE Web Console Configuration

3-79

NOTE

•

the Status and provide engineers with information for

error

• Status: You can view OpenVPN connection status such as OpenVPN is connected, disconnected and

initiating connection and information on the client’s access to the server in the server logs.

Logs: The Logs show more detailed information than

review and trouble shooting. Additional information includes negotiation process, key exchange, and

recordings.

DNS Status

The DNS Status screen displays the DNS server to which the OnCell G3150A-LTE is connected and the DNS

server information.

Go to DNS Status for DNS server settings information designated at General Setup > Network Settings.

It shows OnCell G3150A-LTE’s DNS assigned by DNS server and Server 3/4 is stand for Primary DNS and

Secondary DNS information at General Setup > Network Settings

SIM Status

The SIM Status screen displays the current SIM card in use and the status of the SIM cards installed in the

OnCell G3150A-LTE.

OnCell G3150A-LTE Web Console Configuration

3-80

GPS Status

The GPS Status screen displays various GPS related information including Time, Latitude, Longitude,

Connected satellites, and Altitude.

DHCP Client List (For AP Mode Only)

The DHCP Client List shows all the clients that require and have successfully received IP assignments. You can

click the Refresh button to refresh the list.

You can press Select all button to select all content in the list for further editing.

OnCell G3150A-LTE Web Console Configuration

3-81

System Log

Triggered events are recorded in System Log. You can export the log contents to an available viewer by clicking

Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to refresh the

log.

Relay Status

The status of user-configurable events can be found under Relay Status.

If an event is triggered, the event is included on this list.

After you have addressed an event, click Acknowledge Event.

DI, Power, and System Status

You can view the digital input (DI) and power input information in the DI and Power Status screen.

OnCell G3150A-LTE Web Console Configuration

3-82

Received

Sent

Received

Sent

Received

The total number of input IP datagram packets that the device received from all

Sent

interfaces

RDiscard

SDiscard

ErrAddr

Errproto

System Status

The System Status screen displays the OnCell G3150A-LTE internal memory capacity status and CPU loading

information.

Network Status

Network Statistics

The Network Statistics screen displays information on the network interfaces of the device and protocols

used along with the packets received and transmitted.

The network statistic parameters and values are described in the following tables:

Interface Action Description

LAN

CWAN

Protocol

Actions Description

The number of packets the device received through the LAN interface

The number of packets the device sent through the LAN interface

The number of packets the device received through the CWAN interface

The number of packets the device sent through the CWAN interface

interfaces

The total number of output IP datagram packets that the device sent from all

The input IP datagram packets discarded for various reasons (e.g.: Lack of buffer

space)

The output IP datagram packets discarded for various reasons (e.g.: Lack of

buffer space)

The input IP datagram packets received with invalid IP addresses

The input IP datagram packets received with incorrect protocol.(i.e., a protocol

other than TCP, UDP, and ICMP)

OnCell G3150A-LTE Web Console Configuration

3-83

ErrHeader

SNoRoute

Received

Sent

The total number of ICMP messages that the device sent

REchoReq

REchoRply

SEchoReq

SEchoRply

Received

Sent

The total number of output UDP datagram packets received by the device

ErrHeader

ErrPorts

Received

Sent

ErrHeader

ErrPorts

ReSent

CurrEstab

Opens

Fi, Cellular and

The input IP datagram packets received with invalid headers.

(e.g., bad checksum, version number mismatch, and time-to-live period

exceeded)

The input IP datagram packets received with incorrect routes

ICMP

UDP

TCP

The total number of ICMP messages that the device received

The ICMP request packets that the device received

(e.g., Ping requests received)

The ICMP reply packets that the device received

(e.g., Ping replies received)

The ICMP request packets that the device sent

(e.g., Ping requests sent)

The ICMP reply packets that the device received.

(e.g., Ping replies received )

The total number of input UDP datagram packets received by the device

The input UDP datagram packets received with invalid headers

The input UDP datagram packets received with incorrect port numbers

The total number of input TCP segment packets received by the device

The total number of output TCP segment packets received by the device

The input TCP segment packets received with invalid headers

(e.g., bad checksum)

The input TCP segment packets received with the wrong port number

The output TCP segment packets retransmitted

The number of TCP connections established (e.g. status is ESTABLISHED or

CLOSE-WAIT)

The number of TCP connections to be opened (e.g. status is SYNC-sent,

SYNCRCBD, SYNC_RCVD)

ARP Table

The ARP table is for maintenance people to ping the destination device and get the destination MAC address so

as to clarify the connection issue.

LLDP

The LLDP displays the information of the device that connected to OnCell G3150A-LTE.

Field Description Default setting

Interface The device physical internet interface, such as Wi-

Ethernet port.

System Name A user-defined device system name. System Name

ID A user-defined device ID. ID

IP The device IP address IP

Interface

OnCell G3150A-LTE Web Console Configuration

3-84

Possible fl

U: route is up

D: route is down

G: use gateway

+: default gateway

T: static route

H: target is a host

Field Description Default setting

Port The open port that connect at device to OnCell G3150A-LTE Port

Port Description The open port description that user given. Port Description

Routing Table

The Routing Table screen displays the list of routes the OnCell G3150A-LTE uses to send packets on each

interface.

ags include:

Maintenance

Maintenance functions provide the administrator with tools to manage the OnCell G3150A-LTE and

wired/wireless networks.

Console Settings

You can enable or disable access permissions to the device and Moxa Service such as MXstudio and Wireless

Search Utility. For greater security, we recommend only allowing access to the two secure consoles, HTTPS and

SSH.

OnCell G3150A-LTE Web Console Configuration

3-85

ATTENTION

Please make sure the power source is stable when you

disruption

Ping Command

Ping helps to diagnose the integrity of wired or wireless networks. By inputting a node’s IP address in the

Destination field, you can use the ping command to make sure it exists and whether or not the access path

is available.

If the node and access path are available, you will see that all packets were successfully transmitted with no

loss. Otherwise, some, or even all, packets may get lost, as shown in the following figure.

Firmware Upgrade

The OnCell G3150A-LTE can be enhanced with more value-added functions by installing firmware upgrades.

The latest firmware is available at Moxa’s download center.

Before running a firmware upgrade, make sure the OnCell G3150A-LTE is off-line. Click the Browse button to

specify the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. After

the progress bar reaches 100%, the OnCell G3150A-LTE will reboot itself.

When upgrading your firmware, the OnCell G3150A-LTE’s other functions will not be accessible.

may damage your OnCell G3150A-LTE.

upgrade your firmware. An unexpected power

OnCell G3150A-LTE Web Console Configuration

3-86

Configuration Import & Export

You can use the Config Import Export screen to back up or restore the following:

• Configuration settings on the OnCell G3150A-LTE

• ABC-01 configuration

• MIB

In the Config Import section, click Choose File to select a configuration file and click Config Import button

to begin importing configuration. The password is up to 31 characters.

To save the configuration file to a storage media, click Config Export. The configuration file is a text file and

you can view and edit it with a general text-editing tool.

For MIBs, click MIB Export to save the MIB file to a storage media. The configuration file is a .my file and you

can import using a general SNMP tool and use to remotely control or configure the OnCell G3150A-LTE.

To download the configuration to the OnCell G3150A-LTE, complete the following steps:

1. Turn off the OnCell G3150A-LTE.

2. Connect ABC-01 to the OnCell G3150A-LTE’s RS-232 console.

3. Turn on the OnCell G3150A-LTE.

4. The OnCell G3150A-LTE detects ABC-01 during the boot up process and automatically downloads the

configuration from ABC-01. After the configuration is downloaded and if the configuration format is correct,

the OnCell G3150A-LTE emits three short beeps before continuing the boot up process.

5. After the boot up process is complete, the OnCell G3150A-LTE emits two beeps, and the Ready LED turns

solid green.

OnCell G3150A-LTE Web Console Configuration

3-87

Load Factory Default

Use this function to reset the OnCell G3150A-LTE and roll all settings back to the factory default values. You can

also reset the hardware by pressing the reset button on the top panel of the OnCell G3150A-LTE.

Account Settings

To ensure that devices located at remote sites are secure from hackers, we recommend setting up a

high-strength password the first time you configure the device.

Field Description Default setting

Minimum

password length

Password

strength check

Password

validity

Password retry

count

Lockout time The number of seconds the device’s login function will be locked

By default, passwords can be between 4 and 16 characters. For

improved security, we recommend changing the minimum

password length to at least 8 characters the first time you

configure the device.

Enable the password strength check option to ensure that users

are required to select high-strength passwords.

Note: See the Change Password section below for details.

The number of days after which the password must be changed.

Passwords should be updated regularly to protect against hackers.

The number of consecutive times a user can enter an incorrect

password while logging in before the device’s login function is

locked.

after n consecutive unsuccessful login attempts, where n = the

password retry count.

Disable

90 days

600 seconds

Moxa G3150A-LTE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

Overview

Package Checklist

Product Features

Product Specifications

Functional Design

LED Indicators

Beeper

Reset Button

2. Getting Started

First—time Installation and Configuration

Step 1: Install a SIM Card

Step 2: Turn On the OnCell G3150A-LTE

Step 3: Connect the OnCell G3150A-LTE to a Computer

Step 4: Configure an IP Address for the Computer

Step 5: Access the Web Console

Step 6: Establish a Cellular Connection

Step 7: Verify the Cellular Connection

3. Web Console Configuration

Accessing the Web Console

Configuration Menu Overview

Overview

General Setup

System Information Settings

Interface On/Off

Network Settings

System Time

Device Operation Mode

Cellular Settings

Cellular WAN Settings

GuaranLink

GuaranLink Recovery Process for Dual SIM Connections

GuaranLink Settings

ISP Initial Connection Check (Default)

Data Session Retry (Default)

Transmission Connection Check (Default)

Cellular Connection Alive Check (Default)

Packet-Level Connection Check (Default)

Auto IP Report Settings

Auto IP Report Format

Info [n]

ID List

GPS Settings

OnCell Central Manager Setting

Advanced Settings

DHCP Server

DDNS

Packet Filters

MAC Filter

IP Protocol Filter

TCP/UDP Port Filter

Port Forwarding Function

SNMP Agent

IPSec

Overview—OnCell G3150A-LTE IPSec Feature

IPSec Settings

Configuring a VPN Tunnel

Configuring Pre-Shared Key Settings

Configuring RSA Signature Settings

Local 1:N NAT

1:N Concept

X.509 Certificate

Certificate Generation

Local Certificate Upload

Remote Certificate Upload

OpenVPN

Overview—OnCell G3150A-LTE OpenVPN Feature

OpenVPN—Router Mode

OpenVPN—Bridge Mode

Server Settings

Server Setting—TUN (Router Mode)

Server Setting—TAP (Bridge Mode)

Server Certificate Upload

Server User Management

Client Settings

Client Certificate Upload
