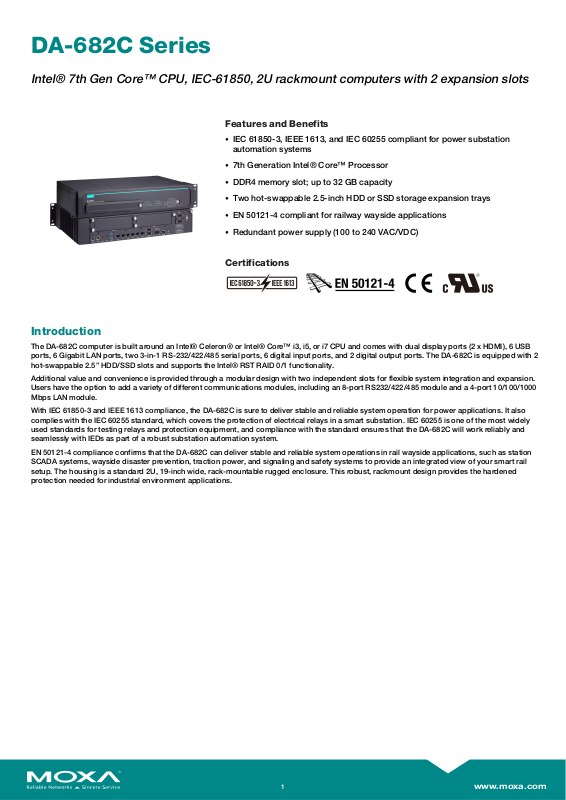

DA-682C Series

Intel® 7th Gen Core™ CPU, IEC-61850, 2U rackmount computers with 2 expansion slots

Features and Benefits

• IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation

automation systems

• 7th Generation Intel® Core™ Processor

• DDR4 memory slot; up to 32 GB capacity

• Two hot-swappable 2.5-inch HDD or SSD storage expansion trays

• EN 50121-4 compliant for railway wayside applications

• Redundant power supply (100 to 240 VAC/VDC)

Certifications

Introduction

The DA-682C computer is built around an Intel® Celeron® or Intel® Core™ i3, i5, or i7 CPU and comes with dual display ports (2 x HDMI), 6 USB
ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 digital input ports, and 2 digital output ports. The DA-682C is equipped with 2
hot-swappable 2.5” HDD/SSD slots and supports the Intel® RST RAID 0/1 functionality.

Additional value and convenience is provided through a modular design with two independent slots for flexible system integration and expansion.
Users have the option to add a variety of different communications modules, including an 8-port RS232/422/485 module and a 4-port 10/100/1000
Mbps LAN module.

With IEC 61850-3 and IEEE 1613 compliance, the DA-682C is sure to deliver stable and reliable system operation for power applications. It also
complies with the IEC 60255 standard, which covers the protection of electrical relays in a smart substation. IEC 60255 is one of the most widely
used standards for testing relays and protection equipment, and compliance with the standard ensures that the DA-682C will work reliably and
seamlessly with IEDs as part of a robust substation automation system.

EN 50121-4 compliance confirms that the DA-682C can deliver stable and reliable system operations in rail wayside applications, such as station
SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems to provide an integrated view of your smart rail
setup. The housing is a standard 2U, 19-inch wide, rack-mountable rugged enclosure. This robust, rackmount design provides the hardened
protection needed for industrial environment applications.

1

www.moxa.com

Appearance

Front View

Rear View

Specifications

Computer

CPU Intel® Core™ i7-7600U Processor (4M Cache, 2.8 GHz)

Intel® Core™ i5-7300U Processor (3M Cache, 2.6 GHz)
Intel® Core™ i3-7100U Processor (3M Cache, 2.4 GHz)
Intel® Celeron® 3965U Processor (2M Cache, 2.2 GHz)

System Memory Slot SODIMM DDR4 slot x 2
