1. Introduction

The AWK-1131A industrial a/b/g/n high speed wireless access point products are ideal wireless solutions for

hard-to-wire applications that use mobile equipment connected over a TCP/IP network. The AWK-1131A is

rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for wide

temperature models, and is rugged enough for any harsh industrial environment.

The following topics are covered in this chapter:

Overview

Package Checklist

Product Features

Functional Design

 LAN Port

 LED Indicators

 Beeper

 Reset Button

AirWorks AWK-1131A Introduction

1-2

NOTE

The above items

customized versions.

NOTE

The latest specifications for Mo

ATTENTION

•

Overview

The AWK-1131A industrial wireless AP/client meets the growing need for faster data transmission speeds by

supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with

the industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD and

vibration. The two redundant DC power inputs increase the reliability of the power supply. The AWK-1131A can

operate on either the 2.4 or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments

to future-proof your wireless investments.

Package Checklist

Moxa’s AWK-1131A is shipped with the following items. If any of these items is missing or damaged, please

contact your customer service representative for assistance.

• AWK-1131A wireless AP/client

• 2 2.4/5 GHz antennas: ANT-WDB-ARM-02

• DIN-rail kit

• 1 plastic RJ45 protective cap

• Quick installation guide (printed)

• Warranty card

come with the standard AWK-1131A model, but the package contents might vary for

Product Features

• IEEE802.11a/b/g/n compliant

• Advanced wireless security

 64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise

(IEEE 802.1X/RADIUS, TKIP, and AES)

 SSID enable/disable

 Packet access control & filtering

• Turbo Roaming for rapid handover (Client mode)

• ABC-01 for configuration import/export

• RS-232 console management

• DIN-rail mounting (standard) or wall mounting (optional)

• IP30-rated high-strength metal housing

xa’s products can be found at https://www.moxa.com.

The AWK-1131A is NOT a portable mobile device and should be located at least 20 cm away from the

human body.

The AWK-1131A is NOT designed for the general public. A well-trained technician should be enlisted to

ensure safe deployment of AWK-1131A units, and to establish a wireless network.

AirWorks AWK-1131A Introduction

1-3

Functional Design

LAN Port

The AWK-1131A comes standard with 1 Gigabit port (Ethernet RJ45). The LAN LED will light up when the LAN

cable is inserted.

LED Indicators

The LEDs on the front panel of the AWK-1131A provide a quick and easy means of determining the current

operational status and wireless settings.

The FAULT LED indicates system failures and user-configured events. If the AWK-1131A cannot retrieve the IP

address from a DHCP server, the FAULT LED will blink at one second intervals. The SIGNAL LEDs indicate

signal strength, and only operate in Client mode.

RJ45 Ethernet port

The following table summarizes how to read the device’s wireless settings from the LED displays.

AirWorks AWK-1131A Introduction

1-4

ATTENTION

When the system fails to boot, the LEDs for

simultaneously and blink at one

be due to improper operation or issues such as

an unexpected shutdown while updating the firmware. To

the firmware, refer to the

“Firmware Recovery” section in Chapter 6.

LED Color State Description

Front Panel LED Indicators (System)

PWR Green

Blinking (fast at 0.5-sec intervals) Cannot get an IP address from the DHCP server

FAULT Red

STATE

SIGNAL

(5 LEDs)

WLAN

1000M Green

10/100M Amber

Green/

Red

Green

Amber

Blinking (slow at 1-sec intervals) IP address conflict

Green/Blinking at 1-sec intervals The AWK has been located by AWK Search Utility.

TP Port(RJ45) LED Indicators (Port Interface)

On Power is being supplied from power input 1&2.

Off Power is not being supplied from power input 1&2.

Off Error condition does not exist.

Green Software Ready

Red Booting error condition

On Signal level(for Client mode only)

Off

Blinking WLAN data communication is run in Client mode

Off

On WLAN function is in AP mode.

Blinking WLAN’s data communication is run in AP mode

Off WLAN is not in use or not working properly

On TP port’s 1000Mbps link is active.

Blinking Data is being transmitted at 1000 Mbps

Off TP port’s 1000Mbps link is inactive.

On TP port’s 10/100Mbps link is active.

Blinking Data is being transmitted at 10/100 Mbps

Off TP port’s 10/100Mbps link is inactive.

WLAN function is in Client mode and AWK has

established a link with an AP.

WLAN is not in Client Mode or AWK has not

established a link with an AP.

Beeper

The beeper emits two short beeps when the system is ready.

STATE (Green), FAULT, and WLAN will all light up

-second intervals. This might

instruction on recovering

AirWorks AWK-1131A Introduction

1-5

Reset Button

The RESET button is located on the rear panel of the AWK-1131A. You can reboot the AWK-1131A or reset it

to factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip.

• System reboot: Hold the RESET button down for under 5 seconds and then release.

• Reset to factory default: Hold the RESET button down for over 5 seconds until the STATE LED starts

blinking green. Release the button to reset the AWK-1131A.



2. Getting Started

This chapter explains how to install Moxa’s AirWorks AWK-1131A for the first time, and quickly set up your

wireless network and test whether the connection is running well. The Function Map discussed in the third

section provides a convenient means of determining which functions you need to use.

The following topics are covered in this chapter:

First-time Installation and Configuration

Communication Testing

Function Map

AirWorks AWK-1131A Getting Started

2-2

NOTE

After you select

will be

res

NOTE

Default user name and password:

For security reasons, we strongly recommend changing the default password. To do so, select Maintenance



First-time Installation and Configuration

Before installing the AWK-1131A, make sure that all items in the Package Checklist are in the box. You will need

access to a notebook computer or PC equipped with an Ethernet port. The AWK-1131A has a default IP address

that must be used when connecting to the device for the first time.

• Step 1: Select the power source.

The AWK-1131A can be powered by a DC power input. The AWK-1131A will use whichever power source

you choose.

• Step 2: Connect the AWK-1131A to a notebook or PC.

Since the AWK-1131A supports MDI/MDI-X auto-sensing, you can use either a straight-through cable or

crossover cable to connect the AWK-1131A to a computer. The LED indicator on the AWK-1131A’s LAN port

will light up when a connection is established.

• Step 3: Set up the computer’s IP address.

Choose an IP address on the same subnet as the AWK-1131A. Since the AWK-1131A’s default IP address is

192.168.127.253, and the subnet mask is 255.255.255.0, you should set the IP address of the

computer to 192.168.127.xxx.

et to factory default settings and the IP address will be reset to 192.168.127.253.

• Step 4: Use the web-based manager to configure the AWK-1131A

Open your computer’s web browser and type http://192.168.127.253 in the address field to access the

homepage of the web-based Network Manager. Before the homepage opens, you will need to enter the user

name and password as shown in the following figure. For first-time configuration, enter the default user

name and password and then click on the Login button:

Maintenance  Load Factory Default and click the Submit button, the AWK-1131A

User Name: admin

Password: moxa

Password, and then follow the on-screen instructions to change the password.

AirWorks AWK-1131A Getting Started

2-3

NOTE

After you click

appearing next to the title)

will

be shown on the upper

To activate the changes click

seconds are needed for the

• Step 5: Select the AWK-1131A operation mode.

By default, the AWK-1131A’s operation mode is set to AP. You can change to Client mode in Wireless LAN Setup  Operation Mode. Detailed information about configuring the AWK-1131A’s operation can be

found in Chapter 3.

• Step 6: Test communications. In the following sections we describe two test methods that can be used to ensure that a network

connection has been established.

Submit to apply changes the web page is refreshed (indicated by an “(Updated)” status

and a blinking reminder to restart the device of the new settings to take effect,

-right corner of the web page:

Restart and then Save and Restart after you change the settings. About 30

AWK-1131A to complete the reboot procedure.

Communication Testing

After installing the AWK-1131A you can run a sample test to make sure the AWK-1131A and wireless

connection are functioning normally. Two testing methods are described below. Use the first method if you are

using only one AWK-1131A device, and use the second method if you are using two or more AWK-1131A units.

How to Test One AWK-1131A

If you are only using one AWK-1131A, you will need a second notebook computer equipped with a WLAN card.

Configure the WLAN card to connect to the AWK-1131A (the default SSID is MOXA), and change the IP address

of the second notebook (Notebook B) so that it is on the same subnet as the first notebook (Notebook A), which

is connected to the AWK-1131A.

After configuring the WLAN card, establish a wireless connection with the AWK-1131A and open a DOS window

on Notebook B. At the prompt, type

ping <IP address of notebook A>

and then press Enter (see the figure below). A “Reply from IP address …” response means the communication

was successful. A “Request timed out.” response means the communication failed. In this case, recheck the

configuration to make sure the connections are correct.

AirWorks AWK-1131A Getting Started

2-4

How to Test Two or More AWK-1131A Units

If you have two or more AWK-1131A units, you will need a second notebook computer (Notebook B) equipped

with an Ethernet port. Use the default settings for the first AWK-1131A connected to notebook A and change

the second or third AWK-1131A connected to notebook B to Client mode, and then configure the notebooks and

AWK-1131A units properly.

After setting up the testing environment, open a DOS window on notebook B. At the prompt, type:

ping <IP address of notebook A>

and then press Enter. A “Reply from IP address …” response means the communication was successful. A

“Request timed out” response means the communication failed. In this case, recheck the configuration to make

sure the connections are correct.

AirWorks AWK-1131A Getting Started

2-5

NOTE: These advanced functions are all optional.

and reactions

based

console management operation.

and for diagnosing the network.

Function Map

Quick overview of the AWK-1131A’s status

Basic settings for administering the AWK-1131A

Essential settings related to establishing a

wireless network

Advanced features to support additional network

management and secure wired and wireless

communication

Application-oriented device management

functions to set up events, traps,

via e-mail and SNMP notification

NOTE: These functions are all optional.

Current status information for monitoring

wired/wireless network performance, advanced

services, and device management functions.

Functions for maintaining the AWK-1131A,

On-demand functions to support the web-



Through (for Client mode only)



3. Web Console Configuration

In this chapter, we explain all aspects of web-based console configuration. Moxa’s easy-to-use management

functions help you set up your AWK-1131A and make it easy to establish and maintain your wireless network.

The following topics are covered in this chapter:

Web Browser Configuration

Overview

Quick Setup

General Setup

 System Information

 Network Settings

 System Time

Wireless LAN Setup

 Operation Mode

 Basic WLAN Setup

 WLAN Security Settings

 Advanced WLAN Settings

 WLAN Certificate Settings (For EAP-TLS in

Client/Slave Mode Only)

Advanced Setup

 DHCP Server (for AP mode only)

 Packet Filters

 SNMP Agent

Link Fault Pass-



Logs and Notifications

 System Logs

 Syslog

 E-mail Notifications

 Trap

Status

 Wireless LAN Status

 Associated Client List (For AP/Master Mode

Only)

 DHCP Client List (For AP Mode Only)

 System Logs

 Power Status

 System Status

 Network Status

Maintenance

 Console Settings

 Ping Command

 Firmware Upgrade

 Configuration Import and Export

 Load Factory Default

 Account Settings

 Changing the Password

 Locating the Device

 Miscellaneous Settings

 Troubleshooting

Save Configuration

Restart

Logout

AirWorks AWK-1131A Web Console Configuration

3-2

NOTE

To use the

1131A’s management and monitoring functions from a PC host connected to the same LAN

as the AWK

1131A are on the same logical subnet.

The Moxa AWK

Web Browser Configuration

Moxa AWK-1131A’s web browser interface provides a convenient way to modify its configuration and access

the built-in monitoring and network administration functions. The recommended web browser is Microsoft

Internet Explorer 7.0 or 8.0 with JVM (Java Virtual Machine) installed.

Follow these steps to access the AWK-1131A’s web-based console management interface.

1. Open your web browser (e.g., Internet Explorer) and type the AWK-1131A’s IP address in the address field.

2. In the Web console Login page displayed, enter the password (default Username/password =

AWK-

-1131A, you must make sure that the PC host and the AWK-

-1131A’s default IP is 192.168.127.253.

Press Enter to establish the connection.

admin/moxa) and then click Login to continue.

You might have to wait a few moments for the web page to download to your computer. Note that the Model

name and IP address of your AWK-1131A are both shown in the title bar of the web page. This information

can be used to help you identify multiple AWK-1131A units.

AirWorks AWK-1131A Web Console Configuration

3-3

NOTE

The model name of the AWK

XX, where XX indicates the country code. The

country code indicates the AWK

as an

example in the following figures. (The country code and model name that appears on your computer screen

3. Use the menu tree on the left side of the window to open the function pages to access each of the

AWK-1131A’s functions.

In the following paragraphs, we describe each AWK-1131A management function in detail. A quick overview is

available in this manual in the “Function Map” section of Chapter 3.

ight be different from the one shown here.)

Overview

The Overview page summarizes the AWK-1131A’s current status. The information is categorized into several

groups: System Information, Device Information and 802.11 Information.

-1131A is shown as AWK-1131A-

-1131A version and which frequencies it uses. We use AWK-1131A-US

AirWorks AWK-1131A Web Console Configuration

3-4

NOTE

The

Current BSSID

Click on SSID for more detailed 802.11 Information, as shown in the following figure.

802.11 Information that is displayed might be different for different operation modes. For example,

, Signal strength, and SNR are only available under Client operation modes.

Quick Setup

The AWK-1131A provides a quick setup wizard to help you configure the basic settings including device

information and wireless settings.

Once you enter the setup, links to each step in the process are displayed at the top of the page. You can either

click Next to go to the next step or click directly on a link at the top of the page to go to a specific step.

AirWorks AWK-1131A Web Console Configuration

3-5

NOTE

field.

ove the cursor on the question mark symbol next to an entry field to view additional details regarding the

In the Wi-Fi Settings step, you can configure the basic Wi-Fi settings and use the channel survey provided in

the Channel Usage section to find out if a channel is clear or congested. This function can help you deploy a

clear channel without requiring the use of a channel analysis tool.

AirWorks AWK-1131A Web Console Configuration

3-6

Setting Description

Number of APs The number of APs which use this channel.

Load A measure of how congested a channel, expressed in a percentage value. Both the

802.11 and non-802.11 signals will affect the channel loading.

Noise floor A summation of the noise level from all sources.

You can see a complete preview of the Wi-Fi parameters that you configured when you click on the final step

in the setup process, Review Settings.

AirWorks AWK-1131A Web Console Configuration

3-7

Provides information about whom to contact in order to resolve

General Setup

The General Setup group includes the most commonly used settings required by administrators to maintain

and control the AWK-1131A.

System Information

The System Information items, especially Device name and Device description, are displayed and

included on the Overview page, in SNMP information, and in alarm emails. Setting System Information

items makes it easier to identify the different AWK-1131A units connected to your network.

Device name

Setting Description Factory Default

Max. 31 of characters This option is useful for specifying the role or application of

different AWK-1131A units.

Model name_<Last

3 bytes of the

device MAC>

Device location

Setting Description Factory Default

Max. of 31 characters Specifies the location of different AWK-1131A units. None

Device description

Setting Description Factory Default

Max. of 31 characters Use this space to record a more detailed description of the

AWK-1131A

Device contact information

Setting Description Factory Default

Max. of 31 characters

problems. Use this space to record contact information of the

person responsible for maintaining this AWK-1131A.

None

AirWorks AWK-1131A Web Console Configuration

3-8

automatically by

Setting

Description

Factory Default

The IP address of the DNS Server used by your network. After

ing the IP address. The

Network Settings

The Network Settings configuration panel allows you to modify the usual TCP/IP network parameters.

Network Settings for AP/Client Operation Modes

IP address assignment

Setting Description Factory Default

DHCP The AWK-1131A’s IP address will be assigned

the network’s DHCP server

Static Set up the AWK-1131A’s IP address manually.

Static

IP address

Setting Description Factory Default

AWK-1131A’s IP

address

Subnet mask

Setting Description Factory Default

AWK-1131A’s subnet

mask

Gateway

Setting Description Factory Default

AWK-1131A’s default

gateway

Primary/ Secondary DNS server

IP address of the

Primary/Secondary

DNS server

Identifies the AWK-1131A on a TCP/IP network. 192.168.127.253

Identifies the type of network to which the AWK-1131A is

connected (e.g., 255.255.0.0 for a Class B network, or

255.255.255.0 for a Class C network).

The IP address of the router that connects the LAN to an

outside network.

entering the DNS Server’s IP address, you can input the

AWK-1131A’s URL (e.g., http://ap11.abc.com) in your

browser’s address field instead of enter

Secondary DNS server will be used if the Primary DNS server

fails to connect.

255.255.255.0

None

AirWorks AWK-1131A Web Console Configuration

3-9

NOTE

The

Current

local time

term shutdown, especially when the network

does not have an Internet connection for

GMT (Greenwich

ATTENTION

Changing the time zone will automatically adjust the

zone

Daylight saving time (DST or summer time) involves advancing

System Time

The AWK-1131A has a time calibration function based on information from an NTP server or user specified Date

and Time information. Functions such as Logs and Notifications can add real-time information to the

message.

The Current local time shows the AWK-1131A’s system time when you open this web page. You can click on

the Set Time button to activate the updated date and time parameters. An “(Updated)” string is displayed,

which indicates that the change is complete. Local system time will be immediately activated in the system

without running Save and Restart.

AWK-1131A has a built-in real-time clock (RTC). We strongly recommend that users update the

for the AWK-1131A after the initial setup or a long-

accessing the NTP server or there is no NTP server on the LAN.

Current local time

Setting Description Factory Default

User adjustable time The date and time parameters allow configuration of the local

time, with immediate activation.

Use 24-hour format: yyyy/mm/dd hh:mm:ss

Time zone

Setting Description Factory Default

User selectable time

zone

The time zone setting allows conversion from

Mean Time) to local time.

None

GMT (Greenwich

Mean Time)

before setting the Current local time.

Daylight saving time

Setting Description Factory Default

Enable/ Disable

clocks (usually 1 hour) during the summer time to provide an

extra hour of daylight in the afternoon.

Current local time. You should configure the Time

Disable

AirWorks AWK-1131A Web Console Configuration

3-10

IP or Domain name of the NTP time server. The 2nd NTP server

the time is synchronized

NOTE

Although it is more convenient to use dynamic bridging, there is a limitation

(such as IPX and AppleTalk) are not forwarded.

module can be manually turned on or

When Daylight saving time is enabled, the following parameters will be shown:

• Starts at: The date that daylight saving time begins.

• Stops at: The date that daylight saving time ends.

• Time offset: Indicates how many hours forward the clock should be advanced.

Time server 1/2

Setting Description Factory Default

IP/Name of Time

Server 1/2

Time sync interval

Setting Description Factory Default

Time interval for NTP

server synchronization

(600 to 9999 seconds)

will be used if the 1st NTP server fails to connect.

This parameter determines how often

from the NTP server.

time.nist.gov

600 (seconds)

Wireless LAN Setup

The AWK-1131A provides the AP/client mode for point-to-multipoint communication.

AP/client: The IP-Bridging mechanism is used to overcome limitations of the 802.11 standards. In this case,

the MAC address of the devices connected to the client radio will be replaced with the client’s MAC address.

Under AP/client modes, communication problems might be encountered when you have a MAC authenticated

system or MAC (Layer 2) based communication. In this case, you will need to change the network to use the

master/slave operation mode.

Sniffer: In order to provide an easier way for our customers to analyze wireless traffic, the AWK-1131A

supports a “Sniffer” mode to co-work with Wireshark packet sniffer software.

-based packets between its wireless interface (WLAN) and Ethernet interface (LAN); other types of traffic

Operation Mode

The AWK-1131A supports three operation modes—AP, Client, and Sniffer—each of which plays a distinct role

on the wireless network.

—the Client can only transmit

Wireless enable

Setting Description Factory Default

Enable/Disable The radio frequency (RF)

off.

Enable

AirWorks AWK-1131A Web Console Configuration

3-11

802.11 packets for analysis.

Operation mode

Setting Description Factory Default

AP The AWK-1131A plays the role of a wireless access point AP

Client The AWK-1131A plays the role of wireless Client

Sniffer Turns the device into a remote Wireshark interface to capture

Sniffer mode instructions:

1. Set operation mode to Sniffer mode on the AWK-1131A and then save/reboot the device.

2. Connect the AWK-1131A to a laptop with Wireshark installed (v1.12.0 or later release) via Ethernet.

3. Add a remote interface by entering the IP address of the AWK-1131A.

Detailed Wireshark instructions can be found at:

https://www.wireshark.org/docs/wsug_html_chunked/ChCapInterfaceRemoteSection.html

4. Start capturing 802.11 wireless packets with Wireshark.

Basic WLAN Setup

The “Basic WLAN Setup” panel is used to add and edit SSIDs. An SSID is a unique identifier that wireless

networking devices use to establish and maintain wireless connectivity. Multiple access points on a network or

sub-network can use the same SSIDs. You can configure your AWK to use up to 9 SSIDs, and configure each

SSID differently. All of the SSIDs are active at the same time; that is, client devices can use any of the SSIDs

to associate with the access point.

AirWorks AWK-1131A Web Console Configuration

3-12

Click on Add SSID to create more SSIDs.

Click on Edit to assign different configuration settings to each SSID. The configuration panel appears as

follows:

AirWorks AWK-1131A Web Console Configuration

3-13

NOTE

When you switch to

button will be available on the Basic WLAN Setup panel. Click

the following figure. You can click on the SSID

of an entity and bring the value of

Refresh

button

is button to view information about available APs, as shown in

Client mode, a Site Survey

its SSID onto the SSID field of the Basic WLAN Setup page. Click the

to update the site-survey table.

RF type

Setting Description Factory Default

2.4 GHz

B Only supports the IEEE 802.11b standard B/G/N Mixed

G Only supports the IEEE 802.11g standard

B/G Mixed Supports IEEE 802.11b/g standards, but 802.11g might

operate at a slower speed when 802.11b clients are on the

network

G/N Mixed Supports IEEE 802.11g/n standards, but 802.11n might

operate at a slower speed when 802.11g clients are on the

network

B/G/N Mixed Supports IEEE 802.11b/g/n standards, but 802.11g/n might

operate at a slower speed when 802.11b clients are on the

network

AirWorks AWK-1131A Web Console Configuration

3-14

channels vary

The SSID of a client and the SSID of the AP must be identical for

Enable this function for increased security. Management Frame

Setting Description Factory Default

N Only (2.4 GHz) Only supports the 2.4 GHz IEEE 802.11n standard

5 GHz

A Only supports the IEEE 802.11a standard

A/N Mixed Supports IEEE 802.11a/n standards, but 802.11n might

operate at a slower speed when 802.11a clients are on the

network

N Only (5 GHz) Only supports the 5 GHz IEEE 802.11n standard

Channel (for AP mode only)

Setting Description Factory Default

Available

with RF type

Channel width (for any 11N RF type only)

Setting Description Factory Default

20 MHz Select your channel width, If you are not sure which option to

20/40 MHz

Channel bonding

Channel bonding shows the channel with which the AP will bond if Channel width is set to 20/40 MHz.

This option is only adjustable when the AWK-1131A plays the

role of wireless AP. If the device acts as a wireless client, it

follows the channel of the associated access point

use, select 20/ 40 MHz (Auto)

6 (in B/G/N Mixed

mode)

20 MHz

SSID

Setting Description Factory Default

Max. of 31 characters

the client and AP to be able to communicate with each other.

NOTE: An SSID cannot contain the following characters:

` ' " | ; &

SSID broadcast (for AP mode only)

Setting Description Factory Default

Enable/ Disable SSID can be broadcast or not Enable

Management Frame Encryption

Setting Description Factory Default

Enable/Disable

encryption function allows users to set a specific password for

any two devices to connect with each other.

WLAN Security Settings

The AWK-1131A provides four standardized wireless security modes: Open, WEP (Wired Equivalent Privacy),

WPA (Wi-Fi Protected Access), and WPA2. Several security modes are available in the AWK-1131A by

selecting Security mode and WPA type:

MOXA

Disable

• Open: No authentication, no data encryption.

• WEP: Static WEP (Wired Equivalent Privacy) keys must be configured manually.

• WPA/WPA2-Personal: Also known as WPA/WPA2-PSK. You will need to specify the Pre-Shared Key in the

Passphrase field, which will be used by the TKIP or AES engine as a master key to generate keys that

actually encrypt outgoing packets and decrypt incoming packets.

• WPA/WPA2-Enterprise: Also called WPA/WPA2-EAP (Extensible Authentication Protocol). In addition to

device-based authentication, WPA/WPA2-Enterprise enables user-based authentication via IEEE 802.1X.

The AWK-1131A can support three EAP methods: EAP-TLS, EAP-TTLS, and EAP-PEAP.

AirWorks AWK-1131A Web Console Configuration

3-15

NOTE

Moxa includes WEP security mode only for legacy purposes. WEP is highly insecure and is considered fully

deprecated by the Wi

According to the IEEE 802.11

standard, WEP can be used for

authentication and data encryption

to maintain

(or Shared

type

is used if WEP

data encryption

Normally,

authentication

WEP data encryption is

authentication

When WEP is enabled as a security

mode, the length of a key

called

WEP

Security mode

Setting Description Factory Default

Open No authentication Open

WEP Static WEP is used

WPA WPA is used

WPA2 Fully supports IEEE 802.11i with “TKIP/AES + 802.1X”

Open

For security reasons, you should NOT set security mode to Open System because authentication and data

encryption are not performed in Open System mode.

WEP (only for legacy mode)

-Fi alliance. We do not recommend the use of WEP security under any circumstances.

confidentiality. Shared

Key) authentication

authentication and

are both needed.

Open (or Open System)

type is used when

run with

(so-

seed) can be specified in

64/128 bits, which is actually a 40/104-bit secret key with a 24-bit initialization vector.

The AWK-1131A provides 4 entities of WEP key settings that can be selected to use with Key index. The

selected key setting specifies the key to be used as a send-key for encrypting traffic from the AP side to the

wireless client side. All 4 WEP keys are used as receive-keys to decrypt traffic from the wireless client side to

the AP side.

The WEP key can be presented in two Key types, HEX and ASCII. Each ASCII character has 8 bits, so a 40-bit

(or 64-bit) WEP key contains 5 characters, and a 104-bit (or 128-bit) key has 13 characters. In hex, each

character uses 4 bits, so a 40-bit key has 10 hex characters, and a 128-bit key has 26 characters.

Authentication type

Setting Description Factory Default

Open Data encryption is enabled, but without authentication Open

Shared Data encryption and authentication are both enabled.

AirWorks AWK-1131A Web Console Configuration

3-16

1-4

Specifies which WEP key is used

Open

RC4 encryption

Key type

Setting Description Factory Default

HEX Specifies WEP keys in hex-decimal number form HEX

ASCII Specifies WEP keys in ASCII form

Key length

Setting Description Factory Default

64 bits Uses 40-bit secret keys with 24-bit initialization vector 64 bits

128 bits Uses 104-bit secret key with 24-bit initialization vector

Key index

Setting Description Factory Default

WEP key 1-4

Setting Description Factory Default

ASCII type:

64 bits: 5 chars

128 bits: 13chars

HEX type:

64 bits: 10 hex chars

128 bits: 26 hex chars

A string that can be used as a WEP seed for the

engine.

None

WPA/WPA2-Personal

WPA (Wi-Fi Protected Access) and WPA2 provide significant improvements over the WEP encryption method.

WPA is a security standard based on 802.11i draft 3, while WPA2 is based on the fully ratified version of 802.11i.

The initial vector is transmitted, encrypted, and enhanced with its 48 bits, twice as long as WEP. The key is

regularly changed so that true session is secured.

Even though AES encryption is only included in the WPA2 standard, it is widely available in the WPA security

mode of some wireless APs and clients as well. The AWK-1131A also supports AES algorithms in WPA and WPA2

for better compatibility.

Personal versions of WPA/WPA2, also known as WPA/WPA-PSK (Pre-Shared Key), provide a simple way of

encrypting a wireless connection for high confidentiality. A passphrase is used as a basis for encryption

methods (or cipher types) in a WLAN connection. The passphrases should be complicated and as long as

possible. There must be at least 8 ASCII characters in the Passphrase, and it could go up to 63. For security

reasons, this passphrase should only be disclosed to users who need it, and it should be changed regularly.

WPA type

Setting Description Factory Default

Personal Provides Pre-Shared Key-enabled WPA and WPA2 Personal

Enterprise Provides enterprise-level security for WPA and WPA2

AirWorks AWK-1131A Web Console Configuration

3-17

some legacy AP clients. This option is rarely used.

NOTE

The

dictates how often the wireless AP encryption keys should be changed. The security level

is generally higher if you set the

value to a shorter number, which forces the encryption keys to be

changed more frequently. The default val

considered if

Enterprise

Provides enterprise-level security for WPA and WPA2

Encryption method

Setting Description Factory Default

TKIP** Temporal Key Integrity Protocol is enabled AES

AES Advance Encryption System is enabled

Mixed* Provides TKIP broadcast key and TKIP+AES unicast key for

** This option is only available with 802.11a/b/g standard

* This option is available for legacy mode in AP/Master only, and does not support AES-enabled clients.

Passphrase

Setting Description Factory Default

8 to 63 characters Master key to generate keys for encryption and decryption None

Key renewal (for AP/Master mode only)

Setting Description Factory Default

60 to 86400 seconds

(1 minute to 1 day)

Specifies the time period of group key renewal 3600 (seconds)

key renewal value

key renewal

ue is 3600 seconds (6 minutes). Longer time periods can be

the line is not very busy.

WPA/WPA2-Enterprise (for AP/Master mode)

By setting WPA type to Enterprise, you can use EAP (Extensible Authentication Protocol), a framework

authentication protocol used by 802.1X to provide network authentication. In these Enterprise-level security

modes, a back-end RADIUS (Remote Authentication Dial-In User Service) server is needed if IEEE 802.1X

functionality is enabled in WPA /WPA2. The IEEE 802.1X protocol also offers the possibility of carrying out an

efficient connection authentication on a large-scale network. It is not necessary to exchange keys or

passphrases.

WPA type

Setting Description Factory Default

Personal Provides Pre-Shared Key-enabled WPA and WPA2 Personal

AirWorks AWK-1131A Web Console Configuration

3-18

some legacy AP clients. This option is rarely used.

Setting

Description

Factory Default

Encryption method

Setting Description Factory Default

TKIP** Temporal Key Integrity Protocol is enabled AES

AES Advance Encryption System is enabled

Mixed* Provides TKIP broadcast key and TKIP+AES unicast key for

** This option is only available with 802.11a/b/g standard

* This option is available for legacy mode in AP/Master only, and does not support AES-enabled clients.

Primary/Secondary RADIUS server IP

Setting Description Factory Default

The IP address of

RADIUS server

Primary/Secondary RADIUS port

Setting Description Factory Default

Port number Specifies the port number of the delegated RADIUS server 1812

Primary/ Secondary RADIUS shared key

Setting Description Factory Default

Max. of 31 characters The secret key shared between AP and RADIUS server None

Specifies the delegated RADIUS server for EAP None

Key renewal

Setting Description Factory Default

60 to 86400 seconds

(1 minute to 1 year)

Specifies the time period of group key renewal 3600 (seconds)

WPA/WPA2-Enterprise (for Client)

When used as a client, the AWK-1131A can support three EAP methods (or EAP protocols): EAP-TLS,

EAP-TTLS, and EAP-PEAP, corresponding to WPA/WPA2-Enterprise settings on the AP side.

Encryption method

TKIP** Temporal Key Integrity Protocol is enabled TKIP

AES Advance Encryption System is enabled

**This option is only available with 802.11a/b/g standard.

AirWorks AWK-1131A Web Console Configuration

3-19

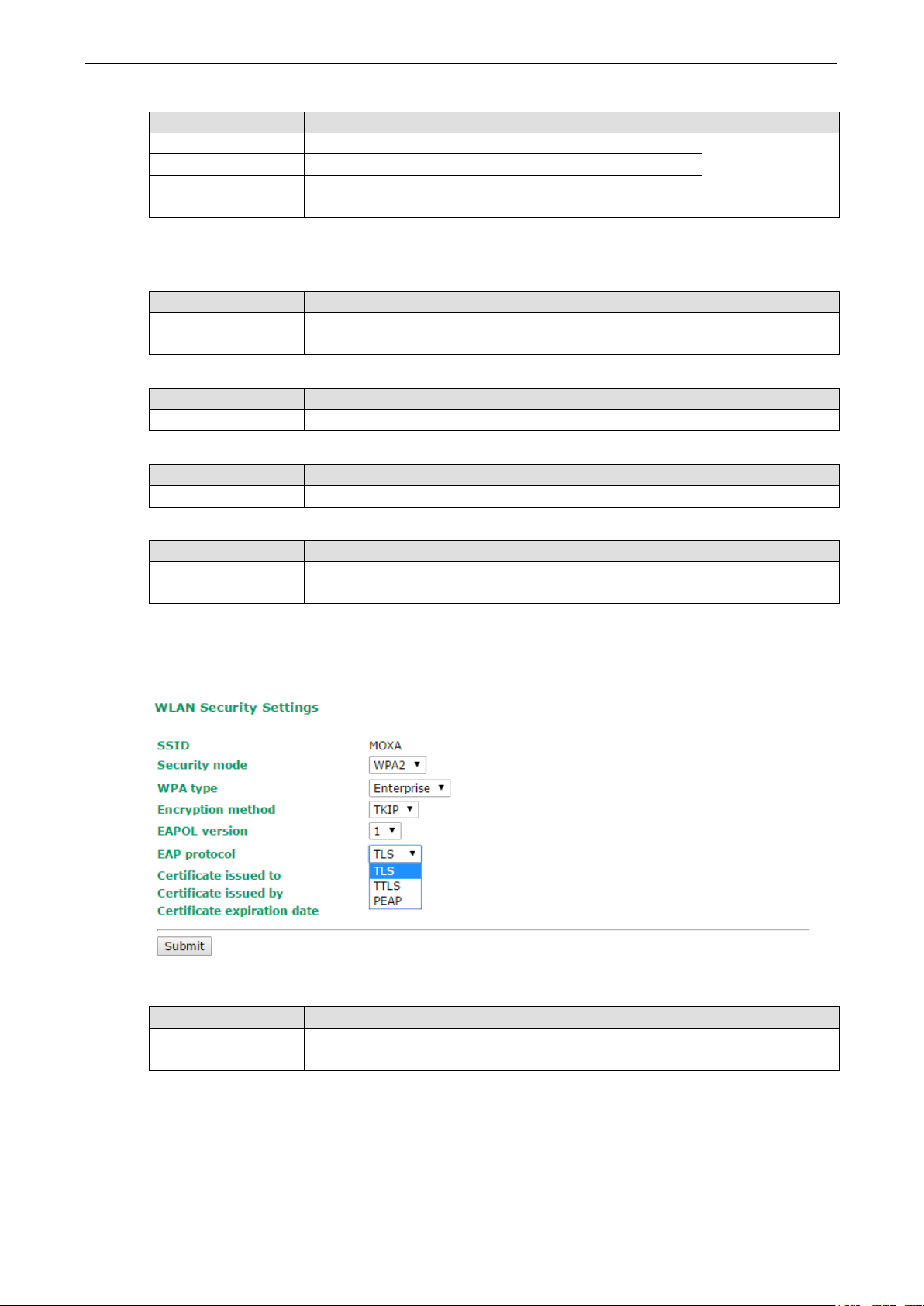

Protected EAP

EAP protocol

Setting Description Factory Default

TLS Specifies Transport Layer Security protocol TLS

TTLS Specifies Tunneled Transport Layer Security

PEAP Specifies Protected Extensible Authentication Protocol, or

Before choosing the EAP protocol for your WPA/WPA2-Enterpise settings on the client end, please contact the

network administrator to make sure the system supports the protocol on the AP end. Detailed information on

these three popular EAP protocols is presented in the following sections.

EAP-TLS

TLS is the standards-based successor to Secure Socket Layer (SSL). It can establish a trusted communication

channel over a distrusted network. TLS provides mutual authentication through certificate exchange. EAP-TLS

is also secure to use. You are required to submit a digital certificate to the authentication server for validation,

but the authentication server must also supply a certificate.

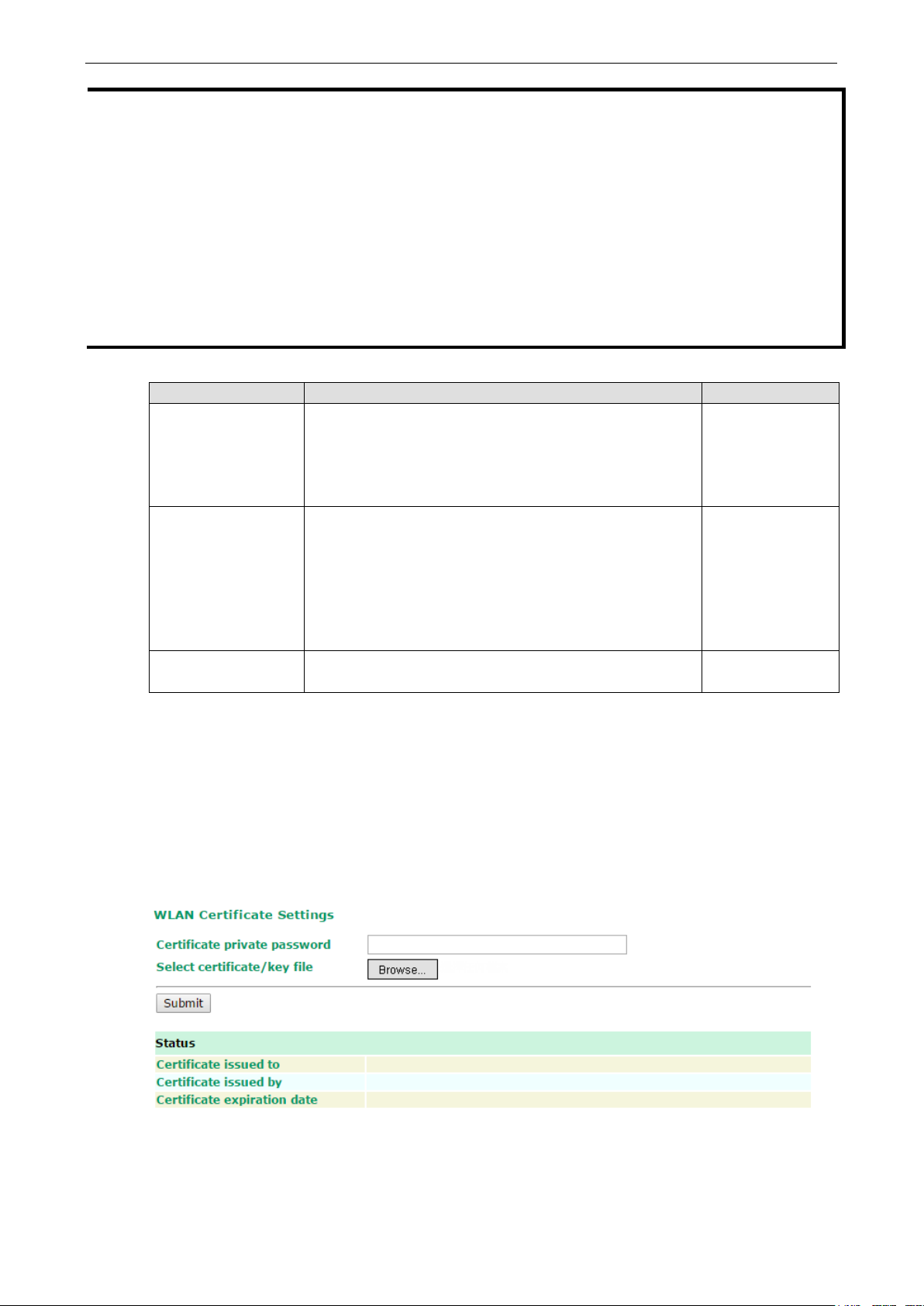

You can use Basic WLAN Setup  WLAN Certificate Settings to import your WLAN certificate and enable

EAP-TLS on the client end.

You can check the current certificate status in Current Status if it is available.

• Certificate issued to: Shows the certificate user

• Certificate issued by: Shows the certificate issuer

• Certificate expiration date: Indicates the expiration date of the certificate

EAP-TTLS

It is usually much easier to re-use existing authentication systems, such as a Windows domain or Active

Directory, LDAP directory, or Kerberos realm, rather than creating a parallel authentication system. As a result,

TTLS (Tunneled TLS) and PEAP (Protected EAP) are used to support the use of so-called “legacy authentication

methods.”

TTLS and PEAP work in a similar way. First, they establish a TLS tunnel (EAP-TLS for example), and validate

whether the network is trustworthy with digital certificates on the authentication server. This step establishes

a tunnel that protects the next step (or “inner” authentication), and consequently is sometimes referred to as

“outer” authentication. The TLS tunnel is then used to encrypt an older authentication protocol that

authenticates the user for the network.

As you can see, digital certificates are still needed for outer authentication in a simplified form. Only a small

number of certificates are required, which can be generated by a small certificate authority. Certificate

reduction makes TTLS and PEAP much more popular than EAP-TLS.

The AWK-1131A provides some non-cryptographic EAP methods, including PAP, CHAP, MS-CHAP, and

MS-CHAP-V2. These EAP methods are not recommended for direct use on wireless networks. However, they

might be useful as inner authentication methods with TTLS and PEAP.

AirWorks AWK-1131A Web Console Configuration

3-20

Because the inner and outer

authentications can use distinct

user names in TTLS and PEAP,

you can use an anonymous user

name for the outer

authentication, with the true

user name only shown through

the encrypted channel. Keep in

mind that not all client software

supports anonymous alteration.

Confirm this with the network

administrator

you enable

identity hiding in TTLS and

PEAP.

There are a few differences in

the TTLS and PEAP inner

authentication procedures.

TTLS uses the encrypted

channel to exchange

attribute

while PEAP uses the encrypted

channel to start a second EAP

exchange inside of the tunnel.

The

merely as an EAP

method for inner

authentication.

before

TTL inner authentication

Setting Description Factory Default

PAP Password Authentication Protocol is used MS-CHAP-V2

CHAP Challenge Handshake Authentication Protocol is used

MS-CHAP Microsoft CHAP is used

MS-CHAP-V2 Microsoft CHAP version 2 is used

Anonymous

Setting Description Factory Default

Max. of 31 characters A distinct name used for outer authentication None

User name & Password

Setting Description Factory Default

User name and password used in inner authentication None

PEAP

AWK-1131A provides

-CHAP-V2

-value pairs (AVPs),

AirWorks AWK-1131A Web Console Configuration

3-21

avoid communicate with weak signal wireless links to maintain

Inner EAP protocol

Setting Description Factory Default

MS-CHAP-V2 Microsoft CHAP version 2 is used MS-CHAP-V2

Anonymous

Setting Description Factory Default

Max. of 31 characters A distinct name used for outer authentication None

User name & Password

Setting Description Factory Default

User name and password used in inner authentication None

Advanced WLAN Settings

Additional wireless-related parameters are presented in this section to help you set up your wireless network

in detail.

Transmission rate

Setting Description Factory Default

Auto The AWK-1131A senses and adjusts the data rate automatically Auto

Available rates Users can manually select a target transmission data rate but

does not support when RF type are G/N mixed, B/G/N mixed

and A/N mixed.

Minimum transmission rate

Setting Description Factory Default

0 to 64 Mbps

(0 to disable)

By setting a minimum transmission rate, the AWK-1131A will

overall wireless performance and optimize the wireless

frequency usage.

0 (Disable)

AirWorks AWK-1131A Web Console Configuration

3-22

video streaming is occurring in the wireless medium, providing

can manually select a target power to mask max output

Specifies how long before access point starts sending out client

Setting

Description

Factory Default

Specifies the maximum size a data packet before splitting and

oint

NOTE

You can refer to the related glossaries in Appendix A for detailed information about the above

settings. By setting these paramet

“Both”

Multicast rate

Setting Description Factory Default

Available rates You can set a fixed multicast rate for the transmission of

broadcast and multicast packets on a per-radio basis. This

parameter can be useful in an environment where multicast

the wireless clients are capable of handling the configured rate

Transmission power

Setting Description Factory Default

Available power Users

power. Because different transmission rates would have their

own max output power, please reference product datasheet.

Beacon interval (for AP/Master mode only)

Setting Description Factory Default

Beacon Interval

(40 to 1000 ms)

Inactive timeout (for AP mode only)

Setting Description Factory Default

8 to 240 seconds

Indicates the frequency interval of the beacon 100 (ms)

alive packets

10 dBm

60 seconds

DTIM interval (for AP/Master mode only)

Setting Description Factory Default

Data Beacon Rate

(1 to 15)

Fragmentation threshold

Fragment Length

(256 to 2346)

RTS threshold

Setting Description Factory Default

RTS/CTS Threshold

(256 to 2346)

Antenna

Setting Description Factory Default

A/B/Both Specifies the output antenna port. Setting “Antenna” to

* 2T2R is different from 802.11n’s multiple spatial data stream (2x2 MIMO), which doubles the throughput.

2T2R transmits/receives the same piece of data on both the antenna ports.

Indicates how often the AWK-1131A sends out a Delivery

Traffic Indication Message

creating another new packet

Determines how large a packet can be before the access p

coordinates transmission and reception to ensure efficient

communication

ers properly, you can better tune the performance of your wireless network

allows 2x2 MIMO communication under 802.11n and 2T2R*

communication in legacy 802.11a/b/g modes.

2346

-mentioned

Both

AirWorks AWK-1131A Web Console Configuration

3-23

WMM is a QoS standard for WLAN traffic. Voice and video data

NOTE

While the AWK is backg

performance.

NOTE

Enabling this feature causes the

traffic; the high transmission frequency of small alive check packets could potentially affect your other wireless

communications that use the same channel, so only enable this feature when you have full control of the

designated radio channel.

WMM

Setting Description Factory Default

Enable/Disable

will be given priority bandwidth when enabled with WMM

supported wireless clients.

NOTE: WMM will always be enabled under 802.11n mode.

Turbo Roaming (for Client mode only)

Setting Description Factory Default

Enable/ Disable Moxa’s Turbo Roaming can enable rapid handover when the

AWK-1131A, as a client, roams among a group of APs.

When Turbo Roaming is enabled, the following parameters will be shown:

• Roaming threshold: Determines when to start looking for new AP candidates. If the current connection

quality (SNR or Signal Strength) is lower than the specified threshold, the AWK will start background

scanning and look for next-hop candidates.

Enable

Disable

• Roaming difference: Determines if roaming should be executed. After background scan has been

triggered, the roaming will only occur if the AP candidate(s) provide a better (Roaming difference)

connection quality than the current connection. If multiple access points fulfill the criteria, the AWK will pick

the best one to roam to.

• Scan channels: Pre-define communication and roaming channels.

• AP alive check: Allows the turbo roaming function to recover the network connection faster when an AP

has a sudden disconnection (such as losing power).

• AP candidate threshold: After the “AP alive check” declares the current access point is no long available,

the surrounding access points must have good enough connection qualities (SNR/Signal Strength) in order

to be the qualified as AP candidates for association.

round scanning, the wireless performance will be reduced by 1/3 of its normal

AWK-1131A to send out alive check packets every 10 ms when there is no

AirWorks AWK-1131A Web Console Configuration

3-24

NOTE

The Tu

is an average of test results

documented, in optimized conditions, across APs configured with interference

WPA2

channel roaming

at 100 Kbps traffic load. However, a combination of factors affect the AP handover recovery time of a roaming

client, including but not limited to the following:

Therefore, a site survey prior to device deployment is recommended to evaluate the ideal parameter settings

on both clients and APs so that you can c

lone and use the

only one device is connected to the

with multiple devices connected to the LAN. This allows for

LAN and only

rbo Roaming recovery time (<150 ms) listed in the product documentation

-free 20-MHz RF channels,

-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-

On-site RF interference

Velocity of the moving client devices

Application traffic throughput

Turbo Roaming parameters configured. i.e., Roaming threshold, Roaming difference,

and AP candidate threshold.

ome up with an optimal deployment plan for your applications.

MAC clone (for Client mode only)

Setting Description Factory Default

MAC clone Enabling this feature allows the AWK client to c

MAC address of the device connected to the LAN. This

overcomes the limitation of the IP-bridged behavior in a

MAC-sensitive network (MAC-based communication or

MAC-authenticated network).

MAC clone method • Auto: The AWK client uses the MAC address of the device

connected to the LAN if

AWK.

• Static: The AWK client shares the assigned MAC address

Disable

Auto

multiple devices to connect to the AWK via the

one of them needs to be assigned a MAC address.

MAC clone static

address

Specifies the static MAC address that the connected AWK

devices should use.

WLAN Certificate Settings (For EAP-TLS in Client/Slave Mode

Only)

When EAP-TLS is used, a WLAN Certificate will be required at the client end to support WPA/WPA2-Enterprise.

The AWK-1131A can support the PKCS #12, also known as Personal Information Exchange Syntax Standard,

certificate formats that define file formats commonly used to store private keys with accompanying public key

certificates, protected with a password-based symmetric key.

Current status displays information for the current WLAN certificate, which has been imported into the

AWK-1131A. Nothing will be shown if a certificate is not available.

Certificate issued to: Shows the certificate user

Certificate issued by: Shows the certificate issuer

AirWorks AWK-1131A Web Console Configuration

3-25

NOTE

The WLAN certificate will

, it can still be seen

Certificate expiration date: Indicates when the certificate has expired

You can import a new WLAN certificate in Import WLAN Certificate by following these steps, in order:

1. Input the corresponding password (or key) in the Certificate private password field and then click

Submit to set the password.

2. The password will be displayed in the Certificate private password field. Click on the Browse button in

Select certificate/key file and select the certificate file.

3. Click Upload Certificate File to import the certificate file. If the import succeeds, you can see the

information uploaded in Current Certificate. If it fails, return to step 1 to set the password correctly and

then import the certificate file again.

the Current Certificate.

remain after the AWK-1131A reboots. Even though it is expired

Advanced Setup

Several advanced functions are available to increase the functionality of your AWK-1131A and wireless network

system. The DHCP server helps you deploy wireless clients efficiently. Packet filters provide security

mechanisms, such as firewalls, in different network layers. And, SNMP support can make network management

easier.

DHCP Server (for AP mode only)

DHCP (Dynamic Host Configuration Protocol) is a networking protocol that allows administrators to assign

temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time,

instead of assigning permanent IP addresses.

The AWK-1131A can act as a simplified DHCP server and easily assign IP addresses to your DHCP clients by

responding to the DHCP requests from the client ends. The IP-related parameters you set on this page will also

be sent to the client.

You can also assign a static IP address to a specific client by entering its MAC address. The AWK-1131A

provides a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for

each entity to activate the setting.

AirWorks AWK-1131A Web Console Configuration

3-26

Setting

Description

Factory Default

The IP address of the DNS Server used by your network. After

Setting

Description

Factory Default

You can check the IP assignment status under Status  DHCP Client List.

DHCP server

Setting Description Factory Default

Enable Enables AWK-1131A as a DHCP server Disable

Disable Disable DHCP server function

Default gateway

Setting Description Factory Default

IP address of a default

gateway

Subnet mask

subnet mask Identifies the type of sub-network (e.g., 255.255.0.0 for a

Primary/ Secondary DNS server

Setting Description Factory Default

IP address of Primary/

Secondary DNS server

The IP address of the router that connects to an outside

network

Class B network, or 255.255.255.0 for a Class C network)

entering the DNS Server’s IP address, you can use URL as well.

The Secondary DNS server will be used if the Primary DNS

server fails to connect.

None

Start IP address

IP address Indicates the IP address which AWK-1131A can start assigning None

Maximum number of users

Setting Description Factory Default

1 to 999 Specifies how many IP address can be assigned continuously None

Client lease time

Setting Description Factory Default

2 to 14400 minutes The lease time for which an IP address is assigned. The IP

address expires after the lease time is completed.

14400 minutes

(10 days)

AirWorks AWK-1131A Web Console Configuration

3-27

ATTENTION

Be careful when you enable the filter function:

Drop

Packet Filters

The AWK-1131A includes various filters for IP-based packets going through LAN and WLAN interfaces. You

can set these filters as a firewall to help enhance network security.

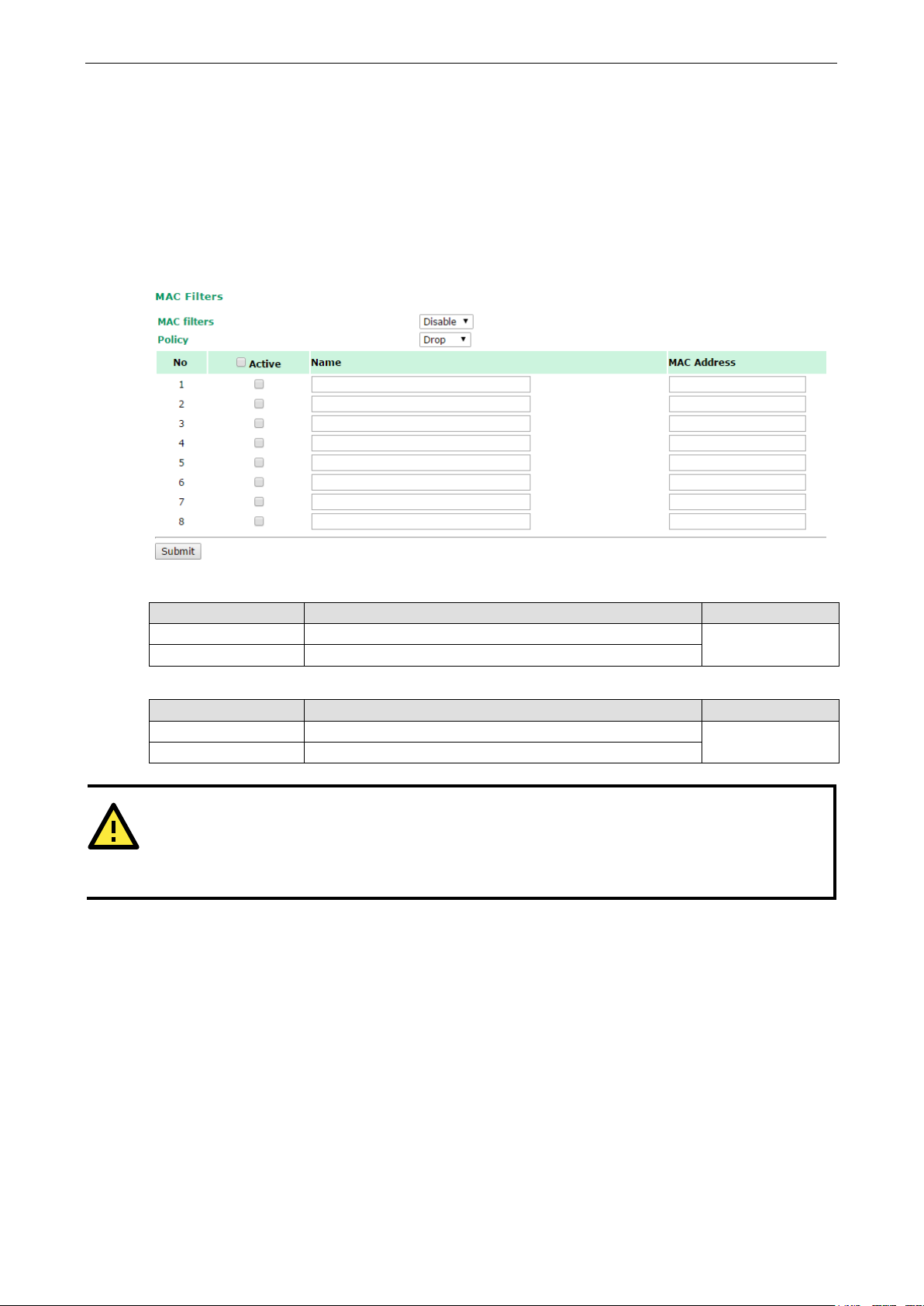

MAC Filters

The AWK-1131A’s MAC filter is a policy-based filter that can allow or filter out IP-based packets with specified

MAC addresses. The AWK-1131A provides 8 entities for setting MAC addresses in your filtering policy.

Remember to check the Active check box for each entity to activate the setting.

MAC filters

Setting Description Factory Default

Enable Enables MAC filters Disable

Disable Disables MAC filters

Policy

Setting Description Factory Default

Accept Only the packets fitting the entities on list can be allowed. Drop

Drop Any packet fitting the entities on list will be denied.

+ “no entity on list is activated” = all packets are allowed

+ “no entity on list is activated” = all packets are denied

IP Protocol Filters

The AWK-1131A’s IP protocol filter is a policy-based filter that can allow or filter out IP-based packets with

specified IP protocol and source/destination IP addresses.

The AWK-1131A provides 8 entities for setting IP protocol and source/destination IP addresses in your filtering

policy. Four IP protocols are available: All, ICMP, TCP, and UDP. You must specify either the Source IP or the

Destination IP. By combining IP addresses and netmasks, you can specify a single IP address or a range of IP

addresses to accept or drop. For example, “IP address 192.168.1.1 and netmask 255.255.255.255” refers to

the sole IP address 192.168.1.1. “IP address 192.168.1.1 and netmask 255.255.255.0” refers to the range of

IP addresses from 192.168.1.1 to 192.168.255.

AirWorks AWK-1131A Web Console Configuration

3-28

ATTENTION

Be careful when you enable the filter function:

Drop

Remember to check the Active check box for each entity to activate the setting.

IP protocol filters

Setting Description Factory Default

Enable Enables IP protocol filters Disable

Disable Disables IP protocol filters

Policy

Setting Description Factory Default

Accept Only the packets fitting the entities on the list can be allowed Drop

Drop Any packet fitting the entities on the list will be denied

+ “no entity on list is activated” = all packets are allowed.

+ “no entity on list is activated” = all packets are denied.

TCP/UDP Port Filters

The AWK-1131A’s TCP/UDP port filter is a policy-based filter that can allow or filter out TCP/UDP-based packets

with a specified source or destination port.

The AWK-1131A provides 8 entities for setting the range of source/destination ports of a specific protocol. In

addition to selecting TCP or UDP protocol, you can set either the source port, destination port, or both. The end

port can be left empty if only a single port is specified. Of course, the end port cannot be larger than the start

port.

The Application name is a text string that describes the corresponding entity with up to 31 characters.

Remember to check the Active check box for each entity to activate the setting.

AirWorks AWK-1131A Web Console Configuration

3-29

ATTENTION

Be careful when you enable the filter function:

Drop

Community

minimum requirements

TCP/UDP port filters

Setting Description Factory Default

Enable Enables TCP/UDP port filters Disable

Disable Disables TCP/UDP port filters

Policy

Setting Description Factory Default

Accept Only the packets fitting the entities on list can be allowed. Drop

Drop Any packet fitting the entities on list will be denied.

+ “no entity on list is activated” = all packets are allowed

+ “no entity on list is activated” = all packets are denied

SNMP Agent

The AWK-1131A supports SNMP V1/V2c/V3. SNMP V1 and SNMP V2c use a community string match for

authentication, which means that SNMP servers access all objects with read-only or read/write permissions

using the community string public/private (default value). SNMP V3, which requires you to select an

authentication level of MD5 or SHA, is the most secure protocol. You can also enable data encryption to

enhance data security.

SNMP security modes and security levels supported by the AWK-1131A are shown in the following table. Select

the security mode and level that will be used to communicate between the SNMP agent and manager.

Protocol

Version

SNMP

V1, V2c

SNMP V3 No-Auth No No Use account with admin or user to access

Setting on

UI web page

V1, V2c

Read

V1, V2c

Write/Read

Community

MD5 or SHA Authentication

Authentication

Type

Community string No Use a community string match for

based on MD5 or

SHA

based on MD5 or

SHA

Data

Encryption

No Provides authentication based on HMAC-MD5,

Data

encryption

key

Method

authentication

objects

or HMAC-SHA algorithms. 8-character

passwords are the minimum requirement for

authentication.

Provides authentication based on HMAC-MD5

or HMAC-SHA algorithms, and data encryption

key. 8-character passwords and a data

encryption key are the

for authentication and encryption.

AirWorks AWK-1131A Web Console Configuration

3-30

agent

The following parameters can be configured on the SNMP Agent page. A more detailed explanation of each

parameter is given below the following figure.

SNMP agent

Setting Description Factory Default

Enable Enables SNMP agent Disable

Disable Disables SNMP agent

Remote management

Setting Description Factory Default

Enable Allow remote management via SNMP agent Disable

Disable Disallow remote management via SNMP agent

Read community (for V1, V2c)

Setting Description Factory Default

V1, V2c Read

Community

Write community (for V1, V2c)

Setting Description Factory Default

V1, V2c Read /Write

Community

SNMP agent version

Setting Description Factory Default

V1, V2c, V3, or

V1, V2c, or

V3 only

Use a community string match with a maximum of 31

characters for authentication. This means that the SNMP

can access all objects with read-only permissions using this

community string.

Use a community string match with a maximum of 31

characters for authentication. This means that the SNMP

can accesses all objects with read/write permissions using this

community string.

Select the SNMP protocol version used to manage the switch. V1, V2c

public

private

Admin auth type (for V1, V2c, V3, and V3 only)

Setting Description Factory Default

No Auth Use admin account to access objects. No authentication No Auth

MD5 Provide authentication based on the HMAC-MD5 algorithms.

8-character passwords are the minimum requirement for

authentication.

SHA Provides authentication based on

HMAC-SHA algorithms. 8-character passwords are the

minimum requirement for authentication.

AirWorks AWK-1131A Web Console Configuration

3-31

Admin private key (for V1, V2c, V3, and V3 only)

Setting Description Factory Default

Disable No data encryption Disable

DES DES-based data encryption

AES AES-based data encryption

Private Key

A data encryption key is the minimum requirement for data encryption (maximum of 63 characters)

Private MIB Information Device Object ID

Also known as OID, this is AWK-1131A’s enterprise value, which is a fixed value.

Link Fault Pass-Through (for Client mode only)

This function means if Ethernet port is link down, wireless connection will be forced to disconnect. Once

Ethernet link is recovered, AWK will try to connect to AP.

If wireless is disconnected, AWK restarts auto-negotiation on Ethernet port but always stays in the link failure

state. Once the wireless connection is recovered, AWK will try to recover the Ethernet link.

System log will indicate the link fault pass through events in addition to the original link up/down events.

Link Fault Pass-Through

Setting Description Factory Default

Enable Enables Link Fault Pass-Through Disable

Disable Disables Link Fault Pass-Through

Logs and Notifications

Since industrial-grade devices are often located at the endpoints of a system, these devices will not always

know what is happening elsewhere on the network. This means that these devices, including wireless APs or

clients, must provide system maintainers with real-time alarm messages. Even when system administrators

are out of the control room for an extended period, they can still be informed of the status of devices almost

instantaneously when exceptions occur.

In addition to logging these events, the AWK-1131A supports different approaches to warn engineers

automatically, such as SNMP trap and e-mail.

AirWorks AWK-1131A Web Console Configuration

3-32

hannel availability check (CAC) task has been completed on

System Logs

System Log Event Types

All the event group types are shown on this page. Select the event types (groups) that you want to enable by

checking the Enable logging box next to the event types. By default, all event types are enabled (checked).

The system events log can be viewed at Status  System Logs.

System-related events Event is triggered when…

System warm start The AWK-1131A is rebooted, such as when its settings are

changed (IP address, subnet mask, etc.).

System cold start The AWK-1131A is rebooted by power down.

Watchdog triggers reboot The AWK-1131A is rebooted by watchdog

Network-related events Event is triggered when…

LAN link on The LAN port is connected to a device or network.

LAN link off The port is disconnected (e.g., the cable is pulled out, or the

opposing device shuts down).

Client joined/ left

(for AP/Master mode)

WLAN connected to AP

(for Client/Slave mode)

WLAN disconnected

(for Client/Slave mode)

RSTP changed The RSTP topology has changed

RSTP new root bridge ID The RSTP changes its root bridge ID

Client Roaming from previous AP to

current AP (for Client/Slave mode)

IP address conflict The AWK-1131A has the same IP address as another device

Link fault pass-through LAN/WLAN

connected because of WLAN/LAN up

Link fault pass-through LAN/WLAN

disconnected because of WLAN/LAN down

Channel availability check over DFS

frequency (for AP/Master mode)

AeroLink protection state The AeroLink protection state changes.

A wireless client is associated or disassociated.

The AWK-1131A is associated with an AP.

The AWK-1131A is disassociated from an AP.

A client roams from a previous AP to the current AP if the signal

strength of the current AP is greater than the previous AP by a

certain value.

connected to the same subnet.

The WLAN/LAN link is up and the Link fault pass-through (LFPT)

enables the LAN/WLAN functionality.

The WLAN/LAN link is down and the Link fault pass-through (LFPT)

disables the LAN/WLAN functionality.

The channel availability check (CAC) is started on channel

[channel] at [frequency] GHz for 60 sec./

The c

channel [channel] at [frequency] GHz./

A radar signal is detected on channel [channel] at [frequency]

GHz.

AeroLink states: Initialize (init)/ Discovery/ Idle/ Negotiation

(nego)/ Back up/ Active/ Changed/ Undefined (undef)

AirWorks AWK-1131A Web Console Configuration

3-33

PoE transition (Off -> On)

The AWK-1131A is powered via PoE.

Configuration-related events Event is triggered when…

Configuration Changed A configuration item has been changed.

Configuration file import via Web Console The configuration file is imported to the AWK-1131A.

Console authentication failure An incorrect password is entered.

Firmware upgraded The AWK-1131A’s firmware is updated.

Loaded the configuration from ABC-01 The configuration is successfully loaded/there is an error loading

the configuration from ABC-01.

Saving configuration to ABC-01 The configuration is successfully saved/there is an error saving the

configuration to ABC-01.

ABC-01 failure AWK-1131A cannot detect an ABC-01 at the console port.

Configuration reset to default The configuration is reset to factory default.

Power events Event is triggered when…

Power 1/2 transition (On -> Off) The AWK-1131A is powered down in PWR1/2.

PoE transition (On -> Off) The AWK-1131A is powered down in PoE.

Power 1/2 transition (Off -> On) The AWK-1131A is powered via PWR1/2.

Syslog

This function provides the event logs for the Syslog server. The function supports up to three configurable

Syslog servers and Syslog server UDP port numbers. When an event occurs, the event will be sent as a Syslog

UDP packet to the specified Syslog servers.

Syslog Event Types

The event type groups are shown on this page. Select the Enable Logging checkbox next to the event type to

enable logging of the event. By default, all event types are enabled (checked).

Syslog Server Settings

You can configure the parameters for your Syslog servers in this page.

AirWorks AWK-1131A Web Console Configuration

3-34

NOTE

RSSI report events (Only for Client mode)

function increases the traffic load

tabular format. So,

Syslog server 1/ 2/ 3

Setting Description Factory Default

IP address Enter the IP address of the 1st/ 2nd/ 3rd Syslog Server None

Syslog port

Setting Description Factory Default

Port destination

(1 to 65535)

Enter the UDP port of the corresponding Syslog server 514

we recommend disabling this function during normal usage.

E-mail Notifications

Notification Event Types

Check the Active box next to the event type to enable the event type for email notification. By default, all event

types are deactivated (unchecked).

event type is useful for the site survey stage. However, this

because it needs to use a special utility to retrieve the RSSI values in a

AirWorks AWK-1131A Web Console Configuration

3-35

mail address which will be shown in

E-mail Server Settings

You can set up to 4 e-mail addresses to receive alarm emails from the AWK-1131A. The following parameters

can be configured on the E-mail Server Settings page. In addition, a Send Test Mail button can be used to

test whether the Mail server and e-mail addresses work well. More detailed explanations about these

parameters are given after the following figure.

Mail server (SMTP)

Setting Description Factory Default

IP address The IP Address of your email server. None

User name & Password

Setting Description Factory Default

User name and password used in the SMTP server None

From e-mail address

Setting Description Factory Default

Max. 63 characters Enter the administrator’s e-

To E-mail address 1/ 2/ 3/ 4

Setting Description Factory Default

Max. 63 characters Enter the receivers’ e-mail addresses. None

Trap

Traps can be used to signal abnormal conditions (notifications) to a management station. This trap-driven

notification can make your network more efficient.

Because a management station usually takes care of a large number of devices that have a large number of

objects, it will be overloading for the management station to poll or send requests to query every object on

every device. It would be better if the managed device agent could notify the management station by sending

a message known as a trap for the event.

None

the “From” field of a warning e-mail.

AirWorks AWK-1131A Web Console Configuration

3-36

Trap Event Types

SNMP Trap Receiver Settings

SNMP traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically

equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers

through the web page.

1st / 2nd trap version

Setting Description Factory Default

V1 SNMP trap defined in SNMPv1 V1

V2 SNMP trap defined in SNMPv2

1st / 2nd trap server IP/name

Setting Description Factory Default

IP address or host

name

1st / 2nd trap community

Setting Description Factory Default

Max. of 31 characters Use a community string match with a maximum of 31

Enter the IP address or name of the trap server used by your

network.

characters for authentication.

None

Alert

AirWorks AWK-1131A Web Console Configuration

3-37

Status

Wireless LAN Status

The status for 802.11 Information parameters, such as Operation mode and Channel, are shown on the

Wireless Status page. The status will refresh every 5 seconds if the Auto Update box is checked.

Certain values for 802.11 Information might not be displayed based on the different operation modes

selected. For example, the Current BSSID, Signal strength, and SNR parameters are not available in the AP

mode.

It is helpful to use the continuously updated information on this page, such as Signal Level, Noise floor, and

SNR, to monitor the signal strength of the AWK-1131A in Client mode.

AirWorks AWK-1131A Web Console Configuration

3-38

Associated Client List (For AP/Master Mode Only)

The Associated Client List shows all the clients that are currently associated with a particular AWK-1131A. This

page provides useful information for easier network diagnosis:

MAC Address: Displays the associated client MAC address. If DHCP server is enabled on this AP/Master, the IP

address will also be displayed.

Connection Duration: States how long the client has been connecting to this AP/Master.

SNR: States the Signal-Noise Ratio of the associated client. This is especially useful for identifying a weak

signal client that is potentially reducing the overall wireless performance.

Tx (Bytes/Pkts): Records the AP-to-client traffic after a client is associated.

Rx (Bytes/Pkts): Records the client-to-AP traffic after a client is associated.

DHCP Client List (For AP Mode Only)

The DHCP Client List shows all the clients that require and have successfully received IP assignments. You can

click the Refresh button to refresh the list.

You can press Select all button to select all content in the list for further editing.

AirWorks AWK-1131A Web Console Configuration

3-39

System Logs

Triggered events are recorded in System Log. You can export the log contents to an available viewer by clicking

Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to refresh the

log.

Power Status

The status of power inputs and digital inputs is shown on this web page. The status will refresh every 5 seconds

if the Auto Update box is checked.

AirWorks AWK-1131A Web Console Configuration

3-40

NOTE

A CPU overload can result in a watchdog

firewall rules (IP/MAC/Protocol filters) and traffic PPS (packet per second) contribute to the rise in CPU usage.

System Status

The system status section indicates the status of the device memory and CPU usage in the current device.

Network Status

The network status section indicates the network status of the device with respect to ARP, bridge status, LLDP,

and the routing table.

ARP Table

-triggered reboot of the system. Factors such as a high number of

Address Resolution Protocol (ARP) Table - indicates the current IP to MAC address mapping for the device.

Bridge Status

Indicates the current status of the network bridge on the device. The interfaces and the corresponding MAC

addresses in this section are the entry points for ingress traffic.

AirWorks AWK-1131A Web Console Configuration

3-41

LLDP Status

Displays information on neighboring devices collected via LLDP (Link Layer Discovery Protocol).

Routing Table

Displays the routing information for the current device.

Maintenance

Maintenance functions provide the administrator with tools to manage the AWK-1131A and wired/wireless

networks.

Console Settings

You can enable or disable access permission for the following consoles: HTTP, HTTPS, Telnet, and SSH

connections. For more security, we recommend you only allow access to the two secured consoles, HTTPS and

SSH.

AirWorks AWK-1131A Web Console Configuration

3-42

ATTENTION

Please make sure the power source is stable when you

firmware. An unexpected power breakup

Ping Command

Ping helps to diagnose the integrity of wired or wireless networks. By inputting a node’s IP address in the

Destination field, you can use the ping command to make sure it exists and whether or not the access path

is available.

If the node and access path are available, you will see that all packets were successfully transmitted with no

loss.

Otherwise, some, or even all, packets might get lost, as shown in the following figure.

Firmware Upgrade

The AWK-1131A can be enhanced with more value-added functions by installing firmware upgrades. The latest

firmware is available at Moxa’s download center.

Before running a firmware upgrade, make sure the AWK-1131A is off-line. Click the Browse button to specify

the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. After the

progress bar reaches 100%, the AWK-1131A will reboot itself.

When upgrading your firmware, the AWK-1131A’s other functions are forbidden.

ight damage your AWK-1131A.

upgrade your

AirWorks AWK-1131A Web Console Configuration

3-43

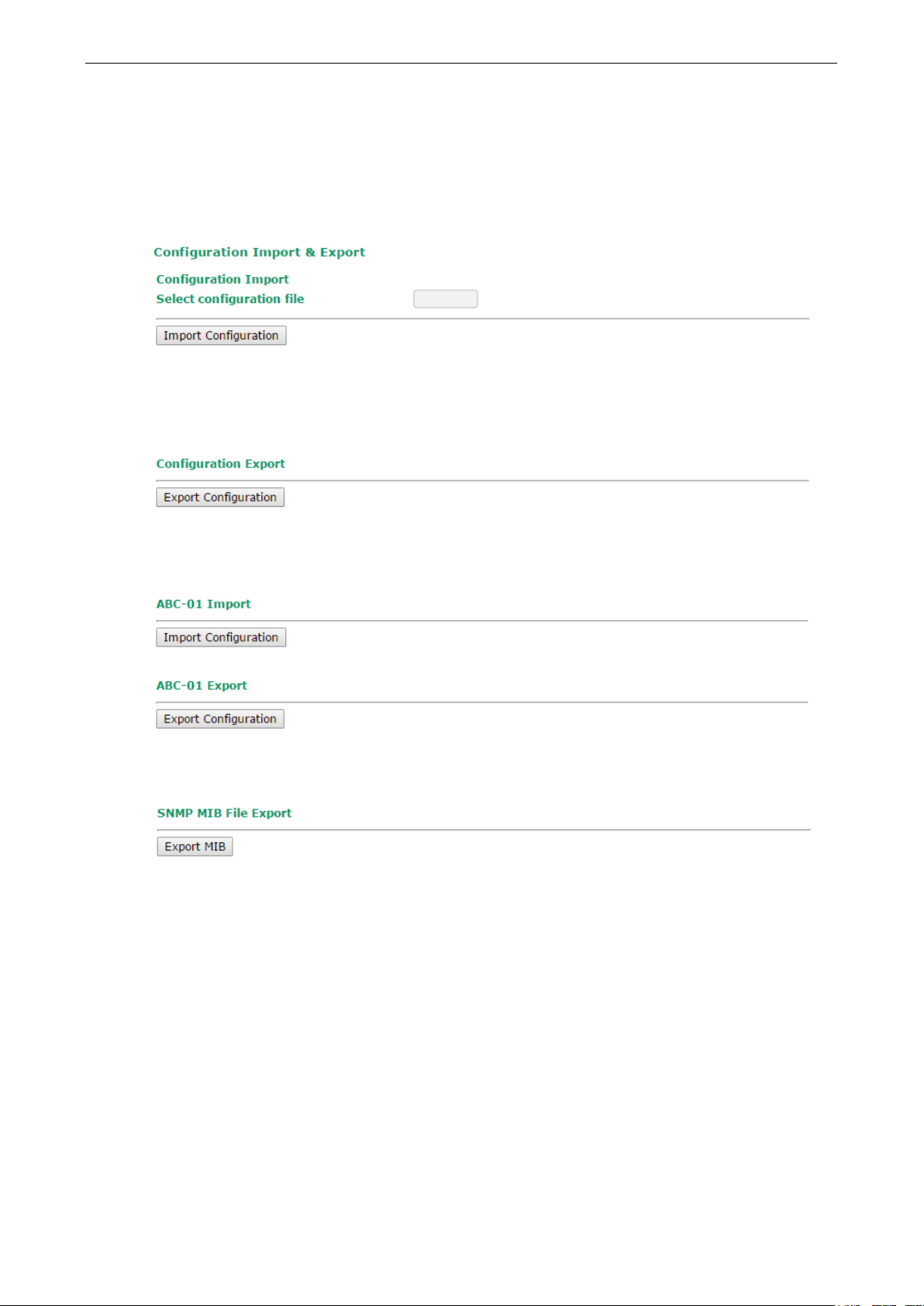

Configuration Import and Export

You can back up and restore the AWK-1131A’s configuration using the Configuration Import & Export

function.

In the Configuration Import section, click Browse to specify the configuration file and click Import

Configuration button to begin importing the configuration.

Select file

In the Configuration Export section, click the Export Configuration button and save the configuration file

onto your local storage media. The configuration file is a text file and you can view and edit with a general

text-editing tool.

You can also back up or restore the ABC-01 configuration using Export Configuration or Import

Configuration.

The SNMP MIB file is also available from SNMP MIB File EXPORT.

To download the configuration to the AWK:

1. Turn off the AWK.

2. Plug in the ABC-01 to the AWK’s RS-232 console.

3. Turn on AWK.

4. AWK will detect the ABC-01 during the boot up process, and download the configuration from the ABC-01

to the AWK automatically. Once the configuration downloads and if configuration format is correct, the AWK

will emit three short beeps and continue with the boot-up process.

5. Once the AWK has booted up successfully, it will emit the normal two beeps, and the ready LED will turn to

solid green.

AirWorks AWK-1131A Web Console Configuration

3-44

validity

Passwords should be updated regularly to protect against hackers.

Load Factory Default

Use this function to reset the AWK-1131A and rollback all settings to the factory default values. You can also

reset the hardware by pressing the reset button on the top panel of the AWK-1131A.

Account Settings

To ensure that devices located at remote sites are secure from hackers, we recommend setting up a

high-strength password the first time you configure the device.

Field Description Default setting

Minimum

password length

Password

strength check

Password

Password retry

count

Lockout time The number of seconds the device’s login function will be locked

By default, passwords can be between 4 and 16 characters. For

improved security, we recommend changing the minimum

password length to at least 8 characters the first time you

configure the device.

Enable the password strength check option to ensure that users

are required to select high-strength passwords.

The number of days after which the password must be changed.

The number of consecutive times a user can enter an incorrect

password while logging in before the device’s login function is

locked.

after n consecutive unsuccessful login attempts, where n = the

password retry count.

Disable

90 days

600 seconds

AirWorks AWK-1131A Web Console Configuration

3-45

Account name

The username of the account.

Admin

If the Confirm Password and New Password

NOTE

To maintain a higher level of network security, d

use the default password (moxa), and be sure to change

all user account passwords

Click Edit to create a new, or edit an existing, user account. The items shown below can be configured.

Field Description Default Setting

Active Select Enable to enable the user account. Disable

User level Administrator: Allows the user to access the Web UI, change the

device’s configuration, and use the device’s import/export

capability.

User: Allows the user to access the Web UI, but the user will not be

able to change the device’s configuration or use the device’s

import/export capability.

Admin

New Password The password used to log in to the device. moxa

Confirm

Password

Retype the password.

fields do not match, you will be asked to reenter the password.

Changing the Password

Use the Change Password function to change the password of existing user accounts. First input the current

password, and then type the new password in the New password and Confirm password input boxes.

regularly.

N/A

o not

AirWorks AWK-1131A Web Console Configuration

3-46

NOTE

If the Password

following password policy:

•

Reset Function after 60

The password must contain at least one digit: 0, 1, 2, …, 9.

The password must contain both upper and lower case letters:

A, B, …, Z, a, b, …, z.

The password must contain at least one of the following special characters:

~!@#$%^-_:,.<>[]{}

The password cannot contain the following special characters:

` ' " | ; &

The password must have more characters than the minimum password length (default = 4).

-strength test option is enabled, you will be prompted to use passwords that adhere to the

Locating the Device

When you click Start to Locate button, the AWK-1131A device uses a beeper and a blinking State LED

indicator to let you know its location.

Miscellaneous Settings

Additional settings to help you manage your AWK-1131A are available on this page.

Reset button

Setting Description Factory Default

Always Enable The AWK-1131A’s Reset button works normally. Always enable

Disable the Factory

Seconds

The AWK-1131A’s reset to default function will be inactive 60

seconds after the AWK-1131A finishes booting up.

Troubleshooting

This feature allows you to quickly obtain the current system status and provide diagnostics information to Moxa

engineers.

To export the current device information, click Export.

AirWorks AWK-1131A Web Console Configuration

3-47

NOTE

A Wi-Fi mirror port is useful for gathering information. However, the DFS function may not work properly when

you enable the Wi

Fi Mirror Port function during

normal usage.

Wi-Fi Mirror Port

A Wi-Fi mirror port can help you obtain the current Wi-Fi communication behavior of your network over the

current channel when it is not convenient to set up a Wi-Fi sniffer in the system operating environment.

To setup a Wi-Fi mirror port, you will need a computer with the Wireshark tool installed, which will be used to

connect to the AWK device via the Ethernet.

-Fi Mirror Port function. Hence, we recommend disabling the Wi-

To set up a Wi-Fi mirror port for short-term monitoring, do the following:

1. Enter the duration in the Capture Wi-Fi Frames box.

You can enter a value between 1 to 180 seconds.

2. Click Capture

3. Wait for a timeout on the web console

You will be able to download a report from the web browser.

To set up a Wi-Fi mirror port for long-term monitoring, do the following:

1. On the Wi-Fi Mirror Port page, set the Remote Capture option to Enable.

2. Run the Wireshark tool on your computer, click Capture and then click Options.

3. In the Input tab of the Wireshark tool, click Manage Interfaces

AirWorks AWK-1131A Web Console Configuration

3-48

4. Click Remote Interfaces and add a new interface

5. Enter the information for your AWK device

• Port: 2002

• Auth: Null authentication

• Host: <AWK IP>

6. Click OK

7. Select Input --> Interface --> rpcap://...:2002/mon0

For cases where advanced troubleshooting is required, contact a Moxa service engineer who can provide you

with an encrypted script file. The encrypted script file can capture additional details on the system.

AirWorks AWK-1131A Web Console Configuration

3-49

TFTP server IP

If you have selected the TFTP option, specify the IP address of the TFTP server.

and packed

5 files (5MB) will be kept for downloading. When

To run the script, browse to and select the script file using Browse and click Run Script after you have filled

in the following details:

Setting Description

Diagnostic script Use the Browse button to select the Moxa diagnosis script file.

Export diagnostic

results

Select if you want to export to a file or to a TFTP server

Diagnostic script

name

Last start time Displays the start time of the last script execution

Last end time Displays the end time of the last script execution

Diagnostic status Displays the progress of the system diagnostics

Diagnostic result Displays the result of the system diagnostics.

Displays the name of the script file

If you have selected the export to a file option, the system log is encrypted

into a file. The limit on the log file size is 1 MB. When the size of the log file reaches 1MB

another file is created. A maximum of

the number of files exceeds five, the oldest file is deleted.

Save Configuration

The following figure shows how the AWK-1131A stores the setting changes into volatile and non-volatile

memory. All data stored in volatile memory will disappear when the AWK-1131A is shutdown or rebooted

unless they are y. Because the AWK-1131A starts up and initializes with the settings stored in flash memory,

all new changes must be saved to flash memory before restarting the AWK-1131A.

This also means the new changes will not work unless you run either the Save Configuration function or the

Restart function.

AirWorks AWK-1131A Web Console Configuration

3-50

After you click on Save Configuration in the left menu box, the following screen is displayed. Click Save if you

want to update the configuration settings in the flash memory at this time. Alternatively, you can choose to run

other functions and put off saving the configuration until later. However, the new setting changes will remain

in the non-volatile memory until you save the configurations.

Restart

You must restart the device for any changes in the configuration setting to take effect. If you have submitted

configuration changes, you will find a blinking string in the upper right corner of the configuration screen. After

making all your configuration changes, click the Restart function in the left menu box.

If you made changes recently but did not save, you will be given two options. Clicking the Restart button here

will reboot the AWK-1131A directly, and all setting changes will be ignored. Clicking the Save and Restart

button will apply all changes and then reboot the AWK-1131A.

If you run the Restart function without changing any configurations or saving all your changes, you will see

just one Restart button on your screen.

AirWorks AWK-1131A Web Console Configuration

3-51

You will not be able to run any of the AWK-1131A’s functions while the system is rebooting.

Logout

Logout helps users disconnect the current HTTP or HTTPS session and go to the Login page. For security

reasons, we recommend you logout before quitting the console manager.



4. Software Installation and Configuration

The following topics are covered in this chapter:

Overview

MXstudio

Wireless Search Utility

 Installing Wireless Search Utility

 Configuring Wireless Search Utility

AirWorks AWK-1131A Software Installation and Configuration

4-2

Overview

AWK can be managed using the MXstudio tool and Wireless Search Utility. Both the Wireless Search Utility and

MXstudio can be downloaded from the Moxa website at www.moxa.com

MXstudio

Please refer the MXstudio User's Guide for detailed instructions.

Wireless Search Utility

Installing Wireless Search Utility

Once the Wireless Search Utility is downloaded, run the setup executable to start the installation.

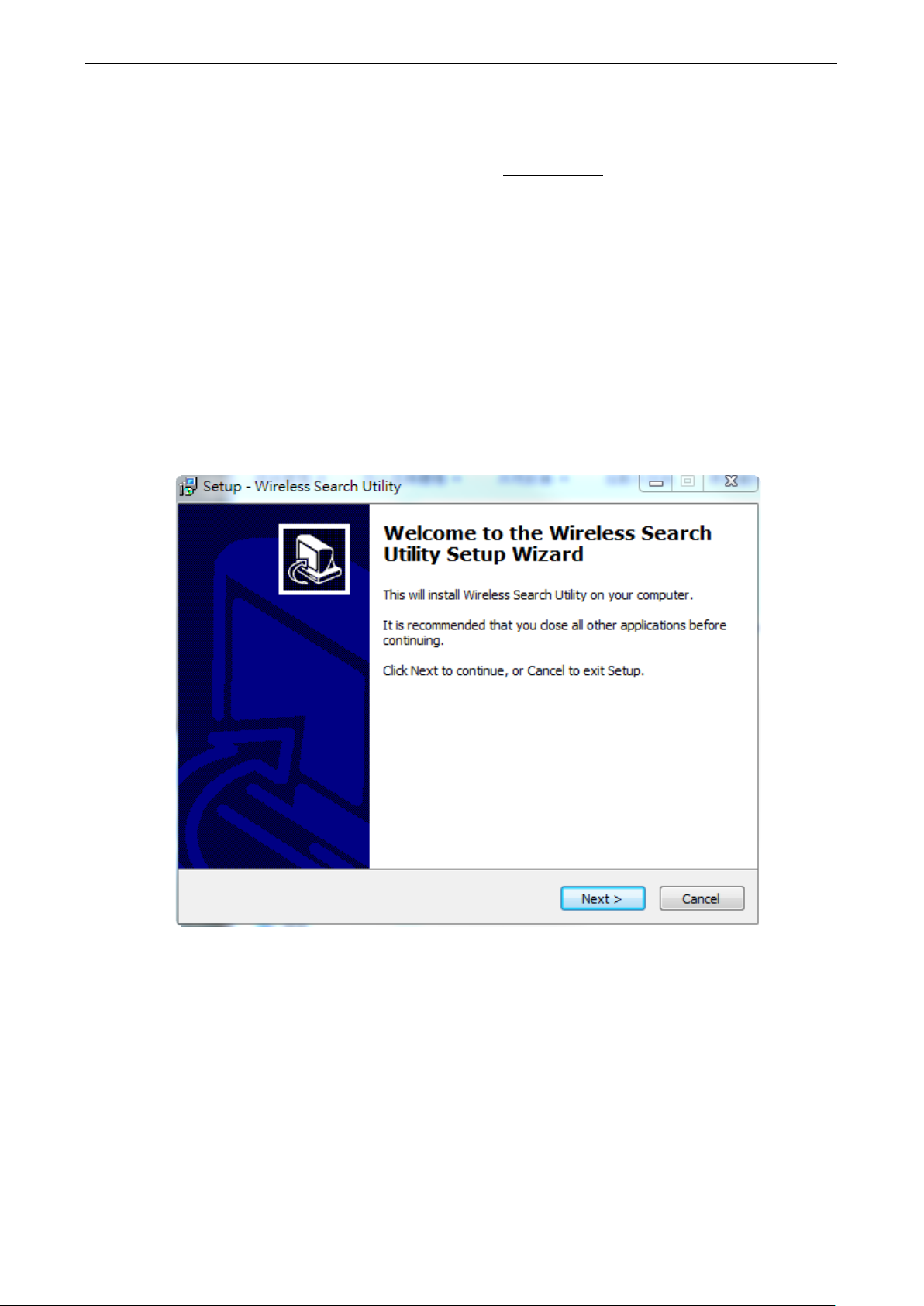

1. Click Next when the Welcome screen opens to proceed with the installation.

AirWorks AWK-1131A Software Installation and Configuration

4-3

2. Click Next to install program files to the default directory, or click Browse to select an alternate location.

3. Click Next to create the program’s shortcut files to the default directory, or click Browse to select an

alternate location.

AirWorks AWK-1131A Software Installation and Configuration

4-4

4. Click Next to select additional tasks.

5. Click Next to proceed with the installation. The installer then displays a summary of the installation options.

AirWorks AWK-1131A Software Installation and Configuration

4-5

6. Click Install to begin the installation. The setup window will report the progress of the installation. To

change the installation settings, click Back and navigate to the previous screen.

7. Click Finish to complete the installation of Wireless Search Utility.

Configuring Wireless Search Utility

The Broadcast Search function is used to locate all AWK-4131A APs that are connected to the same LAN as your

computer. After locating an AWK-4131A, you will be able to change its IP address. Since the Broadcast Search

function searches by TCP packet and not IP address, it doesn’t matter if the AWK-4131A is configured as an AP

or Client. In either case, APs and Clients connected to the LAN will be located, regardless of whether or not they

are part of the same subnet as the host.

1. Start the Wireless Search Utility program. When the Login page appears, select the “Device Search only”

option to search for devices and to view the configuration of each device. Select the “Device management”

option to assign IPs, upgrade firmware, and locate devices.

AirWorks AWK-1131A Software Installation and Configuration

4-6

2. Open the Wireless Search Utility and then click the Search icon.

3. The “Searching” window indicates the progress of the search. When the search is complete, all AWKs that

were located will be displayed in the Wireless Search Utility window.

AirWorks AWK-1131A Software Installation and Configuration

4-7

4. Click Locate to cause the selected device to beep.

5. Make sure your AWK is unlocked before using the search utility’s icons setting. The AWK will unlock

automatically if the password is set to the default. Otherwise you must enter the new password manually.

6. Go to Tools  Login Options to manage and unlock additional AWKs.

AirWorks AWK-1131A Software Installation and Configuration

4-8

ATTENTION

Change the default password to ensure a higher level of security.

DO NOT continue to use the default password,

7. Use the scroll down list to select the MAC addresses of those AWKs you would like to manage, and then click

Add. Key in the password for the AWK device and then click OK to save. If you return to the search page

and search for the AWK again, you will find that the AWK will unlock automatically.

To modify the configuration of the highlighted AWK, click on the Web icon to open the web console. This will

take you to the web console, where you can change the configuration of the AWK. Refer to Chapter 3, Web

Console Configuration for information on how to use the web console.

moxa after the first login.

AirWorks AWK-1131A Software Installation and Configuration

4-9

Click on Telnet if you would like to use telnet to configure your AWKs.

Click Assign IP to change the IP setting.

AirWorks AWK-1131A Software Installation and Configuration

4-10

The three advanced options—Search, Connection, and Miscellaneous—are explained below:

Search

• Retry count (default=5): Indicates how many times the search will be retried automatically.

• Retry interval (ms): The time elapsed between retries.

Connection

• Connection timeout (secs): Use this option to set the waiting time for the Default Login, Locate,

Assign IP, Upload Firmware, and Unlock to complete.

• Upgrade timeout (secs): Use this option to set the waiting time for the connection to disconnect while the

firmware is upgrading. Use this option to set the waiting time for the Firmware to write to flash.

Misc.

Search on start: Checkmark this box if you would like the search function to start searching for devices after

you log in to the Wireless Search Utility.



5. Additional Consoles

The following topics are covered in this chapter:

RS-232 Console Configuration (115200, None, 8, 1, VT100)

Configuration by Telnet and SSH Consoles

Configuration by Web Browser with HTTPS/SSL

Disabling Telnet and Browser Access

AirWorks AWK-1131A Additional Consoles

5-2

ATTENTION

Do not use the

even

If you need to connect the RS

82 isolator is your best solution.

NOTE

We recommend using

from Moxa’s website.

Overview

In addition to HTTP access, there are four ways to access AWK-1131A: serial console, Telnet console, SSH

console, and HTTPS console. The serial console connection method, which requires using a short serial cable to

connect the AWK-1131A to a PC’s COM port, can be used if you do not know the AWK-1131A’s IP address. The

other consoles can be used to access the AWK-1131A over an Ethernet LAN, or over the Internet.

RS-232 Console Configuration (115200, None, 8, 1, VT100)

The serial console connection method, which requires using a short serial cable to connect the AWK-1131A to

a PC’s COM port, can be used if you do not know the AWK-1131A’s IP address. It is also convenient to use serial

console configurations when you cannot access the AWK-1131A over Ethernet LAN, such as in the case of LAN

cable disconnections or broadcast storming over the LAN.

though reverse voltage protection is supported.

Before running PComm Terminal Emulator, use an RJ45 to DB9-F (or RJ45 to DB25-F) cable to connect the

AWK-1131A’s RS-232 console port to your PC’s COM port (generally COM1 or COM2, depending on how your

system is set up). After installing PComm Terminal Emulator, take the following steps to access the RS-232

console utility.

1. From the Windows desktop, open the Start menu and start PComm Terminal Emulator in the PComm

(Lite) group.

2. Select Open under Port Manager to open a new connection.

RS-232 console manager when the AWK-1131A is powered at reversed voltage (ex. -48VDC)

-232 console at reversed voltage, Moxa’s TCC-

Moxa PComm (Lite) Terminal Emulator, which can be downloaded free of charge

AirWorks AWK-1131A Additional Consoles

5-3

NOTE

To modify the appearance of the PComm Terminal Emulator window, select

and then choose the

desired formatting options.

ATTENTION

If you unplug the RS

network security.

3. In the Communication Parameter tab of the Property window that opens, select the appropriate COM

port for console connection using 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop

Bits. Click on the Terminal tab, and select VT100 (or ANSI) for Terminal Type. Click on OK to continue.

4. The console login screen is displayed. Log into the RS-232 console with the login name (default: admin)

and password (default: moxa, if no new password is set).

5. The AWK-1131A’s device information and Main Menu will be displayed. Follow the instructions on the screen

to select the administration task that you want to perform.

Edit  Font

-232 cable or trigger DTR, a disconnection event will be evoked to enforce logout for

You will need to log in again to resume operation.

AirWorks AWK-1131A Additional Consoles

5-4

NOTE

The

255.255.255.0

(for a Class C network). If you do not set these values properly, please check the network settings of your PC

host and then change the IP address

Configuration by Telnet and SSH Consoles

You can use Telnet or SSH client to access the AWK-1131A and manage the console over a network. To access

the AWK-1131A’s functions over the network from a PC host that is connected to the same LAN as the

AWK-1131A, you need to make sure that the PC host and the AWK-1131A are on the same logical subnet. To

do this, check your PC host’s IP address and subnet mask.

AWK-1131A’s default IP address is 192.168.127.253 and the default subnet mask is

to 192.168.127.xxx and subnet mask to 255.255.255.0.

Follow the steps below to access the console utility via the Telnet command or using an SSH client.

1. Start the windows Run command (Windows start menu, type “run” and press Enter) and use the telnet

command to access the IP address of your AWK-1131A.

Note that you can also run the telnet command from the Command Prompt.

If you are using an SSH client (ex. PuTTY), run the client program and then enter the IP address of your

AWK-1131A, specifying 22 for the SSH connection port.

2. The console login screen is displayed. Refer to RS-232 Console Configuration (previous paragraph) for login

and administration details.

Configuration by Web Browser with HTTPS/SSL

To secure your HTTP access, the AWK-1131A supports HTTPS/SSL encryption for all HTTP traffic. Perform the

following steps to access the AWK-1131A’s web browser interface via HTTPS/SSL.

1. Open your web browser and type https://<AWK-1131A’s IP address> in the address field. Press Enter to

establish the connection.

AirWorks AWK-1131A Additional Consoles

5-5

2. Warning messages will pop out to warn users that the security certificate was issued by a company they

have not chosen to trust.

3. Select Yes to accept the certificate issued by Moxa IW and then enter the AWK-1131A’s web browser

interface secured via HTTPS/SSL. (You can see the protocol in URL is https.) Then you can use the menu

tree on the left side of the window to open the function pages to access each of AWK-1131A’s functions.

Disabling Telnet and Browser Access

If you are connecting the AWK-1131A to a public network but do not intend to use its management functions over the network, we suggest disabling the Telnet console and the Web consoles at Maintenance 

Console Settings.



A. References

This chapter provides more detailed information about wireless-related technologies. The information in this

chapter can help you administer your AWK-1131As and plan your industrial wireless network better.

The following topics are covered in this appendix:

Beacon

DTIM

Fragment

RTS Threshold

AirWorks AWK-1131A References

A-2

Beacon

A beacon is a packet broadcast by the AP to keep the network synchronized. A beacon includes the wireless LAN

service area, the AP address, the Broadcast destination address, a time stamp, Delivery Traffic Indicator Maps

(DTIM), and the Traffic Indicator Message (TIM). Beacon Interval indicates the frequency interval of AP.

DTIM

Delivery Traffic Indication Map (DTIM) is contained in beacon frames. It is used to indicate that broadcast and

multicast frames buffered by the AP will be delivered shortly. Lower settings result in more efficient networking,

while preventing your PC from dropping into power-saving sleep mode. Higher settings allow your PC to enter

sleep mode, thus saving power.

Fragment

A lower setting means smaller packets, which will create more packets for each transmission. If you have

decreased this value and experience high packet error rates, you can increase it again, but it will likely decrease

overall network performance. Only minor modifications of this value are recommended.

RTS Threshold

RTS Threshold (256-2346) – This setting determines how large a packet can be before the access point

coordinates transmission and reception to ensure efficient communication. This value should remain at its

default setting of 2,346. When you encounter inconsistent data flow, only minor modifications are

recommended.



B. Supporting Information

This chapter presents additional information about this product. You can also learn how to contact Moxa for

technical support.

The following topics are covered in this appendix:

Firmware Recovery

DoC (Declaration of Conformity)

 Federal Communication Commission Interference Statement

RED Compliance Statement

AirWorks AWK-1131A Supporting Information

B-2

Firmware Recovery

When the LEDs that indicate FAULT, Signal Strength and WLAN all light up simultaneously and blink at

one-second intervals, it means that the system boot up process has failed. This might result from some wrong

operation or issues such as an unexpected shutdown during firmware update. The AWK-1131A is designed to

help administrators recover from such damage and resume system operation rapidly.

First, connect to the AWK-1131A’s RS-232 console with the settings 115200 bps and N-8-1. A message is

displayed on the terminal emulator at one-second intervals as shown below:

please set-up TFTP server 192.168.127.1 contains awk1131a.rom for firmware recovery.

To recover the firmware, do the following:

1. Change the IP address of the laptop to 192.168.127.1.

2. Set up a TFTP server in your laptop.

3. Download AWK-1131A's firmware from Moxa Website

4. Change firmware file name to awk1131a.rom

5. Connect to the AWK-1131A's RJ45 Ethernet port

If the settings are correct, the following message is shown on the terminal emulator. The AWK-1131A will

reboot when the firmware recovery process is complete.

Trying eth0

Using eth0 device

TFTP from server 192.168.127.1; our IP address is 192.168.127.253

Filename 'awk1131a.rom'.

Load address: 0x80060000

Loading: *#################################################################

#################################################################

AirWorks AWK-1131A Supporting Information

B-3

DoC (Declaration of Conformity)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, might cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example – use only shielded interface cables when connecting

to computer or peripheral devices). Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not

be co-located or operated in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your

body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC 15.407(e): Within the 5.15-5.25 GHz band, U-NII devices will be restricted to indoor operations to reduce

any potential for harmful interference to co-channel MSS operations.

AirWorks AWK-1131A Supporting Information

B-4

RED Compliance Statement

Moxa declares that the apparatus AWK-1131A complies with the essential requirements and other relevant

provisions of Directive 2014/53/Eu.

The 5150 to 5350 MHz frequency range is restricted to indoor use only. Outdoor operation in this range is

strictly prohibited.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special

attention must be paid to the dangers of electric shock and static electricity when working with electrical

equipment. All guidelines of this and of the computer manufacturer must therefore be allowed at all times to

ensure the safe use of the equipment.

EU Countries Not Intended for Use

None.

Moxa AWK-1131A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

Overview

Package Checklist

Product Features

Functional Design

LAN Port

LED Indicators

Beeper

Reset Button

2. Getting Started

First-time Installation and Configuration

Communication Testing

How to Test One AWK-1131A

How to Test Two or More AWK-1131A Units

Function Map

3. Web Console Configuration

Web Browser Configuration

Overview

Quick Setup

General Setup

System Information

Device name

Device location

Device description

Device contact information

Network Settings

Network Settings for AP/Client Operation Modes

IP address assignment

IP address

Subnet mask

Gateway

Primary/ Secondary DNS server

System Time

Current local time

Time zone

Daylight saving time

Time server 1/2

Time sync interval

Wireless LAN Setup

Operation Mode

Wireless enable

Operation mode

Basic WLAN Setup

RF type

Channel (for AP mode only)

Channel width (for any 11N RF type only)

Channel bonding

SSID

SSID broadcast (for AP mode only)

Management Frame Encryption

WLAN Security Settings

Security mode

Open

WEP (only for legacy mode)

Authentication type

Key type

Key length

Key index

WEP key 1-4

WPA/WPA2-Personal

WPA type

Encryption method

Passphrase

Key renewal (for AP/Master mode only)

WPA/WPA2-Enterprise (for AP/Master mode)

WPA type

Encryption method

Primary/Secondary RADIUS server IP

Primary/Secondary RADIUS port

Primary/ Secondary RADIUS shared key

Key renewal

WPA/WPA2-Enterprise (for Client)

Encryption method

EAP protocol

EAP-TLS

EAP-TTLS
