OPERATION MANUAL

OFFICE PRO 63

Unit Serial Number Range: 0711XXXX630 to Present

(From July 2011 to Present)

READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT

INSTALLATION AND USAGE AND READ ALL SAFEGUARDS

SECCIÓN EN ESPAÑOL

SECTION EN FRANÇAIS

AVAILABLE AT WWW.MOVINCOOL.COM

SERIAL NUMBER LOCATION AND IDENTIFICATION

Nameplate Label

COOLING AMPS. WITH PUMP

COMPR. OUTPUT

REFRIGERANT/TOTAL CHARGE

DESIGN PRESSURE LO/HI

PART NO./WEIGHT

SERIAL NO.

Nameplate Label Position

Month

Year

Model

Sequential Number

© 2013 DENSO PRODUCTS AND SERVICES AMERICAS, INC. All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the right to make changes without prior notice. MovinCool®, Office Pro®, and SpotCool® are registered trademarks of DENSO Corporation.

OPERATION MANUAL

OFFICE PRO 63

SERIAL NUMBER LOCATION AND IDENTIFICATION.................................... 2

FOREWORD.......................................................................................................5

Definition of Terms............................................................................................5

GENERAL WARNINGS & CAUTIONS ..............................................................6

INVENTORY ....................................................................................................... 7

INSTALLATION..................................................................................................8

Choosing an Installation Site ........................................................................... 8

Moving the Unit .................................................................................................9

Plugging in the Unit ........................................................................................10

Warning Signal Connection ...........................................................................11

Fire Alarm Control Panel Connection ...........................................................12

FEATURES.......................................................................................................13

OPERATION.....................................................................................................14

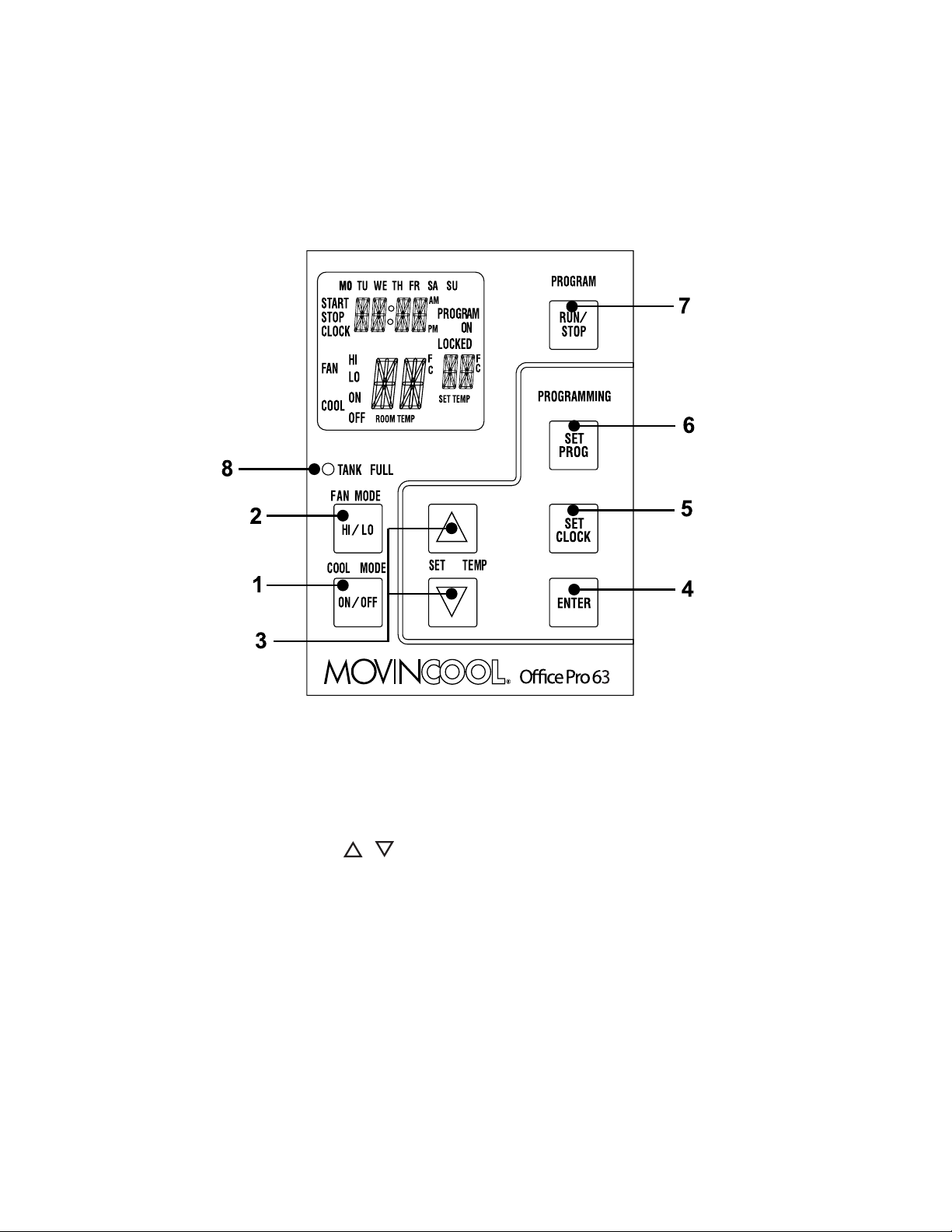

Control Panel ................................................................................................... 14

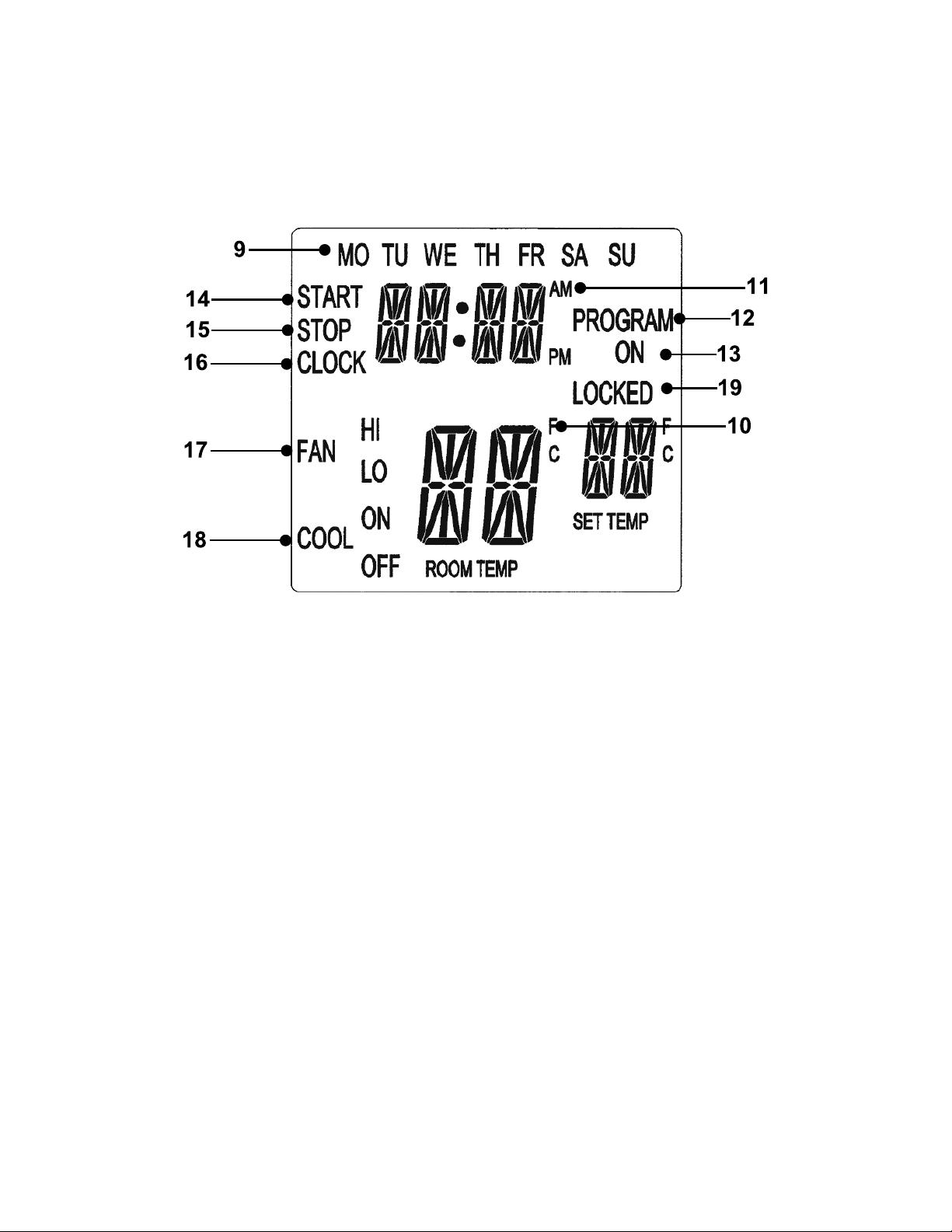

LCD Indicators.................................................................................................15

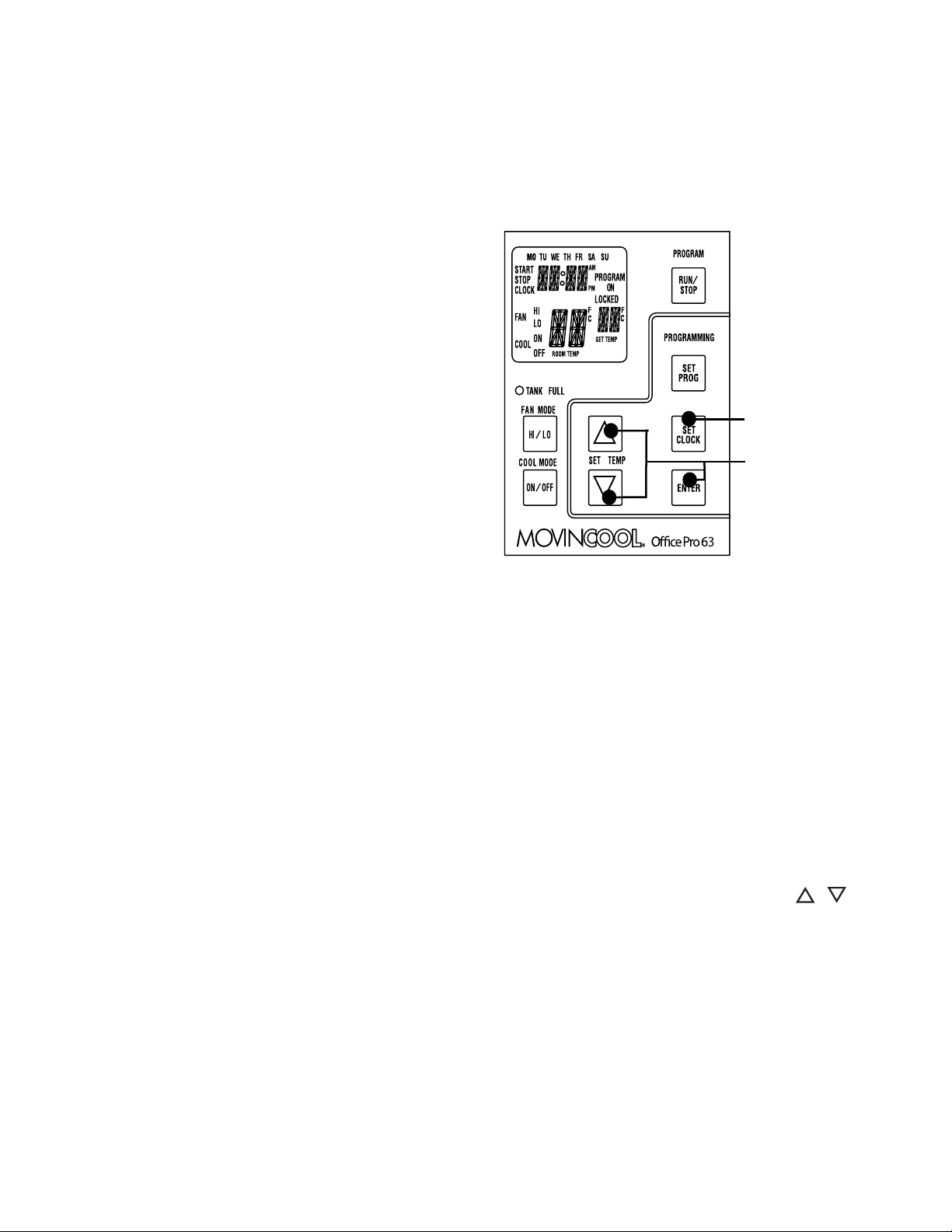

Set Clock .......................................................................................................... 16

Operating in COOL Mode ...............................................................................16

Operating in FAN ONLY Mode .......................................................................17

Changing from FAN ONLY Mode to COOL Mode.........................................17

Keypad Lock .................................................................................................... 17

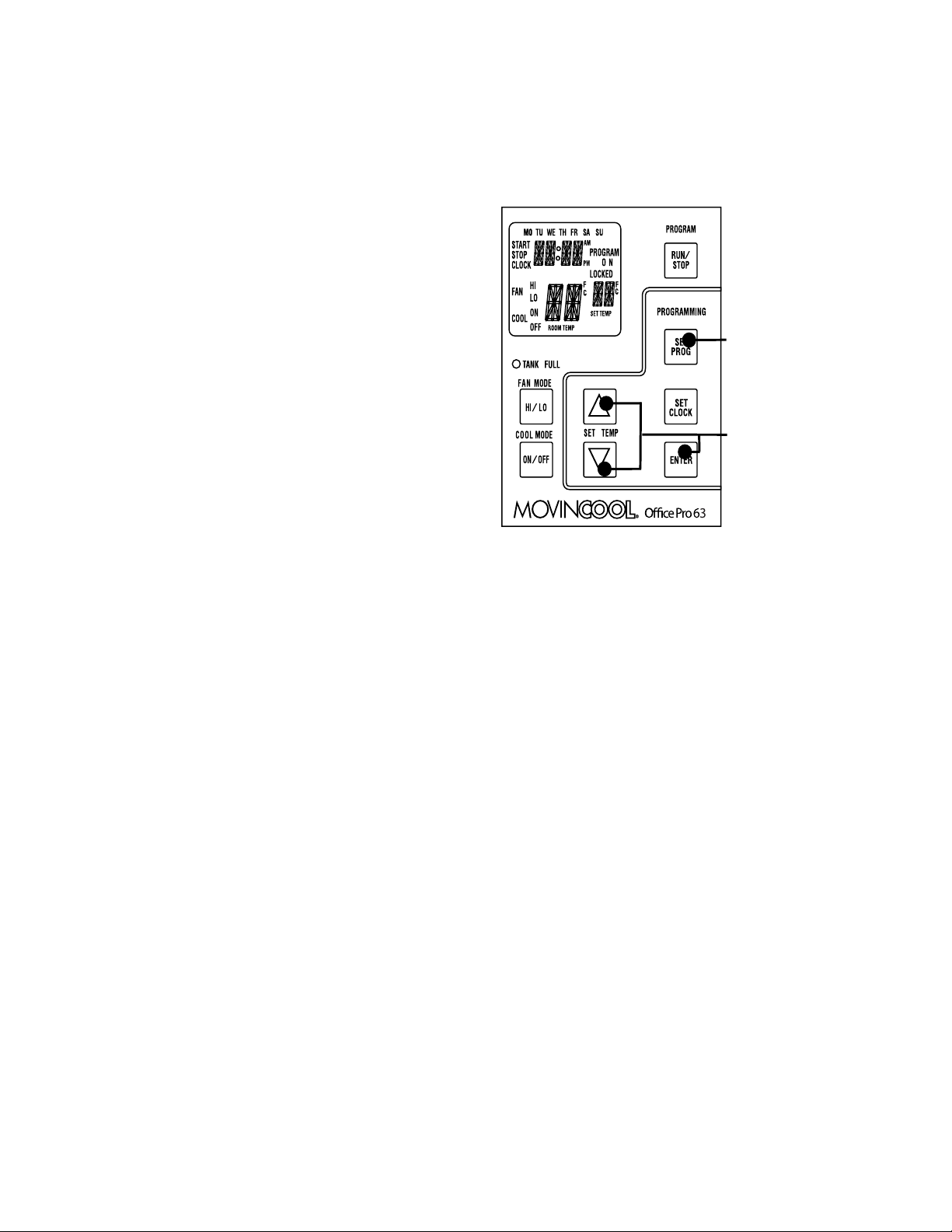

How to Set a Program ..................................................................................... 18

How to View and Delete Program ..................................................................19

How to Run and Stop Program ......................................................................19

Operating Modes ............................................................................................. 20

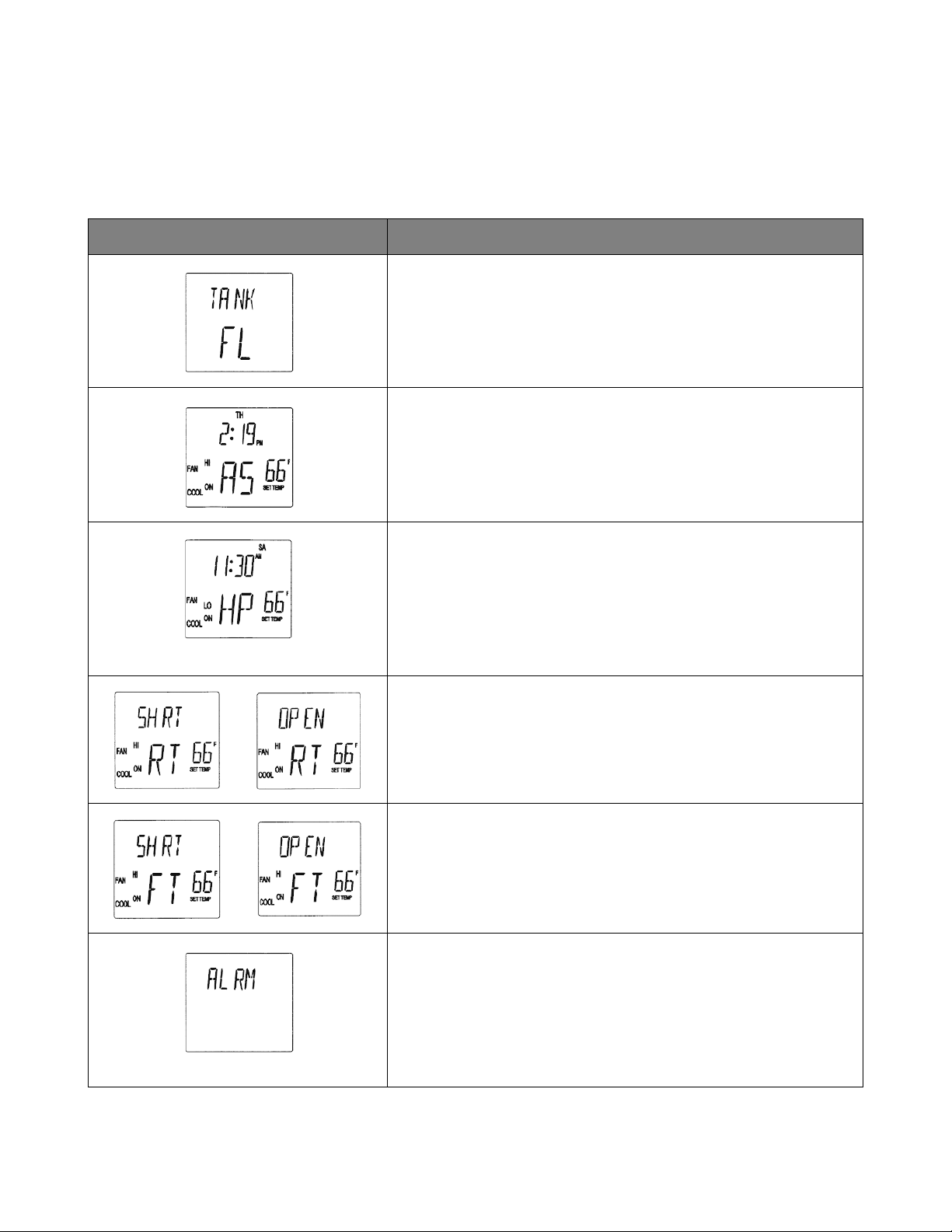

Self-Diagnostic Codes ....................................................................................21

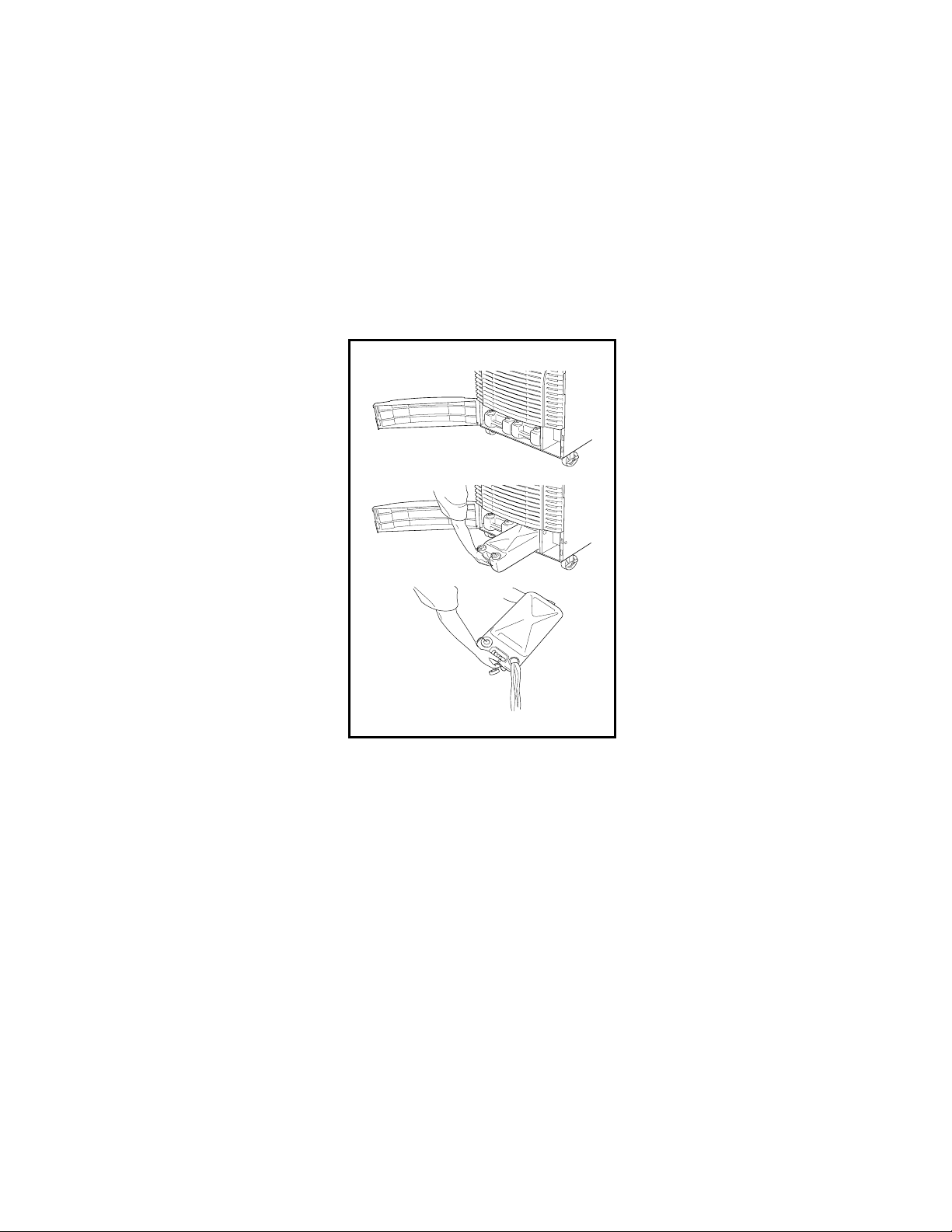

Empty the Drain Tank (If equipped)...............................................................22

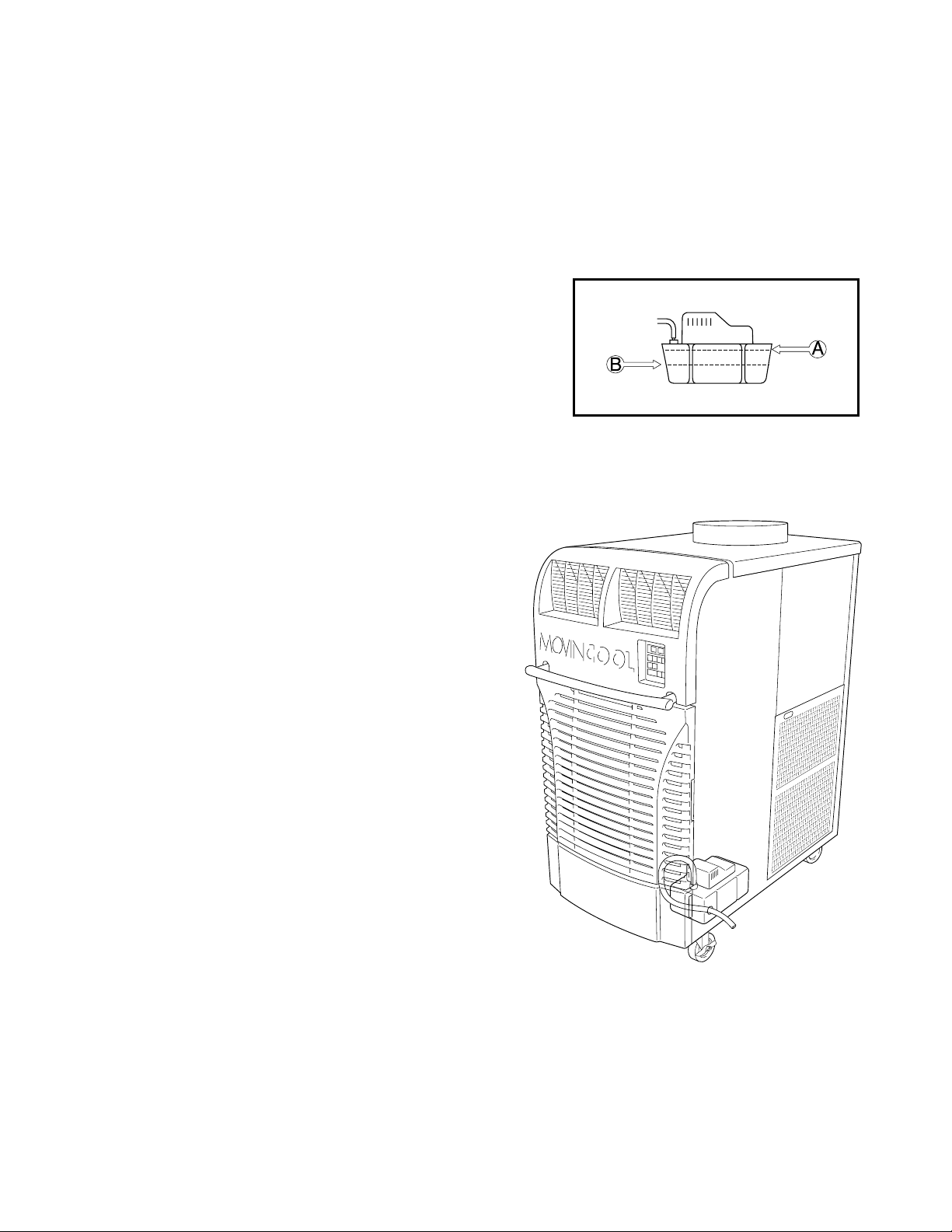

Drain Pump ...................................................................................................... 23

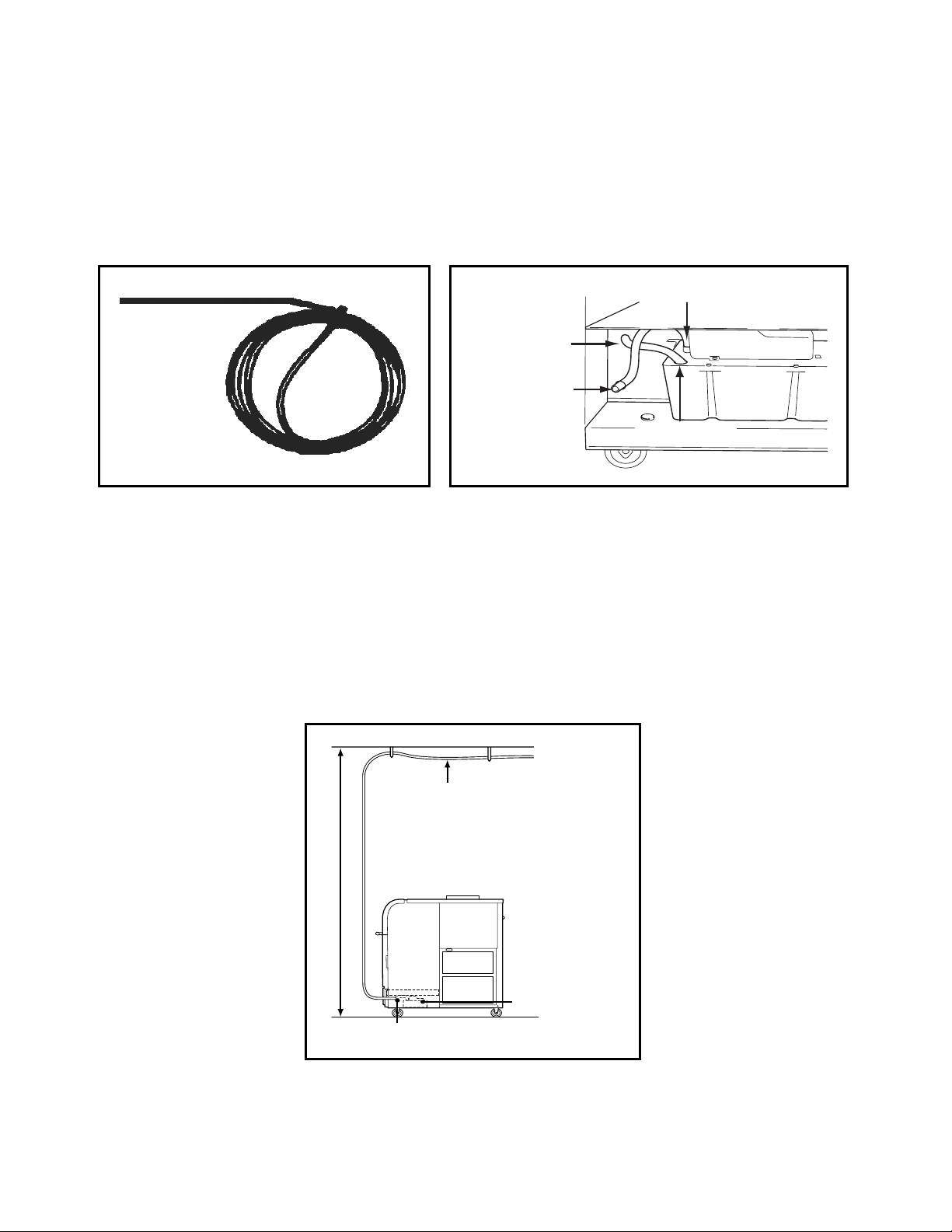

HOSE INSTALLATION .................................................................................... 24

DAILY INSPECTION & MAINTENANCE .........................................................25

Empty the Drain Tank .....................................................................................25

Clean the Air Filters ........................................................................................25

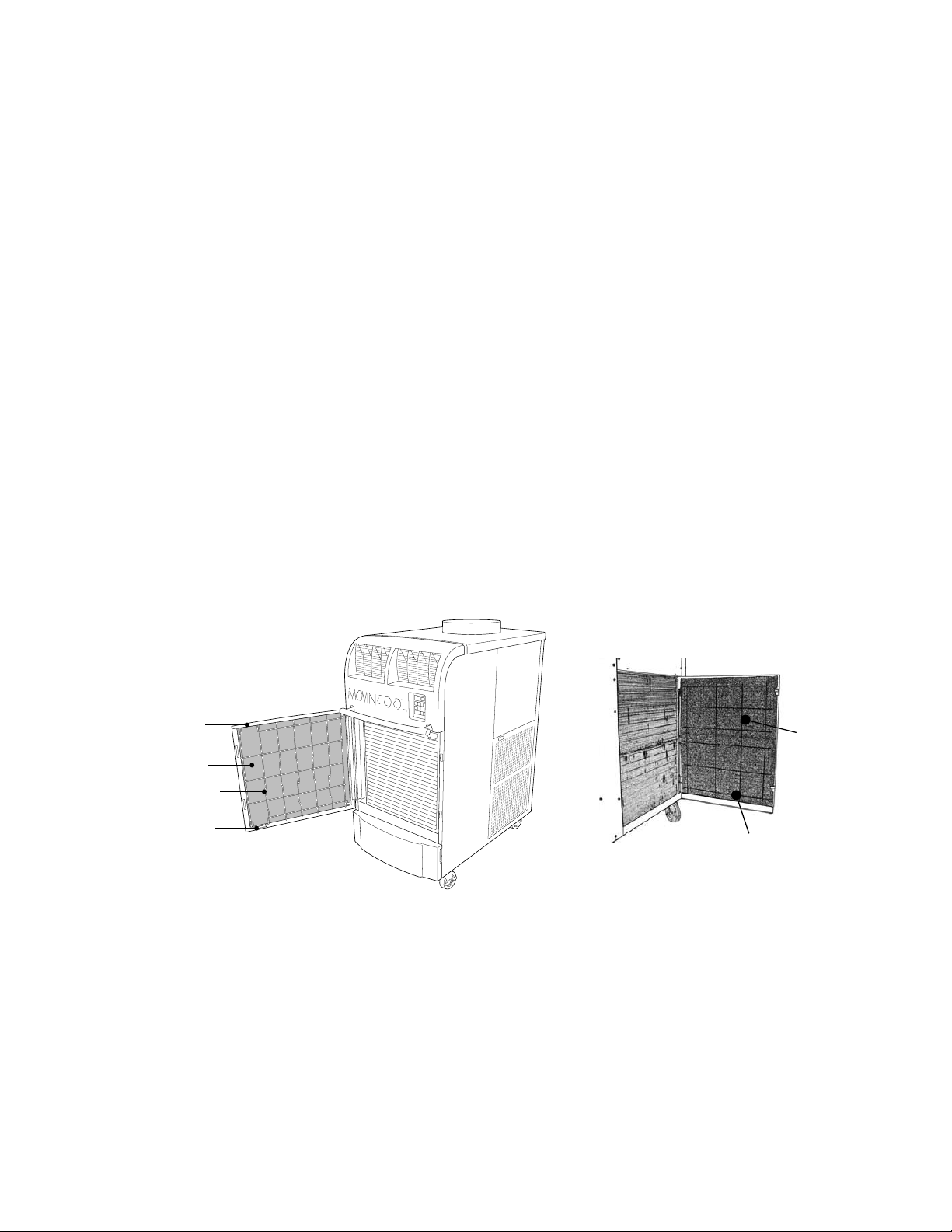

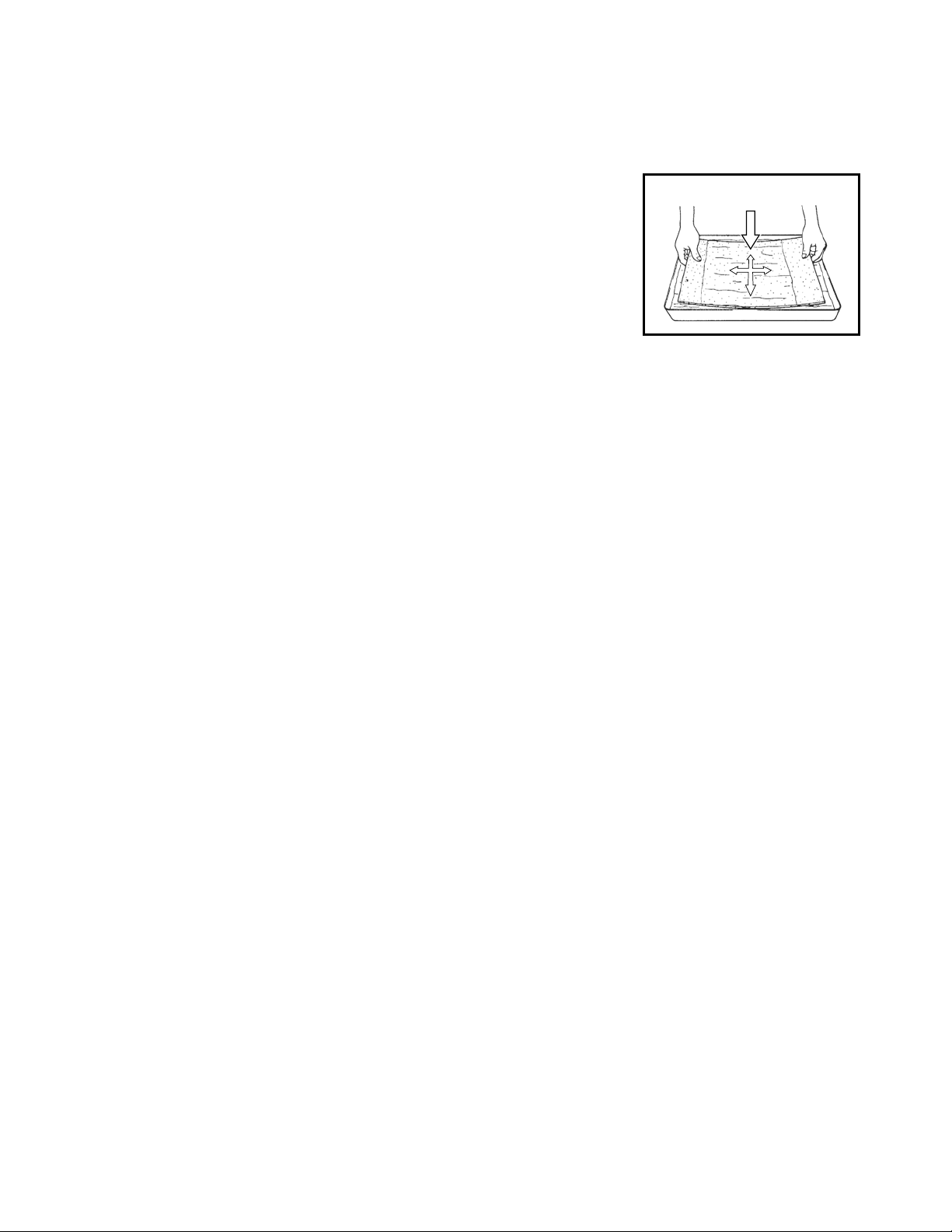

Filter Removal Method....................................................................................25

Filter Cleaning Method....................................................................................26

In-Season/Off-Season Inspection & Maintenance........................................ 26

TROUBLESHOOTING ..................................................................................... 27

TECHNICAL SPECIFICATONS .......................................................................28

FOREWORD

Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to assemble, install and operate the MovinCool Office Pro 63 portable air conditioning unit. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation.

You may also find it useful to keep this operation manual on hand for reference. Components and/or procedures are subject to change without prior notice.

Definition of Terms

WARNING: Describes precautions that should be observed in order to

prevent injury to the user during installation or unit operation.

CAUTION: Describes precautions that should be observed in order to

prevent damage to the unit or its components, which may occur during installation or unit operation if sufficient care is not taken.

Note: Provides additional information that facilitates installation on unit operation.

GENERAL WARNINGS & CAUTIONS

1. All electrical work, if necessary, should only be performed by qualified electrical personnel. Repair to electrical components by non-certified technicians may result in personal injury and/or damage to the unit. All electrical components replaced must be genuine MovinCool parts, purchased from an authorized reseller.

2. The proper electrical outlet for MovinCool units must be equipped with a UL approved ground-fault breaker to prevent electrical shock from the unit.

3. The Office Pro 63 is equipped with a six (6) foot (1.8 meter) power cord. For replacement, fixed location (hard wire) or power cord lengthening (extension cord) cords are required, contact your reseller or a qualified electrician for approved replacement methods.

4. Never fold or place heavy objects on the power cord. This could result in damage to the power cord causing electrical shock or fire.

5. Do not place water or any other liquid on the unit. This can cause damage to the unit and increase the risk of electrical shock.

6. Do not sit or stand on the unit.

INVENTORY

After unpacking your MovinCool unit, please check to make sure you have the following items:

1. Office Pro 63 MovinCool Unit (1)

2. Operation Manual / Product Registration (1)

Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement.

OFFICE PRO 63 MOVINCOOL UNIT

OPERATION MANUAL / PRODUCT REGISTRATION

INSTALLATION

Choosing an Installation Site

CAUTION: Following are some precautions to consider before choosing

your installation site. Please review carefully as improper installation may result in personal injury or damage to the unit.

1. Do not use the unit in areas where leakage of flammable gas may occur.

2. Do not use the unit in areas where it is exposed to rain or water.

3. Do not use the unit in an atmosphere of excessively corrosive gas or vapor.

4. Do not use in areas where the temperature is outside the allowable operating range.

5. Do not install the unit in sloping areas. The unit may move or topple over even if the casters are set to the LOCKED position.

6. Install the unit in areas that can with-stand the weight of the unit. The Office Pro 63 unit weighs approximately 739 lbs (335kg) (when the drain tank is full of water).

7. Allow 24 inches (610mm) of unobstructed airflow for both the air inlets and outlets.

8. Do not use the Office Pro 63 unit at condition above 106°F (41°C) 50% RH.

INSTALLATION (cont.)

Moving the Unit

Unlock all 4 casters and push the MovinCool unit, using the front or rear handles, to a flat, level surface and set the casters back to the LOCKED position.

UNLOCKED

LOCKED
