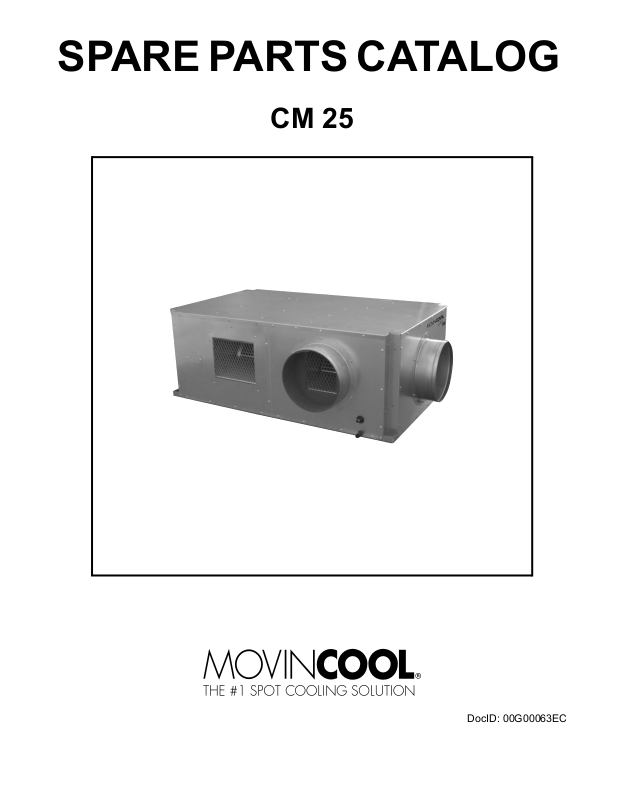

MovinCool CM25 User Manual

SPARE PARTS CATALOG

CM 25

DocID: 00G00063EC

Table of Contents

No.

1 484000-4210

UNIT PART

NUMBER

SERIAL NUMBER RANGE REFRIGERANT SECTION

1009XXXXC25 to Present

(From October 2009 to Present)

R410A

Page 3 ~ 15

SP0077-03

SERIAL NUMBER LOCATION AND IDENTIFICATION

Nameplate Label

COOLING AMPS. WITH PUMP

COMPR. OUTPUT

REFRIGERANT/TOTAL CHARGE

DESIGN PRESSURE LO/HI

PART NO./WEIGHT

SERIAL NO.

Nameplate Label Position

© 2013 DENSO PRODUCTS AND SERVICES AMERICAS, INC.
All rights reserved. This book may not be reproduced or copied, in whole or in part, without the
written permission of the publisher. DENSO PRODUCTS AND SERVICES AMERICAS, INC.
reserves the right to make changes without prior notice. MovinCool®, Office Pro® and
SpotCool® are registered trademarks of DENSO Corporation.

Month

Year

▲▲  XXXX ###

Model

Sequential
Number

No.1 SP0077-03

CM 25

Unit Part No: 484000-4210

Unit Serial Number Range:

1009XXXXC25 to Present

(From October 2009 to Present)

3

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

1

2

6

435

ILL00669-00

4SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.
NO.

1 Insulator 481862-1900 1 For Cool Air Duct Flange

2 Clip, Hose 949351-0410 1

3 Controller Assy 484500-3863 1 Wall Mounted Controller (WMC)

4 Wire Assy 481950-0990 1 For WMC

5 Bolt 480919-0850 4 D4, L=25

6 Cushion 484904-0450 4 Vibration Isolator

DESCRIPTION PART NO. QTY.

UNIT

SERIAL NO.

RANGE*

REMARKS

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

5 SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

28

17

29

16

18

3

3

15

21

33

21-1

3

30

13

19

7

9

20

11

1

8

27

2

3

26

5

4

10

6

14

24

23

12-3

25

19

12-2

33

12

12-4

12-1

32

31

22-1

22

33

ILL00670-00

6SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.
NO.

DESCRIPTION PART NO. QTY.

UNIT

SERIAL NO.

REMARKS

RANGE*

1 Connector 479748-0020 1 For Power Cord

2 Washer, Plate 90201-06400 1 For Ground

3 Screw 90051-06120 1 Ground, M6×1, L=12

4 Grommet 484926-0450 2 For Signal/WMC Wire

5 Nut, Holder 484919-0070 2 For Signal/WMC Wire

6 Clip 482852-0890 1 w/Pin

7 Stay Assy, Right Rear 484330-0660 1

8 Screw 949006-5850 110 M4×0.7,L=10

9 Stay Assy, Right Front 484330-0670 1

10 Stay Assy, Left 481821-1401 1

11 Stay Assy, Left Rear 481821-1420 1

12 Pan Assy 484430-0730 1 w/ILL.NO.12-1~12-2

12-1 Drain Pan 484440-0200 1 Drain Pan Only

12-2 Pump Assy 484780-0250 1 w/ILL.NO.12-3~12-4

12-3 Pump 484780-0240 1

12-4 Float Switch 483651-0080 1

13 Insulator 481862-1600 1 For ILL.NO.12-1

14 Stay Assy, Front 484330-0680 1

15 Screw, Tapping 949001-1570 4 D4,L=10

16 Wire Assy 481950-0971 1 For Ground

17 Srew 91051-04100 1 M4×0.7,L=10

18 Frame Assy 484300-3220 1

19 Nut 949056-3700 14 M5×0.8

20 Stay 481821-1480 1

21 Panel Assy, Right 484410-9390 1 w/ILL.NO.21-1

21-1 Duct Sub-Assy 484360-0830 1

22 Panel Assy, Front Right 484410-9400 1 w/ILL.NO.22-1

22-1 Duct Sub-Assy 484360-0840 1

23 Panel Sub-Assy, Front Left 484470-4760 1

24 Jumper Connector 484930-9931 1

25 Cover Plate 484411-6270 1

26 Panel Assy, Left Front 484410-9430 1

27 Panel Assy, Left Rear 484411-6280 1

28 Panel Assy, Right Rear 484410-9410 1

29 Panel Assy, Top 484410-9420 1

30 Panel Assy, Service 484410-9440 1

31 Cap 484922-0200 1

32 Clip, Hose 949351-0800 1

33 Bolt w/Washer 91570-05101 18 M5×0.8, L=10

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

7 SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

11

6

5

12

4-1

4

9-2

14

9-1

9

10

15

13

8

6

1-1

7

1-2

1

3

2

1-3

ILL00671-00

8SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.

DESCRIPTION PART NO. QTY.

NO.

1 Compressor Assy 484650-3060 1 w/Pipe for Discharge & Suction

1-1 Overload Relay 484501-0460 1 Inside Compressor Cover

1-2 Wire Assy 481950-0961 1 For Compressor

1-3 Cushion 484904-0430 3

2 Washer, Steel Plate 949011-5330 3

3 Nut 90190-08651 3 M8×1.25

4 Core Assy, Evaporator 484600-2600 1 w/ILL.NO.4-1

4-1 Distributor Assy 484620-0150 1

5 Thermistor 484532-0182 1 Evaporator Air Inlet (RTS2)

6 Clip 482852-0930 2

7 Thermistor 484532-0191 1 Outdoor Air (ODS)

8 Core Assy, Condenser 484600-2610 1

9 Pipe Assy 484800-4950 1 w/ILL.NO.9-1~9-2

9-1 Pipe Assy, Connecting 484800-4960 1

9-2 High Pressure Swtich Assy 484660-2500 1

10 Thermistor 484532-0211 1 Evaporator Pipe Inlet (CTS2) &

11 Insulator 480949-7931 1 For Evaporator Pipe Outlet

12 Insulator 484901-2140 1 For Evaporator Pipe Inlet

13 Thermistor 484532-0201 1 Condenser (CTS1)

14 Expansion Coil 484500-3830 1

15 Pipe Assy, Charging 484800-0440 1 5 Pieces Per Package

UNIT

SERIAL NO.

RANGE*

REMARKS

w/ILL.NO.1-1~1-3

Outlet (CTS3)

Thermistor (CTS3)

Thermistor (CTS2)

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

9 SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

8

7

1

2

6

5

4

10

3

9

ILL00672-00

10SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.

DESCRIPTION PART NO. QTY.

NO.

1 Casing, Evaporator Fan 484260-0500 1

2 Frame Assy 484301-5580 1

3 Motor, Evaporator 484211-1870 1

4 Bolt w/Washer 91570-06201 4 M6×1, L=20

5 Clamp 473459-0160 1 D11.5, w/Pin

6 Nut 949056-1430 4 M6×1

7 Fan, Evaporator 484221-0610 1

8 Ring Sub-Assy 484280-0120 1

9 Screw, Tapping 949001-1570 6 D4, L=10

10 Grommet 484926-0290 1 For Pump Wire

UNIT

SERIAL NO.

RANGE*

REMARKS

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

11 SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

1

7

4

8

2

6

9

3

5

ILL00673-00

12SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.

DESCRIPTION PART NO. QTY.

NO.

1 Casing, Condenser Fan 484260-0510 1

2 Frame Assy 484301-5610 1

3 Motor, Condeser 484211-1880 1

4 Bolt w/Washer 91570-06201 4 M6×1, L=20

5 Clamp 473459-0160 1 D11.5, w/Pin

6 Nut 949056-1430 4 M6×1

7 Fan, Condenser 484221-0440 1

8 Ring Sub-Assy 484381-0530 2

9 Screw, Tapping 949001-1570 12 D4, L=10

UNIT

SERIAL NO.

RANGE*

REMARKS

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

13 SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

18

8

10

11

19

1

7-1

9

16

21

20

2

3

7-1

15

14

13

6

14

4

12

5

21

17

8

8

7

3

ILL00674-00

14SP0077-03

Unit Serial Number Range: 1009XXXXC25 to Present

CM 25

ILL.

DESCRIPTION PART NO. QTY.

NO.

1 Box Sub-Assy 484520-1211 1

2 Terminal 484503-0970 1 For Power

3 Screw 949006-3280 5 M4×0.7, L=18

4 Terminal 484503-0980 1 For Signal

5 Screw 949006-6220 2 M3×0.5, L=12

6 Switch 484502-0550 1 Stop Switch

7 Relay Board 484500-3844 1 w/ILL.NO.7-1

7-1 Fuse, Relay Board 481936-0210 1 3.15A, 250V

8 Screw 949006-5850 11 M4×0.7, L=10

9 Inductor Coil 484500-3850 1 450V, 20A

10 Noise Filter 484500-3880 1 250VAC, 20A

11 Stay 481821-1520 1

12 Grommet 484926-0400 2 For Motor Wires

13 Grommet 949321-3000 1 D20, For Stop Switch Wire

14 Grommet 949321-3010 2 D26, For Compressor Wires

15 Clamp 473459-0050 1 D7, w/Pin

16 Clamp 473459-0160 1 D11.5, w/Pin

17 Wire Assy 481950-0920 1 (RB)↔(EXV)

18 Wire Assy 481950-0930 1 (RB)↔(PUMP)

19 Wire Assy 481950-0940 1 (RB)↔(TB2)

20 Grommet 484926-0290 1 For Outdoor Thermistor (ODS)

21 Screw 91051-04100 2 Ground, M4×0.7, L=10

UNIT

SERIAL NO.

RANGE*

REMARKS

5 Pieces Per Package

Wire

*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.

"Unit Serial Number Range*" column indicates the first four digits of the unit serial number.

15 SP0077-03
