OPERATION MANUAL
CM25
Unit Serial Number Range: 1009XXXXC25 to Present
(From October 2009 to Present)
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS.
SECCIÓN EN ESPAÑOL
SECTION EN FRANÇAIS
AVAILABLE AT WWW.MOVINCOOL.COM
SERIAL NUMBER LOCATION AND IDENTIFICATION
Nameplate Label
COOLING AMPS. WITH PUMP
COMPR. OUTPUT
REFRIGERANT/TOTAL CHARGE
DESIGN PRESSURE LO/HI
PART NO./WEIGHT
Nameplate Label Position
SERIAL NO.
Month
Year
▲▲ XXXX ###
Model
Sequential
Number
© 2013 DENSO PRODUCTS AND SERVICES AMERICAS, INC.
All rights reserved. This book may not be reproduced or copied, in
whole or in part, without the written permission of the publisher.
DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the
right to make changes without prior notice. MovinCool®, Office Pro®
and SpotCool® are registered trademarks of DENSO Corporation.
OPERATION MANUAL
CM25
Table of Contents
SERIAL NUMBER LOCATION AND IDENTIFICATION ................................... 2
FOREWORD ...................................................................................................... 6
Definition of Terms................................................................................ 6
GENERAL WARNINGS & CAUTIONS.............................................................. 6
UNPACKING ...................................................................................................... 7
INVENTORY....................................................................................................... 8
INSTALLATION ................................................................................................. 9
Unit Overview ........................................................................................ 9
Clearance Requirement ...................................................................... 10
Mounting CM25 to Roof Structure ..................................................... 11
Drain Hose Connection....................................................................... 16
Packing Attachment ............................................................................ 17
Ducting With Typical Drop Ceiling..................................................... 18
Condenser Duct Installation (Optional)............................................. 19
Power Supply and Field Wiring Connection ..................................... 20
DIP Switch Configuration and Setting............................................... 22
Supplied Wall Mounted Controller Connection ................................ 24
Field-Supplied Millivolt Wall Thermostat Connection...................... 29
Warning Signal Connection (Output Signal)..................................... 32
Fire Alarm Connection (Input Signal) ................................................ 34
FEATURES OF WALL MOUNTED CONTROLLER........................................ 36
FEATURES OF CM25...................................................................................... 37
OPERATION (Wall Mounted Controller ONLY) ............................................ 38
Control Panel ....................................................................................... 38
Standby Mode ...................................................................................... 41
Set Clock .............................................................................................. 41
Operate in COOL Mode ....................................................................... 42
Operate in FAN ONLY Mode ............................................................... 43
Change Mode ....................................................................................... 43
Change Temperature Scale ................................................................ 43
Keypad Lock ........................................................................................ 43
Program Feature.................................................................................. 43
Program Setting .................................................................................. 44
Select Program Sequence Number.................................................... 45
Set Start Time and Operation Mode................................................... 45
Set Stop Time ...................................................................................... 46
Exit Program Mode.............................................................................. 46
View Program ...................................................................................... 46
Edit Program ........................................................................................ 47
Delete Program .................................................................................... 47
Run and Stop Program ....................................................................... 47
Program Plan Sheet ............................................................................ 48
SELF-DIAGNOSTIC CODES & BUZZER PATTERN ...................................... 49
Self-Diagnostic Codes ........................................................................ 49
Table of Self-Diagnostic Codes.......................................................... 49
Buzzer Pattern ..................................................................................... 50
DAILY INSPECTION & MAINTENANCE ......................................................... 51
Cleaning Air Filters ............................................................................. 51
Cleaning Condenser Air Intake .......................................................... 51
Ground Fault Breaker Testing............................................................ 51
TROUBLESHOOTING ..................................................................................... 52
TECHNICAL SPECIFICATIONS...................................................................... 58
FOREWORD
Congratulations on purchasing the MovinCool air conditioner. This manual
explains how to assemble, install and operate the MovinCool CM25 air
conditioning unit. Please read this operation manual thoroughly to familiarize
yourself with the features of the unit and to ensure years of reliable operation.
You may also find it useful to keep this operation manual on hand for reference.
Components and/or procedures are subject to change without prior notice.
Definition of Terms
WARNING: Describes precautions that should be observed in order
to prevent injury to the user during installation or unit operation.
CAUTION: Describes precautions that should be observed in order
to prevent damage to the unit or its components, which may occur
during installation or unit operation if sufficient care is not taken.
Note: Provides additional information that facilitates installation or unit operation.
GENERAL WARNINGS & CAUTIONS
1. All electrical work should only be performed by qualified electrical personnel.
Repair to electrical components by non-certified technicians may result in
personal injury and/or damage to the unit. All electrical components replaced
must be genuine MovinCool parts, purchased from an authorized reseller.
2. Installation should be conducted by qualified technician only. DENSO and
DENSO affiliate are not responsible for injuries and/or damages caused by
improper installation.
3. Disconnect power before any electrical installation. Beware that some residual
voltage may remain in the unit immediately after the power is disconnected.
4. The power supply for this unit should be a dedicated single outlet circuit with
UL recognized short-circuit and ground-fault protective breaker.
5. Do not place water or any other liquid on the unit. This can cause damage to
the unit and increase the risk of electrical shock.
6. Do not sit or stand on the unit.
7. Do not place hands or any object in the cool air outlet or exhaust duct.
Touching the fan, which is rotating at a high speed, is very hazardous.
6
UNPACKING
Remove the package as shown below.
Note: The unit can be installed while the unit is on the pallet.
(See “Mounting CM25 to Roof Structure” on page 11 to 13.)
PACKAGE
UNIT
PALLET
MOUNTING HOLES
7
INVENTORY
After unpacking your MovinCool unit, please check to make sure you have the
following items:
1. CM25 MovinCool Unit (1)
2. Operation Manual/Product
Registration (1)
3. Clip (1)
4. Packing (1)
Note: If any of these items were not included in the box or appear damaged,
please contact your MovinCool reseller for replacement.
CM25 UNIT WALL MOUNTED CONTROLLER
5. Vibration Isolator (4)
6. Wall Mounted Controller (1)
7. Shield Wire (1)
8. Screw (4)
CLIP
VIBRATION ISOLATOR
SHIELD WIRE FOR WALL
MOUNTED CONTROLLER (12 ft)
SCREW FOR WALL
MOUNTED CONTROLLER
OPERATION MANUAL /
PRODUCT REGISTRATION
PACKING (1.8 x 43.9 x 0.2 in)
8
INSTALLATION
Unit Overview
CONDENSER (HOT) AIR EXHAUST
DRAIN PIPE FOR PUMP
CONDENSATE PAN DRAIN
FOR MAINTENANCE
COOL AIR EXHAUST
(12 in DIA. FLANGE)
EVAPORATOR (ROOM)
AIR INTAKE
(12 in DIA. FLANGE)
MOUNTING HOLES
SERVICE PANEL
STOP SWITCH
WALL MOUNTED CONTROLLER/
MILLIVOLT WALL THERMOSTAT
WIRE INLET
SIGNAL WIRE INLET
CONDENSER AIR INTAKE
POWER CORD INLET
WARNING: Remove protective cardboard from condenser air intake
after installation.
9
INSTALLATION (cont.)
Clearance Requirement
All dimensions are in inches.
Unit Weight: 310 lb (140 kg)
WALL
Minimum
clearance
20.0 in
from wall
31.5
Minimum
clearance
40.0 in
from wall
29.8
EXHAUST
INTAKE
53.0
51.3
DIA. 11.8
WALL
DIA. 0.6
4.0
15.7
DIA. 11.8
4.0
14.4
Top of the unit should not contact
any building structure or object.
CEILING
10
14.4
6.5
0.6
20.1
11. 4
4.0
INSTALLATION (cont.)
Mounting CM25 to Roof Structure
Be sure to securely anchor the top ends of the suspension rods. Make sure all nuts
are tight. Be sure to follow all applicable codes.
The unit is usually mounted above the ceiling and must be securely mounted to
the roof structure. The ceiling support of the existing building may require
reinforcements.
WARNING: Be sure that the supporting roof structure is capable of
supporting the weight of the unit, mounting hardware and the
accessories. Roof structure should be capable to support four
times of total weight or more. Unit weight is 310 lb (140 kg).
The recommended clearance between ceiling grids and building structural
member is the unit height plus 3.0 inch (76 mm).
All mounting hardware except vibration isolators is field supplied.
Use the following hardware.
Hardware (Quantity) Size
Threaded suspension rod (4)
Nut (12)
Washer (4)
½ in (Min. 310 lb (140 kg) load capability)
½ in
½ in
11
INSTALLATION (cont.)
Mounting CM25 to Roof Structure (cont.)
Example of Mounting with Pallet
1. Install four (4) suspension rods by suspending them from suitable building
structure members. Locate the rods so that they will align with four mounting
holes that are part of the unit base. Make sure to securely anchor the top ends
of the suspension rods and tighten all nuts.
2. Insert four (4) nuts (top) to the suspension rods before mounting the unit (12.0
inch minimum height from the bottom end of the suspension rods).
ROOF STRUCTURE
12.0 in
Min.
29.8 in
51.3 in
NUT (top)
3. Locate the rods so that they will align with four mounting holes. Enter the lifts
into pallet openings. Slowly lift up the unit with the pallet.
THREADED
SUSPENSION ROD
SUSPENSION ROD
UNIT
PALLET
LIFTS
MOUNTING HOLE
12
INSTALLATION (cont.)
Mounting CM25 to Roof Structure (cont.)
Example of Mounting with Pallet
4. Insert the suspension rods
through the mounting holes of
unit and pallet. Then install
vibration isolators, washers,
nuts (middle) and jam nut
(bottom) to be same level for all
four mounting positions.
5. Slowly lower the pallet with the lifts.
SUSPENSION ROD
NUT (top)
MOUNTING HOLE
PALLET
VIBRATION ISOLATOR
WASHER
NUT (middle)
JAM NUT (bottom)
PALLET
LIFTS
6. Make sure the unit is level.
Level must be less than 2° incline.
If the unit is not level, align the nut (middle) to level.
CAUTION: If level is more than 2° incline, condensation water
leakage may occur.
7. Tighten the jam nut (bottom).
Tightening torque for jam nut: Approx. 3.02 ft•lbf (4.1 N•m)
8. Tighten the nut (top) by hand until it is secured against the base frame.
13
INSTALLATION (cont.)
Mounting CM25 to Roof Structure (cont.)
Example of Mounting without Pallet
1. Install four (4) suspension rods by suspending them from suitable building
structure members. Locate the rods so that they will align with four mounting
holes that are part of the unit base. Make sure to securely anchor the top ends
of the suspension rods and tighten all nuts.
2. Insert four (4) nuts (top) to the suspension rods before mounting the unit (12.0
inch minimum height from the bottom end of the suspension rods).
ROOF STRUCTURE
12.0 in
Min.
29.8 in
51.3 in
NUT (top)
3. Locate the rods so that they will align with four mounting holes. Slide the unit
from the pallet onto the lifts. Slowly lift up the unit.
UNIT
THREADED
SUSPENSION ROD
SUSPENSION ROD
PALLET
LIFTS
MOUNTING HOLE
14
INSTALLATION (cont.)
Mounting CM25 to Roof Structure (cont.)
Example of Mounting without Pallet
4. Insert the suspension rods
through the mounting holes of
the unit. Then install vibration
isolators, washers, nuts
(middle) and jam nut (bottom) to
be same level for all four
mounting positions.
SUSPENSION ROD
NUT (top)
MOUNTING HOLE
VIBRATION ISOLATOR
WASHER
NUT (middle)
JAM NUT (bottom)
5. Slowly lower the lifts.
6. Make sure the unit is level. Level must be less than 2° incline. If the unit is
not level, align the nut (middle) to level.
CAUTION: If level is more than 2° incline, condensation water
leakage may occur.
7. Tighten the jam nut (bottom).
Tightening torque for jam nut: Approx. 3.02 ft•lbf (4.1 N•m)
8. Tighten the nut (top) by hand until it is secured against the base frame.
15
INSTALLATION (cont.)
Drain Hose Connection
The CM25 is equipped with an internal
condensation removal pump with
maximum head lift of 4 feet (1.2 m).
1. Use the provided 1/2 inch (13 mm)
male connection on the unit for the
evaporator coil condensate drain.
The drain line must be located so it
will not be exposed to freezing
temperatures. The drain should be
the full size of the drain connection.
(Connect the drain hose to the
condensation drain or the janitor closet.)
2. PVC tubing (1/2 inch (13 mm) for ID, 5/8 inch (16 mm) for OD) is required for
the drain. Insulate the drain hose. Condensation may occur during humid
conditions.
Note: PVC tubing and insulation material are field supplied.
DRAIN PIPE
CONDENSATE PAN DRAIN
FOR GRAVITATIONAL
DRAIN/MAINTENANCE
STOPPER
1. Plug in the 1/2 inch (13
mm) drain hose with the
supplied clip into the drain
pipe. Make sure the hose
is all the way in and flush
with the grommet.
2. Position the clip to the top
of the drain pipe near the
unit as shown.
3. Pull out the stopper and
secure hose. Make sure
there are no kinks or bends.
When using the gravity
drain, make sure the hose
is connected as a decline.
Note: Do not use more than 4 feet (1.2 m) of drain hose vertically. This is maximum
lift of the condensation pump.
3. To insure proper drainage, locate the drain hose to the highest vertical position,
no more than 4 feet (1.2 m) high, and run the hose to the drain on a downward
slope at a minimum rate of 1/4 inch (6 mm) per foot.
MAX. 3 ft
(0.9 m)
MAX. 4 ft (1.2 m)
1/4 in (6 mm)
PER FOOT
OR MORE
16
INSTALLATION (cont.)
Drain Hose Connection (cont.)
Check following items:
• No kinks or bends on the drain hose
• No trap in the drain hose
• The end of the drain hose should be highter than the water level at the drain
• No dripping from the drain hose at the clamping area
• When uninstalling the unit, empty the drain pan by draining out the water through
the condensate pan drain pipe.
SLOPE
ABOVE
DRAIN
UNIT
NO TRAP
TO DRAIN HOSE
WATER
CAUTION: For the gravitational drain, make sure that DIP switch #2
of DSW3 on the relay board is set to the ON position (see “DIP
Switch Configuration and Setting” on page 22). The condensate
water will drain out from the drain pipe of the condensate pan.
Packing Attachment
Apply the provided packing to the cool air
exhaust to prevent condensation in high
humidity environments.
Remove the liner on the packing and
attach the packing to cover the edge of the
duct flange to avoid cool air leaking
through the gap.
NO TRAP
UNIT
NO POOL
EDGE of DUCT FLANGE
PACKING
17
INSTALLATION (cont.)
Ducting With Typical Drop Ceiling
All hardware is field supplied.
CAUTION: Do not operate the unit without the filter installed on the
return air grill.
CONDENSER
INTAKE
CONDENSER EXHAUST
ROOM AIR
COOL AIR SUPPLY
(EVAPORATOR)
1. Use a 12 inch diameter insulated duct with low friction and air resistance.
The duct should be bent in a large radius. If the bending radius is less than
15.0 inch (381 mm), then use vanes or guides to reduce air resistance.
INTAKE
INSULATED
FLEXIBLE DUCT
RETURN AIR
GRILL WITH
FILTER REQUIRED
2. Make sure the ducts are secured in order to absorb vibration from the unit.
Avoid sharp bending on the duct and have air ducts travel in a straight line for
improved performance.
Field supplied hardware requires:
• Insulated 12 inch diameter flexible ducts
• Return air grill with 12 inch flange and filter for the room air intake
• Diffuser with 12 inch flange for the cool air outlet
Refer to the maximum static pressure of “Technical Specifications” on
page 58.
18
INSTALLATION (cont.)
Condenser Duct Installation (Optional)
Condenser intake and exhaust ducts can be installed to exchange outdoor air.
CAUTION:
1. Louver must be installed to avoid infiltration of strong wind or rain
from outdoor.
2. Condenser intake and exhaust ducts must be installed at level lower
than the unit to avoid water flowing into the unit (cause of water
leakage or unit problem).
OPTIONAL CONDENSER
INTAKE PLENUM (14 in DIA.)
OPTIONAL CONDENSER
EXHAUST FLANGE
(12 in DIA.)
LEVEL
(See “Caution 2”.)
FLANGE
(12 in DIA.)
INSULATED
FLEXIBLE DUCT
OUTDOOR AIR
INTAKE
CONDENSER
(HOT)
AIR EXHAUST
TO OUTDOOR
LOUVER
(See “Caution 1”.)
1. Use a 12 inch diameter insulated duct with low friction and air resistance.
The duct should be bent in a large radius. If the bending radius is less than
15.0 inch (381 mm), use vanes or guides to reduce air resistance.
2. Make sure the ducts are secured in order to absorb vibration from the unit.
Avoid sharp bending on the duct and have air ducts travel in a straight line for
improved performance.
COOL AIR SUPPLY
(EVAPORATOR)
ROOM AIR
INTAKE
Field supplied hardware requires:
• Insulated 12 inch diameter flexible ducts
• Louver for condenser intake and exhaust
Refer to the condenser external static pressure of “Technical Specifications”
on page 58.
19
INSTALLATION (cont.)
Power Supply and Field Wiring Connection
WARNING:
1. All electrical work should only be performed by qualified personnel.
Repair to electrical components by non-certified technicians may
result in personal injury and/or damage to the unit.
2. Disconnect power before any electrical installation. Beware that
some residual voltage may remain in the unit immediately after the
power is disconnected.

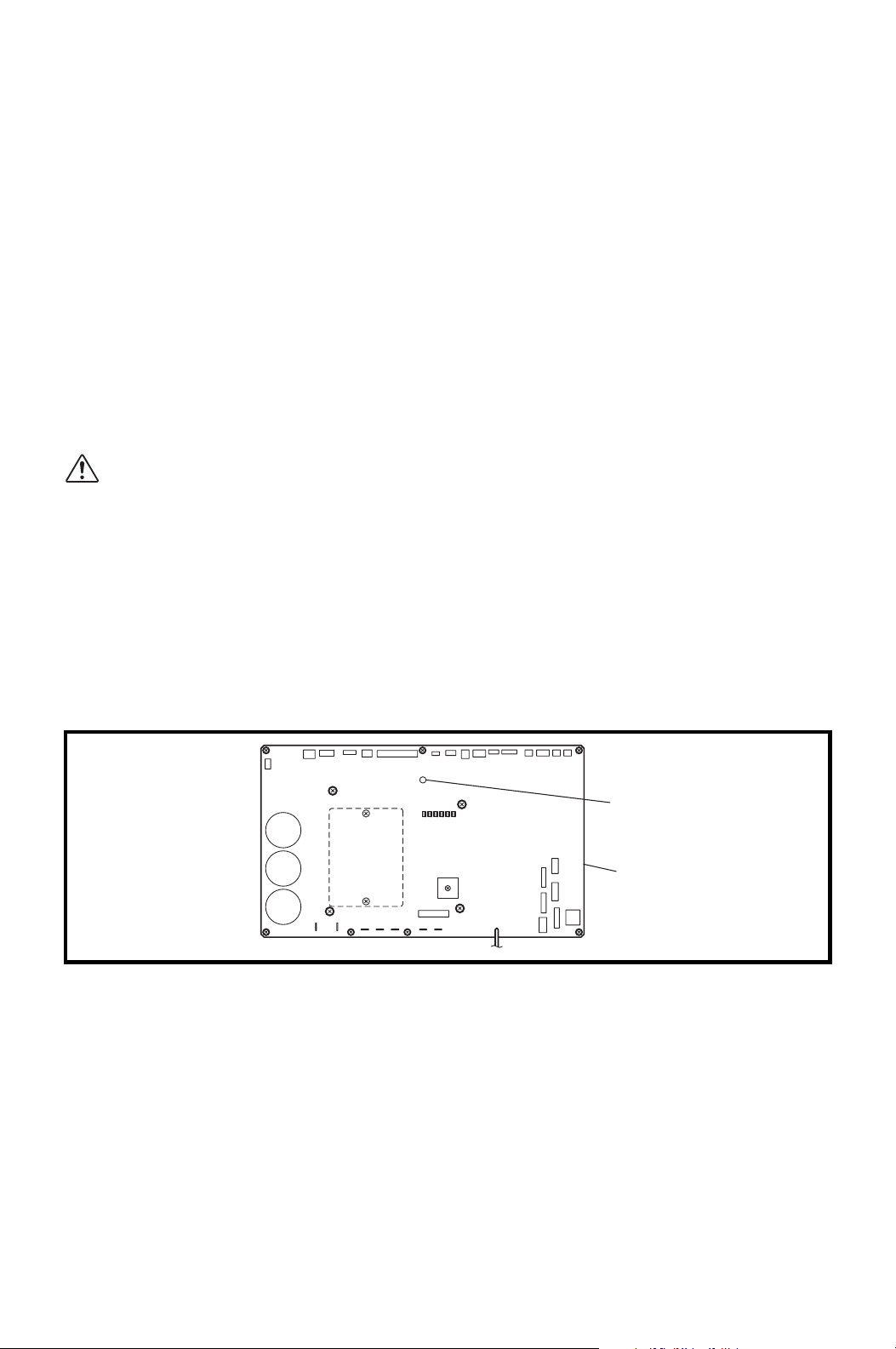

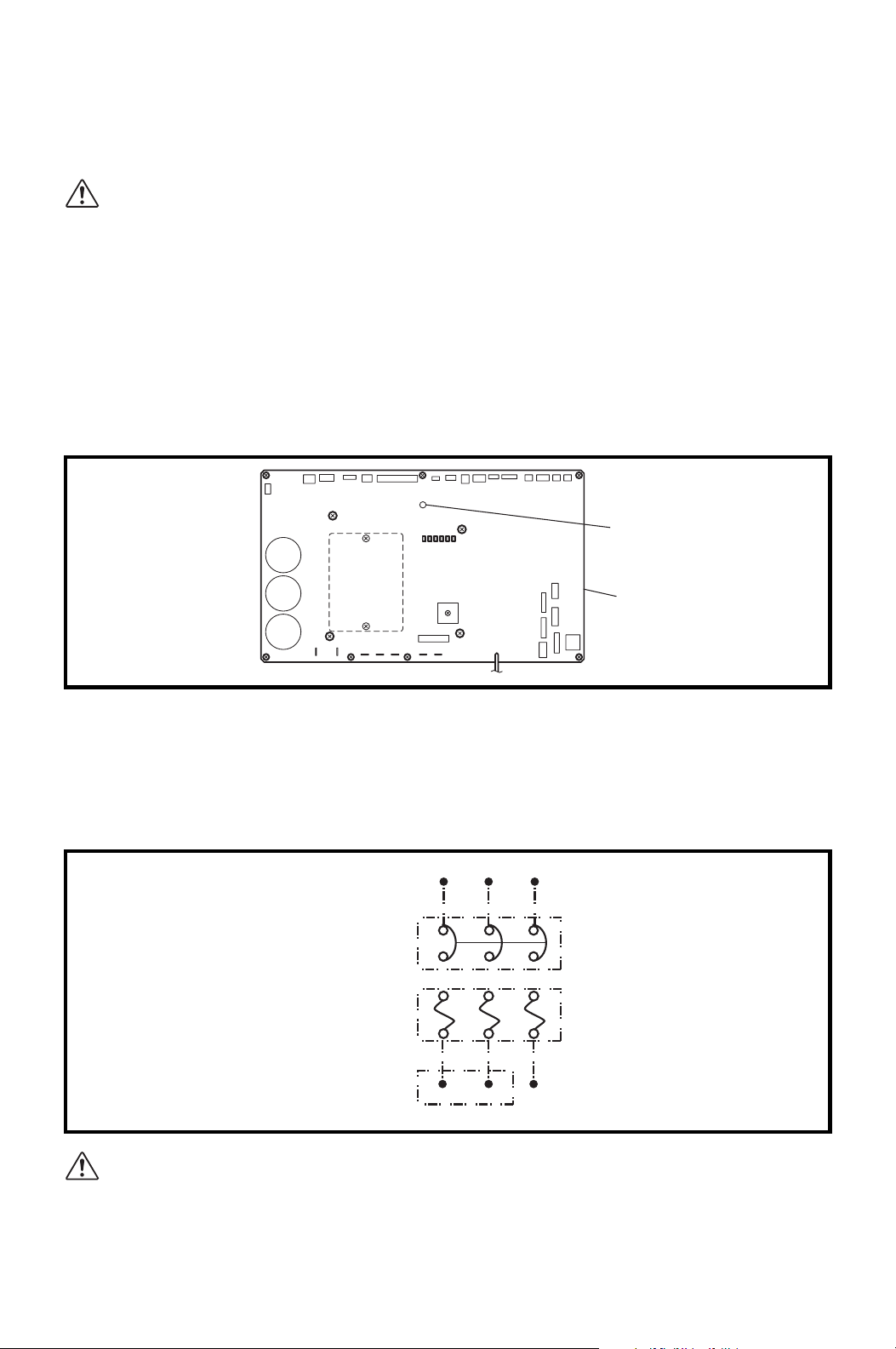

3. Do not touch the relay board of the unit until the green LED7 is
turned off. Failure to follow this warning may lead to electrical
shock.
16
LED 7
Relay Board
ILL00697-00
Power Supply
• The unit requires a single-phase, 208/230 V, 60 Hz power supply to operate.
• The power supply should be a dedicated single outlet circuit with UL recognized
short-circuit and ground-fault protective breaker with a fuse size of 20 A maximum.
• Securely tighten each terminal.
RTG
CIRCUIT BREAKER WITH
GROUND-FAULT PROTECTIVE
FUSE 20 A MAX.
TERMINAL BLOCK OF UNIT
RTG
GROUND TERMINAL
CAUTION: Use a specified 20 A fuse. Do not use wiring, copper wire
or soldering instead of the fuse. The use of non-specified fuses can
cause machine failure or fire.
20
INSTALLATION (cont.)
Power Supply and Field Wiring Connection (cont.)
Field Wiring Connection
The following are recommended wire
sizes and electrical ratings:
• Cord Type: SJT (3 wires) or
equivalent
• Wire Gauge: 12 AWG
• Voltage Rating: 300 V minimum
• Heat Resistance: 221 °F (105 °C)
1. Loosen the bottom screw (1).
2. Remove nine (9) screws from
the service panel on left side of
the unit.
Tightening torque for screw:
Approx. 1.10 ft•lbf (1.5 N•m)
TERMINAL
BLOCK
RTG
G
TR
POWER CORD
SCREW (9)
BOTTOM
SCREW
3. Remove the service panel.
21
INSTALLATION (cont.)
Power Supply and Field Wiring Connection (cont.)
4. Route power cord wires through the
power cord inlet located below
service panel.
5. Connect the line wire (“R” and “T”) to
the terminal block. Tighten screw at
about 0.96 ft•lbf (1.3 N•m) torque.
6. Connect the ground wire (“G”) to the
terminal block. Tighten screw at
about 0.96 ft•lbf (1.3 N•m) torque.
POWER CORD INLET
DIP Switch Configuration and Setting
The controller of the unit is equipped with DIP switches, which default in the OFF
position. The DIP switch can be set to configure the following functions.
ON
OFF
12
DSW1 DSW2 DSW3 DSW4
12 12341234
RELAY BOARD
22
INSTALLATION (cont.)
DIP Switch Configuration and Setting (cont.)
Switch
Name
DSW1
DSW2
DSW3
Switch
Number
1
2
1
2
1
2
3
Function
ON Enables the millivolt wall thermostat.
OFF Enables the wall mounted controller.
ON
OFF
ON
OFF Set to OFF when the motor replacement is completed.
ON
OFF
ON Enters the test mode.
OFF Exits the test mode.
ON Disables the internal condensation removal pump.
OFF Enables the internal condensation removal pump.
ON
OFF
No function.
Initializes setting of the condenser and evaporator fan
motors after replacing the fan motors.
No function.
No function.
DSW4
ON
4
OFF
ON
1
OFF
ON
2
OFF
ON
3
OFF
ON
4
OFF
No function.
No function.
23
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection
Set up the wall mounted controller without power connection on the unit.
Otherwise, the wall mounted controller set up will not be completed.
WARNING:
1. All electrical work should only be performed by qualified personnel.
Repair to electrical components by non-certified technicians may
result in personal injury and/or damage to the unit.
2. Disconnect power before any electrical installation. Beware that
some residual voltage may remain in the unit immediately after the
power is disconnected.
3. Do not touch the relay board of the unit until the green LED7 is
turned off. Failure to follow this warning may lead to electrical
shock.
16
LED 7
Relay Board
ILL00697-00
Note: When the wall mounted controller of other model is connected, the lowest
set point temperature is 55 °F (13 °C). The model name label is attached on the
controller’s back cover.

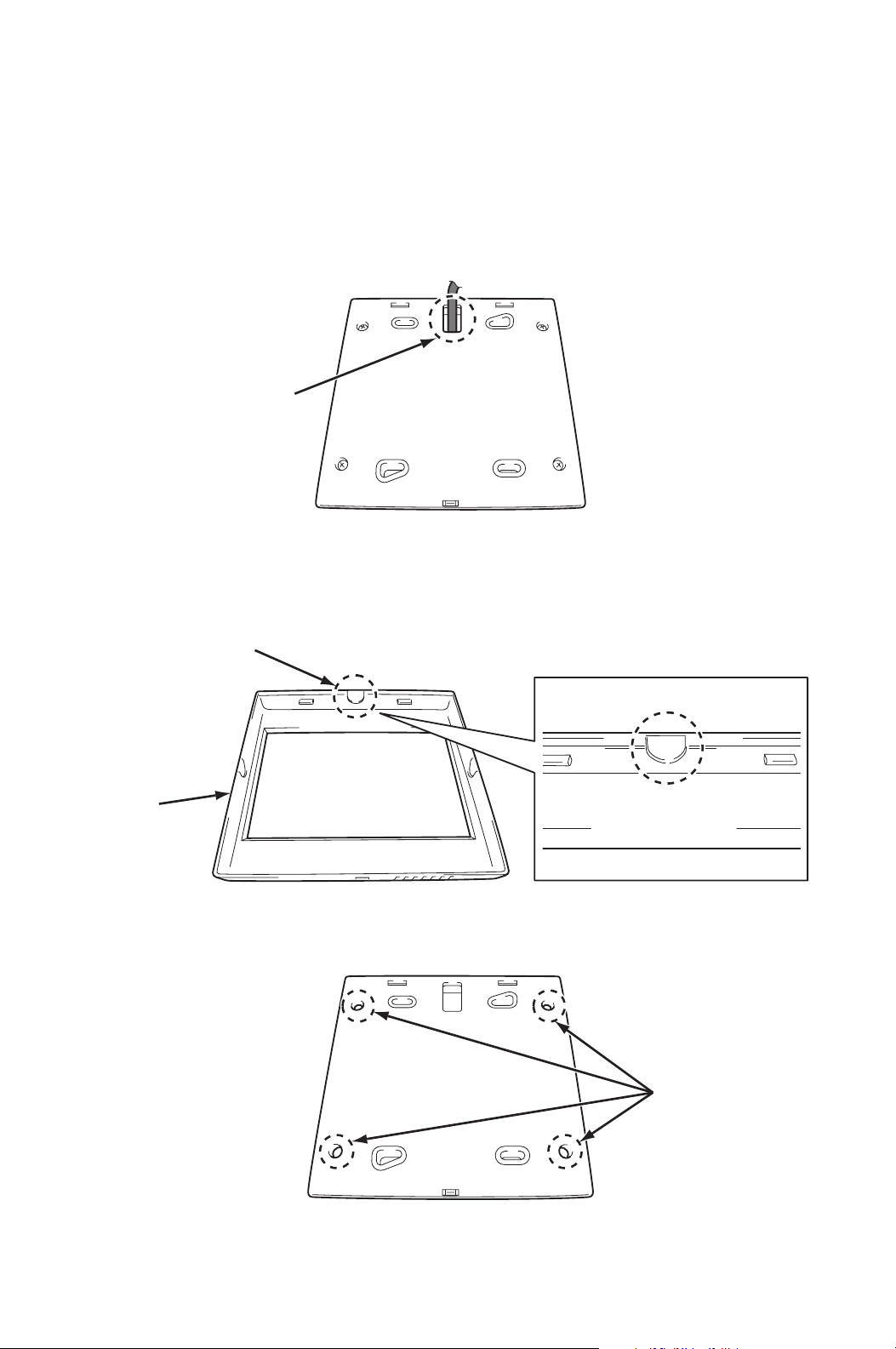

1. Push the stopper located at the bottom of the controller. Then remove the front
cover.
FRONT COVER
STOPPER
24
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection (cont.)
2. Remove four (4) screws from the back cover.
BACK COVER
3. Connect the supplied shield wire (12 feet) to the 3-pin connector on the
controller board.
CAUTION: Do not touch the soldering surface of the controller
board to avoid static electricity.
3-PIN CONNECTOR
SCREWS (4)
SHIELD WIRE
25
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection (cont.)
4. Depending on installation conditions, there are two methods to insert the
shield wire through the back cover of the controller.
Method A)
Insert the shield wire through the hole of the back cover.
HOLE
Method B)
Break the dent portion of the front cover by tool (pliers, etc.). Remove the dent
portion and insert the shield wire through the hole.
DENT PORTION
FRONT
COVER
5. Reassemble the controller board to the back cover with four (4) screws.
HOLES
26
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection (cont.)
6. Select the proper location where the controller can be conveniently accessed.
Install the controller assembled in step 5. to the wall with supplied four (4)
screws through the holes.
CAUTION: Do not install the controller where unusual heating
condition may occur (i.e.hot stove, hot pipe, fireplace or under
direct sunlight).
HOLES
7. Reassemble the front cover.
8. Strip the end of the shield wire of the wall mounted controller.
27
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection (cont.)
9. Disconnect power before connecting the wall mounted controller to the unit.
10. Insert the shield wire through the
wall mounted controller wire inlet.
Connect the shield wire to the
terminal block referring to the
connection table shown below.
Note: If wiring needs to be extended, a
maximum extension wire can be
extended up to 316 feet.
Shield wire 16-22 AWG is recommended
to use as an extension wire to reduce
noise interference.
Recommended extension code: Shield
wire 16-22 AWG, Length 316 feet
maximum
WALL MOUNTED
CONTROLLER WIRE INLET
CONNECTION TABLE
Wall Mounted
Controller
Wire No. (Color)
P (Red)
C4 (White)
G4 (Black)
Shield Conductor
(Green)
Unit
Terminal No.
P
C4
G4
G
(Ground Screw)
UNIT TERMINAL
L–L+E–
E+
G4C4P
WALL MOUNTED
CONTROLLER
Note: Do not connect the controller to AC or DC power source.
RCY1Y2GG1
G
GROUND
SCREW
28
INSTALLATION (cont.)
Supplied Wall Mounted Controller Connection (cont.)
11. DIP switch #1 of DSW1 on the relay board must be in the OFF position to use
the wall mounted controller.
Note:
1. Default position of all DIP switches are the OFF position.
2. If #1 switch of DSW1 is in the ON position, the millivolt wall thermostat is
enabled.
ON
OFF
12
DSW1
Field-Supplied Millivolt Wall Thermostat Connection
Set up the millivolt wall thermostat without power connection on the unit.
Otherwise, the wall thermostat set up will not be completed.
WARNING:
1. All electrical work should only be performed by qualified personnel.
Repair to electrical components by non-certified technicians may
result in personal injury and/or damage to the unit.
2. Disconnect power before any electrical installation. Beware that
some residual voltage may remain in the unit immediately after the
power is disconnected.
3. Do not touch the relay board of the unit until the green LED7 is
turned off. Failure to follow this warning may lead to electrical
shock.
16
LED 7
Relay Board
29
ILL00697-00
INSTALLATION (cont.)
Field-Supplied Millivolt Wall Thermostat Connection
(cont.)
1. Use with a single or multi stage system wall thermostat.
Thermostat type: Millivolt system
2. Set the wall thermostat to cooling system mode, since most wall thermostats
are designed for both heating and cooling.
3. Select the proper location where the wall thermostat can be conveniently
accessed. Install the wall thermostat to the wall at the selected location.
CAUTION: Do not install the wall thermostat where unusual heating
condition may occur (i.e.hot stove, hot pipe, and fireplace or under
direct sunlight).
Most thermostats provide these basic functions:
Fan Mode: On/Auto (Select the desired fan mode)
System: Cool/Heater (Select Cool only)
4. Disconnect power before connecting the wall thermostat to the unit.
5. Connect the wall thermostat to the
terminal block referring to the
connection table shown below.
Recommended extension wire:
Solid wire 16-26 AWG
MILLIVOLT WALL
THERMOSTAT WIRE INLET
30
INSTALLATION (cont.)
Field-Supplied Millivolt Wall Thermostat Connection
(cont.)
CONNECTION TABLE
Wall Thermostat
Terminal No.
SingleStage
System
RC
Y
G
(G1)
(Shield Wire) Ground
MultiStage
System
R
Y1
Y2
G
(G1)
Unit
Terminal
No.
RC
Y1
Y2
G
(G1)
G
(Ground
Screw)
Function
Common
Cool MIN
Cool MAX
Fan Hi
(Fan Lo)
UNIT TERMINAL
L–L+E–
WALL THERMOSTAT
(Example of the multi stage system)
E+
G4C4P
RCY1Y2GG1
GROUND
SCREW
G
Note:
1. Terminal No. G1 is used only with the wall thermostat that has Fan Hi-Lo speed
control.
2. Use the wall thermostat that is compatible with the millivolt system.
Do not connect the wall thermostat to AC or DC power source.
6. DIP switch #1 of DSW1 on the relay board must be in the ON position to use
the millivolt wall thermostat.
ON
OFF
12
DSW1
Note:
1. Default position of all DIP switches are the OFF position.
2. If #1 switch of DSW1 is in the OFF position, the wall mounted controller is
enabled.
31
INSTALLATION (cont.)
Warning Signal Connection (Output Signal)
The unit is equipped with a warning signal output relay type (Form-C, normal open
dry contact), which can be used to monitor the failure condition.
Relay contactor is closed when the following condition has occurred:
• Condensation overflows
• Temperature sensor fails
• Cooling function fails
The relay output contactor is rated 5 A at 30 VDC or 5 A at 250 VAC (resistive
load), and it is compatible with various warning devices such as alarm speakers,
light indicators, etc.
Connecting Warning Signal to CM25
WARNING:
1. All electrical work should only be performed by qualified personnel.
Repair to electrical components by non-certified technicians may
result in personal injury and/or damage to the unit.
2. Disconnect power before any electrical installation. Beware that
some residual voltage may remain in the unit immediately after the
power is disconnected.
3. Do not touch the relay board of the unit until the green LED7 is
turned off. Failure to follow this warning may lead to electrical
shock.
16
LED 7
Relay Board
ILL00697-00
32
INSTALLATION (cont.)
Warning Signal Connection (Output Signal) (cont.)
1. Use recommended warning signal wire size from 16 AWG to 26 AWG for a
solid wire, or 16 AWG to 22 AWG for a stranded wire.
2. Disconnect power before connecting
the warning signal wire to the unit.
SIGNAL WIRE INLET
3. Insert the warning signal wire through the signal wire inlet.
4. Connect the warning signal wires to terminal L+ and L- in the unit control box
according to the labels shown below.
UNIT TERMINAL
RELAY OUTPUT CONTACTOR
L–
L+E–E+
G4C4P
RCY1Y2GG1
INPUT SIGNAL
WARNING DEVICE
33
INSTALLATION (cont.)
Fire Alarm Connection (Input Signal)
The unit is equipped with a normal open input signal connection, which can be
connected directly from the fire alarm control panel. When receiving the signal
from the fire alarm control panel, the unit turns off and does not turn back on until
power source is reset or turns the wall mounted controller or wall thermostat off
and on.
Connecting Fire Alarm Signal to CM25
WARNING:
1. All electrical work should only be performed by qualified personnel.
Repair to electrical components by non-certified technicians may
result in personal injury and/or damage to the unit.
2. Disconnect power before any electrical installation. Beware that
some residual voltage may remain in the unit immediately after the
power is disconnected.
3. Do not touch the relay board of the unit until the green LED7 is
turned off. Failure to follow this warning may lead to electrical
shock.
16
LED 7
Relay Board
ILL00697-00
34
INSTALLATION (cont.)
Fire Alarm Connection (Input Signal) (cont.)
1. Use recommended fire alarm signal wire size from 16 AWG to 26 AWG for a
solid wire, or 16 AWG to 22 AWG for a stranded wire.
2. Disconnect power before connecting the fire alarm signal wire to the unit.
3. Insert the fire alarm signal wire
through the signal wire inlet.
SIGNAL WIRE INLET
4. Connect the fire alarm signal wires to terminal E+ and E- in the unit control box
according to labels shown below.
UNIT TERMINAL
L–L+E–
E+
G4C4P
OUTPUT SIGNAL
RCY1Y2GG1
OPEN DRY CONTACT
FIRE ALARM DEVICE
35
FEATURES OF WALL MOUNTED CONTROLLER
1. Supplied wall mounted controller allows the user to easily control the unit’s
operation.
2. LCD display that indicates:
a. Clock with day and time
b. Room temperature and set point temperature (either Fahrenheit or Celsius)
c. Operation mode status
d. Fan mode status
e. Fan speed status
f. Set program status
g. Program run and stop
h. Self-diagnostic codes
i. Keypad lock
3. Programmable clock/timer function. This function allows the user to program
a specific time and day at which the unit begins to operate/start and turn off
(automatic operation).
36
FEATURES OF CM25
1. The CM25 is equipped with a variable speed compressor, which is driven by
state of the art inverter technology. A variable speed compressor automatically
adjusts its speed as the heat load in the room changes. With its soft start up,
a variable speed compressor reduces start up wear on the compressor and
eliminates in-rush current resulting in no dip in the power supply.
2. Fire alarm control panel connection with automatic shut off.
3. Automatic shut off by warning signal output and alarm for temperature sensor
failure, and conditions of self-diagnostic codes.
4. Automatic restart feature when the power is lost and regained.
The unit returns to the operating mode it was in prior to the loss of power.
Any preset program is retained in the memory in the event power loss occurs.
37
OPERATION (Wall Mounted Controller ONLY)
Control Panel
Before operating the unit, it is important to familiarize yourself with the basic
controls located on the control panel.
LCD DISPLAY OPERATION PANEL
1
5
7
6
9
4.8 in (120 mm)
2
3
4
4.8 in (120 mm)
8
10
38
0.6 in (15 mm)
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Control Panel (cont.)
1. ON/OFF Button Activates (LED illuminates green) or deactivates
unit operation.
2. MODE Button Activates COOL or FAN ONLY operation.
3. FAN MODE Button Activates fan mode RUN or AUTO.
RUN: Fan operates continuously during COOL
mode even after the room temperature
reaches the set point temperature.
RUN mode is automatically selected when
FAN ONLY mode is selected.
AUTO: Fan automatically stops during COOL
mode after the room temperature reaches
the set point temperature. Fan
automatically operates when the room
temperature is above the set point
temperature.
4. FAN SPEED Button Activates fan speed High or Low.
5. UP ( ) & DOWN ( )
Buttons
6. PROGRAM Button Sets or displays program.
7. SET TIME Button Sets clock (day and time).
8. ENTER Button Accepts selection and goes to the next step.
9. RUN/STOP Button Activates or deactivates program(s).
10. RESET Button • Clears self-diagnostic codes.
Increases or decreases the temperature set point
during COOL mode.
Selects each item when setting clock or program.
• Returns to “Day of the week” for “ON” (start)
program setting during program editing mode.
• Clears all program memory during program
editing mode by pressing and holding the RESET
button for 3 seconds.
39
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Control Panel (cont.)
LCD DISPLAY
11
12
13
14
17
18
15
16
19
11. COOL or FAN ONLY Illuminates to indicate COOL on or FAN ONLY on.
12. RUN or AUTO Illuminates to indicate fan mode set to RUN or
AUTO.
13. HI or LO Illuminates to indicate fan speed set to High or
Low.
14. Room temperature Illuminates temperature in either Fahrenheit (°F) or
Celsius (°C) (see Note).
15. Set temperature Illuminates temperature in either Fahrenheit (°F) or
Celsius (°C) in COOL mode (see Note).
16. Day of the week and
Illuminates to indicate day of the week and time.
time
17. Clock symbol Illuminates to indicate program is running.
18. Key symbol Illuminates to indicate keypad locked.
19. CHECK Illuminates with self-diagnostic codes.
Note:
1. The room temperature display range is from 16 °F (-9 °C) to 140 °F (60 °C).
When the display value is greater than 99 °F, it displays values of 00F (for 100
°F), 01F (for 101 °F) and 09F (for 109 °F).
2. When the wall mounted controller of other model is connected, the lowest set
point temperature is 55 °F (13 °C). The model name label is attached on the
wall mounted controller’s back cover.
40
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Standby Mode
When power source is supplied to the unit, the wall mounted controller is in
standby mode.
During standby mode, the control panel displays time.
Set Clock
Prior to operating the unit, set the clock of the controller to the correct time as
shown in the steps below.
1. Press and hold the SET TIME button for 3 seconds “Day of the week” blinks.
2. Press UP ( ) or DOWN ( ) button to select “Day of the week”.
3. Press ENTER button. “Hour” blinks.
4. Press UP ( ) or DOWN ( ) button to select correct hour.
Note: AM or PM changes with hour automatically.
5. Press ENTER button. “Minutes” blinks.
6. Press UP ( ) or DOWN ( ) button to select correct minute.
7. Press ENTER button to complete clock setting.
Note:
1. Check clock periodically to confirm clock accuracy.
2. The clock defaults after 20 days from the point of shutting power supply. In this
case, set the clock again.
41
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Operate in COOL Mode
When in COOL mode, the compressor is operated and cool air is circulated.
1. Press ON/OFF button. LED (green) illuminates.
2. Press MODE button and select “COOL”.
3. Press FAN MODE button to select “RUN” or “AUTO”.
RUN: Fan operates continuously during COOL mode even after the room
temperature reaches the set point temperature.
RUN mode is automatically selected when FAN ONLY mode is
selected.
AUTO: Fan automatically stops during COOL mode after the room
temperature reaches the set point temperature. Fan automatically
operates when the room temperature is above the set point
temperature.
4. Press FAN SPEED button to select the fan speed “HI” or “LO”.
5. Press UP ( ) or DOWN ( ) button to select the temperature set point.
6. To stop COOL operation, press ON/OFF button.
Note: Compressor continuously operates for minimum 2 minutes to protect the
refrigerant system once started. During this condition, “COOL” blinks.
42
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Operate in FAN ONLY Mode
When in FAN ONLY mode, the unit circulates the surrounding air.
1. Press ON/OFF button. LED (green) illuminates.
2. Press MODE button and select “FAN ONLY”.
Note: Fan mode “RUN” is automatically set (no selection of “AUTO”) when
FAN ONLY is selected.
3. Press FAN SPEED button to select the fan speed “HI” or “LO”.
Change Mode
While in COOL mode, press MODE button to select FAN ONLY mode.
When in FAN ONLY mode, press MODE button to select COOL mode.
Change Temperature Scale
The temperature scale can be changed.
Press and hold UP ( ) and DOWN ( ) buttons simultaneously for 3 seconds to
change “°C” (Celsius) or “°F” (Fahrenheit).
Keypad Lock
Keypad lock disables all buttons on the control panel except keypad lock and
unlock operations.
1. To lock, press and hold ENTER and RESET buttons simultaneously for 3
seconds.
2. To unlock, press and hold ENTER and RESET buttons simultaneously for 3
seconds again.
Note: When the unit detects operation failure, keypad is unlocked automatically
and self-diagnostic code illuminates.
Program Feature
• Ten program sequences are available (“Pr 01” to “Pr 10”).
• Each program sequence contains, set “ON” (start) time, operation mode,
and “OFF” (stop) time.
• Each program is confirmed when “ON” (start) time and “OFF” (stop) time
are set.
• Exits program mode if any button is not pressed for 1 minute while
programming.
• Program runs sequentially from “Pr 01” to “Pr 10” sequence.
• The preceding program is copied to the next program automatically.
• During program RUN mode, all keypad is locked except RUN/STOP button.
To exit program RUN mode, press and hold RUN/STOP button for 3 seconds.
43
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Program Setting
To program the controller, read the instructions on page 45 to 47 and follow the
flow chart shown below.
ON (start)
Program
Setting
Edits previous
settings.
Press
Enter programExit program
Select program No.
(Pr 01 to Pr 10)
Select
Day of the week
Hour
Minutes
Operation
mode
Fan mode
Fan speed
Press and hold
for 3 seconds.
Press
Press
Press
Press
Press
Press
orPress
Select
each Item.
Press
or
Program
sequence
No. Display
Blinking.
ON (start)
Program
Display
(default)
Selecting
item blinks.
Set temp.
Day of the
week
OFF (stop)
Program
Setting
Defaults all programs.
Press and hold for 3 seconds.
Hour
Minutes
Press
Press
Press
Press
Press
44
OFF (stop)
Program
Display
(default)
Selecting
item blinks.
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Select Program Sequence Number
1. Press and hold PROGRAM button for 3 seconds. “Pr
01” blinks.
Note: If any button is not pressed for 3 seconds,
program moves to the next step (selecting “Day of
the week”) automatically.
2. Press UP ( ) or DOWN ( ) button to scroll
program sequences.
3. Press ENTER button to select the program
sequence number.
Set Start Time and Operation Mode
4. “On” (program setting for unit ON) illuminates and
“Day of the week” blinks.
Press UP ( ) or DOWN ( ) button to select “Day
of the week”.
Press ENTER button. “Hour” blinks.
5. Press UP ( ) or DOWN ( ) button to select “hour”.
Press ENTER button. “Minutes” blinks.
Note: AM or PM changes with hour automatically.
6. Press UP ( ) or DOWN ( ) button to select
“minutes”.
Press ENTER button. “COOL” blinks.
7. Press UP ( ) or DOWN ( ) button to select mode “COOL” or “FAN ONLY”.
Press ENTER button. “RUN” blinks.
Note: Fan mode “RUN” is automatically set (no selection of “AUTO”) when
FAN ONLY is selected.
8. Press UP ( ) or DOWN ( ) button to select fan mode “RUN” or “AUTO”.
Press ENTER button. “HI” blinks.
9. Press UP ( ) or DOWN ( ) button to select fan speed “HI” or “LO”.
Press ENTER button. “Set temperature” blinks.
10. Press UP ( ) or DOWN ( ) button to select “Set temperature”.

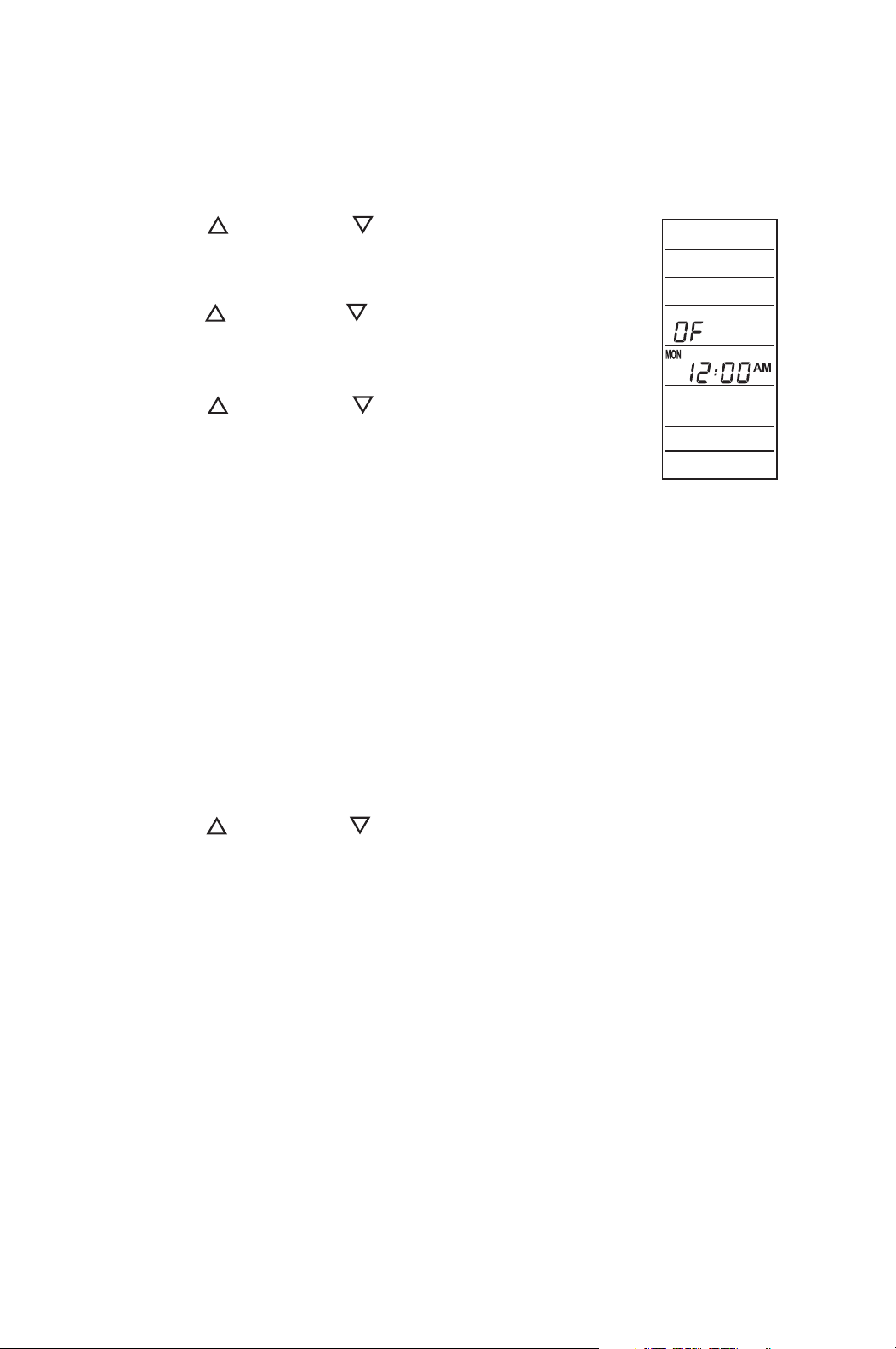

Press ENTER button. “OF” (program setting for unit OFF) illuminates and
“Day of the week” blinks.
Note: To change the previous settings, press RESET button and start again
from “Day of the week” setting.
45
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Set Stop Time
11. Press UP ( ) or DOWN ( ) button to select “Day
of the week”.
Press ENTER button. “Hour” blinks.
12. Press UP ( ) or DOWN ( ) button to select “hour”.
Press ENTER button. “Minutes” blinks.
Note: AM or PM changes with hour automatically.
13. Press UP ( ) or DOWN ( ) button to select
“minutes”. Press ENTER button. “Pr 02” illuminates.
Note: To change the previous settings, press
RESET button and start again from “Day of the
week” setting.
Repeat step 1. to 13. to set up program sequences from “Pr 02” to “Pr 10”.
Note: Program counts period from the start time and day of “Pr 01” to the stop time
and day of the last program. Program period can not be overlapped. Overlapped
time period input can not be accepted by the controller.
Exit Program Mode
14. Press PROGRAM button for 3 seconds to exit program mode.
View Program
1. Press PROGRAM button.
2. Press UP ( ) or DOWN ( ) button to select the desired program sequence.
3. Press ENTER button. Detail of “ON” program (start time and operation mode
setting) is displayed.
4. Press ENTER button. Detail of “OFF” program (stop time) is displayed.
5. Press ENTER button. Returns to the select program view.
6. Press PROGRAM button to exit.
46
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Edit Program
1. Press and hold PROGRAM button for 3 seconds. “Pr 01” blinks.
2. Press UP ( ) or DOWN ( ) button to select program sequence (“Pr 01” to
“Pr 10”).
Press ENTER button.
3. Press UP ( ) or DOWN ( ) button to select the item to be edited.
Press ENTER button.
4. Press and hold PROGRAM button for 3 seconds to exit.
Delete Program
To clear all programs (“Pr 01” to “Pr 10”), press and hold RESET button for 3
seconds during program editing mode.
Note: All program are set to default (see page 44 for the default program displays).
Run and Stop Program
1. Press and hold RUN/STOP button for 3 seconds to activate preset program
(clock symbol is displayed).
Program runs from “Pr 01” to “Pr 10”.
2. Press and hold RUN/STOP button for 3 seconds to stop program.
Note:
1. Confirm your program before running the program.
2. During program RUN, the keypad is locked except RUN/STOP button. To
unlock, press “RUN/STOP” button.
3. When the unit detects operation failure, program “RUN” is automatically
cancelled and displays self-diagnostic code.
4. Program runs sequentially from “Pr 01” to “Pr 10” sequence.
5. Programming must be done sequentially.
47
OPERATION
(Wall Mounted Controller ONLY) (cont.)
Program Plan Sheet
Program Plan
Pr 01
Pr 02
Pr 03
Pr 04
Pr 05
Pr 06
START
STOP
START
STOP
START
STOP
START
STOP
START
STOP
START
STOP
Day of the
week
Time Mode Fan mode Fan speed Set Temp.
Pr 07
Pr 08
Pr 09
Pr 10
START
STOP
START
STOP
START
STOP
START
STOP
48
SELF-DIAGNOSTIC CODES & BUZZER PATTERN
Self-Diagnostic Codes
Self-diagnostic codes are displayed with
“CHECK” on LCD panel of the supplied
wall mounted controller under the following
conditions.
Note: When using the field supplied wall
thermostats, the self-diagnostic codes are
not displayed. Check buzzer pattern to
distinguish each code. For remedy, see
“Troubleshooting” from page 53 to 57.
Table of Self-Diagnostic Codes
Self-Diagnostic codes
(Wall mounted
controller only)
AL
PU
E07 Overflow protection is activated (optional pump).
HP
E01
E02
E03
E04
E05
E06
Buzzer
Pattern
1
3
4
2
Condition Remedy
Fire alarm is activated.
Overflow protection is activated (internal pump).
High pressure protection is activated.
Sensor fail
(RTS1: Wall mounted controller room thermistor)
Sensor fail
(RTS2: Evaporator air inlet thermistor)
Sensor fail
(ODS: Outdoor thermistor)
Sensor fail
(CTS1: Condenser thermistor)
Sensor fail
(CTS2: Evaporator pipe inlet thermistor)
Sensor fail
(CTS3: Evaporator pipe outlet thermistor)
Self-Diagnostic
code
See
“Troubleshooting”
from page
53 to 57.
E08
E09
E10
OL Compressor overload protection is activated.
E11 Relay board communication error
E12 Compressor error
E13 Relay board error
Wall thermostat communication error
Evaporator fan motor over current protection is
activated.
Condenser fan motor over current protection is
activated.
4
49
SELF-DIAGNOSTIC CODES & BUZZER
PATTERN (cont.)
Buzzer Pattern
ON
Pattern 1
OFF
ON
Pattern 2
OFF
ON
Pattern 3
OFF
ON
Pattern 4
OFF
0.5 sec
1 sec
4 sec
50
DAILY INSPECTION & MAINTENANCE
Cleaning Air Filters
The air filter on the evaporator return grill should be checked weekly for dust
buildup.
Clean or replace air filter on a weekly basis. If the unit is used in a dusty
environment, more frequent cleaning may be required.
A dirty air filter can reduce the air output, resulting in a decrease in cooling
capacity.
Cleaning Condenser Air Intake
Inspect and remove dust buildup on the condenser air intake of the unit with a
vacuum cleaner periodically to prevent insufficient cooling.
Ground Fault Breaker Testing
The ground fault breaker should be tested at least once a month.
51
TROUBLESHOOTING
Check the following items before calling your MovinCool reseller or a qualified
technician.
Condition Checking Area Possible Cause Remedy
Unit
does
not
operate
at all.
LCD
display
turns off.
1. Voltage Power failure Repair power supply.
Turn the circuit breaker
on.
2. Ground fault
breaker trip
3. Fuse Fuse is blown. Replace fuse on the
4. Wall mounted
controller/
millivolt wall
thermostat
5. Stop switch Stop switch is in the
Ground fault or
defective ground
fault.
Incorrect connection Check wiring
DIP switch setting is
incorrect.
STOP position.
Repair ground fault
section.
Reset or repair breaker.
relay board.
connection.
Correct DIP switch
setting. (See “DIP Switch
Configuration and
Setting” on page 22.)
Turn the stop switch to
the OPERATE position.
52
TROUBLESHOOTING (cont.)
Checking Area
Self-
Condition
Diagnostic
Codes
(Wall
mounted
controller)
Buzzer
Pattern
Possible Cause Remedy
Unit
does
not
operate
at all.
LCD
displays
selfdiagnostic
codes.
AL 1 Signal is input to
the fire alarm
connection.
PU 3 Drain hose clogged
(for internal drain
pump).
Drain hose trap
position is too high
to pump up
condensation water
(for internal drain
pump).
Internal drain pump
is not working.
Check the fire alarm
signal connection.
(See “Fire Alarm
Connection (Input
Signal) on page 34”.)
To reset: Press
RESET button.
Check drain hose for
any blockages or
excessive kinks that
may prevent water
flow.
To reset: Press
RESET button.
Improve hose
installation.
To reset: Press
RESET button.
Check the internal
drain pump
connection.
Replace drain pump.
To reset: Press
RESET button.
53
TROUBLESHOOTING (cont.)
Checking Area
Self-
Condition
Diagnostic
Codes
(Wall
mounted
controller)
Buzzer
Pattern
Possible Cause Remedy
Unit
does
not
operate
at all.
LCD
displays
selfdiagnostic
codes.
E07 3 Drain hose is
clogged (for
optional drain
pump).
Drain hose trap
position is too high
to pump up
condensation water
(for optional drain
pump).
Optional drain
pump is not
working.
HP 4 Operating outside
of the operating
temperature range
Check drain hose for
any blockages or
excessive kinks that
may prevent air flow.
To reset: Press
RESET button.
Improve hose
installation.
To reset: Press
RESET button.
Check the drain
pump connection.
Replace drain pump.
To reset: Press
RESET button.
Check
environmental
condition.
To reset: Press
RESET button.
Insufficient air
volume
54
Clean air filter.
To reset: Press
RESET button.
Check ducting of
intake and exhaust
air, and make sure
there are no objects
that may prevent air
flow.
To reset: Press
RESET button.
TROUBLESHOOTING (cont.)
Checking Area
Self-
Condition
Diagnostic
Codes
(Wall
mounted
controller)
Buzzer
Pattern
Possible Cause Remedy
Unit
does
not
operate
at all.
LCD
displays
selfdiagnostic
codes.
E01 Defective RTS1
thermistor
(short or open)
E02 2 Improper RTS2
thermistor
connection
Defective RTS2
thermistor
(short or open)
E03 2 Loose ODS
thermistor
connection
Defective ODS
thermistor
(short or open)
E04 2 Loose CTS1
thermistor
connection
Replace the wall
mounted controller.
To reset: Press
RESET button.
Check connection.
To reset: Press
RESET button.
Replace RTS2
thermistor.
To reset: Press
RESET button.
Check connection.
To reset: Press
RESET button.
Replace ODS
thermistor.
To reset: Press
RESET button.
Check connection.
To reset: Press
RESET button.
Defective CTS1
thermistor
(short or open)
E05 2 Loose CTS2
thermistor
connection
Defective CTS2
thermistor
(short or open)
55
Replace CTS1
thermistor.
To reset: Press
RESET button.
Check connection.
To reset: Press
RESET button.
Replace CTS2
thermistor.
To reset: Press
RESET button.
TROUBLESHOOTING (cont.)
Checking Area
Self-
Condition
Diagnostic
Codes
(Wall
mounted
controller)
Buzzer
Pattern
Possible Cause Remedy
Unit
does
not
operate
at all.
LCD
displays
selfdiagnostic
codes.
E06 2 Loose CTS3
thermistor
connection
Defective CTS3
thermistor
(short or open)
E08 Wall mounted
controller lost
communication
with the unit for
more than 10
seconds.
E09 4 Evaporator fan
motor is locked.
E10 4 Condenser fan
motor is locked.
Check connection.
To reset: Press
RESET button.
Replace CTS3
thermistor.
To reset: Press
RESET button.
Check for connection
or interference.
To reset: Press
RESET button.
Check for any foreign
object which may
cause fan lock.
To reset: Press
RESET button.
Check for any foreign
object which may
cause fan lock.
To reset: Press
RESET button.
OL 4 Compressor
overload protection
is activated by
refrigerant leakage.
E11 4 Relay board
communication
error occurs for 40
seconds.
56
Repair of the leaking
section and recharge
of the correct amount
of refrigerant are
required. Contact
your MovinCool
reseller or a qualified
technician.
To reset: Press
RESET button.
Check all wire
connection on the
relay board.
To reset: Press
RESET button.
TROUBLESHOOTING (cont.)
Possible Cause
Self-
Condition
Diagnostic
Codes
(Wall
mounted
controller)
Buzzer
Pattern
Possible Cause Remedy
Unit
does
not
operate
at all.
Condition
Unit
operates.
LCD
displays
selfdiagnostic
codes.
Insufficient
air volume
E12 4 Compressor error Press RESET
button, turn the
power off, and turn
the power on again.
E13 4 Relay board error Press RESET
button, turn the
power off, and turn
the power on again.
Checking
Area
Insufficient
air volume
Possible Cause Remedy
Air filter is clogged. Clean or replace air filter.
Leak or clog on the
duct connection
Using longer duct
length or smaller duct
diameter than
recommended.
Repair duct connection.
Change the duct to
proper size.
Fan is locked. Check any foreign object
which may cause fan
lock.
If conditions persist after the above actions have been taken, turn the unit off,
disconnect the power and contact your MovinCool reseller or a qualified
technician.
57
TECHNICAL SPECIFICATIONS
Electronic
Features
Electronic
Characteristics
Cooling Capacity and Power Consumption
Evaporator: 80 °F
(27 °C), 50 %RH /
Condenser: 95 °F
(35 °C), 50 %RH
Evaporator: 72 °F
(22 °C, 50 %RH /
Condenser: 95 °F
(35 °C), 50 %RH
SEER 14/14 #1
Evaporator Type of fan Centrifugal Fan
Condenser Type of fan Centrifugal Fan
Compressor Type Hermetic Swing Inverter
Refrigerant Type R-410A
Dimension W x D x H (without flange) 53 x 32 x 20 in (1,346 x 813 x 508 mm)
Weight Net / Shipping 310/353 lb (140/160 kg)
Condensate
Pump Capacity
Operating
Condition Range
Maximum Duct
Length
Maximum Sound
Level
#1: With two 20 feet (6.1 m) duct with one 90° bend each, supply grill and return grill with
filter (0.30 IWG (75 Pa) external static pressure)
#2: Confirm pressure drop of duct, grills and filter with manufactures specifications.
Operation Wall Mounted Controller with LCD
display
Control Electronic
Voltage requirement 208/230 V, 1 phase, 60 Hz
Min.- Max. voltage Min. 198 V, Max. 253 V
Recommended fuse size 20 A
Total cooling capacity 25,000/25,000 Btu/h (7,320/7,320 W) #1
Sensible cooling capacity 18,000/18,000 Btu/h (5,280/5,280 W) #1
Power consumption 2.90/2.90 kW #1
Current consumption 13.6/12.6 A #1
Total cooling capacity 25,000/25,000 Btu/h (7,320/7,320 W) #1
Sensible cooling capacity 18,900/18,900 Btu/h (5,580/5,580 W) #1
Power consumption 3.20/3.20 kW #1
Current consumption 15.0/15.0 A #1
Air flow High
Low
Max. External static pressure 0.6 IWG (150 Pa)
Motor output 0.21 kW
Air flow High
Low
Max. External static pressure 0.5 IWG (125 Pa)
Motor output 0.35 kW
Amount 2.31 lb (1.05 kg)
W x D x H (with flange) 57 x 36 x 20 in (1,448 x 914 x 508 mm)
Pump Rate 5.0 gal/h (19 L/h)
Head 4 ft (1.2 m)
Evaporator Max. Inlet Air 95 °F (35 °C), 50 %RH
Min. Inlet Air 60 °F (15.5 °C), 50 %RH
Condenser Max. Inlet Air 113 °F (45 °C)
Min. Inlet Air 50 °F (10 °C)
Cold duct hose 120 ft (36.6 m) #2
Hot duct hose 90 ft (27.4 m) #2
Under ceiling tile with
evaporator duct
850/950 CFM (1,145/1,615 m
700/800 CFM (1,190/1,360 m
1,490/1,600 CFM (2,530/2,720 m
1,190/1,300 CFM (2,020/2,210 m
55/55 dB (A)
3
3
/h)
/h)
3
3
/h)
/h)
58
WARRANTY STATEMENT
DENSO PRODUCTS AND SERVICES AMERICAS, INC. ("DENSO") warrants its
MOVINCOOL Products only to the extent stated in its official written warranties. Unless
otherwise specifically provided in writing by DENSO, DENSO warrants to the original end-user
that the products shall be free of defects in materials or workmanship and will function in
accordance with DENSO's published specifications under ordinary intended use and service
for a period listed below beginning from the date of purchase on the invoice to the end-user:
CM25 Warranty: 2 Years on the Unit and 3 Years on the Compressor with warranty registration
OR 1 Year on the Unit and 3 Years on the Compressor for unregistered units.
DENSO shall, at its sole discretion, repair or replace any defective product covered by this
warranty. Such remedy shall be end-user's sole remedy with respect to any particular defect
in the products.
This warranty does not cover defects or malfunctions which result from causes beyond
DENSO's control, including, without limitation, (i) unusual physical or electrical stress; (ii)
accident, neglect, abuse, misuse or other abnormal use; (iii) failure to perform routine
maintenance in accordance with DENSO's recommended procedures; (iv) normal wear and
tear; (v) repairs or attempted repairs by an unauthorized person; (vi) modifications or
alterations to the products; (vii) use with parts or devices not supplied or approved by
DENSO; (viii) improper installation or service; (ix) shipping damage to any units or spare
parts during shipping. This includes and is not limited to compressors, evaporators and
condenser coils. This warranty shall extend only to the original end-user and shall be void if
any labels or other identifying marks permanently affixed to products when shipped by
DENSO are removed, altered, defaced or obliterated.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY, AS LIMITED HEREIN, SHALL
BE IN LIEU OF AND EXCLUSIVE OF ALL OTHER WARRANTIES, EITHER EXPRESSED
OR IMPLIED, ON THE PART OF DENSO PRODUCTS AND SERVICES AMERICAS, INC.,
OR DENSO CORPORATION, WHETHER ARISING FROM LAW, COURSE OF DEALING,
USAGE OF TRADE, OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OF A PARTICULAR
PURPOSE OR ANY LIABILITY FOR COMMERCIAL LOSSES BASED UPON
NEGLIGENCE OR MANUFACTURER'S STRICT LIABILITY. EXCEPT AS EXPRESSLY
PROVIDED HEREIN, NEITHER DENSO PRODUCTS AND SERVICES AMERICAS, INC.,
NOR DENSO CORPORATION WILL, IN ANY EVENT, BE LIABLE FOR LOST PROFITS,
COSTS OF PROCESSING, INJURY, GOODWILL, OR ANY OTHER CONSEQUENTIAL
DAMAGES OF ANY KIND ARISING FROM BREACH OF THIS WARRANTY.
DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the right to make
changes without prior notice. MovinCool®, Office Pro® and SpotCool® are registered
trademarks of DENSO Corporation.
PURCHASE DATE:
SERIAL NUMBER:
P/N: 484007-3201EN Second Issue: June 2013
Loading...
