MovinCool CLIMATEPRO18 Specifications
A
B
T
C
C
J
A
B
T
C
C
J

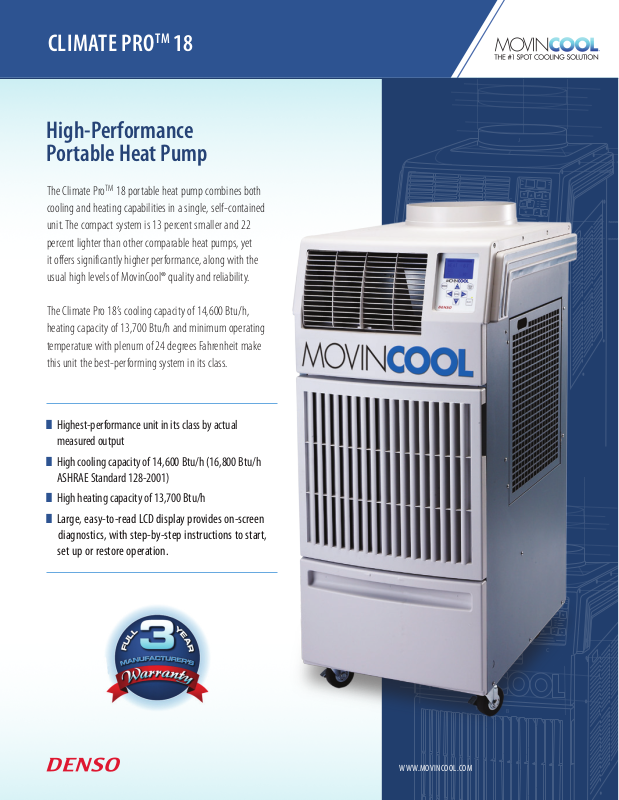

CLIMATE PROTM 18
High-Performance
Portable Heat Pump
The Climate ProTM 18 portable heat pump combines both
cooling and heating capabilities in a single, self-contained
unit. The compact system is 13 percent smaller and 22
percent lighter than other comparable heat pumps, yet
it offers significantly higher performance, along with the
usual high levels of MovinCool® quality and reliability.
The Climate Pro 18’s cooling capacity of 14,600 Btu/h,
heating capacity of 13,700 Btu/h and minimum operating
temperature with plenum of 24 degrees Fahrenheit make
this unit the best-performing system in its class.
n
Highest-performance unit in its class by actual
measured output
n
High cooling capacity of 14,600 Btu/h (16,800 Btu/h
ASHRAE Standard 128-2001)
n
High heating capacity of 13,700 Btu/h
n
Large, easy-to-read LCD display provides on-screen
diagnostics, with step-by-step instructions to start,
set up or restore operation.
WWW.MOVINCOOL.COM
CLIMATE PROTM 18
TECHNICAL SPECS Climate Pro™ 18
Electronic Features Control Programmable
Cooling Capacity Rating Conditions:
Cooling: Indoor @ 80°F / Outdoor @ 80°F @ 50% RH Cooling: 14,600 Btu/h
Heating: Indoor @ 70°F / Outdoor @ 47°F @ 50% RH Heating: 13,700 Btu/h
Electrical Characteristics Voltage Requirement 1 Phase, 115V
Total Power Consumption Cooling: 1.54 kW
Heating: 1.61 kW
Current Consumption Cooling: 14.1 amps
Heating: 14.7 amps
Recommended Fuse Size 20 amps
NEMA Plug Configuration 5 - 20P
Min. - Max. Voltage 105 - 125
Fans Motor Output - high/mid/low Supply: 0.12/0.045/0.017 kW
Indoor Heat Exchanger (Supply) Fan Type Centrifugal
Max. Air Flow - high/mid/low 540/440/350 CFM
Max. External Static Pressure 0.31 IWG
Outdoor Heat Exchanger (Exhaust) Fan Type Centrifugal
Max. Air Flow 700 CFM
Max. External Static Pressure 0.23 IWG
Compressor Type Hermetic Rotary
Output 1.16 kW
Refrigerant Type R-410A
Dimensions W x D x H 21 x 27 x 49 in
Net Weight/Shipping Weight 214/257 lb
Power Cord Gauge 12 AWG (3-core)
Length 10 ft
Condensate Tank Capacity 5 gal
Operating Conditions Min. - Max. (@ 50% RH) Cooling: 65°- 95°F
Max. Equivalent Duct Length Supply Duct Hose 25 ft
Exhaust Duct Hose 100 ft
Max. Sound Level With Exhaust Duct - high/low 61/59 dB(A)
Without Exhaust Duct - high/low 62/60 dB(A)
Exhaust: 0.135 kW
Heating: 40°- 80°F
(With Plenum): Indoor 40°F/Outdoor 24°- 80°F
800-264-9573
www.MovinCool.com
DENSO PRODUCTS AND SERVICES AMERICAS, INC.
3900 Via Oro Ave, Long Beach, CA 90810
360-0914-CPH18
©2014 DENSO PRODUCTS AND SERVICES AMERICAS, INC.
MovinCool and Climate Pro are trademarks of DENSO Corporation
