Movea DD1, DD2 Users Manual
Product Functional
Specification
Gyro-Equipped, Universal TV,
Windows XP Media Center RCU,
Music LCD display, Dell Version
Date: 1/13/2006
Version 0.1
Table of Contents
Introduction......................................................................................................................... 2
Battery Installation and Information................................................................................... 3
Battery Saver....................................................................................................................... 3
Gyro Operation ................................................................................................................... 3
Product Diagram .................................................................................................................4
Button Cluster Locations .................................................................................................... 4
RCU Mode Selection .......................................................................................................... 5
Transport Control................................................................................................................ 6
Menu Navigation ................................................................................................................ 7
Gyro Activation/Select........................................................................................................ 7
Channel/Volume Control & Media Center Green Button .................................................. 8
MCE Shortcut Buttons........................................................................................................ 8
Numeric Keypad ................................................................................................................. 8
European Addition.............................................................................................................. 9
Backlighting........................................................................................................................ 9
ON/OFF Switch .................................................................................................................. 9
RF Receiver ...................................................................................................................... 10
Setting Up and Synchronizing the Remote and the PC .................................................... 10
Programming the Remote ................................................................................................. 12
Find Out If You Need to Program the Remote................................................................. 12
Programming Methods...................................................................................................... 12
Using Automatic Code Search [This function to be added later] ................................. 12
Using Direct Entry ........................................................................................................ 13
Learning ............................................................................................................................ 13
Learning Tips................................................................................................................ 13
Code Learning............................................................................................................... 13
Learning Commands..................................................................................................... 13
Clearing a Learned Function............................................................................................. 14
Music Mode ...................................................................................................................... 14
LCD Characters Supported ............................................................................................... 17
Gyro Battery Saver Mode ................................................................................................. 17
Troubleshooting ................................................................................................................ 17
Remote Code List ............................................................................................................. 19
HDTV ........................................................................................................................... 19
TV Monitor ................................................................................................................... 19
TV ................................................................................................................................. 19
Errata................................................................................................................................. 21
Introduction
This users’ manual describes the operation of the Dell / Gyration Universal 2-in-1 (1 IR
devices + 1 RF device) Windows XP Media Center Remote Control Unit (RCU). The
Thomson/Gyration Confidential Page 2 of 21
RCU contains an embedded micro gyro for motion sensing and in-air control of floating
cursor. This RCU features an IR code database and IR learning capabilities to
universally control standard home theater TVs.
The RCU is also equipped with a 2.4 GHz RF transceiver to send cursor movement
information and other commands to the PC via a built in transceiver. The radio
frequency (RF) transceiver delivers a range of up to 100 feet with no line-of-sight
requirement. The 800 possible channels of the RF transceiver provide high resistance to
interference from other radio devices.
Battery Installation and Information
The Media Center RCU requires four AAA Alkaline batteries. To install the batteries:
1. Remove the battery compartment cover.
2. Insert the batteries, matching the batteries to the (+) and (-) marks inside
the battery compartment.
3. Replace the battery compartment cover and snap it into place.
Note: Reprogramming may be required after batteries are replaced.
Battery Saver
The RCU saves battery power by automatically going into a low-power state if no button
is pressed after a few seconds. See the Gyro section for gyro battery saver mode.
Gyro Operation
The RCU provides in-air control of the PC’s cursor via patented gyroscopic motionsensing technology. This means mouse-like cursor control, from anywhere in the room,
without the need of a flat surface. There is no line-of-sight requirement so you don’t
have to point the RCU at the PC you are controlling. Remember the following things
when using the in-air cursor control feature of the RCU:
• Use your thumb to press the gyro and mouse buttons. [add picture of hand holding
the RCU]
• Click the center button to activate the gyro motion-sensing control. Single click
and hold to move the cursor and release it to “park” the cursor where you want it.
Double click the center button and release it for continuous cursor movement
similar to a standard mouse.
• The right and left buttons function like standard mouse right-click and left-click
buttons.
• Move the cursor by flexing your wrist, not your arm or body, much as you would
with a flashlight; side to side and up and down. Placing your arm on an armrest
or on your lap will make this motion more comfortable.
• The RF Transmit LED indicates when gyro motion or other information is being
sent independent of which mode is selected on the RCU.
Thomson/Gyration Confidential Page 3 of 21
Product Diagram
Button Cluster Locations
A RCU mode selection and
B Additional buttons needed
C Transport control Standard AV control for selected
D Menu navigation Standard menu navigation: up,
E Gyro button cluster Center button activates gyro for

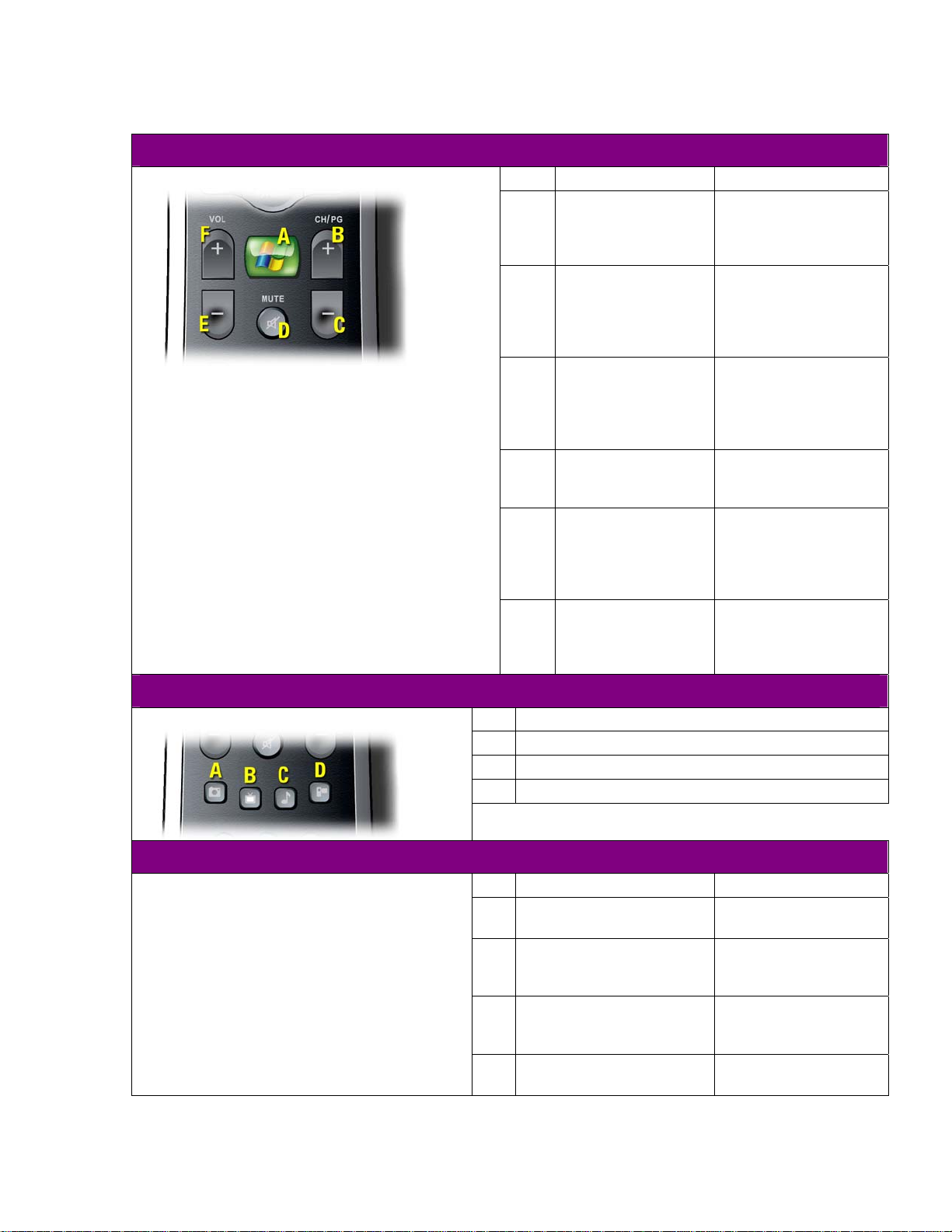

F Volume and Channel
G Media Center shortcuts Shortcuts buttons to easily

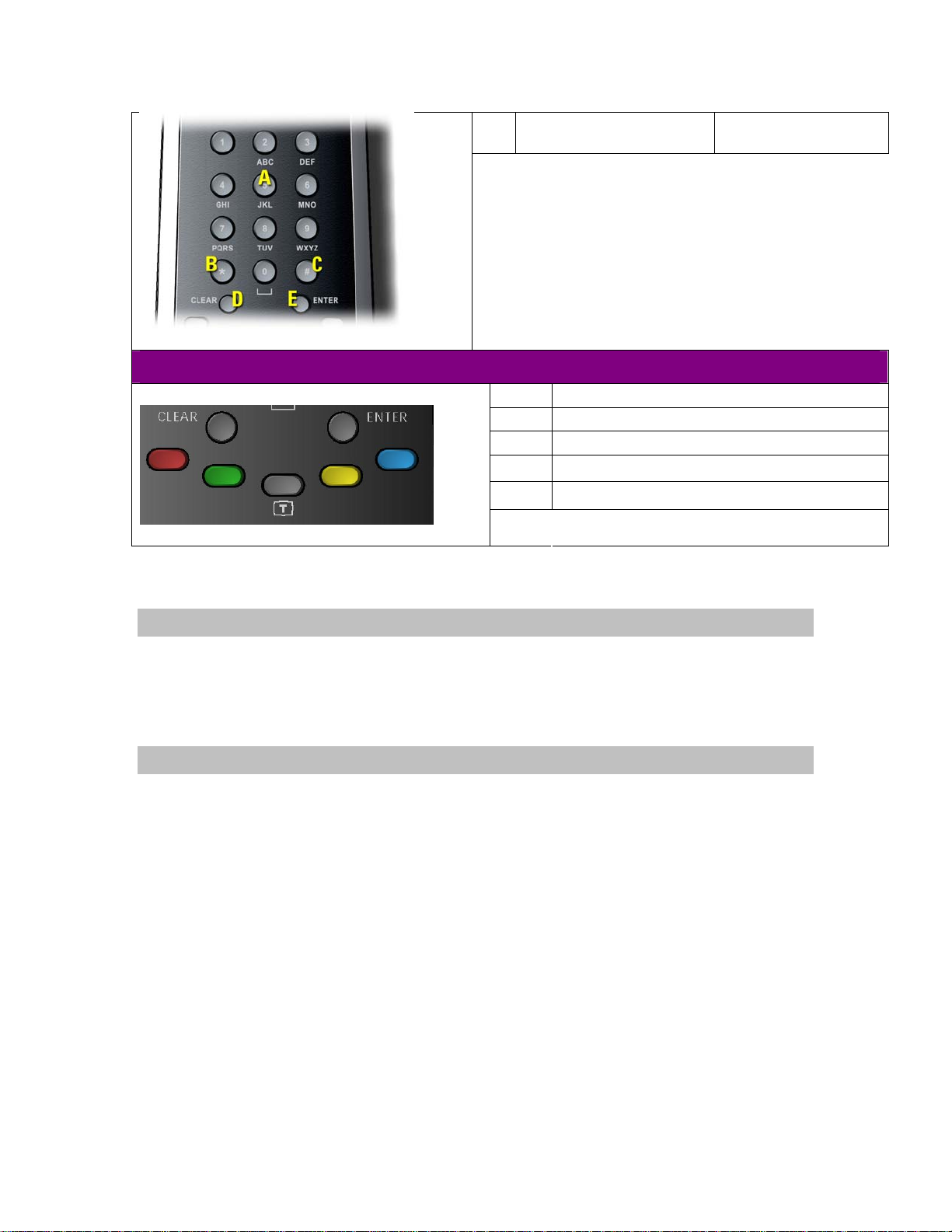

H Alpha-numeric keypad Standard 0-9 keys with alpha
Button Cluster Function
Selects RCU mode (PC, TV, and
power
for RF connection, LCD
Backlighting, and TV Input
support
control, eHome (MCE
Green Button), Mute
See following pages for more detail on these buttons
MusicDisplay). Powers on/off
selected device. Includes RF LED.
CONNECT, BACKLIGHT, TV
INPUT
transport or Windows Media
Player, Windows Media Center,
DVR, etc.
down, left, right, OK. Includes MS
required buttons: LIVE TV,
GUIDE, BACK and MORE.
in-air cursor control. Outer buttons
function like standard left and right
mouse buttons.
Standard volume up/down,
channel up/down, Media Center
eHome, and volume mute.
navigate within the Media Center
environment
characters, plus *, space, #,
CLEAR, and ENTER
Thomson/Gyration Confidential Page 4 of 21
RCU Mode Selection
A Puts RCU into PC control mode for communicating with
Media Center PC via RF protocol.
B Puts RCU into TV control mode for communicating with TV
via IR protocol.
C Turns on LCD and puts RCU into Music control mode for
playing music stored on your Media Center PC.
D PC, TV mode:
Powers on/off the selected
device.
E Transmit LED indicator for RF transmission
PC Mode:
Issues a standby
command. If the system is
active, the first button
press puts it into standby
mode and the second
button press issues a power
down command. If the
system is already in
standby mode, a button
press will awaken.
Thomson/Gyration Confidential Page 5 of 21
Transport Control
PC, TV, or Music
mode:
A Puts selected
device into Stop
mode, if
supported
B Puts selected
device into Pause
mode, if
supported
C Puts selected
device into Fast
Forward mode, if
supported
D Skip command, if
supported by
selected device
E Puts selected
device into Play
mode, if
supported
F Replay command,
if supported by
selected device
G Puts selected
device into
Rewind mode, if
supported
H Puts selected
device into Record
mode, if
supported
PC Mode
Stops media playback and positions
pointer to start of media
First button press will pause the
media at present position.
Subsequent button presses toggles
between pause and playback at
present position pointer.
First press speeds up the time base
of the media stream to the first FF
value (3X). If media is a slide show,
skips to next picture.
Subsequent button presses cycle
through the FF speed values looping
through 0 (normal speed) 3X, 20X,
60X. If slide show, skips to next
picture.
Skips ahead an increment:
CD and Playlists skip to next song.
DVD skips to next chapter. Slide
show skips to next picture. DVR
skips 29 seconds
Start (if paused, continue) playback
of media at present position pointer.
Used by Media Center for Media
Center media, DVR, CD/DVD,
playlists and slide shows.
Move the position pointer back an
increment:
CD and Playlist: skips back to
previous song. DVD: skips back to
previous chapter. Slide show: skips
back to previous picture. DVR skips
back 7 seconds
First press speeds up the time base
and reverses direction of the media
stream to the first rewind value
(3X). If media is a slide show, skips
to previous picture.
Second press cycles through the
RWD speed values looping through 0
(normal speed) 3X, 20X, 60X. If
media is a slide show, skips to
previous picture
Records the TV show to disk. Starts
recording at the beginning of the
show as defined by on-screen TV
program guide (if the pause buffer
enables it)
Thomson/Gyration Confidential Page 6 of 21
Menu Navigation
TV or Music mode PC Mode
A No action, or as defined
by selected device
B No action, or as defined
by selected device
C No action, or as defined
by selected device
D No action, or as defined
by selected device
E Menu Navigation Up Moves the focus point up one
F Menu Navigation Right Moves focus point right one
G Menu Navigation Down Moves the focus point down one
H Menu Navigation Left
I Performs action
indicated by focus point
Brings live TV to the front to the
last channel user was watching.
Invokes the on-screen TV
program guide via Media Center
Goes back one location of the
user interface back stack
Provide information if available
for the focus point
location, if at top of the screen
takes no action
position, if at rightmost position
takes no action
location, if at bottom of the
screen takes no action
Moves focus point left one
position, if at leftmost position
goes back 1 page in the user
interface stack
Performs action indicated by
focus point
Gyro Activation/Select
A Simulates a left-mouse button-click
C Activates gyroscope for motion-sensing cursor control,
motion-sensing menu navigation, or other motionsensing features
B Simulates a right-mouse button-click
Thomson/Gyration Confidential Page 7 of 21
Loading...
