Mounting
1. Both the (1) Main Hanger and the (2) Secondary Hanger should be used together to hold the balancer securely. The Main
Hanger should be attached to a hanging device. Then a security chain, wire, etc. should be connected to the Secondary
Hanger.
2. Check if the weight of the tool being loaded is appropriate before connecting it to the (7) Hook.
Stroke Adjustment
The vertical travel length of the (9) Wire can be adjusted to a suitable level for the working environment.
1. Squeeze the (4) Shock Absorber & (5) Stopper and slide these two items to a
suitable position on the (9) Wire.
Spring Tension Adjustment
1. When adjusting the spring tension, remove the tool from the (7) Hook before
operating the (8) Handle.
2. Pull the (8) Handle outward and turn the handle clockwise or counter clockwise
to adjust spring tension. Make sure the tension is appropriate for the loaded
weight.
- To increase the tension: Turn the (8) Handle clockwise.
- To decrease the tension: Turn the (8) Handle counter clockwise while pulling
the handle.
Corporate Headquarters: 1080 North 11th Street, San Jose, CA95112 Phone: (408) 292-2214 Fax: (408) 292-2733
www.mountztorque.com

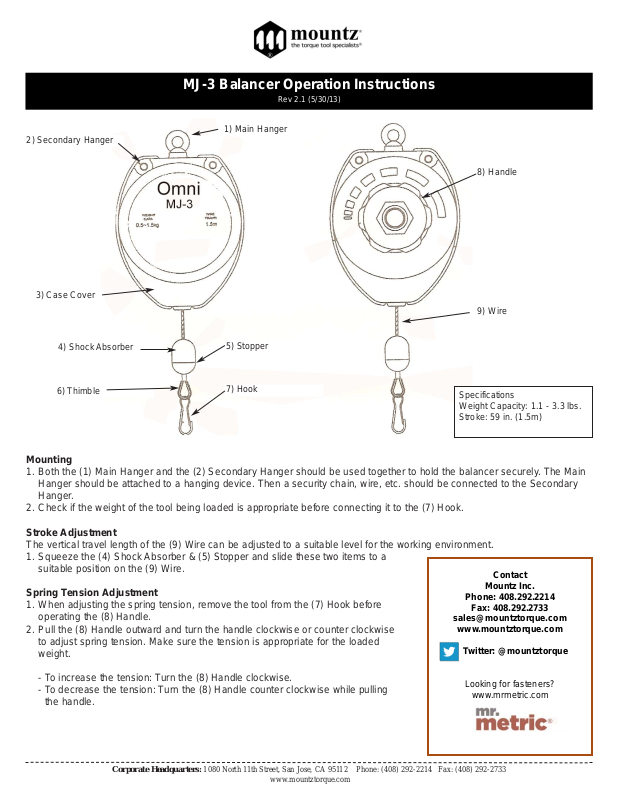

MJ-3 Balancer Operation Instructions
Rev 2.1 (5/30/13)

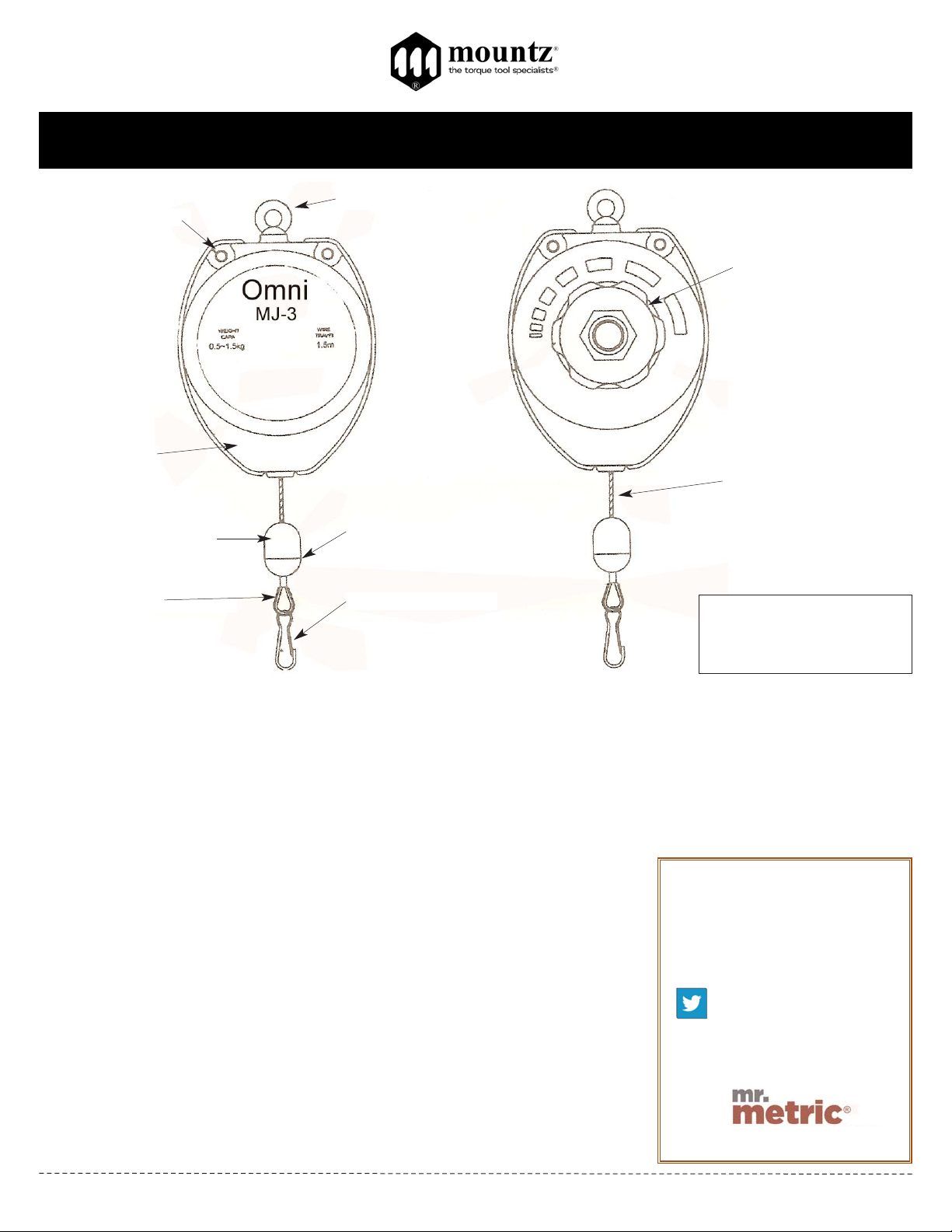

1) Main Hanger
2) Secondary Hanger
3) Case Cover
4) Shock Absorber
5) Stopper
6) Thimble
7) Hook
8) Handle
9) Wire
Specifications
Weight Capacity: 1.1 - 3.3 lbs.
Stroke: 59 in. (1.5m)
