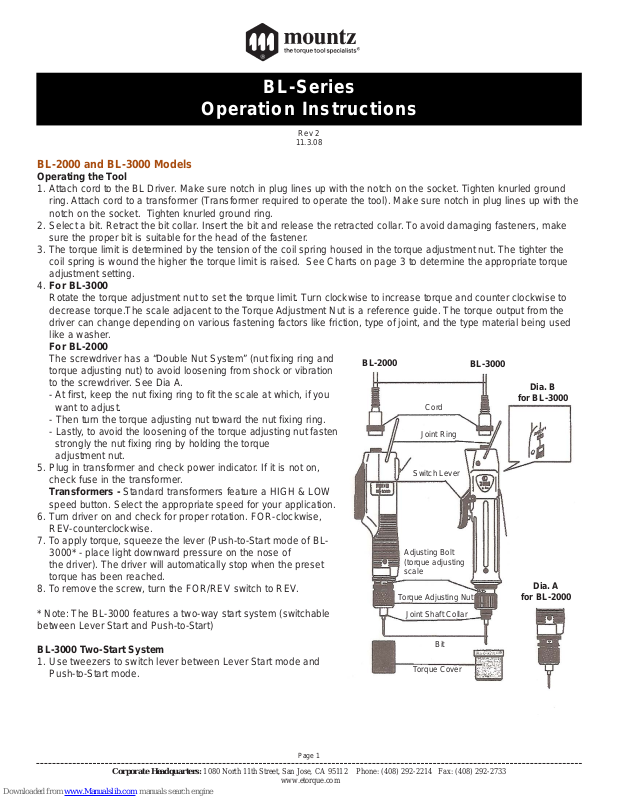

BL-2000 and BL-3000 Models

Operating the Tool

1. Attach cord to the BL Driver. Make sure notch in plug lines up with the notch on the socket. Tighten knurled ground
ring. Attach cord to a transformer (Transformer required to operate the tool). Make sure notch in plug lines up with the
notch on the socket. Tighten knurled ground ring.

2. Select a bit. Retract the bit collar. Insert the bit and release the retracted collar. To avoid damaging fasteners, make
sure the proper bit is suitable for the head of the fastener.

3. The torque limit is determined by the tension of the coil spring housed in the torque adjustment nut. The tighter the
coil spring is wound the higher the torque limit is raised. See Charts on page 3 to determine the appropriate torque
adjustment setting.

4. For BL-3000
Rotate the torque adjustment nut to set the torque limit. Turn clockwise to increase torque and counter clockwise to
decrease torque.The scale adjacent to the Torque Adjustment Nut is a reference guide. The torque output from the
driver can change depending on various fastening factors like friction, type of joint, and the type material being used
like a washer.

For BL-2000

The screwdriver has a “Double Nut System” (nut fixing ring and
torque adjusting nut) to avoid loosening from shock or vibration
to the screwdriver. See Dia A.

- At first, keep the nut fixing ring to fit the scale at which, if you

want to adjust.

- Then turn the torque adjusting nut toward the nut fixing ring.

- Lastly, to avoid the loosening of the torque adjusting nut fasten

strongly the nut fixing ring by holding the torque
adjustment nut.

5. Plug in transformer and check power indicator. If it is not on,
check fuse in the transformer.
Transformers - Standard transformers feature a HIGH & LOW
speed button. Select the appropriate speed for your application.

6. Turn driver on and check for proper rotation. FOR-clockwise,
REV-counterclockwise.

7. To apply torque, squeeze the lever (Push-to-Start mode of BL­3000* - place light downward pressure on the nose of
the driver). The driver will automatically stop when the preset
torque has been reached.

8. To remove the screw, turn the FOR/REV switch to REV.

* Note: The BL-3000 features a two-way start system (switchable
between Lever Start and Push-to-Start)

BL-3000 Two-Start System

1. Use tweezers to switch lever between Lever Start mode and
Push-to-Start mode.

Dia. A

for BL-2000

Dia. B

for BL-3000

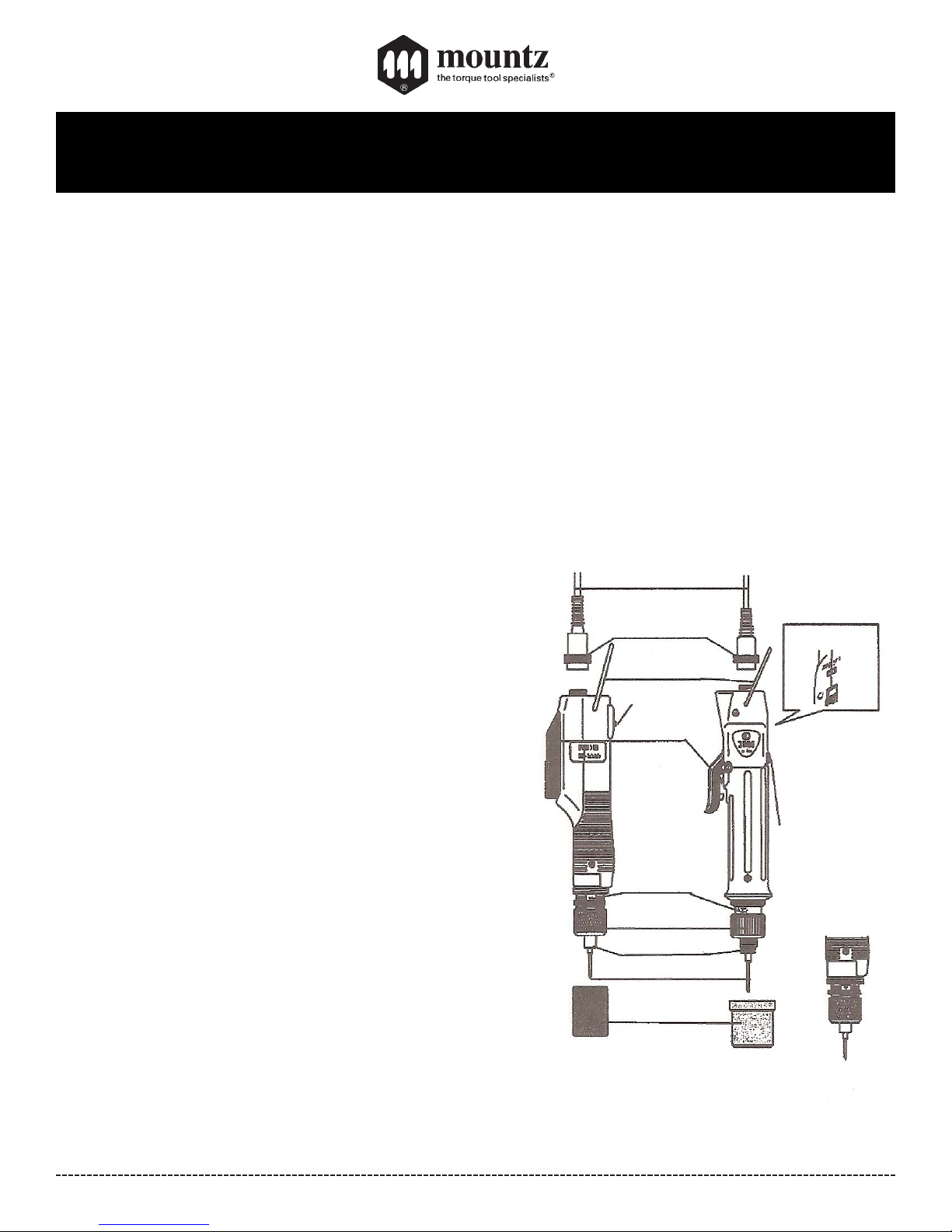

BL-3000

BL-2000

Torque Cover

Bit

Torque Adjusting Nut

Joint Shaft Collar

Adjusting Bolt
(torque adjusting
scale

Switch Lever

Joint Ring

Cord

BL-Series

Operation Instructions

Corporate Headquarters: 1080 North 11th Street, San Jose, CA95112 Phone: [phone] Fax: [phone]

www.etorque.com

Page 2

BL-5000 and BL-7000 Models

Operating the Tool

1. Attach cord to the BL Driver. Make sure notch in plug lines up with the notch on the socket. Tighten knurled ground
ring. Attach cord to a transformer (Transformer required to operate the tool). Make sure notch in plug lines up with the
notch on the socket. Tighten knurled ground ring.

2. Select a bit. Retract the bit collar. Slide the bit collar forward and insert the bit into bit-socket of the
screwdriver and release the bit sleeve (Dia A). To avoid damaging fasteners, make sure the proper
bit is suitable for the head of the fastener.

3. The torque limit is determined by the tension of the coil spring housed in the torque adjustment nut.
The tighter the coil spring is wound the higher the torque limit is raised. See Charts on page 3 to
determine the appropriate torque adjustment setting.

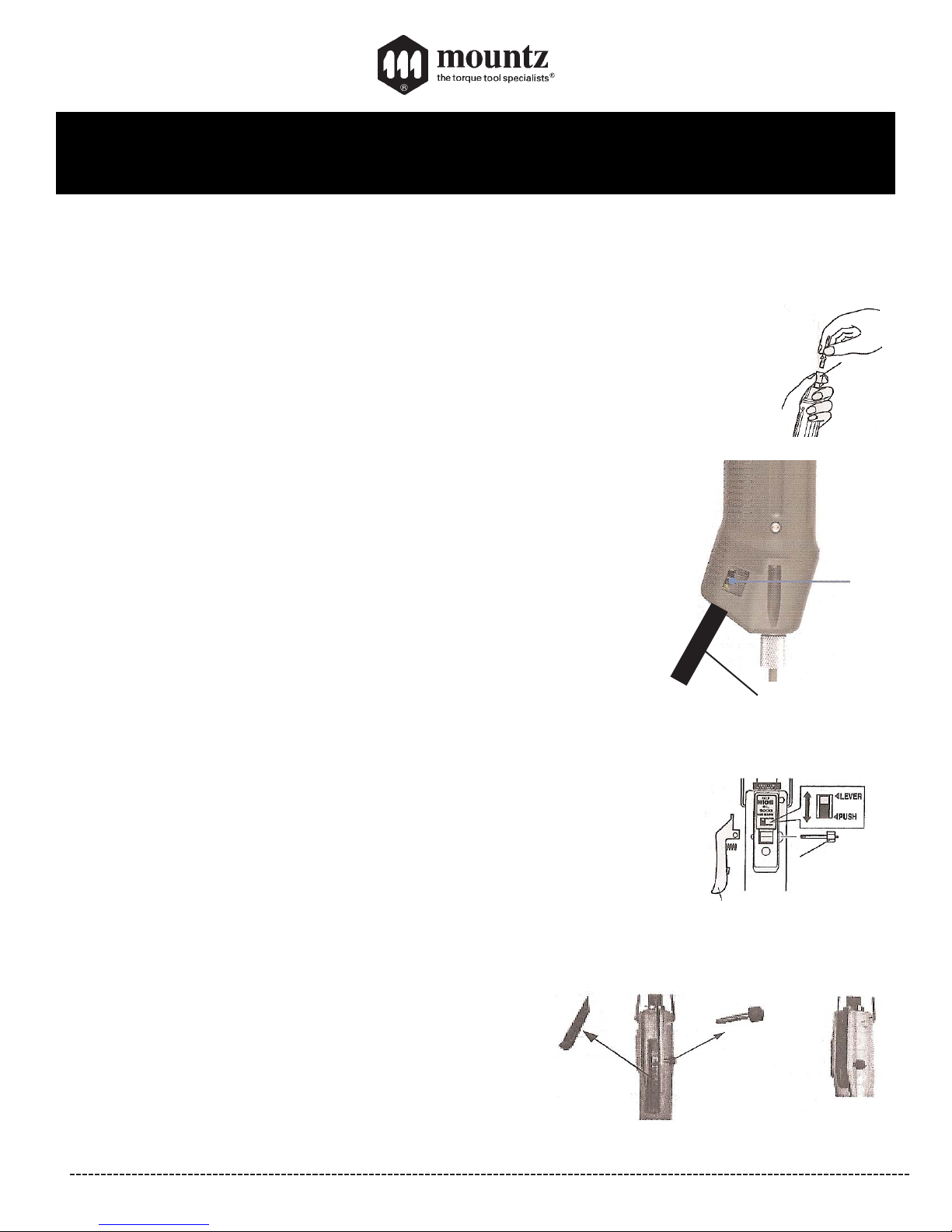

4 Rotate the torque adjustment nut to set the torque limit. Torque is adjusted on the side of

the driver (Dia B). Using the 5mm hex key that was provided with driver, insert into
the rubber hole to access Torque Adjustment Nut. Turn clockwise to increase
torque and counter clockwise to decrease torque. The Torque Adjustment Scale
adjacent to the Torque Adjustment Nut is a reference guide. The torque output
from the driver can change depending on various fastening factors like friction, type
of joint, and the type material being used like a washer.

5. Plug in transformer and check power indicator. If it is not on, check fuse in the
transformer.
Transformers - Standard transformers feature a HIGH & LOW speed button.
Select the appropriate speed for your application.

6. Turn driver on and check for proper rotation. FOR-clockwise,
REV-counterclockwise.

7. When in Lever Start mode, squeeze the lever to apply torque. When in Push-to­Start mode, place light downward pressure on the nose of the driver). The driver
will automatically stop when the preset torque has been reached.

8. To remove the screw, turn the FOR/REV switch to REV.

Two-Start System

The BL-5000 and BL-7000 features a two-way start system
(switchable between Lever Start and Push-to-Start).

Switching BL-5000 to push-to-start mode.

1. Rotate the hex head screw and detach.

2. Detach switch lever.

3. Set the start switch to “PUSH” position. Use the screwdriver without attaching
the hex head screw and switch lever.

Switching BL-7000 to push-to-start mode.

1. Rotate the hex head screw and detach.

2. Detach switch lever.

3. Reattach the switch lever upside down

Dia. A

Dia. B

Torque
Adjustment
Scale

Hex Key

Switch Lever

Hex Head
Screw

Switch Lever

Hex Head Screw

Switch Lever
upside down

BL-Series

Operation Instructions

Corporate Headquarters: 1080 North 11th Street, San Jose, CA95112 Phone: [phone] Fax: [phone]

www.etorque.com

Page 3

CARE

1. The BL-Series screwdrivers are a precision torque control instrument and should be handled with care at all times.

2. Only use the transformers listed in the Mountz catalog for appropriate BL driver model (If you have any questions
regarding the appropriate transformer set-up, contact Mountz Customer Service Department).

3. Operate under safe conditions. Do not place in operation where such objects as hair, strings, clothing, etc. can
become tangled in the rotating bit.

4. Keep away from moisture. Never use in high humid, moist or damp environment.

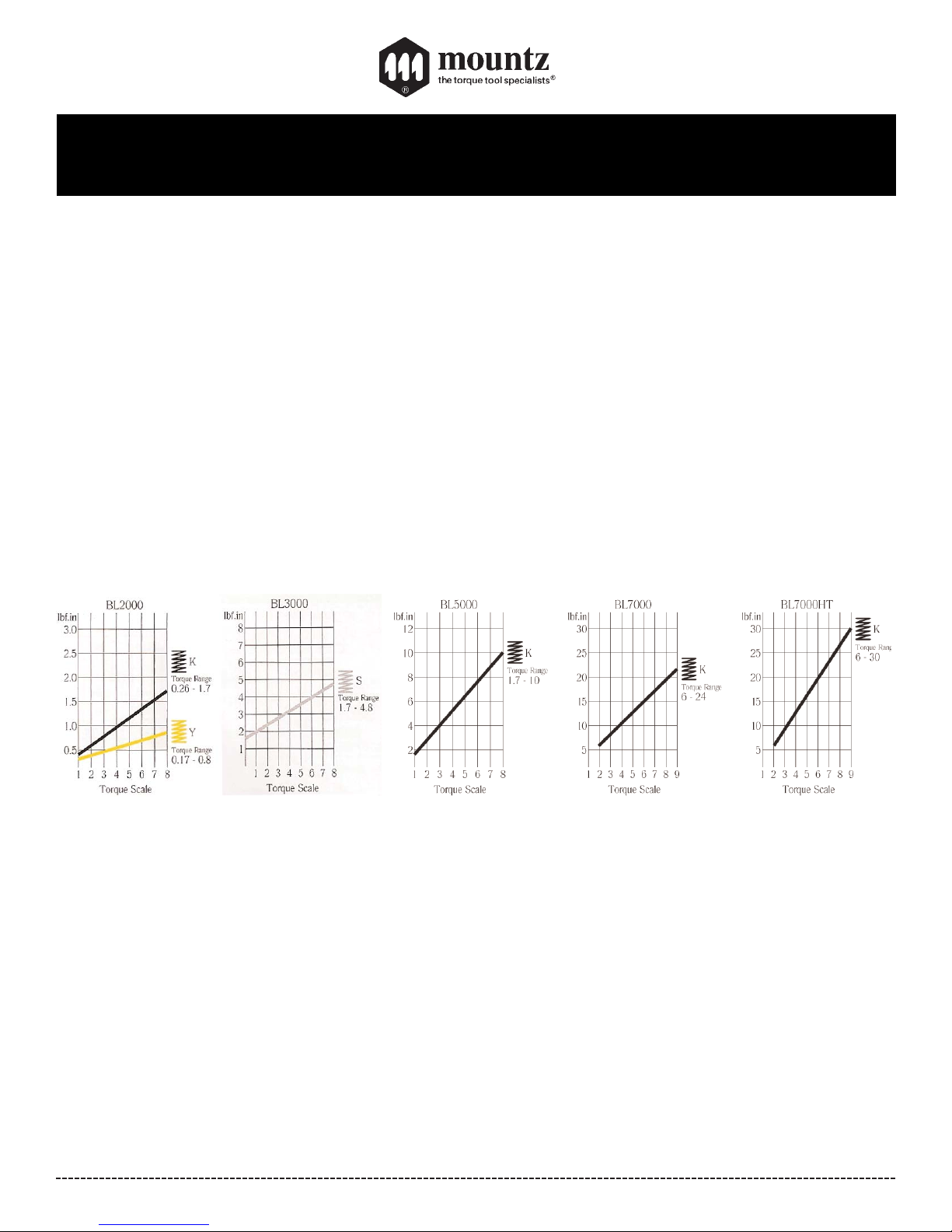

Torque Reference Charts

The torque is externally adjusted within the range of the driver by a simple twist of the torque adjustment nut. The charts
are used to determine the torque of a specific tool and torque spring combination at a given setting. Figures below for
each chart indicate scale setting.

Color of Springs:
K = Black
S = Silver
Y = Yellow

BL-Series

Operation Instructions

Corporate Headquarters: 1080 North 11th Street, San Jose, CA95112 Phone: [phone] Fax: [phone]

www.etorque.com

Page 14

Testing Power Tools:

1. Application Method: Use a torque analyzer in “Peak Mode” with a rotary transducer between the power tool and the actual
application. This is the best way to test since you are using the actual joint as the test station. You will see the actual

torque applied to the fastener. Caution: Variances in tool performance may occur do to the addition of the rotary transducer.

2. Simulated Method: Always use a quality joint rate simulator (run down adapter) with a torque analyzer when testing power

tools in a simulated application. Use Joint rate and Breakaway methods to obtain most accurate torque readings in a
simulated rundown.

Service

Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool.
Mountz provides rapid service with quality that you can trust as we offer three state-of-the-art calibration lab and repair facilities that
can calibrate up to 20,000 lbf.ft.

With over 40 years of experience, Mountz’s in-depth knowledge of torque is reflected in our tool’s craftsmanship and our ability to pro­vide solutions to both common and uncommon torque applications. We per­form calibrations in accordance with ANSI/NCSL-Z540. Mountz is dedicated
solely to the manufacturing, marketing and servicing of high quality torque
tools.

Tool Service & Repair Capability

Torque Wrenches: Click, Dial, Beam, Cam-Over & Break-Over
Torque Screwdrivers: Dial, Micrometer, Preset & Adjustable
Torque Analyzers/Sensors: All brands
Electric Screwdrivers: All brands
Air Tools: All brands

Impact Wrenches, Drills, Pulse Tools, Grinders, Percussive Tools,
Air Screwdrivers, Nutrunners, DC Controlled Nutrunners

Torque Multipliers: All brands
