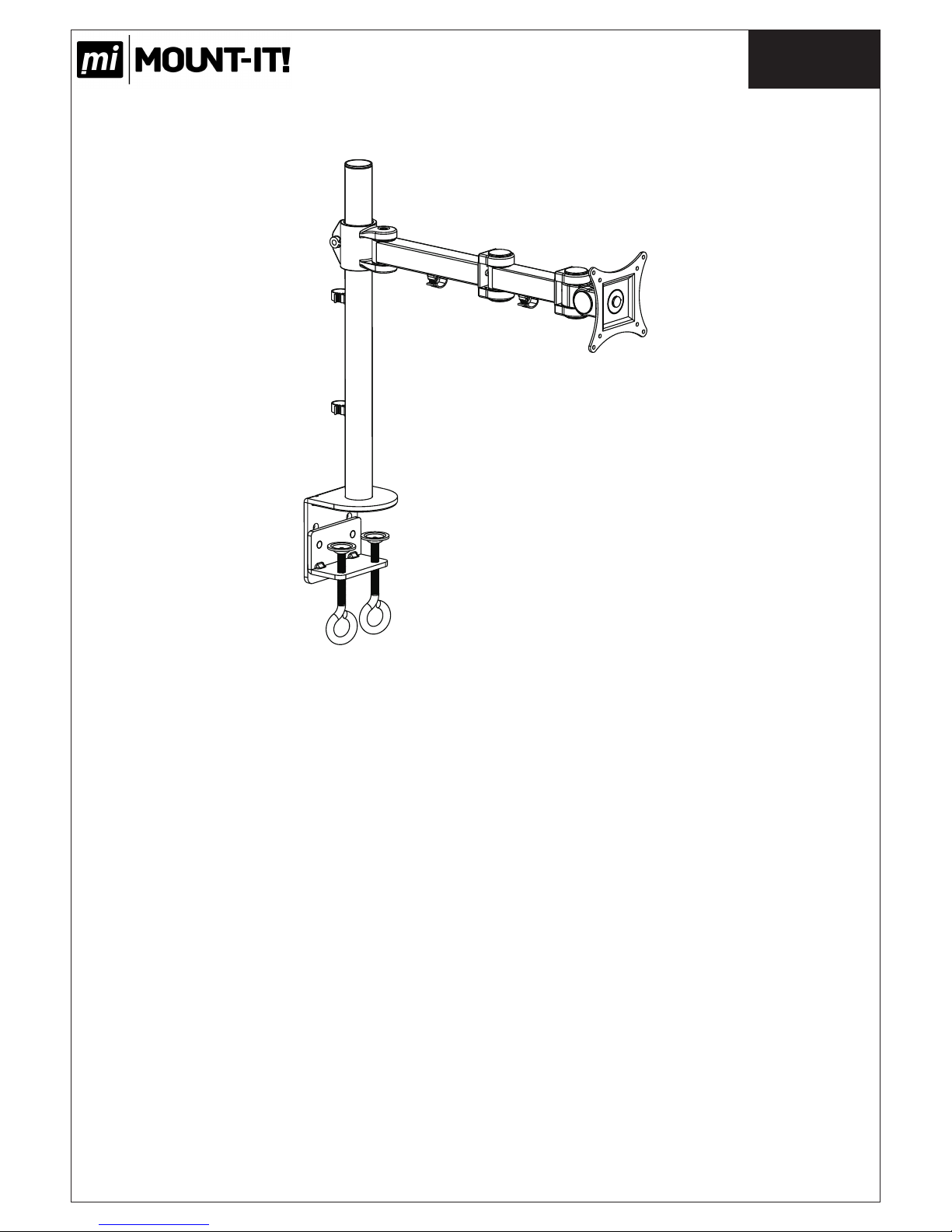

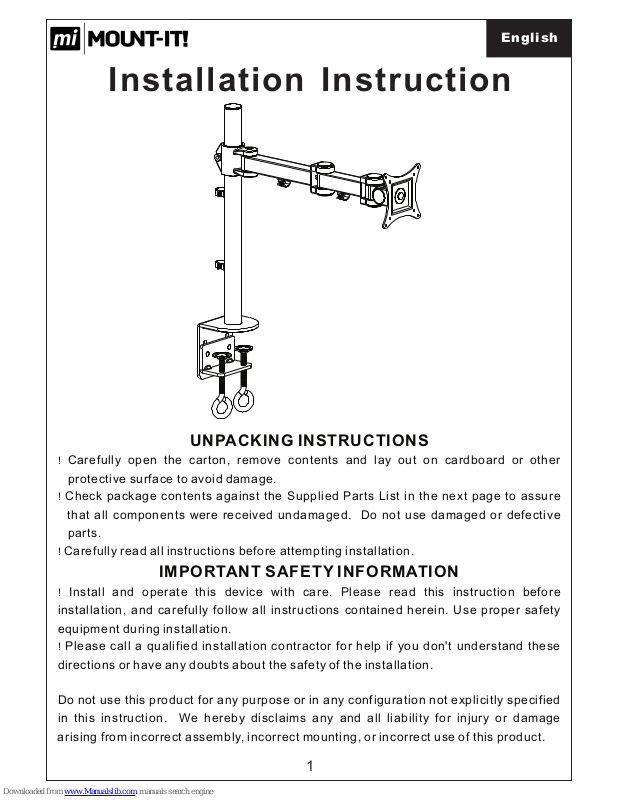

Installation Instruction
1
UNPACKING INSTRUCTIONS
! Carefully open the carton, remove contents and lay out on cardboard or other
protective surface to avoid damage.
! Check package contents against the Supplied Parts List in the next page to assure
that all components were received undamaged. Do not use damaged or defective
parts.
! Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
! Install and operate this device with care. Please read this instruction before
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
! Please call a qualified installation contractor for help if you don't understand these
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
Page 2

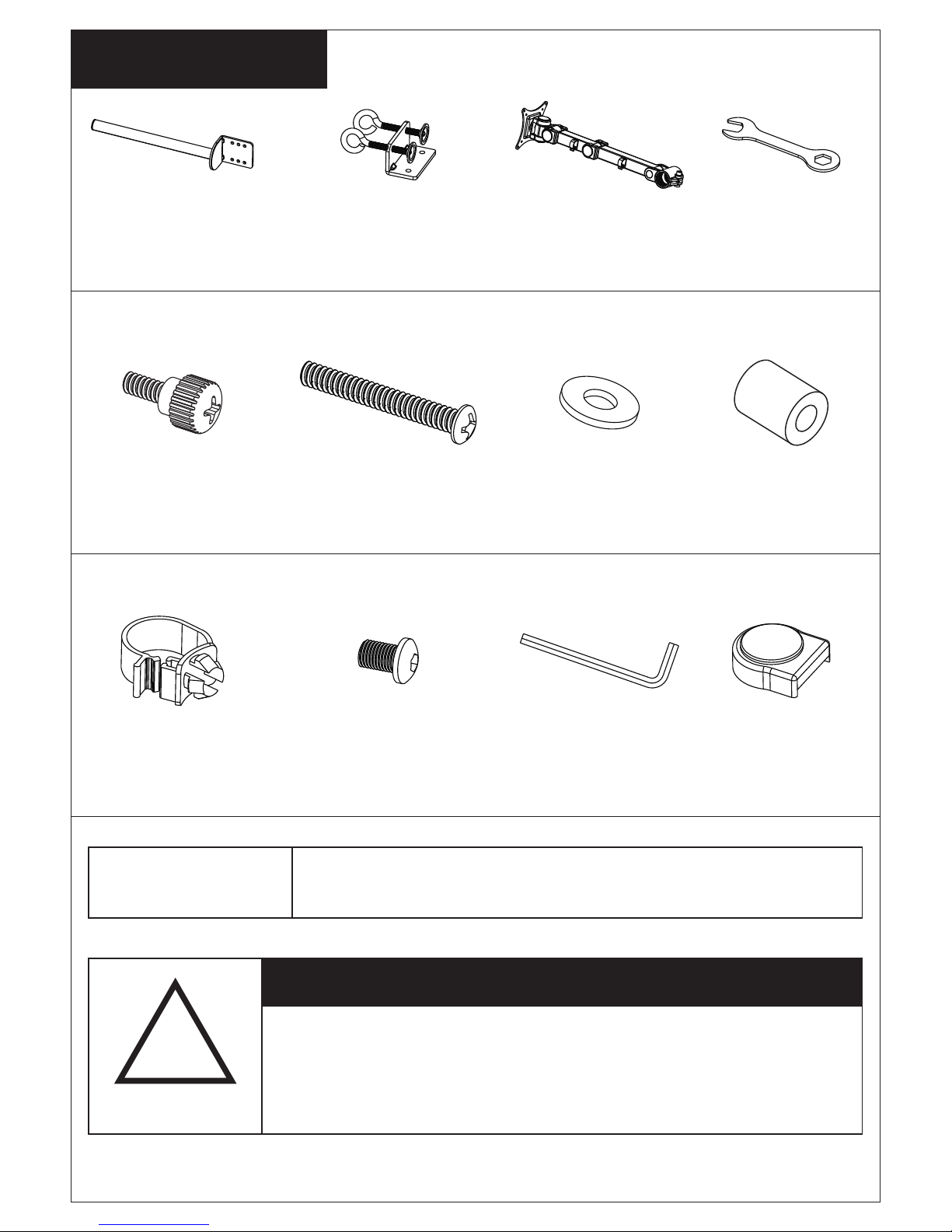

Supplied Par ts List
2
CAUTION!
WARNING
!
This monitor desktop mount must be securely
attached to the horizontal desk. If the mount is
not properly installed it may fall, resulting in
possible injury and/or damage.
Tools Required
Phillips Screwdriver
(4)M4 Space-g(4)M4x30 Bolt-e (8)M4 Washer-f
(2)Wire Clip-h (2)M10x15 Bolt-i (1)Allen Key-j
(2)Spare Plastic
Cover-k
(1)Wrench-l
(1) 35mm Tube
Support-a
(1) VESA Plate with
Arm Assembled-c
(1) Disconnected
“C” Clamp-b
(4)M4x12
Thumb Bolt-d
Page 3

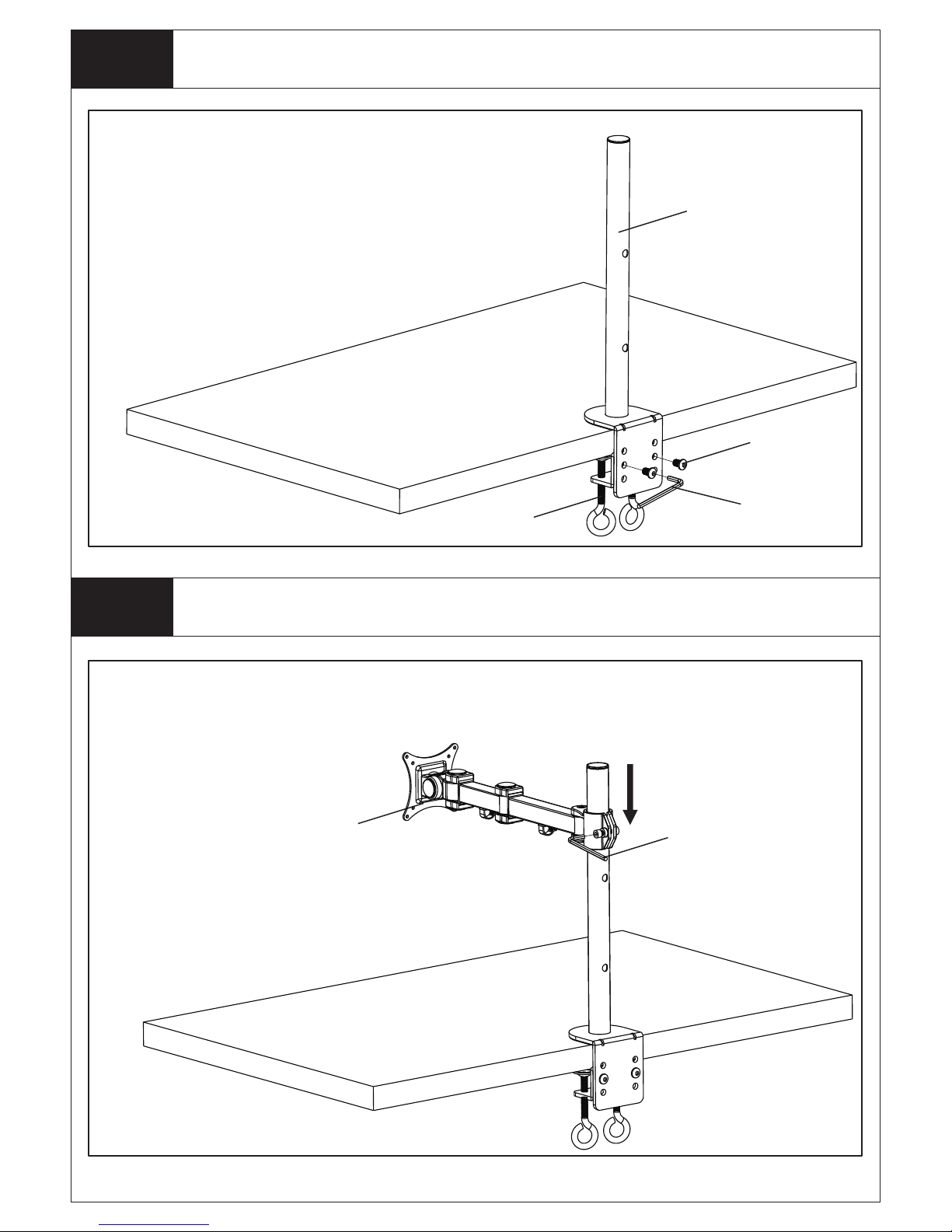

Step 1
Install the “C” Clamp According to the Desktop Thickness
3
Step 2
Install Arm to the Tube Support
a
b
i
j
c
j
The depth of “C” clamp can be changed in
three positions. Choose the proper depth
ac co rd in g to th e th ic kn es s of yo ur
desk top. Connect it by 2pcs M10 x15
bolts(i), using the supplied Allen Key(j).
Install arm to the tube support,
please make sure the wire clip
in the downside. Fasten the
bolt by supplied Allen Key(j).
Page 4
4

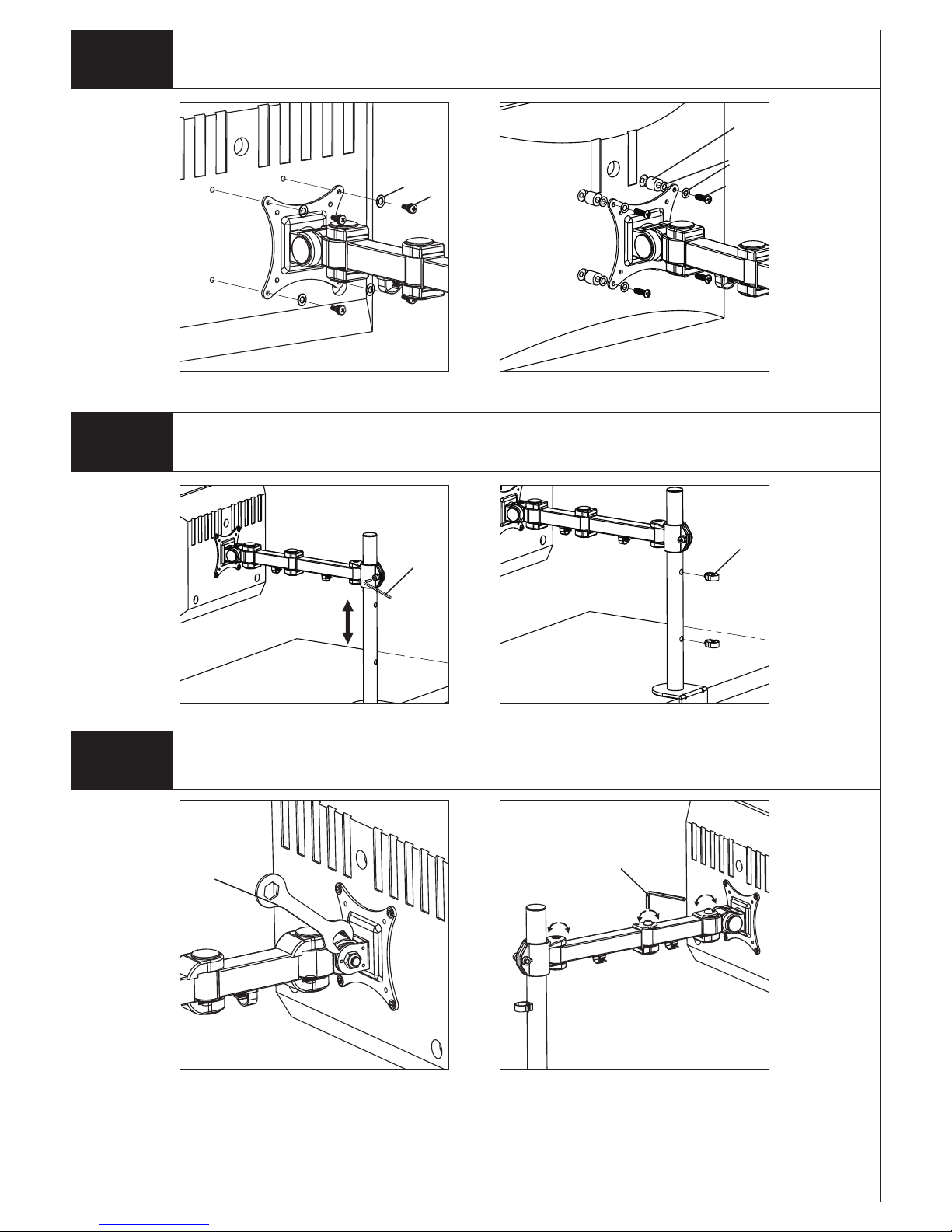

Step 3
Mount the Monitor to VESA Plate
Step 4
Step 5
Adjust the Height and Install the Wire Clips
Do Necessary Adjusting
j
h
For Curved Back Monitor
e
f
g
j
Remove the plastic cover, use
the Allen Key(j) to do the
necessary adjustment.
l
Remo v e t he plasti c c over,
t i g h t e n t h e n u t b y t h e
Wrench(l) to fix the tilt angle.
Fix the tilt angle
For Flat Back MonitorFor Flat Back Monitor
d
f
