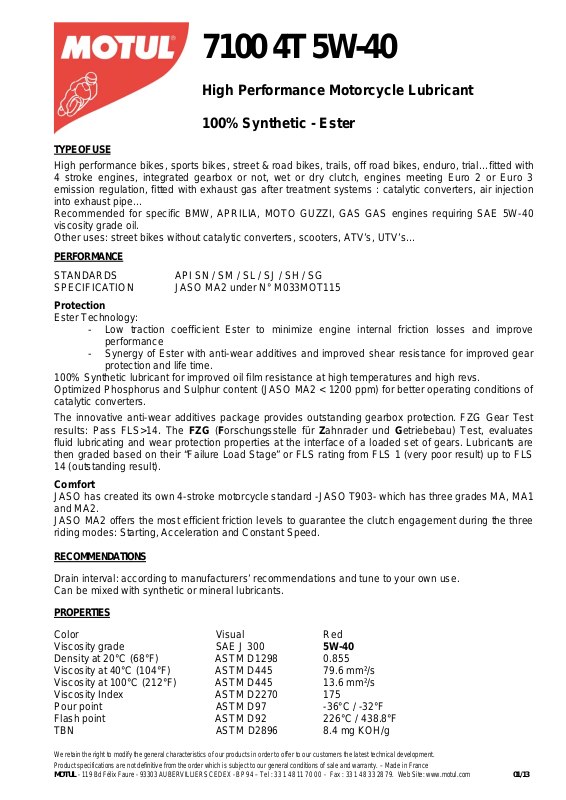

Motul 7100 4T User Manual
–
7100 4T 5W-40
High Performance Motorcycle Lubricant
100% Synthetic - Ester
TYPE OF USE
High performance bikes, sports bikes, street & road bikes, trails, off road bikes, enduro, trial…fitted with
4 stroke engines, integrated gearbox or not, wet or dry clutch, engines meeting Euro 2 or Euro 3
emission regulation, fitted with exhaust gas after treatment systems : catalytic converters, air injection
into exhaust pipe...
Recommended for specific BMW, APRILIA, MOTO GUZZI, GAS GAS engines requiring SAE 5W-40
viscosity grade oil.
Other uses: street bikes without catalytic converters, scooters, ATV’s, UTV’s…
PERFORMANCE
STANDARDS API SN / SM / SL / SJ / SH / SG
SPECIFICATION JASO MA2 under N° M033MOT115
Protection
Ester Technology:
- Low traction coefficient Ester to minimize engine internal friction losses and improve
performance
- Synergy of Ester with anti-wear additives and improved shear resistance for improved gear
protection and life time.
100% Synthetic lubricant for improved oil film resistance at high temperatures and high revs.
Optimized Phosphorus and Sulphur content (JASO MA2 < 1200 ppm)
catalytic converters.
The innovative anti-wear additives package provides outstanding gearbox protection. FZG Gear Test
results: Pass FLS>14
. The FZG (Forschungsstelle für Zahnrader und Getriebebau) Test, evaluates
fluid lubricating and wear protection properties at the interface of a loaded set of gears. Lubricants are
then graded based on their “Failure Load Stage” or FLS rating from FLS 1 (very poor result) up to FLS
14 (outstanding result).
Comfort
JASO has created its own 4-stroke motorcycle standard -JASO T903- which has three grades MA, MA1
and MA2.
JASO MA2 offers the most efficient friction levels to guarantee the clutch engagement during the three
riding modes: Starting, Acceleration and Constant Speed.
RECOMMENDATIONS
Drain interval: according to manufacturers’ recommendations and tune to your own use.
Can be mixed with synthetic or mineral lubricants.
PROPERTIES
Color Visual Red
Viscosity grade SAE J 300 5W-40
Density at 20°C (68°F) ASTM D1298 0.855
Viscosity at 40°C (104°F) ASTM D445 79.6 mm²/s
Viscosity at 100°C (212°F) ASTM D445 13.6 mm²/s
Viscosity Index ASTM D2270 175
Pour point ASTM D97 -36°C / -32°F
Flash point ASTM D92 226°C / 438.8°F
TBN ASTM D2896 8.4 mg KOH/g
for better operating conditions of
We retain the right to modify the general characteristics of our products in order to offer to our customers the latest technical development.
Product specifications are not definitive from the order which is subject to our general conditions of sale and warranty. – Made in France
MOTUL - 119 Bd Félix Faure - 93303 AUBERVILLIERS CEDEX - BP 94
Tel : 33 1 48 11 70 00 - Fax : 33 1 48 33 28 79.
Web Site: www.motul.com
01/13
