Operating Manual
touchMATRIX Indicator DX350
HTL-frequency counter, -tachometer and -speed indicator with touchscreen and graphic display
Product features:
Multifunctional unit with several operating modes, e. g. speed or position indicator,
process meter, counter, timer or stopwatch
Universal HTL inputs for encoders / sensors with NPN / PNP / NAMUR characteristic
Bright and high-contrast display with event controlled color variations
Emulation of a 7-segment display inclusively icons and units
Intuitive and easy parameterization by plain text and touchscreen
24 V auxiliary output for encoder supply
Input frequencies up to 250 kHz
Linearization with 24 interpolation points
Numerous features, e. g. scaling, filtering, start-up suppression
96 x 48 mm (3.78 x 1.89 inch) norm panel housing and IP65 protection
Available options:
DX350: Basic unit with HTL inputs (A, B), 3 control inputs
Option AC350: Power supply 115 … 230 VAC
Option AO350: 16 bit analog output, 4 control outputs, serial RS232 interface
Option CO350: 4 control outputs, serial RS232 interface
Option RL350: 2 relay outputs
All options can be combined
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
Version:
Description
DX350_01a_oi/sn- tg /Feb-17
First Version
DX350_01d_oi/cn/Okt-16
Revised first Version
DX350_02a_oi/cn/Nov-16
Second Version
DX350_02c_oi/cn/Jan-17
revised Version
Legal notices:
All contents included in this manual are protected by the terms of use and copyrights of motrona
GmbH. Any reproduction, modification, usage or publication in other electronic and printed media
as well as in the internet requires prior written authorization by motrona GmbH.
Dx350_02c_oi_e.doc / Feb-17 Seite 2 / 44
Table of Contents
1. Safety Instructions and Responsibility........................................................................... 4
1.1. General Safety Instructions .......................................................................................................... 4
1.2. Use according to the intended purpose ....................................................................................... 4
1.3. Installation .................................................................................................................................... 5
1.4. Cleaning, Maintenance and Service Notes ................................................................................. 5
2. Introduction ................................................................................................................... 6
2.1. Operation mode ............................................................................................................................ 6
2.2. Function diagram .......................................................................................................................... 6
3. Electrical Connections .................................................................................................. 7
3.1. DC Power Supply .......................................................................................................................... 7
3.2. Auxiliary Voltage Output .............................................................................................................. 7
3.3. Incremental Input A, B .................................................................................................................. 8
3.4. Control Inputs ............................................................................................................................... 9
3.5. Analog Output (Option AO350)................................................................................................... 10
3.6. Serial interface (Option AO350 / CO350) ................................................................................... 11
3.7. Control-Output (Option AO350 / CO350) .................................................................................... 11
3.8. AC Power supply (Option AC350) ............................................................................................... 12
3.9. Relay-Output (Option RL350) ...................................................................................................... 12
4. Display and touch screen ............................................................................................ 13
4.1. Screen structure for parametrization ......................................................................................... 13
4.2. Screen structure in operation ..................................................................................................... 14
5. Parameter / Overview-Menu Structure ........................................................................ 15
5.1. General Menu ............................................................................................................................. 17
5.2. Mode Speed ............................................................................................................................... 19
5.3. Mode Process Time .................................................................................................................... 21
5.4. Mode Timer ................................................................................................................................ 23
5.5. Mode Counter ............................................................................................................................. 24
5.6. Mode Velocity............................................................................................................................. 25
5.7. Preselection Values .................................................................................................................... 27
5.8. Preselection 1 Menu .................................................................................................................. 28
5.9. Preselection 2 Menu .................................................................................................................. 31
5.10. Preselection 3 Menu .................................................................................................................. 32
5.11. Preselection 4 Menu .................................................................................................................. 33
5.12. Serial Menu ................................................................................................................................ 34
5.13. Analog Menu .............................................................................................................................. 36
5.14. Command Menu ......................................................................................................................... 37
5.15. Display Menu.............................................................................................................................. 38
5.16. Linearization Menu ..................................................................................................................... 39
6. Appendix ..................................................................................................................... 40
6.1. Data readout via serial interface ............................................................................................... 40
6.2. Linearization ............................................................................................................................... 41
6.3. Dimensions ................................................................................................................................. 43
6.4. Technical specifications ............................................................................................................. 44
Dx350_02c_oi_e.doc / Feb-17 Seite 3 / 44
1. Safety Instructions and Responsibility
1.1. General Safety Instructions
This operation manual is a significant component of the unit and includes important rules and hints
about the installation, function and usage. Non-observance can result in damage and/or impairment
of the functions to the unit or the machine or even in injury to persons using the equipment!
Please read the following instructions carefully before operating the device and observe all safety
and warning instructions! Keep the manual for later use.
A pertinent qualification of the respective staff is a fundamental requirement in order to use these
manual. The unit must be installed, connected and put into operation by a qualified electrician.
Liability exclusion: The manufacturer is not liable for personal injury and/or damage to property and
for consequential damage, due to incorrect handling, installation and operation. Further claims, due
to errors in the operation manual as well as misinterpretations are excluded from liability.
In addition the manufacturer reserves the right to modify the hardware, software or operation
manual at any time and without prior notice. Therefore, there might be minor differences between
the unit and the descriptions in operation manual.
The raiser respectively positioner is exclusively responsible for the safety of the system and
equipment where the unit will be integrated.
During installation or maintenance all general and also all country- and application-specific safety
rules and standards must be observed.
If the device is used in processes, where a failure or faulty operation could damage the system or
injure persons, appropriate precautions to avoid such consequences must be taken.
1.2. Use according to the intended purpose
The unit is intended exclusively for use in industrial machines, constructions and systems. Nonconforming usage does not correspond to the provisions and lies within the sole responsibility of
the user. The manufacturer is not liable for damages which have arisen through unsuitable and
improper use.
Please note that device may only be installed in proper form and used in a technically perfect
condition (in accordance to the Technical Specifications). The device is not suitable for operation in
explosion-proof areas or areas which are excluded by the EN 61010-1 standard.
Dx350_02c_oi_e.doc / Feb-17 Seite 4 / 44
1.3. Installation
The device is only allowed to be installed and operated within the permissible temperature range.
Please ensure an adequate ventilation and avoid all direct contact between the device and hot or
aggressive gases and liquids.
Before installation or maintenance, the unit must be disconnected from all voltage-sources. Further
it must be ensured that no danger can arise by touching the disconnected voltage-sources.
Devices which are supplied by AC-voltages must be connected exclusively by switches, respectively
circuit-breakers with the low voltage network. The switch or circuit-breaker must be placed as near
as possible to the device and further indicated as separator.
Incoming as well as outgoing wires and wires for extra low voltages (ELV) must be separated from
dangerous electrical cables (SELV circuits) by using a double resp. increased isolation.
All selected wires and isolations must be conform to the provided voltage- and temperature-ranges.
Further all country- and application-specific standards, which are relevant for structure, form and
quality of the wires, must be ensured. Indications about the permissible wire cross-sections for
wiring are described in the Technical Specifications.
Before first start-up it must be ensured that all connections and wires are firmly seated and secured
in the screw terminals. All (inclusively unused) terminals must be fastened by turning the relevant
screws clockwise up to the stop.
Overvoltages at the connections must be limited to values in accordance to the overvoltage
category II.
For placement, wiring, environmental conditions as well as shielding and earthing/grounding of the
supply lines the general standards of industrial automation industry and the specific shielding
instructions of the manufacturer are valid. Please find all respective hints and rules on
www.motrona.com/download.html --> “[General EMC Rules for Wiring, Screening and Earthing]”.
1.4. Cleaning, Maintenance and Service Notes
To clean the front of the unit please use only a slightly damp (not wet!), soft cloth. For the rear no
cleaning is necessary. For an unscheduled, individual cleaning of the rear the maintenance staff or
assembler is self-responsible.
During normal operation no maintenance is necessary. In case of unexpected problems, failures or
malfunctions the device must be shipped for back to the manufacturer for checking, adjustment and
reparation (if necessary). Unauthorized opening and repairing can have negative effects or failures
to the protection-measures of the unit.
Dx350_02c_oi_e.doc / Feb-17 Seite 5 / 44
2. Introduction
This series of display unit is suitable for HTL impulse signals and panel mounting. It is very versatile
in use, due to the intuitive handling and the extensive range of functions and options.
2.1. Operation mode
All functions are can be configured in the parameter menu.
The device can be set to one of the following operation modes:
• Speed:
Speed indicator (RPM), operation as tachometer or frequency meter.
Only input A is used.
• Process Time:
Operation as baking time or processing time indicator (reciprocal speed)
Only input A is used.
• Timer:
Operation as stopwatch. Start- / Stop function can be freely parameterized.
Depending on the parameter setting, only Input A or Input B are used.
• Counter:
Operation as position indicator, event-, sum-, differential- or up-down counter.
Input A and B are used.
• Velocity:
Runtime measurement as speed indicator.
Input A operates as a start input and input B operates as a stop input.
2.2. Function diagram
Dx350_02c_oi_e.doc / Feb-17 Seite 6 / 44
DC version
AC version
The encoder voltage is approx. 1 V lower than
the power supply voltage at terminal 1 and 2
and should be loaded with max. 250 mA.
The encoder voltage is 24 VDC (± 15%) and
should be loaded with max. 150 mA up to 45
degrees Celsius. At higher temperature the
maximum output current is reduced to 80 mA.
3. Electrical Connections
The terminal screws should be tightened with a slotted screwdriver (blade width 2mm).
3.1. DC Power Supply
The unit accepts DC supply from 18 to 30 V at the terminals 1 and 2. The power consumption
depends on the level of the supply voltage with aprox. 100 mA and the additional current required
at the Auxiliary Voltage Output.
All GND terminals are internally interconnected.
3.2. Auxiliary Voltage Output
Terminal 3 and 4 provide an auxiliary output for supply of sensors and encoders.
The output voltage depends on the power supply.
Dx350_02c_oi_e.doc / Feb-17 Seite 7 / 44
PNP
NPN
Namur
Tri-State
3.3. Incremental Input A, B
The unit provides two inputs at terminal 5 and 7 for HTL signals.
The characteristics of the incremental input (PNP, NPN, Namur or Tri-State) can be set in the
GENERAL MENU.
Wiring of the incremental inputs:
Unconnected PNP inputs are always “LOW” and unconnected NPN inputs are always “HIGH”.
All inputs are designed to receive impulses from electrical impulse sources.
Notice for mechanical switching contacts:
When exceptionally mechanical contacts are used, please connect an external capacitor between
GND (-) and the corresponding input (+). A capacity of 10 µF will reduce the input frequency to
20 Hz and miscounting due to contact bouncing will be eliminated.
Dx350_02c_oi_e.doc / Feb-17 Seite 8 / 44
3.4. Control Inputs
The three control inputs at terminal 10, 11 and 12 have HTL PNP characteristics.
In the COMMAND MENU the programmable functions for the control inputs can be assigned.
Available functions are: reset the display value, display switching, locking the touch screen or
release the lock function of the control or relay outputs.
Wiring of the control inputs:
Unconnected control inputs are always “LOW”.
All inputs are designed to receive impulses from an electronic impulse source.
Notice for mechanical switching contacts:
When exceptionally mechanical contacts are used, please connect an external capacitor between
GND (-) and the corresponding input (+). A capacity of 10 µF will reduce the input frequency to
20 Hz and miscounting due to contact bouncing will be eliminated.
Dx350_02c_oi_e.doc / Feb-17 Seite 9 / 44
Important:
A parallel operation with voltage and current output at the analog output is not allowed.
3.5. Analog Output (Option AO350)
A 16 bit analog output is available at terminal 13 and 14 / 15
This output can be configured and scaled in the ANALOG MENU.
The following configuration is possible:
• Voltage output: -10 … +10 V
• Current output: 0 … 20 mA
• Current output: 4 … 20 mA
The analog output is proportional to the display value and is referenced to potential AGND.
AGND and GND are internally interconnected.
Dx350_02c_oi_e.doc / Feb-17 Seite 10 / 44
3.6. Serial interface (Option AO350 / CO350)
A serial interface (RS232) is available at terminal 16, 17 und 18.
This interface can be configured in the SERIAL MENU.
The serial interface RS232 can be used:
for easy setup and commissioning of the units
to modify settings and parameters during operation
to read out internal states and actual measuring values by PC or PLC
The following drawing shows the connection to a PC by using a standard Sub-D-9 connector:
3.7. Control-Output (Option AO350 / CO350)
Four control outputs are available at terminal 20, 21, 22 and 23.
Switching conditions can be set in the PRESELECTION MENU. The output Ctrl. Out1 – 4 are fast
PNP outputs with a switching capability of 5 – 30 Volt / 200 mA per channel. The switching states
is displayed (display with unit and status bar) as C1 … C4.
The switching voltage of the outputs must be applied to input terminal 19 (COM+).
In case of switching inductive loads it is advisable to use external filtering of the coils.
Wiring of the control-outputs:
Dx350_02c_oi_e.doc / Feb-17 Seite 11 / 44
3.8. AC Power supply (Option AC350)
The unit accepts AC supply from 115 to 230 V at the terminals 24 and 25. The power consumption
depends on the level of the supply voltage with aprox. 3VA and the additional current required at
the Auxiliary Voltage Output.
3.9. Relay-Output (Option RL350)
Two relay outputs with potential-free changeover contacts are available at terminal 27, 28, 28, 30,
31, 32. Switching conditions can be set in the PRESELECTION MENU. The switching states is
displayed (display with unit and status bar) as K1 and K4.
AC-switching capacity max 250 VAC/ max 3 A / 750 VA
DC-switching capacity max 150 VAC/ max 2 A / 50 W
Wiring of the relay outputs
Dx350_02c_oi_e.doc / Feb-17 Seite 12 / 44
Start setup procedure:
To edit the parameters,
press the touchscreen for 3 seconds.
Menu selection:
Select the parameter menu via arrow
buttons and confirm with “OK”.
The menu selection can be terminated
with „C“.
Parameter selection:
Select the parameter via arrow buttons
and confirm with „OK“.
The parameter selection can be terminated
with „C“.
Parameter editing:
Edit the parameter via arrow button up and
down, shift cursor via left and right and
save with „OK“.
The parameter editing can be terminated
with „C“.
4. Display and touch screen
4.1. Screen structure for parametrization
The parameter menus and the parameters are described in chapter 5.
Dx350_02c_oi_e.doc / Feb-17 Seite 13 / 44
Parameter changes becomes active only after closing the menu selection
Display with unit and status bar
To switch to the next display,
press the touch screen.
Control - or Relay status are only shown
with Option AO350, CO350, RL350.
Display with command keys
To switch to the next display, press the
top of the screen.
This is only possible in operation mode
TIMER or COUNTER.
Display for quick start for enter
preselection values (PRESELECT VALUES)
To switch to the next display, press the
top of the screen or the “skip” button.
This is only possible with Option AO350,
CO350, RL350
Display with minimum and maximum value
To switch to the next display, press the
top of the screen or the “skip” button.
4.2. Screen structure in operation
The following screens are available during operation. Depending on the device version and the
selected operation mode, not all displays will be shown.
Dx350_02c_oi_e.doc / Feb-17 Seite 14 / 44
Menu / Parameter
GENERAL MENU
OPERATIONAL MODE
ENCODER PROPERTIES
COUNTING DIRECTION
SCALE UNITS
LINEARIZATION MODE
PIN PRESELECTION
PIN PARAMETER
BACK UP MEMORY
FACTORY SETTINGS
Menu / Parameter
MODE SPEED
DISPLAY VALUE
BASE FREQUENCY
DECIMAL POINT
SAMPLING TIME
WAIT TIME
STANDSTILL TIME
AVERAGE FILTER
MODE PROCESS TIME
DISPLAY FORMAT
DISPLAY VALUE
BASE FREQUENCY
SAMPLING TIME
WAIT TIME
STANDSTILL TIME
AVERAGE FILTER
MODE TIMER
TIME BASE
START / STOP
AUTO RESET
LATCH FUNCTION
MODE COUNTER
COUNT MODE
FACTOR
SET VALUE
DECIMALPOINT
MODE VELOCITY
DISPLAY VALUE
BASE TIME
DECIMALPOINT
WAIT TIME
STANDSTILL TIME
5. Parameter / Overview-Menu Structure
This section provides an overview of the menus and their parameters. The menu names are printed
bold and the associated parameters are listed under the menu name. Depending on the device
version and the selected operation mode, only the necessary menus / parameters are shown.
Dx350_02c_oi_e.doc / Feb-17 Seite 15 / 44
Menu / Parameter
PRESELECTION VALUES
PRESELECTION 1
PRESELECTION 2
PRESELECTION 3
PRESELECTION 4
PRESELECTION 1 MENU
MODE 1
HYSTERESIS 1
PULSE TIME 1
OUTPUT TARGET 1
OUTPUT POLARITY 1
OUTPUT LOCK 1
START UP DELAY 1
EVENT COLOR 1
PRESELECTION 2 MENU
MODE 2
HYSTERESIS 2
PULSE TIME 2
OUTPUT TARGET 2
OUTPUT POLARITY 2
OUTPUT LOCK 2
START UP DELAY 2
EVENT COLOR 2
PRESELECTION 3 MENU
MODE 3
HYSTERESIS 3
PULSE TIME 3
OUTPUT TARGET 3
OUTPUT POLARITY 3
OUTPUT LOCK 3
START UP DELAY 3
EVENT COLOR 3
PRESELECTION 4 MENU
MODE 4
HYSTERESIS 4
PULSE TIME 4
OUTPUT TARGET 4
OUTPUT POLARITY 4
OUTPUT LOCK 4
START UP DELAY 4
EVENT COLOR 4
Menu / Parameter
SERIAL MENU
UNIT NUMBER
SERIAL BAUD RATE
SERIAL FORMAT
SERIAL INIT
SERIAL PROTOCOL
SERIAL TIMER
SERIAL VALUE
ANALOG MENU
ANALOG FORMAT
ANALOG START
ANALOG END
ANALOG GAIN
ANALOG OFFSET
COMMAND MENU
INPUT 1 ACTION
INPUT 1 CONFIG
INPUT 2 ACTION
INPUT 2 CONFIG
INPUT 3 ACTION
INPUT 3 CONFIG
DISPLAY MENU
COLOR
BRIGHTNESS
CONTRAST
SCREEN SAVER
UP-DATE-TIME
FONT
LINEARISATION MENU
P1(X)
P1(Y)
P2(X)
P2(Y)
…
…
P23(X)
P23(Y)
P24(X)
P24(Y)
Dx350_02c_oi_e.doc / Feb-17 Seite 16 / 44
OPERATIONAL MODE
This parameter specifies the selected measuring function.
0
SPEED
Speed indicator (RPM), tachometer or frequency counter
1
PROCESS TIME
Operation as baking time or processing time indicator (reciprocal speed)
2
TIMER
Operation as stopwatch
3
COUNTER
Operation as position indicator, event-, sum-, differential- or up-down counter
4
VELOCITY
Runtime measurement as speed indicator
ENCODER PROPERTIES
This parameter determines the characteristics of the pulse input.
0
PNP
PNP (switch to +)
1
NPN
NPN (switch to -)
2
NAMUR
Connect sensor (–) to GND and sensor (+) to input (A or B)
3
TRI-STATE
Tri-State
COUNTING DIRECTION
This parameter determines the direction of counting. (Only in mode COUNTER)
0
FORWARD
forward
1
REVERSE
reverse
SCALE UNITS
This parameter defines the required engineering unit. This parameter does not affect the calculation of the
display value. The number of decimal places must be defined with the parameter DECIMAL POINT.
0
HZ
Default
1
KHZ 2
M/S 3
M/MIN
4
KM/H
5
MPH 6
MIN-1
7 RPM 8
SEK-1
9 RPS
10
STK/H
11
PCS/H
12
MM
13 M
14
INCH
5.1. General Menu
Dx350_02c_oi_e.doc / Feb-17 Seite 17 / 44
15
FEET
16
STUECK
17
PCS
18
SEC
19
MIN
20
MIN:SEC
21
H:M:S
22 %
23
LPM
24
GPM
25
ML/MIN
26
GR/MIN
27 no unit
LINEARIZATION MODE
This parameter defines the linearization function. See chapter 6.1.
0
OFF
No linearization
1
1 QUADRANT
Linearization in the 1. quadrant
2
4 QUADRANT
Linearization in all 4 quadrants
PIN PRESELECTION
This parameter defines the PIN-code to lock the quick start of the menu PRESELECTION VALUE for entering
the preselection values.
(master PIN 6079).
This Lock function is only useful in conjunction with active lock function in PIN PARAMETER.
0000
No lock
… 9999
Access after entering PIN-Code 9999
PIN PARAMETER
This parameter defines the PIN-code for lock function of all parameters (master PIN 6079).
0000
No lock
… 9999
Parameterization of the unit after entering PIN-code 9999
BACK UP MEMORY
0
NO
No back memory –up by power failure
1
YES
Backup memory by power failure, actual value will be saved
FACTORY SETTINGS
0
No
No default values are loaded
1
Yes
Load default values of all parameters (grey marked default values)
Continuation „General Menu“:
Dx350_02c_oi_e.doc / Feb-17 Seite 18 / 44
DISPLAY VALUE
Desired value, which should be displayed at the setting of BASE FREQUENCY.
1
Smallest value
1000
Default value
99999999
Highest value
BASE FREQUENCY (HZ)
Reference frequency for the desired DISPLAY VALUE.
1
Smallest value
100
Default value
500000
Highest value
DECIMAL POINT
This value defines the position of the decimal point.
0
NO
No decimal point
1
0000000.0
Decimal point at the specified position
2
000000.00
Decimal point at the specified position
3
00000.000
Decimal point at the specified position
4
0000.0000
Decimal point at the specified position
5
000.00000
Decimal point at the specified position
6
00.000000
Decimal point at the specified position
7
0.0000000
Decimal point at the specified position
SAMPLING TIME (S)
The configured value corresponds to the minimum measurement time. The Parameter is used as a filter in
case of irregular frequencies. This parameter directly affects the response time of the unit.
0.005
Shortest Sampling time
0.1
Default value
9.999
Longest Sampling time
5.2. Mode Speed
This menu defines the operation as speed indicator (RPM), tachometer or frequency meter.
In this operation mode only input A is used. This menu is only displayed when the appropriate
OPERATIONAL MODE in GENERAL MENU is selected.
Dx350_02c_oi_e.doc / Feb-17 Seite 19 / 44

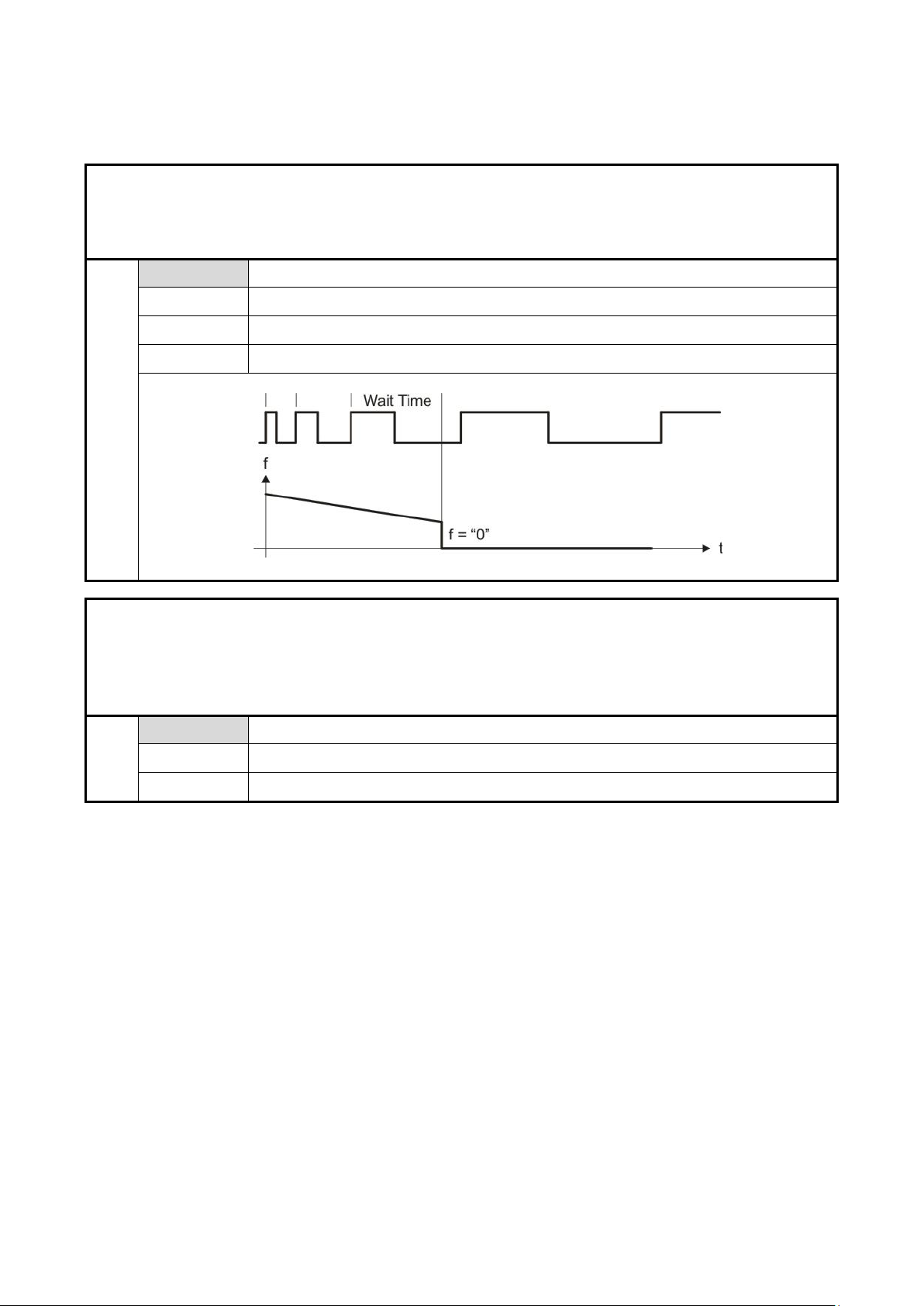

WAIT TIME (S)
This parameter defines the period time of the lowest frequency, accordingly the time between two rising
signal edges detecting frequency 0 Hz. Frequencies with a period time higher than the set “WAIT TIME” will
be detected as frequency = 0 Hz.
0.01
Frequency = 0 Hz, for frequencies below 100 Hz
1.00
Default value
99.99
Frequency = 0 Hz, for frequencies below 0,1 Hz
STANDSTILL TIME (S)
This parameter defines the time setting for standstill definition. A time of xx.xx seconds after detection "
frequency = 0 Hz " the unit signals "standstill" and reactivates the start-up-delays.
Stand still detection can be set in PRESELECT MENU.
0.00
Shortest time
…
99.99
Largest time
AVERAGE FILTER
Selectable average or filter function to avoid measuring fluctuations by unstable frequencies. At setting 1 to
4 a floating average calculation is preformed. At settings 5 to 8, the device uses an exponential filter. The
time constant T (63%) corresponds to the sampling cycles.
For example: If SAMPLING TIME = 0,1 s and AVERAGE FILTER = Exponential filter, T (63 %) = 2x SAMPLING
TIME, after 0,2 seconds, 63% of the step size are reached
0
No average value will be created
1
2 numbers of floating average cycles
2
4 numbers of floating average cycles
3
8 numbers of floating average cycles
4
16 numbers of floating average cycles
5
Exponential filter, T (63 %) = 2x SAMPLING TIME
6
Exponential filter, T (63 %) = 4x SAMPLING TIME
7
Exponential filter, T (63 %) = 8x SAMPLING TIME
8
Exponential filter, T (63 %) = 16x SAMPLING TIME
Continuation „Mode Speed“:
Dx350_02c_oi_e.doc / Feb-17 Seite 20 / 44
DISPLAY FORMAT
This parameter selects the Display Format. The corresponding decimal point will be set automatically.
0
SECONDS
Display in seconds
1
MINUTES
Display in minutes
2
MIN:SEC
Display in minutes : seconds
3
MIN.00
Display in minutes and 1/100 minutes
DISPLAY VALUE
Desired value, which should be displayed at the setting of BASE FREQUENCY.
1
Smallest value
1000
Default value
99999999
Highest value
BASE FREQUENCY (HZ)
Reference frequency for the desired DISPLAY VALUE.
1
Smallest value
100
Default value
500000
Highest value
SAMPLING TIME (S)
The configured value corresponds to the minimum measurement time. The Parameter is used as a filter in
case of irregular frequencies. This parameter directly affects the response time of the unit.
0.005
Shortest sampling time
0.1
Default value
9.999
Longest sampling time
5.3. Mode Process Time
In this menu the operation is defined as baking time or processing time indicator (reciprocal speed)
Only input A is used. This menu is only displayed when the appropriate OPERATIONAL MODE in the
GENERAL MENU is selected.
Dx350_02c_oi_e.doc / Feb-17 Seite 21 / 44
WAIT TIME (S)
This parameter defines the period time of the lowest frequency, accordingly the time between two rising
signal edges detecting frequency 0 Hz. Frequencies with a period time higher than the set “WAIT TIME” will
be detected as frequency = 0 Hz.
0.01
Frequency = 0 Hz, for frequencies below 100 Hz
1.00
Default value
99.99
Frequency = 0 Hz, for frequencies below 0,1 Hz
STANDSTILL TIME (S)
This parameter defines the time setting for standstill definition.
A time of xx.xx seconds after detection " frequency = 0 Hz " the unit signals "standstill" and reactivates the
start-up-delays. Stand still detection can be set in PRESELECT MENU.
0.00
Shortest time
…
99.99
Longest time
AVERAGE FILTER
Selectable average or filter function to avoid measuring fluctuations by unstable frequencies. At setting 1 to
4 a floating average calculation is preformed. At settings 5 to 8, the device uses an exponential filter. The
time constant T (63%) corresponds to the sampling cycles.
For example: If SAMPLING TIME = 0,1 s and AVERAGE FILTER = Exponential filter, T (63 %) = 2x SAMPLING
TIME, after 0,2 seconds, 63% of the step size are reached
0
No average value will be created
1
2 numbers of floating average cycles
2
4 numbers of floating average cycles
3
8 numbers of floating average cycles
4
16 numbers of floating average cycles
5
Exponential filter, T (63 %) = 2x SAMPLING TIME
6
Exponential filter, T (63 %) = 4x SAMPLING TIME
7
Exponential filter, T (63 %) = 8x SAMPLING TIME
8
Exponential filter, T (63 %) = 16x SAMPLING TIME
Continuation „Mode Process Time“:
Dx350_02c_oi_e.doc / Feb-17 Seite 22 / 44
TIME BASE
This parameter defines the time base or resolution of the measurement.
0
1/1000 SEC
Milliseconds
1
1/100 SEC
1/100 seconds
2
1/10 SEC
1/10 seconds
3
SECONDS
Full seconds
4
MIN.00
Minutes and 1/100 minutes
5
MIN.0
Minutes and 1/10 minutes
6
H:M:S
Hour : Minutes : Seconds (9999:59:59)
START / STOP
This parameter defines the start/stop condition of the time measurement.
0
COUNT AT A HIGH
Time measurement active at Input A is „HIGH“
1
COUNT AT A LOW
Time measurement active at Input A is „LOW“
2
START A / STOP B
A rising edge at Input A starts the time measurement,
a rising edge at Input B stops the time measurement.
3
PERIODE AT A
Period time measurement:
displays the time between two rising signal edges at Input A
AUTO RESET
0
NO
Time count cumulates with every new start.
To clear the time counter a reset command must be performed.
1
YES
Every start initializes a new counting from zero.
LATCH-FUNCTION
0
NO
Real time display, counting value is visible.
1
YES
Display shows the result of the last measurement.
The time counts in the background.
5.4. Mode Timer
In this menu the operation of timer or stopwatch is defined.
Depending on the parameterization only input A or both are used. This menu is only displayed when
the appropriate OPERATIONAL MODE in the GENERAL MENU is selected.
Dx350_02c_oi_e.doc / Feb-17 Seite 23 / 44
COUNT MODE
This parameter defines the counter operation.
0
A SINGLE
Input A is a counting input. Input B defines the counting direction:
„LOW“ = forward „HIGH“ = reverse
1
A+B
Sum counter: Impulses at A + Impulses at B
2
A-B
Differential counter: Impulses at A – impulses at B
3
A/B 90 x1
Quadrature counter: Impulses A, B with edge counting x1
4
A/B 90 x2
Quadrature counter: Impulses A, B with edge counting x2
5
A/B 90 x4
Quadrature counter: Impulses A, B with edge counting x4
FACTOR
Scaling factor. With the summing mode (A+B) and the differential mode (A-B) please note
that the impulse scaling factor will only affect input A
For example: A setting of factor 1.23456 and 100000 input pulses will result in a value of 123456.
0.00001
Smallest value
1
Default value
99.99999
Highest value
SET VALUE
Upon a reset command (via keys, Control-Inputs or PC-user interface), the counter is set to the value entered
here.
-99999999
Smallest value
0
Default value
+99999999
Highest value
DECIMAL POINT
This value defines the position of the decimal point.
0
NO
No decimal point
1
0000000.0
Decimal point at the specified position
2
000000.00
Decimal point at the specified position
3
00000.000
Decimal point at the specified position
4
0000.0000
Decimal point at the specified position
5
000.00000
Decimal point at the specified position
6
00.000000
Decimal point at the specified position
7
0.0000000
Decimal point at the specified position
5.5. Mode Counter
In this menu the operation as position indicator, impulse counting, sum of 2 inputs, difference of 2
inputs or up-down counter is defined. Input A and Input B are used. This menu is only displayed
when the appropriate OPERATIONAL MODE in GENERAL MENU is selected.
Dx350_02c_oi_e.doc / Feb-17 Seite 24 / 44
DISPLAY VALUE
Desired value, which should be displayed at the setting of BASE TIME (S).
1
Smallest value
1000
Default value
999999
Highest value
BASE TIME (S)
Reference time for the desired DISPLAY VALUE.
0.001
Smallest value
1
Default value
999.999
Highest value
DECIMAL POINT
This value defines the position of the decimal point.
0
NO
No decimal point
1
0000000.0
Decimal point at the specified position
2
000000.00
Decimal point at the specified position
3
00000.000
Decimal point at the specified position
4
0000.0000
Decimal point at the specified position
5
000.00000
Decimal point at the specified position
6
00.000000
Decimal point at the specified position
7
0.0000000
Decimal point at the specified position
5.6. Mode Velocity
In this menu the operation as a runtime measurement for speed is defined.
Input A is the start input and Input B is the stop input. This menu is only displayed when the
appropriate OPERATIONAL MODE in GENERAL MENU is selected.
Dx350_02c_oi_e.doc / Feb-17 Seite 25 / 44
WAIT TIME (S)
This parameter defines the period time of the lowest frequency, accordingly the time between two rising
signal edges detecting frequency 0 Hz. Frequencies with a period time higher than the set “WAIT TIME” will
be detected as frequency = 0 Hz.
0,00
The display value is retained until a new value is determined.
0,01
Frequency = 0 Hz, for frequencies below 100 Hz
…
99,99
Frequency = 0 Hz, for frequencies below 100 Hz
STANDSTILL TIME
This parameter defines the time setting for standstill definition.
A time of xx.xx seconds after detection " frequency = 0 Hz " the unit signals "standstill" and reactivates the
start-up-delays. Stand still detection can be set in PRESELECT MENU.
This STANDSTILL TIME is suitable at WAIT TIME unequal 0.000 only.
0.00
Shortest time
…
99.99
Longest time
Continuation „Mode Velocity“:
Dx350_02c_oi_e.doc / Feb-17 Seite 26 / 44
PRESELECTION 1
Preselection / switching point 1
-99999999
Smallest value
10000
Default value
+99999999
Highest value
PRESELECTION 2
Preselection / switching point 2
-99999999
Smallest value
20000
Default value
+99999999
Highest value
PRESELECTION 3
Preselection / switching point 3
-99999999
Smallest value
30000
Default value
+99999999
Highest value
PRESELECTION 4
Preselection / switching point 4
-99999999
Smallest value
40000
Default value
+99999999
Highest value
5.7. Preselection Values
This menu is used to set the preselection values or the switching points.
The preselection values / switching points are always referred to the display value.
This menu is only available for devices with option CO350, A0350 or RL350.
Dx350_02c_oi_e.doc / Feb-17 Seite 27 / 44
MODE 1
Switching conditions for preselection 1. Output/ relay/ display switches under the following conditions:
0
|RESULT|>=|PRES|
Absolute value of the display value is greater or equal absolute value of
PRESELECTION 1
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value >= PRESELECTION 1 ON,
Display value < PRESELECTION 1 – HYSTERESIS 1 OFF
1
|RESULT|<=|PRES|
Absolute value of the display value is less or equal absolute value of
PRESELECTION 1 (start-up suppression (START UP DELAY) is advisable)
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value <= PRESELECTION 1 ON,
Display value > PRESELECTION 1 + HYSTERESIS 1 OFF
2
|RESULT|=|PRES|
Absolute value of the display value is equal absolute value of PRESELECTION 1
A range (Preselection +/- ½ Hysteresis) can be defined and monitored in
conjunction with the hysteresis.
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value > PRESELECTION 1 + ½ HYSTERESIS 1 OFF,
Display value < PRESELECTION 1 - ½ HYSTERESIS 1 OFF
3
RESULT>=PRES
Display value is greater or equal PRESELECTION 1, e.g. overspeed
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value >= PRESELECTION 1 ON,
Display value < PRESELECTION 1 – HYSTERESIS 1 OFF
4
RESULT<=PRES
Display value is less or equal PRESELECTION 1, e.g. underspeed
(start-up suppression (START UP DELAY) is advisable)
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value <= PRESELECTION 1 ON,
Display value > PRESELECTION 1 + HYSTERESIS 1 OFF
5
RESULT=PRES
Display value is equal PRESELECTION 1. A range (Preselection +/- ½ Hysteresis)
can be defined and monitored in conjunction with the hysteresis.
With HYSTERESIS 1 not equal 0 the following switching condition is applied:
Display value > PRESELECTION 1 + ½ HYSTERESIS 1 OFF,
Display value < PRESELECTION 1 - ½ HYSTERESIS 1 OFF
6
RESULT=0
Display value is zero (Standstill after STANDSTILL TIME(s)),
e.g. standstill monitoring, (only in mode SPEED and PROCESS TIME).
7
RESULT>= PRES>0
Auto reset at PRESELECTION 1:
Display value is greater or equal PRESELECTION 1, the display value is set to zero
(only in mode mode TIMER or COUNTER).
8
RESULT<= 0->SET
Auto set to PRESELECTION 1:
Display value is less or equal zero, the display value is set to PRESELECTION 1
(only in mode COUNTER)
9
RES>=PRES-TRAIL
Trailing PRESELECTION 1:
Display value is greater or equal PRESELECTION 2 – PRESELECTION 1 ON,
PRESELECTION 1 is the trailing value from PRESELECTION 2
5.8. Preselection 1 Menu
This function is only available for devices with option CO350, AO350 or RL350.
Dx350_02c_oi_e.doc / Feb-17 Seite 28 / 44
HYSTERESIS 1
This parameter defines the switching hysteresis of the switch-off point for preselection 1
0
No switching hysteresis
… 9999
Switching hysteresis of 99999
PULSE TIME 1 (S)
Duration of output pulse for the switching condition of preselection 1
0.000
No output pulse (static signal)
…
60.000
Pulse duration of 60 seconds
OUTPUT TARGET 1
Assignment of an output or relay for the switching condition of preselection 1.
If more than one switching condition is assigned to one output / relay, the output is set when at least one
switching condition is true
0
NO
No assignment
1
CTRL OUT 1
Switching condition assigned to “Ctrl. Out 1”
2
CTRL OUT 2
Switching condition assigned to “Ctrl. Out 2”
3
CTRL OUT 3
Switching condition assigned to “Ctrl. Out 3”
4
CTRL OUT 4
Switching condition assigned to “Ctrl. Out 4”
5
RELAY 1
Switching condition assigned to “Rel. 1”
6
RELAY 2
Switching condition assigned to “Rel. 2”
OUTPUT POLARITY 1
Polarity for the switching condition of preselection 1
0
ACTIVE HIGH
Switching condition is true Active „HIGH“
1
ACTIVE LOW
Switching condition is true Active „LOW“
OUTPUT LOCK 1
Latch for the switching condition of preselection 1
0
NO
No latch for preselection
1
YES
Latch for preselection (command LOCK RELEASE will clear latch)
Continuation „PRESELECTION 1 MENU“:
Dx350_02c_oi_e.doc / Feb-17 Seite 29 / 44
START UP DELAY 1 (S)
Start-up suppression for the switching condition of preselection 1.
This adjustment is only valid for the switching condition |RESULT|<=|PRES| or RESULT<=PRES and mode
SPPED and PROCESS TIME.
(Start Up Delay 3 and 4 have an automatic start up suppression).
00.000
No start-up suppression
…
60.000
Start-up suppression in seconds
EVENT COLOR 1
Event-depending change of the display color for the switching condition of preselection 1.
EVENT COLOR 1 has the lowest priority. EVENT COLOR 2 … 4 are allowed to overwrite this color change.
0
NO CHANGE
No color change.
1
CHANGE TO RED
Color change to red
2
CHANGE TO GREEN
Color change to green
3
CHANGE TO YELLOW
Color change to yellow
Continuation „PRESELECTION 1 MENU“:
Dx350_02c_oi_e.doc / Feb-17 Seite 30 / 44
MODE 2
Switching conditions for preselection 2. Output/ relay/ display switches under the following conditions:
See chapter PRESELECTION 1 MENU
9
RES>=PRESTRAIL
Trailing preselection 2:
Display value is greater or equal to PRESELECTION 1 – PRESELECTION 2 ON,
PRESELECTION 2 is the trailing preselection from PRESELECTION 1.
HYSTERESIS 2
This parameter defines the switching hysteresis of the switch-off point for preselection 2.
See chapter PRESELECTION 1 MENU.
PULSE TIME 2 (S)
Duration of output pulse for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
OUTPUT TARGET 2
Assignment of an output or relay for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
OUTPUT POLARITY 2
Polarity for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
OUTPUT LOCK 2
Latch for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
START UP DELAY 2 (S)
Start-up suppression for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
(Start Up Delay 3 and 4 have an automatic start up suppression).
EVENT COLOR 2
Event-depending change of the display color for the switching condition of preselection 2.
See chapter PRESELECTION 1 MENU.
5.9. Preselection 2 Menu
Dx350_02c_oi_e.doc / Feb-17 Seite 31 / 44
MODE 3
Switching conditions for preselection 3. Output/ relay/ display switches under the following conditions:
See chapter PRESELECTION 1 MENU
9
RES>=PRESTRAIL
Trailing preselection 3:
Display value is greater or equal to PRESELECTION 4 – PRESELECTION 3 ON,
PRESELECTION 3 is the trailing preselection from PRESELECTION 4.
HYSTERESIS 3
This parameter defines the switching hysteresis of the switch-off point for preselection 3.
See chapter PRESELECTION 1 MENU.
PULSE TIME 3 (S)
Duration of output pulse for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
OUTPUT TARGET 3
Assignment of an output or relay for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
OUTPUT POLARITY 3
Polarity for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
OUTPUT LOCK 3
Latch for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
START UP DELAY 3
Start-up suppression for the switching condition of preselection 3.
This adjustment is only valid for the switching condition |RESULT|<=|PRES| or RESULT<=PRES and
mode SPPED and PROCESS TIME. (Start Up Delay 1 and 2 have a time-dependent start up suppression).
0
OFF
No start-up suppression
1
AUTO
Automatic start up suppression,
until the preselection value / switching point is exceeded for the first time.
EVENT COLOR 3
Event-depending change of the display color for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
5.10. Preselection 3 Menu
Dx350_02c_oi_e.doc / Feb-17 Seite 32 / 44
MODE 4
Switching conditions for preselection 4. Output/ relay/ display switches under the following conditions:
See chapter PRESELECTION 1 MENU
9
RES>=PRES-TRAIL
Trailing preselection 4:
Display value is greater or equal to PRESELECTION 3 – PRESELECTION 4 ON,
PRESELECTION 4 is the trailing preselection from PRESELECTION 3.
HYSTERESIS 4
This parameter defines the switching hysteresis of the switch-off point for preselection 4.
See chapter PRESELECTION 1 MENU.
PULSE TIME 4 (S)
Duration of output pulse for the switching condition of preselection 3.
See chapter PRESELECTION 1 MENU.
OUTPUT TARGET 4
Assignment of an output or relay for the switching condition of preselection 4.
See chapter PRESELECTION 1 MENU.
OUTPUT POLARITY 4
Polarity for the switching condition of preselection 4.
See chapter PRESELECTION 1 MENU.
OUTPUT LOCK 4
Latch for the switching condition of preselection 4.
See chapter PRESELECTION 1 MENU.
START UP DELAY 4
Start-up suppression for the switching condition of preselection 4.
This adjustment is only valid for the switching condition |RESULT|<=|PRES| or RESULT<=PRES and
mode SPPED and PROCESS TIME. (Start Up Delay 1 and 2 have a time-dependent start up suppression).
0
OFF
No start-up suppression
1
AUTO
Automatic start up suppression,
until the preselection value / switching point is exceeded for the first time.
EVENT COLOR 4
Event-depending change of the display color for the switching condition of preselection 4.
See chapter PRESELECTION 1 MENU.
5.11. Preselection 4 Menu
Dx350_02c_oi_e.doc / Feb-17 Seite 33 / 44
UNIT NUMMER
This parameter defines serial device addresses. The addresses between 11 and 99 can be assigned to the
devices. Addresses with zero are not allowed, there are used as broadcast addresses.
11
Smallest address
… 99
Highest address
SERIAL BAUD RATE
This parameter defines the serial baud rate
0
9600
9600 baud
1
19200
19200 baud
2
38400
38400 baud
SERIAL FORMAT
This parameter defines the bit data format.
0
7-EVEN-1
7 data Parity even 1 Stop
1
7-EVEN-2
7 data Parity even 2 Stops
2
7-ODD-1
7 data Parity odd 1 Stop
3
7-ODD-2
7 data Parity odd 2 Stops
4
7-NONE-1
7 data no Parity 1 Stop
5
7-NONE-2
7 data no Parity 2 Stops
6
8-EVEN-1
8 data Parity even 1 Stop
7
8-ODD-1
8 data Parity odd 1 Stop
8
8-NONE-1
8 data no Parity 1 Stop
9
8-NONE-2
8 data no Parity 2 Stops
SERIAL INIT
This parameter defines the baud rate for the initialization to the user interface OS6.0. With settings larger
than 9600 the initialization time can be reduced.
0
NO
Initialization with 9600 baud. Then the device operates with the value selected by
the user.
1
YES
Initialization with the baud rate set by SERIAL BAUD RATE. Then the device
operates with the value selected by the user.
5.12. Serial Menu
This menu defines the basic settings of serial interface.
This function is only available for devices with option CO350 or A0350.
Dx350_02c_oi_e.doc / Feb-17 Seite 34 / 44
SERIAL PROTOCOL
Determines the sequence of characters send, when using the serial output for cyclic data transmission under
time control (xxxxxxx = value SERIAL VALUE).
Setting „1“ removes the unit address from the string which allows a slight faster transmission cycle.
0
Transmission report = Unit Nr., +/-, data, LF, CR
1 1 +/- X X X X X X X LF
CR
1
Transmission report = +/-, data, LF, CR
+/- X X X X X X X LF
CR
SERIAL TIMER (S)
This register determines the cycle time in seconds for cycling transmission of SERIAL VALUE when using the
serial output. (On a serial request, the cycling transmission is stopped for 20 s)
0.000
All cyclic transmission is switched off. The unit will send data upon a serial request or
with command SERIAL PRINT.
…
60.000
Cycle time in seconds.
SERIAL VALUE
This parameter defines the value to be transmitted.
Setting
Code
Register contents
1
:1
Display value
2
:2
Minimum value
3
:3
Maximum value
Continuation „Serial Menu”:
Dx350_02c_oi_e.doc / Feb-17 Seite 35 / 44
ANALOG FORMAT
This parameter defines the output characteristics. The analogue output is proportional to the display value.
With setting ANALOG FORMAT (-10 … +10 V) in MODE COUNTER the polarity of the analog output depends
on the polarity of the display value.
0
-10…10V
-10 … +10 V
1
0…20M
0 … 20 mA
2
4…20MA
4 … 20 mA
ANALOG START
This parameter defines the start value of the analog conversion. This start value is corresponding to the
display value for an analog output of 0 V or 0/4 mA.
-99999999
Smallest start value
0
Default value
+99999999
Highest start value
ANALOG END
This parameter defines the end value of the analog conversion. This end value is corresponding to the
display value for an analog output of (+/-) 10 V or 20mA.
-99999999
Smallest end value
10000
Default Wert
+99999999
Highest end value
ANALOG GAIN (%)
This parameter specifies the maximum conversion of the analog output in %.
e. g. 102.00 corresponds to a conversion of 10.2 V or 20.4 mA, when the ANALOG END value is reached.
e. g. 95.00 corresponds to a conversion of 9.5 V or 18 mA, when the ANALOG END value is reached.
0
Smallest gain
100
Default value
110
Highest gain
ANALOG OFFSETT (%)
This parameter defines the zero offset of the analog output.
z. B. 0.20 result in an offset of 0.2 V or 0.4 mA at ANALOG START value
-99.99
Smallest offset
0
Default value
+99.00
Highest offset
5.13. Analog Menu
This menu defines the basic settings of the analog output.
This function is only available for devices with option A0350.
Dx350_02c_oi_e.doc / Feb-17 Seite 36 / 44
INPUT 1 ACTION
This parameter defines the function of the input “Ctrl. In 1”.
0
NO
No function
1
RESET
VALUE
Mode Timer: Reset to zero
Mode Counter: Set to SET VALUE
2
SCROLL
DISPLAY
Switch to next screen during operation
3
FREEZE
Freeze actual display value
4
RESET
MIN/MAX
Reset of the min. / max. values
5
KEY LOCK
disable touch screen
6
LOCK
RELEASE
Release all latched switching conditions
7
SERIAL
PRINT
Sending of serial data, see parameter SERIAL VALUE
INPUT 1 CONFIG
This parameter defines the switching characteristics of the input “Ctrl. In 1”.
0
ACTIVE LOW
Active at „LOW“ (static)
1
ACTIVE HIGH
Active at „HIGH“ (static)
2
RISING EDGE
Activate at rising edge
3
FALLING
EDGE
Activate at falling edge
INPUT 2 ACTION
This parameter defines the function of the input “Ctrl. In 2”.
See parameter INPUT 1 ACTION.
INPUT 2 CONFIG
This parameter defines the switching characteristics of the input “Ctrl. In 2”.
See parameter INPUT 1 CONFIG.
INPUT 3 ACTION
This parameter defines the function of the input “Ctrl. In 3”.
See parameter INPUT 1 ACTION.
INPUT 3 CONFIG
This parameter defines the switching characteristics of the input “Ctrl. In 3”.
See parameter INPUT 1 CONFIG.
5.14. Command Menu
Dx350_02c_oi_e.doc / Feb-17 Seite 37 / 44
COLOR
This parameter defines the display color.
Event-depending change of the display color by a switching condition is possible (see PRESELECTION 1…4
MENU)
Event-depending changes are only available for devices with option CO350, A0350 or RL350.
0
RED
Red display
1
GREEN
Green display
2
YELLOW
Yellow display
BRIGHTNESS (%)
This parameter defines the brightness of the display in percent
10
Min. brightness
90
Default value
100
Max. brightness
CONTRAST
This parameter defines the viewing angle.
0
Viewing angle from top
1
Viewing angle from center
2
Viewing angle from bottom
SCREEN SAVER (S)
This parameter defines the time in seconds until the display is switched off, after the last touch action.
A new touch action will activate the display again.
0
No switch off
…
99.99
Longest time to switch off
UP-DATE-TIME (S)
This parameter defines the update time in seconds of the display only.
0.005
Shortest update time
0.1
Default value
9.999
Longest update time
FONT
This parameter defines the setting of the font style.
0
Standard
1
Font 1
5.15. Display Menu
Parameter changes become active only after closing the menu selection.
Dx350_02c_oi_e.doc / Feb-17 Seite 38 / 44
P1(X) - P24(X)
X-coordinate of the linearization point.
This value representing the display value which the unit show in the display without linearization.
-99999999
Smallest X-coordinate
0
Default value
+99999999
Largest X-coordinate
P1(Y) - P24(Y)
Y-coordinate of the linearization point
This is the display value, which the unit should show in the display with linearization.
E.g. P2(X) is replaced by P2(Y).
-99999999
Smallest Y-coordinate
0
Default value
+99999999
Largest Y-coordinate
5.16. Linearization Menu
The linearization function is defined in this menu. The linearization points are only used in operation
mode SPEED, PROCESS TIME or COUNTER. This menu will only be showed, if the
LINEARIZATION MODE in GENERAL MENU is selected.
Linearization description and examples are shown in the appendix.
Dx350_02c_oi_e.doc / Feb-17 Seite 39 / 44
EOT
AD1
AD2
C1
C2
ENQ
ASCII-Code:
EOT
1
1
: 1 ENQ
Hex-Code:
04
31
31
3A
31
05
Binary-Code:
0000 0100
0011 0001
0011 0001
0011 1010
0011 0001
0000 0101
STX
C1
C2
xxxxx
ETX
BCC
6. Appendix
6.1. Data readout via serial interface
All codes shown in the parameter SERIAL VALUE are available for serial readout by PC or PLC. For
communication the monitors use the Drivecom Protocol according to ISO 1745. All protocol details
can be found in our manual SERPRO_2a.doc which is available for download from our homepage
www.motrona.com.
To request for a data transmission you must send the following request string to the converter:
EOT = control character (Hex 04)
AD1 = unit address, High Byte
AD2 = unit address, Low Byte
C1 = register code, High Byte
C2 = register code, Low Byte
ENQ = control character (Hex 05)
The following example shows the request string for readout of the actual input frequency of a
monitor (Code :1) from a unit with unit address 11:
After a correct request, the unit will respond:
STX = control character (Hex 02)
C1 = register code, High Byte
C2 = register code, Low Byte
xxxxx = readout data
ETX = control character (Hex 03)
BCC = block check character
Dx350_02c_oi_e.doc / Feb-17 Seite 40 / 44
Mode: 1 Quadrant:
Mode: 4 Quadrant:
P1(X) must be set to zero. Linearization is only
defined in the positive range and the negative
range will be mirrored symmetric to central
point.
P1(X) can also be set to a negative value. If the
measured value is smaller than P1(X), P1(Y) is
displayed.
6.2. Linearization
The linearization function of this unit allows converting a linear input signal into a non-linear
developing (or vice versa). There are 24 programmable x/y coordinates available, which can be set
in any desired distance over the full conversion range. Between two coordinates, the unit uses
linear interpolation. Therefore it is advisable to use more coordinates in a range with strong curves
and only a few coordinates where the curvature is less.
To specify an individual linearization curve, the parameter LINEARISAZATION MODE must be set to
either 1 QUADRANT or 4 QUADRANT (see following diagram).
The parameters P1(X) to P24(X) are used to specify the coordinates on the x-axis. These are the
measuring values that the unit normally would generate according to the actual input signal.
Now enter the attached values to parameter P1(Y) to P24(Y). These are the values that the unit will
generate instead of the x- values, i.e. P5(Y) replaces P5(X) etc.
The X-Coordinates must use continuously increasing settings, i.e. P1(X) must have the lowest and
P24(X) must have the highest setting. If the measured value is bigger than the last defined X-value,
the corresponding Y-value is displayed.
Dx350_02c_oi_e.doc / Feb-17 Seite 41 / 44
d
φ
(1-cos )
φ
Incremental Encoder
d = d0
Display value
Application Example:
The picture below shows a watergate where the opening is picked up by means of an incremental
encoder. We would like to display the clearance of the gate "d", but the existing encoder
information is proportional to the angular information φ.
Dx350_02c_oi_e.doc / Feb-17 Seite 42 / 44
6.3. Dimensions
Dx350_02c_oi_e.doc / Feb-17 Seite 43 / 44
Technical Specifications:
Connections:
Connector type:
screw terminal, 1.5 mm² / AWG 16
Power supply (DC):
Input voltage:
Protection circuit:
Consumption:
18 … 30 VDC
reverse polarity protection
approx. 100 mA (unloaded)
Power supply (AC):
(Option AC350)
Input voltage:
Power consumption:
115 … 230 VAC (50 … 60 Hz)
approx. 3 VA (unloaded)
Encoder supply:
DC version:
Output current:
approx. 1 V lower than the power supply voltage
max. 250 mA
AC version:
Output current:
approx. 24 VDC (± 15%)
150 mA to 45°C / 80 mA above 45°C
Incremental inputs:
Number of inputs:
Configuration:
Channels:
Format:
Frequency:
Load:
2
PNP, NPN, Namur or Tri-State
A, B
HTL (Low 0 … 3 V, High 9 … 30 V)
max. 250 kHz
max. 6 mA / Ri > 5 kOhm / 470 pF
Control inputs:
Number of inputs:
Format:
Frequency:
Load:
3
HTL, PNP (Low 0 … 3 V, High 9 … 30 V)
max. 10 kHz
max. 2 mA / Ri > 15 kOhm / 470 pF
Analog output:
(Option AO350)
Configuration:
Voltage output:
Current output:
Resolution:
Accuracy:
current or voltage operation
-10…+10 V (max. 2 mA)
0/4 … 20 mA (burden: max. 270 Ohm)
16 Bit
± 0,1 %
Control outputs:
(Option CO350)
Number of outputs:
Format / level:
Output current:
Reaction time:
4
5 … 30 V (depend on COM+ voltage), PNP
max. 200 mA
< 1 ms
Relay outputs:
(Option RL350)
Number of outputs:
Configuration:
AC-Switching capacity:
DC-Switching capacity
Reaction time:
2
potential free changeovers
max. 250 VAC / 3 A / 750 VA
max. 150 VDC / 2 A / 50 W
< 5 ms
Serial interface:
(Option CO350)
Format:
Baud rate:
RS232
9600, 19200 or 38400 baud
Display:
Type:
Display range:
Digit height
Color:
Operation:
Graphic LCD with backlight
8 digits plus sign (-99999999 … 999999999)
13 mm height
red / green / yellow (selectable)
resistive touchscreen
Housing:
Material:
Mounting:
Dimensions (w x h x d):
Cut out (w x h):
Protection class:
Weight:
ABS, UL 94 V-0
panel
96 x 48 x 116 mm / 3.78 x 1.89 x 4.56 inch
91 x 43 mm / 3.58 x 1.69 inch
IP65 (front), IP20 (rear)
approx. 200 g
Ambient temperature:
Operation:
Storage:
-20°C … +60°C / -4 … 140°F
-25°C … +70°C / -13 … 158°F
Conformity and standards:
EMC 2004/108/EC:
LV 2006/95/EC
RoHS 2011/65/EU:
EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
EN 61010-1
EN 50581
6.4. Technical specifications
Dx350_02c_oi_e.doc / Feb-17 Seite 44 / 44
Loading...
