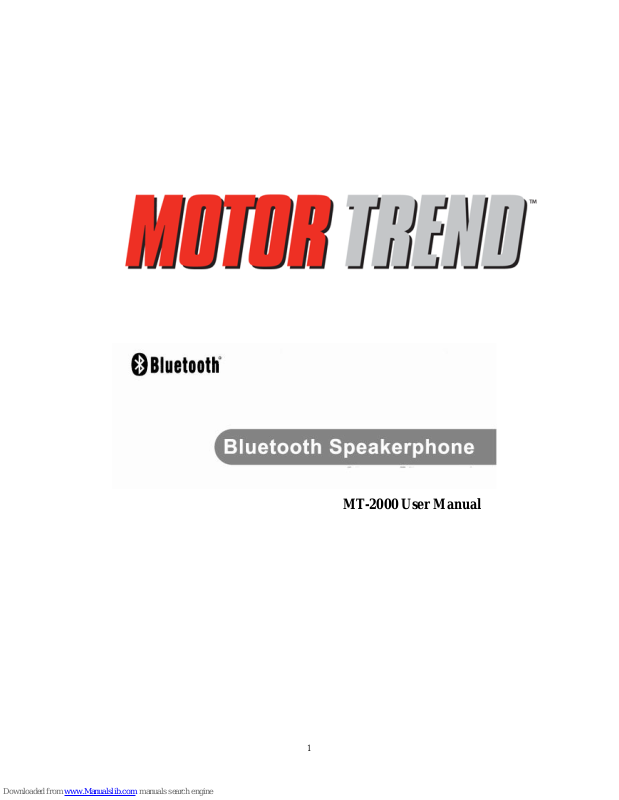

MT-2000 User Manual
2
Introduction:
Thank you for your interest at our Bluetooth car kit. This car kit
is a wireless Bluetooth kit based on the Bluetooth technology
that allows you to making and talking calls without touching
your mobile phone.
Read this user guide carefully before using the car kit .Read also
the user guide for your phone, which provides important safety
and maintenance information. Keep the car kit out of reach of
small children.
Bluetooth wireless technology makes it possible to connect
compatible communication devices without using cables. A
Bluetooth connection does not require the devices to be in line
of sight, but both devices should be within 10 meters (30feet) of
each other. Connections can be subject to interference from
obstructions.
The car kit is compliant with Bluetooth Specification 2.0
3
Get started
Overview
1--MUTE
2--LED display
3-- MIC input
4--Multi-function Button (MFB)
5--Volume -button
6--Volume +button
7--Mini USB 5 PIN for the charging socket
8--Speaker
Before you start using the car kit, you must charge the battery
and pair the car kit with a compatible mobile phone.
4
Charger
This car kit is intended to use with the car charger that is
included in the package.
Charge the battery
This device has a Rechargeable Lithium Polymer Battery 3.7V,
820mAH battery.
1. Connect the car kit to the car charger. The red indicator light
is displayed during charging. If charging does not start,
disconnect the charger, pug it again, and retry. Charging the
battery fully may take up to 2-3 hours.
2. When the battery is fully charged, the red indicator light turns
off. Disconnect the car kit from the charger.
The fully charged battery has power for up to 6 hours of talking
time or up to 600 hours of standby time. However, the talking
and standby time may vary when used with different mobile
phones, products that use a Bluetooth connection, usage settings,
usage styles, and environments.
Switch on and off the car kit
To switch on, Press and hold the "MFB" multi-function button
until there is a tone prompt and the blue LED flashes 5 times.
The car kit is now on.
To switch off, press and hold the "MFB" for 4 seconds until the
red LED flashes 5 times.
5
Pair the car kit with a compatible phone
1. make sure your car kit is switched off
2. press and hold the "MFB" until the blue and red light flashes
alternately and there is a tone prompt. The car kit is now in
pairing state.
3. Activate the Bluetooth feature on the phone, and set the
phone to search for Bluetooth devices. See the user guide of
your phone for instructions.
4. Select the car kit (MT-2000) from the list of found devices.
5. Enter the pass code “0000” to pair and connect the car kit to
your phone. In some phones you may need to make the
connection separately after pairing. See the user guide of your
phone for details. You only need to pair the car kit with your
phone once.
If the pairing is successful, the car kit’s blue light will flash 3
times briefly. The car kit’s name appears in the phone menu
where you can view the currently paired Bluetooth devices.
6
Basic use
Call handling
To make a call, use your phone in the normal way when the car
kit is connected to your phone. And the blue LED will flash
during the call.
To answer a call, press the “MFB” and the blue LED will flash
during the call.
To reject a call, press the “MFB” for 2 second and there is a tone
prompt when there is incoming call.
To end a call, press the “MFB” one time
In standby state, press the volume + key for 2 seconds to redial
last dialed telephone No. This function requires your phone
supports redialing.
In standby state, press the “MFB” to start voice dialing. This
function requires your mobile support voice dialing. Check the
user manual of your mobile for details.
Adjust the volume
Press volume+ or volume - key to increase or to decrease the
volume during a call.
Mute
During a call, press and hold mute button for about 2 second to
mute the MIC, the same operation to withdraw from the MIC
mute state.
7
LED indicator status:
Switch on: the blue LED flash five times.
Standby state: Blue LED flashes once every 3 second,
Connecting status: Blue LED flashes once every 3 second
Making and answering a Call: Blue LED flashes
Call: Blue lights flashing fast
Low battery warning: Red LED always on
Switch off: red LED flashes five times.
Charging state: Red LED always on and it will be off after
charging completed
Main specifications:
- Bluetooth v2.0+EDR, ClassII
- Operating Frequency Band: 2.4GHz ~ 2.48GHz unlicensed
ISM band
- Working distance : up to 10 meters
- Integrated with echo cancellation and Noise suppressor
- Built in speaker and microphone
- Battery type: Rechargeable Lithium Polymer Battery 3.7V,
820maH
- Charging time : about 2-3 hours
- Talk time : about 6 hours
8
- Standby time : about 600 hours
- Dimensions: 117.5x47x15.3mm
- Pack included : MT-2000 Speakerphone,Battery,Car Charger,
User Manual,
FCC Information
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received; including interference
that may cause undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
9
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user authority to operate the equipment.
Tested to comply with FCC standard. FOR HOME OR OFFICE
USE.
Warning :
This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment. & This device and its
antenna(s) must not be co-located or conjunction with any other
antenna or transmitter.
