Motorola T5HD1 Users manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5HD1

USER’S MANUAL

• A preliminary draft copy of the User’s Manual follows this cover page.

• The text on the following three pages will be added for FCC requirements.

EXHIBIT 8

FCC Notice To Users

FCC Notice

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is n o guarantee that interference will not oc cur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

FCC Notice

encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Specific Absorption Rate Data

SAR Data

This model wireless phone meets the government’s requirements for exposure to radio waves.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR

SAR Data

Tests for SAR are conducted using

level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.

Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at

1.52 W/kg, and when worn on the body, as described in

the ear is this user guide, is (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements).

While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines.

1.25 W/kg.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:

http://www.phonefacts.net

or the Canadian Wireless Telecommunications Association (CWTA) Web site:

http://www.cwta.ca

1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

SAR Data

Welcome! Software Copyright Notice

Welcom to the world of Motorola digital wireless communication! We are pleased that you have chosen the Motorola V3a wireless phone.

Personal Communications Sector

600 North U.S Highway 45

Libertyville, Illinois 60048 1-800-331-6456(United States)

1-888-390-6456(TTY/TDD United States)

10800-461-4575(Canada)

www.motorola.com

MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, INC. Ⓡ Reg. U.S Pat. & Tm. Off. TrueSync, Sidekick, Starfish and the Stylized Starfish Logo are registered tradmarks of Starfish Software, Inc., a wholly owned independent subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners.

The Motorola prouducts described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced i any manner to the extent allowed by law. Furthemore, the purchase of the Motorola products shall not be deemed to Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual number : Cover number :

Safety and General Information

IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.READ THIS INFORMATION BEFORE USING YOUR PHONE.

The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002.

Exposure To Radio Frequency(RF) Energy

Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits.

Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

●

Federal Communications Commission laws : the 2nd parts of J paragraph at 47 CFR

●

ANSI / IEEE C 95.1-1992

●

IEEE C 95.1-1999

●

NCRP Report 86, 1986

●

ICNIRP 1998

●

Canada, Department of Health & Human Services, safety regulation, 6th articclesFrequency 3KHz ~ 300GHz, Electromagnetic power radiation emission regulation 1999

●

Australia communication Associates, “Wireless communication(Electromagnatic radiation emission) Standards 1999

Operational Precautions

To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relecant standards, always adhere to the following procedures.

External Antenna Care

Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country.

Phone Operation

When placing or receiving a phone call, hold your phone as you would a wireline telephone.

Body-Worn Operation

To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorla-supplied or approved clip, holder, holster, case, or body harness for this phone, where available. Use of accessories not approved by Motoroal may exceed RF energy exposure guidelines. If you do not use one of the body-worm accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1inch(2.5centimeters) from your body when transmitting.

Responsible driving best practices may be found in the "Wireless Phone Safety Tips" at the end of this manual and at the Motorola website : www.Motorola.com/callsmart.

Operational Warnings

For Vehicles With an Air Bag

Do not place a phone in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a phone is placed in the air bag deployment area and the air bag inflates, the phone may be propelled with great force and cause serious injury to occupants of the vehicle.

Potentially Explosive Atmospheres

Turn off your phone prior to entering any area with a potentially explosive atmosphere, unless it is a phone type especially qualified for use in such areas and certified as "Intrinsically Safe." Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an sxplosion or fire resulting in bodily injury or even death.

Note : The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Areas with potentially explosive atmospheres are often but not always posted.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn OFF your phone when your are near electrical blasting caps, in a blasting area, or in areas posted "Turn off electronic devices." Obey all signs and instructions.

6 7

Medical Devices Pacemakers

Pacemaker manufacturers recommend that a minimun separation of 6 inches(15centimeters) be maintained between a handheld wireless phone and pacemaker.

Persons with pacemakers should :

●

ALWAYS keep the phone more than 6inches(15centimeters) from your pacemaker when the

phone is turned ON.

●

NOT carry the phone in the breast pocket.

●

Use the ear opposite the pacemaker to minimize the potential for interference.

●

Turn OFF the phone immediately if you have any reason to suspect that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.

Use While Driving

Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please :

●

Give full attention to driving and to the road.

●

Use hands-free operation, if available.

●

Pull off the road and park before making or answering a call if driving conditions so require.

Operational Warnings

For Vehicles With an Air Bag

Do not place a portable phone in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable phone is placed in the air bag deployment area and the air bag inflates, the phone may be propelled with great force and cause serious injury to occupants of the vehicle.

Potentially Explosive Atmospheres

Turn off your phone prior to entering any area with a potentially explosive atmosphere, unless the phone is a model specifically identified as being “Intrinsically Safe.” Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.

Note : The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. Areas with potentially explosive atmospheres are aften but not always posted.

8 9

Batteries

Batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit(short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects. Use only Motorola original batteries and chargers.

Your battery or phone may contain symbols, defined as follows :

Symbol Definition

Important safety information will follow.

Your battery or phone should not be disposed of in a fire Your battery or phone may require recycling in accordance

with local laws. Contact your local regulatory authorities for more information.

Your battery or phone should not be thrown in the trash.

Your phone contains an internal lithium ion battery.

Contents

contents

I. Before Using

Confirming Components 1 5 Name and Function of Each Part 1 5 Basic Keypad Operation 1 6 Menu Map 1 7 Display Icon 2 1 How to Use Battery Cell Phone and Battery Pack 2 2

Precautions When Using 2 6

The Battery and UIM Card 2 2 Charging Battery Pack 2 3 Battery Pack Charging Progress State 2 3 Battery Pack Charging Time 2 4 Battery Pack Operating Time 2 4 Low Voltage Alert 2 5 Battery Pack Care Information 2 5

II. Basic Operation

Power ON and OFF Power ON 3 0 Placing a Call 3 0

Power OFF 3 0 Placing a call from Phone Book 3 1

Turbo Dialing 3 1

II. Basic Operation

II. 기본기능사용하기

Placing a Call Electronic Dialing 3 1 Receiveing a call Receiveing a call Using

Unanswered Call 3 8

Emergency Dialing 3 2 E a r m i c r o p h o n e 3 3

Setting Call Receive Mode 3 4 Using Auto Machine 3 5

III. Using Sounds

Changing Ringer 4 0 Changing Receive Mode 4 1 Changing Ring Volume 4 3

Selecting Ringer Option 4 4 Setting Sound Effect Power On/Off 4 5

Setting Alert Tone Connect 4 6

Saving Recorded Sound 4 1 Setting Etiquette Mode 4 2

Key Pressed 4 5 Folder 4 5 C o n f i r m 4 5

1 Minute 4 6 No service 4 6

IV. Using Display

Graphic Mode Setting graphic using pictures 4 8 Watch style 5 0 Change Banner 5 1 Setting Menu Style 5 1 Setting Menu Background 5 2 Backlit Select 5 2

Main LCD 5 3 Keypad 5 3 Rotator Close 5 3

V. Using Scheduler

S c h e d u l e Entering Schedule 5 5

Alram Set Setting Alarm 5 8 Using To Do List 6 2

C a l c u l a t o r 6 4 World Time 6 5

Checking Schedule 5 6 Clearing Schedule 5 7

Alram off 6 1 Entering To do 6 3

Checking To do 6 3 Clearing To do 6 3

VI. Using Multimedia

Using Camera/Camcorder 6 7

Using Photograph 6 8 Using Photo List 7 3 Using Camcorder 7 4 Using Video List 7 8 Setting Shot Mode 7 9

Using Camera/Camcorder 8 0

Using Movie 8 1 Using IrDA 8 1

Using Auto Lock One-Touch Lock Feature 8 3 Lock Code 8 4 Call Restri c t 8 4

PIN Set Require PIN 8 5

R e s e t 8 6 S/W Version 8 7

Call Waiting 8 9 Call Forward 8 9

Change Language 9 2 Setting Auto Area Code 9 2 Set Key Input 9 3 Data Mode Data Profile 9 4

Using ShortCut 9 5

VI. Using Multimedia

Viewing Memory Info 8 0 Using Help 8 0

VII. Using Security

PIN Change 8 5

VIII. Using Setting

VI. 타이머기능사용하기

Fwd All Calls 9 0 Fwd Default 9 0 Fwd If Busy 9 1 Fwd If No ANS. 9 1

Use 1X Data 9 4 Comm. Port 9 4

10 11

IX. Using Voice Wizard

VI. 타이머기능사용하기

Voice Memo R e c o r d i n g 9 7

Ending Recording 9 7 Play of Recording 9 8 Deleting Recorded Content 9 8

X. Using Call History

Viewing Call history information 1 0 0

Delete Unans Call, Call to, CLI List 1 0 2

Viewing Call Timer 1 0 2

View Unans Call list 1 0 0 View Call to list 1 0 1 View CLI list 1 0 1

Clear All 1 0 2 Delete individual number 1 0 2

I n d i v i d u a l 1 0 3 O u t g o i n g 1 0 3 Roam Timer 1 0 3 C u m u l a t i v e 1 0 3

Xl. Using Phone Book

Storing a Number Storing a Number from a Menu 1 0 5 Correcting Phone BookCorrecting Phone Book 1 1 0

Deleting Phone Book Deleting the whole Phone Book 1 1 3

Storing a Number on idle Mode 1 0 5 Correcting Name and E-mail Adds 1 1 1

Correcting Group 1 1 1 Deleting Stored List 1 1 3

Deleting Individual Items 1 1 4 Deleting Group 1 1 4

Xl. Using Phone Book

Searching Phone BookView All 1 1 5

Recall By Loc 1 1 6 Recall By Group 1 1 6 Recall By Name 1 1 7 Using [OPTIONS] 1 1 8 Memory Status 1 1 9 View my Num 1 1 9 Copy Entries 1 2 0

Xll.Using Functions During a Call

Adjusting Tone Volume During a Call 1 2 2 Taking Note During a Call 1 2 2 Using Phone Book During a Call 1 2 2 Sending My Number 1 2 3 Using Muting 1 2 3 Using Speaker Phone 1 2 3

XllI. Using SMS Features

Checking Message Text Message 1 2 5 Sending Message Sending a New Message 1 2 8

Setting Message Receive Function 1 3 1

Voice Message 1 2 7 Sending a Stored Message 1 2 9

Move to Stored Message 1 3 0 O u t b o x 1 3 0

Alert Frequency 1 3 1 View Msg 1 3 1 Msg Sound 1 3 2

Save To 1 3 2

XllI. Using SMS Features

Memory Status 1 3 3 Deleting Message Delete received message 1 3 3

Deleting saved message 1 3 4

XlV. Using E-mail

Sending E-mail New e-mail 1 3 6 Checking New E-mail 1 4 0

Managing Data Folder 1 4 4 E-mail Setting Receiving & View Setting 1 4 6

Sending stored e-mails 1 3 9 Using the folder menu 1 4 1

Using the e-mail menu 1 4 2 Replying/Forwarding e-mails 1 4 4

Data Folder 1 4 5 Send & New Mail Setting 1 4 7

XV. Using Data Folder

Using Data Folder Display All 1 5 1

User Folder 1 5 4 My Data 1 5 6 P i c t u r e 1 5 8 R i n g 1 5 9 v C a r d 1 5 9 O t h e r s 1 6 0

XVI. Using UNI

Accessing UNI Accessing UNI 1 6 2 Accessing Magic Accessing Magic 1 6 3

Accessing U-Map Accessing U-Map 1 6 6

UNI MENU 1 6 2 Magic MENU 1 6 3

Key usage in Magic 1 6 4 Download Magic applications 1 6 4 Execute Magic applications 1 6 5

U-Map Menu 1 6 6

XVlI. Appendix

T r o u b l e s h o o t i n g 1 6 8 Specific Absorption Rate data 1 6 9 Specification and Characteristics 1 7 1

Before Using

1. Confirming Components 1 5

2. Name and Function of Each Part 1 5

3. Basic Keypad Operation 1 6

4. Menu Map 1 7

5. Display Icon 2 1

6. How to Use Battery 2 2

7. Precautions When Using 2 6

1. Confirming Components

●

P h o n e

●

B a t t e r y ( 7 0 0 m A h )

●

U s e r’s Manual

2. Name and Function of Each Part

Accessory link hole

Camera Lens

Volume Button

External LCD

Voice Wizard Button

S p e a k e r

Speaker is existed behind phone

Never touch the intenna during a call and touching it may degrade speech quzlity

I n t e n n a

R e c e i v e r

You may not hear the other called party’s voice when pressing the call phone against your ear to listen more clearly in a noisy circumstance.

TOP MENU Button

SEND Button

Etiquette One Touch Button

C h a r g e r ,

C o m m u n i c a t i o n

Cable port

Before Using

Internal LCD

Camera Button Navigation Button

Photo Sensor MAGIC Button END Button

One Touch Lock Button

Earpice Terminal T r a n s m i t t e r

Covering the microphone reduces the your voice or may not send it.

Before Using Before Using

3. Basic Keypad Operation

● To Place or receive a call.

● Short press : To dispaly a calling number list

● To turn the power ON/OFF and end a call

● To end a selected feature to return to the initial screen

● To use idle mode feature

Left : One-touch for ‘P B’Search mode Right : One-touch for ‘M e s s a g e ’m e n u Up : One-touch for ‘M a i l’M e n u Down : One-touch for ‘Data Folder’

● To use menu feature - Menu search feature

● Dial buttons - To enter numbers and characters

● Quick dialing for an international call

● To set/reset Etiquette feature

To set/reset One-touch lock feature

● One-touch for voice wizard menu

● Short press : One-touch for Camera Preview mode

Long press : One-touch for Multimedia menu

● To delete characters or number while entering them

Short press : To delete characters one by one Long press : To delete the whole characters

● To move to the upper menu or previous display screen

● To search lists and control volume during a call

● One-touch for UNI accesing.

● To use menu and message features - [OK] feature

● To move to the ‘TOP MENU’in idle mode

● To use menu and message features - [OPTIONS] features

● To move to the top ‘M a g i c ’in idle mode

● To use menu and message features - [BACK] or

[CANCEL] features

4. Menu Map

1. Ringer Style

2. Ringer/Vib

3. Volume

4. Group Bell

5. Effect Sound

6. Alert Sound

7. System Alert

2. Display

1. Main LCD Graphic

1. Idle

2. Incoming Call

3. Outgoing Call

4. Power On

5. Power Off

2. Sub LCD Graphic

1. Idle

2. Incoming Call

3. Outgoing Call

4. Power On

5. Power Off

3. MainLCD Idle

4. SubLCD Idle

2. Display1. Sound

5. Menu Style

6. Display Style

7. Dial Number

8. Backlight

3. Scheduler

1, Schedule

2. Alarm

1. Easy Alarm

2. My Alarm

3. Morning Call

3. Memo

4. D-day

1716

Before Using Before Using

4. Multimedia

1. Camera

2. Photo List

3. Camcorder

4. Video Player

5. MP3 Player

6. Setting

7. Memory Status

8. Help

5, Voice Wizard

1. Ans. Machine

1. Set Answering

2. Record Ment

3. Play Ment

4. Message Inbox

2. Voice Memo

1. Record

2. Play

3. Recorded Sound

1. Record Sound

2. Play Sound

6. Security(lock code)

1. Lock Phone

2. Lock Privacy

3. Lock Code

4. PIN Code

1. Require PIN

2. PIN Change

5. Call Restrict

6. Reset

1. Reset Setting Values

2. Clear Files

7. Emergency Call

8. S/W Version

7. Setting

1. Call Answer

2. Call Waiting

3. Cal Forward

1. Fwd All Calls

2. Fwd Default

3. Fwd If Busy

4. Fwd If NO ANS.

4. Change Language

5. Auto Area Code

6. Data Mode

1. Data Profile

2. Use 1X Data

3. Comm. Port

7. Setting

7. U-Mail Config

1. U-Mail Sound

2. Setup

3. Data Reset

8. Browser Setup

1. Linger Time

8. Tool Kit

1. Biorhythm

1. Set Birthday

2. View Biorhythm

2. Lucky Number

3. Calculator

4. World Time

5. Stopwatch

9. Phone Book

1. Search

1. Search All

2. By Name

3. By Group

4. By Turbo Dial

5. By Number

2. Store Number

3. Group Manager

4. Turbo Dial

5. Copy Number

1. UIM To Phone

2. Phone To UIM

9. Phone Book

6. Call History

1. All Calls

2. Incoming Call

3. Outgoing Call

4. Missed Call

7. Call Timer

1. Latest Time

2. Incoming Time

3. Outgoing Time

4. Total Time

5. Roaming Time

8. Memory Status

9. View My Num

1918

Before Using

Message

1. Create Message

2. Inbox

1. Phone

2. UIM

3. Voice Msg.

4. Web Alert

3. Outbox

1. Sent Msgs

2. Drafts

3. UIM

4. My Phrase

5. Setting

6. Memory Status

1. Inbox

2. Outbox(Sent)

3. Outbox(Draft)

4. UIM

7. Mobile QQ

UNI Data Folder

1. Mail

2. Magic

3. Info

4. My Documents

5. Music Street

6. Bookmarks

1. Display All

2. User Folder

3. My Data

4. Umedia

5. Picture

6. Ring

7. SMIL

8. vCard

9. Others

5. Dispaly Icon5. Dispaly Icon

To reduce battery consumpton, if the set lighting time arrives, the LCD lights off automatically.

Current signal strength this indicated by the number of lines shown. Indicates current calling status. This icon appears when a call is in process. Phone Lock setting activated. Disappearing when it is inactivated. Text or voice message received. It disappears when you retrieve new message. Alarm setting activated. Disappearing when you discharge Alarm setting. Indicates Ringer type is Bell Only.

Vib. Only. Vib. & Bell Vib. Then Bell Silent Etiquette mode status. Disappearing when it is inactivated. Indicates battery charge level

Fully charged status shown Low battery Low battery warnning If you connect the data communication cable, it is displayed on the screen. The display caries depending on the Rx mode you have selected at Data setup

Data Received Fax Received Displayed on screen when you use the earmicrophone. Displayed on screen when Answer Machine is in activation. To be displayed on the display screen when you use your handfree kit.

Before Using Before Using

7. How to Use Battery

󱀣 Cell Phone and Battery

I . A s s e m b l i n g II. R e m o v a l

③

①

②

①Pull battery cover in the front direction

while pressing the removal button

②Insert battery and fit the battery cover

correctly into the groove provided on the bottom-hand side of the handset

③ Slide it all the way in the arrow direction until

a ‘c l i c k’is heard.

※Before removal the battery, be sure to turn off the power of the phone. Forcible removal of the battery may cause

malfunction. Cell phone and battery cover shall be always combined.

①

① Pull in the frornt direction while pressing the

removal button.

② Open the battery cover and push the both part in

the arrow direction and the removal the battery from the handset.

②

󱀤 The Battery and UIM Card

󱈺

UIM Card ?

NOTE!!

󱀥 Charging Battery Pack

UIM Card contains your Phone Number, service details, and phonebook/message memory, Caution : Do not bend or scratch your UIM Card. Avoid exposing your UIM Card to static electricity, water, or dirt.

The battery is not fully charged when it is supplied. Be sure to charge the battery fully before you use the phone.

● Connect the power plug of the charger to the outlet.

● Connect the jack of the charger to the port on the side of the phone.

■ When you use USB Hub device to use charging battery, data service or mPT, it must be

1. USB hub must match USB Power Distribution Specification.

2. Use USB hub with self-power as possible.

3. When you want to charge your phone with USB, it is recommended to use PC host root hub.

4. When you want to charge with hub that is not match spec., only one port must be used.

I . Installing UIM Card on the Phone

Disconnect the battery pack from the phone and side UIM Card into the rail on the back of the phone.

restricted as following,

2322

Before Using Before Using

󱀦 Battery Pack Charging Time

D e s c r i p t i o n 700mAh (V3a)

Required Time

● Recharging time varies by the battery pack and charger status.

● If AC power voltage applied to the power supply adapter is low, the charging time may become longer.

● If ambient temperature is too high or low, charging may not be done sufficiently. Always charge the battery in room temperature.

Under 3 hours

󱀧 Battery Pack Operating Time

700mAh ( V 3 a)

T i m e Slot Mode 2

Standard Talk time

● The slot mode varies according to service areas.

● Electric currents are consumed more during a call or when using UNI or Game than in standby state, so the the longer call time is, the shorter the standby time becomes.

● Receiving a call requires the same amount of electric currents as when placing a call.

● Standby time in ‘NO SERVICE’area becomes shorter.

● The operating time varies accrding to charging state, temperature(low/high),radio wave condition in the area of use, backlight status.

Slot Mode 0

About 70 hours

Slot Mode 1

About 115 hours

About 170 Min

About 170 hoursStandard Standby Time

󱀨 Low Voltage Alert

● When the battery pack is almost used up, the phone sounds a ‘b e e p’and ‘ ‘ f l a s h e s .

● If you continue to use your phone in this state, the power of the phone is turned off. lmmediately charge your phone.

● If ‘ ‘flashes, although you press the button, backlight for display screen and buttons may not be On and the cell phone features are not supported properly. Immediately charge your phone before using again.

󱀩 Battery Pack Care Information

● Always use the authorized, dedicated charger and battery pack. If an unauthorized battery pack is installed, a

‘Warning! Unauthorized Battery’message is displayed on the Wait display screen.

● Using and unauthorized charger could cause damage to the battery pack or explosion may result. Never use such a product.

● Never short-circuit the contact terminals of the battery pack. Explosion may result. Always store the battery pack in the battery case

● Always charge or store the battery pack in room temperature. Charging would not be done sufficiently and the indicator lamp changes into orange if you change the battery pack in a too hot place(in a car in summer or near open flames)or a too cold place. If it is stored over an extended period of time, its capacity level becomes lower, shortening its operating time.

● Never disassemble the battery pack or place it near open flames.

● Store the charger and battery pack in the area out of children’s reach.

● Never give a strong impact to your phone or let it drop. Malfunctions or short life may result.

● Any foreign matters in contact with the metallic part of contact terminals on the charger and battery pack may interfere with charging process. Always keep them clean.

● The chargeable battery pack is a consumable item. Repeated switching between charging and discharging reducess its service life slowly. If the battery operating time is reduced to a half level compared to that when purchased, replace it with a new one.

2524

Before Using

7. Precautions When Using

● If the lamp flickers while you are charging your phone and battery, charging operation fails. If you leave it in such a state, the charger may malfunction.

● Always use authorized, dedicated battery pack and charger. Using an unauthorized battery pack or charger rejects the services offered by Motorola.

● Do not use the charger to charge phones and batteries of different models. Problems may result.

● Never use them in a humid, hot atmosphere. If your phone becomes damp, malfunction may result. If submerged, it may be beyond repair. Never turn the power ON with your phone wet. Instead, remove the battery pack and contact the nearest service center for repair.

● Never disassemble or alter your phone. Unauthorzed disassembly may reject free service offered by Motorola.

● If you sit down with your phone stored in a hip pocket, use care not to give a strong impact to it. It may be broken.

● Avoid cleaning your phone with chemical solutions such as solvent or thinner.

● Use care not to give an impact or vibration to your phone. When not in use, it should be stored in a safe place.

● Use the authorized handsfree kit. Otherwise, malfunction may result. Especially, products having strong magnetism may be a direct cause for malfunction of cell phone, which will reject the free service offered by Motorola.

● In order to prevent any harm to human body, do not hold the battery in the mouth and do not use the damaged battery.

● Keep the handset away from any magetic product such as credit card, phone card that may be damaged by the electro magnetic field of the handset.

● Keep the handset away from any heating facility such as stove, microwave or oven.

● Do not apply excessive force to the handset to protect appearance and internal parts of the handset.

● Do not hold the strap and turn the handset round not to hurt anyone.

● Be sure that the handset is not held between the automatic doors of a bus or subway train.

Basic Operation

1. Power ON and OFF 2 8

2. Placing a Call 2 8

3. Receiving a Call 3 0

4. Unanswered Call 3 1

5. Using the [OPTIONS] functions while entering letter 3 1

6. Using My Menu 3 3

Basic Operation Basic Operation

1. Power ON and OFF

󱀣 Power ON

Press and hold

● The displaying China Unicom and user-set graphic. And then, the initial screen is displayed.

󱀤 Power OFF

Press and hold

● The graphic disappears and the power is turned off.

● A graphic can be downloaded from UNI and changed in ‘MainLCD Graphic or SubLCD Graphic’Display Graphic may be displayed late depending upon the capacity of the downloaded graphic.

2. Placing a Call

Enter a desired area code and phone number ▶

● The phone automatically redials if the call is not connected. If you press an incorrect number, you can correct the number with .

● If the phone is locked, you should enter the password to make a call.

● Call Time is automatically displayed on the LCD. The call charge is calculated from the time the called party receives your call.

󱀣 Placing a call from Phone Book

Use search to select a desired person to call. (see P.115~117 Searching Phone Number)

Select a person to call ▶Select an item to call ▶

● Pressing with a person to call selected connects the call to the number set to ‘Main Number’among the items with phone numbers stored.

● Press on the idle mode. You can search phone numgers with ‘N a m e’,

‘G r o u p ’or ‘T u r b o ’in the Phonebook.

󱀤

Turbo Dial

If a number is registered in ‘Turbo Dial’, press and hold ‘Turbo Dial’on the main screen to make a call to the number. (location number is 17, Press the dial button and press and hold )

i n g

󱀥 Electronic Dialing

You can use this function conveniently by entering a few numbers in advance according to the audio announcement when using ARS(for telebanking service or voice message confirmation). To cancel electronic dial, press [ C A N C E L ] .

Enter Phone Number

Input key

The numbers after‘P’can be sent only if the

The numbers after‘T’are sent shortly after

▶ E n t e r‘P’or ‘T’and then a number to be dialed electronically ▶

Operating Method

[TAP]

is pressed.

2928

Basic Operation Basic Operation

󱀦 Emergency Dialing

Even when the handset is in Lock, you can still make a call using the emergency number stored on the phone.

Enter an Emergency Number ▶

● These numbers were copied and saved from UIM card.

3. Receiving a Call

If a call is received, open the folder

● Press and hold or to suppress the ringer or vibrates for incoming call.

● Receiving a call graphic can be downloaded from UNI and changed in ‘Incoming Call’under ‘D i s p l a y ’. Graphic may be displayed late depending upon the capacity of the downloaded graphic.

● You can change ringer style, call receive mode, reception status.

● The graphic appearing when a call is received can be download from ‘U N I’and changed in ’MainLCD Graphic or SubLCD G r a p h i c ’. under‘D i s p l a y ’. If you set graphic to a download graphic, when a call is received, the selected ringer tone or graphic may be displayed late depending on the capacity of the downloaded graphic.

󱀣 Receiveing a call Using Earmicrophone

When the earmicrophone is connected, press or the earmicrophone button to receive an incoming call. When the folder is shut, press the earicrophone button to receive an incoming call. After finishing the call, press the earmicrophone button to release the call.

4. Unanswered Call

If the user fails to receive a call, the following image is displayed on the display screen.

● Pressing keypad button moves the phone to Idle Mode.

● Shortly press from Standby display to view ‘M i s s e d’.

● However, the caller is restricted for call origination, ‘Restricted Num’will be displayed on ‘Missed Call’list. Press [OK] to view the call date and time.

5. Using the [OPTIONS] functions while entering letter

Available to use all text input modes on a mobile device. (etc : Banner, Picture/Video name, Create Message)

Select entering letter mode and [OPTIONS] ▶ Select a desired menu

● It is an easier way to input texts with pressing [OPTIONS] in a text input mode.

3130

Basic Operation Basic Operation

󱀣 Using SYMBOL

In a text input mode, you are able to select any symbol mark.(SYMBOL, SPECIAL, NET SYM)

Select SYMBOL ▶ Select the symbol and press keypad button

󱀤 Using PHRASE

After saving your favorite sentences, it is available to recall saved sentences.

Select PHRASE ▶ Select a desired phrase list and [ S E L E C T ]

● You enable to save ‘P A R A S E ’to ‘My Phrase’on the ‘M e s s a g e ’m e n u .

● Regarding ‘P H R A S E ’, you can input maximum Chinese 40 characters or English 80 characters.

󱀥 Using EDIT

Users enable to copy, cut or delete what users inputted in a text input mode.

COPY : You can copy the selected text to ‘P A S T E ’. CUT : You can cut the selected text and save the text in ‘P A S T E ’. DELETE : You can delete the selected text.

Select EDIT ▶ Select the first few words of the text you want by pressing , and press

[START] ▶ Select the text you want by pressing , and press [STOP] ▶ Select a desired menu

󱀦 Using PASTE

Using a ‘E D I T’menu, copied and cut sentences would be saved automatically therefore users are able to recall these sentences.

Select PASTE ▶ Select a desired paste list and [ O K ]

● Up to 5 texts can be saved in ‘P A S T E’. The oldest one will be deleted automatically, and the new one will be saved.

● When ‘P A S T E ’is popped out, you can delete PASTE lists with pressing [Delete All].

󱀧 Using UNDO

If you press [OPTIONS] after executing Cut or Delete function, ‘U N D O’function will be displayed. Select ‘U N D O’to go back to the input mode before the execution of ‘C U T’or ‘D E L E T E ’.

Select UNDO ▶ Select a desired paste list and [ O K ]

󱀨 Using REVERT

Select REVERT ▶ Select a desired paste list and [ O K ]

3332

Basic Operation

6. Using My Menu

You can copy frequently-used means to ‘My Menu’and edit them. If ‘MY MENU’is displayed while you searching menu features, press [MY MENU] to move it to My Menu.

Select a desired Menu and press [MY MENU] ▶ Select ‘Y e s’to set up ▶ Select a desired icon

● Even if a menu is moved to My Menu, menus in the existing folder is not erased. Up to 8 items can be added to My Menu.

● To delete menus copied to My Menu, select a menu to delete, press [DELETE], and then select a value.

● P r e s s in the idle mode to display the My Menu.

Using Sounds

1. Changing Ringer 3 5

2. Changing Receive Mode 3 6

3. Changing Ring Volume 3 8

4. Selecting Group Bell 3 9

5. Setting Effect Sound 4 0

6. Setting Alert Sound 4 1

7. Setting System Alert 4 2

Basic Operation

Using Sounds

1. Changing Ringer

User can change the ringer which is used to alert call incoming Except the ringers saved in the mobile phone, user can download the melody using uni and can set to the ringer. Also user can set recorded sound to the ringer.

●Ringer Style

Melody : 1~23 Unique Sound : 1~16 Simple Bell : 1~9 My Bell / MP3 : 1~10 Recorded Sound : 1~10 Downloaded : 1~10 MP3 : 1~100

[TOP MENU] ▶ Select Sound ▶Select Ringer Style ▶ Select Ringer Tone and [ O K ]

●You can adjust volume with during the bell setting. (5 steps)

●The menu of Recorded Sound is displayed only when there is any recorded sound. (See P.00)

󱀣 Setting Downloaded

You can set the ring with the downloaded melody.

Press in idle mode ▶Select Display All ▶Select a ringer data and [OK] ▶ Press [OPTIONS] ▶ Select ADD BELL ▶ Select a value

2. Changing Receive Mode

You can set a desired receive tone sounded when a call or message is received.

● Receive Mode icon

Bell Only : Vib. Only : Vib. & Bell : Vib. Then Bell : Silent :

[TOP MENU] ▶Select Sound ▶Select Ringer/Vib ▶ Select Receive mode and press [ O K ]

󱀣 Setting Etiquette Mode

You can switch the ringer or alarm tone sound into vibration or mute not to damage others during the conference, class, or in public place. If the earmic is connected, even in the etiquette mode, you can hear the ring on the earmic.

●If you select Etiquette mode ‘ ’is displayed on the idle mode.

1. How to set

Press and hold

● A message ‘Etiquette Mode is On.’is displayed and then the phone generates vibration and

moves to Mode.

●In Etiquette mode, the ringer will be replaced by vibration.

●Even if you turn OFF then ON your phone, it will remain in Etiquette mode.

Using SoundsUsing Sounds

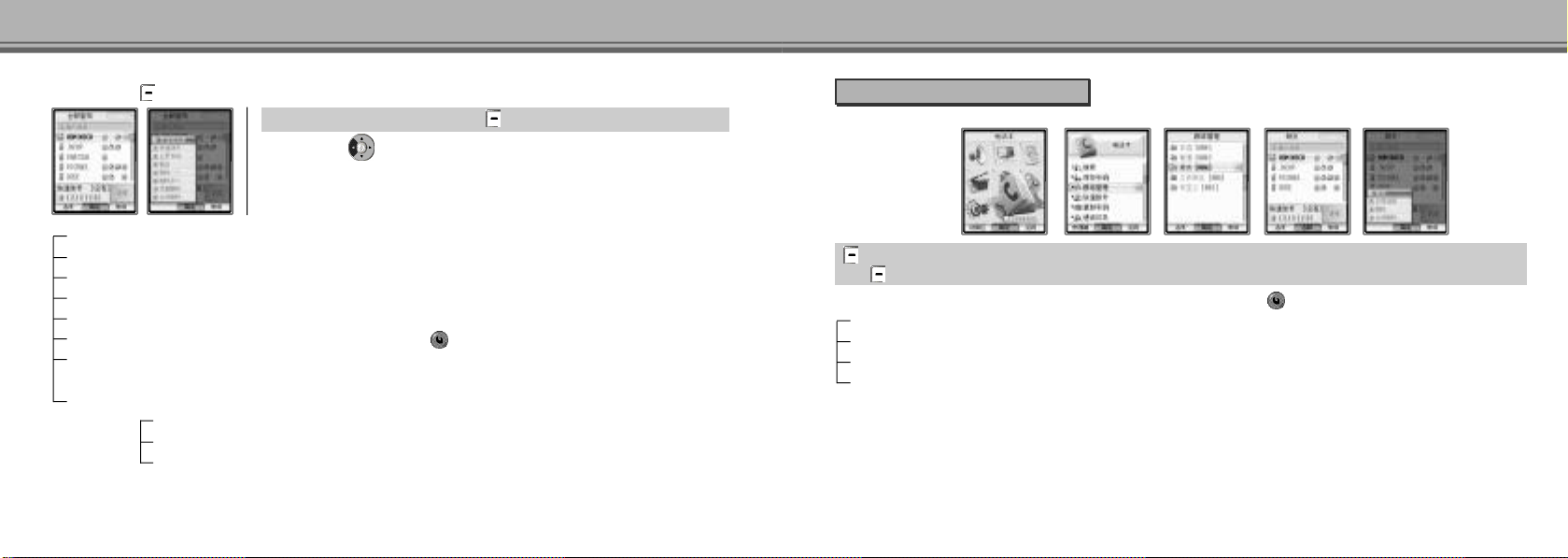

2. How to reset

Press and hold

●A message ‘Etiquette Mode is Off.’is displayed and then the phone moves to Wait Mode.

● If Etiquette Mode is set

● Power Off : Muted ●Power On : Vibration

●Key Pressed : Muted ●Notice Popup : Muted

●Folder : Muted ●Missed Call Frequency : Muted

●Schedule Sound : Muted ●Anniversary Sound : Muted

●D-day Sound : Muted ●Alarm : Muted

● Ringer : Vibration ●Msg Sound : Muted

● Camera Pre-Shutter : Muted ●Camera Shutter Sound : Sounded

3. Changing Ring Volume

You can adjust the Volume.(Bell, Voice, Key Tone, Message Alert, Missed call alert, Camera Shutter, Camera Preshutter)

[TOP MENU] ▶ Select Sound ▶Select Volume ▶ Select a desired menu ▶ Set the Volume ▶

Press [ S T O R E ]

Bell : You can adjust the volume of the ring. (1~5 Steps)

Voice : You can adjust the volume of the earpiece. (1~5 Steps)

Key Tone : You can adjust the volume of the key tone. (0~5 Steps)

Message Alert : You can adjust the volume of the incoming SMS alarm. (1~5 Steps)

Missed call alert : You can adjust the volume of the ‘Missed Call’alarm. (1~5 Steps) Camera Shutter : You can adjust the volume of the camera shutter tone. (1~5 Steps) Camera Preshutter : You can adjust the volume of the camera pre-shutter tone. (0~5 Steps)

Using Sounds Using Sounds

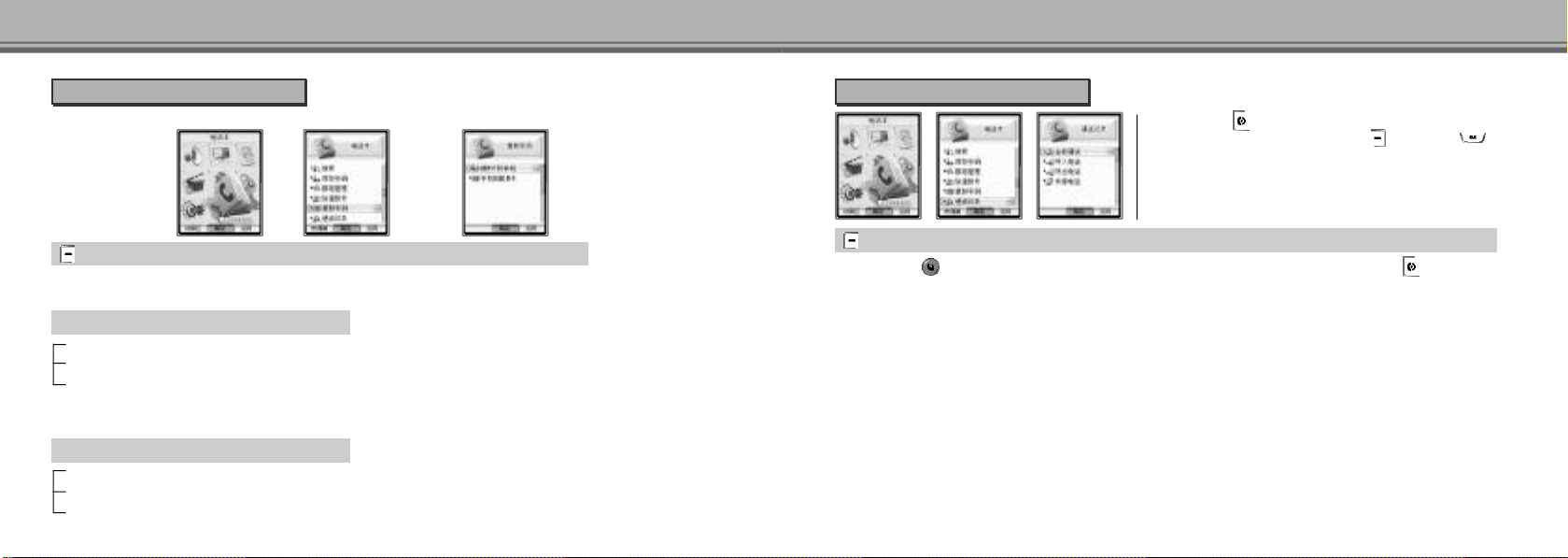

4. Setting Group Bell

You can select the ring and the graphic for incoming call by group.

[TOP MENU] ▶ Select Sound ▶Select Group Bell ▶

Select desired group ▶ Setting Bell/Image ▶

[OK] ▶ Select a desired Bell/Image and ▶ [OK] ▶ Press [ S T O R E ]

󱀣 Setting Bell

Select ‘ ’and Press [LIST] ▶ Select Ringer Tone and Press [ O K ]

● If no ringer is selected by phone number, the ringer selected for the group is applied. If no specific ringer is selected either for the phone number or the group, the ringer selected in ‘R i n g e r ’in ‘S o u n d ’is applied.

󱀤 Setting Image

Select ‘ ’and Press [OK] ▶ Select Image and Press [ O K ]

● If graphic is not selected for a phone number, the graphic selected for the group is displayed. If no specific graphic is selected either for the phone number or the group, the ‘Incoming Call’graphic selected in ‘MainLCD Graphic or Sub

LCD Graphic’in ‘D i s p l a y ’is displayed.

5. Setting Effect Sound

[TOP MENU] ▶ Select Sound ▶Select Effect Sound ▶ Select a desired menu and [OK] ▶ S e t

the effect and [OK] ▶ Press [STORE]

Power On/Off : You can set the tone muted or sounded when turning the power On or Off. (Off, Sound 1, Sound 2)

If you select ‘O f f’in this field, the initial screen is displayed without sound after the vibration.

Key Pressed : You can enable/disable the key tone. (Off, Doremi, Dew Drop, Synthesizer, Voice(Chinese), Voice(English))

You can adjust the key tone volume with in the Idle mode. (5 Steps)

Notice Popup : You can enable/disable the tone for the message box(popup menu) as it is displayed on the screen.

The message box tone(popup menu) varies by the situation. (Off, On)

Folder : You can set or clear a tone for opening and closing your folder. (Off, Folder(1~3))

4140

Using Sounds Using Sounds

6. Setting Alert Sound 7. Setting System Alert

[TOP MENU] ▶ Select Sound ▶Select Alert Sound ▶ Select a desired menu and [OK] ▶ Set

the Alert and [OK] ▶ Press [STORE]

Missed Call Frequency : You can set the frequency of the ‘Missed Call’alarm. (Off, Once, Every 2Min) Missed call sound : You can select the sound for the ‘Missed Call’alarm. (Off, Missed call sound 1~3) Schedule Sound : You can select the sound for the ‘S c h e d u l e ’alarm in the ‘S c h e d u l e r’menu. (Off, Sound 1~10) Anniversary Sound : You can select the sound for the ‘A n n i v e r s a r y’alarm in the ‘S c h e d u l e r’menu. (Off, Sound 1~10) D-day Sound : You can select the sound for the ‘D - d a y’alarm in the ‘S c h e d u l e r’menu. (Off, Sound 1~10) Easy Alarm Sound : You can select the sound for the ‘Set Easy’alarm in the ‘A l a r m’m e n u .

(Melody 1~23, Unique Sound 1~16, Simple Bell 1~10, Downloaded 1~10 MP3 1~100, Recorded Sound 1~10)

[TOP MENU] ▶ Select Sound ▶Select System Alert ▶ Select a desired menu and [OK] ▶ Set

the effect and [OK] ▶ Press [STORE]

Connect / Disconnect : You feature notifies you of call connecting when you place a call. (On, Off)

1 Minute : This function displays call time during a call and sounds an alert 10 seconds in advance at every 1 minute lapse

from the start of call connection. (On, Off)

Out of Service : You can set the alert tone made when the handset is out of the service area. (On, Off)

Low Battery : You can switch on/off the battery low alarm. (On, Off)

42 43

+ 56 hidden pages
