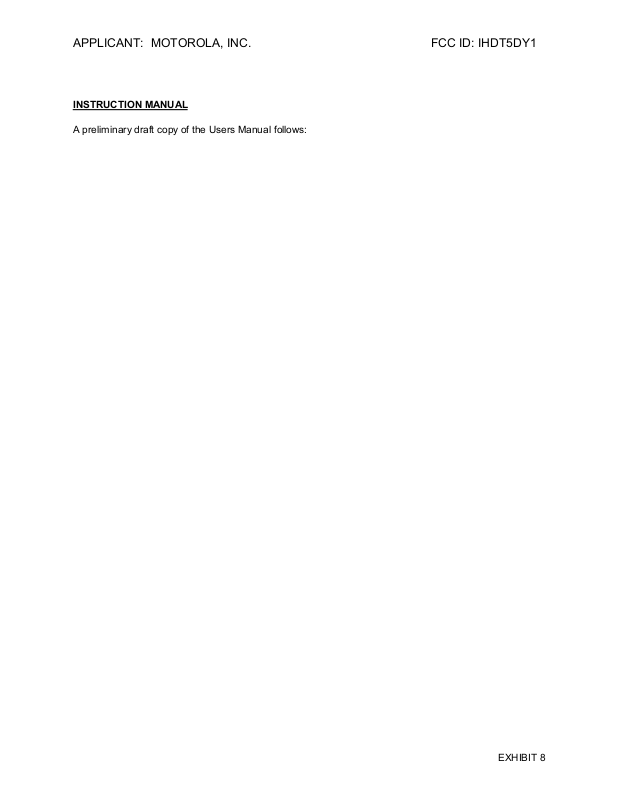

APPLICANT: MOTOROLA, INC. |
FCC ID: IHDT5DY1 |
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual follows:
EXHIBIT 8
Welcome
Left Soft Key
Left Soft Key identified by left display prompt.
Menu Key
Open a menu when is in the display.
Power/End Key
Press & hold to turn phone on & off. Press & release to end phone calls, exit menu system.
Microphone
Earpiece
1 |
2 |
3 |
4 |
5 |
6 |
|
||
7 |
8 |
9 |
|
||
|
0 |
+ |
Antenna
Right Soft Key
Perform functions identified by right identified by right
Navigation Keys
Scroll through lists, set volume.
Send/Answer Key
Make and answer calls; press in idle to list recently dialed calls.
USB Connector
Headset Connector |
Insert data cable. |
|
|
|
Power Connector |
|
Insert charger. |
You can change covers and keypads on your C375 Series phone (see page XX). Your phone may not appear exactly as the phone image above.
Note that all key locations, sequences, and functions remain the same with any of the covers.
Motorola, Inc., Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196
1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Acrobat and Acrobat Reader are registered trademarks of Adobe Systems Incorporated.Motorola, Inc. 2003
Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media.
Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.
Manual number: 6809457A28-O Cover number: 8988485L61-O
- 1 - |
-2 - |
Contents
Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 What°Øs in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Your SIM Card. . . . . . . . . . . . . . . . . . . . . . . . 16 Changing Your Phone°Øs Cover. . . . . . . . . . . . . . . . . . . . 18 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 23 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 24 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the 4-Way Navigation Keys . . . . . . . . . . . . . . . . . 28 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Choosing a Text Entry Method . . . . . . . . . . . . . . . . . . . 39 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 40 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 42 If You Forget a Code or Password. . . . . . . . . . . . . . . . . 42 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 43 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Editing Sound with MotoMixer. . . . . . . . . . . . . . . . . . . . 44 Sending Messages, Pictures, and Sounds . . . . . . . . . . 48
Contents
Using Your Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using the Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Using MyMenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Storing Your Name and Phone Number . . . . . . . . . . . . . 57
Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 57
Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 58
Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 59
Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . 59
Assigning Phone Themes. . . . . . . . . . . . . . . . . . . . . . . . 60
Setting Your Display Color . . . . . . . . . . . . . . . . . . . . . . . 61
Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 61
Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Zooming In and Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Personalizing Display Text . . . . . . . . . . . . . . . . . . . . . . . 62
Personalizing the Menu. . . . . . . . . . . . . . . . . . . . . . . . . . 63
Personalizing Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . 63
Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . 64
Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Calling an Emergency Number. . . . . . . . . . . . . . . . . . . . 65
Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Phone Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Feature Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . 70
Specific Absorption Rate Data . . . . . . . . . . . . . . . . . . . . 85
Additional Health and Safety Information . . . . . . . . . . . 87
- 3 - |
-4 - |
Contents
Export Law Assurances . . . . . . . . . . . . . . . . . . . . . . . . 101
RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . 101
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Wireless Phone Safety Tips. . . . . . . . . . . . . . . . . . . . . 111
Safety and General
Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING YOUR PHONE.
The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002.
Exposure To Radio Frequency (RF) Energy
Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits.
Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.
Operational Precautions
To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures.
External Antenna Care
Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone.
Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country.
- 5 - |
-6 - |
Safety and General Information
Phone Operation
When placing or receiving a phone call, hold your phone as you would a wireline telephone.
Body-Worn Operation
To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting.
Data Operation
When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries and antenna, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com.
RF Energy Interference/Compatibility
Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference.
Facilities
Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions.
Medical Devices
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should:
●ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is
turned ON.
●NOT carry the phone in the breast pocket.
●Use the ear opposite the pacemaker to minimize the potential for interference.
●Turn OFF the phone immediately if you have any reason to suspect that interference is taking place.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.
Use While Driving
Check the laws and regulations on the use of phones in the area where you drive. Always obey them.
- 7 - |
-8 - |
When using your phone while driving, please:
•Give full attention to driving and to the road.
•Use hands-free operation, if available.
•Pull off the road and park before making or answering a call if driving conditions so require.
Responsible driving best practices may be found in the
“Wireless Phone Safety Tips”at the end of this manual and at the Motorola website:www.Motorola.com/callsmart.
Operational Warnings
For Vehicles With an Air Bag
Do not place a phone in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a phone is placed in the air bag deployment area and the air bag inflates, the phone may be propelled with great force and cause serious injury to occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your phone prior to entering any area with a potentially explosive atmosphere, unless it is a phone type especially qualified for use in such areas and certified as “Intrinsically Safe.”Do not remove, install, or charge
batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Areas with potentially explosive atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn OFF your phone when you are near electrical blasting caps, in a blasting area, or in areas posted“Turn off electronic devices.”Obey all signs and instructions.
Batteries
Batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects. Use only Motorola original batteries and chargers.
Your battery or phone may contain symbols, defined as follows:
Symbol Definition
Important safety information will follow.
Your battery or phone should not be disposed of in a fire.
Your battery or phone may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.
Your battery or phone should not be thrown in the trash.
Your phone contains an internal lithium ion battery.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed to blinking lights, such as when watching television or playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your doctor before playing video games on your phone or enabling a blinking-lights featureon your phone. (The blinking-light feature is not available on all products.)
- 9 - |
-10 - |
Parents should monitor their children's use of video game or other features that incorporate blinking lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation.
To limit the likelihood of such symptoms, please take the following safety precautions:
●Do not play or use a blinking-lights feature if you are tired or need sleep.
●Take a minimum of a 15-minute break hourly.
●Play in a room in which all lights are on.
●Play at the farthest distance possible from the screen.
Repetitive Motion Injuries
When you play games on your phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems such as tendonitis, carpal tunnel syndrome, or other musculoskeletal disorders:
●Take a minimum 15-minute break every hour of game playing.
●If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again.
●If you continue to have sore hands, wrists, or arms during or after play, stop playing and see a doctor.
Getting Started
What’s in the Box?
Your digital wireless phone typically comes with a battery and a charger. Other accessory options can customize your phone for maximum performance and portability.
To purchase Motorola OriginalTM‚ accessories, contact the Motorola Customer Call Center at 1-800-331-6456 in the United States or 1-800-461-4575 in Canada.
About This Guide
This user’s guide describes how to use your Motorola wireless phone.
Note: A reference guide for your phone is also available that describes your phone’s features in more detail.
To obtain the reference guide for your phone, or another copy of this user’s guide, see the Motorola Web site at: http://motorola.com/consumer/manuals or contact the Motorola Customer Call Center at 1-800-331-6456 in the United States or 1-800-461-4575 in Canada.
- 11 - |
-12 - |
Optional Features
This label identifies an optional network, SIM card, or subscription-dependent feature that may not be offered by all service providers in all geographical areas. Contact your service provider for more information.
Optional Accessories
This label identifies a feature that requires an optional Motorola OriginalTM‚ accessory.
Installing the Battery
You must install and charge the battery to use your phone. Your phone is designed to be used only with Motorola Original batteries and accessories. We recommend that you store batteries in their protective cases when not in use.
Action
1 Remove the battery from its protective clear plastic case, if necessary.
2 Press down on the coverrelease button at the top of your phone.
3 Pull the top of the |
Release |
phone’s back cover |
Button |
|
|
to release it. |
2 |
3
Action
4 |
Insert the battery with printed |
|
|
|
arrows and 2 tabs at the top |
4 |
5 |
|
of the battery compartment. |
||
|
|
|
|
5 |
Push down until the battery is |
|
|
|
inserted at the bottom. |
|
|
6 Insert the bottom of the back
cover. 7
7 Press the top of the back cover down until it hooks over the cover release button.
6
Charging the Battery
New batteries are partially charged. Before you can use your phone, you need to install and charge the battery. Some batteries perform best after several full charge/ discharge cycles.
Caution: If the battery is fully discharged, your phone may not display Charging for up to 1 minute after inserting the charger. Do not attempt to force the charger further in if you do not see an immediate response.
Action
1 Plug the travel charger into the middle jack on the bottom of your phone.
2 Plug the other end of the travel charger into the appropriate electrical outlet.
3 When your phone indicates Charge Complete, remove the travel charger.
- 13 - |
-14 - |
When you charge the battery, the battery level indicator in the upper right corner of the display shows how much of the charging process is complete. See the battery level indicator in the list on page XX.
Charging time
The Table below displays an approximate battery charging time.
-The charging time depends upon the reminded capacities of a battery.
-Charge the battery in the room temperature.
Battery |
Charging Times |
Li-Ion 710mAh |
Within 4 hours |
|
|
Talk and Standby times.
The table below displays approximate talk and standby times. Variations will occur depending on network settings and usages
1) Talk Times
System |
IS 95A/B |
1X |
Condition |
|
Mode |
||||
|
|
|
||
CDMA |
168mins |
168mins |
Full rate, TX : 7.5dBm |
|
AMPS |
71mins |
|
Power level 0 |
|
|
|
|
|
|
2) Standby Times |
|
|
||
|
|
|
|
|
System |
IS 95A/B |
1X |
Condition |
|
Mode |
||||
|
|
|
||
CDMA |
200hours |
230hours |
SCI : 2 |
|
Sector power : -80dBm |
||||
|
|
|
||
AMPS |
18hours |
FM slot mode |
||
in fixed position |
||||
|
|
|
Battery Use
Caution: To prevent injuries or burns, do not allow metal objects to contact or short-circuit the battery terminals.
To maximize your battery’s performance:
Always use Motorola OriginalTM‚ batteries and battery chargers. The phone warranty does not cover damage caused from using non-Motorola batteries and/or battery chargers.
New batteries or batteries that have been stored for a long time may require a longer initial charge time.
Maintain the battery at or near room temperature when charging.
Do not expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your phone with you when you leave your vehicle.
When you do not intend to use a battery for a while, store it uncharged in a cool, dark, dry place, such as a refrigerator.
Over time, batteries gradually wear down and require longer charging times. This is normal. If you charge your battery regularly and notice a decrease in talk time or an increase in charging time, then it is probably time to purchase a new battery.
Activities that require intensive keystroke use (such as playing a game or using messaging) reduce your phone’s talk and standby time. To help maximize battery life, activate Battery Save (see pageXX).
Never dispose of batteries in a fire because they may explode. The rechargeable batteries that power this product must be disposed of properly and may need to be recycled. Contact your local recycling center for proper disposal methods. Refer to your battery’s label for battery type.
- 15 - |
-16 - |
Changing Your SIM Card
Your SIM (Subscriber Identity Module) card contains your phone number, service details, and phonebook/message memory. It must be installed in the base of the phone, and must be a 3-volt SIM card. If you have problems with your SIM card, contact your service provider.
Since you can change covers and keypads on your phone, it may not appear exactly as the phone pictured. All key locations, sequences, and functions remain the same with any of the covers.
Caution: Do not bend or scratch your SIM card. Avoid exposing your SIM card to static electricity, water, or dirt.
Action
1 Press down on the cover release button at the top of your phone.
2 Pull the top of the phone’s back cover to remove it.
Release |
1 |
Button |
|
2
3 Lift out the battery.
3
4Slide the plasticSIM card tab forward to unlock the SIM card.
5Lift out the old SIM card, if necessary.
6Slide the new SIM card in the holder with the cut corner on the upper left and the gold plate facing down.
SIM Card |
SIM Card Tab |
SIM Card
7 Insert the battery with |
8 |
printed arrows and 2 |
7 |
tabs at the top of the |
|
battery compartment. |
|
8 Push down until the battery inserts at the bottom.
9 Insert the bottom of the back cover.
10 Press the top of the
back cover down until it 10 hooks over the cover
release button.
9
- 17 - |
-18 - |
Changing Your Phone’s Cover
Always use Motorola OriginalTM‚ covers. The phone warranty does not cover damage caused from using non-Motorola accessories.
Resetting Your Phone
If your phone freezes on a display, error message, or power up, reset it by removing reinstalling the battery:
Action
1 Turn off your phone
2 Remove and reinstall your battery as described on page XX. 3 Turn on your phone.
Turning Your Phone On
1 Press and hold [ ](End/Power End/Power
1 |
2 |
3 |
|
2 If necessary, enter your SIM card PIN code and press OK [] to unlock your SIM card.
Note: If you enter an incorrect PIN code 3 times in a row, your SIM card is disabled and your phone displays the message SIM Blocked.
3 If necessary, enter your 4-digit unlock code and press OK
] to unlock your phone.
Note: The unlock code is originally set to 1234. (For more information, see page XX.)
Adjusting the Volume
You can adjust your phone’s earpiece and ring tone volume by pressing right and left on the :
When |
You Can Adjust |
|
you are in a call |
earpiece speaker volume |
|
|
|
|
the display is idle |
ring tone volume |
|
|
|
Tip: At the lowest ring tone volume setting, press left once to switch to vibrate alert. Press it again to switch to silent alert. Press
right to cycle back to vibrate alert, then ring alert.
Making a Call
Press |
To |
1 keypad keys |
dial the phone number |
Tip: If you make a mistake, press DELETE [ ] to delete the last digit, or press and hold DELETE [
] to delete all digits.
2 |
make the call |
|
|
(Send/Answer key) |
Begin to talk. |
|
|
|
Press the [ |
] or [ |
to adjust the |
|
earpiece volume while in a call. |
You can also adjust the earpiece volume from the features menu.
3 |
end the call and “hang up” the |
|
(Power/End key) |
phone |
|
|
|
|
|
|
|
|
When you press [ |
], call timer will |
remain on the screen for about 2 seconds
- 19 - |
-20 - |
Answering a Call
When you receive a call, your phone rings and/or vibrates and displays an incoming call message.
Action
1 Press [] or ANSWER [
]
2 Press [] (end key) when the call is done.
Dialing Menu
press |
to |
|||
Entering Number(s) |
|
|
> Attach Number |
|
|
||||
|
|
|
> Insert Pause |
|
|
|
|
> Insert Wait |
|
|
|
|
> Send Message |
|
|
|
|
|
Active Call Menu
Press [ ] key during the call to access call menu.
press |
to |
|||
|
|
|
|
|
In Call status |
|
|
> Mute, |
|
|
||||
|
|
|
> Hold, |
|
|
|
|
> New Call, |
|
|
|
|
> My Phone #, |
|
|
|
|
> Outgoing Calls |
|
|
|
|
> Incoming Calls |
|
|
|
|
|
1. Mute
press |
to |
|
1. Press [ ] |
press UP/DOWN [ ] key to |
|
|
select "Mute", and then |
|
|
press [ |
]. |
2. |
The microphone will be turn off. |
Unmute
1.Press [] on the conversation screen.
2.The microphone will be turn on.
2. New Call
|
|
|
|
|
|
|
|
|
press |
|
|
|
to |
|
|
1. Press [ |
|
] |
press UP/DOWN [ |
] key to |
|||
|
|||||||
|
|
|
|
select "New Call", and then |
|||
|
|
|
|
press [ |
]. |
|
|
|
|
|
|
|
|||
2. |
|
|
You can dial phone numbers. |
||||
|
|
|
|
|
|||
3. |
|
|
If you didin’t dial any number, |
||||
|
|
|
|
you can browse phonebook, |
|||
|
|
|
|
outgoing calls, incoming call by |
|||
|
|
|
|
pressing [ |
]. |
|
|
|
|
|
|
|
|||
4. |
|
|
If you dialed any number, press |
||||
|
|
|
|
[ |
] or [ |
] to want to |
|
|
|
|
|
making a new call. |
|
||
5. |
|
|
You can delete digits by pressing |
||||
|
|
|
|
[ |
]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 21 - |
-22 - |
3. My Phone #
press |
to |
|
1. Press [ ] |
press UP/DOWN [ ] key to |
|
|
select "My Phone ", and then |
|
|
press [ |
]. |
2. |
You will see your mobile phone |
|
|
number. |
|
4. Outgoing calls
press |
to |
|
1. Press [ ] |
press UP/DOWN [ ] key to |
|
|
select "Outgoing calls", and then |
|
|
press [ |
]. |
2. |
You will see outgoing calls list. |
5. . Incoming calls
press |
to |
|
1. Press [ ] |
press UP/DOWN [ ] key to |
|
|
select "Incoming calls", and then |
|
|
press [ |
]. |
2. |
You will see incoming calls list. |
Learning to Use Your Phone
Using the Display
The idle display (shown below) is the standard display when you are not on a call or using the menu.
D |
|
11:27 am |
Clock |
|
PH.BOOK MESSAGE
Menu Indicator
Soft Key Labels
The [ ] (menu) indicator at the bottom center of the display indicates you can press the menu key [
] to display the main menu to see more features.
Labels at the bottom corners of the display show the current soft-key functions. Press the left soft key [] or right soft key [
] to perform the function indicated by the left or right soft key label.
- 23 - |
-24 - |
The following status indicators can display:
Digital/Analog
Signal Strength
Alert Type
In Use |
Roam Text Case(if applies) |
Message or Entry
Method
D
Battery Level
11:27 am
Active Line
PH.BOOK MESSAGE
Alert Type Indicator Shows the currently selected alert profile. The default alert profile is loud ring.
= loud ring |
= soft ring |
|
|
= vibrate |
= Ring and vibrate |
|
|
= silent |
|
|
|
Signal Strength Indicator Indicates the strength of your phone s connection with the network.
Strong |
No signal |
You cannot make or answer calls when the no signal indicator displays.
Digital/Analog If you are in a digital coverage area, lights up the digital indicator. Lights off when you are in an analog coverage area.
In Use Indicator (
) Appears when a call is in progress.
( ) If you trouble beyond the range of a cellular system, the No Service indicator appears to let you know that calls cannot be placed or received from your location.
Roam/Home Lights up when your phone accesses a wireless service outside `of your home system. When you leave your wireless Service Area, your phone roams (seeks another wireless system).
Text Case Indicator Indicates the text case when you are in a text editor.
Message or Entry Method Indicator Indicates when you have an active Chat session ( ), or when you have a new voice (
) or text (
) message waiting. When you enter a text message, a number here indicates how many more characters can fit in the message.
Battery Level Indicator Shows the amount of charge left in your battery. The more bars visible, the greater the charge.
Recharge your battery as soon as possible when you see the Low Battery warning message and hear the low battery alert.
Active Line Indicator Shows |
or |
to indicate the |
currently active phone line. |
|
|
- 25 - |
-26 - |
Using the 4-Way Navigation Keys
Use the 4-way navigation keys like a joystick to navigate the menu system, change feature settings, and play games.
Tip: Down and up are the primary movements within menus.
Move left and right to change feature settings, navigate the datebook, and edit text.
Navigation
Keys
1 |
2 |
4 |
5 |
7 |
8 |
|
0 |
+
3 6
9
Using Menus
From the idle display, press [ |
] to display the main menu. |
Left Soft Key |
Right Soft Key |
Perform functions |
Perform functions |
identified by left display |
identified by right |
prompt. |
display prompt. |
Menu Key
Enter menu system or open a sub-menu.
Power/End Key
Press & hold to turn phone on & off.
1 |
2 |
4 |
5 |
|
|
7 |
8 |
|
|
|
0 |
3 6
9
+
Navigation Keys
Scroll through menus & lists, set feature values.
Press & release to end phone calls, exit menus.
Selecting a Menu Feature
From the idle display, select a menu feature as follows:
Find the Feature |
> Recent Calls |
> Outgoing Calls
This example shows that from the idle display, you must press [ ], scroll to and select Recent Calls, then scroll to and select Outgoing Calls to display the dialed calls list. Use
to scroll, and the left/right soft keys to perform the functions in the bottom left and right corners of the display.
- 27 - |
-28 - |
Selecting a Feature Option
Some features require you to select an item from a list:
Press [ ] to display the previous screen.
Outgoing Calls 6)Johone Smith 5)123456.....
BACK VIEW
Press [ ] to open the sub-menu.
Highlighted item
Press VIEW [] to display details for the highlighted item.
●Press [ ] to scroll up or down to highlight an item.
●In a numbered list, press a number key to highlight the item.
●In an alphabetized list, press a key repeatedly to cycle through the letters on the key and highlight the closest matching list item.
●When an item has a list of possible values, press [ ] to the left or right to scroll and select a value.
●When an item has a list of possible numeric values, press a number key to set the value.
Entering Text
Some features require you to enter information:
Press [ ] to scroll down to additional items.
Edit |
Highlighted item |
|
|
Name: |
|
No.: 12345.... |
|
CANCEL |
CHANGE |
Press CANCEL [ |
] to exit |
Press CHANGE [ |
] or |
|
without making changes. DONE |
number keys to edit the |
|
||
[ |
] displays when you |
information. |
|
|
enter or edit information. |
|
|
The message center lets you compose and send text messages. A flashing cursor shows where text will appear:
Flashing cursor
indicates insertion
point. Message:
CANCEL
Press CANCEL [ ] to exit without making changes.
Press INSERT
[] to view and insert stored text or objects.
BROWSE
Press [ |
] to open the |
sub-menu. |
|
- 29 - |
-30 - |
When you enter text using the standard tap method, the flashing cursor changes to a block cursor, and the soft key functions change:
Block cursor indicates currently highlighted character.
After 2 seconds, the block cursor reverts to a flashing cursor and moves to the next position.
|
|
|
Press OK [ |
] |
|
|
159 |
||
|
|
to accept and store |
||
Message: |
|
|||
|
|
|
the text. |
|
T |
|
|
DELETE OK
Press DELETE [] to delete the character to the left of the insertion point.
Choosing a Text Entry Method
Multiple text entry methods make it easy for you to enter names, numbers, and messages.
Press [ ]
Entry Method from any text entry screen to select a text entry method:
Press [ |
|
|
] > Editor Menu > Entry Method : |
|
|
||||
(When Editing Message or Input Datebook title ) |
||||
|
|
|
|
|
iTAP English |
Let the phone predict each word as you enter it, then |
|||
|
|
|
|
choose the word from a list .(see pageXX) When |
|
|
|
|
Established language is English. |
|
|
|
||
iTAP Spañol |
|
When Established language is Spanish. |
||
|
|
|||
iTAP Portuguese |
When Established language is Portuguese. |
|||
Tap Method |
|
Enter characters one at a time by pressing the key for |
||
|
|
|
|
the letter, number, or symbol (see pageXX). This is the |
|
|
|
|
standard method for entering text. |
|
|
|
||
Numeric |
|
Enter numbers only. |
||
|
|
|
||
Symbol |
|
Enter symbols only (see pageXX). |
Note: The text entry method you select remains active until you change it by selecting another method.
The Text entry is supported Tap Method at when input Email and canned message edit
Using the Tap Method
This is the standard entry method for entering text on your phone.
Press [ ] or Press [
] > Editor Menu > Entry Method : Entry Method from a text entry screen and select Tap Method
|
Press |
To |
|
||
|
|
|
1 |
A number key one or |
Select a letter, number, or symbol |
|
more times |
shown in the chart on page xx. |
|
|
|
2 |
Number keys |
enter the remaining characters |
|
|
|
3 |
|
Store the text |
|
|
|
1 Tap Method Text Entry Rules
1.1Press a number key repeatedly to cycle through its characters. See the chart on page xx.
1.2If you do not press a key for 2 seconds, the character in the block cursor is accepted, and the cursor moves to the next position.
1.3Press [ ] left or right to move the flashing cursor to the left or right in a text message.
1.4The first character of every sentence is capitalized.
Press [ ] down to force the character to lowercase while it is highlighted by the block cursor.
- 31 - |
-32 - |
2 Character Chart
Use this chart as a guide for entering characters with the tap method.
Space . 1 @ ? ! , & : ; “ ( ) ‘ ¿ ¡ % $ _ ~ \
A B C 2 À Ã Á Â Ç
D E F 3 É È Ê
G H I 4 Í
J K L 5
M N O 6 Ñ Ò Õ Ó Ô
P Q R S 7
T U V 8 Ù Ú Ü
W X Y Z 9
+ - 0 * / = > < # § [ ]
Note: This chart may not reflect the exact character set available on your phone.
2.1Press and Hold 2 seconds to toggle from Tap-Method to Number Method.
Using the iTAPTM‚ Method
iTAP™ software provides a predictive text entry method that lets you enter a word using one keypress per letter.
Press [ ] Entry Method from a text entry screen and select iTAP
Entering Words
|
Press |
To |
|
|
1 |
A number key |
enter the first letter of the word The letters |
|
|
associated with the key are shown at the |
||||
|
One time |
bottom of the display. |
||
|
|
|||
|
|
|
||
|
Number Keys |
enter the rest of the word Alternative words |
||
2 |
(one per letter) |
and letter combinations are shown at the |
||
bottom of the display. The word choices are |
||||
|
|
|||
|
|
updated with each keypress. |
||
|
|
|
|
|
Press |
|
To |
|
3 |
|
|
highlight the word you want |
|
right or left |
|
|
||
|
|
|
||
|
|
|
|
|
4 |
SELECT [ |
] |
enter the word at the flashing cursor A space |
|
is automatically inserted after the word. |
||||
|
|
|
|
|
For Example, to spell “art,” press .
The display shows:
Flashing cursor |
D |
Press [ |
] to scroll and |
indicates insertion |
|
see additional choices. |
point.
Art Apt Cpu Cru
DELETE
Press DELETE [ to clear the last letter entered.
SELECT
Press SELECT [] to insert the highlighted letters.
Entering Novel Words
If iTAP does not display the word you want:
|
Press |
|
To |
|
|
|
|||
1 |
DELETE [ |
] |
delete letters until you see a letter |
|
combination that matches the start of the |
||||
|
one or More times. |
word |
||
|
|
|
||
|
|
|
||
2 |
left or right |
highlight the letter or letter combination |
||
|
|
|
|
|
3 |
SELECT [ |
] , |
shift the text entry cursor to the left and |
|
“lock” the selected letters |
||||
|
then Press [ |
] to |
||
|
the left |
|
|
|
|
|
|
||
4 |
Number keys and |
enter letters and highlight letter |
||
|
Press [ |
] |
combinations to spell the word |
|
|
|
|
|
- 33 - |
-34 - |
