HELLOMOTO

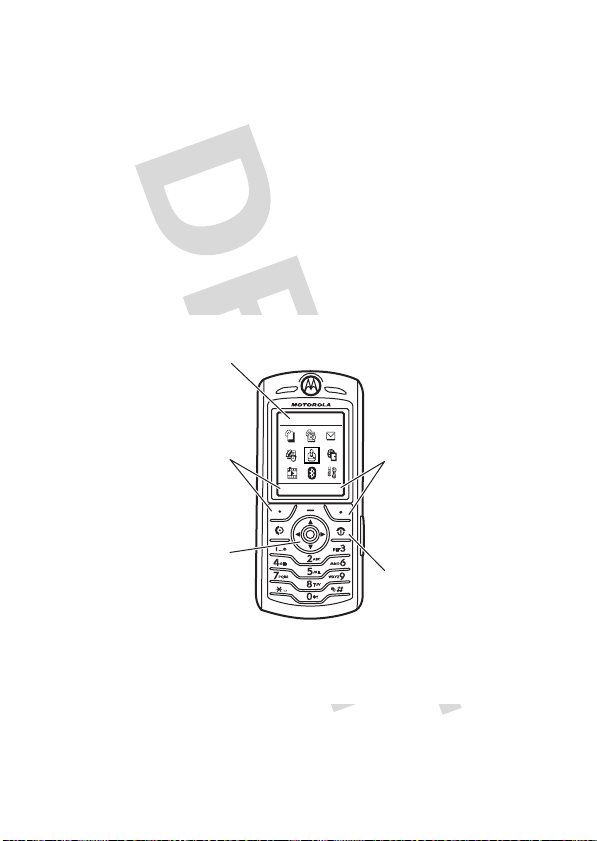

Introducing your new Motorola SLVR V8 GSM wireless phone. Here’s a quick anatomy lesson.

	Volume Keys	Open menus.
	PPT/Smart Key	Navigate menus.
		Right Soft Key
	Left Soft Key	Carrier Key
	Make & answer	Turn on & off,
	calls.	hang up, exit
		menus.
	Select menu	Insert memory
	items.
		card.
	Charge up and	Volume Keys
	connect phone
	accessories

Camera

For Push to Talk (PTT) details, see page 60.

1

Motorola, Inc.

Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196

www.hellomoto.com

Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

MOTOROLA and the Stylized - Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners.

© Motorola, Inc., 2005.

Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment.

Software Copyright Notice

The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or

2

reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any licenseunder the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual Number: 68XXXXX105-O

3

contents

feature locator. . . . . . . . 6 Safety Information.. . . 8 EU Conformance . . . . . 15 Recycling Information. 16 essentials. . . . . . . . . . . 17

about this guide. . . . . 17 SIM card . . . . . . . . . . 17 battery . . . . . . . . . . . . 18 turn it on & off . . . . . . 21 make a call . . . . . . . . 21 answer a call . . . . . . . 21 your phone number. . 21

main attractions . . . . . 23 take & send a photo . 23 record video . . . . . . . 25 audio player . . . . . . . . 26 digital audio player. . . 28 cable connections . . . 30 memory card. . . . . . . 30 Bluetooth® wireless . 33

basics . . . . . . . . . . . . . . 38 display . . . . . . . . . . . . 38 menus . . . . . . . . . . . . 41 create SMS . . . . . . . . 43 volume . . . . . . . . . . . 48 navigation key . . . . . . 48 handsfree speaker. . . 49

codes & passwords . 49 lock & unlock phone . 49 customize . . . . . . . . . . 51 ring style . . . . . . . . . . 51 time & date . . . . . . . . 52 wallpaper. . . . . . . . . . 52 screen saver . . . . . . . 53 display appearance . . 53 answer options . . . . . 54 calls . . . . . . . . . . . . . . . 55 turn off a call alert . . . 55 recent calls . . . . . . . . 55 redial . . . . . . . . . . . . . 56 return a call . . . . . . . . 57 notepad . . . . . . . . . . . 57 hold or mute a call. . . 57 call waiting . . . . . . . . 58 caller ID . . . . . . . . . . . 58 emergency calls . . . . 58 international calls . . . 59 1-touch dial . . . . . . . . 59 voicemail . . . . . . . . . . 60 push to talk (PTT) . . . 60 other features . . . . . . . 66 advanced calling . . . . 66 phonebook . . . . . . . . 68 messages . . . . . . . . . 72

4 contents

personalizing . . . . . . . . 75 call times & costs . . . . 77 handsfree . . . . . . . . . . 78 data & fax calls . . . . . . 79 network. . . . . . . . . . . . 80 personal organizer. . . . 80 security . . . . . . . . . . . . 82 fun & games . . . . . . . . 82

service and repairs . . . . 85 SAR Data . . . . . . . . . . . . 86 Warranty . . . . . . . . . . . . 88 index . . . . . . . . . . . . . . . 94

contents 5

feature locator

main menu

n Phonebook

sRecent Calls

•Received Calls

•Dialed Calls

•Notepad

•Call Times *

•Call Cost *

•Data Times *

•Data Volumes *

eMessages

•Create Message

•Message Inbox

•Outbox

•Drafts

•MMS Templates

•Quick Notes

•Browser Msgs

•Info Services

•Voicemail

•Email Msgs

ÉTools

•SIM Tool Kit Apps *

•Calculator

•Datebook

•Shortcuts

•Alarm Clock

•Dialing Services

•Fixed Dial

•Service Dial *

•Quick Dial

•Voice Dial

Q Games & Apps

áWeb Access

•Browser

•Web Shortcuts

•Stored Pages

•History

•Go To URL

•Browser Setup

•Web Sessions *

hMultimedia

•Pictures

•Sounds

•Camera

•Videos

•Video Camera

EBluetooth Link

•Handsfree

•Device History

•Setup

wSettings

•(see next page)

* optional features

This is the standard main menu layout. Your phone’s menu may be a little different.

6 feature locator

settings menu

lPersonalize

•Home Screen

•Main Menu

•Skin

•Greeting

•Wallpaper

•Screen Saver

tRing Styles

•Style

•Style Detail

LConnection

•Bluetooth Link

•Sync

•USB Settings

HCall Forward *

•Voice Calls

•Fax Calls

•Data Calls

•Cancel All

•Forward Status

UIn-Call Setup

•In-Call Timer

•Call Cost Set-up

•My Caller ID

•Talk and Fax

•Answer Options

•Call Waiting

ZInitial Setup

•Time and Date

•1-Touch Dial

•Display Timeout

•Backlight

•TTY Setup *

•Scroll

•Language

•Brightness

•DTMF

•Master Reset

•Master Clear

mPhone Status

•My Tel. Numbers

•Active Line *

•Battery Meter

•Storage Devices

•Software Update

•Other Information

SHeadset

•Auto Answer

•Voice Dial

JCar Settings

•Auto Answer

•Auto Handsfree

•Power-Off Delay

•Charger Time

jNetwork

•New Network

•Network Setup

•Available Networks

•My Network List *

•Service Tone

•Network Jingle *

•Call Drop Tone

uSecurity

•Phone Lock

•Lock Keypad *

•Lock Application

•Fixed Dial

•Restrict Calls

•Call Barring *

•SIM PIN

•New Passwords

•Certificate Mgmt *

6PTT Settings

•PTT Service

cJava Settings

•Java Application Loader

•Java System

•Delete All Apps

•App Vibration

•App Volume

•App Backlight

* optional features

feature locator

7

Safety and General Information

IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE.1

Exposure To Radio Frequency (RF) Energy

Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits.

Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

Operational Precautions

To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following instructions.

External Antenna Care

If your phone has an external antenna, use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and/or may result in non-compliance with local regulatory requirements in your country.

Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed.

Phone Operation

When placing or receiving a phone call, hold your phone as you would a wireline phone.

8 Safety Information

Body-Worn Operation: Voice Communication

To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting voice communications, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines.

If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 2.5 centimeters (1 inch) from your body when transmitting.

Data Operation

When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 2.5 centimeters (1 inch) from your body.

Approved Accessories

Use of accessories not approved by Motorola, including but not limited to batteries, antennas, and convertible covers, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.motorola.com.

RF Energy Interference/Compatibility

Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference.

Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Safety Information

9

Facilities

Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy.

Aircraft

Turn off your wireless device whenever instructed to do so by airline staff. If your device offers a flight mode or similar feature, consult airline staff about use in flight. If your device offers a feature that automatically turns on the phone, then turn off this feature before boarding an airplane or entering an area where the use of wireless devices is restricted.

Medical Devices

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15 centimeters (6 inches) be maintained between a handheld wireless phone and a pacemaker.

Persons with pacemakers should:

•ALWAYS keep the phone more than 15 centimeters (6 inches) from your pacemaker when the phone is turned ON.

•NOT carry the phone in the breast pocket.

•Use the ear opposite the pacemaker to minimize the potential for interference.

•Turn OFF the phone immediately if you have any reason to suspect that interference is taking place.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

10 Safety Information

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.

Use While Driving

Check the laws and regulations on the use of phones in the area where you drive. Always obey them.

When using your phone while driving, please:

•Give full attention to driving and to the road. Using a phone may be distracting in certain circumstances. Discontinue a call if you can’t concentrate on driving.

•Use handsfree operation, if available.

•Pull off the road and park before making or answering a call if driving conditions so require.

Responsible driving best practices can be found in the “Wireless Phone Safety Tips” at the end of this guide and/or at the Motorola website: www.motorola.com/callsmart.

Operational Warnings

For Vehicles With an Air Bag

Do not place a phone in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a phone is placed in the air bag deployment area and the air bag inflates, the phone may be propelled with great force and cause serious injury to occupants of the vehicle.

Gas or Petrol Stations

Obey all posted signs with respect to the use of radio equipment in gas or petrol stations. Turn off your wireless device if instructed by authorized staff.

Safety Information

11

Potentially Explosive Atmospheres

Turn off your phone prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.

Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Areas with potentially explosive atmospheres are often but not always posted.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn OFF your phone when you are near electrical blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.” Obey all signs and instructions.

Damaged Products

If your phone or battery has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to a Motorola Authorized Service Center to determine if it has been damaged. Do not attempt to dry it with an external heat source, such as a microwave oven.

Batteries and Chargers

Batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become hot. Take care when handling a charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects. Use only Motorola Original™ batteries and chargers.

Caution: To avoid risk of personal injury, do not dispose of your battery in a fire.

Your battery, charger, or phone may contain symbols, defined as follows:

12 Safety Information

Symbol Definition

032374o

Important safety information will follow.

Your battery or phone should not be disposed of in a

032376o

fire.

Your battery or phone may require recycling in

032375o

accordance with local laws. Contact your local regulatory authorities for more information.

Your battery or phone should not be thrown in the trash.

032377o

		Li Ion BATT	Your phone contains an internal lithium ion battery.
		032378o

Choking Hazards

Your phone or its accessories may include detachable parts, which may present a choking hazard to small children. Keep your phone and its accessories away from small children.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone. (The flashing-light feature is not available on all products.)

Parents should monitor their children's use of video game or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms

Safety Information

13

occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation.

To limit the likelihood of such symptoms, please take the following safety precautions:

•Do not play or use a flashing-lights feature if you are tired or need sleep.

•Take a minimum of a 15-minute break hourly.

•Play in a room in which all lights are on.

•Play at the farthest distance possible from the screen.

Repetitive Motion Injuries

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems such as tendonitis, carpal tunnel syndrome, or other musculoskeletal disorders:

•Take a minimum 15-minute break every hour of game playing.

•If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again.

•If you continue to have sore hands, wrists, or arms during or after play, stop playing and see a doctor.

1.The information provided in this document supersedes the general safety information in user’s guides published prior to January 28, 2005.

14 Safety Information

European Union Directives

Conformance Statement

Hereby,EU Conformance Motorola declares that this product is in compliance with

•The essential requirements and other relevant provisions of Directive 1999/5/EC

•All other relevant EU Directives

The above gives an example of a typical Product Approval Number.

You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter the product Approval Number from your product’s label in the “Search” bar on the web site.

EU Conformance 15

Caring for the Environment by Recycling

When you see this symbol on a Motorola product, do not dispose the product with household waste.

Recycling Mobile Phones and

Accessories

Do not dispose of mobile phones or electrical accessories, such as chargers or headsets, with your household waste. In some countries or regions, collection systems are set up to handle electrical and electronic waste items. Contact your regional authorities for more details. If collection systems aren’t available, return unwanted mobile phones or electrical accessories to any Motorola Approved Service Centre in your region.

16 Recycling Information

essentials

about this guide

This guide shows how to locate a menu feature as follows:

Find it: Press -> Recent Calls > Dialed Calls

This example shows that, from the home screen, you press -to open the menu, highlight and select s Recent Calls, then highlight and select Dialed Calls.

Press Sto scroll to and highlight a menu feature. Press the center key sto select the highlighted menu feature.

symbols

This means a feature is network/subscription dependent and may not be available in all areas. Contact your service provider for more information.

This means a feature requires an optional accessory.

SIM card

Your Subscriber Identity Module (SIM) card contains personal information like your phone number and phonebook entries.

To insert and use a memory card, see page 30.

Caution: Don’t bend or scratch your SIM card. Keep it away from static electricity, water, and dirt.

essentials 17

1	2

3	4

5

battery

battery installation

1	2

18 essentials

3		4

battery charging

New batteries are not fully charged. Plug the travel charger into your phone and an electrical outlet. Your phone display shows Charge Complete when finished.

Tip: Relax, you can’t overcharge your phone battery. It will perform best after you fully charge and discharge it a few times.

You can charge your phone battery by connecting a cable from your phone's mini-USB port to a USB port on a computer. Both your phone and the

computer must be turned on, and your computer

must have the correct software drivers installed. Cables and software drivers are available in Motorola Original data kits, sold separately.

If your phone battery is completely drained, a PC USB charger will not charge it. Use the travel charger.

essentials 19

battery tips

Battery life depends on the network, signal strength, temperature, features, and accessories you use.

• Always use Motorola Original batteries and chargers. The warranty does not cover damage caused by non-Motorola batteries and/or chargers.

•New batteries or batteries stored for a long time may take more time to charge.

•When charging your battery, keep it near room temperature.

•When storing your battery, keep it uncharged in a cool, dark, dry place, such as a refrigerator.

•Never expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your phone with you when you leave your vehicle.

•It is normal for batteries to gradually wear down and require longer charging times. If you notice a change in your battery life, it is probably time to purchase a new battery.

Contact your local recycling center for proper battery

032375o

disposal.

Warning: Never dispose batteries in a fire because they may explode.

Before using your phone, read the battery safety information in the “Safety and General Information” section included in this guide.

20 essentials

turn it on & off

To turn on your phone, press and hold P

for a few seconds or until the display turns on. If prompted, enter your 4-digit unlock code.

Caution: If you enter an incorrect PIN

code 3 times in a row, your SIM card is disabled and your display shows SIM Blocked. Contact your service provider.

To turn off your phone, press and hold Pfor 2 seconds.

make a call

Enter a phone number and press Nto make a call.

To “hang up,” press P.

answer a call

When your phone rings and/or vibrates, just press Nto answer.

To “hang up,” press P.

your phone number

From the home screen, press -#to see your number.

Tip: Want to see your phone number while you’re on a call? Press -> My Tel. Numbers.

You can edit the name and phone number stored on your SIM card. From the home screen, press -#,

essentials 21

select an entry, and press the Edit key. If you don’t know your phone number, contact your service provider.

22 essentials

main attractions

You can do much more with your phone than make and receive calls!

take & send a photo

Press the -> Multimedia > Camera to see the camera viewfinder:

1Point the camera lens at the photo subject.

You can press -to open the Pictures Menu. See the table after this procedure.

main attractions

23

2Press the center key sor Capture key to take a photo.

•To delete the photo and return to the active viewfinder, press the Discard key.

•To store or send the photo, press the Store key.

When the viewfinder is active, press -to open the

Pictures Menu:

options

Go To Pictures	See stored pictures and photos.
Phone Memory or	Choose to store and see pictures
Memory Card	on your phone or memory card.
Auto-Timed Capture	Set a timer for the camera to take a
	photo.
Pictures Setup	Open the setup menu to adjust photo
	settings.
View Free Space	See how much memory remains.

24 main attractions

record video

Press -> Multimedia > Video Camera to see the video viewfinder.

If you want to send your video in an MMS message, the video length must be set to MMS. To set length, press -

> Videos Setup > Video Length.

Point the camera lens at the video subject, then:

1Press the center key sor Capture key to start the video.

2Press the Stop key to stop the video.

3Press Store Only to store the video. or

Press Send In Message to send the video in a Multimedia Message.

or

main attractions

25

Press the Discard key to delete the video and return to the active viewfinder.

Press -to open the Videos Menu when the viewfinder is active. The menu can include the following options:

options

Go To Videos	Watch videos stored on your phone.
Videos Setup	Open the setup menu to adjust video
	settings.
	Note: Set Video Length to MMS if you want to
	send your video in an MMS message.
	Set Video Length to Maximum to record longer
	clips you can store on your phone.
View Free Space	See how much memory remains.
	Note: Your phone stores any content
	that you add, like ring tones or games, in
	user memory. Your service provider may
	store some content in user memory
	before you receive the phone.

audio player

Your phone has an audio player in Multimedia

Find it: Press -> Multimedia > Sounds

Press Sup or down to highlight a sound or song then press

Play.

To continue playing sounds and hide the audio player, press Hide > Back > Exit. In the idle audio player screen, press Sleft

26 main attractions

or right to play the previous or next song. To stop the audio player press P. .

create and play a playlist

To create a playlist:

1In the Sounds menu, press -> New > Playlist.

2Highlight Name and press Change.

3Use the keypad to enter a name for your playlist and press OK.

4Highlight Audio Files and press Change. The Audio screen displays with all the sounds available on your phone.

5Press Sup or down to navigate to a song you want to add to the playlist.

To select a song press Check or the center select key s. A check mark appears % when a song is selected.

6When all sounds and songs are added to your playlist , press Done. The playlist is stored to the sounds list with the name you specified.

Press Sup or down to highlight the playlist name and press

Play.

sound options

In the Sounds menu, Press -to view sound options. Press Sup or down to highlight an option:

main attractions

27

options

Apply as Ring	Highlight a sound or song and choose this
Tone	option to apply it as a ring tone.
New	Create a new playlist or iMelody. for more
	information about iMelody, see page 83.
Details	Show sound or songs information.
	Note: All of your phone’s sounds appear in
	the Sounds list. Some sounds and songs do not
	have any Title or Category information stored, so
	they don’t appear in those lists.
Mark / Mark All	Check or uncheck sounds.
Categories	Create and store sounds in sound categories.
Sounds Setup	Set your phone to play sounds on auto
	repeat.
View Free	View space information for your phone or
Space	memory card.

To download songs to your phone, see page 83. To copy files between your phone and a computer, see page 31.

Note: Your phone cannot play MP3 files that have a bit rate higher than 192 kbps. If you try to download or play one of these files, your phone might show you an error or ask you to delete the file.

digital audio player

Your phone has an audio player in its Games & Apps:

Find it: Press -> Games & Apps > Digital Audio Player

28 main attractions

Press Sleft or right to highlight a button at the top of the audio player: play , pause , stop , previous , next , repeat , shuffle , and visualizer on/off

Press Sup or down to highlight an option:

options

Playlists	Create or play a playlist of songs.
Artists	Select an artist to show or play their songs.
Albums	Select an album to show or play its songs.
Songs	Show and play individual songs.
	Note: All of your phone’s songs appear in the
	Songs list. Some songs do not have any Artist,
	Album, or Genre information stored, so they don’t
	appear in those lists.
Genres	Select a type of music to show or play songs.
Help	Show instructions on how to use the audio
	player
About	Show audio player version information

Tip: If you want music in a hurry, you can create a shortcut to the audio player. Highlight Digital Audio Player in the Games & Apps list, then press and hold -. To use the shortcut from the home screen, press -and the shortcut key number.

To download songs to your phone, see page 83. To copy files between your phone and a computer, see page 31.

Note: Your phone cannot play MP3 files that have a bit rate higher than 192 kbps. If you try to download or play one of

main attractions

29
