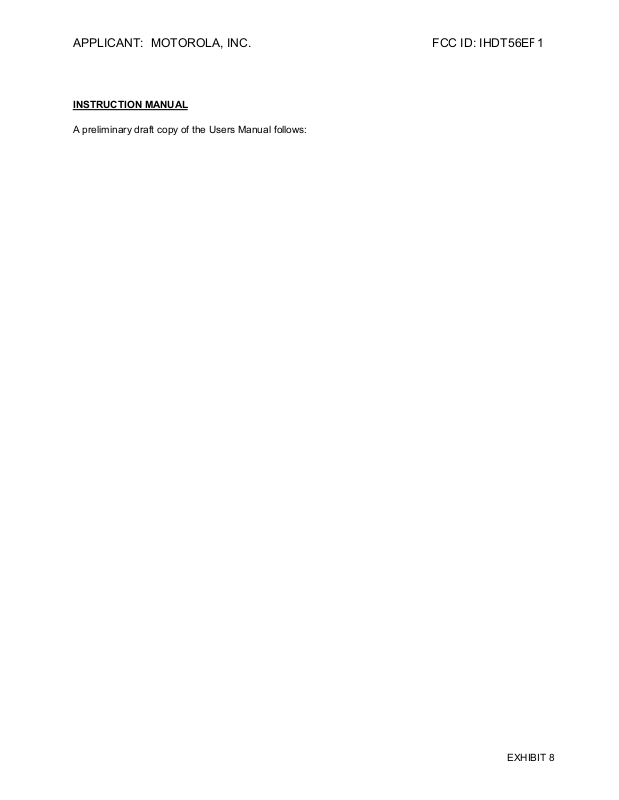

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1

INSTRUCTION MANUAL

A preliminary draft copy of the Users Manual follows:

EXHIBIT 8

A840

CDMA

START HERE >

Welcome

Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola A840 wireless phone.

Left Soft Key

Perform

functions

identified by left

display prompt.

Camera Key

Send Key

Make &

answer calls, view recently

dialed calls list.

Volume Keys

Adjust earpiece & ringer volume.

Select menu

items, make &

end calls, set

5-Way Navigation Key

Scroll through menus & lists, set feature values. In menus, press k to select highlighted item.

AFT

Smart Key

ring styles.

Accessory Port

Right Soft Key

Perform functions identified by right display prompt.

CLR Key

Voice Recognition Key

Press once to activate speakerindependent voice recognition. Press & hold to record voice records, contacts, & shortcut names.

Power/End Key

Turn phone on/off, end phone calls, exit menus.

Check It Out!

Headset Jack

Camera Lens

Take photos to send to others & use on your phone.

AFT

Integrated Short Range Flash

Projected when taking flash photos.

Feature Description

Take Photo

Send Photo

Press the camera key to activate the

camera, point lens at subject, press

CAPTURE(+

Send the photo to a phone number

Press

) to take a photo.

STORE(+

) >

Send In Message

Camera Key

External Display

Feature Description

Set Photo as Picture Caller ID

Send Multimedia Message

Send Letter

Read Multimedia Message

Select Account (CDMA/GSM)

After you capture a photo, assign it to a phonebook entry to enable picture caller ID:

M >Multimedia >Pictures M >Apply As>Phonebook Entry

Send a multimedia messag with pictures, animations, and sounds:

M>Messages>Create Message

New Multimedia Msg

Send a multimedia letter:

M>Messages>Create Message

New Short Msg

AFT

Read a new multimedia message or letter you have received: Press

READ(+

Select from CDMA and GSM accounts:

M >Settings>Phone Mode

> desired account

> photo

032380o

)

032380o

Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196

1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada)

www.motorola.com www.motorola.ca

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners.

Caution:

approved by Motorola, will void the user’s authority to operate the equipment.

Software Copyright Notice

The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual number: 6809482A51-O

(United States)

(Canada)

Changes or modifications made in the radio phone, not expressly

AFT

Contents

Getting Started

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning On Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Answering a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Changing the Call Alert. . . . . . . . . . . . . . . . . . . . . . . . . . 15

Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 15

Highlight Features

Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . . 16

TTY Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Learning to Use Your Phone

Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 24

Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using the Smart Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the External Display . . . . . . . . . . . . . . . . . . . . . . . 39

Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 40

Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 40

Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 41

If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 42

Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

AFT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

. . . . . . . . . . . . . . . . . . . . . . 21

Setting Up Your Phone

Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 51

Setting an Alert Style . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Setting Answer Options. . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 52

Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 53

Setting Display Color. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Setting Phone Greeting. . . . . . . . . . . . . . . . . . . . . . . . . 54

Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting Display Brightness . . . . . . . . . . . . . . . . . . . . . . 55

Hiding or Showing Location Information . . . . . . . . . . . . 55

Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . 56

Calling Features

Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . 57

Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 58

Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 59

Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 61

Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Attaching a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Calling with Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . 63

Calling with 1-Touch Dial (CDMA Only) . . . . . . . . . . . . 63

Using Voicemail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Using Call Waiting (GSM Only). . . . . . . . . . . . . . . . . . . 65

Putting a Call On Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 66

Phone Features

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

. . . . . . . . . . . . . . . . . . . . . . . . . . 51

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

AFT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Personalizing Features . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Dialing Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Call Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Handsfree Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Data and Fax Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Network Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Personal Organizer Features . . . . . . . . . . . . . . . . . . . . . 86

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

News and Entertainment . . . . . . . . . . . . . . . . . . . . . . . . 88

Specific Absorption Rate Data Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

. . . . . . . . . . . . . . . . . . . . 90

AFT

Getting Started

CAUTION:

first time, read the

Legal Information

gray-edged pages at the back of this guide.

About This Guide

This guide describes the basic features of your Motorola wireless phone.

Getting Started

Before using the phone for the

Important Safety and

included in the

032259o

Optional Features

This label identifies an optional network or subscription-dependent feature that may not be

032380o

offered by all service providers in all geographical areas. Contact your service provider for more

information.

Optional Accessories

This label identifies a feature that requires an optional Motorola Original

AFT

accessory.

Installing the SIM Card

Your SIM (Subscriber Identity Module) card contains your phone number, service details, and phonebook/ message memory.

Caution:

exposing your SIM card to static electricity, water, or dirt.

Do not bend or scratch your SIM card. Avoid

1. 2.

AFT

Battery Use

Battery performance depends on many factors, including your wireless carrier’s network configuration; signal strength; the temperature at which you operate your phone; the features and/or settings you select and use; items attached to the phone’s accessory connector port; and your voice, data, and other application usage patterns.

Caution:

objects to contact or short-circuit the battery terminals.

To prevent injuries or burns, do not allow metal

Getting Started

To maximize your battery’s performance:

•

Always use Motorola Original batteries and battery

chargers. The phone warranty does not cover damage caused from using non-Motorola batteries

and/or battery chargers.

•

New batteries or batteries that have been stored

for a long time may require a longer charge time.

•

Maintain the battery at or near room temperature when charging.

•

Do not expose batteries to temperatures below -10°C (14°F) or above 45°C (113°F). Always take your

Getting Started

phone with you when you leave your vehicle.

•

When you do not intend to use a battery for a while, store it uncharged in a cool, dark, dry place, such as a refrigerator.

•

Batteries gradually wear down and require longer charging times. This is normal. If you charge your battery regularly and notice a decrease in talk time or an increase in charging time, then it is probably time to purchase a new battery.

The rechargeable batteries that power this phone must be disposed of properly and may need to

be recycled. Refer to your battery’s label for battery type. Contact your local recycling center for proper disposal methods.

Warning:

may explode.

Never dispose of batteries in a fire because they

AFT

Installing the Battery

You must install and charge the battery to use your phone.

Your phone is designed to use only Motorola Original batteries and accessories. We recommend that you store batteries in their protective cases when not in use.

Getting Started

032409o

Release Latch

032410o

AFT

032409o

Charging the Battery

New batteries are shipped partially charged. Before you can use your phone, you need to install and charge the

battery as described below. Some batteries perform best after several full charge/discharge cycles.

Action

Plug the travel charger into your phone with the release tab facing up.

Plug the other end of the travel charger into the

Getting Started

Tip:

the phone after charging is complete. This will the battery.

Turning On Your Phone

appropriate electrical outlet.

When your phone indicates the release tab and remove the travel charger.

You can safely leave the travel charger connected to

Action

Press and hold the power key for 3 seconds.

Note:

may require several seconds to power on.

AFT

The phone

Charge Complete

not

, press

damage

Power Key

Action

If necessary, enter your 4-digit unlock code (the last 4 digits of your phone number) and press

OK(+

) to unlock the phone.

Adjusting Volume

Press the up or down volume keys to:

•

increase or decrease earpiece volume during a call

•

increase or decrease the ringer volume setting when the home screen is visible (flip must be open)

Tip:

At the lowest volume setting, press the down volume key once to switch to vibrate alert. Press it again to switch to silent alert. Press the up volume key to cycle back to vibrate alert, then ring alert.

•

turn off an incoming call alert

Making a Call

Action

Dial the number.

Tip:

If you make a mistake, press the clear key

to delete the last digit. Press and hold

to clear all digits.

Volume

Keys

AFT

Getting Started

Action

Press N to make the call.

Press P to end the

call.

Note:

You must dial the phone number from the home

screen. See page 21.

Answering a Call

When you receive a call, your phone rings and/or vibrates

Getting Started

and displays an incoming call message.

Press to

send call.

AFT

Action

Press N to answer.

Press P to end the call.

Tip:

When the phone flip is active, open the phone to answer the call. (To activate, press >

In-Call Setup>Answer Options >Open to Answer

Note:

If the phone is locked, you must unlock it to answer

the call.

Press to

answer

call.

M >Settings

Changing the Call Alert

Phone Flip Open

Press the down volume key to switch to lower call alert volume, then switch to vibrate and, finally, silent alert. Press the up volume key to cycle back from silent alert to vibrate and then to the lowest alert volume setting.

Phone Flip Closed

Press the smart key, then press the up and down volume keys to scroll through the alert styles:

Soft, Vibrate, Vibe & Ring

on the external display.

After scrolling to the desired alert style, press the smart key to save the setting and return to the home screen.

Viewing Your Phone Number

To view your phone number from the home screen, press

While you are on a call, press

, and

Volume

Keys

Volume

Keys

AFT

Loud

Silent

Smart

Key

. The alert styles are shown

M >My Tel. Number

Getting Started

Highlight Features

You can do much more with your phone than make and

receive calls! This section describes some of your phone’s highlight features.

Taking and Sending a Photo

Find the Feature

Shortcut:

The active viewfinder image appears on your display.

Highlight Features

Press F to activate your phone’s camera:

Press S

up or down to

zoom in or out

on image.

Press

left or right to

decrease or

increase


brightness.

AFT

BACK CAPTURE

Return to previous screen.

M>Multimedia

Camera

040034o


AREA

Photo Viewfinder Memory Used: 72%

Press Pictures menu.

to open

Photo storage memory space currently in use.

Take a photo.

Point the camera lens at the photo subject, then:

Press To

CAPTURE(+

STORE(+

)

take a photo

)

view storage options

Highlight Features

DISCARD(-

scroll to

SELECT(+

)

delete the photo and return to active viewfinder

If you choose to store the photo, continue to step 3.

AFT

Store Only, Apply as Wallpaper Apply as Screen Saver Apply as Phonebook Entry

) select a storage option

Send in Message

, or

Taking a Self Portrait

Action

Close the flip.

Hold the camera with the lens aimed at yourself.

Press the camera key on the side of the phone to capture the photo.

Pictures Menu Options

When the camera is active, press M to access the

Pictures Menu

options:

Highlight Features

. The

Pictures Menu

Option Description

Go To Pictures

Auto-Timed Capture

Delete All

Pictures Setup

Switch Storage Device

View Free Space

Flash

View pictures and photos

Set a timer for the camera to

Delete all pictures.

Open the setup menu to

See how much memory

can include the following

AFT

stored on your phone.

take a photo.

adjust picture settings. Save the picture on memory

card, if available, or on phone memory (

remains for storing pictures. Set a flash for photos taken in

settings with low light.

Phone

Option Description

Adjust Contrast

Image Style

Capture Title

TTY Operation

You can use an optional TTY device with your phone to send and receive calls. You must plug the TTY device into the phone’s headset jack and set the phone to operate in 1 of 3 TTY modes.

Note:

TTY manufacturer) to connect the TTY device to your phone.

Note:

operation. If you experience a high number of incorrect characters, adjust the volume as needed to minimize the error rate.

Note:

least 12 inches (30 centimeters) from the TTY device. Placing the phone too close to the TTY device may cause high error rates.

Use a TSB-121 compliant cable (provided by the

Set the phone to level 4 (middle setting) for proper

For optimal performance, your phone should be at

Increase or decrease contrast.

Scroll right or left to specify

Negative, Antique, Black and White

Color

Specify a title for the photo to be captured.

AFT

Highlight Features

Setting TTY Mode

When you set your phone to a TTY mode, it

operates in that mode whenever the TTY device is

connected.

Press To

up or down scroll to the TTY mode

SELECT

(-) select the TTY mode

TTY Setup

The

Highlight Features

When your phone is in a TTY mode, the international TTY mode, the international TTY symbol, and the mode setting display during an active TTY call.

menu can include the following options:

Press To

TTY

VCO

HCO

Voice

return to normal voice mode

transmit and receive TTY

AFT

characters receive TTY characters but

transmit by speaking into microphone

transmit TTY characters but receive by listening to earpiece

Returning to Voice Mode

To return to normal voice mode, select

TTY Setup

menu.

Voice

from the

Learning to Use Your Phone

See page 1 for a basic phone diagram.

Using the Display

The home screen is displayed when you are call or using the menu. You must be in the home screen to dial a phone number.

(O4\r Ñuy É

Service Provider

Date

Left Soft Key

Lable

Note:

Your home screen may look different than the

display shown above.

(menu) indicator indicates that you can press the

The menu key (

Labels at the bottom corners of the display show the current soft key functions. Press the left soft key (

AFT

10/15/04

032418o

RECENT PH.BOOK

) to enter the main menu.

6:35am

not

on a

Clock

Right Soft Key Label

Learning to Use Your Phone

) or

right soft key (+) to perform the function indicated by the left or right soft key label.

Your phone can display an analog or digital clock in the home screen (see page 67).

The following status indicators can display:

Roam

Signal Strength

Coverage

Data

Transmission

(O4\r ÑuyÉ

Service Provider 10/15/04

032419o

AFT

RECENT PH.BOOK

6:35am

Message

Battery

Level

Ring Alert

AGPS Service

Location

1. Data Transmission Indicator

data transmission status. Indicators can include:

= secure packet

data transfer

= secure

Learning to Use Your Phone

2. Coverage Indicator

application connection

= secure Circuit

Switch Data

(CSD) call

CDMA and GSM.

Shows connection and

= unsecure packet

data transfer

= unsecure

application connection

= unsecure CSD

call

3. Signal Strength Indicator

strength of the network connection. You cannot make or receive calls when the

transmit) indicator is displayed.

4. Roam Indicator

seeking or using another network outside your

032380o

home network.

Vertical bars show the

(no signal) indicator or ) (no

Shows when your phone is

5. Message Indicator

receive a new message. Indicators can

032380o032380o

include:

= text message

When you enter a message, a number here shows the number of characters left on the current page (text message), or the message size (multimedia message or letter).

6. Battery Level Indicator

charge level. Recharge the battery when displays and the battery alert sounds.

7. Ring Alert Indicator

= loud ring

=vibrate

{

= silent

AFT

Shows the ring alert setting.

Displays when you

Vertical bars show the battery

=soft ring

}

= vibrate and ring

Low Battery

Learning to Use Your Phone

8. AGPS Service Indicator

Service is off (icon is grey), on (icon is white), or on and finding your location (icon is green).

9. Location Indicator

to send location information to the network during

032380o

an emergency call. Indicators show when your phone is sending location information:

= location on

Using the 5-Way Navigation Key

Indicates when AGPS

Your phone may be able

= location off

Use the 5-way navigation key (S) to scroll up, down, left, or right through the menu system. Within menus, press to select a highlighted menu item.

Learning to Use Your Phone

AFT

Using Menus

From the home screen, press M to enter the main menu.

Recent Calls

nwse

Left Soft Key

Perform left

function.

]áh

032407o

032420o

EXIT

SELECT

Right Soft Key

Perform right function.

032420o

AFT

Menu Key

Press the main menu.The following icons represent features that may appear in the main menu, depending on your service

provider and service subscription options.

to scroll to and highlight a menu feature icon in

5-Way Navigation Key

Scroll through menus & lists. Press center to select highlighted items.

Learning to Use Your Phone

Icon

Feature

Phonebook Messages

Web Access

Settings

Phone Status

Selecting a Menu Feature

This guide shows you how to select a menu feature,

starting from the home screen.

Icon

Feature

s Recent Calls

Get It Now

]

Multimedia

Tools

Find the Feature

This example shows that from the home screen, you must

press menu, then scroll to and select scroll, and the left/right soft keys to select the functions listed in the bottom left and right corners of the display.

Learning to Use Your Phone

, scroll to and select

AFT

M>Recent Calls >Dialed Calls

Recent Calls

Dialed Calls

from the main

. Press S to

Selecting a Feature Option

Some features require you to select an option from a list:

(+49rÑy É

Press

BACK (-)

to return to

screen.

Dialed Calls

10) John Smith

9) Lisa Owens

8) Adda Thomas

7) Jack Bradshaw

6) Dave Thompson

5) John Smith

4) John Smith

3) John Smith

BACK VIEW

032421o

Highlight Option

Press VIEW (+) to view details of highlighted option.

Press (M) to open sub-menu.

AFT

•

Press S to scroll up or down to highlight the option you want.

•

In a numbered list, press a number key to highlight the option.

•

In an alphabetized list, press a key repeatedly to cycle through the letters on the key and highlight the closest matching list option.

•

When an option has a list of possible values, press S left or right to scroll through and select a value.

•

When an option has a list of possible numeric values, press a number key to set the value.

Learning to Use Your Phone

+ 99 hidden pages
