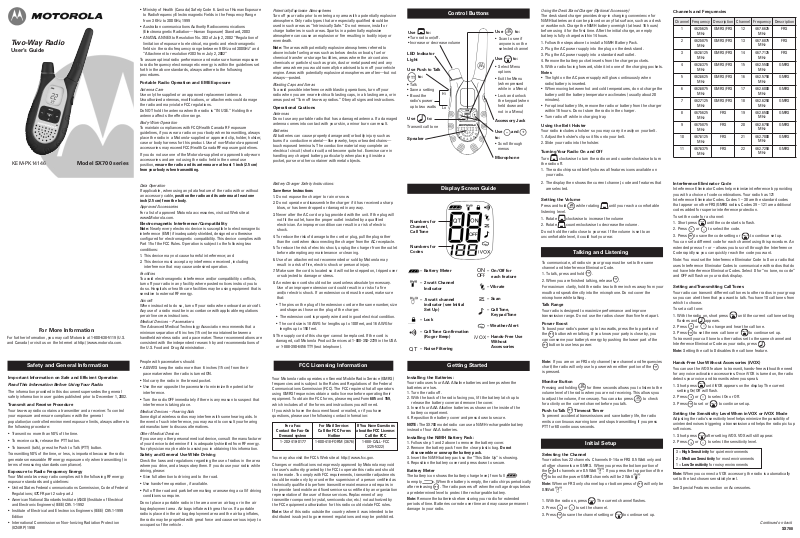

Motorola SX700 User Guide

Setting the Volume

Press and hold while rotating until you reach a comfortable listening level.

1. Rotate clockwise to increase the volume

2. Rotate counterclockwise to decrease the volume.

Do not hold the radio close to your ear. If the volume is set to an uncomfortable level, it could hurt your ear.

Two-Way Radio

User’s Guide

Model SX700 series

Safety and General Information FCC Licensing Information

Control Buttons

Display Screen Guide

KEM-PK14146

Important Information on Safe and Efficient Operation

Read This Information Before Using Your Radio.

The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002.

Transmit and Receive Procedure

Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure:

• Transmit no more than 50% of the time.

• To receive calls, release the PTT button.

• To transmit (talk), press the Push to Talk (PTT) button.

Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).

Exposure to Radio Frequency Energy

Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines:

• United States Federal communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J

• American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992

• Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition

• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998

Getting Started

Installing the Batteries:

Your radio uses four AAA Alkaline batteries and beeps when the batteries are low.

1. Turn the radio off.

2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover.

3. Insert four AAA Alkaline batteries as shown on the inside of the battery compartment.

4. Reposition the battery cover and press down to secure.

NOTE: The SX700 model radio can use a NiMH rechargeable battery instead of four AAA batteries.

Installing the NiMH Battery Pack:

1. Follow step 1 and 2 above to remove the battery cover.

2. Remove the battery pack from the clear plastic bag. Do not

disassemble or unwrap the battery pack.

3. Insert the NiMH battery pack so the “This Side Up” is showing.

4. Reposition the battery cover and press down to secure.

Battery Meter

The battery icon shows the battery charge level, from full to empty . When the battery is empty, the radio chirps periodically after releasing . The radio powers off when the voltage drops below a predetermined level to protect the rechargeable battery.

Note: Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio.

Talking and Listening

To communicate, all radios in your group must be set to the same channel and Interference Eliminator Code.

1. To talk, press and hold .

2. When you are finished talking, release . For maximum clarity, hold the radio two to three inches away from your

mouth and speak directly into the microphone. Do not cover the microphone while talking.

Talk Range

Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart.

Power Boost

To boost your radio’s power up to two watts, press the top portion of the button when talking. If you know your party is close by, you can conserve your battery’s energy by pushing the lower part of the

button to use less power.

Note: If you are on an FRS only channel (see channel and frequencies chart) the radio will only use lo power when either portion of the is pressed.

Monitor Button

Pressing and holding for three seconds allows you to listen to the volume level of the radio when you are not receiving. This allows you to adjust the volume, if necessary. You can also press to check for activity on the current channel before you talk.

Push to Talk Timeout Timer

To prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press PTT for 60 continuous seconds.

Using the Desk Stand Charger (Optional Accessory)

The desk stand charger provides drop-in charging convenience for NiMH batteries and can be placed on any flat surface, such as a desk or workbench. Charge the NiMH battery overnight (at least 16 hours) before using it for the first time. After the initial charge, an empty battery is fully charged within 14 hours.

1. Follow the steps above to install a NiMH Battery Pack.

2. Plug the AC power supply into the plug on the desk stand.

3. Plug the AC power supply into a standard wall outlet.

4. Remove the battery pocket inserts from the charger pockets.

5. With a radio facing forward, slide it into one of the charging pockets.

Notes

• The light on the AC power supply will glow continuously when radio/battery is inserted.

• When moving between hot and cold temperatures, do not charge the battery until the battery temperature acclimates (usually about 20 minutes).

• For optimal battery life, remove the radio or battery from the charger within 16 hours. Do not store the radio in the charger.

• Turn radio off while in charging tray.

Using the Belt Holster

Your radio includes a holster so you may carry it easily on your belt.

1. Adjust the holster’s clip so it fits onto your belt.

2. Slide your radio into the holster.

Turning Your Radio On and Off

Turn clockwise to turn the radio on and counterclockwise to turn the radio off.

1. The radio chirps and briefly shows all features icons available on

your radio.

2. The display then shows the current channel, code and features that

are selected.

Initial Setup

Selecting the Channel

Your radios has 22 channels. Channels 8-14 are FRS 0.5 Watt only and all other channels are GMRS. When you press the bottom portion of the all channels are 0.5 Watt . If you press the top portion of the

to boost the power GMRS channels will be 2 Watt .

Note: When on FRS only channel top or bottom press of will only be

0.5Watt .

1. With the radio on, press . The current channel flashes.

2. Press or to set the channel.

3. Press to save the channel setting or to continue set up.

For More Information

For further information, you may call Motorola at 1-800-638-5119 (U.S. and Canada) or visit us on the Internet at http://www.motorola.com.

Setting and Transmitting Call Tones

Your radio can transmit different call tones to other radios in your group so you can alert them that you want to talk. You have 10 call tones from which to choose.

To set a call tone:

1. With the radio on, short press until the current call tone setting flashes and appears.

2. Press or to change and hear the call tone.

3. Press to set the new call tone or to continue set up.

To transmit your call tone to other radios set to the same channel and Interference Eliminator Code as your radio, press .

Note: Setting the call to 0 disables the call tone feature.

Interference Eliminator Code

Interference Eliminator Codes help minimize interference by providing you with a choice of code combinations. Your radio has 121 Interference Eliminator Codes. Codes 1 – 38 are the standard codes that appear on other FRS/GMRS radios. Codes 39 – 121 are additional codes added for superior interference protection.

To set the code for a channel:

1. Short press until the code starts to flash.

2. Press or to select the code.

3. Press to save the code setting or to continue set up.

You can set a different code for each channel using this procedure. An extended press of + or – allows you to scroll through the Interference Code rapidly so you can quickly reach the code you want.

Note: You must set the Interference Eliminator Code to 0 on a radio that uses Interference Eliminator Codes to communicate with radios that do not have Interference Eliminator Codes. Select 0 for “no tone, no code” and OFF will flash on your radio’s display.

Hands-Free Use Without Accessories (iVOX)

You can use the iVOX feature to transmit, hands-free without the need for any voice activation accessories. Once iVOX is turned on, the radio detects your voice and transmits when you speak.

1. Short press until iVOX appears on the display. The current setting On/Off will flash.

2. Press or to select On or Off.

3. Press to set or to continue set up.

Setting the Sensitivity Level When in VOX or iVOX Mode

Adjusting the radio’s sensitivity level helps minimize the possibility of unintended noises triggering a transmission and helps the radio pick up soft voices.

1. Short press after setting iVOX. VOX will still appear.

2. Press or to select the sensitivity level.

Use to:

• Turn radio on/off.

• Increase or decrease volume

LED Indicator Light

Use Push to Talk

to:

• Talk

• Save a setting

• Boost the radio’s power up to two watts

Use to:

Transmit call tone

Speaker

Microphone

Accessory Jack

Use and to:

• Scroll through menus

• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 KHz to 300 GHz, 1999

• Australian communications Authority Radiocommunications (Electromagnetic Radiation—Human Exposure) Standard, 2003

• ANATAL ANNEX to Resolution No. 303 of July 2, 2002 “Regulation of limitation of exposure to electrical, magnetic and electromagnetic fields in the radio frequency range between 9 KHz and 300GHz” and “Attachment to resolution #303 from July 2, 2002”

To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures.

Portable Radio Operation and EME Exposure

Antenna Care

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations.

Do NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range.

Body-Worn Operation

To maintain compliances with FCC/Health Canada RF exposure guidelines, if you wear a radio on your body when transmitting, always place the radio in a Motorola-supplied or approved clip, holder, holster, case or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines.

If you do not use one of the Motorola-supplied or approved body-worn accessories and are not using the radio held in the normal use position, ensure the radio and its antenna are at least 1 inch (2.5 cm)

from your body when transmitting.

Battery Charger Safety Instructions:

Save these Instructions

1. Do not expose the charger to rain or snow.

2. Do not operate or disassemble the charger if it has received a sharp blow, or has been dropped or damaged in any way.

3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician. An improper condition can result in a risk of electric shock.

4. To reduce the risk of damage to the cord or plug, pull the plug rather than the cord when disconnecting the charger from the AC receptacle.

5. To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning.

6. Use of an attachment not recommended or sold by Motorola may result in a risk of fire, electric shock or personal injury.

7. Make sure the cord is located so it will not be stepped on, tripped over or subjected to damage or stress.

8. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in a risk of a fire and/or electric shock. If an extension cord must be used, make sure that:

• The pins on the plug of the extension cord are the same number, size and shape as those on the plug of the charger.

• The extension cord is properly wired and in good electrical condition.

• The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up to 150 feet.

9. The supply cord of this charger cannot be replaced. If the cord is damaged, call Motorola Product Services at 1-800-353-2729 in the USA or 1-888-390-6456 TTY (text telephone).

Potentially Explosive Atmospheres

Turn off your radio prior to entering any area with a potentially explosive atmosphere. Only radio types that are especially qualified should be used in such areas as “Intrinsically Safe.” Do not remove, install or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.

Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles (such as grain, dust or metal powders) and any other area where you would normally be advised to turn off your vehicle engine. Areas with potentially explosive atmospheres are often—but not always—posted.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps, in a blasting area, or in areas posted “Turn off two-way radios.” Obey all signs and instructions.

Operational Cautions

Antennas

Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result.

Batteries

All batteries can cause property damage and/or bodily injury such as burns if a conductive material—like jewelry, keys or beaded chains— touch exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

Your Motorola radio operates on General Mobile Radio Service (GMRS) frequencies and is subject to the Rules and Regulations of the Federal Communications Commission (FCC). The FCC requires that all operators using GMRS frequencies obtain a radio license before operating their equipment. To obtain the FCC forms, please request Form 605 and 159, which includes all of the forms and instructions you will need.

If you wish to have the document faxed or mailed, or if you have questions, please use the following contact information:

You may also visit the FCC’s Web site at http://www.fcc.gov. Changes or modifications not expressly approved by Motorola may void

the user’s authority granted by the FCC to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the provide land mobile and fixed services as certified by an organization representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules.

Note: Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited.

Data Operation

If applicable, when using any data feature of the radio with or without an accessory cable, position the radio and its antenna at least one inch (2.5 cm) from the body.

Approved Accessories

For a list of approved Motorola accessories, visit out Web site at www.Motorola.com.

Electromagnetic Interference/Compatibility

Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed or otherwise configured for electromagnetic compatibility. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference; and

2. This device must accept any interference received, including interference that may cause undesired operation.

Facilities

To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.

Aircraft

When instructed to do so, turn off your radio when onboard an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions.

Medical Devices – Pacemakers

The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15 cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by and recommendations of the U.S. Food and Drug Administration.

People with pacemakers should:

• ALWAYS keep the radio more than 6 inches (15 cm) from their

pacemaker when the radio is turned ON.

• Not carry the radio in the breast pocket.

• Use the ear opposite the pacemaker to minimize the potential for

interference.

• Turn the radio OFF immediately if there is any reason to suspect that

interference is taking place.

Medical Devices – Hearing Aids

Some digital wireless radios may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information.

Safety and General Use While Driving

Check the laws and regulations regarding the use of radios in the area where you drive, and always obey them. If you do use your radio while driving, please:

• Give full attention to driving and to the road.

• Use hands-free operation, if available.

• Pull off the road and park before making or answering a call if driving

conditions so require.

Do not place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and cause serious injury to occupants of the vehicle.

For a Fax:

Contact the Fax-On

Demand system

1-202-418-0177

For Mail Service:

Call the FCC Forms

Hotline

1-800-418-FORM (3676)

If You Have Questions about the FCC License:

Call the FCC

1-888-CALL-FCC

(225-5322)

Channel Frequency Description Channel Frequency Description

1 462.5625

MHz

GMRS/FRS 12 467.6625

MHz

FRS

2 462.5875

MHz

GMRS/FRS 13 467.6875

MHz

FRS

3 462.6125

MHz

GMRS/FRS 14 467.7125

MHz

FRS

4 462.6375

MHz

GMRS/FRS 15 462.5500

MHz

GMRS

5 462.6625

MHz

GMRS/FRS 16 462.5750

MHz

GMRS

6 462.6875

MHz

GMRS/FRS 17 462.6000

MHz

GMRS

7 462.7125

MHz

GMRS/FRS 18 462.6250

MHz

GMRS

8 467.5625

MHz

FRS 19 462.6500

MHz

GMRS

9 467.5875

MHz

FRS 20 462.6750

MHz

GMRS

10 467.6125

MHz

FRS 21 462.7000

MHz

GMRS

11 467.6375

MHz

FRS 22 462.7250

MHz

GMRS

PTT

–

PTT

Use to:

• Scan to see if anyone is on the selected channel

Use to:

• Select Menu options

• Exit the Menu (when pressed while in a Menu)

• Lock and unlock the keypad (when held down and not in a Menu)

– Battery Meter

Numbers for Channel, Call Tone

Numbers for Codes

– Scan

– Vibrate

VOX

– Hands-Free Use

Without Accessories

– Call Tone,

Keypad Tone

– Weather Alert

– 2 watt Channel

Indicator

– .5 watt channel

indicator (see Initial Set Up)

– Lock

– Call Tone Confirmation

(Roger Beep)

OFF

– On/Off for

each feature

– Noise Filtering

Channels and Frequencies

3 = High Sensitivity for quiet environments 2 = Medium Sensitivity for most environments 1 = Low Sensitivity for noisy environments

Note: When you connect a VOX accessory, the radio is automatically set to the last chosen sensitivity level.

See Special Features section on Accessories.

Continued on back

SX700

MON

Warranty

Limited Warranty for Personal Communication Products, Accessories and Software Purchased in the United States or Canada

What Does this Warranty Cover?

Subject to the exclusions contained to the right, Giant International Ltd. warrants the Motorola branded wireless telephones, pagers, and consumer two-way radios that operate via Family Radio Service or General Mobile Radio Service that it manufactures (“Products”), the Motorola branded or certified accessories sold for use with these Products that it manufactures (“Accessories”) and Motorola branded software contained on CD-Roms or other tangible media and sold for use with these Products that it manufactures (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer’s exclusive remedy, and applies as follows to new Motorola branded Products, Accessories and Software manufactured by Giant International Ltd., and purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Who is covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What will GIANT INTERNATIONAL LTD. Do?

GIANT INTERNATIONAL LTD., at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to requesting service.

For Accessories and Software, please call the telephone number designated above for the product with which they are used.

You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a GIANT INTERNATIONAL LTD. Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR GIANT INTERNATIONAL LTD. BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted Motorola software such as the exclusive rights to reproduce and distribute copies of the Motorola software. Motorola software may only be copied into, used in, and redistributed with, the Products associated with such Motorola software. No other use, including without limitation disassembly of such Motorola software or exercise of the exclusive rights reserved for Motorola, is permitted.

1-800-638-5119 1-800-638-5119

Products Covered Length of Coverage Exclusions

A. Products and Accessories

as defined above, unless otherwise provided for below.

1. Decorative Accessories and

Cases. Decorative covers,

bezels, PhoneWrap‰ covers and cases.

2. Monaural Headsets. Ear buds

and boom headsets that transmit mono sound through a wired connection.

3. Consumer T

wo-Way Radio

Accessories.

4. Products and Accessories that

are Repaired or Replaced.

B. Software

. Applies only to

physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk).

B. Ninety (90) days from the date of purchase.

Software Embodied in Physical Media.

No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in physical media (e.g. software that is downloaded from the internet), is provided “as is” and without warranty.

A. One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.

1. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.

2. Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.

3. Ninety (90) days from the date of purchase by the first consumer purchaser of the product.

4. The balance of the original warranty or for ninety (90) days

from the date returned to the consumer, whichever is longer.

Normal W

ear and Tear. Periodic maintenance, repair and replacement

of parts due to normal wear and tear are excluded from coverage. Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse.

Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or Giant International Ltd., are excluded from coverage.

Use of Non-Motorola branded Products and Accessories.

Defects or damage that result from the use of Non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification.

Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, Giant International Ltd. or its authorized service centers, are excluded from coverage.

Altered Products.

Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.

USA Two-Way Radios Canada Two-Way Radios

How to Obtain Warranty Service or Other Information?

To obtain service or information, please call:

Manufactured, distributed or sold by Giant International Ltd., official licensee for this product. Motorola, the Motorola logo trademarks and the Motorola trade dress are owned by Motorola, Inc. and are used under license from Motorola, Inc. Please contact Giant International Ltd. at 800-638-5119 for questions/comments, warranty, support, or service related to this product. MOTOROLA and the Stylized M Logo are registered in the U.S. Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2005.

Patent and Copyright Information

Transmitting a Talk Confirmation Tone

You can set your radio to transmit a unique tone when you finish transmitting. It is like saying “Roger” or “Over” to let others know you are finished talking.

1. With the radio on, press until the appears. The current setting On/Off flashes.

2. Press or to turn On or Off.

3. Press to set or to continue set up.

Keypad Tones

You may enable or disable the speaker key tones. You will hear the key tone each time a button is pushed.

1. Press until appears. The current setting On/Off will flash

2. Press either or to turn On or Off.

3. Press to confirm or to continue set up.

When the Key Tone Feature is off, the following are not disabled:

• Transmit timeout alert tone;

• Power-down alert tone;

• Low battery alert tone; or

• The transmitted Talk Confirmation Tone.

To transmit to a radio that has QT noise filtering turned on:

1. Select the same channel and Interference Eliminator Code as the

other radio.

2. Press to send a call tone. This allows your voice to pass through

the QT noise filter on the receiving radio.

3. Press and speak normally.

Note: If you skip step 2, the beginning of your message may not be heard on the receiving radio. For a 30-second period, starting after the last transmission, all transmissions received on the selected channel and code will pass through the QT noise filter.

–

PTT

–

Special Features

Keypad Lock

To avoid accidentally changing your radio settings:

1. Press and hold until displays.

2. When in lock mode, you can turn the radio on and off, adjust the volume, receive, transmit, send a call tone, and monitor channels. All other functions are locked.

To unlock the radio, press and hold until is no longer displayed.

Enhanced Scanning

Use scanning to monitor channels and codes for transmissions or to find someone in your group who has accidentally changed channels.

With enhanced scanning, your home channel is scanned more frequently than any other channel. The home channel is the channel where your radio was set when you started to scan. If you activate scan while your radio’s Interference Eliminator Code is set to a number between 1 and 121, the radio checks for activity on each channel—but only in the specific code selected. All transmissions using code 0 or any other code are ignored.

1. To start scanning, briefly press and release . The scan indicator displays , and the radio begins to scroll through the channel and Interference Eliminator Code combinations.

2. When the radio detects channel activity, it stops scanning and you can hear the transmission.

3. To respond and talk to the person transmitting, press within five seconds.

4. To stop scanning, briefly press and release .

Note: If you press while the radio is scanning, the radio will transmit on the channel you selected before you activated scan. If no transmission occurs within five seconds, scanning will resume.

Hands-Free Use With Accessories (VOX)

You can transmit hands-free with the use of optional accessories. Once VOX is turned on, the radio detects your voice and transmits when you speak.

1. Turn the radio off and plug the VOX accessory into the accessory

port.

2. Turn the radio on. VOX shows on the display.

3. Adjust the volume appropriately by rotating . Lower the volume

before placing the accessory on your head or in your ear.

4. To turn off, simply remove accessory.

Note: There is a short delay between the time you start talking and when the radio transmits. There is a short delay before the transmission is completed.

Using Audio Accessories:

Many accessories (sold separately) are available for your radio. For more information, visit our Web site at www.motorola.com.

PTT

Advanced Scan

If the radio stops scanning on a channel you do not want to listen to, briefly press and release or to resume scanning for the next active channel.

Removing Channels from the Scan List (Nuisance Delete Feature)

1. To prevent the radio from scanning a channel, press and hold or for at least three seconds, then release, when the scan first

stops on that channel. This temporarily removes the channel from the scan list.

2. Press to exit scan mode.

3. Press a second time to activate scan again.

4. To restore a previously deleted channel, turn the radio off and then

back on. The channel is now restored.

Note: You cannot remove your home channel from the scan list. The home channel is the channel your radio was set to when you started the scanning.

QT Noise Filtering

The QT noise-filtering feature helps to ensure uninterrupted communication with other Motorola radios that have this feature. This feature filters out unwanted transmissions from other radios. This is useful in places where there is heavy radio traffic, such as amusement parks or ski resorts.

Note: QT noise filtering is not available when the radio is scanning. To turn QT noise filtering on or off:

1. Short press until displays. The current setting On/Off will flash.

2. Press or to turn noise filtering On or Off.

3. Press to confirm your selection or to continue set up.

–

VibraCall®Alert

VibraCall is a vibrating alert that notifies you that your radio is receiving a message. This is useful in noisy environments. When the alert is on, the radio vibrates once every 30 seconds when you receive a message on the channel and code you set.

1. To turn vibrating alerts on, press until is displayed. The current setting will flash.

2. Press or to change the setting to Off/On.

3. Press to set or to continue set up.

–

PTT

SX700

–

Weather

Your radio can tune in to broadcasts by the United States National Oceanic and Atmospheric Administration (NOAA) Weather Radio and Environment Canada Weatheradio.

You can listen to a weather channel or set your radio to alert you to emergency weather broadcasts that interrupt routine broadcasts. When you listen to a weather channel, you cannot use your radio in scan mode or for two-way communications.

Both NOAA and Environment Canada have transmitters located throughout the United States and Canada, respectively. These transmitters broadcast watches, forecasts, and other information 24 hours a day.

Weather Channels and Frequencies

Note: NOAA weather radio stations are assigned to cover specific areas and service may be limited. Please check with your local weather office for frequency and details, or visit www.nws.noaa.gov/nwr in the US or www.msc-smc.ec.gc.ca/cd/factsheets/wxradio in Canada to view the appropriate transmitter for your area.

The use of the NOAA logo does not provide an endorsement or implied endorsement by NOAA’s National Weather Service, nor does the use of the Weatheradio logo provide an endorsement or implied endorsement by Environment Canada.

Turning Weather Channel Reception On and Off

1. To turn weather reception on, press and hold for three seconds.

2. To turn off, press or turn the radio off and then back on.

Setting the Weather Channel

Your radio receives weather frequencies:

1. After turning weather reception on, press . The current channel flashes.

2. Press or to select the channel.

3. Press to save the weather channel setting.

Setting the Weather Alert

Your radio receives weather frequencies:

1. After turning weather reception on, press twice. Off/On displays.

2. Press or to select Off/On. If you activate Weather Alert and return to two-way mode, will display.

3. Press to save the weather channel setting.

As with two-way radio reception, weather channel reception depends on how close you are to a transmitter and whether you are indoors or outdoors. Because weather channels are transmitted without codes, they may contain static or noise.

Weather Channel

WX1 WX2 WX3 WX4 WX5 WX6

Frequency

162.550 MHz

162.400 MHz

162.475 MHz

162.425 MHz

162.450 MHz

162.500 MHz

Weather Channel

WX7 WX8

WX9 WX10 WX11

Frequency

162.525 MHz

161.650 MHz

161.775 MHz

161.750 MHz

162.000 MHz

–

PTT

MON
