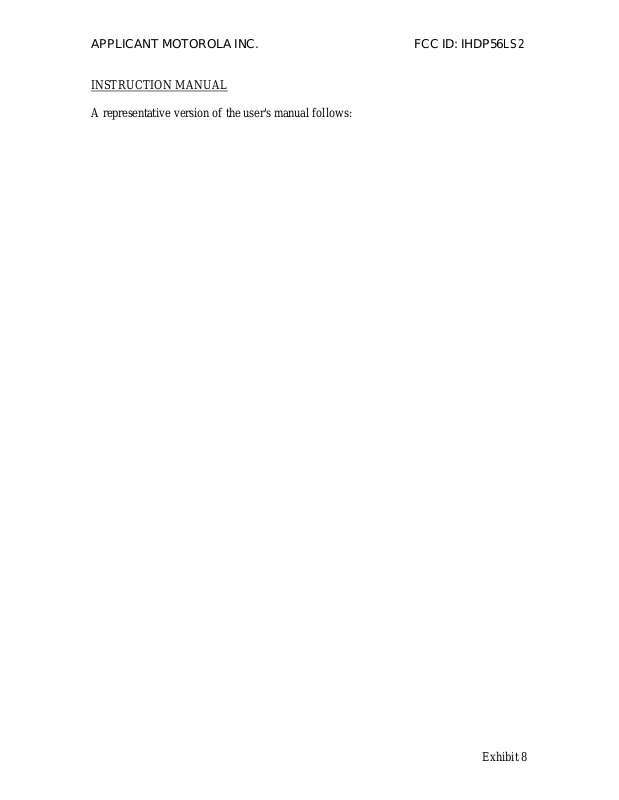

APPLICANT MOTOROLA INC. FCC ID: IHDP56LS2

INSTRUCTION MANUAL

A representative version of the user's manual follows:

Exhibit 8

MOTOROLA ATRIX

™

Welcome

MOTOROLA AT RI X

It’s not part computer, it’s leave-your-computer-behind.

• A computer that doubles as a phone: Built with

PC-like dual-core technology, the MOTOROLA AT RI X also comes packing 1GB of RAM. You’ll see everything in crisp, rich 24-bit color with the world’s first qHD smartphone display. With the support of up to 48GB memory, you’ll be able to store thousands of songs, photos, and files.

• A phone that acts like a computer: With the

revolutionary webtop, you now have the freedom to access and manage your files, photos, emails and web on a larger screen virtually anywhere you go. Just connect your ATR I X using the optional Laptop Dock or HD Multimedia Dock (page 38).

Note: Certain apps and features may not be available

in all countries.

Caution: Before assembling, charging, or using your

phone for the first time, please read the important legal and safety information packaged with your product.

•Answers: Tou c h > Help Center.

You can also flick your home screen left or right to show the Getting Started and Tips & Tricks widgets.

•Updates: Get phone updates, PC software, online

help and more at www.motorola.com/myatrix

•MOTOBLUR: After you create a MOTOBLUR

account, open it at www.motorola.com/mymotoblur

• Accessories: Find accessories for your phone at

www.motorola.com/products

1Welcome

Your phone

Browser Market

11:35

is attending the World Music Festival!

10:14 AM

1 hour ago

Natanya Ray

Hey, I'm just back from my trip, want to grab a coffee?

Dylan Foster

1 more day before I hit those slopes!

9 minutes ago

GPS NavTV & Radio

TRANS CANADA

tg t

10:

to grab a cof

14 AM

I hit those slopes

GPS Nav

Microphone

Micro USB

Volume

3.5mm Headset

Webcam Message

Light

Back

Power /

Sleep

Hold= power

Press=

sleep

HDMI

Home

the important keys & connectors

e World Music

s attendi estival!

atanya R

an Fost

ey, I'm ju

t ba

1 more day befor

rom my tri

, wa

hour a

RANS CANADA

TV & Radi

9 minutes ag

BrowserMark

Enter message here

QWE R T Y U I O P

ASDFGHJ KL

ZXCVBNM

?123

Shift Voice

Symbols

Press=symbols

Hold=settings

11:35

Done

DEL

:-)

Delete

Emoticons

Press=smiley Hold=icon menu

2 Your phone

Note: Your phone might look a little different.

Contents

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 6

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Apps & updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Social networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Entertainment Center . . . . . . . . . . . . . . . . . . . . . . . 37

Webtop application . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Memory card & file transfer . . . . . . . . . . . . . . . . . . 42

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 52

Let’s go

let’s get you up and running

Assemble & charge

1 Cover off 2 SIM in

3 Battery in 4 Cover on

5 Charge up 6 Power up, log in

Caution: Please read “Battery Use & Safety” on

page 52.

To save battery life, see “Battery tips” on page 25.

3Let’s go

Set up & go

Note: To use MOTOBLUR, please read the terms and

conditions during registration and, if you agree, choose to continue.

Create or log into a MOTOBLUR account to get your contacts, email, messages, and status information, for all your accounts, all in one place. Registration is secure and should only take a few minutes.

Note: This phone supports apps and services that use

a lot of data, so make sure your data plan meets your needs. For details, contact your service provider.

1 Tu r n o n .

2 Select a language.

3 Register or log in.

If you have not created a MOTOBLUR account, you’ll need to register: Enter your name, your current email address (where MOTOBLUR can send account information), and a new MOTOBLUR password.

4 Add your accounts to MOTOBLUR.

To add an account, touch it. Then, enter the user name or email and password that you set up on that account.

4 Let’s go

Tip: For more, or to add accounts anytime, go

to “Add accounts” on page 12.

5 When your phone shows your home screen, import

your SIM contacts: Touch touch Menu >

contacts from: SIM card

More > Import/Export > Import

Contacts, then

. Touch OK to confirm.

Your MOTOBLUR account

Only MOTOBLUR syncs contacts, posts, feeds, messages, emails, photos, and much more—from sources like Facebook™, Twitter, MySpace, your work email, Picasa™, and Photobucket™—and serves them up just the way you want them.

To add or edit the email, social networking, and other accounts in your MOTOBLUR, touch >

Accounts. To set up email accounts, see “Set up

messaging” on page 21.

You can log into MOTOBLUR from a computer to upload contacts, reset your password, get help, or even locate your phone: www.motorola.com/mymotoblur

Tu r n i t o n & o ff

To turn on your phone, press and hold Power on top of your phone.

To turn off your phone, press and hold Power , then

Power off in the menu that opens.

touch

Wi-Fi™ connect

If you want to use a Wi-Fi network for even faster Internet access, touch Menu >

Wireless & networks > Wi-Fi settings. Touch Wi-Fi to

search for and connect to wireless networks. There’s more in “Wi-Fi™ networks” on page 40.

Settings >

Cool content & more

Note: You might not have some features. For details,

ask your service provider.

Browse and download thousands of the coolest apps on the planet from Android Market™. On top of that, you get a full HTML browser, so you can surf in style.

Download new apps with “Apps & updates” on page 10.

Security

Your contacts are backed-up on MOTOBLUR, so don’t worry. Even if you lose your phone, MOTOBLUR can help you find it or wipe it. And when you get your next MOTOBLUR product, your stored info makes it a snap to set up with just your username and password.

Of course, it doesn't stop there. There are plenty of ways to protect your phone and your information, in “Security” on page 48.

5Let’s go

Touchscreen & keys

a few essentials

Touchscreen

To use your touchscreen:

• Touch items to select them. Try it: In the home

screen, touch

• Touch & hold items to open options. Try it: In the

home screen, touch and hold a contact to open options.

•Drag a list, or

the home screen, to see more. Try it: In the home screen, touch

Contacts

then drag your list up or down.

When you drag or flick a list, a scroll button appears on the right. Drag the scroll button to move faster.

•Flick (drag quickly and release) a list to move quickly.

When you flick a long list, touch the screen to stop it from scrolling.

6 Touchscreen & keys

Contacts.

Contacts, then touch

Contacts: A-Z

Contacts: All contacts

Arthur Baudo

Barry Smyth

Jim Somers

If your screen goes to sleep, press Power .

In many apps, the touchscreen can switch from portrait to landscape when you rotate your phone: Touch Menu >

screen

Settings > Display > Auto-rotate

Note: Your touchscreen might

stay dark if the sensor just above it is covered. Don't use covers or screen protectors (even clear ones) that cover this sensor. To find Motorola accessories for your phone, visit www.motorola.com/products

Menu, home, & back keys

Touch Menu to open menu options in your home screen, lists, and other places.

Touch Home to close any menu or app and return to the home screen. Touch and hold Home to show the last few apps you used, then touch an app to open it. In the home screen, touch Home to open or close the app menu.

Touch Back to go to the previous screen.

Power & sleep key

Press and hold Power to open a menu where you can turn off sound

Silent mode), network and wireless

(

connections (Airplane mode), or the phone (Power

Browser Market

11:35

is attending the World Music Festival!

10:14 AM

1 hour ago

Natanya Ray

Hey, I'm just back from my trip, want to grab a coffee?

just ba

Dylan Foster

1 more day before I hit those slopes!

9 minutes ago

GPS NavTV & Radio

TRANS CANADA

Phone Status

Widgets

Touch to open. Touch & hold to move items (or show options in lists).

Drag or flick to open panels (or scroll in lists).

Open the app menu.

Flick this bar down to see notifications.

off

To save your battery, prevent accidental touches, or when you want to wipe smudges off your touchscreen, put the touchscreen to sleep by pressing Power . To wake up the touchscreen, just press Power again.

To change how long your phone waits before the screen goes to sleep automatically, touch Menu >

Settings > Display > Screen timeout.

Tip: To make the screen lock when it goes to sleep,

use “Screen lock” on page 49.

Vol ume k eys

Press the volume keys on the side of the phone to change the ring volume (in the home screen), or the earpiece volume (during a call).

Home screen

quick access to the things you need most

Quick start: Home screen

atanya Ray

ylan Foster

The home screen gives you all your latest information in one place. It’s what you see when you turn on the phone or touch Home from a menu.

7Home screen

Use the widgets, shortcuts, and panels to show

URSDAY

1:30

pm to

2:30

3:0

1:3

5th

2:0

pm to

ess Plan discussion with team

3:0

ng: D

esign

1:3

Text Search

Type, then touch.

Voice Search

Touch, then speak.

Choose what you search.

what’s important to you—whether it’s home, work, or play.

Use & change your home screen

On your home screen, shortcuts are icons that open your favorite apps, web bookmarks, contacts, mail labels, or music playlists. Widgets show you news, weather, messages, and other updates.

Flick the home screen left or right to open other panels of shortcuts and widgets.

• To open something, touch it. Touch Home to

return to the home screen.

Tip: When you open a widget, touch Menu to

show any options or settings (you can choose accounts for

Calendar widgets).

There’s more about social networking widgets in “View account updates & features” on page 12 and “Update your status” on page 12.

• To resize

widgets

one until you feel a vibration, then release. Drag a corner to resize.

8 Home screen

Messages, Social Networking, or

Motorola

, touch and hold

THURSDAY

JULY

3:00 pm to 4:00 pm

m to 4:00

Team Meeting: Design Review

Meeting: Design Review

m to 2:30

1:30 pm to 2:30 pm

with Ray Smit

Lunch with Ray Smith

nd Broadwa

5th and Broadway

3:00

2:00 pm to 3:00 pm

Business Plan discussion with team

3:00 pm to 4:00 pm

pm to 4:

Team Meeting: Design Review

Meeti

Review

1:30 pm to 2:30 pm

Lunch with Ray Smith

+2 more

+2 m

+2 more

+2 m

• To add something or change your wallpaper, touch

and hold an empty spot until you open the

Home screen

menu.

Add to

You can add a folder to organize your shortcuts.

• To move or delete something, touch and hold it

until you feel a vibration, then drag it to another spot, another panel, or the trash at the bottom of the screen.

Phone status & notifications

At the top of the screen, icons on the left notify you about new messages or events (flick the bar down for details). Icons on the right tell you about phone status:

Bluetooth™ active Wi-Fi™ active

GPS active airplane mode

silent ring vibrate ring

microphone mute speakerphone on

alarm set network (full)

HSPA ready HSPA transferring

3G ready 3G transferring

battery (charging) battery (full charge)

Tip: To show today’s date, touch and hold the status

icons.

Personalize

add your personal touch

Ringtones

To change your ringtone and notifications, touch Menu >

To use a song as a ringtone, touch >

Songs, touch and hold the song name, then touch Use as phone ringtone

To set vibrate for messages, touch > > Menu >

Messaging Notifications.

Sounds

features

set volume for media and videos

Menu >

play tones when using dial pad

Menu >

play sound on screen selection

Menu >

Settings > Sound.

Music >

Messaging

Messaging Settings, then choose Text

, Social Messaging, or Email >

Settings > Sound > Volume

Settings > Sound > Audible touch tones

Settings > Sound > Audible selection

9Personalize

Display settings

lli

okk

dOverr

Rea

features

set display brightness

Menu >

Settings > Display > Brightness

spin the screen

When you rotate the phone, the screen spins to stay right-side-up. Menu >

Settings > Display >

Auto-rotate screen

set movement animations

Your display’s movements look smoother with animation, but a little faster without it. Menu >

Settings > Display > Animation

Date & time

Set date, time, time zone, and formats:

Find it: Menu >

Settings > Date & time

Language & region

Set your menu language and region:

Find it: Menu >

Select locale

10 Apps & updates

Settings > Language & keyboard

Apps & updates

get the app you want

Quick start: Apps & updates

To open the app menu, just touch . Then, to download new apps, touch

market

Games

g un

FREE

Downloads

Voice Search

Apps

Featured

Finance

Google Inc.

Google Goggles

Google Inc.

Google Maps

Google Inc.

Google Inc

Search My apps

Google Pinyin IME

oogle Pinyin IM

Google Inc.

oogle Inc.

Settings Help

Your phone can tell you when there’s an updated app or other phone software. To install the update, just follow the instructions on your screen.

Market.

Touch an app to open its details or install it.

FREE

Touch for a menu

FREE

where you can open search, downloads, or

FREE

help.

To make your apps update automatically, touch My

apps

, touch an app to open details, then touch the

Allow automatic updating checkbox.

Recent apps

Touch and hold Home to show the last few apps you used, then touch the app you want. Touch Home to return to the home screen.

Manage & restore apps

Find it: Menu > Settings > Applications > Manage

applications

Touch an app in the list, then choose Uninstall (for apps you downloaded), (for downloaded apps), or other options.

If you have trouble removing an app, turn off your phone, then turn it back on—when you see the “Motorola” logo during power-up, press and hold both volume keys until you see the home screen. Your screen will show and you can remove the app.

To reinstall apps from Android Market, touch >

Market > My apps. The apps you downloaded are

listed and available for download.

Clear cache, Move to SD card

Safe Mode in the lower left corner,

Update your phone

You can use your phone or computer to check, download, and install phone software updates:

• Using your phone:

If your phone notifies you about an update, follow the instructions to download and install it.

To manually check for updates, touch Menu >

Settings > About phone > System updates.

Your phone downloads any updates over your mobile network. Remember, these updates can be quite large (25MB or more) and may not be available in all countries. If you don’t have an unlimited data plan, or mobile network updates are not available in your country, you can update using a computer.

• Using your computer:

On your computer, go to www.motorola.com/myatrix “Software” links. If an update is available, just follow the installation instructions.

and check the

11Apps & updates

Social networking

10 minutes ago

Kristine Kelley

Not even ready to go back to school

Kristine Kelley

10 minutes ago

1 of 24

Social Networking

Status update

Kristine Kelley

Comments (3)

Not even ready to go back

to school

Add Comment Like

eeeeeee

Flick left to show more.

Touch the picture for contact options.

my life, your life

Add accounts

When you add your Facebook, MySpace, or Twitter social networking accounts to MOTOBLUR, friends appear in your phone’s appear in

Social Status and Social Networking

widgets.

Find it: >

Sign into your social networking account with the user name or email and password that you set up on that account (the same as on your computer). If you don’t have social networking accounts, you can visit their web sites to set them up.

Note: Your network or other factors might affect the

speed of widget updates. To download updates faster, see “Wi-Fi™ networks” on page 40.

Update your status

After you add a social networking account to MOTOBLUR, you can update your status in a

Status

To add a empty spot on your home screen, then touch

Motorola widgets.

12 Social networking

widget.

Social Status widget, touch and hold an

Contacts, and status updates

Accounts > Add account

Social

To update your status, just touch a Social Status widget and enter text. If you have more than one account, you can use the pull-down menu to limit which accounts are updated. When you open the widget, a number on the right side means you have unread status comments (touch it to open them).

View account updates & features

After you add a social networking account to MOTOBLUR, you can open and respond to friends’ updates with a

Social Networking widget.

Kristine Kelle

10 minutes a

rea

ot even ready to go back

To add a Social Networking widget, touch and hold an

11:35

DialpadEnd CallAdd Call

SpeakerMuteBluetooth

Active call 00:03

Home 555-555-2864

Colleen Pham

Full moon tonight everyone...

TUVPQRS WXYZ

879

GHI MNO

465

JKL

ABC DEF

123

Most recent

555-555-2505

10 mins ago

FavoritesContactsRecentDialer

Call Timer

Active Call

Conference Call

Call Lists

Store Number

Voice

Dial

empty spot on your home screen, then touch

Motorola widgets.

To open the

Social Networking widget, touch it. Then:

• Touch a person’s name to open their info.

• Touch the widget title to open a list view.

• Touch to open the full update, then touch the

social network’s icon to open its web site.

To change which accounts or contacts appear in a

Social Networking widget, open the widget and

touch Menu >

contact(s)

Edit & delete accounts

Find it: > Accounts

Touch and hold an account, then touch Open account to edit it, or touch with its contacts and messages).

Settings. Then, choose Selected

or Services.

Remove account to remove it (along

Calls

it’s good to talk

Quick start: Calls

Find it: Dialer

When you enter a number to dial, touch Menu to add a pause (pauses two seconds), or wait (waits for your confirmation).

13Calls

During a call, touch Menu to choose Hold. Your

DialpadEnd CallAdd Call

SpeakerMuteBluetooth

touchscreen goes dark to avoid accidental touches. To wake it up, press Power .

Tip: You can touch Home or Back to hide the

call display. To reopen it, touch

Dialer.

Make & answer calls

To make a call, touch Dialer, enter a number, then touch .

Tip: To enter the international dialing code (+), touch

and hold . To add a pause or wait after numbers, touch Menu .

To answer a call, drag

Answer

to the right (when your phone is unlocked,

Answer is just a touch

button).

You can press Power to ignore the call, or press a volume key to silence the ring.

End calls

Touch End call.

Note: When you hold your

phone to your ear, the display goes dark to avoid accidental touches. When you move your phone away from your ear, the display lights up again.

14 Calls

Your touchscreen might stay dark during calls if the sensor just above it is covered. Don't use covers or screen protectors (even clear ones) that cover this sensor. To find Motorola accessories for your phone, visit www.motorola.com/products

Tip: You can touch Home or Back to hide the

active call display. To reopen it, touch

Dialer.

Speed dial

• To set up your speed dial list, touch Dialer >

Menu >

• To call a number in the list, touch

touch and hold the list number.

Speed dial setup.

Dialer, then

Voice dial

Find it: Dialer >

Say a number, or a name from

Contacts.

your

Handsfree

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal. Always obey the laws and drive safely.

During a call:

• To use the speakerphone, touch

Speaker.

• To use a connected Bluetooth™ device, touch

DialpadEnd CallAdd Call

SpeakerMuteBluetooth

03:33

555-1212

1:05 PM

All calls

5551212

Add to contacts

Bluetooth in the call display.

Mute & hold

During a call:

• To mute the current call, touch

Mute.

• To put a call on hold, touch Menu >

Enter numbers during a call

To enter numbers during a call,

Dialpad and touch the

touch numbers.

Recent calls

Find it: Dialer > Recent

• To call a number, touch on the right.

• To send a text message, store

the number, or other options, touch and hold an entry.

• To filter the list, touch the list

name (like

• To clear the list, touch Menu .

All calls) at the top.

Hold.

Conference calls

To start a conference call, call the first number. After they answer, touch When the next number answers, touch

Add Call and call the next number.

Merge.

Your phone number

Find it: Menu > Settings > About phone > Status

My phone number

Your caller ID

Note: You might not have this feature. For details, ask

your service provider.

To hide your number from the people you call, touch Menu >

Settings > Call settings >

Additional settings > Caller ID.

Call forwarding & waiting

Call forwarding can forward calls all the time, or only

when your phone is busy, unanswered, or unreachable (not on the network). To set call forwarding, touch Menu >

Call waiting lets you answer a second call when you’re

already on a call. To turn off second calls straight to your voicemail, touch Menu >

settings

Settings > Call settings > Call forwarding.

Call waiting and send

Settings > Call settings > Additional

> Call waiting.

15Calls

Restrict outgoing calls

To restrict your phone so that it can only dial a few numbers, touch Menu >

Fixed dialing number.

• To turn fixed dialing on, touch

• To add or delete the allowed numbers,

Manage FDN list.

touch

Settings > Call settings >

FDN disabled.

Cool down

In very limited circumstances, such as where your phone has been exposed to extreme heat, a “Cool Down” message will appear. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in “Cool Down” mode, only emergency calls can be made.

Emergency calls

Note: Your service provider programs one or more

emergency phone numbers (such as 911 or 112) that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues.

16 Calls

1 Touch Dialer (if your phone is locked,

Emergency Call or touch Menu >

touch

Emergency call).

2 Enter the emergency number.

3 Touch to call the emergency number.

Note: Your mobile device can use GPS and AGPS

signals to help emergency services find you. See “GPS & AGPS” on page 57.

Contacts

Contacts: A-Z

Contacts: All contacts

Arthur Baudo

Mary Morgan

Kristin Cullen

Barry Smyth

Kat Bleser

Jim Somers

View

Flick the list left or right to change views.

Add a contact.

Group

Touch to choose which group to show.

Touch a contact to open details. Touch & hold to send email, delete, and more.

contacts like you’ve never had before

Quick start: Contacts

Find it: Contacts

To edit a contact, open it and touch Menu > Edit.

Transfer contacts

Your MOTOBLUR™ account merges your contacts from your social networking and email accounts into one phonebook. All you need to do is add your accounts to MOTOBLUR, and it will handle the rest!

• To add your social networking contacts, see “Add

accounts” on page 12.

• To add your email contacts, see “Set up

messaging” on page 21.

Tip: If you add a

Corporate Sync account, you can

send messages to your coworkers, even if you don’t have them stored in your contacts.

• To import contacts from your SIM card (if that didn’t

happen automatically), touch >

card

> Import SIM card.

Manage SIM

• To transfer contacts with a computer, export them

into a .CSV file on your computer. Then, go to www.motorola.com/mymotoblur

, log into your

MOTOBLUR account, and upload the .CSV file.

• To get more options and help, go to

www.motorola.com/TransferContacts

Call, text, or email contacts

Find it: Contacts

Touch and hold the contact to open Call contact, Send

text message

options.

You can also use “Voice dial” on page 14.

, Send email, View contact, or other

17Contacts

View & use contacts

With a MOTOROLA AT RI X with MOTOBLUR, you’ll know what everybody’s up to and when. Every time you pick up a call, check a message, or look up a friend’s contact info, sure, you’ll see their name and number, but you’ll see their social network status and smiling face, too.

Find it:

• To filter the contacts by group (All contacts,

Facebook, and so on) touch the filter name at the

top.

Tip: To change which account provides the pictures

for your touch >

source

• To change views, flick the list left or right to show

contact

• To find a contact, just type the name.

Touch a contact to open their details. To start a call or message, just touch their phone number or other info. To show the contact’s

Happenings, flick left or right.

• To send a contact’s details in a message or over a

Bluetooth connection, touch and hold the contact, then choose

18 Contacts

Contacts

Contacts, from the home screen

Accounts > Menu > Picture

History, A-Z, or Status.

History, Info, or

Share name card.

Tip: To add a shortcut to one of your

contacts, touch and hold a blank spot on your home screen and then touch

Motorola widgets > Contact quick tasks

SMSMobile

Edit or delete contacts

Find it: Contacts

Touch the contact, then touch Menu > Edit or

Delete. You can set a ringer, address, and other details

that will be saved on your phone and your MOTOBLUR account.

Where are contacts edited or deleted? Your phone

edits the contacts in its memory, and also updates your MOTOBLUR account. Your changes won’t affect your SIM card.

Link contacts

You might have two Contacts for the same person; maybe a Facebook friend who is also stored on your SIM card, or one friend with two email addresses. To combine these two contacts:

Find it:

Touch a contact to open it, then touch Menu >

Link contact and touch the second entry. Your

MOTOBLUR account remembers this connection.

Contacts

Create contacts

Find it: Contacts > Menu > Add contact

Touch a text box to type the name and details. When you’re finished, touch Menu >

Where are contacts saved? Your phone saves new

contacts in its memory, your MOTOBLUR account, and other accounts you select: In touch Menu > get updated. New contacts won’t be on your SIM card, but they will download to any new MOTOBLUR phone when you log into your MOTOBLUR account.

Settings to choose which accounts

Save.

Contacts,

Synchronize contacts

Note: You might not have this feature. To get more

details or synchronize contacts in your service provider account, ask your service provider.

When you change one of your automatically updates your MOTOBLUR account online. Also, your phone updates your MOTOBLUR account whenever you change a friend in your social networking accounts.

So, you don’t have to do anything to synchronize your

Contacts with your other accounts! MOTOBLUR takes

care of it for you.

Contacts, your phone

Contacts and

My details

Find it: Contacts > Menu > My info

To edit details, touch Menu > Edit.

Groups

You can put your Contacts into groups that you create (like “friends,” “family,” or “work”). Then, you can find contacts faster by showing one group at a time.

To create or show a group in your

Contacts: All contacts at the top of your screen and

choose the group name.

Contacts, touch

19Contacts

Messaging

<Subject: Multimedia message>

7:30 PM

Messaging

sometimes it’s best to text, or IM, or email...

Quick start: Messaging

Find it: > Messaging > Universal Inbox

Universal Inbox (4)

Alex Pico

Some guys have all the luck - me... Right now, you’re busy flexing...

Keith Zang

Job It’s only a freelance gig, but it ...

Select multiple messages to move, delete and more

• To show other messages in your inbox, flick or drag

up.

• To forward, save attachments,

and more, open a message, then touch and hold it to open options.

• To enter names and text with voice recognition, just touch a text box, then touch

on the touchscreen keyboard.

20 Messaging

Check for messages.

8:34 PM

Create a message.

Sep 25

Flick up for more.

Read & reply to messages

Find it: > Messaging > Universal Inbox

Note: Universal Inbox shows all of your messages

together—text, email, and social networking messages. To show only one type of message, touch a message account type instead of

Universal Inbox.

• To open a message and all of its replies, touch it.

• To respond to a message, just open it and enter

your response in the text box at the bottom.

To forward a text message, touch and hold a message in the conversation, then touch

message

For email, touch to choose a reply or forward option.

Forward

• To open options, touch and hold a message.

Messages widget, touch and hold an empty

To add a spot on your home screen, then touch

widgets

Motorola

Create messages

Find it: > Messaging >

Choose a message type. Then, enter the recipient and message. In text messages and emails,

touch Menu to add files or choose other options. For more, see “Text entry” on page 22.

Send & receive attachments

To send a file in a message, open a new message, touch Menu , and choose the file.

When you receive a message with an attachment, open the message and touch the file name to download it. Then, touch the name again to open it. Some file formats can be converted to HTML for faster viewing, and your phone will show a button that

Get HTML version.

says

Tip: To send and receive large attachments faster, see

“Wi-Fi™ networks” on page 40.

Set up messaging

To add email accounts, touch > Accounts > Add

account

Corporate Sync is for Microsoft Exchange server

•

work email accounts. Enter details from your IT administrator.

Tip: You might need to enter your domain name

with your user name (like domain/username). To enter a backslash, touch Symbols .

Note: Some work accounts might require you to

add a password lock to your phone, for security. To

stop an account from showing the contacts you create on your phone, touch touch Menu > the account under

Email is for most personal and other accounts that

•

More > Settings, then uncheck New contacts.

Contacts,

aren’t on a Microsoft Exchange Server. For account details, contact the account provider.

To change your settings, touch >

Messaging >

Menu , then touch:

Manage accounts to change your user name or

•

password (or server settings, for email).

Edit Universal Inbox to choose which accounts

•

show messages in the

Messaging Settings to set the notification for each

•

Universal Inbox.

account type (along with other preferences, for email).

Tip: You can tell your phone to send email as soon

as you hit send ( phone sends and receives messages (

schedule

To g e t Gmail™ in your

Universal Inbox, you’ll need to add it as an Email

account: Touch >

Manage accounts > Add account > Email and

touch enter your Gmail™ details. If you added your

Data push), or set how often your

Fetch

Messages widget and

Messaging > Menu , then

Google

account too, turn off its email sync to avoid duplicate

21Messaging

email notices: Touch > Accounts, touch your Google™ account, and touch the checkmark to turn off

Gmail.

Tip: For social network accounts, see “Add accounts”

on page 12.

Instant messages

Note: You might not have this feature. For details, ask

your service provider.

You can use:

• Google Talk™: Touch >

more, visit www.google.com/talk

• Web browser: Open your phone, press Search ,

and enter your IM provider’s Web site. Once you’re there, follow the link to sign in.

• Apps: To search for an instant messaging app, touch

your IM provider.

Market. Your IM options will depend on

Talk. To find out

Voi cema il

When you have a new voicemail, shows at the top of your screen. To hear the voicemail, flick down the status bar and touch the .

If you need to change your voicemail number, in the home screen touch Menu >

settings

> Voicemail settings.

22 Text entry

Settings > Call

Text entry

think keyboard, now think smaller

Touchscreen keyboard

Note: Your keyboard changes, depending on whether

you’re entering a text message, email, or other text.

To move the cursor, touch and hold a word you entered. This opens a magnifier where you can drag the cursor.

To copy and paste, double-tap a word to highlight it (if needed, drag the ends of the highlight). Now touch and hold a blank spot for the copy and paste menu.

To add a word to your diction ary, double-tap the word to highlight it. Now touch and hold a blank spot to open the menu where you can add the word.

To change the keyboard, touch and hold a blank spot in the text box. A menu opens, where you can choose

Input Method > Swype or Multi-touch keyboard.

Swype™ text entry lets you drag your finger over the

Send

Fine, or

Send

Fine, or I’ll

:-)

asdfghj k l

qwe r t y u i o p

xcvbnm

EN @#

123

%()

!7890

&$456+:;

“

SYM

qwe r t y u i o p

EN @#

123

%()

To capitalize, go above the keypad. For double letters, circle the letter.

’

To enter a word, just trace a path through the letters.

(

rrooo

I’ll

Budget Meet

Meeting Meetings Me

Meet

asdfghj k l

qwe r t y u i op

xcvbnm

. ,

DEL

?123

Delete

Symbols/Numbers

Voice Recognition

Touch this, then speak the recipient’s name or the text message.

Touch and hold an empty spot to open a menu.

letters of a word, in one continuous motion.

Multi-touch keyboard text entry lets you enter

letters by touching them one at a time.

• To enter the small number or symbol at the top of a

key, touch and hold the key.

• To enter several numbers or symbols, touch

• To enter apostrophes in common words (like “I’ll”),

drag through the apostrophe key.

• If Swype doesn’t know a word, touch individual

letters to enter it. Swype remembers, so next time you can just drag over the letters.

SYM.

Text entry settings

To change your text entry settings, touch Menu >

Settings > Language & keyboard, then:

• To change your Swype settings, touch

• To edit your word suggestion dictionary for the

Multi-touch keyboard, touch User dictionary.

• To change the language for your display,

Select locale.

touch

Swype.

23Text entry

Tips & tricks

a few handy hints

Shortcuts

To .. .

Return to the

home screen

Open option

menus

Show recently

dialed

numbers

Sleep/wake

your phone

Set lock

screen

Google™

Show last few

apps used

24 Tips & tricks

To uc h Ho m e .

Touch and hold an item, or touch Menu , to show all of your options.

Touch

Dialer > Recent.

Press Power .

Touch Menu >

Location & security > Set up screen lock

Settings >

Touch Search .

Touch and hold Home .

To...

Sync media to

your desktop / laptop

Sync contacts

from your computer to your phone

Show email or updates from a

group of friends

Change which messages appear in the

Universal Inbox

Add a shortcut on

your home screen for an app or contact

visit motorola.com/mymedialink

Use the MOTOBLUR portal: www.motorola.com/mymotoblur

To uc h

Display group to create or show a

Contacts > >

group. Show a group then flick left or right to see its messages and updates.

Touch >

Universal Inbox, then

touch Menu >

Inbox

Messaging >

Edit Universal

Touch and hold an open area on your home screen to open the

Add to Home screen menu, then

Shortcuts. Then, you can

choose choose from the

Contacts lists.

Applications or

To .. .

Move a widget or shortcut

Delete a widget or

shortcut

Touch and hold the widget or shortcut until you feel a vibration, then drag it to where you want.

Touch and hold a widget or shortcut until you feel a vibration, then drag it to the trash can at the bottom of your screen.

Battery tips

Your phone is like a small computer, giving you a lot of information and apps, at 3G speed, with a touch display! Depending on what you use, that can take a lot of power.

If your battery is low, touch Menu >

Battery Manager. You can choose Battery mode > Maximum battery saver, or touch the battery image to

show what used the most battery.

To save even more battery life between charges, you could reduce:

• recording or watching videos, listening to music, or

taking pictures.

Settings >

• widgets that stream information to your home

screen, like news or weather (“Use & change your home screen” on page 8).

• unused online accounts that you registered with

MOTOBLUR (“Edit & delete accounts” on page 13).

• Wi-Fi™ and Bluetooth™ use: Touch Menu >

Settings > Wireless & network settings, then touch

items to turn them off or on.

• GPS use: Touch Menu >

security

> Use GPS satellites.

• Email updates: Touch

Messaging Settings > Email > Email delivery > Fetch schedule, then choose a longer interval or Manually. To check manually, touch at the top of

Settings > Location &

Messaging > Menu >

your inbox.

• network speed: Touch Menu >

Wireless & networks > Mobile networks > Select network

> 2G Only saves battery.

Settings >

• network searching: If you are out of coverage, to

keep your phone from looking for networks, press and hold Power to open the Power key menu, then touch

• display brightness: Touch Menu >

Display > Brightness > (dimmer setting).

• display timeout delay: Touch Menu >

Display > Screen timeout > (shorter setting).

Airplane mode.

Settings >

25Tips & tricks

Photos & videos

700WS

Resolution ( to change) Pictures Remaining

Open your last photo Capture

Open

options

see it, capture it, share it!

Photos

Take & share photos

Take that family photo, and post it online for everyone to see.

Find it: >

Note: To change picture resolution, in the viewfinder

touch Menu >

26 Photos & videos

Camera

Settings > Picture Resolution.

To zoom, press the volume keys. To take the photo, touch (or touch and hold to focus, then release to take).

After you take the photo, you can touch the thumbnail image in the lower left to open your gallery. Touch the photo to open it, then touch Menu to see options.

Photo options

In the viewfinder, touch Menu >

Settings to open a

menu.

options

Picture Resolution

Video Resolution

Quick upload album

Review Time Set how long your phone shows

Set the resolution of your photo.

Set the resolution of your videos.

Choose or add an account for uploading photos

photos after you take them.

Storage Location

Capture Tone Set whether a sound plays when

Set where photos are saved.

you take a picture.

View your photos

Find it: >

Camera roll

104 items

Folders

7 folders

All videos Copy protected

3 videos 10 items

Gallery

My Tags

2 tags

All photos

130 photos

Show photos you took.

Show photos you tagged.

Open your folders.

Show all of your captured and downloaded images and videos.

Show protected items you downloaded.

Open the camera.

Tip: To open your gallery from the camera viewfinder,

just touch the last photo in the lower left corner.

To zoom a picture, pinch two fingers together or apart on the touchscreen.

To rotate a picture, place your thumb on the screen and then make an arc with your finger.

Play a slideshow

Touch >

Gallery, touch a

picture, then touch to start a slideshow. To stop the slideshow, touch the display. To return to the gallery, touch Back .

Share your photo gallery

Find it: >

To send your photo in a message or post it online:

1 Touch and hold a thumbnail image, then touch

Gallery

Share.

2 Choose whether you want to share the picture with

a message, social network, retail print service, or other options.

27Photos & videos

Tip: With Photo Sharing, you can post a photo to more

than one social network at the same time.

Manage your photos

Find it: >

Gallery

Touch and hold a thumbnail image, then:

• To delete the photo, touch

Delete.

• To set the photo as a contact picture, social network

profile picture, or wallpaper, touch

Set as.

Tip: To copy photos to/from a computer, go

to “Memory card & file transfer” on page 42.

Edit your photos

Find it: >

Gallery > picture > Menu > Edit

You can choose advanced editing features to resize, crop, or change the picture color.

Videos

Record & share videos

Find it: >

00:24:48HD

Open your last video.

Resolution ( to change) Time Remaining

Camcorder

Record.

Open

options.

28 Photos & videos

Tip: To send your video in a message, adjust the video

quality: Touch Menu >

Resolution

> Medium (QVGA).

Settings > Video

To record the video, touch . To stop, touch .

After you record the video, you can touch the thumbnail image in the lower left to open your gallery. Touch the video to open it, then touch Menu to see options.

Play your videos

Find it: >

Gallery > video

Share your video gallery

Find it: >

To send your video in a message or post online:

1 Touch and hold a video, then touch Share.

Gallery

2 Choose how you want to share.

Manage your videos

Find it: >

Gallery

To delete a video, touch and hold a video, then touch

Delete.

Music

when music is what you need...

Quick start: Music

Find it: > Music, then choose a song

Effects

Music Artist

Album Title

Song Title

1:14 3:45

Tip: When a song is playing, you can touch Menu

to add it to a playlist or show other options.

To listen to music during a flight, turn off all your network and wireless connections: Press and hold Power >

Airplane mode.

Set up music

What music transfer tools do I need?

To put music on your computer and then load it on your phone, you need a:

Repeat

Shuffle

Playlists

Skip/Search, Play, and Pause

29Music

• Microsoft Windows PC or Apple™ Macintosh™.

• USB data cable.

What music file formats can I play?

Your phone can play many types of files: MP3, M4A, AAC, ACC+, MIDI, and WAV.

Note: Your phone does not support any DRM

protected files.

What headphones can I use?

Your phone has a 3.5mm headset jack for wired stereo listening and optional FM reception. You can go wireless with Bluetooth™ stereo headphones or speakers (see “Bluetooth™ handsfree devices” on page 39).

Get music

Import a CD to create music files

You can import (rip) a CD to create music files on your computer, then transfer the music files to your phone’s memory. To do this, you can use Microsoft Windows Media Player (see www.microsoft.com

1 On your computer, open Windows Media Player.

30 Music

2 Insert a music CD into the computer’s CD

ROM drive.

Note: Make sure you change the format to MP3 in

“Rip > Format > Rip Settings.”

3 In the Windows Media Player window, click on the

“Rip” tab.

4 Highlight the songs you want to import, and click

“Start Rip“.

The songs are imported to the Windows Media Player Library.

Transfer music files to your phone

You can transfer music files from a computer to your phone’s memory with Windows Media Player.

Tip: To transfer music files with other programs, see

“Memory card & file transfer” on page 42.

Note: Copyright—do you have the right? Always follow

the rules. See “Content Copyright” in your legal and safety information.

1 Connect a Motorola micro USB data cable from your

phone’s micro USB port to a USB port on your computer. Your phone should show in the status bar.

Note: Your phone supports Microsoft Windows XP,

Windows Vista, and Apple™ Macintosh™. Other operating systems may not be compatible. If your

computer needs to download drivers for your

Bookmarks

Forward

Refresh

New Window

Windows

11:35

Search or type URL

Connection: , , or Wi-Fi

Press to open the menu.

BookmarksText Search

phone, visit www.motorola.com/support

2 Your phone shows a USB connection dialog. Touch

USB drive. You can’t use the files on your memory

card while it is connected.

3 On your computer, open Windows Media Player.

4 On the “Sync” tab, select “More Options.” Under

“Device,” select your phone.

5 Select “Properties,” check the “Create folder

hierarchy on device” box, and click “OK.”

6 Drag your music files over to the “Sync List” and

press “Start Sync.”

Web

surf the web with your phone

Quick start: Browser

Note: You might not have this feature. For details, ask

your service provider.

Find it: >

Browser

31Web

To enter a web page address in the browser or your

www.google.com: Google

News results for android Verizon Droid Success Limited by Android Market -

7 hours ago The idon't ad campaign pits the Android-based Droid head-to-head against the formidable iphone. Based on preliminary predictions ..

PC World - 1778 related articles »

Zoom

To zo om in or out, pinch two fingers together or apart.

home screen, just touch Search .

A at the right of the address bar means you can add the page’s RSS news feed to a Touch Menu >

More > RSS Feeds.

News app or widget:

Note: If you can’t connect, contact your service

provider.

Connect

Your phone uses the mobile phone network (over the air) to automatically connect to the web.

Note: Your service provider may charge to surf the

web or download data.

To use a wireless network, touch Menu >

Wireless & networks. Touch Wi-Fi to turn it on, then

Wi-Fi settings to search for nearby wireless

touch networks. Touch a network to connect. There’s more in “Wi-Fi™ networks” on page 40.

32 Web

Settings

Download apps

Warning: Apps downloaded from the web can be from

unknown sources. To protect your phone and personal data, only download apps from sources you trust, like “Apps & updates” on page 10.

Note: All apps downloaded are stored in your phone

memory.

To download apps:

1 To launch the browser, touch > Browser.

2 Find the app you want to download and touch the

download link.

Manage your downloads

To view files or applications you have downloaded, touch >

Browser > > More > Downloads.

To clear your download history, touch Menu >

Clear list. To cancel, touch Menu > Cancel all downloads

YouTube™

Note: You might not have this feature. For details, ask

your service provider.

Share videos with YouTube users everywhere. You don’t need a YouTube account to browse and view videos.

Find it: > YouTube

Note: If you don’t have a YouTube account, visit

www.youtube.com account or sign in, touch Menu >

Search, Upload, or Share videos, touch Menu .

to find out more. To create an

My account.

Location

toss away your maps

MOTONAV™

Your phone comes with a trial version of MOTONAV GPS navigation system, which shows you the way with accurate maps and routing.

Find it: >

Turn-by-turn directions. You’ll never wonder where to

turn.

3-D lane guidance. Preview your route and

destination. You can look around to see landmarks and turns .

Connected navigation. Get live traffic reports and

alerts. Select alternate routes.

Note: Availability may vary by market.

Navigation linked to contacts. Store an address or

location information, you’re two clicks away from seeing it on a map.

For step-by-step instructions, go to http://www.motorola.com/motoextras/mobile

MOTONAV

33Location

Google Maps™

Note: You might not have this feature. For details, ask

your service provider.

Find it: >

Chicago, IL

N Clark St

Wacker Dr

State/Lake

W Lake St W Lake St

Lake

Washington-Blue

Clear Map

Maps

44 West Street

E S WaterSt

E Wacker Pl

N Micigan Ave

Randolph/

Wabash

Randolph

St Metra

Directions Starred Places

Join Latitude

loC N

E Randolph St

HighlandHighlandHighlan

Find places.

Choose map layers.

Drag or flick to scroll. Double-tap to zoom in.

Touch to open a menu where you can search, get directions, find your location, and more.

Google Maps offers powerful, user-friendly mapping technology and local business information—including business locations, contact information, and driving directions.

For help, touch Menu >

More > Help.

Latitude

Join Latitude

See where your friends and family are on Google Maps™. Plan to meet up, check that your parents got home safely, or just stay in touch.

34 Location

Don’t worry, your location is not shared unless you agree to it. You need to join Latitude, and then invite your friends to view your location or accept their invitations. When using Google Maps (in any mode except in Street View), touch Menu >

Latitude

. Read the privacy policy and, if you agree with

Join

it, choose to continue.

Add & remove friends

Find it: >

To add friends:

1 Touch Menu > Add friends.

2 Touch

address

Maps > Menu > Latitude

Select from Contacts or Add via email

, then touch a contact and Add friends.

If your friends already use Latitude, they’ll receive an email request and a notification. If they have not yet joined Latitude, they’ll receive an email invitation to sign in to Latitude with their Google account.

To remove friends:

1 Touch Menu > Latitude to show your friends

list, then touch a friend in your list.

Remove.

2 Touch

Share location

When you receive a request to share location details you can choose to:

• Accept and share back—see your friends location,

and your friend can see yours.

Accept, but hide my location—see your friend's

•

location, but they can't see yours.

Don't accept—location information is not shared

•

between you and your friend.

Hide your location

To hide your location from a friend, touch Menu >

Latitude to show your friends list. Touch your contact

name, then touch Menu >

location

Privacy > Hide your

Turn off Latitude

Touch Menu > Touch Menu >

Latitude to show your friends list. Privacy > Turn off Latitude.

Connections

The MOTOROLA ATR I X has a dual core 1GHz processor, 1GB of RAM, and 16GB of internal memory.

You can share media over a DLNA wireless connection. Or:

• An optional Laptop Dock opens the webtop

application and includes a display, full keyboard, and touchpad.

• An optional HD Multimedia Dock opens the

webtop application and lets you connect your HDMI display, keyboard, and mouse.

35Connections

• The HDMI™ cable in your phone’s box opens

Entertainment Center and lets you connect your

HDMI display and use your phone as a controller.

micro-

You can do more with other docks too:

• A Standard Dock shows an alarm and shortcuts

you can set for each dock, plus it lets you connect headphones or speakers.

• A Ve hic l e D ock shows shortcuts you can set to

maps, navigation, and Internet services like voice search and radio.

36 Connections

Connections quick reference

Follow the references to find out how to use a USB , HDMI , Wi-Fi , or Bluetooth connection.

To...

transfer files 44 - 43 39

hear music - 354139

play videos - 354139

show pictures - 3541-

make handsfree calls

remote control ---39

use controllers and keyboards

manage contacts and more

---39

44 - 43 39

Entertainment Center

Connect the Entertainment Center

The Entertainment Center lets you show all your phone’s photos, music, and videos on that big screen in your living room. Sit back and get comfortable, as your phone becomes a controller for the show.

1 Connect your phone to a TV or computer with the

included HDMI cable, or an optional dock.

2 If needed, choose

When you’re done using disconnect your phone from the cable or dock.

Control the Entertainment Center

If you connect your phone to a TV or computer with an HDMI cable, you can use your phone as the controller. An optional HD Multimedia Dock gives you a remote control, and lets you connect your HDMI display and

Entertainment Center.

Entertainment Center, just

USB keyboard. Docks let you connect headphones or speakers, too.

Scroll & Select

TV or Monitor

Volume

Control

Playback &

Volume

Photos, Videos, & Music

Find and open files.

37Entertainment Center

Webtop application

Laptop dock display, TV, or Monitor

Mobile View

App Tr ay Full Desktop Browser

Optional Laptop Dock or HD Multimedia Dock

Connect the webtop application

The webtop application lets you browse, or use web apps, on a large screen in a full Firefox browser. Create and share documents, spreadsheets, and presentations, with online tools like Google Docs.

1 Connect your phone to a TV or computer with an

optional dock.

2 Choose

When you’re done using the webtop application, just disconnect your phone from the cable or dock.

Control the webtop application

If you connect your phone to a TV or computer with an optional HD Multimedia Dock, you can connect your HDMI display, plus your USB keyboard and mouse. An

38 Webtop application

webtop.

optional Laptop Dock includes a full display, keyboard, and touchpad.

To navigate the webtop application display:

• In the Phone window, you can open your phone

apps.

• At the bottom of the screen, you’ll see App

Shortcuts.

You can open multiple Firefox browsers .

• In the top right of the screen, you’ll see icons for

status and

For help in the webtop application, open

Help in the top right of the screen.

Settings.

Settings

Wireless

lose the wires

Quick start: Wireless

To connect a Bluetooth™ headset or car kit, touch Menu >

Bluetooth settings.

Bluetooth settings

Bluetooth

Device name

(your phone’s name)

Discoverable

Make device discoverable

Scan for devices

Bluetooth devices

(found device name)

Pair with this device

To use a Wi-Fi™ network for fast Internet access and to download data, touch Menu >

Wireless & networks > Wi-Fi settings.

If your Wi-Fi network has other DLNA™ Certified devices, you can use them to play or transfer the videos, pictures, and music stored on your phone: Touch >

Settings > Wireless & networks >

Turn on & scan.

Change your phone’s Bluetooth name.

Let Bluetooth devices find your phone.

Connect.

Settings >

DLNA.

Bluetooth™ handsfree devices

Note: This feature requires an optional accessory.

To connect with a new device, you need to pair with it. You only need to do this once for each device—to connect again, just turn on the device.

1 Make sure the device you are pairing with is in

discoverable mode.

Refer to the guide that came with the device for details.

2 Touch Menu >

Bluetooth settings.

Bluetooth to turn on and scan. If Bluetooth

3 Touch

power is already on, touch

4 Touch a device to connect.

5 If necessary, touch

0000) to connect to the device. When the

(like device is connected, the Bluetooth icon appears in the status bar.

Note: Using a mobile device or accessory while

driving may cause distraction and may be illegal. Always obey the laws and drive safely.

After you connect:

• To reconnect with a device, turn on the device or

touch the device name in the

Settings > Wireless & networks

Scan for devices.

OK, or enter the device passkey

Bluetooth devices list.

39Wireless

• To disconnect a device, turn off the device, or touch

the device name in the devices list and touch Menu >

Disconnect.

• To turn off Bluetooth power: Touch Menu >

Settings > Wireless & networks > Bluetooth.

Tip: Turn off Bluetooth power to

extend battery life or stop connections. To add a quick switch, touch and hold a blank spot on your home screen, then touch

widgets

> Bluetooth toggle.

Motorola

Note: Your phone's Bluetooth features and Bluetooth

Class 1 power levels are not allowed for outdoor operation in France. To avoid unlawful interference with radio signals, do not use the Bluetooth features in France unless you are indoors.

Wi-Fi™ networks

To connect a network in your range:

1 Touch Menu > Settings > Wireless & networks

Wi-Fi settings.

Wi-Fi to turn on and scan. If Wi-Fi is already

2 Touch

on, touch Menu > networks it finds within range.

Tip: To show your phone’s MAC address or other

Wi-Fi details, touch Menu >

40 Wireless

Scan. Your phone lists the

Advanced.

3 Touch a network to connect. If necessary, enter

pass codes from the network administrator and

Connect.

touch

When Wi-Fi power is on and your phone finds a network you’ve used, it automatically reconnects and shows in the status bar.

To turn off Wi-Fi power: Touch Menu >

Wireless & networks > Wi-Fi.

Settings >

Tip: Turn off Wi-Fi power to extend

battery life or stop connections. Turn it off and on to search for networks. To add a quick switch, touch and hold a blank spot on your home screen, then touch

Motorola widgets > WiFi toggle.

Note: Your phone's Wi-Fi features and power levels

are not allowed for outdoor operation in France. To avoid unlawful interference with radio signals, do not use the Wi-Fi features in France unless you are indoors.

Wi-Fi hotspot

Your can make your phone a Wi-Fi hotspot to provide portable, convenient internet access to other Wi-Fi enabled devices.

Note: Keep it safe. To protect your phone and hotspot

from unauthorized access, it is strongly recommended

that you set up hotspot Security (WPA2 is the most secure), including password.

To set up your phone as a Wi-Fi hotspot:

1 Turn off Wi-Fi power by touching Menu >

Settings > Wireless & networks > Wi-Fi.

2 Touch Menu >

Tethering & Mobile hotspot

Settings > Wireless & networks

3 Touch Wi-Fi hotspot to turn on the hotspot.

Wi-Fi hotspot settings to change hotspot

4 Touch

security and configuration:

•SSID—Enter a unique name for your hotspot.

•Security—Select the type of security you want:

Open or WPA2. For WPA2, enter a unique

password that others will need to access your Wi-Fi hotspot.

Note: WPA2 is recommended by IEEE.

• Channel—If you notice interference after your

hotspot has been active for a while, you can try different channels.

Save when the settings are complete.

5 Touch

When your Wi-Fi hotspot is active, other Wi-Fi enabled devices can connect by entering your hotspot’s selecting a

Wireless password.

Security type, and entering the correct

SSID,

DLNA™ media devices

You can use DLNA Certified computers, TVs, and other devices to play or transfer the videos, pictures, and music stored on your phone.

1 Make sure your phone is connected to a Wi-Fi™

network that has another DLNA Certified device.

2 Touch >

DLNA

3 Touch Play media, Copy media to server, Copy

media to phone

, or Share media.

Your phone searches for DLNA devices on your network. To search again, touch Menu >

Refresh.

4 Choose a device to connect.

For more about DLNA devices, visit www.dlna.org

Phone network

You should not need to change any network settings. Contact your service provider for help.

Touch Menu >

Mobile networks to show options for roaming

networks, network selection, operator selection, and access point names.

Settings > Wireless & networks >

41Wireless

Airplane mode

Use airplane mode to turn all your wireless connections off—useful when flying. Press Power

Airplane mode.

When you select airplane mode, all wireless services are disabled. You can then turn Wi-Fi and/or Bluetooth power back on, if permitted by your airline. Other wireless voice and data services (such as calls and text messages) remain off in airplane mode. Emergency calls to your region's emergency number can still made.

42 Memory card & file transfer

Memory card & file transfer

copy photos, music, and more to your phone

Memory card

You can add more space to store videos, music, and other files by installing a removable microSD memory card.

To open and manage memor y card files on your phone, touch >

Note: Do not remove your memory card while your

phone is using it or writing files on it.

Warning: When you format a memory card, all data on the card is deleted.

To remove or format your memory card, you need to unmount it. Touch Menu >

phone storage

your memory card, touch

> Unmount SD card. Then, to format

Format SD card.

View & transfer files

Your can use Motorola Phone Portal to connect your phone and computer with a cable or a Wi-Fi network.

Files

Settings > SD card &

When you connect your phone or type the Phone

Recent Photos

See All >>

English (US)

All

ComposeDelete All

Show All recent activity, or only your SMS (text messages) or Calls.

Open your recent activity (Home), Contacts, Photos,

Settings, File Manager, or Support.

Choose your language.

Open details about your phone’s

network signal, battery, or

memory.

http://###.###.#.###:###

Portal URL into your computer’s browser, you’ll see the Phone Portal home screen.

Note: Phone Portal works best with Internet Explorer

7 or newer, with Java script and cookies enabled.

Connect through a Wi-Fi network

Note: Most public Wi-Fi networks (like the ones at

coffee shops) don’t let devices connect to each other. In that case, you need a USB cable connection.

1 Touch > Phone Portal

2 If your phone is

connected to a Wi-Fi network, it

shows a URL. Use a computer on the network to enter the URL in a browser. It opens the Phone Portal home screen.

Tip: When your phone’s Wi-Fi is on, it automatically

reconnects to nearby networks it has used. To turn Wi-Fi on or off, touch Menu >

Settings >

Wireless & networks > Wi-Fi.

If your phone is not connected to a Wi-Fi network, it asks you to connect. Touch

the Wi-Fi settings screen, then turn on

OK to open

Wi-Fi and

touch a network to connect.

For network passwords, ask other network users or administrators. For your phone’s MAC address and Wi-Fi details, touch Menu >

Advanced.

43Memory card & file transfer

When your phone is connected ( appears in the status bar), touch Back to close the settings. Soon, Phone Portal shows a URL at the bottom of your screen. Using a computer on the same Wi-Fi network, just type the URL into the browser to open the Phone Portal home screen.

Connect through a USB cable

1 Turn on your phone and

computer, and connect them with a USB-to-micro USB cable.

If your computer needs to download drivers for your phone, visit www.motorola.com/support

. If a

camera connection window opens, just close it.

2 Once your computer has the correct Motorola

drivers, it opens the Phone Portal home page in your browser. A Motorola icon appears in your task bar, in the lower right of your computer screen.

If you have Motorola Media Link, it will launch instead of Phone Portal. To use Phone Portal, right-click in your task bar, select “when the phone connects, launch,” and choose MPP. Disconnect and reconnect your phone to launch Phone Portal.

44 Memory card & file transfer

If you want to connect your phone as a memory

card rather than using Phone Portal, flick down the

status bar at the top of your screen, touch

connection

, and choose USB Mass Storage.

USB

Too l s

Alarm Timer

7:00

every day

Alarm Name

8:30

Mon, Tue, Wed, Thu, Fri

Alarm Name

9:00

Alarm Name

Sun

Mon Tue Wed Thu Sat

282930 31 123

456 8910

11 12 13 15 16 17

18 19 20 22 23 24

25 26 27 29 30 31

123 567

Fri

December 2011

helping you stay in control

Alarm clock

Find it: > Alarm & Timer

To turn on an alarm, touch the check box.

To add an alarm, touch Menu

Add alarm, then enter alarm

> details.

To set a snooze period, in the

Alarm Clock list touch Menu

Settings > Snooze duration.

When an alarm sounds, drag

Dismiss to turn it off or touch the

screen to delay.

To cancel a snoozed alarm, drag down the status bar bar and touch the alarm name.

To use the timer, just open the alarm clock, touch

Timer at the top of the screen, and enter the

countdown time.

Calendar

Find it: > Calendar

Your calendar events can be viewed in different ways: Touch Menu >

Week. When you highlight an

Agenda, Day,

event in the day and week views, more details appear.

Add calendar events

From any calendar view, touch Menu >

event

. Enter event details and

Save.

touch

More > New

Manage calendar events

To edit an event, touch and hold it, then touch

event

. When you’re done, touch Save.

Edit

To delete an event, touch and hold it, then

Delete event.

touch

To go to today, touch Menu >

Today.

Calculator

Find it: > Calculator

Your calculator has two views: basic and advanced. To change your views, touch Menu >

Basic panel. To clear history, touch Menu >

Clear history.

Advanced panel

45Tools

Quickoffice

Use Quickoffice to view and edit files on your memory card.

Find it: >

Quickoffice

Touch a file or folder to open, or touch and hold a file for options. You can edit most text or spreadsheet files:

• Place your cursor by touching the text.

• Select text by double-touching it.

• Open a keyboard, choose formatting, save the file,

or choose other options by touching Menu .

To manage your folders and transfer files, see “Memory card & file transfer” on page 42.

Accessibility

See, hear, speak, feel, and use. Accessibility features are there for everyone, helping to make things easier.

Voice recognition

• Dialing and commands: Touch >

Commands

. To dial, say “Call” and then a contact name or phone number. You can also say a command from the list shown, like “

46 Tools

” or “Go To <Menu>.”

Voice

Send Message

• Search: Touch and hold Search to open voice

search, then say what you want to search for, like “Motorola accessories”.

• Text entry: Touch a text entry field to open the

touchscreen keyboard. Touch , then say what you want to type.

Tip: Speak naturally but clearly, like using a

speakerphone.

Voice readouts

Note: You might need to download text-to-speech

software (data charges may apply).

To turn on voice readouts, touch Menu >

Accessibility. Touch Accessibility to enable the

> settings, then touch

Voice Readouts.

Settings

• Menus and screens: When you touch an item in a

menu or screen, your phone speaks the name. To select an item, double-touch it.

Note: Touching a home screen widget or shortcut

will open it.

• Dialer & text entry: As you type, your phone

speaks each number or letter.

• Notification: When you flick the status bar down,

your phone speaks all of the notifications.

Tip: Navigate through your apps and menus to hear

how voice readouts work on your phone.

Caller ID

When you want to hear who’s calling:

• Read out loud: Have your caller announced—touch

Menu >

readout

Settings > Call settings > Caller ID

• Ringtones: Assign a unique ringtone to a

contact—touch then touch Menu >

Additional info.

under

Contacts, open a contact,

Edit. Ringtones are listed

Voice settings

Find it: >

Settings

Voice Commands >Menu

You can refine recognition of your voice (Adaptation) and set options like prompts and shortcuts.

Volume & vibrate

Find it: Menu >

Vibrate

Settings > Sound > Volume or

Tip: To set separate volumes for calls and notifications

(like new messages), choose

incoming call volume for notifications

Volume and uncheck Use

Zoom

• Magnification window: You can open a

magnification window that you can drag around the screen: Touch Menu >

Settings > Accessibility.

Touch Accessibility to enable the settings, then

Zoom Mode.

touch

• Pinch to zoom: You can pinch to zoom on maps,

web pages, and photos: To zoom in, touch the screen with two fingers and then drag them apart. To zoom out, drag your fingers together.

Display brightness

Find it: Menu >

Settings > Display > Brightness

Uncheck Automatic brightness to set your own level.

Touchscreen & keys

You can hear or feel when you touch the touchscreen. Touch Menu >

Settings > Sound:

• Touchscreen: To hear screen touches (click), select

Audible selection.

•Keys: To feel screen keyboard touches (vibrate),

Haptic feedback.

select

• Screen lock: To hear when you lock or unlock the

screen (click), select

Screen lock sounds.

Messages

Create, send, and receive text messages, IMs, email, and more, all in one place.

Find it: >

Messaging > Universal inbox

47Tools

To make text entry even easier, you can use features

Security

Lock screen with a pattern, PIN, password, or fingerprint

20 minutes

Clear stored fingerprints

Set up screen lock

Location & security settings

Fingerprints

Security lock timer

Set up SIM card lock

SIM card lock

Passwords

Show password as you type

Also clear all associated data & optimizations

Visible passwords

Set a SIM card lock and change SIM PIN.

Choose whether you enter a code when you turn on your screen.

Set an automatic lock delay that is different from your display timeout.

Clear your personal fingerprints and customizations.

like auto-complete, auto-correct, and auto-punctuate—touch Menu >

Language & keyboard. Of course if you don’t want to

Settings

type at all, then use your voice—touch on the touchscreen keyboard.

Apps

Want more? No problem. Android Market™ provides access to thousands of apps, and many provide useful accessibility features.

Find it: >

Market

Security

help keep your phone safe

Quick start: Security

Find it: Menu > Settings > Location & security

You have lots of ways to keep your phone safe.

48 Security

If you lose your phone, you can log into your MOTOBLUR account from a computer to locate your phone or clear the data on it: www.motorola.com/mymotoblur

Screen lock

To set your security level, touch Menu > Settings >

Location & security > Set up screen lock. Some Corporate Sync accounts might require you to add a Password lock to your phone, for security.

Pattern: draw a pattern to unlock.

•

PIN or Password: enter a code to unlock.

•

Fingerprints: Swipe your finger over the power

•

button to use it as a password.

Note: You can make emergency calls on a locked

phone (“Emergency calls” on page 16). A locked phone still rings, but you need to unlock it to

answer.

Personalize your lock screen

To change your timeout, touch Menu >

Display > Screen timeout. If you don't touch the

screen or press any keys for this amount of time, the screen locks automatically. To unlock, see “Lock & unlock” on page 49.

Lock & unlock

To lock the screen/phone:

• Press Power .

• Let the screen time out (don’t press anything).

• Switch the power off.

Settings >

To unlock the screen/phone: Power to wake up the screen, then drag the unlock slider or enter your lock pattern or passcode.

Forgot your pattern or passcode?

In the passcode unlock screen, touch Menu >

Forgot passcode? to unlock your phone with your

MOTOBLUR email address and MOTOBLUR password.

In the pattern unlock screen, after you enter an incorrect pattern five times, you can touch

passcode?

to unlock your phone with your MOTOBLUR

Forgot

email address and MOTOBLUR password.

Lock your SIM

Enable SIM PIN

To lock your SIM (the next time you power up the phone you will need to enter your SIM PIN), touch Menu >

Set up SIM card lock > Lock SIM card. Enter your SIM

PIN code.

Caution: If you enter an incorrect PIN code three

times, your phone locks your SIM card and asks for your PIN unlock code, contact your service provider.

Settings > Location & security >

49Security

Change SIM PIN

To change your SIM PIN, touch Menu >

Location & security > Set up SIM card lock > Change SIM PIN

Settings >

PUK code

To unlock your SIM PIN, you need to enter your PIN unlock code (PUK code) when prompted.

Note: Your PUK code is provided by your service

provider.

Reset

To reset your phone to factory settings and erase all the data on your phone, touch Menu >

Privacy > Factory Data Reset > Reset Phone.

Warning: All downloaded apps and user data on your

phone will be deleted. Data on your memory card will not be deleted.

Settings >

Lost, stolen, broken, cleared

Don't you just hate it when your whole life is on your phone and it all gets lost? Lose it, break it, reset it, or even worse—stolen! Relax, MOTOBLUR can help find your phone, clear it (if you need to) and best of all, restore all your stuff.

Note: You cannot track or clear your phone if it is

turned off or broken.

50 Security

Track your phone

To locate your phone:

1 Log into your MOTOBLUR account:

www.motorola.com/mymotoblur

2 On the phone profile page, follow the link to locate

your phone.

MOTOBLUR locates your phone using GPS and AGPS (see the important legal and safety information packaged with your phone).

Remote clear

To wipe your phone data:

1 Log into your MOTOBLUR account:

www.motorola.com/mymotoblur

2 On the phone profile page, follow the link to delete

data.

Warning: All downloaded apps and user data on

your phone will be deleted. Data on your memory card will not be deleted.

Restore your phone

If you lose your phone, don’t worry. Your contacts are backed up on MOTOBLUR.

To restore your contacts and account settings after a reset, remote clear, or on a new MOTOBLUR phone, just log into your existing MOTOBLUR account. Please

note that text messages, downloaded applications, call logs, and items stored on your phone will not be restored. To restore your Android Market™ apps, see “Manage & restore apps” on page 11.

Troubleshooting

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding to touches and key presses, try a quick reset. Remove the back cover and battery (“Assemble & charge” on page 3), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, we’re here to help.

Go to www.motorola.com/support select from a number of customer care options. You can also contact the Motorola Customer Support Center at 0800 666 8676 (Argentina), (800-201-442 (Chile), 01-800-700-1504 (Colombia), 01 800 021 0000 (México), 0800-100-4289 (Venezuela), or 0-800-52-470 (Perú).

, where you can

51Troubleshooting

Safety, Regulatory & Legal

032375o

Battery Use & Safety

Important: Handle and store batteries properly to avoid injury or damage.

Most battery issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery.

• Don’t let the mobile device or battery come in contact with water.*

can get into the mobile device’s circuits, leading to corr osion. If the mobile device and/or battery get wet, have them checked by your service provider or contact Motorola, even if they appear to be working properly.*

• Don’t allow the battery to touch metal objects.

jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot.

• Don’t place your mobile device or battery near a heat source.*

temperatures can cause the battery to swell, leak, or malfunction.

• Don’t dry a wet or damp battery with an appliance or heat source

a hair dryer or microwave oven.

DOs

• Do avoid leaving your mobile device in your car in high temperatures.*

• Do avoid dropping the battery or mobile device.*

especially on a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your mobile device or battery has been damaged from dropping or high temperatures.

* Note:

Always make sure that the battery compartment is closed and secure to

avoid direct exposure of the battery to any of these conditions.

Important: Use Motorola Original products for quality assurance and safeguards.

To aid consumers in identifying authentic Motorola batteries from

non-original or counterfeit batteries (that may not have adequate safety protection),

If metal objects, such as

Dropping these items,

High

, such as

Water

Motorola provides holograms on its batteries. Consumers should confirm that any battery they purchase has a “Motorola Original” hologram.

Motorola recommends you always use Motorola-branded batteries and chargers.

Motorola mobile devices are designed to work with Motorola batteries.

If you see a message on your display such as

Unable to Charge

•

Remove the battery and inspect it to confirm that it has a “Motorola Original” hologram;

•

If there is no hologram, the battery is not a Motorola battery;

•

If there is a hologram, replace the battery and try charging it again;

•

If the message remains, contact a Motorola authorized service center.

Important:

Motorola’s warranty does not cover damage to the mobile device caused

by non-Motorola batteries and/or chargers.

Warning:

Use of a non-Motorola battery or charger may present a risk of fire,

explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling:

only important for safety, it benefits the environment. Consumers may recycle their used batteries in many retail or service provider locations. Additional information on proper disposal and recycling may be found on the Web:

•

www.motorola.com/recycling

•

www.rbrc.org/call2recycle/

Disposal:

Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries.

Warning:

Never dispose of batteries in a fire because they may explode.

Battery Charging

Notes for charging your product’s battery:

•

During charging, keep your battery and charger near room temperature for efficient battery charging.

•

New batteries are not fully charged.

•

New batteries or batteries stored for a long time may take more time to charge.

, take the following steps:

Invalid Battery

(in English only)

Proper battery disposal is not

•

Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging.

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile de vice or accessory may be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products.

While driving, NEVER:

•

Type or read texts.

•

Enter or review written data.

•

Surf the web.

•

Input navigation information.

•

Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

•

Keep your eyes on the road.

•

Use a handsfree device if available or required by law in your area.

•

Enter destination information into a navigation device

•

Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.

•

Obey all local laws and regulations for the use of mobile device s and accessories in the vehicle.

•

End your call or other task if you cannot concentrate on driving. Remember to follow the “Smart Practices While Driving” in this guide and at www.motorola.com/callsmart

(in English only).

before

driving.

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when playing videos or games. These may occur even if a person has never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of su ch occurrences, please consult with your physician before playing videos or games or enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. It is always a good idea to hold the screen away from your eyes, leave the lights on in the room, take a 15-minute break every hour, and stop use if you are tired.

Caution About High Volume Usage

Warning:

Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volu me sound level, the less time is required before your hearing could be affected. To protect your hearing:

•

Limit the amount of time you use headsets or headphones at high volume.

•

Avoid turning up the volume to block out noisy surroundings.

•

Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech , you should stop listening to the device through your headset or headphones and have your hearing checked. For more information about hearing, see our Web site at direct.motorola.com/hellomoto/nss/AcousticSafety.asp only).

(in English

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you continue to have discomfort during or after such use, stop use and see a physician. [Nov0109]

Small Children

Keep your mobile device and its accessories away from small children.

These products are not toys and may be hazardous to small children. For example:

•

A choking hazard may exist for small, detachable parts.

•

Improper use could result in loud sounds, possibly causing hearing injury.

•

Improperly handled batteries could overheat and cause a burn.

Glass Parts

032374o

032376o

032375o

Some parts of your mobile device may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center.

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Atmospheres

Areas with potentially explosive atmospheres are often, but not always, posted and can include fueling areas, such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. When you are in such an area, turn off your mobile device, and do not remove, install, or charge batteries. In such areas, sparks can occur and cause an explosion or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.

Symbol Definition

Do not dispose of your battery or mobile device with your household waste. See “Recycling” for more information.

For indoor use only.

Listening at full volume to music or voice through a headset may damage your hearing.

Radio Frequency (RF) Energy

Exposure to RF Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits. Your mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

RF Energy Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions:

•

When placing or receiving a phone call, hold your mobile device just like you

would a landline phone.

•

If you wear the mobile device on your body, always place the mobile device in a

Motorola-supplied or approved clip, holder, holster, case, or body harness. If you

do not use a body-worn accessory supplied or approved by Motorola, keep the

mobile device and its antenna at least 2.5 centimeters (1 inch) from your body

when transmitting.

•

Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our Web site at:

www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances, your mobile device may cause interference with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do so. In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight.

Implantable Medical Devices

If you have an implantable medical device, such as a pacemaker or defibrillator, consult your physician before using this mobile device. Persons with implantable medical devices should observe the follo wing precautions :

•

ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the implantable medical device when the mobile device is turned ON.

•

DO NOT carry the mobile device in the breast pocket.

•

Use the ear opposite the implantable medical device to minimize the potential for interference.

•

Turn OFF the mobile device immediately if you have any reason to suspect that

interference is taking place. Read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your mobile device with your implantable medical device, consult your healthcare provider.

Specific Absorption Rate (IEEE)

SAR (IEEE)

Your model wireless phone meets the governmental requirements for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed and manufactured to not exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed for the safety of all pe rsons, regardless of age or health, and to account for any variations in measurements. The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one gram of tissue. Tests for SAR are conducted using procedures accepted by the FCC and by Industry Canada with the mobile device transmitting at its highest certified power level in all tested frequencies. Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile device while operating can be below the maximum value. This is because the mobile device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a mobile device is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) submitted to the FCC and available for review by Industry Canada. The highest SAR value for this mobile device when tested for use at the ear is 1. body

, as described in this guide, is

n its data transmission mode (body-worn use) is

easurements can differ, depending upon available accessories and regulatory

1.45 W/kg. The SAR value for this mobile device

13 W/kg, and when worn on the

not listed. Body-worn

requirements. The SAR information includes the Motorola testing protocol,

[Only Indoor Use Allowed In France for Bluetooth and/or Wi-Fi]

0168

assessment procedure, and measurement uncertainty range for this product. While there may be differences between the SAR levels of various mobile devices and at various positions, they meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web site: http://www.cwta.ca

Specific Absorption Rate (ICNIRP)

SAR (ICNIRP)

Your model wireless phone meets international guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed to not exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health, and to account for any variations in measurements. The guidelines use a unit of measurement known as the Specific Absorption Rate (SAR). The ICNIRP SAR limit for mobile devices used by the general public is 2 watts per kilogram (W/kg), and the highest SAR value for this mobile device when tested at the ear is 0.84 W/kg. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this guide. In this case, the highest tested SAR value is 0.98 W/kg. The tests are carried out in accordance with international guid elines for testing. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement un certainty range for this product. As SAR is measured utilizing the mobile device’s highest transmitting power, the actual SAR of this mobile device while operating is typically below that indicated

above. This is due to automatic changes to the power level of the mobile device to ensure it only uses the minimum level required to reach the network. While there may be differences between the SAR levels of various mobile devices and at various positions, they meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences i n the SAR value for later produc ts; in all cases, products are designed to be within the guidelines. The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile de vices. They note that if you want to reduce your exposure, then you can do so by limiting the length of calls or using a handsfree device to keep the mobile device away from the head and body. Additional Information can be found on the Web sites of the World Health Organization (

http://www.who.int/emf

(

http://www.motorola.com/rfhealth

) or Motorola Mobility, Inc.

Information from the World Health Organization

WHO Information

“A large number of studies have been performed over the last two decades to assess whether mobile phones pose a potential health risk. To date, no adverse health effects have been established for mobile phone use.” Source: WHO Fact Sheet 193 Further information:

http://www.who.int/emf

European Union Directives Conformance Statement

EU Conformance

Hereby, Motorola declares that this product is in compliance with:

•

The essential requirements and other relevant provisions of Directive 1999/5/EC

•

All other relevant EU Directives

0168

The above gives an example of a typical Product Approval Number. You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at Product Approval Number from your product’s label in the “Search” bar on the Web site.

FCC Notice to Users

FCC Notice

The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two c onditions: (1) This devic e may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

www.motorola.com/rtte

Product Approval Number

. To find your DoC, enter the

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

GPS & AGPS

Your mobile device can use Global Positioning System (GPS) signals for location-based applications. GPS uses satellites controlled by the U.S. government that are subject to changes implemented in accordance with the Department of Defense policy and the Federal Radio Navigation Plan. These changes may affect the performance of location technology on your mobile device. Your mobile device can also use Assisted Global Positioning System (AGPS), which obtains information from the cellular network to improve GPS performance. AGPS uses your wireless service provider's network and therefore airtime, data charges, and/or additional charges may apply in accordance with your service plan. Contact your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the approximate location of a mobile device. Mobile devices which are connected to a wireless network tran smit location-based information. Devices enabled with GPS or AGPS technology also transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS technology in your mobile device to tell the emergency responders your approximate location. AGPS has limitations and

might not work in your area

. Therefore:

•

Always tell the emergency responder your location to the best of your ability; and

•

Remain on the phone for as long as the emergency responder instructs you.

Performance Tips

•

Go outside and away from underground locations, covered vehicles, structures

with metal or concrete roofs, tall buildings, and foliage. Indoor performance

might improve if you move closer to windows, but some window sun shielding

films can block satellite signals.

•

Move away from radios, entertainment equipment, and other electronic devices.

Navigation

When using navigation features, note that mapping information, directions and other navigational data may contain inaccurate or incomplete data. In some countries, complete information may not be available. Therefore, you should visually confirm that the navigational instructions are consistent with what you see. All drivers should p ay attention to road conditions , closures, traffic, and all other factors that may impact driving. Always obey posted road signs.

Smart Practices While Driving

Driving Safety

Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas—for example, handsfree use only may be required. Go to

www.motorola.com/callsmart Your mobile device lets you communicate by voice and data—almost anywhere, anytime, wherever wireless service is available and safe conditions allow. When driving a car, driving is your first responsibility. If you choose to use your mobile device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed

dial, redial and voice dial.

call without taking your attention off the road.

• When available, use a handsfree device.

of convenience to your mobile device with one of the many Motorola Original

handsfree accessories available today.

(in English only) for more information.

If available, these features help you to place your

If possible, add an additional layer

• Position your mobile device within easy reach.

mobile device without removing your eyes from the road. If you receive an incoming call at an inconvenient time, if possible, let your voicemail answer it for you.

• Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions.

sleet, snow, ice, and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving.

“to do” list or going through your address book takes attention away from your primary responsibility—driving safely.

• Dial sensibly and assess the traffic; if possible, place calls when your car is not moving or before pulling into traffic.

moving, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be distracting.

Make people you are talking with aware you are driving and

suspend conversations that can divert your attention away from the road.

• Use your mobile device to call for help.

number in the case of fire, traffic accident, or medical emergencies (wherever wireless phone service is available).

• Use your mobile device to help others in emergencies.

accident, crime in progress, or other serious emergency where lives are in danger, call 911 or other local emergency number (wherever wireless phone service is available), as you would want others to do for you.

• Call roadside assistance or a special non-emergency wireless assistance number when necessary.

posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number (wherever wireless phone service is available).

Privacy & Data Security

Privacy & Data Securit y

Motorola understands that privacy and data security are important to everyone. Because some features of your mobile device may affect your privacy or data

Be able to access your

Rain,

Jotting down a

If you must make a call while

Dial 911 or other local emergency

If you see an auto

If you see a broken-down vehicle

security, please follow these recommendations to enhance protection of your information:

• Monitor access

others may have unmonitored access. Lock your device’s keypad where this feature is available.

• Keep software up to date

releases a patch or software fix for your mobile device that updates the device’s security, install it as soon as possible.

• Secure Personal Information

information in various locations including your SIM card, memory card, and phone memory. Be sure to remove or clear all personal information before you recycle, return, or give away your device. You can also backup your personal data to transfer to a new device.

Note:

go to

• Online accounts

(such as MOTOBLUR). Go to your account for information on how to manage the account, and how to use security features such as remote wipe and device location (where available).

• Applications

Applications can have access to private information such as call data, location details and network resources.

• Location-based information

information that can be used to determine the approximate location of a mobile device. Mobile phones which are connected to a wireless network transmit location-based information. Devices enabled with GPS or AGPS technology also transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola, and other third parties providing services.

• Other information your device may transmit

testing and other diagnostic (including location-based) information, and other

—Keep your mobile device with you and do not leave it where

—If Motorola or a software/application vendor

—Your mobile device can store personal

For information on how to backup or wipe data from your mobile device,

www.motorola.com/support

—Some mobile devices provide a Motorola online account

—Install third party applications from trusted sources only.

—Location-based information includes

—Your device may also transmit

non-personal information to Motorola or other third-party servers. This information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at privacy@motorola.com

Use & Care

To care for your Motorola mobile device, please observe the following:

liquids

Don’t expose your mobile device to water, rain, extreme humidity, sweat, or other liquids. If it does get wet, don’t try to accelerate drying with the use of an oven or dryer, as this may damage the mobile device.

extreme heat or cold

Don’t store or use your mobile device in temperatures below -10°C (14°F) or above 60°C (140°F). Don’t recharge your mobile device in temperatures below 0°C (32°F) or above 45°C (113°F)

microwaves

Don’t try to dry your mobile device in a microwave oven.

dust and dirt

Don’t expose your mobile device to dust, dirt, sand, food, or other inappropriate materials.

cleaning solutions

To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions.

, or contact your service provider.

shock and vibration

Don’t drop your mobile device.

protection

To help protect your mobile device, always make sure that the battery compartment and any connector covers are closed and secure.

Recycling

Mobile Devices & Accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at:

Packaging & Product Guides

Product packaging and pr oduct guides should only be disp osed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by

www.motorola.com/recycling

implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of the Copyright Laws of the United States and other countries. This device is intended solely for copying non-copyrighted materials, materials in which you own the copyright, or materials which you are authorized or legally permitted to copy. If you are uncertain about your right to copy any material, please contact your legal advisor.

Open Source Software Information

OSS Information

For instructions on how to obtain a copy of any source code being made publicly available by Motorola related to software used in this Motorola mobile device, you may send your request in writing to the address below. Please make sure that the request includes the model number and the software version number. MOTOROLA MOBILITY, INC. OSS Management 600 North US Hwy 45 Libertyville, IL 60048 USA The Motorola website regarding Motorola's use of open source. Motorola has created the portal for interaction with the software community-at-large. To view additional information regarding licenses, acknowledgments and required copyright notices for open source packages used in this Motorola mobile device, please press Menu Key > >

Legal information >Open source licenses

Motorola device may include self-contained applications that present supplemental notices for open source packages used in those applications.

opensource.motorola.com

Settings >About phone

also contains information

website to serve as a

. In addition, this

Latin America Warranty, Except Mexico

Warranty (Except Mexico)

Latin America Warranty Motorola Mobility Inc. Subscribers/Cellular Division

Through its own service centers and/or its authorized service centers, Motorola provides a 1-year warranty that covers the cellular phone, all its parts and labor against any defect and operation as long as the “Product” has been operated and handled under normal conditions. The term of 1 year begins when the “Product” is purchased.

Conditions

1. For warranty service, return the “Product” and this warranty to the place of purchase or to any Motorola authorized service center. If additional information is needed, please contact any of our service centers:

Motorola Comercial, S.A. de C.V. Bosques Alisos No. 125 Bosques de las Lomas CP 05120 México, D.F. Telephone: 257-6700

Motorola Industrial Ltda. Av. Chedid Jafet 222-Bloco D-1º Andar Vila Olímpia 04551-065 São Paulo, Brazil Telephone: 0800-773 1244

Motorola Mobility Colombia S.A.S. Carrera 7 7152 Torre B Piso 13 Oficina 1301 Torre del Banco Ganadero Santa Fe de Bogotá, Colombia Telephone: 01800 700 1504

If the cell ular phone has been installed in a vehicle, take the vehicle to the service center to analyze the equipment, or the installation on the vehicle. This warranty does not cover the installation of the cellular phone.

2. Motorola Mobility Inc., through its own service centers and/or their authorized service centers, will repair or replace the cellular phone at no charge. This warranty covers shipping expenses, only if it is needed to make the repair. Motorola Mobility Inc. through its own service centers and/or their authorized service centers, at its own discretion, will repair, replace, or reimburse the purchase price of the defective cellular phone only during the warranty period, as long as the “Product,” in accordance with the conditions established in this warranty, is returned to a Motorola service center or to a Motorola authorized service center. All the accessories, batteries, parts, small boards or equipment of the cellular telephone that by virtue of being defective are replaced in fulfillment of this warranty, will automatically become property of Motorola Mobility, Inc.

3. To receive warranty service, present your cellular phone or accessory to any Motorola service center or Motorola authorized service center, along with your receipt of purchase or comparable substitute that indicates the date of purchase, serial number of the transceiver, and/or electronic serial number.

4. The repair time will not be greater than 30 days, starting from the day the equipment was received at the service center.

5. To purchase parts, spare parts, accessories and service not covered by this warranty, contact one of the service centers listed in section 1, or any authorized service center in your locality.

6. This warranty is not valid in the following cases:

•

Defects or damages derived from abnormal use.

•

Defects or damages derived from accident or negligence.

•

Defects or damages derived from tests, unsuitable operation, maintenance, installation and adjustments, or derived from any alteration or modification of any type.

•

Damage caused to antennas, unless they are consequences of defects in material or workmanship.

•

When the cellular phone has been disassembled and/or repaired so that its operation has been affected or that it can not be tested to verify any claim that grants this warranty.

•

Any cellular phone with a serial number that has been removed, altered, or obliterated.

•

Defects or damages caused by food spills or liquids.

•

When the cables of the control unit have been stretched or the module tongue-piece has broken.

•

When the surface of the “Product” and its pieces have been scratched or damaged due to normal use.

•

Leather cases.

•

Rented cellular phones.

•

When the “Product” has been altered or repaired by non-Motorola authorized service centers.

•

When the “Product” has not been operated in agreement with the instructions that accompany the “Product.”

7. The batteries (Nickel-Cadmium) are warranted only if their capacity is reduced by 80% below its predicted capacity. This warranty is nu ll for all types of batter ies if:

•

The batteries are charged by a charger that has not been approved by Motorola.

•

Any of the battery seals are broken or tampered with.

•

The batteries were used or installed in non-Motorola equipment.

“Product”:

Brand: Motorola Model:

Number of Mechanical Series:

Number of Electronic Series:

Name of Distributor:

Street and Number:

Tow n:

Municipality:

Postal Code, City, State, or Country:

Telephone:

Date of Delivery or Installation:

Limited Warranty (Mexico)

Warra nt y ( Me xi co )

For Motorola personal communication products and accessories purchased in Mexico

I. Concepts Covered by this Warranty

This warranty covers all the parts, components, accessories and labor of the Motorola “Product” from defects in materials and workmanship under normal consumer usage. The Motorola “Products” that are protected under this warranty can be: (a) cellular telephones, (b) radar sets, (c) two-way radios, and (d) wireless telephones. Motorola Comercial, S.A. de C.V., at its option, will at no charge repair, replace, or refund the purchase price of any “Product” that does not conform to this warranty. Motorola may use functionally equivalent reconditioned/refurbished/pre-owned or new products, accessories, or parts. Updates in software are not covered.

II. Length of Warranty Coverage

The length of coverage is one (1) year from the date the new “Product” was purchased from an authorized distributor.

III. Place where consumers can make the warranty effective, obtain parts, components, and accessories

Motorola Comercial, S.A. de C.V. Bosques de Alisos 125 Col. Bosques de las Lomas Del. Cuajimalpa Te:(55) 5257-6700

IV. Procedure to Make the Warranty Effective

For warranty service, return the “Product” (with its components and accessories, such as batteries, antennas, and charger) to the place of purchase, to the address

above, or to an authorized service center, or call 01 800 021 0000. To request a refund, you must present this warranty, sealed by the place of purchase, along with the “Product.”

V. Warranty Limitations or Exceptions

The warranty is not valid when:

•

The “Product” has been used in conditions different from the normal ones.

•

The “Product” has not been operated as described in the operating instructions.)

•

The “Product” has been altered or repaired by someone other than Motorola, or its authorized service centers.

If repairs are not covered by this warranty, Motorol a, at the request of the pur chaser, will provide information regarding availability, prices, and other conditions for the repair of the “Product.” To obtain information on products that need repairs not covered by this warranty, please call 01 800 021 0000.

Product Model: Date of Purchase:

Seal of the authorized or established distributor where the “Product” was purchased:

Note:

In other countries, consult the laws and local regulations under the warranty

and its local Motorola office.

Motorola Mobility Argentina S.A. Suipacha 1111 - Piso 18 C1008AAW Buenos Aires ARGENTINA Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

Note:

The images in this guide are examples only. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Gmail, YouTube, Picasa, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobility, Inc. All rights reserved.

Caution:

Changes or modifica tions made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Product ID: MOTOROLA Manual Number: 68014798001-A

ATR IX

(MB860)

Motorola P56LS2 Users manual

Specifications and Main Features

Frequently Asked Questions

User Manual
