Congratulations
MOTOROLA i786
The MOTOROLA i786 brings the convenience of
push-to-talk calls together with a sleek slider design in
an affordable package.
•Private Calls. Stay in touch with your family, friends,
and colleagues with the simple touch of a button.
• My Phone, My Way. It’s your phone—make it that
way. Customize your home screen with personal
pictures, and change wallpapers and ringtones.
Caution: Before assembling, charging or using your
phone for the first time, please read the important
legal and safety information packaged with your
phone.
More information
On your computer—Go to
www.motorola.com/support/.
1Congratulations
Your phone
the important keys & connectors
Navigation Key
Left Soft Key K
Perform functions
in lower left display.
Menu Key /
Open menu options.
Talk Key `
Make &
answer calls.
OK Key r
Press to select.
2 Your phone
K Right Soft Key
Perform functions
in lower right display.
e Camera Key
Take photos.
@ End/Power Key
Turn phone on &
off, end calls,
exit menus.
Speaker Key )( Smart Key
Volume Keys
PTT Key
Micro USB
Connector
Note: Your phone might look a little different.
Contents
Menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Push-to-Talk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SDG calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MOTOtalk™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Talkgroups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 51
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 58
Menu map
main menu
Recent Calls
Contacts
• [New Contact]
• [New SDG List]
• [New Msg Group]
Messages
• [Create Message]
• Voice Mail
• Inbox
•Drafts
• Outbox
•Fax Mail
• Net alert
• Sent Items
Web
•Net
Multimedia
• Media Center
•My Images
• My Music
• My Videos
• Camera
• Camcorder
• Ring Tones
• VoiceRecord
Push To Talk
• Call Alert
• PT Manager
•Quick PTT
• PTT Options
• MOTOtalk
Games and Apps
•Buy More
• Alarm Clock Plus
•My Images
• My Music
• My Videos
• Java System
• Memory Card
Tools
•My Info
• Profiles
• Alarm Clock Plus
• Bluetooth
•GPS
• Datebook
• Call Timers
• Memo
Settings
•(see Settings
menu)
This is the standard main menu layout.
Your phone’s menu may be
different.
3Contents
settings menu
Display/Info
• Wallpaper
•Text Size
• Theme
• Home Icons
• Backlight
•Clock
• Menu View
• Large Dialing
• Language
Phone Calls
• Set Line
• Any Key Ans
• Auto Redial
• Call Waiting
• Auto Ans
• Flip Activation
• Busy Text
Response
• Minute Beep
• Call Duration
•TTY
• Hearing Aid
• Notifications
• DTMF Dialing
• Call Forward
• Prepend
4 Contents
•Personalize
• Reorder Menu
• Shortcuts
• Carousel
•Up Key
•Down Key
•Left Softkey
• Right Softkey
•Power Up
• Volume
• Ringers/Alerts
•Speaker
• Earpiece
•Multimedia
•Keypad
• Voice Playback
•Speak Text
• Speak Caller
•Voice
•Multimedia Volume
• Memory Card
• Remove Card
• Store Media
• Format Card
•Help
settings menu (con’t.)
Security
• Phone Lock
• Keypad Lock
•SIM PIN
• GPS PIN
• Change Passwords
Advance d
• Alert Timeout
• Headset/Spkr
• Connectivity
• Reset Defaults
• Return to Home
• Transmitters
• Phone Only
• Connections
• Bluetooth
•USB
Let’s go
3H
let’s get you up and running
Assemble & charge
1 Remove cover 2 SIM in
3 MicroSD in 4 Battery in
5 Cover on 6 Charge up
Caution: Please read “Battery Use & Safety” on
page 58.
Battery indicators
indicator
d Blue, three bars, 100% to 90% capacity.
e Green, two bars, 65% capacity.
f Yellow, one bar, 10% capacity.
g Red, flashing bar, 5% capacity.
h Charging.

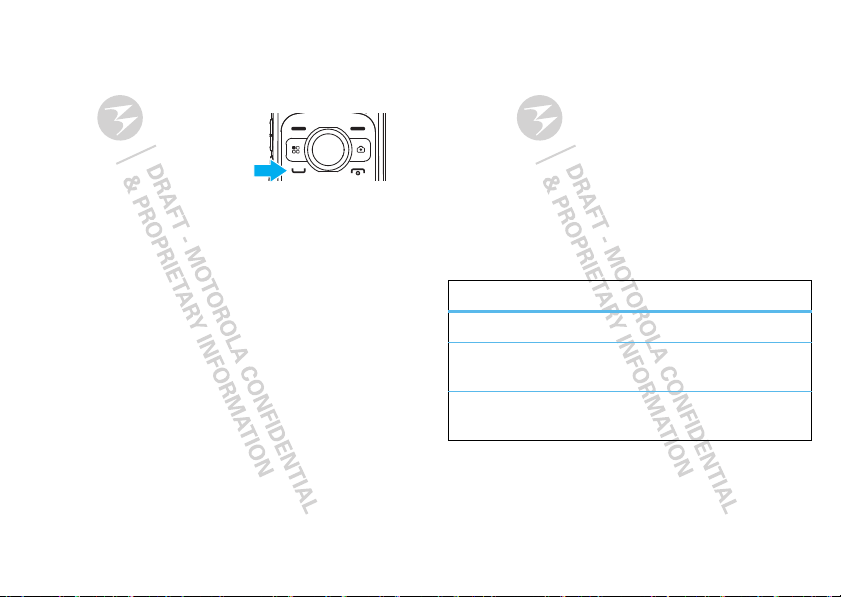

Turn it on & off
To turn on your phone, press and
hold End/Power @ for a few
seconds or until the display turns
on.
Note: If you press End/Power @
for more than four seconds, the phone will turn on in
Transmitters Off mode. See “Transmitters” on page 9.
To turn off your phone, press and hold End/Power @
for a few seconds.
5Let’s go
Enable security
You will need to enable security the first time you
power on your phone or within 10 days of first
activation of your phone.
1 Press Ok.
2 You are prompted to enable security. Press Yes and
follow the on-screen instructions.
3 Press End/Power @ to return to the home screen.
6 Basics
Basics
About this guide
This guide shows how to locate a menu feature as
follows:
Find it: Menu / > T Settings > Phone Calls
This means that, from the home screen:
1 Press the Menu key / to open the main menu.
2 Press the Navigation Key to scroll to the T Settings
menu option and press the OK key r to select it.
3 Press the Navigation Keys to scroll to Phone Calls,
and press the OK key r to select it.
Home screen
Left
Soft Key
Left
Soft Key
Label
Status
Indicators
Right
Soft Key
Right
Soft Key
Label
Your phone shows the home screen when you are not
on a call or using the menu.
Note: Your home screen might look different from the
one shown, depending on your service provider.
Soft key labels in the home screen show the current
soft key functions.
Indicators at the top of your phone’s display provide
important status information, such as incoming calls,
missed messages, and other conditions. Here are the
indicators you may see:
indicator
z Signal Strength—Shows the strength of
the network connection.
indicator
% ' Active Phone Line—Shows if phone line
one or two is active.
! Speaker On—Sounds associated with
PTT calls, SDG calls, and Talkgroup calls
are set to come through the speaker.
" Speaker Off—Sounds associated with
PTT calls, SDG calls, and Talkgroup calls
are set to come through the earpiece.
, Ringer Off—Phone is set not to ring.
/ Vibrate All—Phone is set to vibrate for all
incoming calls, messages, and
notifications.
~ No Service—Phone is in area with no
service coverage.
2 New Message—Phone has a new text
message.
7 Packet Da ta—Phone is ready to transfer
packet data.
7Basics
indicator
+
-
d Battery Level—Shows battery charge
c Bluetooth On—Bluetooth power is On.
3 New Voicemail Message —Phone has a
level. The more bars, the greater the
charge.
new voicemail message.
Carousel menu
Get quick access to your favorite applications, right on
your home screen.
Open applications
1 Press the Navigation Key left or right until you
highlight the desired application.
2 Press to r launch the application.
Note: Availability of the Carousel menu feature is
dependent on your service provider.
Choose applications
You can customize the Carousel with your most often
used applications.
1 Press Menu / > T Settings > Personalize >
Carousel.
8 Basics
2 Highlight the position on the Carousel menu you
would like the application to occupy and press r.
3 Highlight an application and press r to select it.
Auto hide
To set the Carousel menu to hide when not in use,
press Menu / > T Settings > Personalize >
Carousel > Auto Hide.
Adjust volume
Press the volume keys up or
down to:
• change the earpiece volume
during calls
• change the ringer volume from
the home screen
• turn off a call alert before answering the call
Tip: You can quickly set your ringer to Vibrate All by
holding down the volume key while on the home
screen.
Navigation key
Press the Navigation Key up,
down, left, or right to scroll to
items in the display. When you
highlight the desired item,
press r to select it.
Transmitters
Consult airline staff about the use of the Transmitters
Off feature during a flight. Turn off your phone
whenever instructed to do so by airline staff.
Transmitters Off turns off your phone’s calling and
Bluetooth features in situations where wireless phone
use is prohibited. You can use the phone’s other
non-calling features when the transmitters are turned
off.
Find it: Menu / > T Settings > Advanced >
Transmitters > Off
Features for the hearing impaired
Use your phone with a hearing aid
Note: Your phone has a hearing aid rating of M_.
For more information, see “Hearing Aid Compatibility
with Mobile Phones” on page 67.
For best results, use the optimization and phone
setting. They generally apply as well for users with
cochlear implants.
Optimize your phone position and orientation
While on a phone call slide your phone up and down,
then left and right until best microphone coupling is
obtained. You also may need to adjust your hearing aid
(HA) volume setting.
If your HA has a telecoil, activate its switch, then also
rotate the phone as illustrated to align the telecoils.
Note: Some automatically switched hearing aids may
need an auxiliary switching magnet.
If you are unsure whether your HA is telecoil equipped
or needs an auxiliary magnet, please refer to your HA
9Basics
user guide or contact a hearing aid professional or
supplier.
Approximate telecoil location is within
6-13 mm of this location
Off - Shut off
M - Microphone
T - Telecoil
Approximate telecoil location is just
above battery
Choose your hearing aid setting
Find it: Menu / > T Settings > Phone Calls >
Hearing Aid
The Microphone option optimizes your phone for
microphone coupling. The Telecoil option meets the
US federal requirements for telecoil coupling. The
factory default setting for this feature is Off.
10 Basics
TTY
features
turn on TTY feature
Press Menu / > T Settings > Phone Calls > TTY
> Use TTY > On.
choose TTY mode
Press Menu / > T Settings > Phone Calls > TTY
> Type > TTY, VCO or HCO.
change the TTY baud rate
Press Menu / > T Settings > Phone Calls > TTY
> Baud > 45.45 or 50.00.
change TTY mode during a call
While in a TTY call, press Menu / > In Call Setup
> TTY > Type > TTY, VCO or HCO.
Calls
it’s good to talk
Make & answer calls
Enter a number, then press
Tal k `.
To answer a call, press Talk `.
To end a call, press
End/Power @.
Any key answer
To answer phone calls by pressing any key on the
keypad, press Menu / > T Settings > Phone Calls
> Any Key Ans > On.
Call waiting
To accept the second call and put the active call on
hold, press Yes.
To accept the second call and end the active call, press
Tal k `.
Three-way calls
To start a conference call, call the first number. After
they answer, press Menu / > 3 Way. Enter the
second number. When the next number answers,
press Menu / > Join.
Note: You can’t make any other phone calls during a
three-way call, even if one party hangs up.
Redial
To redial your last outgoing call, press and hold Talk `
or, if your last call was a PTT call, press the PTT Button.
Unanswered calls
If you receive a phone call and press End/Power @
before it goes to voice mail, you can send an automatic
text message to the other caller.
Find it: Menu / > T Settings > Phone Calls > Busy
Text Response
options
Off Turn feature off.
Soft Key Press Send Msg to send text
message.
Automatic Send message automatically
without being prompted.
11Calls
Call forward
Call forwarding sends calls to the phone numbers you
specify. You can forward all calls to one number, or
forward missed calls to different numbers depending
on the reason you missed the call. You can forward
phone lines one and two independently.
Find it: Menu / > T Settings > Call Forward
To forward all calls select All Calls, then select To and
enter the phone number you want all you call
forwarded to.
You can also specify a forwarding number for each
type of missed call by selecting Detailed and choosing
from the following options:
options
If Busy When your phone is on a call or
If No Answer When you don’t answer on the
If
Unreachable
12 Calls
transferring data.
first four rings.
When your phone is out of
coverage or powered off.
Speed dial
Each phone number stored in Contacts is assigned a
specific speed dial number, which you can use to call
that number.
1 From the home screen, use the keypad to enter the
speed dial number assigned to the phone number
you want to call.
2 Press #.
3 Press Talk `.
Turbo dial
The first nine entries in your contacts are set for turbo
dial. They can be called by pressing and holding the
speed dial number (1 through 9).
Voice names
You can place calls by speaking commands to your
phone if you have previously assigned a voice name to
your contacts.
Assign voice names to contacts
1 Press Menu / > F Contacts > [New Contact].
2 Assign a name, phone number and select
[Options].
3 Select Voice Name and follow the prompt to record
the voice name.
4 Press Back and then Save.
Place a call using voice name
Press and hold the Speaker key ) until you are
prompted to say the voice name. The phone will
automatically place the call.
Handsfree
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
During a call:
• To use the speakerphone, press Menu / >
Speaker or press Speaker ).
• To connect a Bluetooth™ device, press Menu / >
Use Bluetooth.
Recent calls
Find it: Menu / > Recent Calls
Tip: When you’re in the home screen, you can press
Tal k ` to go to Recent Calls.
The Recent Calls list contains information associated
with calls you have made and received, and call alerts
you have received.
Tip: When a Recent Calls entry is associated with a
Contact containing a mobile phone number, you can
compose a message to the caller by pressing Create.
You can also edit the Contact by highlighting it and
pressing Menu / > Edit.
The Recent Calls list also contains Push to Send items
associated with PTT calls you have made or received,
such as:
• contact information
• My Info
• short text messages
• pictures sent or received
• Datebook events
The Recent Calls list displays up to 20 of the most
recent calls and call alerts.
1 Press Menu / > Recent Calls.
2 Scroll through the list.
3 To view more details, press r.
Store an item to contacts from recent calls
Phone calls, Private calls, My Info, Contacts or
Location entries received from other phones can be
stored to Contacts from the Recent Calls list.
1 Scroll to the item you want to store.
13Calls
2 Press Save, and select [New Contact] to store the
information as a new entry, or select an existing
entry and update the information.
3 Press Done to save your changes.
Your phone number
Find it: Menu / > Tools > My Info
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers (such as 911 or 112) that
you can call under any circumstances, even when your
phone is locked. Emergency numbers vary by country.
Your pre-programmed emergency numbers may not
work in all locations, and sometimes an emergency
call cannot be placed due to network, environmental,
or interference issues.
1 Enter the emergency number.
2 Press Talk ` to call the emergency number.
Note: Emergency calls cannot be placed while the
keypad is locked, or if your phone is displaying a No
Service message on the screen. To unlock the keypad,
press Menu / > *.
Note: Your mobile device can use AGPS satellite
signals to help emergency ser vices find you (see “GPS
& AGPS” on page 64).
14 Calls
International calls
If your phone service includes international dialing,
press and hold 0 to insert your local international
access code (indicated by +). Then, press the keypad
keys to dial the countr y code and phone number.
Cool down
In very limited circumstances, such as where your
phone has been exposed to extreme heat, “Cool
Down” message screens will appear. To avoid possible
damage to your battery and phone, you should follow
these instructions until the phone is within its
recommended temperature range. When your phone
is in “Cool Down” mode, only emergency calls can be
made.
Push-to-Talk
one or more, talk to them all
Private calls
Private calls are push-to-talk calls between two people.
Make and answer private calls
To make a private call:
• Enter the recipient’s PTT
number.
• Press Menu / >
F Contacts, and select a
contact that has a PTT number.
To talk, press and hold the PTT Button. To listen,
release the PTT Button.
To answer a private call, press the PTT Button after the
caller has stopped talking.
To end a private call, press End/Power @ or do
nothing. The call will end after a few seconds.
Set push-to-talk speaker
You can listen to push-to-talk calls through your
phone’s speaker or earpiece. Press Speaker ) to turn
the speaker on or off.
One touch PTT
You can customize the PTT Button for quick access to
push-to-talk functions from the home screen.
Find it: Menu / > Push To Talk > PT Manager >
Configure > One Touch PTT
options
Off Tur n o f f One Touch PTT.
Quick PTT Go to Quick PTT. See “Quick
PTT” on page 16.
Last Call Call the most recent Private ID or
SDG list on the Recent Calls list.
PTT Contacts Launch the PTT Contacts list
from the home screen by
pressing the PTT Button.
Assigned No. Call a Private ID you assigned.
Enter the number using your
keypad, or press Search and
select from Contacts, Recent
Calls, or Memo.
PT Manager Go to the PT Manager. See “PT
manager” on page 16.
15Push-to-Talk
Loading...
