Motorola MOTOTRBO User Manual

Professional Digital Two-Way Radio System

™

MOTOTRBO

ACCELERATE PERFORMANCE.

Introducing MOTOTRBO™
Professional Digital
Two-Way Radio System.
The future of two-way radio.

The next-generation professional two-way radio communications solution is here,
with more performance, productivity and value—thanks to digital technology that
delivers increased capacity and spectrum effi ciency, integrated data communica­tions and enhanced voice communications. MOTOTRBO is ideal for professional
organizations that need a customizable, business-critical communication solution
using licensed spectrum.

2

Unique MOTOTRBO System Benefi ts for Enhanced Productivity

MOTOTRBO offers a private, standards-based, cost-effective solution that can be tailored to meet your
unique coverage and feature needs. This versatile portfolio provides a complete system of portable radios,
mobile radios, repeaters, accessories and services—a complete solution. MOTOTRBO:

• Uses Time-Division Multiple-Access (TDMA)

technology to provide twice the calling capacity
(as compared to analog or FDMA radios) for the
price of one license. A second call doesn’t require
a second repeater, saving you equipment costs.

• Integrates voice and data to increase your

operational effi ciency and support integrated
applications including MOTOTRBO Text Messaging
Services and MOTOTRBO Location Services (GPS
location tracking).

• Provides clearer voice communications

throughout the coverage area as compared to
analog radios rejecting static and noise.

• Enables additional functionality including

dispatch data, and enhanced call signaling.

• Provides easy migration from analog to digital

with the ability to operate in both analog and
digital modes.

• Meets demanding specifications—IP57 for

submersibility in water (portable models), U.S.
Military 810 C, D, E and F, and Motorola standards
for durability and reliability.

• Is intrinsically safe (portable models) and can be

used in locations where fl ammable gas, vapors or
combustible dust may be present.

• Utilizes Motorola’s state-of-the-art IMPRES
technology in batteries, chargers and audio
accessories, providing longer talk time and clearer
audio delivery.

• Is fully backed by a two-year Standard Warranty
plus one-year Repair Service Advantage (US only)/
Extended Warranty (Canada only).

• Is fully backed by at least a one-year Workmanship
Warranty for IMPRES chargers and an 18-month
Capacity Warranty for IMPRES batteries when used
exclusively with IMPRES chargers.

™

Contents

MOTOTRBO Applications

Page 4 – 5

MOTOTRBO System

Page 6 – 10

New Audio Accessory Connector

Page 11

MOTOTRBO Accessories

Page 12 – 13

MOTOTRBO Specifi cations

Page 14 – 18

IMPRES Smart Energy System

Page 19

3

MOTOTRBO™ Integrated Data
Enables Advanced Applications

MOTOTRBO is changing the way businesses communicate.
You can gain the productivity of powerful data applications
such as MOTOTRBO Location Services and Text Messaging
Services now. And with additional applications coming from
Motorola’s Application Developer Program, you’ll be able to
leverage ongoing new capabilities—and get the most from
your communications investment.

MOTOTRBO Location Services

Location Services provides the ability to track people and assets, such as
vehicles. This advanced approach takes advantage of the GPS modem and
receiver integrated within both the portable and mobile radios, combined with
the MOTOTRBO Location Services software application.

GPS-equipped portable and mobile radios can be confi gured to transmit their
geographical coordinates at pre-programmed intervals, on demand and in case
of an emergency. MOTOTRBO Location Services software applications provide
dispatchers with a real-time display of fl eet activity on a customized, high-resolu­tion, color-coded map. With MOTOTRBO Location Services, you can enjoy the
benefi ts of location tracking with no monthly fees or cumbersome external GPS
devices to install and maintain.

MOTOTRBO Application Developer Program

Third-party developers play an important role in supporting the market growth of the MOTOTRBO platform
and in creating customized applications that will add value to you and your organization. Developers will
extend the capabilities of MOTOTRBO and provide niche solutions that will satisfy a broad range of your
needs. To encourage the development of a broad portfolio of end-user focused solutions and continuing

4

MOTOTRBO Text Messaging Services

The MOTOTRBO Text Messaging Services allows communication between
radios and dispatch systems, between radios and email-addressable devices,
and to remote PC clients attached to radios. This application allows you to utilize
another form of communication for your business—whether its the need for
discreet communication or the ability to send quick text messages. Thus
enabling you to focus on the business at hand. Furthermore, the dispatcher PC
can act as a gateway to email, enabling messaging between email-addressable
devices and radios.

innovation, Motorola will provide support to its Application Developer Program, giving accredited developers
access to the MOTOTRBO protocol and Application Programming Interface (API) documentation as well as
online support. For more information, visit the MOTODEV website at http://developer.motorola.com.

5

MOTOTRBO™ System Components and Benefi ts

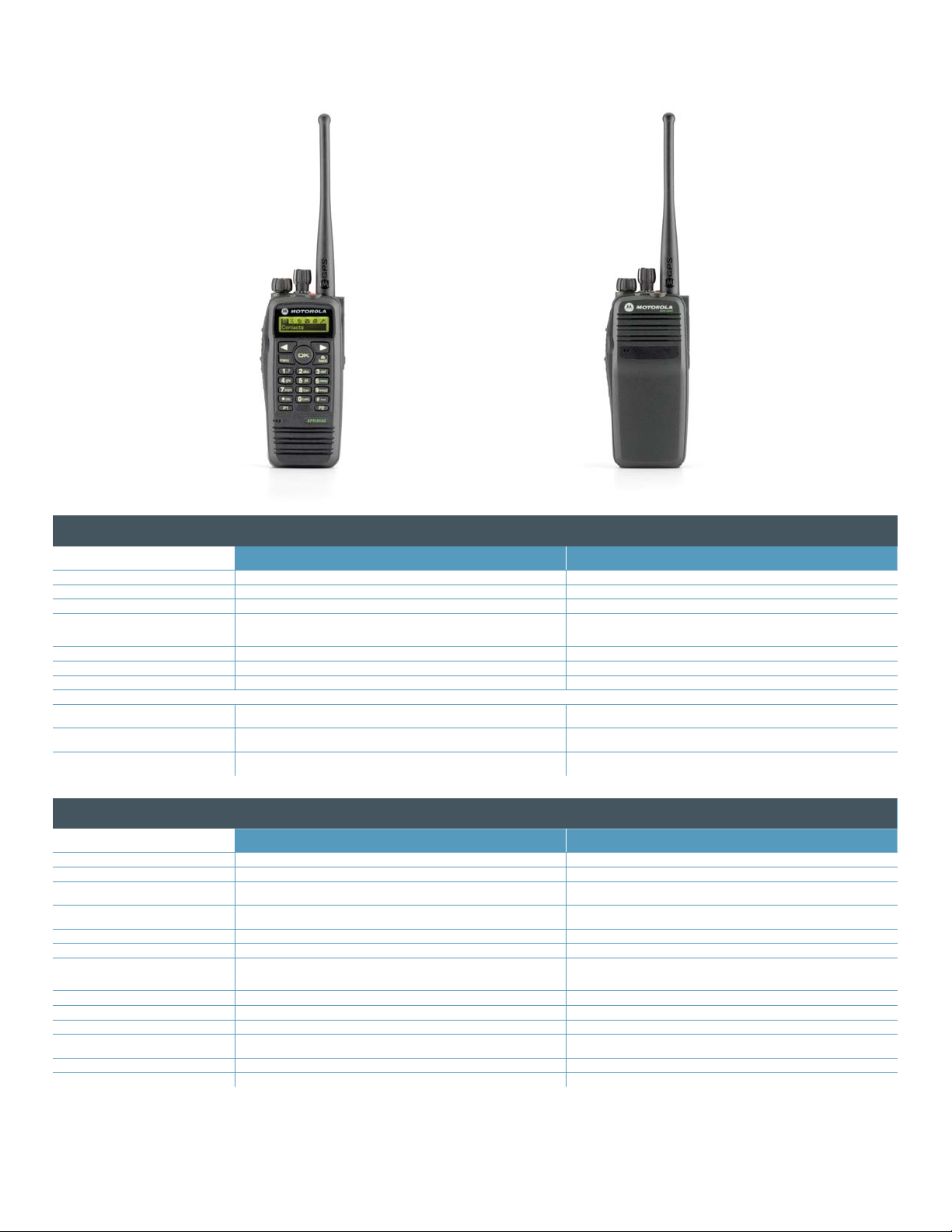

XPR™ 6500/6550 Display Portable Radios

1 Flexible, menu-driven interface with user-friendly icons or two lines of text

for ease of reading text messages and navigating through the menus.

2 Tri-color LED indicator for clear, visible feedback of calling, scanning and

monitoring features.

3 Emergency button alerts supervisor or dispatcher in an emergency

situation. With XPR 6550, location coordinates can be sent to the
dispatcher using the MOTOTRBO Location Services application.

10

4 New accessory connector meets IP57 submersibility specifi cations and

11

incorporates RF, USB and IMPRES

™

audio capability.

5 XPR 6550 includes integrated GPS modem.

2

3

6 Large, easy-to-use navigation buttons allow easy access to intuitive

menu-driven interfaces.

1

9

4

5

6

7 Meets IP57 specifi cations; submersible in 1 meter of fresh water

up to 30 minutes.

8 Powerful, front projecting speaker that transmits digital TDMA audio or

12.5/25 kHz analog audio.

9 Three side and two front programmable buttons for easy access to

favorite features. New features such as one-touch calling and quick text
messaging are made even easier through programmable button access.

10 Large, textured push-to-talk button provides good tactile response

and easy access, even when wearing gloves.

7

11 160 channels.

8

Display Portable Radio Standard Package

• Display Portable Radio

• Antenna—Standard whip included with XPR 6500;
Standard whip with GPS included with XPR 6550

• IMPRES

• IMPRES

• 2.5" Belt Clip

• User Guide CD Kit (English and French Canadian)

• Two-year Standard Warranty plus one-year Repair Service

6

™

Li-ion 1500 mAh Submersible Battery

™

Single Unit Charger

Advantage (US only) / Extended Warranty (Canada only)

Additional Features

• Enhanced call management
Encode/decode: call alert emergency, remote monitor, push-to-talk ID,
radio check, private call, all call, radio disable

• Dual-mode analog and/or digital scan—facilitates a smooth migration from
analog to digital

• Short free-form and quick text messaging

• Contacts list accommodates up to 256 contacts

XPR™ 6300/6350* Non-Display Portable Radios

1 Tri-color LED indicator for clear, visible feedback of calling, scanning and

monitoring features.

2 Emergency button to alert supervisor or dispatcher in an emergency

situation. With XPR 6350, location coordinates can be sent to the
dispatcher using the MOTOTRBO Location Services application.

3 New accessory connector meets IP57 submersibility specifi cations and

incorporates RF, USB and IMPRES

™

audio capability.

4 XPR 6350 includes integrated GPS modem.

9

5 Meets IP57 specifi cations; submersible in 1 meter of fresh water up to

30 minutes.

1

2

6 Powerful, front projecting speaker that transmits digital TDMA audio or

12.5/25 kHz analog audio.

7 Three side programmable buttons for easy access to favorite features.

3

New features such as one-touch calling and quick text messaging are
made even easier through programmable button access.

8

4

8 Large, textured push-to-talk button provides good tactile response and

easy access, even when wearing gloves.

7

5

9 32 channels.

*XPR 6350 coming soon.

6

Non-Display Portable Radio Standard Package

• Non-Display Portable Radio

• Antenna—Standard whip included with XPR 6300;
Standard whip with GPS included with XPR 6350

• IMPRES

• IMPRES

• 2.5" Belt Clip

• User Guide CD Kit (English and French Canadian)

• Two-year Standard Warranty plus one-year Repair Service

™

Li-ion 1500 mAh Submersible Battery

™

Single Unit Charger

Advantage (US only) / Extended Warranty (Canada only)

Additional Features

• Enhanced call management
Encode/Decode: private call, call alert
Encode only: emergency, push-to-talk ID
Decode only: radio check, remote monitor, radio disable, all call

• Dual-mode analog and/or digital scan—facilitates a smooth migration from
analog to digital

• Send quick text messages via programmable buttons

7

MOTOTRBO™ System Components and Benefi ts

4

10

XPR™ 4500/4550 Display Mobile Radios

1 Accessory connector supports USB and IMPRES™ audio capability.

2 Multi-colored LED indicators for clear, visible feedback of calling,

scanning and monitoring features.

3 Large, easy-to-use volume knob.

4 XPR 4550 includes integrated GPS modem.

5 160 channels.

6 Powerful, front-projecting speaker that transmits 12.5 kHz digital

TDMA audio or 12.5/25 kHz analog audio.

8

3

2

1

Display Mobile Radio Standard Package

• Radio with Display Control Head

• Mounting Trunnion

• 10-Foot Power Cable

• Compact Microphone

• Replacement Button Kit: monitor, scan, backlight, emergency,
talkaround, text message, contacts

• User and Installation Guide CD Kit
(English and French Canadian)

• Two-year Standard Warranty plus one-year Repair Service

Advantage (US only)/Extended Warranty (Canada only)

9

7

5

6

7 Large, easy-to-use navigation buttons allow easy access to intuitive,

menu-driven interfaces.

8 Flexible, menu-driven interface with user-friendly icons or two lines

of text for ease of reading text messages and navigating through
the menus.

9 Four programmable/replaceable buttons for easy access to favorite

features. New features such as one-touch calling and text messaging
are made even easier through programmable button access.

10 Compact and ergonomically friendly microphone.

8

Additional Features

• Enhanced call management
Encode/decode: call alert, emergency,

remote monitor, push-to-talk ID, radio check,
private call, all call, radio disable

• With XPR 4550, in an emergency, location
coordinates can be sent to the dispatcher using
the MOTOTRBO Location Services application

• Dual-mode analog and/or digital scan—facili-

tates a smooth migration from analog to digital

• Short free-form (requires keypad microphone)

and quick text messaging

• Contacts list accommodates up to 256 contacts

4

9

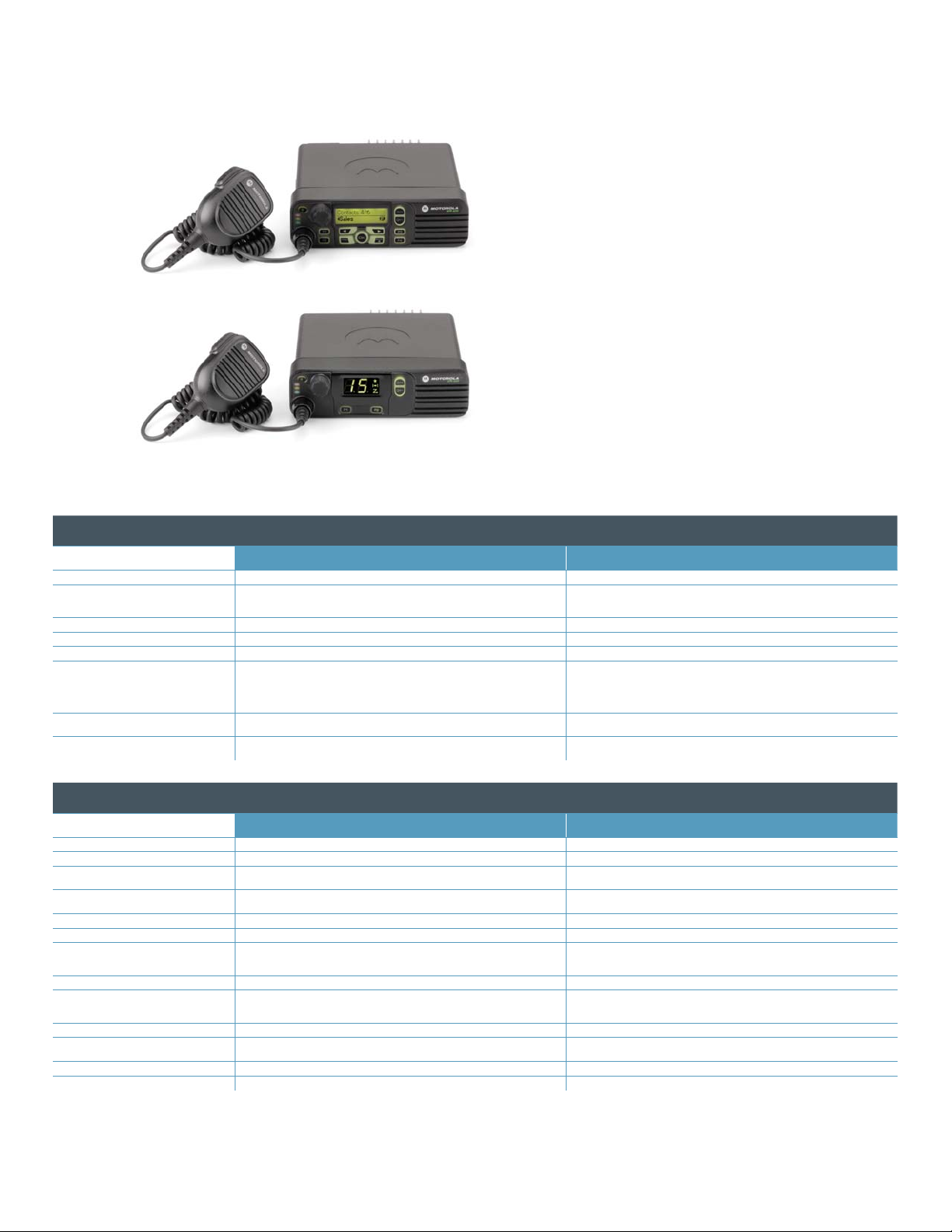

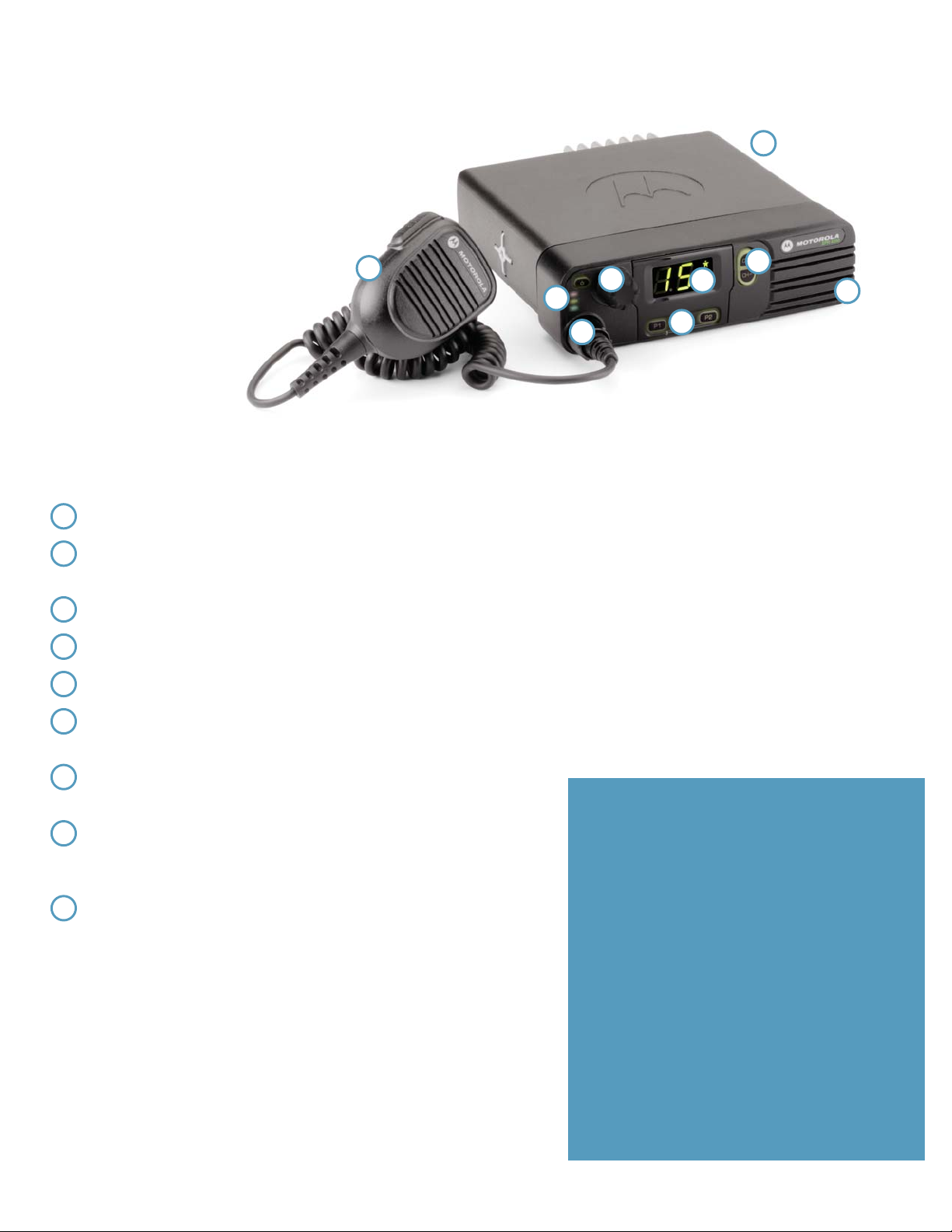

XPR™ 4300/4350* Numeric Display Mobile Radios

1 Accessory connector supports USB and IMPRES™ audio capability.

2 Multi-colored LED indicators for clear, visible feedback of calling,

scanning and monitoring features.

3 Large, easy-to-use volume knob.

4 XPR 4350 includes integrated GPS modem.

5 Large, easy-to-use channel navigation buttons.

6 Powerful, front-projecting speaker that transmits digital TDMA audio

or 12.5/25 kHz analog audio.

7 32 channels; channel number is easy to read on large, clear numeric

two-digit display.

8 Two programmable/replaceable buttons for easy access to favorite

features. New features such as one-touch calling are made even easier
through programmable button access.

9 Compact and ergonomically friendly microphone.

5

3

2

1

Numeric Display Mobile Radio Standard Package

• Radio with Numeric Display Control Head

• Mounting Trunnion

• 10-Foot Power Cable

• Compact Microphone

• Replacement Button Kit: monitor, scan

• User and Installation Guide CD Kit
(English and French Canadian)

• Two-year Standard Warranty plus one-year Repair Service

Advantage (US only)/Extended Warranty (Canada only)

7

8

Additional Features

• Enhanced call management
Encode/Decode: private call, call alert
Encode only: emergency, push-to-talk ID
Decode only: radio check, remote monitor,

radio disable, all call

6

*XPR 4350 coming soon.

• With XPR 4350, in an emergency, location
coordinates can be sent to the dispatcher using
the MOTOTRBO Location Services application

• Dual-mode analog and/or digital scan—

facilitates a smooth migration from analog
to digital

• Send quick text messages via

programmable buttons

9

MOTOTRBO™ System Components and Benefi ts

1

8

7

6

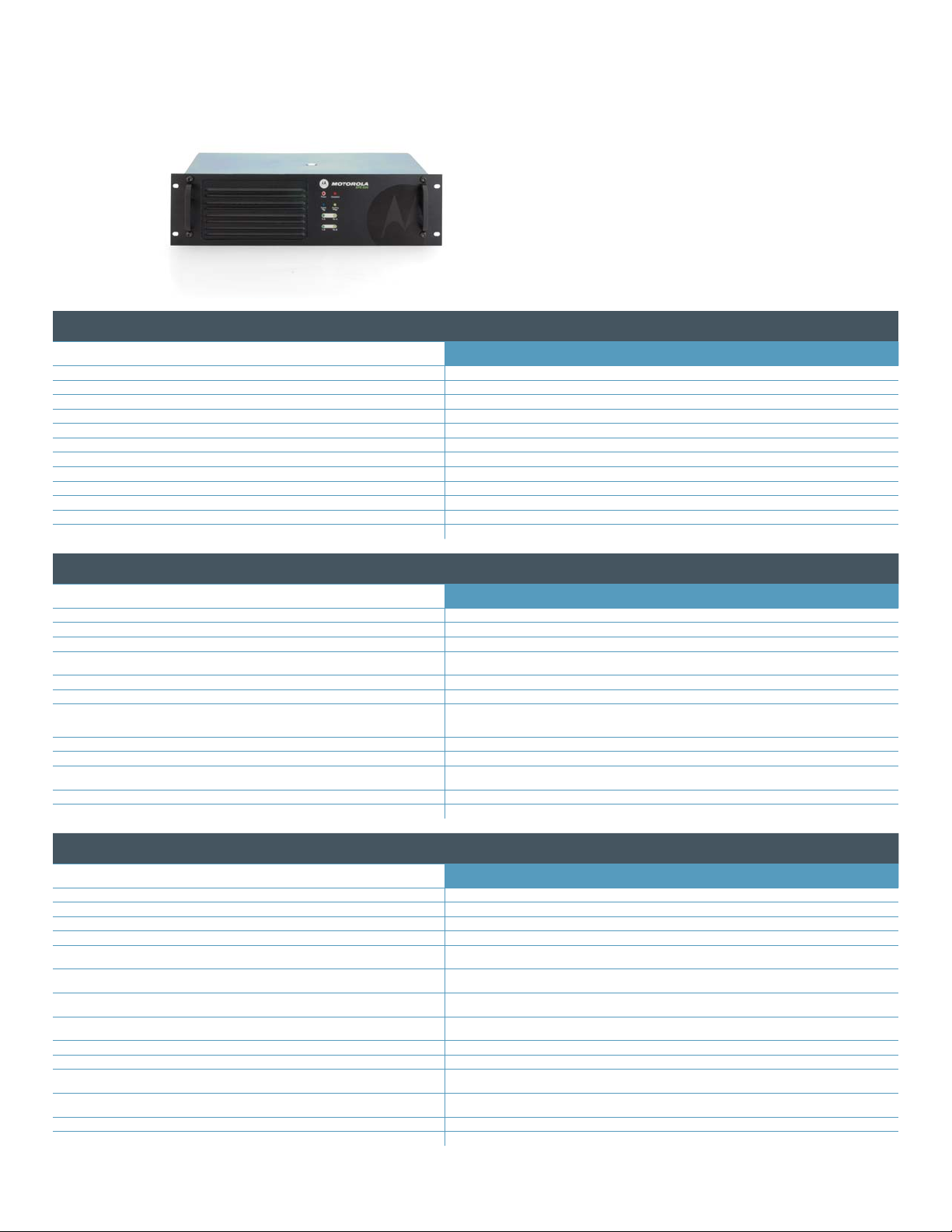

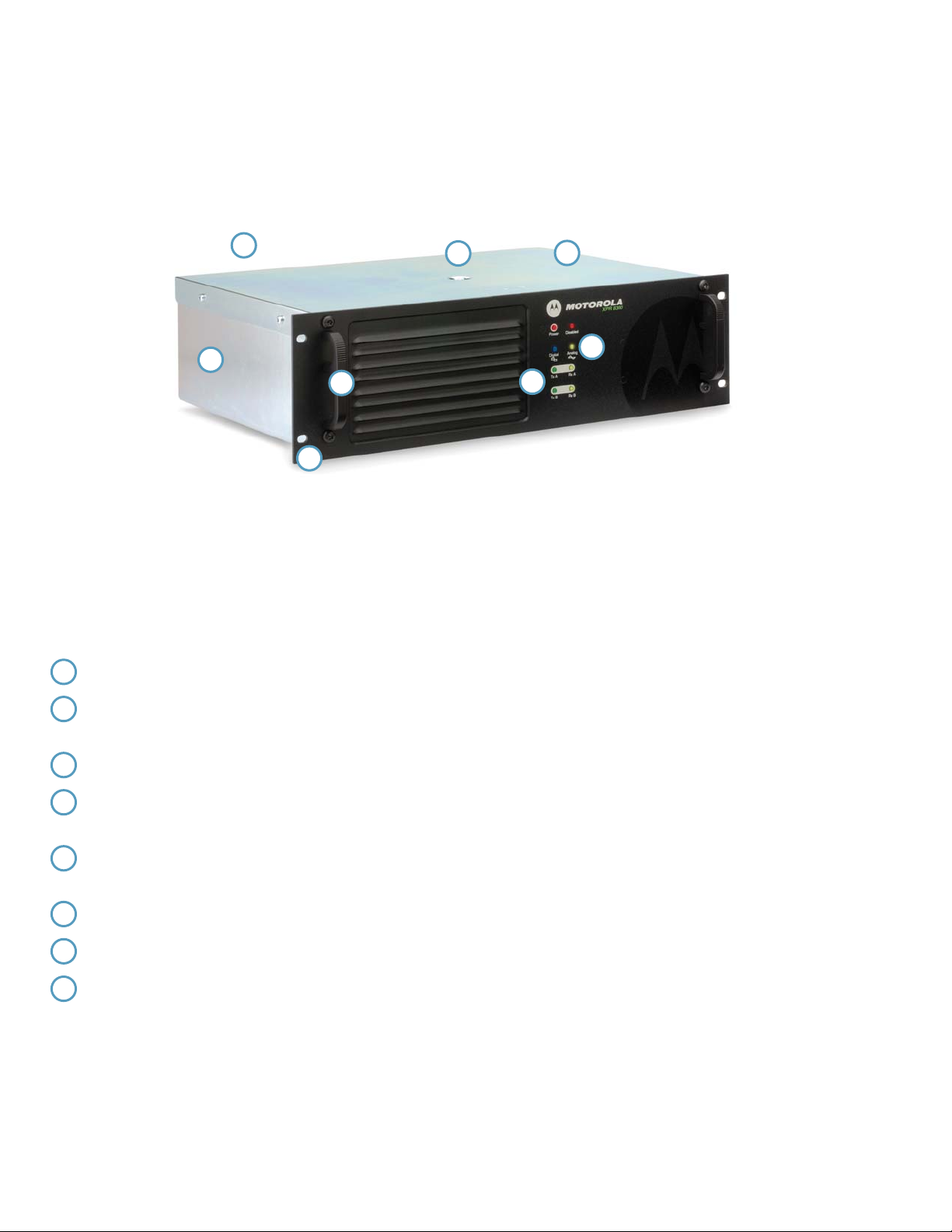

XPR™ 8300 Repeater

1 100% continuous full duty cycle at 40 W.

2 Supports two simultaneous voice or data paths in digital

TDMA mode.

3 Integrated power supply.

2

3

4

5

Repeater Standard Package

• Repeater

• 120V AC Power Cord

• Installation Guide

• Two-year Standard Warranty

4 Operates in analog or digital mode—bright, clear, colored LEDs

indicate mode.

5 LEDs clearly indicate transmit and receive modes in both

channel slots.

6 Rack- or wall-mountable—compatible with desktop housing as well.

7 Sturdy handles make installation and handling easier.

8 Automated battery back-up (battery sold separately).

10

New Audio Accessory Connector
Enables Enhanced Performance
and Capabilities

Motorola digital technology enables breakthrough radio performance and
features. And our new audio connector means MOTOTRBO
can offer you enhanced performance and capabilities—now and
into the future.

™

accessories

• IMPRES™ Smart Audio System—Motorola’s state-of-the-art IMPRES

technology allows communication between the radio and the audio accessory.
The result is optimal accessory performance assuring the highest quality
communications.

Optimal Audio Performance: When an IMPRES accessory is attached,

accessory identifi cation is sent to the radio enabling the radio to optimize
its output for each type of audio accessory. This results in more consistent
output across all audio accessory types.

Customization: Accessory programmable buttons can be programmed

to any feature available in the radio CPS, rather than being linked to radio
programmable button programming. This allows accessory programmable
buttons to have independent programmable features. The radio can be
customized to fi t your specifi c applications and needs.

• Submersibility—The new connector design meets IP57 submersibility

requirements. This allows for use with submersible accessories, such as the
submersible remote speaker microphone, which provides optimal message
delivery even in wet conditions.

• Future Applications—The new portable connector design incorporates

the antenna signal within the audio connector, which will allow for easy use
of accessories that require an antenna signal, such as public safety speaker
microphones. The built in USB capability will allow the use of USB- capable
accessories. The new audio accessory interface is the Motorola standard audio
accessory interface for mid- to high-tier two -way radios. Future accessory
development will be based upon this new connector interface. You will be
able to take advantage of future releases of new audio accessories.

11

MOTOTRBO™ Accessories

Portable Radio

Part Number Description Benefi ts

Audio

PMMN4025 IMPRES Remote Speaker Microphone These advanced Remote Speaker Microphones utilize advanced windporting technology that can help reduce background noise in windy

PMMN4024 Remote Speaker Microphone

PMMN4040 Remote Speaker Microphone - Submersible (IP57)

PMMN4041 IMPRES Public Safety Microphone - 30" cable Police and other emergency services professionals will appreciate the enhanced coverage and exceptional reliability of these public safety

PMMN4042 IMPRES Public Safety Microphone - 24" cable

PMMN4043 IMPRES Public Safety Microphone - 18" cable

RMN5058 Lightweight Headset Lightweight headsets offer comfortable, extended wear use while providing high clarity and discreet communication in moderate

RLN5878 Receive Only Surveillance Kit, Black These compact units offer tremendous audio dynamics and leave hands free and face unobscured, so the user retains the ability for direct

RLN5879 Receive Only Surveillance Kit, Beige

RLN5880 IMPRES 2 Wire Surveillance Kit, Black

RLN5881 IMPRES 2 Wire Surveillance Kit, Beige

RLN5882 IMPRES 2 Wire Surveillance Kit with Translucent Tube, Black

RLN5883 IMPRES 2 Wire Surveillance Kit with Translucent Tube, Beige

RLN4760 Small Custom Earpiece, Right Ear, for Surveillance Kits

RLN4761 Medium Custom Earpiece, Right Ear, for Surveillance Kits

RLN4762 Large Custom Earpiece, Right Ear, for Surveillance Kits

RLN4763 Small Custom Earpiece, Left Ear, for Surveillance Kits

RLN4764 Medium Custom Earpiece Left Ear, for Surveillance Kits

RLN4765 Large Custom Earpiece, Left Ear, for Surveillance Kits

RLN5886 Surveillance Low Noise Kit

RLN5887 Surveillance Extreme Noise Kit

RLN4941 Receive Only Earpiece These receive only earpieces plug into the PMMN4024 and PMMN4025 Remote Speaker Microphones and allow the user to receive

AARLN4885 Receive Only Earbud

WADN4190 Over the Ear Receiver

PMLN4620 D-Shell Receive Only Earpiece

Batteries

PMNN4066 IMPRES Li-ion 1500 mAh Submersible (IP57) Battery Offer superior, long lasting performance. Automated maintenance and a six month extended capacity warranty when used with IMPRES

PMNN4069 IMPRES Li-ion 1400 mAh Submersible (IP57) Battery - Intrinsically Safe (FM)

PMNN4065 NiMH 1300 mAh Submersible (IP57) Battery NiMH chemistry offers an attractive combination of capacity, weight and cost.

Chargers

WPLN4232 IMPRES Single Unit Charger Provides adaptive, automatic reconditioning for IMPRES batteries to maximize talk time and cycle life. Advanced charging algorithm keeps

WPLN4212 IMPRES Multi Unit Charger

WPLN4219 IMPRES Multi Unit Charger with Displays

Carry Devices

PMLN4651 2" Belt Clip

PMLN4652 2.5" Belt Clip

PMLN5015 Nylon Carry Case with 3" Fixed Belt Loop for Display Radio Durable leather or nylon carry cases keep your radio and battery securely in place while permitting audio to be heard clearly. Fixed belt

PMLN5021 Hard Leather Carry Case with 3" Fixed Belt Loop for Display Radio

PMLN5019 Hard Leather Carry Case with 2.5" Swivel Belt Loop for Display Radio

PMLN5020 Hard Leather Carry Case with 3" Swivel Belt Loop for Display Radio

PMLN5024 Nylon Carry Case with 3" Fixed Belt Loop for Non-Display Radio

PMLN5030 Hard Leather Carry Case with 3" Fixed Belt Loop for Non-Display Radio

PMLN5028 Hard Leather Carry Case with 2.5" Swivel Belt Loop for Non-Display Radio

PMLN5029 Hard Leather Carry Case with 3" Swivel Belt Loop for Non-Display Radio

PMLN5022 2.5" Replacement Swivel Belt Loop

PMLN5023 3" Replacement Swivel Belt Loop

HLN6602 Universal Chest Pack Includes convenient radio holder and Velcro secured pocket for carrying additional items.

RLN4570 Break-A-Way Chest Pack All the features of the original Universal Chest Pack (HLN6602) plus break-a-way tabs that allow the entire pack to be pulled off with

1505596Z02 Replacement Strap for RLN4570 and HLN6602 Chest Packs

RLN4815 Universal RadioPAK and Utility Case (fanny pack) Holds portables or cell phones close at hand, includes 6" by 8" zippered pouch for on-the-job necessities.

4280384F89 Universal RadioPAK Extension Belt Extension to lengthen belt of RadioPAk (used with RLN4815). For waists larger than 40 inches.

NTN5243 Shoulder Strap (attaches to D-rings on carry case) Allows easy carrying of radio when not wearing a belt. Used typically over the shoulder.

HLN9985 Waterproof bag, includes large carry strap Protects your radio from moisture, includes a large carrying strap.

RLN4295 Small Clip, Epaulet Strap Secures speaker mic to epaulet strap.

4200865599 Belt 1.75" wide black leather belt.

Antennas

PMAE4018 Combination GPS / UHF 403-433 MHz Folded Monopole Antenna Optimum length antenna designed for higher gain to maximize range. This rugged, stylish, capless design provides maximum fl exibility and

PMAE4024 Combination GPS / UHF 430-470 MHz Folded Monopole Antenna

PMAE4021 Combination GPS / UHF 403-433 MHz Stubby Antenna Short, nonobtrusive stubby antennas are ideal for situations when radios are worn on the user’s belt. These rugged helical antennas feature

PMAE4023 Combination GPS / UHF 430-470 MHz Stubby Antenna

PMAE4022 UHF 403-470 MHz Whip Antenna Flexible whip antennas have a one piece fi nish, steel core and spiral wound conductor for optimal radiation characteristics.

conditions. The PMMN4024 and PMMN4025 have an earjack located on the microphone head to eliminate long wires. The PMMN4040
has a higher IP57 water intrusion rating that helps provide fi rst responders with high reliabilit y in emergency situations.

microphones. The PSM allows users to talk and listen without removing the radio from the belt, case or charger. Incorporates an earjack.
For use with UHF frequency bands only.

noise environments.

hearing and speaking.

communications discretely.

chargers. Can be charged and reconditioned without being removed from the radio.

batteries analog and/or digital cooler so that they can be kept in the charger for extended periods. Display models provide real time charge
status information.

loop and nylon cases feature D rings that allow the case to be attached to a carrying strap. Swivel cases secure to a belt loop and allow the
case to swing freely from side to side. The swivel latch system allows fast, easy radio/case removal by simply inverting the case and lifting
it up from the belt loop.

approximately 10 lbs. of pressure.

build in capability to operate at GPS frequencies.

a capless sheath that allows for maximum fl exibility. Built in GPS capability.

12

Mobile Radio

Part Number Description Benefi ts

Audio

RMN5052 Compact Microphone Standard microphone for MOTOTRBO.

RMN5065 Keypad Microphone IMPRES The Enhanced Keypad Microphone allows the user to navigate radio menus from the microphone.

RMN5053 Heavy Duty Microphone IMPRES For users who want a more durable microphone; also ideal for those who need a larger microphone that is easy to handle when operating

RMN5054 Visor Microphone IMPRES Visor mic for use with external PTT accessories; mic mounts to vehicle’s visor for hands-free radio operation.

RMN5050 Desktop Microphone Intended to be used for a mobile radio that is being used in a desktop confi guration.

Loudspeakers

RSN4002 13 Watt External Speaker External speakers ideal for extremely noisy environments.

RSN4003 7.5 Watt External Speaker

RSN4004 5 Watt External Speaker

Desktop

RSN4005 Desktop Tray with Speaker A desktop tray that includes a speaker for increased volume when receiving calls in high-noise areas.

GLN7318 Desktop Tray without Speaker Ideal for securing the mobile radio in place in a desktop confi guration.

HPN4007 Power Supply and Cable (25 - 60 Watt Models) Provides power when using a mobile from a desktop.

HPN4008 Power Supply and Cable (1 - 25 Watt Models)

GPN6145 Switchmode Power Supply (1 - 25 Watt Models) Has a provision for a back up battery hook up.

GKN6266 Power Supply Cable Power cable for GPN6145 switchmode power supply.

HKN9088 Mobile Mini U Antenna Adapter - 8 ft Cable

PMLN5072 Hardware Kit for Rear Accessory Connector

Mounting

RLN6077 Low Profi le Trunnion Kit

RLN6078 High Profi le Trunnion Kit

RLN6079 Key Lock Trunnion Kit Key lock mount bracket allows the mobile to be mounted and locked giving radio users extra protection from theft by requiring the use of a

RLN5933 In Dash (DIN) Mounting Kit

Cables

RKN4136 Ignition Sense Cable

HKN4137 Power Cable to Battery - 10 ft, 15 amp

HKN4192 Power Cable to Battery - 20 ft, 20 amp

PMKN4018 Mobile Rear Accessory Connector Universal Cable

Antennas

The following antennas combine UHF and GPS capability.

PMAE4030 Combination GPS / UHF 403-430 MHz, 1/4 Wave Roof Mount Antenna Combination GPS/Mobile antenna design with Mini U connector provides GPS tracking coverage and voice/data wireless coverage

PMAE4032 Combination GPS / UHF 406-420 MHz, 3.5 dB Gain Roof Mount Antenna

PMAE4031 Combination GPS / UHF 450-470 MHz, 1/4 Wave Roof Mount Antenna

PMAE4033 Combination GPS / UHF 450-470 MHz, 3.5 dB Gain Roof Mount Antenna

PMAE4034 Combination GPS / UHF 450-470 MHz, 5 dB Gain Roof Mount Antenna

The following antennas are intended for customers who have existing mobile antennas and need to add GPS capability.

PMAN4000 Fixed Mount GPS Active Antenna This discreet stand-alone GPS antenna has a semi-permanent mount easily assembled with minimal tools to a roof or trunk of a vehicle.

PMAN4002 Magnetic Mount GPS Active Antenna This discreet stand-alone GPS antenna can be mounted either magnetically, via screw or via tape on the roof or trunk of a vehicle.

The following antennas are intended for customers who do not plan to use the GPS capability of the radio.

HAE4002 UHF 403-430 MHz, 1/ 4 Wave Roof Mount Antenna The signals for these antennas are radiated vertically, making them ideal for urban environments where buildings might obstruct the signal.

HAE4003 UHF 450-470 MHz, 1/ 4 Wave Roof Mount Antenna

HAE4010 UHF 406-420 MHz, 3.5dB Gain Roof Mount Antenna These antennas are designed to direct the signal more towards the horizon, making them ideal for applications in more geographically fl at

HAE4011 UHF 450-470 MHz, 3.5dB Gain Roof Mount Antenna

RAE4004 UHF 450-470 MHz, 5dB Gain Roof Mount Antenna

Miscellaneous

RLN5926 Push Button PTT Push button with push-to-talk feature provides hands-free operation of a radio in a vehicle, allowing the user to transmit messages without

RLN5929 Emergency Footswitch Emergency footswitch enables the user to notify the base station quickly and discreetly that he or she is in an emergency situation.

HLN9073 Microphone Hang Up Clip (all microphones)

HLN9414 Universal Microphone Hang Up Clip (all microphones)

HKN9557 PL259 / Mini-U Antenna Adapter - 8' cable

while wearing gloves.

key to lock/unlock the radio from its position in the mounting bracket.

capabilities for fl eet monitoring or fl eet tracking applications.

regions where signal coverage is sparse and must cover a larger area.

using a mobile microphone. Push-to-talk button can be held in the hands or mounted in the vehicle with touch fasteners.

Pressing the footswitch sends a signal to the base station and activates the microphone to allow communication with the base station.

Repeater

Part Number Description Benefi ts

Duplexers

HFE8400 UHF Untuned Duplexer, 406-450MHz Allows the use of just one antenna that both transmits and receives.

RFE4000 UHF Untuned Duplexer, 450-470MHz

Antennas

RDE4556 UHF 3.8dB Gain Antenna

Mounting

PMLE4476 Wall Mount Kit for XPR 8300 Includes brackets and screws to easily mount XPR 8300 to the wall.

Preselector

HFE8459 UHF Preselector, 440-474MHz Provides additional isolation for the receiver in RF dense sites.

Lightening Protection

RRX4025 Lightening Arrestor Provides lightning and grounding protection to the repeaters.

RRX4032 Tower Mounting Hardware

RRX4038 Surge Suppressor

13

MOTOTRBO™ Portable Radio Specifi cations

Display UHF

Non-GPS

™

XPR

6500

GPS

XPR™ 6550

General Specifi cations

Display UHF

Channel Capacity 160 32

Frequency 403-470 MHz 403-470 MHz

Dimensions (HxWxT) w/ LiIon non-FM Battery 131.5 x 63.5 x 35.2 mm 131.5 x 63.5 x 35.2 mm

Weight (with LiIon non-FM Battery)
(with LiIon FM Battery)
(with NiMH Battery)

Power Supply 7.2V nominal 7.2V nominal

FCC Description AZ489FT4876 AZ489FT4876

IC Description 109U-89FT4876 109U-89FT4876

Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power.

IMPRES 1500 mAh LiIon Battery Analog: 9 hrs

IMPRES FM 1400 mAh Battery Analog: 8.5 hrs

NiMH 1300 mAh Battery Analog: 8 hrs

XPR 6500 / XPR 6550

12.7 oz (360 g)
13 oz (370 g)

15.2 oz (430 g)

Digital: 13 hrs

Digital: 12 hrs

Digital: 11 hrs

Non-Display UHF
XPR 6300 / XPR 6350*

11.63 oz (330 g)

11.98 oz (340 g)

14.09 oz (400 g)

Analog: 9 hrs
Digital: 13 hrs

Analog: 8.5 hrs
Digital: 12 hrs

Analog: 8 hrs
Digital: 11 hrs

Non-Display UHF

Non-GPS

™

XPR

6300

GPS

XPR™ 6350*

Receiver

Display UHF

Frequencies 403-470 MHz 403-470 MHz

Channel Spacing 12.5 kHz/ 25 kHz 12.5 kHz/ 25 kHz

Frequency Stability
( -30° C, +60° C, +25° C)

Analog Sensitivity (12 dB SINAD) 0.35 uV

Digital Sensitivity 5% BER: 0.3 uV 5% BER: 0.3 uV

Intermodulation (TIA603C) 70 dB 70 dB

Adjacent Channel Selectivity
TIA603
TIA603C

Spurious Rejection (TIA603C) 70 dB 70 dB

Rated Audio 500 mW 500 mW

Audio Distortion @ Rated Audio 3% (typical) 3% (typical)

Hum and Noise -40 dB @ 12.5 kHz

Audio Response TIA603C TIA603C

Conducted Spurious Emission (TIA603C) -57 dBm -57 dBm

*Coming Soon

Specifi cations subject to change without notice. All specifi cations shown are typical. Radio meets applicable regulatory requirements. Version 4 03/07

XPR 6500 / XPR 6550

+/- 1.5 ppm (XPR 6500)
+/- 0.5 ppm (XPR 6550)

0.22 uV (typical)

60 dB @ 12.5 kHz, 70 dB @ 25 kHz
45 dB @ 12.5 kHz, 70 dB @ 25 kHz

-45 dB @ 25 kHz

14

Non-Display UHF
XPR 6300 / XPR 6350*

+/- 1.5 ppm (XPR 6300)
+/- 0.5 ppm (XPR 6350)*

0.35 uV

0.22 uV (typical)

60 dB @ 12.5 kHz, 70 dB @ 25 kHz
45 dB @ 12.5 kHz, 70 dB @ 25 kHz

-40 dB @ 12.5 kHz

-45 dB @ 25 kHz

Transmitter

Display UHF

Frequencies 403-470 MHz 403-470 MHz

Channel Spacing 12.5 kHz/ 25 kHz 12.5 kHz/ 25 kHz

Frequency Stability
( -30° C, +60° C, +25° C)

Power Output
Low Power
High Power

Modulation Limiting +/- 2.5 kHz @ 12.5 kHz

FM Hum and Noise -40 dB @ 12.5 kHz

Conducted / Radiated Emission -36 dBm < 1 GHz

Adjacent Channel Power 60 dB @ 12.5 kHz

Audio Response TIA603C TIA603C

Audio Distortion 3% 3%

FM Modulation 12.5 kHz: 11K0F3E

4FSK Digital Modulation 12.5 kHz Data Only: 7K60FXD

Digital Vocoder Type AMBE++ AMBE++

Digital Protocol ETSI-TS102 361-1 ETSI-TS102 361-1

XPR 6500 / XPR 6550

+/- 1.5 ppm (XPR 6500)
+/- 0.5 ppm (XPR 6550)

1 W
4 W

+/- 5.0 kHz @ 25 kHz

-45 dB @ 25 kHz

-30 dBm > 1 GHz

70 dB @ 25 kHz

25 kHz: 16K0F3E

12.5 kHz Data & Voice: 7K60FXE

Non-Display UHF
XPR 6300 / XPR 6350*

+/- 1.5 ppm (XPR 6300)
+/- 0.5 ppm (XPR 6350)*

1 W
4 W

+/- 2.5 kHz @ 12.5 kHz
+/- 5.0 kHz @ 25 kHz

-40 dB @ 12.5 kHz

-45 dB @ 25 kHz

-36 dBm < 1 GHz

-30 dBm > 1 GHz

60 dB @ 12.5 kHz
70 dB @ 25 kHz

12.5 kHz: 11K0F3E
25 kHz: 16K0F3E

12.5 kHz Data Only: 7K60FXD

12.5 kHz Data & Voice: 7K60FXE

GPS

Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength)

TTFF (Time To First Fix) Cold Start < 1 minute < 1 minute

TTFF (Time To First Fix) Hot Start < 10 seconds < 10 seconds

Horizontal Accuracy < 10 meters < 10 meters

Military Standards

Applicable MIL–STD

Low Pressure 500.3 II 500.4 II

High Temperature 501.3 I/A, II/A1 501.4 I/Hot, II/Hot

Low Temperature 502.3 I/C3, II/C1 502.4 I/C3, II/C1

Temperature Shock 503.3 I/A, 1C3 503.4 I

Solar Radiation 505.3 I 505.4 I

Rain 506.3 I,II 506.4 I, III

Humidity 507.3 II 507.4 -

Salt Fog 509.3 I 509.4 I

Dust 510.3 I 510.4 I

Vibration 514.4 I/10, II/3 514.5 I/24

Shock 516.4 I, IV 516.5 I, IV

810E 810F

Methods Procedures Methods Procedures

Factory Mutual Approvals

MOTOTRBO XPR Portable series radios have been certifi ed by FM Approvals in accordance with Canada and U.S. Codes as intrinsically safe
for use in Class I, II, III, Division 1, Groups C,D,E,F,G, when properly equipped with a Motorola FM approved battery option. They are also
approved for use in Class I, Division 2, Groups A, B, C, D.

Environmental Specifi cations

Operating Temperature -30° C / +60° C

Storage Temperature -40° C / +85° C

Thermal Shock Per MIL-S TD

Humidity Per MIL-ST D

ESD IEC-801-2KV

Water Intrusion IEC 60529 - IP57

Packaging Test MIL-STD 810D and E

*Coming Soon

Specifi cations subject to change without notice. All specifi cations shown are typical. Radio meets applicable regulatory requirements. Version 4 03/07

15

MOTOTRBO™ Mobile Radio Specifi cations

Display UHF

Non-GPS GPS

™

XPR

4500 XPR™ 4550

Numeric Display UHF

Non-GPS GPS

™

XPR

4300 XPR™ 4350*

General Specifi cations

Display UHF

Channel Capacity 160 32

Typical RF Output
Low Power
High Power

Frequency 403-470 MHz 403-470 MHz

Dimensions (HxWxL) 2.01 x 6.89 x 8.11 in (51 x 175 x 206 mm) 2.01 x 6.89 x 8.11 in (51 x 175 x 206 mm)

Weight 4.0 lbs. (1.8 kg) 4.0 lbs. (1.8 kg)

Current Drain:
Standby
Rx @ Rated Audio
Transmit

FCC Description 1-25 W*: ABZ99FT4081

IC Description 1-25 W*: 109AB-99FT4081

XPR 4500 / XPR 4550

1-2 5 W*
25-40 W

0.81 A max
2 A max
1-25 W*: 11.0 A max
25-40 W: 14.5 A max

25-40 W: ABZ99FT4080

25-40 W: 109AB-99FT4080

Numeric Display UHF
XPR 4300 / XPR 4350*

1-2 5 W
25-40 W*

0.81 A max
2 A max
1-25 W: 11.0 A max
25-40 W*: 14.5 A max

1-25 W: ABZ99FT4081
25-40 W*: ABZ99FT4080

1-25 W: 109AB-99FT4081
25-40 W*: 109AB-99FT4080

Receiver

Display UHF

Frequencies 403-470 MHz 403-470 MHz

Channel Spacing 12.5 kHz / 25 kHz 12.5 kHz / 25 kHz

Frequency Stability
(-30° C, +60° C, +25° C)

Analog Sensitivity (12dB SINAD) 0.3 uV

Digital Sensitivity 5% BER: 0.3 uV 5% BER: 0.3 uV

Intermodulation (TIA603C) 75 dB 75 dB

Adjacent Channel Selectivity
TIA603
TIA603C

Spurious Rejection (TIA603C) 75 dB 75 dB

Rated Audio 3 W (Internal)

Audio Distortion @ Rated Audio 3% (typical) 3% (typical)

Hum and Noise -40 dB @ 12.5 kHz

Audio Response TIA603C TIA603C

Conducted Spurious Emission (TIA603C) -57 dBm -57 dBm

XPR 4500 / XPR 4550

+/- 1.5 ppm (XPR 4500)
+/- 0.5 ppm (XPR 4550)

0.22 uV (typical)

65 dB @ 12.5 kHz, 75 dB @ 25 kHz
50 dB @ 12.5 kHz, 75 dB @ 25 kHz

7.5 W (External - 8 ohms)
13 W (External - 4 ohms)

-45 dB @ 25 kHz

Numeric Display UHF
XPR 4300 / XPR 4350*

+/- 1.5 ppm (XPR 4300)
+/- 0.5 ppm (XPR 4350)*

0.3 uV

0.22 uV (typical)

65 dB @ 12.5 kHz, 75 dB @ 25 kHz
50 dB @ 12.5 kHz, 75 dB @ 25 kHz

3 W (Internal)

7.5 W (External - 8 ohms)
13 W (External - 4 ohms)

-40 dB @ 12.5 kHz

-45 dB @ 25 kHz

*Coming Soon

Specifi cations subject to change without notice. All specifi cations shown are typical. Radio meets applicable regulatory requirements. Version 4 03/07

16

Transmitter

Display UHF

Frequencies 403-470 MHz 403-470 MHz

Channel Spacing 12.5 kHz / 25 kHz 12.5 kHz / 25 kHz

Frequency Stability
(-30° C, +60° C, +25° C)

Power Output
Low Power
High Power

Modulation Limiting +/- 2.5 kHz @ 12.5 kHz

FM Hum and Noise -40 dB @ 12.5 kHz

Conducted / Radiated Emission -36 dBm < 1 GHz

Adjacent Channel Power (TIA603C) 60 dB @ 12.5 kHz

Audio Response TIA603C TIA603C

Audio Distortion 3% 3%

FM Modulation 12.5 kHz: 11K0F3E

4FSK Digital Modulation 12.5 kHz Data Only: 7K60FXD

Digital Vocoder Type AMBE++ AMBE++

Digital Protocol ETSI-TS102 361-1 ETSI-TS102 361-1

XPR 4500 / XPR 4550

+/- 1.5 ppm (XPR 4500)
+/- 0.5 ppm (XPR 4550)

1-2 5 W*
25-40 W

+/- 5.0 kHz @ 25 kHz

-45 dB @ 25 kHz

-30 dBm > 1 GHz

70 dB @ 25 kHz

25 kHz: 16K0F3E

12.5 kHz Data & Voice: 7K60FXE

Numeric Display UHF
XPR 4300 / XPR 4350*

+/- 1.5 ppm (XPR 4300)
+/- 0.5 ppm (XPR 4350)*

1-2 5 W
25-40 W*

+/- 2.5 kHz @ 12.5 kHz
+/- 5.0 kHz @ 25 kHz

-40 dB @ 12.5 kHz

-45 dB @ 25 kHz

-36 dBm < 1 GHz

-30 dBm > 1 GHz

60 dB @ 12.5 kHz
70 dB @ 25 kHz

12.5 kHz: 11K0F3E
25 kHz: 16K0F3E

12.5 kHz Data Only: 7K60FXD

12.5 kHz Data & Voice: 7K60FXE

GPS

Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength)

TTFF (Time To First Fix) Cold Start < 1 minute

TTFF (Time To First Fix) Hot Start < 10 seconds

Horizontal Accuracy < 10 meters

Military Standards

Applicable MIL–STD

Low Pressure 500.3 II 500.4 II

High Temperature 501.3 I/A, II/A1 501.4 I/Hot, II/Hot

Low Temperature 502.3 I/C3, II/C1 502.4 I/C3, II/C1

Temperature Shock 503.3 I/A, 1C3 503.4 I

Solar Radiation 505.3 I 505.4 I

Rain 506.3 I,II 506.4 I, III

Humidity 507.3 II 507.4 -

Salt Fog 509.3 I 509.4 I

Dust 510.3 I 510.4 I

Vibration 514.4 I/10, II/3 514.5 I/24

Shock 516.4 I, IV 516.5 I, IV

810E 810F

Methods Procedures Methods Procedures

Environmental Specifi cations

Operating Temperature -30° C / +60° C

Storage Temperature -40° C / +85° C

Thermal Shock Per MIL-S TD

Humidity Per MIL-ST D

ESD IEC-801-2KV

Water Intrusion IEC 60529 - IP57

Packaging Test MIL-STD 810D and E

*Coming Soon

Specifi cations subject to change without notice. All specifi cations shown are typical. Radio meets applicable regulatory requirements. Version 4 03/07

17

MOTOTRBO™ Repeater Specifi cations

UHF

XPR™ 8300

General Specifi cations

UHF – XPR 8300

Channel Capacity 1

Technical RF Output 25-40 W

Frequency 403-470 MHz

Dimensions (HxWxL) 5.22 x 19 x 11.67 in (132.6 x 482.6 x 296.5 mm)

Weight 31 lbs (14 kg)

Voltage Requirements 100-240 V AC (13.6 V DC)

Current Drain: Standby 1 A (1 A DC typical)

Transmit 3.8 A (11 A DC typical)

Operating Temperature Range -30°C to +60°C

Max Duty Cycle 100 %

FCC Description ABZ99FT4025

IC Description 109AB-99FT4025

Receiver

UHF – XPR 8300

Frequencies 403-470 MHz

Channel Spacing 12.5 kHz / 25 kHz

Frequency Stability (-30° C, +60° C, +25° C) +/- 0.5 ppm

Analog Sensitivity (12 dB SINAD) 0.30 uV

Digital Sensitivity 5% BER: 0.3 uV

Intermodulation (TIA603C) 75 dB

Adjacent Channel Selectivity
TIA603
TIA603C

Spurious Rejection 75 dB

Audio Distortion @ Rated Audio 3% (typical)

Hum and Noise -40 dB @ 12.5 kHz

Audio Response TIA603C

Conducted Spurious Emission -57 dBm

0.22 uV (typical)

65 dB @ 12.5 kHz, 75 dB @ 25 kHz
50 dB @ 12.5 kHz, 75 dB @ 25 kHz

-45 dB @ 25 kHz

Transmitter

UHF – XPR 8300

Frequencies 403-470 MHz

Channel Spacing 12.5 kHz / 25 kHz

Frequency Stability (-30° C, +60° C, +25° C) +/- 0.5 ppm

Power Output 25-40 W

Modulation Limiting +/- 2.5 kHz @ 12.5 kHz

FM Hum and Noise -40 dB @ 12.5 kHz

Conducted / Radiated Emission -36 dBm < 1 GHz

Adjacent Channel Power (TIA603C) 60 dB @ 12.5 kHz

Audio Response TIA603C

Audio Distortion 3%

FM Modulation 12.5 kHz: 11K0F3E

4FSK Digital Modulation 12.5 kHz Data Only: 7K60FXD

Digital Vocoder Type AMBE++

Digital Protocol ETSI-TS102 361-1

Specifi cations subject to change without notice. All specifi cations shown are typical. Radio meets applicable regulatory requirements. Version 4 03/07

18

+/- 5.0 kHz @ 25 kHz

-45 dB @ 25 kHz

-30 dBm > 1 GHz

70 dB @ 25 kHz

25 kHz: 16K0F3E

12.5 kHz Data & Voice: 7K60FXE

IMPRES™ Smart Energy System—
A Unique Battery Charging and
Reconditioning Solution

Motorola’s state-of-the-art IMPRES technology allows communication between
the battery and the charger to automate battery maintenance. The result—a radio
system that’s charged and ready to go whenever you need it.

• Automated battery maintenance—Now manual tracking and recording of

battery use are a thing of the past. IMPRES uses a unique communications
protocol to facilitate adaptive reconditioning—the charger evaluates the details
of the battery’s usage pattern to determine the optimal reconditioning interval.
This automated process works to optimize the cycle life of the battery and
maximize talk time.

• Long-term safe charging—IMPRES batteries may be left in IMPRES

chargers for extended periods without heat damage, and will be monitored
by the charger to stay fully charged. Batteries are charged and ready to go
whenever they are needed.

• Chargers that communicate—IMPRES multi-unit chargers are available with

a two-line display module. You now have access to valuable information such
as battery capacity (in mAh and percent of minimum rated capacity), current
battery charge status, as well as each battery’s serial number, part number and
chemistry. Knowledge is power. Now you can make informed decisions on
battery replacement and asset management.

• Support for mixed battery inventories—MOTOTRBO IMPRES chargers are

compatible with the full line of MOTOTRBO batteries—both IMPRES and non­IMPRES. You can rely on the same charger for their entire MOTOTRBO
battery fl eet.

• Extended warranty—When used exclusively with IMPRES chargers, IMPRES

batteries have an 18 month capacity warranty coverage—six months more than
Motorola Premium Li-ion batteries.

• Proven Tough—IMPRES batteries are subjected to the same rigorous testing

and held to the same high standards as all Motorola Premium batteries. Actual
results of drop, vibration and ESD (electrostatic discharge) tests prove that
Motorola batteries outperform the competition. For details of all test results go
to www.proventough.com.

19

Motorola, Inc.
United States:
1309 E. Algonquin Road
Schaumburg, Illinois 60196
Phone: [phone]
TTY: 1-800-522-5210
Fax: [phone]

MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Offi ce. All other product or ser vice names are the property of their registered owners.
© Motorola, Inc. 2007 MD-EU/TRBO/SYSTEM
