Motorola MD40 User Manual

MD40 Series

Digital 2.4GHz

Expansion Handset Unit

Socle d'expansion pour combinés

User's Guide >

Guide de l'utilisateur >

User's Guide >

Congratulations on your purchase of a Motorola product!

Product registration helps us facilitate warranty service and permits us to contact you if your Motorola product requires an update or other service.

To register your U.S. product online, visit:

www.motorola.com/warranty/cordless

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For a large-print English-only version of this guide, or for product-related questions, please call:

1-800-353-2729 in the USA

1-800-461-4575 in Canada

1-888-390-6456 TTY (Text Telephone)

On the Web:

www.motorola.com/cordless

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners.

6864110W31-A

Motorola, Inc. 2003

Handset Controls

Raise volume

Lower volume

Scroll up or down on display

Left soft key

Turn handset on

to make a call

Talk handsfree

using

speakerphone

Microphone

Right soft key

Turn handset off to hang up

Earphone jack

Redial

Use handset as intercom

FCC and Interference Information

This equipment complies with Parts 15 and 68 of the FCC rules and the requirements adopted by the Administrative Council for Terminal Attachments (ACTA).

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Notification of the Local Telephone Company

On the bottom of this equipment is a label that contains, among other information, a product identifier in the form US:AAAEQ##TXXXX. You must, upon request, provide this information to your telephone company.

The digits represented by ## in the product identifier indicate the Ringer Equivalency Number (REN) for this equipment. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, contact your local telephone company.

Notes

•

This equipment may not be used on coin service provided by the telephone company.

•

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

•

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this cordless phone does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

•

Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.

•

The FCC requires that you connect your cordless telephone to the nationwide telephone network through a modular telephone jack (USOC RJ11C/RJ11W or RJ14C/RJ14W).

Rights of the Telephone Company

Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practical and the circumstances warrant such action, the telephone company may temporarily disconnect service immediately. In case of such temporary discontinuance, the telephone company must:

1. Promptly notify you of such temporary discontinuance;

2. Afford you the opportunity to correct the situation;

3. Inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference with one or more of the following measures:

Reorient or relocate the receiving antenna (that is, the antenna for the radio or television that is “receiving” the interference).

Reorient or relocate and increase the separation between the telecommunications equipment and the receiving antenna.

Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How to Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.

The FCC requires this product to be serviced only by Motorola or its authorized service agents. Changes or modifications not expressly approved by Motorola could void not only the user's authority to operate the equipment, but also the limited warranty.

Hearing Aid Compatibility

This telephone system meets the FCC standards for hearing aid compatibility.

Industry Canada (IC) Information

This equipment meets the applicable Industry Canada (IC) radio and terminal equipment technical specifications. This is confirmed by the certification/registration number found on the label on the bottom of the base unit. The abbreviation IC before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity and that the Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. The term “IC:” before the certification/ registration number only signifies that the Industry Canada technical specifications were met.

The Ringer Equivalency Number (REN) for this equipment is 0.0. The REN is useful in determining the maximum number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. The sum of the RENs of all devices connected to one line may not exceed 5.

Before installing this cordless phone, you should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must be installed using an acceptable method of connection. In some cases, the telecommunications company’s inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). You should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

The plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the rules and requirements in Industry Canada’s CS-03. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant.

For your protection, ensure that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution:

Contact the appropriate electrical inspection authority or an electrician, as appropriate.

Note:

the telephone line, ensure the installation of this cordless phone does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

Repairs

Repairs to this equipment should be made by an authorized Canadian maintenance facility designated by Motorola. Any repairs or alterations made by the consumer, or any malfunctions of this equipment, may give the telecommunications company cause to request that you disconnect the equipment, and may void the limited warranty.

Privacy

Privacy of communications may not be ensured when using this telephone. Other devices, including other cordless telephones, may interfere with the operation of this cordless phone or cause noise during operation. Units without code access may be accessed by other radio communications devices.

Hearing Aid Compatibility

This telephone system meets Industry Canada standards for hearing aid compatibility.

Interference Information

This device complies with Industry Canada’s RSS-210. Operation is subject to the following two conditions:

1. This device may not cause harmful interference; and

You should not attempt to make such connections yourself.

If your home has specially wired alarm equipment connected to

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Industry Canada’s ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

•

Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).

•

Reorient or relocate and increase the separation between the telecommunications equipment and the receiving antenna.

•

Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions.

Industry Canada publishes several publications to assist consumers with solving interference problems, which are available from its offices or from its web site (strategis.gc.ca).

ITC02-173

Important Safety Instructions

Follow these safety precautions when using your cordless phone to reduce the risk of fire, electric shock, and injury to persons or property:

1. Keep all slits and openings of the phone unblocked. Do not set the phone on a heating register or over a radiator. Ensure that proper ventilation is provided at the installation site.

2. Do not use while wet or while standing in water.

3. Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool).

4. Do not allow anything to rest on the power cord. Place the power cord so that it will not be walked on.

5. Never insert objects of any kind into the product slits as that may result in fire or shock.

6. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Do not disassemble this product. If service or repair work is required, contact the Motorola address found in the back of this user’s guide.

8. Do not overload wall outlets and extension cords.

9. Avoid using during an electrical storm. Use a surge protector to protect the equipment.

10. Do not use this cordless phone to report a gas leak, especially if you are in the vicinity of the gas line.

Caution:

Listed or CSA Certified Telecommunication Line Cord.

Unplug this cordless phone immediately from an outlet if:

•

To reduce the risk of fire, use only No. 26 AWG or larger UL

The power cord or plug is damaged or frayed. Liquid has been spilled into the product.

•

The product has been exposed to rain or water. Do not retrieve the handset or base until after you have unplugged the power and phone from the wall. Then retrieve the unit by the unplugged cords.

•

The product has been dropped or the cabinet has been damaged.

•

The product exhibits a distinct change in performance.

Installation Guidelines

1. Read and understand all instructions and save them for future reference.

2. Follow all warnings and instructions marked on the product.

3. Do not install this product near a bath tub, sink, or shower.

4. Operate this phone using only the power source that is indicated on the marking label. If you are unsure of the power supply to your home, consult with your dealer or local power company.

5. Do not place this product on an unstable cart, stand, or table. This product may fall, causing serious damage to the product.

6. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work to restore the product to normal operation.

7. Clean this product with a soft, damp cloth. Do not use chemicals or cleaning agents to clean this phone.

8. Use only the power supply that came with this unit. Using other power supplies may damage the unit.

9. Because cordless phones operate on electricity, you should have at least one phone in your home that is not cordless in case the power in your home goes out.

10. To avoid interference to nearby appliances, do not place the base of the cordless phone on or near a TV, microwave oven, or VCR.

Battery Safety Instructions

•

Do not burn, disassemble, mutilate, or puncture the battery. The battery contains toxic materials that could be released, resulting in injury.

Caution:

incorrect battery type. Use only the battery that came with your phone or an authorized replacement recommended by the manufacturer.

There is a risk of explosion if you replace the battery with an

•

Keep batteries out of the reach of children.

•

Remove batteries if storing over 30 days.

•

Do not dispose of batteries in fire, which could result in explosion.

•

The rechargeable batteries that power this product must be disposed of properly and may need to be recycled. Refer to your battery’s label for battery type. Contact your local recycling center for proper disposal methods.

Contents

Handset Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FCC and Interference Information. . . . . . . . . . . . . . . . 3

Industry Canada (IC) Information . . . . . . . . . . . . . . . . 7

Important Safety Instructions . . . . . . . . . . . . . . . . . . 10

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Setting Up the Charging Bases . . . . . . . . . . . . . . . . . 14

Installing Batteries in the Handsets . . . . . . . . . . . . . . 15

Charging the Handsets . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the Handset Display . . . . . . . . . . . . . . . . . . . . . 17

Using the Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the Navigation Key . . . . . . . . . . . . . . . . . . . . 18

Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 19

Registering an Expansion Handset . . . . . . . . . . . . . . 19

Personalizing Your Handset . . . . . . . . . . . . . . . . . . . . 20

Setting the Ring Tone and Ring Volume . . . . . . . . . 20

Setting Key Beeps On or Off . . . . . . . . . . . . . . . . . . 21

Naming a Handset . . . . . . . . . . . . . . . . . . . . . . . . . 22

Entering Text on the Handset . . . . . . . . . . . . . . . . . 23

Storing Area Codes for Caller ID . . . . . . . . . . . . . . . . 23

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . 25

Setting the Language . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setting Touch Tone or Pulse Dialing . . . . . . . . . . . . . . 26

Using the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Motorola Limited Warranty for the

United States and Canada . . . . . . . . . . . . . . . . . . . . . . 28

Getting Started

To set up your Motorola digital expansion handset:

1. Plug in charging bases for expansion handsets (page 14).

2. Install batteries in handsets (page 15).

3. Charge handset batteries (page 16). A rechargeable NiCd battery powers each

handset. Charge the battery for about 12 hours before initial use.

4. Register expansion handsets to the base station

Getting Started

(page 19).

5. Set the ring tone, date, time, and other features of your handset (page 20).

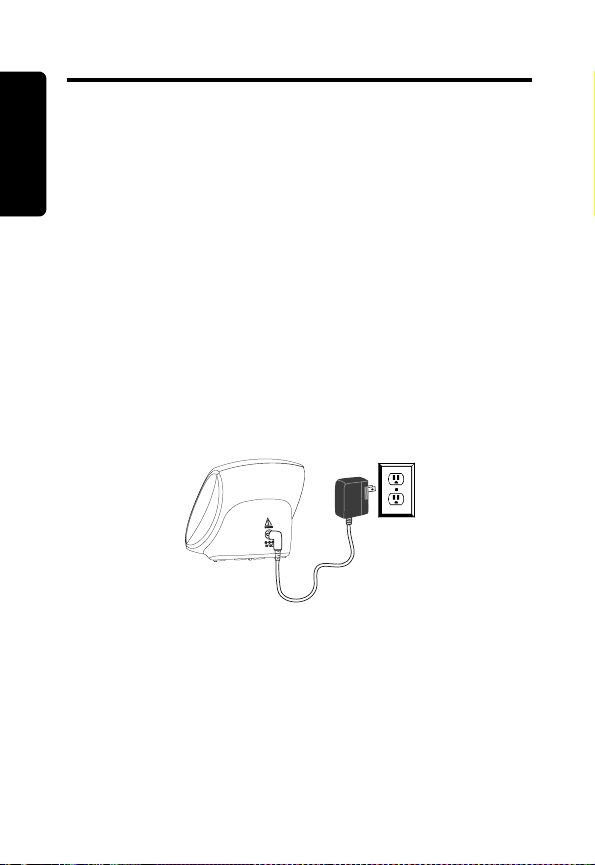

Setting Up the Charging Bases

Expansion handsets do not need to be plugged into a phone line. Simply plug the power cord into the back of the charging base and into an outlet wherever you want to place the handset.

Installing Batteries in the Handsets

Important: Before installing or handling batteries, read “Battery Safety Instructions” on page 12.

1. Remove the battery cover by pressing on the recess and sliding it down and off the handset.

2. Plug the connector into the receptacle.

3. Insert the battery into the compartment.

4. Slide and snap the battery cover back into place.

Black

Getting Started

Red

Charging the Handsets

Place the handset in the charging base. The charging LED is solid red when the handset is charging.

For the initial charge, charge the battery for at least 12 hours.

Getting Started

charge

Using the Handset Display

When the handset is not in use, the display shows the standby screen.

Time

Handset

name

Number of

Caller ID

records

Left soft key function

Note: Caller ID information is supplied only if you subscribe to caller ID service from your local phone company.

When the handset speakerphone is on,

04:26 PM 09/26

Handset (1)

6Calls

PHONEBK MENU

Battery meterDate

Ringer off

Right soft key function

V displays.

Getting Started

Using the Soft Keys

The 2 soft keys are used to select the functions shown above them on the display. The functions change as you move from one screen to the next. In this guide, soft key functions are shown as the function name followed by (

a).

a, for example, CHANGE

Left soft key

function

Left soft key Right soft key

Getting Started

Using the Navigation Key

c is used to scroll up and down through menu items, a list of settings, caller ID and redial lists, and the phonebook.

On the handset display,  points to the currently selected item, and b indicates there are more items above and below the currently selected item.

Press c to scroll up or down on the display.

Right soft key function

Caller ID Log Set Ringer Loc Area Codes



BACK SELECT

 

Setting Up Your Phone

Registering an Expansion Handset

You can have up to 4 handsets registered to a base station.If you try to register a 5th handset, Unable to Register displays.

To register a new expansion handset that has never been registered:

Action

Press OK (a).

Press and hold PAGE on the base station for at least 6 seconds or until you hear a long beep and see the handset name, for example, Handset(2).

Note: You must press and hold PAGE within 5 seconds after pressing OK( not press PAGE, you will need to repeat step

Press OK (a) to return to the standby screen.

a). If you do

Setting Up Your Phone
