Home Entertainment Gateway MCF547x

ColdFire

Microprocessor Application

Overview

A home entertainment gateway is a communication and storage hub in the home that functions as a secure audio,

video, and file server; wireless router and firewall; and a personal video recorder.

Key Benefits

> Enables a wide range of

home entertainment gateway products that can be developed based on the same core design using the different PCI peripherals on the MCF547x devices

> Delivers high data throughput

for communications-intensive peripherals included in a gateway application provided by the device’s system architecture on the MCF547x

> Helps to ensure secure

transmission of data through the gateway with the hardware-accelerated encryption on the MCF547x devices

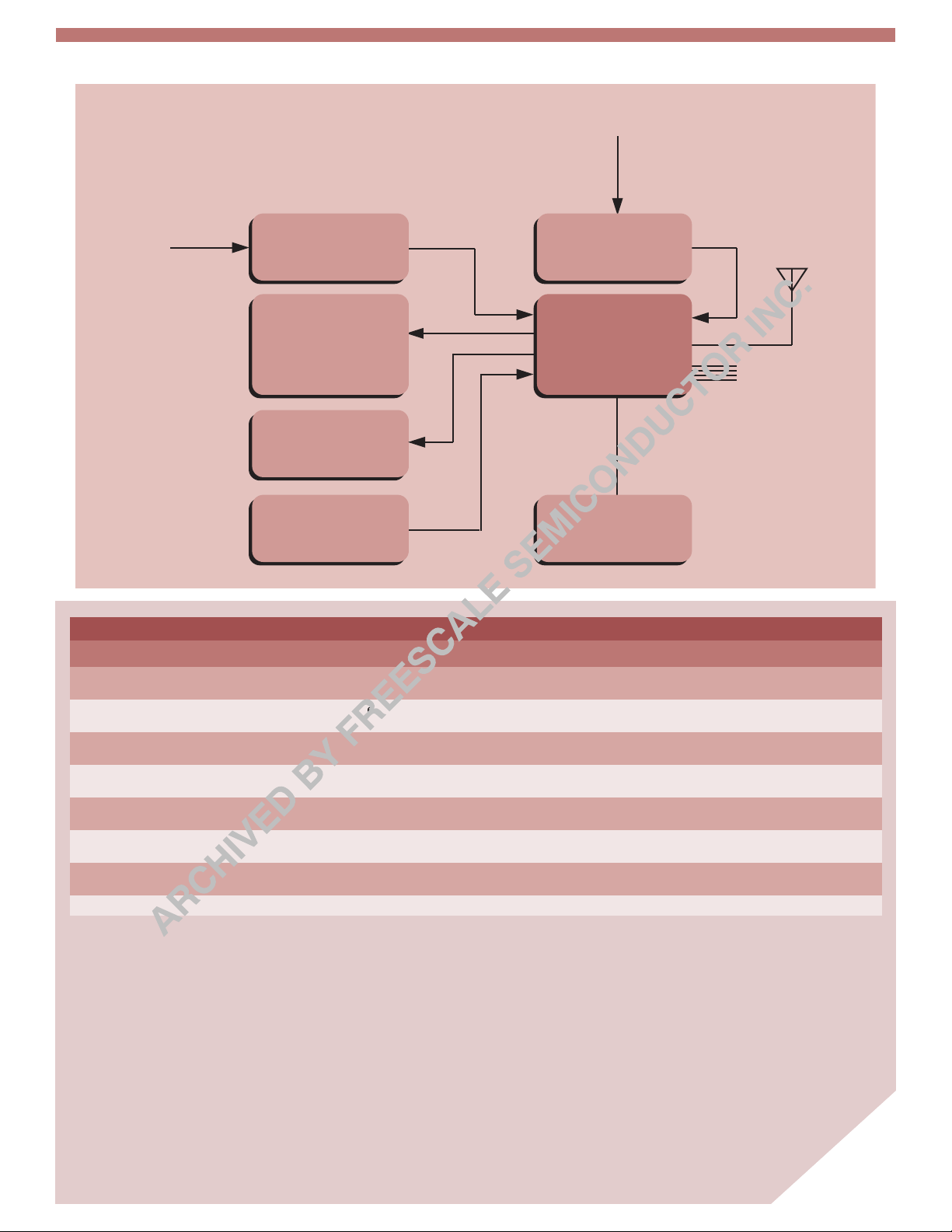

MCF547X COLDFIRE MICROPROCESSOR BLOCK DIAGRAM

MCF547x

V4e ColdFire® Core

MMU, FPU EMAC

32 KB I-Cache

32 KB D-Cache

Interrupt

Controller

Watchdog

System

Integration Unit

Timers x 2

Timers x 4

Peripheral I/O

Interface and Ports

Timer

Slice

Slave

Bus

CommBus

DSPI

DDR

SDRAM

PLL

XL Bus

Arbiter

DDR SDRAM

Interface

Memory

Controller

Bus

Master/Slave

Interface

Cryptography

Accelerator

Crypto R/W

32 KB System

SRAM

DMA Read

Master Bus Interface and FIFOs

I2C

XL Bus

Read/Write

DMA Write

Multichannel DMA

PSC x 4 FEC1 FEC2

Peripheral Communications

I/O Interfaces and Ports

Flash

FlexBus

Interface

FlexBus

Controller

PCI 2.2

Controller

PCI Interface

and FIFOs

USB 2.0

Device

USB 2.0

PHY

802.11 a/b/g Controller

PCI

(S) ATA

PCI I/O

Controller

Interface and Ports

AC-3/MPEG2

A/V Encoder

I/O Subsystem

Communications

AC-3/MPEG2

A/V Decoder

HDD

DVD-Writer

Video

Input

A/V A/D

Audio

Video

Output

A/V D/A

Audio

WAN

IR XCVR

10/100

PHY

MII

IEEE® 1394

4-port 10/100 Switch

IEEE 1394

Firewire

USB 2.0

to PC

LAN

SG2062-2

HOME ENTERTAINMENT GATEWAY

Cable or

Te lc o

Cable or

Satellite

Set-Top Box

A/V

Cable/DSL Modem

WAN

Entertainment

Gateway

USB 2.0

Surround Sound

DVD Player

A/V

Freescale Ordering Information

Part Number Product Highlights Additional Information

MCF5475ZP266 Two 10/100 Ethernet Controllers, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller, Encryption Accelerator

MCF5475ZP200 Two 10/100 Ethernet Controllers, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller, Encryption Accelerator

MCF5474ZP266 Two 10/100 Ethernet Controllers, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller

MCF5474ZP200 Two 10/100 Ethernet Controllers, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller

MCF5473ZP200 One 10/100 Ethernet Controller, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller, Encryption Accelerator

MCF5472ZP200 One 10/100 Ethernet Controller, USB 2.0 Device with Integrated PHY,

v2.2 PCI Controller, DDR Memory Controller

MCF5471ZP200 Two 10/100 Ethernet Controllers, v2.2 PCI Controller, DDR Memory Controller,

Encryption Accelerator

MCF5470ZP200 Two 10/100 Ethernet Controllers, v2.2 PCI Controller, DDR Memory Controller 200 MHz

266 MHz

200 MHz

266 MHz

200 MHz

WLAN

LAN

Design Challenges

The key requirements of a microprocessor for the home entertainment gateway application are connectivity and price/performance. Processors for this application require dual Fast Ethernet interfaces for routing; a USB 2.0 device controller; and a PCI bridge to interface to the IEEE 802.11a/ b/g radios, (serial) ATA storage controller, MPEG2/AC3 video/audio

SG2062-3

processor and optional IEEE 1394 controller. In addition, they require an I

C bus for controlling the video components and an infrared-capable serial port for IR remote control. The processor must have sufficient performance and memory bandwidth to handle simultaneous A/V recording and playback, routing, and file serving. A crypto engine is also required in order to accelerate encryption for the

wireless link and to encrypt files stored on the hard disk.

Because the home entertainment gateway application is an embedded, always-on device that requires a reliable RTOS or Linux® operating system, full memory management capability is an asset.

Freescale Semiconductor Solution

The MCF547x Family provides the essential connectivity requirements for a home entertainment gateway. It features a V4e ColdFire® core with large dual 32 KB caches that deliver 410 MIPS (Dhrystone 2.1) of performance at 266 MHz. The Memory Management Unit (MMU) allows a full protected-mode OS, such as standard Linux OS, to be used.

The 32-bit wide DDR SDRAM controller provides high-memory bandwidth for A/V, storage, and network data. The onchip 32 KB SRAM can be used to store critical routines and data, in addition to keys and initialization vectors for the onchip crypto engine.

The serial peripherals (dual Fast Ethernets, USB 2.0 device, I

C and four

programmable serial ports) are

supported by DMA channels to minimize CPU overhead. The integrated PCI bridge supports bus mastering for direct transfers to and from memory.

With the required key functionalities integrated into the MCF547x Family, a range of home entertainment gateway products can be developed based on the same core design, but with different PCI peripherals and software.

Development Tools

Product Name Vendor Additional Information

CodeWarrior™ IDE CodeWarrior Compiler: C/C++ CodeWarrior Source Level Debugger RTOS: Packaged with ARC MQX Hardware Debug Connection CodeWarrior Cycle Accurate Instruction Set Simulator Platform Creation Suite for Linux® OS CodeWarrior Development Studio, ColdFire Edition for Linux

Evaluation Board: Zoom ColdFire Development Kit ColdFire Card Engines Zoom Display Kits: QVGA, VGA and SVGA

IDE: Multi Compiler: C/C++/EC++ RTOS: ThreadX® and INTEGRITY® Instruction-Set Simulator Source Level Debugger Hardware Debug Connection

IDE Compiler: C/C++ Hardware Debugger: visionICE II Source Level Debugger: vision CLICK

Network Development Kit IDE RTOS TCP/IP Stack, Web Server Compilers: C/C++ Source Level Debugger Hardware Reference Design IEEE® 802.11b Solution

RTOS: MQX TCP/IP Stack: RTCS Internet Security: IPShield with IPsec and SSL Connectivity: USB and CAN Developer Kits

RTOS: RTXC™ Quadros TCP/IP Stack: RTXCnet™ Quadnet

RTOS: ChronOS™ TCP /I P Stack: Nic he Stack™ with integrated IPsec support

Nucleus® RTOS XRAY® Debugger Microtec® Compiler IDE

Debugger: GDB Compiler: GCC

Metrowerks Corp. www.metrowerks.com

Logic Product Development www.logicpd.com

Green Hills Software, Inc. www.ghs.com

Wind River Systems, Inc. www.windriver.com

NetBurner www.netburner.com

ARC International www.arc.com/ColdFire

Quadros Systems, Inc. www.quadros.com

InterNiche Technologies www.iniche.com

Accelerated Technology www.acceleratedtechnology.com

GNU www.gnu.org

SG2062-4
