MC68HC11F1

MC68HC11FC0

Technical Summary

8-Bit Microcontroller

1 Introduction

The MC68HC11F1 is a high-performance member of the M68HC11 family of microcontroller units (MCUs). High-speed expanded systems required the development of this chip with its extra input/output (I/O) ports, an increase in static RAM (one Kbyte), internal chip-select functions, and a non-multiplexed bus which reduces the need for external interface logic. The timer, serial I/O, and analog-to-digital (A/ D) converter enable functions similar to those found in the MC68HC11E9.

The MC68HC11FC0 is a low cost, high-speed derivative of the MC68HC11F1. It does not have EEPROM or an analog-to-digital converter. The MC68HC11FC0 can operate at bus speeds as high as six MHz.

This document provides a brief overview of the structure, features, control registers, packaging information and availability of the MC68HC11F1 and MC68HC11FC0. For detailed information on M68HC11 subsystems, programming and the instruction set, refer to the (M68HC11RM/AD).

M68HC11 Reference Manual

1.1 Features

• MC68HC11 CPU

• 512 Bytes of On-Chip Electrically Erasable Programmable ROM (EEPROM) with Block Protect (MC68HC11F1 only)

• 1024 Bytes of On-Chip RAM (All Saved During Standby)

• Enhanced 16-Bit Timer System

— 3 Input Capture (IC) Functions — 4 Output Compare (OC) Functions — 4th IC or 5th OC (Software Selectable)

• On-Board Chip-Selects with Clock Stretching

• Real-Time Interrupt Circuit

• 8-Bit Pulse Accumulator

• Synchronous Serial Peripheral Interface (SPI)

• Asynchronous Nonreturn to Zero (NRZ) Serial Communication Interface (SCI)

• Power saving STOP and WAIT Modes

• Eight-Channel 8-Bit A/D Converter (MC68HC11F1 only)

• Computer Operating Properly (COP) Watchdog System and Clock Monitor

• Bus Speeds of up to 6 MHz for the MC68HC11FC0 and up to 5 MHz for the MC68HC11F1

• 68-Pin PLCC (MC68HC11F1 only), 64-Pin QFP (MC68HC11FC0 only), and 80-pin TQFP package options

This document contains information on a new product. Speciﬁcations and information herein are subject to change without notice.

1.2 Ordering Information

The following devices all have 1024 bytes of RAM. In addition, the MC68HC11F1 devices have 512 bytes of EEPROM. None of the devices contain on-chip ROM.

Table 1 MC68HC11F1 Standard Device Ordering Information

Package Temperature Frequency MC Order Number

80-Pin Thin Quad Flat Pack

(TQFP)

(14 mm X 14 mm,

1.4 mm thick)

68-Pin PLCC

0 ° to +70 °

-40 ° to +85 ° C

– 40 ° to + 105 ° C

– 40 ° to + 125 ° C

0 ° to +70 °

– 40 ° to + 85 ° C

– 40 ° to + 105 ° C

– 40 ° to + 125 ° C

5 MHz MC68HC11F1PU5 2 MHz MC68HC11F1CPU2 3 MHz MC68HC11F1CPU3 4 MHz MC68HC11F1CPU4 5 MHz MC68HC11F1CPU5 2 MHz MC68HC11F1VPU2 3 MHz MC68HC11F1VPU3 4 MHz MC68HC11F1VPU4 2 MHz MC68HC11F1MPU2 3 MHz MC68HC11F1MPU3 4 MHz MC68HC11F1MPU4 5 MHz MC68HC11F1FN5 2 MHz MC68HC11F1CFN2 3 MHz MC68HC11F1CFN3 4 MHz MC68HC11F1CFN4 5 MHz MC68HC11F1CFN5 2 MHz MC68HC11F1VFN2 3 MHz MC68HC11F1VFN3 4 MHz MC68HC11F1VFN4 2 MHz MC68HC11F1MFN2 3 MHz MC68HC11F1MFN3 4 MHz MC68HC11F1MFN4

Table 2 MC68HC11F1 Extended Voltage (3.0 to 5.5 V) Device Ordering Information

Package Temperature Frequency MC Order Number

68-Pin Plastic Leaded Chip

Carrier (PLCC)

80-Pin Thin Quad Flat Pack

(TQFP)

0 ° to +70 ° C 3 MHz MC68L11F1FN3

–40 ° to +85 ° C 3 MHz MC68L11F1CFN3

0 ° to +70 ° C 3 MHz MC68L11F1PU3

–40 ° to +85 ° C 3 MHz MC68L11F1CPU3

MOTOROLA MC68HC11F1/FC0 2 MC68HC11FTS/D

Table 3 MC68HC11FC0 Standard Device Ordering Information

Package Temperature Frequency MC Order Number

64-Pin Quad Flat Pack

(QFP)

80-Pin Thin Quad Flat Pack

(TQFP)

–40 ° to +85 ° C

0 ° to 70 ° C 6 MHz MC68HC11FC0FU6

–40 ° to +85 ° C

0 ° to 70 ° C 6 MHz MC68HC11FC0PU6

4 MHz MC68HC11FC0CFU4 5 MHz MC68HC11FC0CFU5

4 MHz MC68HC11FC0CPU4 5 MHz MC68HC11FC0CPU5

Table 4 MC68HC11FC0 Extended Voltage (3.0 to 5.5 V) Device Ordering Information

Package Temperature Frequency MC Order Number

64-Pin Quad Flat Pack

(QFP)

–0 ° to +70 ° C

80-Pin Thin Quad Flat Pack

(TQFP)

3 MHz MC68L11FC0FU3 4 MHz MC68L11FC0FU4 3 MHz MC68L11FC0PU3 4 MHz MC68L11FC0PU4

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 3

Section Page

1 Introduction

1.1 Features ......................................................................................................................................1

1.2 Ordering Information ...................................................................................................................2

1.3 Block Diagrams ..........................................................................................................................6

2 Pin Assignments and Signal Descriptions

2.1 MC68HC11F1 Pin Assignments ..................................................................................................8

2.2 MC68HC11FC0 Pin Assignments .............................................................................................10

2.3 Pin Descriptions ........................................................................................................................12

3 Control Registers

3.1 MC68HC11F1 Control Registers ...............................................................................................14

3.2 MC68HC11FC0 Control Registers ............................................................................................16

4 Operating Modes and System Initialization

4.1 Operating Modes .......................................................................................................................18

4.2 Memory Maps ............................................................................................................................19

4.3 System Initialization Registers ..................................................................................................20

5 Resets and Interrupts

5.1 Interrupt Sources .......................................................................................................................25

5.2 Reset and Interrupt Registers ...................................................................................................26

6 Electrically Erasable Programmable ROM

6.1 EEPROM Operation ..................................................................................................................29

6.2 EEPROM Registers ...................................................................................................................29

6.3 EEPROM Programming and Erasure ........................................................................................31

6.4 CONFIG Register Programming ...............................................................................................32

7 Parallel Input/Output

7.1 Port A ........................................................................................................................................33

7.2 Port B ........................................................................................................................................33

7.3 Port C ........................................................................................................................................33

7.4 Port D ........................................................................................................................................33

7.5 Port E ........................................................................................................................................33

7.6 Port F .........................................................................................................................................33

7.7 Port G ........................................................................................................................................34

7.8 Parallel I/O Registers ................................................................................................................34

8 Chip-Selects

8.1 Chip-Select Operation ...............................................................................................................38

8.2 Chip-Select Registers ................................................................................................................38

9 Serial Communications Interface (SCI)

9.1 SCI Block Diagrams ..................................................................................................................42

9.2 SCI Registers ............................................................................................................................44

10 Serial Peripheral Interface

10.1 SPI Block Diagram ....................................................................................................................49

10.2 SPI Registers ............................................................................................................................50

11 Analog-to-Digital Converter

11.1 Input Pins ..................................................................................................................................54

11.2 Conversion Sequence ...............................................................................................................54

11.3 A/D Registers ............................................................................................................................55

12 Main Timer

12.1 Timer Operation ........................................................................................................................57

12.2 Timer Registers .........................................................................................................................59

13 Pulse Accumulator

13.1 Pulse Accumulator Block Diagram ............................................................................................64

13.2 Pulse Accumulator Registers ....................................................................................................64

MOTOROLA MC68HC11F1/FC0 4 MC68HC11FTS/D

REGISTER INDEX

ADCTL ................A/D Control/Status.........................................................$1030

BAUD.................. Baud Rate......................................................................$102B

BPROT................ Block Protect..................................................................$1035

CFORC ............... Timer Force Compare....................................................$100B

CONFIG.............. EEPROM Mapping, COP, EEPROM Enables...............$103F

COPRST............. Arm/Reset COP Timer Circuitry.....................................$103A

CSCTL ................ Chip-Select Control........................................................$105D

CSGADR............. General-Purpose Chip-Select Address Register........... $105E

CSGSIZ............... General-Purpose Chip-Select Size Register ................$105F

CSSTRH ............. Clock Stretching.............................................................$105C

DDRA.................. Port A Data Register......................................................$1001

DDRC.................. Data Direction Register for Port C.................................$1007

DDRD.................. Data Direction Register for Port D.................................$1009

DDRG.................. Data Direction Register for Port G.................................$1003

HPRIO................. Highest Priority Interrupt and Miscellaneous ................$103C

INIT ..................... RAM and I/O Mapping...................................................$103D

OC1D.................. Output Compare 1 Data ................................................$100D

OC1M.................. Output Compare 1 Mask ...............................................$100C

OPT2................... System Configuration Option Register 2 .......................$1038

OPTION .............. System Configuration Options.......................................$1039

PACNT................ Pulse Accumulator Count ..............................................$1027

PACTL................. Pulse Accumulator Control ...........................................$1026

PORTA................ Port A Data....................................................................$1000

PORTB................ Port B Data....................................................................$1004 ..........................35

PORTC................ Port C Data....................................................................$1006 ..........................35

PORTD................ Port D Data....................................................................$1008 ..........................36

PORTE................ Port E Data....................................................................$100A ..........................36

PORTF................ Port F Data ....................................................................$1005 ..........................35

PORTG ............... Port G Data....................................................................$1002 ..........................34

PPROG............... EEPROM Programming Control....................................$103B ..........................30

SCCR1................ SCI Control 1 ................................................................$102C ..........................46

SCCR2................ SCI Control 2 ................................................................$102D ..........................46

SCDR.................. Serial Communications Data Register...........................$102F ..........................48

SCSR.................. SCI Status......................................................................$102E ..........................47

SPCR.................. Serial Peripheral Control ...............................................$1028 ..........................50

SPDR.................. SPI Data .......................................................................$102A ..........................51

SPSR .................. Serial Peripheral Status.................................................$1029 ..........................51

TCNT................... Timer Count ..................................................................$100E, $100F ..............59

TCTL1................. Timer Control 1..............................................................$1020 ..........................60

TCTL2................. Timer Control 2..............................................................$1021 ..........................61

TEST1................. Factory Test ..................................................................$103E ..........................24

TFLG1................. Timer Interrupt Flag 1 ...................................................$1023 ..........................61

TFLG2................. Timer Interrupt Flag 2 ...................................................$1025 ................... 62, 65

TI4O5.................. Timer Input Capture 4/Output Compare 5 ....................$101E, $101F ..............60

TIC1–TIC3........... Timer Input Capture ......................................................$1010–$1015 ..............60

TMSK1................ Timer Interrupt Mask 1 ..................................................$1022 ..........................61

TMSK2................ Timer Interrupt Mask 2 ..................................................$1024 ................... 62, 64

TOC1–TOC4....... Timer Output Compare .................................................$1016–$101D ..............60

..........................55

..........................44

..........................29

..........................59

............. 24

..........................27

..........................39

.........................40

..........................40

..........................38

..........................34

..........................35

..........................36

..........................35

................... 20

................... 21

..........................59

............. 22

............. 23

..........................66

................... 63

..........................34

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 5

1.3 Block Diagrams

PA7

PA6 PA5 PA4 PA3 PA2 PA1 PA0

PORT A

DDRA

VDDV

POWER

PAI/0C1

OC2/OC1 OC3/OC1 OC4/OC1 IC4/OC5/OC1 IC3 IC2 IC1

4XOUT

CLOCK

LOGIC

PULSE

ACCUMULATOR

XTAL EXTAL

OSCILLATOR

TIMER

SYSTEM

IRQ XIRQ RESET

INTERRUPT

LOGIC

COP

PERIODIC INTERRUPT

MODA/

LIR

MODE

CONTROL

CONVERTER

A/D

MODB/

STBY

AN7 AN6 AN5 AN4 AN3 AN2 AN1 AN0

PORT E

PE7 PE6 PE5 PE4 PE3 PE2 PE1 PE0

ADDR15

ADDR14

PB7

PB6

512 BYTES EEPROM

1024 BYTES STATIC RAM

CPU

CORE

ADDR13

ADDR12

PORT B

PB5

PB4

ADDRESS BUS

ADDR10

ADDR9

ADDR8

ADDR11

PB0

PB3

PB2

PB1

ADDR6

ADDR7

PORT F

PF0

PF1

ADDR4

ADDR5

PF3

PF2

ADDR2

ADDR3

PF5

PF4

PF6

ADDR0

ADDR1

PF7

DATA BUS

DATA6

DATA7

PC0

PC1

DATA5

PORT C

DDRC

PC2

Figure 1 MC68HC11F1 Block Diagram

DATA4

PC4

PC3

DATA2

DATA3

PC5

DATA1

PC7

PC6

DATA0

R/W

CSPROG

CSGEN

CHIP

SELECTS

SCI

SPI

CSIO1 CSIO2

RxD

TxD

MISO MOSI

SCK

PG7 PG6 PG5 PG4 PG3

DDRG

PORT G

PG2 PG1 PG0

PD0 PD1

PD2

DDRD

PORT D

PD3 PD4

PD5

MOTOROLA MC68HC11F1/FC0 6 MC68HC11FTS/D

VDDV

POWER

MODB /

MODA /

E 4XOUT XTAL EXTAL

OSCILLATOR

CLOCK

LOGIC

IRQ XIRQ RESET

INTERRUPT

LOGIC

LIR

MODE

CONTROL

STBY

PA7

PA6 PA5 PA4 PA3 PA2 PA1 PA0

PE6 PE5 PE4 PE3 PE2 PE1

PORT A

PORT E

DDRA

ADDR15

ADDR14

PORT B

PB7

PB6

PAI/0C1

OC2/OC1 OC3/OC1 OC4/OC1 IC4/OC5/OC1 IC3 IC2 IC1

ADDR13

ADDR12

PB5

PB4

PB3

ADDRESS BUS

ADDR10

ADDR9

ADDR8

ADDR11

PB0

PB2

PB1

PULSE

ACCUMULATOR

1024 BYTES STATIC RAM

CPU

CORE

ADDR2

ADDR3

ADDR4

ADDR5

ADDR6

ADDR7

PORT F

PF0

PF1

PF2

PF3

PF4

PF5

TIMER

SYSTEM

PERIODIC INTERRUPT

ADDR0

ADDR1

DATA7

PC0

PF7

PF6

COP

DATA BUS

DATA4

DATA5

DATA6

PORT C

DDRC

PC3

PC2

PC1

DATA3

PC5

PC4

DATA1

DATA2

PC6

DATA0

PC7

R/W

CSPROG

CSGEN

CHIP

SELECTS

SCI

SPI

CSIO1 CSIO2

RxD

TxD

MISO MOSI

SCK

PG7 PG6 PG5 PG4

DDRG

PORT G

PG3 PG2 PG1 PG0

WAIT

PD0 PD1

PD2

DDRD

PORT D

PD3 PD4

PD5

Figure 2 MC68HC11FC0 Block Diagram

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 7

2 Pin Assignments and Signal Descriptions

2.1 MC68HC11F1 Pin Assignments

STBY

PC1/DATA1 PC2/DATA2 PC3/DATA3 PC4/DATA4 PC5/DATA5 PC6/DATA6 PC7/DATA7

RESET

XIRQ

IRQ

PG7/CSPROG

PG6/CSGEN

PG5/CSIO1 PG4/CSIO2

PG3 PG2 PG1

PC0/DATA0

4XOUT

XTAL

EXTAL

R/WEMODA/LIR

5 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

PG0

PD1/TxD

PD0/RxD

PD2/MISO32PD3/MOSI

MODB/V

MC68HC11F1

PD5/SS

PD4/SCK

VSSVRHVRLPE7/AN7

PA7/PAI/OC1

PA6/OC2/OC1

PE3/AN3

PA5/OC3/OC1

PA4/OC4/OC1

PA3/OC5/IC4/OC1

PE6/AN6

PA2/IC142PA1/IC2

PE2/AN2

PE5/AN5

PA0/IC3

PE1/AN1

PE4/AN4

PE0/AN0

PF0/ADDR0

PF1/ADDR1

PF2/ADDR2

PF3/ADDR3 PF4/ADDR4

PF5/ADDR5

53 52

PF6/ADDR6

PF7/ADDR7 PB0/ADDR8

50 49

PB1/ADDR9

PB2/ADDR10

PB3/ADDR11

PB4/ADDR12

PB5/ADDR13

PB6/ADDR14

PB7/ADDR15

Figure 3 MC68HC11F1 68-Pin PLCC Pin Assignments

MOTOROLA MC68HC11F1/FC0 8 MC68HC11FTS/D

PB6/ADDR14 PB5/ADDR13 PB4/ADDR12 PB3/ADDR11 PB2/ADDR10

PB1/ADDR9 PB0/ADDR8

PF7/ADDR7 PF6/ADDR6 PF5/ADDR5 PF4/ADDR4 PF3/ADDR3 PF2/ADDR2 PF1/ADDR1 PF0/ADDR0

PE0/AN0 PE4/AN4

PB7/ADDR15

PA0/IC3

PA1/IC2

PA2/IC1

PA3/OC5/IC4/OC1

PA4/OC4/OC1

PA5/OC3/OC1

PA6/OC2/OC1

PA7/PAI/OC1

VDDPD5/SS

PD4/SCK

PD3/MOSI

PD2/MISO

PD1/TXD

PD0/RXD

PG0

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

NC 21

PE2AN2 25

PE1/AN123PE5/AN5

PE6/AN6 26

MC68HC11F1

PE3/AN3 27

PE7/AN7 28

STBY

MODA/LIR 33

MODB/V

E34

R/W 35

XTAL 37

EXTAL 36

4XOUT 39

PG1

PG2

PG3

PG4/CSIO2

PG5/CSIO1

PG6/CSGEN

PG7/CSPROG

IRQ

52 51

XIRQ

RESET

PC7/DATA7

PC6/DATA6

PC5/DATA5

PC4/DATA4

PC3/DATA3

PC2/DATA2

PC1/DATA1

PC0/DATA0

Figure 4 Pin Assignments for the MC68HC11F1 80-Pin QFP

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 9

2.2 MC68HC11FC0 Pin Assignments

PB6/ADDR14 PB5/ADDR13 PB4/ADDR12 PB3/ADDR11 PB2/ADDR10

PB1/ADDR9 PB0/ADDR8 PF7/ADDR7 PF6/ADDR6 PF5/ADDR5 PF4/ADDR4 PF3/ADDR3 PF2/ADDR2 PF1/ADDR1 PF0/ADDR0

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

PA1/IC2

PA0/IC3

PB7/ADDR15

PE2

PE5

PE1

PA2/IC1

PA4/OC4/OC1

PA3/IC4/OC5/OC1

MC68HC11FC0

PE3

PE6

PA6/OC2/OC1

PA5/OC3/OC1

WAIT

MODA/LIR

PD5/SS

VDDPA7/PAI/OC1

STBY

MODB/V

PD3/MOSI

PD4/SCK

R/W

PD1/TxD

PD2/MISO

XTAL

EXTAL

PD0/RxD

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

PC0/DATA0

PG2 PG3 PG4/CSIO2 PG5/CSIO1 PG6/CSGEN

PG7/CSPROG

IRQ XIRQ

RESET PC7/DATA7 PC6/DATA6 PC5/DATA5 PC4/DATA4 PC3/DATA3 PC2/DATA2 PC1/DATA1

Figure 5 MC68HC11FC0 64-Pin QFP Pin Assignments

MOTOROLA MC68HC11F1/FC0 10 MC68HC11FTS/D

NC 1

NC PB6/ADDR14 PB5/ADDR13 PB4/ADDR12 5 PB3/ADDR11 6 PB2/ADDR10 7

PB1/ADDR9 8 PB0/ADDR8 9 PF7/ADDR7 10 PF6/ADDR6 11 PF5/ADDR5 12 PF4/ADDR4 13 PF3/ADDR3 14 PF2/ADDR2 15 PF1/ADDR1 16 PF0/ADDR0 17

PE4 19

PD2/MISO

PD3/MOSI

PD4/SCK

PA1/IC2

PA0/IC3

PB7/ADDR15

PA4/OC4/OC1

PA3/IC4/OC5/OC1

PA2/IC1

PA6/OC2/OC1

PA5/OC3/OC1

PD5/SS

VDDPA7/PAI/OC1

PD1/T

2 3 4

MC68HC11FC0

PE1

PE5

PE2

PE6

PE3

WAIT

MODA/LIR

STBY

MODB/V

R/W

XTAL

EXTAL

PD0/R

PG0

4XOUT

PG1

59 58

PG2

PG3

PG4/CSIO0

PG5/CSIO1

PG6/CSGEN

PG7/CSPR

IRQ XIRQ

51 50

RESET

PC7/DATA7

PC6/DATA6

PC5/DATA5

PC4/DATA4

PC3/DATA3

PC2/DATA2

PC1/DATA1

PC0/DATA0

Figure 6 MC68HC11FC0 80-Pin TQFP Pin Assignments

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 11

2.3 Pin Descriptions VDD and V

VDD is the positive power input to the MCU, and VSS is ground.

RESET

This active-low input initializes the MCU to a known startup state. It also acts as an open-drain output to indicate that an internal failure has been detected in either the clock monitor or the COP watchdog circuits.

XTAL and EXTAL

These two pins provide the interface for either a crystal or a CMOS-compatible clock to drive the internal clock circuitry. The frequency applied to these pins is four times the desired bus frequency (E clock).

This pin provides an output for the E clock, the basic timing reference signal for the bus circuitry. The address bus is active when E is low, and the data bus is active when E is high.

The data strobe output is the inverted E clock. DS is present on the MC68HC11FC0 only.

WAIT

This input is used to stretch the bus cycle to accomodate slower devices. The MCU samples the logic level at this pin on the rising edge of E clock. If it is high, the MCU holds the E clock high for the next four EXTAL clock cycles. If it is low, the E clock responds normally, going low two EXTAL cycles later. The WAIT pin is present on the MC68HC11FC0 only.

4XOUT

This pin provides a buffered oscillator signal to drive another M68HC11 MCU. The 4XOUT pin is not present on the 64-pin QFP MC68HC11FC0 package.

IRQ

This active-low input provides a means of generating asynchronous, maskable interrupt requests for the CPU.

XIRQ

This interrupt request input can be made non-maskable by clearing the X bit in the MCU’s condition code register.

MODA/LIR and MODB/VSTBY

The logic level applied to the MODA and MODB pins at reset determines the MCU’s opreating mode (see Table 7 in 4 Operating Modes and System Initialization). After reset, MODA functions as LIR, an open-drain output that indicates the start of an instruction cycle. MODB functions as V

, providing a backup battery to maintain the contents of RAM when VDD falls.

STBY

R/W

In expanded and test modes, R/W indicates the direction of transfers on the external data bus.

VRH and V

These pins provide the reference voltage for the analog-to-digital converter. Use bypass capacitors to minimize noise on these signals. Any noise on VRH and VRL will directly affect A/D

accuracy. These pins are not present on the MC68HC11FC0.

MOTOROLA MC68HC11F1/FC0 12 MC68HC11FTS/D

Port Signals

On the MC68HC11F1, 54 pins are arranged into six 8-bit ports (ports A, B, C, E, F, and G) and one 6-bit port (port D). On the MC68HC11FC0, either 52 or 49 pins are available, depending on the package. General-purpose I/O port signals are discussed briefly in the following pragraphs. For additional information, refer to 7 Parallel Input/Output.

Port A Pins

Port A is an 8-bit general-purpose I/O port (PA[7:0]) with a data register (PORTA) and a data direction register (DDRA). Port A pins share functions with the 16-bit timer system. Out of reset, PA[7:0] are general-purpose high-impedance inputs.

Port B Pins

Port B is an 8-bit output-only port. In single-chip modes, port B pins are general-purpose output pins (PB[7:0]). In expanded modes, port B pins act as the high-order address lines ADDR[15:8].

Port C Pins

Port C is an 8-bit general-purpose I/O port with a data register (PORTC) and a data direction register (DDRC). In single-chip modes, port C pins are general-purpose I/O pins PC[7:0]. In expanded modes, port C pins are configured as data bus pins DATA[7:0].

Port D Pins

Port D is a 6-bit general-purpose I/O port with a data register (PORTD) and a data direction register (DDRD). The six port D lines PD[5:0] can be used for general-purpose I/O or for the serial communications interface (SCI) or serial peripheral interface (SPI) subsystems.

Port E Pins

Port E is an 8-bit input-only port that is also used as the analog input port for the analog-to-digital converter. Port E pins that are not used for the A/D system can be used as general-purpose inputs. However, PORTE should not be read during the sample portion of an A/D conversion sequence.

NOTE

The A/D system is not available on the MC68HC11FC0. PE7 and PE0 are not available on the 80-pin MC68HC11FC0. PE7, PE4, and PE0 are not available on the 64-pin MC68HC11FC0.

Port F Pins

Port F is an 8-bit output-only port. In single-chip mode, port F pins are general-purpose output pins PF[7:0]. In expanded mode, port F pins act as the low-order address outputs ADDR[7:0].

Port G Pins

Port G is an 8-bit general-purpose I/O port. When enabled, four chip select signals are alternate functions of PG[7:4].

NOTE

PG[1:0] are not available on the 64-pin MC68HC11FC0.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 13

3 Control Registers

The MC68HC11F1 and MC68HC11FC0 control registers determine most of the system’s operating characteristics. They occupy a 96-byte relocatable memory block. Their names and bit mnemonics are summarized in the following table. Addresses shown are the default locations out of reset.

3.1 MC68HC11F1 Control Registers

Table 5 MC68HC11F1 Register and Control Bit Assignments

Bit 7 654321Bit 0

$1000 PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0 PORTA $1001 DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0 DDRA $1002 PG7 PG6 PG5 PG4 PG3 PG2 PG1 PG0 PORTG $1003 DDG7 DDG6 DDG5 DDG4 DDG3 DDG2 DDG1 DDG0 DDRG $1004 PB7 PB6 PB5 PB4 PB3 PB2 PB1 PB0 PORTB $1005 PF7 PF6 PF5 PF4 PF3 PF2 PF1 PF0 PORTF $1006 PC7 PC6 PC5 PC4 PC3 PC2 PC1 PC0 PORTC $1007 DDC7 DDC6 DDC5 DDC4 DDC3 DDC2 DDC1 DDC0 DDRC $1008 0 0 PD5 PD4 PD3 PD2 PD1 PD0 PORTD $1009 0 0 DDD5 DDD4 DDD3 DDD2 DDD1 DDD0 DDRD $100A PE7 PE6 PE5 PE4 PE3 PE2 PE1 PE0 PORTE

$100B FOC1 FOC2 FOC3 FOC4 FOC5 0 0 0 CFORC $100C OC1M7 OC1M6 OC1M5 OC1M4 OC1M3 0 0 0 OC1M $100D OC1D7 OC1D6 OC1D5 OC1D4 OC1D3 0 0 0 OC1D $100E Bit 15 14 13 12 11 10 9 Bit 8 TCNT (High)

$100F Bit 7 654321Bit 0 TCNT (Low)

$1010 Bit 15 14 13 12 11 10 9 Bit 8 TIC1 (High)

$1011 Bit 7 654321Bit 0 TIC1 (Low)

$1012 Bit 15 14 13 12 11 10 9 Bit 8 TIC2 (High)

$1013 Bit 7 654321Bit 0 TIC2 (Low)

$1014 Bit 15 14 13 12 11 10 9 Bit 8 TIC3 (High)

$1015 Bit 7 654321Bit 0 TIC3 (Low)

$1016 Bit 15 14 13 12 11 10 9 Bit 8 TOC1 (High)

$1017 Bit 7 654321Bit 0 TOC1 (Low)

$1018 Bit 15 14 13 12 11 10 9 Bit 8 TOC2 (High)

$1019 Bit 7 654321Bit 0 TOC2 (Low) $101A Bit 15 14 13 12 11 10 9 Bit 8 TOC3 (High)

$101B Bit 7 654321Bit 0 TOC3 (Low) $101C Bit 15 14 13 12 11 10 9 Bit 8 TOC4 (High)

$101D Bit 7 654321Bit 0 TOC4 (Low) $101E Bit 15 14 13 12 11 10 9 Bit 8 TI4/O5 (High)

$101F Bit 7 654321Bit 0 TI4/O5 (Low)

$1020 OM2 OL2 OM3 OL3 OM4 OL4 OM5 OL5 TCTL1

$1021 EDG4B EDG4A EDG1B EDG1A EDG2B EDG2A EDG3B EDG3A TCTL2

MOTOROLA MC68HC11F1/FC0 14 MC68HC11FTS/D

Table 5 MC68HC11F1 Register and Control Bit Assignments (Continued)

Bit 7 654321Bit 0

$1022 OC1I OC2I OC3I OC4I I4/O5I IC1I IC2I IC3I TMSK1

$1023 OC1F OC2F OC3F OC4F I4/O5F IC1F IC2F IC3F TFLG1

$1024 TOI RTII PAOVI PAII 0 0 PR1 PR0 TMSK2

$1025 TOF RTIF PAOVF PAIF 0000TFLG2

$1026 0 PAEN PAMOD PEDGE 0 I4/05 RTR1 RTR0 PACTL

$1027 Bit 7 654321Bit 0 PACNT

$1028 SPIE SPE DWOM MSTR CPOL CPHA SPR1 SPR0 SPCR

$1029 SPIF WCOL 0 MODF 0000SPSR $102A Bit 7 654321Bit 0 SPDR $102B TCLR SCP2 SCP1 SCP0 RCKB SCR2 SCR1 SCR0 BAUD $102C R8 T8 0 M WAKE 0 0 0 SCCR1 $102D TIE TCIE RIE ILIE TE RE RWU SBK SCCR2 $102E TDRE TC RDRF IDLE OR NF FE 0 SCSR $102F Bit 7 654321Bit 0 SCDR

$1030 CCF 0 SCAN MULT CD CC CB CA ADCTL

$1031 Bit 7 654321Bit 0 ADR1

$1032 Bit 7 654321Bit 0 ADR2

$1033 Bit 7 654321Bit 0 ADR3

$1034 Bit 7 654321Bit 0 ADR4

$1035 0 0 0 PTCON BPRT3 BPRT2 BPRT1 BPRT0 BPROT

$1036

$1037

$1038 GWOM CWOM CLK4X LIRDV 0 SPRBYP 0 0 OPT2

$1039 0 0 IRQE DLY CME FCME CR1 CR0 OPTION $103A Bit 7 654321Bit 0 COPRST $103B ODD EVEN 0 BYTE ROW ERASE EELAT EEPGM PPROG $103C RBOOT SMOD MDA IRV PSEL3 PSEL2 PSEL1 PSEL0 HPRIO $103D RAM3 RAM2 RAM1 RAM0 REG3 REG2 REG1 REG0 INIT $103E TILOP 0 OCCR CBYP DISR FCM FCOP 0 TEST1 $103F EE3 EE2 EE1 EE0 1 NOCOP 1 EEON CONFIG

$1040

$105B

Reserved Reserved

Reserved

Reserved $105C I01SA I01SB I02SA I02SB GSTHA GSTGB PSTHA PSTHB CSSTRH $105D I01EN I01PL I02EN I02PL GCSPR PCSEN PSIZA PSIZB CSCTL $105E GA15 GA14 GA13 GA12 GA11 GA10 0 0 CSGADR $105F I01AV I02AV 0 GNPOL GAVLD GSIZA GSIZB GSIZC CSGSIZ

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 15

3.2 MC68HC11FC0 Control Registers

Table 6 MC68HC11FC0 Register and Control Bit Assignments

Bit 7 654321Bit 0

$1009 0 0 DDD5 DDD4 DDD3 DDD2 DDD1 DDD0 DDRD $100A PE7 PE6 PE5 PE4 PE3 PE2 PE1 PE0 PORTE $100B FOC1 FOC2 FOC3 FOC4 FOC5 0 0 0 CFORC $100C OC1M7 OC1M6 OC1M5 OC1M4 OC1M3 0 0 0 OC1M $100D OC1D7 OC1D6 OC1D5 OC1D4 OC1D3 0 0 0 OC1D $100E Bit 15 14 13 12 11 10 9 Bit 8 TCNT (High)

$100F Bit 7 654321Bit 0 TCNT (Low)

$1010 Bit 15 14 13 12 11 10 9 Bit 8 TIC1 (High)

$1011 Bit 7 654321Bit 0 TIC1 (Low)

$1012 Bit 15 14 13 12 11 10 9 Bit 8 TIC2 (High)

$1013 Bit 7 654321Bit 0 TIC2 (Low)

$1014 Bit 15 14 13 12 11 10 9 Bit 8 TIC3 (High)

$1015 Bit 7 654321Bit 0 TIC3 (Low)

$1016 Bit 15 14 13 12 11 10 9 Bit 8 TOC1 (High)

$1017 Bit 7 654321Bit 0 TOC1 (Low)

$1018 Bit 15 14 13 12 11 10 9 Bit 8 TOC2 (High)

$1019 Bit 7 654321Bit 0 TOC2 (Low) $101A Bit 15 14 13 12 11 10 9 Bit 8 TOC3 (High)

$101B Bit 7 654321Bit 0 TOC3 (Low) $101C Bit 15 14 13 12 11 10 9 Bit 8 TOC4 (High)

$101D Bit 7 654321Bit 0 TOC4 (Low) $101E Bit 15 14 13 12 11 10 9 Bit 8 TI4/O5 (High)

$101F Bit 7 654321Bit 0 TI4/O5 (Low)

$1020 OM2 OL2 OM3 OL3 OM4 OL4 OM5 OL5 TCTL1

$1021 EDG4B EDG4A EDG1B EDG1A EDG2B EDG2A EDG3B EDG3A TCTL2

$1022 OC1I OC2I OC3I OC4I I4/O5I IC1I IC2I IC3I TMSK1

$1023 OC1F OC2F OC3F OC4F I4/O5F IC1F IC2F IC3F TFLG1

$1024 TOI RTII PAOVI PAII 0 0 PR1 PR0 TMSK2

$1025 TOF RTIF PAOVF PAIF 0000TFLG2

MOTOROLA MC68HC11F1/FC0 16 MC68HC11FTS/D

Table 6 MC68HC11FC0 Register and Control Bit Assignments (Continued)

Bit 7 654321Bit 0 $1026 0 PAEN PAMOD PEDGE 0 I4/05 RTR1 RTR0 PACTL $1027 Bit 7 654321Bit 0 PACNT $1028 SPIE SPE DWOM MSTR CPOL CPHA SPR1 SPR0 SPCR $1029 SPIF WCOL 0 MODF 0000SPSR

$102A Bit 7 654321Bit 0 SPDR $102B TCLR SCP2 SCP1 SCP0 RCKB SCR2 SCR1 SCR0 BAUD $102C R8 T8 0 M WAKE 0 0 0 SCCR1 $102D TIE TCIE RIE ILIE TE RE RWU SBK SCCR2 $102E TDRE TC RDRF IDLE OR NF FE 0 SCSR $102F Bit 7 654321Bit 0 SCDR

$1030

$1037 $1038 GWOM CWOM CLK4X LIRDV 0 SPRBYP 0 0 OPT2 $1039 0 0 IRQE DLY CME FCME CR1 CR0 OPTION

$103A Bit 7 654321Bit 0 COPRST $103B $103C RBOOT SMOD MDA IRV PSEL3 PSEL2 PSEL1 PSEL0 HPRIO $103D RAM5 RAM4 RAM3 RAM2 RAM1 RAM0 REG1 REG0 INIT $103E TILOP 0 OCCR CBYP DISR FCM FCOP 0 TEST1 $103F 00000NOCOP 0 0 CONFIG

$1040

$105B $105C I01SA I01SB I02SA I02SB GSTHA GSTGB PSTHA PSTHB CSSTRH $105D I01EN I01PL I02EN I02PL GCSPR PCSEN PSIZA PSIZB CSCTL $105E GA15 GA14 GA13 GA12 GA11 GA10 0 0 CSGADR $105F I01AV I02AV 0 GNPOL GAVLD GSIZA GSIZB GSIZC CSGSIZ

Reserved

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 17

4 Operating Modes and System Initialization

The 16-bit address bus can access 64 Kbytes of memory. Because the MC68HC11F1 and MC68HC11FC0 are intended to operate principally in expanded mode, there is no internal ROM and the address bus is non-multiplexed. Both devices include 1 Kbyte of static RAM, a 96-byte control register block, and 256 bytes of bootstrap ROM. The MC68HC11F1 also includes 512 bytes of EEPROM.

RAM and registers can be remapped on both the MC68HC11F1 and the MC68HC11FC0. On both the MC68HC11F1 and the MC68HC11FC0, out of reset RAM resides at $0000 to $03FF and registers reside at $1000 to $105F. On the MC68HC11F1, RAM and registers can both be remapped to any 4Kbyte boundary. On the MC68HC11FC0, RAM can be remapped to any 1-Kbyte boundary, and registers can be remapped to any 4-Kbyte boundary in the first 16 Kbytes of address space.

RAM and control register locations are defined by the INIT register, which can be written only once within the first 64 E-clock cycles after a reset in normal modes. It becomes a read-only register thereafter. If RAM and the control register block are mapped to the same boundary, the register block has priority of the first 96 bytes.

In expanded and special test modes in the MC68HC11F1, EEPROM is located from $ where x represents the value of the four high-order bits of the CONFIG register. EEPROM is enabled by the EEON bit of the CONFIG register. In single-chip and bootstrap modes, the EEPROM is located from $FE00 to $FFFF.

4.1 Operating Modes

Bootstrap ROM resides at addresses $BF00–$BFFF, and is only available when the MCU operates in special bootstrap operating mode. Operating modes are determined by the logic levels applied to the MODB and MODA pins at reset.

E00 to $xFFF,

In single-chip mode, the MCU functions as a self-contained microcontroller and has no external address or data bus. Ports B, C and F are available for general-purpose I/O (GPIO). Ports B and F are outputs only; each of the port C pins can be configured as input or output.

CAUTION

The MC68HC11FC0 must not be configured to boot in single-chip mode because it has no internal ROM or EEPROM. Operation of the device in single-chip mode will result in erratic behavior.

In expanded mode, the MCU can access external memory. Ports B and F provide the address bus, and port C is the data bus.

Special bootstrap mode is a variation of single chip mode that provides access to the internal bootstrap ROM. In this mode, the user can download a program into on-chip RAM through the serial communication interface (SCI).

Special test mode, a variation of expanded mode, is primarily used during Motorola’s internal production testing, but can support emulation and debugging during program development.

Table 7 shows a summary of operating modes, mode select pins, and control bits in the HPRIO register.

Table 7 Hardware Mode Select Summary

Input Pins

MODB MODA RBOOT SMOD MDA

1 0 Single Chip 0 0 0 1 1 Expanded 0 0 1 0 0 Special Bootstrap 1 1 0 0 1 Special Test 0 1 1

Mode Description

Control Bits in HPRIO (Latched at Reset)

MOTOROLA MC68HC11F1/FC0 18 MC68HC11FTS/D

4.2 Memory Maps

$0000 —

$03FF —

$1000 — $105F —

$BF00 —

$BFFF —

$FE00 — $FFC0 —

$FFFF —

SINGLE

CHIP

—

— —

—

— —

EXTERNAL

EXPANDED

—

— —

—

— —

BOOTSTRAP

SPECIAL

—

— —

—

— —

EXTERNAL

SPECIAL

TEST

x000

x3FF

y000

y05F

256 BYTES

BOOTSTRAP

ROM

RESERVED

512

BYTES

EEPROM

1024 BYTES RAM

96-BYTE REGISTER FILE

$BFC0

SPECIAL

MODE

INTERRUPT

VECTORS

$BFFF

$FFC0

NORMAL

MODE

INTERRUPT

VECTORS

$FFFF

MODA = 0 MODB = 1

MODA = 1 MODB = 1

MODA = 0 MODB = 0

MODA = 1 MODB = 0

NOTES:

1. RAM can be remapped to any 4-Kbyte boundary ($x000). “x” represents the value contained in RAM[3:0] in the INIT register.

2. The register block can be remapped to any 4-Kbyte boundary ($y000). “y” represents the value contained in REG[3:0] in the INIT register.

3. Special test mode vectors are externally addressed.

4. In special test mode the address locations $zD00—$zDFF are not externally addressable. “z” represents the value of bits EE[3:0] in the CONFIG register.

5. EEPROM can be remapped to any 4-Kbyte boundary ($z000). “z” represents the value contained in EE[3:0] in the CONFIG register.

Figure 7 MC68HC11F1 Memory Map

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 19

$0000 —

$03FF —

—

1024 BYTES RAM

—

$1000 — $105F —

$BF00 —

$BFFF —

$FE00 — $FFC0 —

$FFFF —

SINGLE

CHIP

— —

—

— —

EXTERNAL

EXPANDED

— —

—

— —

BOOTSTRAP

SPECIAL

— —

—

— —

EXTERNAL

SPECIAL

TEST

256 BYTES

BOOTSTRAP

ROM

96-BYTE REGISTER FILE

$BFC0

SPECIAL

MODE

INTERRUPT

VECTORS

$BFFF

$FFC0

NORMAL

MODE

INTERRUPT

VECTORS

$FFFF

MODA = 0 MODB = 1

MODA = 1 MODB = 1

MODA = 0 MODB = 0

MODA = 1 MODB = 0

NOTES:

1. RAM can be remapped to any 1-Kbyte boundary, depending on the value contained in the RAM field in the INIT register.

2. The register block can be remapped to $0000, $2000, or $3000, depending on the value contained in REG[1:0] in the INIT register.

Figure 8 MC68HC11FC0 Memory Map

4.3 System Initialization Registers

HPRIO — Highest Priority Interrupt and Miscellaneous $x03C

Bit 7 654321Bit 0

RBOOT SMOD MDA IRV PSEL3 PSEL2 PSEL1 PSEL0

RESET: 0 0 0 0 0 1 0 1 Single-Chip

0 0 1 0 0 1 0 1 Expanded 1 1 0 1 0 1 0 1 Bootstrap 0 1 1 1 0 1 0 1 Special Test

MOTOROLA MC68HC11F1/FC0 20 MC68HC11FTS/D

RBOOT — Read Bootstrap ROM

RBOOT is valid only when SMOD is set to one (special bootstrap or special test mode). RBOOT can only be written in special modes but can be read anytime.

0 = Boot loader ROM disabled and not in memory map 1 = Boot loader ROM enabled and in memory map at $BF00–$BFFF

SMOD and MDA — Special Mode Select and Mode Select A

The initial value of SMOD is the of reset. The initial value of MDA

inverse

equals

of the logic level present on the MODB pin at the rising edge

the logic level present on the MODA pin at the rising edge of reset. These two bits can be read at any time. They can be written at any time in special modes. Neither bit can be written in normal modes. SMOD cannot be set once it has been cleared. Refer to Table 8.

Table 8 Hardware Mode Select Summary

Input Pins

MODB MODA RBOOT SMOD MDA

1 0 Single Chip 0 0 0 1 1 Expanded 0 0 1 0 0 Special Bootstrap 1 1 0 0 1 Special Test 0 1 1

Mode Description

Control Bits in HPRIO (Latched at Reset)

IRV — Internal Read Visibility

This bit can be read at any time. It can be written at any time in special modes, but only once in normal modes. In single-chip and bootstrap modes, IRV has no meaning or effect.

0 = Internal reads not visible 1 = Data from internal reads is driven on the external data bus

PSEL[3:0] — See 5.2 Reset and Interrupt Registers, page 27. INIT — RAM and I/O Mapping (MC68HC11FC0 only) $x03D

Bit 7 6 5 4 3 2 1 Bit 0

RAM5 RAM4 RAM3 RAM2 RAM1 RAM0 REG1 REG0

RESET: 0 0 0 0 0 0 0 1

The INIT register can be written only once in first 64 cycles out of reset in normal modes, or at any time in special modes.

NOTE

The register diagram above applies to the MC68HC11FC0 only. A diagram and bit descriptions of the INIT register in the MC68HC11F1 are provided elsewhere in this section.

RAM[5:0] — Internal RAM Map Position

These bits determine the upper six bits of the RAM address and allow mapping of the RAM to any oneKbyte boundary.

REG[1:0] — Register Block Map Position

These bits determine the location of the register block, as shown in Table 9.

Table 9 Register Block Location

REG[1:0] Register Block Address

0 0 $0000 – $005F 0 1 $1000 – $105F 1 0 $2000 – $205F 1 1 $3000 – $305F

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 21

INIT — RAM and I/O Mapping (MC68HC11F1 only) $x03D

Bit 7 6 5 4 3 2 1 Bit 0

RAM3 RAM2 RAM1 RAM0 REG3 REG4 REG1 REG0

RESET: 0 0 0 0 0 0 0 1

The INIT register can be written only once in first 64 cycles out of reset in normal modes, or at any time in special modes.

NOTE

The register diagram above applies to the MC68HC11F1 only. A diagram and bit descriptions of the INIT register in the MC68HC11FC0 are provided elsewhere in this section.

RAM[3:0] — Internal RAM Map Position

These bits determine the upper four bits of the RAM address and allow mapping of the RAM to any fourKbyte boundary. Refer to Table 10.

REG[3:0] — 96-Byte Register Block Map Position

These bits determine bits the upper 4 bits of the register block and allow mapping of the register block to any four-Kbyte boundary. Refer to Table 10.

Table 10 RAM and Register Mapping

RAM[3:0] Location REG[3:0] Location

0000 $0000-$03FF 0000 $0000-$005F 0001 $1000-$13FF 0001 $1000-$105F 0010 $2000-$23FF 0010 $2000-$205F 0011 $3000-$33FF 0011 $3000-$305F 0100 $4000-$43FF 0100 $4000-$405F 0101 $5000-$53FF 0101 $5000-$505F 0110 $6000-$63FF 0110 $6000-$605F 0111 $7000-$73FF 0111 $7000-$705F 1000 $8000-$83FF 1000 $8000-$805F 1001 $9000-$93FF 1001 $9000-$905F 1010 $A000-$A3FF 1010 $A000-$A05F 1011 $B000-$B3FF 1011 $B000-$B05F 1100 $C000-$C3FF 1100 $C000-$C05F 1101 $D000-$D3FF 1101 $D000-$D05F 1110 $E000-$E3FF 1110 $E000-$E05F 1111 $F000-$F3FF 1111 $F000-$F05F

OPT2 — System Configuration Option Register 2 $x038

Bit 7 6 5 4 3 2 1 Bit 0

GWOM CWOM CLK4X LIRDV — SPRBYP — —

RESET 0 0 1 0 0 0 0 0

GWOM — Port G Wired-OR Mode Option

Refer to 7.8 Parallel I/O Registers, page 36.

MOTOROLA MC68HC11F1/FC0 22 MC68HC11FTS/D

CWOM — Port C Wired-OR Mode Option

Refer to 7.8 Parallel I/O Registers, page 37.

CLK4X — 4XCLK Output Enable

This bit can only be written once after reset in all modes.

0 = 4XOUT clock output is disabled 1 = Buffered oscillator is driven on the 4XOUT clock output

LIRDV — Load Instruction Register Driven

In order to detect consecutive instructions in a high-speed application, LIR can be driven high for one quarter of an E-clock cycle during each instruction fetch.

0 = LIR signal is not driven high.

1 = LIR signal is driven high. Bits 3, 1, 0 — Not implemented. Reads always return zero and writes have no effect. SPRBYP — See 10.2 SPI Registers, page 52.

OPTION — System Configuration Options $x039

Bit 7 6 5 4 3 2 1 Bit 0

ADPU CSEL IRQE* DLY* CME FCME* CR1* CR0*

RESET: 0 0 0 1 0 0 0 0

*Can be written only once in first 64 cycles out of reset in normal modes, or at any time in special modes.

ADPU — A/D Power-Up

This bit is implemented on the MC68HC11F1 only. On the MC68HC11FC0, reads always return zero and writes have no effect.

0 = A/D system disabled

1 = A/D system enabled CSEL — Clock Select

This bit is implemented on the MC68HC11F1 only. On the MC68HC11FC0, reads always return zero and writes have no effect.

0 = A/D and EEPROM use system E clock

1 = A/D and EEPROM use internal RC clock IRQE — IRQ Select Edge Sensitive Only

0 = Low level recognition

1 = Falling edge recognition DLY — Enable Oscillator Start-Up Delay on Exit from STOP

0 = No stabilization delay on exit from STOP

1 = Stabilization delay of 4064 E-clock cycles is enabled on exit from STOP CME — Clock Monitor Enable

0 = Clock monitor disabled; slow clocks can be used

1 = Slow or stopped clocks cause clock failure reset FCME — Force Clock Monitor Enable

0 = Clock monitor circuit follows the state of the CME bit

1 = Clock monitor circuit is enabled until the next reset

In order to use both STOP and the clock monitor, the CME bit should be written to zero prior to executing a STOP instruction and rewritten to one after recovery from STOP. FCME should be kept cleared if the user intends to use the STOP instruction.

CR[1:0] — COP Timer Rate Select

Refer to 5.2 Reset and Interrupt Registers, page 27.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 23

CONFIG — EEPROM Mapping, COP, EEPROM Enables $x03F

Bit 7 654321Bit 0 EE3 EE2 EE1 EE0 1 NOCOP 1 EEON

RESET UUUU1U1U

U = Unaffected by reset

Bits 7:3 — See 6.2 EEPROM Registers, page 30. (These bits are implemented on the MC68HC11F1 only.) NOCOP — COP System Disable

0 = COP enabled (forces reset on time-out)

1 = COP disabled (does not force reset on time-out) TEST1 — Factory Test $x03E

Bit 7 6 5 4 3 2 1 Bit 0

TILOP 0 OCCR CBYP DISR FCM FCOP 0

RESET: 0 0 0 0 — 0 0 0

These bits can only be written in test and bootstrap modes.

TILOP — Test Illegal Opcode

This test mode allows serial testing of all illegal opcodes without servicing an interrupt after each illegal opcode is fetched.

0 = Normal operation (trap on illegal opcodes)

1 = Inhibit LIR

when an illegal opcode is found Bit 6 — Not implemented. Reads always return zero and writes have no effect. OCCR — Output Condition Code Register to Timer Port

0 = Normal operation 1 = Condition code bits H, N, Z, V and C are driven on PA[7:3] to allow a test system to monitor

CPU operation

CBYP — Timer Divider Chain Bypass

0 = Normal operation 1 = The 16-bit free-running timer is divided into two 8-bit halves and the prescaler is bypassed. The

system E clock drives both halves directly.

DISR — Disable Resets from COP and Clock Monitor

In test and bootstrap modes, this bit is reset to one to inhibit clock monitor and COP resets. In normal modes, DISR is reset to zero.

0 = Normal operation 1 = COP and Clock Monitor failure do not generate a system reset

FCM — Force Clock Monitor Failure

0 = Normal operation 1 = Generate an immediate clock monitor failure reset. Note that the CME bit in the OPTION register

must also be set in order to force the reset.

FCOP — Force COP Watchdog Failure

0 = Normal operation 1 = Generate an immediate COP failure reset. Note that the NOCOP bit in the CONFIG register

must be cleared (COP enabled) in order to force the reset.

Bit 0 — Not implemented. Reads always return zero and writes have no effect.

MOTOROLA MC68HC11F1/FC0 24 MC68HC11FTS/D

5 Resets and Interrupts

There are three sources of reset on the MC68HC11F1 and MC68HC11FC0, each having its own reset vector:

• RESET pin

• Clock monitor failure

• Computer operating properly (COP) failure

There are 22 interrupt sources serviced by 18 interrupt vectors. (The SCI interrupt vector services five SCI interrupt sources.) Three of the interrupt vectors are non-maskable:

• Illegal opcode trap

• Software interrupt

• XIRQ pin (pseudo non-maskable interrupt)

The other 19 interrupts, generated mostly by on-chip peripheral systems, are maskable. Maskable interrupts are recognized only if the global interrupt mask bit (I) in the condition code register (CCR) is clear. Maskable interrupts have a default priority arrangement out of reset. However, any one interrupt source can be elevated to the highest maskable priority position by writing to the HPRIO register. This register can be written at any time, provided the I bit in the CCR is set.

In addition to the global I bit, all maskable interrupt sources except the external interrupt (IRQ subject to local enable bits in control registers. Each of these interrupt sources also sets a corresponding flag bit in a control register that can be polled by software.

Several of these flags are automatically cleared during the normal course of responding to the interrupt requests. For example, the RDRF flag is set when a byte has been received in the SCI. The normal response to an RDRF interrupt request is to read the SCI status register to check for receive errors, then to read the received data from the SCI data register. It is precisely these two steps that are required to clear the RDRF flag, so no further instructions are necessary.

5.1 Interrupt Sources

The following table summarizes the interrupt sources, vector addresses, masks, and flag bits.

pin) are

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 25

Table 11 Interrupt and Reset Vector Assignments

Vector Address Interrupt Source CCR Mask Local Mask Flag Bit

FFC0, C1

FFD4, D5 FFD6, D7 SCI Serial System

SCI Transmit Complete TCIE TC SCI Transmit Data Register Empty TIE TDRE SCI Idle Line Detect ILIE IDLE SCI Receiver Overrun RIE OR SCI Receive Data Register Full RIE RDRF

FFD8, D9 SPI Serial Transfer Complete I Bit SPIE SPIF

FFDA, DB Pulse Accumulator Input Edge I Bit PAII PAIF

FFDC, DD Pulse Accumulator Overflow I Bit PAOVI PAOVF

FFDE, DF Timer Overflow I Bit TOI TOF

FFE0, E1 Timer Input Capture 4/Output Compare 5 I Bit I4/O5I I4/O5F FFE2, E3 Timer Output Compare 4 I Bit OC4I OC4F FFE4, E5 Timer Output Compare 3 I Bit OC3I OC3F FFE6, E7 Timer Output Compare 2 I Bit OC2I OC2F FFE8, E9 Timer Output Compare 1 I Bit OC1I OC1F FFEA, EB Timer Input Capture 3 I Bit IC3I IC3F

FFEC, ED Timer Input Capture 2 I Bit IC2I IC2F

FFEE, EF Timer Input Capture 1 I Bit IC1I IC1F

FFF0, F1 Real-Time Interrupt I Bit RTII RTIF FFF2, F3 IRQ FFF4, F5 XIRQ FFF6, F7 Software Interrupt None None None

FFF8, F9 Illegal Opcode Trap None None None FFFA, FB COP Failure None NOCOP None FFFC, FD Clock Monitor Fail None CME None FFFE, FF RESET None None None

I Bit None None

Pin X Bit None None

Reserved — — —

I Bit

5.2 Reset and Interrupt Registers OPTION — System Configuration Options $x039

Bit 7 6 5 4 3 2 1 Bit 0

ADPU CSEL IRQE* DLY* CME FCME* CR1* CR0*

RESET: 0 0 0 1 0 0 0 0

*Can be written only once in first 64 cycles out of reset in normal modes, or at any time in special modes.

Bits [7:6], [4:2]

Refer to 4.3 System Initialization Registers, page 23, and 11.3 A/D Registers, page 56.

IRQE — IRQ Select Edge Sensitive Only

0 = Low level recognition 1 = Falling edge recognition

MOTOROLA MC68HC11F1/FC0 26 MC68HC11FTS/D

CR[1:0] — COP Timer Rate Select

The COP system is driven by a constant frequency of E/2

. CR[1:0] specify an additional divide-by fac-

tor to arrive at the COP time-out rate.

Table 12 COP Watchdog Time-Out Periods

Frequency Tolerance CR[1:0] = 00 CR[1:0] = 01 CR[1:0] = 10 CR[1:0] = 11

1 MHz -0/+32.768 ms 32.768 ms 131.072 ms 524.288 ms 2.097 s 2 MHz -0/+16.384 ms 16.384 ms 65.536 ms 262.144 ms 1.049 s 3 MHz -0/+10.923 ms 10.923 ms 43.691 ms 174.763 ms 699.051 ms 4 MHz -0/+8.192 ms 8.192 ms 32.768 ms 131.072 ms 524.288 ms 5 MHz -0/+6.554 ms 6.554 ms 26.214 ms 104.858 ms 419.430 ms 6 MHz -0/+5.461 ms 5.461 ms 21.845 87.381 ms 349.525 ms

Any E

/E 215/E 217/E 219/E 221/E

-0/+2

COPRST — Arm/Reset COP Timer Circuitry $x03A

Bit 7 6 5 4 3 2 1 Bit 0

7 6 5 4 3 2 1 0

RESET: 0 0 0 0 0 0 0 0

Write $55 to COPRST to arm the COP watchdog clearing mechanism. Then write $AA to COPRST to reset the COP timer. Performing instructions between these two steps is possible provided both steps are completed in the correct sequence before the timer times out.

HPRIO — Highest Priority I-Bit Interrupt and Miscellaneous $x03C

Bit 7 654321Bit 0

RBOOT SMOD MDA IRV PSEL3 PSEL2 PSEL1 PSEL0

RESET: 0101

Bits [7:4] — See 4.3 System Initialization Registers, page 20. PSEL[3:0] — Interrupt Priority Select Bits

Can be written only while the I bit in the CCR is set (interrupts disabled). These bits select one interrupt source to have priority over other I-bit related sources.

Table 13 Highest Priority Interrupt Selection

PSEL[3:0] Interrupt Source Promoted

0000 Timer Overflow 0001 Pulse Accumulator Overflow 0010 Pulse Accumulator Input Edge 0011 SPI Serial Transfer Complete 0100 SCI Serial System 0101 Reserved (Default to IRQ 0110 IRQ 0111 Real-Time Interrupt 1000 Timer Input Capture 1 1001 Timer Input Capture 2 1010 Timer Input Capture 3

(External Pin)

)

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 27

Table 13 Highest Priority Interrupt Selection (Continued)

PSEL[3:0] Interrupt Source Promoted

1011 Timer Output Compare 1 1100 Timer Output Compare 2 1101 Timer Output Compare 3 1110 Timer Output Compare 4 1111 Timer Output Compare 5/Input Capture 4

CONFIG — EEPROM Mapping, COP, EEPROM Enables $x03F

Bit 7 6 5 4 3 2 1 Bit 0 EE3 EE2 EE1 EE0 1 NOCOP 1 EEON

RESET U U U U 1 U 1 U

Bits 7:3, 1:0 — See 6.2 EEPROM Registers, page 30. NOCOP — COP System Disable

0 = COP enabled (forces reset on time-out) 1 = COP disabled (does not force reset on time-out)

MOTOROLA MC68HC11F1/FC0 28 MC68HC11FTS/D

6 Electrically Erasable Programmable ROM

The MC68HC11F1 has 512 bytes of electrically erasable programmable ROM (EEPROM). A nonvolatile, EEPROM-based configuration register (CONFIG) controls whether the EEPROM is present or absent and determines its position in the memory map. In single-chip and bootstrap modes the EEPROM is positioned at $FE00–$FFFF. In expanded and special test modes, the EEPROM can be repositioned to any 4-Kbyte boundary ($xE00–$xFFF).

NOTE

EEPROM is available on the MC68HC11F1 only.

6.1 EEPROM Operation

The EEON bit in CONFIG controls whether the EEPROM is present in the memory map. When EEON = 1, the EEPROM is enabled. When EEON = 0, the EEPROM is disabled and removed from the memory map. EEON is forced to one out of reset in single-chip and special bootstrap modes to enable EEPROM. EEON is forced to zero out of reset in special test mode to remove EEPROM from the memory map, although test software can turn it back on. In normal expanded mode, EEON is reset to the value last programmed into CONFIG.

An on-chip charge pump develops the high voltage required for programming and erasing. When the E-clock frequency is 1 MHz or above, the charge pump is driven by the E-clock. When the E-clock frequency is less than 1 MHz, select the internal RC oscillator to drive the EEPROM charge pump by writing one to the CSEL bit in the OPTION register. Refer to the discussion of the OPTION register in 4.3

System Initialization Registers, page 23.

6.2 EEPROM Registers

BPROT — Block Protect $x035

Bit 7 6 5 4 3 2 1 Bit 0

0 0 0 PTCON BPRT3 BPRT2 BPRT1 BPRT0

RESET 0 0 0 1 1 1 1 1

Bits [7:5] — Not implemented. Reads always return zero and writes have no effect. PTCON — Protect for CONFIG

0 = CONFIG register can be programmed or erased normally 1 = CONFIG register cannot be programmed or erased

BPRT[3:0] — Block Protect Bits for EEPROM

0 = Protection disabled 1 = Protection enabled

Table 14 Block Protect Bits for EEPROM

Bit Name Block Protected Block Size

BPRT3 $xEE0–xFFF 288 Bytes BPRT2 $xE60–xEDF 128 Bytes PBRT1 $xE20–xE5F 64 Bytes BPRT0 $xE00–xE1F 32 Bytes

NOTE

Block protect register bits can be written to zero (protection disabled) only once within 64 cycles of a reset in normal modes, or at any time in special modes. Block protect register bits can be written to one (protection enabled) at any time.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 29

PPROG — EEPROM Programming Control $x03B

Bit 7 6 5 4 3 2 1 Bit 0

ODD EVEN 0 BYTE ROW ERASE EELAT EEPGM

RESET 0 0 0 0 0 0 0 0

ODD — Program Odd Rows (TEST) EVEN — Program Even Rows (TEST) ROW and BYTE — Row Erase Select Bit and Byte Erase Select

The value of these bits determines the manner in which EEPROM is erased. Bit encodings are shown in 6.2 EEPROM Registers, page 30.

Table 15 ROW and BYTE Encodings

BYTE ROW Action

0 0 Bulk Erase (All 512 Bytes) 0 1 Row Erase (16 Bytes) 1 0 Byte Erase 1 1 Byte Erase

ERASE — Erase/Normal Control for EEPROM

0 = Normal read or program mode 1 = Erase mode

EELAT — EEPROM Latch Control

0 = EEPROM address and data bus configured for normal reads 1 = EEPROM address and data bus configured for programming or erasing

EEPGM — EEPROM Program Command

0 = Program or erase voltage to EEPROM array switched off 1 = Program or erase voltage to EEPROM array switched on

CONFIG — EEPROM Mapping, COP, EEPROM Enables $x03F

Bit 7 6 5 4 3 2 1 Bit 0 EE3 EE2 EE1 EE0 1 NOCOP 1 EEON

RESET U U U U 1 U 1 U

U = Unaffected by reset.

The CONFIG register is used to assign EEPROM a location in the memory map and to enable or disable EEPROM operation. Bits in this register are user-programmed except when forced to certain values, as noted in the following bit descriptions.

EE[3:0] — EEPROM Map Position

EEPROM is located at $xE00 – $xFFF, where x is the value represented by these four bits. In singlechip and bootstrap modes, EEPROM is forced to $FE00 – $FFFF, regardless of the state of these bits.

On factory-fresh devices, EE[3:0] = $0. Bit 3 — Not implemented. Reads always return one and writes have no effect. NOCOP — COP System Disable

0 = COP enabled (forces reset on time-out) 1 = COP disabled (does not force reset on time-out)

MOTOROLA MC68HC11F1/FC0 30 MC68HC11FTS/D

Bit 1 — Not implemented. Reads always return one and writes have no effect. EEON — EEPROM Enable

This bit is forced to one in single-chip and bootstrap modes. In test mode, EEON is forced to zero out

of reset. In expanded mode, the EEPROM obeys the state of this bit.

0 = EEPROM is removed from the memory map. 1 = EEPROM is present in the memory map.

Refer to 6.4 CONFIG Register Programming for instructions on programming this register.

6.3 EEPROM Programming and Erasure

Programming and erasing the EEPROM is controlled by the PPROG register, subject to the block pro-

tect (BPROT) register value. To erase the EEPROM, ensure that the proper bits of the BPROT register

are cleared, and then complete the following steps:

1. Write to PPROG with the ERASE and EELAT bits set and the BYTE and ROW bits set or cleared as appropriate.

2. Write to the appropriate EEPROM address with any data. Row erase ($xE00–$xE0F, $xE10– $xE1F,... $xFF0–$xFFF) requires a single write to any location in the row. Perform bulk erase by writing to any location in the array.

3. Write to PPROG with the ERASE, EELAT, and EEPGM bits set and the BYTE and ROW bits set or cleared as appropriate.

4. Delay for 10 ms (20 ms for low-voltage operation).

5. Clear the EEPGM bit in PPROG to turn off the high voltage.

6. Clear the PPROG register to reconfigure EEPROM address and data buses for normal operations.

To program the EEPROM, ensure that the proper bits of the BPROT register are cleared, and then complete the following steps:

1. Write to PPROG with the EELAT bit set.

2. Write data to the desired address.

3. Write to PPROG with the EELAT and EEPGM bits set.

4. Delay for 10 ms (20 ms for low-voltage operation).

5. Clear the EEPGM bit in PPROG to turn off the high voltage.

6. Clear the PPROG register to reconfigure EEPROM address and data buses for normal operations.

6.3.1 Programming a Byte

The following example shows how to program an EEPROM byte. This example assumes that the appropriate bits in BPROT are cleared and that the data to be programmed is present in accumulator A.

PROG LDAB #$02 EELAT=1, EEPGM=0

STAB $103B Set EELAT bit STAA $FE00 Store data to EEPROM address LDAB #$03 EELAT=1, EEPGM=1 STAB $103B Turn on programming voltage JSR DLY10 Delay 10 ms CLR $103B Turn off high voltage and set to READ mode

6.3.2 Bulk Erase

The following example shows how to bulk erase the 512-byte EEPROM. The CONFIG register is not affected in this example. Note that when the CONFIG register is bulk erased, CONFIG and the 512-byte array are all erased.

BULKE LDAB #$06 ERASE=1, EELAT=1, EEPGM=0

STAB $103B Set EELAT bit

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 31

STAB $FE00 Store any data to any EEPROM address LDAB #$07 EELAT=1, EEPGM=1 STAB $103B Turn on programming voltage JSR DLY10 Delay 10 ms CLR $103B Turn off high voltage and set to READ mode

6.3.3 Row Erase

The following example shows how to perform a fast erase of large sections of EEPROM. This example assumes that index register X contains the address of a location in the desired row.

ROWE LDAB #$0E ROW=1, ERASE=1, EELAT=1, EEPGM=0

STAB $103B Set to ROW erase mode STAB $xxxx Store any data to any address in ROW LDAB #$0F ROW=1, ERASE=1, EELAT=1, EEPGM=1 STAB $103B Turn on high voltage JSR DLY10 Delay 10 ms CLR $103B Turn off high voltage and set to READ mode

6.3.4 Byte Erase

The following is an example of how to erase a single byte of EEPROM. This example assumes that index register X contains the address of the byte to be erased.

BYTEE LDAB #$16 BYTE=1, ROW=0, ERASE=1, EELAT=1, EEPGM=0

STAB $103B Set to BYTE erase mode STAB $0,X Store any data to address to be erased LDAB #$17 BYTE=1, ROW=0, ERASE=1, EELAT=1, EEPGM=1 STAB $103B Turn on high voltage JSR DLY10 Delay 10 ms CLR $103B Turn off high voltage and set to READ mode

6.4 CONFIG Register Programming

Because the CONFIG register is implemented with EEPROM cells, use EEPROM procedures to erase and program this register. The procedure for programming is the same as for programming a byte in the EEPROM array, except that the CONFIG register address is used. CONFIG can be programmed or erased (including byte erase) while the MCU is operating in any mode, provided that PTCON in BPROT is clear. To change the value in the CONFIG register, complete the following procedure. Do not initiate a reset until the procedure is complete. The new value will not take effect until after the next reset sequence.

1. Erase the CONFIG register.

2. Program the new value to the CONFIG address.

3. Initiate reset.

MOTOROLA MC68HC11F1/FC0 32 MC68HC11FTS/D

7 Parallel Input/Output

On the MC68HC11F1, either 54 or 51 pins are available for general-purpose I/O, depending on the package. These pins are arranged into ports A, B, C, D, E, F, and G. On the MC68HC11FC0, either 52 or 49 pins are available, depending on the package.

I/O functions on some ports (B, C, F, and G) are affected by the mode of operation selected. In the single-chip and bootstrap modes, they are configured as parallel I/O data ports. In expanded and test modes, they are configured as follows:

• Ports B and F are configured as the address bus.

• Port C is configured as the data bus.

• Port G bit 7 is configured as the optional program chip select CSPROG.

In addition, in expanded and test modes the R/W signal is configured as data bus direction control. The remaining ports (A, D, and E) are unaffected by mode changes.

7.1 Port A

Port A is an eight-bit general-purpose I/O port (PA[7:0]) with a data register (PORTA) and a data direction register (DDRA). Port A pins are available for shared use among the main timer, pulse accumulator, and general I/O functions, regardless of mode. Four pins can be used for timer output compare functions (OC), three for input capture (IC), and one as either a fourth IC or a fifth OC.

7.2 Port B

Port B is an eight-bit general-purpose output-only port in single-chip modes. In expanded modes, port B pins act as high-order address lines ADDR[15:8], and accesses to PORTB (the port B data register) are mapped externally.

7.3 Port C

Port C is an eight-bit general-purpose I/O port with a data register (PORTC) and a data direction register (DDRC). In single-chip modes, port C pins are general-purpose I/O pins PC[7:0]. Port C can be configured for wired-OR operation in single-chip modes by setting the CWOM bit in the OPT2 register. In expanded modes, port C is the data bus DATA[7:0], and accesses to PORTC (the port C data register) are mapped externally.

7.4 Port D

Port D is a six-bit general-purpose I/O port with a data register (PORTD) and a data direction register (DDRD). In all modes, the six port D lines (PD[5:0]) can be used for general-purpose I/O or for the serial communications interface (SCI) or serial peripheral interface (SPI) subsystems. Port D can also be configured for wired-OR operation.

7.5 Port E

Port E is an eight-bit input-only port that is also used (on the MC68HC11F1 only) as the analog input port for the analog-to-digital converter. Port E pins that are not used for the A/D system can be used as general-purpose inputs. However, PORTE should not be read during the sample portion of an A/D conversion sequence.

NOTE

PE7 and PE0 are not available on the 80-pin MC68HC11FC0. PE7, PE4, and PE0 are not available on the 64-pin MC68HC11FC0.

7.6 Port F

Port F is an eight-bit output-only port. In single-chip mode, port F pins are general-purpose output pins PF[7:0]. In expanded mode, port F pins act as low-order address outputs ADDR[7:0].

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 33

7.7 Port G

Port G is an eight-bit general-purpose I/O port with a data register (PORTG) and a data direction register (DDRG). When enabled, the upper four lines (PG[7:4] can be used as chip-select outputs in expanded modes. When any of these pins are not being used for chip selects, they can be used for general-purpose I/O. Port G can be configured for wired-OR operation by setting the GWOM bit in the OPT2 register.

NOTE

PG[1:0] are not available on the 64-pin MC68HC11FC0.

7.8 Parallel I/O Registers

Port pin function is mode dependent. Do not confuse pin function with the electrical state of the pin at reset. Port pins are either driven to a specified logic level or are configured as high impedance inputs. I/O pins configured as high-impedance inputs have port data that is indeterminate. The contents of the corresponding latches are dependent upon the electrical state of the pins during reset. In port descriptions, an “I” indicates this condition. Port pins that are driven to a known logic level during reset are shown with a value of either one or zero. Some control bits are unaffected by reset. Reset states for these bits are indicated with a “U”.

PORTA — Port A Data Register $x000

Bit 7 6 5 4 3 2 1 Bit 0

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0 RESET: I I I I I I I I Alternate

Function: And/or: OC1 OC1 OC1 OC1 OC1 — — —

PAI OC2 OC3 OC4 OC5/IC4 IC1 IC2 IC3

I = Indeterminate value

DDRA — Port A Data Direction Register $x001

Bit 7 654321Bit 0

DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0

RESET: 00000000

For DDRx bits, 0 = input and 1 = output.

PORTG — Port G Data Register $x002

Bit 7 6 5 4 3 2 1 Bit 0

PG7 PG6 PG5 PG4 PG3 PG2 PG1* PG0* RESET: I I I I I I I I Alternate

Function:

*These bits are not present on the 64-pin QFP version of the MC68HC11FC0. I = Indeterminate value

CSPROG CSGEN CSIO1 CSIO2

MOTOROLA MC68HC11F1/FC0 34 MC68HC11FTS/D

DDRG — Port G Data Direction Register $x003

Bit 7 6 5 4 3 2 1 Bit 0

DDG7* DDG6 DDG5 DDG4 DDG3 DDG2 DDG1 DDG0

RESET: 0 0 0 0 0 0 0 0

* Following reset in expanded and test modes, PG7/CSPRG is configured as a program chip select, forcing the pin

to be an output pin, even though the value of the DDG7 bit remains zero.

For DDRx bits, 0 = input and 1 = output.

PORTB — Port B Data Register $x004

Bit 7 6 5 4 3 2 1 Bit 0

PB7 PB6 PB5 PB4 PB3 PB2 PB1 PB0 RESET: 0 0 0 0 0 0 0 0 Alternate

Function:

ADDR15 ADDR14 ADDR13 ADDR12 ADDR11 ADDR10 ADDR9 ADDR8

The reset state of port B is mode dependent. In single-chip or bootstrap modes, port B pins are generalpurpose outputs. In expanded and test modes, port B pins are high-order address outputs and PORTB is not in the memory map.

PORTF — Port F Data Register $x005

PF7 PF6 PF5 PF4 PF3 PF2 PF1 PF0

RESET: 00000000

Alternate Function:

ADDR7 ADDR6 ADDR5 ADDR4 ADDR3 ADDR2 ADDR1 ADDR0

The reset state of port F is mode dependent. In single-chip or bootstrap modes, port F pins are generalpurpose outputs. In expanded and test modes, port F pins are low-order address outputs and PORTF is not in the memory map.

PORTC — Port C Data Register $x006

Bit 7 654321Bit 0 PC7 PC6 PC5 PC4 PC3 PC2 PC1 PC0

RESET: IIIIIIII

Alternate Function:

DATA7 DATA6 DATA5 DATA4 DATA3 DATA2 DATA1 DATA0

The reset state of port C is mode dependent. In single-chip and bootstrap modes, port C pins are highimpedance inputs. In expanded or test modes, port C pins are data bus inputs/outputs and PORTC is not in the memory map. The R/W

signal is used to control the direction of data transfers.

DDRC — Port C Data Direction Register $x007

Bit 7 654321Bit 0

DDC7 DDC6 DDC5 DDC4 DDC3 DDC2 DDC1 DDC0

RESET: 00000000

For DDRx bits, 0 = input and 1 = output.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 35

PORTD — Port D Data Register $x008

Bit 7 654321Bit 0

0 0 PD5 PD4 PD3 PD2 PD1 PD0

RESET: 0 0 IIIIII

Alternate Function:

— — SS

SCK MOSI MISO TxD RxD

DDRD — Port D Data Direction Register $x009

Bit 7 654321Bit 0

0 0 DDD5 DDD4 DDD3 DDD2 DDD1 DDD0

RESET: 00000000

For DDRx bits, 0 = input and 1 = output.

NOTE

When the SPI system is in slave mode, DDD5 has no meaning or effect. When the SPI system is in master mode, DDD5 determines whether bit 5 of PORTD is an error detect input (DDD5 = 0) or a general-purpose output (DDD5 = 1). If the SPI system is enabled and expects one or more of bits [4:2] to be inputs, those bits will be inputs regardless of the state of the associated DDR bits. If one or more of bits [4:2] are expected to be outputs, those bits will be outputs only if the associated DDR bits are set.

PORTE — Port E Data $x00A

Bit 7 654321Bit 0

PE7

RESET: UUUUUUUU Alternate

Function

NOTES:

1. These bits are not present on the MC68HC11FC0 and will always read zero.

2. This bit is not present on the 64-pin QFP version of the MC68HC11FC0 and will always read zero. U = Unaffected by rest.

AN7 AN6 AN5 AN4 AN3 AN2 AN1 AN0

PE6 PE5 PE4

PE3 PE2 PE1

PE0

PORTE is an input-only register. Reads return the digital state of the I/O pins, and writes have no effect. On the MC68HC11F1, port E is shared with the analog-to-digital converter. (The A/D converter is not present on the MC68HC11FC0.)

OPT2 — System Configuration Option Register 2 $x038

Bit 7 6 5 4 3 2 1 Bit 0

GWOM CWOM CLK4X LIRDV — SPRBYP — —

RESET 0 0 1 0 0 0 0 0

GWOM — Port G Wired-OR Mode Option

This bit affects all port G pins together.

0 = Port G outputs are normal CMOS outputs 1 = Port G outputs act as open-drain outputs

MOTOROLA MC68HC11F1/FC0 36 MC68HC11FTS/D

CWOM — Port C Wired-OR Mode Option

This bit affects all port C pins together.

0 = Port C outputs are normal CMOS outputs 1 = Port C outputs act as open-drain outputs

CLK4X — 4XCLK Output Enable

Refer to 4.3 System Initialization Registers, page 23

LIRDV — Load Instruction Register Driven

Refer to 4.3 System Initialization Registers, page 23 Bits 3, 1, 0 — Not implemented. Reads always return zero and writes have no effect. SPRBYP — Refer to 10.2 SPI Registers, page 52.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 37

8 Chip-Selects

Chip selects eliminate the need for additional external components to interface with peripherals in ex-

panded non-multiplexed modes. Chip-select registers control polarity, address block size, base ad-

dress, and clock stretching.

8.1 Chip-Select Operation

There are four programmable chip selects on the MC68HC11F1 and MC68HC11FC0: two for external

I/O (CSIO1 and CSIO2), one for external program space (CSPROG), and one general-purpose chip se-

lect (CSGEN).

CSPROG is active low and becomes active at address valid time. CSPROG is enabled by the PCSEN

bit of the chip-select control register (CSCTL). Its address block size is selected by the PSIZA and

PSIZB bits of CSCTL.

Use the I/O chip selects (CSIO1 and CSIO2) for external I/O devices. These chip-select addresses are

found in the memory map block that contains the status and control registers. CSIO1 is mapped from

$x060 to $x7FF, and CSIO2 is mapped from $x800 to $xFFF, where x represents the REG[3:0] bits of

the INIT register on the MC68HC11F1 or the REG[1:0] bits of the INIT register on the MC68HC11FC0.

Polarity and enable-disable selections are controlled by CSCTL register bits IO1EN, IO1PL, IO2EN, and

IO2PL. The IO1AV and IO2AV bits of the CSGSIZ register determine whether the chip selects are valid

during address or E-clock valid times.

The general-purpose chip select is the most flexible of the four chip selects. Polarity, valid assertion

time, and block size are determined by the GNPOL, GAVLD, GSIZA, GSIZB, and GSIZC bits of the

CSGSIZ register. The starting address is selected with the CSGADR register.

Each of the four chip selects has two associated bits in the chip-select clock stretch register (CSSTRH).

These bits allow clock stretching from zero to three cycles (full E-clock periods) to accommodate slow

device interfaces. Any of the chip selects can be programmed to cause a clock stretch to occur only

during access to addresses that fall within that particular chip select’s address range.

During the stretch period, the E-clock is held high and the bus remains in the state that it is normally in

at the end of E high time. Internally, the clocks continue to run, which maintains the integrity of the timers

and baud-rate generators.

Priority levels are assigned to prevent the four chip selects from conflicting with each other or with in-

ternal memory and registers. There are two sets of priorities controlled by the value of the general-pur-

pose chip-select priority bit (GCSPR) of the CSCTL register. Refer to Table 17.

8.2 Chip-Select Registers CSSTRH — Clock Stretching $x05C

Bit 7 6 5 4 3 2 1 Bit 0

IO1SA IO1SB IO2SA IO2SB GSTHA GSTHB PSTHA PSTHB

RESET: 0 0 0 0 0 0 0 0

IO1SA, IOS1B — I/O Chip-Select 1 Clock Stretch IO2SA, IO2SB — I/O Chip-Select 2 Clock Stretch GSTHA, GSTHB — General-Purpose Chip-Select Clock Stretch PSTHA, PSSTHB — Program Chip-Select Clock Stretch

Each pair of bits selects the number of clock cycles of stretch for the corresponding chip select.

MOTOROLA MC68HC11F1/FC0 38 MC68HC11FTS/D

Table 16 Chip Select Clock Stretch Control

Clock Stretch

Bits A, B

0 0 0 Cycles 0 1 1 Cycle 1 0 2 Cycles 1 1 3 Cycles

Clock Stretch

CSCTL — Chip-Select Control $x05D

Bit 7 6 5 4 3 2 1 Bit 0

IO1EN IO1PL IO2EN IO2PL GCSPR PCSEN* PSIZA PSIZB

RESET: 0 0 0 0 0 — 0 0

* PCSEN is set out of reset in expanded modes and cleared in single-chip modes.

IO1EN — I/O Chip-Select 1 Enable

0 = CSIO1 disabled 1 = CSIO1 enabled

IO1PL — I/O Chip-Select 1 Polarity

0 = CSIO1 active low 1 = CSIO1 active high

IO1EN — I/O Chip-Select 2 Enable

0 = CSIO2 disabled 1 = CSIO2 enabled

IO2PL — I/O Chip-Select 2 Polarity

0 = CSIO2 active low 1 = CSIO2 active high

GCSPR — General-Purpose Chip-Select Priority

0 = Program chip-select has priority over general-purpose chip-select 1 = General-purpose chip-select has priority over program chip-select

Refer to Table 17.

Table 17 Chip Select Priorities

GCSPR = 0 GCSPR = 1

On-Chip Registers On-Chip Registers On-Chip RAM On-Chip RAM Bootloader ROM Bootloader ROM

On-Chip EEPROM I/O Chip Selects I/O Chip Selects

Program Chip Select General-Purpose Chip Select General-Purpose Chip Select Program Chip Select

NOTES:

1. EEPROM is present on the MC68HC11F1 only.

On-Chip EEPROM

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 39

PCSEN — Program Chip-Select Enable

Reset clears PCSEN in single-chip modes and sets PCSEN in expanded modes.

0 = CSPROG disabled 1 = CSPROG enabled

PSIZA, PSIZB — Select Size of Program Chip-Select

Table 18 Program Chip Select Size Control

PSIZA PSIZB Size Address Range

0 0 64 Kbytes $0000–$FFFF 0 1 32 Kbytes $8000–$FFFF 1 0 16 Kbytes $C000–$FFFF 1 1 8 Kbytes $E000–$FFFF

CSGADR — General-Purpose Chip-Select Address Register $x05E

Bit 7 6 5 4 3 2 1 Bit 0

GA15 GA14 GA13 GA12 GA11 GA10

RESET: 0 0 0 0 0 0 0 0

—

GA[15:10] — General-Purpose Chip-Select Starting Address

These bits determine the starting address of the CSGEN valid address space and correspond to the

high-order address bits ADDR[15:10]. Table 19 illustrates how the block size selected determines

which of this register's bits are valid.

Table 19 General Purpose Chip Select Starting Address

CSGEN Block Size CSGADR Bits Valid

0 Kbytes None

1 Kbyte GA15 – GA10 2 Kbytes GA15 – GA11 4 Kbytes GA15 – GA12 8 Kbytes GA15 – GA13

16 Kbytes GA15 – GA14 32 Kbytes GA15 64 Kbytes None

Bits [1:0] — Not implemented. Reads always return zero and writes have no effect. CSGSIZ — General-Purpose Chip-Select Size Register $x05F

Bit 7 6 5 4 3 2 1 Bit 0

IO1AV IO2AV — GNPOL GAVLD GSIZA GSIZB GSIZC

RESET: 0 0 0 0 0 1 1 1

IO1AV — I/O Chip-Select 1 Address Valid

0 = CSIO1 is valid during E-clock valid time (E-clock high) 1 = CSIO1 is valid during address valid time

IO2AV — I/O Chip-Select 2 Address Valid

0 = CSIO2 is valid during E-clock valid time (E-clock high) 1 = CSIO2 is valid during address valid time

MOTOROLA MC68HC11F1/FC0 40 MC68HC11FTS/D

Bit 5 — Not implemented. Reads always return zero and writes have no effect. GNPOL — General-Purpose Chip-Select Polarity

0 = CSGEN is active low 1 = CSGEN is active high

GAVLD — General-Purpose Chip-Select Address Valid

0 = CSGEN is valid during E-clock valid time (E-clock high) 1 = CSGEN is valid during address valid time

GSIZ[A:C] — Block Size for CSGEN

Refer to Table 20 for bit values.

Table 20 General-Purpose Chip Select Size Control

GSIZ[A:C] Address Size

000 64 Kbytes 001 32 Kbytes 010 16 Kbytes 011 8 Kbytes 100 4 Kbytes 101 2 Kbytes 110 1 Kbyte 111 0 Kbytes (disabled)

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 41

9 Serial Communications Interface (SCI)

The SCI, a universal asynchronous receiver transmitter (UART) serial communications interface, is one of two independent serial I/O subsystems in the MC68HC11F1 and MC68HC11FC0. The SCI has a standard non-return to zero (NRZ) format (one start bit, eight or nine data bits, and one stop bit) and several selectable baud rates. The transmitter and receiver are independent but use the same data format and bit rate.

9.1 SCI Block Diagrams

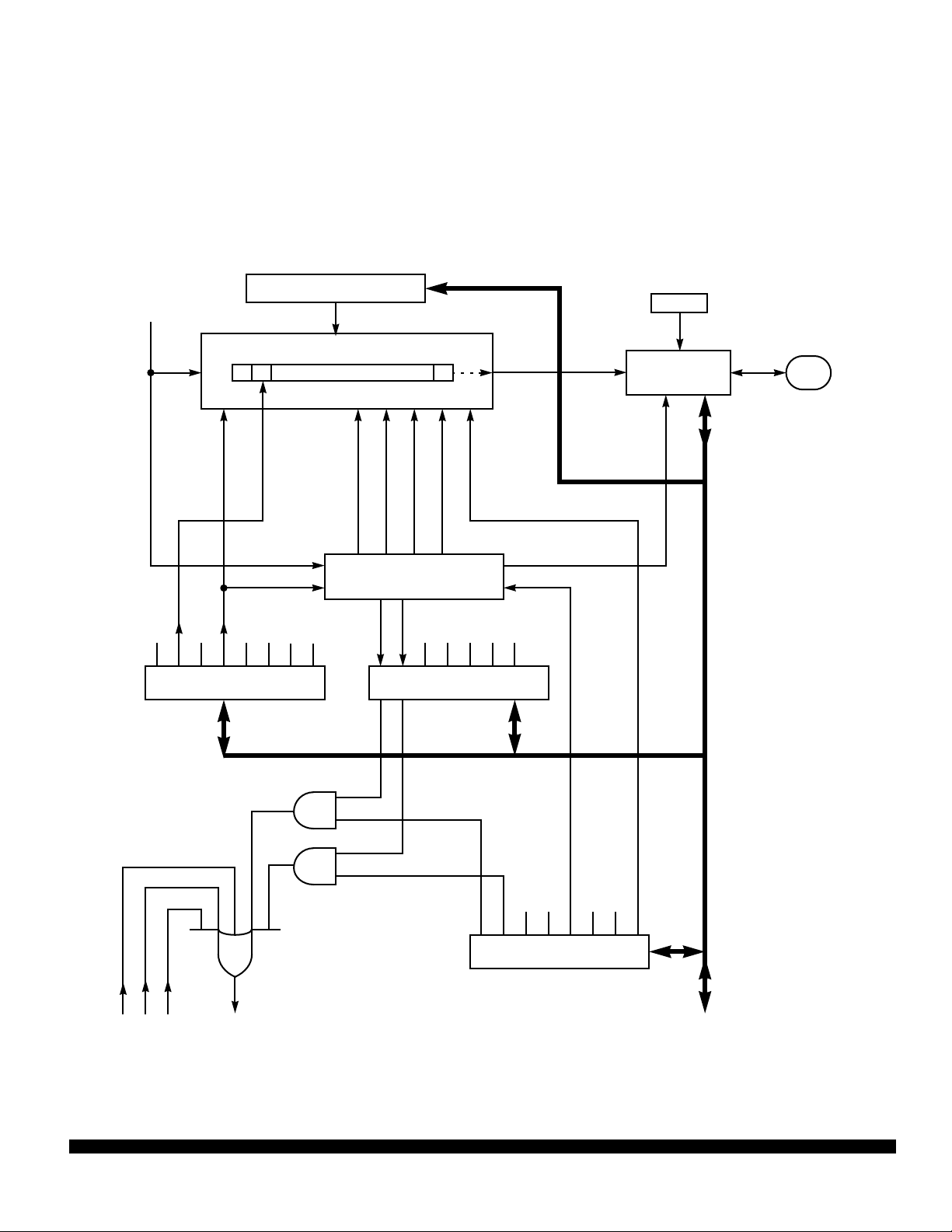

TRANSMITTER

BAUD RATE

CLOCK

SCCR1 SCI CONTROL 1

SCDR Tx BUFFER

10 (11) - BIT Tx SHIFT REGISTER

(8)76543210L

SIZE 8/9M

WAKE

SHIFT ENABLE

TRANSFER Tx BUFFER

TRANSMITTER

CONTROL LOGIC

TDRE

SCSR1

(WRITE ONLY)

JAM ENABLE

BREAK—JAM 0s

PREAMBLE—JAM 1s

RDRF

IDLEORNF SCI STATUS 1

FORCE PIN

DIRECTION (OUT)

DDD1

PIN BUFFER

AND CONTROL

PD1

TxD

TDRE TIE

TC TCIE

RIE

ILIE

RWU

SBK

INTERNAL DATA BUS

SCI Rx

QUESTS

SCI INTERRUPT

REQUEST

TIE

TCIE

SCCR2 SCI CONTROL 2

Figure 9 SCI Transmitter Block Diagram

MOTOROLA MC68HC11F1/FC0 42 MC68HC11FTS/D

RECEIVER

BAUD RATE

CLOCK

PD0 RxD

PIN BUFFER

AND CONTROL

SCCR1 SCI CONTROL 1

DDD0

WAKE

DISABLE DRIVER

WAKEUP

LOGIC

DATA

RECOVERY

TDRE

÷16

SCSR1

RDRF

IDLEORNF

SCI STATUS 1

10 (11) - BIT

STOP

Rx SHIFT REGISTER

8 7 6 5 4 3 2 1 0 L

MSB

SCDR Rx BUFFER

START

ALL

ONES

SCI Tx

REQUESTS

SCI INTERRUPT

REQUEST

RDRF RIE

IDLE ILIE OR RIE

RIE

TCIE

ILIE

TIE

SCCR2 SCI CONTROL 2

Figure 10 SCI Receiver Block Diagram

RWU

(READ ONLY)

SBK

INTERNAL

DATA BUS

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 43

9.2 SCI Registers

BAUD — Baud Rate $x02B

Bit 7 6 5 4 3 2 1 Bit 0

TCLR SCP2 SCP1 SCP0 RCKB SCR2 SCR1 SCR0

RESET: 0 0 0 0 0 U U U

TCLR — Clear Baud Rate Counters (TEST) Bit 6 — Not implemented. Reads always return zero and writes have no effect. RCKB — SCI Baud-Rate Clock Check (TEST) SCP[2:0] — SCI Baud Rate Prescaler Selects

These bits determine the baud rate prescaler frequency. Refer to Table 21 and Figure 11.

SCR[2:0] — SCI Baud Rate Selects

These bits determine the receiver and transmitter baud rate. Refer to Table 22 and Figure 11.

Table 21 Baud Rate Prescaler Selection

Divide

SCP[2:0]

X00 1 62500 76800 125000 156250 187500 250000 312500 375000

001 3 20833 25600 41667 52083 62500 83333 104167 125000

X10 4 15625 19200 31250 38400 46875 62500 76800 93750

X11 13 4800 5908 9600 12019 14423 19200 24038 28846 101 9 — — — — 20830 — — —

NOTES:

1. A blank table cell indicates that an uncommon rate results.

Internal

Clock By

XTAL =

4.0 MHz

XTAL =

4.9152 MHz

XTAL =

8.0 MHz

Prescaler Output

XTAL =

10.0 MHz

XTAL =

12.0 MHz

XTAL =

16.0 MHz

XTAL =

20.0 MHz

XTAL =

24.0 MHz

Table 22 Baud Rate Selection

Baud Rate

SCR[2:0]

0 0 0 1 4800 9600 19200 38400 76800 0 0 1 2 2400 4800 9600 19200 38400 0 1 0 4 1200 2400 4800 9600 19200 0 1 1 8 600 1200 2400 4800 9600 1 0 0 16 300 600 1200 2400 4800 1 0 1 32 150 300 600 1200 2400 1 1 0 64 75 150 300 600 1200 1 1 1 128 — 75 150 300 600

Divide

Prescaler By

Prescaler

Output =

4800

Prescaler

Output =

9600

Prescaler

Output =

19200

Prescaler

Output =

38400

Prescaler

Output =

76800

The prescaler bits SCP[2:0] determine the highest baud rate, and the SCR[2:0] bits select an additional binary submultiple (divide by 1, 2, 4,..., through 128) of this highest baud rate. The result of these two dividers in series is the 16X receiver baud rate clock. The SCR[2:0] bits are not affected by reset and can be changed at any time. They should not be changed, however, when an SCI transfer is in progress.

MOTOROLA MC68HC11F1/FC0 44 MC68HC11FTS/D

Figure 11 illustrates the SCI baud rate timing chain. The prescaler select bits determine the highest baud rate. The rate select bits determine additional divide-by-two stages to arrive at the receiver timing (RT) clock rate. The baud rate clock is the result of dividing the RT clock by 16.

EXTAL

XTAL

OSCILLATOR

AND

CLOCK GENERATOR

(÷4)

INTERNAL BUS CLOCK (PH2)

÷ 3

÷ 2

X00

SCR[2:0]

0:0:0

0:0:1

0:1:0

0:1:1

1:0:0

001

÷ 4

X10

÷ 13

X11

÷ 9

101

÷ 2

1:0:1

1:1:0

1:1:1

SCI Receive Baud Rate (16x)

÷ 16

SCI Transmit Baud Rate (1x)

Figure 11 SCI Baud Rate Generator Block Diagram

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 45

SCCR1 — SCI Control Register 1 $x02C

Bit 7 6 5 4 3 2 1 Bit 0

R8 T8 0 M WAKE 0 0 0

RESET: U U 0 0 0 0 0 0

U = Unaffected by reset

R8 — Receive Data Bit 8

If M is set, R8 stores the ninth bit of the receive data character.

T8 — Transmit Data Bit 8

If M is set, T8 stores the ninth bit of the transmit data character. Bit 5 — Not implemented. Reads always return zero and writes have no effect. M — Mode (Select Character Format)

0 = 1 start bit, 8 data bits, 1 stop bit 1 = 1 start bit, 9 data bits, 1 stop bit

WAKE — Wake Up by Address Mark/Idle

0 = Wake up by IDLE line recognition 1 = Wake up by address mark

Bits [2:0] — Not implemented. Reads always return zero and writes have no effect. SCCR2 — SCI Control Register 2 $x02D

Bit 7 6 5 4 3 2 1 Bit 0

TIE TCIE RIE ILIE TE RE RWU SBK

RESET: 0 0 0 0 0 0 0 0

TIE — Transmit Interrupt Enable

0 = TDRE interrupts disabled 1 = SCI interrupt requested when the TDRE flag is set

TCIE — Transmit Complete Interrupt Enable

0 = TC interrupts disabled 1 = SCI interrupt requested when the TC flag is set

RIE — Receiver Interrupt Enable

0 = RDRF and OR interrupts disabled 1 = SCI interrupt requested when the RDRF flag or the OR flag is set

ILIE — Idle Line Interrupt Enable

0 = IDLE interrupts disabled 1 = SCI interrupt requested when IDLE status flag is set

TE — Transmitter Enable

When TE goes from zero to one, one unit of idle character time (logic one) is queued as a preamble.

0 = Transmitter disabled 1 = Transmitter enabled

RE — Receiver Enable

0 = Receiver disabled 1 = Receiver enabled

MOTOROLA MC68HC11F1/FC0 46 MC68HC11FTS/D

RWU — Receiver Wake Up Control

0 = Normal SCI receiver 1 = Wake up enabled and receiver interrupt inhibited

SBK — Send Break

0 = Break generator off 1 = Break codes generated as long as SBK = 1

SCSR — SCI Status Register $x02E

Bit 7 6 5 4 3 2 1 Bit 0

TDRE TC RDRF IDLE OR NF FE 0

RESET: 1 1 0 0 0 0 0 0

TDRE — Transmit Data Register Empty Flag

This flag is set when SCDR is empty. Clear the TDRE flag by reading SCSR with TDRE set and then

writing to SCDR.

0 = SCDR is busy 1 = SCDR is empty

TC — Transmit Complete Flag

This flag is set when the transmitter is idle (no data, preamble, or break transmission in progress). Clear

the TC flag by reading SCSR with TC set and then writing to SCDR.

0 = Transmitter is busy 1 = Transmitter is idle

RDRF — Receive Data Register Full Flag

This flag is set if a received character is ready to be read from SCDR. Clear the RDRF flag by reading

SCSR with RDRF set and then reading SCDR.

0 = SCDR empty 1 = SCDR full

IDLE — Idle Line Detected Flag

This flag is set if the RxD line is idle. Once cleared, IDLE is not set again until the RxD line has been

active and becomes idle again. The IDLE flag is inhibited when RWU = 1. Clear IDLE by reading SCSR

with IDLE set and then reading SCDR.

0 = RxD line is active 1 = RxD line is idle

OR — Overrun Error Flag

OR is set if a new character is received before a previously received character is read from SCDR. Clear

OR by reading SCSR with OR set and then reading SCDR.

0 = No overrun detected 1 = Overrun detected

NF — Noise Error Flag

NF is set if majority sample logic detects anything other than a unanimous decision. Clear NF by reading

SCSR with NF set and then reading SCDR.

0 = Unanimous decision 1 = Noise detected

FE — Framing Error

FE is set when a zero is detected where a stop bit was expected. Clear the FE flag by reading SCSR

with FE set and then reading SCDR.

0 = Stop bit detected 1 = Zero detected

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 47

Bit 0 — Not implemented. Reads always return zero and writes have no effect. SCDR — Serial Communications Data Register $x02F

Bit 7 6 5 4 3 2 1 Bit 0 Bit 7 6 5 4 3 2 2 Bit 0

RESET: I I I I I I I I

I = Indeterminate value

Reading SCDR retrieves the last byte received in the receive data buffer. Writing to SCDR loads the

transmit data buffer with the next byte to be transmitted.

MOTOROLA MC68HC11F1/FC0 48 MC68HC11FTS/D

10 Serial Peripheral Interface

The serial peripheral interface (SPI) allows the MCU to communicate synchronously with peripheral de-

vices and other microprocessors. The SPI protocol facilitates rapid exchange of serial data between de-

vices in a control system. The MC68HC11F1 and MC68HC11FC0 can be set up for master or slave

operation. Standard data rates can be as high as one half of the E-clock rate when configured as mas-

ter, and as fast as the E-clock when configured as slave.

The MC68HC11FC0 has an additional control bit that allows the SPI baud rate counter to be bypassed.

This allows a master mode baud rate equal to the E-clock frequency.

10.1 SPI Block Diagram

SPI STATUS REGISTER

WCOL

DOTTED LINE CONNECTIONS

PRESENT ON MC68HC11FC0 ONLY

SPIF

MODF

INTERNAL DATA BUS

INTERNAL

MCU CLOCK

SPIE SPE DWOM MSTR CPHA CPOL SPR1 SPR0

SPI CONTROL REGISTER

÷2 ÷4

÷16

DIVIDER

÷32

SPR0 SPR1

SELECT

SPIE

SPE

MSTR

CPOL

CPHA

CLOCK LOGIC

CONTROL

CLOCK

SPIF

WCOL

SPI

MODF

SPI INTERRUPT

REQUEST

DWOM

MSTR

SPE

PIN CONTROL LOGIC

PD5

SCK PD4

MOSI

PD3

SPRBYP

OPTION 2 REGISTER

SYSTEM CONFIGURATION

MSB LSB

8-BIT SHIFT REGISTER

READ DATA BUFFER

MISO

PD2

Figure 12 SPI Block Diagram

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 49

10.2 SPI Registers SPCR — SPI Control Register $x028

Bit 7 6 5 4 3 2 1 Bit 0

SPIE SPE DWOM MSTR CPOL CPHA SPR1 SPR0

RESET: 0 0 0 0 0 1 U U

U = Unaffected by reset

SPIE — SPI Interrupt Enable

When SPI interrupts are enabled, a hardware interrupt sequence is requested each time the SPIF or

MODF status flag is set. SPI interrupts are inhibited if this bit is cleared or if the I bit in the condition code

0 = SPI interrupt disabled 1 = SPI interrupt enabled

SPE — SPI Enable

When the SPE bit is set, PD[5:2] are dedicated to the SPI function. If the SPI is in master mode and the

DDRD bit 5 is set, then PD5/SS becomes a general-purpose output instead of the SS input.

0 = SPI off 1 = SPI on

DWOM — Port D Wired-OR Mode Option for SPI Pins PD[5:2]

0 = Normal CMOS outputs 1 = Open-drain outputs

MSTR — Master Mode Select

0 = Slave mode 1 = Master mode

CPOL — Clock Polarity

When the clock polarity bit is cleared and data is not being transferred, the SCK pin of the master device

has a steady state low value. When CPOL is set, SCK idles high. Refer to Figure 13. CPHA — Clock Phase

The clock phase bit, in conjunction with the CPOL bit, controls the clock-data relationship between mas-

ter and slave. The CPHA bit selects one of two clocking protocols. Refer to Figure 13.

SCK CYCLE #

(FOR REFERENCE)

SCK (CPOL = 0)

SCK (CPOL = 1)

SAMPLE INPUT

(CPHA = 0) DATA OUT

SAMPLE INPUT

(CPHA = 1) DATA OUT

12345678

MSB654321LSB

(TO SLAVE)

Figure 13 SPI Data Clock Timing Diagram

MOTOROLA MC68HC11F1/FC0 50 MC68HC11FTS/D

SPR[1:0] — SPI Clock Rate Selects

These two bits select the SPI clock (SCK) rate when the device is configured as a master. When the

device is configured as a slave, the bits have no effect. Refer to Table 23.

Table 23 SPI Baud Rates

Input

Frequency

1 MHz 500 kbps 250 kbps 62.5 kbps 31.25 kbps 2 MHz 1 Mbps 500 kbps 125 kbps 62.5 kbps 3 MHz 1.5 Mbps 750 kbps 187.5 kbps 93.75 kbps 4 MHz 2 Mbps 1 Mbps 250 kbps 125 kbps 5 MHz 2.5 Mbps 1.25 Mbps 312.5 kbps 156.25 kbps 6 MHz 3 Mbps 1.5 Mbps 375 kbps 187.5 kbps

Any E E/2 E/4 E/16 E/32

SPR[1:0] = 00 SPR[1:0] = 01 SPR[1:0] = 10 SPR[1:0] = 11

NOTE

The SPRBYP bit in OPT2 on the MC68HC11FC0 allows the SPI baud rate counter to be bypassed. This permits a maximum master mode baud rate equal to the Eclock frequency on the MC68HC11FC0. SPRBYP is not present on the

MC68HC11F1.

SPSR — SPI Status Register $x029

Bit 7 6 5 4 3 2 1 Bit 0

SPIF WCOL 0 MODF 0 0 0 0

RESET: 0 0 0 0 0 0 0 0

SPIF — SPI Transfer Complete Flag

SPIF is set when an SPI transfer is complete. It is cleared by reading SPSR with SPIF set, followed by

a read or write of SPDR. WCOL — Write Collision

WCOL is set when SPDR is written while a transfer is in progress. It is cleared by reading SPSR with

WCOL set, followed by a read or write of SPDR.

0 = No write collision

1 = Write collision Bit 5 — Not Implemented. Reads always return zero and writes have no effect. MODF — Mode Fault

A mode fault terminates SPI operation. Set when SS

is pulled low while MSTR = 1. MODF is cleared

by reading SPSR read with MODF set, followed by a write to SPCR.

0 = No mode fault

1 = Mode fault Bits [3:0] — Not Implemented. Reads always return zero and writes have no effect.

SPDR — SPI Data Register $x02A

Bit 7 6 5 4 3 2 1 Bit 0 Bit 7 6 5 4 3 2 1 Bit 0

Incoming SPI data is double buffered. Outgoing SPI data is single buffered.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 51

OPT2 — System Configuration Option Register 2 $x038

Bit 7 6 5 4 3 2 1 Bit 0

GWOM CWOM CLK4X LIRDV — SPRBYP — —

RESET 0 0 1 0 0 0 0 0

Bits [7:4] — See 4.3 System Initialization Registers, page 22. Bits 3, 1, 0 — Not implemented. Reads always return zero and writes have no effect. SPRBYP — SPI Baud Rate Counter Bypass

0 = Enable SPI baud rate counter

1 = Bypass SPI baud rate counter

When the SPI baud rate counter is bypassed, the SPI can transmit at a maximum master mode baud rate equal to the E-clock frequency. SPRBYP is present only on the MC68HC11FC0 and overrides the setting of SPR[1:0] in SPCR.

MOTOROLA MC68HC11F1/FC0 52 MC68HC11FTS/D

11 Analog-to-Digital Converter

The MC68HC11F1 analog-to-digital (A/D) converter system uses an all-capacitive charge-redistribution technique to convert analog signals to digital values. The A/D system is an 8-channel, 8-bit, multiplexedinput, successive-approximation converter, accurate to ±1 least significant bit (LSB). Because the capacitive charge redistribution technique used includes a built-in sample-and-hold, no external sampleand-hold is required.

Dedicated lines VRH and V

provide the reference supply voltage inputs. Systems operating at clock

rates of 750 kHz or below must use an internal RC oscillator. The CSEL bit in the OPTION register selects the clock source for the A/D system. (The CSEL bit is described in 11.3 A/D Registers, page 56.)

A multiplexer allows the single A/D converter to select one of 16 analog signals, as shown in Table 24.

NOTE

The A/D converter is present on the MC68HC11F1 only.

PE0 AN0

PE1 AN1

PE2 AN2

PE3 AN3

PE4 AN4

PE5 AN5

PE6 AN6

8-BIT CAPACITIVE DAC

WITH SAMPLE AND HOLD

SUCCESSIVE APPROXIMATION

RESULT

ANALOG

MUX

INTERNAL DATA BUS

PE7 AN7

SCAN

CCF

ADCTL A/D CONTROL

RESULT REGISTER INTERFACE

ADR1 A/D RESULT 1 ADR2 A/D RESULT 2 ADR3 A/D RESULT 3 ADR4 A/D RESULT 4

EA9 A/D BLOCK

MULT

Figure 14 A/D Converter Block Diagram

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 53

11.1 Input Pins

Port E pins can also be used as digital inputs. Reads of port E pins are not recommended during the sample portion of an A/D conversion cycle, when the gate signal to the N-channel input gate is on. Because no P-channel devices are directly connected to either input pins or reference voltage pins, voltages above VDD do not cause a latchup problem, although current should be limited according to

maximum ratings. Figure 15 is a functional diagram of an input pin.

DIFFUSION/POLY

ANALOG

INPUT

< 2 pF

INPUT

PROTECTION

DEVICE

+ ~20V – ~0.7V

+ ~12V – ~0.7V

DUMMY N-CHANNEL

OUTPUT DEVICE

COUPLER

≤ 4 KΩ

400 nA

JUNCTION

LEAKAGE

~ 20 pF

CAPACITANCE

* THIS ANALOG SWITCH IS CLOSED ONLY DURING THE 12-CYCLE SAMPLE TIME.

Figure 15 Electrical Model of an Analog Input Pin (Sample Mode)

11.2 Conversion Sequence

A/D converter operations are performed in sequences of four conversions each. A conversion sequence can be repeated continuously or stop after one iteration. The conversion complete flag (CCF) is set after the fourth conversion in a sequence to show the availability of data in the result registers. Figure 16 shows the timing of a typical sequence. Synchronization is referenced to the system E clock.

DAC

E CLOCK

12 E CYCLES

MSB

CYCLES

BIT 6

BIT 5

BIT 4

BIT 3

BIT 2

BIT 1

LSB

CYC

CYC END

SAMPLE ANALOG INPUT SUCCESSIVE APPROXIMATION SEQUENCE

WRITE TO ADCTL

SET CC FLAG

CONVERT FIRST

CHANNEL, UPDATE

0 32 64 96 128 — E CYCLES

ADR1

CONVERT SECOND CHANNEL, UPDATE

ADR2

CONVERT THIRD

CHANNEL, UPDATE

ADR3

CONVERT FOURTH CHANNEL, UPDATE

ADR4

REPEAT SEQUENCE, SCAN = 1

Figure 16 A/D Conversion Sequence

MOTOROLA MC68HC11F1/FC0 54 MC68HC11FTS/D

11.3 A/D Registers ADCTL — A/D Control/Status $x030

Bit 7 6 5 4 3 2 1 Bit 0 CCF 0 SCAN MULT CD CC CB CA

RESET: I 0 I I I I I I

I = Indeterminate value

CCF — Conversions Complete Flag

A read-only status indicator, this bit is set when all four A/D result registers contain valid conversion results. Each time the ADCTL register is overwritten, this bit is automatically cleared to zero and a conversion sequence is started. In the continuous mode, CCF is set at the end of the first conversion

sequence. Bit 6 — Not implemented. Reads always return zero and writes have no effect. SCAN — Continuous Scan Control

0 = Do four conversions and stop 1 = Convert four channels in selected group continuously

MULT — Multiple Channel/Single Channel Control

0 = Convert single channel selected 1 = Convert four channels in selected group

CD–CA — Channel Select D through A

Refer to Table 24. When a multiple channel mode is selected (MULT = 1), the two least significant chan-

nel select bits (CB and CA) have no meaning and the CD and CC bits specify which group of four chan-

nels is to be converted.

Table 24 A/D Converter Channel Assignments

Channel Select Control Bits

CD:CC:CB:CA

0000 AN0 ADR1 0001 AN1 ADR2 0010 AN2 ADR3 0011 AN3 ADR4 0100 AN4 ADR1 0101 AN5 ADR2 0110 AN6 ADR3 0111 AN7 ADR4

10XX Reserved ADR1–ADR4

1100 1101

1110 1111

NOTES:

1. Used for factory testing.

Channel Signal Result in ADRx if MULT = 1

)/2

Reserved

ADR1 ADR2

ADR3 ADR4

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 55

ADR1 – ADR4 — A/D Results $x031 – $x034

$x031 Bit 7 654321Bit 0 ADR1 $x032 Bit 7 654321Bit 0 ADR2 $x033 Bit 7 654321Bit 0 ADR3 $x034 Bit 7 654321Bit 0 ADR4

Each read-only result register holds an eight-bit conversion result. Writes to these registers have no ef-

fect. Data in the A/D converter result registers is valid when the CCF flag in the ADCTL register is set,

indicating a conversion sequence is complete. If conversion results are needed sooner, refer to Figure

16, which shows the A/D conversion sequence diagram.

Table 25 Analog Input to 8-Bit Result Translation Table

Bit 7 654321 Bit 0

Percentage

Volts

NOTES:

1. % of VRH–V

Volts for VRL = 0; V

50% 25% 12.5% 6.25% 3.12% 1.56% 0.78% 0.39%

2.500 1.250 0.625 0.3125 0.1562 0.0781 0.0391 0.0195

= 5.0 V

OPTION — System Configuration Options $x039

Bit 7 6 5 4 3 2 1 Bit 0

ADPU CSEL IRQE* DLY* CME FCME* CR1* CR0*

RESET: 0 0 0 1 0 0 0 0

*Can be written only once in first 64 cycles out of reset in normal modes, or at any time in special modes.

ADPU — A/D Power Up

0 = A/D powered down 1 = A/D powered up

CSEL

—

Clock Select 0 = A/D and EEPROM use system E-Clock 1 = A/D and EEPROM use internal RC clock

Bits [5:0] — Refer to 4.3 System Initialization Registers, page 23.

MOTOROLA MC68HC11F1/FC0 56 MC68HC11FTS/D

12 Main Timer

The main timer is based on a free-running 16-bit counter with a four-stage programmable prescaler. The timer drives the three input capture (IC) channels, four output compare (OC) channels, one channel programmable for either IC or OC, and the pulse accumulator (PA). All of these functions share port A. The main timer also drives the pulse accumulator, real-time interrupt (RTI), and computer operating properly (COP) watchdog circuits.

12.1 Timer Operation

The following tables summarize timing periods for various M68HC11 functions derived from the main timer for several crystal frequencies.

Table 26 Timer Subsystem Count and Overflow Periods

E-Clock

Frequency

1 MHz 1.000 µs 65.536 ms 4.000 µs 262.144 ms 8.000 µs 524.288 ms 16.000 µs 1.049 s 2 MHz 0.500 µs 32.768 ms 2.000 µs 131.072 ms 4.000 µs 262.144 ms 8.000 µs 524.288 ms 3 MHz 0.333 µs 21.845 ms 1.333 µs 87.381 ms 2.667 µs 174.763 ms 5.333 µs 349.525 ms 4 MHz 0.250 µs 16.384 ms 1.000 µs 65.536 ms 2.000 µs 131.072 ms 4.000 µs 262.144 ms 5 MHz 0.200 µs 13.107 ms 0.800 µs 52.429 ms 1.600 µs 104.858 ms 3.200 µs 209.715 ms 6 MHz 0.167 µs 10.923 ms 0.667 µs 43.691 ms 1.333 µs 87.381 ms 2.667 µs 174.763 ms

Any E 1/E

PR[1:0] = 00 PR[1:0] = 01 PR[1:0] = 10 PR[1:0] = 11

1 Count

TCNT

Overflow

1 Count

4/E

TCNT

Overflow

218/E

1 Count

8/E

TCNT

Overflow

219/E

1 Count

16/E

TCNT

Overflow

220/E

Table 27 Real-Time Interrupt Periods

E-Clock

Frequency

1 MHz 8.192 ms 16.384 ms 32.768 ms 65.536 ms 2 MHz 4.096 ms 8.192 ms 16.384 ms 32.768 ms 3 MHz 2.731 ms 5.461 ms 10.923 ms 21.845 ms 4 MHz 2.048 ms 4.096 ms 8.192 ms 16.384 ms 5 MHz 1.638 ms 3.277 ms 6.554 ms 13.107 ms 6 MHz 1.366 ms 2.731 ms 5.461 ms 10.923 ms

Any E

RTR[1:0] = 00 RTR[1:0] = 01 RTR[1:0] = 10 RTR[1:0] = 11

/E 214/E 215/E 221/E

Table 28 COP Watchdog Time-Out Periods

E-Clock

Frequency

1 MHz 32.768 ms 131.072 ms 524.288 ms 2.097 s 2 MHz 16.384 ms 65.536 ms 262.144 ms 1.049 s 3 MHz 10.923 ms 43.691 ms 174.763 ms 699.051 ms 4 MHz 8.192 ms 32.768 ms 131.072 ms 524.288 ms 5 MHz 6.554 ms 26.214 ms 104.858 ms 419.430 ms 6 MHz 5.461 ms 21.845 ms 87.381 ms 349.525 ms

Any E

RTR[1:0] = 00 RTR[1:0] = 01 RTR[1:0] = 10 RTR[1:0] = 11

/E 217/E 219/E 221/E

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 57

E CLOCK

PRESCALER

Divide by

1, 4, 8 or 16

PR1

PR0

16-BIT TIMER BUS

TCNT (HI) TCNT (LO)

16-BIT FREE RUNNING

COUNTER

TOI

TOF

Interrupt

Requests

To Pulse Accumulator

16-BIT COMPARATOR = TOC1 (HI)

16-BIT COMPARATOR = TOC2 (HI)

16-BIT COMPARATOR = TOC3 (HI)

16-BIT COMPARATOR = TOC4 (HI)

16-BIT COMPARATOR = TI4O5 (HI)

16-BIT LATCH CLK

TOC1 (LO)

TOC2 (LO)

TOC3 (LO)

TOC4 (LO)

TI4O5 (LO)

TIC1 (LO)TIC1 (HI)

TIC2 (LO)TIC2 (HI)

TIC3 (LO)TIC3 (HI)

I4/O5

OC1F

OC2F

OC3F

OC4F

OC5

I4O5F

IC4

IC1F

IC2F

IC3F

TFLG 1

Status

Flags

FOC1

FOC2

FOC3

FOC4

FOC5

CFORC

OC1I

OC2I

OC3I

OC4I

I4O5I

IC1I

IC2I

IC3I

TMSK 1

Interrupt Enables

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Port A

Control

(Note 1)

PORT A

Pins

PA7 OC1

PA6

OC2/OC1

PA5

OC3/OC1

PA4

OC4/OC1

PA3

IC4/OC5

OC1

PA2

IC1

PA1

IC2

PA0

IC3

IC/OC BLOCK

NOTE: Registers that control port A action include DDRA, OC1M, OC1D, PACTL, TCTL1 and TCTL2.

Figure 17 Main Timer

MOTOROLA MC68HC11F1/FC0 58 MC68HC11FTS/D

12.2 Timer Registers CFORC — Timer Force Compare $x00B

Bit 7 6 5 4 3 2 1 Bit 0

FOC1 FOC2 FOC3 FOC4 FOC5 0 0 0

RESET: 0 0 0 0 0 0 0 0

FOCx — Force Output Compare x Action

0 = Not affected 1 = Output compare x action occurs, but OCxF flag bit is not set

Bits [2:0] — Not implemented. Reads always return zero and writes have no effect. OC1M — Output Compare 1 Mask $x00C

Bit 7 6 5 4 3 2 1 Bit 0

OC1M7 OC1M6 OC1M5 OC1M4 OC1M3 0 0 0

RESET: 0 0 0 0 0 0 0 0

Bits set in OC1M allow OC1 to output the corresponding OC1D bits in port A when a successful compare event occurs.

OC1M[7:3] — Output Compare Masks

0 = Control of the corresponding port A pin is disabled 1 = Control of the corresponding port A pin is enabled

Bits [2:0] — Not implemented. Reads always return zero and writes have no effect. OC1D — Output Compare 1 Data $x00D

Bit 7 6 5 4 3 2 1 Bit 0

OC1D7 OC1D6 OC1D5 OC1D4 OC1D3 0 0 0

RESET: 0 0 0 0 0 0 0 0

OC1D[7:3] — Output Compare Data

Data in OC1Dx is output to port A bit x on successful OC1 compares if OC1Mx is set.

Bits [2:0] — Not implemented. Reads always return zero and writes have no effect. TCNT — Timer Count $x00E, $x00F

$x00E Bit 15 14 13 12 11 10 9 Bit 8 High $x00F Bit 7 6 5 4 3 2 1 Bit 0 Low RESET: 0 0 0 0 0 0 0 0

The 16-bit read-only TCNT register contains the prescaled value of the 16-bit timer. A full counter read addresses the most significant byte (MSB) first. A read of this address causes the least significant byte to be latched into a buffer for the next CPU cycle so that a double-byte read returns the full 16-bit state of the counter at the time of the MSB read cycle.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 59

TIC1–TIC3 — Timer Input Capture $x010–$x015

$x010 Bit 15 14 13 12 11 10 9 Bit 8 High $x011 Bit 7 6 5 4 3 2 1 Bit 0 Low

$x012 Bit 15 14 13 12 11 10 9 Bit 8 High $x013 Bit 7 6 5 4 3 2 1 Bit 0 Low

$x014 Bit 15 14 13 12 11 10 9 Bit 8 High $x015 Bit 7 6 5 4 3 2 1 Bit 0 Low

TICx registers are not affected by reset.

TOC1–TOC4 — Timer Output Compare $x016–$x01D

$x016 Bit 15 14 13 12 11 10 9 Bit 8 High $x017 Bit 7 6 5 4 3 2 1 Bit 0 Low

$x018 Bit 15 14 13 12 11 10 9 Bit 8 High $x019 Bit 7 6 5 4 3 2 1 Bit 0 Low

$x01A Bit 15 14 13 12 11 10 9 Bit 8 High $x01B Bit 7 6 5 4 3 2 1 Bit 0 Low

$x01C Bit 15 14 13 12 11 10 9 Bit 8 High $x01D Bit 7 6 5 4 3 2 1 Bit 0 Low

All TOCx register pairs are reset to ones ($FFFF).

TI4/O5 — Timer Input Capture 4/Output Compare 5 $x01E, $x01F

$x01E Bit 15 14 13 12 11 10 9 Bit 8 High

$x01F Bit 7 6 5 4 3 2 1 Bit 0 Low

TI4/O5 is reset to ones ($FFFF).

TCTL1 — Timer Control 1 $x020

Bit 7 6 5 4 3 2 1 Bit 0 OM2 OL2 OM3 OL3 OM4 OL4 OM5 OL5

RESET: 0 0 0 0 0 0 0 0

OM2–OM5 — Output Mode OL2–OL5 — Output Level

Each OMx–OLx bit pair determines the output action taken on the corresponding OCx pin after a successful compare, as shown in Table 29. OC5 functions only if the I4/O5 bit in the PACTL register is cleared.

MOTOROLA MC68HC11F1/FC0 60 MC68HC11FTS/D

Table 29 Output Compare Actions

OMx OLx Action Taken on Successful Compare

0 0 Timer disconnected from output pin logic 0 1 Toggle OCx output line 1 0 Clear OCx output line to zero 1 1 Set OCx output line to one

TCTL2 — Timer Control 2 $x021

Bit 7 6 5 4 3 2 1 Bit 0

EDG4B EDG4A EDG1B EDG1A EDG2B EDG2A EDG3B EDG3A

RESET: 0 0 0 0 0 0 0 0

EDGxB, EDGxA — Input Capture Edge Control

Each EDGxB, EDGxA pair determines the polarity of the input signal on the corresponding ICx that will trigger an input capture, as shown in Table 30. IC4 functions only if the I4/O5 bit in the PACTL register is set.

Table 30 Input Capture Configuration

EDGxB EDGxA Configuration

0 0 Capture disabled 0 1 Capture on rising edges only 1 0 Capture on falling edges only 1 1 Capture on any edge

TMSK1 — Timer Interrupt Mask 1 $x022

Bit 7 6 5 4 3 2 1 Bit 0

OC1I OC2I OC3I OC4I I4/O5I IC1I IC2I IC3I

RESET: 0 0 0 0 0 0 0 0

Bits in TMSK1 correspond bit for bit with flag bits in TFLG1. Each bit that is set in TMSK1 enables the corresponding interrupt source.

OCxI — Output Compare x Interrupt Enable

If the OCxI enable bit is set when the OCxF flag bit is set, a hardware interrupt sequence is requested.

I4/O5I — Input Capture 4/Output Compare 5 Interrupt Enable

When I4/O5 in PACTL is one, I4/O5I is the input capture 4 interrupt enable bit. When I4/O5 in PACTL is zero, I4/O5I is the output compare 5 interrupt enable bit.

ICxI — Input Capture x Interrupt Enable

If the ICxI enable bit is set when the ICxF flag bit is set, a hardware interrupt sequence is requested.

TFLG1 — Timer Interrupt Flag 1 $x023

Bit 7 6 5 4 3 2 1 Bit 0

OC1F OC2F OC3F OC4F I4/O5F IC1F IC2F IC3F

RESET: 0 0 0 0 0 0 0 0

Bits in TFLG1 are cleared by writing a one to the corresponding bit positions.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 61

OCxF — Output Compare x Flag

Set each time the counter matches output compare x value.

I4/O5F — Input Capture 4/Output Compare 5 Flag

Set by IC4 or OC5, depending on which function was enabled by I4/O5 of PACTL.

ICxF — Input Capture x Flag

Set each time a selected active edge is detected on the ICx input line.

TMSK2 — Timer Interrupt Mask 2 $x024

Bit 7 6 5 4 3 2 1 Bit 0

TOI RTII PAOVI PAII 0 0 PR1 PR0

RESET: 0 0 0 0 0 0 0 0

Bits [7:4] in TMSK2 correspond bit for bit with flag bits in TFLG2. Setting any of these bits enables the corresponding interrupt source. TMSK2 can be written only once in the first 64 cycles out of reset in normal modes, or at any time in special modes.

TOI — Timer Overflow Interrupt Enable

0 = Timer overflow interrupt disabled 1 = Interrupt requested when TOF is set

RTII — Real-Time Interrupt Enable

0 = Real-time interrupt disabled 1 = Interrupt requested when RTIF is set

Bits [5:4] — See 13.2 Pulse Accumulator Registers, page 64. Bits [3:2] — Not implemented. Reads always return zero and writes have no effect. PR[1:0] — Timer Prescaler Select

Determines the main timer prescale factor as shown in Table 31. See Table 26 for specific frequencies.

Table 31 Main Timer Prescale Control

PR[1:0] Prescaler

0 0 1 0 1 4 1 0 8 1 1 16

TFLG2 — Timer Interrupt Flag 2 $x025

Bit 7 6 5 4 3 2 1 Bit 0 TOF RTIF PAOVF PAIF 0000

RESET: 0 0 0 0 0 0 0 0

Bits in this register indicate when certain timer system events have occurred. Coupled with the four high-order bits of TMSK2, the bits of TFLG2 allow the timer subsystem to operate in either a polled or interrupt driven system. Each bit of TFLG2 corresponds to a bit in TMSK2 in the same position.

Bits in TFLG2 are cleared by writing a one to the corresponding bit positions.

TOF — Timer Overflow Flag

Set when TCNT rolls over from $FFFF to $0000.

MOTOROLA MC68HC11F1/FC0 62 MC68HC11FTS/D

RTIF — Real-Time Interrupt Flag

Set periodically at a rate based on bits RTR[1:0] in the PACTL register. Bits [5:4] — See 13.2 Pulse Accumulator Registers, page 65. Bits [3:0] — Not implemented. Reads always return zero and writes have no effect.

PACTL — Pulse Accumulator Control $x026

Bit 7 6 5 4 3 2 1 Bit 0

0 PAEN PAMOD PEDGE 0 I4/O5 RTR1 RTR0

RESET: 0 0 0 0 0 0 0 0

Bit 7 — Not implemented. Reads always return zero and writes have no effect. Bits [6:4] — See 13.2 Pulse Accumulator Registers, page 65. Bit 3 — Not implemented. Reads always return zero and writes have no effect. I4/O5 — Configure TI4/O5 Register for IC or OC

0 = OC5 function enabled 1 = IC4 function enabled

RTR[1:0] — RTI Interrupt Rate Selects

These two bits select one of four rates for the real-time interrupt circuit, as shown in Table 32.

Table 32 Real-Time Interrupt Periods

E-Clock

Frequency

1 MHz 8.192 ms 16.384 ms 32.768 ms 65.536 ms 2 MHz 4.906 ms 8.192 ms 16.384 ms 32.768 ms 3 MHz 2.731 ms 5.461 ms 10.923 ms 21.845 ms 4 MHz 2.048 ms 4.096 ms 8.192 ms 16.384 ms 5 MHz 1.638 ms 3.277 ms 6.554 ms 13.107 ms 6 MHz 1.366 ms 2.731 ms 5.461 ms 10.923 ms

Any E

RTR [1:0] = %00 RTR [1:0] = 01 RTR [1:0] = 10 RTR [1:0] = 11

/E 214/E 215/E 216/E

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 63

13 Pulse Accumulator

The pulse accumulator can be used either to count events or measure the duration of a particular event.

In event counting mode, the pulse accumulator’s 8-bit counter increments each time a specified edge

is detected on the pulse accumulator input pin, PA7. The maximum clocking rate for this mode is the E-

clock divided by two. In gated time accumulation mode, an internal clock increments the 8-bit counter

at a rate of E-clock ÷ 64 while the input at PA7 remains at a predetermined logic level.

13.1 Pulse Accumulator Block Diagram

INTERRUPT REQUESTS

(FROM MAIN TIMER)

PA7/

PAI/OC1

FROM

MAIN TIMER

OC1

FROM DDRA

E ÷ 64 CLOCK

OUTPUT BUFFER

INPUT BUFFER

EDGE DETECTION

PAOVI

PAII

TMSK2

INTERRUPT ENABLES

PAEN

PAMOD

PEDGE

PACTL

CONTROL

2:1

MUX

PAI EDGE

PAEN

CLOCK

PAEN

INTERNAL

DATA BUS

PAIF

PAOVF

TFLG2

STATUS FLAGS

OVERFLOW

PACNT

8-BIT COUNTER

ENABLE

Figure 18 Pulse Accumulator Block Diagram

13.2 Pulse Accumulator Registers TMSK2 — Timer Interrupt Mask 2 $x024

Bit 7 6 5 4 3 2 1 Bit 0

TOI RTII PAOVI PAII 0 0 PR1 PR0

RESET: 0 0 0 0 0 0 0 0

Bits [7:4] in TMSK2 correspond bit for bit with flag bits in TFLG2. Setting any of these bits enables the

corresponding interrupt source.

MOTOROLA MC68HC11F1/FC0 64 MC68HC11FTS/D

Bits[7:6] — See 12.2 Timer Registers, page 62. PAOVI — Pulse Accumulator Overflow Interrupt Enable

0 = Pulse accumulator overflow interrupt disabled 1 = Interrupt requested when PAOVF in TFLG2 is set

PAII — Pulse Accumulator Interrupt Enable

0 = Pulse accumulator interrupt disabled

1 = Interrupt requested when PAIF in TFLG2 is set Bits [3:2] — Not implemented. Reads always return zero and writes have no effect. Bits [1:0] — See 12.2 Timer Registers, page 62.

TFLG2 — Timer Interrupt Flag 2 $x025

Bit 7 6 5 4 3 2 1 Bit 0 TOF RTIF PAOVF PAIF 0000

RESET: 0 0 0 0 0 0 0 0

Bits in TFLG2 are cleared by writing a one to the corresponding bit positions. Bits [7:6] — See 12.2 Timer Registers, page 62. PAOVF — Pulse Accumulator Overflow Flag

Set when PACNT rolls over from $FF to $00 PAIF — Pulse Accumulator Input Edge Flag

Set each time a selected active edge is detected on the PAI input line Bits [3:0] — Not implemented. Reads always return zero and writes have no effect.

PACTL — Pulse Accumulator Control $x026

Bit 7 6 5 4 3 2 1 Bit 0

0 PAEN PAMOD PEDGE 0 I4/O5 RTR1 RTR0

RESET: 0 0 0 0 0 0 0 0

Bit 7 — Not implemented. Reads always return zero and writes have no effect. PAEN — Pulse Accumulator System Enable

0 = Pulse accumulator disabled 1 = Pulse accumulator enabled

PAMOD — Pulse Accumulator Mode

0 = Event counter 1 = Gated time accumulation

PEDGE — Pulse Accumulator Edge Control

This bit has different meanings depending on the state of the PAMOD bit, as shown in Table 33.

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 65

Table 33 Pulse Accumulator Edge Control

PAMOD PEDGE Action on Clock

0 0 PAI falling edge increments the counter. 0 1 PAI rising edge increments the counter. 1 0 A zero on PAI inhibits counting. 1 1 A one on PAI inhibits counting.

Bit 3 — Not implemented. Reads always return zero and writes have no effect. Bits [2:0] — See 12.2 Timer Registers, page 63.

PACNT — Pulse Accumulator Count $x027

Bit 7 6 5 4 3 2 1 Bit 0 Bit 7 6 5 4 3 2 1 Bit 0

RESET: U U U U U U U U

U = Unaffected by reset

This eight-bit read/write register contains the count of external input events at the PAI input, or the ac-

cumulated count. The PACNT is readable even if PAI is not active in gated time accumulation mode.

The counter is not affected by reset and can be read or written at any time. Counting is synchronized

to the internal PH2 clock so that incrementing and reading occur during opposite half cycles.

MOTOROLA MC68HC11F1/FC0 66 MC68HC11FTS/D

MC68HC11F1/FC0 MOTOROLA MC68HC11FTS/D 67

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. "Typical" parameters which may be provided in Motorola data sheets and/or specifications can and do vary in different applications. All operating parameters, including "Typicals" must be validated for each customer application by customer's technical experts. Motorola does not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part. MCUinit, MCUasm, MCUdebug, and RTEK are trademarks of Motorola, Inc. MOTOROLA and ! are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.

How to reach us:

USA/EUROPE/Locations Not Listed: Motorola Literature Distribution;

P.O. Box 5405, Denver Colorado 80217. 1-800-441-2447, (303) 675-2140

Mfax™: RMFAX0@email.sps.mot.com - TOUCHTONE (602) 244-6609 INTERNET: http://Design-NET.com JAPAN: Nippon Motorola Ltd.; Tatsumi-SPD-JLDC,

6F Seibu-Butsuryu-Center, 3-14-2 Tatsumi Koto-Ku, Tokyo 135, Japan. 81-3-3521-8315 ASIA PACIFIC: Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park, 51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852-26629298 Mfax is a trademark of Motorola, Inc.

Motorola MC68L11FC0FU4, MC68L11FC0PU3, MC68L11FC0PU4, MC68L11F1CFN3, MC68L11F1CPU3 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

1.1 Features

1.2 Ordering Information

TABLE OF CONTENTS

REGISTER INDEX

1.3 Block Diagrams

Figure 1 MC68HC11F1 Block Diagram

Figure 2 MC68HC11FC0 Block Diagram

2 Pin Assignments and Signal Descriptions

2.1 MC68HC11F1 Pin Assignments

Figure 3 MC68HC11F1 68-Pin PLCC Pin Assignments

2.2 MC68HC11FC0 Pin Assignments

Figure 5 MC68HC11FC0 64-Pin QFP Pin Assignments

Figure 6 MC68HC11FC0 80-Pin TQFP Pin Assignments

2.3 Pin Descriptions VDD and V

3 Control Registers

3.1 MC68HC11F1 Control Registers

3.2 MC68HC11FC0 Control Registers

4 Operating Modes and System Initialization

4.1 Operating Modes

Table 7 Hardware Mode Select Summary

4.2 Memory Maps

Figure 7 MC68HC11F1 Memory Map

Figure 8 MC68HC11FC0 Memory Map

4.3 System Initialization Registers

Table 8 Hardware Mode Select Summary

Table 9 Register Block Location

Table 10 RAM and Register Mapping

5 Resets and Interrupts

5.1 Interrupt Sources

Table 11 Interrupt and Reset Vector Assignments

5.2 Reset and Interrupt Registers OPTION — System Configuration Options $x039

Table 12 COP Watchdog Time-Out Periods

6 Electrically Erasable Programmable ROM

6.1 EEPROM Operation

6.2 EEPROM Registers

Table 14 Block Protect Bits for EEPROM

Table 15 ROW and BYTE Encodings

6.3 EEPROM Programming and Erasure

6.3.1 Programming a Byte

6.3.2 Bulk Erase

6.3.3 Row Erase

6.3.4 Byte Erase

6.4 CONFIG Register Programming

7 Parallel Input/Output

7.1 Port A

7.2 Port B

7.3 Port C

7.4 Port D

7.5 Port E

7.6 Port F

7.7 Port G

7.8 Parallel I/O Registers

8 Chip-Selects

8.1 Chip-Select Operation

8.2 Chip-Select Registers CSSTRH — Clock Stretching $x05C

Table 16 Chip Select Clock Stretch Control

Table 17 Chip Select Priorities

Table 18 Program Chip Select Size Control

Table 20 General-Purpose Chip Select Size Control

9 Serial Communications Interface (SCI)

9.1 SCI Block Diagrams

Figure 9 SCI Transmitter Block Diagram

Figure 10 SCI Receiver Block Diagram

9.2 SCI Registers

Table 21 Baud Rate Prescaler Selection

Table 22 Baud Rate Selection

Figure 11 SCI Baud Rate Generator Block Diagram

10 Serial Peripheral Interface

10.1 SPI Block Diagram

Figure 12 SPI Block Diagram

10.2 SPI Registers SPCR — SPI Control Register $x028

Figure 13 SPI Data Clock Timing Diagram

Table 23 SPI Baud Rates

11 Analog-to-Digital Converter

Figure 14 A/D Converter Block Diagram
