Motorola L603, L603M, L604, L604M User Guide

User’s Guide

L601 / L602 / L603 / L604 / L605

L601M / L602M / L603M / L604M / L605M

DECT 6.0 Digital Cordless Phone

Warning

Use only the adapter and telephone line cord provided

in the box.

Welcome...

to your new Motorola Phone!

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product,
you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required
for warranty coverage.

For product-related questions, please call:

US and Canada: 1-888-331-3383

On the Web: www.motorola.com

• 30 name and number phonebook.

• Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.**

• Register up to 5 cordless handsets to a single base.

• Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an
external caller.

**You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work.

Please note that this equipment is not designed for making emergency telephone calls when the power fails.
Alternative arrangements should be made if emergency telephone call is necessary.

This User's Guide provides you with all the information you need to
get the most from your phone.

Before you make your first call you will need to set up your phone.
Follow the simple instructions in 'Getting Started', on the next few
pages.

IMPORTANT

Only use the telephone line cord supplied.

This equipment is not designed to make emergency telephone calls during power failures. Alternative
arrangements should be made for access to emergency services.

Got everything?

• Handset

• Base

• NiMH Rechargeable Battery Pack

• Battery Door

• Power Adapter

• Telephone Line Cord

• User's Guide

• Quick Start Guide

In multi-handset packs, you will find one or more additional handsets, chargers with power adapter
units, additional rechargeable battery packs and battery doors.

1. Getting started ................................................6

1.1 Connecting the base........................................... 7

1.2 Installing and charging the handset

battery pack ........................................................ 7

1.3 Assembling the rubber band of cordless

handset (Not applicable for L60xM models)....... 8

1.4 Setting the display language .............................. 8

1.5 Setting the date and time .................................... 9

2. Getting to know your phone ..........................9

3. Using the phone............................................13

3.1 Making a call..................................................... 13

3.2 Speed dial calling ............................................. 13

3.3 Answering a call ............................................... 13

3.4 Ending a call ..................................................... 13

3.5 Adjusting volume .............................................. 13

3.6 Muting a call ..................................................... 14

3.7 Dialing from the redial list ................................. 14

3.8 Dialing from the calls list ................................... 14

3.9 Adding an entry to the phonebook.................... 14

4

3.10 Storing a phonebook entry as a

one touch number .............................................14

3.11 Dialing from the phonebook ..............................15

3.12 Caller ID ............................................................15

3.12.1 Calls List ................................................ 15

3.12.2 Viewing the calls list ...............................16

3.12.3 Saving a number from the calls list

to the phonebook ...................................16

3.12.4 Deleting a calls list entry ........................16

3.12.5 Deleting the entire calls list ....................16

3.13 Personal Settings ..............................................17

3.14 Intercom ............................................................18

3.14.1 Calling another handset .........................18

3.14.2 Transferring a call to another

handset ..................................................18

3.14.3 Three-party conference call ...................19

3.15 Setting the dial mode .........................................19

3.16 Setting the flash time .........................................19

3.17 Setting the area code ........................................20

3.18 Registration .......................................................20

3.18.1 Registering a handset ............................20

3.19 Resetting all settings ......................................... 21

3.20 Paging/Finding a handset..................................21

4. Help................................................................ 21

5. General information ..................................... 23

5

1. Getting started

WARNING

Do not place your phone in the bathroom or other humid
areas.

Location

When choosing a location for your new phone, here are
some important guidelines you should consider:

• Avoid sources of noise and heat, such as motors,
fluorescent lighting, microwave ovens, heating
appliances and direct sunlight.

• Avoid areas of excessive dust, moisture and low
temperature.

• Avoid other cordless telephones or personal computers.

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the
jack is specifically designed for wet locations.

• Never touch non-insulated telephone wires or terminals,
unless the telephone line has been disconnected at the
network interface.

• Use caution when installing or modifying telephone lines.

6 Getting started

HANDSET RANGE

Optimal range is reached when there are no other electrical
appliances working within the range area. Any obstruction
between the base and handset will also reduce the range
significantly.

SIGNAL STRENGTH

When out of range of the corded base, the screen shows

OF RANGE

. If you are on a call, the line will hang up. Move
back within in range. The cordless handset will automatically
re-connect to the corded base.

OUT

Setting up

IMPORTANT

The base must be plugged into an electrical outlet at all
times. Do not connect the telephone line cord into the
telephone wall jack until the handset is fully charged. Only
use the adapter and telephone line cord supplied with the
product.

WHICH POWER ADAPTER?

The power adapter with the smaller pin is for the base unit
and the power adapter with the larger pin is for the charger
unit (only for multi-handset packs).

1.1 Connecting the base

1.2 Installing and charging the handset battery pack

1. Plug the power adapter and the telephone line cord into

the base. The power adapter with the larger pin is for
the charger (only in multi-handset packs).

2. Plug the other end of the power adapter into a power
outlet and the telephone line cord into a telephone wall
jack.

3. Use only the provided power adapter.

Getting started 7

1. Slide off the battery compartment cover to remove it.
Place the supplied rechargeable battery pack in the
battery compartment, with the battery connector
plugged in, as shown.

2. Slide the battery compartment cover back on.

3. Put the handset on the base to charge for at least 24

hours. Once charged, the will indicate that the
handset is fully charged.

IMPORTANT

Use only the rechargeable battery pack provided with the
product.

2. Press and smooth out the rubber band to enwrap the
handset firmly.

1.3 Assembling the rubber band of cordless handset (Not applicable for L60xM models)

If you have purchased additional rubber band(s) of the
cordless handset separately, refer to the following steps for
replacement. To remove the originally installed rubber band,
dig out the rubber band from handset bottom gap and then
take it off from handset around.

1. To assemble the rubber band, align the protuberant pins

of the rubber band with the holes around of the handset
sides and click the rubber band into place. Respect the
direction, side with gap should be attached to the
handset bottom, as shown.

8 Getting started

1.4 Setting the display language

1. Press MENU and then VOL+ or REDIAL/VOL- to select

SETUP HS

2. Press MENU and then VOL+ or REDIAL/VOL- to select

3. Press MENU and then VOL+ or REDIAL/VOL- to select

4. Press MENU to save.

.

LANGUAGE

.

the desired language.

1.5 Setting the date and time

1. Press MENU and then VOL+ or REDIAL/VOL- to select

DATE&TIME

ID service, the date and time is automatically set when a
call is received.

2. Press MENU and then use the keypad to edit the year
and the date.

3. Press VOL+ or REDIAL/VOL- or or CID to move
between the input fields

4. Press MENU and then use the keypad to edit the time in
12 HR format. Press VOL+ or REDIAL/VOL- to toggle

AM/PM

5. Press MENU to save the settings.

Your phone is now ready for use.

Getting to know your phone 9

. If you're a subscriber to your network's Caller

YEAR

and

DATE

.

settings.

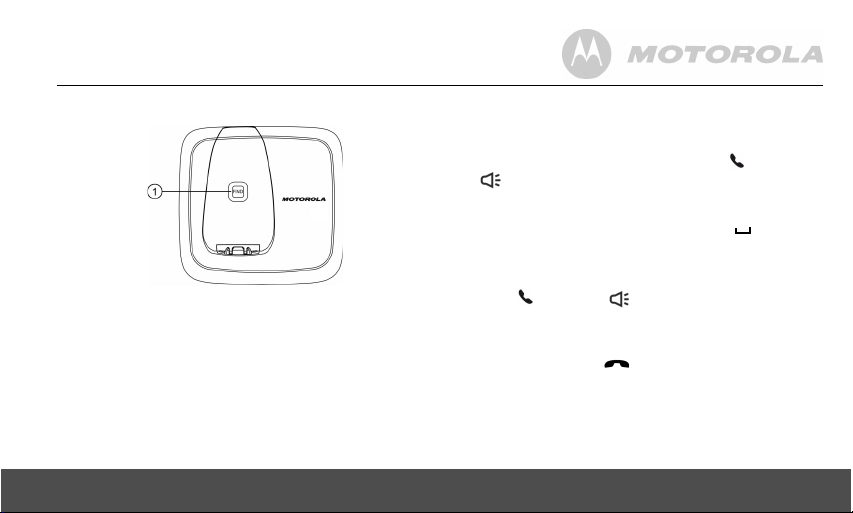

2. Getting to know your phone

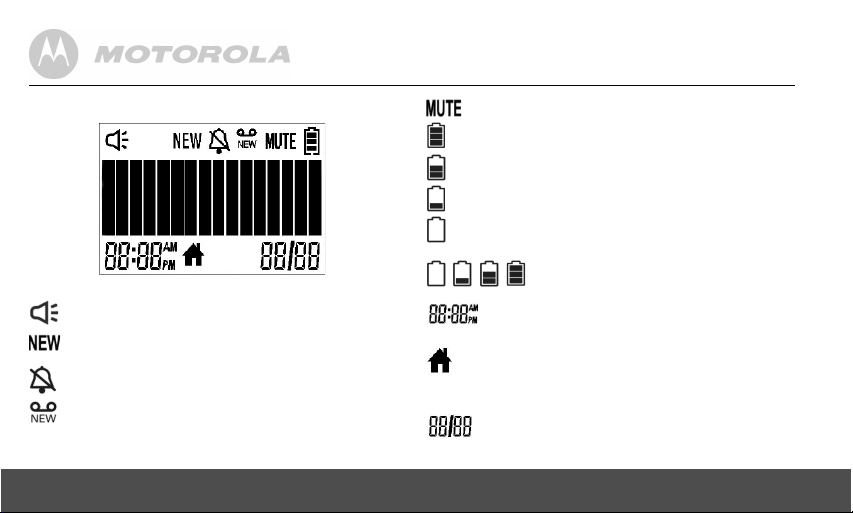

Overview of your handset

Get acquainted with the following 14 buttons on your
handset and their multi-function tasks.

1 Scroll up / Volume up

a) In menu mode: Press to scroll up.
b) In editing mode: Press to move the cursor to the left.
c) During a call: Press to increase the volume.
d) Calls list / phonebook / redial list entry: Press to scroll

up the list.

2 Menu / Select

a) In idle mode: Press to access menu list.
b) In menu / editing mode: Press to confirm and save the

settings.

c) During a call: Press to transfer the call to another

handset.

d) In calls list entry: Press to save the entry to the

phonebook.

e) In phonebook entry: Press to go to sub-menus of

phonebook.

3 Right / Calls list

a) In idle mode / during a call: Press to access calls list.
b) In editing mode: Press to move the cursor to the right.

4 Talk off / Back

a) In menu / editing mode: Press to exit to previous level.
b) In pre-dial mode / phonebook / calls list / redial list

entry: Press to exit to idle.

c) During ringing: Press to silence the incoming ringer

temporarily.

d) During a call: Press to end a call.

5 Alphanumeric keypad

a) In idle / pre-dial / editing mode / during a call: Press to

enter characters / numbers.

b) In idle mode: Press and hold to activate speed dial.

6 #/Pause / ABC / Format

a) In idle / pre-dial / number editing mode / during a call:

Press to insert a "#", press and hold to insert a pause (P).

b) In name editing mode: Toggle ABC/abc. Press and hold

to insert a space.

c) In calls list entry: Press to toggle Caller ID display

format between 7, 8, 10 and 11 digits when returning calls
from Caller ID list.

d) In phonebook list entry: If the number is more than 15

digits, press to view the next page of remaining digits.

7 Intercom

a) In idle mode / during a call: Press to initiate an intercom

call.

8 Microphone

10 Getting to know your phone
