Page 1
ASTRO® XTS™ 2500 Model III
1
Cover
ASTRO® XTSTM 2500 Model III
Digital Portable Radio
END-USER TRAINING
MSU REBANDING PROJECT
Page 2
ASTRO® XTS™ 2500 Model III
2
WELCOME TO XTS2500 III TRAINING!
INSTRUCTORS: RICH CARROLL BOB GRESS
CLASS LENGTH: ABOUT 1.5 HOURS
OBJECTIVES: 1) FAMILIARIZE YOU WITH THE OPERATION OF YOUR NEW RADIO
2) EXCHANGE RADIOS AN D ACCESSORIES
Page 3
ASTRO® XTS™ 2500 Model III
BEFORE WE BEGIN…
3
1. PLEASE DO NOT ASSEMBLE YOUR RADIO KIT YET. LET’S DO IT TOGETHER.
2. LET’S TRY TO STAY TOGETHER AS WE GO THROUGH EACH STEP. THAT WAY WE CAN HELP EACH OTHER, GROUP QUESTIONS AND MAY FI NIS H EARLY.
3. THANKS!
Page 4
ASTRO® XTS™ 2500 Model III
4

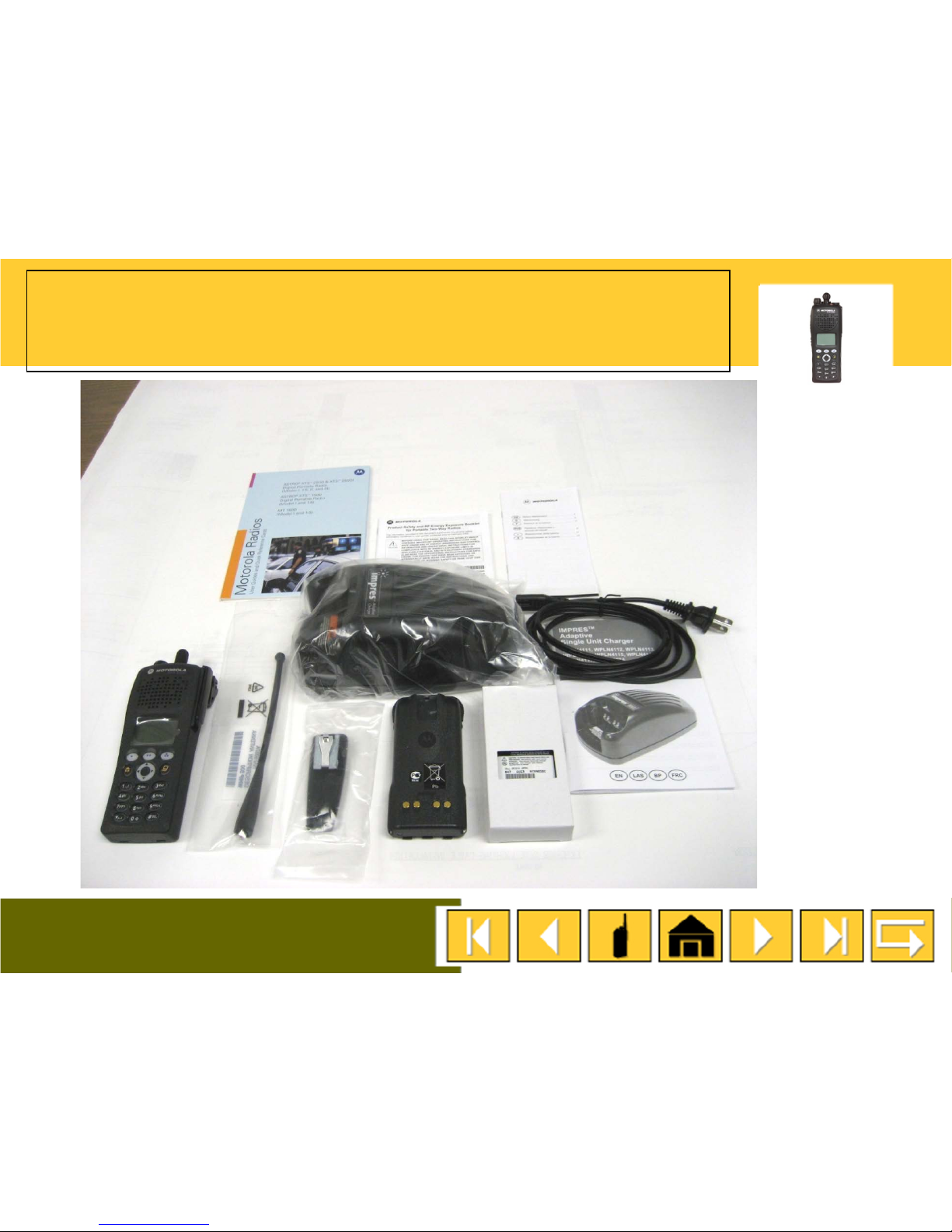

YOUR RADIO KIT
Page 5
ASTRO® XTS™ 2500 Model III
Status Symbols
Important Safety
Information
5
THE TRAINING SECTIONS
Operating Y our
Radio

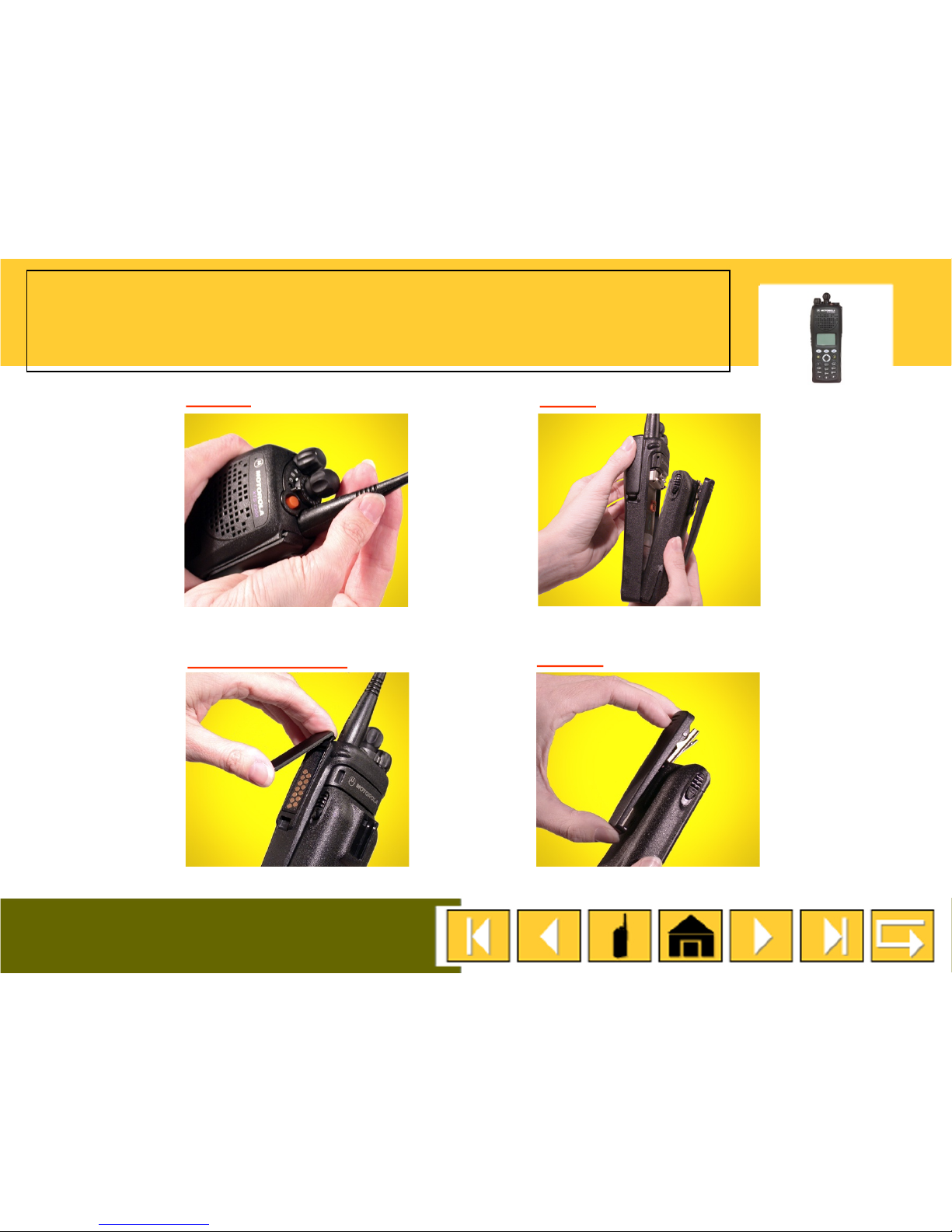

Installation and
Removal
Status Aler t Tones
Talk Group Map
C2
C1
Z2 Z1
Page 6
ASTRO® XTS™ 2500 Model III
6
THE TRAINING SECTIONS
Important Safety
Information
Page 7
ASTRO® XTS™ 2500 Model III
ELECTROMAGNETIC (RF) EXP OSURE
THE BIOLOGICAL EFFECTS OF RF ENERGY HAVE BEEN
STUDIED FOR YEARS. THERE ARE SOME CONFLICTING RESULTS, BUT WE KNOW SOME THI NGS .
RF ENERGY CAN CAUSE HE AT ING (MICROWAVE O VEN).
THE EYES AND HEAD ARE MOST SENSITIVE. STRONG RF
FIELDS CAN CAUSE CATARACTS.
THERE IS NO CONCLUSIVE EVIDENCE THAT RF EXPOSURE
CAUSES CANCER - BRAI N OR OTHE RWIS E .
7
Page 8
ASTRO® XTS™ 2500 Model III
ELECTROMAGNETIC (RF) EXP OSURE
YOUR NEW RADIO TRANSMITS MUCH MORE P OWER THAN
YOUR CELL PHONE (2.3W VERSUS 1W OR LESS).
THE FCC HAS REGULATED AND LIMITED THE AMOUNT OF
PERMISSIBLE OCCUPATIONAL RF EXPOSURE.
RF EXPOSURE DEPENDS UPON TWO VARIABLES.
1) INTENSITY OF THE ELECTROMAGNETIC FIELD.
2) TIME SPENT IN THAT FIELD.
REDUCE EITHER ONE OF THESE AND YOU REDUCE YOUR
EXPOSURE.
8
Page 9
ASTRO® XTS™ 2500 Model III
ELECTROMAGNETIC (RF) EXP OSURE
9
REDUCE RF INTENSITY BY NOT CLOSE TALKING YOUR RADIO.
Motorola recommends holding your radio 2” from your li ps .
Page 10
ASTRO® XTS™ 2500 Model III
ELECTROMAGNETIC (RF) EXP OSURE
10
REDUCE RF INTENSITY BY NOT CLOSE TALKING YOUR RADIO.
The XTS2500 radios have very sensitive and clear audio.
We recommend holding your radio 6” from your lips.
Our tests show this cuts the intensity to your eyes and head to one-half the level when held at 2”.
Page 11
ASTRO® XTS™ 2500 Model III
ELECTROMAGNETIC (RF) EXP OSURE
11
REDUCE TIME IN THE RF FIELD BY USING SHORT, INFREQUENT TRANSMISSIONS.
Especially avoid lengthy phone conversations.
Page 12
ASTRO® XTS™ 2500 Model III
EXPLOSIVE/ FLAMMABLE ATMOSPHERES
YOUR XTS2500 PORTABLE RADIO I S NOT I NTRINS I CALLY
SAFE. NEITHER WAS YOUR LTS2000.
DO NOT TRANSMIT OR OPE RATE IF YO U ARE IN AN
EXPLOSIVE OR FLAMMABLE ATMOSPHERE. THE SWITCHES IN YOUR RADIO MAY PRODUCE MINUTE SPARKS WHICH COULD IGNITE THE ATMOSP HERE SURROUNDING YOU.
DO NOT CHANGE BATTERIES IN AN EXPLOSIVE OR
FLAMMABLE ATMOSPHERE .
12
Page 13
ASTRO® XTS™ 2500 Model III
13
FOR MORE SAFETY INFORMATION
See the XTS2500 safety manual on our website.
Go to: www.telecom.msu.edu. Click: Support; Training; Two-Way Radio, and then
Motorola XTS2500
Page 14
ASTRO® XTS™ 2500 Model III
14
THE TRAINING SECTIONS
Talk Group Map
C2
C1
Z2 Z1
Page 15
ASTRO® XTS™ 2500 Model III
15
Talk Group Map – TELECOM SYSTEMS
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 VOICE M DISASTR EVENT 3 BROADBAND MSU/DPPS EVENT 4 JOB TG 1 EVENT 5 JOB TG 2 EVENT 6 JOB TG 3
JOB TG 4 CENT CNTL
ZONE A ZONE B ZONE C
Page 16
ASTRO® XTS™ 2500 Model III
16
Talk Group Map – ATS
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 ATS- 1 M DISASTR EVENT 3 ATS- 2 MSU/DPPS EVENT 4 ATS- 3 EVENT 5 ATS- 4 EVENT 6 JOB ATS MEDIA
JOB ATS COMP
ZONE A ZONE B ZONE C
Page 17
ASTRO® XTS™ 2500 Model III
17
Talk Group Map – CYCLOTRON
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 CYCLO 1 M DISASTR EVENT 3 CYCLO 2 MSU/DPPS EVENT 4 JOB CYCLO EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 18
ASTRO® XTS™ 2500 Model III
18
Talk Group Map – PP MATERIAL/ LOGISTICS
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 MATLOG 1 M DISASTR EVENT 3 MATLOG 2 MSU/DPPS EVENT 4 JOB TG 1 EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 19
ASTRO® XTS™ 2500 Model III
19
Talk Group Map – HOUSING COMPUTER GROUP
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 HS COMP 1 M DISASTR EVENT 3 HS COMP 2 MSU/DPPS EVENT 4 JOB HS CO 1 EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 20
ASTRO® XTS™ 2500 Model III
20
Talk Group Map – HOUSING CONSTRUCTION GROUP
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 HS CONT 1 M DISASTR EVENT 3 HS CONT 2 MSU/DPPS EVENT 4 JOB HS CO EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 21
ASTRO® XTS™ 2500 Model III
21
Talk Group Map – BRESLIN
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 BRESLIN M DISASTR EVENT 3 MSU/DPPS EVENT 4 EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 22
ASTRO® XTS™ 2500 Model III
22
Talk Group Map – PROJECTS & CONTRACTS (PIA)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 SUPER PIA M DISASTR EVENT 3 CENT CNTL MSU/DPPS EVENT 4 EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 23
ASTRO® XTS™ 2500 Model III
23
Talk Group Map – CENTRAL CONTROL
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 HVAC-CC 1 M DISASTR EVENT 3 HVAC-CC 2 MSU/DPPS EVENT 4 JOB HVAC EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 24
ASTRO® XTS™ 2500 Model III
24
Talk Group Map – LANDSCAPE SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 L SCAPE 1 M DISASTR EVENT 3 L SCAPE 2 MSU/DPPS EVENT 4 CENT CNTL EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 25
ASTRO® XTS™ 2500 Model III
25
Talk Group Map – TRANSPORTATION SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 AUT O 1 M DISASTR EVENT 3 AUT O 2 MSU/DPPS EVENT 4 JOB AUTO EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 26
ASTRO® XTS™ 2500 Model III
26
Talk Group Map – SAFETY- SECURITY SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 SFTY SC1 M DISASTR EVENT 3 SFTY SC2 MSU/DPPS EVENT 4 JOB ELCTR EVENT 5 JOB ALRMS EVENT 6 JOB SCRTY
CENT CNTL
ZONE A ZONE B ZONE C
Page 27
ASTRO® XTS™ 2500 Model III
27
Talk Group Map – ELEVATOR SHOP
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 ELEVT 1 M DISASTR EVENT 3 ELEVT 2 MSU/DPPS EVENT 4 JOB ELEVT EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 28
ASTRO® XTS™ 2500 Model III
28
Talk Group Map – KEY SHOP
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 KEY SHP 1 M DISASTR EVENT 3 KEY SHP 2 MSU/DPPS EVENT 4 JOB KEY EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 29
ASTRO® XTS™ 2500 Model III
29
Talk Group Map – POWER & WATER
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 PWR PLT 1 M DISASTR EVENT 3 PWR PLT 2 MSU/DPPS EVENT 4 ELECT 1 EVENT 5 ELECT 2 EVENT 6 JOB TG 1
CENT CNTL
ZONE A ZONE B ZONE C
Page 30
ASTRO® XTS™ 2500 Model III
30
Talk Group Map – ENGRG & ARCH SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 EAS 1 M DISASTR EVENT 3 EAS 2 MSU/DPPS EVENT 4 CENT CNTL EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 31
ASTRO® XTS™ 2500 Model III
31
Talk Group Map – ROOFING SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 ROOFING 1 M DISASTR EVENT 3 ROOFING 2 MSU/DPPS EVENT 4 JOB ROOF EVENT 5 CENT CTRL EVENT 6
ZONE A ZONE B ZONE C
Page 32
ASTRO® XTS™ 2500 Model III
32
Talk Group Map – GLASS - MASONRY SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 MASON M DISASTR EVENT 3 GLASS MSU/DPPS EVENT 4 JOB MASON EVENT 5 CENT CTRL EVENT 6
ZONE A ZONE B ZONE C
Page 33
ASTRO® XTS™ 2500 Model III
33
Talk Group Map – SET UP SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 SET UP 1 M DISASTR EVENT 3 SET UP 2 MSU/DPPS EVENT 4 JOB SETUP EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 34
ASTRO® XTS™ 2500 Model III
34
Talk Group Map – CARPENTRY SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 CARPEN 1 M DISASTR EVENT 3 CARPEN 2 MSU/DPPS EVENT 4 JOB TG 1 EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 35
ASTRO® XTS™ 2500 Model III
35
Talk Group Map – PAINT SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 PAIN T 1 M DISASTR EVENT 3 PAIN T 2 MSU/DPPS EVENT 4 JOB TG 1 EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 36
ASTRO® XTS™ 2500 Model III
36
Talk Group Map – PLUMBING SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 PLUMB 1 M DISASTR EVENT 3 PLUMB 2 MSU/DPPS EVENT 4 PLUMB 3 EVENT 5 JOB PLUMB EVENT 6 CENT CNTL
ZONE A ZONE B ZONE C
Page 37
ASTRO® XTS™ 2500 Model III
37
Talk Group Map – A&I SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 A & I - 1 M DISASTR EVENT 3 A & I - 2 MSU/DPPS EVENT 4 JOB A & I EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 38
ASTRO® XTS™ 2500 Model III
38
Talk Group Map – ELECTRICAL SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 ELECT 1 M DISASTR EVENT 3 ELECT 2 MSU/DPPS EVENT 4 PWR PLT 1 EVENT 5 PWR PLT 2 EVENT 6 JOB TG 1
JOB TG 2 CENT CNTL
ZONE A ZONE B ZONE C
Page 39
ASTRO® XTS™ 2500 Model III
39
Talk Group Map – ENERGY SYSTEMS MECH A&I SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9
EVENT 1 DISPATCH P DISASTR EVENT 2 ENERGY 1 M DISASTR EVENT 3 ENERGY 2 MSU/DPPS EVENT 4 JOB ENRGY EVENT 5 CENT CNTL EVENT 6 STEAM 1
PUMPS 1 PM 1 HVAC 1
ZONE A ZONE B ZONE C
Page 40
ASTRO® XTS™ 2500 Model III
40
Talk Group Map – MECHANICAL SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 DISTBUT 1 M DISASTR EVENT 3 DISTBUT 2 MSU/DPPS EVENT 4 STEAM 1 EVENT 5 STEAM 2 EVENT 6 ABSORP 1
ABSORP 2 JOB DIS JOB STEAM JOB ABS CENT CNTL
ZONE A ZONE B ZONE C
Page 41
ASTRO® XTS™ 2500 Model III
41
Talk Group Map – HVAC/ REFRIGERATION SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 HVAC 1 M DISASTR EVENT 3 HVAC 2 MSU/DPPS EVENT 4 REFRIG 1 EVENT 5 REFRIG 2 EVENT 6 JOB HVAC
JOB REF CENT CNTL
ZONE A ZONE B ZONE C
Page 42
ASTRO® XTS™ 2500 Model III
42
Talk Group Map – METAL SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 SHTMTL 1 M DISASTR EVENT 3 SHTMTL 2 MSU/DPPS EVENT 4 PUMPS EVENT 5 BOILERS EVENT 6 INSUL
JOB TG 1 JOB TG 2 CENT CNTL
ZONE A ZONE B ZONE C
Page 43
ASTRO® XTS™ 2500 Model III
43
Talk Group Map – CUSTODIAL ZONES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 CUST ZONE M DISASTR EVENT 3 MSU/DPPS EVENT 4 EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 44
ASTRO® XTS™ 2500 Model III
44
Talk Group Map – COMMISSIONING SERVICES
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 COMMIS 1 M DISASTR EVENT 3 COMMIS 2 MSU/DPPS EVENT 4 JOB TG 1 EVENT 5 CENT CNTL EVENT 6
ZONE A ZONE B ZONE C
Page 45
ASTRO® XTS™ 2500 Model III
45
Talk Group Map – RECYCLING/ WASTE MANAGEMENT
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 WASTE 1 M DISASTR EVENT 3 WASTE 2 MSU/DPPS EVENT 4 EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 46
ASTRO® XTS™ 2500 Model III
46
Talk Group Map – LIGHTING PM CREW
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
EVENT 1 DISPATCH P DISASTR EVENT 2 PM CRW 1 M DISASTR EVENT 3 PM CRW 2 MSU/DPPS EVENT 4 JOB PM CR EVENT 5 EVENT 6
ZONE A ZONE B ZONE C
Page 47
ASTRO® XTS™ 2500 Model III
47
Talk Group Map – STANDARD
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
EVENT 1 DISPATCH P DISASTR EVENT 2 TALKGROUP 1 M DISASTR EVENT 3 TALKGROUP 2 MSU/DPPS EVENT 4 JOB TALKGRP EVENT 5 CENTRL CNTRL EVENT 6
ZONE A ZONE B ZONE C
Page 48
ASTRO® XTS™ 2500 Model III
48
THE TRAINING SECTIONS
Status Symbols
Page 49
ASTRO® XTS™ 2500 Model III
49

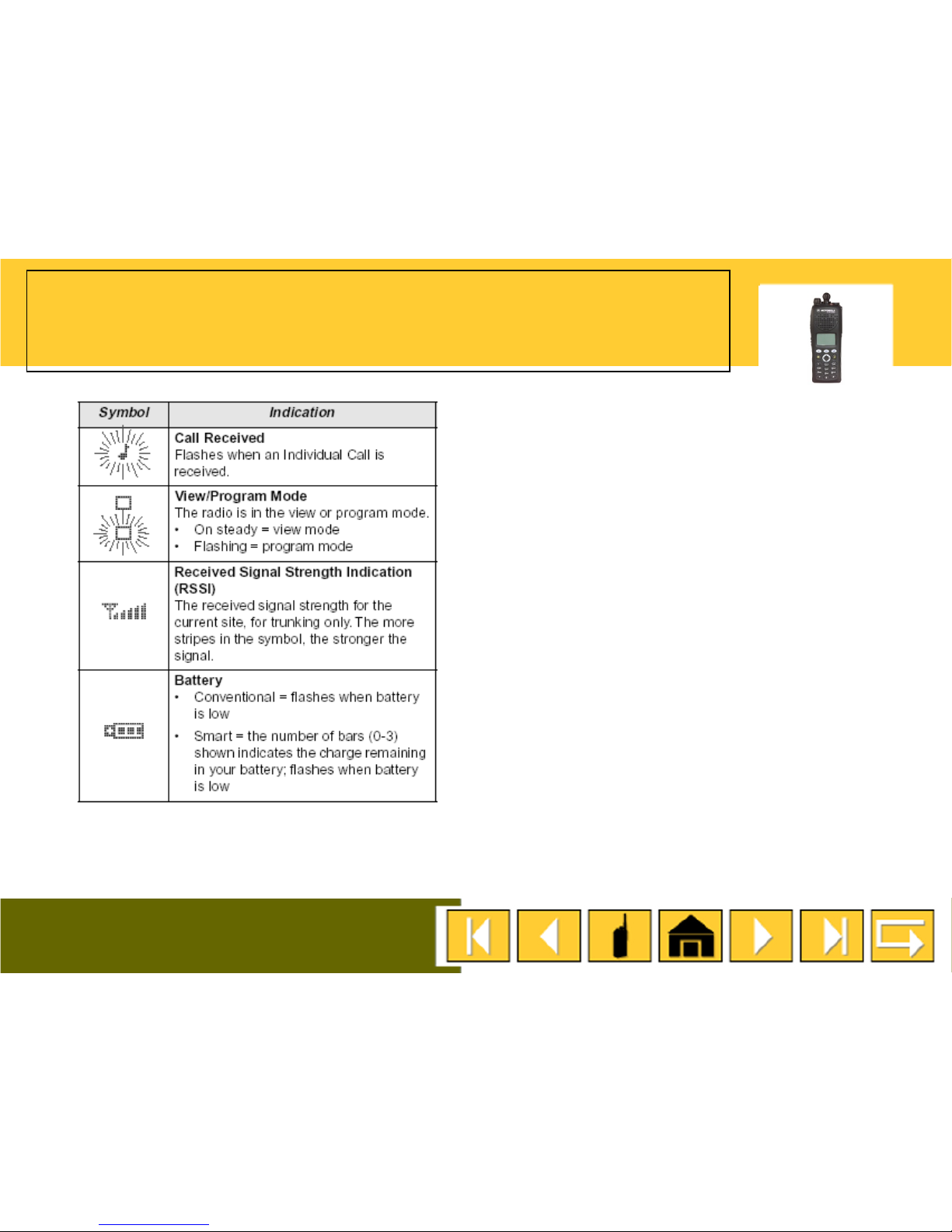

Status Symbols – 1 of 2
Call
Receive
Battery
Status
View
Program
Continued…
Page 50
ASTRO® XTS™ 2500 Model III
50
Status Symbols – 2 of 2
Not on our radios
Page 51
ASTRO® XTS™ 2500 Model III
51
THE TRAINING SECTIONS
Status Alert T ones
Page 52
ASTRO® XTS™ 2500 Model III
52
Status Alert Tones
Tone Name Tone Information Acknowledge Receipt of a call sent to the central controller Button Press A valid key was pressed on the keypad
Call Alert
- Receipt of a Call Alert page sent to your radio
- Confirmation receipt of a page received sent from your radio
Emergency Emergency alarm was sent from your radio Failsoft Radio has lost communicatio n with the central controller Low Battery Weak battery indication No Acknowledge A call to the central controller was not acknowledged Out of Range Radio is out of range of the system
Private Call I Receipt of a Private Conversation call sent to your radio
Prohibit Talkgroup or channel is not accessible System Busy Channel, system or targe t radio is busy
Time-out Timer Time-out timer limit has been reached
Page 53
ASTRO® XTS™ 2500 Model III
53
THE TRAINING SECTIONS
Installation and
Removal
Page 54
ASTRO® XTS™ 2500 Model III
54
Installation and Removal Procedures
Battery
Antenna
Belt Clip
Universal Connector
Page 55
ASTRO® XTS™ 2500 Model III
55

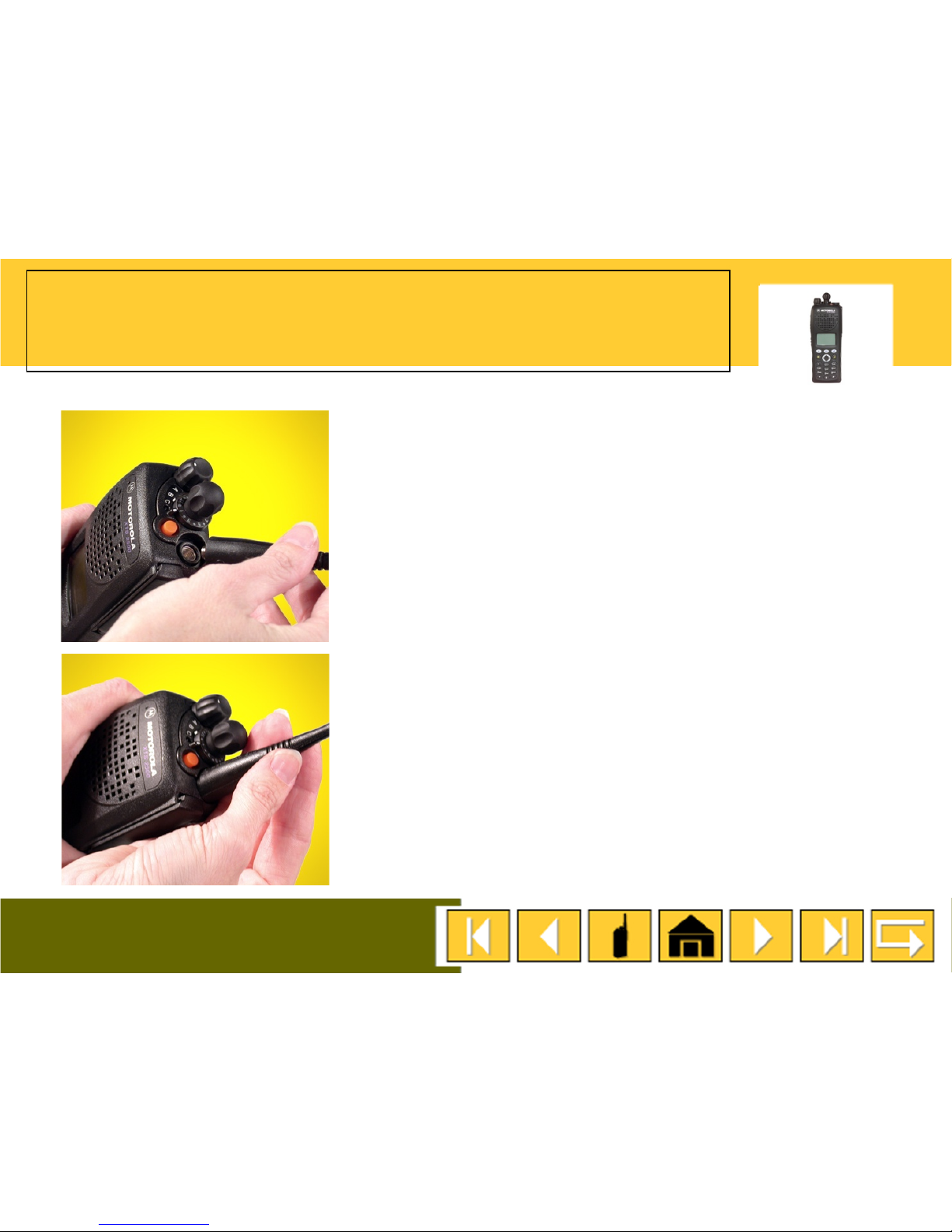

Antenna
To install the antenna:
1. Screw the antenna (clockwise) into the antenna receptacle on top of the radio.
2. Tighten the antenna firmly with your fingers.
To remove the antenna:
Unscrew the antenna (counter-clockwise) and remove it from the antenna receptacle on top of the radio.
Page 56
ASTRO® XTS™ 2500 Model III
56

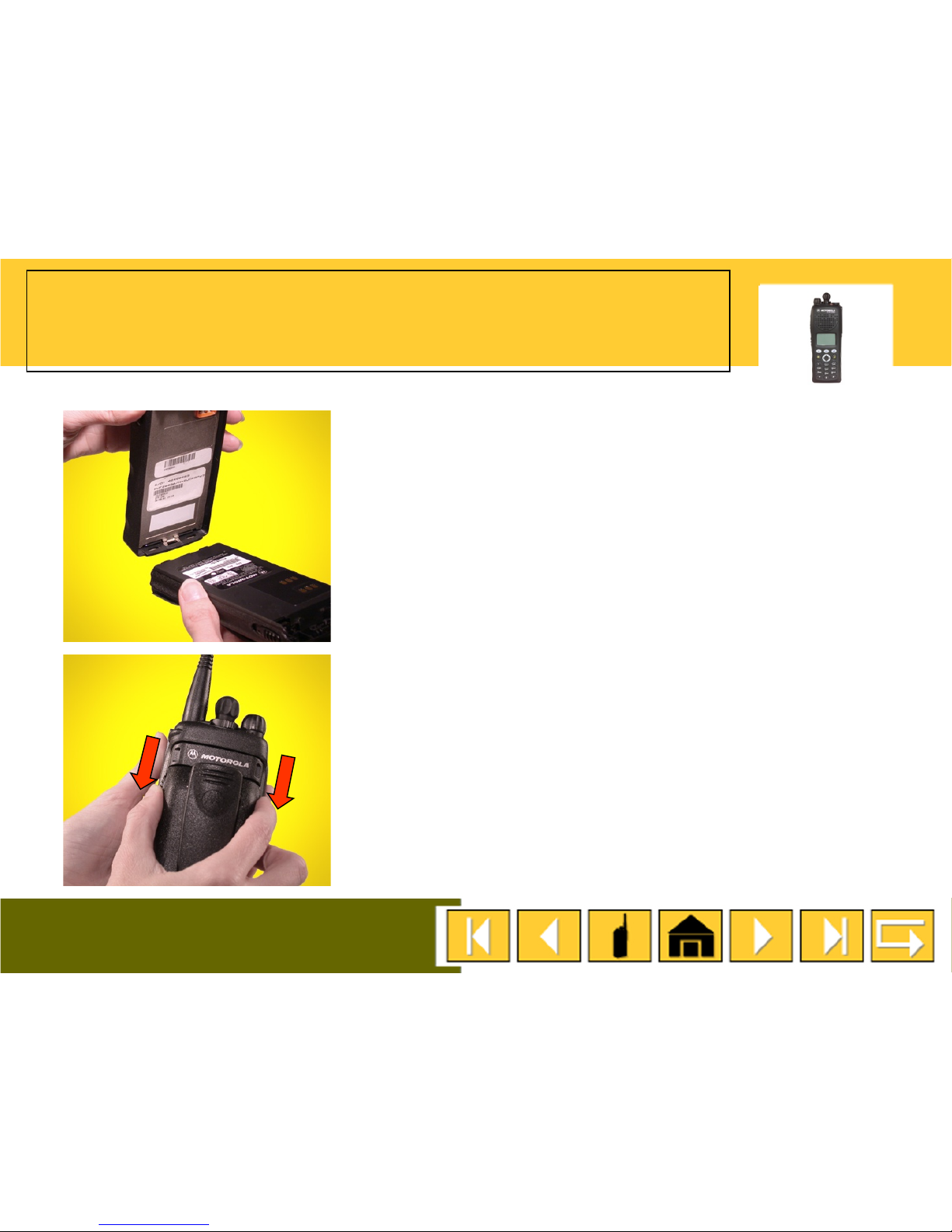

To install the battery:
1. Turn the radio off.
2. Align the three tabs at the bottom of the battery with the three slots at the bottom of the back of the radio.
3. Angle the battery forward toward the radio until the battery clicks into place.
To remove the battery:
1. Turn the radio off.
2. Holding the radio in one hand, push down on the battery release slides on both sides of the battery with the other hand.
3. Angle the battery away from the radio and remove.
Battery
Page 57
ASTRO® XTS™ 2500 Model III
57
Universal Connector Cover
The universal connector cover protects the side connector near the antenna.
To remove the cover:
1. Turn the radio off.
2. Carefully insert a flat-bladed screwdriver between the bottom of the cover and the connector.
3. Holding the top of the cover with your thumb, push the screwdriver gently downward and lever the cover away from the radio.
To install the cover:
1. Turn the radio off.
2. Insert the hooked end of the cover into the slot above the connector.
3. Rub the ball of your thumb from the top to the bottom of the cover, applying pressure towards the radio. This will flex the cover and snap it into place.
Page 58
ASTRO® XTS™ 2500 Model III
58
To install the belt clip:
1. Remove battery before installing or removing the belt clip.
2. Hold the battery with the back of the battery facing you.
3. Hold the belt clip with the top facing upward, and align the clip with the slots on the battery back.
4. Slide the belt clip downward into the slots until it clicks into place.
To remove the belt clip:
1. Pull away the metal tab at the top of the battery clip from the battery.
2. Slide the clip upward until it comes away from the radio.
Belt Clip
1
2
Page 59
ASTRO® XTS™ 2500 Model III
59

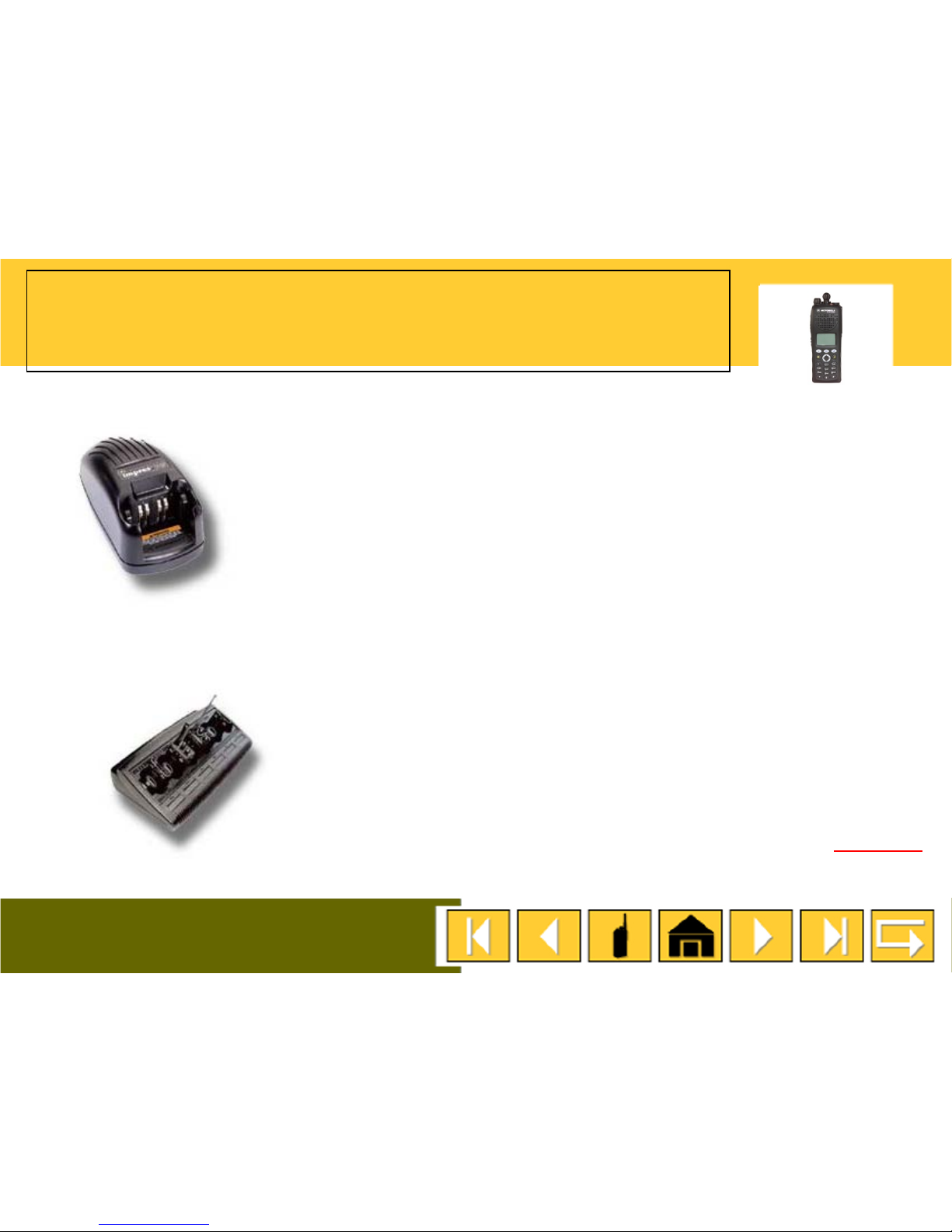

Charging the Battery
The battery must be charged before use. Memory effect is a phenomenon that causes a loss in battery capacity or voltage due to repetitive shallow discharging or long-term overcharging. This memory effect has been greatly reduced in your batteries through the use of new cell technology. It is still recommended, however, that you discharge your battery as much as possible before recharging it (listen for the ‘chirp’). Recharging after each shift is good standard practice, although if you only listen you may get up to three days before charging. When charging a battery that is attached to your radio, turn the radio off to ensure a full charge.
NOTE: We have given the battery installed in your radio
its initial charge. You must charge the spare battery before use.
Continued…
Page 60
ASTRO® XTS™ 2500 Model III
60
Charging the Battery – More…
1. The Impres charger and battery are both smart; they talk to each other.
2. Don’t try to charge your battery on a non-Impres charger.
3. The Impres battery has a preset number of charges it can accept. When that number is reached, the battery is deactivated and becomes a brick. Each full charge (charger LED on solid green) increments the counter and pushes it closer to ‘brick’ status. Even so, you should get 2.5-3 years out of your two batteries of y ou alternate them charging each every other day .
4. As you will see later, you can check the remaining capacity of your battery and the estimated number of charges it has had.
Page 61
ASTRO® XTS™ 2500 Model III
61
THE TRAINING SECTIONS
Operating Y our Radio
Page 62
ASTRO® XTS™ 2500 Model III
62

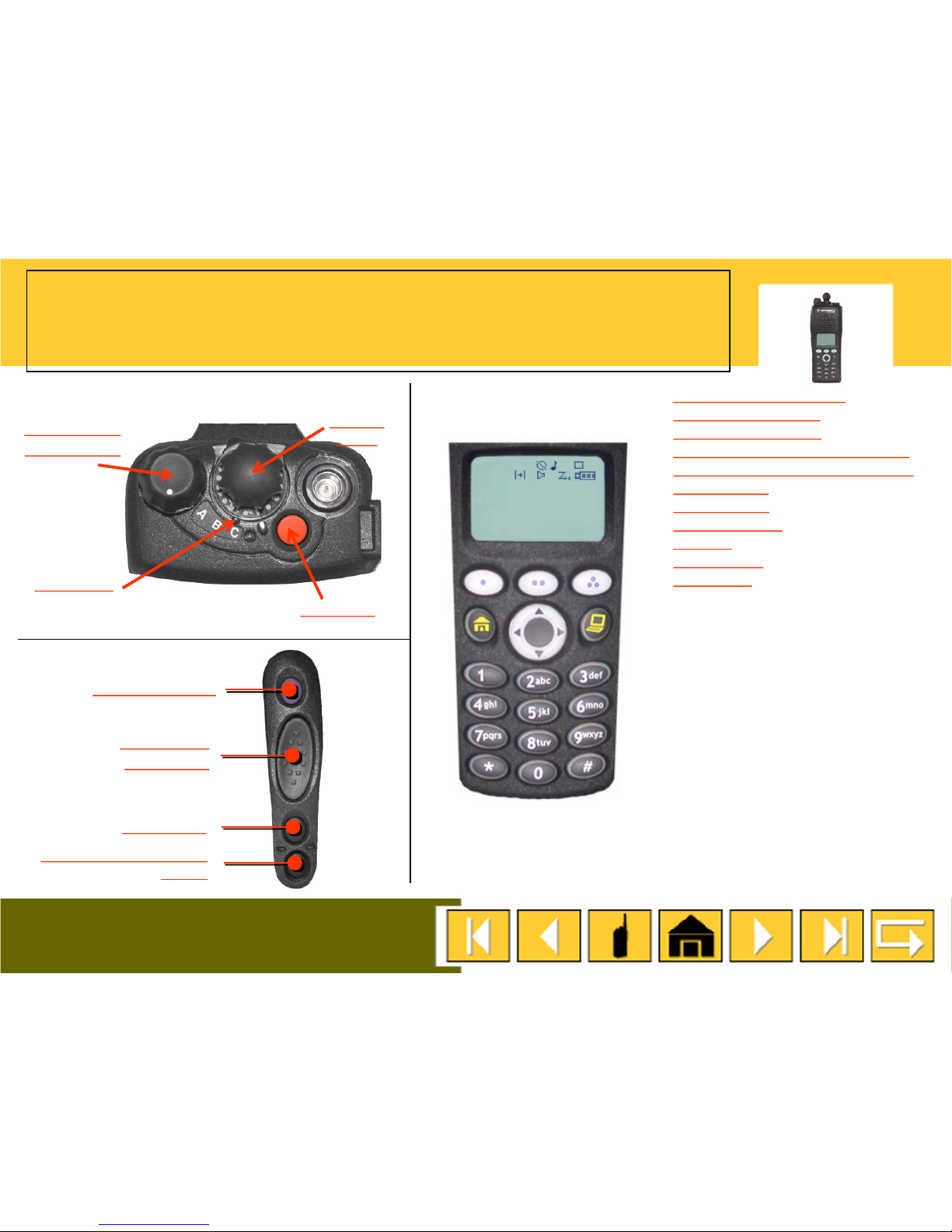

Your Radio
Call Alert Page (Respond) Call Alert Page (Send) Clock (Time and Date) ID Number (View Your) Using CALL ID Number (View Your) Using PAGE Keypad Tones List Name Edit List Number Edit List View Smart Battery Zone Select
Control T op Side Buttons
Power On/Off ff Volume Contr ol
16-Position
Push-To-Talk
(PTT) Button
Phone Call (Place)
Display Light
Private Conversation Call
(Place)
Emergency
Zone Select
PAGE
MUTE
B BROADBAND
10 : 46AM

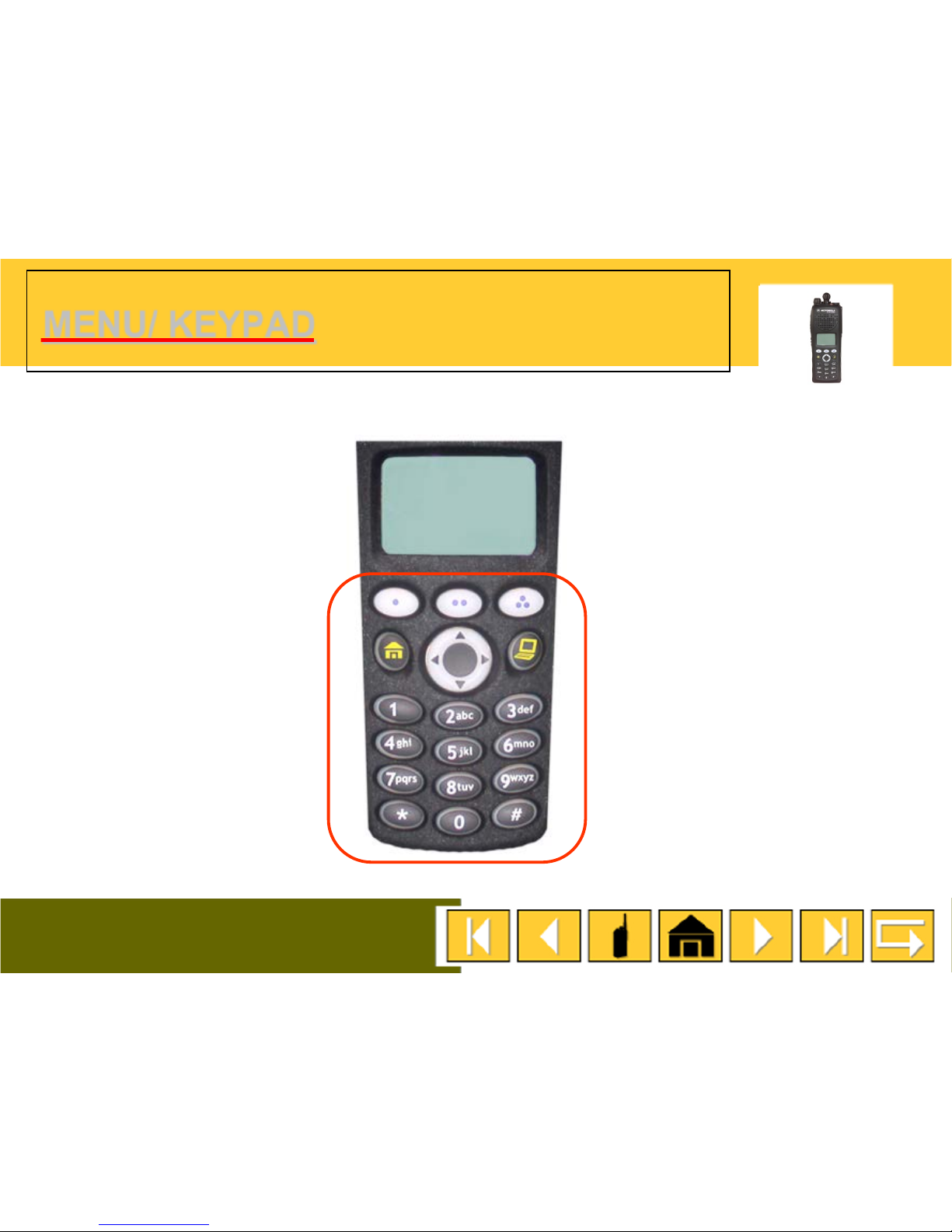

Menu/Keypad Options
PROG
Channel
Select
Page 63
ASTRO® XTS™ 2500 Model III
63
GENERAL FEATURES
Page 64
ASTRO® XTS™ 2500 Model III
64

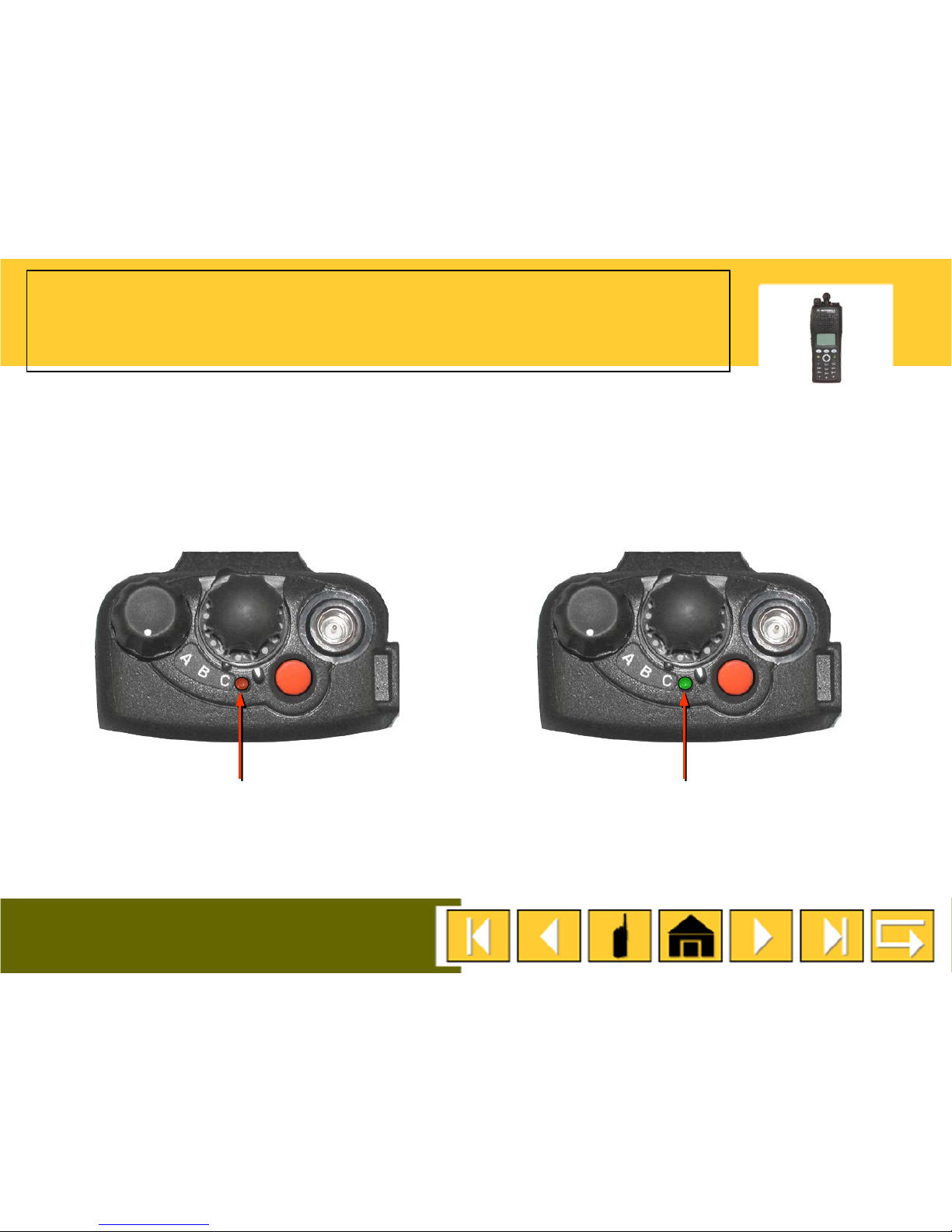

LED Status
RED LED
GREEN LED
RED
• Solid
- PTT is pressed; radio is transmitting
• Flashing
- Channel Busy
- Low Battery (lights while transmitting)
GREEN
• Solid
- Self-test being performed
• Flashing
- Incoming Private Call
Page 65
ASTRO® XTS™ 2500 Model III
65
To turn the radio on:
Turn the On/Off/Volume Control knob clockwise.
If the power-up test is successful, you briefly see SELF TEST, then the home display. If enabled, a power-up tone is also heard.
If the power-up test is unsuccessful, you see ERROR XX/YY. (XX/YY is an alphanumeric code.)
To turn the radio off: Turn the On/Off/Volume Control knob counter-clockwise
until it clicks.
Radio On/Off/Volume
On/Off/Volume Knob
SELF TEST
Page 66
ASTRO® XTS™ 2500 Model III
66

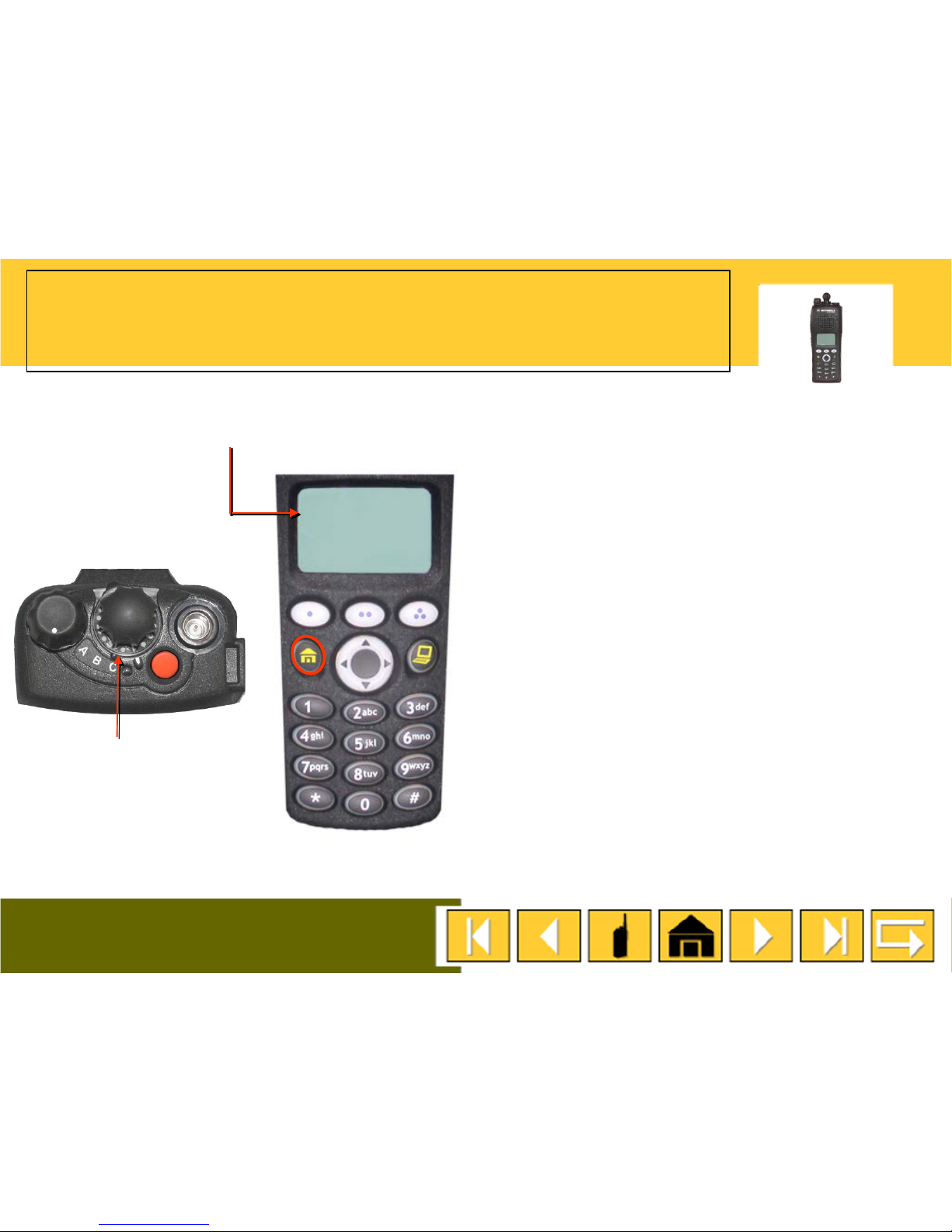

Zone Select (3-Position Concentric S witch)
To select a zone:
1. Select zone A, B, or C using the Zone Select switch.
2. Press the Home button to confirm the displayed zone and channel.
Zone Select
Switch
PROG PAGE
MUTE
B VOICE
Zone Name
Page 67
ASTRO® XTS™ 2500 Model III
67
To select a channel/talkgroup:
Turn the Channel Select knob to the desired position.
The new name will appear on the display. If the channel you selected is unprogrammed,
repeat the above step.
Note: a ‘talkgroup’ is a virtual ‘channel’.
Channel (Talkgroup) Select (16-Position Sel ect Knob)
Channel
MUTE
B TALKGROUP 1
Channel
PROG PAGE
Page 68
ASTRO® XTS™ 2500 Model III
68

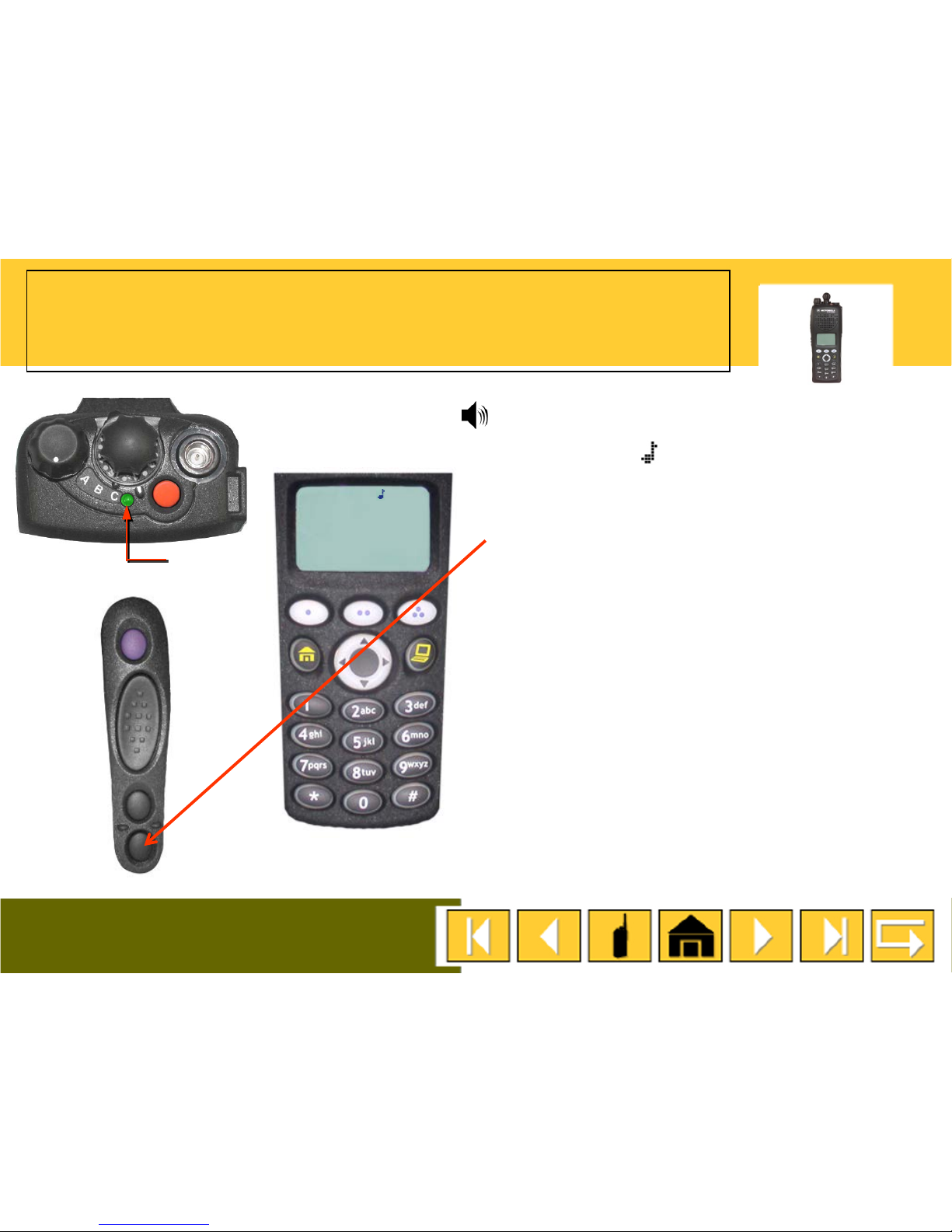

Call Alert Page – Acknowledge (Call Alert/Private Call)
PAGE RECEIVD
PROG PAGE
MUTE
When a Call Alert page is received, you hear four repeating alert tones, the LED flashes green, the call received symbol ( ) flashes and PAGE RECEIVD Is displayed, followed by the name or ID of the calling person, followed by your home talkgroup each showing for about 2 seconds. This sequence will repeat until the call is answered.
PRESS PRIVATE CALL BUTTON TO ANSWER
Note: The radio that initiated the Call Alert page will receive a return acknowledgment when the Call Alert page is received.
LED
Page 69
ASTRO® XTS™ 2500 Model III
69

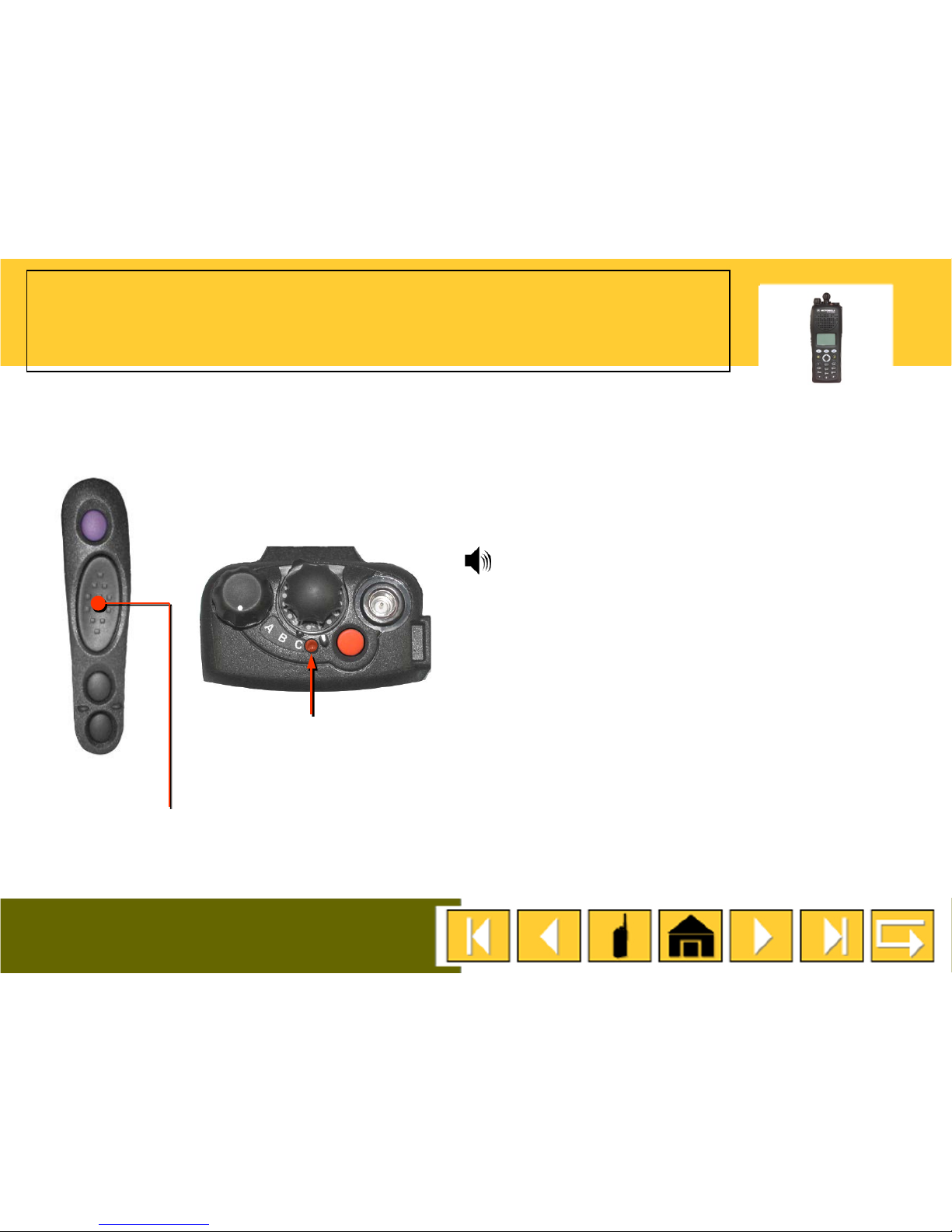

Time-out Timer
The time-out timer turns off your radio’s transmitter. The timer is set for 60 seconds.
1. Hold down the PTT button longer than the programmed time.
You will hear a low-pitched warning tone, the transmission will cut off, and the LED will go out until you release the PTT.
2. Release the PTT button.
3. Press the PTT button to re-transmit. The time-out timer restarts.
The timer will restart and the LED lights red.
LED
Push-to-Talk
(PTT)
Page 70
ASTRO® XTS™ 2500 Model III
70
To transmit:
1. Select the desired zone/channel.
2. Listen for ongoing conversations; if the channel becomes clear, proceed with your call.
3. Press and hold the PTT button to transmit. The LED will light solid red. When speaking, keep the microphone 2-6" from your mouth.
4. Release the PTT button to receive (listen).
Transmit and Receive
LED
Push-to-Talk
(PTT)
Page 71
ASTRO® XTS™ 2500 Model III
71

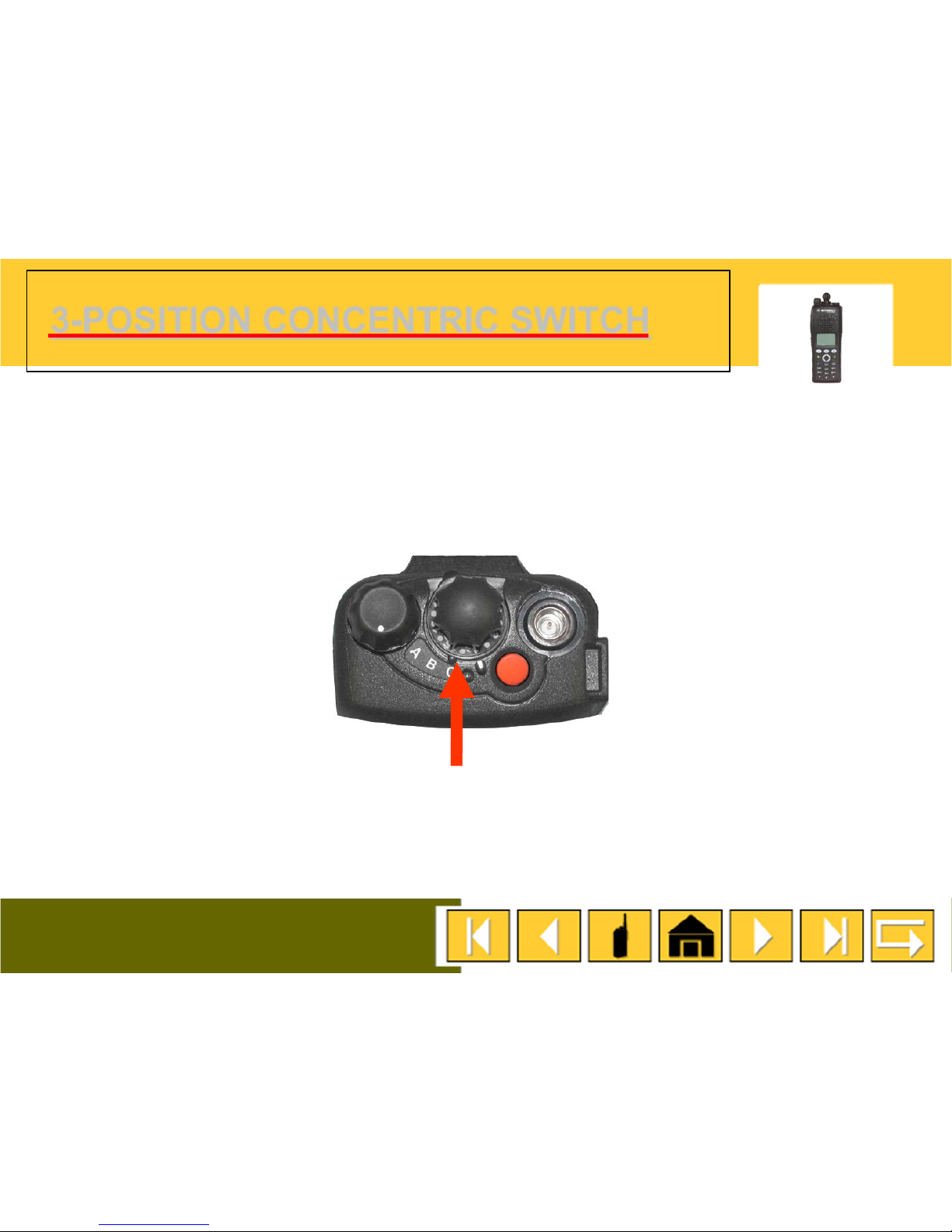

3-POSITION CONCENTRIC SWITCH
3-Position Concentric Switch (Zone)
Page 72
ASTRO® XTS™ 2500 Model III
72
ZONE SELECT (3-Position Concentric S witch)
ZONE SELECT
Select a ZONE:
1. Select a ZONE from the talkgroup map provided by your system administrator.
2. MOVE the CONCENTRIC switch to the predetermined position. (A,B,C)
C TALKGROUP 1
PAGE
PROG
MUTE
Page 73
ASTRO® XTS™ 2500 Model III
73
TOP BUTTON
Emergency
Page 74
ASTRO® XTS™ 2500 Model III
74
Emergency – Send (Top Button) – 1 of 2
MUTE
EMERGENCY
Emergency
CALL PAGE
Send an
emergency alarm.
Send an
emergency call.
Page 75
ASTRO® XTS™ 2500 Model III
75

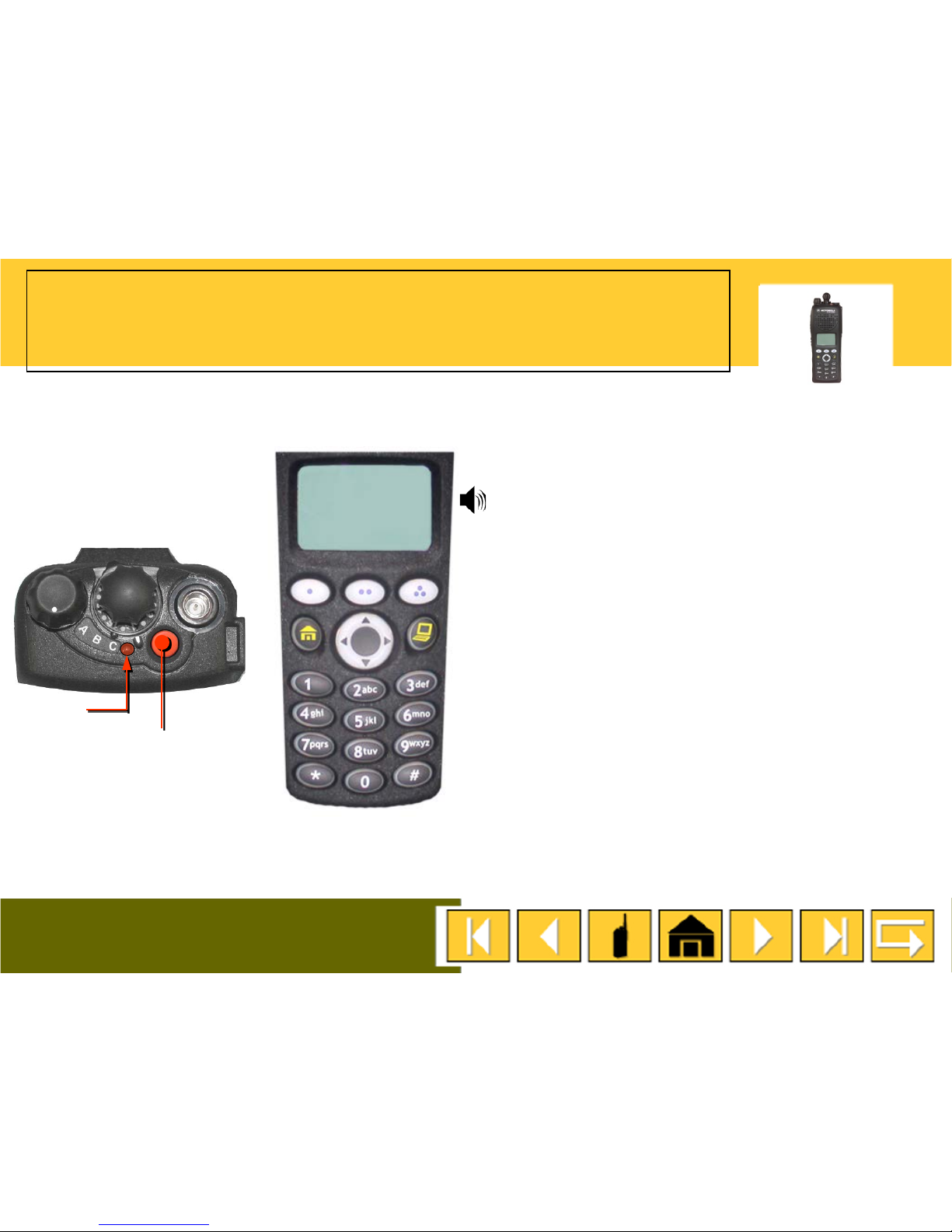

Emergency – Send Emergency Alarm/ Call (Top Button) – 2 of 2
MUTE
EMERGENCY
Emergency
To send an emergency alarm:
1. With the radio turned on, press the Emergency button.
The current zone/channel is displayed alternately with EMERGENCY, the LED lights red, and you hear a group of short, medium-pitched tones.
2. When you receive the dispatcher’s acknowledgment, you see ACK RECEIVED, four tones sound, the alarm ends, and you may now talk to the dispatcher.
3. To exit emergency at any time, press and hold
the Emergency button for about a second.
NOTE: RADIO WILL NOT TURN OFF IN EMERGENCY
MODE.
LED
PROG PAGE
Page 76
ASTRO® XTS™ 2500 Model III
76
TOP SIDE BUTTON
Phone
Page 77
ASTRO® XTS™ 2500 Model III
77
There are three ways to place a phone call from your radio.
To place a phone call:
Select the
last phone
number dialed.
Select a phone number by using the keypad.
Phone Call – Place (Top Side Button) – 1 of 4
Select a phone
number from the
preprogrammed
phone list.
LIST
RICH BROWN 20506
Phone Button
Push-to-Talk
(PTT)
Note: Your radio functions as a campus phone.
Page 78
ASTRO® XTS™ 2500 Model III
78
Phone Call – Place Select Last Number Dialed (Top Side Button) – 2 of 4
To select the last phone number dialed or received:
1. Press the Phone button. You will hear dial tone.
The last number dialed or received is displayed.
2. Press and release the PTT button to dial the displayed phone number.
The called phone number is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called phone number again.
3. If your call is answered, press the PTT button to talk; release it to listen.
4. Press the Home button to hang up and return to the home display (or press the Phone button).
LIST
TELECOM 35515
Phone Button
Push-to-Talk
(PTT)
Page 79
ASTRO® XTS™ 2500 Model III
79
LNUM
OPERATOR 51855
Phone Button
Push-to-Talk
(PTT)

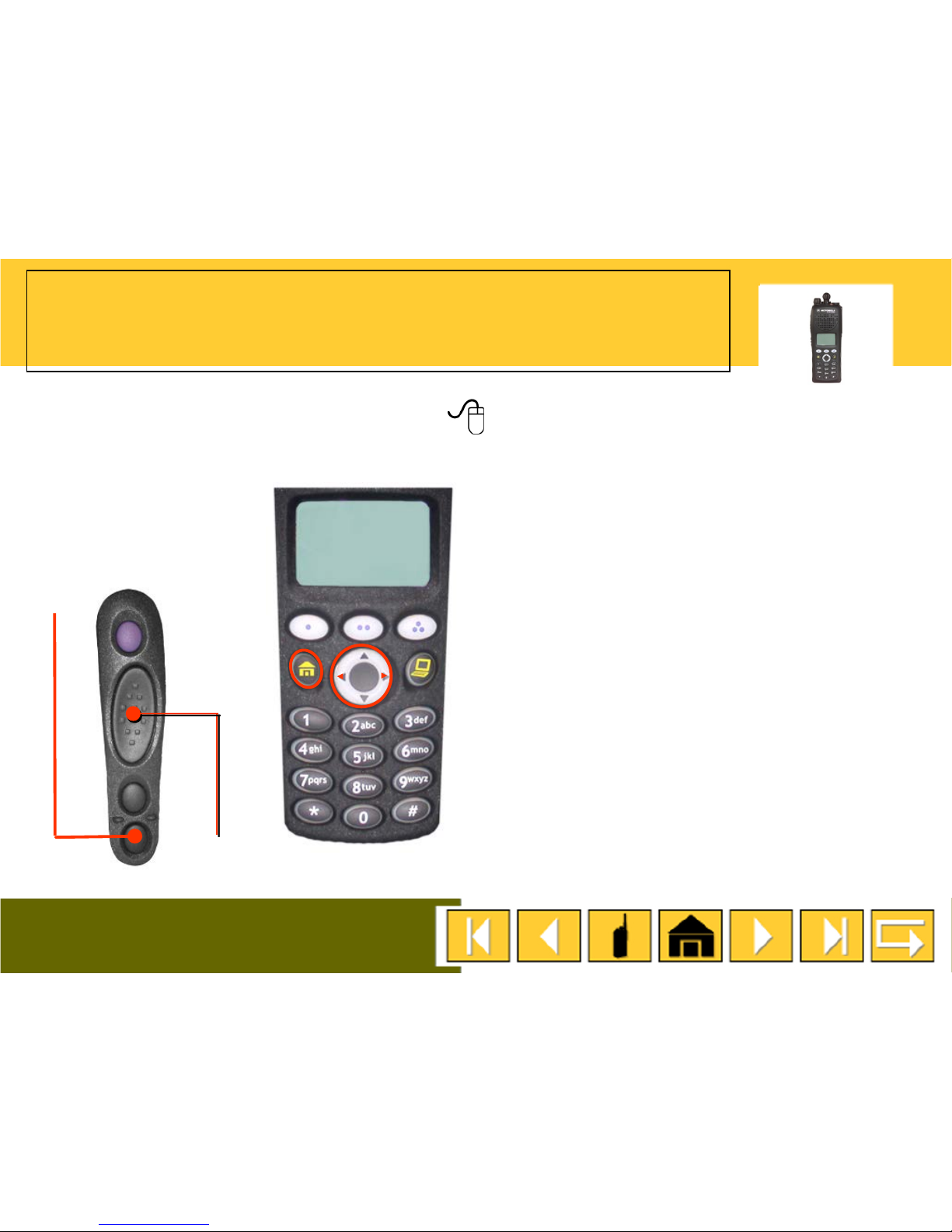

Phone Call – Place Select Number from P hone List (Top Side Button) – 3 of 4
To select a phone number from the phone list:
1. Press the Phone button. You will hear dial tone.
The last number dialed or received is displayed.
2. Press the right side of the 4-way Navigation button to find the phone number you want going through the list.
Note: Press the button directly below LNUM to go to the last number dialed.
3. Press and release the PTT button to dial the displayed phone number.
The called phone number is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called phone number again.
4. If your call is answered, press the PTT button to talk; release it to listen.
5.
Press the Home button to hang up and return to the home display (or press the Phone button).
Page 80
ASTRO® XTS™ 2500 Model III
80
LIST
3511111
Phone Button
Push-to-Talk
(PTT)
Phone Call – Place Select Number Via Keypad (Top Side Button) – 4 of 4
To select a phone number via the keypad:
1. Press the Phone button. You will hear dial tone.
The last number dialed or received is displayed.
2. Use the keypad to enter the phone number you want.
3. Press and release the PTT button to dial the displayed phone number.
The called phone number is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called phone number again.
4. If your call is answered, press the PTT button to talk; release it to listen.
5. Press the Home button to hang up and return to the home display(or press the Phone button).
Page 81
ASTRO® XTS™ 2500 Model III
81

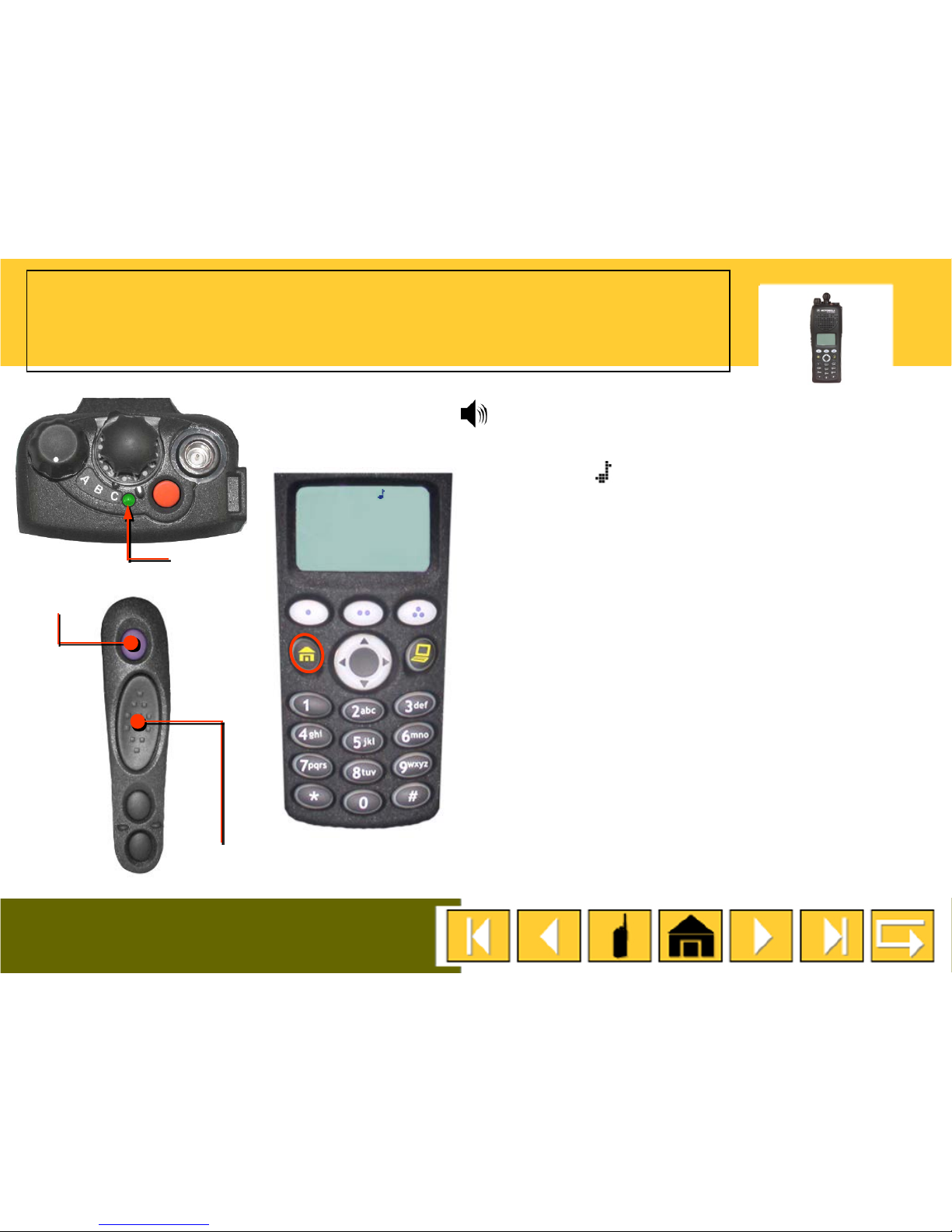

When a phone call is received, you hear a
telephone-type ringing, the LED flashes green, the call received
symbol ( ) flashes and PHONE CALL is
displayed, followed by your home talkgroup each showing for about 1 second. This sequence will repeat until the call is answered.
To respond to a phone call:
1. Press the Phone Call button
2. Press and hold the PTT button to talk; release it to listen.
3. Press the Home button to hang up and return to the home display (or press Phone button).
Phone Call – Respond (Top Side Button)
Push-to-Talk
(PTT)
PHONE CALL
MUTE
Call Response Button
LED
PROG PAGE
Page 82
ASTRO® XTS™ 2500 Model III
82
SIDE BUTTON 1
Display Light
Page 83
ASTRO® XTS™ 2500 Model III
83

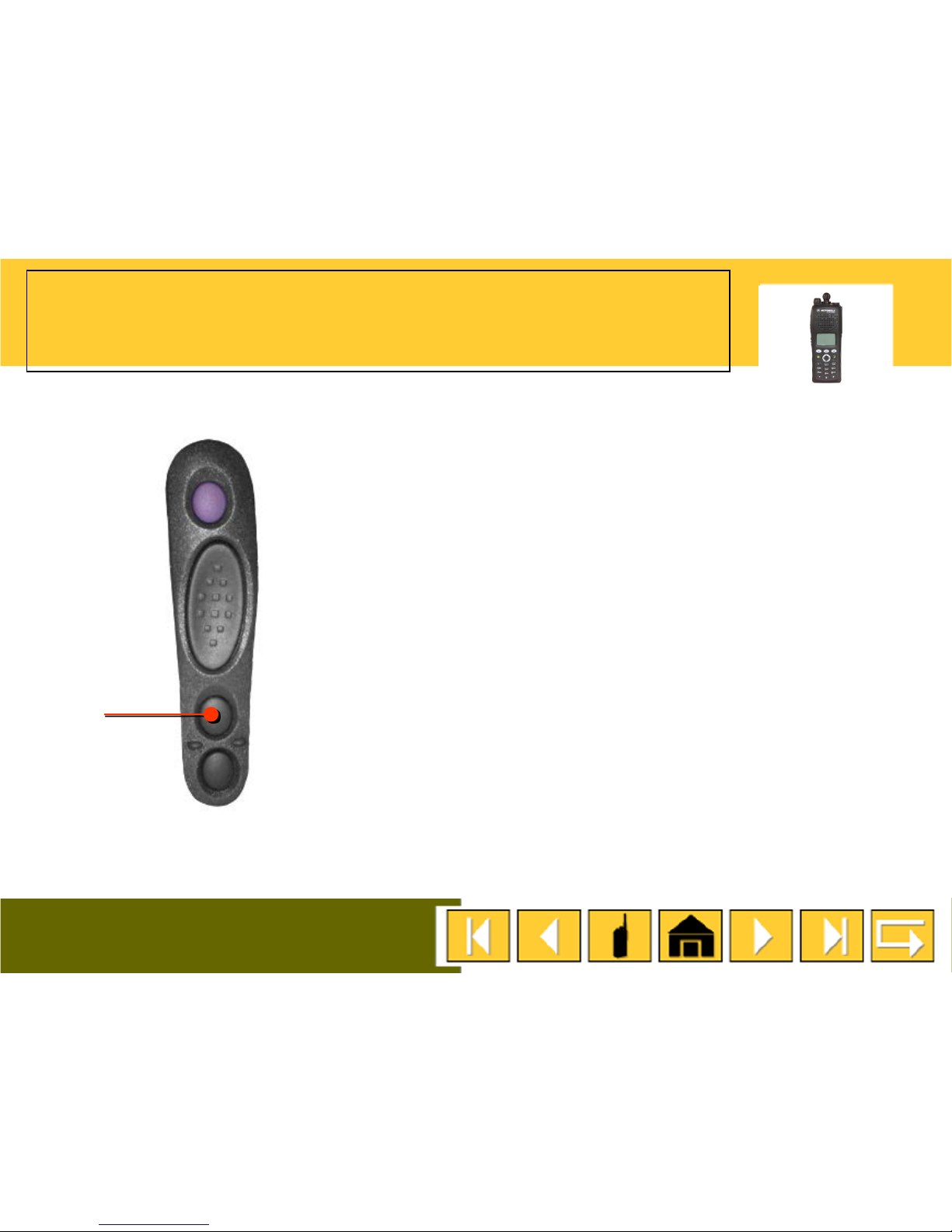

Display Light (Side Button 1)
Light
Button
If poor light conditions make the display or keypad difficult to read:
Turn on the radio’s backlights by pressing the Light button.
These lights will remain on for a preprogrammed time before they turn off automatically (15 seconds).
OR You can turn them off immediately by pressing the Light
button again.
Page 84
ASTRO® XTS™ 2500 Model III
84

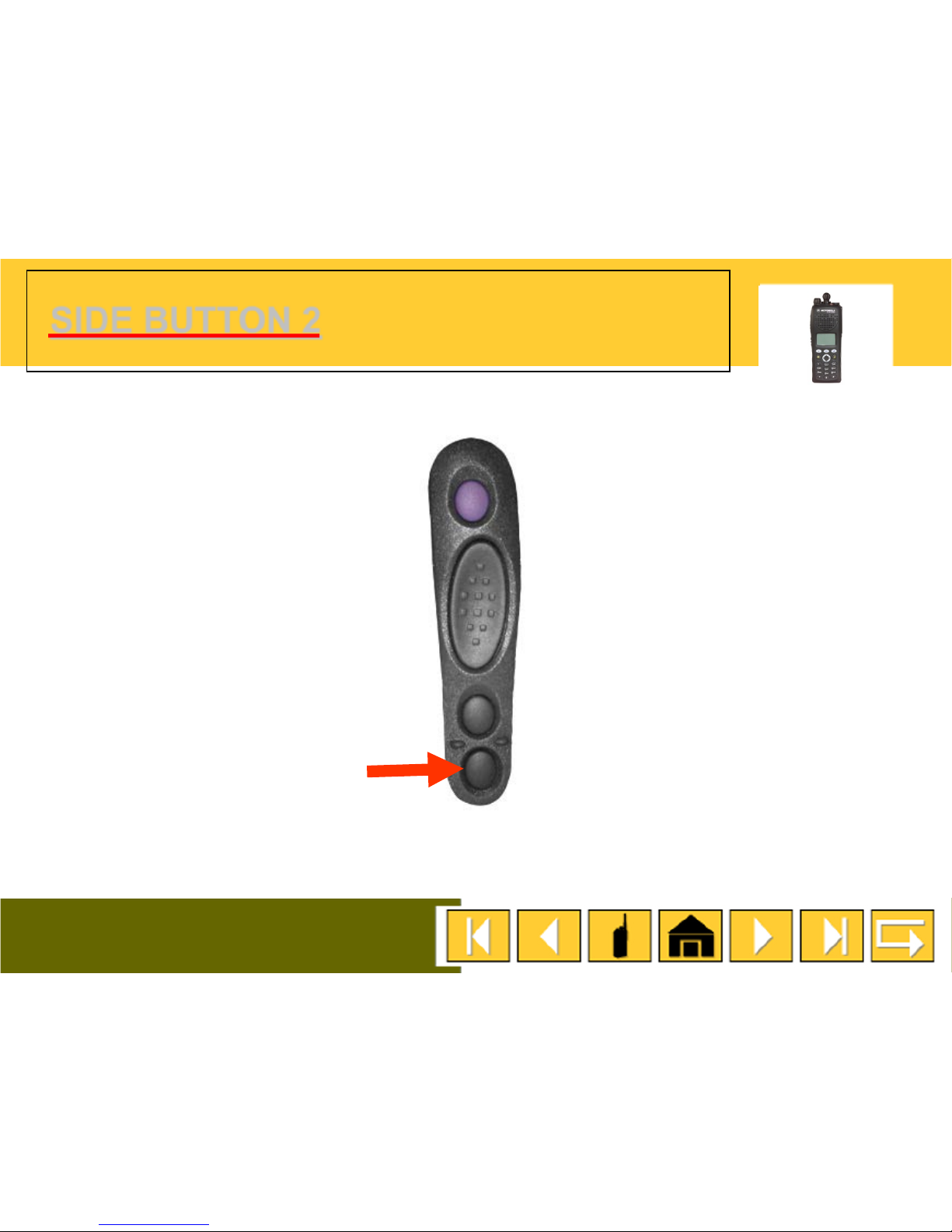

SIDE BUTTON 2
Private Call
Page 85
ASTRO® XTS™ 2500 Model III
85
There are three ways to place a Private Conversation call from your radio.
To place a Private Conversation call:
LIST
FIRE CHIEF ID: 701234
Private Call Button
Push-to-Talk
(PTT)
Private Conversation Call – Place (Side Button 2) – 1 of 4
Select the
last ID
number dialed.
Select an ID number from the preprogrammed
call list.
Select an
ID number by
using the keypad.
Page 86
ASTRO® XTS™ 2500 Model III
86

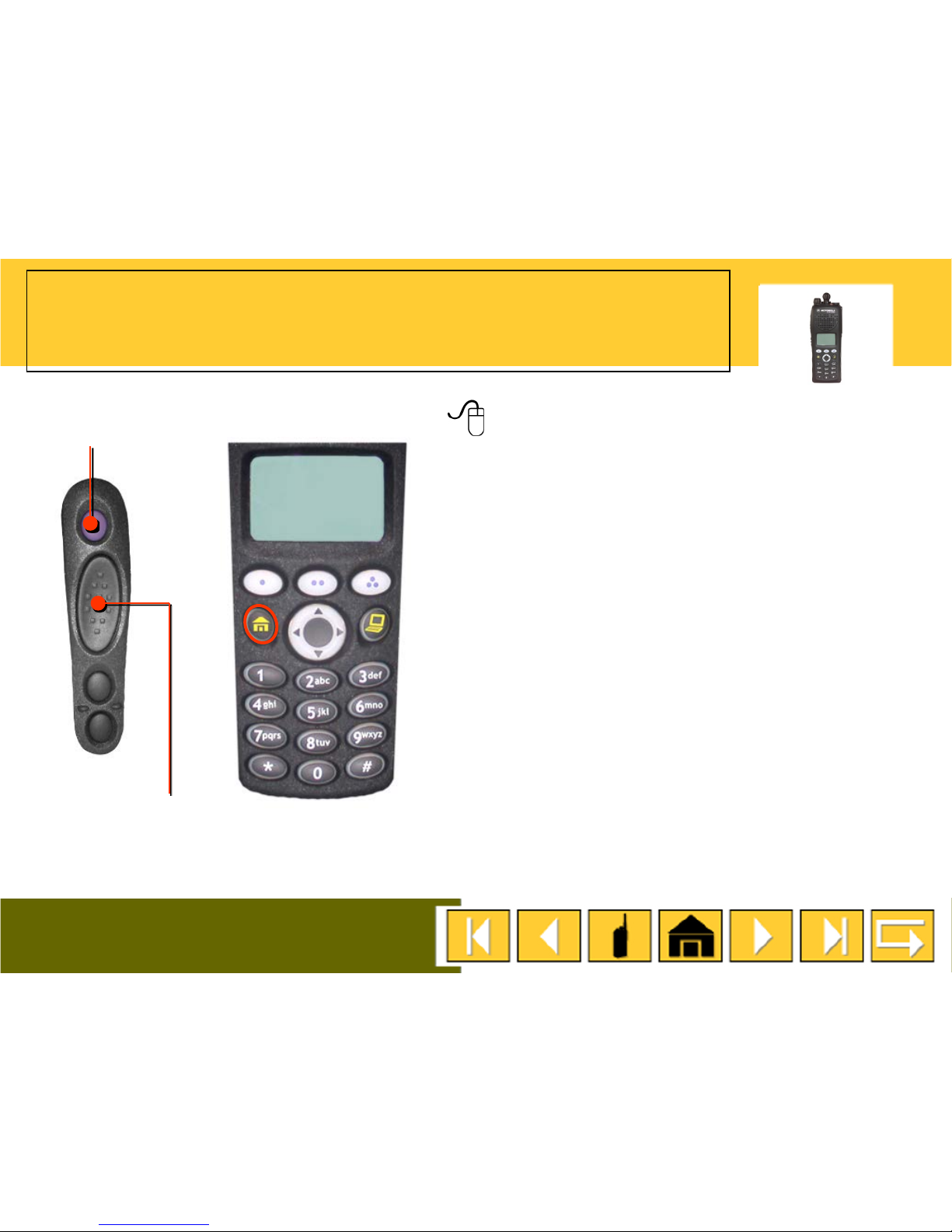

Private Conversation Call – Place Select Last Number Dialed (Side Button 2) – 2 of 4
LIST
FIRE CHIEF ID: 701234
Private Call Button
Push-to-Talk
(PTT)
To select the last ID number dialed or received:
1. Press the Private Call button.
The last number dialed or received is displayed.
2. Press and release the PTT button to start the Private Call.
The called ID is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called ID again.
3. Press and hold the PTT button to talk; release it to listen.
4. Press the Home button or Private Call button to hang up and return to the home display. If you forget to do
this, a continuous alert tone will be heard.
Page 87
ASTRO® XTS™ 2500 Model III
87
Private Conversation Call – Place Select Number from Call List (Side Button 2) – 3 of 4
Private Call Button
Push-to-Talk
(PTT)
LNUM
FIRE CHIEF ID: 701234
To select an ID number from the call list:
1. Press the Private Call button.
2. Press the right side of the 4-way Navigation button to find the ID you want by going through the list.
Note: Press the button directly below LNUM to go to the last number dialed.
3. Press and release the PTT button to start the Private Call.
The called ID is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called ID again.
4. Press and hold the PTT button to talk; release it to listen.
5. Press the Home button or Private Call Button to hang up and return to the home display.
Page 88
ASTRO® XTS™ 2500 Model III
88
Private Conversation Call – Place Select Number Via Keypad (Side Button 2) – 4 of 4
Private Call Button
Push-to-Talk
(PTT)
LIST
ID: 701234
To select an ID number via the keypad:
1. Press the Private Call button.
The last number dialed or received is displayed.
2. Use the keypad to enter the ID number you want.
3. Press and release the PTT button to start the Private Call.
The called ID is momentarily displayed, then you see PLEASE WAIT. When you are connected, you see the called ID again.
4. Press and hold the PTT button to talk; release it to listen.
5. Press the Home button or Private Call Button to hang up and return to the home display.
Page 89
ASTRO® XTS™ 2500 Model III
89

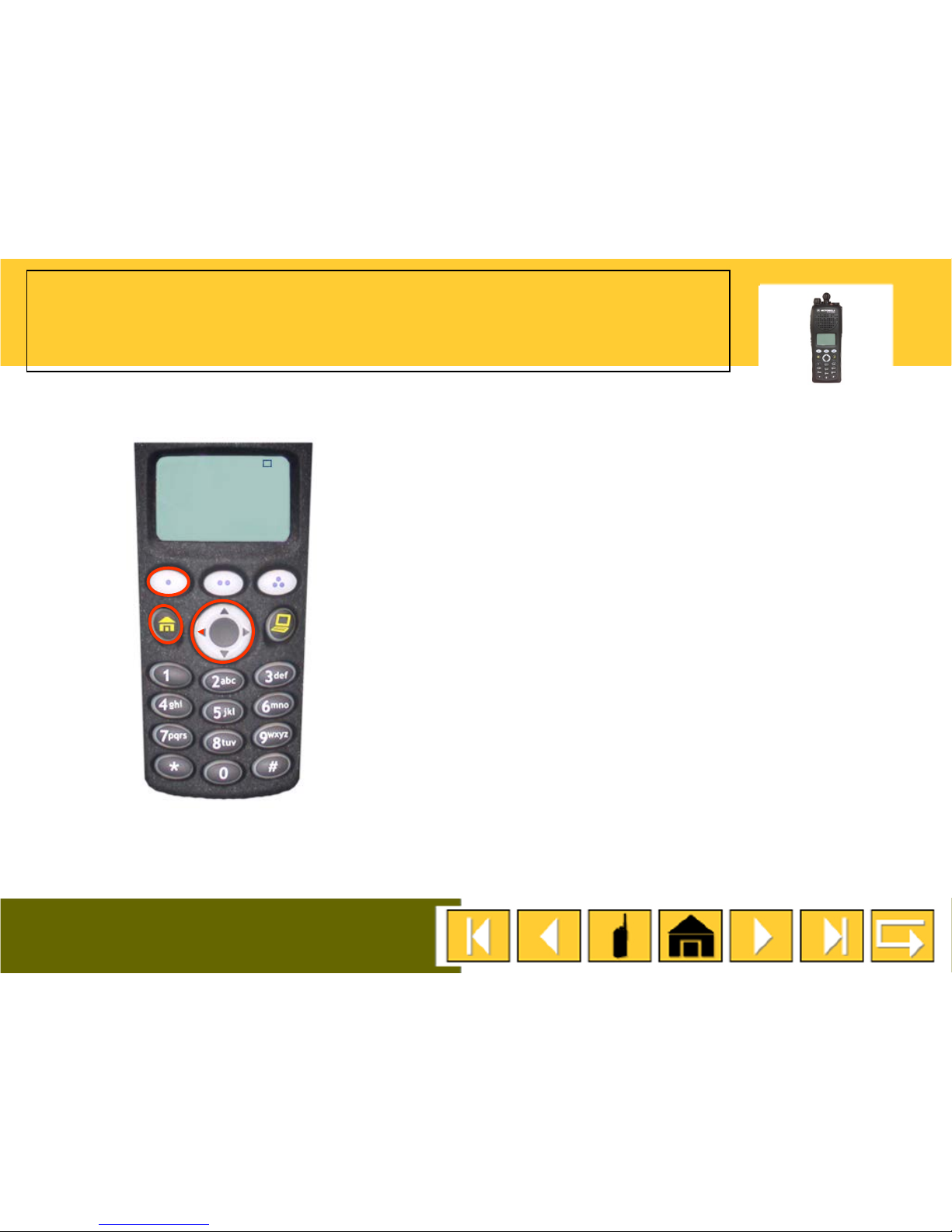

When a Private Call is received, you hear two alert tones, the LED flashes green, the call received symbol ( ) flashes and CALL RECEIVD is displayed,
followed by the calling name or ID, followed by your home talkgroup each for about 2 seconds. This repeats until the call is answered.
To respond to a Private Conversation call:
1. Press the Private Call Button .
2. Press and hold the PTT button to talk; release it to listen.
3. Press the Home button or the Private Call Button to hang up and return to the home display.
Private Conversation Call – Respond (Side Button 2)
CALL RECEIVD
MUTE
Push-to-Talk
(PTT)
Private Call Button
LED
PROG PAGE
Page 90
ASTRO® XTS™ 2500 Model III
90

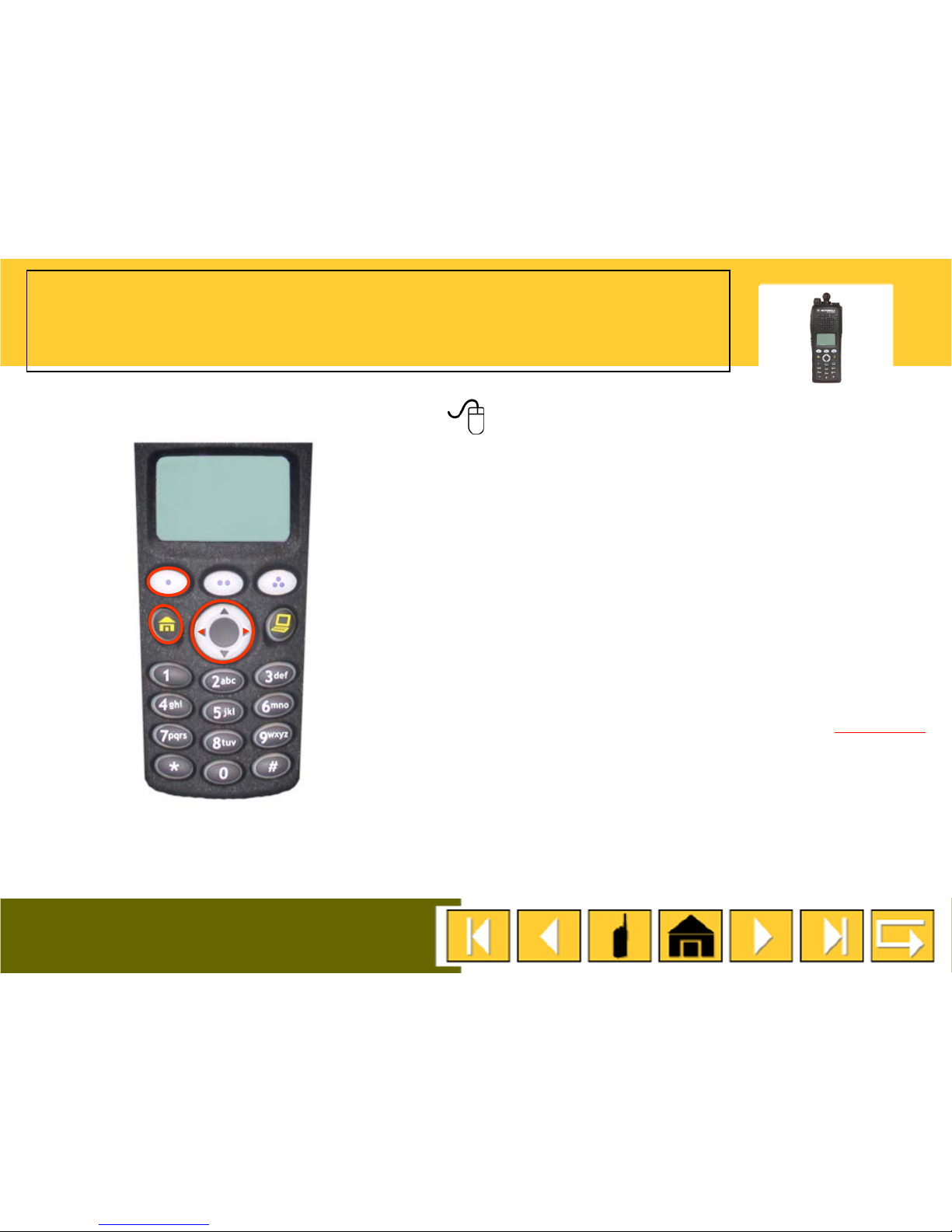

ID Number (View Your) (Side Button 2)
To view your ID number:
1. Press the PRIVATE CALL button.
2. Press the left side of the 4-way Navigation button to find your ID.
3. Press the Home button, or PRIVATE CALL button to return to the home display.
MY ID: 739205
LNUM
Push-to-Talk
(PTT)
Private Call Button
Page 91
ASTRO® XTS™ 2500 Model III
91
MENU/ KEYPAD
Page 92
ASTRO® XTS™ 2500 Model III
92

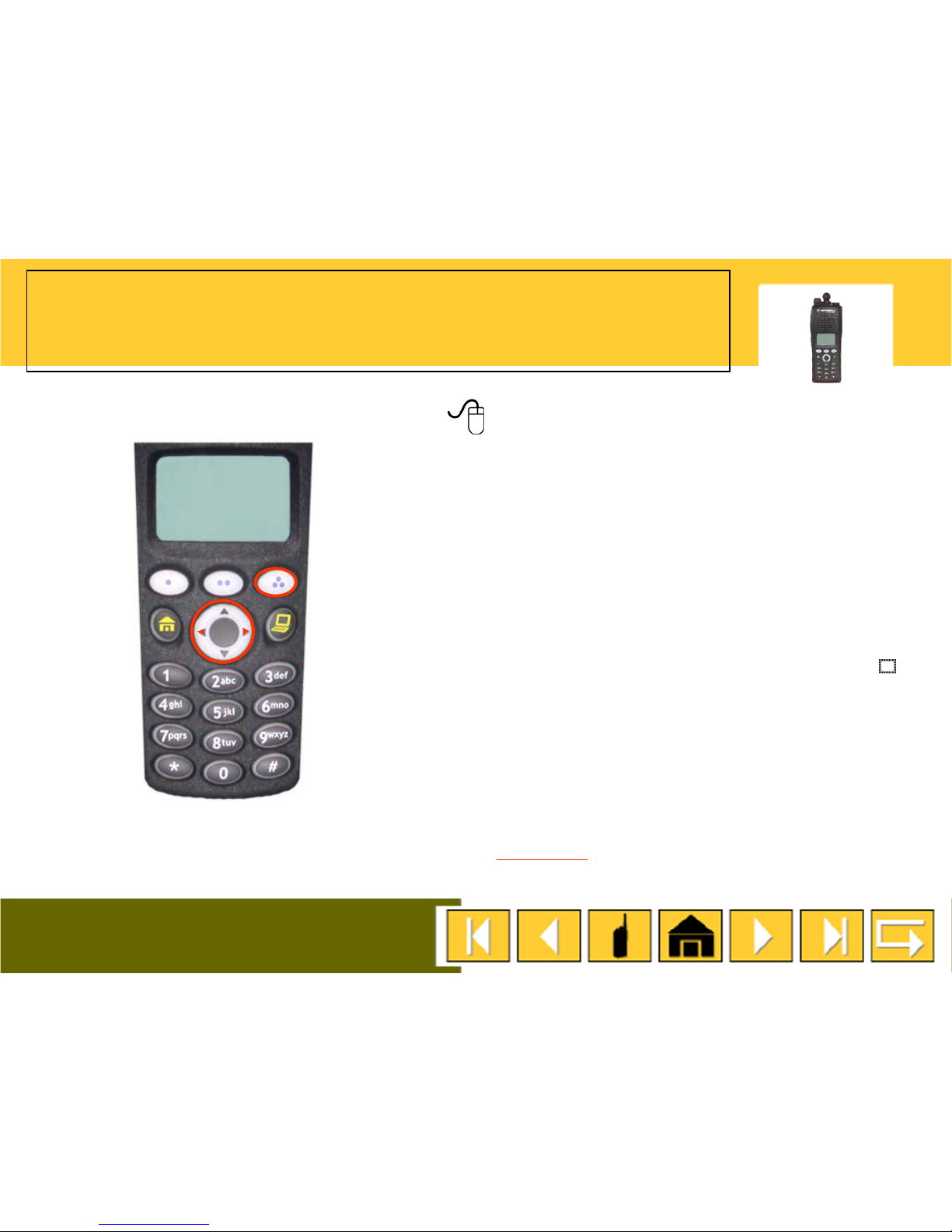

Clock (Time and Date) (Menu) – 1 of 2
Using this special feature, you can program the time and date as you might with other electronic devices. The clock display is enabled by a qualified radio technician.
To edit the time and date:
1. Press the right side of the 4-way Navigation button until
CLCK is displayed.
2. Press the button directly below CLCK.
The current setting is displayed.
3. Press the button directly below EDIT.
The first item flashes.
Continued…
VIEW CLCK
BATT
B BROADBAND
10 : 46AM
Page 93
ASTRO® XTS™ 2500 Model III
93
Clock (Time and Date) (Menu) – 2 of 2
4. Press the up or down arrow of the 4-way Navigation
button to change the selected item.
Note: Press the Home button at any time to return to the home display without saving your changes.
OR Press the right side of the 4-way Navigation button to
move to an item you wish to change.
5. Press the up or down arrow of the 4-way Navigation
button to change the selected item.
6. Press the right side of the 4-way Navigation button one
or more times to move to an item in the date field.
7. Press the up or down arrow of the 4-way Navigation
button to change the selected item.
8. When you have made all of your changes, press the
button directly below SAVE to save your changes and return to the home display.
Note: If a call arrives while the radio is in the clock-setting menu, the radio exits clock setting, your changes are lost, and the call information is displayed.
SAVE
12HR 03:54AM MDY 10/31/01
Page 94
ASTRO® XTS™ 2500 Model III
94
ID Number (View Your) Using PAGE (Menu)
To view your ID number:
1. Press the button directly below PAGE.
2. Press the left side of the 4-way Navigation button to find your ID.
3. Press the Home button to return to the home display.
LNUM
MY ID: 739205
Page 95
ASTRO® XTS™ 2500 Model III
95
Keypad Tones (Mute or Unmute) (Menu)
To turn the keypad tones on or off:
1. Press the button directly below MUTE.
The current state is shown: TONES OFF or TONES ON.
3. Press the button directly below OFF or ON.
Note: Press the Home or the PTT button to exit without changing the setting.
Note: Turning off keypad tones does not affect any other tones.
Push-to-Talk
(PTT)
PROG PAGE
MUTE
B BROADBAND
Page 96
ASTRO® XTS™ 2500 Model III
96
List Name Edit Call, Page, or Phone (Menu) – 1 of 2
You can use lists to store frequently used numbers and associate them with names.
To edit a list name:
1. Press the button directly below PROG
You see the lists that can be changed.
3. Press the button directly below the name of the list you
wish to change.
You see the first list member and the view/program ( ) symbol flashing, indicating the programming mode. You will also see NUM and NAME displayed as possible selections.
4. Press the left or right side of the 4-way Navigation
button to select the list member to be changed. OR Use the keypad to enter the corresponding location
number of the name in the list.
Continued…
PROG PAGE
MUTE
FIRE CHIEF 701234
Page 97
ASTRO® XTS™ 2500 Model III
97
List Name Edit Call, Page, or Phone (Menu) – 2 of 2
5. Press the button directly below NAME.
The blinking cursor shows the location of the character to be added.
6. Press the left side of the 4-way Navigation button to
erase characters.
If you erase the entire name and press either the left or right side of the 4-way Navigation button, you exit editing without saving your changes.
7. Press a keypad button to add a character.
8. Press the button directly below SAVE to save your
changes. Return to step 4 to make more changes. OR Press the Home button to return to the home display.
FIRE CHIE_ 701234
NUM
NAME
Page 98
ASTRO® XTS™ 2500 Model III
98
List Number Edit Call, Page, or Phone (Menu) – 1 of 2
You can use lists to store frequently used numbers and associate them with names.
To edit a list number:
1. Press the button directly below PROG
You see the lists that can be changed.
3. Press the button directly below the name of the list you
wish to change.
You see the first list member and the view/program ( ) symbol flashing, indicating the programming mode. You will also see NUM and NAME displayed as possible selections.
4. Press the left or right side of the 4-way Navigation
button to select the list member to be changed. OR Use the keypad to enter the corresponding location
number of the name in the list.
Continued…
PROG
MUTE
FIRE CHIEF 70234
PAGE
Page 99
ASTRO® XTS™ 2500 Model III
99
List Number Edit Call, Page, or Phone (Menu) – 2 of 2
5. Press the button directly below NUM.
The blinking cursor shows location of the number to be added.
6. Press the left side of the 4-way Navigation button to
erase numbers.
If you erase the entire number and press either the left or right side of the 4-way Navigation button, you exit editing without saving your changes.
7. Press a keypad button to add a number.
8. Press the button directly below SAVE to save your
change. Return to step 4 to make more changes. OR Press the Home button to return to the home display.
FIRE CHIEF 0072258_
NUM
NAME
Page 100
ASTRO® XTS™ 2500 Model III
100
List View (Menu)- 1 of 2
You can use lists to store frequently used numbers and associate them with names. There are three list types: call, page, phone.
To view a list:
1. Press PVT CALL, PHONE or PAGE button to get LIST
displayed.
2. Press the button directly below LIST.
3. Press the left or right side of the 4-way Navigation
button to view the names on the list.
4. Press the Home button to exit.
Continued…
LIST
ID: 740407
Loading...
