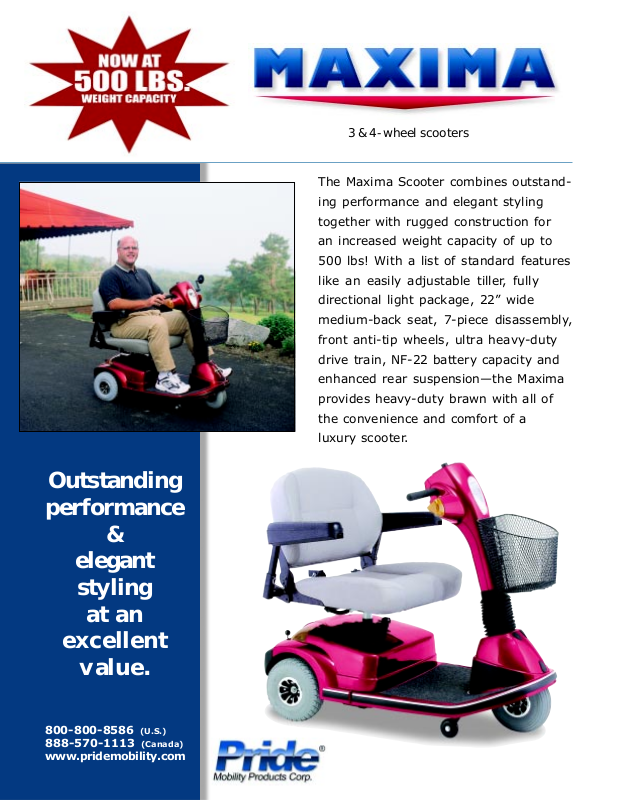

Motor SC900 user guide

3 & 4-wheel scooters

The Maxima Scooter combines outstand-

ing performance and elegant styling

together with rugged construction for

an increased weight capacity of up to

500 lbs! With a list of standard features

like an easily adjustable tiller, fully

directional light package, 22” wide

medium-back seat, 7-piece disassembly,

front anti-tip wheels, ultra heavy-duty

drive train, NF-22 battery capacity and

enhanced rear suspension—the Maxima

provides heavy-duty brawn with all of

the convenience and comfort of a

Outstanding

performance

&

elegant

styling

at an

excellent

value.

800-800-8586 (U.S.)
888-570-1113 (Canada)
www.pridemobility.com

luxury scooter.

Specifications

Model number(s) SC900: (3-wheel)

SC940: (4-wheel)

Weight capacity 500 lbs.

Maximum speed Up to 5.25 mph

Ground clearance 4.5”

Turning radius 3-wheel: 52”

4-wheel: 54”

Overall length 3-wheel: 46.25”

4-wheel: 46.875”

Overall width 3-wheel: 25.5”

4-wheel: 25.5”

Tires

Front 3” x 10” solid

Rear 4” x 10” solid

Anti-tips 3-wheel: front & rear

Benefits

• 500 lbs. weight capacity

• Accommodates up to NF-22 batteries

• Fully directional light package

• Ultra heavy-duty drive train with
110-amp controller

• 25.5” width for optimal stability

• Flat-free foam rubber filled tires

• Maximum speed up to 5.25 mph

• Front basket

• Ergonomically enhanced 22” wide x

18.5” deep seating

• Easily adjustable tiller

• Durable and stylish rear polyurethane
bumper

• Convenient tie down points

• User-friendly console

• Stylish micro-mag alloy wheels

• 3-year limited warranty

4-wheel: rear

Standard seating Contoured medium-back 22”x18.5”

Power elevating seat Option: YES

Suspension Rear

Drive train Sealed transaxle,

24 volt DC motor

Dual braking system Electronic, regenerative

and electromechanical

Battery charger Off-board, 5 amp

Battery requirements (2) 12V deep-cycle

(AGM or gel cell type recommended)

Compatible battery size(s) NF-22* or U-1

Per-charge range Up to 30 miles

Weight

Battery NF-22: 38 lbs.; U-1: 24.5 lbs. ea.

Total w/o batteries (3-wheel): 175 lbs.

(4-wheel): 184 lbs.

Options

• Forearm crutch holder

• Cane/crutch holder

• Wishbone crutch holder

• Oxygen tank holder

• Cup holder

• Rear basket

• Safety flag

• Walker holder

• Weather cover

• Saddlebag

• External battery charger

• Quad cane holder

•Backpacker® Plus

•Scooter double entry

• Full Platform

•Silver Boom 300

Heaviest piece (3-wheel): 64 lbs. (rear section)

when disassembled (4-wheel): 72.5 lbs. (front section)

Colors

Candy Apple Red

* U-1 batteries must be selected when choosing the power elevating seat option.
The information contained herein is correct at the time of publication; we reserve the
right to alter specifications without prior notice. Speed & range vary with user weight,
terrain type, battery charge, battery condition and tire pressure. Due to manufacturing
tolerances and continual product improvement, length, width, turning radius and ground
clearance can be subject to variance of + or – 3 %.

800-800-8586 (U.S.) • 888-570-1113 (Canada) • www.pridemobility.com

MAXIMA - 08-07

Viper Blue

Backpacker® Plus

Double entry

These lifts are
compatible with the
Maxima®.
