Motion Computing C5te - Windows 8, F5te - Windows 8 User's Guide

C5te/F5te Tablet PC

Model CFT-003

User’s Guide

This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Motion.

The information in this document is provided “as is” and is subject to change without notice. Motion is not liable for errors or omissions in this document.

Motion, Motion Computing, View Anywhere, and QuickNav are trademarks or registered trademarks of Motion Computing, Inc. in the U.S.A. and other countries.

Acrobat is a registered trademark of Adobe Systems Incorporated.

Bluetooth is a registered trademark owned by the Bluetooth SIG, Inc., U.S.A. and licensed to Motion Computing, Inc.

Intel, Intel Atom, Core, vPro, and Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Computrace is a registered trademark of Absolute Software Corp.

OmniPass is a trademark of Softex, Inc.

Realtek is a trademark of Realtek Semiconductor Corporation.

Microsoft, Windows, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Qualcomm, Gobi, and Gobi 3000 are trademarks or registered trademarks of Qualcomm Incorporated.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks of HDMI Licensing LLC in the United States and other countries.

AMI and AMI Aptio are trademarks of American Megatrends, Inc.

End users may not loan, rent, lease, lend, or otherwise transfer the CDs or DVDs provided for recovery purposes to another user, except as permitted in the End User License Agreement for such product.

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies.

The warranties for Motion products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty.

The Motion Computing products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see

www.motioncomputing.com/info/patents.asp.

The end user may access only one operating system language version.

L'utilisateur final ne peut accéder qu'à une seule version linguistique du système d'exploitation.

Der Endbenutzer darf nur auf eine Sprachversion des Betriebssystems zugreifen.

De eindgebruiker heeft slechts toegang tot één taalversie van het besturingssysteem.

L'utente finale può accedere a una sola lingua del sistema operativo.

El usuario final sólo podrá acceder a una versión de idioma del sistema operativo.

Loppukäyttäjä voi käyttää vain yhtä käyttöjärjestelmän kieliversiota.

Användaren har endast tillgång till en språkversion av operativsystemet.

Slutbrugeren har kun adgang til ét af operativsystemets sprogversioner.

Sluttbruker kan aksessere kun én av operativsystemets språkversjoner.

O utilizador final pode alcançar somente uma versão de língua do sistema de exploração.

O usuário final pode acessar apenas uma versão de idioma do sistema operacional.

Model CFT-003 PN 024-02-0397-A00

Chapter 1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Optional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Mobile broadband with GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Discrete GPS with WAAS, EGNOS, and MSAS (optional) . . . . . . . . . . . . . . . . . . . . . . . . 2

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

View Anywhere display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Other optional features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Overview of the C5te/F5te . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Top side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Where to begin with your C5te/F5te . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Powering up the tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting to mobile broadband. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Getting familiar with your C5te/F5te Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

When you take a break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Optional setup tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Create a recovery image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Attach the pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connect the tablet to a docking station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connect the tablet to a display monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 2 Using your C5te/F5te . . . . . . . . . . . . . . . . . . . .15

Using pen and touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

How to use gestures with the multi-touch display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing to one-tap open for touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Motion Computing applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Motion Tablet Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Tablet settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Power Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Know Your Motion Tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Entering text and using the handwriting panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Windows 8 on-screen keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Windows 8 handwriting panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

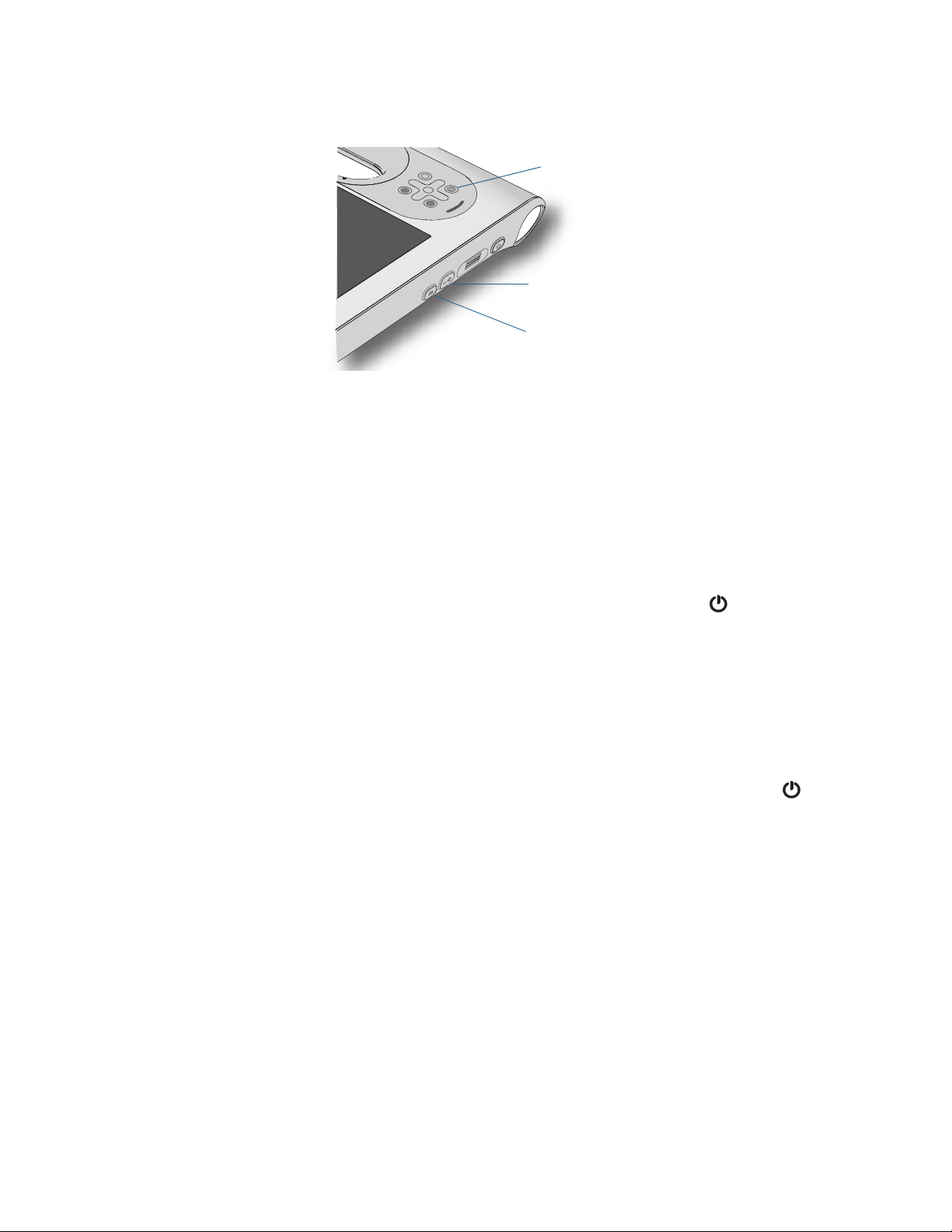

Using the front panel buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Connect an external monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the built-in microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using speech recognition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Setting up speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Contents iii

Using dictation and voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the web camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the documentation camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the barcode scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Supported barcode types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Barcode scanner tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the RFID reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Checking tablet battery power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Removing and replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Hot-swapping the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Long-term battery storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Disposing of used batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Battery and power management tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using Mobile Broadband with GPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using the GPS receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using the discrete GPS receiver with WAAS, EGNOS, and MSAS . . . . . . . . . . . . . . . 46

Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Using the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

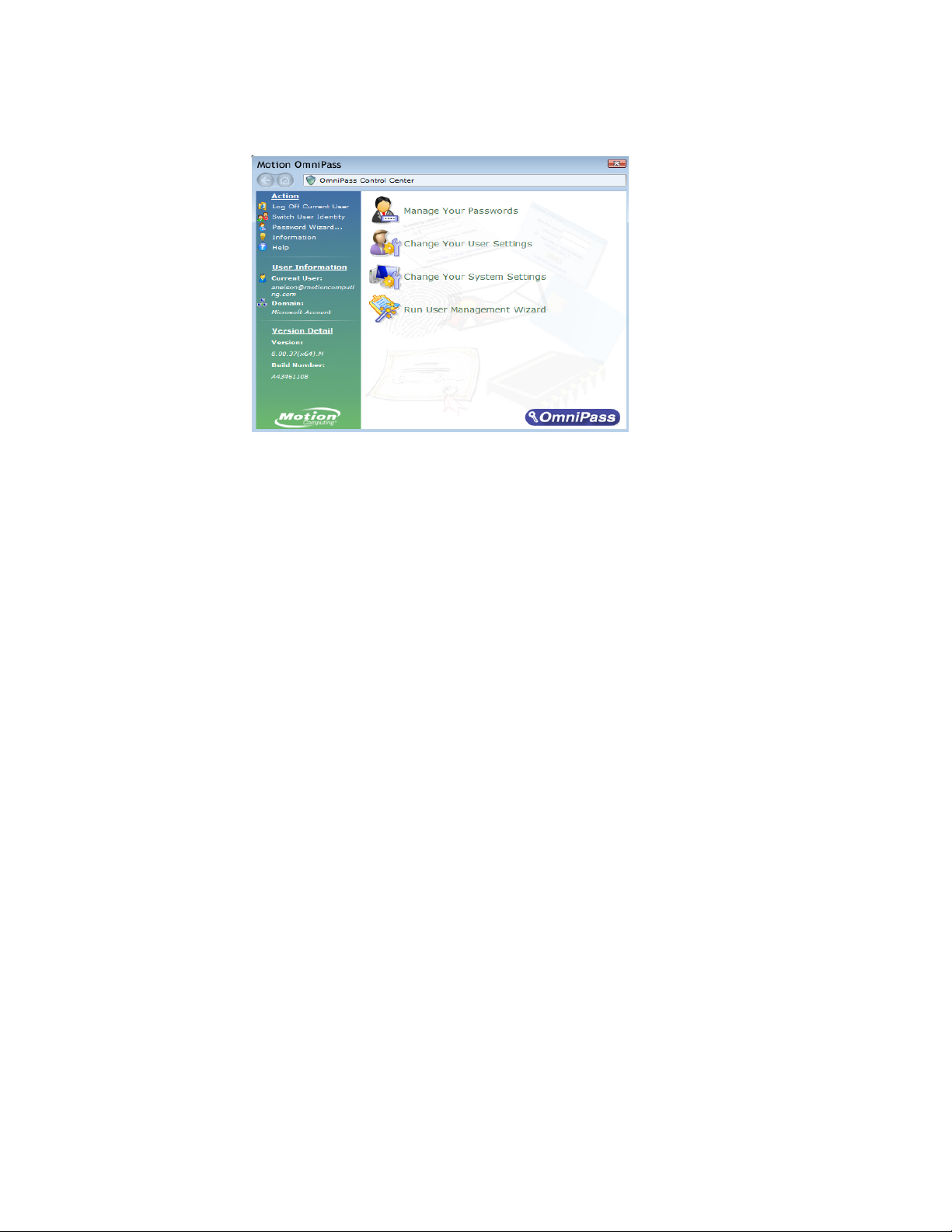

Starting OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Create an OmniPass user account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Replace your passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Using the smart card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

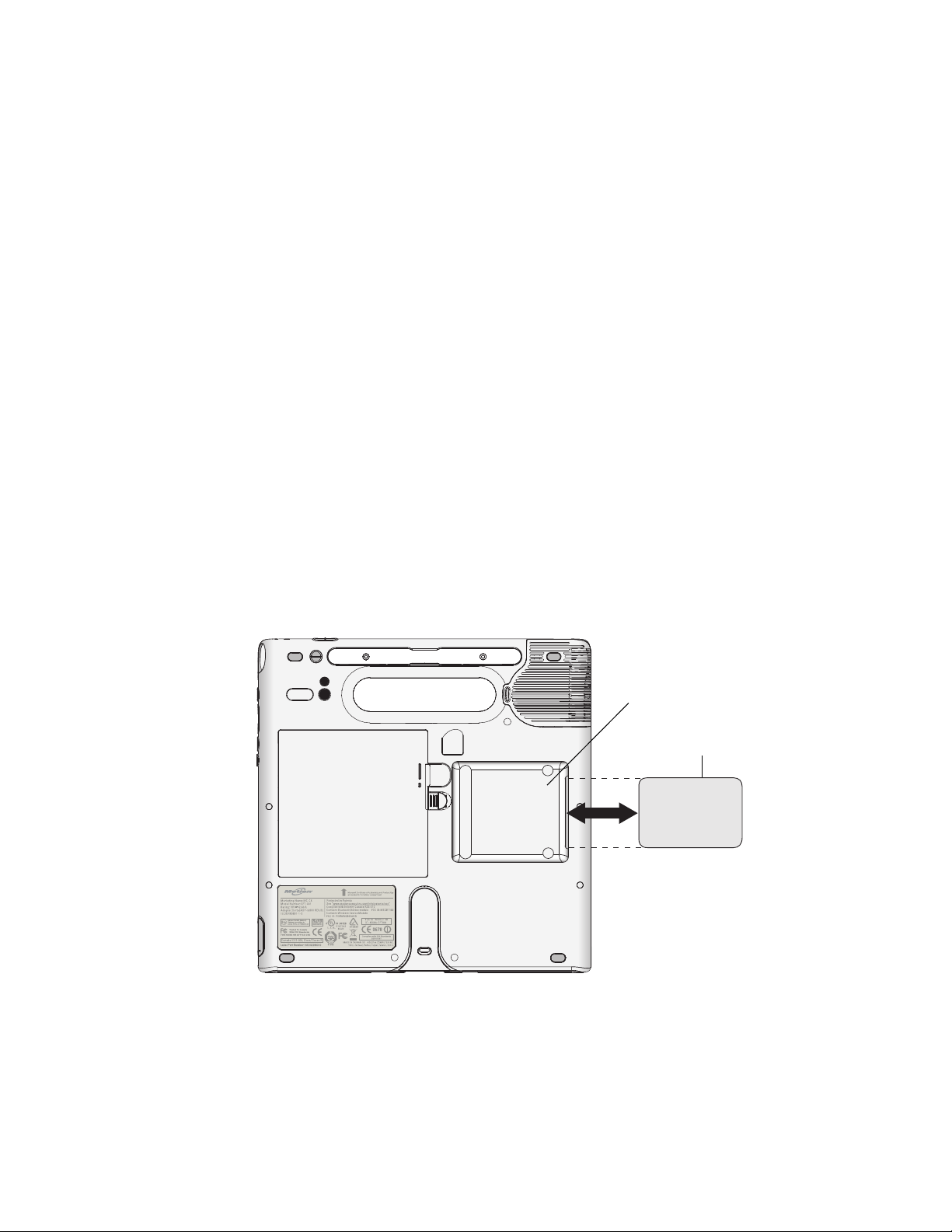

Using the SIM card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Using Windows Action Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting up user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Locating your serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Backing up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Restoring your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Creating a Windows 8 recovery drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Microsoft’s website provides additional information about creating a Windows 8 USB

recovery drive:

http://windows.microsoft.com/en-us/windows-8/create-usb-recovery-drive.. . 55

Using the Windows 8 recovery drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Using System Restore. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Finding other software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Chapter 3 Caring for your C5te/F5te . . . . . . . . . . . . . . . .58

General care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Caring for the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Cleaning solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Caring for the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Replacing pen tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning in a healthcare environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Disinfecting procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Training and documentation considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Cleaning the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Caring for the tablet battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Traveling with your C5te/F5te Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Contents iv

Chapter 4 Troubleshooting and FAQs. . . . . . . . . . . . . . .63

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Power issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Battery issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Display issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Touch or pen issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Ports and connectors issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Network issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Audio issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

System issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Contents v

Getting Started

The Motion® C5te/F5te Tablet PCs are rugged, powerful, and provide robust computing

power and a variety of integrated features to enable any mobile workflow.

The C5te/F5te Tablet PCs include these features:

• Intel® Core™ i3, i5, or i7 vPro™ Processors (i7 Processor includes Intel vPro™ technology)

• Windows® 8 Pro 64-bit

• USB 3.0 port

• mSATA SSD

• DDR3L 1600MHz SDRAM memory

• Intel® HD Graphics 4000

• 10.4" XGA TFT LCD with 1024 × 768 native resolution

• Corning® Gorilla® Glass for increased display damage resistance

• AFFS+ LED Backlight Display Technology

• Dual input—digitizer pen and capacitive 10-point touch

• View Anywhere® display for optimal viewing in all lighting conditions*

• Intel Display Power Saving Technology (DPST )

• Hot-swappable battery

• Integrated 802.11a/b/g/n Wi-Fi® and Bluetooth® 4.0

• Integrated mobile broadband and GPS receiver*

• Integrated 1.3 MP web camera and 3.0 MP documentation camera*

• Integrated fingerprint reader with OmniPass software

• Integrated 1D/2D barcode reader*

• Integrated 13.56MHz HF RFID with read/write capability*

• Smart card reader*; ISO 7816 PC/SC compliant, EMV2 2000 Level 1

• Trusted Platform Module (TPM) for hardware-based security and optional Computrace®

Complete*, which allows you to identify your Tablet PC in the case of loss or theft.

* Optional features are available when you purchase your tablet.

Chapter 1 Getting Started 1

Optional features

This section describes the optional features available when you purchase your C5te/F5te.

Mobile broadband with GPS

You can purchase a C5te/F5te Tablet PC with an optional embedded mobile broadband with GPS module that enables you to connect to a variety of mobile broadband networks for sending and receiving data wirelessly. You can typically use mobile broadband anywhere you can use your mobile phone. Mobile broadband is based on cellular network technology, so you can use it in more places than other wireless technologies.

The GPS receiver uses satellites to determine the current location, altitude, heading, and horizontal velocity of the C5te/F5te. The augmentation feature uses signals from geostationary satellites to improve on the reliability and accuracy of the signals from the GPS satellites. You don’t need a network connection or an account with a mobile broadband network carrier to use the GPS receiver. You can use it with your preferred mapping applications to find your current and desired locations.

For information on setting up mobile broadband, see Connecting to mobile broadband on page 10.

Discrete GPS with WAAS, EGNOS, and MSAS (optional)

Your tablet may have an embedded discrete global positioning system (GPS) module that supports the Wide Area Augmentation System (WAAS) for improved accuracy in the United States; European Geostationary Navigation Overlay Service (EGNOS) for improved accuracy in Europe; and Multi-functional Satellite Augmentation System (MSAS) for improved accuracy in Japan. The proper Augmentation system will be detected based on your location. No special selection is required.

Security

Your C5te/F5te includes several features that you can use to enhance the security of your data and serve as the foundation for complementary security technologies. The core security features include password-protected BIOS, networking control, optional Computrace® Complete tracking software, a built-in fingerprint reader, and Trusted Platform Module (TPM) 1.2.

Chapter 1 Getting Started Optional features 2

TPM

With the built-in TPM and Infineon Security Platform Tools, you can create and manage digital certificates, user and device authentication, full disk data encryption, and restricted network access. These features are most commonly used by enterprises and enabled by the system administrator. To download and install TPM, go to http://

www.motioncomputing.com/support/driver_download.asp, select the link to the

operating system for your Tablet PC, and then scroll down to (TPM) Trusted Platform Module Software.

Computrace® Complete

The C5te/F5te Tablet PC can be purchased with the optional Computrace® Complete, which offers enhanced data protection, improved IT asset management, and managed computer theft recovery. With Computrace, organizations can track, manage, and secure their entire computer fleet—including remote and mobile devices—on or off the network.

View Anywhere display

The View Anywhere display option enhances outdoor viewing and bright-light viewing environments and it includes all the features of the standard display plus:

• A protective layer that improves the sunlight contrast ratio and significantly reduces

reflection and glare.

• Improved sunlight contrast ratio, which enhances viewability at wide viewing angles.

• Reduced reflection and glare and improved light pass-through efficiency.

Other optional features

Other C5te/F5te optional features include:

• Web and documentation cameras—See Using the cameras on page 32.

• Barcode scanner—See Using the barcode scanner on page 38.

• RFID reader—See Using the RFID reader on page 39.

• Smart card reader—See Using the smart card reader on page 49.

Chapter 1 Getting Started Optional features 3

Overview of the C5te/F5te

Barcode

light

RFID button

scanner button

RFID status

Fan cover

The following illustrations show the buttons, slots, and ports on the C5te/F5te Tablet PC.

Top side

RFID (optional) status light

RFID reader (optional) button

Barcode scanner (optional) button

Fan cover Protects the fan assembly.

Shows the status of the RFID reader.

Use to trigger the RFID reader.

Use to trigger the barcode scanner.

Chapter 1 Getting Started Overview of the C5te/F5te 4

Front

Directional pad

Motion Tablet Center

A button

B button

Battery gauge

Docking connector

Microphones

Web camera

Touchscreen display

button

Function button

Function button Activates secondary functions for other buttons.

Motion Tablet

Opens Motion Tablet Center.

Center button

Directional pad Use for basic navigation. Equivalent to the arrow keys on a

keyboard. The center button is equivalent to the Enter key.

A button Configure a custom action.

B button Activates the barcode scanner.

Battery gauge Shows battery status.

Chapter 1 Getting Started Overview of the C5te/F5te 5

Microphones Records sounds and used for speech recognition.

Power adapter port, USB 2.0/3.0 port,

Camera

button

Fingerprint

reader

Barcode scanner

Windows

security

button

Power button

RFID antenna

zone

and cover

Web camera (optional)

Touchscreen display

Docking connector

Right side

Power adapter port, USB port, and cover

Use for web-based video communication.

Use your finger or pen to navigate the tablet.

Connects to a C5te/F5te docking station.

Connects to the power adapter.

RFID (optional)

Scan zone for reading RFID tags.

antenna area

Camera (optional)

Use to activate the built-in documentation camera.

button

Windows® Security button

Use to log on to or lock the tablet. Equivalent to Ctrl+Alt+Del on a keyboard.

Fingerprint reader Scan your fingerprints for added security. You can also

use the fingerprint reader as a navigation device.

Power button Turns the tablet on and off.

Barcode scanner

Reads 1D and 2D barcode labels.

(optional)

Chapter 1 Getting Started Overview of the C5te/F5te 6

Back

Pen tether Pen holder

Camera light

Camera lens

Battery

Docking guide

Speaker

Smart card reader

Battery

Regulatory label

Fan cover

Battery

gauge

latch

Pen tether Attach the pen tether.

Pen holder Use to store the pen when not in use.

Fan cover Protects the fan assembly.

Camera lens (optional)

Camera light (optional)

Speaker Use for listening to audio.

Captures images to the hard drive.

Provides light for the documentation camera.

Battery Powers the tablet when it’s not plugged in or docked.

Chapter 1 Getting Started Overview of the C5te/F5te 7

Battery gauge Indicates the level of battery charge when you press the button next to

Function button

Eraser

Tip

the gauge.

Battery latch Opens the battery compartment’s door.

Regulatory label Contains regulatory and safety information.

Docking guide Aligns the unit with the docking station (sold separately).

Smart card reader

Reads information on a smart card.

(optional)

OTE: If you push any of the Tablet PC buttons while a Windows 8 Store App such as Internet

Explorer, Maps, or Weather is running and visible on your tablet screen, you may need to open the Windows Desktop to view or use the application that was started by that button. This does not apply to the Power or Security buttons and is known Windows 8 behavior.

Pen

The C5te/F5te Tablet PC supports touch with a pen as well as with your finger. You may find the pen handy when you want to write a quick email or take notes. The pen is particularly effective for precise data entry and navigation.

The pen includes a pressure-sensitive tip, a function button, and an eraser. The pen contains no batteries and requires no external power.

C5te/F5te pen

You can purchase additional pens from the Motion Computing Accessories page. For more information on using the pen, see Pen and Touch on page 18.

Chapter 1 Getting Started Overview of the C5te/F5te 8

Where to begin with your C5te/F5te

This section includes some information to help you power up and get familiar with your C5te/F5te Tablet PC.

Powering up the tablet

1. Plug the power cord into an outlet.

Power up the C5te/F5te

2. Plug the power cord into the AC adapter.

3. Pull out the port door located at the bottom of the right side of the C5te/F5te to expose the AC adapter port and plug the AC adapter cord into the port.

• The battery gauge turns amber to indicate that the battery is charging.

• Keep the tablet on AC power until the battery is fully charged.

4. Press and release the power button located on the top right side of the C5te/F5te to turn it on.

OTE: You don’t have to wait until the Tablet PC is fully charged before using it. However, it’s

recommended that you keep the power adapter plugged into an outlet so your C5te/F5te can continue charging.

5. Follow the on-screen instructions to set up your user account and activate Windows® 8.

Chapter 1 Getting Started Where to begin with your C5te/F5te 9

Connecting to mobile broadband

Set up mobile broadband with GPS

If you purchased your C5te/F5te with the optional mobile broadband module, you can connect to high-speed cellular networks worldwide. With the mobile broadband module and a data plan from one of several cellular network providers, you have full Internet access.

OTE: Before you can connect to a mobile broadband network, you must have an active account

with a cellular network provider. Some providers require a SIM card for mobile broadband access. If you’re not sure whether you need one, contact your mobile broadband provider.

The mobile broadband module includes a GPS receiver that provides the current location of your C5te/F5te. With the GPS receiver, you can use most GPS navigation and mapping applications.

To configure your mobile broadband settings:

1. Ensure there’s a SIM card in your Tablet PC and that it’s fully seated in the SIM card slot. (See Using the SIM card slot on page 51 for information about inserting a SIM card.)

2. View a list of available networks by swiping in from the right edge of the screen, tapping

Settings, and then tapping the Network icon ( or ).

3. Tap your mobile broadband network.

4. If you want to connect automatically in the future, select the Connect automatically checkbox.

5. If you want to roam automatically, select the Allow data roaming checkbox.

6. Tap Connect.

7. If prompted, enter the access point name (APN) or access string, the user name, and the password. (You can find these in the information that came with the device or with your mobile broadband service.)

Chapter 1 Getting Started Where to begin with your C5te/F5te 10

Getting familiar with your C5te/F5te Tablet PC

Once you’ve set up your C5te/F5te, take a few minutes to get familiar with your Tablet PC.

• Calibrate pen and touch. You can adjust the touch settings by calibrating the digitizer.

(The digitizer detects the position of the pen or your finger on the touchscreen display.) For details, see Pen and Touch on page 18.

• Use Motion Computing tools to configure basic Windows 8 settings, customize your

tablet according to your work style, and to access C5te/F5te documentation and the Motion Support and Tablet PC accessories websites. See Motion Tablet Center on page 17 and Know Your Motion Tablet on page 25.

• Open the handwriting panel and provide handwriting samples to improve handwriting

recognition. For more information, see Using the Windows 8 handwriting panel on page 27.

• Take photos or use the web camera. See Using the cameras on page 32.

• Set up speech recognition. See Using speech recognition on page 31.

When you take a break

When you leave your Tablet PC for a while, you can lock it to prevent unauthorized access by pressing the Security button and then by tapping Lock on the following screen. You can configure the Power button to shut down your Tablet PC, or to put it in Sleep or Hibernate mode to save power when you press the Power button.

Security and power buttons

Chapter 1 Getting Started Where to begin with your C5te/F5te 11

Lock and unlock the Tablet PC

To lock the Tablet PC, either:

• Press the security button on the right side of the tablet and select the Lock option

on the following screen.

• If a keyboard is attached, press Ctrl+Alt+Delete.

To unlock the tablet:

• Press the security button or Ctrl+Alt+Delete again.

Sleep mode

Place your tablet in Sleep mode when you go away for a short period of time. Sleep mode conserves battery power while you’re away and when you return, your desktop is the same as you left it. Sleep mode is sometimes called “standby.”

To put the tablet in Sleep mode:

• Save your files.

• Press and release the power button .

Note: While in Sleep mode, the power button flashes green.

To wake up the tablet from Sleep mode:

• Press and release the power button .

The tablet quickly resumes activity and your desktop is the same as you left it.

Hibernate mode

If you intend to leave your tablet for several hours or more, you can put the tablet in Hibernate mode. Like sleep, when you return from hibernate, your desktop is the same as you left it.

It takes longer to start up from Hibernate mode than sleep, but it consumes very little power, saves data to disk beforehand, and is still faster than starting your tablet after shutting it down.

To put the tablet in Hibernate mode:

1. Swipe in from the right edge of the screen and tap Search.

2. Type power in the search field, tap Settings, and then choose Change what the power buttons do from the search results.

3. You can select Hibernate for any of the Power and sleep button configuration options.

For more information on power options, see Power Settings on page 23.

Chapter 1 Getting Started Where to begin with your C5te/F5te 12

Optional setup tasks

Create a recovery image

Once you’ve set up your C5te/F5te, including installing your applications, create a recovery image on an external USB drive. A recovery drive will allow you to boot your system and easily access a number of recovery and troubleshooting tools that you can use if you encounter any issues with your Windows 8 installation. For more information, see Create a

USB recovery drive on page 54.

Attach the pen tether

The C5te/F5te pen comes with a tether so that you can attach the pen to your tablet to prevent misplacing it.

To attach the pen tether:

1. Slip one end of the tether through the hole at the end of the pen, then pull the pen through the loop until it’s tight.

2. Slip the other end of the tether through the attach point on the C5te/F5te, then pull the pen through the loop until it’s tight.

You can purchase additional pens from the Motion Computing Accessories page.

Connect the tablet to a docking station

A variety of docking solutions for the C5te/F5te are available for purchase on the Motion

Computing Accessories page.

The docking stations for the C5te/F5te adds functionality to your tablet, including port expansion for Ethernet, VGA monitors, and USB devices such as printers, keyboards, and mice. The docking station also charges the tablet and includes a charging bay for an extra battery. Mobile docks are also available for your C5te/F5te and enable you to mount your Tablet PC in a variety of vehicles. For details on installing and using the docking station, see the User’s Guide that accompanies your docking station.

Chapter 1 Getting Started Optional setup tasks 13

Connect the tablet to a display monitor

Connect a display monitor to your C5te/F5te Tablet PC using the VGA port located on the docking station.

For more information

This User’s Guide introduces the full set of C5te/F5te features and provides instructions for common tasks you’ll perform. The rest of this book is organized as follows:

• Using your C5te/F5te on page 15—Provides instructions for basic C5te/F5te tasks

including how to customize your tablet to fit the way you work using Motion Tablet Center, how to use the cameras, how to set up speech recognition, and more.

• Caring for your C5te/F5te on page 58—Provides suggestions for the care and

maintenance of your Tablet PC.

• Troubleshooting and FAQs on page 63—Provides answers for common issues you may

encounter as you begin to use your C5te/F5te.

The Getting Started document located on the Tablet PC’s desktop provides a number of tips to get you started using the tablet quickly.

OTE: If you don’t have access to a particular feature or setting on your Tablet PC, contact your

system administrator for additional information.

You will find other useful information on our website:

• Tablet PC Tips & Tricks

• Motion Computing Support

• Free online training videos

• Knowledge Base

• Motion Computing Accessories

• Motion Computing Store

OTE: This guide is available in French, German, Spanish and Portuguese at our website.

Chapter 1 Getting Started For more information 14

Using your C5te/F5te

This chapter provides information about performing the following tasks:

• Using pen and touch on page 16

• Accessing Motion Tablet Center on page 17

• Accessing Know Your Motion Tablet on page 25

• Entering text and using the handwriting panel on page 26

• Using the front panel buttons on page 29

• Connect an external monitor on page 30

• Using the built-in microphones on page 30

• Using speech recognition on page 31

• Using the cameras on page 32

• Using the barcode scanner on page 38

• Using the RFID reader on page 39

• Using the battery on page 41

• Using Mobile Broadband with GPS on page 45

• Using the discrete GPS receiver with WAAS, EGNOS, and MSAS on page 46

• Using Bluetooth on page 46

• Using the fingerprint reader on page 46

• Using the smart card reader on page 49

• Using Windows Action Center on page 52

• Setting up user accounts on page 52

• Locating your serial number on page 53

• Backing up your system on page 53

• Restoring your system on page 54

• Finding other software on page 57

Chapter 2 Using your C5te/F5te 15

Using pen and touch

With the C5te/F5te Tablet PC, you can use either your finger, a digitizer pen, or both to interact with the touchscreen display. You use your digitizer pen or your finger as you would use a mouse. For example, tapping twice is the same as double-clicking a mouse. Tapping and holding is the same as right-clicking a mouse to open context-sensitive menus.

Here are some common ways to perform tasks on a touchscreen:

• Tap—Select something

• Press and hold—Open a menu of options. This is equivalent to right-clicking a mouse to

display the right-click menu. Press and hold your finger until a square appears, then lift your finger to display the menu.

• Double-tap—Perform a double-click action

• Tap and drag—Drag and drop

• Pinch fingers together—Zoom out

• Spread fingers apart—Zoom in

OTE: If the tablet doesn’t respond when you tap with your finger, try using more area of your

fingertip. Unlike other types of touchscreens, the C5te/F5te capacitive touchscreen doesn’t respond to other input. For example, you can’t tap it with another object such as a credit card or if you’re wearing gloves.

If the pen doesn’t respond as accurately as you would like, you can make adjustments. For example, you can:

• Use the button on the pen to perform the right-click action

• Adjust how quickly the tablet responds when you double-tap the pen

• Adjust how quickly the tablet responds when you press and hold the pen button

How to use gestures with the multi-touch display

The C5te/F5te Tablet PC touchscreen display supports multi-touch, which allows you to directly manipulate items on-screen, such as to navigate websites and view photos. For example, you can use your fingers to scroll through lists, zoom in and out, rotate, and so on.

Changing to one-tap open for touch

With touch, you may want to change how you select and open items. By default, Windows folders are set up so that you tap once to select an item and double-tap to open it. For touchscreen displays, you can change the behavior to point to select an item and open an item with one tap instead of two.

To change folder options:

1. Swipe in from the right side of the screen and tap Search.

2. Type control in the search field and then choose Control Panel from the search results.

Chapter 2 Using your C5te/F5te Using pen and touch 16

3. From the Windows® Control Panel, tap Folder Options.

4. Under Click items as follows, tap Single-click to open an item (point to select).

Motion Computing applications

Your C5te/F5te includes some Motion Computing applications that will help you configure your Tablet PC to fit your needs, manage common Windows 8 settings, and access resources for additional information:

Motion Tablet Center

Know Your Motion Tab le t

Motion Tablet Center

You can use Motion Tablet Center to access and configure the most commonly used Windows 8 settings.

To open Motion Tablet Center:

1. Locate the Motion Tablet Center tile on the Windows 8 Start screen.

You may have to swipe to the left if you don’t see the tile initially.

2. Tap the Motion Tablet Center tile to open the application.

Motion Tablet Center is organized into categories, which are listed in the left pane. The main screen displays system information about your Tablet PC.

Provides a central location for accessing and configuring the most commonly used Windows® 8 settings.

Provides easy access to C5te/F5te documentation and the Motion Support and Tablet PC accessories websites.

Chapter 2 Using your C5te/F5te Motion Computing applications 17

Tablet settings

The following configuration options are available in Motion Tablet Center’s Tablet settings:

• Pen and Touch—Provides access to Windows Pen and Touch configuration options.

• Touch Settings—Enables you to calibrate touch settings.

• Tablet PC Settings—Use these settings to configure your display and button actions

and set handedness options.

• Wireless Settings—View, configure, and connect to available wireless networks.

• Advanced Settings—View all system information for your Tablet PC.

Pen and Touch

To configure pen settings:

1. Tap Pen and Touch in the Tablet screen.

The Windows Pen and Touch settings window opens.

2. Tap the Pen Options tab.

3. To adjust the speed and spacial tolerance of the Double-tap action, under Pen action, tap Double-tap then tap Settings. Move the slider to make your adjustments.

4. To adjust the speed and duration of the Press and hold action, under Pen action, tap Press and hold then tap Settings. Move the slider to make your adjustments.

Chapter 2 Using your C5te/F5te Motion Tablet Center 18

5. To enable the function button on the pen, tap Use the pen button as a right-click equivalent. To enable the eraser, select the Use the top of the pen to erase ink option.

Flicks are a handy way to use gestures on a touchscreen to move up and down on the screen or perform basic editing tasks.

To conf igur e fl icks:

1. Tap Pen and Touch in the Tablet screen.

The Windows Pen and Touch settings window opens.

2. Tap the Flicks tab.

3. To enable flicks, select Use flicks to perform common actions quickly and easily.

4. If you want to use flicks for navigation only, select Navigational flicks.

5. If you want to use flicks for both navigation and common editing tasks such as paste, copy, and delete, select Navigational flicks and editing flicks.

6. Tap Customize to change the actions you can perform with flicks or to configure your own custom flick action.

7. To adjust the sensitivity of flick recognition, move the slider in the Sensitivity section of the Flicks tab.

You can adjust how the Tablet PC interprets your finger movements. The default settings will be sufficient for most users, but if you need to make adjustments, you can do the following:

• Adjust how quickly the tablet responds when you double-tap your finger

• Adjust how quickly the tablet responds when you press and hold your finger

• Show the touch pointer when interacting with items on the screen

To configure touch:

1. To adjust the Double-tap action, under Touch action, tap Double-tap, then tap Settings. Move the slider to make your adjustments.

2. To adjust the Press and hold action, under Touch action, tap Press and hold, then tap Settings. Move the slider to make your adjustments.

3. To display the touch pointer on the screen, select Show the touch pointer.

4. Select Optimize visual feedback for projection to an external monitor if you want the touch pointer to be visible on an external display such as a projector.

Chapter 2 Using your C5te/F5te Motion Tablet Center 19

Touch settings

You can use Motion Tablet Center’s Touch Settings to enable or disable touch, select rightclick options when using touch, and to calibrate the digitizer for touch. The digitizer detects the position of your finger on the touchscreen display. You should calibrate the digitizer the first time you start your Tablet PC. You can recalibrate the digitizer whenever the pointer doesn’t align with your finger.

To adjust touch settings:

1. Tap Touch Settings in the Tablet screen.

The Touch Settings window opens.

2. Select Press-and-hold to Right-Click if you want to enable this option and move the slider to adjust the amount of time you touch the screen before this function is activated.

3. Select Enable Touch if you want to use your finger as an input device.

4. Tap Calibrate to activate touch calibration.

5. Provide calibration samples by tapping the crosshairs with your finger in the following screen as directed.

6. Tap Ye s or No when asked if you want to save the calibration data.

7. Tap OK to save your settings.

Tablet PC settings

Motion Tablet Center’s Tablet PC settings enable you to customize your C5te/F5te to fit the way you work. These settings provide you with access to input display configuration and calibration; screen rotation sequence settings; right- or left-handed use; pen and touch settings; and Touch Keyboard and Handwriting Panel customization.

To configure Tablet PC settings:

1. Tap Tablet PC Settings in the Tablet screen.

The Tablet PC Settings window opens.

2. Tap the Display tab.

3. Tap Setup next to Configure your pen and touch displays.

This setting is useful for assigning pen or touch to the appropriate display when one or more displays are connected to the tablet.

4. Tap Pen input or To uch i np ut depending upon the type of input you want to use on the display.

5. Follow the on-screen instructions.

6. To configure display options, select the available displays from the drop-down list and then tap Calibrate configure touch and pen input options or Reset to reset the options to default settings.

Chapter 2 Using your C5te/F5te Motion Tablet Center 20

7. Adjust the screen orientation sequence setting by tapping the Go to Orientation link and choose the order in which your screen rotates.

You can customize the buttons on the front panel to start your favorite program, run a command, or enter a key combination.

8. To configure the front panel buttons, tap Tablet PC Settings in Motion Tablet Center then tap the Buttons tab.

9. Select the primary or secondary orientation for which you want to change the button settings from the Button settings for: drop-down list.

IP: You can configure different button settings for different orientations. For additional

information on the front panel buttons, see Using the front panel buttons on page 29.

10. Select the button combination you want to change. The currently selected buttons

appear in red.

11. Tap Change.

12. Select the appropriate action for the button.

For some actions, you must enter more information, such as the location of a program to start. You can select an action for Press and another for Press and hold. For more information, tap What is press and hold?

13. To reset the buttons to their default values, tap the Reset button.

OTE: If you push any of the Tablet PC buttons while a Windows 8 Store App such as Internet

14. To access configuration options for left- or right-handedness, pen and touch settings,

or customization for Touch Keyboard and Handwriting Panel options, tap the Other tab.

Wireless settings

Motion Tablet Center’s Wireless Settings provide you with access to the Windows Networks menu where you can view and connect to available mobile broadband, ethernet, and Wi-Fi networks. You can also turn Airplane mode on or off in this menu, which disables all wireless communication on the Tablet PC.

To view and connect to available networks:

• Tap Wireless Settings in the Tablet screen.

• The Windows Networks menu opens.

Chapter 2 Using your C5te/F5te Motion Tablet Center 21

If your C5te/F5te includes the optional mobile broadband module and you have an active account with a cellular network provider, you can connect to an available mobile broadband network.

To connect to a mobile broadband network:

1. Ensure there’s a SIM card (if one is required by your provider) in your Tablet PC and that it’s fully seated in the SIM card slot. (See Using the SIM card slot on page 51 for information about inserting a SIM card.)

2. Tap Wireless Settings in the Tablet screen.

The Windows Networks menu opens.

3. Tap your mobile broadband network, which is displayed in the Mobile broadband section.

To find more available broadband networks, tap Find more.

4. If you want to connect automatically in the future, select the Connect automatically checkbox.

5. If you want to roam automatically, select the Allow data roaming checkbox.

6. Tap Connect.

If prompted, enter the access point name (APN) or access string, the user name, and the password. (You can find these in the information that came with the device or with your mobile broadband service.)

IP: To view options and settings for the mobile broadband network, press and hold your pen or

your finger on the network name until a square appears and then lift your pen or finger to view the pop-up menu.

To connect to a wireless network:

1. Tap Wireless Settings in the Tablet screen.

The Windows Networks menu opens.

2. Tap the wireless network you want to connect to. The list of available wireless networks is displayed in the Wi-Fi section.

3. If you want to use this network on a regular basis and automatically connect to it when it’s available, select Connect automatically.

4. Tap Connect and enter the network security key when prompted.

DANGER: FAA regulations require that you disable any wireless connection when traveling

by air. Failure to disable the wireless connection on the system while traveling by air can cause communications problems with aircraft instruments. You can disable all wireless communication on the Tablet PC by enabling Airplane mode.

Chapter 2 Using your C5te/F5te Motion Tablet Center 22

Advanced settings

You can use Motion Tablet Center’s Advanced settings to view all system information for your Tablet PC.

System Information lists categories in the left pane and details about each category in the right pane. The categories include:

• System Summary—Displays general information about your computer and the

operating system, such as the computer name and manufacturer, the type of basic input/output system (BIOS) your computer uses, and the amount of memory that's installed.

• Hardware Resources—Displays advanced details about your computer's hardware and

is intended for IT professionals.

• Components—Displays information about disk drives, sound devices, modems, and

other components installed on your Tablet PC.

• Software Environment—Displays information about drivers, network connections, and

other program-related details.

To view system information for your Tablet PC:

1. Tap Advanced in the Tablet screen.

The Windows System Information window opens.

2. To find a specific detail in System Information, type the information you're looking for in the Find what: field at the bottom of the window. For example, to find your computer's Internet protocol (IP) address, type IP address in the Find what: field, and then tap Find.

IP: You can save System Information by tapping File, tapping Save, typing a name for the file,

and then tapping Save again.

Power Settings

The following configuration options are available in Motion Tablet Center’s Power settings:

• Turn off power for unused devices to extend battery life.

• Choose a power plan.

• Change how the power button functions when on battery power or when plugged in.

• Advanced settings that enable you to choose or customize a power plan for your Tablet

PC.

Chapter 2 Using your C5te/F5te Motion Tablet Center 23

If you want to disable unused devices so that you can extend your Tablet PC’s battery life, tap the switch beside the devices that are on to turn them off. To enable these devices, tap the switch to turn them on.

By default, the C5te/F5te uses the Motion Optimized power plan that is designed specifically for Motion Computing tablets. It balances the need to save power while maximizing tablet performance. When the tablet senses no current activity, it goes into Power Saver mode automatically.

To change the power plan:

• Tap the drop-down menu beside Choose a power plan: and select the power plan you

want to use.

OTE: Setting the power plan to Power Saver reduces your Tablet PC’s performance.

When you press and release the power button, it can go into one of the following modes:

Sleep—The tablet pauses all activity immediately and quickly resumes when awakened. This saves power when you’re away from your tablet for a short time. However, you will lose unsaved data if there’s a power failure.

Hibernate—The tablet saves the contents of memory to the hard drive and shuts down. Pressing the power button restores the desktop exactly as you left it.

Shut down—Tablet shuts down. Pressing the power button reboots the tablet.

By default, the tablet goes to sleep when you press and release the power button. To wake up your tablet, press and release the power button again. You can put the tablet in Hibernate mode or shut it down completely from the Start menu.

Chapter 2 Using your C5te/F5te Motion Tablet Center 24

You can change how the power button behaves when it is pressed either to hibernate or to shut down the tablet. You can set the behavior individually, depending on whether the tablet is running on battery or plugged in.

To change what happens when the power button is pressed:

• Tap the drop-down menu beside Power switch on battery: and select the action the

power button performs when your Tablet PC is on battery power.

• Tap the drop-down menu beside Power switch plugged in: and select the action the

power button performs when your Tablet PC is on battery power.

Advanced settings

The Advanced settings in Motion Tablet Center’s Power screen provide you with access to Windows Power Options, where you can create your own power plan, customize your Tablet PC’s power plan, adjust the screen brightness, set a password on wakeup, choose when to turn off the display, and change when the Tablet PC sleeps.

To configure advanced power settings:

1. In the Motion Tablet Center Power screen, tap Advanced.

2. The Windows Power Options are displayed.

3. Choose or customize a power plan, or select a task from the left pane for additional power plan settings.

Know Your Motion Tablet

Know Your Motion Tablet is a Motion Computing application that provides easy access to C5te/F5te documentation and the Motion Support and Tablet PC accessories websites.

Chapter 2 Using your C5te/F5te Know Your Motion Tablet 25

Getting Started—Opens the C5te/F5te Getting Started Guide, which provides basic information about operating your Tablet PC.

Support—Links to the Motion Computing Support website, which provides information about Motion products, technical support, and customer and professional services.

User’s Guide—Enables you to open or save this C5te/F5te User’s Guide.

Accessories—Links to the Motion Computing store, where you can view and purchase

accessories for your Motion Computing Tablet PC.

To use Know Your Motion Tablet:

1. Locate the Know Your Motion Tablet tile on the Windows 8 Start screen.

You may have to swipe to the left if you don’t see the tile initially.

2. Tap the Motion Tablet Center tile to open the application.

3. Tap the tile for the resource you want to access.

Entering text and using the handwriting panel

You can use different methods to enter text with your C5te/F5te to fit your needs. You can use an on-screen touch keyboard or the handwriting panel. When you write on the handwriting panel, your handwriting converts to digital ink. Digital inking is the process of converting your handwriting to text.

Using the Windows 8 on-screen keyboard

To open the on-screen keyboard, either:

• Tap in a text field or other area where you can type, such as the URL field in a web

browser.

• Tap the keyboard icon in the Windows notification area when you’re in the

Windows desktop.

The default on-screen keyboard will appear at the bottom of the screen.

Chapter 2 Using your C5te/F5te Entering text and using the handwriting panel 26

In addition to the default on-screen keyboard, Windows 8 provides other keyboard layouts for entering text. You can use an expanded keyboard, which provides additional keys or a keyboard that includes a numbers keypad.

IP: To switch to the keyboard that includes the numbers keypad, tap the &123 key in the lower

left-hand corner of the default keyboard.

Using the Windows 8 handwriting panel

To open the handwriting panel:

1. Tap in a text field or other area where you can type, such as the URL field in a web browser.

2. In the lower right-hand corner of the touch keyboard, tap the keyboard icon to

change keyboards.

3. Tap the handwriting icon .

Chapter 2 Using your C5te/F5te Entering text and using the handwriting panel 27

The handwriting panel will open.

Use your digitizer pen to begin writing in the handwriting panel. Your handwriting will then be converted to text.

IP: The more you write, the more accurately Windows 8 detects your handwriting style.

To close the on-screen keyboard or handwriting panel, tap the close icon in the upper right-hand corner. To minimize the on-screen keyboard or handwriting panel, tap

the minimize icon in the upper right-hand corner.

You can find other handwriting applications at the Motion Computing Store.

Chapter 2 Using your C5te/F5te Entering text and using the handwriting panel 28

Using the front panel buttons

Function

Motion Tablet

A button

Barcode reader

Directional pad

Enter

Center

As you become more familiar with your Tablet PC, you can customize the buttons on the front panel. You can configure the buttons to start your favorite program, run a command, or enter a key combination.

Button Primary

Function Activates secondary function for

Secondary (Function+button)

N/A

other buttons

Motion

Starts Motion Tablet Center Opens Windows® Journal™

Tablet Center

Directional pad

Moves the pointer or navigates through documents. Equivalent to arrow keys on a keyboard.

Left = Shift+Tab Right = Tab Up = Page Up Down = Page Down

Enter Makes a selection—equivalent to

Windows® logo key

the Enter key

function

B Activates the barcode reader (if

installed)

A Performs application-specific

Rotates the display orientation

Cancels the current task— equivalent to the Esc key

The directional pad orientation rotates to match the display orientation. To move the pointer in a certain direction, press that direction on the pad regardless of orientation. For example, “up” in landscape orientation becomes “left” in portrait orientation.

Chapter 2 Using your C5te/F5te Using the front panel buttons 29

OTE: If you push any of the Tablet PC buttons while a Windows 8 Store App such as Internet

To configure the front panel buttons:

1. Open Motion Tablet Center.

2. Tap Tablet PC Settings.

3. In the Tablet PC Settings window, tap the Buttons tab.

4. Select the primary or secondary orientation for which you want to change the button settings from the Button settings for: drop-down list.

5. Select the button combination you want to change. The currently selected buttons appear in red.

6. Tap Change.

7. Select the appropriate action for the button.

IP: You can configure different button settings for different orientations.

OTE: To reset the buttons to their default values, tap the Reset button.

Connect an external monitor

To connect an external monitor to the C5te/F5te, you use the CFT-Series docking station, which is sold separately.

To set up an external monitor:

1. Connect the monitor cable from the external monitor into the CFT-Series docking station according to the CFT-Series Docking Station User’s Guide.

2. Plug in the external monitor and turn it on.

3. If necessary, install software and drivers for the monitor. See the manufacturer’s documentation for more information.

Using the built-in microphones

You can use the built-in array microphones to record audio, dictate notes, and use voice commands. The two microphones are used at the same time to optimize sound detection for speech recognition and voice recording.

Chapter 2 Using your C5te/F5te Connect an external monitor 30

Using speech recognition

You can use speech recognition to interact with your tablet by voice. You can dictate documents and emails or use voice commands to control programs.

• Dictation mode—With Dictation mode, your tablet listens to everything you say and

converts your words to text. You can use dictation mode to enter text directly into any document or text box.

• Voice command mode—With Voice command mode, your tablet listens for specific

words that correspond to a list of available voice commands. You can use commands to switch between programs, save documents, copy, paste or undo.

Setting up speech recognition

Before you can use speech recognition, you must configure the microphones and train the system for the characteristics of your voice. You can then take the available speech tutorial to learn basic voice commands.

Set up the microphones

For best results, move to a quiet environment.

To set up the microphones:

1. Swipe in from the right side of the screen and tap Search.

2. Type microphone in the search field, tap Settings, and then choose Set up a microphone from the search results.

3. If you’re using the tablet’s microphone array, select Other.

4. Follow the instructions in the setup program.

5. Click Finish when you’re done.

OTE: If the microphones are set to an appropriate level, the meter will stay in the green zone

while you read the sentences.

Train your tablet to recognize your speech

Use this procedure to improve your tablet’s ability to understand your voice.

To train your tablet to recognize your speech:

1. Swipe in from the right side of the screen and tap Search.

2. Type speech in the search field and then choose Windows Speech Recognition from the search results.

3. Follow the instructions in the setup program.

Chapter 2 Using your C5te/F5te Using speech recognition 31

Taking the speech tutorial

You can use the speech tutorial to learn basic commands and dictation. The tutorial takes about 30 minutes to complete.

To take the speech tutorial:

1. Swipe in from the right side of the screen and tap Search.

2. Type control panel in the search field.

3. In Control Panel, tap Speech Recognition.

4. Tap Take Speech Tutorial.

5. Follow the instructions in the tutorial program.

Using dictation and voice commands

After you’ve set up speech recognition, you can open it from Control Panel.

To use Dictation and Voice Commands:

1. Swipe in from the right side of the screen and tap Search.

2. Type control panel in the search field.

3. In Control Panel, tap Speech Recognition.

4. Tap Start Speech Recognition.

5. Ensure that the Speech Recognition window is open and listening.

6. Do one of the following:

• For voice commands, say the appropriate command. For a list of commands, search

Windows Help and Support for “speech commands.” (You can access Help and Support by typing help in the Search field and then by tapping Help and Support in the search results.)

• For dictation, open the program you want to use and start speaking.

For more information about speech recognition, search Windows® Help and Support for “speech recognition.”(You can access Help and Support by typing help in the Search field and then by tapping Help and Support in the search results.)

Using the cameras

Your C5te/F5te may include built-in web and documentation cameras.

Chapter 2 Using your C5te/F5te Using the cameras 32

Using the web camera

The web camera is a 1.3MP camera that supports color images and streaming video. It’s located on the front of your tablet. You can use the web camera for web-based video communication. The web camera has a maximum resolution of 1280 x 1024 pixels.

Use the software of your choice to operate the web camera.

Using the documentation camera

You can use the built-in documentation camera to take pictures and save them to your hard drive. The documentation camera is a 3MP, auto-focus camera. The camera lens is on the back of the tablet and includes a light to illuminate the subject.

The documentation camera can capture pictures in BMP, JPG, and TIFF formats, and it has a maximum resolution of 2048 × 1536 pixels.

Chapter 2 Using your C5te/F5te Using the cameras 33

SnapWorks™ by Motion®

The C5te/F5te includes an application called SnapWorks™ that enables you to shoot, save, edit, email, print, and copy your photos.

Taking a photo with SnapWorks

1. Press the Camera button to activate the camera and open the viewfinder.

The SnapWorks camera screen is displayed.

2. Point your camera at the subject you want to photograph.

You can use the grid and center circle to help you line up your subject(s).

3. Tap the camera icon on the right side of the screen or press the Camera button to take a picture.

To zoom in or out on your subject, use the zoom adjustment slider on the left side of

the screen.

4. Your photo is saved and stored in the image storage location specified in the SnapWorks settings. By default, this is the C:\Users\[your username]\Pictures directory.

5. If you want to take a photo with the web camera, tap the Flip icon in the upper

right-hand corner of the screen.

Chapter 2 Using your C5te/F5te Using the cameras 34

After you take your photo, you can tap the Flip icon again to return to the documentation camera viewfinder.

Configuring SnapWorks settings

1. Tap the Settings icon in the upper left-hand corner of the screen.

The SnapWorks configuration screen is displayed.

Setting Description

Camera Resolution Change the resolution of your photos—High = 2048 × 1536

pixels; Med = 1024 x 768 pixels; Low = 640 x 480 pixels (Note: These resolution values apply to the documentation camera only.)

Image Storage Specify the location where your photos are stored.

Default Saved Image Type

Use to select the image format you want to use for your photos.

GPS Stamp Visible Tap On to include a GPS location stamp on your photo. You

can see the GPS stamp when you view your photo.

Time Stamp Visible Tap On to include a time stamp on your photo.

Language Select your preferred language for the SnapWorks interface.

IP: Tap the Left Arrow icon to return to the previous screen. Tap the Close icon to

exit SnapWorks.

Chapter 2 Using your C5te/F5te Using the cameras 35

SnapWorks help

Tap the Help icon to open the Key screen where you can view all SnapWorks™ icon

descriptions.

Editing a photo in SnapWorks

1. Tap the Gallery icon in the upper left-hand corner of the screen to open the

directory where your photos are stored.

You’ll see the most recent photos you have taken.

2. Double-tap the photo you want to edit.

The photo opens and you’ll see two icons at the bottom left-hand corner of the screen that you can tap to open the SnapWorks photo editing tools.

3. Tap the Adjust Image icon to access editing tools to rotate, crop, or create a mirror

image of your photo.

You can also make contrast and brightness adjustments to your photo in this screen.

4. Tap the Annotate Image icon to access editing tools for adding text, handwriting,

brush strokes, or highlighting part of your photo.

This screen also includes tools for drawing squares, circles, or arrows on your photo as well as a color palette that enables you to change the color of your annotations.

5. When you’re finished editing your photo, tap the Camera icon in the upper left-

hand corner of the screen to return to the camera screen.

Chapter 2 Using your C5te/F5te Using the cameras 36

Sending, printing, and copying your photos

1. To send your photo via email, tap the Gallery icon in the upper left-hand corner of

the screen to open the directory where your photos are stored.

2. Tap your photo once to select it, then tap the Send icon .

You’ll see a pop-up window that tells you to choose a method to send your image.

3. Tap the Email icon to send your photo as an email attachment.

4. Select the resolution of the image you want to email in the following pop-up window.

Your default email program opens and the photo you selected is attached.

5. Tap the Printer icon to send your photo to a printer.

6. Select the resolution of the image you want to print in the following pop-up window.

The photo you selected is sent to the printer.

7. Tap the Copy icon to copy your photo to the clipboard.

8. Select the resolution of the image you want to copy in the following pop-up window.

The photo you selected has been copied to the clipboard and you can paste it into the application of your choice.

Documentation camera tips

• Hold the camera steady and give it a few seconds to focus.

• If your pen is tethered, ensure that the tether is not in front of the camera lens.

• Make sure you have adequate lighting to take your photo.

Chapter 2 Using your C5te/F5te Using the cameras 37

Using the barcode scanner

Your C5te/F5te is available with an optional integrated 1D and 2D barcode scanner that you can use to retrieve information from barcodes. Many applications use barcodes for asset tracking, identification, and process controls.

Supported barcode types

The C5te/F5te barcode scanner supports several different types of barcodes—a minimum set of barcodes is enabled at the factory.

The following symbologies are enabled by default:

• Aztec Code • Code 128

•EAN-128 •EAN-UCC-CC-AB

•Code 39 •DataMatrix

•UPC-A •UPC-E

•EAN-8 •EAN-13

• Interleaved 2 of 5 • PDF417

• Micro PDF417 • RSS-14

•RSS Limited

Other barcode types can be enabled by using EasySet® by Intermec. This application can be

installed by running setup, which is located here: C:\Motion\Software\EasySet

To use the barcode scanner:

1. Open the application that you want to receive the barcode data and place the insertion point in the appropriate field.

2. Hold the unit by the handle with the scanner lens in front of you.

3. Aim the scanner lens at the barcode.

Chapter 2 Using your C5te/F5te Using the barcode scanner 38

4. Press and release the barcode scanner button on the top of the unit or press and release the B button on the front of the Tablet PC. Ensure that the scan beam covers the entire barcode.

If the scan was successful, the data will appear in the application and you will hear a chime sound as confirmation.

Barcode scanner tips

• You will typically get the best scans if the lens is six to seven inches from the barcode.

• If you’re having trouble scanning a barcode, use two hands to steady the tablet while

you scan.

Using the RFID reader

Your Tablet PC may include an integrated 13.56 MHz RFID reader that you can use to retrieve information from RFID tags.

RFID tags use radio frequency (RF) transmissions to identify a product, animal, or person. RFID doesn’t require direct contact or line-of-sight scanning, and can be scanned through many materials, including clothing. An RFID tag can store much more data than a typical barcode, and some RFID tags can both transmit and record data. RFID can be used for asset tracking, identification, process control, healthcare, and pharmaceutical applications.

The RFID reader supports the following formats:

• ISO/IEC 14443A/B

• ISO/IEC 15693

• ISO/IEC 18000-3

• MIFARE Classic

To use the RFID reader:

1. Hold the unit by the handle with the right edge in front of you.

Chapter 2 Using your C5te/F5te Using the RFID reader 39

2. Aim the right edge of the unit at the RFID tag and align the RFID antenna/logo with the

1 – 1.5 inches

RFID tag

tag. Ensure that the tag is 1–1.5 inches (25–40 mm) from the RFID antenna scan area.

3. Press and release the RFID button on the top of the unit. The RFID light will come on to indicate that the unit is scanning.

The RFID light goes off and the unit beeps to indicate a successful scan. The ASCII and Hex data appears in the RFID Tag Data window.

OTE: RFID tags are typically used with specialized applications. See your System Administrator for

more information.

Chapter 2 Using your C5te/F5te Using the RFID reader 40

Using the battery

The C5te/F5te includes a high-capacity Lithium-ion battery that fits into the back of the unit. Under normal conditions, you can run the tablet on battery power for up to six hours. Battery life varies by configuration, applications in use, utilized features, and operating conditions. Maximum battery capacity decreases with time and use. Motion battery life estimates are based on MobileMark® 2007 performance testing.

DANGER: To avoid personal injury, handle the battery with care. Don’t open, puncture,

short, or expose it to fire or water. Keep the battery in an environment with ambient temperature of less than 104°F (40°C). For example, don’t leave the battery in a closed car in hot weather for an extended time. For more information, see the Safety and Regulatory Guide packaged with the Tablet PC.

Checking tablet battery power

You can check the remaining battery power several ways:

• When the tablet is plugged in to an outlet, the battery gauge shows whether the battery

is fully charged (green) or charging (amber).

• From the Windows 8 Start screen, swipe from the right to open the Charms bar and the

battery power indicator is displayed on the screen.

• From the notification area in the Windows desktop, tap the power indicator, which

changes appearance depending upon whether the Tablet PC is running on battery power or is plugged in.

The battery gauge is located on the front of the C5te/F5te Tablet PC as shown:

You can use the battery gauge on the front of the unit to monitor the status of the battery.

Chapter 2 Using your C5te/F5te Using the battery 41

To check the remaining battery power while running on the battery:

Press

1. Locate the battery gauge on the front of the tablet.

2. Count the number of battery gauge lights. When the tablet is on battery power, the lights indicate:

• Four green lights: The battery is 75% to 100% charged.

• Three green lights: The battery is 50% to 75% charged.

• Two green lights: The battery is 25% to 50% charged.

• One green light: The battery is 25% charged.

• Flashing amber light: The battery is low and requires an immediate charge.

When the tablet is on AC power, the lights indicate:

• One amber light: The battery is less than 25% charged.

• Two amber lights: The battery is 25% to 50% charged.

• Three amber lights: The battery is 50% to 75% charged.

• Four amber lights: The battery is 75% charged.

• Four green lights: The battery is 100% charged.

To check the remaining battery power when the tablet is off:

• Press the button next to the battery gauge on the back of the battery.

The indicator lights show the remaining charge. Each light represents about 25% of the total charge.

To check the remaining battery power from the Windows® notification area:

• Tap the power indicator, which looks different depending on whether the tablet is

plugged in.

– If the tablet is plugged in, tap the plug icon .

– If the tablet is on battery power, tap the battery icon .

Chapter 2 Using your C5te/F5te Using the battery 42

Removing and replacing the battery

Before you remove the battery, ensure that the tablet is plugged in, turned off, or in Hibernate (page 12) or Sleep mode (page 12). If you’re hot-swapping the battery (page 44), you can do so while the tablet is on and running on battery power.

To remove the battery:

1. With the back of the unit facing you, slide and hold the battery latch.

2. Insert your finger under the finger grip and remove the battery from the battery compartment.

To replace the battery:

1. Place the tabbed end of the battery into the battery compartment.

2. Press the battery down until it locks into place.

Chapter 2 Using your C5te/F5te Using the battery 43

Hot-swapping the battery

Changing a tablet battery while the tablet is in use and running on battery power is called “hot-swapping.” You can hot-swap a battery only if you have a second charged battery to replace the battery that is low on power.

While hot-swapping the battery, you will notice the following behaviors:

• The tablet’s display gets dimmer. Once the charged battery is in the tablet, the tablet’s

display brightens again.

• The battery gauge’s LED lights turn off. Once the charged battery is in the tablet, the LED

lights turn on again.

• The power button is disabled. (The power button is disabled at any time the tablet has

no battery and is not running on AC power through the power adapter.)

Important: You have one minute to hot-swap the battery. If you don’t insert a charged

battery within one minute, the tablet goes into Hibernate mode. If the tablet is in Sleep mode and you don’t insert a battery within one minute, the tablet wakes up, then goes into Hibernate mode.

To hot-swap the battery:

1. Remove the battery (page 43).

2. Insert the new battery (page 43).

Important: Use only Motion Computing C5/F5-Series batteries with the tablet.

Long-term battery storage

Don’t store any batteries with a full charge; this can cause a permanent loss of charging capacity. For long-term storage, ensure that the charge level is between 20% and 40% (two contiguous LEDs illuminated), and remove the battery from the tablet. Check stored batteries every 90 days to determine the charge status. If only one LED or no LED is illuminated, recharge the batteries to a level between 20% and 40%.

For optimum care, store the battery in a cool, dry environment. Never expose the battery to temperatures above 60ºC (140ºF).

OTE: In storage, the batteries will self-discharge at a rate of 10% of the total capacity per month.

Disposing of used batteries

A Lithium-ion (Li-ion) battery should be disposed of at a hazardous materials recycling center when it is no longer serviceable. Don’t throw it in a waste receptacle because the battery could be deposited in a landfill.

Chapter 2 Using your C5te/F5te Using the battery 44

Battery and power management tips

• To lengthen the battery’s usable life, use AC power when you can. The battery charges

automatically when the tablet runs on AC power.

• For optimal battery life, use AC power when using a USB device such as a DVD player or

external hard disk drive.

• When running on battery power, place the tablet in Hibernate or Sleep mode if you’re

going to leave it unattended for more than a few minutes.

• Remember that the display, processor, wireless cards, and accessories all draw power

from the battery, so adjust properties and disable unused accessories while running on battery power.

• Condition your battery once a month. To condition it, run the tablet on battery power

until the battery’s charge level drops below 20%.

• When running on battery power, adjust the display to a dimmer setting.

• Turn off wireless devices when they aren’t being used. Open Motion Tablet Center, tap

Wireless Settings, and enable Airplane mode.

Using Mobile Broadband with GPS

Use the information in this section to enable Mobile Broadband and the Mobile Broadband GPS receiver. Mobile Broadband access requires an account with a Mobile Broadband network carrier. To use the GPS receiver, you do not need a network connection or an account with a Mobile Broadband network carrier.

WAR NING: FAA regulations require that you disable any wireless device when traveling by

air. Failure to disable the wireless device on the tablet while traveling by air can cause communication problems with aircraft instruments.

Using the GPS receiver

Your Tablet PC may be equipped with an optional embedded Mobile Broadband with GPS module. The GPS receiver provides the current location, altitude, heading, and horizontal velocity of the tablet through Windows' Sensor Framework.

To use the GPS receiver, you do not need a network connection or an account with a Mobile Broadband network carrier.

Chapter 2 Using your C5te/F5te Using Mobile Broadband with GPS 45

Using the discrete GPS receiver with WAAS, EGNOS, and MSAS

Scan fingerprint

Fingerprint reader

The discrete GPS receiver uses satellites to provide the current location, altitude, heading, and horizontal velocity of the tablet through Windows' Sensor Framework and a virtual communications port. There is no user interface for the discrete GPS receiver. The discrete GPS receiver is always on whenever the tablet is powered on. The virtual communications port assigned to the discrete GPS receiver by Windows® can be viewed in the Control Panel System Device Manager.

OTE: To use the discrete GPS receiver, you don’t need a network connection or an account with a

Mobile Broadband network carrier or service provider.

Using Bluetooth

You can use Bluetooth to connect to accessory devices or other computers. The devices can communicate with each other when they are in range.

To access Windows 8 bluetooth settings:

1. Swipe in from the right side of the screen and tap Search.

2. Type bluetooth in the search field and then tap Settings.

3. Make sure the Bluetooth device is discoverable according to the device manufacturer’s instructions. When a Bluetooth device is discoverable, it’s visible to other Bluetooth devices within range.

4. Tap Add Bluetooth device in the search results.

5. Follow the on-screen instructions

IP: To make your C5te/F5te visible to other devices, type bluetooth in the search field and then

tap Settings. Tap Change Bluetooth settings in the search results. In the Options tab, select Allow Bluetooth devices to find this PC.

Using the fingerprint reader

You can use the fingerprint reader to log on to the tablet by scanning your fingerprint instead of entering a password. This feature provides another level of security for the tablet.

Chapter 2 Using your C5te/F5te Using Bluetooth 46

If you use the fingerprint reader, you can avoid having to enter passwords for your applications and websites. For example, instead of entering various passwords to your different website accounts, you can use your fingerprint to serve as a master password that works for all your accounts.

To set up a fingerprint password:

1. Start the Motion OmniPass™ application that you use to define and manage your fingerprint.

2. Create an Omnipass user account (called enrolling the user). See page 48.

3. Replace passwords for sites by registering OmniPass credentials. After enrolling in OmniPass, the next time you’re prompted for your password you can replace the password with your OmniPass credentials. See page 49.

You can also use OmniPass to protect sensitive data stored on your Tablet PC and to perform additional security measures. For details, see the OmniPass help.

Starting OmniPass

OmniPass works in conjunction with the fingerprint reader to create and manage your fingerprints. After enrolling as an OmniPass user, you use OmniPass to secure files, applications, and websites by using a fingerprint swipe.

To start Motion OmniPass:

1. Locate the OmniPass Control Center tile on the Windows 8 Start screen.

You may have to swipe to the left if you don’t see the tile initially.

2. Tap the OmniPass Control Center tile to open the application.

When you start the application for the first time, the Motion OmniPass application looks like this:

Motion OmniPass Initial Start Up

Chapter 2 Using your C5te/F5te Using the fingerprint reader 47

After you’ve enrolled as an OmniPass user, the application opens the OmniPass Control Center.

Create an OmniPass user account

You can enroll as a new OmniPass user to register your fingerprint. Before you begin, read the following tips.

Fingerprint reader tips

• For best results, use the Practice option to familiarize yourself with the fingerprint

reader before enrolling the first time.

• Be consistent. Hold your finger and scan at the same angle each time. For example, if you

enroll your finger with your hand open, hold your hand this way each time you scan.

• The scanner is bi-directional. You can move your finger from right to left or left to right.

• Read the prompts carefully and ensure that you wait for the prompt before you swipe.

• Swiping too quickly or too slowly can make a capture unsuccessful. Change the swipe

speed until you learn the speed that works best for you.

• When scanning, press hard enough to fully contact both the nickel-colored ring and the

sensor.

• Rub your fingers together to stimulate the natural skin oils so your fingerprint is easier to

detect. Conversely, wipe dirt or debris off your finger before scanning it so nothing interferes with the scan.

• If you’re having trouble enrolling a specific finger, enroll a different finger. Enroll multiple

fingers in case one is injured.

• If you’re repeatedly having trouble getting a good scan, you may need to clean the

sensor. See Cleaning the fingerprint reader on page 61.

To enroll as a new OmniPass user:

1. If you haven’t already done so, Start OmniPass.

2. Tap Enroll New User.

Chapter 2 Using your C5te/F5te Using the fingerprint reader 48

3. Follow the instructions in the setup program. When prompted:

1. Supply your Windows® login user name and password.

2. Select Authentec Fingerprint Device.

3. Choose which finger you want to use as your fingerprint password and swipe your

finger as instructed.

4. Enroll a second fingerprint, which you can use if you injure your first finger.

Note: You can enroll another fingerprint at another time from the OmniPass Control Center.

4. Back up your user profile to an external drive that you can store in a secure location in the event that your user profile is corrupted or if your Tablet PC must be reimaged.

Replace your passwords

Once you’ve enrolled in OmniPass, you can use your OmniPass credentials instead of your password to log on to your accounts that require passwords. This is called password replacement. You set up password replacement the next time you’re prompted for a password. Instead of entering the password, you register your OmniPass credentials.

To regi ster Omni Pass credentials:

1. Open OmniPass

2. Tap the Password Wizard link in the left pane and follow the instructions.

Using the smart card reader

Your tablet may include the optional smart card reader located on the back of the tablet next to the battery. This device uses smart card software to read information from the smart card when the card is inserted into the reader.

The smart card is an ISO 7816 PC/SC compliant, contact type smart card reader/writer.

Chapter 2 Using your C5te/F5te Using the smart card reader 49

Depending on the smart card software you’re using:

Smart card

Smart card reader

• You may receive an acknowledgement when the smart card is fully engaged in the

reader.

• You may receive a prompt or be required to shut down the software before removing the

smart card.

• Some smart cards may require you to insert the smart card for authentication and then

remove the smart card when authentication is completed.

• Some smart cards may require keeping the card in the reader while the smart card

software is running.

To insert the smart card:

1. Place the smart card in front of the smart card reader opening with the metal contacts of the embedded chip facing the back of the tablet.

2. Slide the smart card into the smart card reader until the card is firmly seated in the reader.

To remove the smart card:

1. Depending on your smart card software, you may be required to shut down the smart card software first before removing the card. With this type of software, removing the smart card while the tablet is running can result in logging off or shutting down the tablet.

2. Pull the card straight out of the reader.

Chapter 2 Using your C5te/F5te Using the smart card reader 50

Using the SIM card slot

SIM card slot

Diagnostic port

The SIM card slot holds one SIM card. You need to use a SIM card only if you’re using mobile broadband on a GSM/UMTS/HSPA network. Contact your service provider for additional information.

To inse rt a SIM c ard:

1. Turn off the tablet and remove the battery (page 43).

2. Locate the SIM slot door and open it.

Note: The SIM card slot and a diagnostic port are behind the SIM card slot door. The SIM card slot is below the diagnostic port.

3. Place the SIM card label-side down on the battery tray. Ensure that the notch on the SIM card is in the upper-right corner.

4. Slide the SIM card into the SIM card slot until it clicks into place. You may need to use a paper clip to push the SIM card all the way in.

To remove a SIM card:

1. Turn off the tablet and remove the battery (page 43).

2. Open the SIM card slot door.

3. Press the card in slightly until it pops out. You may need to use a paper clip to push the SIM card in to release it.

Chapter 2 Using your C5te/F5te Using the SIM card slot 51

Using Windows Action Center

Windows Action Center provides a central location for you to manage your Tablet PC’s security settings and learn more about improving security. If a problem is detected (such as an out-of-date antivirus application), the Action Center sends you an alert and provides recommendations for how to remedy the situation.

To open Windows Action Center:

1. Swipe in from the right edge of the screen and tap Search.

2. Type action center in the search field and then tap Settings.

3. Tap Action Center in the search results.

The Windows Action Center screen is displayed, where you view and change your Tablet PC’s security settings and view and configure Maintenance options.

Setting up user accounts

If you share the tablet with other users, you can set up a user account for each user. User accounts control which files and programs users can access and what types of changes users can make to the computer. A user account allows each person to have their own settings.

To create a user account:

1. Swipe in from the right edge of the screen and tap Settings.

2. Tap Change PC settings.

3. Tap Users in the left-hand panel.

4. Tap the Add a user option under the Other users section at the bottom of the window. You may have to scroll down to see this section.

5. Enter the user’s email address that is associated with the user’s Microsoft account.

If the user doesn’t have a Microsoft account, you can create one using the email address of his or her choice.

6. You can create a user without a Microsoft account; this is called a Local account.

A Local account user will not be able to download any apps from the Windows store without a Microsoft account, but this can be set up later.

7. Follow the remaining instructions for creating the user account.

Chapter 2 Using your C5te/F5te Using Windows Action Center 52

Locating your serial number

You can locate the serial number for your C5te/F5te in these places:

• White label underneath the battery, which is located on the back of the tablet. The

number begins with “S/N.” To remove the battery, see Removing and replacing the

battery on page 43.

• Motion Tablet Center main screen

• BIOS setup utility

Backing up your system

To protect against loss or accidental deletion, schedule backups to occur automatically on a regular basis. Windows 8 has a backup tool called File History that you can use to configure what you want to backup and to schedule backups on a regular basis. You can use File History to make automatic backup copies of your files onto an external hard disk or network drive. It works with folders and files stored in your Windows libraries, which include your Documents, Music, Photos, and Videos folders as well your Favorites and Contacts and files on your Windows Desktop.

File History performs continuous incremental backups that allow you to save multiple versions of a file or document. If you accidentally delete a file or need to revert to a previous version of that file, you can easily step back through the various saved versions of that file in order to locate the version that you need.

By default, File History makes hourly back-ups, but you can specify the frequency yourself, choosing anything from 10 minutes to a single daily back-up. You can also specify how long you want File History to keep old versions of your files.

To schedule backups with File History:

1. Swipe in from the right edge of the screen and tap Search.

2. Type backup in the search box, tap Settings, and then choose Save backup copies of your files with File History from the search results.

3. The File History window opens and will display any external drives connected to your PC. If you want to specify another location for your backups such as a network drive, tap Select Drive in the left-hand panel.

4. Tap

Advanced Settings to modify the way that File History works.

• Save copies of files—the default setting for backups is hourly back-ups, but you can

vary this period from 10 minutes to 24 hours.

• Size of offline cache—use this option to set a limit on the amount of disk space used

for backups.

• Keep saved versions—specify how long you want to keep old versions of your files.

5. Tap Turn on.

Chapter 2 Using your C5te/F5te Locating your serial number 53

6. To restore files, tap Restore Personal Files in the File History window and follow the instructions.

Restoring your system

Windows 8 includes specialized tools for restoring your system in case of issues or system failure. This section covers:

• Creating a recovery image to use to restore your computer if necessary

• Using the recovery image to boot your system and easily access a number of recovery

and troubleshooting tools that you can use if you encounter any issues with your Windows 8 installation

• Performing a System Restore

Creating a Windows 8 recovery drive

Once you’ve set up your C5te/F5te, you should create a recovery drive. A recovery drive will allow you to boot your system and easily access a number of recovery and troubleshooting tools that you can use if you encounter any issues with your Windows 8 installation.

Before you begin

You’llneeda16GBUSBflashdrive.

NOTE: When you create a recovery drive, this will erase anything already stored on your USB flash

drive. You should transfer any important data to another storage device before creating a USB recovery drive.

Create a USB recovery drive

To create a USB recovery drive:

1. Swipe in from the right edge of the screen and tap Search.

2. Type recovery in the search box, tap Settings, and then choose Create a recovery drive from the search results.

3. Tap Yes when asked if you want to allow the following program to make changes to your computer.

4. In the next window, leave the checkbox selected and then tap Next.

5. Follow the steps in the Recovery Drive wizard.

Chapter 2 Using your C5te/F5te Restoring your system 54

Microsoft’s website provides additional information about creating a Windows 8 USB recovery drive:

http://windows.microsoft.com/en-us/windows-8/create-usb-recovery-drive.

Using the Windows 8 recovery drive

If you have issues with your Windows 8 installation, you can boot from the recovery drive you created to access recovery and troubleshooting tools.

OTE: A Recovery Drive is bit specific—if you create a Recovery Drive in a 64-bit version of

Windows 8, you can't use that drive to boot up and repair a 32-bit version of Windows 8. Likewise, you can't use a 32-bit Recovery Drive to boot up and repair a 64-bit system.

To use the recovery drive:

1. Insert the recovery drive in the USB port and power on your Tablet PC.

The Windows logo is displayed for few moments and you’ll then be prompted to choose a keyboard layout. If you don’t see your keyboard layout on this first screen, tap the See more keyboard layouts link until you find one that fits.

2. On the following screen, tap the Troubleshoot tile to access the tools on the recovery drive.

Three tiles are displayed on the following screen: Refresh your PC, Reset your PC, and Advanced options.

3. Tap Refresh your PC if you want to perform a fresh install of Windows 8.

If you select this option:

• Your files and personalization settings won’t change.

• Your PC settings will be changed back to their defaults.

• Apps from Windows Store will be kept.

• Apps you installed from disks or websites will be removed.

• A list of removed apps will be saved on your desktop.

4. Tap Reset your PC If you have backed up all of your data and you want to reinstall a fresh copy of Windows 8. In this case, your system will return to the same condition it was in when you started Windows 8 for the first time.

5. Tap Advanced options to access tools that you can use to recover your damaged Windows system:

• System Restore—restores all system files and settings to the state they were in when

the last restore point was created. All your data will remain intact.

• System Image Recovery—select this option to the Windows 8 recovery drive you

created to perform a complete restoration of your entire system. All your current programs, system settings, and files will be replaced with the versions that were current when you made the recovery image.

• Automatic Repair—this option scans your system and analyzes the various settings,

configuration options, and system files to find corrupt files or issues with

Chapter 2 Using your C5te/F5te Restoring your system 55

configuration settings. If it detects any of these problems, it automatically attempts to fix them so that your system can boot normally.

• Command Prompt—use this tool to access the command line tools.

Note: This option is for advanced users only.

6. Select the option that best fits your needs and follow the instructions displayed on your screen.

Using System Restore

System Restore is a recovery feature in Windows 8 includes that allows you to restore your computer to a previous state. This is useful if you have issues with your Tablet PC and you can’t determine the cause. Windows 8 automatically creates restore points whenever you make changes to your system such as installing applications. These restore points include crucial operating system files and certain parts of the registry that could be altered by the pending change operation.

If you experience problems with your system, you can use these restore points to restore your system to a previous state prior to changes being implemented. You can also create a restore point manually before you make changes to your system.

To manually create a System Restore point:

1. Swipe in from the right edge of the screen and tap Search.

2. Type restore point in the search box, tap Settings, and then choose Create a restore point from the search results.

The System Protection tab of the System Properties control panel is displayed.

3. Tap Create and name your restore point when prompted.

4. Tap Create.

The restore point creation process begins.

To use System Restore to restore your system:

1. Swipe in from the right edge of the screen and tap Search.

2. Type restore point in the search box, tap Settings, and then choose Create a restore point from the search results.

The System Protection tab of the System Properties control panel is displayed.

3. To restore your computer, tap System Restore and the main screen for System Restore opens. Tap Next and you’ll see a list of available restore points that you use to restore your system.

4. Select the restore point you want to use and follow the instructions on the next screens.

Chapter 2 Using your C5te/F5te Restoring your system 56

Finding other software

For information about other software for your tablet, go to Motion Computing Accessories and the Motion Computing Store. You will find links to software solutions for purchase as well as free downloads from Motion Computing and its service partners.

Chapter 2 Using your C5te/F5te Finding other software 57

Caring for your C5te/F5te

Proper care and maintenance will keep your C5te/F5te Tablet PC working and in good condition. For general information about care of the tablet and its components and accessories, see the Safety and Regulatory Guide included with your Tablet PC.

WAR NI NG : Follow the guidelines listed below when caring for your C5te/F5te Tablet PC

and its components. Improper use may damage the Tablet PC and its components and void the warranty.

General care

• Protect the Tablet PC from exposure to extreme temperatures, shock, liquids, and strong

magnetic fields.

• Don’t place heavy objects on top of the Tablet PC.

• If you’re storing the tablet for a long time, unplug the power adapter and remove the

battery after partially discharging it.

• Don’t open the case. Opening the case will void your warranty.

Chapter 3 Caring for your C5te/F5te 58

Caring for the display

Follow these suggestions to keep your display clean:

• Clean fingerprints and smudges from the display surface by wiping it with the cloth

provided.

• If needed, use a cleaning solution recommended by Motion Computing to clean the

display. Spray the solution on a cloth then wipe the display. Never spray directly onto the display surface and never use an abrasive cleaner.

• If liquid is spilled on the display, wipe it up immediately with a soft cloth like the one

provided with the tablet.

• Use only the C5te/F5te pen to write on the display. Any other object could damage the

display surface.

• Protect the display surface from unnecessary contact by using a case when transporting

the Tablet PC.

• Cover the display with a protective display film.

• Avoid exposing the display to direct sunlight for long periods of time.

• If your tablet comes with a View Anywhere display, clean with any alcohol-based

product recommended for anti-reflective glass. Other cleaning products might leave a residue.

• You can also purchase protective display films as well as protective cases from the

Motion Computing Accessories page.

Cleaning solutions

Motion Computing maintains a list of C5te/F5te chemical disinfectants and cleaning

products on its website.

WAR NING: Don’t use any corrosive or abrasive cleaners to clean or disinfect the tablet.

Caring for the pen

If you use a pen with your tablet:

• Store the pen in the pen holder when not in use.

• Avoid storing the pen vertically on its tip. It can damage the pen-to-digitizer function.

• Keep the pen away from any liquid because the pen contains electronic components

that could be damaged when wet.

• In certain environments, particles or debris can stick to the pen tip or the Tablet PC

display. Make sure you wipe off the pen with a soft cloth to avoid scratching the display.

• Change the tips regularly, especially if you drop the pen onto a rough surface that could

damage the tip or embed debris in it. Damaged pen tips can scratch the display.

Chapter 3 Caring for your C5te/F5te Caring for the display 59

OTE: To order pens or new pen tips, go to Motion Computing Accessories.

Replacing pen tips

Pen tips eventually wear down or get damaged, so the pen includes extra tips and a tool for replacing them.

With typical use, you should change the pen tip every 90 days. If you use the pen in a dirty or dusty environment, you should change the pen tip every 30 days. Particles can become embedded in the pen tip and scratch the display.

To replace the pen tip:

1. Grasp the old tip with the replacement tool. Use the notch on the ring to grab the tip.

2. Pull the old tip out of the pen.

3. Insert a new tip, placing the flat end of the pen tip in first.

4. Apply slight pressure to push the tip in to place.

Cleaning in a healthcare environment

This section describes the cleaning procedures for the Tablet PC in a healthcare environment.

Disinfecting procedures

You should periodically disinfect the tablet according to the institutional polices of surface and equipment safety and cleanliness. Motion Computing has tested a variety of antimicrobial solvents and information about specific products is available upon request.

According to the Centers for Disease Control and Prevention, “items that do not ordinarily touch the patient or touch only intact skin aren’t involved in disease transmission, and

generally do not necessitate disinfection between uses on different patients”. recommend using an EPA-approved low-level disinfectant when general cleaning is required. For a list of cleaning solutions tested by Motion Computing, see Cleaning

solutions on page 59.

If the tablet becomes soiled with blood or other body fluids, a hospital-approved low-level disinfectant that is tuberculocidal/virucidal when used at recommended dilutions and contact times can be used.

1. Centers for Disease Control and Prevention. “Sterilization or Disinfection of Medical Devices-General Principles.” 2002.

<www.cdc.gov/ncidod/dhqp/bp_sterilization_medDevices.html> (20 Sept. 2006).

Chapter 3 Caring for your C5te/F5te Cleaning in a healthcare environment 60

Visibly soiled areas should first be cleaned and then disinfected, or a detergent disinfectant can be used. For disinfection, the cleaned areas should be moistened with the appropriate

germicide and allowed to air-dry.

If the tablet is used with patients who are infected or colonized with vancomycin-resistant enterococci or other drug-resistant microorganisms judged by the infection control program (based on current state, regional, or national recommendations, to be of special or clinical or epidemiologic significance or with highly virulent microorganisms such as Ebola or Lassa), then the unit should be dedicated to one patient or patient cohort or subjected to

low-level cleaning between patient uses.

Training and documentation considerations

All users of tablet computers in the healthcare environment should be provided with training on proper cleaning procedures. Cleaning procedures should be added to the institution's policies and procedures for infection prevention.

Cleaning the fingerprint reader

Under normal circumstances, you should clean the fingerprint reader once a month, or whenever necessary.

To clean the fingerprint reader:

1. Shut down the tablet, unplug it, and remove the battery.

2. Lightly spray a cotton swab with household window cleaner.

3. Gently rub the sensor surface with the cotton swab, slowly rotating the swab so a new, clean surface of the swab is constantly exposed to the sensor surface. Don’t allow cleaner to drip or run down into the electronics around the sensor.

Don’t use bleach, solvents, or abrasives. Don’t spray or pour any liquid directly on the sensor.

4. After cleaning, gently rub the surfaces again with a clean, dry cotton swab. Use a clean swab each time you clean the sensor.

Chapter 3 Caring for your C5te/F5te Cleaning the fingerprint reader 61

Caring for the tablet battery

To maximize the performance of the battery, condition the battery once a month. To condition it, run the tablet on battery power until the battery’s charge level drops below 20%. Then use AC power until it is fully charged.

You will receive a message if the tablet detects that the battery needs conditioning.

For more information about batteries, see Using the battery on page 41.

Traveling with your C5te/F5te Tablet PC

Use the following tips when you travel with your C5te/F5te Tablet PC:

• Put the Tablet PC in a case to protect the display. Motion Computing sells a variety of

cases for the C5te/F5te. You can purchase one at the Motion Computing Accessories page.

• Store the pen in the pen holder located on the back side of the tablet handle.

• Pack the Tablet PC securely in a briefcase or hand-carried luggage and keep it separate

from toiletries, liquids, and food. Don’t pack it in checked luggage.

• Before extended use in the field or long trips away from AC power, adjust the power

properties to maximize battery conservation. See Power Settings on page 23.

• For international travel, use the appropriate adapters for your destination’s electrical

outlets. You don’t need to buy a voltage converter; the Motion AC adapter will automatically adjust to different voltages.

• You may want to carry proof of ownership or a merchandise passport when traveling

internationally.

• Consult your insurance and credit card companies to learn about emergency travel

assistance in case your Tablet PC becomes lost or disabled.

• Don’t carry your tablet through a metal detector.

• Turn off the Tablet PC or place it in Hibernation mode for airplane takeoff and landing.

OTE: The FAA requires that you suspend Wi-Fi, Bluetooth, and mobile broadband connections

before boarding a plane. You can disable them all at once. To disable the wireless devices, open Motion Tablet Center mode.

, tap Wireless Settings in the Tablet screen and enable Airplane

DANGER: Don’t transport Li-ion batteries in checked baggage. The baggage hold can get

very hot, which can cause the Li-ion battery to overheat and result in a possible explosion. You can take up to two spare batteries in carry-on luggage, in addition to the one in the unit. Transporting batteries in checked baggage or transporting more than two spare batteries is a violation of federal transportation regulations.

Chapter 3 Caring for your C5te/F5te Caring for the tablet battery 62

Troubleshooting and FAQs

Motion Computing Tablet PCs are thoroughly tested for performance and quality, but occasionally issues can still occur. If you don’t find the information you’re looking for in this section, go to Motion Computing Support.

OTE: Enterprise users should contact their support organization for assistance with resolving

tablet, application, or connectivity issues.

Troubleshooting

Use the information in this section to identify and resolve common issues. If an issue has more than one potential cause, the most common cause is listed first.

Power issues

The tablet doesn’t shut down

• An application might have stopped responding. Use Task Manager to manually stop the

application. Press Ctrl+Alt+Delete or press the Security button and select Tas k

Manager. You can also press and hold the power button for five seconds to force the tablet to shut down. However, this is not recommended.

• If the tablet doesn’t shut down after holding the power switch for five seconds, do the

following:

1. Remove the battery (see Removing and replacing the battery on page 43).

2. Unplug the power adapter.

Chapter 4 Troubleshooting and FAQs 63

3. Press the camera, Windows® Security, and Motion Tablet Center buttons

Motion Tablet Center button

Windows® Security button

Camera button

simultaneously. For the locations of these buttons, see below.

The tablet won’t enter Hibernation mode

• Hibernation might not be enabled. Enable hibernation by adjusting the power button

behavior from Motion Tablet Center’s Power settings. See Power Settings on page 23.

The tablet doesn’t return from Hibernation mode while on battery power

• The battery might be depleted. Plug the Tablet PC’s power adapter into an AC outlet and

into the Tablet PC.

The power button is blinking but nothing is happening

• The tablet is in Sleep mode. Press the power button to wake up the tablet. To power off

the tablet completely, you can press and hold the power button for about five seconds. However, this is not recommended. Under normal conditions, power off the Tablet PC by swiping from the right to open the Charms bar, tap Settings, and then tap the Power icon.You should see three options: Sleep, Restart, and Shut down. Tapping Shut down will close Windows 8 and turn off your PC.

The display goes black while the Tablet PC is still turned on

• The tablet might have turned off the display to save power. To restore the display, touch

the screen with your finger or the pen.

• The tablet might have gone into Sleep mode. Press and hold the power button for

about one second.

• The tablet might have gone into low-battery Hibernation mode. In Hibernation mode,

the power status light is off. Plug the tablet in to AC power, then press and hold the power button for about one second.

Chapter 4 Troubleshooting and FAQs Troubleshooting 64

Battery issues

The battery doesn’t last very long (less than four hours)

• Hot or cold conditions can adversely affect the battery charge. Use AC power if you’re

operating the tablet in these conditions.

• Accessory devices such as a DVD player and applications that make heavy use of the

hard drive can drain the battery more quickly. Remove the accessory devices or use AC power if possible.

• Condition the battery once a month by using the tablet on battery power and allowing

the battery charge to drop below 20% before connecting the battery to AC power.

• The battery may be weakening. Use a different battery if possible.

• For other battery optimizing tips, see Battery and power management tips on page 45.

Display issues

The display is too dim

• The display brightness may be set too low. Use Motion Tablet Center’s Power settings to

brighten the display. Open Motion Tablet Center, tap Power, then tap Advanced. Adjust the display brightness slider to the desired level.

The display is unreadable or distorted

• The screen resolution and color quality may not be set correctly. Use Windows Display

Properties to reset the display settings. Swipe in from the right side of the screen and tap

Search.Type control panel in the search field. In Control Panel, select Display, tap Adjust resolution in the left pane change the resolution until the display appears

normal.

1. The display driver may have been removed or become corrupted. Use Windows Device Manager to reinstall the driver. Swipe in from the right side of the screen and tap Search.Type driver in the search field, tap Settings, and select Update device driver from the search results. In the Device Manager window, expand Display adapters. Select the adapter and select Action > Update Driver Software. Follow the on-screen instructions.

Touch or pen issues

The Tablet PC doesn’t respond to the pen I’m using

• Use only the C5/F5-Series pen with the tablet. The Tablet PC doesn’t respond to other

digitizer pens, even Motion Computing pens for other models.

When I add an external display, touch input doesn’t appear on the desired display

• Configure touch settings on the desired display. Open Motion Tablet Center and tap

Tablet PC Se ttings. Tap the Display tab, then tap Setup next to next to Configure your pen and touch displays. Tap Pen input or Touch input depending upon the type of

input you want to use on the display. Follow the on-screen instructions.

• To configure display options, open Motion Tablet Center and tap Tablet PC Settings.

Tap the Display tab, select the display you want to configure from the drop-down list and then tap Calibrate. Tap Pen input or Touch input depending upon the type of input you want to use on the display. Follow the on-screen instructions.

Chapter 4 Troubleshooting and FAQs Troubleshooting 65

When I write, I inadvertently click the function button on the pen

• Try adjusting how you hold the pen. Avoid resting your finger on the function button.

You can also disable the function button. Open Motion Tablet Center and tap Pen and

Touch. Tap the Pen Options tab, and deselect the checkbox beside Use the pen button as a right-click equivalent.

The pen function button doesn’t work

• You may not be pressing the button early enough. Try pressing and holding the pen

function button before you touch the pen to the display surface.

• The pen function button may be disabled. To enable it, open Motion Tablet Center and

tap Pen and Touch. Tap the Pen Options tab, and select the checkbox beside Use the

pen button as a right-click equivalent.

The eraser doesn’t work

• The eraser may not be enabled. To enable it, open Motion Tablet Center and tap Pen and

Touch. Tap the Pen Options tab, and select the checkbox beside Use the top of the pen to erase ink (where available). The eraser works on digital ink only, not text.

On-screen instructions require me to press Enter or Esc, but I don’t have a keyboard

• Connect a keyboard to the tablet to continue.

The C5te/F5te responds to my finger but not my pen

• The tablet may be configured to ignore pen input. You can use Motion Tablet Center to

configure pen settings. Open Motion Tablet Center and tap Tablet PC Settings. Tap the Display tab, then tap Setup next to next to Configure your pen and touch displays. Tap Pen input and follow the on-screen instructions.

The C5te/F5te tablet is too sensitive to touch

• Consider changing a touch setting so that you have to double-tap the display to enable

touch. Open Motion Tablet Center and tap Touch Settings. Select the option Double-

Tap Mode under Touch/Pen Arbitration.

The pointer on the screen doesn’t align with the pen

• The pen may need to be calibrated. Open Motion Tablet Center and tap Tablet PC

Settings. Tap the Display tab and tap Setup beside Configure your pen and touch displays. Follow the on-screen instructions.

Ports and connectors issues

The tablet doesn’t recognize the USB device

• Windows may take a short time to recognize the USB device. Wait a few moments to see

if the device is recognized.

• The device may not be connected properly. Check the connection and ensure that it’s

inserted properly into the USB port.

• The correct driver might not be included with Windows 8. Check the USB device

manufacturer’s website for a current driver.

Chapter 4 Troubleshooting and FAQs Troubleshooting 66

The C5te/F5te is in its dock, but the tablet doesn’t recognize any accessory devices, such as the external disk drive or monitor

• The C5te/F5te may not be fully seated in the dock. Remove it from the dock and then

replace it.

Network issues

The wireless adapter keeps connecting even when I don’t want it to

• Disable the desired wireless adapter from Motion Tablet Center. Open Motion Tablet

Center, Tap Wireless Settings in the Tablet screen. The Windows Networks menu opens. Tap the wireless network you want to disable and tap Disconnect.

I can’t connect to a wired Ethernet network

• To connect to an Ethernet network, your C5te/F5te must be connected to a docking

station. The Ethernet port for the C5te/F5te is located on the dock.

• The connection to the dock may be loose. Remove the Ethernet cable and reconnect it.

• The Ethernet network may be experiencing problems. Check with your System

Administrator to determine the status of the network.

• Replace the Ethernet cable.

Wi-Fi issues

I can’t connect to a Wi-Fi network

• Wireless communication may not be turned on. To turn on wireless communication,

swipe in from the right edge of the screen, tap Settings, and then tap Change PC settings. Tap Wireless, and then make sure Airplane mode is set to Off and your wireless device is set to On.

• Your Tablet PC may be too far from the wireless router or access point. Move your tablet

closer to the router or access point.

• Your C5te/F5te may not have located a Wi-Fi network. Open Motion Tablet Center, Tap

Wireless Settings in the Tab le t screen. The Windows The list of available wireless networks is displayed in the Wi-Fi section.

• You may not have access to the network. Obtain a user name and password from your

System Administrator.

• Your tablet’s security settings may prevent a connection. For example, the network may

not be broadcasting the network name (SSID) or encryption may be required. Check with your System Administrator.

Chapter 4 Troubleshooting and FAQs Troubleshooting 67

Bluetooth issues

I can’t connect to a Bluetooth network

• Ensure that Bluetooth is enabled. Open Motion Tablet Center, and tap Power. Ensure

that the switch beside Bluetooth is set to On.

• Swipe in from the right side of the screen and tap Search. Type bluetooth in the search

field and then tap Settings.Tap Add Bluetooth device in the search results. Follow the on-screen instructions.

• Your Bluetooth device is out of range. The Bluetooth devices are designed for short-

range communication and can connect at distances up to 33 feet (10 meters).

No other Bluetooth device can detect the C5te/F5te tablet

• To make your C5te/F5te visible to other devices, type bluetooth in the search field and

then tap Settings. Tap Change Bluetooth settings in the search results. In the Options tab, select Allow Bluetooth devices to find this PC.

I tried to pair my Bluetooth device several times but it isn’t detected:

• Ensure that the Bluetooth device you’re adding is discoverable. See the device’s

manufacturer’s instructions for more information.

• Ensure that the Bluetooth device battery is charged.

• If the tablet still can’t detect the Bluetooth device, contact the device manufacturer for

assistance.

Bluetooth wireless tips

Motion Computing and its Bluetooth partners have worked to ensure a positive experience with this technology and to ensure Bluetooth interoperability. In doing so, we have found the following issues:

• Interference—If you’re running Bluetooth and Wi-Fi at the same time, interference can

affect the Bluetooth performance. This is most noticeable if:

– You try to transfer large amounts of data, such as with file transfers

– Several Bluetooth devices are operating in an office simultaneously

• Speech Recognition—Bluetooth audio has not been fully developed for speech

recognition. Therefore, for speech recognition, we recommend that you not use a Bluetooth wireless headset.

• Disconnection—Some Bluetooth devices will disconnect when they go into power-

saving mode. Most devices will automatically reconnect when they become active again.

• Incompatible drivers—If you attempt to install other wireless headset or other audio

drivers (such as Bluetooth or USB) over the Tablet PC audio drivers, a malfunction of the Tablet PC audio system may occur because the drivers may not be compatible.

• Interoperability—If you’re having issues with interoperability of Bluetooth devices,

contact the manufacturer of your Bluetooth device and check its compatibility with the Bluetooth software installed on your Tablet PC.

• Security—Bluetooth devices use a passkey to create a secure connection between the

Tablet PC and the Bluetooth device. Although the passkey exchange helps to secure your data, Bluetooth wireless technology shouldn’t be considered completely secure.

Chapter 4 Troubleshooting and FAQs Troubleshooting 68

Mobile broadband with GPS issues

GPS receiver

antenna area

I can’t connect to a mobile broadband network

• Mobile broadband is only available if you purchased your C5te/F5te with the optional

Mobile Broadband with GPS module.

• A mobile broadband network requires you to have a data plan from a cellular network

provider.

• You may need a SIM card from your network provider. If the network is on a UMTS

network (such as AT&T®, Orange® or T-Mobile®), your network carrier must provide you with a SIM card and you insert the SIM card (see Using the SIM card slot on page 51). The SIM card contains your account information.

• Ensure that Mobile Broadband is enabled. Open Motion Tablet Center, and tap Power.

Ensure that the switch beside Mobile Broadband is set to On.

I changed my SIM card and now I can’t connect to my mobile broadband network

• The tablet should be shut down when changing or inserting the SIM card. Restart the

tablet to enable the SIM card.

The GPS doesn’t work

• The GPS receiver is only available if you purchased your C5te/F5te with the optional

Mobile Broadband with GPS module.

• The GPS navigation or mapping application your are using must be able to handle

standard NMEA GPS information.

• If performance is slow, you may be blocking GPS antenna, which is located on the right,

bottom side of the Tablet PC. Don’t hold the tablet in this area (shown below) when using the GPS receiver.

Audio issues

No sound is coming from the built-in speakers

• Ensure that nothing is connected to the audio in/out jack. Connecting headphones or

external speakers disables the built-in speaker.

• The volume may be set too low or muted. Swipe from the right to open the Charms bar,

tap the volume icon , and adjust the slider to raise the volume.

No sound is coming from the built-in speakers or external speakers

• The integrated audio components may have been overwritten. If you install a third-party

audio device (such as a USB or Bluetooth device), the integrated audio may stop

Chapter 4 Troubleshooting and FAQs Troubleshooting 69

working. If this happens, reinstall the audio drivers. After you install these, if you still have issues with volume, contact your System Administrator or service provider.

System issues

I forgot my BIOS password and can’t access my tablet

• You can enter several incorrect passwords before the BIOS temporarily locks the system.

You can try again by restarting the system. If you still can’t log on, contact your System Administrator.

The tablet seems to be operating slower than usual

• Reboot your Tablet PC.

• The solid state drive (SSD) may be full or nearly full. You can free up space on your drive.

Swipe in from the right and tap Search. Type disk cleanup, tap Settings, and select Free up disk space by deleting unnecessary files.

• Unlike traditional hard drives, SSD drives, such the one installed in C5te/F5te, see no

performance benefit from traditional HDD defragmentation tools. Using these tools simply adds unnecessary wear to the SSD. It is recommended that you disable any automatic or scheduled defragmentation utilities on your tablet.

I want to make my tablet run faster

• Change the Power plan to High Performance by using the Power settings in the Motion

Tablet Center (see Power Settings on page 23).

Frequently asked questions

How can I make the battery charge last longer?

• By default, the power plan for the C5te/F5te is a balance between optimal performance

and a long battery charge. If you want the tablet to run longer between charges, use the

Power saver power plan. Open Motion Tablet Center, tap Power, and select Power Saver from the drop-down list next to Choose a power plan.

• Set the display to the dimmest level you’re comfortable with. Open Motion Tablet

Center, tap Power, tap Advanced, and adjust the brightness slider to a dimmer level.

• Turn off power for unused devices. To disable devices, open Motion Tablet Center, tap

Power, and turn off the devices you don’t need.

• Stop unnecessary background applications and processes.

How do I know if the tablet is charging when I plug it in to a power adapter?

• The battery gauge button on the front of the tablet is amber when the tablet is charging.

How do I check the battery charge when I’m running on the battery?

• The battery gauge on the front of the tablet shows the level of battery charge. The

number of lights indicate the level of charge where four green lights indicate a full charge and one green light indicates that about 20% charge is remaining. If the lights are flashing amber, the battery is low and requires immediate charging.

Chapter 4 Troubleshooting and FAQs Frequently asked questions 70

How do I clean the display screen?

• To clean the display screen, wipe it with a soft cloth (like the one supplied). Don’t spray

cleaners, pour any liquid, or wipe any abrasive cleaner on the screen or any surface of the Tablet PC. Don’t use tissues or paper towels to clean the screen. They contain wood fibers that may scratch the surface.

• Motion Computing maintains a list of C5te/F5te chemical disinfectants and cleaning

products on its website.

How do I clean the View Anywhere display screen?

• To clean the View Anywhere display screen, wipe it with a soft cloth (like the one

supplied). If needed, clean with any alcohol-based product recommended for use on anti-reflective glass. Other cleaning products may leave a residue. Don’t spray cleaners, spray or pour any liquid, nor wipe any abrasive cleaner on the screen nor any surface of the unit. Don’t use tissues or paper towels to clean the screen. They contain wood fibers and may scratch the surface.

Will scratches affect the performance of the display or digitizer?

• Our testing has not found appreciable loss of performance on a scratched display.

How sensitive is the screen to various elements?

• As with any computer or electronic device, you should protect the Tablet PC from liquids,

dirt and sand, other contaminants, and extreme heat.

Will any monitor, USB device, keyboard, or mouse work with the C5te/F5te?

• If the device has a driver for Windows, it will work with the Tablet PC. For a list of

products that have been tested for Windows 8, check the Microsoft website.

How do I adjust the Tablet PC for left-handed use?

• Change where menus appear on the screen by indicating which hand you write with by

using the Tab let PC settings in the Motion Tablet Center (see Tablet PC settings on page 20).

How can I stop the display screen from rotating automatically?

• You can adjust the order in which your screen rotates in Control Panel. Swipe in from the

right side of the screen and tap Search.Type control in the search field and then choose

Control Panel from the search results. In Control Panel, select Display and tap Screen Resolution. Deselect the checkbox beside Allow the screen to auto-rotate then tap Apply.

What do I need to use the Tablet PC in another country?

• You will need a travel plug adapter, which you can find in airports and travel stores. You

don’t need to buy a voltage converter; the Motion AC adapter will automatically adjust to different voltages.

Chapter 4 Troubleshooting and FAQs Frequently asked questions 71

Where can I learn more about my C5te/F5te?

• To learn more about the C5te/F5te, check out our training tutorials and knowledge base

articles. Motion Computing also offers corporate training classes.

Can I recycle my old computer?

• Yes. Motion Computing has a recycling program that allows free return of all Motion-

branded products and non-Motion-branded electronics with the purchase of a similar Motion tablet for processing and disposal in an environmentally safe manner. For details, go to Motion Computing recycling program.

Chapter 4 Troubleshooting and FAQs Frequently asked questions 72

Index

AC power 9 accessories 14, 57 Airplane mode 21, 22 amber light 70 amber lights 41 antenna, GPS 69 audio

drivers 70

backing up your system 53

File History 53

battery

checking status 41, 70 gauge 5, 9, 42 health 62 hot swapping 44 optimizing 45, 70 status light 41 swapping 44 tips 45 using 41–45

BIOS

troubleshooting password 70 blinking lights 41 blinking power button 64 Bluetooth 46

discovery 68

tips 68

troubleshooting 68 brightness

adjust 25 buttons

configuring 21, 29

functions 29

C5te/F5te

getting started 9

optional features 2

optional setup tasks 13

overview 4

specifications 1

camera

button 6 documentation 6, 7 help 36 settings 35

web 6 cameras 32 care and maintenance

display 59

fingerprint reader 61

general care 58

pen 59

replacing pen tips 60 checking battery status 41 cleaning

display 59

fingerprint reader 61 Computrace® Complete 3 conditioning the battery 62 connecting

display monitor 14

docking station 13 Corning Gorilla glass 1 Ctrl+Alt+Del 6, 12 customizing buttons 21, 29

dictation and voice commands 32 dictation mode 31 directional pad 5, 29 disable unused devices 24 discrete GPS with WAAS, EGNOS, and

MSAS 2 display

care and cleaning 59

connecting external 14

orientation 71

scratch resistance 1

scratches 71

troubleshooting 65

turning off automatic rotation 71 disposing of used batteries 44 docking connector 6 docking station 13 documentation camera 33 double-tap 16

Index 73

downloads, free 57

eraser

use top of pen as 19

external monitor 30

FAA wireless air travel requirement 62 features

optional 2

fingerprint reader 46

set up password 47

tips 48 five-way directional controller 5, 29 flashing lights 41 flicks settings 19 folder options

change 16

one-tap open for touch 16 free downloads 57 front panel buttons

configuring 21, 29 front panel light 41 Function button

about 29

Gorilla glass 1 GPS antenna 69 GPS receiver 2, 10, 45

discrete GPS receiver with WAAS, EG-

NOS, and MSAS 46

troubleshooting 69 green lights 41

handwriting panel 26, 27 hibernate 12, 64 hot swapping battery 44

indicator light 41 integrated microphones 30

keyboard

Windows 8 on-screen 26

Know Your Motion Tablet 17, 25

Accessories 26 Getting Started 26 Support 26 User’s Guide 26

Knowledge Base 14, 72

LCD

View Anywhere 3 left- or right-handed options 21 left-handedness 71 locking

the tablet 12

microphones

configure 31

using 30 mobile broadband 10

configuring settings 10

connecting to 10, 22 mobile broadband with GPS

troubleshooting 69 mobile Broadband with GPS module 2 Motion Computing Accessories 14, 57 Motion Computing applications

Know Your Motion Tablet 25

Motion Tablet Center 17 Motion Computing Store 14, 28 Motion Computing Support 14, 63 Motion Optimized power plan 24 Motion Tablet Center 17

Advanced settings, Power 25

Advanced settings, Tablet 23

button 29

flicks settings 19

pen and touch settings 18

power settings 23

Tablet PC settings 20

tablet settings 18

touch settings 19, 20

using 17

Wireless settings 21, 22

Index 74

OmniPass

create a user account 48 enroll as a new OmniPass user 48 set up a fingerprint password 47 starting 47

optimization

power plan 24

optional features 2, 3

Computrace® Complete 3 mobile broadband with GPS 2 security 2 TPM 3 View Anywhere display 3

Page Down 29 Page Up 29 password replacement

about 49 passwords and user accounts 52 Pen 8 pen

care and maintenance 59

disable function button 16

tether 13

troubleshooting 65

using 16 pen and touch 16 pen and touch display

configure 20, 65, 66 pen and touch settings 16, 18 power adapter

port 6 power button

blinking 64

change behavior 25 power plan

change 24

create 25

customize 25

Motion Optimized 24

Power Saver 70 power settings 23

recovery drive

creating 54 refresh your PC 55 reset your PC 55 using 55

using a Windows 8 recovery drive 55 recovery image 13 recycle old computer 72 refresh your PC 55 removing the battery 43 replacing pen tips 60 replacing the battery 43 reset your PC 55 restoring your system 54

creating a Windows 8 recovery drive

using system restore 56

using the Windows 8 recovery drive

55 right-click 16 rotating the display 71

scratch resistance 1 scratches 71 screen

orientation 21

rotation 21 security 2 serial number 53 setting up

docking station 13

external monitor 14

mobile broadband 10

the tablet PC 9 setting up users and passwords 52 Shift+Tab 29 shut down 64 SIM card slot 51 sleep 12 sleep mode 12 smart card reader 49

Index 75

SnapWorks™ by Motion® 34

configuring settings 35 copying a photo 37 editing a photo 36 help 36 printing a photo 37 sending a photo 37

taking a photo 34 software solutions 57 specifications 1 speech recognition 31–32

setting up 32 status light 5, 41 swapping batteries 44 System Restore 56

Tab key 29 tablet PC

accessories 14

optional features 2

software 57

specifications 1

training tutorials 72 Tablet PC settings 20 Tablet PC Tips & Tricks 14 tablet settings 18 taking a photo 34 text

entering 26 touch

pointer, adjusting 19

pointer, show or hide 19

troubleshooting 65

using 16 touch settings 19, 20 touchscreen display 6 TPM 3 training 14 training classes

corporate 72 training tutorials 72 traveling with your tablet PC 62

troubleshooting

audio issues 69 battery 65 battery issues 65 bluetooth issues 68 input 65 mobile broadband with GPS 69 network issues 67 ports and connectors issues 66 power issues 63 system issues 70 touch or pen issues 65 Wi-Fi issues 67

USB port 6

troubleshooting 66 user accounts 52 using

microphones 30

speech recognition 31 using a Windows 8 recovery drive 55

View Anywhere display 3 voice commands 31, 32

web camera 6, 33 Windows

Setup wizard 9

speech recognition 31 Windows Power Options 25 Windows® Action Center 52 wireless

connecting to 22

setting up mobile broadband 10 wireless networking 10 wireless settings 21 WWLAN. See mobile broadband

zoom in and out 16

Index 76
